DTS821
Digital Telephone Set
DTS821
DIGITAL TELEPHONE SET
INSTALLATION AND USER’S MANUAL
This product is designed by Telesis CZ Ltd nd it may connect to digital subscriber
ports of Telesis brand PBX and switching systems
Designer : Telesis CZ Ltd
U Jeslí 1851/47
193 00 Praha 9
tel.:+420261090171
info@telesis.cz
Doc No: IH/1030/eng/ver1.03
October 2008
TELESIS CZ©
Before Enjoying Your New Digital Set
1. Please read this manual carefully
2. Avoid exposure to heat sources or direct sunlight for your DTS821
3. You may clean only the surface of your DTS821 with a slightly wet dust-cloth
4. Never use any chemicals for cleaning
5. Be careful not to drop any liquid on your DTS821
6. Be careful to place your DTS821 on a flat surface without any vibrations.
Otherwise it may drop and may be damaged or may cause damages
7. Never connect any connectors on your DTS821 to the MAINS or any other high
voltage or current sources
8. Connect your DTS821 only to digital subscriber ports of your Telesis brand PBX or
switching system. Contact your local Telesis Dealer for his assistance.
DTS821 Package
1. Telephone body / 1 pc
9. Your DTS821 does not contain any parts for maintenance. In case of any failure, do
not open any covers of your DTS821. Please contact your local Telesis Dealer for his
assistance.
10. Do not loose any screws on your DTS821
Thank you
... for purchasing the DTS821 Digital Telephone Set. It is specially designed for Telesis
brand PBX and switching systems for your comfort. It is manufactured to the highest
quality standards and tested vigorously to comply with requirement for its product
specifications.
In this manual, you will find basic information about quickly setting up your digital
telephone set and starting to use it. We hope that this simplified manual will get you
started and help you familiarize with your new digital telephone set.
For the appropriate operation of your new digital telephone set, your Telesis PBX or
switching system may need additional hardware, programming and/or licencing.
Please contact your local Telesis Dealer for details.
We hope that your DTS821 Digital Telephone Set will serve you well and provide you
with all your communication needs now and in the future.
2. Handset / 1 pc
3. Handset to body cord / 1 pc
4. Line cord / 1 pc
5. Installation and User’s manual / 1 pc
DTS821 in Brief
DTS821 is an executive digital telephone set for “Telesis PX24 Hybrid IP PBX
Business Phone Systems” and “Telesis X1 Switching Systems” for the comfort of the
user. DTS821 has easy-to-use quick-access keys, menu keys and numerous dedicated
keys for various telephony tasks and personnel settings. It has a large back-lighted
graphic LCD.
DTS821 is connected and powered by a single pair of wires, which is connected to the
digital subscriber ports of a Telesis PBX system. The DTS821 handles multiple calls
simultaneously, such as receiving a new call while keeping another on hold.
Intelligent algorithms within the operating system of the Telesis PBX or switching
systems make the firmware upgrade of DTS821 digital sets automatic whenever new
features are added in time. Furthermore, since all the user parameters are stored in
Telesis PBX or switching system, replacing and/or upgrading a DTS821 digital set
does not require any re-programming.
2
3
DTS821 General Features
DTS821 Advanced Features
1. Easy-to-use menu
2. Calling number display
3. Calling name display
4. Received calls list
5. Lost calls list
6. Called numbers list
7. Calling from directory
8. Call forwarding (unconditional, no-answer, on-busy)
9. Message waiting
10. Hot-line
11. Reminder service
12. Do not disturb
13. Hands-free and mute
14. Volume control
15. Ring-melody level control
16. Transfer and flash keys
17. Conference, Disconnect ,Redial keys
1. Large graphic LCD
2. Language options
3. Continuously back-lighted dial keypad
4. Flexibility with using the Shift key
5. Easy access to hundreds of users
6. Busy display panel for hundreds of users
7. Led indicators
8. Personal conversation recording with
a single key
9. Tracing transferred calls and acting (like
recollecting)
10. Numerous composable ring melodies
11. Automatic firmware update
DTS821 Recommended Enviromental Conditions
1. Temperature range: 0-40 °C
2. Humidity range: %0-85 (non-condensing)
18. Call park keys
19. Programmable function keys
20. Headset and microphone jacks
DTS821 Choosing the Right Location
Ensure that the location, where your DTS821 Digital Telephone Set resides, does not
contain:
1. High voltage lines, smoke, dust, gas or radiation (such as a generator, photocopier
etc.)
2. Radio equipment that generates or emits high level signals
3. Sever, pipes, or valves that could leak or cause condensation
4. Vibration causing the set
5. Exposure heat sources or direct sunlight
4
5

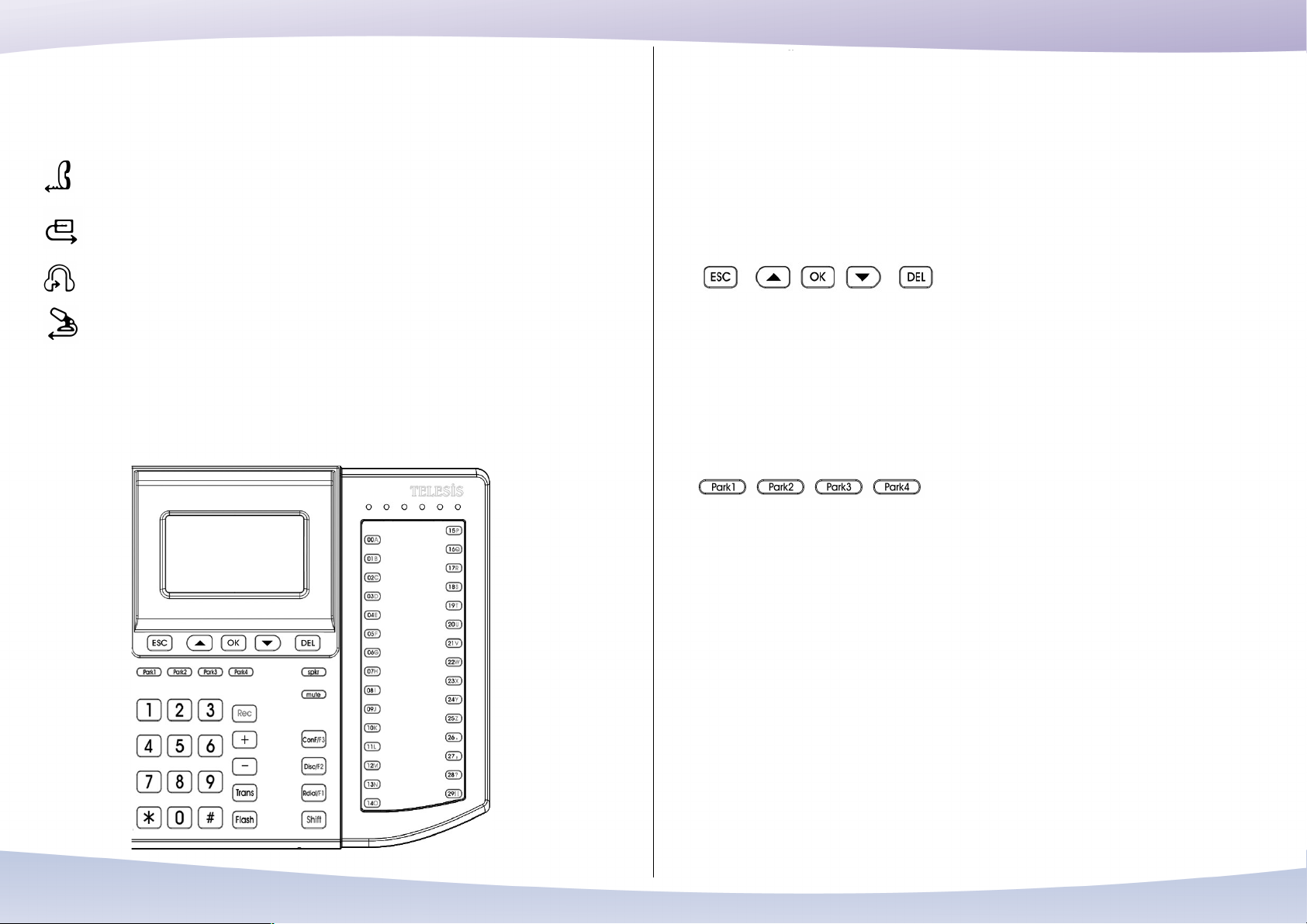

DTS821 Connections
DTS821 Dial Keypad
Connectors on the body of the DTS821 Digital Telephone Set are clearly marked with
following signs. Please do the connections appropriately.
Connect the handset cord into this connector
Connect the line cord into this connector
Connect the optional headset into this connector
Connect the optional microphone into this connector
DTS821 Keys in General
DTS821 Digital Telephone Set has 62 keys in total. Most of the keys are equipped with
the advanced back-lighting technology, which is developed by Telesis A.S.
Dial Keypad is a 4x3 matrix, which includes the number keys 0-9 and additional * and
# keys. This keypad is continuously but slightly back-lighted for fashion as well as
readability in low light conditions.
DTS821 Menu Keys (Navigation Keys)
DTS821 Digital Telephone Set has 5 navigation keys for menu functions.
OK key is to operate or confirm a selection within the menu. / keys are up and
down keys respectively. They are used to display menu selections and navigate within
the menu. ESC key is to leave the menu or cancel a selection. DEL key is to delete the
data edited (such as numbers) whenever it is necessary.
DTS821 Call Park Keys
DTS821 Digital Telephone Set has 4 Call Park keys in total.
When the DTS821 is in conversation state, the active call may be parked on a free park
key. Park keys are distinguished with their back-lighting states. If a park key is not
lighted (OFF state), its is free. If a park key is lighted (ON state), it has a parked call.
When a free park key is pressed, the active call parks on it and the DTS821 becomes
free for the next call. When a lighted park key is pressed again then the parked call on
this key is retrieved.
DTS821 Hands-free and Mute Keys
Spkr key starts the handsfree function. When Spkr key is pressed, it lights ON. Mute
key starts the mute function. When Mute key is pressed, it lights ON. During the mute
state, the DTS821 stops transmitting voice towards the other party in conversation.
6
7

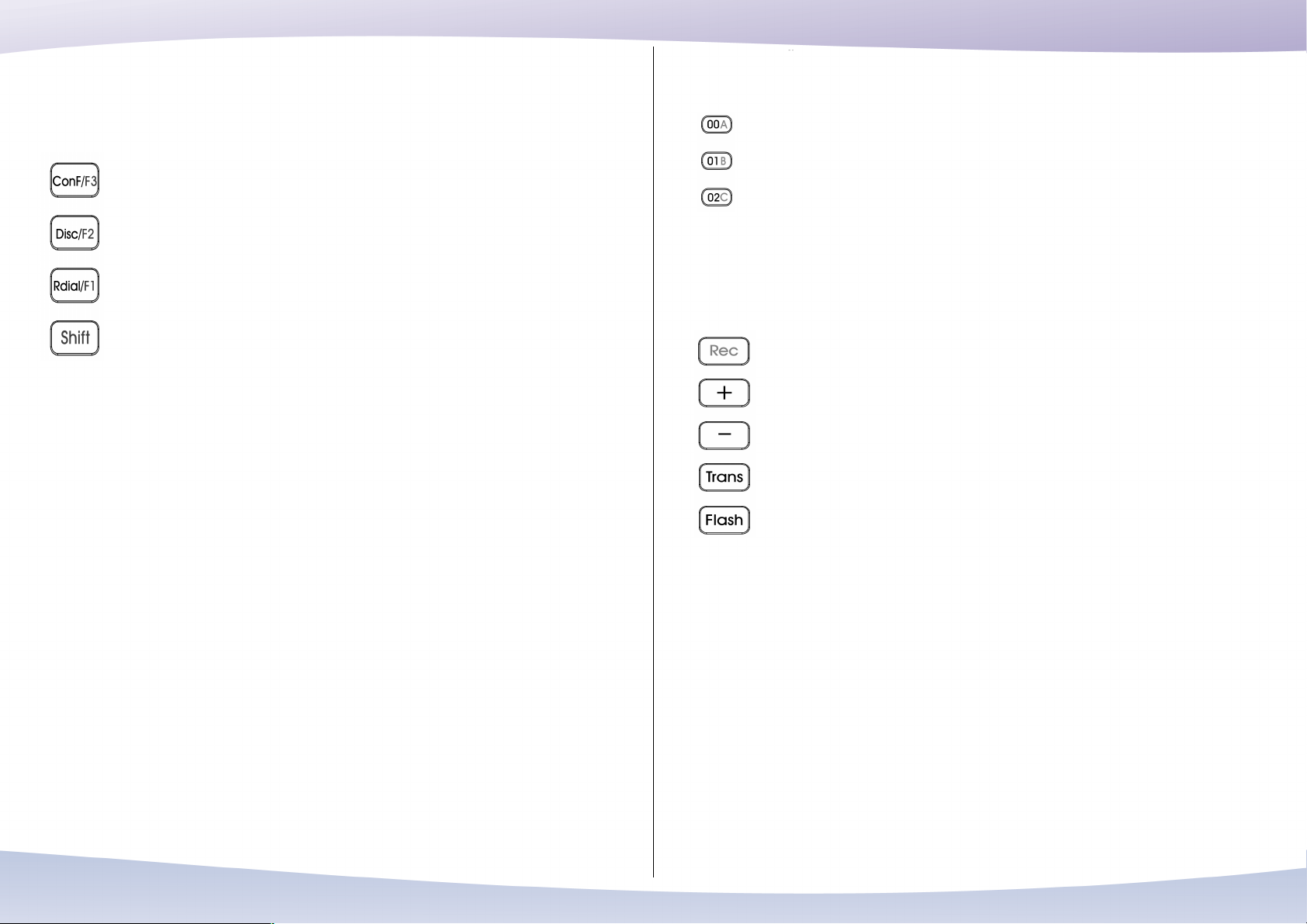

DTS821 Shift and Function Keys
DTS821 Alphabetic Keyboard
Shift key together with F1, F2, F3 keys provide several flexible functions in usage.
When the Shift key is OFF (not lighted), Rdial key is used for re-dialing,
Disc key is used for disconnecting the call, and Conf key is used for creating
a conference.
If the Shift key is pressed once or more than once, shift state changes. Shift
states are indicated and distinguished with the backligthing state of the key.
Shift key may be fast blinking, slow blinking, or continuously lighted. In
each of these shift states, a different function can be programmed for F1, F2,
F3 function keys. In other words, when the Shift key is OFF, F1 key is for redialing. When the Shift is fast blinking, F1 key may be for another function.
When the Shift is slowly blinking, F1 key may be for some other function.
When the Shift is continuously lighted, F1 key may be for a completely
different function.
DTS821 Shift and Quick-access Keys
DTS821 Digital Telephone Set has 30 quick-access keys in total. These keys are
numbered 00 to 29. Each key is with the back-lighting technology. Whenever a key is
pressed, a pre-programmed number on this key is dialed. If pre-programmed numbers
of these keys are the local users of the Telesis PBX or switching system then quickaccess keys also operate as the BDP (busy display panel). That means, keys show busy,
free, ringing states of local users with their lights ON, OFF, blinking respectively.
If the Shift key is pressed once or more than once, shift state changes. Shift states are
indicated and distinguished by the backligthing state of the key. Shift key may be fast
blinking, slow blinking, or continuously lighted. In each of these shift states, a
different number can be programmed onto a quick-access key. In other words, when
the Shift key is OFF, “quick-access key 00” may be programmed for the number
“aaa…..”. When the Shift key is fast blinking, “quick-access key 00” may be
programmed for the number “bbb…..”. When the Shift key is slowly blinking, “quickaccess key 00” may be programmed for the number “ccc…..”. And when the Shift key
is continuously lighted, “quick-access key 00” may be programmed for the number
“ccc…..”.
Quick-access keys on the DTS821 Digital Telephone Set
may also be used as Alphabetic or text keys. Whenever it
is necessary DTS821 Digital Telephone Set automatically
interprets pressed quick-access keys as letters or characters
right next to the numbers. This alphabetic or text keyboard
is especially useful in operating some functions within the
DTS821. One example is searching names through the
Directory list.
DTS821 Other Keys
Fash key is to hold the call before transfer or colsultation. Pressing the key
again retrives the held call.
Trans key is to transfer a held call to another destination.
+/- keys are to increase and decrease volume and ringer volume.
Rec key is to record a personal conversation bi-directionally (i.e., both
calling and called party’s voices are recorded). In conversation state,
pressing Rec key starts recording and the key is lighted (ON). When the
key is pressed again, recording stops and the key lights OFF. During the
same conversation record function can be used several times for multiple
and partial recordings.
Note: Certain parts of the software which deliver particular functionality to a particular
Telesis PBX or switching system are technologically secured to prevent their
unlicensed use. The licensed optional parts should be enabled as detailed in technical
documents of the relevant Telesis PBX or switching system. Otherwise the optional
parts of the software terminate a short time after the Telesis PBX or switching system
is turned on. Personal conversation recording with using Rec key may also need your
Telesis PBX or switching system to have additional hardware, programming and/or
licencing. Please contact your local Telesis Dealer for details.
9
8

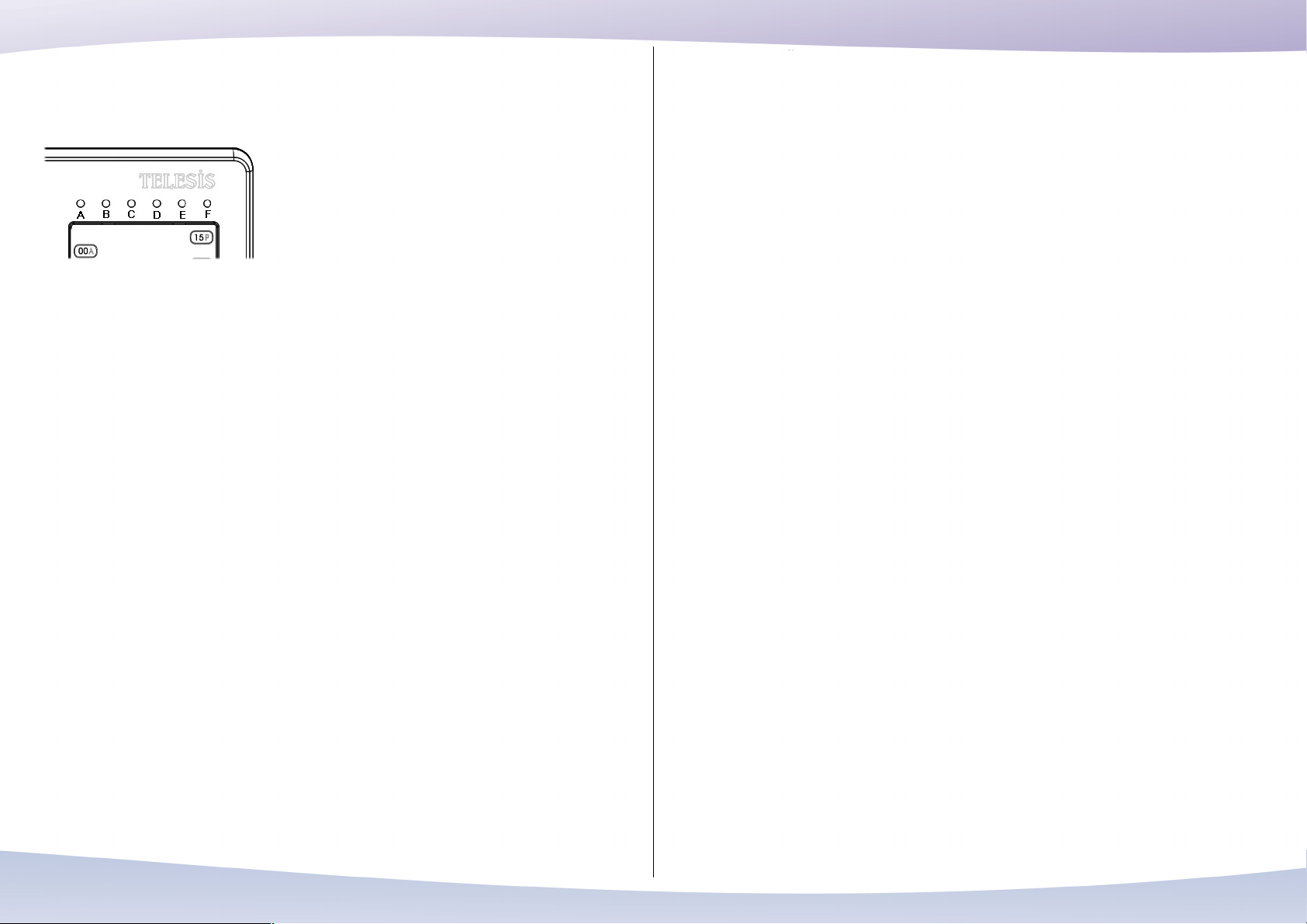

DTS821 Status Lamps
<Setting ringer melody>,
DTS821 Digital Telephone Set has 6 status lamps (LED type) in total.
A lamp is ON when the DTS821 is in-use. It blinks in ringing state.
B lamp blinks fast when there is a “message waiting”. It blinks slowly when there is a
“voice mail” or “personal voice recording” on the DTS821. It is ON (continuously
lighted) when there are both “message waiting” and “voice mail (or voice record)”.
C lamp blinks when “do not disturb service” is active.
D lamp blinks when there is a “call waiting”.
E lamp blinks when “reminder (wake-up) service” is active.
F lamp blinks fast when “unconditional call forwarding service” is active. It blinks fast
if “divert routed calls service” is active. It is ON (continuously lighted) when both
services are active.
<Programming function keys>,
<Programming quick access keys>,
<Call forward Unconditional>,
<Call forward busy>,
<Call forward no reply>,
<Hot line>,
<Call waiting>,
<Do not disturb> ,
<Head set>,
<Wake up>,
<About Xymphony Telesis>.
Make your selections and operate functions with using the navigation keys.
OK key is to operate or confirm a selection in menu. / keys are up and down
keys respectively. They are used to display menu selections and navigate the menu.
ESC key is to leave the menu or cancel a selection. DEL key is to delete data edited
whenever it is necessary.
DTS821 Menus
Menu of the DTS821 Digital Telephone Set has the following selections:
<Missed calls>,
<Dialed numbers>,
<Incoming calls>,
<Voice messages>,
<Directory>,
<Setting volume control>,
<Setting ringer volume>,
10
DTS821 Cleaning
You may clean your DTS821 Digital Telephone Set if it is necessary only. Disconnect
the line cord from the body of your set before cleaning. Clean only the surface of your
DTS821 with a slightly wet dust-cloth . Never use any chemical cleaners (liquid or
spray). Leave it to be dried and then connect the line cord again.
DTS821 Periodic Maintenance
Your DTS821 Digital Telephone Set does not contain any parts for periodic
maintenance. Consequently, periodic maintenance is not a condition at all. However,
you may prefer (or need) some maintenance of your DTS821 for some reason. Please
contact your local Telesis Dealer for his assistance then. In any case, never do this by
yourself. Do not open any covers of your digital telephone set. Do not untighten any
screws on your DTS821.
11
DTS821 Technical Specifications:
LCD
Type : Back-lighted, graphic
# of rows : 8
# of columns : 25
Total # of characters : 200
KEYS
Total # of keys : 62
Dial keypad : 4x3, continuously back-lighted for fashion and usability
Navigation : 5 keys
Call park : 4 back-lighted keys
Call record : 1 red back-lighted key
Call transfer : 1 key
Volume control : 2 keys (up and down)
Shift function : 1 green back-lighted key
Quick access : Back-lighted 30 keys (120 with using the Shift key)
Redial : 1 key
Transfer : 1 key
Disconnect : 1 key
Conference : 1 key
Speaker-phone : 1 back-lighted key
Mute : 1 back-lighted key
Flash : 1 key
Function keys : 3 keys (more functions with using the Shift key)
Text keypad : 30 characters (English Alphabet plus others)
OTHERS
Headphone jack : Yes
Microphone jack : Yes
12
This page is left blank intentionally
Loading...
