CONTENTS /ENGLISH

Important! ..................................................................................................................................................................................................... 203

System Functions ........................................................................................................................................................................................204

Transmitter ...................................................................................................................................................................................................205

Receiver 860RX ..........................................................................................................................................................................................206

Installing the receiver and the receiver antenna ...............................................................................................................................20

Co-programming the transmitter and receiver ................................................................................................................................ 208

Erasing all the transmitters in the receiver ......................................................................................................................................... 208

Replace a transmitter in the receiver ...................................................................................................................................................208

Lock/unlock a receiver ..............................................................................................................................................................................209

Radio module mode ..................................................................................................................................................................................210

Changing the frequency ............................................................................................................................................................................211

Automatic Shut-off .....................................................................................................................................................................................213

Pin code function ........................................................................................................................................................................................214

Erasing all pin-codes ..................................................................................................................................................................................215

Time delay between pushbuttons ......................................................................................................................................................... 215

Function selector ........................................................................................................................................................................................ 216

The transmitter’s function selections and led indications ..............................................................................................................218

Yellow LED/start-up .................................................................................................................................................................................. 219

The receiver’s function selection/relay functions ..............................................................................................................................220

Momentary or latched relay functions ................................................................................................................................................226

Interlocks ......................................................................................................................................................................................................226

Stop function selector ............................................................................................................................................................................... 228

Trouble shooting .........................................................................................................................................................................................229

Disposal ......................................................................................................................................................................................................... 229

Settings form: receiver and transmitter ............................................................................................................................................... 230

7

IMPORTANT!

In order to get the best out of your system it is important you take the time to read through

the manual before you start to install/program your equipment.

ENSURE THAT:

• Qualified personnel receive a review of the system’s functions before it is used.

• Only qualified personnel have access to the transmitter.

• The transmitter is not left unsupervised.

• The transmitter is switched off when not in use.

• The operator always has a complete view of the equipment when radio controlled.

TO GET STARTED:

• Start by entering the system’s serial number on the Settings form for the receiver and transmitter settings.
Enter the other data on the form as you program the system.

• It is an advantage to program as many of the required functions as possible before the receiver is installed, if
the receiver is to be placed high up or in any other inaccessible position.

• Check that the supply voltage to the receiver is correct.

ESFRDEEN DKNOSENL

203

SYSTEM FUNCTIONS

Frequency

System 860 uses 69 different frequencies, which makes it possible to use several transmitters and receivers
within the same coverage area.

Battery status

The transmitter has an integrated battery indicator which shows when only approx. 10% of the battery capacity
remains.

Automatic shut-off

The transmitter has an automatic shut-off function built-in to conserve battery power. The available selections
for automatic shut-off are: after 2, 6 or 12 minutes, or no automatic shut-off.

Pin code

Up to 10 individual/personal PIN codes can be programmed on each transmitter.

Time delay between pushbuttons

Time delays can be programmed between pushbuttons and between first and second step in the pushbutton.

Logging off/on

The receiver can be programmed to accept up to three different transmitters, where each transmitter has its
own unique code. For reasons of safety only one transmitter at a time can be logged on. The current transmit­ter must first be logged off before another transmitter can be logged on.

Function selection

The system offers the possibility of programming different combinations of relay functions.

Momentary or latched relay functions

Each function relay can be programmed for momentary or latched relay operations.

Interlocking

Using this function it is possible to interlock/prioritise a relay function/button before another. If interlocking has
been programmed and two buttons on the transmitter are pressed simultaneously, one of the buttons is given
priority/interlocked over the other, which means, for example, up and down movements can not be operated at
the same time.

Safety relay

The receiver is supplied with two safety relays, which are continuously monitored.

Integrated safety function when the transmitter starts: 0-position monitoring

If any button is inadvertently pressed when the transmitter is starting, the transmitter will not start. This is

EN DE FR ES NL SE NO DK

indicated by a red LED. So-called 0-position monitoring.

204

TRANSMITTER

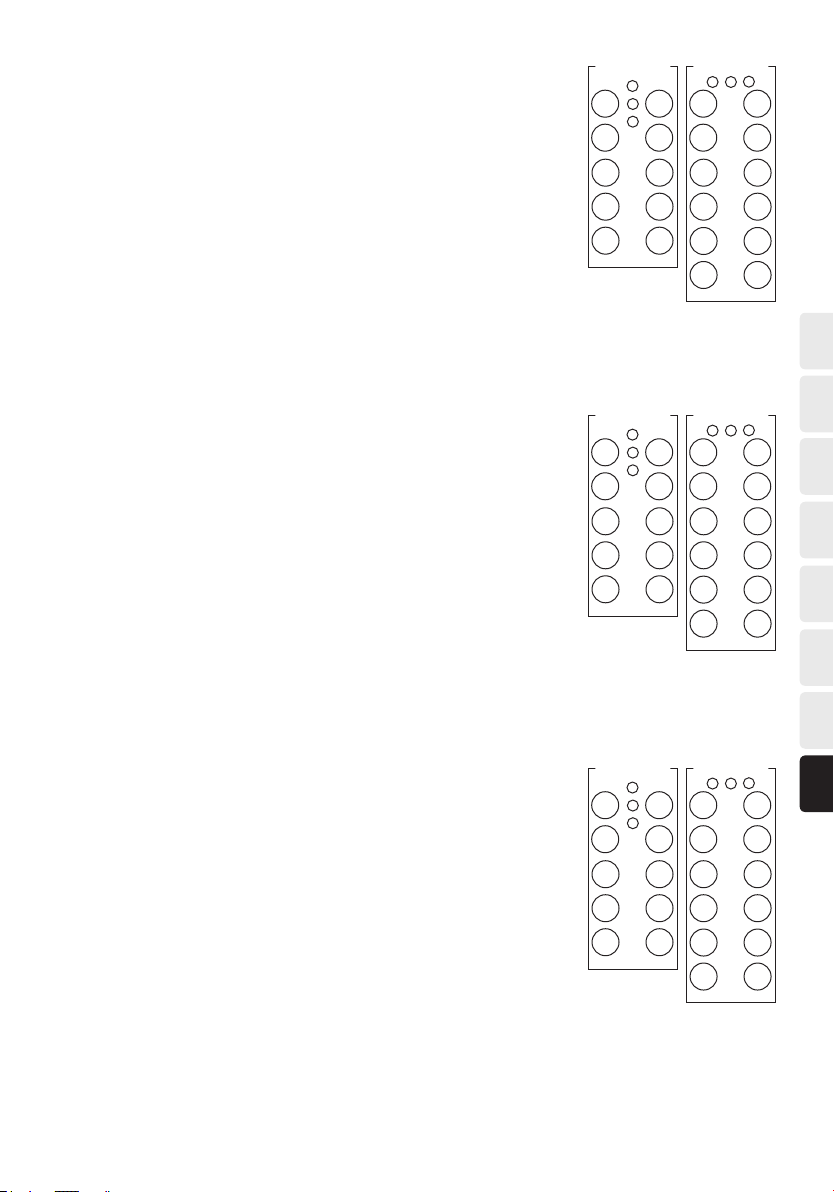

Pictures of the transmitter can be found on the fold-out page.

Technical Specifications

860TX-10 860TX-12

Stop button Stop button

10 two way push buttons 12 two way push buttons

Internal rechargeable battery External rechargeable battery

Radio: PLL Synthesizer Radio: PLL Synthesizer

69 different frequencies, 433.075 - 434.775 MHz 69 different frequencies, 433.075 - 434.775 MHz

Enclosure size: 160x70x35 mm Enclosure size: 210x80x40 mm

Weight: approx. 270 g Weight: approx. 400 g

Enclosure class: IP 54 Enclosure class: IP 65

HOW TO START THE TRANSMITTER

1. The stop button must be pulled out.

2. Press the start buttons simultaneously for at least 1 second.

3. Release the start buttons.

4. LED 3 is lit green to indicate the transmitter is running.

HOW TO START A TRANSMITTER WITH A PIN CODE

1. The stop button must be pulled out.

2. Press the start buttons simultaneously for at least 1 second.

3. Release the buttons.
– The yellow (2) and green (3) LEDs flash.

4. Enter the PIN code (4 numbers).
– The green LED (3) lights continuously.

If the wrong PIN code is entered the transmitter will switch itself off.

HOW TO TURN OFF THE TRANSMITTER

To turn off the transmitter press the stop button. All relays in the receiver are disconnected when the stop
button is pressed on the transmitter.

HOW TO CHARGE THE TRANSMITTER:

Pictures of charging the transmitter can be found on the fold-out page.

• The 860TX-10 transmitter is supplied with an internal rechargeable battery and an integrated charger.

• The 860TX-12 transmitter is supplied with an external rechargeable battery and a charger unit.

The LED in the transmitter indicates red or green depending on the status of the battery. The operating time
for the transmitter is approx. 30 hours for the 860TX-10 and 20 hours for the 860TX-12 with continuous
usage. The LED (3) changes colour to red when it is time to charge the battery and approximately 10 % of the
battery capacity remains.

The LED in the 860TX-10 transmitter and in the 860TX-12 charger unit, will remain red during charging
(full charge time: approx. 4 hours) until fully charged when it changes colour to green. The battery can not be
overcharged.

NOTE! The life span of the battery increases if you wait until the LED changes to red before recharging. However, it
should be charged at least once every second month.

– Charging: 12V-35V DC (500 mA) or 230V AC via an adaptor.

ESFRDEEN DKNOSENL

205

RECEIVER 860RX

Pictures of the receiver can be found on the fold-out page.

Technical Specifications

Relay outputs: Midi: 10+2 for stop function, Maxi: 24+2 for stop function

Stop relay: potential free, makes 8A AC1

Function relay: potential free, breaks/makes 16A AC1

Radio: PLL synthesizer

69 different frequencies, 433.075 - 434.775 MHz

Size: 250x175x75 mm

Enclosure class: IP 65

Antenna connector: BNC

SUPPLY VOLTAGE POWER CONSUMPTION: MIN. POWER CONSUMPTION: MAX.

12V DC 150 mA 1 A

24V DC 60 mA 600 mA

24V AC

48V AC

115V AC

230V AC

80 mA 800 mA

100 mA 400 mA

70 mA 200 mA

25 mA 100 mA

The different status LEDs on the receiver

Yellow LED 2 lights when the receiver has the correct supply voltage.

Yellow LEDs 6 and 10 flash 1, 2 or 3 times, depending on how many transmitters are programmed on the
receiver.

Green LED 12 lights when the receiver receives radio signals (433.075 – 434.775 MHz).

Green LEDs 4 and 8 lights when the receiver has locked on a transmitter.

Red LEDs 5 and 9 indicate that there is a fault on the receiver.

Each relay is fitted with a red LED that lights when the relay is active.

EN DE FR ES NL SE NO DK

206

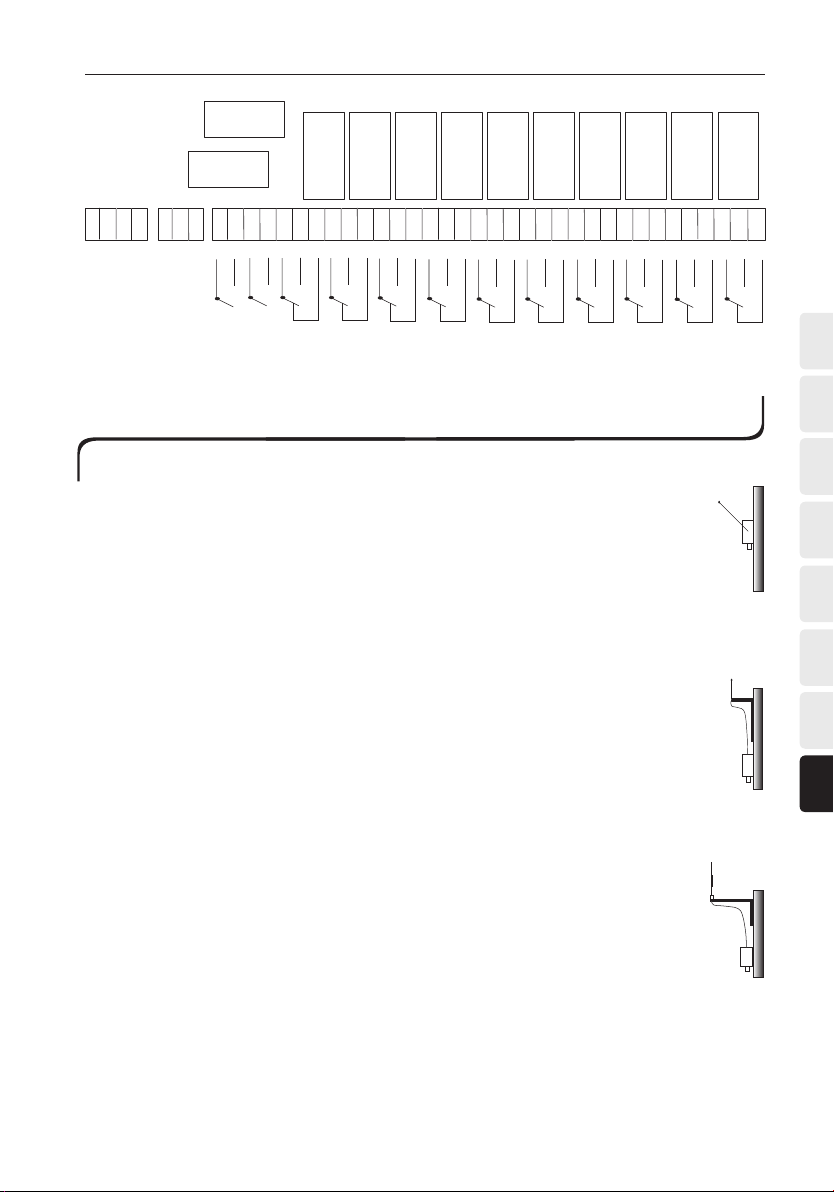

1

2

3

SR1

SR1

4 5

6

7 8 9 10

8 9 10 11 12 13 1 4 15 16 17 1 8 1 9 2 0 21 2 2 2 3 24 25 26 2 7 2 8 2 9 30 31 32 3 3 34 35 36 37 38 3 9 40 41

1 2 3 4

5 6 7

230V AC

115V AC

48 VAC

0 V

24V AC /DC

12V DC

0 V

C NO NC

C NO NC

C NO NC

C

NO NC

C NO NC

C NO NC

C NO NC

SR2

1 2 3 4 5 6

SR1

C NO NC

C NO NC

C NO NC

7 8 9 10

CONNECTING THE RECEIVER

To utilize the safety of the system, be sure to use relays SR1, SR2 as stop relays in the safety circuitry of the
object to be controlled.

INSTALLING THE RECEIVER AND THE RECEIVER ANTENNA

The receiver should be installed:

• As far as possible, protected from the wind and weather. Do not install the receiver in such a
way that it can be exposed to exceptional moist conditions such as high-pressure washing

• With the cable glands downward.

Placement of the receiver antenna:

• Place the antenna high above the ground.

• The antenna should not be in the vicinity of metal objects such as girders, electrical cables and
other antennas.

1/2

ESFRDEEN DKNOSENL

The 1/2-wave antenna is ground plane independent, which is beneficial and a great advantage when
there is not a “natural” ground plane such as a metal plate or vehicle roof. It is important that the
antenna is angled out from the wall if the receiver is installed on a wall.

The 1/4-433K antenna with three metre coaxial cable makes it possible to place the antenna high
and unobstructed. To get the best possible range with the 1/4-433K antenna it should be installed
on a flat roof, free from other metal objects and antennae. When installing the antenna on a vehicle
it is suitable to use a vehicle bracket (F1).

The 5/8-wave antenna with three metre coaxial cable makes it possible to place the antenna high
and unobstructed. To get the best possible range with the 5/8-wave antenna it should be installed
on a flat roof, free from other metal objects and antennae. When installing the antenna on a wall it
is suitable to use a wall bracket (VM1).

1/4-433K

5/8

207

CO-PROGRAMMING THE TRANSMITTER AND RECEIVER

The receiver can be programmed to accept up to three different transmitters, where each transmitter has its
own unique code. The LEDs 6 and 10 on the receiver indicate how many transmitters have been programmed
in the receiver.

Not flashing = No transmitter has been programmed

1 flash = 1 transmitter has been programmed

2 flashes = 2 transmitters have been programmed

3 flashes = 3 transmitters have been programmed

1. On the receiver: turn the function selector switch 2 to the ON position.

2. Press the reset button on the receiver.
– The green, red and yellow LEDs 4-6 and 8-10 lights.

3. Release the reset button.
– The green (4 and 8) and red (5 and 9) LEDs go out. The yellow LEDs 6 and 10 light continuously.

(If the yellow and red LEDs flash alternately then three transmitters have already been programmed on the

receiver, so all the transmitters must be erased and reprogrammed.)

4. Start the transmitter by pressing the start buttons simultaneously for at least 1 second.
– Release the buttons.

5. Press the start buttons simultaneously again until the yellow LEDs 6 and 10 on the receiver start to flash.
The receiver has found the transmitter.

6 On the receiver: turn the function selector switch 2 to the OFF position.
7 The transmitter has been programmed.

NOTE! Do not forget to complete the Settings form after programming!

ERASING ALL THE TRANSMITTERS IN THE RECEIVER

ON THE RECEIVER

1. Turn the function selector switch 2 to the ON position.

2. Press the reset button.
– The green (4 and 8), red (5 and 9) and yellow (6 and 10) LEDs light continuously.

3. Release the reset button.
– The green (4 and 8) and red (5 and 9) LEDs go out. The yellow (6 and 10) LEDs light continuously.
(If the yellow and red LEDs flash alternately this means 3 transmitters have been programmed in the receiver.)

4. Turn switch 2 to the OFF position.

5. Turn switch 2 to the ON position within 2 seconds.

EN DE FR ES NL SE NO DK

– The yellow (6 and 10) LEDs flash and the receiver has been erased.

6. Turn switch 2 to the OFF position.

REPLACE A TRANSMITTER IN THE RECEIVER

It is possible to erase a programmed transmitter and program a new transmitter into the receiver without
putting the receivers DIP-switch in program mode. It is very helpful if you would like to replace a transmitter
without going up to a high mounted receiver on a crane. This operation will be done from the transmitter that
should be programmed into the receiver.

208

DO THE FOLLOWING TO REPLACE A TRANSMITTER:

1. Check the ID-code on the transmitter that should be erased from the receiver.

2. Start-up the transmitter that should be programmed into the receiver. You must be in the working range of
the receiver that should be erased and programmed.

3. Press the stop button on the transmitter.
– The red LED 3 lights continuously for 1 second, then (on the transmitter) the yellow LED 2 lights continuously

and the red LED 3 starts to flash.

4. Enter the PIN-code. You have 2 seconds per button. If the time elapses, the transmitter will switch off.
– If no PIN-code has been programmed you should enter 4 zeros (0000).

5. If the PIN-code is ok, the transmitters yellow LED 2 goes out.

If the wrong PIN-code is entered the transmitter will switch off.

6. Enter the ID-code for the transmitter that should be erased (max 5 numbers). You have 2 seconds per but
ton.

Please note that no zeros should be entered if the ID-code is less then 5 numbers. For example: ID-code 678

should be 6, 7, 8 and not 0, 0, 6, 7, 8.

7. When the ID-code is entered the transmitters red LED 3 lights continuously and the yellow LED 2 will
flash. The transmitter will now send a command (10s) to the receiver to erase the selected ID-code and
program the ID-code for the operating transmitter.

8. When the transmitter has switched off it can be started-up and used with the selected receiver.

Please note that the erased transmitter can no longer be used together with the receiver.

LOCK/UNLOCK A RECEIVER

When a transmitter that is programmed to a receiver starts, the receiver “locks” on to the transmitter’s
ID code. In this position the receiver will only accept this transmitter (even if more transmitters have been
programmed on the receiver). The green LEDs 4 and 8 lights on the receiver to confirm that only the selected
transmitter can be used.

When another transmitter is to be used the receiver must first be unlocked. Another programmed transmitter
can then be locked on to the receiver.

UNLOCKING THE RECEIVER

The transmitter to be logged must be started/logged on.

On the logged on transmitter (Alternative 1):

1. Press the stop button on the transmitter.
– The red LED 3 lights continuously for 1 second, then (on the transmitter) the yellow LED 2 lights continuously

and the red LED 3 starts to flash.

2. Enter the PIN code. You have 2 seconds per button.
– If no PIN code has been programmed you should enter 4 zeros (0000) to unlock the receiver.

3. If the PIN code is approved, the transmitter sends a signal to unlock the receiver. The transmitter switches
itself off and is now logged out.

– The green LEDs 4 and 8 on the receiver go out and it is now possible for another programmed transmitter to

be logged on.

If the wrong PIN code is entered the transmitter will switch itself off without unlocking the receiver.

-

ESFRDEEN DKNOSENL

On the logged on transmitter (Alternative 2):

1. Press push button 9 (left start button) on the transmitter and then press stop button.
– The red LED 3 lights continuously for 1 second, then (on the transmitter) the yellow LED 1 flashes. The

transmitter then automatically sends a signal to unlock the receiver.. The transmitter switches itself off when
this operation is done and the transmitter is logged out. The green LEDs 4 and 8 on the receiver go out and it
is now possible for another programmed transmitter to be logged on. NOTE! this way of unlocking the

receiver requires that no dangerous function is placed on button 9 (left start button)

209

UNLOCKING THE RECEIVER WITHOUT A TRANSMITTER

1. Turn switch 2 to the ON position.

2. Press down the reset button.
– Green (4 and 8), red (5 and 9) and yellow (6 and 10) LEDs light continuously.

3. Release the reset button.
– The green (4 and 8) and red (5 and 9) LEDS go out. Yellow LED (6 and 10) lights continuously.

4. Turn switch 2 to the OFF position.

5. Yellow (6 and 10) LEDs go out.

The receiver can now be logged on to another transmitter.

RADIO MODULE MODE

If the 69 channel radio module is mounted in the transmitter it is possible to program the module to operate
in 3 modes. This is very useful when the 69 channel transmitter is used with a receiver with the 16+16 radio
modul (old 860 version). If the 16+16 channel radio module is mounted in the transmitter it is not possible to
select these modes.

Mode Channels

0 1-69

1 1-16

2 17-32

PROGRAMMING RADIO MODULE MODE

1. Start the transmitter by pressing the start buttons for at least 1 second.
– The red LED 3 lights continuously.

2. Release left start button, but hold right start button.

NOTE! You have 0.3 seconds to perform the action in

3. Release right start button and then select button 2 for programming radio module mode. (If you do not
press any of the function buttons the transmitter starts.)

– The yellow LED 2 lights continuously and the green LED 3 starts to flash.

4. Enter the safety code 5, 3, 4, 6. You have 5 seconds per button, if the time elapses the transmitter switches
off.

– The green LED 3 flashes and the yellow LED 2 goes out if the safety code is correct.

5. Enter a

EN DE FR ES NL SE NO DK

6. Restart the transmitter.

0 for mode 0 (1-69), a 1 for mode 1 (1-16) or a 2 for mode 2 (17-32).

– When you have entered the transmitting mode the yellow LED 1 flashes 3 times and the transmitting mode is

programmed. The transmitter switches itself off.

step 3.

210

CHANGING THE FREQUENCY

Programming/changing the frequency can only be carried out with the help of the transmitter.

Decide which channel/frequency you wish to transmit on by using the table below before you start program
ming. The receiver automatically detects and changes to the new frequency.

FREQUENCY TABLE (69 CHANNELS)

CHANNEL FREQUENCY CHANNEL FREQUENCY

01 433,075 MHz 36 433,950 MHz

02 433,100 MHz 37 433,975 MHz

03 433,125 MHz 38 434,000 MHz

04 433,150 MHz 39 434,025 MHz

05 433,175 MHz 40 434,050 MHz

06 433,200 MHz 41 434,075 MHz

07 433,225 MHz 42 434,100 MHz

08 433,250 MHz 43 434,125 MHz

09 433,275 MHz 44 434,150 MHz

10 433,300 MHz 45 434,175 MHz

11 433,325 MHz 46 434,200 MHz

12 433,350 MHz 47 434,225 MHz

13 433,375 MHz 48 434,250 MHz

14 433,400 MHz 49 434,275 MHz

15 433,425 MHz 50 434,300 MHz

16 433,450 MHz 51 434,325 MHz

17 433,475 MHz 52 434,350 MHz

18 433,500 MHz 53 434,375 MHz

19 433,525 MHz 54 434,400 MHz

20 433,550 MHz 55 434,425 MHz

21 433,575 MHz 56 434,450 MHz

22 433,600 MHz 57 434,475 MHz

23 433,625 MHz 58 434,500 MHz

24 433,650 MHz 59 434,525 MHz

25 433,675 MHz 60 434,550 MHz

26 433,700 MHz 61 434,575 MHz

27 433,725 MHz 62 434,600 MHz

28 433,750 MHz 63 434,625 MHz

29 433,775 MHz 64 434,650 MHz

30 433,800 MHz 65 434,675 MHz

31 433,825 MHz 66 434,700 MHz

32 433,850 MHz 67 434,725 MHz

33 433,875 MHz 68 434,750 MHz

34 433,900 MHz 69 434,775 MHz

35 433,925 MHz

-

ESFRDEEN DKNOSENL

211

FREQUENCY TABLE (16+16 CHANNELS)

CHANNEL FREQUENCY STRAP CHANNEL FREQUENCY STRAP

01 434.650 MHz Open 17 434.625 MHz Closed

02 434.600 MHz Open 18 434.575 MHz Closed

03 434.550 MHz Open 19 434.525 MHz Closed

04 434.500 MHz Open 20 434.475 MHz Closed

05 434.450 MHz Open 21 434.425 MHz Closed

06 434.400 MHz Open 22 434.375 MHz Closed

07 434.350 MHz Open 23 434.325 MHz Closed

08 434.300 MHz Open 24 434.275 MHz Closed

09 434.250 MHz Open 25 434.225 MHz Closed

10 434.200 MHz Open 26 434.175 MHz Closed

11 434.150 MHz Open 27 434.125 MHz Closed

12 434.100 MHz Open 28 434.075 MHz Closed

13 434.050 MHz Open 29 434.025 MHz Closed

14 434.000 MHz Open 30 434.975 MHz Closed

15 433.950 MHz Open 31 433.925 MHz Closed

16 433,900 MHz Open 32 433,875 MHz Closed

CHANGING THE FREQUENCY

1. Start the transmitter by pressing the start buttons for at least 1 second.
– The red LED 3 lights continuously.

2. Release left start button, but hold right start button.

NOTE! You have 0.3 seconds to perform the action in

3. Release right start button and then select button 2 for the frequency. (If you do not press any of the function
buttons the transmitter starts.)

– The yellow LED 2 lights continuously and the green LED 3 starts to flash.

4. Enter the safety code 1, 2, 3, 4. You have 5 seconds per button, if the time elapses the transmitter switches
off.

– The green LED 3 flashes and the yellow LED 2 goes out if the safety code is correct.

5. Select the channel/frequency. For example, channel 02: first press the 0 button and then the 2 button.

EN DE FR ES NL SE NO DK

– The yellow LED 1 lights each time an accepted button is pressed. Once you have selected the frequency the

yellow LED (1) flashes 3 times and programming and the change of frequency are then complete.

6. Restart the transmitter.

Do not forget to write down the changes on the Settings form after programming!

step 3.

212

STEP UP/DOWN IN FREQUENCY

It is possible to move up or down in frequency before the transmitter is started-up.

1. Start the transmitter by pressing the start buttons for at least 1 second.

2. Release left start button, but hold right start button.

3. Press button 1 (yellow LED 1 indicates) to move up one step in frequency.
Press button 2 (yellow LED 2 indicates) to move down one step.

– Example: If you like to move up 5 frequency steps, you need to press button 1 five times.

4. Release all buttons and the transmitter starts on the new frequency.

AUTOMATIC SHUT-OFF

The transmitter can be programmed with an automatic shut-off function once the last command has been given
to conserve battery capacity. See the time options below.

Time option

Button 0 = No automatic shut-off.

Button 1 = Automatic shut-off after 2 minutes.

Button 2 = Automatic shut-off after 6 minutes.

Button 3 = Automatic shut-off after 12 minutes.

PROGRAMMING AUTOMATIC SHUT-OFF:

1. Start the transmitter by pressing the start buttons for at least 1 second.
– The red LED 3 lights continuously.

2. Release left start button, but hold right start button.

NOTE! You have 0.3 seconds to perform the action in

3. Release right start button and then select button 3 for automatic shut-off. (If you do not press any of the
function buttons the transmitter starts.)

– The yellow LED 2 lights continuously and the green LED 3 starts to flash.

4. Enter the safety code 1, 2, 3, 4. You have 5 seconds per button; if the time elapses the transmitter switches
off.

– The green LED 3 flashes and the yellow LED 2 goes out if the safety code is correct.

5. Select the required time option (see the options above).
– The yellow LED 1 lights each time an accepted button is pressed. Once you have selected an option the yellow

LED (1) flashes 3 times and programming is complete.

6. Restart the transmitter.

Do not forget to write down the changes on the Settings form after programming!

step 3.

ESFRDEEN DKNOSENL

213

PIN CODE FUNCTION

It is possible to program 10 PIN codes on each transmitter.

PROGRAMMING A PIN CODE:

1. Start the transmitter by pressing the start buttons for at least 1 second.
– The red LED 3 lights continuously.

2. Release left start button, but hold right start button.

NOTE! You have 0.3 seconds to perform the action in

3. Release right start button and select button 4 for the PIN code. (If you do not press any of the function but
tons the transmitter starts.)

– The yellow LED 2 lights continuously and the green LED 3 starts to flash.

4. Enter the safety code 1, 2, 3, 4. You have 5 seconds per button, if the time elapses the transmitter switches
off.

– The yellow LED 1 lights each time an accepted button is pressed.
– The green LED 3 flashes and the yellow LED 2 goes out if the safety code is correct.

5. Select the number (button) the PIN code should be programmed to (0-9).
– The green LED 3 flashes.
– The yellow LED 2 will light if the number is used by a PIN code.

6. Select en PIN code by entering a combination of 4 numbers. Confirm the code by repeating it.
– Once you have selected a PIN code the yellow LED (1) flashes 3 times and programming is complete. The

transmitter switches itself off.

7. Restart the transmitter.

NOTE! The PIN code combination 0000 cannot be used.

Do not forget to write down the changes on the Settings form after programming!

step 3.

CHANGING/ERASING THE PIN CODE:

1. Start the transmitter by pressing the start buttons for at least 1 second.
– The red LED 3 lights continuously.

2. Release left start button, but hold right start button.

NOTE! You have 0.3 seconds to perform the action in step 3.

3. Release right start button and select button 4 for the PIN code. (If you do not press any of the function but
tons the transmitter starts.)

– The yellow LED 2 lights continuously and the green LED 3 starts to flash.

4. Enter the safety code 1, 2, 3, 4. You have 5 seconds per button, if the time elapses the transmitter switches
off.

EN DE FR ES NL SE NO DK

– The yellow LED 1 lights each time an accepted button is pressed.
– The green LED 3 flashes and the yellow LED 2 goes out if the safety code is correct.

5. Press the number (0-9) which the PIN code is programmed under.
– The yellow LED 2 lights continuously.

6. Enter the existing four digit PIN code.
– The yellow LED 2 goes out if the PIN code is correct.

7. Changing the PIN code: Select a PIN code by entering a combination of 4 numbers. Confirm the code by
repeating it.

– Once you have selected a PIN code the yellow LED (1) flashes 3 times and programming is complete.

8. Erasing the PIN code: Enter four zeros (0000) and confirm by entering the four zeros (0000) again.
– The yellow LED (1) flashes 3 times and the erasing procedure is complete. The transmitter switches off.

9. Restart the transmitter.

-

-

214

ERASING ALL PIN-CODES

You can, if necessary, erase all the PIN codes on the transmitter.

ERASE ALL THE PIN CODES ON THE TRANSMITTER:

1. Start the transmitter by pressing the start buttons for at least 1 second.
– The red LED 3 lights continuously.

2. Release left start button, but hold right start button.

NOTE! You have 0.3 seconds to perform the action in step 3.

3. Release right start button and then select button 8 to erase the PIN codes.
– The yellow LED 2 lights continuously and the green LED 3 flashes.

4. Enter the code 7, 1, 0, 4, 2, 1
– Once you have entered the code the yellow LED (1) flashes 3 times and the erasing procedure is complete.

The transmitter switches itself off.

5. Restart the transmitter.

.

TIME DELAY BETWEEN PUSHBUTTONS

It is possible to program time delays between pushbuttons and between first and second step in the pushbut­ton. The following options are possible to program:

CODE PUSHBUTTON DELAY COMMENTS

0 1 Pushbutton 1 (also used as button 11) Time delay function between the

0 2 Pushbutton 2 (also used as button 12)

0 3 Pushbutton 3 (also used as button 13)

0 4 Pushbutton 4 (also used as button 14)

0 5 Pushbutton 5 (also used as button 15)

0 6 Pushbutton 6 (also used as button 16)

0 7 Pushbutton 7 (also used as button 17)

0 8 Pushbutton 8 (also used as button 18)

0 9 Pushbutton 9 (also used as button 19)

1 0 Pushbutton 10 (also used as button 20)

2 2 * Pushbutton 21 (also used as button 23)

2 3 * Pushbutton 22 (also used as button 24)

1 1 Pushbutton 1 and 2 Time delay function between two dif-

1 2 Pushbutton 3 and 4

1 3 Pushbutton 5 and 6

1 4 Pushbutton 7 and 8

1 5 Pushbutton 9 and 10

2 4 * Pushbutton 21 and 22

1 6 Time delay options, code 01 to 15 (+ 22 to 24 *) Pre-set programming for all pushbut-

1 7 Time delay options, code 01 to 10 (+ 22 to 23 *)

1 8 Time delay options, code 11 to 15 (+ 24 *)

1 9 Time delay options, code 01 to 06

2 0 Time delay options, code 11 to 13

2 1 Time delay options, code 01 to 06 + 11 to13

* Only on 860TX-12

first and second step for the same
pushbutton

ferent pushbuttons

tons in the specified code range

ESFRDEEN DKNOSENL

215

CODE TIME DELAY COMMENTS

0 No time delay Sets the time delay in seconds

1 0,3s

2 0,5s

3 1s

4 1,5s

5 3s

PROGRAMMING TIME DELAY BETWEEN PUSHBUTTONS

1. Start the transmitter by pressing the start buttons for at least 1 second.
– The red LED 3 lights continuously.

2. Release left start button, but hold right start button.

NOTE! You have 0.3 seconds to perform the action in step 3.

3. Release right start button and then select button 6 for programming time delay between pushbuttons. (If
you do not press any of the function buttons the transmitter starts.)

– The yellow LED 2 lights continuously and the green LED 3 starts to flash.

4. Enter the safety code: 8, 5, 3, 2, 4, 6. You have 5 seconds per button, if the time elapses the transmitter
switches off.

– The green LED 3 flashes and the yellow LED 2 goes out if the safety code is correct.

5. Enter the pushbutton delay code (two digits) and time code (one digit). The yellow LED 1 lights each time
an accepted button is pressed.

– Once you have selected option and time the yellow LED (1) flashes 3 times and programming is complete.

7. Restart the transmitter.

FUNCTION SELECTOR

The functions in the table can be programmed by using the buttons on the transmitter and by setting the func­tion selector switches. Note that the table is only an outline and all function options are described in detail in
the chapters that follow the table.

No. of
functions

10x1 0 - A MIDI OFF.OFF.OFF.OFF Only 1 receiver

EN DE FR ES NL SE NO DK

4x2+2x1 0 - B MIDI OFF.OFF.OFF.ON Only 1 receiver

6x2+1x1 0 - C MIDI OFF.OFF.ON.OFF Only 1 receiver

10x1 1 1 D MIDI OFF.OFF.OFF.OFF Receiver 1 (8x1)

10x1 1 2 D MIDI ON.OFF.OFF.OFF Receiver 2 (8x1)

10x1 1 1+2 D MIDI *.OFF.OFF.OFF Receiver 1+2 (8x1)

10x1 2 1 E MIDI OFF.OFF.OFF.OFF Receiver 1 (8x1)

10x1 2 2 E MIDI ON.OFF.OFF.OFF Receiver 2 (8x1)

10x1 3 1 F MIDI OFF.OFF.OFF.OFF Receiver 1 (9x1)

10x1 3 2 F MIDI ON. OFF. OFF. OFF Receiver 2 (9x1)

4x2+2x1 1 1 G MIDI OFF.OFF.OFF.ON Receiver 1 (4x2+2x1)

4x2+2x1 1 2 G MIDI ON.OFF.OFF.ON Receiver 2 (4x2+2x1)

4x2+2x1 1 1+2 G MIDI *.OFF.OFF.ON Receiver 1+2

4x2+2x1 2 1 H MIDI OFF.OFF.OFF.ON Receiver 1 (4x2+2x1)

4x2+2x1 2 2 H MIDI ON.OFF.OFF.ON Receiver 2 (4x2+2x1)

216

Function
selection
TX (trans­mitter)

LED TX
(transmit­ter)

Function
selection
RX (re­ceiver)

Receiver
model
(Maxi or
Midi)

Function selector switch
(receiver) 4, 6, 7, 8.

Comments

(4x2+2x1)

No. of
functions

6x2+1x1 1 1 I MIDI OFF.OFF.ON.OFF Receiver 1 (6x2+1x1)

6x2+1x1 1 2 I MIDI ON.OFF.ON.OFF Receiver 2 (6x2+1x1)

6x2+1x1 1 1+2 I MIDI *.OFF.ON.OFF Receiver 1+2

6x2+1x1 2 1 J MIDI OFF.OFF.ON.OFF Receiver 1 (6x2+1x1)

6x2+1x1 2 2 J MIDI ON.OFF.ON.OFF Receiver 2 (6x2+1x1)

10x2/12x2 0 - K MAXI OFF.OFF.OFF.OFF Only 1 receiver

10x2/12x2 1 1 L MAXI OFF.OFF.OFF.OFF Receiver 1 (8x2)

10x2/12x2 1 2 L MAXI ON.OFF.OFF.OFF Receiver 2 (8x2)

10x2/12x2 1 1+2 L MAXI *.OFF.OFF.OFF Receiver 1+2 (8x2)

10x2/12x2 2 1 M MAXI OFF.OFF.OFF.OFF Receiver 1 (8x2)

10x2/12x2 2 2 M MAXI ON.OFF.OFF.OFF Receiver 2 (8x2)

10x2/12x2 1 1 N MAXI OFF.OFF.ON.ON Lift 1

10x2/12x2 1 2 N MAXI OFF.OFF.ON.ON Lift 2

10x2/12x2 1 1+2 N MAXI OFF.OFF.ON.ON Lift 1+2

10x2/12x2 2 1 O MAXI OFF.OFF.ON.ON Lift 1

10x2/12x2 2 2 O MAXI OFF.OFF.ON.ON Lift 2

10x2/12x2 3 1 P MAXI OFF.ON.OFF.OFF 9+9 (Button 1-9->Re-

10x2/12x2 3 2 P MAXI OFF.ON.OFF.OFF 9+9 (Button 1-9>Re-

10x2/12x2 0 - Q MAXI OFF.OFF.ON.OFF “6x2+1x1” with MAXI

10x2/12x2 0 - R MAXI OFF.ON.ON.OFF “6x2+6x1” with MAXI

* = The function selector switch no 4 can be set to ON or OFF.

Function
selection
TX (trans­mitter)

LED TX
(transmit­ter)

Function
selection
RX (re­ceiver)

Receiver
model
(Maxi or
Midi)

Function selector switch
(receiver) 4, 6, 7, 8.

Comments

(6x2+1x1)

lay 1-9)

lay 11-19)

relay board

relay board

ESFRDEEN DKNOSENL

217

THE TRANSMITTER’S FUNCTION SELECTIONS AND LED INDICATIONS

It is possible to program the function selection on the transmitter. The two yellow LEDs on the transmitter
indicate which receiver/receivers, relay group/groups or the lift on an overhead crane are to be controlled. By
setting the receiver’s function selector switch at the same time a number of different types of relay functions
can be selected (see chapter “The receiver’s function selection/relay functions“).

Once you have programmed the function selections 1-3 the transmitter’s LED 1 will always light when the
transmitter starts.

NOTE! As standard the transmitter is supplied with function selection 0.

FUNCTION SELECTION 0:

With function selection 0 it is only possible to control one receiver. The two yellow LEDs are not used.

The transmitter’s function selection 0 matches with receiver’s function selection; A, B, C, K, Q, R

FUNCTION SELECTION 1:

Using function selection 1 you can control two receivers (receiver 1, receiver 2 or both simultaneously), alter­natively you can control two lifts on an overhead crane (lift 1, lift 2 or both lifts simultaneously).

By pressing button 7 the yellow LED 1 lights, press button 8 and the yellow LED 2 lights. Press buttons 7 and 8
simultaneously and the LEDs 1 and 2 light.

The transmitter’s function selection 1 matches with receiver’s function selection; D, G, I, L, N

FUNCTION SELECTION 2:

Using function selection 2 you can control two receivers (receiver 1 or receiver 2, but never simultaneously),
alternatively you can control two lifts on an overhead crane (lift 1 or lift 2 but never simultaneously).

By pressing button 7 the yellow LED 1 lights, press button 8 and the yellow LED 2 lights. The yellow LEDs 1 and
2 can never be lit simultaneously.

The transmitter´r function selection 2 matches the receiver’s function selection; E, H, J, M, O

FUNCTION SELECTION 3:

With function selection 3 you can control two receivers (9 single functions on each receiver) or one receiver
(9+9 single functions).

By pressing button 10 (right start button) you switch between lighting the yellow LED 1 or LED 2. The yellow
LEDs 1 and 2 can never be lit simultaneously.

The transmitter function selection 3 matches the receiver’s function selection: F, P

EN DE FR ES NL SE NO DK

218

PROGRAMMING THE FUNCTION SELECTION ON THE TRANSMITTER:

1. Start the transmitter by pressing the start buttons for at least 1 second.
– The red LED 3 lights continuously.

2. Release left start button, but hold right start button.

NOTE! You have 0.3 seconds to perform the action in step 3.

3. Release right start button and then select button 1 for function selection. (If you do not press any of the func
tion buttons the transmitter starts.)

– The yellow LED 2 lights continuously and the green LED 3 starts to flash.

4. Enter the safety code:
off.

– The green LED 3 flashes and the yellow LED 2 goes out if the safety code is correct.

5. Choose the respective function options (button 0, 1, 2 or 3). The yellow LED 1 lights each time an accepted
button is pressed.

– Once you have selected a function option the yellow LED (1) flashes 3 times and programming is complete.

NOTE! The function is deprogrammed using the 0 button.

6. Restart the transmitter by pressing the start buttons.

1, 2, 3, 4. You have 5 seconds per button, if the time elapses the transmitter switches

YELLOW LED/START-UP

If function selection 1 or 2 is programmed in 860 mode it is possible to choose which yellow LED/LED’s that
should be on when starting the transmitter.

Yellow LED start-up options, function selection 1:

• Option 0: No yellow LED’s.

• Option 1: Yellow LED 1 is on.

• Option 2: Yellow LED 2 is on.

• Option 3: Yellow LED 1+2 is on.

Yellow LED start-up options, function selection 2:

• Option 0: No yellow LED’s.

• Option 1: Yellow LED 1 is on.

• Option 2: Yellow LED 2 is on.

PROGRAMMING YELLOW LED/START-UP

1. Start the transmitter by pressing the start buttons for at least 1 second.
– The red LED 3 lights continuously.

2. Release left start button, but hold right start button.

NOTE! You have 0.3 seconds to perform the action in

3. Release right start button and then select button 1 for function selection. (If you do not press any of the
function buttons the transmitter starts.)

– The yellow LED 2 lights continuously and the green LED 3 starts to flash.

4. Enter the safety code: 7, 4, 8, 3. You have 5 seconds per button, if the time elapses the transmitter switches
off.

– The green LED 3 flashes and the yellow LED 2 goes out if the safety code is correct.

5. Choose the respective yellow LED start-up option (button 0-3).
– The yellow LED 1 lights each time an accepted button is pressed. Once you have selected a function option

the yellow LED (1) flashes 3 times and programming is complete.

6. Restart the transmitter.

step 3.

-

ESFRDEEN DKNOSENL

219

1

3

5

7

9

2

4

6

8

10

1

2

3

Start Start

860TX-10

1

3

5

7

2

4

6

8

1 3

2

860TX-12

9 10

Start Start

1/5

3/7

9

2/6

4/8

10

1

2

3

Start Start

860TX-10

1/5

3/7

2/6

4/8

1 3

2

860TX-12

9 10

Start Start

1/7

3/8

5/9

10

2/7

4/8

6/9

1

2

3

Start Start

860TX-10

1/7

3/8

5/9

2/7

4/8

6/9

1 3

2

860TX-12

10

Start Start

THE RECEIVER’S FUNCTION SELECTION/RELAY FUNCTIONS

Program the function selection on the receiver:

The function selection on the receiver is programmed by setting the
function selector switches in either the ON or OFF positions. To see how
the switches should be set refer to respective function selections or the
function selection table. (For the transmitter’s matching function selections,
see chapter “The transmitter’s function selections and led indications“.)

Pictures of the receiver can be found on the fold-out page.

RECEIVER 860RX-MIDI

Function selection A:

Relay function: 10 single functions (10x1).

See figure A for which buttons control respective relays.

The function selector switch: 4=OFF, 6=OFF, 7=OFF, 8=OFF

The receiver’s function selection A matches the transmitter’s function
selection 0.

Function selection B:

Relay function: 4 double + 2 single functions (4x2+2x1).

See figure B for which buttons control respective relays.

The function selector switch: 4=OFF, 6=OFF, 7=OFF, 8=

The receiver’s function selection B matches the transmitter’s function
selection 0.

Function selection C:

Relay function: 6 double + 1 single functions (6 x 2 + 1x 1).

See figure C for which buttons control respective relays.

The function selector switch: 4=OFF, 6=OFF, 7=

ON, 8=OFF

The receiver’s function selection C matches the transmitter’s function
selection 0.

EN DE FR ES NL SE NO DK

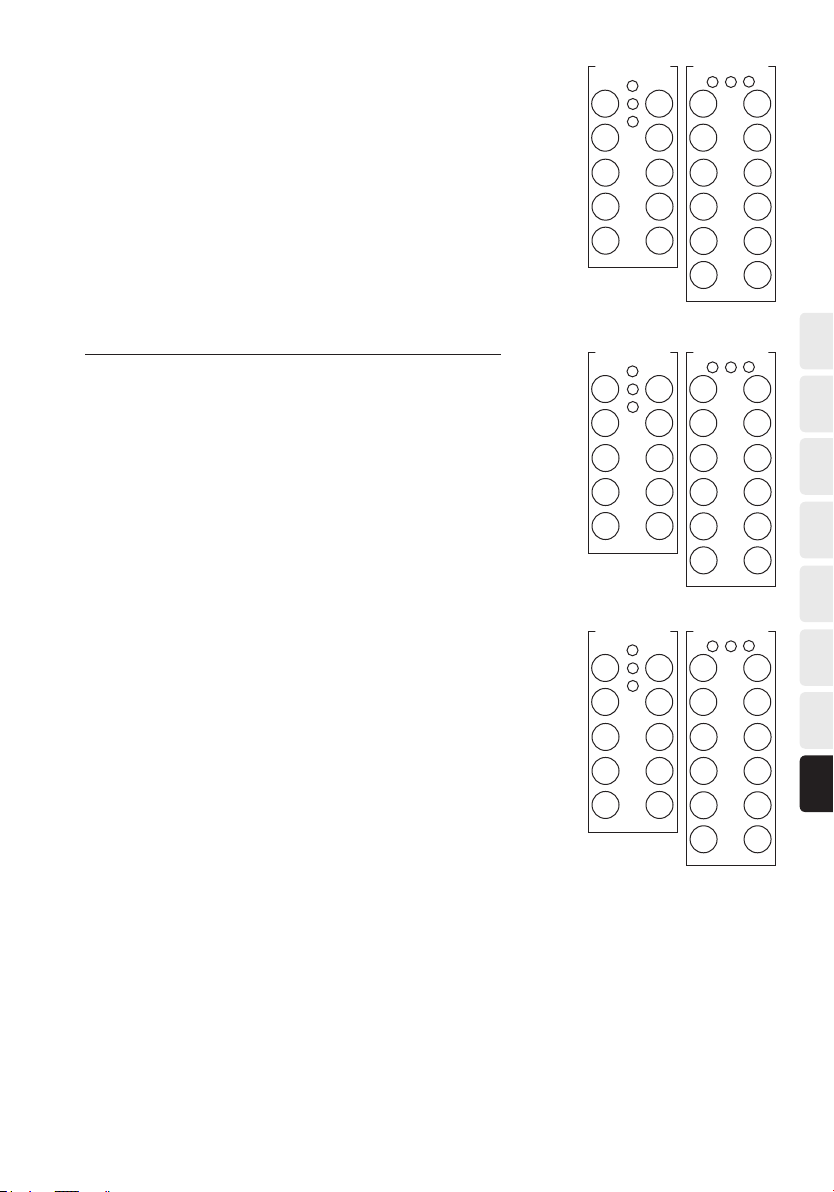

Fig. A

ON

Fig. B

Fig. C

220

Function selection D:

1

3

5

(7)

9

2

4

6

(8)

10

1

2

3

Start Start

860TX-10

1

3

5

(7)

2

4

6

(8)

1 3

2

860TX-12

9 10

Start Start

1

3

5

(7)

9

2

4

6

(8)

10

1

2

3

Start Start

860TX-10

1

3

5

(7)

2

4

6

(8)

1 3

2

860TX-12

9 10

Start Start

1

3

5

7

9

2

4

6

8

(10)

1

2

3

Start Start

860TX-10

1

3

5

7

2

4

6

8

1 3

2

860TX-12

9 (10)

Start Start

Relay function: 8 single functions + 2 relays to indicate that the receiver is
selected.

Using the transmitter’s buttons 7 and 8 either receiver 1, 2 or both can be con

-

trolled. See figure D for which buttons control respective relays.

Receiver 1:
The function selector switch: 4=OFF, 6=OFF, 7=OFF, 8=OFF

Relay 7 is activated when the yellow LED 1 is lit on the transmitter.

Receiver 2:
The function selector switch: 4=

ON, 6=OFF, 7=OFF, 8=OFF

Relay 8 is activated when the yellow LED 2 is lit on the transmitter.

The receiver’s function selection D matches the transmitter’s function selection 1.

Function selection E:

Relay function: 8 single functions + 2 relays to indicate that the receiver is
selected.

Using the transmitter’s buttons 7 and 8 receivers 1 or 2 can be controlled, but
never both receivers simultaneously. See figure E for which buttons control
respective relays.

Receiver 1:
The function selector switch: 4=OFF, 6=OFF, 7=OFF, 8=OFF

Relay 7 is activated when the yellow LED 1 is lit on the transmitter.

Receiver 2:
The function selector switch: 4=

ON, 6=OFF, 7=OFF, 8=OFF

Relay 8 is activated when the yellow LED 2 is lit on the transmitter.

The receiver’s function selection E matches the transmitter’s function selection 2.

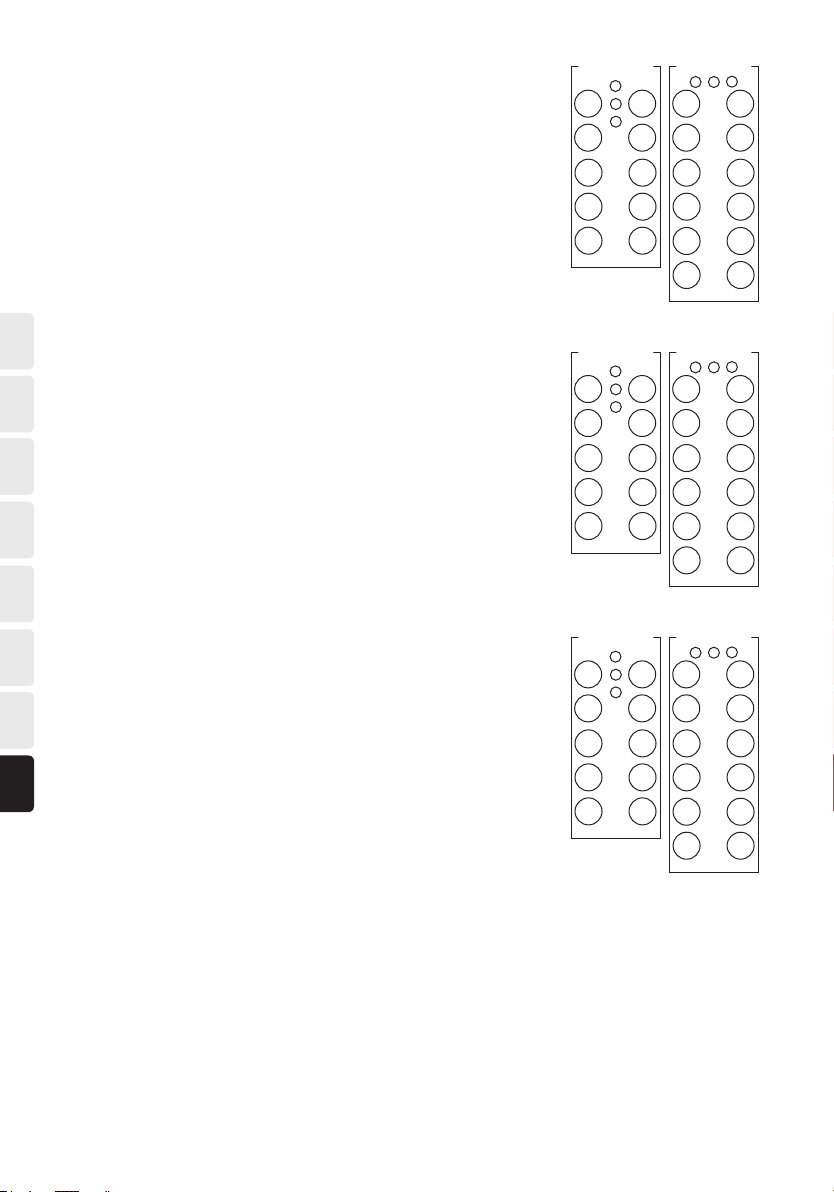

Fig. D

ESFRDEEN DKNOSENL

Fig. E

Function selection F:

Relay function: 9 single functions + 1 relay for indication that the receiver is
selected.

Using the transmitter’s button 10 receivers 1 or 2 can be controlled, but never
both receivers simultaneously. See figure F for which buttons control respective
relays.

Receiver 1:
The function selector switch: 4=OFF, 6=OFF, 7=OFF, 8=OFF

Relay 10 is activated when the yellow LED 1 is lit on the transmitter.

Receiver 2:
The function selector switch: 4=

ON, 6=OFF, 7=OFF, 8=OFF

Relay 10 is activated when the yellow LED 2 is lit on the transmitter.

The receiver’s function selection F matches the transmitter’s function selection 3.

Fig. F

221

Function selection G:

1/7

3/8

5/9

10

2/7

4/8

6/9

1

2

3

Start Start

860TX-10

1/7

3/8

5/9

2/7

4/8

6/9

1 3

2

860TX-12

10

Start Start

1/5

3/7

9

2/6

4/8

10

1

2

3

Start Start

860TX-10

1/5

3/7

2/6

4/8

1

3

2

860TX-12

9

10

Start Start

1/5

3/7

9

2/6

4/8

10

1

2

3

Start Start

860TX-10

1/5

3/7

2/6

4/8

1 3

2

860TX-12

9 10

Start Start

Relay function: 4 double + 2 single functions (4x2+2x1).

Using the transmitter’s buttons 7 and 8 either receiver 1, 2 or both can be
controlled. See figure G for which buttons control respective relays.

Receiver 1:
The function selector switch: 4=OFF, 6=OFF, 7=OFF, 8=

ON

Receiver 2:
The function selector switch: 4=

ON, 6=OFF, 7=OFF, 8=ON

The receiver’s function selection G matches the transmitter’s function
selection 1.

Function selection H:

Relay function: 4 double + 2 single functions (4x2+2x1)

Using the transmitter’s buttons 7 and 8 receivers 1 or 2 can be controlled,
but never both receivers simultaneously. See figure H for which buttons
control respective relays.

Receiver 1:
The function selector switch: 4=OFF, 6=OFF, 7=OFF, 8=

ON

Receiver 2:
The function selector switch: 4=

ON, 6=OFF, 7=OFF, 8=ON

The receiver’s function selection H matches the transmitter’s function
selection 2.

Function selection I:

Relay function: 6 double + 1 single function (6x2+1x1)

Using the transmitter’s buttons 7 and 8 either receiver 1, 2 or both can be
controlled. See figure I for which buttons control respective relays.

Receiver 1:
The function selector switch: 4=OFF, 6=OFF, 7=

ON, 8=OFF

Receiver 2:
The function selector switch: 4=

EN DE FR ES NL SE NO DK

The receiver’s function selection I matches the transmitter’s function selec

ON, 6=OFF, 7=ON, 8=OFF

tion 1.

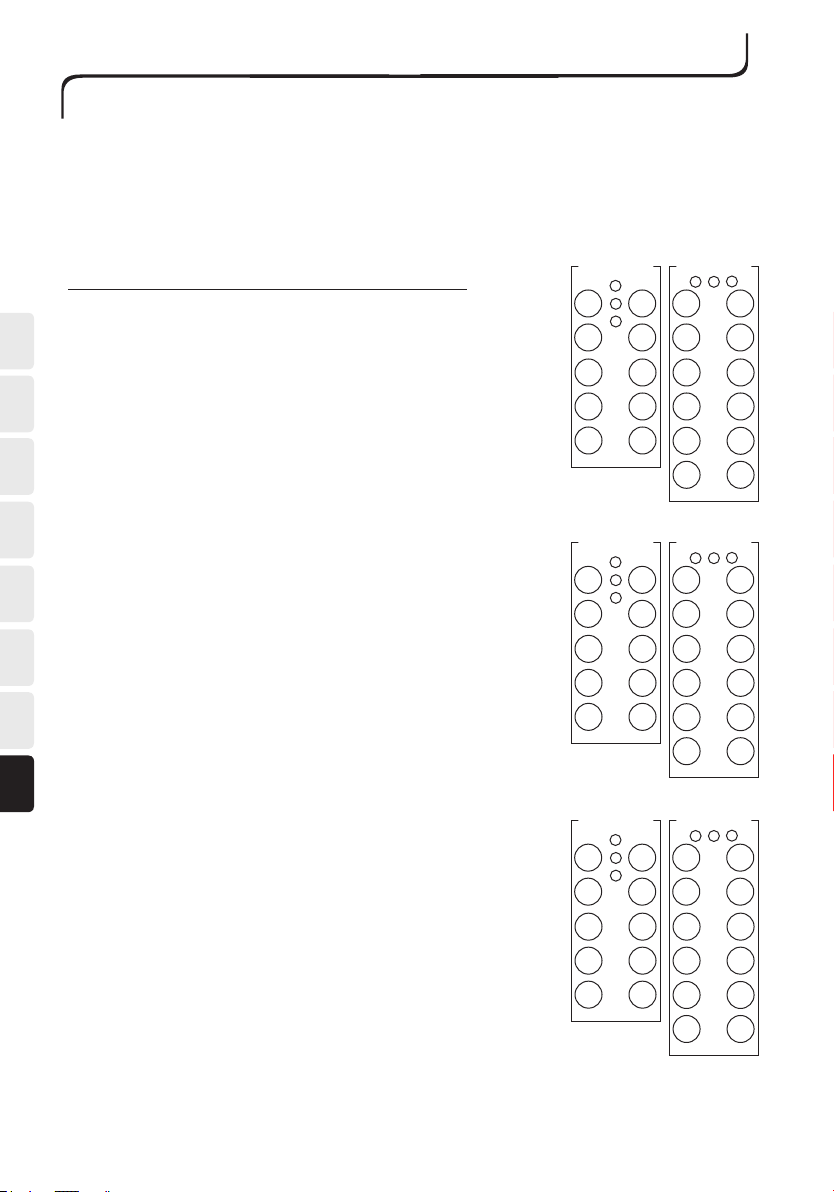

Fig. G

Fig. H

-

Fig. I

222

Function selection J:

1/7

3/8

5/9

10

2/7

4/8

6/9

1

2

3

Start Start

860TX-10

1/7

3/8

5/9

2/7

4/8

6/9

1 3

2

860TX-12

10

Start Start

1/11

3/13

5/15

7/17

9/19

2/12

4/14

6/16

8/18

10/20

1

2

3

Start Start

860TX-10

1/11

3/13

5/15

7/17

2/12

4/14

6/16

8/18

1

3

2

860TX-12

21/23

9/19

22/24

10/20

Start Start

1/11

3/13

5/15

(7)

9/19

2/12

4/14

6/16

(8)

10/20

1

2

3

Start Start

860TX-10

1/11

3/13

5/15

(7)

2/12

4/14

6/16

(8)

1 3

2

860TX-12

21/23

9/19

22/24

10/20

Start Start

Relay function: 6 double + 1 single function (6x2+1x1)

Using the transmitter’s buttons 7 and 8 receivers 1 or 2 can be control

­led, but never both receivers simultaneously. See figure J for which buttons
control respective relays.

Receiver 1:
The function selector switch: 4=OFF, 6=OFF, 7=

ON, 8=OFF

Receiver 2:
The function selector switch: 4=

ON, 6=OFF, 7=ON, 8=OFF

The receiver’s function selection J matches the transmitter’s function selec
tion 2.

RECEIVER 860RX-MAXI

The relay functions are depending on the receiver.

Function selection K:

Relay function: 20/24 double functions (10x2/12x2).

See figure K for which buttons control respective relays.

The function selector switch: 4=OFF, 6=OFF, 7=OFF, 8=OFF

The receiver’s function selection K matches the transmitter’s function selec
tion 0.

Function selection L:

Relay function: 8/10 double functions + 2 relays to indicate that the receiver
is selected.

Using the transmitter’s buttons 7 and 8 either receiver 1, 2 or both can be
controlled. See figure L for which buttons control respective relays.

Receiver 1:
The function selector switch: 4=OFF, 6=OFF, 7=OFF, 8=OFF

Relay 7 is activated when the yellow LED 1 is lit on the transmitter.

Receiver 2:
The function selector switch: 4=

ON, 6=OFF, 7=OFF, 8=OFF

Relay 8 is activated when the yellow LED 2 is lit on the transmitter.

The receiver’s function selection L matches the transmitter’s function selec
tion 1.

-

Fig. J

-

Fig. K

ESFRDEEN DKNOSENL

-

Fig. L

223

Function selection M:

1/11

3/13

5/15

(7)

9/19

2/12

4/14

6/16

(8)

10/20

1

2

3

Start Start

860TX-10

1/11

3/13

5/15

(7)

2/12

4/14

6/16

(8)

1 3

2

860TX-12

21/23

9/19

22/24

10/20

Start Start

1/11

3/13

5/15

(7)

9/19

2/12

4/14

6/16

(8)

10/20

1

2

3

Start Start

860TX-10

1/11

3/13

5/15

(7)

2/12

4/14

6/16

(8)

1 3

2

860TX-12

21/23

9/19

22/24

10/20

Start Start

1/11

3/13

5/15

(7)

9/19

2/12

4/14

6/16

(8)

10/20

1

2

3

Start Start

860TX-10

1/11

3/13

5/15

(7)

2/12

4/14

6/16

(8)

1 3

2

860TX-12

21/23

9/19

22/24

10/20

Start Start

Relay function: 8/10 double functions + 2 relays to indicate that the receiver
is selected.

Using the transmitter’s buttons 7 and 8 receivers 1 or 2 can be controlled,
but both receivers simultaneously. See figure M for which buttons control
respective relays.

Receiver 1:
The function selector switch: 4=OFF, 6=OFF, 7=OFF, 8=OFF

Relay 7 is activated when the yellow LED 1 is lit on the transmitter.

Receiver 2:
The function selector switch: 4=

ON, 6=OFF, 7=OFF, 8=OFF

Relay 8 is activated when the yellow LED 2 is lit on the transmitter.

The receiver’s function selection M matches the transmitter’s function selec
tion 2.

Function selection N:

Relay function: 8/10 double functions + 2 relays to indicate which lift is
selected.

Using the transmitter’s buttons 7 and 8 you can control lift 1, 2 or both
simultaneously on an overhead crane. See figure N for which buttons control
respective relays.

The function selector switch: 4=OFF, 6=OFF, 7=

ON, 8=ON

Relay 7 is activated when the yellow LED 1 is lit on the transmitter.

Relay 8 is activated when the yellow LED 2 is lit on the transmitter.

The receiver’s function selection N matches the transmitter’s function selec
tion 1.

Fig. M

-

-

Fig. N

EN DE FR ES NL SE NO DK

Function selection O:

Relay function: 8/10 double functions + 2 relays to indicate which lift is
selected.

Using the transmitter’s buttons 7 and 8 you can control lift 1 or 2 on an over
head crane, but never simultaneously. See figure O for which buttons control
respective relays.

The function selector switch: 4=OFF, 6=OFF, 7=

ON, 8=ON

Relay 7 is activated when the yellow LED 1 is lit on the transmitter.

Relay 8 is activated when the yellow LED 2 is lit on the transmitter.

The receiver’s function selection 0 matches the transmitter’s function selec
tion 2.

224

-

-

Fig. O

1

3

5

7

9

2

4

6

8

(10)

1

2

3

Start Start

860TX-10

11

13

15

17

12

14

16

18

1 3

2

860TX-12

23

1924(20)

Start Start

1/7
+11

3/8

5/9

13

10/19

2/7

+12

4/8

6/9

14/18

16/20

1

2

3

Start Start

860TX-10

1/7

+11

3/8

5/9

13

2/7

+12

4/8

6/9

14/18

1

3

2

860TX-12

21/23

10/19

22/24

16/20

Start Start

1/13
+21

3/14

5/15

7/16

9/17

2/13

+22

4/14

6/15

8/16

10/18

1

2

3

Start Start

860TX-10

1/13

+21

3/14

5/15

7/16

2/13
+22

4/14

6/15

8/16

1 3

2

860TX-12

11/19

9/17

12/20

10/18

Start Start

11

13

15

17

19

12

14

16

18

(20)

1

2

3

Start Start

860TX-10

1

3

5

7

2

4

6

8

1 3

2

860TX-12

21

9

22

(10)

Start Start

Function selection P:

Relay function: 9+9/11+11 single functions + 2 relays to indicate the selected
relay group.

Using the transmitter’s button 10 you can select which relay group you want
to control (1-9 or 11-19). See figure P for which buttons control respective
relays.

The function selector switch: 4=OFF, 6=

Relay 10 is activated when the yellow LED 1 is lit on the transmitter.

ON, 7=OFF, 8=OFF

Button 1-9 controls relay 1-9 / Button 21-22 controls relay 21-22.

Relay 20 is activated when the yellow LED 2 is lit on the transmitter.
Button 1-9 controls relay 11-19 / Button 21-22 controls relay 23-24.

The receiver’s function selection P matches the transmitter’s function selec

-

tion 3.

Function selection Q:

This relay mode can be used with 5, 10 or 14 relay MAXI board. Relay 15+17
will be activated if one or more of the pushbuttons are pressed on the
transmitter.

The receiver’s function selection Q matches the transmitter’s function selec
tion 0.

The function selector switch: 4=OFF, 6=OFF, 7=

ON, 8=OFF

Function selection R:

This relay mode can be used with 5, 10 or 14 relay MAXI board. Relay 23+24
will be activated if one or more of the pushbuttons are pressed on the
transmitter.

The receiver’s function selection R matches the transmitter’s function selec
tion 0.

The function selector switch: 4=OFF, 6=

ON, 7=ON, 8=OFF

-

Fig. P

ESFRDEEN DKNOSENL

-

Fig. Q

Fig. R

225

MOMENTARY OR LATCHED RELAY FUNCTIONS

The system is supplied with an momentary function as the default setting. Program as set out below if you want
a latched function.

Momentary function:
The relay only switches/activates during the period the button on the transmitter is pressed down.

Latched/Toggling function:
The position of the relay changes each time the button on the transmitter is pressed, but maintains its new
position once the button has been released.

PROGRAMMING THE LATCHED RELAY FUNCTION:

1. Start the system.

2. Turn the receiver’s function selector switch 1 to the ON position.
– All the relays in the receiver are disconnected and the red LEDs for respective relays go out.

3. Press the buttons on the transmitter that you wish to assign a latched/toggling function.
– The red LED will light continuously above respective relays that you have chosen to assign latched/toggling

functions.

4. Turn the receiver’s function selector switch 1 to the OFF position.
– Latched relay functions are programmed and can now be used.

RETURN TO THE DEFAULT SETTING (MOMENTARY):

1. Start the system.

2. Turn the receiver’s function selector switch 1 to the ON position.
– All the relays in the receiver are disconnected and the red LEDs for respective relays go out.

3. Turn the receiver’s function selector switch 1 to the OFF position.
– All relays have an momentary function.

INTERLOCKS

Interlocking means it is possible to interlock/prioritise a relay function/button before another.

If interlocking has been programmed and two buttons on the transmitter are pressed simultaneously, one the
buttons is given priority/interlocked over the other, which means, for example, up and down movements cannot
be operated at the same time.

Look through and decide what options you want to program, by using the table below, before you start pro
gramming.

Note that the option OFF OFF = no interlocking. (Example LED 1 = OFF and LED 2 = OFF.)

EN DE FR ES NL SE NO DK

Interlocks 10x1 Red LEDs for resp. relays

Functions 1-2 are blocked when pressed simultaneously. LED 1 = ON LED 2 = ON

Functions 3-4 are blocked when pressed simultaneously.

Functions 5-6 are blocked when pressed simultaneously.

Functions 7-8 are blocked when pressed simultaneously.

Functions 9-10 are blocked when pressed simultaneously.

LED 3 = ON LED 4 = ON

LED 5 = ON LED 6 = ON

LED 7 = ON LED 8 = ON

LED 9 = ON LED 10 = ON

Interlocks 10x2/12x2 Red LEDs for resp relays

Function 11 has priority over 1, function 12 over 2. LED 1 = ON LED 2 = OFF

Function 11 has priority over 1, function 12 over 2. Function 1-2,
11-12 are blocked when pressed simultaneously.

Function 1-2, 11-12 are blocked when pressed simultaneously.

Function 13 has priority over 3, function 14 over 4.

Function 13 has priority over 3, function 14 over 4. Functions 3-4,
13-14 are blocked when pressed simultaneously.

226

LED 1 = OFF LED 2 = ON

LED 1 = ON LED 2 = ON

LED 3 = ON LED 4 = OFF

LED 3 = OFF LED 4 = ON

-

Functions 3-4, 13-14 are blocked when pressed simultaneously. LED 3 = ON LED 4 = ON

Function 15 has priority over 5, function 16 over 6.

Function 15 has priority over 5, function 16 over 6. Functions 5-6,
15-16 are blocked when pressed simultaneously.

Functions 5-6, 15-16 are blocked when pressed simultaneously.

Function 17 has priority over 7, function 18 over 8.

Function 17 has priority over 7, function 18 over 8. Functions 7-8,
17-18 are blocked when pressed simultaneously.

Functions 7-8, 17-18 are blocked when pressed simultaneously.

Function 19 has priority over 9, function 20 over 10.

Function 19 has priority over 9, function 20 over 10. Functions
9-10, 19-20 are blocked when pressed simultaneously.

Functions 9-10, 19-20 are blocked when pressed simultaneously.

Function 23 has priority over 21, function 24 over 22.

Function 23 has priority over 21, function 24 over 22. Functions
21-23, 22-24 are blocked when pressed simultaneously.

Functions 21-23, 22-24 are blocked when pressed simultaneously.

LED 5 = ON LED 6 = OFF

LED 5 = OFF LED 6 = ON

LED 5 = ON LED 6 = ON

LED 7 = ON LED 8 = OFF

LED 7 = OFF LED 8 = ON

LED 7 = ON LED 8 = ON

LED 9 = ON LED 10 = OFF

LED 9 = OFF LED 10 = ON

LED 9 = ON LED 10 = ON

LED 21 = ON LED 22 = OFF

LED 21 = ON LED 22 = ON

LED 21 = ON LED 22 = ON

Interlocks 4x2+2 Red LEDs for resp. relays

Function 5 has priority over 1, function 6 over 2. LED 1 = ON LED 2 = OFF

Function 5 has priority over 1, function 6 over 2. Functions 1-2,
5-6 are blocked when pressed simultaneously.

Functions 1-2, 5-6 are blocked when pressed simultaneously.

Function 7 has priority over 3, function 8 over 4.

Function 7 has priority over 3, function 8 over 4. Functions 3-4,
7-8 are blocked when pressed simultaneously.

Functions 3-4, 7-8 are blocked when pressed simultaneously

Functions 9-10 are blocked when pressed simultaneously.

LED 1 = OFF LED 2 = ON

LED 1 = ON LED 2 = ON

LED 3 = ON LED 4 = OFF

LED 3 = OFF LED 4 = ON

LED 3 = ON LED 4 = ON

LED 9 = ON LED 10 = ON

Interlocks 6x2+1 Red LEDs for resp relays

Function 7 has priority over 1, function 7 over 2. LED 1 = ON LED 2 = OFF

Function 7 has priority over 1, function 7 over 2. Functions 1-2
and 7 are blocked when pressed simultaneously.

Functions 1-2 and 7 are blocked when pressed simultaneously.

Function 8 has priority over 3, function 8 over 4.

Function 8 has priority over 3, function 8 over 4. Functions 3-4
and 8 are blocked when pressed simultaneously.

Functions 3-4 and 8 are blocked when pressed simultaneously.

Function 9 has priority over 5, function 9 over 6.

Function 9 has priority over 5, function 9 over 6. Functions 5-6
and 9 are blocked when pressed simultaneously.

Functions 5-6 and 9 are blocked when pressed simultaneously.

LED 1 = OFF LED 2 = ON

LED 1 = ON LED 2 = ON

LED 3 = ON LED 4 = OFF

LED 3 = OFF LED 4 = ON

LED 3 = ON LED 4 = ON

LED 5 = ON LED 6 = OFF

LED 5 = OFF LED 6 = ON

LED 5 = ON LED 6 = ON

ESFRDEEN DKNOSENL

227

PROGRAMMING THE INTERLOCK:

1. Start the system.

2. On the receiver: Turn the function selector switch 3 to the ON position.
– All the relays in the receiver are disconnected and the red LEDs for respective relays go out.

3. On the transmitter: program by pressing the buttons (LED) defined as ON in the table ”Interlock”.

Example: LED 5 = OFF and LED 6 = ON, is programmed by pressing button 6 on the transmitter, the LEDs

will then light according to the required interlock option The red LEDs will light continuously above the
relays you have chosen.

4. On the receiver: Turn the switch 3 to the OFF position.
– The interlock is programmed and can now be used.

ERASE THE INTERLOCK:

1. Start the system.

2. On the receiver: Turn the function selector switch 3 to the ON position.
– All the relays in the receiver are disconnected and the red LEDs for respective relays go out.

3. On the receiver: Turn the function selector switch 3 to the OFF position.
– The interlock is now erased (no relays are interlocked).

STOP FUNCTION SELECTOR

It is possible to select two different stop function modes with the receiver function selector switch number 5.

If the transmitter is started-up and have contact with the receiver the difference in the modes are the following:

Receiver function selector switch number 5 in
The stop relay in the receiver will be activated after the receiver had a power failure if the transmitters push

buttons are not activated (zero position check).

Receiver function selector switch number 5 in
If a power failure occurs to the receiver all relays will switch off. When the power comes back the receiver will

not start-up the stop relays again. The operator need to press the start buttons at the same time and after that
release them to start-up the receiver. If the transmitter is switched off during the power failure and started
again after the power is back, it is not necessary to press the start buttons to start-up the receiver.

OFF position:

-

ON position:

EN DE FR ES NL SE NO DK

228

TROUBLE SHOOTING

If the equipment does not work as it should, please check the points set out below.

Incorrect function Possible cause Action

The receiver’s yellow LED for a cor­rect supply voltage is not lit.

The receiver’s yellow LEDs for the
number of programmed transmit­ters do not flash.

The transmitter does not work
when the start buttons are pressed
simultaneously (at least 1 second)
and then released. The LED on the
transmitter produces a red light.

When the transmitter is started the
red LED 3 flashes when you press
the start buttons simultaneously.

When the transmitter is started the
red LED and the yellow LED 1 flash
when you press the start buttons
simultaneously.

The range is too short. The antenna, antenna cables are

Red LED (5 or 9) in the receiver
flashes (560ms on/560ms off).

Red LED (5 or 9) in the receiver
flashes (150ms on/150ms off).

Red LED (5 or 9) in the receiver
lights constantly.

Please contact your dealer if you have followed these instructions and despite this have not managed to get the
radio system to work.

Incorrect operating voltage to the
receiver.

The fuse in the receiver is not
intact.

A transmitter has not been pro
grammed on the receiver.

The battery is discharged. Charge the transmitter.

A button on the transmitter is
broken.

The stop button is pressed in.

The processor indicates that it has
found a fault with the stop button.

damaged or installed incorrectly.

Microcontroller EEPROM memory
error.

Safety relays SR1 or SR2 contact
error.

Microcontroller RAM/ROM
memory error.

Check the operating voltage.

Replace the fuse.

-

Program the required transmitter.

Contact your dealer.

Pull out the stop button.

Push in the stop button without re
leasing the start buttons. If the stop
button is intact LED 2 should start
to flash. Pull out the stop button
and release the start buttons. If the
transmitter does not start after this
instruction the stop button needs
to be replaced.
Contact your dealer.

Change the position of the antenna.
Change the antenna cable.

Contact your dealer.

Contact your dealer.

Contact your dealer.

-

ESFRDEEN DKNOSENL

DISPOSAL

The 860, any accessories and all replaced parts must be disposed of and recycled in accordance with the local
environmental regulations regarding the disposal of used equipment and waste.

229

SETTINGS FORM: RECEIVER AND TRANSMITTER

The following data should be documented. Copy the form and enclose it when a service is required.

Receiver series no: ___________________________

Toggling relay: _________________________________

Interlocks: ____________________________________

Programmed transmitters:

ID1: _________ID2: ____________

Transmitter series no: ________________________

Function selection: _____________________________

Automatic shut-off: _____________________________

Frequency: ____________________________________

PIN-position PIN-code/Name

1________ ________________________________

2________ ________________________________

3________ ________________________________

4________ ________________________________

5________ ________________________________

6________ ________________________________

7________ ________________________________

8________ ________________________________

9________ ________________________________

0________ ________________________________

ID3: ____________

EN DE FR ES NL SE NO DK

“ EC Declaration of Conformity for Tele Radio radio
remote control systems can be found at http://www.
tele-radio.com”

Trasnmitter series no: ________________________

Function selection: _____________________________

Automatic shut-off: _____________________________

Frequency: ____________________________________

PIN-position PIN-code/Name

1________ ________________________________

2________ ________________________________

3________ ________________________________

4________ ________________________________

5________ ________________________________

6________ ________________________________

7________ ________________________________

8________ ________________________________

9________ ________________________________

0________ ________________________________

Transmitter series no: ________________________

Function selection: _____________________________

Automatic shut-off.: _____________________________

Frequency: ____________________________________

PIN-position PIN-code/Name

1________ ________________________________

2________ ________________________________

3________ ________________________________

4________ ________________________________

5________ ________________________________

6________ ________________________________

7________ ________________________________

8________ ________________________________

9________ ________________________________

0________ ________________________________

230

APPENDIX

15.19 - TWO PART WARNING STATEMENT

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLO­WING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2)
THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY
CAUSE UNDESIRED OPERATION.

15.21 - MODIFICATION STATEMENT

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED
BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID
THE USER´S AUTHORITY TO OPERATE THE EQUIPMENT.

ESFRDEEN DKNOSENL

231

www.tele-radio.com

Tele Radio AB

Sweden, Main Office
Tel. [phone]
e-mail [e-mail]

Tele Radio AS

Norway
Tel [phone]
e-mail [e-mail]

Tele Radio LTD

England
Tel. [phone]
e-mail: [e-mail]

Tele Radio OÜ

Estonia
Tel. [phone]
e-mail [e-mail]

Tele Man LLC

USA
Tel [phone]
e-mail [e-mail]

Tele Radio GmbH

Deutschland
Tel [phone]
e-mail [e-mail]

Tele Radio LLC

c/o Cervis Incorp., USA
Tel [phone]
e-mail [e-mail]

Tele Radio BV

Netherlands
Tel [phone]
e-mail [e-mail]

Tele Radio ASIA

China
Tel. +86 -(0)592-8910122
e-mail [e-mail]
