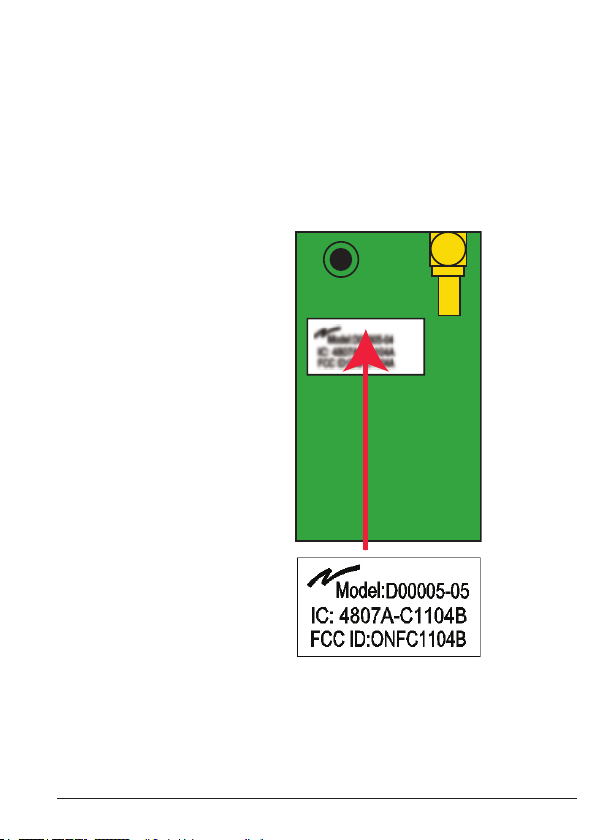

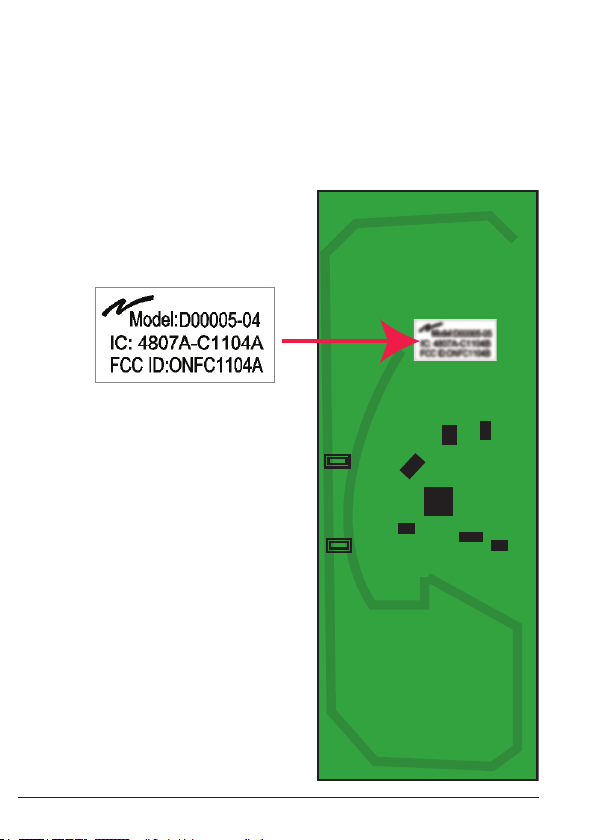

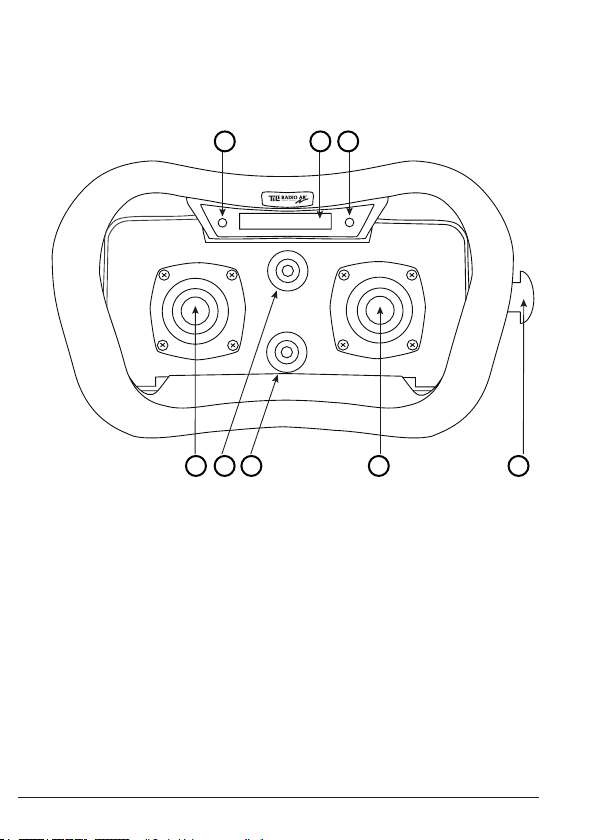

Tele Radio C1104B User Manual

Tele Radio

SAFETY INSTRUCTIONS

LANGUAGE: ENGLISH (ORIGINAL)

ARTICLE CODE: R00004-03, R00004-08, T00012-07, T00012-52

FCC-IM-TG-RX005-B03-EN

Thank you for purchasing a Tele Radio product

R00004-03, R00004-08, T00012-07, T00012-52
READ ALL INSTRUCTIONS CAREFULLY BEFORE MOUNTING, INSTALLING AND
CONFIGURATING THE PRODUCT.

These instructions are published by Tele Radio AB without any guarantee. These

instructions are solely directed towards qualied installers. The information shall not be
handed to end users. The instructions may be removed or revised by Tele radio AB at
any time and without any further notice. Corrections and additions will be added to the
updated versions of the instructions.

The instructions that contain information on the installation and conguration of the
remote radio control unit on the machine are not intended to be passed on to the end
user. Only such information may be passed on to the end user, that is needed to operate
the machine correctly by radio remote control.

Tele Radio AB products are covered by a guarantee against material, construction or
manufacturing faults. During the guarantee period, Tele Radio AB may replace the product
or faulty parts with new. Work under guarantee must be carried out by Tele Radio AB
or by an authorized service centre specied by Tele Radio AB. Make sure that repairs and
maintenance are only carried out by qualied personnel. Use only spare parts from Tele
Radio AB. Contact your Tele Radio representative if you need support or service.

©Tele Radio AB, 2011

TELE RADIO AB

Datavägen 21, SE-436 32 Askim. Sweden
Tel: [phone]
Fax: [phone]
www.tele-radio.com.

[e-mail]

RECEIVER

TECHNICAL DATA

Maximum current consumption

RX MODEL 12 V DC 24V DC 48V AC 230V AC

R00004-03 280 mA 140 mA 140 mA 20 mA

R00004-08 500 mA 240 mA 230 mA 50mA

RELAYS:
R00004-03 2 safe relays (makes/breaks

16A ACI) + 7 function relays (potential
free*,makes/breaks 8A ACI).

R00004-08 2 safe relays (makes/breaks

16A ACI) + 17 function relays (potential
free*,makes/breaks 8A ACI).

OPERATING FREQUENCY: 903.0125-926.9875 MHz.
FREQUENCY BANKS: 15 banks

SIZE: 75 x 126 x 176 mm./

29.5” x 49.6” x 69.3”
WEIGHT: 1000 grams/ 2.2 lbs.
ENCAPSULATION IP CLASS: IP65

* potential free means that you have to supply voltage to get voltage out of a relay (e.g. via a

connection comb).

STOP BUTTON TEST

IMPORTANT! We recommend that the functionality of the STOP button is being
tested at a regular basis: At a minimum, when used for 200 hours. Test the STOP

button by pressing and pulling it out.

3

RECEIVER TG-R00004-03, TG-R00004-08
BASE BOARD

1

2

3

4

1. Stop relays 1+2 LED (red)

2. Stop relays 1+2

3. Obligatory fuse: 2A (slow), must
comply with IEC691/EN60691

4. Terminal block for power supply

(see next page)

5. Function relays 1-7

6. Relay LEDs1-7 (red)

7. Function LED 7 (green)

8. Function LED 6 (yellow)

1617

15

5

9. Function LED 5 (red)

10. Antenna connector

11.Function LED 4 (orange)

12. Function LED 3 (green)

13. Function LED 2 (yellow)

14. Function LED 1 (red)

15. Terminal block for mixed I/Os

16. Function button

(Cancel button)

17. Select button (OK button)

14

13
12
11

10

9
8
7

6

IMPORTANT!

Tele Radio remote controls are often built into wider applications. We recommend that
the system is provided with a wired emergency stop where necessary.

4

TG-R00004-08
10 RELAYS EXPANSION BOARD

18
19

20

21

25

24

23
22

18. Terminal block for digital inputs

19. Relay LEDs 10-19

20. Function relays 10-19

21. Relay LEDs 1-9 (see next page)

22. Select button (OK)

23. Function button (Cancel)

18. Terminal block for digital inputs

81. GND

82. GND

83. GND

84. GND

85. Digital input 3

86. Digital input 4

24. Base board communication-

LED (yellow)

25. Programming connector

87. Digital input 5

88. Digital input 6

89. Digital input 7

90. Digital input 8

91. Digital input 9

92. Digital input 10

5

21. Relay LEDs 1-9

LED 1
LED 2

LED 1= function relay 1
LED 2= function relay 2
LED 3= function relay 3
LED 4= function relay 4
LED 5= function relay 5

LED 6= function relay 6

LED 7= function relay 7
LED 8= not used
LED 9= stop relay 1+2

LED 3
LED 4
LED 5
LED 6
LED 7
LED 8
LED 9

LEDs 1-9 on the expansion board indicate the status of the relays on the

base board. When one or more of these LEDs are lit, the corresponding
relay on the base board is activated (see list).
