Tele Radio C1012A User Manual

Tele Radio T20/T60

SAFETY INSTRUCTIONS

1 2 3

5 6

4

87

LANGUAGE: ENGLISH (ORIGINAL)

ARTICLE CODE: T00008-2X, T00008-4X, T00008-5X

FCC-IM-T20_T60-TX001-B01-EN

Thank you for purchasing a Tele Radio product

T00008-2X, T00008-4X, T00008-5X

INSTRUCTIONS ARE AVAILABLE FOR DOWNLOAD AT: www.tele-radio.com

READ ALL INSTRUCTIONS CAREFULLY BEFORE MOUNTING, INSTALLING AND
CONFIGURATING THE PRODUCT.

These instructions are published by Tele Radio AB without any guarantee. These
instructions are solely directed towards qualied installers. The instructions may be
removed or revised by Tele radio AB at any time and without any further notice.
Corrections and additions will be added to the updated versions of the instructions.

The instructions that contain information on the installation and conguration of the

remote radio control unit on the machine are not intended to be passed on to the end
user. Only such information may be passed on to the end user, that is needed to operate
the machine correctly by radio remote control.

Tele Radio AB products are covered by a guarantee against material, construction or
manufacturing faults. During the guarantee period, Tele Radio AB may replace the product
or faulty parts with new. Work under guarantee must be carried out by Tele Radio AB

or by an authorized service centre specied by Tele Radio AB. Make sure that repairs and
maintenance are only carried out by qualied personnel. Use only spare parts from Tele

Radio AB. Contact your Tele Radio representative if you need service or support. The EC
declaration of conformity can be downloaded from our website.

©Tele Radio AB, 2010

TELE RADIO AB
Datavägen 21, SE-436 32 Askim. Sweden
Tel: [phone]
Fax: [phone]
www.tele-radio.com.
[e-mail]

The helpdesk group can help you with questions
regarding service and technical support.

[e-mail]

CONTENTS

TECHNICAL DATA TRANSMITTER 5
BATTERIES 7
PLACEMENT OF IC AND FCC ID LABELS 8
GUARANTEE, SERVICE, REPAIRS AND MAINTENANCE 9
BATTERY PRECAUTIONS 10
DISPOSAL OF BATTERIES AND ELECTRONICS 10
SAFETY PRECAUTIONS 11

TECHNICAL DATA TRANSMITTER

Weight: 70 grams/ 0.15 lbs. (incl. batteries)

Width: 52 mm./ 2’’
Height: 83 mm. / 3.3’’
Thickness: 31 mm./ 1.2’’ (incl. clip)

Max. current: 40 mA.

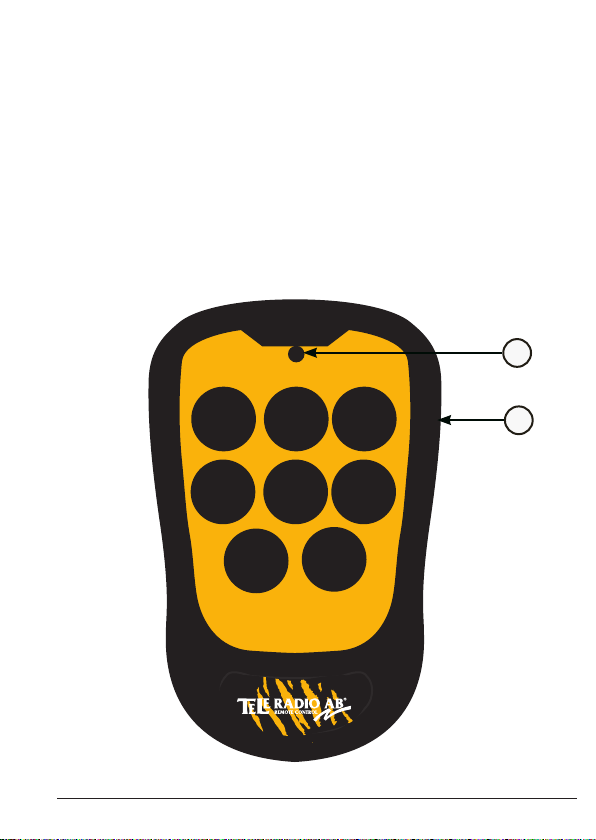

8-BUTTONS TRANSMITTER T00008-4X, T00008-5X

1

1. LED

2. Push buttons 1-8

Frequency: 433.92MHz.

1 2 3

4

5 6

87

2

5

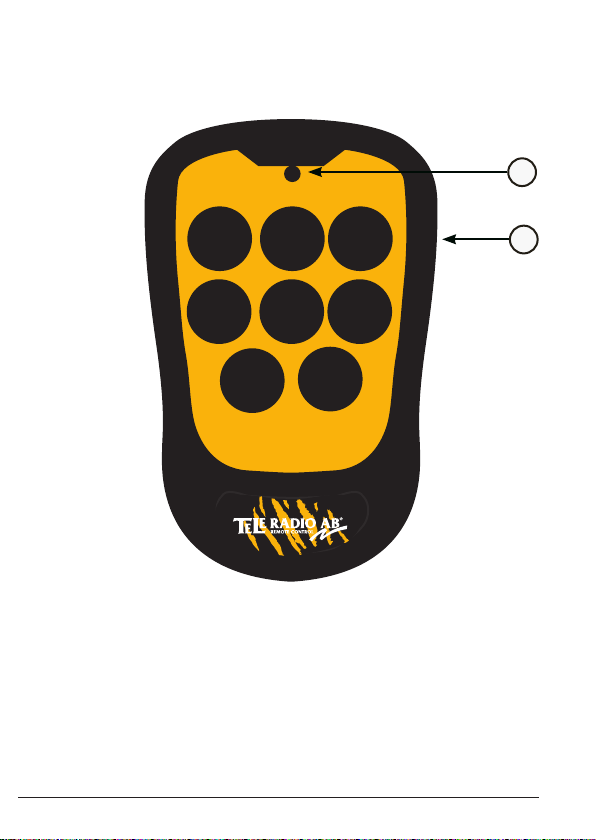

8-BUTTONS TRANSMITTER T00008-2X

1

1. LED

2. Push buttons 1-8

Frequency: 869.85MHz.

6

1 2 3

4

5 6

87

2

BATTERIES

BATTERY TYPE: 2 x 1.5 V AAA alkaline

WARNING! Do not recharge! Attempts to recharge may cause rupture,
or the leaking of hazardous liquids, which will corrode the equipment.

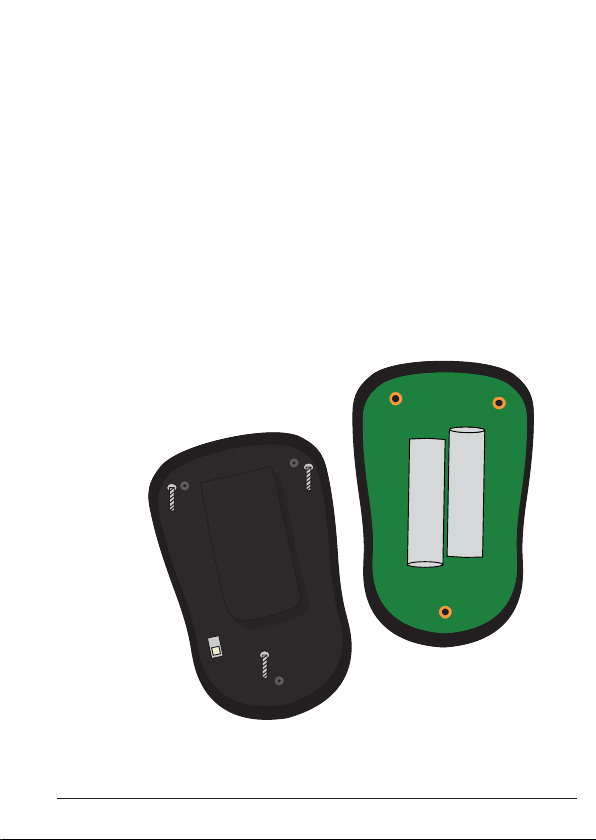

CHANGE THE BATTERIES

1. Remove the backpiece
(3 screws).

2. Remove the old batteries.

3. Put the new batteries in.

4. Replace the backpiece
(3 screws).

1.

+

+

2 x 1.5V AAA

7

PLACEMENT OF IC AND FCC ID LABELS

1.

Model: T00008-60

Freq: 433.92MHz

FCC ID: ONFC1012A

IC: 4807A-C1012A

2.

Pb

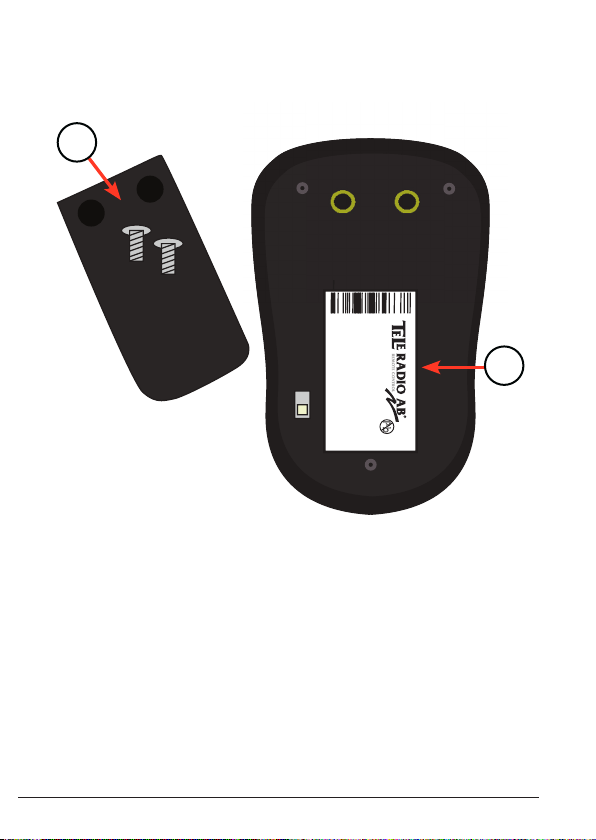

1. Remove the clip (2 screws).

2. The IC and FCC ID label is placed under the clip on the back of the
transmitter.

This eqipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment. End user must follow the specication-
located or operating in conjunction with any other antenna or transmitter.

CAUTION: The user is cautioned that changes or modications not expressly approved by the

party responsible for compliance could void the user´s authority to operate the equipment.

8

FCC STATEMENTS

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:

1. THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE

2. THIS DEVICE MUST ACCEPT ANY INTERFERENCE THAT MAY
CAUSE UNDESIRED OPERATION. NOTE: THE MANUFACTURER
IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE
CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIP­MENT. SUCH MODIFICATIONS COULD VOID THE USER´S AUTHOR­ITY TO OPERATE THE EQUIPMENT.

THIS EQUIPMENT COMPLIES WITH FCC RADIATION EXPOSURE
LIMITS SET FORTH FOR AN UNCONTROLLED ENVIRONMENT.

END USER MUST FOLLOW THE SPECIFIC OPERATING

INSTRUCTIONS FOR SATISFYING RF EXPOSURE COMPLIANCE. THIS
TRANSMITTER MUST NOT BE CO-LOCATED OR OPERATING IN
CONJUNCTION WITH ANY OTHER ANTENNA OR TRANSMITTER.

GUARANTEE, SERVICE, REPAIRS AND
MAINTENANCE

The Tele Radio products are covered by a guarantee against material,
construction and manufacturing faults. During the guarantee period, Tele
Radio may replace the product or faulty parts. Work under guarantee
must be carried out by Tele Radio or by an authorized service centre
specied by Tele Radio. This is not covered by the guarantee: Faults
resulting from normal wear and tear. Parts of a consumable nature.

Products that have been subject to unauthorized modications. Faults

resulting from incorrect installation and use. Damp and water damage.

Repairs and maintenance must be carried out by qualied personnel. Use

spare parts from Tele Radio only. Contact your representant or HelpDesk
if you require service or other assistance. Keep the product in a dry, clean
place. Keep contacts and antennas clean. Wipe off dust using a slightly
damp, clean cloth. Never use cleaning solutions or high-pressure water.

Guarantee, Service, Repairs And Maintenance

9

BATTERY PRECAUTIONS

Observe the following warnings.

• As batteries contains ammable substances such

as lithium or other organic solvents, they may cause heating, rupture
or ignition.

• Risk of explosion if battery is replaced with a battery of an incorrect
type.

• Do not short circuit, disassemble, deform or heat batteries.

• Never try to charge a visibly damaged or frozen battery.

• Do not charge rechargeable batteries with a higher voltage than
specied.

• Keep batteries out of reach of small children. Should a child swallow

a battery, consult a physician immediately.

• Avoid direct soldering to batteries.

• When discarding batteries, insulate the + and - terminals of batteries

with insulating/ masking tape. Do not put multiple batteries in the
same plastic bag.

• When improperly disposed, lithium batteries may short circuit,
causing them to become hot, burst or ignite.

• Store in a cool location. Keep batteries away from direct sunlight,
high temperature, and high humidity.

• Do not throw batteries into re.

DISPOSAL OF BATTERIES AND ELECTRONICS

An alkaline battery does not contain mercury, cadmium or lead, and is
better for the environment than older types of batteries. Alkaline batter­ies should be disposed through local recycling stations/waste dumps.
Contact your local government’s recycling or solid waste department for
more information on proper recycling of alkaline batteries in your region.

Disposal of batteries and electronics

10

!

Improperly disposed batteries and electronics may harm
public health and the environment. Batteries and electr­onic waste may contain toxic heavy metals. If thrown away
in the trash, the toxic compounds can leach into soil and
water, pollute lakes and streams,

making them unt for drinking, swimming, shing, and

wildlife. Contact your local government’s recycling or
solid waste department for more information on proper
disposal of batteries and electronics in your region.

SAFETY PRECAUTIONS

• Read the instructions carefully before mounting, installing, congurating

and using the product.

• Allow only qualied personnel to install the product.

• Switch the power supply off before connecting.

• Use only undamaged cables.No cables should hang loose.

• Place the receiver well away from wind, damp and water with cable

glands and vent plugs faced down.

• Make sure that the user has reached the certied age to operate the
equipment, and is not under the inuence of drugs, alcohol and medicines.

• Make sure that the user does not leave the transmitter unsupervised,

always turns the transmitter off when it´s not in use, and keeps a good
overview of the work area.

• Contact your representative for service and maintenance work.

• Write down the serial number of the receivers and transmitters used.

• Avoid registering the transmitters in receivers where it is not being used.

• According to the Machinery Directive 2006/42/EC, we recommend a

wired emergency stop where applicable as well as other protections
against personal injuries, e.g. pinch protection for sliding car doors. The
radio control system should only be used for functions such as starting
and halting of an application. The radio control system must not be a
safety-related part of a control system.

Safety precautions

11
