Tele Radio C0911A Users Manual

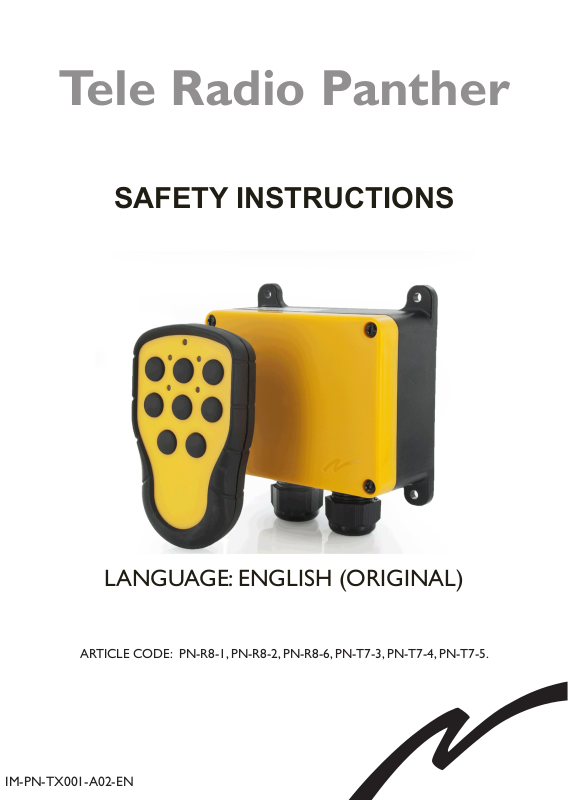

Tele Radio Panther

SAFETY INSTRUCTIONS

LANGUAGE: ENGLISH (ORIGINAL)

ARTICLE CODE: PN-R8-1, PN-R8-2, PN-R8-6, PN-T7-3, PN-T7-4, PN-T7-5.

IM-PN-TX001-A02-EN

Thank you for puchasing a Tele Radio product

PN-R8-1, PN-R8-2, PN-R8-6, PN-T7-3, PN-T7-4, PN-T7-5

INSTRUCTIONS ARE AVAILABLE FOR DOWNLOAD AT: www.tele-radio.com

READ ALL INSTRUCTIONS CAREFULLY BEFORE MOUNTING, INSTALLING AND
CONFIGURATING THE PRODUCT.

These instructions are published by Tele Radio AB without any guarantee. These
instructions are solely directed towards qualied installers. The instructions may be
removed or revised by Tele radio AB at any time and without any further notice.
Corrections and additions will be added to the updated versions of the instructions.

The instructions that contain information on the installation and conguration of the

remote radio control unit on the machine are not intended to be passed on to the end
user. Only such information may be passed on to the end user, that is needed to operate
the machine correctly by radio remote control.

Tele Radio AB products are covered by a guarantee against material, construction or
manufacturing faults. During the guarantee period, Tele Radio AB may replace the product
or faulty parts with new. Work under guarantee must be carried out by Tele Radio AB

or by an authorized service centre specied by Tele Radio AB. Make sure that repairs and
maintenance are only carried out by qualied personnel. Use only spare parts from Tele

Radio AB. Contact your Tele Radio representative if you need service or support. The EC
declaration of conformity can be downloaded from our website.

©Tele Radio AB, 2010

TELE RADIO AB
Datavägen 21, SE-436 32 Askim. Sweden
Tel: [phone]
Fax: [phone]
www.tele-radio.com.
[e-mail]

The helpdesk group can help you with questions
regarding service and technical support.

[e-mail]

5

CONTENTS

TECHNICAL DATA RECEIVER
Receiver (base board) 7
Receiver (base + relay expansion board) 8
Receiver (base + high voltage expansion board) 9
Current consumption 10
Receiver data 11

TECHNICAL DATA TRANSMITTER
Transmitter 10
Batteries 13
Change the batteries 13

SETTINGS
Start the transmitter 14
Turn the transmitter off 14
Register the transmitter in the receiver 15
Erase all transmitters from the receiver 15
LED indications 17

Placement of labels with IC and FCC information 19
FCC statement 21
Guarantee, service, repairs and maintenance 21

Battery precautions 22
Disposal of batteries 23
Disposal of electronics 23

Contents

6

TECHNICAL DATA RECEIVER

R8-1 (BASE BOARD)

10

9

7

8

LEDs
5 1 2 3 4

11

12

LED6

1
2
3

Relay 5 Relay 1 Relay 3Relay 2 Relay 4

4
5

6

1

+ -

12-24 V DC

2

3456789

CO NO NC

CO NO NC

1 (on/off)

WR/5

10111213141516

CO NO NC 2CO NO NC

3 (kill)

13

CO NO NC

4 (Buzzer)

18

19

20

F

S

LED8

LED7

LED9

LED10

15
16

17
18
19

14

17

20

1. Relay 1- on/off relay

2. Relay 5- working relay

3. Relay 2

4. Relay 3- kill relay

5. Relay 4- buzzer relay

6. Power supply connection
6-30 V DC

7. Relay LED 5

8. Relay LED 1

9. Relay LED 2

10. Relay LED 3

11. Relay LED 4

6

12. Power supply LED 6

13. Trabus programming connector

14. Terminal block for RS232

15. Function button (Cancel)

16. Select button (OK)

17. LED 8

18. Base board communication
LED 9

19. LED 10

20. LED 7

R8-6 (BASE + RELAY EXPANSION BOARD)

29

21
22
23
24
25

26

28

LED
LED6
LED7
LED8
LED9
LED10

Relay 6

LED11

21

23

22

CO CO NO NC

LEDs
5 1 2 3 4

Relay 7 Relay 8

Relay 5 Relay 1 Relay 3Relay 2 Relay 4

24

27

26

25

CO NO NC

6

7

30

293031

28

CO NO NC

8

31

LED6

Relay 9

CO NO NC

32

Relay 10

34

36

35

33

32

CO NO NC

9

10

34

33

Relay 11

38

37

CO NO NC

11

18

19

20

F

S

LED8

LED7

LED9

LED10

39

27

1

+ -

12-24 V DC

2

3456789

CO NO NC

WR/5

21. Expansion board
communication LED 11

22. Relay LED 6

23. Relay LED 7

24. Relay LED 8

25. Relay LED 9

26. Relay LED 10

27. Relay LED 11

28. Relay 6

29. Relay 7

30. Relay 8

CO NO NC

1

(on/off)

10111213141516

CO NO NC 2CO NO NC

3

(kill)

31. Relay 9

32. Relay 10

33. Relay 11

34. Trabus programming connector

CO NO NC

4

(Buzzer)

17

7

18

19

20

LED7

LED8

LED6

LED9

LED10

F

S

Relay 5 Relay 1 Relay 3Relay 2 Relay 4

5 1 2 3 4

+

-

12-24 V DC

CO NO NC

WR/5

CO NO NC

1

(on/off)

CO NO NC 2CO NO NC

3

(kill)

CO NO NC

4

(Buzzer)

1

2

3456789

10111213141516

17

LEDs

212223

24

COMMON

24-110 V AC

230 V AC

LED

R8-2 (BASE + HIGH VOLTAGE EXPANSION BOARD)

35

22

21 23 24

COMMON 24-110 V AC 230 V AC

Recommended cable for RS232 is a twisted or shielded cable.

35. Power supply LED 12

8

Current consumption

RX MODEL SUPPLY VOLTAGE MAX. CURRENT CONSUMPTION

R8-1 12-24 V DC <200 mA.

R8-2 24-230 V AC <200 mA.

R8-6 12-24 V DC <300 mA.

Technical data

FUNCTIONAL RELAYS: 5/ 11 potential free* functional relays
makes/ breaks 8A ACI
NUMBER OF CHANNELS: 16
SIZE: 120 x 116 x 50 mm./

4.7” x 4.6” x 2”
WEIGHT: 400-500 grams/ 14-18 oz.
IP CLASS: IP66

9

TECHNICAL DATA TRANSMITTER

3-BUTTONS TRANSMITTER T5

1

2

1

2

3

3

1st step

1. Top LED (red/green)

2. LED 2 (red)

3. LED 1 (red)

4. 2-step buttons 1-3

NOTE! The right transmitter shows the
button positions for the second step on
the 3-button transmitter.

Frequency: 2405-2480 MHz.

Technical data transmitter

10

17 18 19

2nd step

4

6-BUTTONS TRANSMITTER T4

1

2

3

4

6

5

1
2
3

4

5

17 18 19

1st step

1. Top LED (red/green)

2. LED 2 (red)

3. LED 1 (red)

4. LED 4 (red)

5. LED 3 (red)

6. 2-step buttons 1-6

NOTE! The right transmitter shows the
button positions for the second step on the
6-button transmitter.

Frequency: 2405-2480 MHz.

2nd step

6

222120

Technical data transmitter

11

8-BUTTONS TRANSMITTER T3

1

2

3

5

6

8

4

7

17

1st step

1. Top LED (red/green)

2. LED 2 (red)

3. LED 1 (red)

4. LED 4 (red)

5. LED 3 (red)

6. 2-step buttons 1-8

NOTE! The right transmitter shows the
button positions for the second step on
the 8-button transmitter.

1
2
3

4
5

18 19

2423

2nd step

6

222120

Frequency: 2405-2480 MHz.

Technical data transmitter

12

BATTERIES

BATTERY TYPE: 3 x 1.5 V
AAA alkaline
OPERATING TIME: Approx. 15 h. with continuous usage

WARNING! Do not recharge! Attempts to recharge may cause rupture,
or the leaking of hazardous liquids which will corrode the equipment.

CHANGE THE BATTERIES

1. Remove the clip (2 screws).

2. Remove the battery cover (2
screws).

3. Remove the batteries,
starting with the one in the
middle.

4. Put the new batteries (3 x

1.5V AAA batteries) in, start­ing with the battery to the
left or to the right.

5. Put back the battery cover (2
screws).

PROGRAM THE TRANSMITTER

1. Remove the clip (2 screws).

2. Remove the battery cover (2 screws).

3. Remove the right battery. The program­ming connector is placed behind the
battery.

Technical data transmitter

13

SETTINGS

DEFAULT STATE

• discontinuous radiotransmission

• no on/off function

The system will start transmitting as soon as the batteries are inserted
and a transmitter button is pressed. Radio transmission will end as soon
as no transmitter button is being pressed.

START THE TRANSMITTER

1. Start the transmitter by pressing any transmitter button.

TURN THE TRANSMITTER OFF

1. The transmitter turns off when no transmitter button is pressed.

Settings

14

REGISTER THE TRANSMITTER IN THE RECEIVER

1. Press the receiver Function button until red LED 7 lights up.

2. Press the receiver Select button until LEDs 1-5 light.

3. Press any transmitter button, e.g. button 1 until LEDs 1-10 ash 3

times before going out.

ERASE ALL TRANSMITTERS FROM THE RECEIVER

1. Press the receiver Function button and the Select button at the

same time until red LED 1-5 go out.

NOTE! If red LED 7 ashes slowly, one or several transmitters are still

registered in the receiver.

Settings

15

RELAY SETTINGS

All buttons (step 1 and/ or 2) as well as all relays can be re-mapped using
the PC program Settings manager. At delivery, the default relay setting is:

R8-1:

Transmitter button 1 (1st + 2nd step) activates relay 1
Transmitter button 2 (1st + 2nd step) activates relay 2
Transmitter button 3 (1st + 2nd step) activates relay 3
Transmitter button 4 (1st + 2nd step) activates relay 4
Transmitter button 5 (1st + 2nd step) activates relay 5

R8-6 with a 6 relay expansion board connected:

Transmitter button 6 (1st + 2nd step) activates relay 6
Transmitter button 7 (1st + 2nd step) activates relay 7
Transmitter button 8 (1st + 2nd step) activates relay 8

Settings

16

LED INDICATIONS

LED INDICATIONS DURING START UP

1. All receiver relay-LEDs lit up for 0.5 sec.

2. Indications for settings are shown for 2 sec. Contact your

representative if you have problems starting the system.

LED INDICATIONS IN PROGRAMMING MODE

LED 7 red ON

LED 8 yellow ON

LED 9 green ON

LED 10 orange ON

LED INDICATIONS DURING OPERATION

LED 7 red OFF No transmitter registered

ashes
(on 500 ms./ off 1.5 s.)

ashes
(on 1 s./ off 1 s.)

ON Valid radio packages from

Transmitter logged in.

At least one
transmitter registered.
No radio transmission.

transmitter received.

17

ERROR LED INDICATIONS

LED 7
(red)

LED 7
(red)

LED 8 ON A radio package not coming from a

LED 8 + LED 9 ON A radio package is received, but is not

LED 8 + LED 10 ON A radio package is received from a

LED 9 ON A radio package is received, but the

LED 10 ON A radio package is received, but is not

+ LED 8

(yellow)

ON The receiver can not read the start-up

information. Contact your
representative.

ON Radio module setup failed. Contact

your representative.

Panther transmitter is received.

accepted. Contact your representative.

transmitter that is not registered.
Register the transmitter, or switch to
another frequency.

radio signal strength is too weak.
Contact your representative for more
information.

accepted. Contact your representative.

18

PLACEMENT OF LABELS WITH IC AND FCC

2150

2150

2150

INFORMATION

1. Product label

www.tele-radio.com

Model: T00007-03
Freq.: 2405-2480MHz

1.

2150

Freq.: 2405-2480MHz

Sn.:XXXXXX

Model: T00007-05

www.tele-radio.com

Pb

Sn.:XXXXXX

www.tele-radio.com

Model: T00007-04
Freq.: 2405-2480MHz
Sn.:XXXXXX

www.tele-radio.com

Model: T00007-05
Freq.: 2405-2480MHz
Sn.:XXXXXX

The product label is placed under the clip on the battery lid. Remove the
clip (2 screws).

Pb

Pb

Pb

19

2. IC and FCC ID label

IC: 4807A-C0911A

FCC ID: ONFC0911A

2.

The IC label is placed on the left side of the battery clip. The FCC ID label
is placed on the right side of the battery clip (see picture).

The mobile device is also designed to meet the requirements for
exposure to radio waves established by the Federal Communications
Commission (USA). These requirements set a SAR limit of 1.6 W/kg
averaged over one gram of tissue. The highest SAR value reported under

this standard during product certication for use when properly worn on

the body is 0.087 W/kg.

20

FCC STATEMENTS

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:

1. THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE

2. THIS DEVICE MUST ACCEPT ANY INTERFERENCE THAT MAY

CAUSE UNDESIRED OPERATION. NOTE: THE MANUFACTURER
IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE
CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIP­MENT. SUCH MODIFICATIONS COULD VOID THE USER´S AUTHOR­ITY TO OPERATE THE EQUIPMENT.

THIS EQUIPMENT COMPLIES WITH FCC RADIATION EXPOSURE
LIMITS SET FORTH FOR AN UNCONTROLLED ENVIRONMENT.

END USER MUST FOLLOW THE SPECIFIC OPERATING

INSTRUCTIONS FOR SATISFYING RF EXPOSURE COMPLIANCE. THIS
TRANSMITTER MUST NOT BE CO-LOCATED OR OPERATING IN
CONJUNCTION WITH ANY OTHER ANTENNA OR TRANSMITTER.

GUARANTEE, SERVICE, REPAIRS AND
MAINTENANCE

The Tele Radio products are covered by a guarantee against material,
construction and manufacturing faults. During the guarantee period, Tele
Radio may replace the product or faulty parts. Work under guarantee
must be carried out by Tele Radio or by an authorized service centre
specied by Tele Radio. This is not covered by the guarantee: Faults
resulting from normal wear and tear. Parts of a consumable nature.

Products that have been subject to unauthorized modications. Faults

resulting from incorrect installation and use. Damp and water damage.

Repairs and maintenance must be carried out by qualied personnel. Use

spare parts from Tele Radio only. Contact your representant or HelpDesk
if you require service or other assistance. Keep the product in a dry, clean
place. Keep contacts and antennas clean. Wipe off dust using a slightly
damp, clean cloth. Never use cleaning solutions or high-pressure water.

21

BATTERY PRECAUTIONS

Observe the following warnings. As batteries contains

ammable substances such as lithium or other organic

solvents, they may cause heating, rupture or ignition.

• Risk of explosion if battery is replaced with a battery of an incorrect
type.

• Do not short circuit, disassemble, deform or heat batteries.

• Never try to charge a visibly damaged or frozen battery.

• Do not charge rechargeable batteries with a higher voltage than
specied.

• Keep batteries out of reach of small children. Should a child swallow a

battery, consult a physician immediately.

• Avoid direct soldering to batteries.

• When discarding batteries, insulate the + and - terminals of batteries

with insulating/ masking tape. Do not put multiple batteries in the same
plastic bag.

• When improperly disposed, lithium batteries may short circuit, causing
them to become hot, burst or ignite.

• Store in a cool location. Keep batteries away from direct sunlight, high
temperature, and high humidity.

• Do not throw batteries into re.

Battery Precautions

20

DISPOSAL OF BATTERIES

An alkaline battery does not contain mercury, cadmium or lead, and is
better for the environment than older types of batteries. Alkaline
batteries should be disposed through local recycling stations/waste dumps.
Contact your local government’s recycling or solid waste
department for more information on proper recycling of
alkaline batteries in your region.

DISPOSAL OF ELECTRONICS

Improperly disposed electronics may harm public health
and the environment. Batteries and electronic waste may
contain toxic heavy metals. If thrown away in the trash, the toxic
compounds can leach into soil and water, pollute lakes and streams,

making them unt for drinking, swimming, shing, and wildlife. Contact

your local government’s recycling or solid waste department for more
information on proper disposal of electronics in your region.

Disposal Of Electronics

21

TELE RADIO AB

Sweden, Main office
Tel. [phone]
e-mail: [e-mail]

TELE RADIO SVERIGE

Sweden
Tel. [phone]
e-mail: [e-mail]

TELE RADIO LTD

England
Tel. [phone]
e-mail: [e-mail]

www.tele-radio.com

TELE RADIO GmbH

Germany
Tel. [phone]
e-mail: [e-mail]

TELE RADIO LLC

North America & Latin America
Tel. [phone]
e-mail: [e-mail]

TELE RADIO ASIA

China
Tel. [phone]
e-mail: [e-mail]

TELE RADIO BV

Benelux
Tel. [phone]
e-mail: [e-mail]

TELE RADIO TURKEY

Turkey
Tel. [phone]
e-mail: [e-mail]

TELE RADIO AS

Norway
Tel. [phone]
e-mail: [e-mail]
