1. Overview
The RB800 Terminal is the complete modem solution for wireless m2m applications.
Based on the Telit GL865 or UL865 module, it is available as quad or dual-band version
and offers high level GSM/GPRS/UMTS features in compact aluminium housing with all
the standardized interfaces. Together with its small size and wide supply voltage range,
makes it easy to integrate into all kinds of machines.
The RB800 terminal enabling voice, high speed data transmission, SMS and fax
communication is a universal solution for all low-volume M2M and mobile data applications
including metering, traffic systems, transportation and logistics, security, vending
machines, and facility management.
Device can be controlled by standard AT commands or by customer's application inside
(embedded Python Script Interpreter), thus making it the smallest, complete SMT platform
for m2m solutions.
This document contains full RB800 modem description and gives information about
installation and using it.
4
2. References
[1] Telit_AT_Commands_Reference_Guide.pdf
[2] Telit_HE910_UE910_UL865_AT_Commands_Reference_Guide.pdf
[3] Telit_GL865-DUAL_QUAD_Product_Description.pdf
[4] Telit_UL865_Product_Description.pdf
[5] Telit_Easy_Script_Python_1.5.2.pdf
[6] Telit_Easy_Script_Python_2.7.pdf
[7] http://www.telit.com/en/products/umts.php?p_id=14&p_ac=show&p=145
[8] http://www.python.org/
5
3. Product variants
Product variants, codes and description are listed below.
Example:
RB800U.X.2.X.X.3 – UMTS modem with RS232 interface, 2 x SIM holder, with DIN rail
mounting kit
6
RB800
. . . . .
X -
GL865 Quad (standard)
D -
GL865 Dual
U -
UL865 EUD
Ur -
UL865 EUR
XM DM UM -
X -
standard
IO -
X -
1SIM
2 -
2SIM
X -
RS232
2 -
RS232+RS485
X -
standard
X -
standard:
3 -
Special Soft weare
Special Option
GL865 Quad+MicroSD
GL865 Dual+MicroSD
UL865+MicroSD
option GPIO
- power supply
- antenna
- wall mount kit
Standard + DIN rail mounting kit
4. Package
4.1 Box
Original box of the product is shown in the picture below.
You can find product sticker on the box. It matches modems sticker that is placed on the
device. This proves that your modem is original product. More information about stickers
in Product sticker.
7
5. Complete package contents
Complete package contains:
RB800 terminal (item A)
GSM antenna (via SMA) (item B)
wall handle (item C)

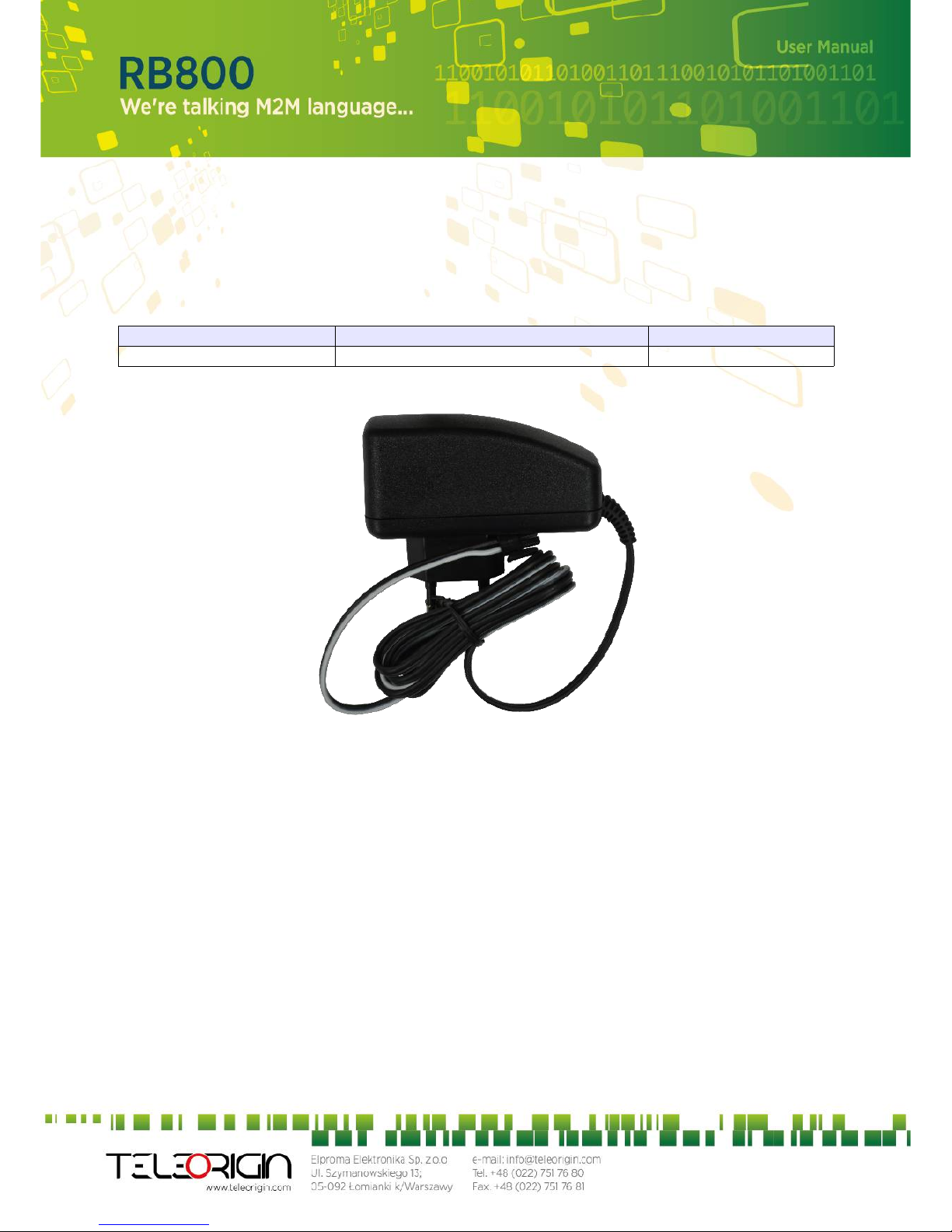

power adaptor (item D)
8
6. General presentation
6.1 Product pictures
9
SMA
connector
Extractable
SIM card
holder
SIM card
holder
ejector
Power
supply
EIA574 (RS-232)
DE9 D-sub socket
USB
DATA
GSM
PWR
LED's
6.2 External connections
6.2.1 Antenna connector
SMA antenna input is used to connect external GSM antenna. To establish connection
with GSM network an external antenna must be used. Type of antenna depends on GSM
coverage. In good circumstances (level of received signal is high) use antenna which is
attached in the package. If range of GSM is low or none, an outdoor or indoor (for instance
in place where GSM range is sufficient) antenna should be used.
Note: If there is no antenna connected to SMA connector, the connection with GSM
network is impossible.
6.2.2 Memory slot
RB800 can be optionally equipped with memory card slot to store all the measured
data. The slot type is microSD. Memory card can be controlled only by Python script using
special AT commands which is sends through SER2 interface, see chapter Python Script
Interpreter and AT Reference manual.
10
6.2.3 USB Interface
RB800 terminal (only UMTS variant) is equipped with USB interface (as shown below) –
miniUSB connector type.
6.2.4 RS-232 Interface (EIA574)
RB800 terminal is equipped with RS-232 interface (as shown below). DE9 DSUB
socket is connected via voltage level translator circuit to the GSM module.
11
Table of RS-232 DB9 pins:
Pin No. Name Dir Description
1 DCD IN Data Carrier Detect. Raised by DCE when modem
synchronized.
2 RD IN Receive Data (a.k.a RxD, Rx). Arriving data from DCE.
3 TD OUT Transmit Data (a.k.a TxD, Tx). Sending data from DTE.
4 DTR OUT Data Terminal Ready. Raised by DTE when powered on. In
auto-answer mode raised only when RI arrives from DCE.
5 SGND - Ground
6 DSR IN Data Set Ready. Raised by DCE to indicate ready.
7 RTS OUT Request To Send. Raised by DTE when it wishes to send.
Expects CTS from DCE.
8 CTS IN Clear To Send. Raised by DCE in response to RTS from DTE.
9 RI IN Ring Indicator. Set when incoming ring detected - used for auto-
answer application. DTE raised DTR to answer.
DE-9 (EIA/TIA 574)
looking into female connector
6.2.5 D-Sub HD 15-pin connector
RB800 can be equipped with DE9 15-pin connector to control RS232 interface and
GPIO lines. GPIO lines can be controlled by internal Python application, see Python
Script Interpreter and AT Reference manual for details. Below you can find pins
description of this variant of modem.
12
Table of RS-232 DB9 pins:
Pin
No.
Name Dir Description
1 GND - Ground
2
GPIO1 (ADC) IN/OUT
General purpose input/output. ADC range 0..3V, 10 bit resolution.
3 GPIO2 (ADC) IN/OUT General purpose input/output (high-drive 30mA). ADC range 0..3V, 10
bit resolution.
4
RTS IN
Request To Send. Raised by DTE when it wishes to send. Expects CTS
from DCE.
5 TX OUT Request To Send. Raised by DTE when it wishes to send. Expects CTS
from DCE.
6
GPIO3 (ADC) IN/OUT
General purpose input/output. ADC range 0..3V, 10 bit resolution.
7 GPIO6
(I2C_SDA)
IN/OUT
General purpose input/output. Open-drain, pull-up 2k / I2C data – SDA.
8 GPIO4 (ADC) IN/OUT
General purpose input / output. ADC range 0..3V, 10 bit resolution.
9
DTR IN
Data Terminal Ready. Raised by DTE when powered on. In auto-answer
mode raised only when RI arrives from DCE.
10
GND
- Ground
11 GPIO5 (ADC) IN/OUT
General purpose input/output. ADC range 0..3V, 10 bit resolution.
12
GPIO7
(I2C_SCL)
IN/OUT
General purpose input/output. Open-drain, pull-up 2k / I2C clock – SCL
13
GND
- Ground
14 RX IN
Receive Data (a.k.a RxD, Rx). Arriving data from DCE.
15
CTS OUT
Clear To Send. Raised by DCE in response to RTS from DTE.
DE-15 looking into female connector:
6.2.6 Power supply connector
The power supply connector is a 2-pin connector for external DC power supply
connection, which can handle voltage from range 5..30 V DC, 2.5 W max. continuous
power.
No. Singal I/O Description
+ V+BATTERY I 5 V – 30 V DC
- GND - Ground
13
Attention!
An attempt to power terminal from DC source outside of 5..30 V range may result in
physical destruction of the device.
6.2.7 SIM card holder
SIM card holder is placed in front of RB800 terminal (as shown below) and is accessible
externally. To insert SIM card into the holder press the yellow button, eject the little
drawer, place there Your SIM card and insert drawer into the modem (You will hear click).
To operate the module in a GSM network, it is necessary to insert a SIM card obtained
from the network operator.
6.3 Product sticker
Product stickers are on the modem and on the box of the product.
A production sticker includes the following information:
● Product serial number (IMEI)
● the CE marking
● the 15-digit bar code
● the model signature
Device sticker Box sticker
14
7. Basic features and services
Basic features and available services for RB800 are contained in table below.
Feature/service Description
Standard Supported Bands:
UMTS variant:
UMTS/HSPA 900/2100 Mhz (EUR/EUD version)
UMTS/HSPA 850/1900 Mhz (NAR/NAD version)
GSM/GPRS/EDGE 900/1800 MHz (EUR/EUD version)
GSM/GPRS/EDGE 850/1900 MHz (NAR/NAD version)
GPRS variant:
GSM/GPRS 850/900/1800/1900 Mhz
Physical:
83 x 53,5 x 25 mm
Weight 151 g
Speed UMTS variant:
HSDPA class 8 up to 7.2 Mbps
HSUPA class 6 up to 5.76 Mbps
WCDMA up to 384kbps downlink/uplink
EDGE class 33 for EUx variants and class 10 for NAx variants
GPRS class 33 for EUx variants and class 10 for NAx variants
CSD up to 9.6 kbps
DTM (Dual Transfer Mode)
Interfaces Connectors
SMA antenna
SIM Card
3.0V / 1.8V
STK 3.1
Connectivity
USB 2.0 HS (UMTS variant)
UART: BR from 300 bps to 115.2 Kbps
Auto BR
SPI
SMS
MO / MT Text and PDU mode
Cell broadcast
SMS over GPRS
Audio
DVI (UMTS variant) or standard (GPRS variant)
eCall
DTMF
GSM supplementary
services
USSD phase II
Call forwarding
Call barring
Call hold & call waiting
CLIP
CLIR
Advice of charge
Power supply 5V – 30V DC
15
8. Using the modem

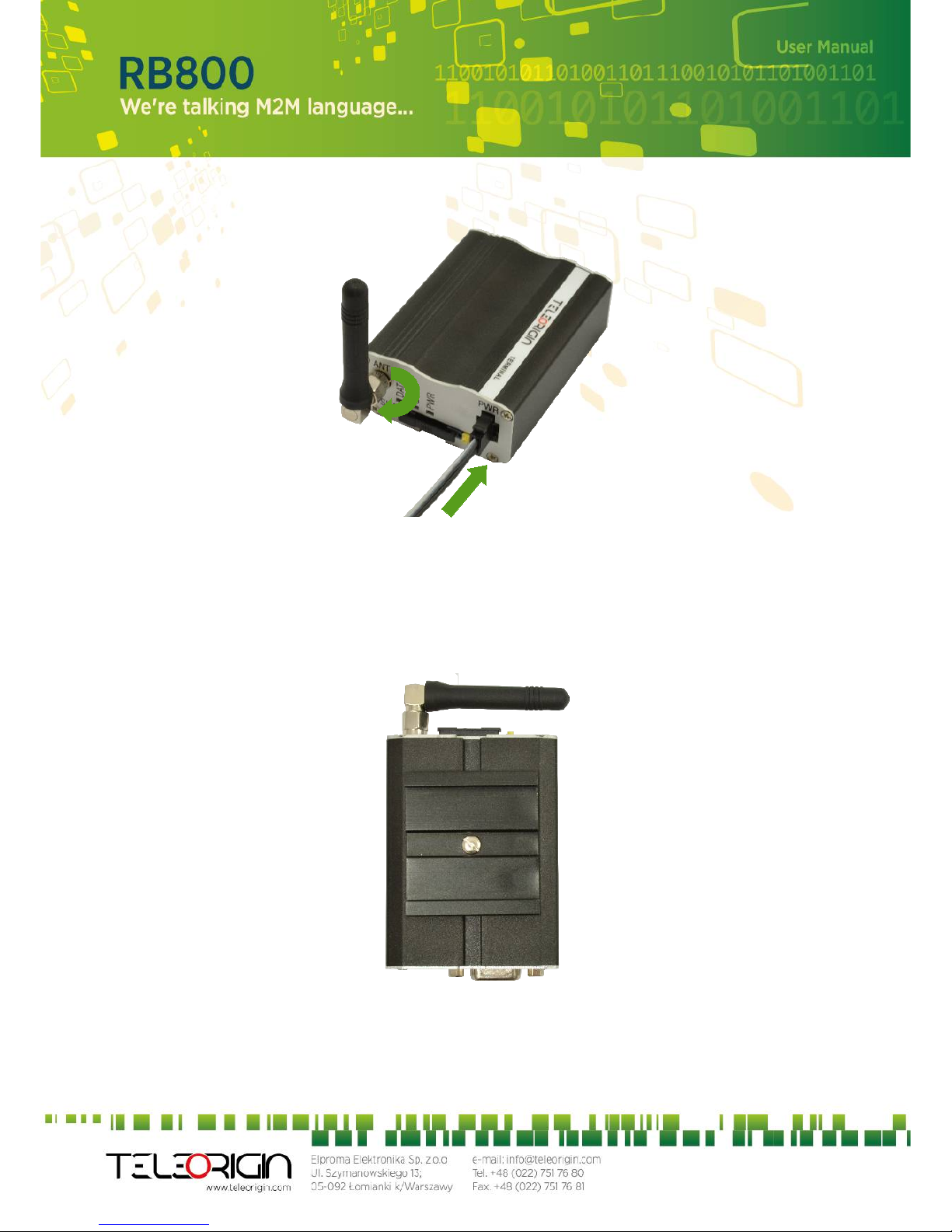

8.1 Setting up the modem
To set up the modem, do the following steps:
Eject SIM card holder using yellow button and pull out the drawer.
Insert Your SIM card into drawer.
Verify if SIM card fits in the drawer properly (as shown).
Insert the drawer into the modem.
16
1
2
Loading...
