2. PRODUCT OVERVIEW
The MIU202T is an industrial grade Bell202T modem for connection to
unconditioned and conditioned, voice grade, type 3002 two or four-wire
leased lines and metallic lines (eg; pilot wires). It can be powered from a
wide range of AC and DC power supplies, it is internally surge protected
on both the power and analog lines, and it will operate in temperatures
from -40 to +85 deg C.
Internally, the MIU202T consists of a baseboard and a communication
module. The baseboard includes the power supply regulation and surge
protection. The communication module is a Telenetics™ Pony
Express™ PE202T-S Modem Module.
The MIU202T is packaged specifically for the harsh environments found
in utility substations and industrial facilities. Though functionally similar
to commercial modems, the MIU202T includes special features that make
it particularly well suited for utility and industrial applications:
Environment: The MIU202T has been designed specifically for use
in harsh environments. In addition to an extended
temperature range (-40 to +85º C), the MIU202T
includes surge, shock, vibration, and safety features
superior to those of conventional commercial
modems.
Power Supply: The MIU202T can be powered from a broad range of
AC and DC power supplies, such as an auxiliary
supply (eg; 12VDC) from another piece of
equipment, 125VDC from a station battery or a
standard 120VAC.
Industrial: The MIU is packaged in a rugged, compact, non-
metallic (ABS) enclosure. Designed for unmanned
locations, the MIUs do not include the array of
pushbuttons and LEDs normally associated with
consumer-type modems. Configuration is by dip
switches. Standard industrial connectors for data,
analog and power interfaces allow reliable
interconnection to other industrial components.
MIU202T-S Installation, Operation & Diagnostics Edition: March 16, 1999 Page 3
Page 6
3. GENERAL PRODUCT SPECIFICATIONS
Dimensions: 5.3 x 4.0 x 1.375 inches
Weight: 1 lb
Voltage Supply: Standard Model: 40 to 270VDC
40 to 270VAC, 50/60Hz
LV Model (Suffix “-LV”): 9 to 36VDC
Current Requirements:
12VDC 24VDC 125VDC 120VAC 220VAC
65mA 27mA 7.5mA 6.5mA 5.5mA
Surge Protection: Power Supply: 8kVrms
Analog Line: 3.75kVac
Digital Line: ESD ± 10kV
Operating Temperature: -40 to +85 deg C
Operating Humidity: 0 to 90% (non-condensing.)
Storage Temperature: -55 to 100 deg C
MIU202T-S Installation, Operation & Diagnostics Edition: March 16, 1999 Page 4
Page 7
4. MODEM SPECIFICATIONS
Modulation: Bell202T
Modulation Type: FSK
Synch/Async: Synchronous or Asynchronous
Data Rate: 0 – 1200bps
Transmit Frequency: Mark: 1200Hz
Space: 2200Hz
Error Correction: None
Data Compression: None
Data Modulation Connectivity: Using 16ms Polling Test
99.999% or better at -37dBm
99.5% or better at -40dBm
95% or better at -43dBm
Serial Formats and Flow Control:
Synchronous or Asynchronous and RTS/CTS flow control
Analog Interface
Tx Output Level: -0 dBm or -10 dBm *
Rx Sensitivity: -43dBm or -33dBm *
-43dBm for constant carrier
-40dBm for polling carrier
Line Termination: Dip Switch Selectable *
Line Impedance: 600 ohms balanced
2 or 4 Wire Configuration: Dip Switch Selectable *
MIU202T-S Installation, Operation & Diagnostics Edition: March 16, 1999 Page 5
Page 8
Other Features
Receiver Equalization: Compromise Equalization
Self Test Diagnostics: None
Local Analog Loopback: See Section 13
Local Digital Loopback: See Section 13
Remote Analog Loopback See Section 13
Remote Digital Loopback See Section 13
Anti-Streaming: OFF or 45 Seconds (+
RTS/CTS delay: 1ms, 12ms, 35ms or 50ms (+
Note: Soft Carrier will effect
RTS/CTS delay time (see Dip
Switch Settings ~ Section 8)
Constant Carrier Switch Selectable ON or OFF
Soft Carrier Turn Off 20ms of 900Hz after RTS is turned
Off
Carrier Turn ON/OFF 8ms +
0.5ms
5 sec) *
5%) *
* Dip Switch Selectable ~ See Section 9
MIU202T-S Installation, Operation & Diagnostics Edition: March 16, 1999 Page 6
Page 9
5. ANALOG LINE SPECIFICATIONS
The MIU202T contains analog circuitry for connection to the public
conditioned or unconditioned, Bell type 3002, 2 or 4-wire, full duplex voice
grade leased lines or metallic lines (eg; pilot wires). The MIU202T will
also interface to Power Line Carrier or Microwave radio voice channel
networks.

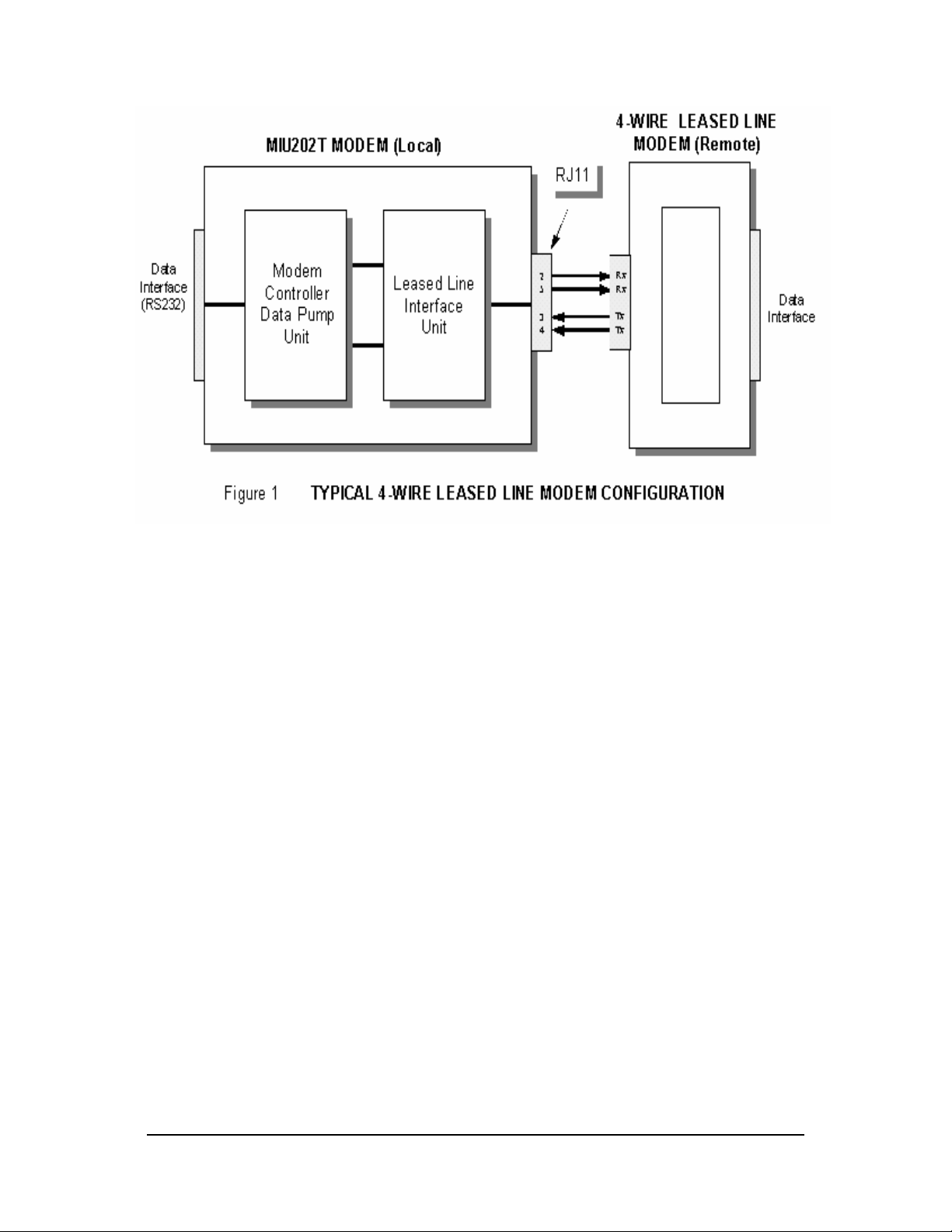

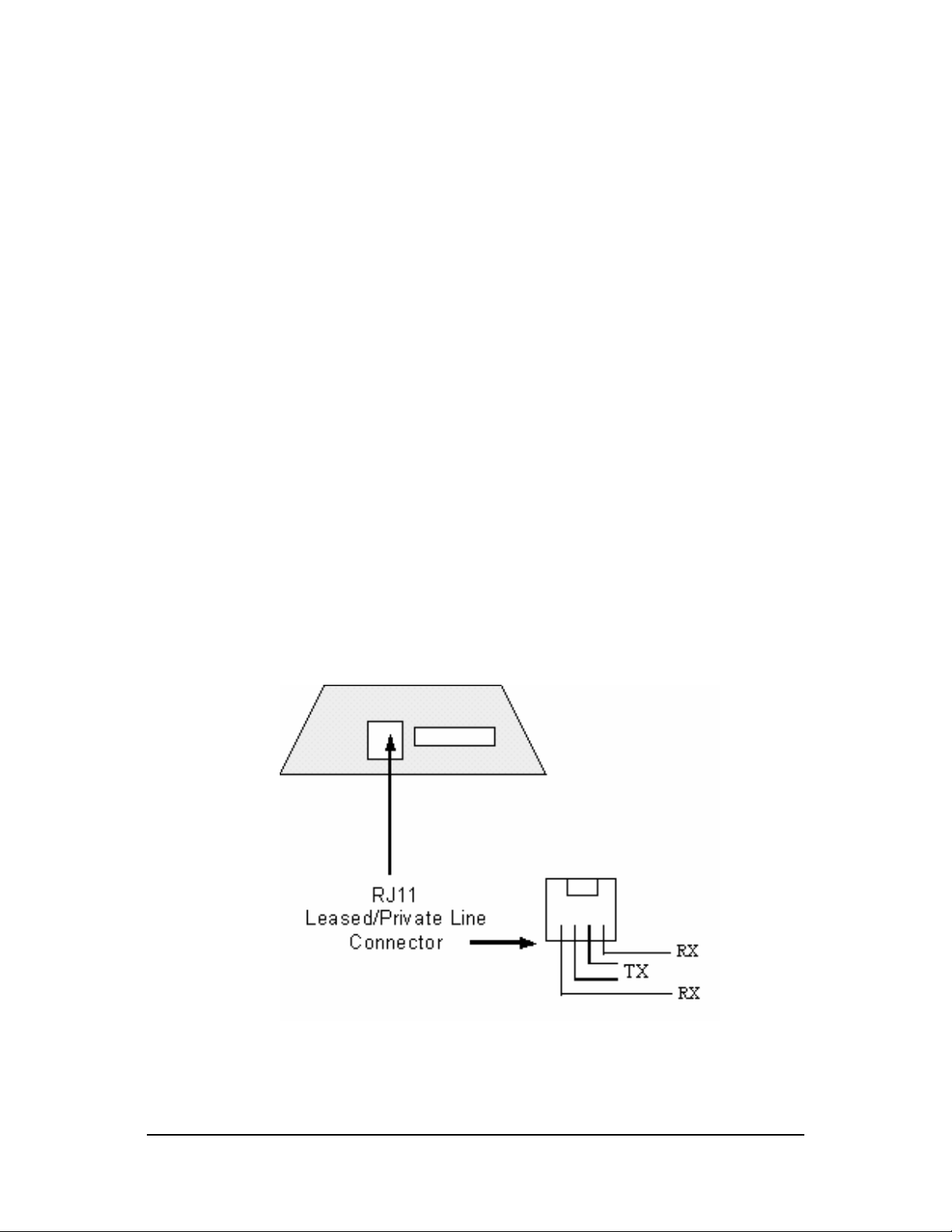

The MIU202T has an RJ-11terminated connector. The following lists the
MIU202T analog interfaces
Analog Line Type:
Conditioned or unconditioned, Bell type 3002, 2 or 4-wire, full duplex
voice grade or metallic lines or better.
Analog Line Specifications:
Bandwidth 300 Hz to 3400 Hz (±3dB)
Impedance 600 / 900 ohms , balanced
Frequency Response 400 to 3000Hz (±2dB)
Receiver Input Level -16dBm max.
Output Level +7 dBm
Noise Signal Level -48 dBmO
MIU202T-S Installation, Operation & Diagnostics Edition: March 16, 1999 Page 7
Page 10
6. ANALOG MICROWAVE INTERFACE
The MIU202Tis designed to interface to a Microwave radio voice channel
network with the following specifications:
Phase Jitter (10 to 300Hz)1 degree peak-to-peak, max.
Frequency Response: 300 - 3400Hz -3, +0.7 dB
400 - 3000Hz -1, +0.7 dB
600 - 2400Hz +
Frequency Stability: With Synchronization 0.1 Hz
Without Synchronization 0.5 Hz / month
Level Stability (w/o regulation): +
Harmonic Distortion: 1% max, 0.3 % typical
(1Khz, 0 dBmO test tone)
Absolute Delay: Option – 001: 1500 µsec, maximum
Option – 002: 1900 µsec, maximum
Group Delay (option - 001): 600 - 3200 Hz 1200 µsec, maximum
800 - 2800 Hz 550 µsec, maximum
1000-2600 Hz 350 µsec, maximum
Group Delay (option - 002): 600 - 3200 Hz with 1000 µsec, maximum
800 - 2800 Hz with 400 µsec, maximum
1000-2600 Hz with 180 µsec, maximum
Linearity: 0.3 dB +3.5 dBmO
Limiting: +7.5dBmO, max (+6.5 dBmO typical)
for +20dBmO input
Crosstalk (intelligible)(1KhZ test tone at 0 dBmO):
Inter-channel 65 dBmO maximum, 80 dBmO typical
Intra-channel 70 dBmO maximum
0.5 dB (6 months)
0.7 dB
MIU202T-S Installation, Operation & Diagnostics Edition: March 16, 1999 Page 8
Page 11
Crosstalk (unintelligible):
Adjacent channel 28dBrnc0 maximum (24 455B weighted
noise at 0 dBmO dBrnc0 typical).
Intra-channel 28 dBrnc0, maximum (18 dBrnc0, typical)
(1KHz test tone at 0 dBmO)
Out of Band Signalling: Frequency 3825 Hz
Level -20 dBmO
Pulse speed (30 to 80% break) 8 to 14 pps
Pulse distortion +
3 dB, level var. 3% max.
Signaling leak -60 dBmO, maximum
MIU202T-S Installation, Operation & Diagnostics Edition: March 16, 1999 Page 9
Page 12

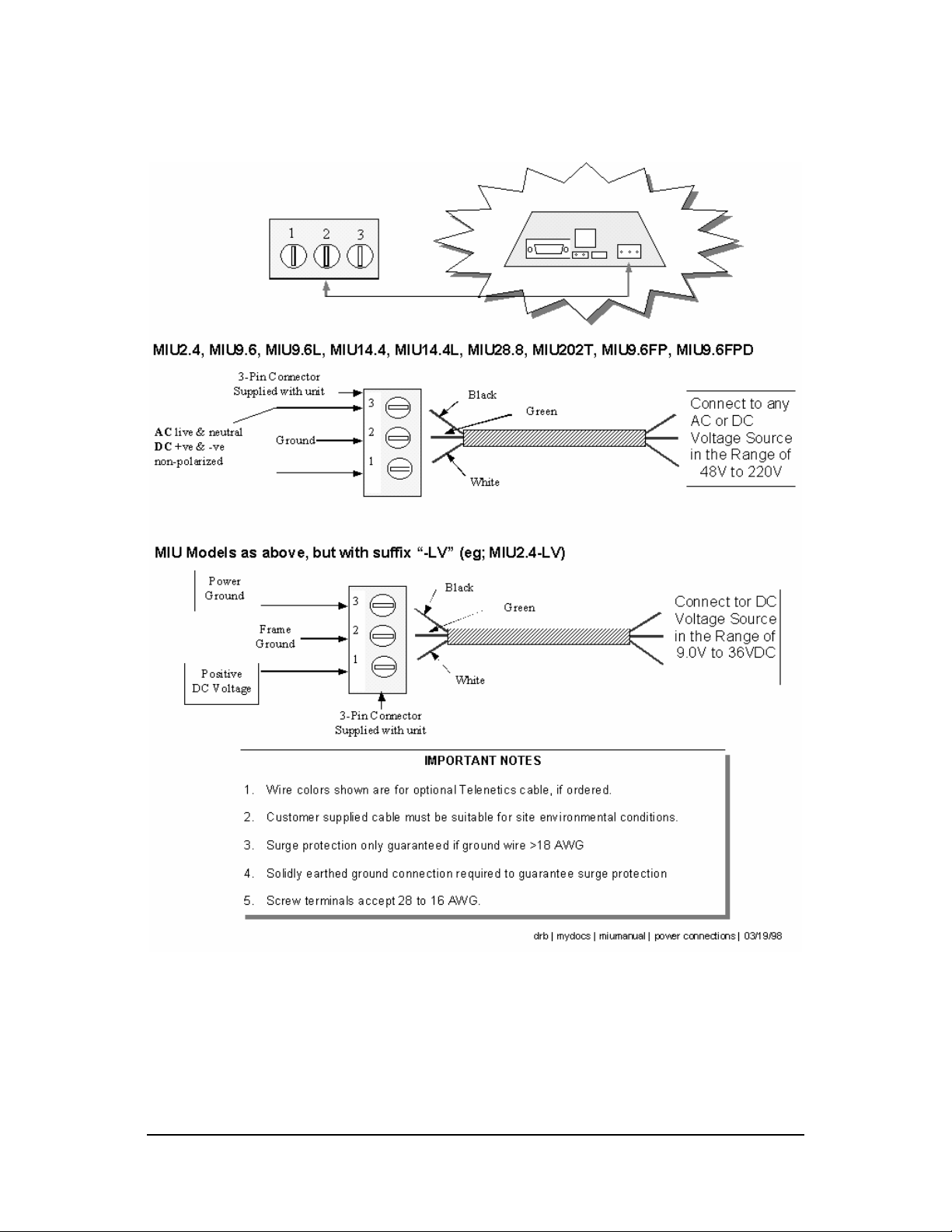

7. POWER CONNECTIONS
MIU202T-S Installation, Operation & Diagnostics Edition: March 16, 1999 Page 10
Page 13

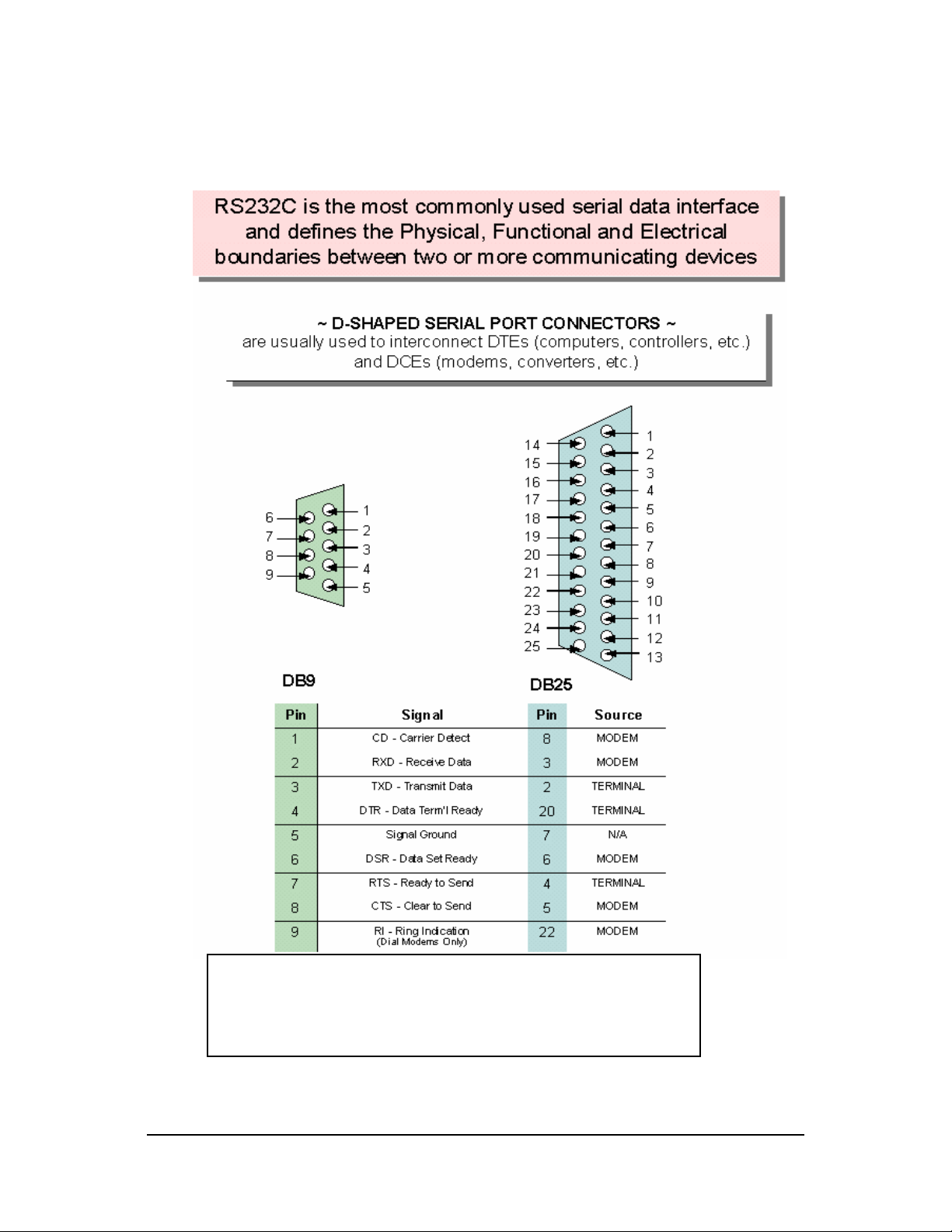

8. SERIAL DATA PORT PIN-OUTS
For Synchronous Mode
6 TxDClk (was DSR) 15 TxDClk
9 RxDClk (was RI) 17 RxDClkl
MIU202T-S Installation, Operation & Diagnostics Edition: March 16, 1999 Page 11
Page 14

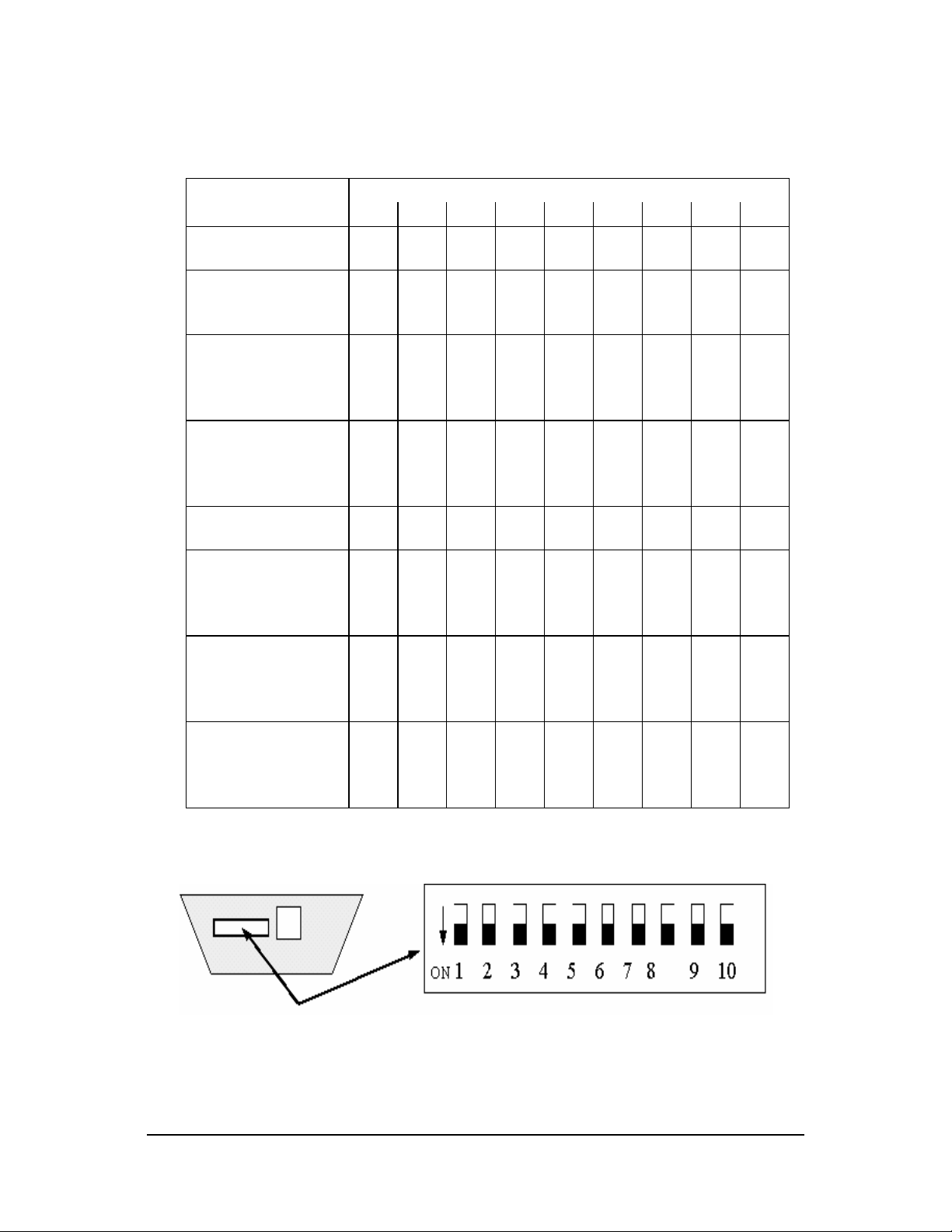

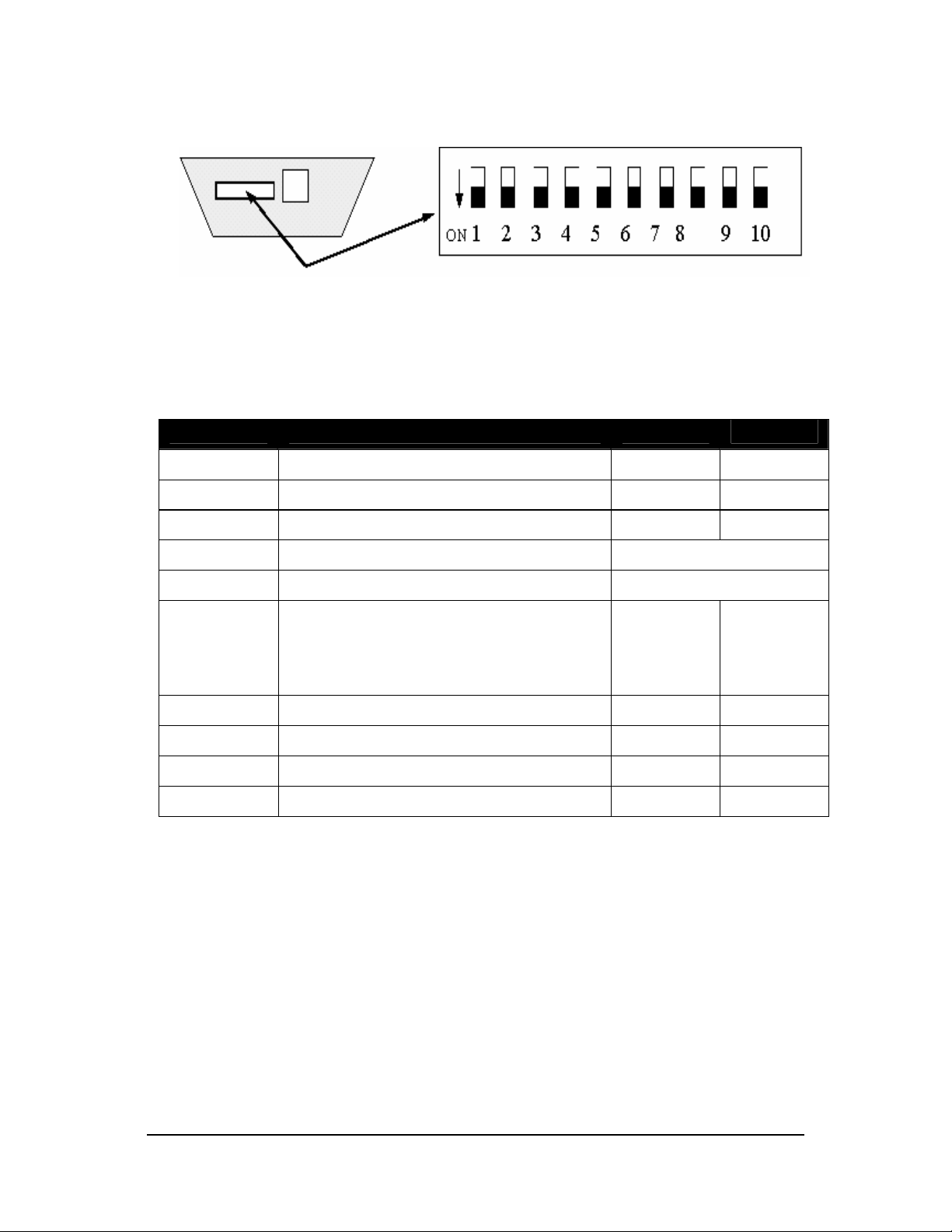

9. DIP SWITCH FUNCTIONS
IMPORTANT NOTE: Invert modem to view dip switches as shown above
Table 1
Switch Function ON OFF
Switch 1 Transmit Analog (TxA) Signal Level 0 dBm -10 dBm
Switch 2 Anti-Streaming 45 secs OFF
Switch 3 Received Analog (RxA) Signal Level -33 dBm -43 dBm
Switch 4 RTS/CTS Delay See Table 2
Switch 5 RTS/CTS Delay See Table 2
Switch 6 Switched/Constant Carrier Constant
Carrier
Switched
Carrier
(Follows
RTS State)
Switch 7 2 or 4- Wire Selection 2-Wire 4-Wire
Switch 8 Line Termination 600 ohms None
Switch 9 Soft Carrier (900Hz) Turn Off ON OFF
Switch 10 Spare
MIU202T-S Installation, Operation & Diagnostics Edition: March 16, 1999 Page 12
Page 15
Table 2: RTS/CTS Delay Time
2
Wire 4 Wire
Switched
Carrier
Constant
Carrier
Switch 4 Switch 5 Switch 9
Soft
Carrier
RTS/CTS
Delay
Time
NO YES YES YES ON ON OFF 50 ms
YES NO YES NO ON ON ON 50 ms
NO YES YES NO ON ON ON 50 ms
YES NO YES NO ON ON OFF 50 ms
NO YES YES YES OFF ON OFF 35 ms
NO YES YES NO OFF ON ON 35 ms
YES NO YES NO OFF ON ON 35 ms
YES NO YES NO OFF ON OFF 35 ms
NO YES YES YES ON OFF OFF 12 ms
NO YES YES NO ON OFF ON 35 ms
YES NO YES NO ON OFF ON 12 ms
YES NO YES NO ON OFF OFF 12 ms
NO YES NO YES OFF OFF OFF 1 ms
NO YES YES NO OFF OFF OFF 12 ms
NO YES YES NO OFF OFF ON 1 ms
YES NO YES NO OFF OFF OFF 1 ms
YES NO YES NO OFF OFF ON 1 ms
MIU202T-S Installation, Operation & Diagnostics Edition: March 16, 1999 Page 13
Page 16
10. MODEM CONFIGURATION
The following table provides the Dip Switch settings required for most
modem application configurations:
4-Wire
Point-to-Point
4-Wire
Multi-Point
Master
4-Wire
Multi-Point
Slave
Rx Term. OFF
4-Wire
Multi-Point
Slave
Rx Term. ON
2-Wire
Point-to-Point
2-Wire
Multi-Point
Master
Line Term. ON
2-Wire
Multi-Point
Slave
Line Term. ON
2-Wire
Multi-Point
Slave
Line Term. OFF
1 2 3 4 5 6 7 8 9
ON ON ON ON
ON ON ON ON
ON ON ON ON ON
ON ON ON ON ON ON
ON ON ON ON ON ON ON
ON ON ON ON ON ON ON
ON ON ON ON ON ON ON
ON ON ON ON ON ON
Dip Switch Setting
For clarity, a blank space = OFF
MIU202T-S Installation, Operation & Diagnostics Edition: March 16, 1999 Page 14
Page 17

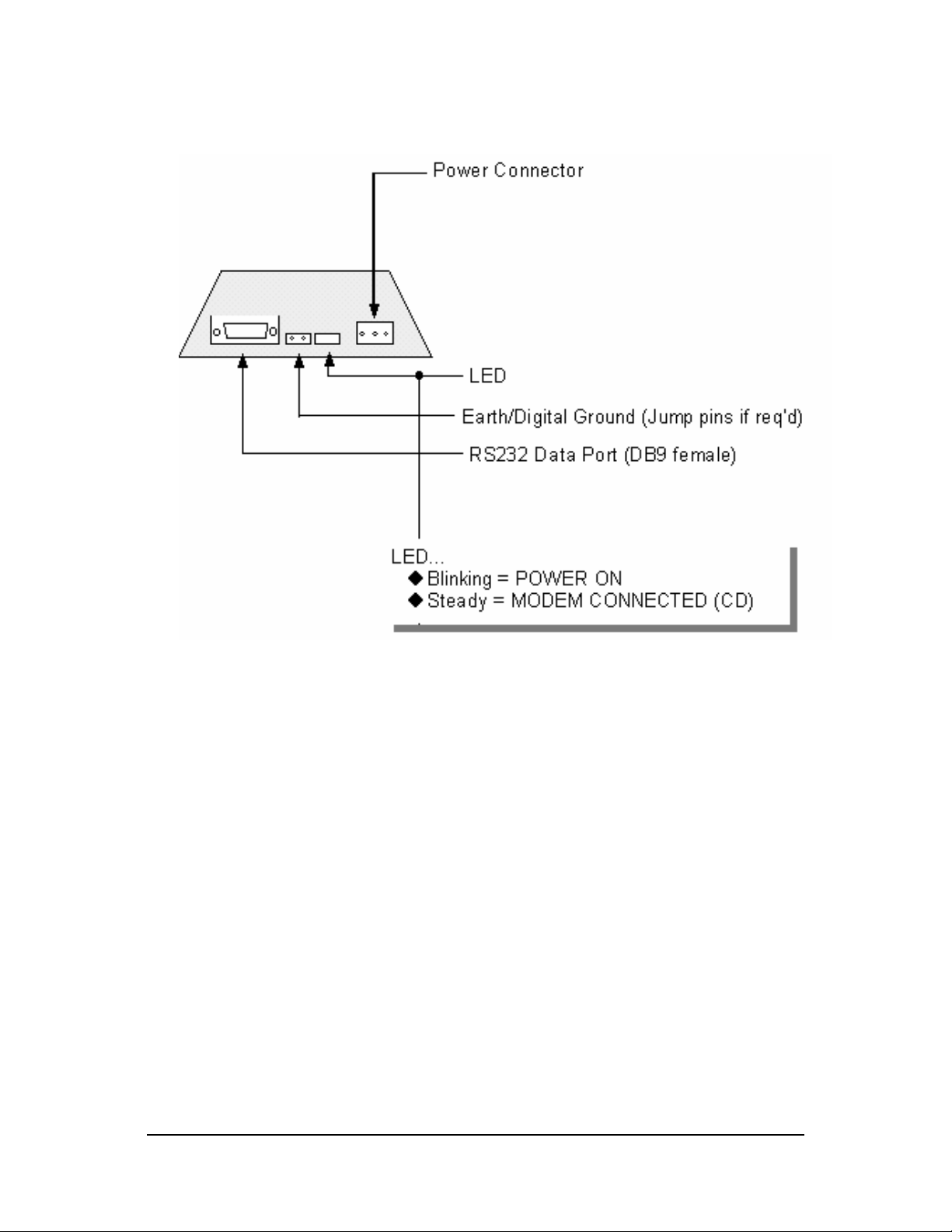

11. LED INDICATOR
MIU202T-S Installation, Operation & Diagnostics Edition: March 16, 1999 Page 15
Page 18

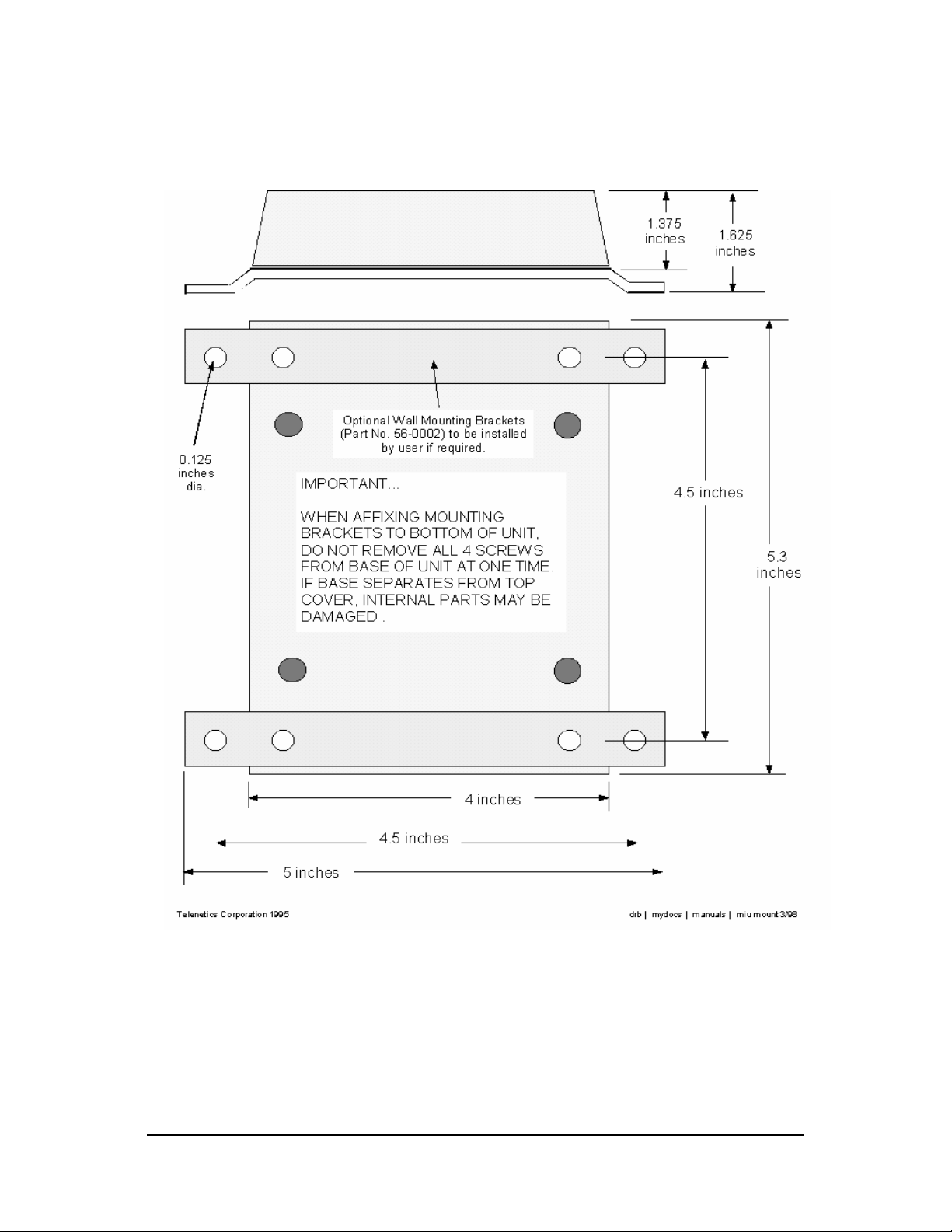

12. OUTLINE DRAWING & MOUNTING
MIU202T-S Installation, Operation & Diagnostics Edition: March 16, 1999 Page 16
Page 19
13. DIAGNOSTICS
The following pages provide hardware techniques for diagnosing
communication problems and thereby isolating the problem at the local
modem, the remote modem or the interconnecting line.

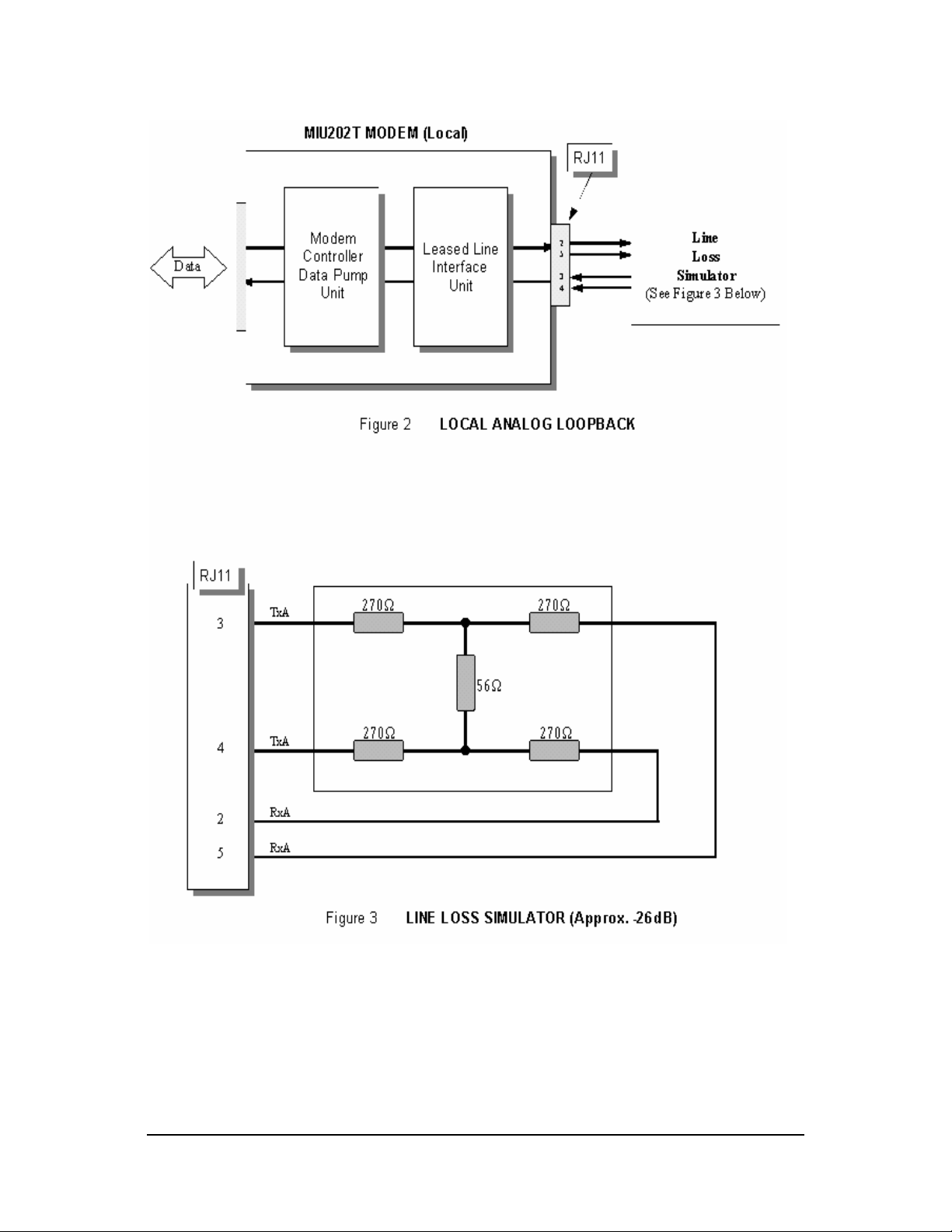

(a) LOCAL ANALOG LOOPBACK (Figure 2)
Requires a loop back cable with a built-in circuit for line loss to
simulate a typical leased line condition (See Figure 3).
Connect the loop back cable to the RJ11 connector on the modem
under test.
Set Dip Switches as follows…
Switch 7 = OFF 4-Wire
Switch 9 = ON Soft Carrier Turn Off Enabled
Switch 1 = ON Transmit (TxA) Signal Level = 0dBm
Switch 3 = ON Receive (RxA) Signal Level = –33dBm
Switch 6 = OFF Switched Carrier
Switch 4&5 = ON RTS/CTS Delay = 50ms
Test 1: RTS/CTS Analog Control
Set RTS “ON” and check that CD (Carrier Detect) turns
“ON”.
Turn RTS “OFF” and ensure that CD turns “OFF”
With RTS “ON”, run a test message at TxD and verify that
the same message is received at RxD with no data errors.
Test 2: Transmit Signal Power & Receive Levels
Set Dip Switch 1 OFF (TxA = -10dBm)
CD will be OFF.
Change Dip Switch 1 to ON (TxA = 0dBm)
CD should now be ON.
Test 3: Received Signal Level
MIU202T-S Installation, Operation & Diagnostics Edition: March 16, 1999 Page 17
Page 20
Set Dip Switch 1 OFF (TxA = -10dBm) and Dip Switch 3
OFF (RxA = -43dBm).
CD will be ON.
Run a test message at TxD and verify that the same message
is received at RxD with no data errors.
Test 4: Repeat Test 3 for various RTS/CTS delay times and with
soft carrier ON and OFF.

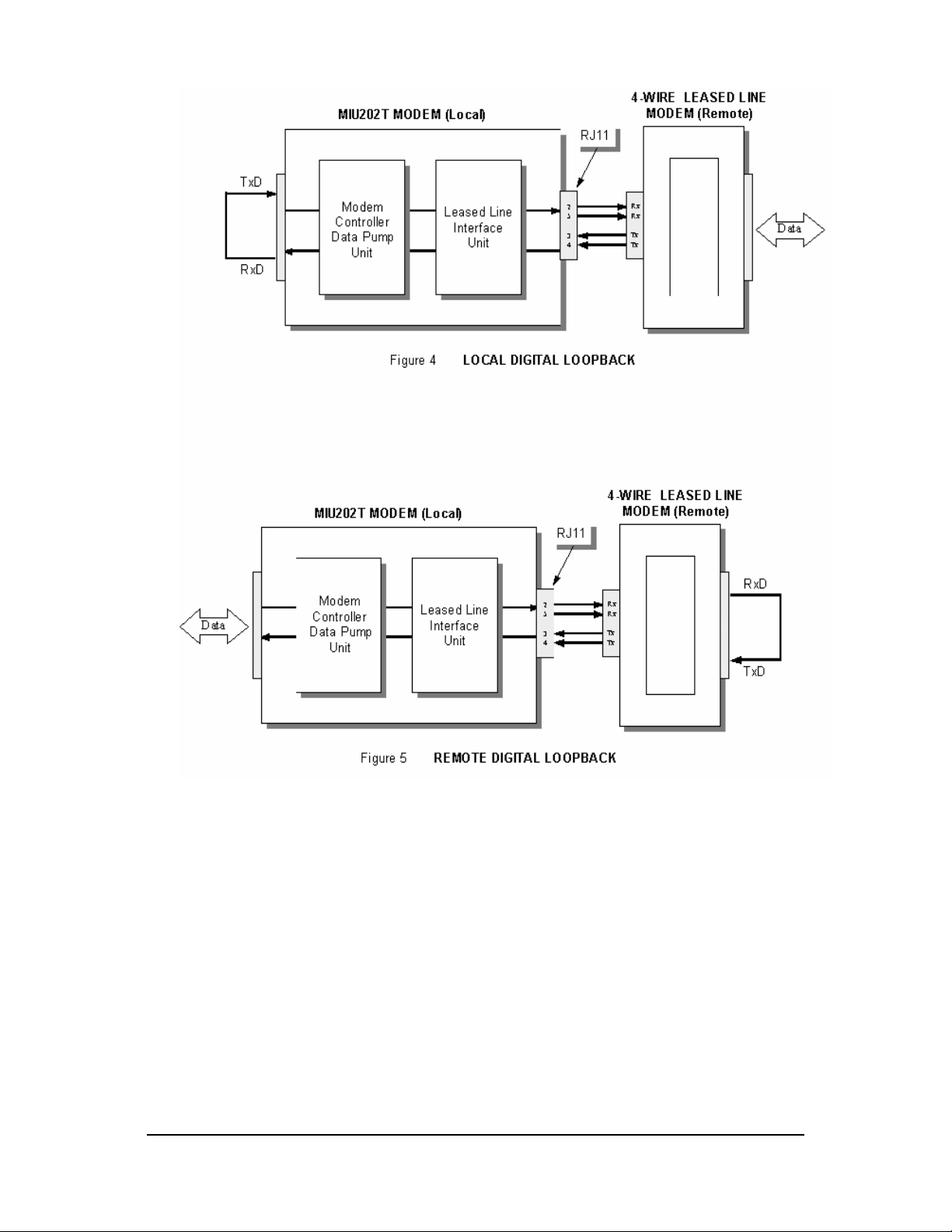

(b) LOCAL DIGITAL LOOPBACK – 4/Wire Network (Figure 4)
On the modem under test, connect TxD to RxD
Switch 1 = ON (TxA = 0dBm)
Switch 3 = ON (RxA = -33dBm)
Switch 4 = OFF (RTS/CTS = 35ms)
Switch 5 = ON (RTS/CTS = 35ms)
Switch 6 = ON (Constant Carrier mode).
Switch 7 = OFF (4-Wire)
Switch 8 = ON (Line Termination = 600 ohms)
Switch 9 = ON (Soft Carrier = ON)
Transmit a test message from a remote modem and confirm that the
same message is received back at RxD on the remote modem with no
data errors.
MIU202T-S Installation, Operation & Diagnostics Edition: March 16, 1999 Page 18
Page 21
(c) REMOTE DIGITAL LOOPBACK – 4/Wire Network (Figure 5)
Configure both the local and remote modems as follows:
Switch 1 = ON (TxA = 0dBm)
Switch 3 = ON (RxA = -33dBm)
Switch 4 = OFF (RTS/CTS = 35ms)
Switch 5 = ON (RTS/CTS = 35ms)
Switch 6 = ON (Constant Carrier mode).
Switch 7 = OFF (4-Wire)
Switch 8 = ON (Line Termination = 600 ohms)
Switch 9 = ON (Soft Carrier Turn Off = ON)
Connect TxD to RxD at the remote modem.
Transmit a test message from the local modem and confirm that the
same message is received back at RxD on the local modem with no
data errors.
MIU202T-S Installation, Operation & Diagnostics Edition: March 16, 1999 Page 19
Page 22
(d) LINE DIAGNOSTICS
(i) Typical modem configuration for 4-wire Point-to-Point system…
Switch 1 = ON (TxA = 0dBm)
Switch 3 = ON (RxA = -33dBm)
Switch 4 = OFF (RTS/CTS = 1ms)
Switch 5 = OFF (RTS/CTS = 1ms)
Switch 6 = ON (Constant Carrier mode).
Switch 7 = OFF (4-Wire)
Switch 8 = ON (Line Termination = 600 ohms)
Switch 9 = OFF (Soft Carrier = OFF)
(ii) Typical modem configuration for 4-wire Multi-Point system…
Switch 1 = ON (TxA = 0dBm)
Switch 3 = ON (RxA = -33dBm)
Switch 4 = OFF (RTS/CTS = 1ms)
Switch 5 = OFF (RTS/CTS = 1ms)
Switch 6 = ON (Constant Carrier mode).
Switch 7 = OFF (4-Wire)
Switch 8 = ON (Line Termination = 600 ohms)
Switch 9 = OFF (Soft Carrier = OFF)
Adjustments…
In a network with high line loss (greater than 16dB) change Switch 3
(RxA) to OFF (-43dBm).
If there are conditions that can cause cross-talk (TxA leaking into RxA
path) set Switch 1 (TxA) to OFF (-10dBm).
Note that noise level should be –50dBm or lower for most FSK
operation (signal-to-noise ratio of 15dB or higher)
MIU202T-S Installation, Operation & Diagnostics Edition: March 16, 1999 Page 20
Page 23
MIU202T-S Installation, Operation & Diagnostics Edition: March 16, 1999 Page 21
Page 24
MIU202T-S Installation, Operation & Diagnostics Edition: March 16, 1999 Page 22
Page 25
MIU202T-S Installation, Operation & Diagnostics Edition: March 16, 1999 Page 23
Page 26
NOTES:
MIU202T-S Installation, Operation & Diagnostics Edition: March 16, 1999 Page 24
Loading...
