Installation, Operation & Diagnostics
for the
MIU202T
Industrial Grade, Bell 202T
Standalone Modem
Document No. 49-0002-011 Rev. A
Page 2
Telenetics Corporation
ARC Electronics
800-926-0226
Document No. 49-0002-011 Rev. A
Page 3
TABLE OF CONTENTS
1. STANDARDS .........................................................................................................2
2. PRODUCT OVERVI EW .......................................................................................3
3. GENERAL PRODUCT SPECIFICATIONS........................................................4
4. MODEM SPECIFICATIONS.................................................................................5
5. ANALOG LINE SPECIFICATIONS ....................................................................7
6. ANALOG MICROWAVE INTERFACE..............................................................8
7. POWER CONNECTIONS.....................................................................................10
.............................................................................................................................................
8. SERIAL DATA PORT PIN-OUT........................................................................11
9. DIP SWITCH FUNCTIONS ................................................................................12
10. MODEM CONFIGURATION..............................................................................14
11. LED INDICATOR.................................................................................................15
12. OUTLINE DRAWING & MOUNTING..............................................................16
13. DIAGNOSTICS.....................................................................................................17
MIU202T Installation, Operation & Diagnostics Edition: April 4, 1998 Page 1
Page 4
1. STANDARDS
Meets FCC Rules Part J, Subpart 15, Class A for radiated emissions.
MIU202T Installation, Operation & Diagnostics Edition: April 4, 1998 Page 2
Page 5
2. PRODUCT OVERVIEW
The MIU202T is an industrial grade Bell202T modem for connection to
unconditioned and conditioned, voice grade, type 3002 two or four-wire leased
lines and metallic lines (eg; pilot wires). It can be powered from a wide range of
AC and DC power supplies, it is internally surge protected on both the power
and analog lines, and it will operate in temperatures from -40 to +85 deg C.
Internally, the MIU202T consists of a baseboard and a communication
module. The baseboard includes the power supply regulation and surge
protection. The communica tion module is a Telenetics™ Pony Express™
PE202T Modem Module.
The MIU202T is packaged specifically for the harsh environments found in
utility substations and industrial facilities. Though functionally similar to
commercial modems, the MIU202T includes special features that make it
particularly well suited for utility and industrial applications:
Environment: The MIU202T has been designed specifically for use in
harsh environments. In addition to an extended temperature
range (-40 to +85º C), the MIU202T includes surge, shock,
vibration, and safety features superior to those of
conventional commercial modems.
Power Supply: The MIU202T can be powered from a broad range of AC
and DC power supplies, such as an auxiliary supply (eg;
12VDC) from another piece of equipment, 125VDC from a
station battery or a standard 120VAC.
Industrial: The MIU is packaged in a rugged, compact, non-metallic
(ABS) enclosure. Designed for unmanned locations, the
MIUs do not include the array of pushbuttons and LEDs
normally associated with consumer-type modems.
Configuration is by dip switches. Standard industrial
connectors for data, analog and power interfaces allow
reliable interconnection to other industrial components.
MIU202T Installation, Operation & Diagnostics Edition: April 4, 1998 Page 3
Page 6
3. GENERAL PRODUCT SPECIFICATIONS
Dimensions: 5.3 x 4.0 x 1.375 inches
Weight: 1 lb
Voltage Supply : Standard Model: 40 to 270VDC
40 to 270VAC, 50/60Hz
LV Model (Suffix “-LV”): 9 to 36VDC
Current Requirements:
12VDC 24VDC 125VDC 120VAC 220VAC
65mA 27mA 7.5mA 6.5mA 5.5mA
Surge Protection: Power Supply: 8kVrms
Analog Line: 3.75kVac
Digital Line: ESD ± 10kV
Operating Temperature: -40 to +85 deg C
Operating Humidity: 0 to 90% (non-condensing.)
Storage Temperature: -55 to 100 deg C
MIU202T Installation, Operation & Diagnostics Edition: April 4, 1998 Page 4
Page 7
4. MODEM SPECIFICATIONS
Modulation: Bell202T
Modulation Type: FSK
Synch/Async: Asynchronous Only
Data Rate: 0 – 1200bps
Transmit Frequency: Mark: 1200Hz
Space: 2200Hz
Error Correction: None
Data Compression: None
Data Modulation Connectivity: Using 16ms Polling Test
99.999% or better a t -37dBm
99.5% or better at -40dBm
95% or better at -43dBm
Serial Formats and Flow Control:
Asynchronous and RTS/CTS flow control
Analog Interface
Tx Output Level: -0 dBm or -10 dBm *
Rx Sensitivity: -43dBm or -33dBm *
-43dBm for constant c arrier
-40dBm for polling carrier
Line Termination: Dip Switch Selectable *
Line Impedance: 600 ohms balanced
2 or 4 Wire Configuration: Dip Switch Selectable *
MIU202T Installation, Operation & Diagnostics Edition: April 4, 1998 Page 5
Page 8
Other Features
Receiver Equalization: Compromise Equalization
Self Test Diagnostics: None
Local Analog Loopback: See Section 13
Local Digital Loopback: See Section 13
Remote Analog Loopback See Section 13
Remote Digital Loopback See Section 13
Anti-Streaming: OFF or 45 Seconds (+ 5 sec) *
RTS/CTS delay: 1ms, 12ms, 35ms or 50ms (+5%) *
Note: Soft Carrier will effect RTS/CTS
delay time (see Dip Switch Settings ~
Section 8)
Constant Carrier Switch Selectable ON or OFF
Soft Carrier Turn Off 20ms of 900Hz after RTS is turned
Off
Carrier Turn ON/OFF 8ms +0.5ms
* Dip Switch Selectable ~ See Section 9
MIU202T Installation, Operation & Diagnostics Edition: April 4, 1998 Page 6
Page 9
5. ANALOG LINE SPECIFICATIONS
The MIU202T contains analog circuitry for connection to the public conditioned or
unconditioned, Bell type 3002, 2 or 4-wire, full duplex voice grade leased lines or
metallic lines (eg; pilot wires). The MIU202T will also interface to Power Line
Carrier or Microwave radio voice channel networks.

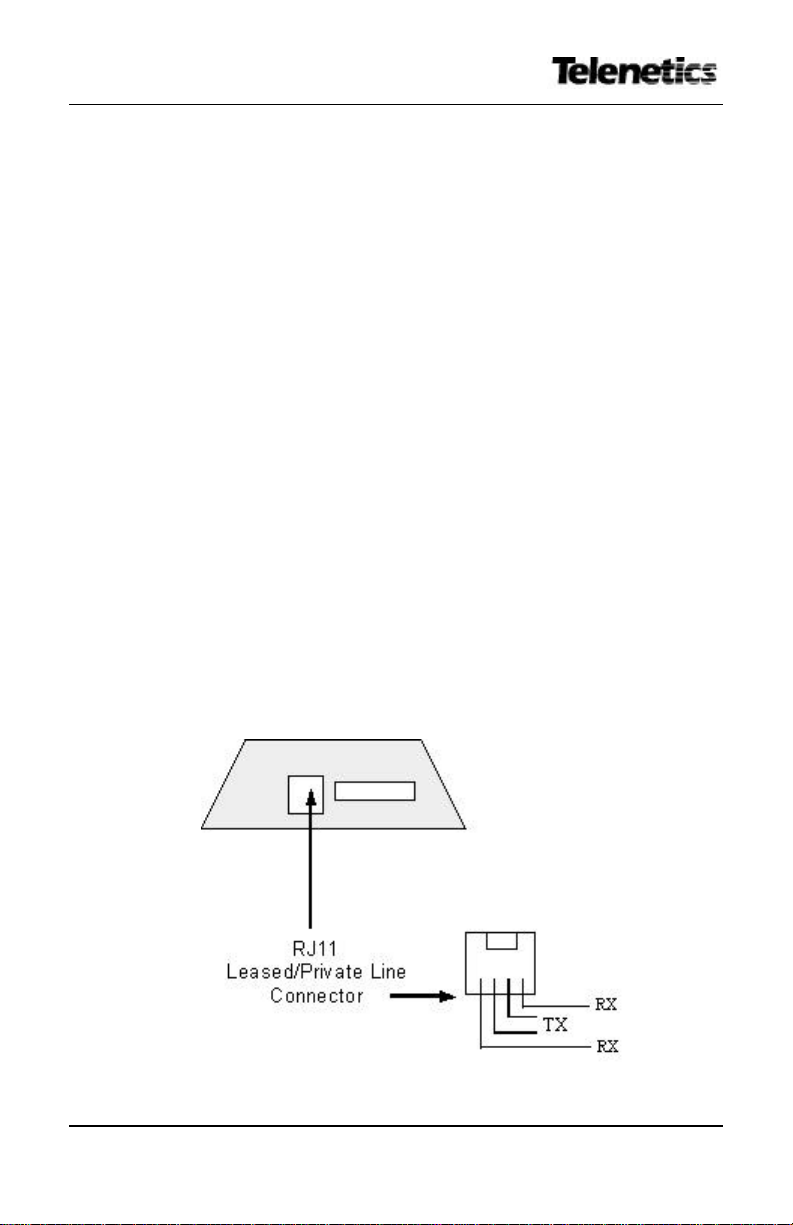

The MIU202T has an RJ-11terminated connector. The following lists the
MIU202T analog interfaces
Analog Line Type:
Conditioned or unconditioned, Bell type 3002, 2 or 4-wire, full duplex voice grade or
metallic lines or better.
Analog Line Specifications:
Bandwidth 300 Hz to 3400 Hz (±3dB)
Impedance 600 / 900 ohms , balanced
Frequency Response 400 to 3000Hz (±2dB)
Receiver Input Level -16dBm max.
Output Level +7 dBm
Noise Signal Level -48 dBmO
MIU202T Installation, Operation & Diagnostics Edition: April 4, 1998 Page 7
Page 10
6. ANALOG MICROWAVE INTERFACE
The MIU202Tis designed to interface to a Microwave radio voice channel network
with the following specifications:
Phase Jitter (10 to 300Hz)1 degree peak-to-peak, max.
Frequency Response: 300 - 3400Hz -3, +0.7 dB
400 - 3000Hz -1, +0.7 dB
600 - 2400Hz + 0.7 dB
Frequency Stability: With Synchronization 0.1 Hz
Without Synchronization 0.5 Hz / month
Level Stability (w/o regulation): + 0.5 dB (6 months)
Harmonic Distortion: 1% max, 0.3 % typical
(1Khz, 0 dBmO test tone)
Absolute Delay: Option – 001: 1500 µsec, maximum
Option – 002: 1900 µsec, maximum
Group Delay (option - 001): 600 - 3200 Hz 1200 µsec, maximum
800 - 2800 Hz 550 µsec, maximum
1000-2600 Hz 350 µsec, maximum
Group Delay (option - 002): 600 - 3200 Hz with 1000 µsec, maximum
800 - 2800 Hz with 400 µsec, maximum
1000-2600 Hz with 180 µsec, maximum
Linearity: 0.3 dB +3.5 dBmO
Limiting: +7.5dBmO, max (+6.5 dBmO typical)
for +20dBmO input
Crosstalk (intelligible)(1KhZ test tone at 0 dBmO):
Inter-channel 65 dBmO maximum, 80 dBmO typical
Intra-channel 70 dBmO maximum
MIU202T Installation, Operation & Diagnostics Edition: April 4, 1998 Page 8
Page 11
Crosstalk (unintelligible):
Adjacent channel 28dBrnc0 maximum (24 455B weighted noise at 0
dBmO dBrnc0 typical).
Intra-channel 28 dBrnc0, maximum (18 dBrnc0, typical)
(1KHz test tone at 0 dBmO)
Out of Band Signalling: Frequency 3825 Hz
Level -20 dBmO
Pulse speed (30 to 80% break) 8 to 14 pps
Pulse distortion +3 dB, level var. 3% max.
Signaling leak -60 dBmO, maximum
MIU202T Installation, Operation & Diagnostics Edition: April 4, 1998 Page 9
Page 12

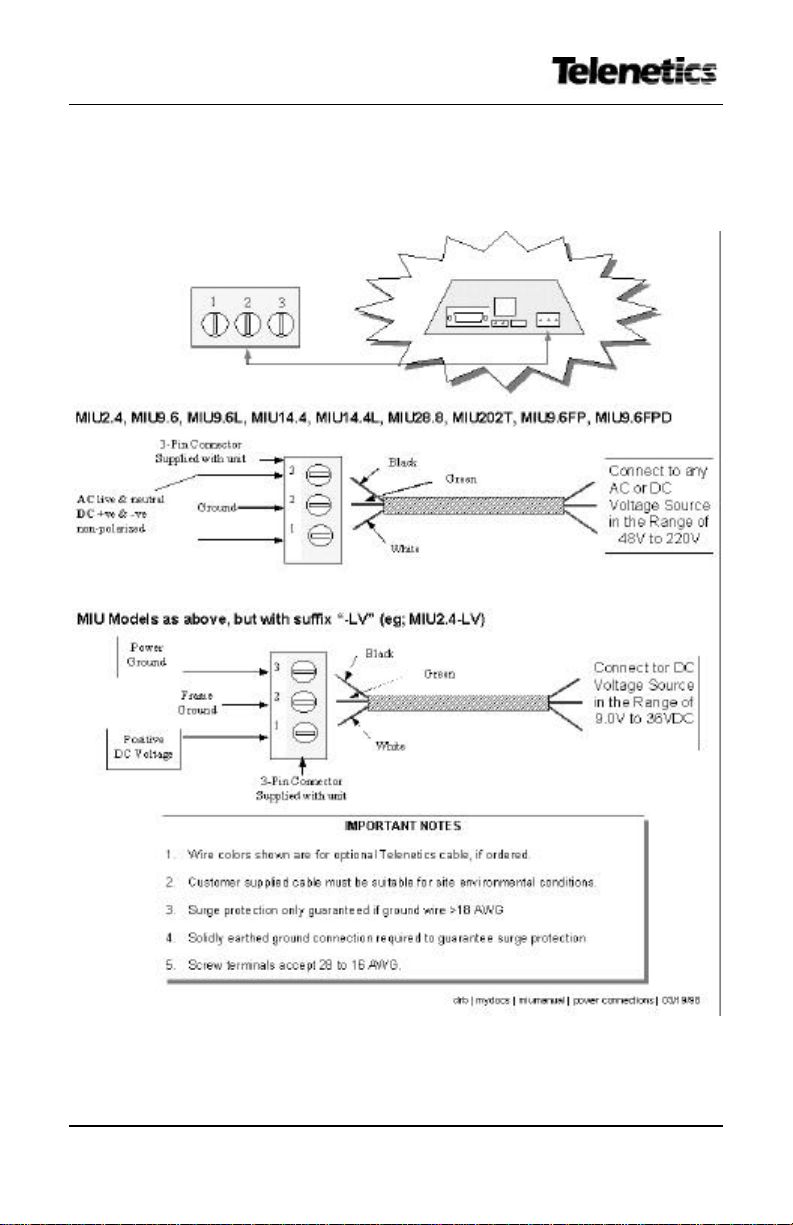

7. POWER CONNECTIONS
MIU202T Installation, Operation & Diagnostics Edition: April 4, 1998 Page 10
Page 13

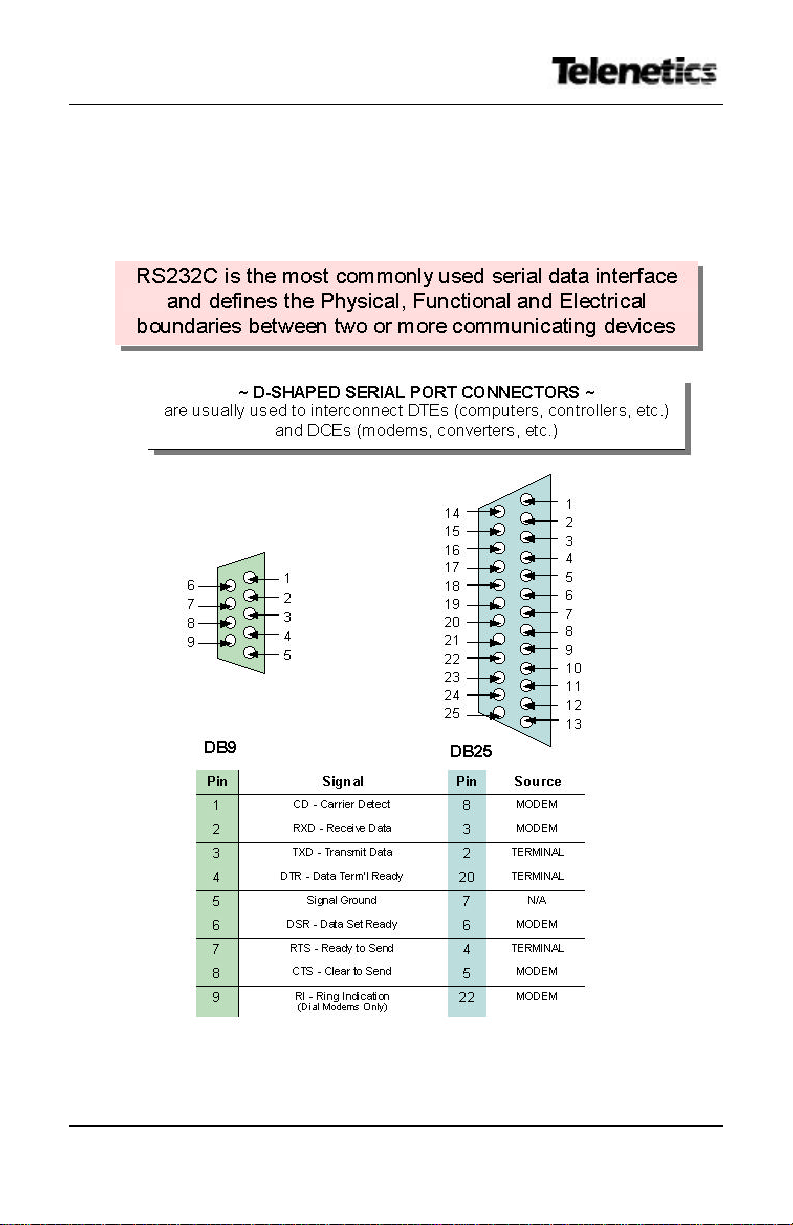

8. SERIAL DATA PORT PIN-OUTS
MIU202T Installation, Operation & Diagnostics Edition: April 4, 1998 Page 11
Page 14

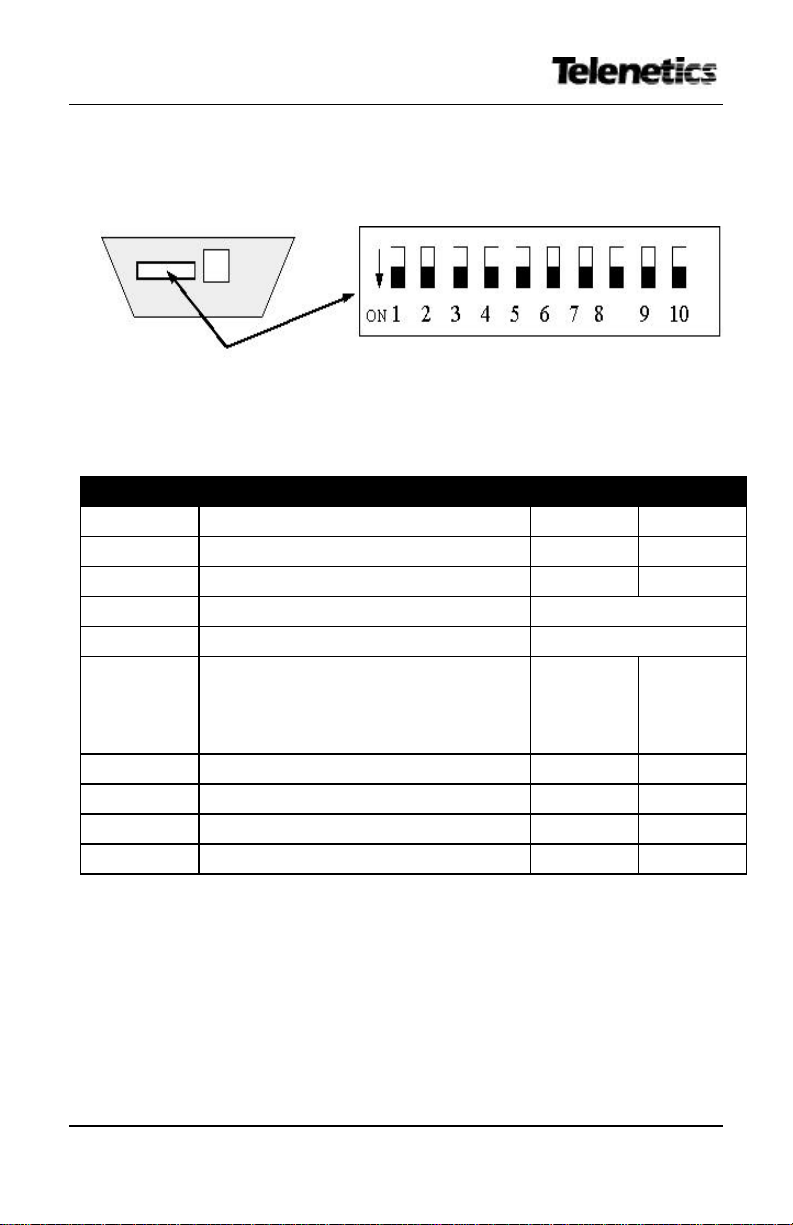

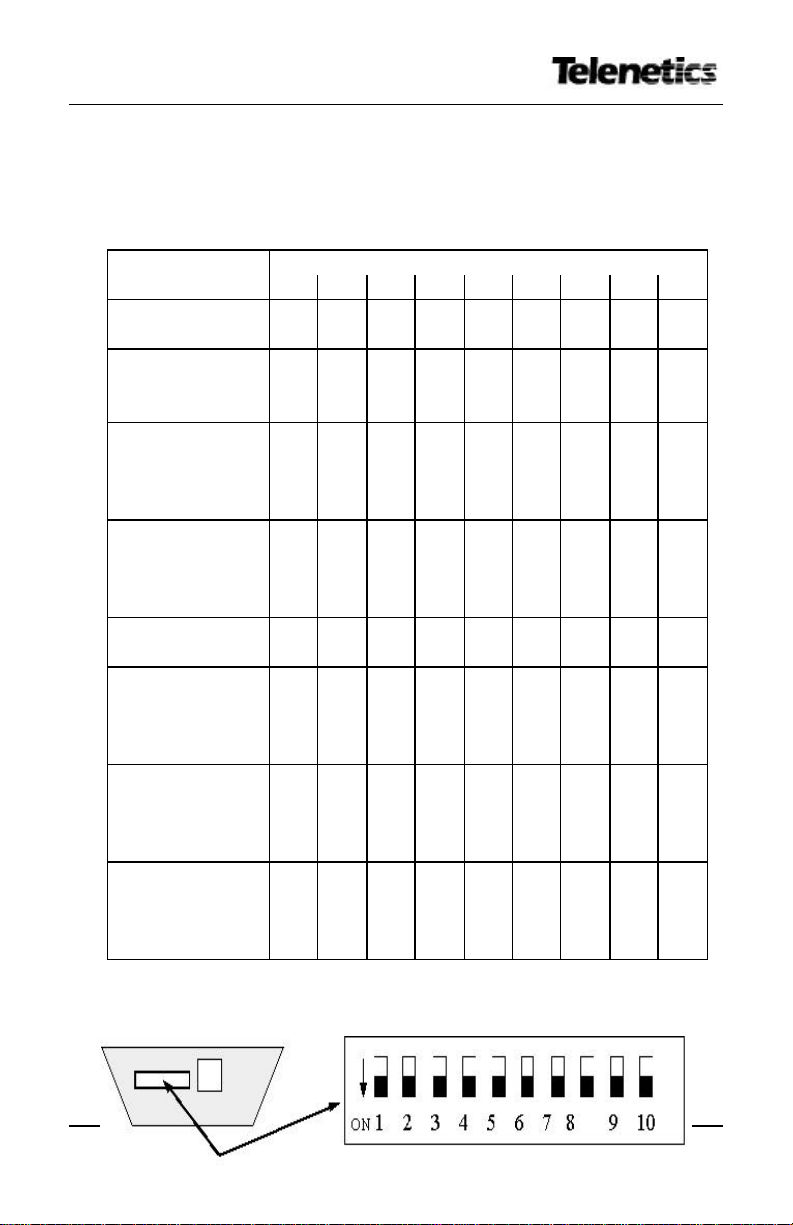

9. DIP SWITCH FUNCTIONS
IMPORTANT NOTE: Invert modem to view dip switches as shown above
Table 1
Switch Function ON OFF
Switch 1 Transmit Analog (TxA) Signal Level 0 dBm -10 dBm
Switch 2 Anti-Streaming 45 secs OFF
Switch 3 Received Analog (RxA) Signal Level -33 dBm -43 dBm
Switch 4 RTS/CTS Delay See Table 2
Switch 5 RTS/CTS Delay See Table 2
Switch 6 Switched/Constant Carrier Constant
Carrier
Switch 7 2 or 4- Wire Selection 2-Wire 4-Wire
Switch 8 Line Termination 600 ohms None
Switch 9 Soft Carrier (900Hz) Turn Off ON OFF
Switch 10 Spare
Switched
Carrier
(Follows
RTS State)
MIU202T Installation, Operation & Diagnostics Edition: April 4, 1998 Page 12
Page 15

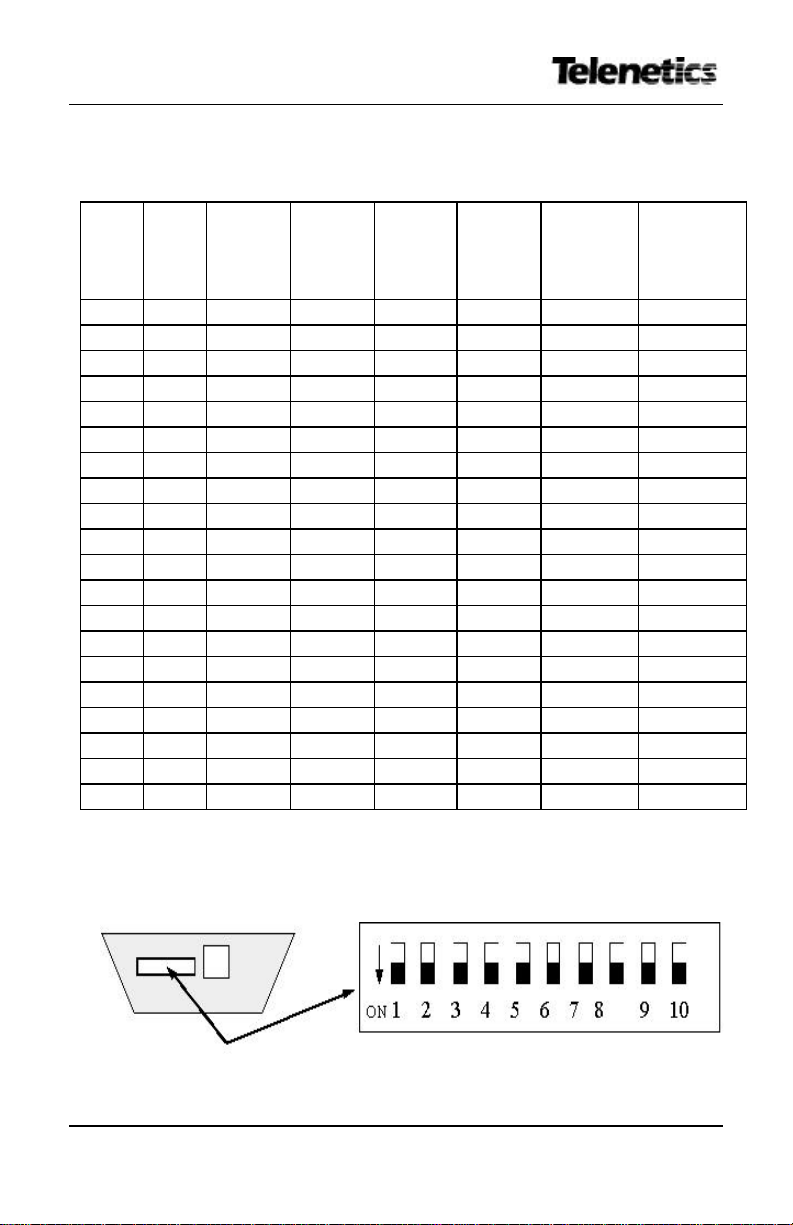

Table 2: RTS/CTS Delay Time
2
Wire
4
Wire
Switche
d
Carrie
r
Constan
t
Carrie
r
Switch 4 Switch 5 Switch 9
Soft
Carrier
NO YES YES YES ON ON OFF 50 ms
YES NO YES NO ON ON ON 50 ms
NO YES YES NO ON ON ON 50 ms
YES NO YES NO ON ON OFF 50 ms
NO YES YES YES OFF ON OFF 35 ms
NO YES YES NO OFF ON ON 55 ms
YES NO YES NO OFF ON ON 35 ms
YES NO YES NO OFF ON OFF 35 ms
NO YES YES YES ON OFF OFF 12 ms
NO YES YES NO ON OFF ON 35 ms
YES NO YES NO ON OFF ON 12 ms
YES NO YES NO ON OFF OFF 12 ms
NO YES NO YES OFF OFF OFF 1 ms
NO YES YES NO OFF OFF OFF 12 ms
NO YES YES NO OFF OFF ON 32 ms
YES NO YES NO OFF OFF OFF 1 ms
YES NO YES NO OFF OFF ON 1 ms
RTS/CTS
Delay
Time
MIU202T Installation, Operation & Diagnostics Edition: April 4, 1998 Page 13
Page 16
10. MODEM CONFIGURATION
The following table provides the Dip Switch settings required for most modem
application configurations:
Dip Switch Setting
1 2 3 4 5 6 7 8 9
4-Wire
Point-to-Point
4-Wire
Multi-Point
Master
4-Wire
Multi-Point
Slave
Rx Term. OFF
4-Wire
Multi-Point
Slave
Rx Term. ON
2-Wire
Point-to-Point
2-Wire
Multi-Point
Master
Line Term. ON
2-Wire
Multi-Point
Slave
Line Term. ON
2-Wire
Multi-Point
Slave
Line Term. OFF
ON ON ON ON
ON ON ON ON
ON ON ON ON ON
ON ON ON ON ON ON
ON ON ON ON ON ON ON
ON ON ON ON ON ON ON
ON ON ON ON ON ON ON
ON ON ON ON ON ON
For clarity, a blank space = OFF
MIU202T Installation, Operation & Diagnostics Edition: April 4, 1998 Page 14
Page 17

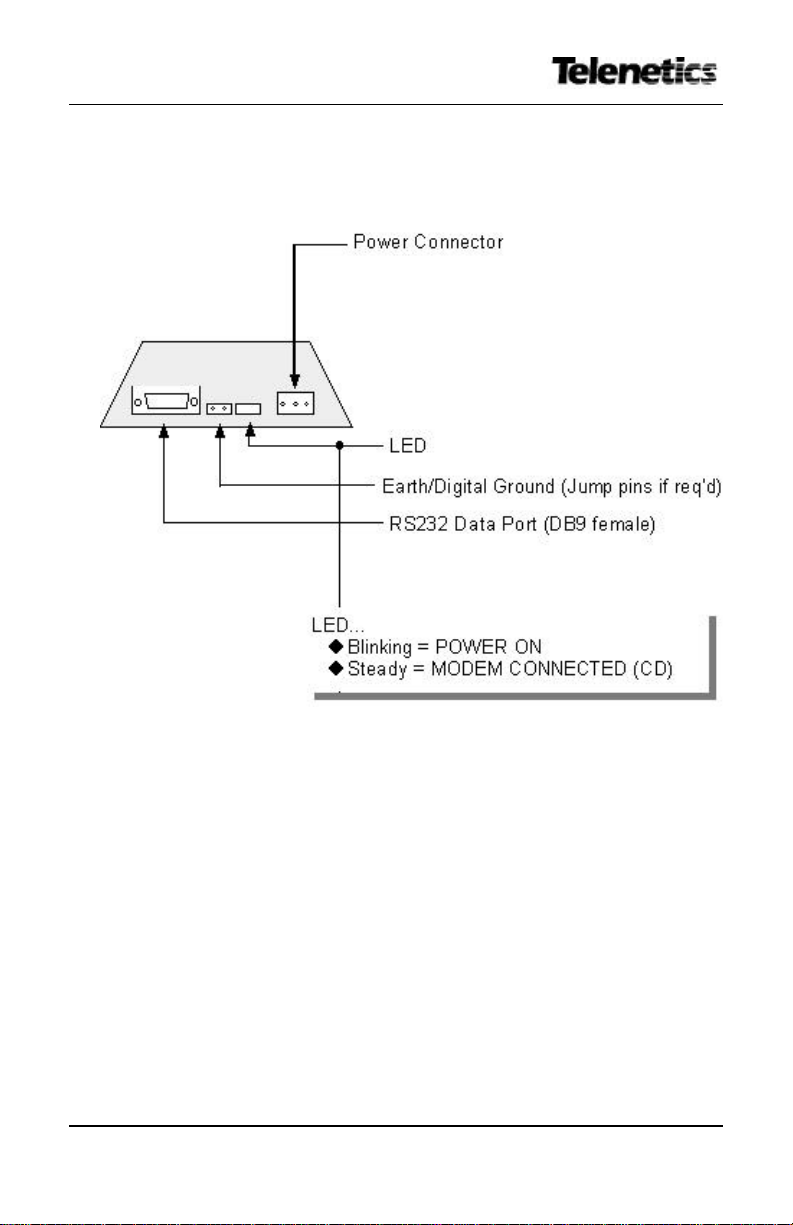

11. LED INDICATOR
MIU202T Installation, Operation & Diagnostics Edition: April 4, 1998 Page 15
Page 18

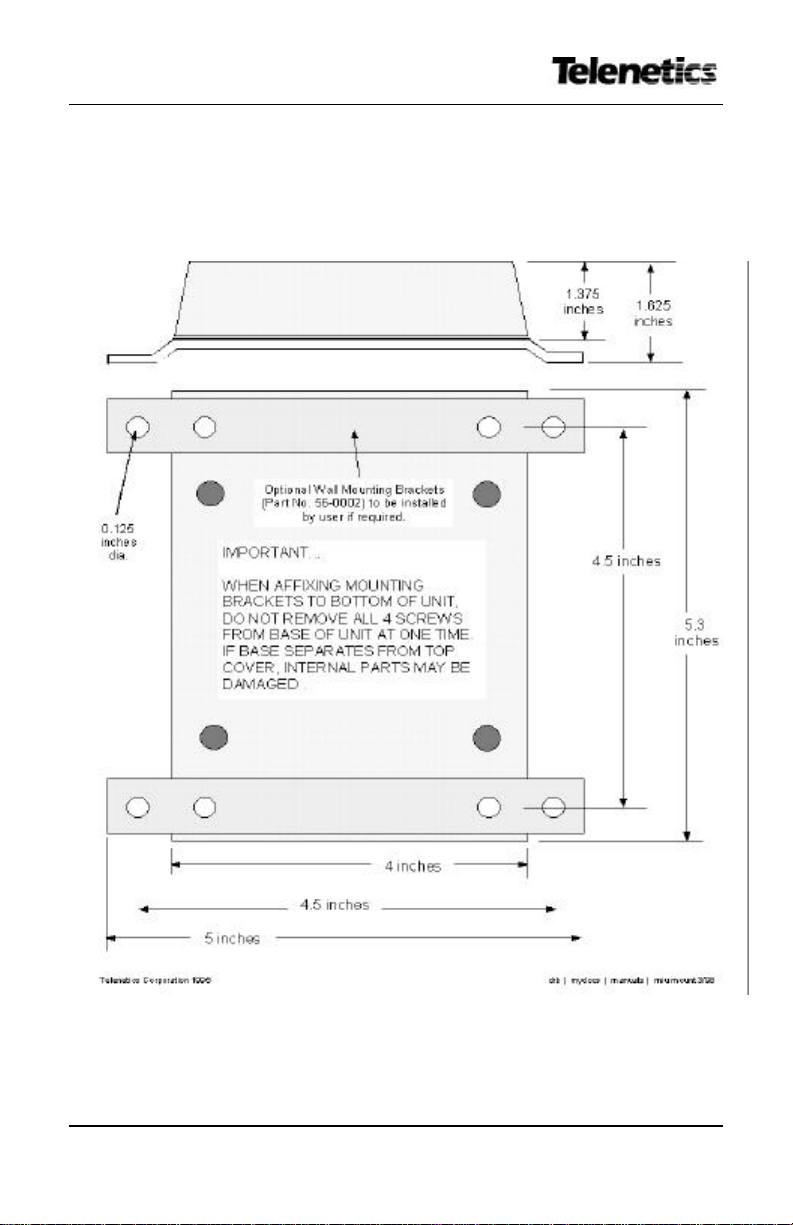

12. OUTLINE DRAWING & MOUNTING
MIU202T Installation, Operation & Diagnostics Edition: April 4, 1998 Page 16
Page 19

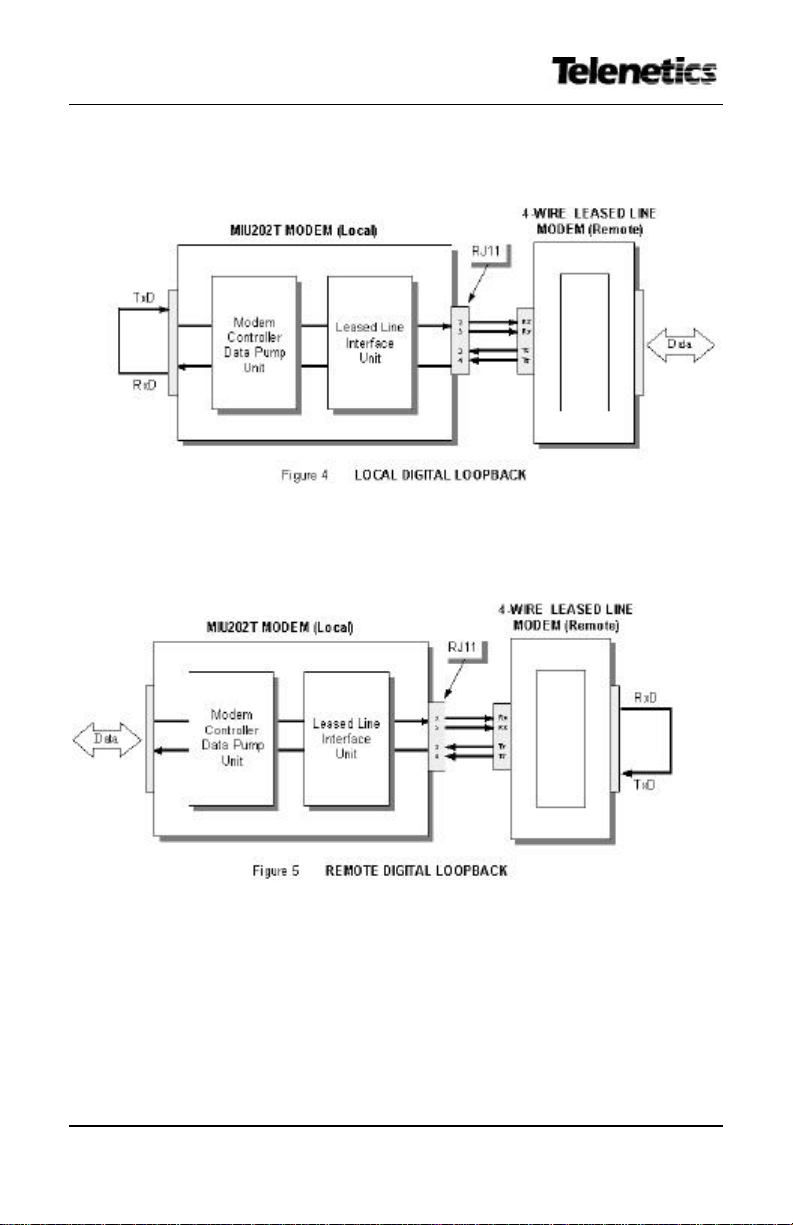

13. DIAGNOSTICS
The following pages provide hardware techniques for diagnosing communication
problems and thereby isolating the problem at the local modem, the remote
modem or the interconnecting line.

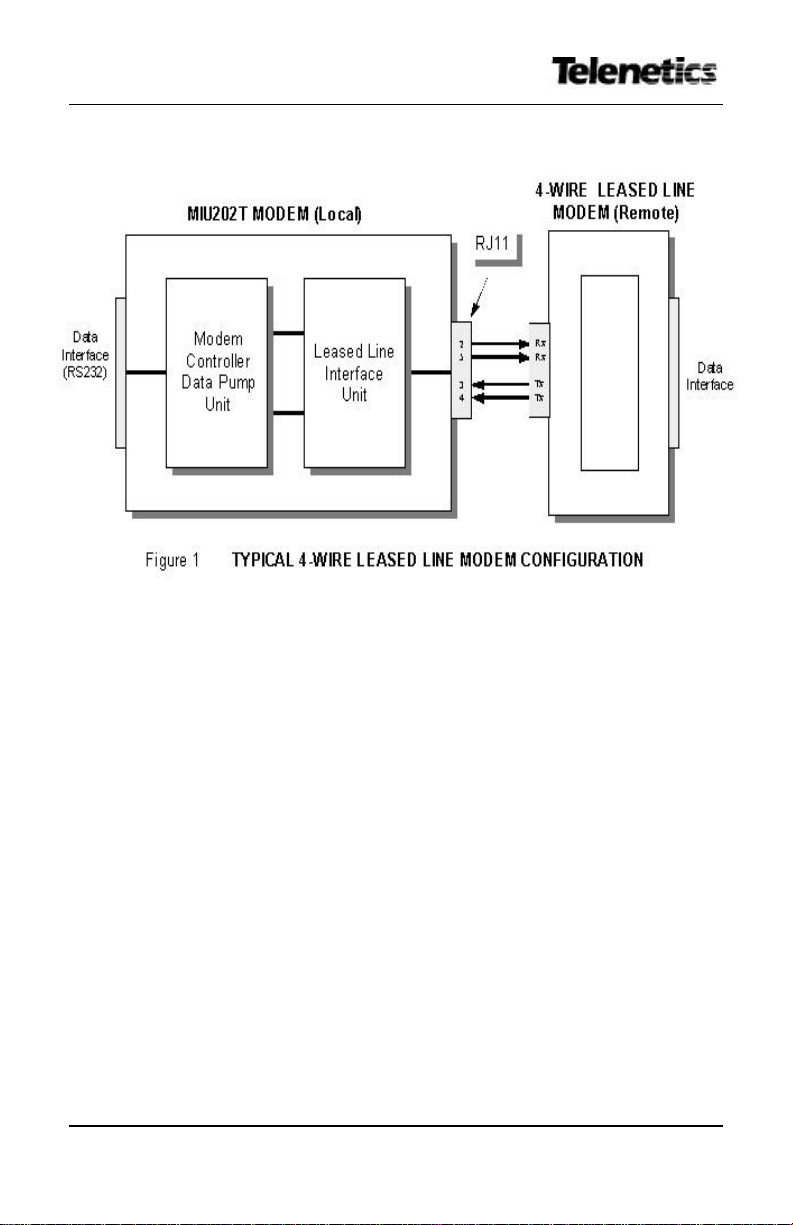

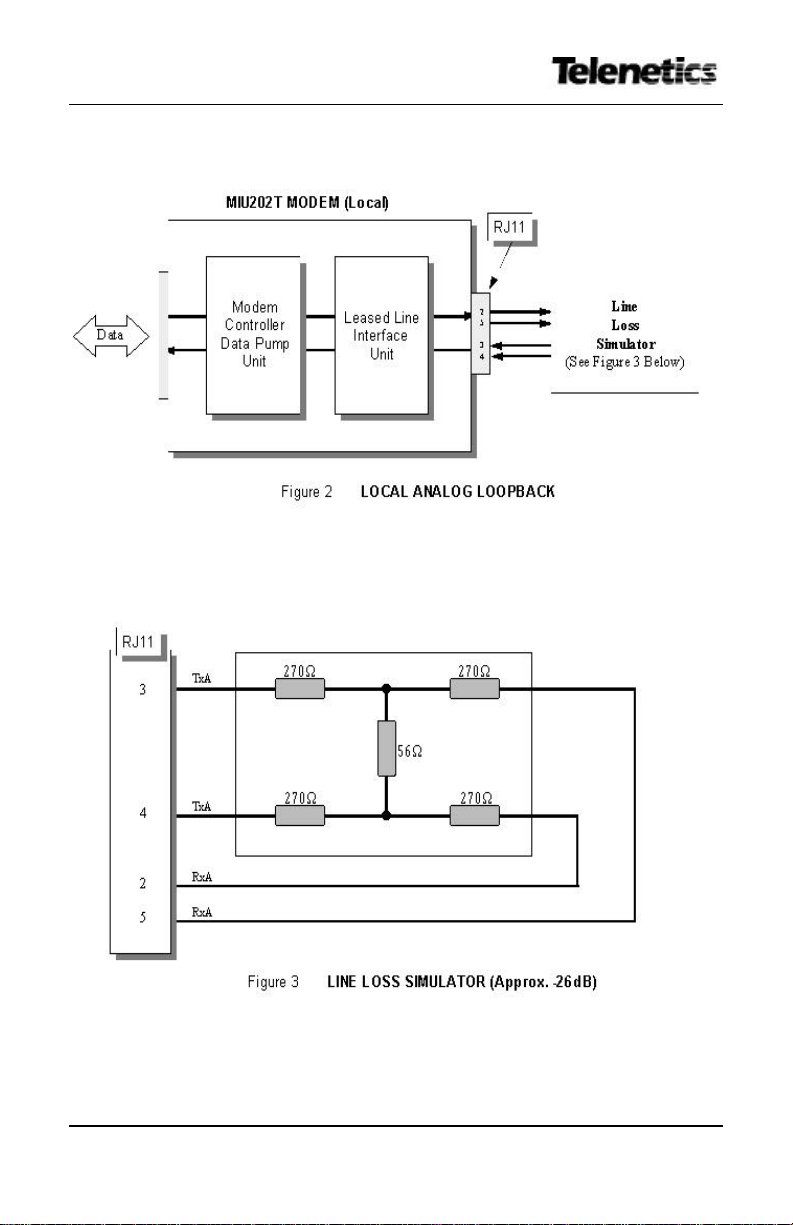

(a) LOCAL ANALOG LOOPBACK (Figure 2)
Requires a loop back cable with a built -in circuit for line loss to simulate a
typical leased line condition (See Figure 3).
Connect the loop back cable to the RJ11 connector on the modem under test.
Set Dip Switches as follows…
Switch 7 = OFF 4-Wire
Switch 9 = ON Soft Carrier Turn Off Enabled
Switch 1 = ON Transmit (TxA) Signal Level = 0dBm
Switch 3 = ON Receive (RxA) Signal Level = –33dBm
Switch 6 = OFF Switched Carrier
Switch 4&5 = ON RTS/CTS Delay = 50ms
Test 1: RTS/CTS Analog Control
Set RTS “ON” and check that CD (Carrier Detect) turns “ON”.
Turn RTS “OFF” and ensure that CD turns “OFF”
With RTS “ON”, run a test message at TxD and verify that the
same message is received at RxD with no data errors.
Test 2: Transmit Signal Power & Receive Levels
Set Dip Switch 1 OFF (TxA = -10dBm)
CD will be OFF.
Change Dip Switch 1 to ON (TxA = 0dBm)
CD should now be ON.
MIU202T Installation, Operation & Diagnostics Edition: April 4, 1998 Page 17
Page 20
Test 3: Received Signal Level
Set Dip Switch 1 OFF (TxA = -10dBm) and Dip Switch 3 OFF
(RxA = -43dBm).
CD will be ON.
Run a test message at TxD and verify that the same message is
received at RxD with no data errors.
Test 4: Repeat Test 3 for various RTS/CTS delay times and with soft
carrier ON and OFF.
(b) LOCAL DIGITAL LOOPBACK – 4/Wire Network (Figure 4)
On the modem under test, connect TxD to RxD
Switch 1 = ON (TxA = 0dBm)
Switch 3 = ON (RxA = -33dBm)
Switch 4 = OFF (RTS/CTS = 35ms)
Switch 5 = ON (RTS/CTS = 35ms)
Switch 6 = ON (Constant Carrier mode).
Switch 7 = OFF (4-Wire)
Switch 8 = ON (Line Termination = 600 ohms)
Switch 9 = ON (Soft Carrier = ON)
Transmit a test message from a remote modem and confirm that the same
message is received back at RxD on the remote modem with no data errors.
MIU202T Installation, Operation & Diagnostics Edition: April 4, 1998 Page 18
Page 21
(c) REMOTE DIGITAL LOOPBACK – 4/Wire Network (Figure 5)
Configure both the local and remote modems as follows:
Switch 1 = ON (TxA = 0dBm)
Switch 3 = ON (RxA = -33dBm)
Switch 4 = OFF (RTS/CTS = 35ms)
Switch 5 = ON (RTS/CTS = 35ms)
Switch 6 = ON (Constant Carrier mode).
Switch 7 = OFF (4-Wire)
Switch 8 = ON (Line Termination = 600 ohms)
Switch 9 = ON (Soft Carrier Turn Off = ON)
Connect TxD to RxD at the remote modem.
Transmit a test message from the local modem and confirm that the same
message is received back at RxD on the local modem with no data errors.
MIU202T Installation, Operation & Diagnostics Edition: April 4, 1998 Page 19
Page 22
(d) LINE DIAGNOSTICS
(i) Typical modem configuration for 4-wire Point-to-Point system…
Switch 1 = ON (TxA = 0dBm)
Switch 3 = ON (RxA = -33dBm)
Switch 4 = OFF (RTS/CTS = 1ms)
Switch 5 = OFF (RTS/CTS = 1ms)
Switch 6 = ON (Constant Carrier mode).
Switch 7 = OFF (4-Wire)
Switch 8 = ON (Line Termination = 600 ohms)
Switch 9 = OFF (Soft Carrier = OFF)
(ii) Typical modem configuration for 4-wire Multi-Point system…
Switch 1 = ON (TxA = 0dBm)
Switch 3 = ON (RxA = -33dBm)
Switc h 4 = OFF (RTS/CTS = 1ms)
Switch 5 = OFF (RTS/CTS = 1ms)
Switch 6 = ON (Constant Carrier mode).
Switch 7 = OFF (4-Wire)
Switch 8 = ON (Line Termination = 600 ohms)
Switch 9 = OFF (Soft Carrier = OFF)
Adjustments…
In a network with high line loss (greater than 16dB) change Switch 3 (RxA) to
OFF (-43dBm).
If there are conditions that can cause cross-talk (TxA leaking into RxA path) set
Switch 1 (TxA) to OFF (-10dBm).
Note that noise level should be –50dBm or lower for most FSK operation
(signal-to-noise ratio of 15dB or higher)
MIU202T Installation, Operation & Diagnostics Edition: April 4, 1998 Page 20
Page 23
MIU202T Installation, Operation & Diagnostics Edition: April 4, 1998 Page 21
Page 24
MIU202T Installation, Operation & Diagnostics Edition: April 4, 1998 Page 22
Page 25
MIU202T Installation, Operation & Diagnostics Edition: April 4, 1998 Page 23
Page 26
NOTES:
MIU202T Installation, Operation & Diagnostics Edition: April 4, 1998 Page 24
Loading...
