User Manual
TMW-40U
TMW-40U FCC ID: NTAXMETER5
Manufacturer: Tadiran-Telematics Ltd.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
cause harmful interfere
reception, which can be determined by turning the equipment
correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Draft
Installation
Following information will be included in the User Manual
- The user and the installer should be aware that changes and modifications not
expressly approved by Tadiran Telematics could void the user’s authority to
operate the equipment.
- This equipment shall be installed by professional personnel.
- The equipment shall be installed at a distance of 3 to 6 inch from the top cover
of the water meter pit as described in the following picture:
Draft

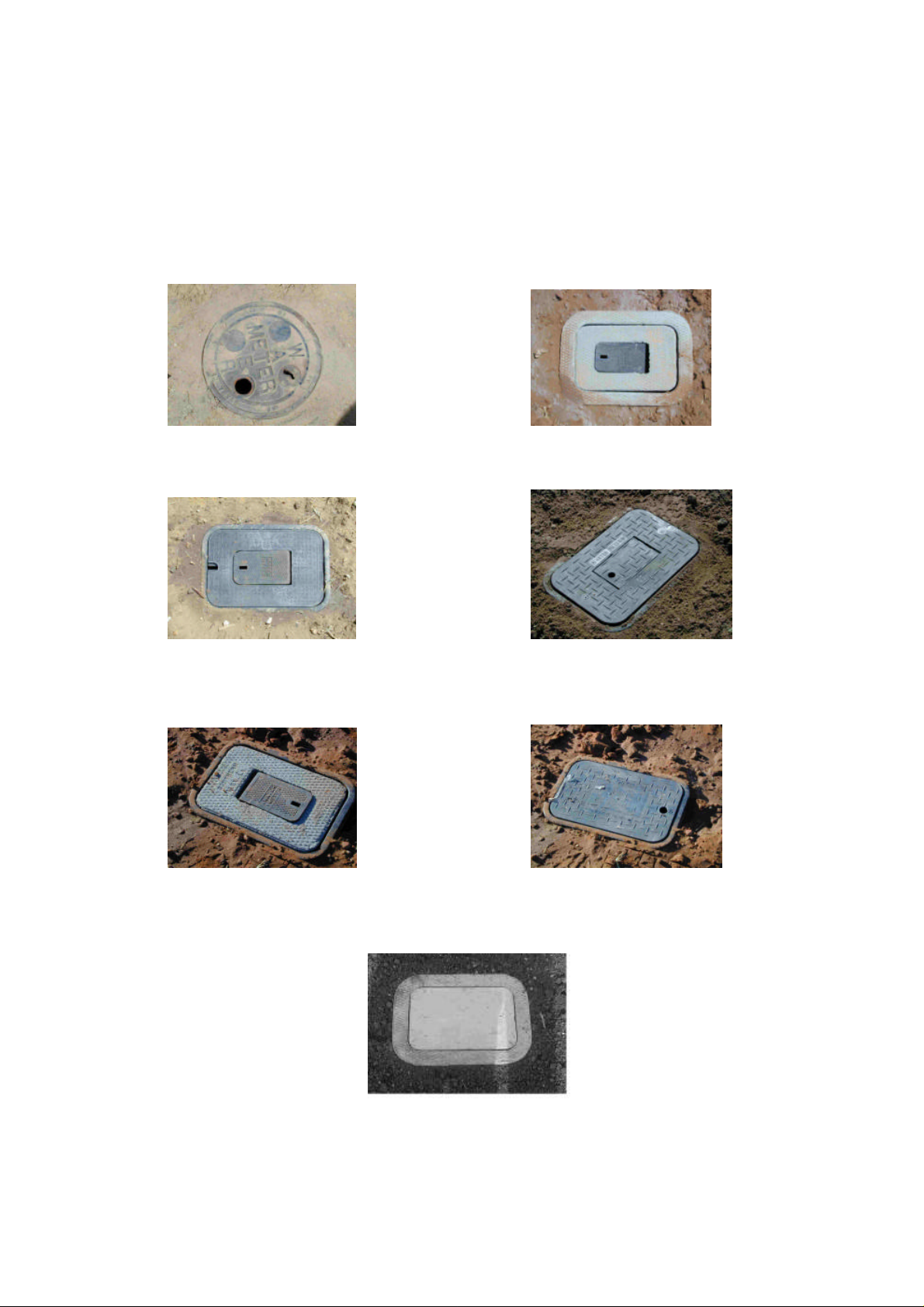

- There are 3 types of the pits: metal, concrete and plastic. The covers of the pits
are made of metal, concrete or plastic and, in case of concrete or plastic pits,
may or may not include small rectangular lid at the center of the cover. The
lids can be either metal or plastic. Allowable configurations of the pits and its
covers are shown on the following pictures:
Metal Pit Concrete Pit w. concrete cover
and metal lid
Plastic Pit w. plastic cover Plastic Pit w. plastic cover and
and metal lid plastic lid
Plastic Pit w. concrete cover Plastic Pit w. plastic cover and
and metal lid no lid
Concrete pit with concrete
cover and no lid
Draft

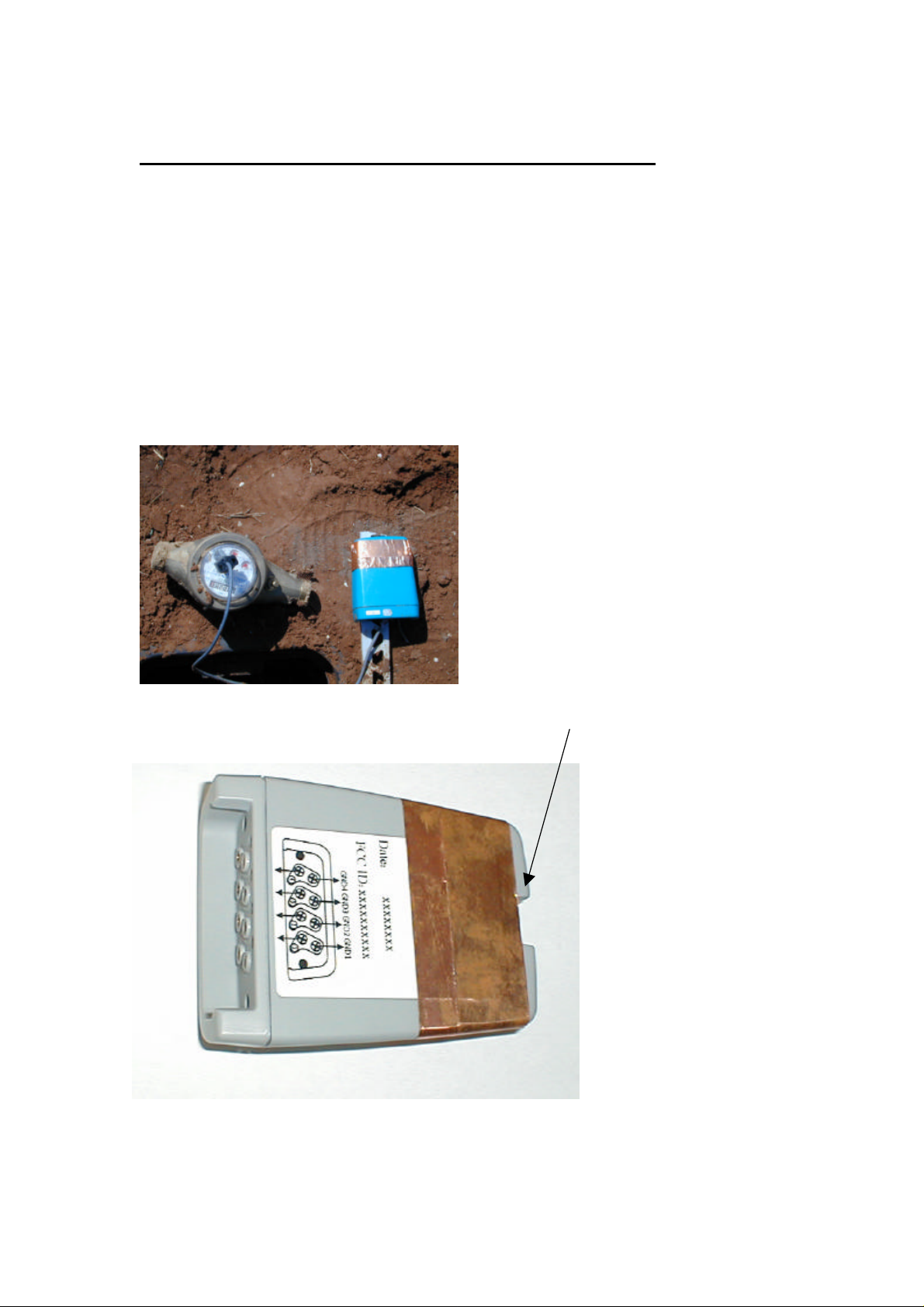

Special instructions for installation in the concrete or plastic pits.
When installing the equipment in the pit made of plastic or concrete, regardless of the
type of the cover, a special adhesive sticker shall be attached to the unit as described
in the drawings (see attached picture).
The sticker is copper foil sticker (e.g. type 3M 1181, PPI 9115 or compatible),
intended for permanent adhesion. Stickers used for the product are produced with
special adhesive and are designed to withstand the installation conditions during the
lifetime of the product.
Only stickers, supplied as a part of the installation kit of the meter, shall be used. Use
of stickers unauthorized by the manufacturer is prohibited.
Sticker adhesion position along the line
Draft
