Telefunken TKL-3299A, BGH3299A Schematic
MANUAL DE SERVICE
TV LCD 32” MODELO TKL3295S
TV LCD 26” MODELO TKL2695S
Contents
Contents ......................................................................1
Service Manual ................................................................2
1. Product Safety Servicing Guidelines ........................................2
2. Product Function Specifications ............................................4
2-1 Product Function ......................................................4
2-2 Specifications ........................................................5
3. Lcd Panel Spec .............................................................6
3-1 General Description ...................................................6
3-2 General Features ......................................................7
4. Block Diagram ..............................................................8
4-1 Chassis Block Diagram..................................................8
4-2 Signal Processing Part................................................11
4-3 Power Part ............................................................12
5. Service Mode And Adjustment ...............................................13
5-1 Service Mode .........................................................13
6. Software Updating .........................................................17

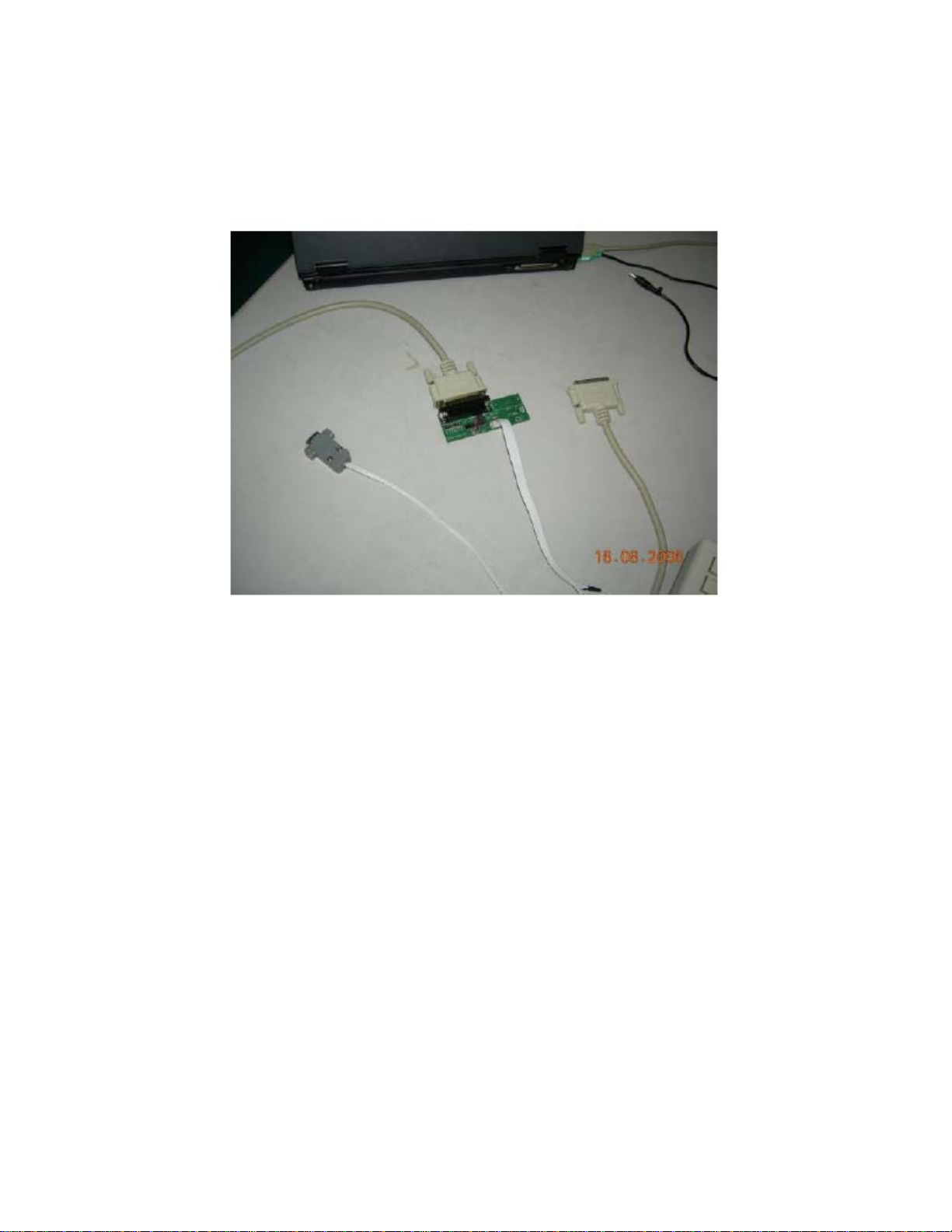

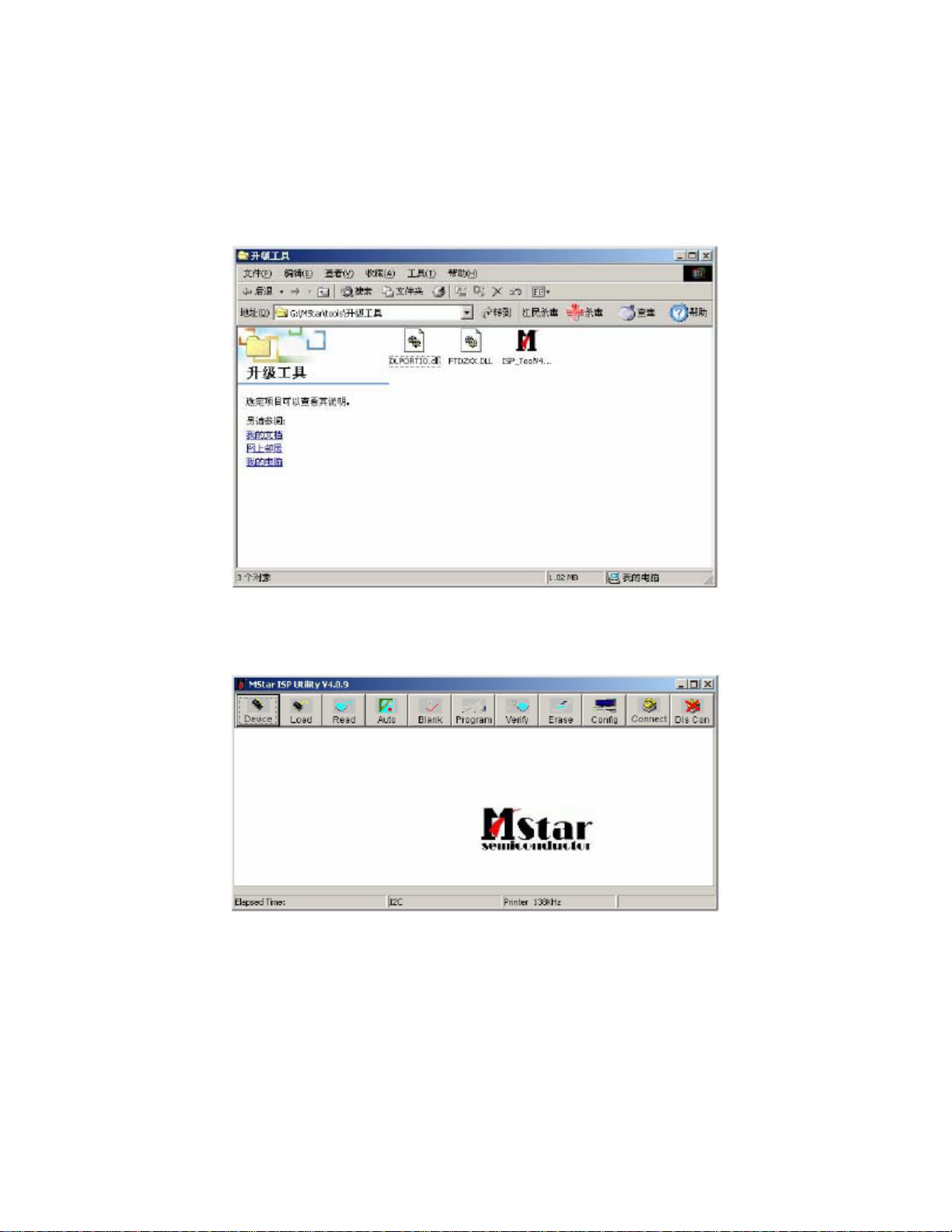

6-1、Updating Tool ........................................................17

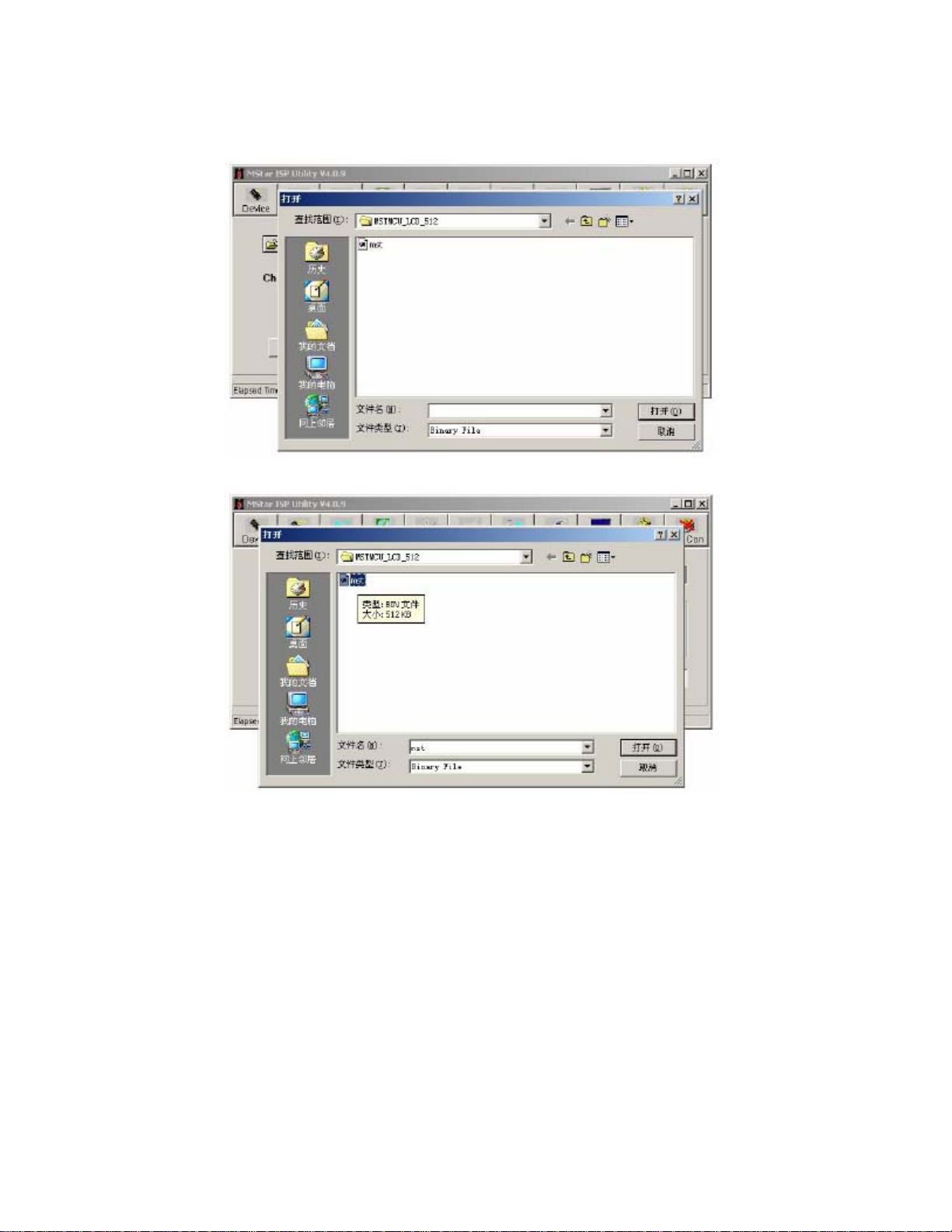

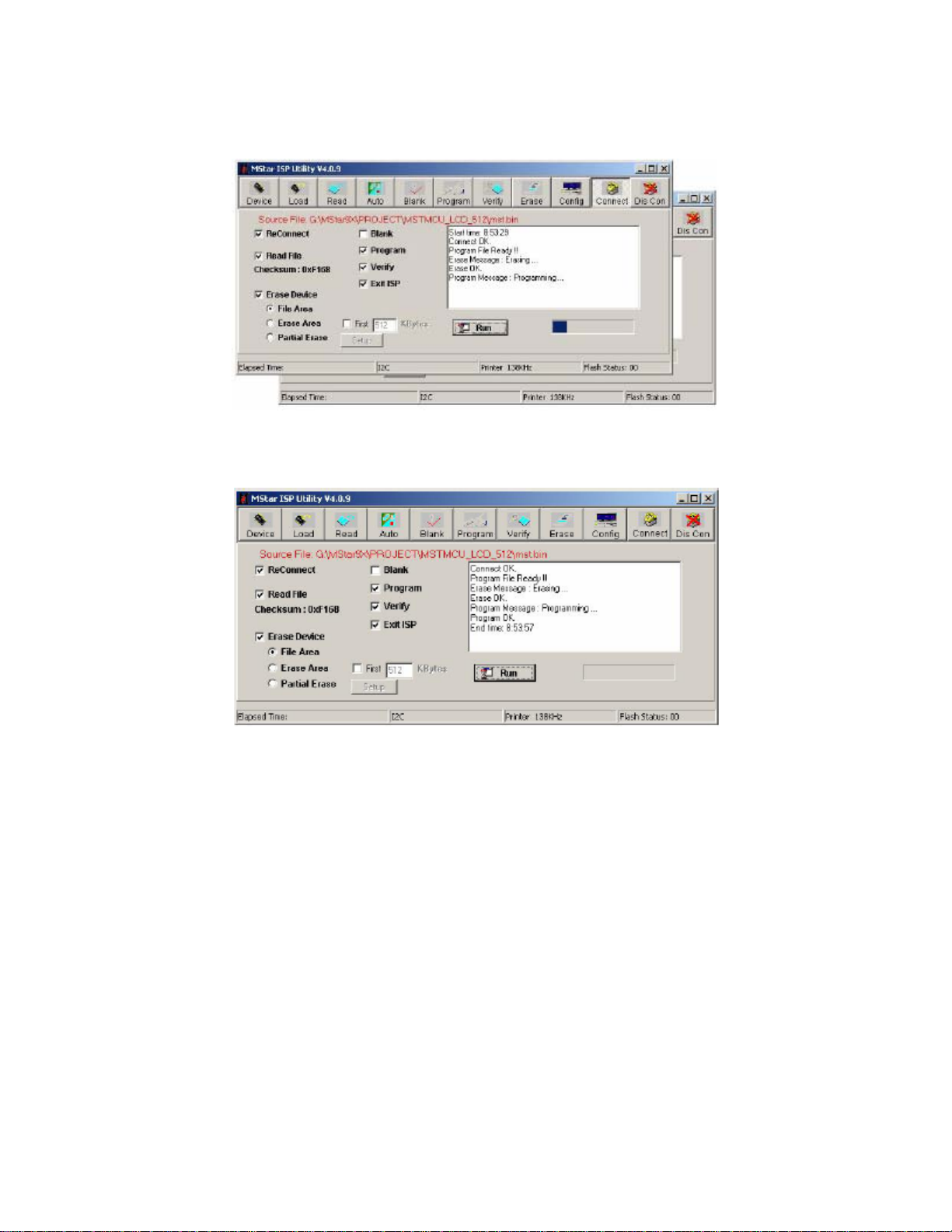

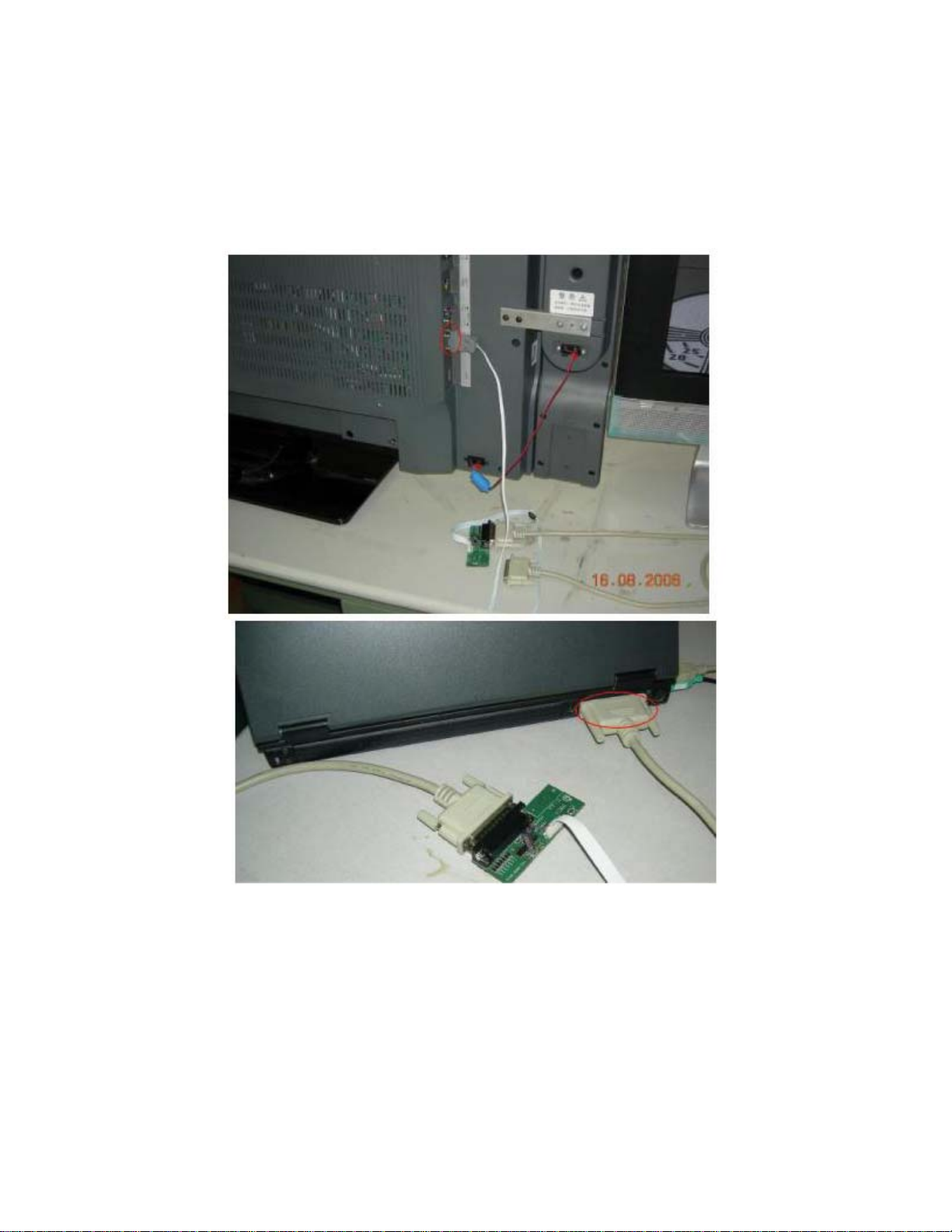

6-2、Software Updating Operation..........................................18
7. Explode View .............................................................29
8. Bill Of Materials .........................................................30
9. Troubleshooting ...........................................................39

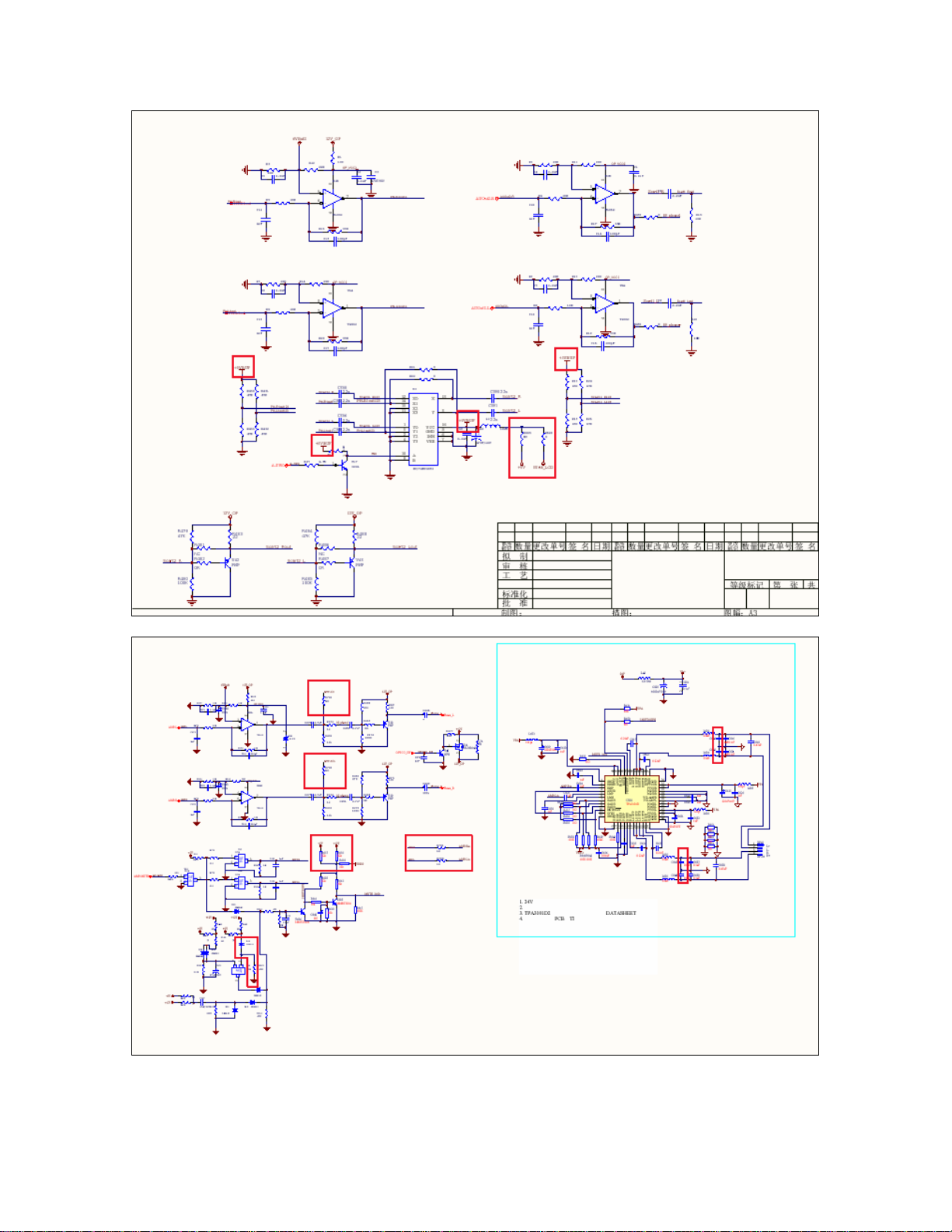

10. Ciruit Diagram ...........................................................39
2
Service Manual
1. Product Safety Servicing Guidelines
WARNING:
Service should not be attempted by anyone unfamiliar with the necessary
precaution on this receiver. The following are the necessary precaution to
be observed before serving this chassis.
1. Since the power supply circuit of this receiver is directly connected to
the AC power line, an Isolation transformer should be used during any dynamic
service to avoid possible shock hazard.
2. When replacing a chassis in the cabinet, always be certain that all the
protective devices are put back in place, such as:
non-metallic control knobs, insulating cover, shields, isolation
resistor-capacitor network etc.
3. When replacing parts or circuit boards, disconnect the power cord.
4. When replacing a high wattage resistor (oxide metal film resistor) on the
circuit board, keep the resistor (1/2in) away from circuit board.
6. Connection wires must be kept away from components with high voltage or
high temperature.
7. If any fuse in this LCD TV receiver is blown, replace it with the FUSE
specified in the chassis part list.
The lightning flash with arrowhead symbol, within an
equilateral triangle is intended to alert the user to the presence of
uninsulated dangerous voltage within the products enclosure that may be of
sufficient magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is entended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the set.
Many electrical and mechanical parts in the chassis have special
safety-related characteristics. These characteristics are often passed
unnoticed by a visual inspection. When replacement parts are required, be sure
the service technician uses replacement parts specified by us that have the
same characteristics as the original part. Unauthorized substitutions may
result in fire, electric shock and injury to persons or other hazards. This
LCD TV product should be situated away from heat source such as radiation,
stoves, or other product that produce heat.
3
2．Product Function and Specifications
2-1 Product Function
4
2-2 Specifications
5
3. LCD Panel Spec
3-1 General Description
LCD3233AM’S LCD Panel is a 32” TFT Liquid Crystal Display module with
16-CCFL Backlight unit and 1ch-LVDS interface. This module supports 1366 x
768 WXGA format and can display true 16.7M colors (8-bit colors).
The inverter module for backlight is built-in.
FEATURES
- High brightness (500 nits)
- Ultra-high contrast ratio (800:1)
- Faster response time (gray to gray average 6.5ms)
- High color saturation NTSC 75%
- Ultra wide viewing angle: 176(H)/176(V) (CR>20) with Super MVA technology
- DE (Data Enable) only mode
- LVDS (Low Voltage Differential Signaling) interface
- 180 degree rotation display (option)
- Color reproduction (nature color)
6
3-2 General Features
7
4. Block Diagram
4-1 Chassis Block Diagram
8
9
5. Service Mode And Adjustment
5-1 Service Mode
Use the remote control, first open MAIN MENU with MENU button, and choose
SOUND with the CHANNEL UP/DOWN button, then choose the BALANCE with VOLUME
UP/DOWN, In this condition, press 0、5、3、2,you can enter factory menu.
5-1-1、Fac. Menu.
10
11
