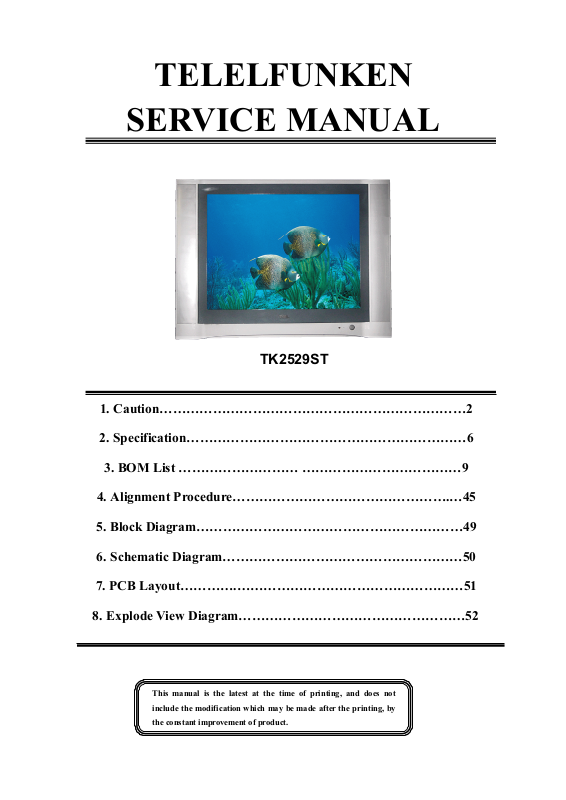

This manual is the latest at the time of printing, and does not
include the modification which ma
the constant improvement of product.
be made after the printing, b
Page 2
CAUTION:
Use of controls, adjustments or procedures other than those specified herein may result in
hazardous radiation exposure.
CAUTION: T O REDUCE THE RISK OF
CAUTION
RISK RISK OF OF ELECTRIELECTRICC
SHOCK SHOCK DO DO NOT NOT OPEN.OPEN.
The lighting flash with arrowhead symbol, with an equilateral triangle is intended to
alert the user to the presence of uninsulated voltage within the products
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
the person.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
ELECTRICAL SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
dangerous
WARNING: TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
2
Page 3
IMPORTANT SAFETY INSTRUCTIONS
CAUTION:
Read all of these instructions. Save these instructions for later use . Follow all Warnings and
Instructions marked on the audio equipment.
1. Read Instructions- All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions- The safety and operating instructions should be retained for future reference.
3. Heed Warnings- All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions- All operating and use instructions should be followed.
FOR YOUR PERSONAL SAFETY
1.When the power cord or plug is damaged or frayed, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
2.Do not overload wall outlets and extension cords as this can result in fire or electric shock.
3.Do not allow anything to rest on or roll over the power cord, and do not place the TV where power cord is subject to
traffic or abuse. This may result in a shock or fire hazard.
4.Do not attempt to service this television set yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
5.Never push objects of any kind into this television set through cabinet slots as they may touch dangerous voltage
points or shor t out parts that could result in a fire or electric shock. Never spill liquid of any kind on the television set.
6.If the television set has been dropped or the cabinet has been damaged, unplug this television set from the wall outlet
and refer servicing to qualified service personnel.
7.If liquid has been spilled into the television set, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
8.Do not subject your television set to impact of any kind. Be particularly careful not to damage the picture tube surface.
9.Unplug this television set from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
10.1. Do not place this television set on an unstable cart, stand, or table. The television set may fall, causing serious injury
to a child or an adult, and serious damage to the appliance. Use only with a cart or stand recommended by the
manufacturer, or sold with the television set. Wall or shelf mounting should follow the manufacturer s instructions, and
should use a mounting kit approved by the manufacturer.
10.2. An appliance and car t combination should be moved with care. Quick stops, excessive force, and uneven surfaces
may cause the appliance and cart combination to overturn.
3
Page 4
PROTECTION AND LOCATION OF YOUR SET
11.Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc.
Never expose the set to rain or water. If the set has been exposed to rain or water, unplug the set from the wall
outlet and refer servicing to qualified service personnel.
12. Choose a place where light (artificial or sunlight) does not shine directly on the screen.
13. Avoid dusty places, since piling up of dust inside TV chassis may cause failure of the set when high humidity persists.
14. The set has slots, or openings in the cabinet for ventilation purposes, to provide reliable operation of the receiver, to
protect it from overheating. These openings must not be blocked or covered.
Never cover the slots or openings with cloth or other material.
Never block the bottom ventilation slots of the set by placing it on a bed, sofa, rug, etc.
Never place the set near or over a radiator or heat register.
Never place the set in enclosure, unless proper ventilation is provided.
a built-in
PROTECTION AND LOCATION OF YOUR SET
15.1. If an outside antenna is connected to the television set, be sure the antenna system is grounded so as to provide some
protection against voltage surges and built up static charges, Section 810 of the National Electrical Code, NFPA No.
70-1975, provides information with respect to proper grounding of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection
to grounding electrode, and requirements for the grounding electrode.
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONALELECTRICAL CODE
ANTENNA
LEAD- INWIRE
GROUND CLAMP
ELECTRIC SERVICE
EQUIPMENT
NEC-NATIONALELECTRICAL CODE
ANTENNA DISCHARGE
UNIT (NEC SECTION
810-20)
GROUNDING
CONDUCTORS
(NECSECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250. PARTH)
15.2. Note to CATV system installer : (Only for the television set with CATV reception)
This reminder is provided to call the CATV system attention to Article 820-40 of the NEC that provides
installer s
guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.
16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric lights or power
circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
17. For added protection for this television set during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage due to lightning
and power-line surges.
4
Page 5
OPERATION OF YOUR SET
18.
This television set should be operated only from the type of power source indicated on the marking label. If you are not
sure of the type of power supply at your home, consult your television dealer or local power company. For television
sets designed to operate from battery power, refer to the operating instructions.
19. If the television set does not operate normally by following the operating instructions, unplug this television set from the
wall outlet and refer servicing to qualified service personnel. Adjust only those controls that are covered in the operating
instructions as improper adjustment of other controls may result in damage and will often require extensive work by a
qualified technician to restore the television set to normal operation.
20. When going on a holiday : If your television set is to remain unused for a period of time, for instance, when you go on
a holiday, turn the television set and unplug the television set from the wall outlet.
off
IF THE SET DOES NOT OPERATE PROPERLY
21. If you are unable to restore normal operation by following the detailed procedure in your operating instructions,
do not attempt any further adjustment. Unplug the set and call your dealer or service technician.
22. Whenever the television set is damaged or fails, or a distinct change in performance indicates a need for
service, unplug the set and have it checked by a professional service technician.
23. It is normal for some TV sets to make occasional snapping or popping sounds, particularly when being
turned on or off. If the snapping or popping is continuous or frequent, unplug the set and consult your
dealer or service technician.
FOR SERVICE AND MODIFICATION
24. Do not use attachments not recommended by the television set manufacturer as they may cause hazards.
25. When replacement parts are required, be sure the service technician has used replacement parts specified
by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock, or other hazards.
26. Upon completion of any service or repairs to the television set, ask the ser vice technician to perform
routine safety checks to determine that the television is in safe operating condition.
5
Page 6
PFS2 FORMAT-1 Report
p
p
g
g
gy
g
q
q
y
r
y
y
y
g
g
play
ype
(
y
y)
y)
g
g (
)
p
p
p
p
guag
p
p
p
Date: 2003-11-26 15:30
ProductView......:
Re
ort by............:
Specs / Products
SRF NO./ODF NO.
MasterData
Customer Id
Version
Status
Brand
EAN
UPC
Rece
+IF Fre
+TV S
+Add S
+TV S
+Sound S
Picture - Processin
+Scan
+Scan Modes
+Wide Screen Switchin
+Combfilter
+Picture Control
+Pict Enhancement
+Pict Noise Reduction
Picture - Dis
+Display T
+Screen Format
+Size
+Deflection S
+Tube Technology (CRT onl
+CRT Defl
+CRT Gun
+CRT Ma
+Resolution
+Coatin
+White Point
Sound
+Leaflet Power
+RMS Power Intern
+RMS Power Extern
+Surround Sound
+Sound Features
stems Off Ai
stems Ext In
stems Multi
stems
Visual)" - size/vis. cm
stem (CRT onl
n field
only for D.V. sets
PICTURE 45.75MHz
PAL M/N 'NTSC M (3.58 - 4.433)
--PAL NTSC
AV STEREO, AMERICAN STEREO
Standard
4:3
X
4 Picture Modes, Brightness, Color,
Contrast, Tint, Sharpness Cont Var
Black Stretch
---
DV - CRT - FSQ
4:3
25"
Black Matrix, Iron
Stand Gun
Normal
BTSC
+Sound Control
Sound - S
+S
+S
+S
User Interface
+Interface Name
+Voice Control
+Menu
+Menu Colours
+Menu Lan
+S
+O
+PP Features
+Tuning/Install Features
+Clock/Timer Functions
+Local Controls Front
+Local Controls To
+Indicators - screen
+Indicators - front
2003-11-27 11:4025276 PFS1 of 3
eakers
eaker configuration
eakers used
eaker Size
es
ecial Features
erational Features
Volume
2 speakers
Normal Range
25276
Cursor Control
Spanish, English, Portuguese
COMB-F
Auto Store, Factory Mode, Language
Selection, Service Mode
Sleep timer/Clock
Page 7
Date: 2003-11-26 15:30
p
)
(
)
p
yp
ypenr
r
p
(
)
)
)
)
)
(
)
(
)
(
)
y
g
p
t
)
)
(
)
(
)
)
p
y
g
g
p
p
y
g
y
g
q
y
yp
p
p
p
y
g
g)
)
g
R
ProductView......:
Re
ort by............:
Specs / Products
+Numb of Loc Cont (incl Mains
+Number of Ind.
+Local Controls (Old)
Remote Control
+Remote Control - sco
+Remote Control - t
+Remote Control - t
+Remote Control - features
Connectors Rea
+Scart RGB+Y/C+CVBS
+Scart RGB+CVBS
+Scart CVBS+Y/C
+Com
+In Y/C+Cinch
+In Y/C+Cinch(CVBS+Mo
+In Y/C+Cinch(St
+In BNC (CVBS
+In Cinch(CVBS+St
+In Cinch
+Out Cinch
+Out Cinch
+Out Cinch Audio Stereo
+Out Cinch Audio Mono
+Out Cinch Dolb
+Di
+Louds
+Control Busses
+Feature Slot
+ITV Smart Port
+Terr. Antenna in
Guide + IR Blaster Jack
Connectors Fron
+In Cinch (CVBS + St
+In Cinch (CVBS+Mo
+Headphone Out
onent In (Y/U/V) Cinch
Audio Out
eakers
incl Mains
e
e
CVBS+St
CVBS+Mo
CVBS+St
CVBS+Mo
Surround
Product:@
TK2529ST
7
Channel +-, Tact Switch, Vol +-,
TV/AV, MENU
TV
Standard
E
X
X
--X
75 Ohms (F type)
Connectors Side
+In Y/C + Cinch
+In Y/C + Cinch Stereo
+In Cinch
+IN Cinch (CVBS + Mo +St
+Headphone Out
Connectors To
Connectors Mechanical
lin
St
+Cabinet Name
+Confi
+Gra
+Cabinet Colour and Finish
+Mechanics
+S
General
+Se
+Chassis
+Software Deliver
+Software Version
+Mains Volta
+Mains Fre
+T
Power Consum
Power Consum
Power Consum
+Power in "ON" for
+Power in Standb
+Power in "OFF" for
Wei
Weight (P)TV (excl. Package
Weight AVUnit excl Packagin
+INDICATION on BACKCOVE
+Channel
uration
hics/Logo's
eaker Visibilit
ment
e Mains Cord
ht (P)TV (incl. Packagin
CVBS+St + Mo
CVBS + St
Mode
e
uenc
tion (P)TV in On
tion SB in Watts
tion Semi SB in W
for
x
25276
Symm
TELEFUNKEN
Standard
Standard 4:3
M34
110-240V
50/60Hz
Argentina
Less than 6W
2003-11-27 11:4025276 PFS2 of 3
Page 8
Date: 2003-11-26 15:30
p
ging
guag
pp
pp
pp
quip
ging
ging
ging
pp
g
V
ype
g
y
(
g
gy
g
ype
ype
y
yp
yp
k
y
g
t
)
y
)
ProductView......:
Re
ort by............:
Specs / Products
Final Equipment
+Packa
+Documents and manuals
+Lan
+Cables Su
+Antenna Su
+Stand Su
+Aux E
Packa
Packa
Packa
Miscellaneous
+EAN Indication
+A
+Tests
+Local Inte
41-WJ0060-B00WIRE BARE JUMPER 6mm1 J010
41-WJ0060-B00WIRE BARE JUMPER 6mm1 J011
41-WJ0060-B00WIRE BARE JUMPER 6mm1 J041
41-WJ0060-B00WIRE BARE JUMPER 6mm1 J046
41-WJ0060-B00WIRE BARE JUMPER 6mm1 J054
41-WJ0060-B00WIRE BARE JUMPER 6mm1 J105
41-WJ0060-B00WIRE BARE JUMPER 6mm1 J205
41-WJ0060-B00WIRE BARE JUMPER 6mm1 J205A
41-WJ0060-B00WIRE BARE JUMPER 6mm1 J208A
41-WJ0060-B00WIRE BARE JUMPER 6mm1 J216
41-WJ0060-B00WIRE BARE JUMPER 6mm1 J217A
41-WJ0060-B00WIRE BARE JUMPER 6mm1 J218A
41-WJ0060-B00WIRE BARE JUMPER 6mm1 J235
41-WJ0060-B00WIRE BARE JUMPER 6mm1 J242
41-WJ0060-B00WIRE BARE JUMPER 6mm1 J243
41-WJ0060-B00WIRE BARE JUMPER 6mm1 J258
41-WJ0060-B00WIRE BARE JUMPER 6mm1 J608
41-WJ0060-B00WIRE BARE JUMPER 6mm1 J622
41-WJ0060-B00WIRE BARE JUMPER 6mm1 J624
41-WJ0060-B00WIRE BARE JUMPER 6mm1 J651A
41-WJ0060-B00WIRE BARE JUMPER 6mm1 J719A
41-WJ0060-B00WIRE BARE JUMPER 6mm1 J907
41-WJ0060-B00WIRE BARE JUMPER 6mm1 J909
41-WJ0060-B00WIRE BARE JUMPER 6mm1 J910
41-WJ0060-B00WIRE BARE JUMPER 6mm1 J916
41-WJ0060-B00WIRE BARE JUMPER 6mm1 J917
41-WJ0060-B00WIRE BARE JUMPER 6mm1 J919
41-WJ0060-B00WIRE BARE JUMPER 6mm1 J922
41-WJ0060-B00WIRE BARE JUMPER 6mm1 J931
41-WJ0060-B00WIRE BARE JUMPER 6mm1 R041
41-WJ0060-B00WIRE BARE JUMPER 6mm1 R115
35
Page 36
Item No.DescriptionQuantity Req.DesignatorRemarks
41-WJ0060-B00WIRE BARE JUMPER 6mm1 R219A
41-WJ0060-B00WIRE BARE JUMPER 6mm1 R224
41-WJ0060-B00WIRE BARE JUMPER 6mm1 R238
41-WJ0060-B00WIRE BARE JUMPER 6mm1 R751
41-WJ0060-B00WIRE BARE JUMPER 6mm1 J081
41-WJ0065-B00WIRE BARE JUMPER 6.5MM1 J908
41-WJ0065-B00WIRE BARE JUMPER 6.5MM1 J209
41-WJ0065-B00WIRE BARE JUMPER 6.5MM1 J215
41-WJ0065-B00WIRE BARE JUMPER 6.5MM1 J237
41-WJ0065-B00WIRE BARE JUMPER 6.5MM1 J031
41-WJ0065-B00WIRE BARE JUMPER 6.5MM1 J632
41-WJ0065-B00WIRE BARE JUMPER 6.5MM1 J633
41-WJ0065-B00WIRE BARE JUMPER 6.5MM1 JP213
41-WJ0070-B00WIRE BARE JUMPER 7MM1 J044
41-WJ0070-B00WIRE BARE JUMPER 7MM1 J207
41-WJ0070-B00WIRE BARE JUMPER 7MM1 J915
41-WJ0070-B00WIRE BARE JUMPER 7MM1 J402
41-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J024
41-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J038
41-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J040
41-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J042
41-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J047
41-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J048
41-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J049
41-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J201A
41-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J208
41-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J210
41-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J223A
41-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J238
41-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J301
41-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J303
36
Page 37
Item No.DescriptionQuantity Req.DesignatorRemarks
41-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J307
41-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J309
41-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J610
41-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J615
41-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J704
41-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J706
41-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J717
41-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J718
41-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J719
41-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J911
41-WJ0085-B00WIRE BARE JUMPER 8.5MM1 J251
41-WJ0085-B00WIRE BARE JUMPER 8.5MM1 J905
41-WJ0085-B00WIRE BARE JUMPER 8.5MM1 J924
41-WJ0085-B00WIRE BARE JUMPER 8.5MM1 J057
41-WJ0085-B00WIRE BARE JUMPER 8.5MM1 J206
41-WJ0085-B00WIRE BARE JUMPER 8.5MM1 J239
41-WJ0085-B00WIRE BARE JUMPER 8.5MM1 J052
41-WJ0090-B00WIRE BARE JUMPER 9MM1 J034
41-WJ0095-B00WIRE BARE JUMPER 9.5MM1 J906
41-WJ0100-B00WIRE BARE JUMPER 10MM1 J002
41-WJ0100-B00WIRE BARE JUMPER 10MM1 J003
41-WJ0100-B00WIRE BARE JUMPER 10MM1 J022
41-WJ0100-B00WIRE BARE JUMPER 10MM1 J060
41-WJ0100-B00WIRE BARE JUMPER 10MM1 J102A
41-WJ0100-B00WIRE BARE JUMPER 10MM1 J103
41-WJ0100-B00WIRE BARE JUMPER 10MM1 J201
41-WJ0100-B00WIRE BARE JUMPER 10MM1 J202
41-WJ0100-B00WIRE BARE JUMPER 10MM1 J221A
41-WJ0100-B00WIRE BARE JUMPER 10MM1 J403
41-WJ0100-B00WIRE BARE JUMPER 10MM1 J607
41-WJ0100-B00WIRE BARE JUMPER 10MM1 J612
37
Page 38
Item No.DescriptionQuantity Req.DesignatorRemarks
41-WJ0100-B00WIRE BARE JUMPER 10MM1 J708
41-WJ0100-B00WIRE BARE JUMPER 10MM1 J902
41-WJ0100-B00WIRE BARE JUMPER 10MM1 J913
41-WJ0100-B00WIRE BARE JUMPER 10MM1 J918
41-WJ0100-B00WIRE BARE JUMPER 10MM1 R282
41-WJ0100-B00WIRE BARE JUMPER 10MM1 R283
41-WJ0100-B00WIRE BARE JUMPER 10MM1 R284
41-WJ0100-B00WIRE BARE JUMPER 10MM1 R285
41-WJ0105-B00WIRE BARE JUMPER 10.5MM1 J304
41-WJ0105-B00WIRE BARE JUMPER 10.5MM1 J023
41-WJ0110-B00WIRE BARE JUMPER 11MM1 J710
41-WJ0110-B00WIRE BARE JUMPER 11MM1 J711
41-WJ0110-B00WIRE BARE JUMPER 11MM1 J712
41-WJ0110-B00WIRE BARE JUMPER 11MM1 J037
41-WJ0110-B00WIRE BARE JUMPER 11MM1 J055
41-WJ0115-B00WIRE BARE JUMPER 11.5MM1 J043
41-WJ0115-B00WIRE BARE JUMPER 11.5MM1 J611
41-WJ0115-B00WIRE BARE JUMPER 11.5MM1 J709
41-WJ0115-B00WIRE BARE JUMPER 11.5MM1 J051
41-WJ0120-B00WIRE BARE JUMPER 12MM1 J912
41-WJ0120-B00WIRE BARE JUMPER 12MM1 J606
41-WJ0125-B00WIRE BARE JUMPER 12.5MM1 J018
41-WJ0125-B00WIRE BARE JUMPER 12.5MM1 J026
41-WJ0125-B00WIRE BARE JUMPER 12.5MM1 J027
41-WJ0125-B00WIRE BARE JUMPER 12.5MM1 J028
41-WJ0125-B00WIRE BARE JUMPER 12.5MM1 J045
41-WJ0125-B00WIRE BARE JUMPER 12.5MM1 J058
41-WJ0125-B00WIRE BARE JUMPER 12.5MM1 J059
41-WJ0125-B00WIRE BARE JUMPER 12.5MM1 J104
41-WJ0125-B00WIRE BARE JUMPER 12.5MM1 J259
41-WJ0125-B00WIRE BARE JUMPER 12.5MM1 J411
38
Page 39
Item No.DescriptionQuantity Req.DesignatorRemarks
41-WJ0125-B00WIRE BARE JUMPER 12.5MM1 J415
41-WJ0125-B00WIRE BARE JUMPER 12.5MM1 J901
41-WJ0125-B00WIRE BARE JUMPER 12.5MM1 J925
41-WJ0125-B00WIRE BARE JUMPER 12.5MM1 J926
41-WJ0125-B00WIRE BARE JUMPER 12.5MM1 J211
41-WJ0135-B00WIRE BARE JUMPER 13.5MM1 J920
41-WJ0140-B00WIRE BARE JUMPER 14MM1 J006
41-WJ0140-B00WIRE BARE JUMPER 14MM1 J007
41-WJ0140-B00WIRE BARE JUMPER 14MM1 J008
41-WJ0140-B00WIRE BARE JUMPER 14MM1 J009
41-WJ0140-B00WIRE BARE JUMPER 14MM1 J015
41-WJ0140-B00WIRE BARE JUMPER 14MM1 J016
41-WJ0150-B00WIRE BARE JUMPER 15MM1 J001
41-WJ0150-B00WIRE BARE JUMPER 15MM1 J030
41-WJ0150-B00WIRE BARE JUMPER 15MM1 J036
41-WJ0150-B00WIRE BARE JUMPER 15MM1 J039
41-WJ0150-B00WIRE BARE JUMPER 15MM1 J050
41-WJ0150-B00WIRE BARE JUMPER 15MM1 J212
41-WJ0150-B00WIRE BARE JUMPER 15MM1 J214
41-WJ0150-B00WIRE BARE JUMPER 15MM1 J246
41-WJ0150-B00WIRE BARE JUMPER 15MM1 J247
41-WJ0150-B00WIRE BARE JUMPER 15MM1 J248
41-WJ0150-B00WIRE BARE JUMPER 15MM1 J249
41-WJ0150-B00WIRE BARE JUMPER 15MM1 J602
41-WJ0150-B00WIRE BARE JUMPER 15MM1 J609
41-WJ0150-B00WIRE BARE JUMPER 15MM1 J627
41-WJ0150-B00WIRE BARE JUMPER 15MM1 J628
41-WJ0150-B00WIRE BARE JUMPER 15MM1 J629
41-WJ0150-B00WIRE BARE JUMPER 15MM1 J914
41-WJ0150-B00WIRE BARE JUMPER 15MM1 J921
41-WJ0155-B00WIRE BARE JUMPER 15.5MM1 J308
39
Page 40
Item No.DescriptionQuantity Req.DesignatorRemarks
41-WJ0155-B00WIRE BARE JUMPER 15.5MM1 J407
41-WJ0155-B00WIRE BARE JUMPER 15.5MM1 J408
41-WJ0165-B00WIRE BARE JUMPER 16.5MM1 J616
41-WJ0165-B00WIRE BARE JUMPER 16.5MM1 J617
41-WJ0165-B00WIRE BARE JUMPER 16.5MM1 R103
41-WJ0170-B00WIRE BARE JUMPER 17MM1 J218
41-WJ0170-B00WIRE BARE JUMPER 17MM1 J219
41-WJ0170-B00WIRE BARE JUMPER 17MM1 J220
41-WJ0170-B00WIRE BARE JUMPER 17MM1 J221
41-WJ0170-B00WIRE BARE JUMPER 17MM1 J222
41-WJ0175-B00WIRE BARE JUMPER 17.5MM1 J020
41-WJ0175-B00WIRE BARE JUMPER 17.5MM1 J029
41-WJ0175-B00WIRE BARE JUMPER 17.5MM1 J101
41-WJ0175-B00WIRE BARE JUMPER 17.5MM1 J203
41-WJ0175-B00WIRE BARE JUMPER 17.5MM1 J213
41-WJ0175-B00WIRE BARE JUMPER 17.5MM1 J253
41-WJ0175-B00WIRE BARE JUMPER 17.5MM1 J257
41-WJ0175-B00WIRE BARE JUMPER 17.5MM1 J406
41-WJ0175-B00WIRE BARE JUMPER 17.5MM1 J412
41-WJ0175-B00WIRE BARE JUMPER 17.5MM1 J619
41-WJ0175-B00WIRE BARE JUMPER 17.5MM1 J923
41-WJ0175-B00WIRE BARE JUMPER 17.5MM1 J928
41-WJ0175-B00WIRE BARE JUMPER 17.5MM1 J929
41-WJ0175-B00WIRE BARE JUMPER 17.5MM1 J618
41-WJ0175-B00WIRE BARE JUMPER 17.5MM1 J627A
41-WJ0175-B00WIRE BARE JUMPER 17.5MM1 J628A
41-WJ0180-B00WIRE BARE JUMPER 18MM1 J017
41-WJ0180-B00WIRE BARE JUMPER 18MM1 J224
41-WJ0180-B00WIRE BARE JUMPER 18MM1 J905A
41-WJ0190-B00WIRE BARE JUMPER 19MM1 J232
41-WJ0190-B00WIRE BARE JUMPER 19MM1 J234
40
Page 41
Item No.DescriptionQuantity Req.DesignatorRemarks
41-WJ0195-B00WIRE BARE JUMPER 19.5MM1 J305
41-WJ0195-B00WIRE BARE JUMPER 19.5MM1 J306
41-WJ0200-B00WIRE BARE JUMPER 20MM1 J228
41-WJ0200-B00WIRE BARE JUMPER 20MM1 J229
41-WJ0200-B00WIRE BARE JUMPER 20MM1 J230
41-WJ0200-B00WIRE BARE JUMPER 20MM1 J231
41-WJ0200-B00WIRE BARE JUMPER 20MM1 J250
41-WJ0200-B00WIRE BARE JUMPER 20MM1 J252
41-WJ0200-B00WIRE BARE JUMPER 20MM1 J621
41-WJ0200-B00WIRE BARE JUMPER 20MM1 J630
41-WJ0200-B00WIRE BARE JUMPER 20MM1 J631
45-OSC16M-0Y0CRYSTAL 16MHZ1 X001
45-OSC4M4-3Y0 CRYSTAL 4.43MHz (CL=16pF)1 X201
45-SAWM33-52KSAW FILTER M3352K1 Z141
45-TRA4M5-0Y0CER TRAP TPS 4.5MHZ1 Z252
46-12866W-02X PIN BASE *2 S11-02Y1P601 FOR FRONT CAB. (SPK)
46-20598W-04XPIN BASE *4 TJC1-4A1P411 FOR D.Y CONNECTOR
46-33079W-02XPIN BASE *2 TJC3-2A1P003A FOR KEY BD P004A
46-33079W-02XPIN BASE *2 TJC3-2A1P602 FOR FRONT CAB. (SPK)
46-33079W-04XPIN BASE *4 TJC3-4A1P421 FOR CRT BD P502
46-33079W-05XPIN BASE *5 TJC3-5A1P001 FOR PWR SW. BD P1001
46-33079W-05XPIN BASE *5 TJC3-5A1P201 FOR CRT BD P503
46-33079W-06XPIN BASE *6 TJC3-6A1P002 FOR W. BAL. ADJUST
46-33079W-07XPIN BASE *7 TJC3-7A1P901 FOR SIDE AV BD
47-RCA023-XX1RCA JACK 3PV YEL WHI RED/SW1 P911
47-RCA023-XX1RCA JACK 3PV YEL WHI RED/SW1 P941
54-128700-0X0FIBRE WASHER 3.3 X 10 X 0.82FOR FBT
57-10654X-00F cable ties (2.5mmX95mm)3
62-227680-0UABRACKET ABS-KINGFA 606 (UO)1
62-B159MB-3UN MAIN BD BRACKET1
63-B30100-BT4S/T SCREW B 3 X 10 BT2MTG FBT & M. BD
Simply press the D-mode key on the factory remote handset.
Enter service mode
Press and hold the VOLUME DOWN key tightly on the unit until minimum level and don’t release the
VOLUMN DOWN key, then press the “0” key on the remote handset three times.
“D” letter on the screen indicated that the factory mode was entered. Now you can use the shortcut key
to access the factory menu. All change in factory data will save in EEPROM automatically
Note:
1. You can disable the D-Mode ke y (on factory remote handset) by change “BIT-0 ” of “MODE0” to
“0”. If the D-Mode key was disabled, you can’t enter D-Mode by the D-mode key on the factory
remote (but you can still enter service mode). It is suggested to disable the D-Mod e key b efore the
set leave the factory.
2. On the factory remote handset, you can find the “BUS OFF” key. It can cut off the I2C control from
the CPU to other IC. This is only useful when automatic adjustment of white balance.
3. All system data in menu of “key 7” must keep unchanged when servicing. Otherwise, the set may not
work properly.
Setting method:
No Adjustment
Items
1Screen
voltage
2 Focus voltage------------Cross hatch
3VCO------------Apply an IF
Data Name (default
value inside blanket)
------------“IRGB cut off”
Conditions and
input signal
must set to 80 (all
signal (see tuner
frequency) to the
pattern)
pattern.
spec. for
IF input.
Setting method (need enter D-mode)
Press “-/--” key on the remote handset and
the screen will become a horizontal line.
Then adjust the “screen” VR on the
flyback until the horizontal line can just be
seen (minimum visible intensity).
Adjust the “focus” VR on the flyback until
the screen becomes clear.
Monitor the DC voltage at pin 48 o
IC201, then adjust T271 until the voltage at
pin 48 become 4.62 +/- 0.02 V.
Press the AFT button on the factory remote
and AFT adjustment will be done
automatically.
Page 46
4Vertical
f
f
geometry for
PAL system
(Key 2)
VPOS50 (03)
HIGH50 (1A)
VLIN50 (04)
VSC50 (05)
OSD50 (2F)
Input a PAL cross
hatch pattern.
Adjust VPOS50 for vertical position.
Adjust HIGH50 for vertical amplitude.
Adjust VLIN50 for vertical linearity.
Adjust VSC50 for vertical S-correction
Adjust OSD50 for OSD position (normally
use default value).
5Vertical
geometry for
NTSC system
(Key 3)
6Horizontal
geometry for
PAL system
(Key 4)
7Horizontal
geometry for
NTSC system
(Key 5)
VPOS60 (00)
HIGH60 (21)
VLIN60 (05)
VSC60 (08)
OSD60 (2B)
HPOS50 (0F)
HSIZE50 (18)
PARA50 (18)
TRAP50 (0C)
CORN50 (0D)
VEHT50 (03)
HEHT50 (04)
HPOS60 (14)
HSIZE60 (18)
PARA60 (1A)
TRAP60 (0D)
CORN60 (0D)
VEHT60 (02)
HEHT60 (04)
Input a NTSC
cross hatch
pattern.
Input a PAL cross
hatch pattern with
black and white
background.
Input a NTSC
cross hatch
pattern with black
and white
background.
Adjust VPOS60 for vertical position.
Adjust HIGH60 for vertical amplitude.
Adjust VLIN60 for vertical linearity.
Adjust VSC60 for vertical S-correction
Adjust OSD60 for OSD position (normally
use default value).
Adjust HPOS50 for horizontal position.
Adjust HSIZE50 for horizontal width.
Adjust PARA50, TRAP50 and CORN50
until the vertical line at left and right side
of the picture become straight.
VEHT and HENT is for the picture size
stability when changing the brightness o
the screen. Receive pattern o f cross hatch
with black background and then change to
white background, then compare the
vertical and horizontal size between black
and white background. Adjust VEHT and
HEHT until you get the minimum
difference of screen size. After you adjust
VEHT and HEHT, you must re-adjust
vertical and horizontal amplitude.
Adjust HPOS60 for horizontal position.
Adjust HSIZE60 for horizontal width.
Adjust PARA60, TRAP60 and CORN60
until the vertical line at left and right side
of the picture become straight.
Adjust VEHT and HEHT using same
method of PAL system. Also need readjustment of vertical and horizontal
amplitude.
8Key 6
(Status
adjustment)
RFAGC (35)
PIFAFT (44)
HAFC (00)
S-B-Y (08)
S-R-Y (08)
Receive a 60dB
grey scale + color
bar signal
RFAGC – monitor the voltage at AGC pin
of the tuner. Then increase the setting o
RFAGC until the tuner AGC voltage reach
maximum (about 5V). Then decrease the
RFAGC setting until the AGC voltage just
drop.
Adjust S-B-Y and S-R-Y to get the optimal
color for SECAM system.
Please keep the PIFAFT value after auto
AFT adjustment.
HAFC item must use the default value.
Page 47
(curve of
volume
control)
9 White balance
adjustment
(key 1)
VLOMAX (7E)
VOL05 (48)
VOL25 (65)
VOL50 (70)
R CUT (80)
G CUT (80)
B CUT (80)
G DRV (40)
B DRV (40)
--------- VOLMAX is the volume output level at
100%.
VOL05 is the volume output level at 5%
VOL25 is the volume output level at 25%
VOL50 is the volume output level at 50%
Remark: The value of VOL05, VOL25 and
VOL50 was not suggested to vary in every set.
It is suggested to use the default value.
Black and white
pattern (PAL)
1. Measure the dark side of the picture with a
color analyzer and set RCUT to 80. Then
adjust BCUT and GCUT until the data on
the analyzer become x = 284, y = 299.
2. Measure the bright side of the picture,
Then adjust BDRV and GDRV until the
data on the analyzer become x = 284, y =
299.
3. Repeat step 1 and 2 until you get right
color on both dark and bright side of the
screen.
Other adjustment (default value was suggested, except BRTC)
10Key 0OSD (07)
OSDF (65)
TXCX (30)
RGCN (20)
TNTX (28)
TNTN (28)
----------OSD – OSD position
OSDF - Oscillating frequency setting
TXCX – OSD intensity when maximum
RGCN – OSD intensity when minimum
TNTX – maximum tint level
TNTN – minimum tint level
contrast
contrast
11Key 8SCNT (0F)
CNTX (3F)
CNTN (00)
BRTX (20)
BRTN (20)
COLX (35)
COLN (00)
12Key 9CNTC (25)
BRTC (40)
COLC (50)
TNTC (35)
COLP (00)
COLS (54)
BRTS (00)
----------SCNT – sub contrast for luminance signal
CNTX – maximum contrast
CNTN – minimum contrast
BRTX – maximum brightness
BRTN – minimum brightness
COLX – maximum color
COLN – minimum color
----------CNTC – 50% contrast
BRTC – 50% brightness
COLC – 50% color
TNTC – 50% tint
COLP – color level for PAL
COLS – color level for SECAM
BRTS – sub brightness for SECAM
For the adjustment of BRTC, receive an 8
step grey scale pattern and adjust all
picture settings to 50%. Then adjust B RTC
until the first and second step on the screen
can just be distinguished.
Page 48
13SKIP key
18
V-BASS(14)
V-TRE(14)
M-BASS(32)
M-TRE(32)
T-BASS(5A)
T-TRE(5A)
MODE5(0E)
AV GAIN(19)
Smart Pic.
(Sound
Effect
Setting)
V-BASS -- Voice Bass
V-TRE -- Voice Treble
M-BASS -- Music Bass
M-TRE -- Music Treble
T-BASS -- Theatre Bass
T-TRE -- Theatre Treble
MODE 5 -- Please see "Parameter Illustration"
AV GAIN -- AV2 input audio gain
(sharpness
adjustment)
SHPTV3 (17)
SHPAV3 (1A)
SHPTV4 (16)
SHPAV4 (16)
SHPX (25)
SHPN (10)
----------SHPTV3 – 50% sharpness in 3.58 system
(TV)
SHP AV3 – 50% sharpness in 3.58 system (AV)
SHPTV4 – 50% sharpness in 4.43 system
(TV)
SHP AV4 – 50% sharpness in 4.43 system (AV)
SHPX – maximum sharpness
SHPN – minimum sharpness
14INTROSELF ADJ (00)
SELF VCO (80)
CCD OSD (42)
CCD OSDF (63)
VOL OUT (73)
15SOUND
(Sync.
Checking)
PYNX (28)
PYNN (14)
PYXS (26)
PYNS (16)
16MARK
(Time setting)
ONTM (00)
SWTM (0A)
PLVL (80)
PNUM (00)
17CALL
(DBE setting)
MPB-STR (43)
MPB HMC (0D)
MPB HP (07)
MPB LP (07)
MPB LIM (EC)
SUB FRE (28)
SUB HP (02)
VOL MAL (03)
----------SELF ADJ– auto detection option
SELF VCO – auto detection of VCO
CCD OSD – adjust horizontal location for
CCD display.
CCD OSDF – oscillating fre quency se tting fo r
CCD display.
VOL OUT – adjust the level of AV audio
output.
Remark : SELF ADJ and SELF VCO are auto
adjustment, no need to adjust by manual.
-----------PYNX – upper limit of sync. checking (blue
back on/off)
PYNN –lower limit of sync. checking (blue
back on/off)
PYXS –upper limit of sync. checking (during
tuning)
PYNS –lower limit of sync. checking (during
tuning)
-----------ONTM – Blank screen timing when turn on
TV
SWTM – Degaussing timing when turn on TV
PLVL – X-ray protection start-up voltage
(input voltage of X-ray protection pin)
PNUM – X-ray protection timing setting
-----------MPB-STR – Effect Strength
MPB HMC – Harmonic content
MPB HP – High Pass Corner Frequency
MPB LP – Low Pass Corner Frequency
MPB LIM – Amplitude limit
SUB FRE – Subwoofer Corner Frequency
SUB HP – Subwoofer Complementary High
Pass Filter
VOL MAL – Volume Loudspeaker
Page 49

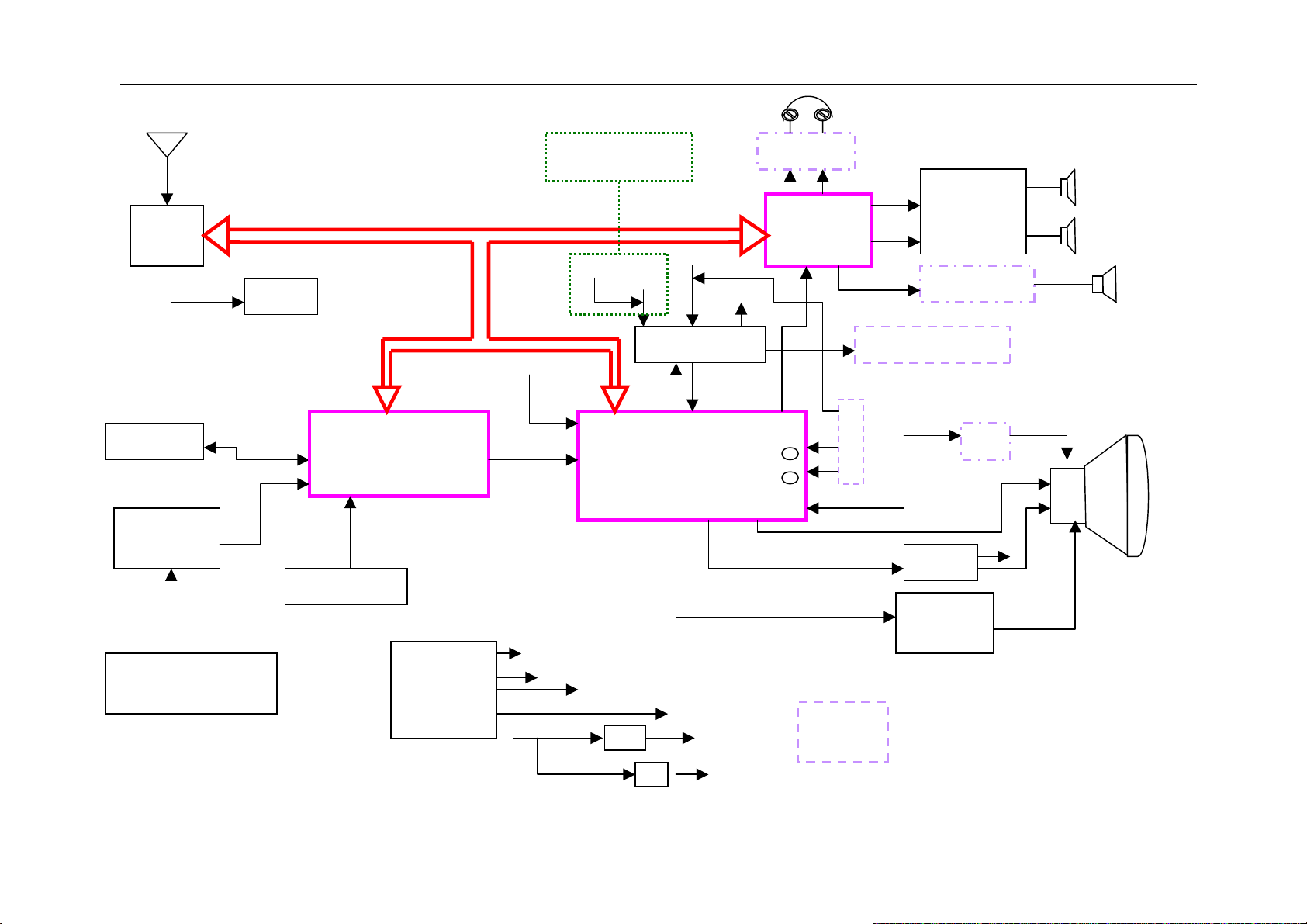

M34 Block Diagram 2002/9/5 By GaoJF
TUNER
FS
PIF&SIF
EEPROM
RECEIVER
AMP
REMOTE CONTROL
TC9028F-023
SAW
TV Body Button
2
I
C BUS
MCU
MICRO COMPUTER
TMP88CS38N
STRF6656
POWER
OSD RGB
24V
140V
In the TV body Side
S Vid eo
AV1 IN
CVBS
PAL/NTSC 1 CHIP
TB1240
12VA12V
7809
AV2 IN
4052
CVBS/YC
V/C/D
9V
H-LH-R
TDA2822m
(MSP3440)
AV Out
SIF
Y/C
37
38
BTSC
Optional
Function
RCH
LCH
COMB.F(TDA9181)
Y
Cb
Cr
Y/C
HOUT
VERT OUT
TA8427K
TDA2616Q
TDA2616Q
VM
28V
Rsp
Lsp
WOOFER sp
CRT
7805
5V

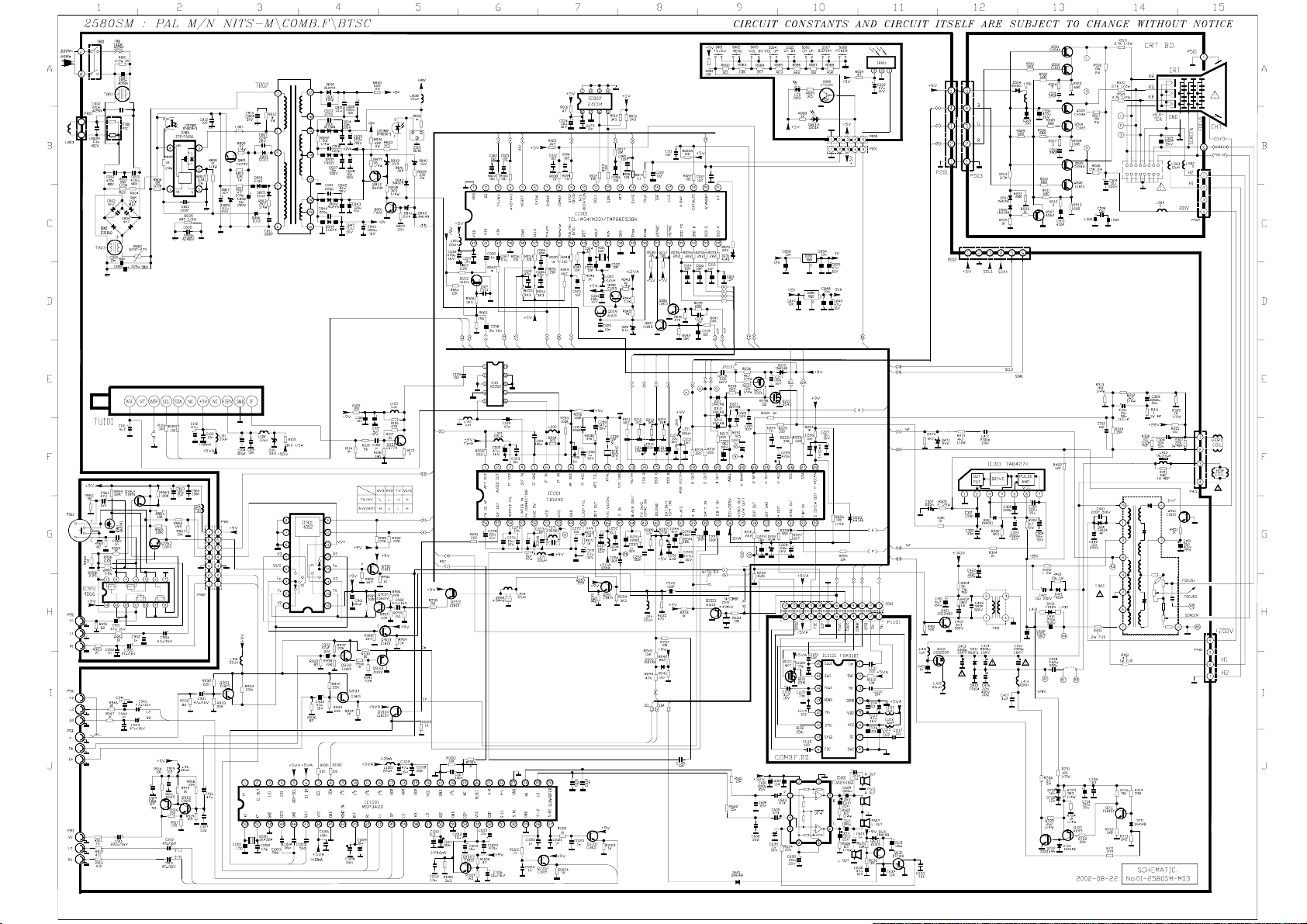

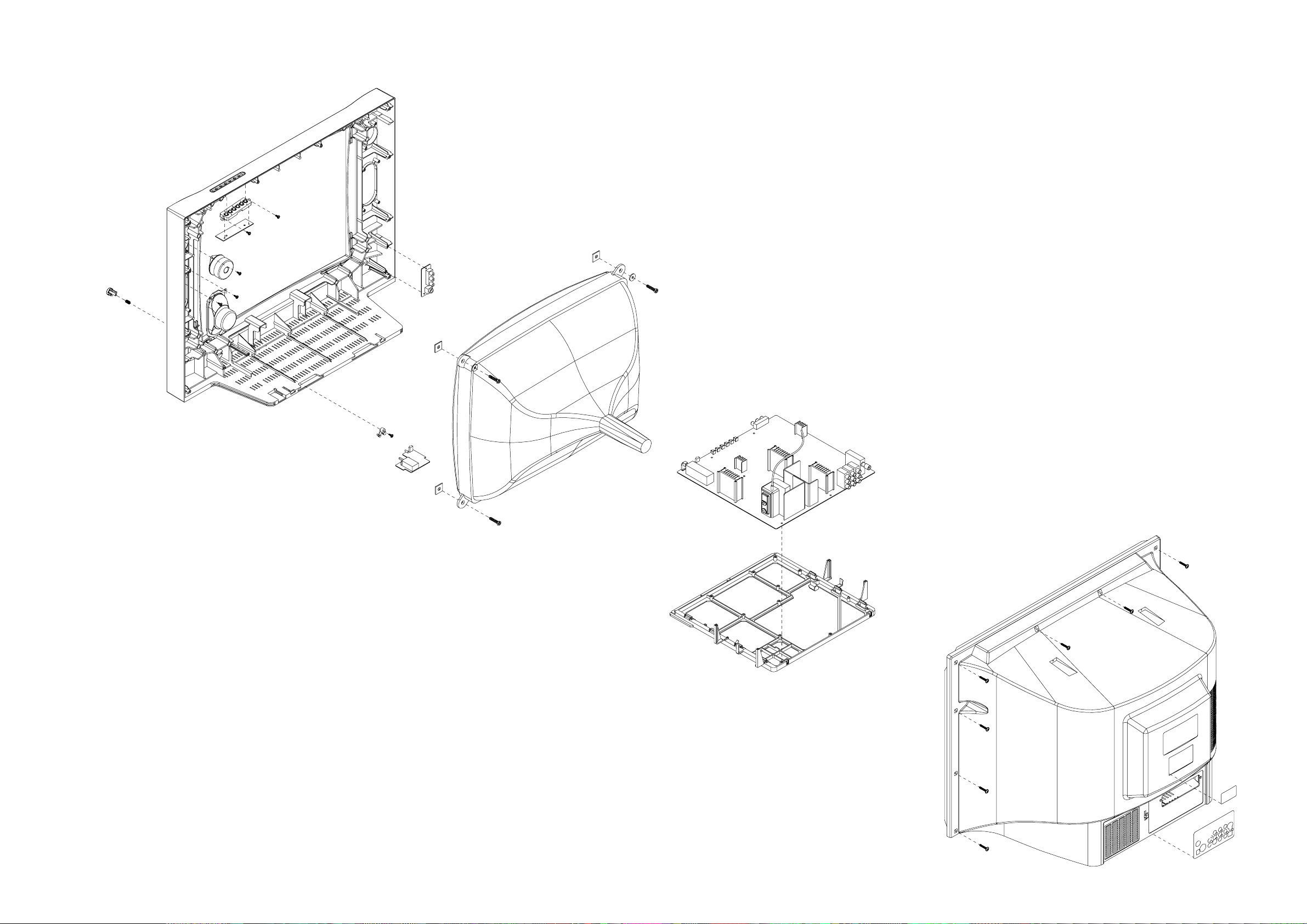

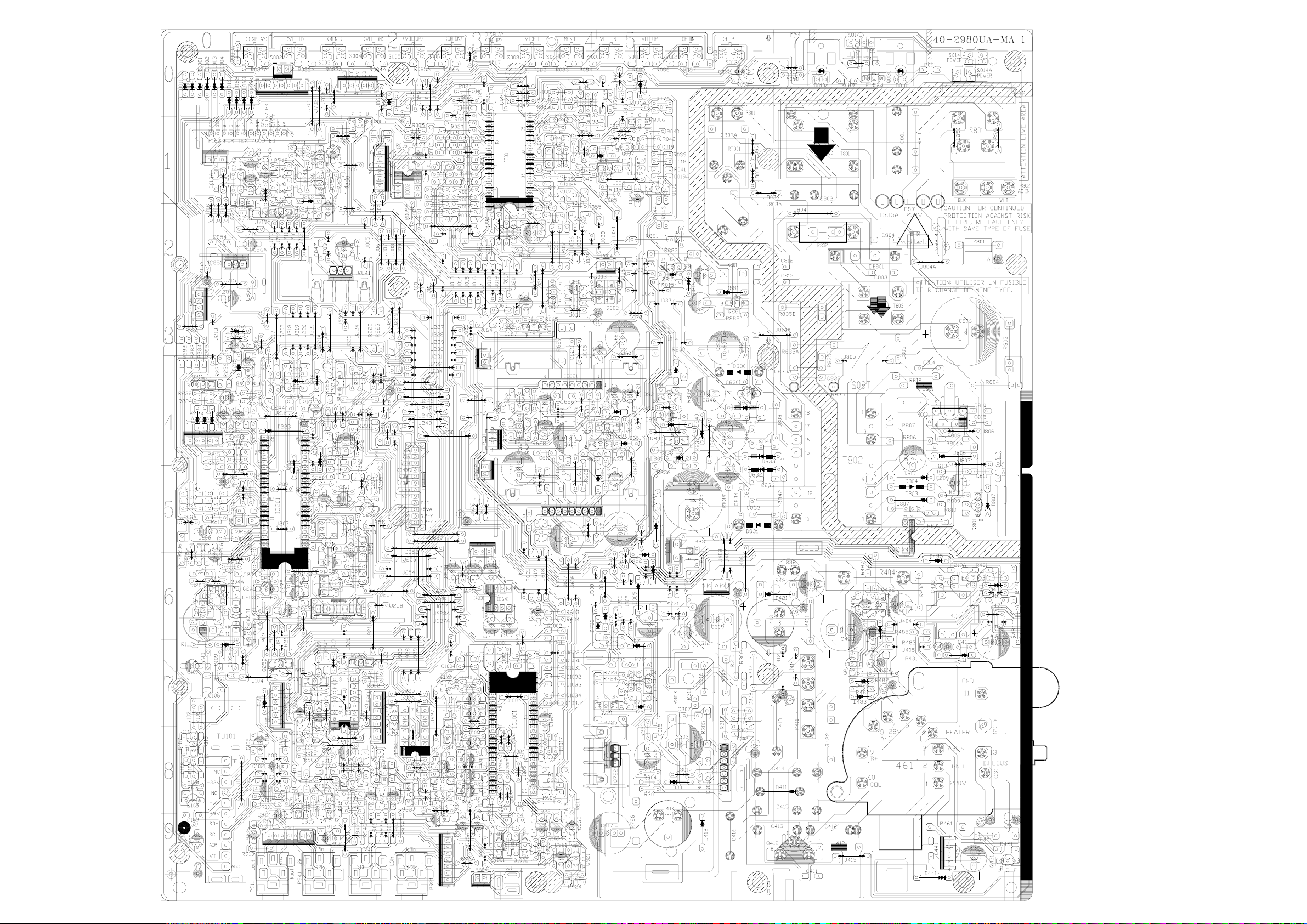

Page 50
