Telefield IP 162 User Manual

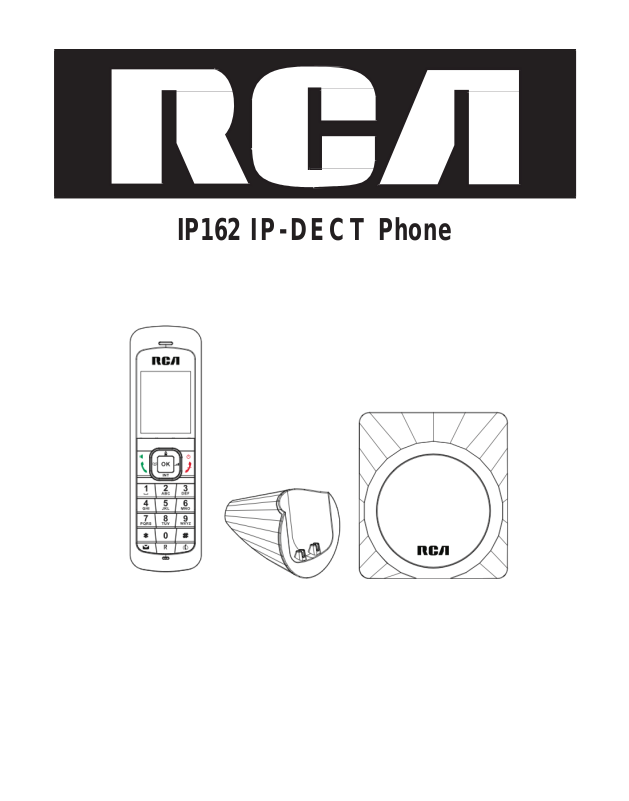

IP162 IP-DECT Phone
Interference Information
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•
•
•
If these measures do not eliminate the interference, please consult your dealer or an experienced radio/television technician for additional suggestions. Also, the Federal Communications Commission has prepared a helpful booklet, “How To Identify and Resolve Radio/TV Interference Problems. This booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402. Please specify stock number 004-000-00345-4 when orde ring copies.
Warning: The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
The RCA IP162 phone is designed for business environment use. It is a full-featured SIP solution, interoperable with most IP PBX and VoIP providers.
Please read through the instruction booklet before you get started to better understand the features of the IP162.
Reorient or relocate the receiving antenna (that is, the antenna for radio or television that is “receiving” the interference). Reorient or relocate and increase the separation between the telecommunications equipment and Receiver. Connect the telecommunications equipment into an outlet on a circuit different from that to which the receiving antenna is connected.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This base should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.”
This is a class B device, in a domestic environment; this product may cause radio interference, in which case the user may be required to take adequate measures. To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment, end users of electrical and electronic equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately.
FCC Part 68 and ACTA
Customer Information
1. This equipment complies with Part 68 of the FCC rules and the requirements
adopted by the ACTA. On the bottom of this equipment is a label that contains, among other information, a product identifier in the format US:3F8IPNANIP162. If requested, this number must be provided to the telephone company.
2. A plug and jack used to connect this equipment to the premises wiring and
telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details.
3. If this equipment [US: 3F8IPNANIP162] causes harm to the telephone network, the
telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn't practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.
4. The telephone company may make changes in its facilities, equipment, operations
or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service.
5. If trouble is experienced with this equipment [US: 3F8IPNANIP162], for repair
or warranty information, Service can be facilitated through our office at: U.S. Agent Company name: Telefield NA Inc Address: 4
915 S W Griffith Dr. #302 Beaverton, Or 97005, USA Tel: 1‐800‐511‐3180 Fax: +503‐626‐6349
If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.
6. Please follow instructions for repairing if any (e.g. battery replacement section);
otherwise do not alternate or repair any parts of device except specified.
7. Connection to party line service is subject to state tariffs. Contact the state public
utility commission, public service commission or corporation commission for information.
8. If your home has specially wired alarm equipment connected to the telephone line,
ensure the installation of this [3F8IPNANIP162] does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer.
a) If the telephone company requests information on what equipment is
connected to their lines, inform them of:
b) The ringer equivalence number [NAN]
c) The USOC jack required [RJ45] d) Facility Interface Codes (“FIC”) [N/A] e) Service Order Codes (“SOC”) [N/A] f) The FCC Registration Number [US: 3F8IPNANIP162]
9. The REN is used to determine the number of devices that may be connected to a
telephone line. Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company. The REN for this product is part of the product identifier that has the format US:AAAEQ##TXXXX. The digits represented by ## are the REN without a decimal point. For this product the FCC Registration number is [US:
3F8IPNANIP162] indicates the REN would be NAN.
11 this equipment is hearing aid compatible
Specic
SAR tests are conducted using standard operating positions accepted by the
FCC with the phone transmiting at its highest certified power level in all tested
frequency bands, although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the
maximum value, in general, the closer you are to a wireless base station antenna,
the lower the power output. Before a new model phone is a available for sale to
the public, it must be tested and certified to the FCC that it does not exceed the
exposure limit estabilished by the FCC. Tests for each phone are performed in
positions and locations (e.g. at the ear )as required by the
FCC. This handset has also been tested and meets the
FCC RF exposure guidelines. Use of other accessories may Non-compliance with
the above restrictions may result in violation of RF exposure guidelines.
Absorption
Rate
(SAR)
information
interface 10
Call Transfer
19
Handset menu
11
Call Conference
20
Overview 11
Contacts
20
Base 11
Advanced Functions
20
Handset 12
H/S Registration
20
Handset keys layout
12
H/S Deregistration
20
Master Handset
14
Account Settings
20
Handset Menu tree
15
Network Settings
21
General Settings
16
Maintenance Tasks
21
Phone status
16
Handset Keys configuration
22
Time and date
16
Web Interface
22
Volume control
16
Ringtone selection
17
Basic Call functions
17
Making calls
17
Making an external call
17
Anonymous call
18
Incoming calls
18
Answer an incoming call
18
Reject an incoming call
18
Table of Contents

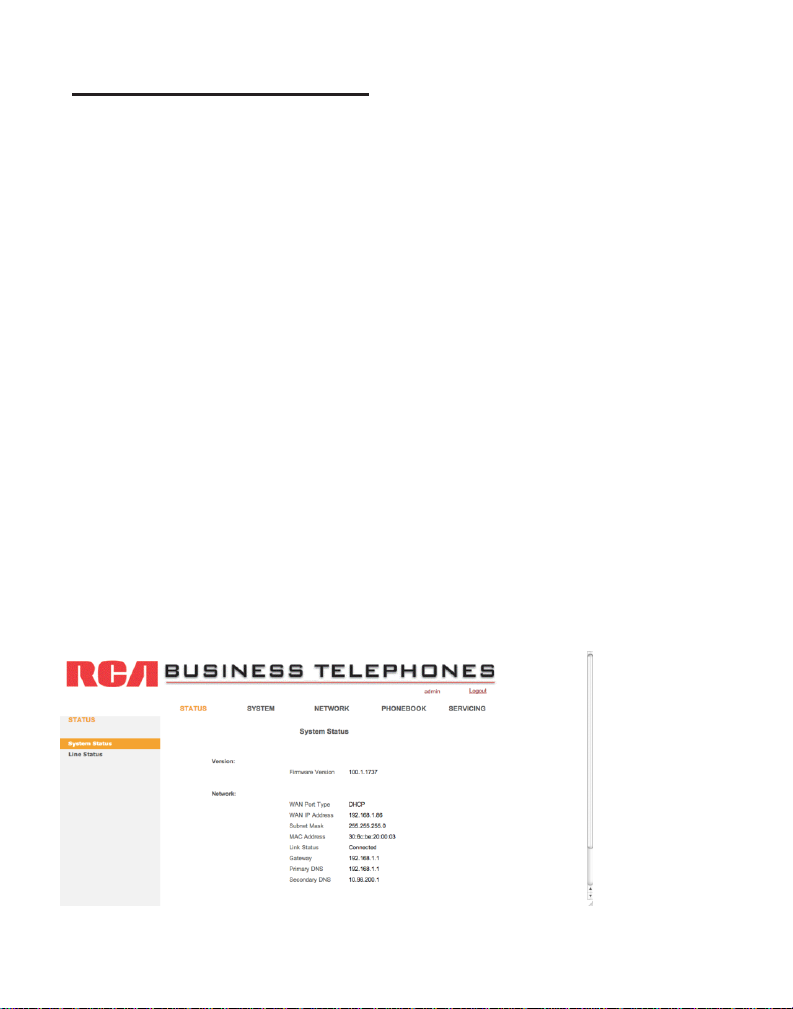

Getting Started 7 Packing List 7 Setup the base 7 Setup the handset 8 Registration 8 SIP account Configuration 9 Base Web interface 10 Get the base IP address 10 Input SIP account information via web
DND Call Forward Call log Accessing call logs Call list item management During an active call Mute Hold Call Waiting 19
18 18 18 18 19 19 19 19
Getting Started
Packing List The following components are included in your package:
IP DECT Gateway IP162 DECT Handset Charging Cradle AC Adaptor (6V, 0.5A) for Charging Cradle AC Adaptor (5V, 0.5A) for Gateway
1.5M Ethernet Cable (CAT 5) Quick Setup Guide 2 x AAA rechargeable Ni-MH batteries

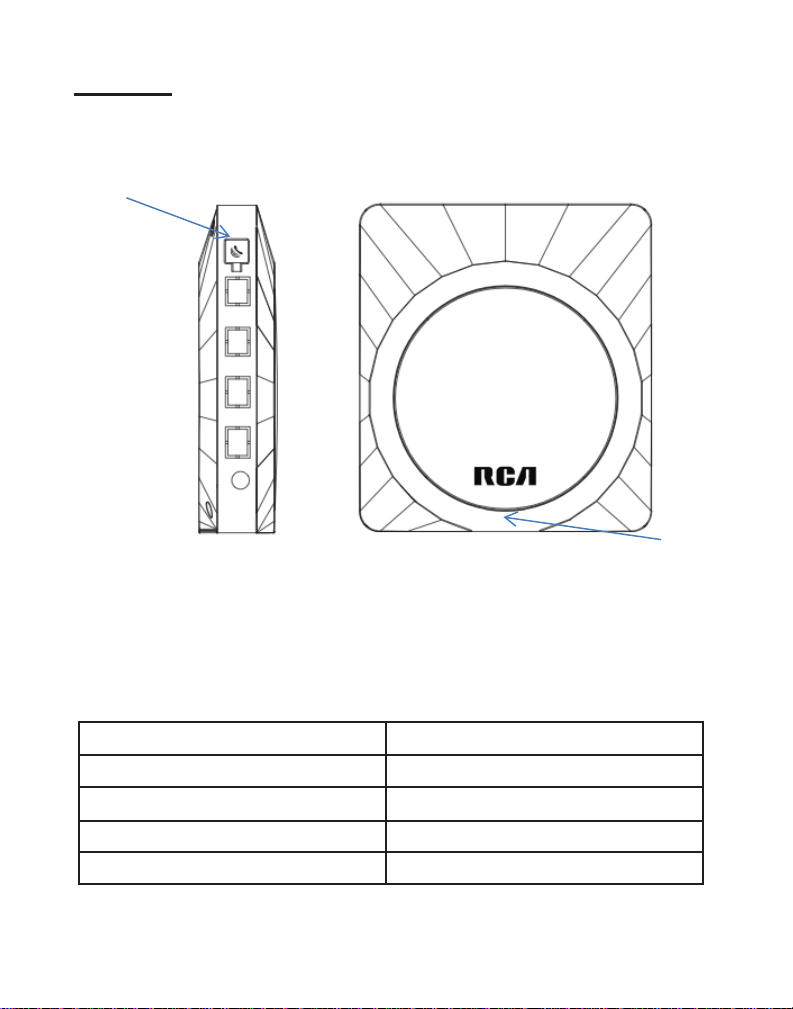

Setup the base
1. Plug the adaptor (5V, 0.5A) into a power output and connect its power
plug to the base
2. Connect the base to a router or switch with the Ethernet cable to access
the internet
Note: If inline power (i.e. Power over Ethernet) is provided, do not install the AC adap­tor. Make sure the Ethernet cable and switch/hub are PoE compliant.
The IP address of the base is assigned dynamically by default. Make sure the router’s DHCP server is on.
When the base is powered up, the amber led will be amber colored. Once the net­work connection is established, the led will turn off. When the base obtains the IP address, the amber led will light up again.

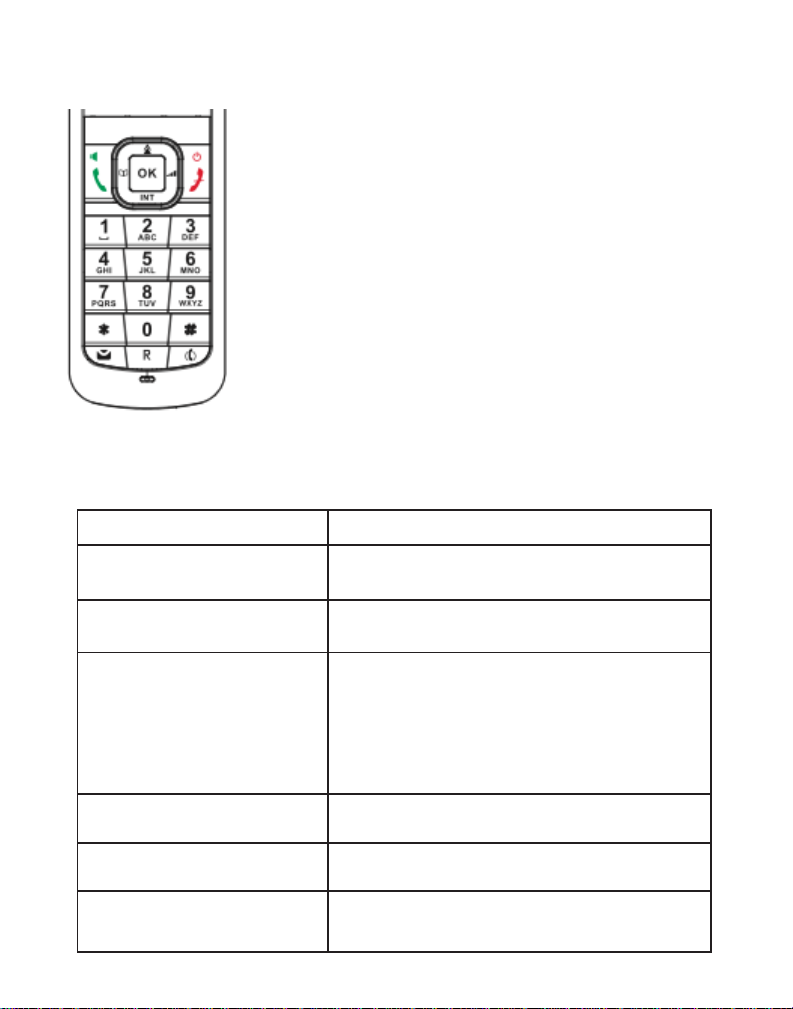

Setup the handset
Connecting the charging cradle
1. Plug the adaptor (6V, 0.5A) into a power outlet and connect its power plug to the charging cradle.
Battery installation
1. Install the 2 AAA rechargeable Ni-MH batteries to the handset.
2.
Confirm correct polarities.
Charging the batteries
1.
Charge the batteries for about 6 hours before initial use.
2.
The phone powers up automatically. (If the display shows nothing, put the phone
on the desktop charging cradle).
3.
During charging, the battery icon at the top right hand side of idle screen ani-
mates.
Registration
On the base:
1.
Hold down the page key on the back of the base.
2.
After the button is held down for five seconds, the amber led begins blinking amber and blue. The page key can now be released. The base is now in registration
mode.
On the handset:
1.
If the handset has not registered to any base, it will show “Unregistered” on idle screen.
2. Press “OK” button on the handset to enter the main menu.
3.
Use the navigation keys to highlight the item “Settings” and then press “Select” soft key.
4. “Select” soft key.
5.
6. the base.
7. set.
8. blinking blue and amber) and that the base and handset are in close proximity, then try again.
Use up/down navigation keys to highlight the item “Registration” and then press
Highlight the item “Base Registration” and press “Select” soft key
Select “BS 1” and press “Select” soft key. The handset will attempt to register to
Once the registration succeeds, “Handset X” will display on idle screen of hand-
If registration fails, ensure that the base is still in registration mode (with the led
