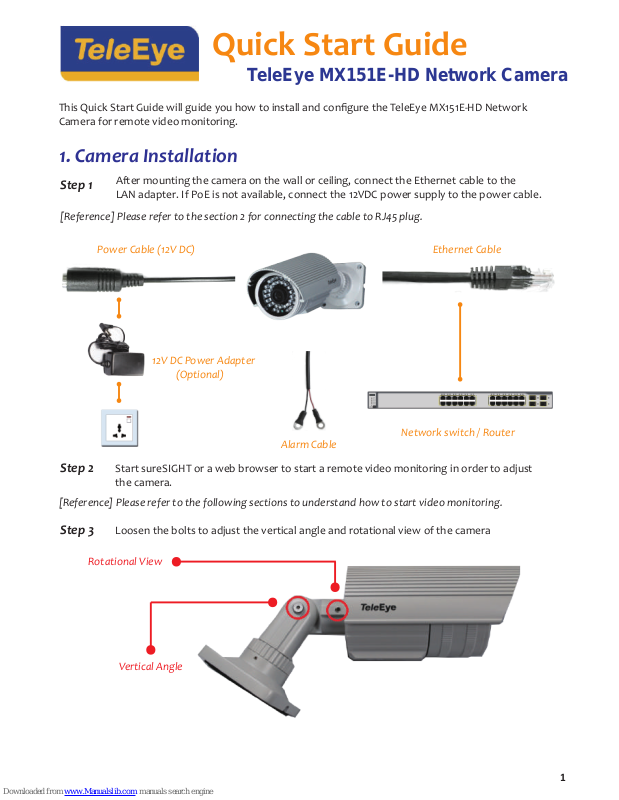

Quick Start Guide
TeleEye MX151E-HD Network Camera
This Quick Start Guide will guide you how to install and configure the TeleEye MX151E-HD Network
Camera for remote video monitoring.
1. Camera Installation
Step 1
Step 2
Step 3
Start sureSIGHT or a web browser to start a remote video monitoring in order to adjust
the camera.
After mounting the camera on the wall or ceiling, connect the Ethernet cable to the
LAN adapter. If PoE is not available, connect the 12VDC power supply to the power cable.
[Reference] Please refer to the following sections to understand how to start video monitoring.
[Reference]
Please refer to the section 2 for connecting the cable to RJ45 plug.
1

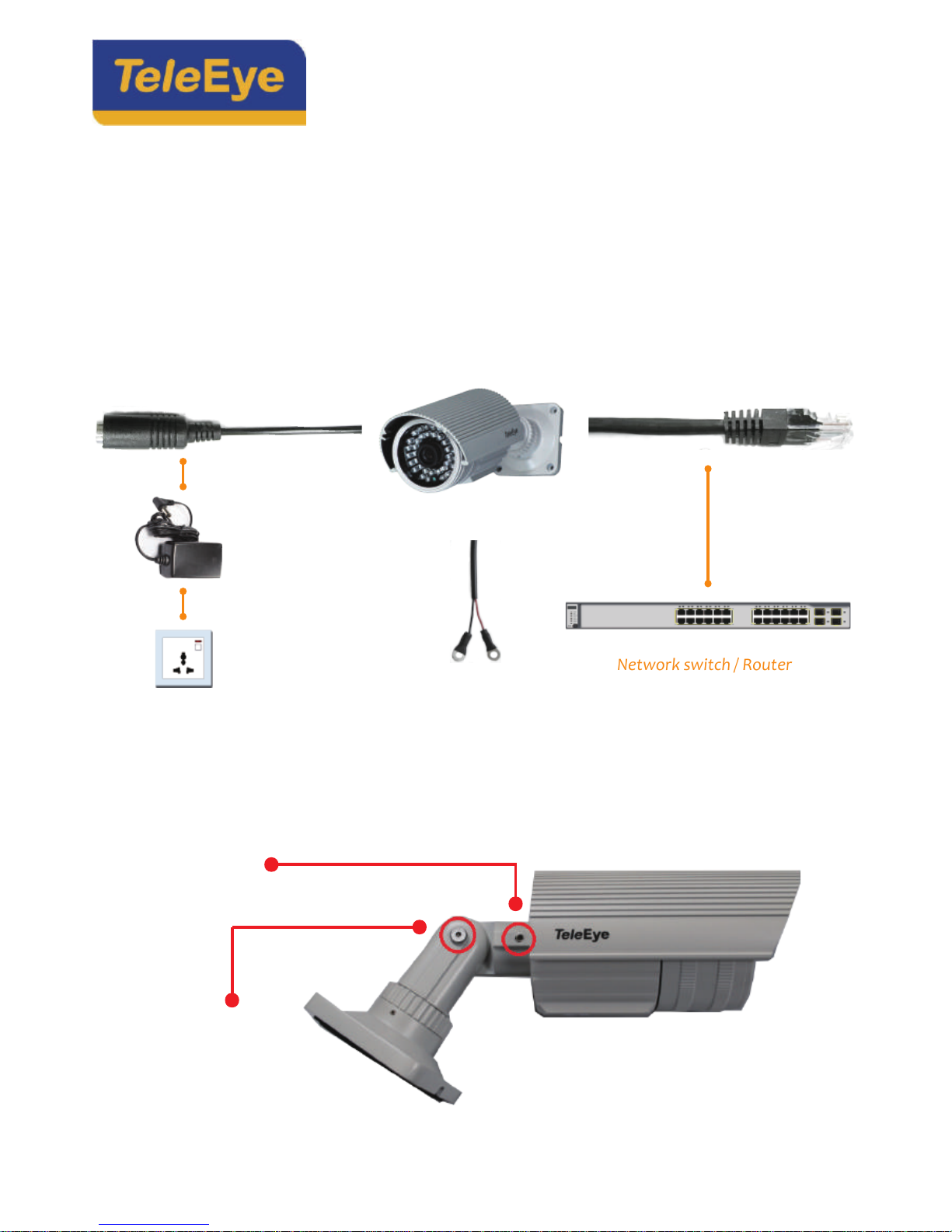

Power Cable (12V DC) Ethernet Cable
Alarm Cable
Network switch / Router
12V DC Power Adapter
(Optional)
Loosen the bolts to adjust the vertical angle and rotational view of the camera
Rotational View
Vertical Angle
Page 2
2. RJ45 Wiring
Step 1
Step 2
Step 3
Step 4

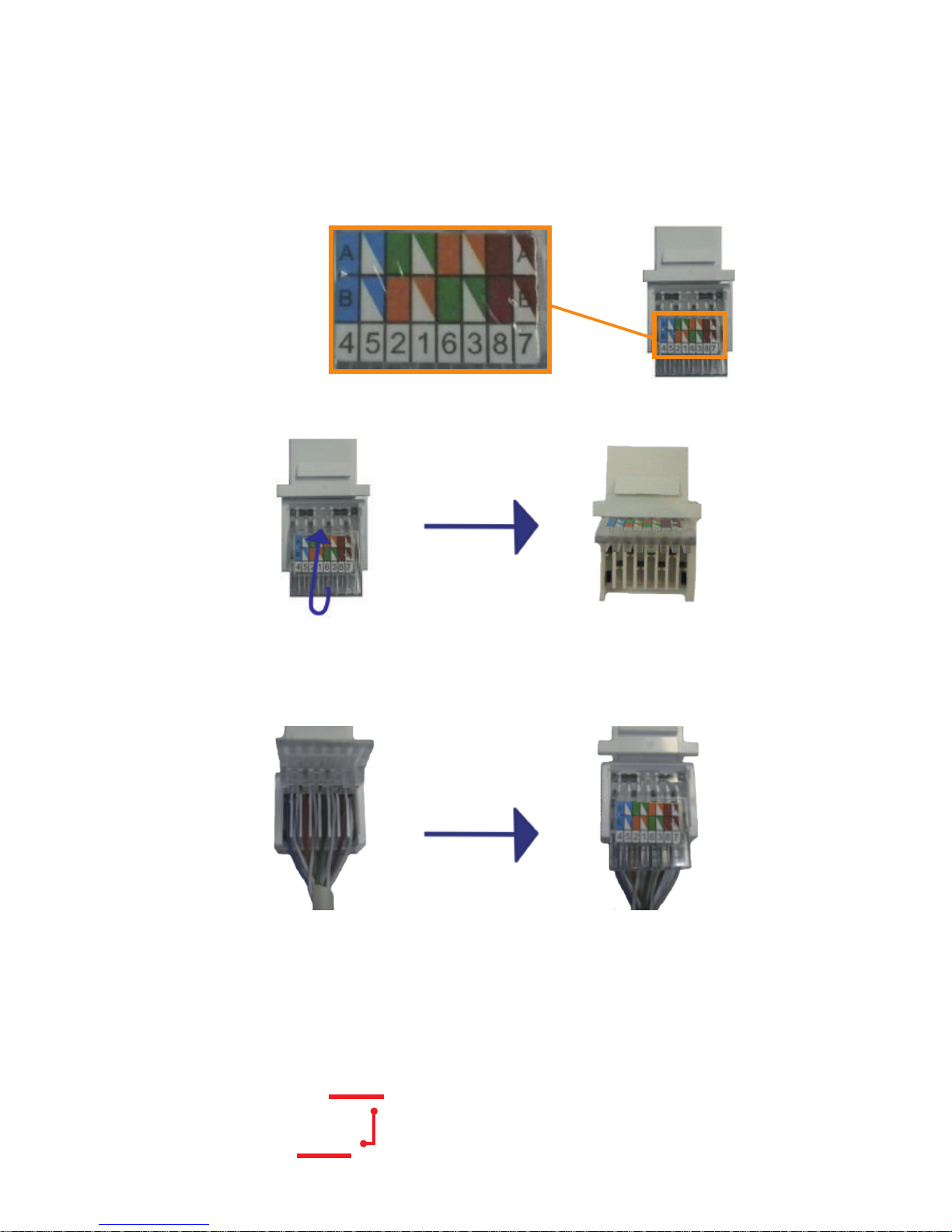

Make sure whether Type A or Type B wiring scheme is used for the Ethernet cable (Type
B is more common).
The two colour codes indicated on the plug represent the wiring scheme for Type A and
Type B cables.
Open the tab of the plug
Type A
Wiring Scheme
Type B
Wiring Scheme
According to the wiring scheme of the cable, follow the corresponding colour code on
the plug to arrange the 8 wires. Close the tab after inserting the 8 wires into the wire
holders.
Insert the 8 wires Close the tab
2
3. Default User Name and Password
Default user name is “admin” while default password is “0” + “digits of serial number”.
Here is an example:
Serial Number : MXC10210
User Name : admin
Password : 010210
Page 3
4. IP Setup Utility
Step 1
Step 2
Step 3
Step 4

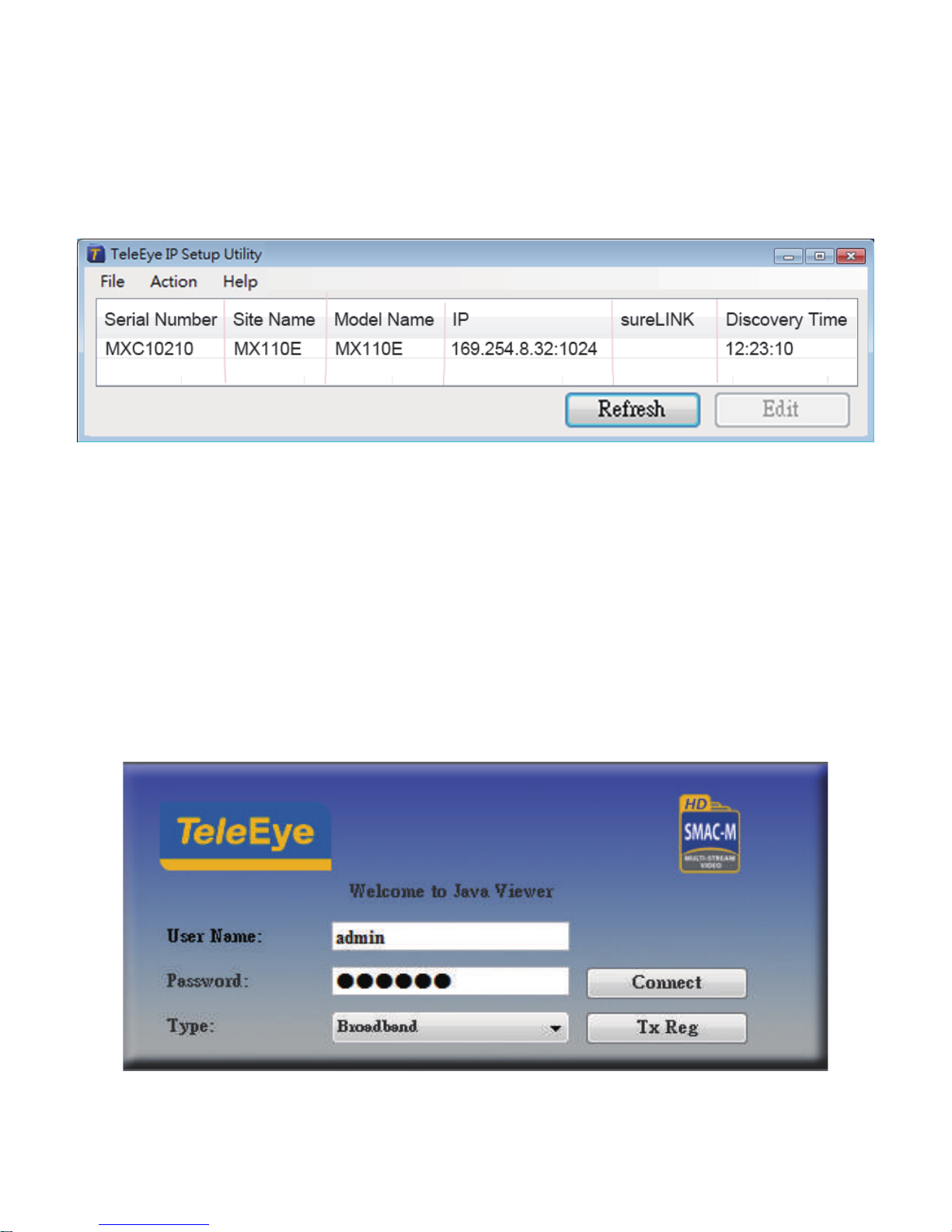

After installing sureSIGHT and turning on the Network Camera, select “Run TeleEye IP
Setup Utility” from the windows start menu.
Search the target camera by its serial number, highlight the corresponding row from the
list on the left side of the window to select it. If the camera cannot be found, click the
button.
[Refresh]
Press button to change the network settings of the camera, including IP, ports,
mask, etc.
[Edit]
Enter user name and password to save the information when prompted.
5. Live Monitoring with Web-Browser
Step 1
Step 2
Step 3
Input the user name and password.
Click the
[Connect] button to connect the selected video stream. Video will then be
displayed on the browser as follow.
3
Type the IP address of the Network Camera in a web browser.
[Reference]
Please refer to section 3 for the default user name and password.
[Reference]
Please refer to section 3 for the default user name and password.
Page 4
6. Live Monitoring with sureSIGHT
4
Step 1
Step 2
Step 3

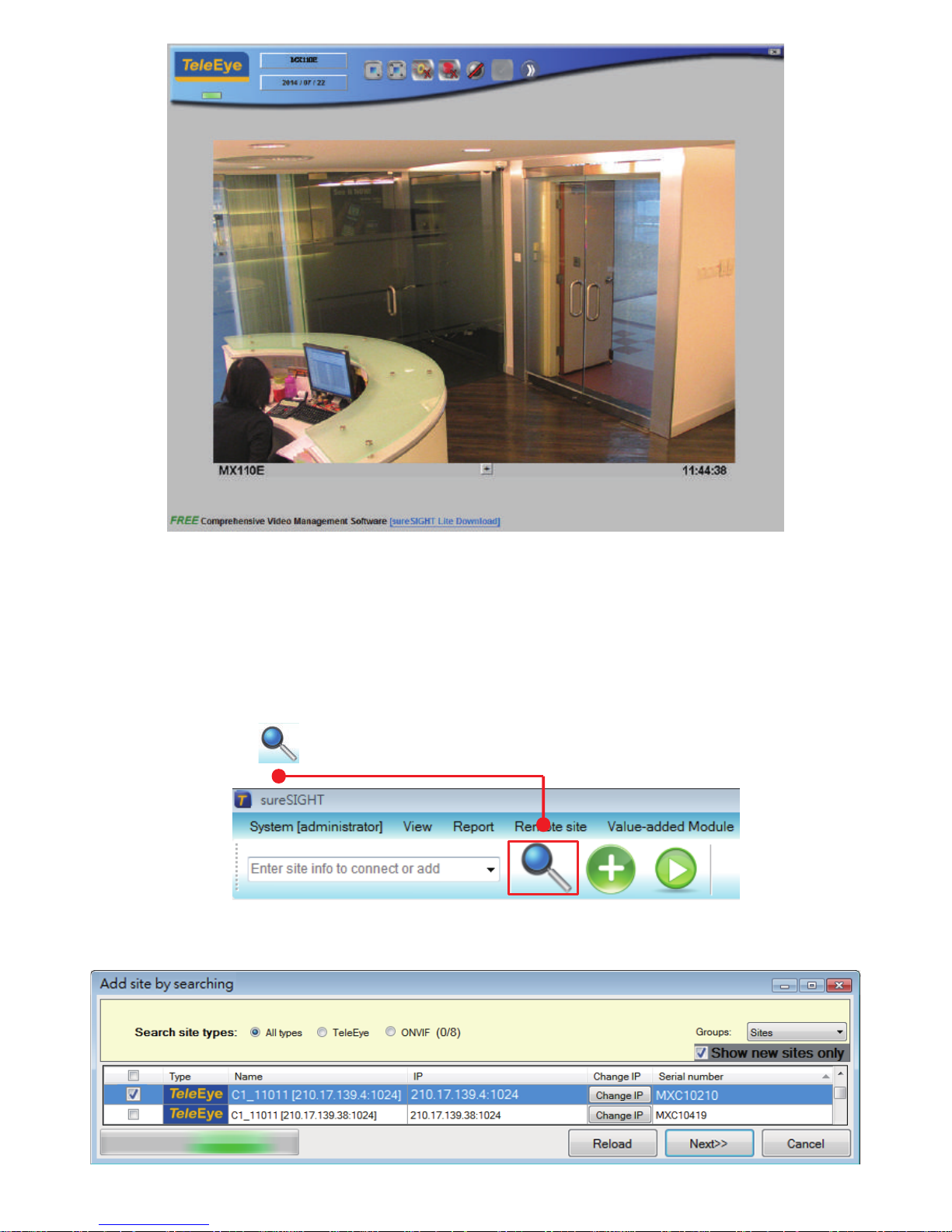

After installing sureSIGHT and turning on the Network Camera, select “Run sureSIGHT
Lite” from the windows start menu. Input the user name and password to log-in to the
sureSIGHT.
Click the [ ] button on the top of the sureSIGHT.
Search the target camera by its serial name and click its corresponding box on the left. you
may choose more than one camera. Click
[Next] after selection.
[Reference]
Please refer to section 3 for the default user name and password.
Page 5

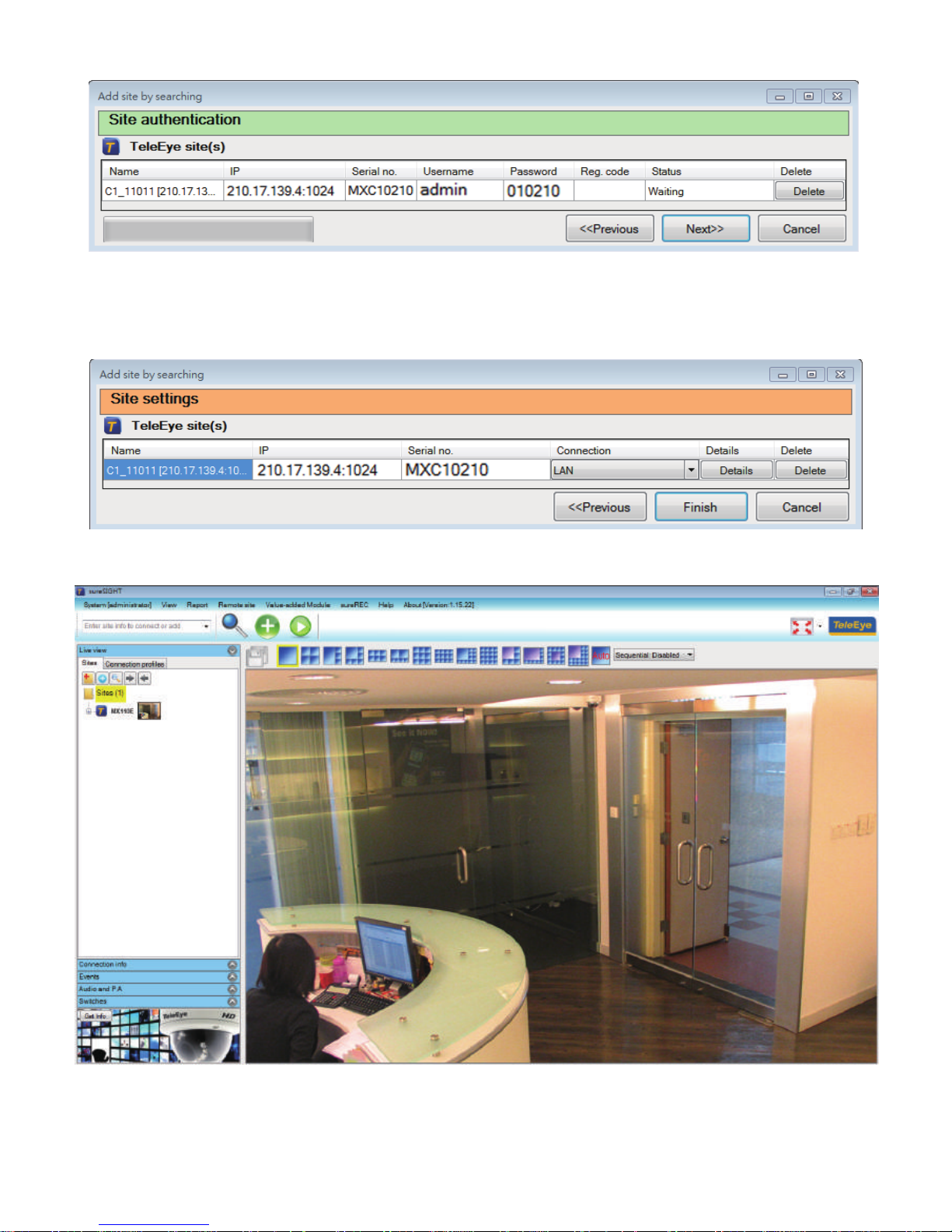

Step 4 Input the user name and the password. Then, click [Next].
[Reference] For detail operations, please refer to sureSIGHT user manual.
5
Step 5 You may click [Details] to change the site name and IP/sureLINK. After setting, click
[Finish].
Step 6 The video will be displayed on sureSIGHT by double clicking the site on the left panel.
[Reference]
Please refer to section 3 for the default user name and password.
