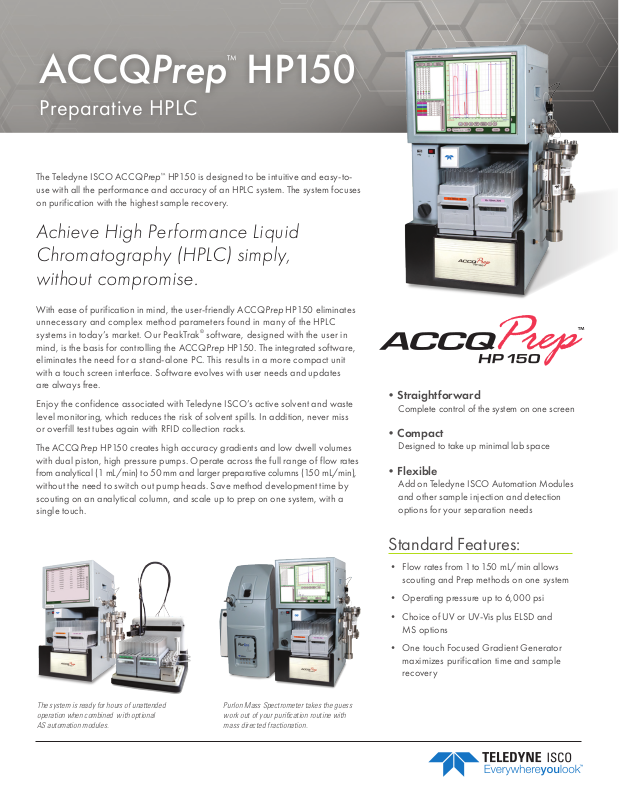

ACCQPrep™ H P15 0

Preparative HPLC

The Teledyne ISCO ACCQPrep™ HP150 is designed to be intuitive and easy-to­use with all the performance and accuracy of an HPLC system. The system focuses
on purification with the highest sample recovery.

Achieve High Performance Liquid
Chromatography (HPLC) simply,
without compromise.

With ease of purification in mind, the user-friendly ACCQPrep HP150 eliminates
unnecessary and complex method parameters found in many of the HPLC
systems in today’s market. Our PeakTrak
mind, is the basis for controlling the ACCQPrep HP150. The integrated software,
eliminates the need for a stand-alone PC. This results in a more compact unit
with a touch screen interface. Software evolves with user needs and updates
are always free.

Enjoy the confidence associated with Teledyne ISCO’s active solvent and waste
level monitoring, which reduces the risk of solvent spills. In addition, never miss
or overfill test tubes again with RFID collection racks.

The ACCQPrep HP150 creates high accuracy gradients and low dwell volumes
with dual piston, high pressure pumps. Operate across the full range of flow rates
from analytical (1 mL/min) to 50 mm and larger preparative columns (150 mL/min),
without the need to switch out pump heads. Save method development time by
scouting on an analytical column, and scale up to prep on one system, with a
single touch.

®

software, designed with the user in

•Straightforward

Complete control of the system on one screen

•Compact

Designed to take up minimal lab space

•Flexible

Add on Teledyne ISCO Automation Modules

and other sample injection and detection
options for your separation needs

The system is ready for hours of unattended
operation when combined with optional
AS automation modules.

Standard Features:

• Flow rates from 1 to 150 mL/min allows
scouting and Prep methods on one system

• Operating pressure up to 6,000 psi

• Choice of UV or UV-Vis plus ELSD and
MS options

• One touch Focused Gradient Generator
maximizes purification time and sample
recovery

PurIon Mass Spectrometer takes the guess
work out of your purification routine with
mass directed fractionation.

Selection InformationACCQPrep™ HP150 Specifications

Flow Rate Range: 1– 150 mL/min

Pressure Limit: Up to 6,000 psi (400 bar)

UV and UV- Vis Variable UV 200–400 nm,
Detection: Variable UV-Vis 200–800 nm (optional)

ELSD Detection: Integrated Option

Number of Solvents: Binary gradient, 2 solvents, 2 x 3 solvents (optional),

Fixed third solvent modifier (optional)

Gradient Formation: High pressure, dual piston reciprocating pumps

Programmable Linear, step, isocratic
Gradients:

Gradient Linearity: +/- 1%

Sample Introduction: Injection loop (standard)

Manual (standard)
AutoInjector (optional)
Large sample load pump (optional)

User Interface: 15 in touchscreen, internal CPU, Linux Red Hat

Fraction Collector: Internal, External Fraction Collection with

AutoSampler (Optional)

Dimensions (H x W x D) 27.5 x 14.0 x 20.0 in (69.9 x 35.6 x 50.8 cm)
ACCQPrep: 84.5 pounds (38.2 kg)

Dimensions AS 2x2 (H x W x D) 18.9 x 14.0 x 19.3 in (48.0 x 35.6 x 49.0 cm)
AutoSampler Module: 31.1 pounds (14.1 kg)

Dimensions AS 4x2 (H x W x D) 27.5 x 23 x 22 in (69.9 x 58.4 x 55.9 cm)
AutoSampler Module: 42.2 pounds (19.1 kg)

ACCQPrep HP150 Systems

ACCQPrep HP150 System with 200-400 nm – UV PDA detector ..........685230053

ACCQPrep HP150 System with 200-800 nm – UV-Vis PDA detector .......685230054

Detector Options

Integrated ELSD, factory installed..................................605237135

Mass Spec “S” with Fluid Interface .........................685237083

Mass Spec “L” with Fluid Interface..........................685237084

APCI Ion Source for Base, S and L Mass Spec options.................250000125

ESI Ion Source for Base, S and L Mass Spec options . . . . . . . . . . . . . . . . . . 250000129

Automation Options

ACCQPrep CSV 4 – Column Selector Valve Module ....................685237099

ACCQPrep SSV 2x3 – Solvent Selector Valve Module ..................685237100

Third Solvent Modifier Pump......................................685237136

Waste Collection Switching Valve. Requires either the AS 2x2 or AS 4x2 ... 605237132

Sample Load Options

ACCQPrep AI 5 – AutoInjector................................... 68-5237-098

ACCQPrep HP150 AS 2x2 – AutoSampler Module only. For upgrade to an existing
ACCQPrep with Autoinjector installed. Includes sample load rack (default is for 13mm
test tubes) and one set of collection racks (default is 18 x 150mm tubes - 117V units;

16x150mm tubes - 234V units) .................................. 68-5237-129

ACCQPrep HP150 AS 4x2 – AutoSampler Module only. For upgrade to an existing
ACCQPrep with Autoinjector installed. Includes sample load rack (default is for 13mm
test tubes) and one set of collection racks (default is 18 x 150mm tubes - 117V units;

16x150mm tubes - 234V units) .................................. 68-5237-142

Large Volume Sample Load Pump ................................68-5237-131

Large Volume Sample Load Pump

Used for injecting volumes of samples greater

than 10 mL directly onto the column bypassing the

injection loop. Pump is controlled via PeakTrak.

Waste Collection Switching Valve

Interfaces with AS 2x2 and 4x2. Directs waste

from up to 12 samples into separate waste

reservoirs. Ideal for open access to separate

individual sample wastes. Requires presence

of either the AS 2x2 or AS 4x2.

Teledyne ISCO

P.O. Box 82531, Lincoln, Nebraska, 68501 USA
Toll-free: [phone] • Phone: [phone] • Fax: [phone]

teledyneisco.com

Teledyne ISCO is continually improving its products and reserves the right to change product
specifications, replacement parts, schematics, and instructions without notice.

Third Solvent Modifier Pump

Controlled via PeakTrak and provides delivery
of a third solvent at a fixed percentage during

the purification.

L-5221 Rev 5.0

10/20
