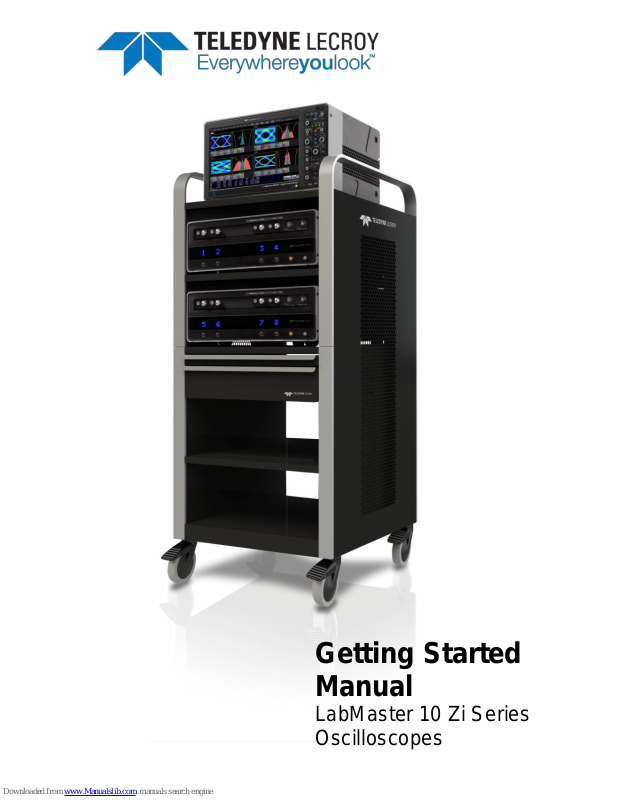

Getting Started Manual

LabMaster 10 Zi Series

Oscilloscopes

LabMaster 10 Zi Series Oscilloscopes

Getting Started Manual

May, 2013

LabMaster 10 Zi Series Oscilloscope Getting Started Manual

Unauthorized duplication of Teledyne LeCroy documentation materials other than for internal sales and distribution purposes is strictly prohibited. However, clients are encouraged to distribute and duplicate Teledyne LeCroy documentation for their own internal educational purposes.

Teledyne LeCroy and other product or brand names are trademarks or requested trademarks of their respective holders. Information in this publication supersedes all earlier versions. Specifications are subject to change without notice.

922561-00 Rev A May 2013

Getting Started Manual

922561-00 Rev A

Contents

Welcome ......................................................................................................... 1

Safety Instructions........................................................................................... 2

Symbols ............................................................................................................ 2

Precautions ...................................................................................................... 2

Operating Environment ................................................................................... 3

Cooling ............................................................................................................. 3

Cleaning ........................................................................................................... 4

Lifting and Moving ........................................................................................... 4

Calibration ........................................................................................................ 4

Power ............................................................................................................... 5

LabMaster 10 Zi Overview ............................................................................... 7

Front of MCM-Zi Master Control Module ........................................................ 9

Back of MCM-Zi Master Control Module ....................................................... 10

Front of 10-xxZi Acquisition Module .............................................................. 11

Back of 10-xxZi Acquisition Module ............................................................... 12

Front of ChannelSync Mainframe Hub........................................................... 13

Back of ChannelSync Mainframe Hub ............................................................ 13

Input/Output Panel ........................................................................................ 14

Standard High Bandwidth Accessories .......................................................... 15

LabMaster Setup ........................................................................................... 16

PCIe 1 Lane Cable SYNC Connection(s) .......................................................... 16

PCIe 4 Lane DATALINK Connection(s) ............................................................ 18

SMA 72" Cables - ChannelSync Clock ............................................................. 21

ChannelSync Mainframe Hub ........................................................................ 23

Power Cable and Main Power Switch ............................................................ 24

Touch Screen and External Displays .............................................................. 25

Removing and Attaching the Front Panel ...................................................... 28

Signal Inputs .................................................................................................. 30

Probes ............................................................................................................ 30

Interfaces ....................................................................................................... 30

Probe Dialog ................................................................................................... 35

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

Basic Controls ................................................................................................ 37

Front Panel Control Groups ........................................................................... 37

Display Dashboard ......................................................................................... 42

Turning On Traces .......................................................................................... 55

Timebase ....................................................................................................... 56

Timebase Dialog ............................................................................................. 56

Combining Channels ...................................................................................... 56

Sampling Modes ............................................................................................. 58

Vertical .......................................................................................................... 67

Channel Dialog ............................................................................................... 67

LabMaster Channel Setup .............................................................................. 71

LabMaster Deskew Calibration ...................................................................... 72

Trigger ........................................................................................................... 79

Trigger Overview ............................................................................................ 79

Trigger Types .................................................................................................. 80

Trigger Settings .............................................................................................. 83

Trigger Setup .................................................................................................. 84

TriggerScan ..................................................................................................... 90

Viewing Waveforms ...................................................................................... 94

Display ............................................................................................................ 94

Persistence ..................................................................................................... 97

WaveStream Display Mode ............................................................................ 99

Adjusting Trace Intensity ............................................................................... 99

Zooming Waveforms ................................................................................... 100

Zooming a Single Channel ............................................................................ 101

Touch-and-Drag Zooming ............................................................................ 102

Quick Zoom .................................................................................................. 103

Turning Off Zoom ......................................................................................... 103

Cursors ........................................................................................................ 104

Quickly Displaying Cursors ........................................................................... 104

Cursor Setup ................................................................................................. 105

Cursors on Math Functions .......................................................................... 106

Getting Started Manual

922561-00 Rev A

iii

Measurements ............................................................................................ 107

Turning On Measurements .......................................................................... 107

Quick Access to Parameter Setup Dialogs ................................................... 107

Parameter Setup .......................................................................................... 108

Measure Modes ........................................................................................... 109

Help Markers................................................................................................ 110

Math ........................................................................................................... 112

Math Setup .................................................................................................. 112

Analysis ....................................................................................................... 114

Track vs. Trend ............................................................................................. 115

Viewing Histograms ..................................................................................... 116

Viewing Trends ............................................................................................ 119

Viewing a Track ............................................................................................ 120

Pass/Fail Testing ........................................................................................... 121

Mask Testing ................................................................................................ 128

WaveScan Overview .................................................................................... 131

Customization Overview .............................................................................. 133

Documenting Work with LabNotebook ....................................................... 134

LabNotebook Overview ............................................................................... 134

Using LabNotebook ...................................................................................... 135

Save/Recall.................................................................................................. 139

Save/Recall Overview .................................................................................. 139

Saving and Recalling Setups ......................................................................... 140

Saving and Recalling Waveforms ................................................................. 142

Utilities ........................................................................................................ 146

Utilities Dialog .............................................................................................. 146

Status ........................................................................................................... 147

Software Options ......................................................................................... 147

Remote Control ............................................................................................ 147

Print (Hardcopy) Functions .......................................................................... 150

Aux Output ................................................................................................... 155

Date/Time .................................................................................................... 157

Disk Utilities ................................................................................................. 158

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

Preferences Setup ........................................................................................ 159

Preferences Dialog ....................................................................................... 159

Acquisition ................................................................................................... 160

E-Mail ........................................................................................................... 162

Color ............................................................................................................. 163

Miscellaneous .............................................................................................. 164

System Recovery ......................................................................................... 165

Reference .................................................................................................... 166

Warranty ...................................................................................................... 166

Specifications ............................................................................................... 167

Certifications ................................................................................................ 167

Contact Teledyne LeCroy ............................................................................. 171

End-User License Agreement for Teledyne LeCroy® X-Stream Software ..... 172

Windows® License Agreement ..................................................................... 191

Index ........................................................................................................... 192

Getting Started Manual

922561-00 Rev A

Welcome

Thank you for purchasing a Teledyne LeCroy product. We're certain you'll be pleased with the detailed features so unique to our instruments.

About this Manual

This manual contains information needed to set up and operate the oscilloscope including Hardware Overview and Set Up, Probe and Signal Connection Interfaces, Basic Controls, Core Oscilloscope Functions, and Reference (certifications and contact information).

The Teledyne LeCroy website at teledynelecroy.com always maintains the most current specification information. The website should be checked for frequent updates.

Support

When your product is delivered, verify that all items on the packing list or invoice copy have been shipped to you. Contact your nearest Teledyne LeCroy customer service center at the address listed in this manual or your national distributor if anything is missing or damaged. If you do not contact us immediately, we cannot be responsible for replacement.

Thank You

We truly hope these materials increase your enjoyment and understanding of your Teledyne LeCroy product.

Sincerely,

David C. Graef

Vice President and Chief Technology Officer Teledyne LeCroy

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

Safety Instructions

Observe generally accepted safety procedures in addition to the precautions specified here to keep the instrument operating in a correct and safe condition. The overall safety of any system incorporating this instrument is the responsibility of the assembler of the system.

Symbols

These symbols appear on the instrument's front or rear panels and in documentation to alert you to important safety considerations.

CAUTION of damage to instrument, or WARNING of hazard to health. Attend to the accompanying information to protect against personal injury or damage. Do not proceed until conditions are fully understood and met.

HIGH VOLTAGE. Risk of electric shock or burn.

Measurement ground connection. Safety (protective) ground connection.

Alternating Current.

Standby Power (front of MCM-Zi).

Precautions

Use proper power cord. Use only the power cord shipped with this instrument and certified for the country of use.

Maintain ground. This product is grounded through the power cord grounding conductor. To avoid electric shock, connect only to a grounded mating outlet.

Connect and disconnect properly. Do not connect/disconnect probes or test leads while they are connected to a voltage source.

Getting Started Manual

922561-00 Rev A

Observe all terminal ratings. Do not apply a voltage to any input (C1, C2, C3, C4 or EXT) that exceeds the maximum rating of that input. Refer to the front of the oscilloscope for maximum input ratings.

Use only within operational environment listed. Do not use in wet or explosive atmospheres.

Use indoors only.

Keep product surfaces clean and dry.

Do not block the cooling vents. Leave a minimum six-inch (15 cm) gap

between the instrument and the nearest object. Keep the underside clear of papers and other objects.

Do not remove the covers or inside parts. Refer all maintenance to qualified service personnel.

Do not operate with suspected failures. Do not use the product if any part is damaged. Obviously incorrect measurement behaviors (such as failure to calibrate) might indicate impairment due to hazardous live electrical quantities. Cease operation immediately and sequester the instrument from inadvertent use.

Operating Environment

Temperature: 5 to 40 °C.

Humidity: Maximum relative humidity 80 % for temperatures up to 31 °C

decreasing linearly to 50 % relative humidity at 40 °C (or at the upper operational temperature limit).

Altitude: Up to 10,000 ft (3,048 m) at or below 25 °C.

Cooling

The instrument relies on forced air cooling with internal fans and vents. Take care to avoid restricting the airflow to any part of the oscilloscope. Around the sides and rear, leave a minimum of 15 cm (6 inches) between the instrument and the nearest object. At the bottom, the oscilloscope feet (up or down) provide adequate clearance.

CAUTION. Do not block oscilloscope vents. Always keep the area

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

beneath the oscilloscope clear of paper and other items.

The instrument also has internal fan control circuitry that regulates the fan speed based on the ambient temperature. This is performed automatically after start-up.

Cleaning

Clean only the exterior of the oscilloscope using a damp, soft cloth. Do not use harsh chemicals or abrasive elements. Under no circumstances submerge the instrument or allow moisture to penetrate it. Avoid electric shock by unplugging the power cord from the AC outlet before cleaning.

CAUTION. Do not attempt to clean internal parts. Refer to qualified service personnel.

Lifting and Moving

Components housed in the OC910 oscilloscope cart may be wheeled from place to place as a unit. If components must be removed from the cart or other mounting, disconnect and move components separately. Use care when lifting and moving heavy components.

Calibration

The oscilloscope is calibrated at the factory prior to being shipped. The recommended calibration interval is one year. Calibration should be performed by qualified personnel only.

The oscilloscope software includes both automatic and user-initiated deskew calibration functions.

Schedule an annual factory calibration as part of your regular maintenance. Extended warranty, calibration, and upgrade plans are available for purchase. Contact your Teledyne LeCroy sales representative or customersupport@teledynelecroy.com to purchase a service plan.

Getting Started Manual

922561-00 Rev A

Power

AC Power Source

100 to 240 VAC (±10%) at 50/60 Hz (± 10%)

Manual voltage selection is not required because the instrument automatically adapts to line voltage.

Power Consumption

MCM-ZI MASTER CONTROL MODULE

Max. consumption (all accessories installed): ≤ 450 watts (450 VA) Standby consumption: 5W

ACQUISITION MODULES

20-36 GHz Models

Max. consumption (all accessories installed): ≤ 1225 watts (1225 VA) Standby consumption: 12W

50-65 GHz DBI Models

Max. consumption (all accessories installed): ≤ 1275 watts (1275 VA) Standby consumption: 12W

Power and Ground Connections

The MCM-Zi Master Control Module is provided with a 10A/250V rated grounded cord set containing a molded three-terminal polarized plug with a standard IEC-60320 (Type C13) connector. The connector mates to a compatible power inlet on the Master Control Module for making line voltage and safety ground connections.

The 10-xxZi Acquisition Module is provided with a 16A/250V or 15A/125V rated grounded cord set containing a molded three-terminal polarized plug and a specific IEC-60320 (Type C19) connector. The connector mates to a compatible power inlet on the Acquisition Module for making line voltage and safety ground connections.

The AC inlet ground is connected directly to the frame of the instrument. For adequate protection again electric shock, connect to a mating outlet with a safety ground contact.

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

WARNING. Interrupting the protective conductor inside or outside the oscilloscope, or disconnecting the safety ground terminal, creates

a hazardous situation. Intentional interruption is prohibited.

CAUTION Do not place the instrument so that it is difficult to reach the power cord inlet to disconnect the instrument.

Standby Power

The Standby (Power) button on the MCM-Zi Master Control Module controls the operational state of the oscilloscope.

 Press the button to switch the instrument into Standby mode

(reduced power); press it again to return to full operation.

 Press and hold the button for 5 seconds to power off the

instrument.

The LED symbol below the Standby button indicates the operational state of the oscilloscope:

 Blue – fully powered and operational.  Off – powered off except for some housekeeping circuits.

Always use the Standby button or the File > Shutdown menu option to execute a proper shut down process and preserve settings before powering down. Do not shut down by pulling the power cord from the socket or shutting off a connected power strip.

The Standby button does not disconnect the oscilloscope from the AC power supply. The only way to fully power down the instrument is to unplug the AC power cord from the outlet.

We recommend unplugging the instrument if it will be unused for a long period of time.

CAUTION. Do not change the instrument’s Windows Power Options

setting from the default Never to System Standby or System

Hibernate. Doing so can cause the system to fail.

Getting Started Manual

922561-00 Rev A

LabMaster 10 Zi Overview

LabMaster 10 Zi is a unique modular oscilloscope solution that allows a configuration of more channels at higher bandwidths than conventional four channel oscilloscopes. It is ideally suited for test situations where there are many lanes of serial data to be captured and analyzed simultaneously, where crosstalk analysis is performed, or for capturing four or more channels at the highest-possible bandwidths for optical coherent modulation applications. Each LabMaster consists of a single Master Control Module, additional Acquisition Modules, and a ChannelSync Mainframe Hub in systems where more than five acquisition modules are required. Acquisition Modules can be added at any time for easy channel upgrades. Bandwidth upgrades are available for future scalability.

Unique ChannelSync™ architecture ensures precise synchronization between all oscilloscope channels located in different acquisition modules. A single 10 GHz distributed clock signal is generated in the MCM-Zi Master Control Module, and then used in or distributed to as many as twenty 10xxZi Acquisition Modules. The 10 GHz clock frequency - 1000 times faster than the 10 MHz reference clocks commonly used to synchronize lab equipment - ensures precise synchronization and high-timebase accuracy between all acquisition modules. Additionally, a single trigger signal is used for all acquisition modules to completely eliminate trigger jitter between modules, such as would be found when two conventional oscilloscopes are synchronized with 10 MHz clocks and a common trigger signal. The system also ensures Acquisition Modules are automatically identified to the Master, and software de-skew calibration routines allow for fast calibration and correction for any static acquisition skew between all acquisition modules.

The 10-xxZi Acquisition Modules are available in a variety of bandwidths and channel density configurations. The example below contains a mix of 36 GHz and 65 GHz models. Refer to specifications on the product datasheet maintained at www.teledynelecroy.com for more information.

Detailed steps explaining how to configure hardware are covered in LabMaster Setup on page 16.

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

MCM-ZiMaster Control Module with up to five10-xxZi Acquisition Modules

NOTE: If your LabMaster system runs multiple Acquisition Modules, for optimal

channel access and convenience, Teledyne LeCroy recommends stacking the modules on top of each other on your bench, inside Teledyne LeCroy's available

OC910, or inside a rack (modules must be specifically ordered for rack mounting from the Teledyne LeCroy factory).

Getting Started Manual

922561-00 Rev A

Front of MCM-Zi Master Control Module

The MCM-Zi Master Control Module includes Controls, Display, CPU, and ChannelSync Clock Architecture. All acquisition capability is contained in

separate Acquisition Modules.

Number and Description

1. Power Button

2. Fast Edge Output

3. Host USB Ports

4. Detachable Front

Panel Control

5. Front Panel Control

Release Switch

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

Back of MCM-Zi Master Control Module

Number and Description

1. ChannelSync Outputs -

SMA 10 GHz Clock and PCIe 1 Lane Control Connections (for corresponding Acquisition Modules)

2. 10 MHz Reference Clock

Output

3. 10 MHz Reference

Clock Input (Grounded EMI Shield required when not in use)

4. Removable Storage

Drive

5. AC Power Inlet

6. The I/O Panel

7. DVI-D Video Output

8. PCIe 4 Lane Data

Inputs (from corresponding Acquisition Modules)

PLEASE NOTE THE FOLLOWING:

 Cap-off unused ChannelSync SMA sockets (item 1) using the provided

chain-linked 50 Ω terminations (not shown).

 10 MHz Reference Clock Inputs are specifically intended for

synchronization with other instruments; not between Master Control Module and Acquisition Modules.

 DVI-D Video Output is for use with an additional external monitor for

Extended Desktop mode.

Getting Started Manual

922561-00 Rev A

 The AUX IN connection is for 50 Ω input only.  The PCIe 4 Lane Data Inputs (item 8) also accommodate PCIe

Expansion Slot options for GPIB and LSIB. Option cards must be specified when ordering and installed at the Teledyne LeCroy factory into any number of the same five slots used for the Acquisition Modules.

Front of 10-xxZi Acquisition Module

Number and Description

1. 2.92 mm Inputs

2. 1.85 mm Inputs

(>36 GHz models)

3. AUX IN

4. AUX OUT

5. Channel Number

Indicators

6. Channel ON/OFF

Buttons

7. Fast Edge Output

8. Ground connection

for wrist strap

NOTE: If your system runs multiple Acquisition Modules, for optimal channel access and convenience, Teledyne LeCroy recommends stacking the modules on top of each other on your bench, inside Teledyne LeCroy's available OC910 oscilloscope cart, or inside of your own rack (modules must be specifically ordered for rack mounting from the Teledyne LeCroy factory).

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

Back of 10-xxZi Acquisition Module

Number and Description

1. ChannelSync

SMA 10 GHz Clock Input

2. ChannelSync

PCIe 1 Lane Control Input

3. PCIe 4 Lane

Data Output

4. AC Power Inlet

NOTE: Only MCM-Zi Master Control Module has 10 MHz Reference Clock

Input/Output connections. 10 MHz Reference Clock Inputs are specifically intended for synchronization with other instruments; not between Master and Acquisition modules.

Getting Started Manual

922561-00 Rev A

Front of ChannelSync Mainframe Hub

Back of ChannelSync Mainframe Hub

Number and Description

1. ChannelSync

SMA 10 GHz Clock Output

2. ChannelSync

PCIe 1 Lane Control Output

3. PCIe 4 Lane

Data Output

4. PCIe 4 Lane Data Input

(from MCM-Zi)

5. 10 MHz REF In

6. AC Power Inlet

7. ChannelSync PCIe 1

Lane Control Input (from MCM-Zi)

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

Input/Output Panel

The available connections on I/O panels are the same for all LabMaster 10 Zi configurations. I/O panels are located on the back of the Master Control Module. See Back of MCM-Zi Master Control Module (on page 10) for more information.

Number and Description

1. Mouse

2. Keyboard

3. Host USB Ports

4. 9-pin Serial Port

(disabled)

5. 15-pin Video Output

(disabled)

6. Ethernet ports (LAN)

NOTE: The MCM-Zi motherboard is a server-class motherboard with certain I/O capabilities (serial port, VGA/WXGA video output) that are not utilized by the MCMZi, even though the physical connectors remain on the I/O panel. The 9-pin serial port is used for communication to the server motherboard, and the 15-pin video connector only outputs text debug messages from the motherboard. Since these capabilities are not useful for the MCM-Zi, they are disabled in the BIOS and will not provide any I/O should you connect to them.

Getting Started Manual

922561-00 Rev A

Standard High Bandwidth Accessories

The following accessories are delivered in a soft accessory case (SAC-01A) with 50-65 GHz acquisition modules.

10dB Attenuators (V-V)

Used instead of an internally switched attenuator for optimal signal fidelity. Needed when >640mVpp signals (>80 mV/div) are input to the acquisition module.

Qty. 2

V-female to V-female Barrel Adapters

The native high bandwidth (50-65 GHz) connection is a male connection. These barrel adapters provide ability to make a male connection to the high bandwidth inputs.

Qty. 2 Hand Wrench

Used to stabilize female-female barrel adapter when attaching it to the high BW V-male connector. Do not use this to tighten!

Qty. 1

Torque Wrench

Used to tighten or loosen the V-female barrel adapter from the high bandwidth V-male connector. It should also be used to tighten cables to the Vfemale barrel adapter.

Qty. 1

USB Memory Stick

This contains s-parameter files for the 10 dB attenuators. A future capability to enter an sparameter file for the 10dB attenuator (should they need to be replaced) will be provided so as to optimize signal fidelity of the high bandwidth inputs.

Qty. 1

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

LabMaster Setup

PCIe 1 Lane Cable SYNC Connection(s)

Connect each PCIe 1 Lane Control Input on the back of your 10-xxZi Acquisition Modules to a PCIe 1 Lane Output on the MCM-Zi Master Control Module using the PCIe 1 Lane cable(s) provided.

PCIe 1 Lane Cable

On the back of the Master Control Module, plug one end of the PCIe 1 Lane cable into the PCIe 1 Lane Channel Sync Output (labeled SYNC).

Getting Started Manual

922561-00 Rev A

Now, connect the other end of the 1 Lane cable into the SYNC socket on the back of the Acquisition Module.

Repeat these steps for every additional Acquisition Module in your system.

PLEASE NOTE THE FOLLOWING:

 PCIe 1 Lane Cable plugs are keyed with a single groove along one

wide side of the plug. The plug must be inserted into the socket with

the groove aligned properly.

 Connect to your Acquisition Modules from the correct channel

groupings on the Master Control Module; meaning, your first Acquisition Module is connected from the CHANNEL 1-4 output, second from the CHANNEL 5-8 output, third from the CHANNEL 9-12 output, etc.

 If you are connecting less than 5 Acquisition Modules, the PCIe 1

Lane Channel Sync Outputs on the back of the Master Control Module may not be skipped and must be connected in consecutive order into the PCIe 1 Lane Channel Sync Inputs on the back of the

corresponding acquisition modules.

 Pull gently on the green pull tab on the cable plug for removal.

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

PCIe 4 Lane DATALINK Connection(s)

Continue making PCI Express connections by cabling the PCIe 4 Lane Data Output on the back of each 10-xxZi Acquisition Module to the PCIe 4 Lane Data Inputs on the back of the MCM-Zi Master Control Module using the

cable(s) provided.

PCIe 4 Lane Cable

Getting Started Manual

922561-00 Rev A

On the back of the Acquisition Module, connect a PCIe 4 lane cable to the PCIe 4 Lane Data Output (labeled DATALINK).

Now, on the back of the Master Control Module, connect the other end of the same PCIe 4 Lane cable into the corresponding PCIe 4 Lane Data Input (labeled DATALINK CHANNEL).

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

Repeat these steps for each Acquisition Module in your system.

PLEASE NOTE THE FOLLOWING:

 PCIe 4 Lane Cable plugs are keyed with a single groove along one

wide side of the plug. The plug must be inserted into the socket with

the groove aligned properly.

 Be sure to connect your Acquisition Modules to the correct channel

groupings on the Master Control Module; First Acquisition Module is connected into DATALINK CHANNEL 1-4, second into the DATALINK CHANNEL 5-9 input, third into the DATALINK CHANNEL 9-12 input, fourth into the DATALINK CHANNEL 13-16 input, and last into the DATALINK CHANNEL 17-20 input.

 If you are connecting less than 5 of the Acquisition Modules, the

PCIe 4 Lane Data Inputs on the back of the Master Control Module may not be skipped and must be connected in consecutive order

from the PCIe 4 Lane Data Outputs on the back of the corresponding slaves.

 Pull gently on the green pull tab on the cable plug for removal.

Getting Started Manual

922561-00 Rev A

SMA 72" Cables - ChannelSync Clock

Usethe SMA 72" cable(s) provided to connect each SMA 10 GHz Clock Output on the back of your MCM-Zi Master Control Module to the SMA 10 GHz Clock Input on each 10-xxZi Acquisition Module in your system.

NOTE: Use an SMA torque wrench to ensure connections are properly tightened.

SMA 72" Male to Male Cable

On the back of the Master Control Module, connect one end of an SMA 72" cable from a SMA 10 GHz Clock Output (labeled REF, unscrew the chain- linked 50 Ω termination, if necessary) .

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

Now, on the back of the Acquisition Module, connect the other end of the same SMA 72" cable into the corresponding SMA 10 GHz Clock Input (labeled REF).

Repeat the previous steps for every additional Acquisition Module in your system.

Cap off unused SMA 10 GHz Clock Outputs on the back of your Master Control Module using the chain-linked 50 Ω terminations provided.

Getting Started Manual

922561-00 Rev A

ChannelSync Mainframe Hub

The CMH-20 ChannelSync Mainframe Hub provides a simple and effective means to expand a LabMaster system beyond 20 channels (5 Acquisition Modules). This is accomplished without any degradation of the timing accuracy specifications. The Mainframe Hub is populated with cards for each acquisition module (the back panel of the CMH-20 shown below is populated with 20 cards for use with 20 Acquisition Modules, or 80 total channels).

Connect a PCIe 1 Lane cable from the MCM-Zi Channel 1-4 output to the single PCIe 1 Lane input at the lower right of the CMH-20 back panel.

Connect four PCle 4 Lane cables from the MCM-Zi data outputs for channels 1-4, 5-8, 9-12, and 13-16 to the four PCIe 4 Lane data inputs along the bottom of the CMH-20 back panel (to the left of the PCLe 1 input).

Connect from the PCIe 1 Lane Control, PCIe 4 Lane Data, and 10 GHz ChannelSync Clock outputs to the corresponding inputs on the Acquisition Modules.

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

Power Cable and Main Power Switch

Teledyne LeCroy advises that you note the power ratings of the individual modules and connect them to suitably rated circuits.

 MCM-Zi Control Module comes with an IEC60320 Type C13 power

inlet connector.

 LM10xx-Zi Acquisition Module comes with an IEC60320 Type C20

power inlet connector.

CAUTION: The combined draw from your Master Control Module

and Acquisition Modules (max of 20) can be many kilowatts. Two acquisition modules connected to a single circuit may cause an overcurrent condition for that circuit.

When all connections are made, the Standby Power switch on the front of the Master Control Module powers on all components as a single unit.

NOTE: If any connections are incorrect, the switch will not power on the system.

Always refer to the product datasheet at www.teledynelecroy.com for the most current and detailed specifications.

Getting Started Manual

922561-00 Rev A

Touch Screen and External Displays

You may operate the instrument using the built-in touch-screen or attach an external monitor for extended desktop operation. A properly configured external touch-screen monitor will take on all the touch-screen capabilities of the internal display.

NOTE: If the external monitor uses a Fujitsu touch screen driver, it will not work as a touch screen but will support extended desktop operation.

To connect to an external monitor:

1. Choose File > Exit to close the oscilloscope application so that the

Windows desktop is visible (you do not need to shut down completely).

2. Connect the oscilloscope to the external monitor from the DVI-D

video output connector.

3. Right-click on the desktop to display the settings menu, then choose

Screen Resolution.

4. On the Windows display dialog:  Select display number 2 (the external monitor) and choose

Multiple displays: Extend this display.

 Drag the display number 2 icon to its location in your setup

(above or below the oscilloscope display).

 Make any other desired display selections, then touch

Apply and OK.

5. Use the Start DSO desktop icon to restart the oscilloscope

application.

6. Choose Display > Display Setup.

7. On the Display setup dialog, check Extend Grids on 2

Monitor.

The total number of grids is now distributed over both displays.

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

Both displays before Dual Display Mode selection. In this example, the top monitor is the external display.

Getting Started Manual

922561-00 Rev A

Grids distributed after Dual Display Mode selection. Trace descriptor boxes move with the trace (note the movement of C1-C4). Other controls remain on the primary display (Display 1, which in this example is the bottom, internal display).

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

Removing and Attaching the Front Panel

Detach the Front Panel Control from the oscilloscope by sliding the detachment lever to the left and pulling at the right.

Getting Started Manual

922561-00 Rev A

Attach the front panel by inserting the lower part first, sliding the detachment lever to the left, and then pushing the top in place.

While detached, your front panel can be used as a remote control. Just connect it to the oscilloscope using the USB - A to USB - Mini B cable provided.

NOTE: While a standard front panel comes with your Zi oscilloscope, Teledyne

LeCroy offers additional standard front panels or a 4 channel version to better suit the way you work.

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

Signal Inputs

Probes

Teledyne LeCroy offers a variety probes for use with your oscilloscope. The types compatible with the LabMaster 10 Zi are listed below. Visit teledynelecroy.com for specifications and ordering information.

 Single-Ended - A single-ended, active probe is associated with

measuring voltages at high frequencies. Measurement with an active probe requires a test point and a ground point. The ground (also called earth) acts as a zero reference for the test point measurement. These probes are typically low-bandwidth and require an adapter to connect to the 2.92 mm and 1.85 mm interfaces on the 10-xxZi Acquisition Modules.

 Differential Probes - Differential active probes are like two probes in

one. Instead of measuring a test point in relation to a ground point (like single-ended active probes), differential probes measure the difference in voltage of a test point in relation to another test point. Some models of differential probes may require an adapter to connect to the 2.92 mm and 1.85 mm interfaces on the 10-xxZi Acquisition Modules.

Interfaces

LabMaster 10 Zi systems are equipped with a variety of interfaces to allow you to connect cables directly to the oscilloscope channels, reducing the need to use costly adapters that may be easily lost or misplaced.

The inputs power the probe and completely integrate the probe with the oscilloscope channel in a number of ways:

 Upon connection, the probe is recognized and some setup

information, such as input coupling and attenuation, is performed automatically.

 System (probe plus oscilloscope) gain settings are automatically

calculated and displayed based on the probe attenuation.

Getting Started Manual

922561-00 Rev A

 Most active probes match probe to oscilloscope response

automatically using probe response data stored in an on-board EEPROM. This ensures the best possible combined probe plus oscilloscope channel frequency response without the need to perform any de-embedding procedure.

Interfaces differ in bandwidth capabilities, so the interfaces contained on your oscilloscope—and their exact location—depend on the bandwidth rating of the oscilloscope model you purchased.

High-bandwidth interfaces ( 45 GHz and up) must be enabled by selecting the appropriate Dual Bandwidth Interleave setting on the Timebase dialog and the Input B setting on the Channel dialog.

ProBus Interface

LabMaster 10xxZi Acquisition Modules rated to 36 GHz use the ProBus interface for AUX In and AUX Out connections. These connectors are located on the front of the unit next to the channel inputs.

The ProBus interface contains a 6-pin power and communication connection

and a BNC signal connection to the probe. It offers both 50 Ω/1 MΩ input

impedance and provides probe power and control for a wide range of probes such as high impedance passive probes, high impedance active probes, current probes, high voltage probes, and differential probes. ProBus also includes sense rings for detecting passive probes. The ProBus interface may also have a BNC-terminated cable connected directly to it.

ProBus is based on a BNC connector and, depending on the exact BNC connector used and the oscilloscope design, is rated for up to 4 GHz with 50 Ω coupling or up to 1 GHz for 1 MΩ coupling.

2.92 mm Interface

All LabMaster 10xxZi Acquisition Modules use the 2.92 mm interface to input signals up to 36 GHz on channels 1-4, input A. This interface consists of a precision connector and a LEMO power and communication connector. It offers 50 Ω input impedance only.

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

The 2.92 mm high-bandwidth electrical paths are comprised of two connector halves/subassemblies which have a common mating interface:

 The first connector half is mounted onto the oscilloscope connector

panel. The outer end of this connector has a combination of grooves, external threads and a coaxial interface with a 2.92 mm airline geometry.

 The second connector half is the connector saver. It has a similar

interface on one end, with spring-biased inner and outer contacts.

The connector saver has projections which interlock with slots on the mounted connector and a coupling nut which secures the two halves; resulting in a non-rotational, torque independent electrical connection. The spring-biased inner and outer contacts eliminate the need for specifying proof torque and no tools are required to mate or un-mate the connection.

The connector saver is easily field replaceable, should damage occur, making it a more field reliable system. The 2.92 mm connector saver operates mode free well beyond 36 GHz.

1.85 mm Interface

LabMaster 10xxZi Acquisition Modules rated over 36 GHz use the 1.85mm interface for 50-65 GHz inputs (channels 2 and 3, input B). This interface consists of a precision V-male connector with a V-female to V-female barrel adapter and a LEMO power and communication connector. It offers 50 Ω input impedance only. The barrel adapter is easily field replaceable, should damage occur.

The male connector is mounted onto the oscilloscope connector panel when delivered. The female-female barrel adapter must be manually attached before connecting cables.

Getting Started Manual

922561-00 Rev A

To attach the female-female barrel adapter:

1. Remove the white cap from the V-male connector on the high

bandwidth input of the 10-xxZi acquisition module. Turn it counterclockwise to loosen it.

2. Insert the female-female barrel adapter into the V-male connector.

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

3. Gently turn the V-male connector in the counterclockwise direction

until it is finger tight.

4. Insert the hand wrench over the flat portion of the barrel adapter.

This will hold the barrel adapter still while the V-male connector is tightened around it.

Getting Started Manual

922561-00 Rev A

5. Tighten the V-male connector around the female-female barrel

adapter using the torque wrench in a counterclockwise motion.

CAUTION. Hold the torque wrench at the end or you may apply too much force. When the torque wrench bends at the moment arm, it

is tightened to the right amount of force. Do not tighten further.

6. Connect a cable to the barrel adapter, and use the torque wrench to

tighten it.

To remove the female-female barrel adapter: Reverse the steps above, turning the V-male connector clockwise to loosen it. Be sure to turn the V- male connector and not the barrel adapter. You may have to manually keep the torque wrench from bending while loosening the connector.

Probe Dialog

Teledyne LeCroy proprietary probe interfaces provide a complete measurement solution from probe tip to oscilloscope display. The Probe Dialog displays probe attenuation and other information, and allows you to make tip select and other probe settings from the oscilloscope touchscreen.

The following figure shows a typical channel dialog on a Teledyne LeCroy oscilloscope containing both 2.92 mm (Input A) and 1.85 mm (Input B) interfaces. The input selection is on the left-hand side of the dialog box.

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

When the probe is not connected, there is only a C1 tab selection for vertical channel setup and the user has the ability to select input coupling and probe attenuation.

Channel dialog showing Input A's interface controls setup before connection.

After a probe is connected, it is recognized and an additional tab with the probe model name is displayed to the right of the C1 tab. Click on the tab or the probe field to display the probe dialog.

Channel dialog showing Input A's interface controls setup after connection.

This additional tab contains specific information on the connected probe. Default values for the probes coupling and attenuation are automatically downloaded from the probe, and these settings along with other attributes are shown on the dialog.

The probe dialog showing the connected probe's control attributes.

Getting Started Manual

922561-00 Rev A

Basic Controls

Front Panel Control Groups

Many Front Panel controls directly correspond with Screen Layout Controls. For example, the Print front panel button is associated with one of the Hardcopy function at Utilities → Utilities Setup → Hardcopy.

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

Miscellaneous Controls / WaveStream Indicator

 Help - Opens the Teledyne LeCroy Online Assistant. If the second

monitor is installed, the online help opens on the second monitor.

 Default Setup - Resets the oscilloscope's settings to the default

configuration. Corresponds with screen menu selection: File → Recall

Setup → Recall Default Setup.... For a list of default settings, see

Save/Recall → Saving and Recalling Setups (on page 140).

 Auto Setup - Opens the Auto Setup... flyout menu.

Press the Auto Setup... button on the flyout menu to perform a full auto setup. Press a Channel Find Scale button on the flyout menu to perform a quick auto setup for that channel only. Press the AUTO SETUP... front panel button twice to perform the last selection from the Auto Setup... flyout menu (the default is to perform a full auto setup).

If Auto Setup is run when no channels are turned on, all channels are affected. When more than one channel is turned on, the first channel with a signal applied to it is automatically set up for edge triggering.

 WaveStream - Indicates when WaveStream mode is ON.  Intensity - Toggles between WaveStream OFF and ON for Analog

Persistence and WaveStream ON for Color Persistence. When you turn the knob, if WaveStream is ON, the WaveStream display intensity changes. When you turn the knob, if WaveStream is OFF, changes the Intensity setting. Corresponds with the screen menu selection: Display → Display Setup (on page 95).

Getting Started Manual

922561-00 Rev A

Trigger Front Panel Controls

 Level – Sets the trigger level to 50%. Turn the knob to change the

trigger threshold level. The threshold level is indicated on the Trigger label.

 READY and TRIG'D Indicators - The READY indicator is lit when the

trigger is armed. TRIG'D is lit momentarily when a trigger occurs. A fast trigger rate causes the light to stay lit continuously.

 Setup - Opens the Trigger Setup... dialog. Corresponds with screen

menu selection: Trigger → Trigger Setup.... Press the Trigger SETUP

front panel button again to close the Trigger Setup... dialog.

 Auto - Turn on Auto Trigger mode, which triggers the oscilloscope

after a time-out, even if the trigger conditions are not met.

 Normal - Turn on Normal Trigger mode, which triggers the

oscilloscope each time a signal is present that meets the conditions set for the type of trigger selected.

 Single - Turn on Single Trigger mode, which arms the oscilloscope to

trigger once (single-shot acquisition) when the input signal meets the trigger conditions set for the type of trigger selected. If the scope is already armed, it will force a trigger.

 Stop Prevent the scope from triggering on a signal. If you boot up the

instrument with the trigger in Stop mode, a no trace available message is shown. Press the Trigger AUTO front panel button to display your trace.

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

Horizontal Front Panel Controls

Note: Horizontal front panel controls correspond with screen menu selection:

Timebase → Horizontal Setup....

 Delay - Toggles between a zero horizontal delay value and the

previous horizontal delay value. Turn to change the horizontal delay value.

 Time/Div - Sets the time/division of the oscilloscope timebase

(acquisition system).

Vertical Front Panel Controls

NOTE: You can turn channels on and off using the software as explained in Vertical

Overview (on page 67) or from the front of the LabMaster Acquisition Module.

Getting Started Manual

922561-00 Rev A

 Channels – Control channel ON/OFF and which channel is active for

the Vertical Offset and Volts/Div knobs controls. If a channel is OFF, pressing that channel button turns it on and makes it active. If a channel button is ON, pressing that channel button makes it active, and then pressing it a second time turns it OFF.

 Offset - Toggles between a zero vertical offset value and the previous

vertical offset value for the selected channel. Turn to change the vertical offset value for the selected channel.

 Gain - Toggles between fixed and variable gain adjustment. Turn to

change the gain value.

NOTE: Front panel Channel buttons are only lit when Channels 1 through 4 are

active; however, Gain and Offset knobs will control any channels from any connected acquisition module. Touch the display Trace Descriptor Label to activate the channel before using the front panel knobs to make desired Gain and Offset adjustments.

Zoom and Math Front Panel Controls

NOTE: Zoom and Math front panel controls correspond with screen menu selection:

Math → Zoom Setup....

 Horizontal Position - Resets the horizontal zoom position to zero.

Turn to change the horizontal position of the selected math or zoom trace.

 Horizontal Ratio - Toggles between fixed and variable horizontal

zoom ratio adjustment. Turn to change the horizontal zoom ratio of the selected math trace.

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

 Quick Zoom - Automatically displays magnified views of up to four

signal inputs on multiple grids. With four input signals, the signals are displayed along with four zoom traces, each on its own grid. Pressing this button also turns off all other traces.

 Vertical Position - Resets the vertical zoom position to zero. Turn to

change the vertical position of the selected math or zoom trace.

 Vertical Ratio - Toggles between fixed and variable vertical zoom

ratio adjustment. Turn to change the vertical zoom ratio of the selected math trace.

Display Dashboard

Screen Layout, Groupings, and Controls

The instrument's screen is divided into the following main sections:

 Menu Bar  Signal Display Grid  Descriptor Labels  Dialog(s)  The Message Bar

NOTE: Many front panel controls directly correspond with screen layout controls.

For example, the Print front panel general control button corresponds with the Hardcopy function set from Utilities → Utilities Setup → Hardcopy.

Getting Started Manual

922561-00 Rev A

Menu Bar

The top of the screen contains a menu bar of commonly used functions. Whenever you touch one of these buttons and make a selection from its drop-down menu, the dialog area at the bottom of the screen displays the corresponding dialog.

Specific Menu Bar functions are referenced using arrow-separated path descriptions. For example, the Save Setup function is referenced as File →

Save Setup....

NOTE: For common oscilloscope operations, you don't need to use the top menu

bar (since you can access most dialogs from the Front Panel or from the Descriptor Labels). However, it is the only way to access setup or other dialogs for Display Setup, Save or Recall Waveform, Save or Recall Setups, Print Setup, Vertical (Channel), Horizontal, or Trigger Status, Memory (Reference Waveform) Setup,

Pass/Fail Setup, or Utilities and Preferences Setup....

Quick Access Toolbar

The Quick Access toolbar is located on the right side of the menu bar. You can use these toolbar buttons to quickly access Trigger, Processing and Undo functionality.

QUICK ACCESS TRIGGER FUNCTIONS

 Auto - Press to turn on Auto Trigger mode, which triggers the

oscilloscope after a time-out, even if the trigger conditions are not met.

 Normal - Press to turn on Normal Trigger mode, which triggers the

oscilloscope each time a signal is present that meets the conditions set for the type of trigger selected.

 Single - Press to turn on Single Trigger mode for the selected

channel, which arms the oscilloscope to trigger once (single-shot acquisition) when the input signal meets the trigger conditions set for the type of trigger selected. If the oscilloscope is already armed, it forces a trigger.

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

 Stop - Press to prevent the oscilloscope from triggering on a signal. If

you boot up the instrument with the trigger in Stop mode, the message "no trace available" is shown.

 Trigger Setup - Press to open the Trigger Setup... dialog. Corresponds

with screen menu selection: Trigger → Trigger Setup....

QUICK ACCESS PROCESSING FUNCTIONS

The Processing section allows you to suspend your system from processing data. You can stop data processing, make adjustments, and then resume data processing with the touch of two on-screen buttons.

Touching the Stop button shows the Processing Paused... pop-up.

Touch the Resume button to continue processing data.

QUICK ACCESS UNDO FUNCTION

At times, an Undo button is made available to the right of the Quick Access Toolbar on the Menu Bar. The Undo button is labeled with the most recent action, so you are aware of the specific function prior to reversal.

Getting Started Manual

922561-00 Rev A

The Signal Display Grid

The grid area is divided into 8 vertical divisions and 10 horizontal divisions just like any other oscilloscope. Set up the signal display area by touching Display → Display Setup... from the menu bar. The Display dialog offers a choice of grid combinations and can also set the grid intensity.

There are several indicators on the grid to help you understand the following:

Trigger Delay - This indicator is located along the bottom edge of the grid. Trigger delay allows you to see the signal prior to the trigger time.

All trigger delay values (including post-trigger delay, shown here) are displayed in the Timebase Descriptor Label. Zero delay is the horizontal center of the oscilloscope display.

The default setting (Time) is for delay readout (in seconds) and to move proportionately when the timebase knob is turned. If you want to set delay (Div) to a fixed position on the grid, and then have it stay fixed as the timebase changes, go to Utilities → Preference Setup... and select the

Acquisition dialog to make the setting.

Post-trigger Delay - This is indicated by a left-

pointing arrow to the lower-left of the grid. Pretrigger delay is indicated by a right-pointing arrow to the lower-right of the grid.

Trigger Level - This indicator is located at the right edge of the grid. It tracks the trigger level as you reposition the trace up or down, or change scale. When triggering is stopped, a hollow arrow indicates

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

where the new level ends up when triggering resumes. Push the LEVEL knob to reset the level to 50%.

Zero Volts Level - This indicator is located at the left edge of the grid. Change the zero volts level by turning the vertical OFFSET knob. Push the knob to reset the indicator to the middle of the grid.

SIGNAL DISPLAY GRID POP-UP MENU

On the Signal Display Grid, the Pop-up menu provides assistance while using the oscilloscope.

Clicking on a waveform opens a pop-up menu. From this pop-up menu, you can perform the following functions:

 Open the Setup dialog for the trace  Turn the trace descriptor label off  Open the Math dialog for the trace  Open the Measure dialog for the trace  Annotate the selected trace

Trace Descriptor Labels

Shown just beneath the grid display, these boxes provide a summary of your channel, timebase, and trigger settings.

When a trace is selected its corresponding descriptor label is shown highlighted.

The C1 Trace Descriptor Label is selected; C2 is not.

Make vertical or horizontal channel adjustments by touching the respective label. The setup dialog for the function is shown beneath.

Channel trace labels show the vertical settings for the trace and cursor information (if cursors are in use). The title bar of the label includes indicators for (SinX)/X interpolation, waveform inversion (INV), deskew

Getting Started Manual

922561-00 Rev A

(DSQ), coupling (DC/GND), bandwidth limiting (BWL), and averaging (AVG). These indicators have a long and short form, respectively.

The long and short forms of trace descriptor indicators.

Besides channel traces, math and parameter measurement labels are also displayed. Labels are displayed only for traces that are turned on.

Vertical and horizontal trace descriptor (labels) are displayed below the grid. They provide a summary of your channel, timebase, and trigger settings. Make vertical or horizontal channel adjustments by touching the respective label. The setup dialog for the function is shown beneath.

TimeBase trace descriptor labels show the trigger delay setting, time per division, and sampling information.

Trigger trace descriptor labels show the trigger mode

(Auto, Normal, or Stopped). It also shows the coupling (DC), trigger type (Edge), source (C1), level (0 mV), and slope (Positive).

Setup information for horizontal cursors, including the time between cursors and the frequency, is shown beneath the TimeBase and Trigger trace descriptor labels.

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

SHORTCUT BUTTONS

You can access the same functions as available from the Signal Display Grid Pop-Up menu by touching a trace-descriptor label to open the setup dialog. From the setup dialog, shortcut buttons enable you to:

 Open the Math dialog for the trace.  Open the Measure dialog for the trace.  Annotate the selected trace.

ANNOTATING TRACES

The instrument gives you the ability to add an identifying label, bearing your own text, to a waveform display:

For each waveform, you can create multiple labels and turn them all on or all off. Also, you can position them on the waveform by dragging or by specifying an exact horizontal position.

On the display grid, touch the waveform you want to annotate, then touch Set label... on the pop-up menu. A dialog box opens in which to create the label. The first time creating a waveform label, Label1 is provided as default text when the Add label button is touched.

Getting Started Manual

922561-00 Rev A

From this pop-up you can edit existing annotations, change the label placement on the waveform, add labels, remove labels, and toggle the visibility.

 If you are modifying an existing label, under Labels touch the label

you want to change.

NOTE: If the Channel dialog for the trace you want to annotate is currently

displayed, touch the Label button at the bottom to display the Trace Annotation setup dialog. You may place a label anywhere you want on the waveform. Labels are numbered sequentially according to the order in which they are added, and not according to their placement on the waveform.

 If you want to change the label's text, touch inside the Label Text

field. A pop-up keyboard appears for you to enter your text. Touch O.K. on the keyboard when you are done. The edited text automatically appears in the label on the waveform.

 Precisely place the label by touching inside the Horizontal Pos. field

and provide a horizontal value, using the pop-up numeric keypad.

 Add another label by touching the Add label button. Delete a label by

selecting the label from the list, and then touching the Remove label button.

 Make labels visible by touching the View labels checkbox.

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

Dialog Area

The lower portion of your oscilloscope screen is where information is shown, selections are made, and data is input. These screens are organized into tabular displays, subtabs, or pop-up dialogs. The dialog area is controlled by Touch Screen Controls and Front Panel Controls.

POP-UP SELECTOR CONTROLS

When Pop-Up selector controls are touched, sometimes a very small box is shown right inside the control - as in the following control for Coupling on the C1 dialog.

Other times, a larger box is shown after touching a control. This larger PopUp has categorical buttons along the left column along with labels (and sometimes descriptions) for the selectable entry values.

Getting Started Manual

922561-00 Rev A

TEXT ENTRY CONTROLS

For most entry fields, touch once then enter a value using an attached keyboard (or double-touch/click to use the Virtual keyboard).

FOLDER/FILE BROWSING CONTROLS

These controls allow for navigation to or from folders (on the hard drive or memory device) for retrieving or storing items such as waveforms, LabNotebook entries, to name a few.

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

NOTE: The instrument's hard disk is partitioned into C: and D: drives. Drive C:

contains the Windows operating system and the instrument application software. Drive D: is intended for data files.

FLYOUT MENU CONTROLS

Flyout Menus provide additional options for a particular font panel control. A set of touch screen buttons appear at the right-side of the display. An example Flyout Menu is seen when you press the Setup front panel button.

PRECISION DATA ENTRY CONTROLS

Certain fields requiring precise value entry assist you by having precision entry means. When these controls are selected, you can provide values as follows:

Slider Bar

Some models provide what is known as a Slider Bar along the bottom of the screen when a keyboard is attached to the instrument. The Slider Bar allows you to select your entered value by moving a horizontal slider (left to right provides low to high amounts).

Getting Started Manual

922561-00 Rev A

Pop-Up Keypad

Some models provide a pop-up Keypad when you touch twice in the same control. For many controls, the Front Panel Controls (on page 16) can be used to adjust the value in the pop-up.

The Pop-Up contains Up and Down arrow buttons, Set to Max, Default, and Min buttons, and the Keypad itself for providing your value.

When the slider bar is shown, Default and Keypad buttons are provided for quickly entering a default value or to use the pop-up keypad, respectively.

Shortcut Buttons

Several dialogs contain a row of buttons at the bottom of the dialog. These provide a shortcut to common functions without having to leave the underlying set up dialog. These shortcut buttons at the bottom of the Channel Setup dialog perform the following functions.

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

 Measure - Opens the Measure menu. You can then select a

parameter from this menu without leaving the Channel Setup dialog. The parameter automatically appears below the grid.

 Zoom - Creates a zoom trace of the channel trace whose dialog is

currently displayed.

 Math - Opens the Math menu. You can then select a math function

from this menu without leaving the Channel Setup dialog. A math trace of the channel whose dialog is currently open is automatically displayed.

 Decode - Opens the main Serial Decode dialog where protocol option

measurements can be applied to signals.

 Store - Loads the channel trace into the next available memory

location (M1 to M4).

 Find Scale - Automatically performs a vertical scaling that fits the

waveform into the grid.

 Next Grid - Automatically moves the channel trace whose dialog is

currently open onto the next grid. If you have only one grid displayed, a new grid will be created automatically, and the trace moved.

 Label - Enables you to attach identifying labels to your waveforms.

The labels are preserved when the waveform is saved as a LabNotebook entry and when saved to file.

 Probe Cal - Cable Deskew - Opens the Probes Cal. dialog where

various Gain, Offset, Skew, Source, and Advanced controls are available for probe signal calibration.

These shortcut buttons at the bottom of the Px dialogs display special traces associated with these Math functions:

Getting Started Manual

922561-00 Rev A

Message Bar

At the bottom of the oscilloscope display is a narrow message bar. The current date and time are displayed at the far right. Status, error, or other messages are also shown in this area.

Turning On Traces

To turn on a trace, do one of the following:

 Press the front panel Channel buttons (1-4).  Press the channel buttons on the front of your Acquisition Modules

to turn channels on/off.

 From menu bar, choose Vertical > Channel <#>.

A trace descriptor box appears on the display for each open channel trace. When you touch this descriptor box, the trace is activated and the Channel (C#) dialog opens.

A highlighted descriptor box indicates the active trace to which all actions apply. Touch this box at any time to open its setup dialog.

NOTE: The default is to display each trace on its own grid automatically (Auto Grid).

To change how traces are arranged, choose another grid option from the Display menu.

You can also quickly create (and turn on the descriptor box for) math and memory traces without leaving the Channel dialog by touching the Measure and Math icons at the bottom.

Whenever you activate a channel, math, or memory trace, the dialog at the bottom of the screen automatically switches to the appropriate setup dialog for that selection. The tab is labeled with the corresponding channel number:

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

Timebase

Timebase Dialog

You can access Timebase settings by:

 Using the front panel Horizontal controls,  Choosing Timebase → Horizontal Setup... from the menu bar  Touching the Timebase trace descriptor label.

The main Timebase dialog contains sections for choosing Sampling Mode, Timebase Mode, and Real Time Memory.

A section specifically used for Combining Channels (below) is located at the far right of the main Timebase dialog. This section varies based on your oscilloscope model.

Combining Channels

Digital Bandwidth Interleave (DBI) is a method for combining channels to double or triple bandwidth, sample rate, and memory lengths - just as oscilloscope manufacturers have for years interleaved channels to increase sample rate and memory.

When you make DBI selections, some system values are changed. View these changes by touching the trace descriptor label for an interleaved channel. In particular, The Vertical Scale B Scale V/div (Timebase) value is automatically set to 50 mV/div. If you set this to a different value after deactivating DBI, the system resumes the last one used with DBI when DBI is reactivated.

Getting Started Manual

922561-00 Rev A

1. Choose TimeBase → Horizontal Setup... to access the Timebase

dialog.

2. If you have more than one Acquisition module, touch the DBI tab to

show the DBI dialog. Otherwise, use the Digital Bandwidth Interleave area to the far right of the Timebase dialog.

3. Select the inputs to combine by touching the corresponding higher

bandwidth button beneath the pair (in the image below, 36 GHz C1 and C2 are combined into one 65 GHz C2). The active input is highlighted. Combinations can be made in one or all modules.

4. The respective channels are combined into higher bandwidth

channels, labeled "Input B".

5. On the Channel setup dialog, select Input B.

NOTE: Use Channel 4 for high-speed serial triggering, even in cases where the

oscilloscope is operating in 50, 60, or 65 GHz modes.

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

Sampling Modes

Depending on your timebase, you can choose:

Real Time Sampling Mode (below) - Also known as single-shot sampling mode, a series of digitized voltage values sampled on the input signal at a uniform rate.

Sequence Sampling Mode (on page 59) - Many trigger events stored as segments into the oscilloscope's memory.

Selecting a Sampling Mode

1. Touch Timebase → Horizontal Setup... from the menu bar.

2. On the Timebase dialog, select a Sample Mode.

3. If you chose Sequence Mode, touch the Sequence tab and provide

values for Number of Segments, Enable Timeout, Timeout (value), Display Mode, and Show Sequence Trigger Times.

Single-shot Sampling Mode

A single-shot acquisition is a series of digitized voltage values sampled on the input signal at a uniform rate. It is also a series of measured data values associated with a single trigger event. The acquisition is typically stopped a defined number of samples after this event occurs: a number determined by the selected trigger delay and measured by the timebase. The waveform's horizontal position (and waveform display in general) is determined using the trigger event as the definition of time zero.

You can choose either a pre- or post-trigger delay. Pre-trigger delay is the time from the left-hand edge of the display grid forward to the trigger event, while post-trigger delay is the time back to the event. You can sample the waveform in a range starting well before the trigger event up to the moment the event occurs. This is 100% pre-trigger, and it allows you to see the waveform leading up to the point at which the trigger condition was met and the trigger occurred. (The instrument offers up to the maximum record length of points of pre-trigger information.) Post-trigger delay, on

Getting Started Manual

922561-00 Rev A

the other hand, allows you to sample the waveform starting at the equivalent of 10,000 divisions after the event occurred.

On fast timebase settings, the maximum single-shot sampling rate is used. But for slower timebases, the sampling rate is decreased and the number of data samples maintained.

The relationship between sample rate, memory, and time can be simply defined as:

Capture Interval = 1/Sample Rate X Memory

and

Capture Interval/10 = Time Per Division

Sequence Sampling Mode – Working with Segments

Using Sequence Mode, thousands of trigger events can be stored as segments into the oscilloscope's memory (the exact number depends on oscilloscope model and memory options). This is ideal when capturing many fast pulses in quick succession or when capturing few events separated by long time periods. The instrument can capture complicated sequences of events over large time intervals in fine detail, while ignoring the uninteresting periods between the events. You can also make time measurements between events on selected segments using the full precision of the acquisition timebase.

Sequence mode offers a number of unique capabilities:

 You can acquire up to four channels simultaneously.  You can minimize dead time between trigger events for consecutive

segments.

 You can view time stamps for acquisitions.  You can zoom segments or used them as input to math functions.  You can combine sequence mode with an advanced trigger to isolate

a rare event, capture all instances over hours or days, and view/analyze each afterwards.

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

 You can use Sequence mode in remote operation to take full

advantage of the instrument's high data-transfer capability.

In Sequence mode, the complete waveform consists of a number of fixedsize segments acquired in single-shot mode (see the instrument specifications for the limits). The oscilloscope uses the sequence timebase setting to determine the capture duration of each segment as 10 x time/div. With this setting, the oscilloscope uses the desired number of segments, maximum segment length, and total available memory to determine the actual number of samples or segments, and time or points.

How the instrument captures segments

Getting Started Manual

922561-00 Rev A

SEQUENCE DISPLAY MODES

The instrument gives you a choice of five ways to display your segments:

 Adjacent

 Waterfall (cascaded)

 Mosaic (tiled)

 Overlay

 Perspective

NOTE: some display modes have limitations on the number of segments that can

be shown at one time.

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

SEQUENCE MODE SETUP

When setting up Sequence Mode, you define the number of fixed-size segments acquired in single-shot mode (see the instrument specifications for the limits). The oscilloscope uses the sequence timebase setting to determine the capture duration of each segment. Along with this setting, the oscilloscope uses the number of segments, maximum segment length, and total available memory to determine the actual number of samples or segments, and time or points.

Setting up Sequence Mode (Adjacent)

1. Touch Timebase → Horizontal Setup... on the menu bar.

2. Click the Sequence tab.

3. Under Acquisition Settings, touch inside the Num Segments data

entry control and provide a value using your preferred input control method. Additional information on using the touch screen controls can be found in the Dialog Area.

NOTE: The number of segments you choose to display can be less than the

total number of segments in the waveform. For example, in the pop-up images above, the number of display segments is 10, but the total number of segments entered in Num Segments on the Timebase dialog is 100.

Getting Started Manual

922561-00 Rev A

4. Touch the Enable Timeout checkbox.

5. Touch the Timeout data entry control and provide a timeout value.

NOTE: Use the sequence mode timeout to automatically interrupt the

sequence acquisition if the timeout value is exceeded without a valid trigger. The timeout period accounts for instances when a Num Segments miscount occurs for some reason and the oscilloscope waits indefinitely for

an unforthcoming segment. During that time, no oscilloscope functions are accessible. By means of a timeout value, however, the acquisition will be completed, the waveform displayed, and control of the oscilloscope returned to the user after the timeout has elapsed.

6. Under Display Settings, touch the Display mode control, and select a

sequence mode display from the pop-up menu.

NOTE: Once a single acquisition has started, you can interrupt the

acquisition at any time by pressing the SINGLE front panel button a second time or by pressing the STOP front panel button. In this case, the segments already acquired will be retained in memory.

7. Touch the SINGLE trigger front panel button.

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

ZOOMING SEGMENTS IN SEQUENCE MODE

You can zoom individual segments easily using the Zoom front panel button. When you zoom, the zoom traces default to Segment 1. Channel descriptors indicate the total number of segments acquired. Zoom descriptors indicate [Seg #] and #Segments in the Zoom. You can scroll through the segments usingZoom front panel position knob.

Sample Zoom of Segments in Sequence Mode

1. Touch the front panel Zoom button.

2. Turn the ZOOM front panel position knob to scroll through the

segments.

3. To vary the degree of zoom, touch the newly created Zx trace label.

The setup dialog for the zoom (Z1 to Z4) opens. It shows the current horizontal and vertical zoom factors.

Getting Started Manual

922561-00 Rev A

4. If you want to increase or decrease your horizontal or vertical zoom

in small increments, touch the Var. checkbox to enable variable zooming. Now with each touch of the zoom control buttons, the degree of magnification changes by small increments.

To zoom in or out in large standard increments with each touch of the zoom control buttons, leave the Var. checkbox unchecked.

T set exact horizontal or vertical zoom factors, touch inside the Horizontal Scale/div data entry control and enter a time-per-div value, using the pop-up numeric keypad. Then touch inside the Vertical Scale/div control and enter a voltage value.

DISPLAYING AN INDIVIDUAL SEGMENT

1. Touch Math → Math Setup... on the menu bar.

2. Touch a function tab Fx showing its corresponding dialog.

3. On the dialog, touch inside the Operator1 control and select the

Segment button from the pop-up menu.

4. In the dialog on the right, touch the Select tab.

5. Touch inside the First Selected data entry control and select the first

segment you want to display. Use the same method to provide a value in the Number of Selected data entry control.

NOTE: In Persistence mode, the segments are automatically overlaid one on top of

the other in the display. In non-Persistence mode, they appear separately on the grid.

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

VIEWING TIME STAMPS

You can view time stamps for each segment.

View Segment Time Stamps

1. Touch Timebase → Acquisition Status on the menu bar.

OR Touch Vertical → Channel Status on the menu bar.

2. Touch the Trigger Time tab.

3. Under Show Status For, touch the Time button.

4. Touch inside the Select Segment control and enter a segment

number value (you can also touch the arrow buttons to scroll through segment times).

Getting Started Manual

922561-00 Rev A

Vertical

You can access Vertical settings using the front panel Vertical controls, by selecting Vertical→ Channel Setup... on the menu bar, or by touching the Channel trace descriptor label. The following screen-shot shows the C1 dialog on a LabMaster. For each open channel trace, a corresponding Cx dialog opens with setup controls.

The Channel dialog also lets you perform certain actions on the channel trace, such as Math and Measure, without having to leave the dialog.

NOTE: For LabMaster, the ChannelSYNC Calibration dialog provides another

vertical set up option.

Channel Dialog

The Cx tab of the dialog provides the following functions for the respective channel:

 Selected Input - For each channel, you can set the Channel Input to

either Input A (Upper) or Input B (Lower). The Channel Row LED Indicators display which input is set for each channel.

NOTE: Not all oscilloscope models have Upper and Lower Channel Inputs. In

those cases, no Selected Input buttons are provided. The Acquisition

Modules indicate alternative, or B channels, on named LED indicators.

 Vertical Scale - For each channel, you can set the vertical scale or

sensitivity and choose whether to use fixed or variable gain adjustment.

 Vertical Offset - For each channel, you can select between zero

vertical offset or to set the offset to a specific value.

 Coupling - The maximum input voltage depends on the input used.

Values are displayed on the front of the oscilloscope. Whenever the

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

voltage exceeds this limit, the coupling mode automatically switches from DC 50 Ω to GROUND. You then have to manually reset the coupling to DC 50 Ω.

CAUTION While the unit does provide this protection, damage

can still occur if extreme voltages are applied

 Bandwidth - Bandwidth filters are available at a variety of fixed

bandwidth settings. The exact settings vary by model.

 Probe - Teledyne LeCroy's 1.85 mm and 2.92 mm probe inputs

automatically senses probes and sets their attenuation for you. For each channel, the probe attenuation can also be set manually.

Pre-Processing Controls

Pre-Processing means “before Math processing.” Pre-Processing controls provide the following functions for your respective channel:

 Averaging - Specifically performs continuous averaging or the

repeated addition, with unequal weight, of successive source waveforms. It is particularly useful for reducing noise on signals drifting very slowly in time or amplitude. The most recently acquired waveform has more weight than all the previously acquired ones: the continuous average is dominated by the statistical fluctuations of the most recently acquired waveform. The weight of old waveforms in

Getting Started Manual

922561-00 Rev A

the continuous average gradually tends to zero (following an exponential rule) at a rate that decreases as the weight increases.

 Deskew - Adjusts the horizontal time offset by the amount entered.

The valid range is dependent on the current timebase setting. Preprocessing deskew and the Math deskew function perform the same activity.

 Invert - Invert the waveform for the selected channel.  Cable De-Embedding - When measuring serial data signals,

propagation delays from the test cables can reduce the accuracy of your signal (for example, signal amplitude and risetime), as well as introduce Inter-Symbol interference. These cable effects can dramatically alter your serial data measurements and potentially create mask test violations. The Cable De-Embedding option allows you to quickly specify the characteristics of the cables (typically found on the cable's data sheet) in your test setup and analyze your signal with the effects of the cables removed.

NOTE: The Cable De-Embedding checkbox is only visible with this option.

 Interpolation - Linear interpolation, which inserts a straight line

between sample points, is best used to reconstruct straight-edged signals such as square waves. (Sinx)/x interpolation is suitable for reconstructing curved or irregular wave shapes, especially when the sample rate is 3 to 5 times the system bandwidth.

 Noise Filter - Enhanced Resolution (ERES) filtering increases vertical

resolution, allowing you to distinguish closely spaced voltage levels. The tradeoff is reduced bandwidth. The functioning of the instrument's ERES is similar to smoothing the signal with a simple, moving-average filter. Use ERES on single-shot waveforms, or where the data record is slowly repetitive (when you cannot use averaging). Use it to reduce noise when your signal is noticeably noisy, but you do not need to perform noise measurements. It also may be used when performing high-precision voltage measurements: zooming with high vertical gain, for example.

 Optimize - See Response Optimization Modes.

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

Response Optimization Modes

Frequency response and group delay of the oscilloscope contributes to the pulse response characteristics of the oscilloscope. By slightly adjusting these characteristics using digital signal processing, the characteristic response of the oscilloscope can be optimized for your specific application.

Frequency response is defined as the decrease in the magnitude response with respect to frequency. A fourth-order Bessel roll-off slightly attenuates the frequencies near the bandwidth rating of the oscilloscope while a brickwall frequency response passes slightly higher frequency content.

Group delay is defined as the rate of change of the total phase shift with respect to angular frequency through a device or transmission medium. Amplifiers in analog oscilloscopes typically have some group delay at the highest frequencies. This inherent group delay minimizes the preshoot present on a step response and provides the traditional pulse response with no preshoot before the step. When zero group delay is provided at all frequencies, preshoot and overshoot is equalized.

Teledyne LeCroy provides three choices for response optimization. Each combines a frequency and group delay response to optimize the oscilloscope for particular applications.

Pulse Response. A group delay compensation minimizing preshoot, this selection most resembles the response of an analog oscilloscope by controlling group delay to be slightly non-zero at the highest frequencies. In addition, a fourthorder Bessel frequency response is implemented.

Eye Diagram. Flat group delay compensation resulting in equalized preshoot and overshoot. This selection improves the symmetry of serial eye diagrams. In addition, a fourthorder Bessel frequency response is implemented.

Flatness. Flat group delay compensation with a brick-wall frequency response. While this provides the fastest rise time, there is also a slight penalty of more preshoot and overshoot compared to Eye Diagram mode. This selection is most often used in narrow-band RF measurements where it is desirable

to maintain constant magnitude response over the oscilloscope passband.

Getting Started Manual

922561-00 Rev A

LabMaster Channel Setup

You can adjust the sensitivity and the positioning of the waveforms and set the color of the trace for up to 80 channels on the Channel Setup dialog. The example shown below illustrates Channel Setup with a 20 channel LabMaster.

1. Choose Vertical → Channel Setup... from the menu bar to open the

Channel Setup dialog.

2. Touch inside the checkbox next to a channel to display the trace.

3. To adjust sensitivity and position, turn the VERTICAL GAIN front panel

knob for the selected channel. OR Touch inside the Volts/Div field next to the channel and enter a value. Click the keypad button to enter a value using the pop-up keypad, or use the up/down arrows.

NOTE: The set voltage is shown on the trace descriptor label and in the Volts/Div field in the dialog.

4. To set the offset, turn the VERTICAL OFFSET adjust front panel knob

directly above the channel button whose waveform you want to move vertically. Or, you can touch inside the Offset field next to the channel and type in a value on the pop-up keypad. To set the vertical offset to zero, touch the Zero Offset button directly below the Offset field.

5. To change the color assigned to a channel, click on the color box and

choose a color.

NOTE: Front panel knobs can be used to adjust VERTICAL OFFSET and GAIN

for channels 5-80, provided the trace descriptor label is active for the corresponding channel.

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

LabMaster Deskew Calibration

The ChannelSync™ architecture in LabMaster modular oscilloscope systems

utilizes a single 10 GHz distributed clock for all acquisition modules. This provides precise timing alignment and timing accuracy between all channels in all acquisition modules as found in a single, conventional oscilloscope package. However, to ensure that the static skew of all connecting cables is accounted for, a calibration is required for the most accurate results.

Deskew calibration eliminates:

 Static skew due to minor differences in length of PCIe

interconnection cables. LabMaster modular oscilloscopes may consist of multiple acquisition modules. These multiple modules need to deskewed with respect to each other to account for connection cable propagation delay (static skew). This propagation delay is normally 100-200 ps and is a result of the very small differences in length between the PCIe cables used for connections on your particular LabMaster setup.

 Minor static skew differences between channels and gain settings in

a single acquisition module.

 The small amount of static skew remaining after the factory

hardware deskew. At the factory, channels in each Acquisition Module are deskewed in hardware to within approximately 2 ps at 20 GHz. This can vary slightly over varying gain ranges (V/div settings) on each channel. Depending on the timing accuracy desired for your measurements and the bandwidth of your acquisition module, you may need to correct for this.

 Static skew introduced by probe and cable connections. With probes

and cables connected to the acquisition module, additional static skew will be introduced. When these devices are attached, deskew signals must be respectively deskewed to each other is again required to eliminate the propagation delay of the signal due to these items being added to the signal path.

Getting Started Manual

922561-00 Rev A

There are two different deskew calibrations that can be performed. Both permit quick and easy deskew of all of the channels in all LabMaster acquisition modules by automatically deskewing all channels to a userdesignated reference channel, with the common deskewed reference plane being the input channel connectors on the acquisition module. A very high level of accuracy is maintained by using a fast reference signal and averaging for precision.

SystemSkew Cal

For a given LabMaster setup consisting of more than one acquisition module, this calibration provides the fastest and easiest way to eliminate the static skew caused by all PCIe interconnection cables and align trigger positions on all modules. The SystemSkew Cal need only be performed once at initial setup as long as the cables or the acquisition modules do not change. If the LabMaster system you're using has only one acquisition module, a SystemSkew Cal provides no value.

During SystemSkew Cal, you are instructed to connect the Fast Edge output to one channel on each acquisition module in a prescribed manner. All static skew adjustments are saved in a calibration folder. The values for this static skew calibration are not displayed in the ChannelSync Cal dialog. If the LabMaster system on startup detects a configuration change (e.g. a different serial number acquisition module connected to a certain PCIe slot), a pop-up dialog will appear warning the user to perform a new SystemSkew Cal.

1. From the menu bar, choose Vertical > Channel <#> Setup. Touch the

ChannelSync Cal tab to the right of the C<#> tab.

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

2. Touch the SystemSkew Cal button. The System Channel/Trigger Skew

Calibration Wizard opens.

3. Connect the Fast Edge output on the front of the Master Control

Module to Channel 1, then on the Wizard touch Next. The Fast Edge output will be displayed on Channel 1 during the operation.

Getting Started Manual

922561-00 Rev A

4. When the previous operation is complete, you will be prompted to

use the same cable as used to connect to Channel 1 to connect the Fast Edge output to Channel 5. After connecting, touch Next again.

5. Continue following on-screen prompts for as many additional

modules there are.

6. When completed, touch Finish to apply and store all corrections.

ChannelSync Cal

This calibration method is most common and is used to eliminate minor static skew (<2 ps) differences between channels or to account for the addition of cables or probes between the signal and oscilloscope input channel. When Channel Sync Cal is complete, jitter between all channels is adjusted to a level comparable to a single conventional oscilloscope package , or better than 275 fs RMS.

NOTE THE FOLLOWING about ChannelSync Cal prior to performing the procedure:

 ChannelSync Cal can be performed on different gain settings by

using an attenuator (that you supply) to reduce the amplitude of the Fast Edge output. Choose an attenuator value that provides for a Fast Edge signal amplitude of ~4 to 7 divisions.

 If you perform ChannelSync Cal only on the 100 mV/div gain range,

there is no need to enter a “Reference Correction” (attenuator

propagation delay value).

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

 If you perform ChannelSync Cal on multiple gain settings, perform it

first on the 100 mV/div setting, then perform it on other gain

settings (with “Reference Correction” values entered as appropriate

for those other gain settings.)

 For the highest possible accuracy across the full input range of the

oscilloscope, a ChannelSync Cal should be performed on at least one gain setting in each of the following gain ranges:

2.92mm up-to-36 GHz Inputs

1.85mm up-to-65 GHz Inputs

≤10 mV/div

10.1 to 11.8 mV/div

11.9 to 17.0 mV/div

11.9 to 14.2 mV/div

17.1 to 20.5 mV/div

14.3 to 17.0 mV/div

20.6 to 30.0 mV/div

17.1 to 20.5 mV/div

30.1 to 39.5 mV/div

20.6 to 25.0 mV/div

39.6 to 50.0 mV/div

25.1 to 30.0 mV/div

50.1 to 75.0 mV/div

30.1 to 39.5 mV/div

75.1 to 90.0 mV/div

39.6 to 50.0 mV/div

90.1 to 100.0 mV/div

50.1 to 63.0 mV/div

100.1 to 126.0 mV/div

63.1 to 80 mV/div

126.1 to 158.0 mV/div

158.1 to 205.0 mV/div

205.1 to 250.0 mV/div

250.1 to 315.0 mV/div

315.1 to 500 mV/div

 If you add cables or probes to your setup subsequent to running the

ChannelSync Cal, you must manually deskew these items in the Channel dialog to account for their propagation delays. The values you provide on the Channel dialog (in the deskew section) are additional to values shown on the ChannelSync Calibration dialog.

Getting Started Manual

922561-00 Rev A

1. From the menu bar, choose Vertical > Channel <#> Setup. Touch the

ChannelSync Cal tab to the right of the C<#> tab.

2. Place a checkmark next to the module(s) you want to calibrate and

touch the ChannelSync Cal button. The ChannelSync Calibration Wizard opens.

3. Select to measure Input A or Input B, or select Active Input to make

measurements on the active input of each channel.

4. Select a Ref Channel to be used as a reference against which all other

measurements are made during your calibration.

5. Enter the V/div (gain) setting for which you want to perform the

ChannelSync Cal on all channels. The default value is 100 mV/div, which corresponds to the Fast Edge output amplitude.

6. Connect the Fast Edge calibration signal (located on the front of the

Acquisition Module) to the reference input channel (in this example, C1), then touch the Next button. The ChannelSync™ Cal begins.

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

As with System Skew calibration, you will see the Fast Edge output signal appear on the display and delay (skew) measurements will be made.

7. Connect the Fast Edge calibration signal to the next input (in this

example, C2), then touch the Next button.

Repeat Step 7 for each channel. As each channel is calibrated, its trace descriptor appears under the grid display area.

8. When you have finished all channels, a message indicates all

measurements have been performed. Touch the Finish button. The ChannelSync™ Calibration dialog shows details about all performed measurements and the deskew values applied.

If you wish to perform additional ChannelSync calibrations on other gain settings, repeat the process from Step 5 with a different gain (V/div) setting and a Reference Correction value entered for that attenuator.

Getting Started Manual

922561-00 Rev A

Trigger

Trigger Overview

NOTE: Trigger capabilities on channel 1-4 (i.e., the first acquisition module) are

more complete than on channels 5 or higher. Full Edge trigger bandwidth is available on all channels, but SMART triggers are not available on Channel 5 or higher.

Triggering is the way an oscilloscope selects an exact moment in time of a signal to then be shown on the screen. If the signal pattern happens to be repetitive, a continuous waveform pattern is visible on the display. But without a regular signal pattern, the oscilloscope requires controls to determine what specific point in time (when a trigger is met) to show the signal on the display. This is accomplished and affected in a variety of ways.

Some trigger settings allow for pre-trigger, post-trigger, and a delay between the time of the trigger event and the time when the display is refreshed (or sweeped) and the waveform is again shown on the screen. The instrument uses many waveform capture techniques that trigger on features and conditions that you define. These triggers fall into the following major categories:

 Simple Triggers - activated by basic waveform features or conditions

such as a positive or negative slope, and hold‐off

 SMART Triggers - sophisticated triggers that enable you to use basic

or complex conditions for triggering. Use SMART Triggers for signals with rare features, like glitches.

 Measurement Trigger - triggers that allow you to leverage parameter

measurements as waveform trigger conditions. A measurement trigger is either the only trigger or the final trigger in a chain of trigger events including hardware triggers.

 MultiStage Triggers - varied forms of triggers including Cascaded,

QualFirst, and Qualified allowing varied combinations of triggers and

trigger stages.

 Serial Triggers - provide serial data protocol specific triggering for a

wide variety of standards.

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

Trigger Types

A set of standard trigger types is available for selection. These triggers are basic waveform features or conditions such as a positive or negative slope and are available on all oscilloscopes, along with tools like Software Assisted Trigger and Trigger Scan.

There are more sophisticated triggers for setting complex conditions. These include Smart Triggers, Serial Trigger, Measurement Triggers, and MultiStage Triggers.

Edge

A simple trigger, Edge trigger is activated by basic waveform features or conditions such as positive or negative slope, and holdoff.

NOTE: Up to 15 GHz bandwidth is available while Edge Triggering (provided no

holdoff is selected).

Width

Width trigger allows you to define a positive- or negative-going pulse width bounded by a voltage level, above or below an occurring trigger. Or you can specify a pulse width and voltage

range, within or outside an occurring trigger.

Pattern (Logic)

Logic trigger enables triggering on a logical combination (pattern) of five inputs: CH1, CH2, CH3, CH4, and AUX

(sometimes referred to as EXT on legacy oscilloscope models). You have a choice of four Boolean operators (AND, NAND, OR, NOR), and you can stipulate the high or low voltage logic level for each input independently.

Getting Started Manual

922561-00 Rev A

Smart

This trigger group sets conditions on signals with rare features.

WINDOW

A trigger occurs when a signal enters or exits a window defined by adjustable thresholds.

INTERVAL

While Glitch trigger performs over the width of a pulse, Interval trigger performs over the width of an interval: the signal

duration (the period) separating two consecutive edges of the same polarity, positive to positive or negative to negative. Use interval trigger to capture intervals that fall short of, or exceed, a given time limit. In addition, you can define a width range to capture any interval that is itself inside or outside the specified range (an Exclusion trigger by interval).

GLITCH

Glitch trigger is a simpler form of Width trigger. Use Glitch

trigger when you want to define a fixed pulse-width time or

time range only. Glitch trigger makes no provision for voltage levels or ranges.

DROPOUT

Used primarily in single-shot applications, and usually with a pre-trigger delay, Dropout trigger can detect lost signals. The trigger is generated at the end of the timeout period following

the last trigger source transition.

RUNT

The Runt trigger occurs when a pulse crosses a first threshold

line, but fails to cross a second threshold line before re-crossing

the first. Other defining conditions for this trigger are the edge (triggers on the slope opposite to that selected) and runt width.

SLEW RATE

SlewRate trigger activates a trigger when the rising or falling

edge of a pulse crosses two threshold levels: an upper level and

a lower level. The pulse edge must cross the thresholds faster or slower than a selected period of time.

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

Measurement

This trigger type allows you to leverage parameter measurements as waveform trigger conditions. A measurement trigger is either the only trigger or the final trigger in a chain of

trigger events including hardware triggers.

MultiStage

This is a set of trigger types where the trigger event depends on a series of earlier conditions being met.

CASCADED

The Cascaded trigger allows you to define successive trigger

Stages (referred to as Stage A, B, C, and D) as arm, trigger/arm, trigger/arm, trigger criteria, respectively.

QUALFIRST

In single trigger mode, QualFirst arms the oscilloscope on the A event, and then triggers on all subsequent B events.

NOTE: This selection is enabled when using sequence sampling mode. It is

commonly used for disk drive applications with the index pulse defined as the A qualifier signal and the servo gate signal as the B triggering events.

QUALIFIED A-B

In single trigger mode, Qualify A-B arms the oscilloscope on the A event, and then triggers on the B event. If the oscilloscope is in Normal trigger mode, it automatically resets after the B

event. Arm trigger events can be set for Edge, Pattern, State, and PatState.

STATE

The State trigger is a level-qualified trigger which requires that the qualifying signal remain above or below a specified voltage

level for a trigger to occur. For State trigger, you specify the time or number of events after the signal has gone above or below the voltage level when you want the trigger to occur.

Getting Started Manual

922561-00 Rev A

Serial Trigger

A 14.1 Gb/s Serial Trigger is optionally available for LabMaster 10 Zi. This trigger is installed in a 10-xxZi acquisition module and

is permanently connected internally for use on Channel 4 only. The 10-xxZi Acquisition Module that contains this trigger should be the first acquisition module (i.e. Channels 1 – 4) in any multi-acquisition module system.

This trigger option provides capability for Non-Return to Zero (NRZ) 80-bit pattern and 8b/10b symbol triggering. Additional capabilities are planned for the future.

NOTE: Although 50, 60, or 65 GHz inputs operate on Channels 2 and 3 only,

Channel 4 would still be the input channel for the serial trigger signal.

Complete information on the operation of this trigger can be obtained in the Teledyne LeCroy Serial Data Debug Solutions manual posted on the Teledyne LeCroy website.

Trigger Settings

All trigger Horizontal and Vertical adjustments are typically made using either the Delay or Level knobs on the front panel of the instrument, or else the corresponding software controls on the Timebase setup dialog.

Horizontal

Turn the DELAY knob in the HORIZONTAL control group to adjust the trigger's horizontal position. Or, touch inside the Delay control and provide a value on the Timebase dialog using your preferred input control method. Additional information on using the touch screen controls can be found in the Dialog Area.

The trigger location is shown by a marker under the grid.

Post-trigger delay is indicated by a left-pointing arrow at the lowerleft of the grid.

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

The time value is given in the title line of the Timebase label at the lower-right of the grid.

Vertical

Turn the LEVEL knob in the TRIGGER control group to adjust the trigger's vertical threshold.

Turn this knob to adjust the level of the trigger source or the highlighted trace. Level defines the source voltage at which the trigger will generate an event: a change in the input signal that satisfies the trigger conditions.

Alternatively, in the Trigger dialog, you can touch inside the Level control and provide a value using your preferred input control method. Additional information on using the touch screen controls can be found in the Dialog Area. Quickly set a level of zero volts by touching the Zero Level button.

An arrow on the right side of the grid shows the threshold position. This arrow is only visible if the trigger source is displayed.

Trigger Setup

Based on your Trigger Type selection, sections of the main Trigger dialog and additional dialogs altogether vary.

Most trigger types have Type, Setup, and Level selections. The following sections explain some of the standard setup configurations for different trigger types.

1. Make your Type selection by touching the button corresponding to

the desired trigger.

Getting Started Manual

922561-00 Rev A

2. Touch inside the trigger Source control for your first Setup

configuration and select a source on which to trigger.

3. Touch inside the Coupling control and select a coupling mode.

Coupling refers to the type of signal coupling at the input of the trigger circuit. With DC coupling, all of the signal's frequency components are coupled to the trigger circuit for high-frequency bursts.

4. Touch inside the trigger Slope control and choose the direction of the

trigger voltage transition used for generating a particular trigger event.

The selection is then shown to the right of the dialog as follows for a Positive Slope selection on an Edge Trigger.

Edge trigger works on the selected edge at the chosen level. The slope (positive or negative) is specified on the Trigger label permanently shown to the lower-right of the grid.

5. Level defines the source voltage at which the trigger circuit generates

an event (a change in the input signal that satisfies the trigger conditions). The selected trigger level is associated with the chosen trigger source. Note that the trigger level is specified in volts and normally remains unchanged when the vertical gain or offset is modified.

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

The Amplitude and Range of the trigger level have limits as detailed in the datasheet specifications regularly maintained at www.teledynelecroy.com.

Touch inside the Level data entry control and provide a value using your preferred input control method. Additional information on using the touch screen controls can be found in the Dialog Area.

Provide a voltage level (in millivolts).

NOTE: Once specified, Trigger Level and Coupling are the only parameters

remaining unchanged as you switch from trigger mode to trigger mode for each trigger source.

Optimize for HF

The Optimize for HF checkbox can be used on an Edge trigger to reject high or low frequencies.

The checkbox is marked by default; meaning, the instrument is optimized for high-frequency waveforms.

NOTE: If you are measuring a waveform that is 10 MHz or slower, be sure to

unmark the checkbox to avoid triggering on an incorrect slope.

Width Condition

Width triggers (and other triggers equipped with conditional logic) have conditional logic settings as follows.

Your Width Condition can be specified as Less Than, Greater Than, In Range and Out Of Range.

Getting Started Manual

922561-00 Rev A

In Range and Out of Range conditions can be further specified by setting:

 Limits and assigning Upper and Lower Values to the range.  Delta and assigning Nominal width and Delta.

NOTE: Width Condition settings are summarized on the far right of the dialog.

Holdoff by Time or Events

Holdoff is an additional condition of Edge and Pattern triggers. It can be expressed either as a period of time or an event count. Holdoff disables the trigger circuit for a given period of time or number of events after the last trigger occurred. Events are the number of occasions on which the trigger condition is met. The trigger resumes when the holdoff has elapsed and its other conditions are met.

Use holdoff to obtain a stable trigger for repetitive, composite waveforms. For example, if the number or duration of sub-signals is known you can disable them by choosing an appropriate holdoff value. Qualified triggers operate using conditions similar to holdoff.

HOLD OFF BY TIME

Sometimes you can achieve a stable display of complex, repetitive waveforms by placing a condition on the time between each successive trigger event. This time would otherwise be limited only by the input signal, the coupling, and the instrument's bandwidth. Select a positive or negative slope, and a minimum time between triggers. The trigger is generated when the condition is met after the selected holdoff time, counted from the last trigger. The delay is initialized and started on each trigger.

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

Edge Trigger with Holdoff by Time. The broken upward-pointing arrows indicate potential triggers, which would occur if other conditions are met. The bold arrows indicate where the triggers actually occur when the holdoff time has been exceeded.

HOLD OFF BY EVENTS

Select a positive or negative slope and a number of events. An event is the number of times the trigger condition is met after the last trigger. A trigger is generated when the condition is met after this number, counted from the last trigger. The count is restarted on each trigger. For example, if the event number is two, the trigger occurs on the third event.

Edge Trigger with Holdoff by Events (in this example, two events). The bold edges on the trigger source indicate that a positive slope has been selected. The broken, upward-pointing arrows indicate potential triggers, while the bold ones show where triggers actually occur after the holdoff expires.

Getting Started Manual

922561-00 Rev A

Auxiliary Input Trigger

Some instrument models provide auxiliary input trigger capability. It's done as a pattern trigger, on the Ext dialog.

Select X1, or ÷10. You can also select from DC50Ω, Gnd, and DC1MΩ Impedance values.

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

TriggerScan

TriggerScan is a debugging tool (available for any trigger type) that helps you quickly find rare waveform glitches and anomalies. With TriggerScan, you can build a list of trigger setups to look for rare events and automatically sequence through each one. TriggerScan can use any type of trigger setup available including edge, width, and qualify as well as Smart Triggers (such as, glitch and runt triggers). TriggerScan automates two key processes in triggering rare events:

 Trains the system by looking at normal acquired waveforms. During

the training, the oscilloscope analyzes the waveforms to determine what waveforms normally look like. Using this information, it generates a list of smart trigger setups to trigger on abnormal situations.

 Loads the smart trigger setups from the Trainer and cycles through

these. As triggers occur, they are overlaid on the screen. All acquisition settings are preserved and you can use all the functions of the oscilloscope to find the root cause of these anomalies.

Getting Started Manual

922561-00 Rev A

Training TriggerScan

The TriggerScan Trainer inspects a currently acquired waveform and automatically builds a list of common trigger setups used to find rare events.

NOTE: Run the Trainer if you want to change the trigger types or if you change the

channel or signal. You must acquire and display at least 3 cycles of a signal before running the Trainer.

1. Touch Trigger → Trigger Setup... from the menu bar.

2. On the Trigger dialog, click the TriggerScan tab.

3. Touch the Trainer button and select a source channel from the pop-

up. Also choose the types of triggers the Trainer should use to train the system and then touch the Start Training button. The training begins. When it is complete, a list of smart trigger setups is displayed in the Trigger List.

LabMaster 10 Zi Oscilloscopes

922561-00 Rev A

Starting TriggerScan

After you have run the Trainer, the Trigger List displays a list of smart trigger setups. You can add or remove trigger setups. You can also update the selected smart trigger setup. Once you have made any changes to the Trigger List, you are ready to start scanning.

1. Touch Trigger → Trigger Setup... from the menu bar.

2. On the Trigger dialog, click the TriggerScan tab.

3. If you want to add a new trigger setup, touch the Trigger tab and set

the new trigger as desired on the Trigger dialog. Then, back on the TriggerScan dialog, touch the Add New button to append the new trigger to the Trigger List.

4. If you want to replace the selected trigger setup with the current

trigger setup, highlight the setup in the Trigger List and touch the Update Selected button.

5. If you want to show a specific trigger setup on the Trigger List,

highlight its corresponding row on the list, and then touch the Load

Selected button.

Note: If you want to delete all trigger setups in the Trigger List, touch the Delete All button.

6. If you want to delete a trigger setup, highlight the setup in the Trigger

List and touch the Delete Selected button.

7. All trigger setups can be deleted regardless of selections on the

Trigger List with one step by touching the Delete All button.

8. Once you have made any changes to the Trigger List, touch the

Trainer button and then restart the scan by touching the Start Training button on the Trigger Scan Trainer pop-up. The oscilloscope automatically sequences through all the trigger setups.
