Teleco Motosat65, Motosat 85, MOTOSAT SM65, MOTOSAT SM85 Installation Manual And User's Manual

INSTALLATION GUIDE
AND USER MANUAL

UK

Information

Congratulations on your purchase! MotoSat is among the most technologically advanced
products in the field of satellite TV reception. This handbook has been prepared to provide

information on how to install, use, maintain and technical specifications your MotoSat.

For additional information, please contact your local dealer or directly the manufacturers:

TELECO s.p.a.

Via E. Majorana 49
48022 LUGO (RA)

Web site: www.telecogroup.com
Technical attendance: 899.899.856

TELECO .p.a. declines all responsibility for any errors contained in this manual. All the
contained information are up to the dates of printing and of the above-mentioned software
revisions. TELECO .p.a. reserves the right to introduce any modification made necessary by
the development of its products.

TELECO WARRANTY

Teleco guarantees its satellite dishes and terrestrial antennas against any
material and/or construction fault and defect. The warranty offered by
TELECO is limited to the free-of-charge replacement or repairing of any
parts that are deemed faulty by TELECO. The warranty is applicable for a
period of 3 YEARS starting from the product purchase date; however, it will
only be considered valid if the Customer is able to produce a written document
(invoice or tax receipt) showing the purchase date.

The following is excluded from the TELECO warranty:

a. Damages caused by incorrect installation and/or use and/or maintenance
b. Damages resulting from product alterations not authorised by Teleco
c. Damages resulting from the use of spare parts different from original

Teleco parts

d. Damages resulting from repairs carried out by personnel not

authorised by Teleco
e. Normal part wear;
f. Expenses incurred for spare parts transport between the Customer's

and the service centre
g. Damages that may occur during transport:

the Customer shall always be responsible for transport risks.

1

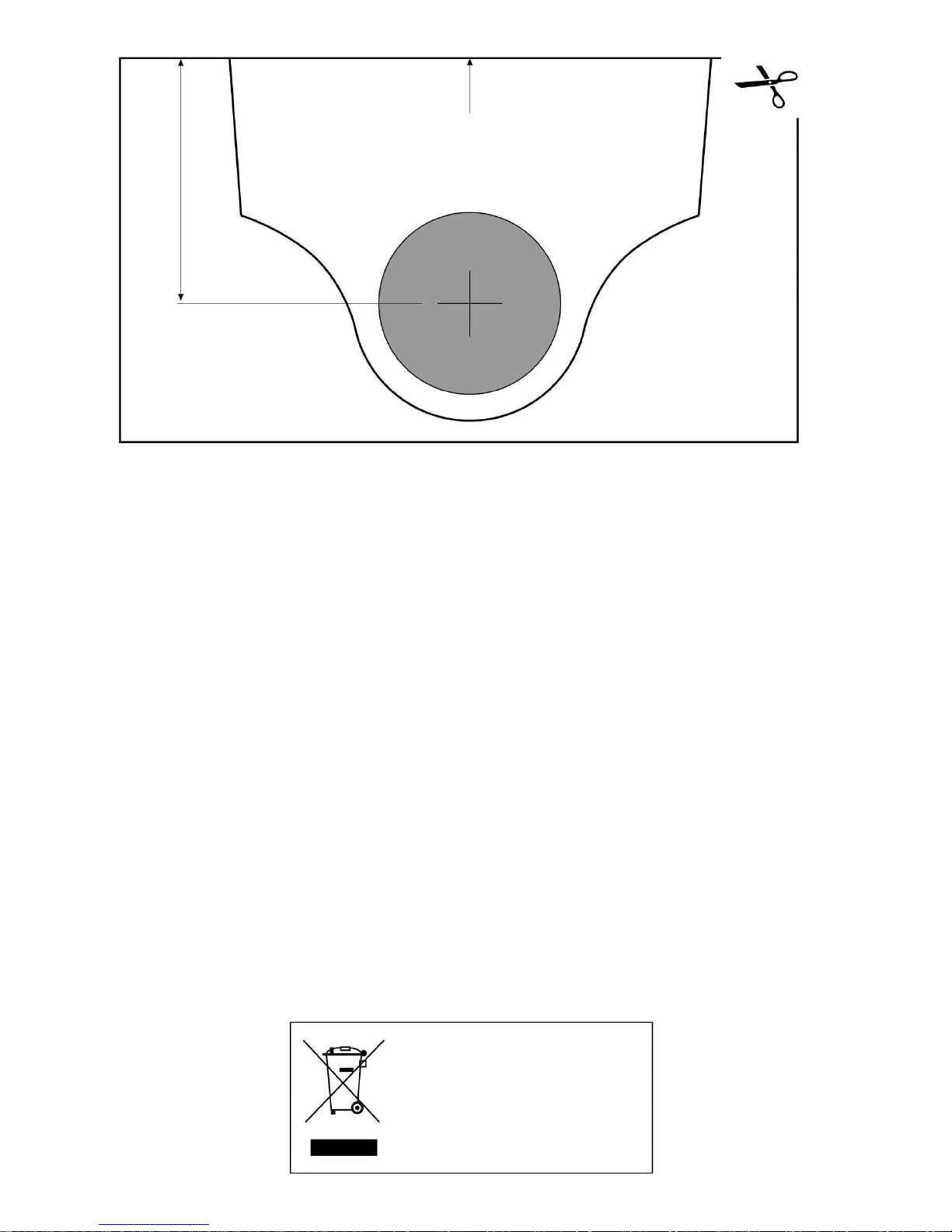

…and then drill the outside wall.

Set the drilling jig in place. Drill in the
middle of the jig (page 22)

Using a dia. 42 cutter, drill the inside
wall first…

Caution:

Mount the antenna away from the vehicle
roof edge to avoid overhanding the roof
line when travelling.

The Motosat antenna must be installed
near a vertical wall where the wall outlet
can be fitted

Installation instructions

2

Insert the mast roof mounting bracket in
the dia. 42 hole bored in the roof, making
sure you apply a layer of silicone under
the ring nut.

Fasten the ring nut using self-tapping
screws. Place the rubber gasket over the
ring nut. ( Screws not supplied )

Secure the pipe lead to the roof using
the ring nut and its wedge-shaped spacer .
Caution: the antenna must be in
horizontal position. The wedge-shaped
spacer is used to set the antenna in the
horizontal position even if the roof is
inclined.

Lock the collar on the wedge spacer
by applying the 2 screws (not supplied).

3

3,5 x 32

Introduce the
nut in its seat
on the back of
the wall outlet

Tight the locking ring nut
This mast locking device must be
screwed tight every time you wish to
secure the antenna in the desired position.
To turn or lift the mast, loosen this ring
nut.

Spread a thin film of Vaseline inside the
seal and introduce the mast

Fit the upper part of the wall outlet without
tightening all the way

Fix the outlet unit to the wall

4

Cut the antenna cable to the proper length and
apply the connector as shown on Figure. Make
sure no wire of the braiding touches the core of
the cable

Introduce the coaxial cable in the special
slot (A) and lead it out of rear bottom side
of Motosat (B)

Engage Motosat in the antenna support
tube until the tube holes are aligned with
the Motosat holes.

Fix Motosat to the antenna support tube
with the special screws.

Connect the cables as

shown in figure

Verify that the
coaxial cable
does not
obstruct the
screw hole.

Green

WhiteBrown

Coax

Receiver Sat

5

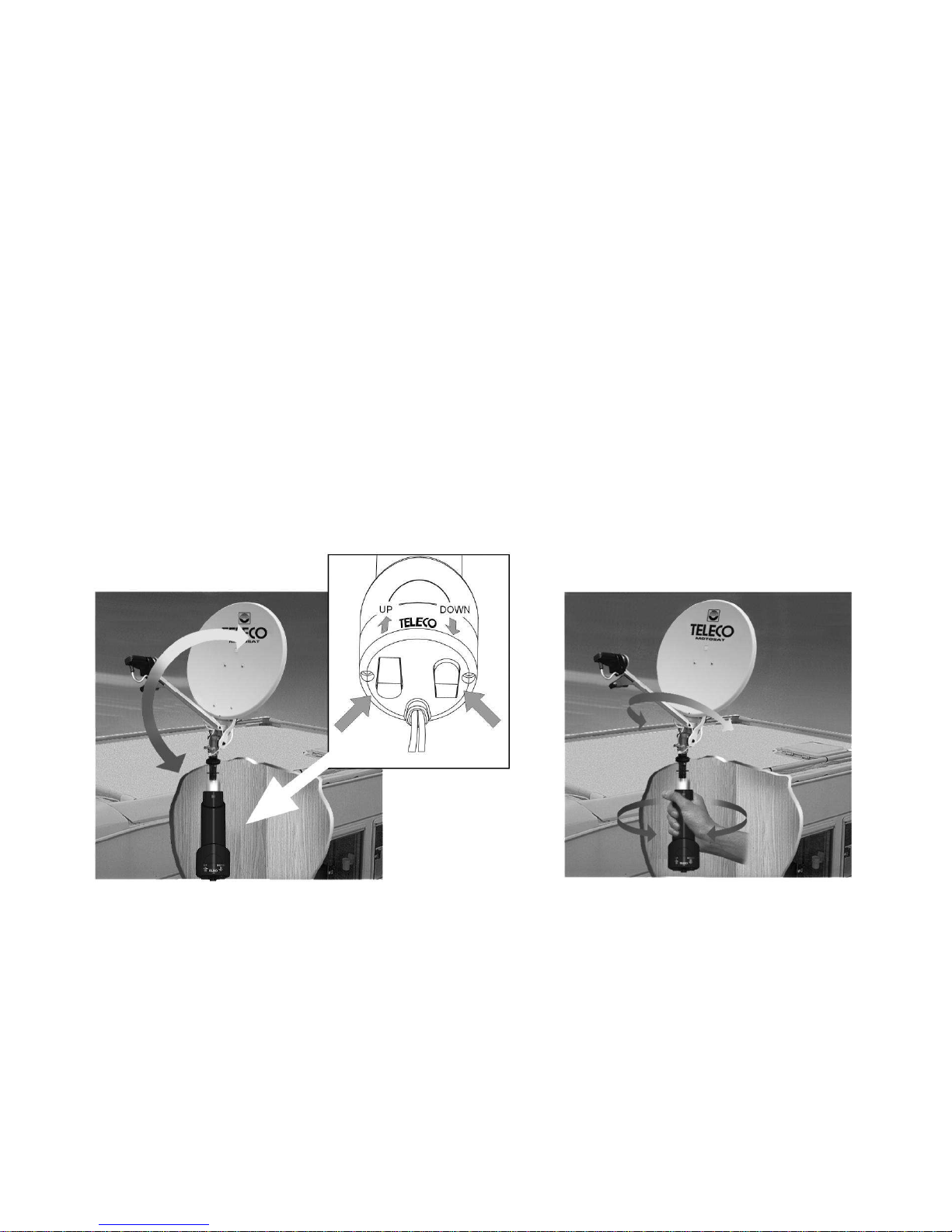

Press the UP button until a sequence of
beep sounds is obtained.

The antenna becomes automatically
positioned to facilitate installation (the
display reading is 37°).

Press the DOWN button until the
display reads OF.

Press the
DOWN button
until the display
reads OF.

Fasten the
antenna to the
arm as shown
in the figure.

6

Make sure that
the antenna is
exactly in its
stowed
position. Place
the sticker on
the mast in
such a way
that you can
quickly lock the
antenna in the
right position
before every
start.

The antenna must be absolutely installed according to fig. 24, i.e.,
the disc must be bent to the rear of the vehicle.

Check that the antenna has been
lowered to the required travelling
position (fig.24) and glue the steel
plate below the LNB shim to the
roof with jointing compound or
double-sided adhesive tape.

7

Important information for proper antenna tracking

Before performing antenna tracking operation, make sure you have positioned your vehicle
so that the view towards the South (where Satellite signals come from) is free from any nearby
obstacle (trees, houses, etc.). This way, the antenna will be free to receive signals coming
from the satellite.

RIGHT
POSITION

WRONG
POSITION

1) It is also important to know that satellites do not transmit with the same intensity throughout
Europe, so if you are outside the reception area, your Motosat search might be unsuccessful.

2) The reception areas for each Satellite can be found on the main magazines dealing in this
line of business. Also remember that the larger the dish, the more reception area is
available

3) Make sure that the vehicle battery is sufficiently charged, if the voltage drops below

11.5 volts the electronic circuit protection prevents MotoSat antenna to move.

8

1) Turn on the SAT receiver and TV set following the instructions provided by their
respective manufacturers.

2) Hold down the “UP” button until 3 beep sounds are emitted by MotoSat. The
antenna will go up to the latest stored position setting
MotoSat will automatically store the latest antenna elevation value to facilitate
pointing operations.

3) Slowly turn the mast to the south until TV signals are displayed on the screen.

4) If you haven’t been able to find a TV signal, check the elevation reached on the
display and compare it with the value shown in table 17. If necessary, use the “UP”
and “DOWN” buttons to correct elevation.

NOTE: the elevation reading on the display may be not accurate because of poor
levelling of the parked vehicle.

5) Slowly turn the mast to the right/left until TV signals are displayed on the screen.

6) To optimise reception, fine-tune both the elevation (with the “UP” and “DOWN”
buttons) and azimuth (mast).

OPERATING INSTRUCTIONS

9

TIPS FOR SUCCESSFUL SATELLITE SEARCHING

If you haven’t been able to locate a signal by following the procedure described in
points 1-6, we advise to:

7) Press the “UP” button to increase the previously set elevation (see point 4) by
2 degrees; then rotate the mast.

8) If no signal is displayed on the screen, press the “DOWN” button to decrease the
previously set elevation (see point 4) by 2 degrees; then rotate the mast.

9) Repeat the above operations alternately, lifting and then lowering the antenna
by 4 degrees with respect to the elevation value of point 4 and so on, until a signal
is received. Example of a sequence beginning with a 36 degree elevation: 36, 38,
34, 40, 32, 42, 30 etc.

To lower the antenna, hold down the
“DOWN” button until the display reads
“OF” followed by a prolonged beep sound.

If the green safety cable is connected to
the vehicle starter key (fig. 17) and the
vehicle is started with the antenna still
up, MotoSat will warn the user of the
impending danger with a long sequence
of beep sounds.

ANTENNA FOLDING

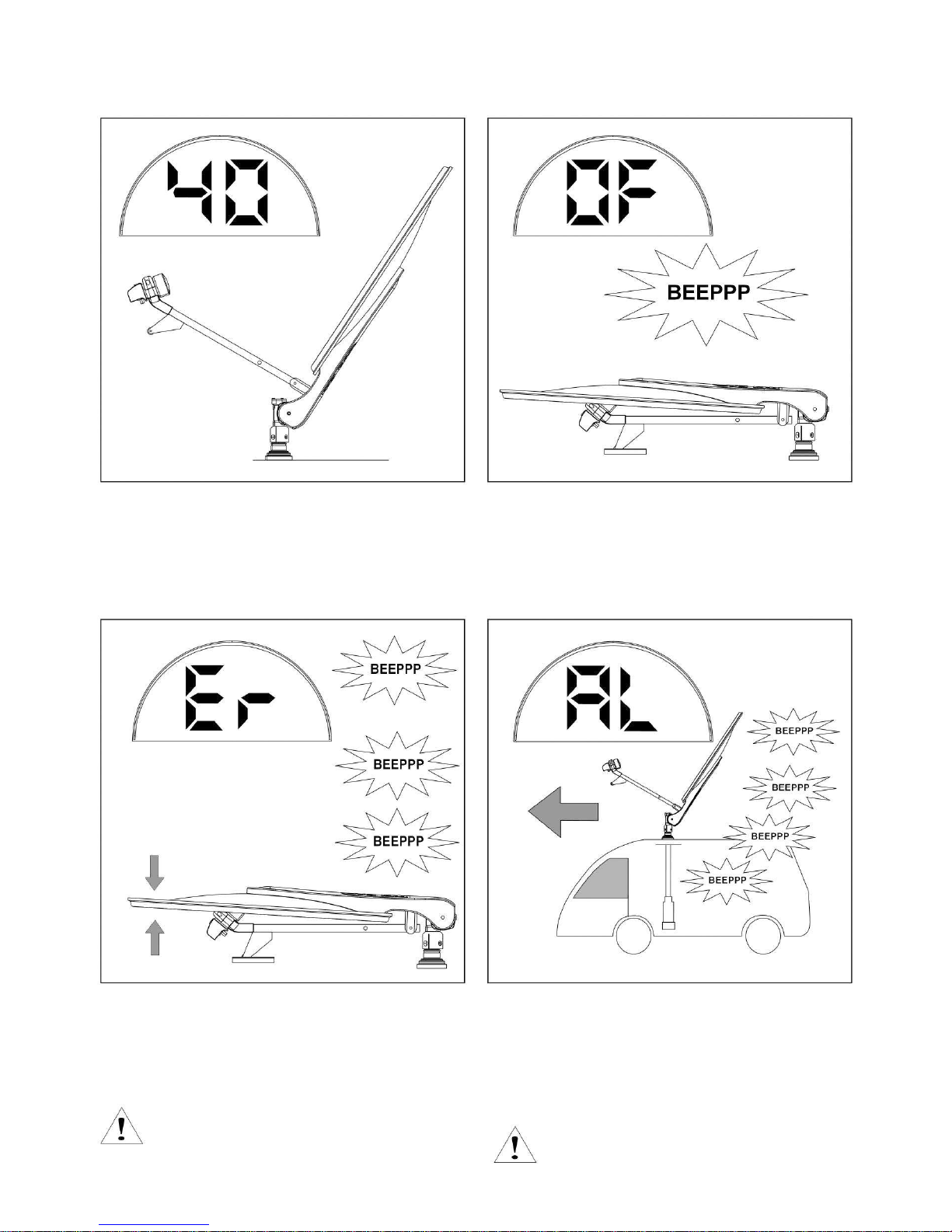

10

DISPLAY “Er”

The antenna has become locked. This
message is accompanied by 3 beep
sounds.

Remove any possible obstacle
which may block the antenna
(such as branches etc.)

With the antenna up, the display will show
the corresponding antenna elevation. The
elevation reading may be not accurate
because of poor levelling of the parked
vehicle.

DISPLAY “AL”

The vehicle has been started with an
unfolded antenna. This message is
accompanied by a long sequence of beep
sounds.

Lower the antenna pushing the
DOWN button.

DISPLAY “OF”

The antenna is folded. This message is
accompanied by a prolonged beep sound.

DISPLAY MESSAGES

11

Before starting the
vehicle, make sure you
have brought down the
antenna to its standby
position and tightened
the knob hard

Failure to comply with these conditions may result in product
degradation which the manufacturer cannot be held responsible
for.

1) It is recommended not to use the antenna under strong wind
conditions (80 km/h). Failure to comply with this condition may result
in product degradation which the manufacturer cannot be held
responsible for.

2) The manufacturer declines any liability for all degradations suffered
by the product owing to misuse.

12

LNB rotation for ideal reception in Europe’s extreme

(South-West or South-East) areas

Remember that the outside converter (a.k.a. LNB) has its own assembly position which must
be complied with. Otherwise you will not receive any signal. The pre-set mounting position
for the LNB is along the centre line of the disk (fig. A). With this configuration, the Voyager
system works correctly in most European countries. However, if you are in areas very far
from the satellite orbital position, it might be necessary to adjust the converter angle. In
particular, if you wish to receive transmissions from the satellites Astra 19E, Astra 28E or
HotBird 13E, while you find yourself in Portugal or Morocco, your converter angle should be
adjusted as shown in (fig. B), while if you are in Turkey, to receive the same satellites you
should set your converter to the position (fig. C).

Place Position HotBird 13E Astra 19E Astra 28E
Lisbona B 25° 28° 37°

Casablanca B 27° 34° 41°
Ankara C 22° 15° 5°

1) Loosen the screws on the LNB locking U-bolt

2) Turn in the Clockwise (West) or Anti-clockwise (South-East) direction

3) Lock the LNB again by screwing down the screw

13

Dish elevation maps

To correctly point the dish towards your required satellite, it is very important to tilt
the dish to the exact angle.

Check your position on the map, then set the dish elevation figure in degrees
according to the figure on the required satellite map.

The grey sections in the various maps identify the geographical areas in which LNB
adjustment may be necessary.

14

15

16

Country Town HOT BIRD ASTRA ATLANTIC TURKSAT ARABSAT

13° EST 19° EST BIRD 3 42° EST 26° EST

5° WEST

ALBANIA Tirana 42 42 36 37 42
ALGERIA Algiers 46 44 47 31 41

Costantine 47 45 45 34 43
Oran 46 43 48 29 40

AUSTRIA Innsbruck 36 35 33 28 34

Salzburg 35 35 32 28 34

Vienna 35 35 31 29 34
BALEARICS Palma 44 42 44 29 39
BELGIUM Antwerp 31 30 31 22 28

Brussels 31 30 31 22 28

Gand 31 30 31 21 28

Liege 31 30 31 23 29
BULGARIA Burgas 39 40 31 39 41

Sofia 40 41 33 37 41
CZECH
REPUBLIC Brno 33 34 30 29 33

Prague 33 32 30 27 32
DENMARK Copenhagen 27 27 25 21 26
EGYPT Alexandria 49 52 38 52 54

Cairo 50 53 38 53 55
FINLAND Helsinki 21 22 17 20 22
FRANCE Lyon 36 35 36 26 33

Marsille 39 37 38 28 36

Paris 36 35 36 26 33

Toulouse 38 37 39 26 34
GERMANY Berlin 30 30 28 24 29

Cologne 31 31 31 23 29

Hamburg 30 28 28 22 27

Munich 35 34 33 27 33

Stuttgart 34 34 33 26 32
GIBRALTAR 44 41 48 25 37
GREECE Athens 45 46 37 42 46

Iraklion 47 49 38 45 49

Patras 45 46 38 41 46

Thessalonica 42 43 35 39 43
HUNGARY Budapest 35 35 31 31 35

Pecs 37 37 32 32 36
ICELAND Reykjavik 12 11 16 2 8
ITALY Brindisi 43 43 37 37 42

Cagliari 44 43 42 33 41

Firenze 39 39 37 31 37

Milano 37 37 36 28 35

Napoli 43 43 39 35 41

Palermo 46 45 42 37 44

Roma 42 41 38 33 40

Venezia 38 37 35 30 36
LYBIA Tripoli 52 51 47 41 49
MAROCCO Casablanca 45 41 51 24 37

Fes 46 43 50 27 39

Marrakech 46 42 53 25 38

Tangiers 44 41 48 25 37
NETHERLANDS Amsterdam 30 29 29 21 27

Eindhoven 31 30 30 22 28

Rotterdam 30 29 30 21 27
NORWAY Oslo 22 22 21 17 21

trondheim 19 19 18 15 18
POLAND Cracow 32 33 28 29 32

Gdansk 28 28 24 24 28

Warsaw 29 30 25 27 30

Wroclaw 31 32 28 27 31
PORTUGAL Lisbon 40 36 45 21 32

MotoSat elevation to locate satellites in Europe

17

Country Town HOT BIRD ASTRA ATLANTIC TURKSAT ARABSAT

13° EST 19° EST BIRD 3 42° EST 26° EST

5° WEST

Porto 37 35 42 20 31
ROMANIA Bucarest 37 38 30 36 39

Timisoara 37 37 31 34 37
RUSSIA St. Petersburg 20 21 16 21 22

Moscow 23 25 16 27 26
SLOVAKIA Bratislava 35 35 31 30 34

Kosice 33 34 29 31 34
SPAIN Barcelona 41 39 42 27 36

Bilbao 40 37 42 24 34

Carthagene 44 42 46 28 38

Madrid 40 38 43 24 34

Seville 42 39 47 24 35
SWEDEN Goteborg 25 24 23 20 24

Stockholm 23 23 20 20 23
SWITZERLAND Berne 36 35 35 26 33

Geneve 36 35 36 26 33

Zurich 35 35 34 27 33
TUNISIA Tunis 47 46 44 35 44
TURKEY Ankara 39 42 29 43 43

Istanbul 40 42 31 41 43

Izmir 44 45 35 43 46
UNITED
KINDOM Belfast 28 27 27 20 25

Cardiff 31 29 31 21 27

Dublin 29 28 29 21 27

Glasgow 26 25 26 18 24

Inverness 24 23 24 17 22

Limerick 30 29 29 23 28

London 30 29 31 19 26

Manchester 27 26 29 17 24

Newcastel 26 25 27 17 23

Plymouth 32 31 32 22 29

York 27 26 28 17 24

MotoSat elevation to locate satellites in Europe

18

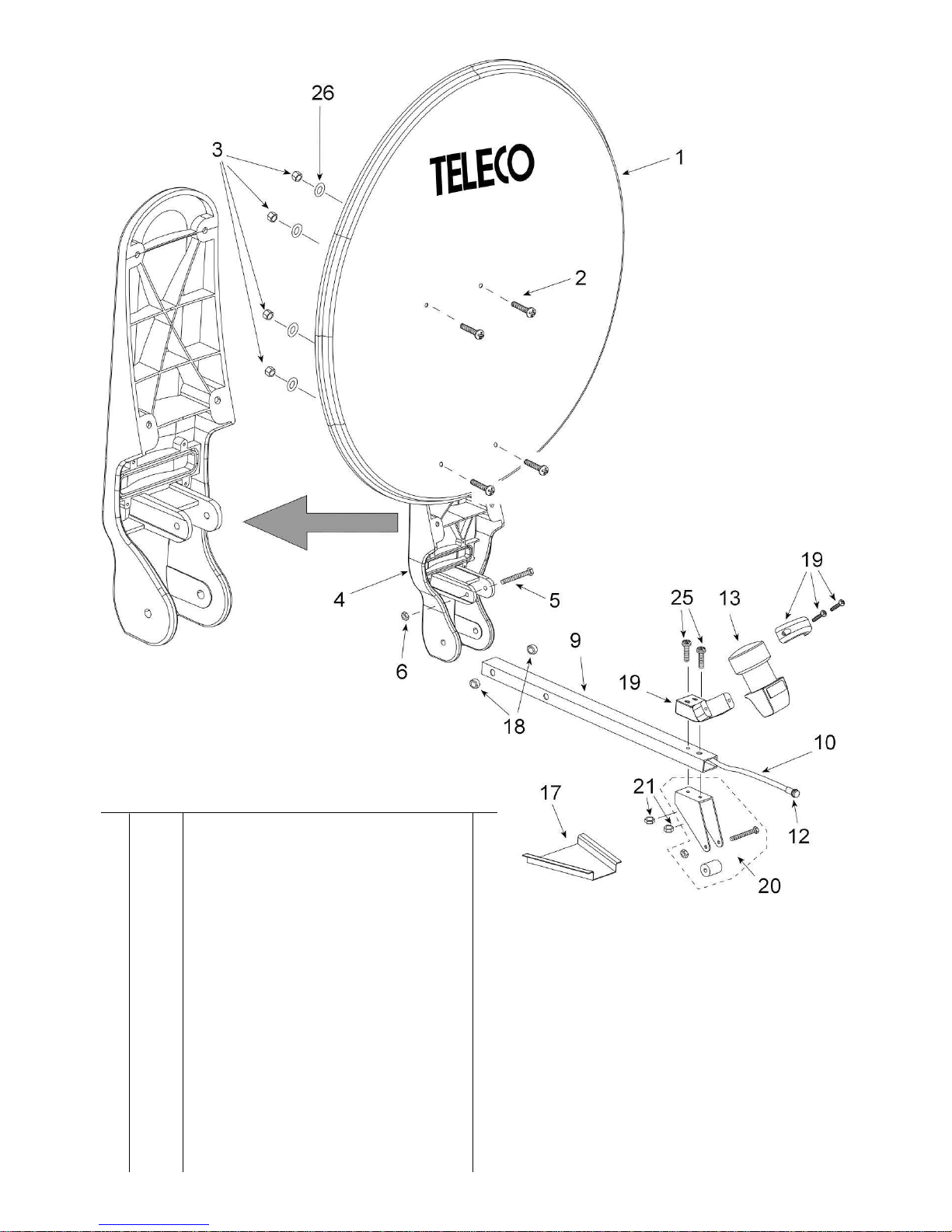

Pos. Code Description Q.ty

1 10487 Parabolic antenna D=650 mm 1,0
1 10488 Parabolic antenna D=850 mm 1,0
2 10425 Screw M5X10 UNI 7687 (650) 4,0
2 10910 Screw M6X12 UNI 7687 (850) 4,0
3 03685 Self-locking nut M5 UNI 7474 (650) 4,0
3 03684 Self-locking nut M6 UNI 7474 (850) 4,0
4 10998 Support dish arm 850 1,0
4 10757 Support dish arm 650 1,0
5 10979 Screw M6x55 UNI 5737 1,0
6 03684 Self-locking nut M6 UNI 7474 1,0
9 10561 VOYAGER 65 LNB – tube holding 1,0
9 10564 Voyager 85 LNB - tube holding 1,0
10 10361 Coaxial Cable 1,0
12 12986 F50 F connector 1,0
13 15718 LNB Stark S1 1,0
17 06132 Arm rest 1,0
18 06076 Nylon bush 2,0
19 08628 LNB Plastic Kombi-type support 1,0
20 12878 Spacer clamp with wheel 1,0
21 09015 Nut 2,0
22 09014 Screw M5x30 UNI 5732 2,0
26 15616 Flat washer D 5 4,0
26 15617 Flat washer D 6 4,0

19

Pos. Code Description Q.ty

32 05799 Arm locking dowel 2,0
33 07446 Arm locking screw 2,0
34 11200 Reduction gear 1,0
35 11805 Trilobed screws 5X15 3,0
36 03244 OR Gasket 1,0
37 07956 Fairlead skintop PG9 1,0
38 11524 gasket 1,0
39 11523 flange for pass tube 1,0
40 11526 conic inclination adapter 1,0
41 11525 Pipe lead 1,0
42 11528 conic ring nut 1,0
43 11527 locking ring nut 1,0
44 10983 Adjustment shaft 1,0
45 03605 Tear rivet 1,0
46 12972 Supporting tube 1,0
47 02125 Nut- M6x1,5 UNI 5588 1,0
48 02354 Fastening bracket 1,0
49 02018 Lock UNIT KNOB 1,0
50 02083 Self-tapping screws 4,0
51 12962 hexagonal female insert zamak 1,0
52 02075 self tapping screw M4x10 2,0
53 13027 Electric motor knob for Motosat 1,0
54 12030 Rubber gasket spring 1,0

20

CONFORMITY CERTIFICATE

The manifacturer Teleco Spa

Via Majorana nr. 49, 48022 Lugo ( RA )

Declares under its own responsibility that the following products:

MOTOSAT 65 - MOTOSAT 55

which are the subject of this certificate, conform to the following norms:

EN 60065: 2002

EN 55013: 2001 + A1: 2003

EN 61000 – 3 - 2: 2000 + A2: 2500

EN 61000 – 3 – 3: 1995 + A1: 2001 + A2: 2005

EN 55020: 2002 + A2: 2005

according to the terms of the European directive 2006/95/EC

Low Voltage ( modified by 93/68/CEE ) and

2004/108/CEE of Electromagnetic Compatibility

(modified by 92/31/CEE e 93/68/CEE )

of the European Parliament.

Lugo 31 / 08 / 2014

THE PRESIDENT
Ing. Raul Fabbri

21

Recycling: with a view to reducing
disposal of waste electrical and
electronic equipment as much as
possible, do not throw out this end of
life appliance together with other
unsorted municipal waste, but make
use of a recycling centre.

42 mm

Mounting wall

Dampen and locate on the

mounting position

Cut-out drawing in 1:1 scale

22

06/10/2014
