Teleco Flat Sat Elegance Smart 50, Flat Sat Elegance Smart 65, Flat Sat Elegance Smart 85 Installation And Operation Manual

GB

Installation and

operation manual

TELECO WARRANTY

Teleco guarantees its satellite dishes and terrestrial antennas against any
material and/or construction fault and defect. The warranty offered by
TELECO is limited to the free-of-charge replacement or repairing of any
parts that are deemed faulty by TELECO. The warranty is applicable for a
period of 3 YEARS starting from the product purchase date; however, it will
only be considered valid if the Customer is able to produce a written document
(invoice or tax receipt) showing the purchase date.

The following is excluded from the TELECO warranty:

a. Damages caused by incorrect installation and/or use and/or maintenance
b. Damages resulting from product alterations not authorised by Teleco
c. Damages resulting from the use of spare parts different from original

Teleco parts

d. Damages resulting from repairs carried out by personnel not

authorised by Teleco
e. Normal part wear;
f. Expenses incurred for spare parts transport between the Customer's

and the service centre
g. Damages that may occur during transport:

the Customer shall always be responsible for transport risks.

Information

Congratulations on your purchase! Flat Sat Elegance Smart is among the most technologically
advanced products in the field of satellite TV reception. This handbook has been prepared
to provide information on how to install, use, maintain and technical specifications your Flat
Sat Elegance Smart.

For additional information, please contact your local dealer or directly the manufacturers:

TELECO s.p.a.

Via E. Majorana 49
48022 LUGO (RA)

Web site: www.telecogroup.com
Technical attendance: 899.899.856

TELECO .p.a. declines all responsibility for any errors contained in this manual. All the
contained information are up to the dates of printing and of the above-mentioned software
revisions. TELECO .p.a. reserves the right to introduce any modification made necessary by
the development of its products.

1

TABLE OF CONTENTS Page

Information.............................................................................................................................1

List of accessories.................................................................................................................3

Installation of dish on motor unit............................................................................................4

Assembly instructions............................................................................................................5

Control Unit Installation..........................................................................................................8

Flat Sat Elegance Smart – Front view...........................................................................................9

Flat Sat Elegance Smart – Rear view........................................................................................9

Connecting the Kit with Teleco TV TY2 ...............................................................................11

LNB rotation for ideal signal reception in extreme...............................................................12

Tips on the best use of Flat Sat Elegance Smart ...............................................................14

Operating the Kit with Control Unit and TELECO TV TY2 ..................................................16

Fault display ........................................................................................................................19

Troubleshooting...................................................................................................................21

Technical specifications.......................................................................................................22

Spare parts tables ...............................................................................................................23

Installed Kit..........................................................................................................................30

Recycling: with a view to reducing disposal of waste electrical and electronic
equipment as much as possible, do not throw out this end of life appliance together
with other unsorted municipal waste, but make use of a recycling centre.

2

List of accessories

Flat Sat Elegance Smart is delivered inside a cardboard case that has been specially made
to protect it from knocks and pressure. The following accessories are supplied:

1 External motor-driven unit
2 50-65-85 cm dish
3 Universal LNB
4 Control Unit
6 Motor connecting cable extension
7 Coaxial cable extension for antenna signal
8 Power Supply Cable
10 Waterproof box to pass leads through
11 Heat-shrinking sheaths
12 Roof attachment plate
13 No. 4 Locknuts M6
14 No. 4 Screws and Locknuts
15 User’s manual and installation manual
16 Jack-Jack lead 2.0 m
17 RCA-Mini AV cable, 2.0 m long

3

Warning:

NEVER loosen the two dish arm lock
screws (A) to attach the dish as this
will result in loss of alignment with
the antenna.

YES

NO

Important notice

Flat Sat Elegance Smart is packaged in two separate cartons for transport reasons:
a) the first package contains the driving unit with all the cables, and the control box.

b) the second package only contains the dish.

• It is important to check that the dish has not been damaged during transport when the
package is opened. In particular, check the following well:

• By resting the dish edge against a flat surface (e.g. the floor or a wall) check that it makes
contact to the surface all around. If it is not so, try and make the edge level, without denting
the dish, or call our After-Sales Service.

• After checking that everything is in order, install the dish on the driving unit as follows:

1) Connect the Control Unit and the TV as described on page 11 "Connections"

2) Press the AUTO key of the TV remote control and wait (about 30 seconds) for the
dish support arm to lift up.

3) Once you have reached the desired position, disconnect the power supply cable to
switch off the Flat Sat Elegance Smart.

4) Secure the dish to the mast and screw down the four supplied screws.

5) Turn the unit on again and wait for the antenna to close.

6) Disconnect the Control Unit,
the battery and install the driving
unit on the vehicle.

4

Driving direction
of the vehicle

Flat Sat Elegance Smart 50 - 90 cm
Flat Sat Elegance Smart 65 - 140 cm
Flat Sat Elegance Smart 85 - 160 cm

Driving direction
of the vehicle

Driving direction
of the vehicle

Assembly instructions

1) On the roof of the vehicle, choose a free area large enough to allow the antenna to
revolve (Fig. 2).

2) Clean the roof carefully in the area the OUTSIDE UNIT is to be installed in.

3) Remembering that the OUTSIDE UNIT must be fastened as shown on Fig. 3, position
the base plate as shown on Fig. 4, with the short side towards the driving direction
of the vehicle.

5

When they are present, remove the transparent films from the BASE PLATE (Fig. 5).

4) Clean the lower part of the BASE PLATE carefully, applying a layer of glue on the
whole surface (e.g. SIKAFLEX).

Outside Unit Installation

1) Fasten the OUTSIDE UNIT on the base plate and lead the two cables through any of
the 4 existing grooves, according to the position as shown on Fig. 6.

WARNING: When performing this operation, do not draw the two cables forcefully, as this
might pull them out.

5) Fasten the BASE PLATE to the roof (short side towards the vehicle driving direction).

6) Apply a layer of silicone all around the BASE PLATE in order to make it completely
waterproof (Fig. 5A)

6

2) Accomodate the cables into a protection raceway up to the point where the cables go
into the vehicle, using the suitable supplied fairlead.

Seal the fairlead carefully so as to
prevent any infiltration by water

Connection with extension

WARNING The Grey and Black cables coming out of the Outside Unit are generally long

enough to allow for connection to the Control Unit. If it is not so, use the extension cables
and perform the following operations:

1) Connect the two cables coming from the centre of the OUTSIDE UNIT to the two supplied
extensions, waterproofing the connectors using the two pieces of heat-shrinking tube.

Caution:

to ensure ideal nut tightening and
prevent possible pin breaks,
tighten the nut with a torque
wrench set to 8 Newtons/metre

2) Fasten the external powered unit to the four stud
bolts of the plate, using the four nuts supplied with
the equipment.

7

Note: Install the wall-mounted control unit with the (Grey and Black) connection cables
bent as shown in the picture. This installation tip will prevent any condensation water from
flowing down the cables into your control unit electronics - damaging it beyond repair and
voiding your warranty.

Control Unit

Control Unit Installation

1) Position the Control Unit in an easy accessible, ventilated compartment.

WARNING:

Do not install the Control Unit in areas where liquids can be spilled, since this could
cause irreparable damage.

Do not install the Control Unit in very small, unventilated compartments, since
overheating could compromise its functionality and render the warranty null and void.

2) Place the control board comando in an easily accessible, visible position.

3) Install the connection cables (Grey and Black) until you reach the
OUTSIDE UNIT installation area.

8

1) F type connector – input from LNB converter of the driving unit

2) F type connector – signal output to be connected to any satellite receiver

3) B type USB connector – connection to a PC for updating purpose

4) Connector for connection to the driving unit

5) Diagnostics button (for technical staff only)

6) Connector for power supply input from battery and safety cable

7) 5 A blade fuse

8) RCA Video connector – TV output

9) Jack Connector - IR TV

Flat Sat Elegance Smart – Control Unit rear View

1) Power-on indication LED

Flat Sat Elegance Smart – Control Unit front View

9

Connection diagrams

1) Connect the grey cable (motors) to the MOTOR UNIT connector and the white coaxial
cable (antenna) to the LNB connector of the Control Unit.

2) Connect the BLACK cable of the Control Unit to the NEGATIVE POLE of the vehicle 12
Volt Battery and the RED cable to the POSITIVE POLE + (remember not to mix
the + and - poles up), using 2 cables of 2.5 mm2 cross section.

3) The GREEN safety cable of the Control Unit must be connected to Pin 15 of the vehicle
ignition key cylinder (D+). In this way, whenever the engine is started, this cable receives
a positive +12 Vdc voltage, which will automatically lower the antenna and lock all functions
of the Control Unit simultaneously.

4) Connecting the Decoder

a) Use a coax cable to connect the RECEIVER connector of the Control Unit to the

DVB-S2 input of the TV.

b) Use the RCA - Mini AV cable to connect the Video TV connector of the Control Unit to

the RCA - Mini AV input of the TV.

c) Use the jack-jack cable to connect the " IR TV " connector of the Control Unit to the " IR

Extender " connector of the TV

10

Connecting the Kit with Teleco TV TY2

Black

Green

Grey

WARNING:

The 3-way power connector (P) must only be
inserted in the 12 Vdc POWER socket.

Inserting this connector in any other socket
will cause irreparable damage to the board
and render the warranty null and void.

The GREEN safety cable of the Control
Unit must be connected to the
consensus of the vehicle startup
console (in many cases such
consensus is located on Pin 15 in the
main terminal board). In this way,
whenever the motor is started, this
cable receives a positive + 12 Vdc
voltage, which will automatically lower
the antenna and lock all functions of
the Control Unit simultaneously.

11

WARNING This technical note is to call the attention of the inst allation personnel

to certain details of Flat Sat Elegance Smart installation. During installation, you must
take the following precautions:

The power supply cable must directly come from the battery and must have no junctions.
Minimum cross section of the cable is 2,5 mm2. For cable lengths equal to or above 6 metres,
the minimum cross-section is 4 mm2. Only the Flat Sat Elegance Smart must be connected
to this cable; all the other devices must be connected to another power supply cable. The
cable connecting the driving unit to the Flat Sat Elegance Smart Control Unit must NEVER
be cut for any reason whatsoever: should the cable turn out to be too long, wind the extra
part into a coil in a free area of the vehicle. Leave a little cable in the driving unit area; should
any technical operation be required, it will make it easier to remove the driving unit.

Failure to observe these instructions shall render the Warranty null and void.

LNB rotation for ideal signal reception in extreme

(South-western or South-eastern) areas in Europe

Please be reminded that your outside low-noise block converter (LNB) has its own special
mounting position that must be maintained, otherwise you will be unable to receive any
signals. The LNB pre-defined installation position is along the dish centre line (Fig. A): in this
configuration, the Flat Sat Elegance Smart system will operate correctly in most European
countries. If, however, you happen to find yourselves very far from the orbit al position of your
required satellite, you may want to adjust your low-noise block converter angle. This is
especially true if you wish to receive satellite signals from Astra 19E, Astra 28E or HotBird
13E and you are in Portugal or Morocco: you will then have to adjust the LNB angle as shown
in fig. B, while if you happen to be in Turkey, to receive signals from the same satellites you
will have to adjust your LNB to the position shown in fig. C.

Place Position HotBird 13E Astra 19E Astra 28E
Lisbona B 25° 28° 37°

Casablanca B 27° 34° 41°
Ankara C 22° 15° 5°

12

Important information for proper
antenna tracking

1) Before performing antenna tracking
operation, make sure you have positioned
your vehicle so that the view towards the
South (where Satellite signals come from)
is free from any nearby obstacle (trees,
houses, etc.). This way, the antenna will
be free to receive signals coming from
the satellite.

2) It is also important to know that satellites do not transmit with the same intensity throughout

Europe, so if you are outside the reception area, your Flat Sat Elegance Smart search might
be unsuccessful. The reception areas for each Satellite can be found on the main magazines
dealing in this line of business. Also remember that the larger the dish, the more reception
area is available.

WRONG POSITION RIGHT POSITION

LNB tilt adjustment

1) Remove the LNB
protective cover by screwing
out the 3 screws

2) Loosen the screws on the
LNB locking U-bolt

3) Turn in the Clockwise
(West) or Anti-clockwise
(South-East) direction

4) Lock the LNB again by
screwing down the screws

5) Close back the LNB
protective cover and screw
down the 3 screws

13

Tips on the best use of Flat Sat Elegance Smart

When you park your vehicle, make sure that:

1) No obstacle (for example trees) is too near your antenna, preventing it from moving
freely. No metal or glass wall is very near (about 5 m) the antenna, since this would act
as a mirror for satellite signals and could induce the antenna to stop towards it.

2) Remove any snow or ice from the Flat Sat Elegance Smart before actuating it in order
to avoid wasting battery power.

3) If you decide to turn the engine of your vehicle on in order to re-charge its batteries,
with the safety cable connected to the ignition key, the antenna, if lifted, will come down
automatically and it will not be possible to lift it again as long as the engine is running.

4) Make sure that your batteries are always sufficiently charged, since, if the voltage falls
below 10 Volts, the Flat Sat Elegance Smart electronic safety circuit will prevent the
antenna from rising.

5) Should you use 12 Volt power supply instead of batteries, be careful to use stabilized
power supply being able to provide 5 A continuously and at least 10 A for short periods.
At all costs, avoid using low quality, non stabilized battery chargers.

6) It is recommended not to use the antenna under strong wind conditions
(80 km/h). Failure to comply with this condition may result in product degradation
which the manufacturer cannot be held responsible for.

7) Antenna closing operations, whether by user's control or automatically for
vehicle start-up, require variable time.
Before starting the vehicle, always make sure that the antenna is fully closed.

* The manufacturer declines any liability for all degradations suffered by the

product owing to misuse.

14

Flat Sat Elegance Smart

The Flat Sat Elegance Smart is a fully automatic satellite tracking system able to locate
satellites that emit both DVB-S and DVB-S2 signals.
Flat Sat Easy Classic Smart S features the “Smart” function (filed patent application)

The Smart function

With the “Smart” function all you have to do is choose the TV programme you want to watch
and the Flat Sat Elegance Smart will automatically seek out the satellite transmitting it! To
use the “Smart” function the Flat Sat Elegance Smart must be associated with a Teleco
TY2/19D, TY2/22D, TY2/24 or TY2/32 TV with incorporated satellite receiver.

Using the Flat Sat Elegance Smart

The Flat Sat Elegance Smart can be controlled using the complete remote control supplied
with the TY2 TV or the simplified 8-key TS8 remote control which can be purchased as an
optional.

1) T otal On/Off: sends the ON/OFF signal
to Control Unit and TV.

2) TV On/Off: sends the ON/OFF signal to
the TV only.

3) TV input source selection key: selects
the TV input source (DVB-T, DVBS2,
Scart, etc.)

4) Pressing any of these keys during the
satellite search phase returns you to
the receiver menu to change channel.

Remote control supplied

with the TY2 TV

Simplified 8-key TS8 remote

control (Optional)

15

Satellite search

During the satellite search, the
antenna rotates and the name of
the selected satellite is shown in
the centre of the screen.

Once the satellite has been found
the antenna stops and the words
“Sat Ok” appear.

Switching on the Flat Sat Elegance Smart

To switch on the Flat Sat Elegance Smart system press the AUTO key (1) for about 1 second.
The Control Unit and TV will come on and the initialisation process begins.

Satellite selection

The Flat Sat Elegance Smart will automatically select the satellite transmitting the programme
that has been entered on the receiver incorporated in the TV. A window with an antenna info­graphic shows how tracking is progressing.
Af ter a few second the antenna will st art rotating, indicating that satellite tracking has begun.

16

A few seconds later the satellite search menu disappears and the TV automatically displays
the channel that was selected on the DVB-S2 satellite receiver incorporated in the TV.

If you change channel on the receiver and choose a TV programme transmitted by a different
satellite, the Flat Sat Elegance Smart will immediately start searching for the new satellite.

Note: during the satellite search phase the user can return to the satellite receiver menu
simply by pressing one of the keys (4).

Note: with every search, the antenna automatically saves the coordinates of each tracked
satellite in order to speed up the process when switching from one satellite to another or if
switching the system back on after parking the antenna. Note that this memory is wiped every
time the vehicle engine is started (as long as the green safety cable is connected).

Closing the antenna with shutdown of the Flat Sat Elegance Smart

Once you have stopped watching satellite channels press key (1).
The TV displays the Control Unit menu and an info-graphic showing the antenna being closed.

Once the antenna closure procedure has been completed the message “P OK” appears.
After a few seconds the Control Unit and TV shut down automatically.

17

To switch the system back on just press the key (1) again.
Safety connection: correct connection of the green safety wire ensures that the antenna

is automatically closed and the TV switched off if the vehicle starts moving.
Make sure the green cable has been connected as indicated in the installation guide.

Using the TV to watch other sources (terrestrial digital, DVD etc.)

Use the INPUT (3) key on the remote control to select the source you intend to view on the
TV. If you decide to go back to watching Satellite channels, select the DVB-S2 source with
the INPUT (3) key of the remote control.

Viewing other sources with the antenna closed

Press the key (2) to switch on the TV: use the INPUT key (3) of the remote control to select
the source you intend to watch on the TV.

Fault display

Should any faults occur, these are displayed by the antenna animation on the TV screen.

1) Before performing antenna tracking operation, make sure you
have positioned your vehicle so that the view towards the South
(where Satellite signals come from) is free from any nearby
obstacle (trees, houses, etc.). This way, the antenna will be free
to receive signals coming from the satellite.

2) It is also important to know that satellites do not transmit with
the same intensity throughout Europe, so if you are outside the
reception area, your Flat Sat Elegance Smart search might be
unsuccessful. The reception areas for each Satellite can be found
on the main magazines dealing in this line of business. Also
remember that the larger the dish, the more reception area is
available.

18

The raising motor is jammed.

Make sure that no foreign matters hinder regular movement.

The rotation motor is jammed.

Make sure that no foreign matters hinder regular movement.

During the switch-on stage a fault occurred in the driving
motor.

Make sure that no foreign matters hinder regular movement.

19

Troubleshooting for Kit with control unit and TELECO TV TY2

If the control unit does not turn on by pressing the button (1) check the following:

a) Are the RED and BLACK cables properly connected to the battery? The RED cable must

be on the + pole, the BLACK cable on the - pole. Should you have mixed up the cables,
first disconnect them, replace the safety fuse on the back of the control unit using a similar
one (5 A), then re-connect the RED and BLACK cables properly to the battery.

b) Is the engine of your vehicle running? Turn it off, since this means the safety system

which keeps the antenna down is operating.

c) Have the connections been properly made? Check the connections in the installation

manual.
d) Are the remote control batteries properly charged?
e) Is the control unit MIR visible and are you directing the remote control towards the MIR?
f) Is the TV on?

If the control unit turns on by pressing the button (1) but the TV does not:

a) Make sure that the TV is part of the Kit and that the connections described in the installation

manual have been made properly.
b) Is the TV on?

If the Flat Sat Elegance Smart has not found the satellite after a complete search, check

the following:
a) Is the view towards the South free from any obstacle?
b) Is the place you are at within the reception area (footprint) of the satellite you have

chosen?
c) Is the cable connecting the LNB to the antenna firmly fastened? It could have been ripped

off or come loose because of contact with an unexpected obstacle.
d) Are all the connections on the control unit properly set up? Make sure that the white coax

cable coming from the outside powered unit is connected to the LNB connector of the

control unit.

If, when the satellite search is over, the TV screen is black, check the following:

a) Is the RCA-Mini AV cable connected between the Video TV of the control unit and

the Mini-AV IN of the TV? Connect it as indicated in the Installation manual.
b) Is the TV off? Turn it on by pressing the button (2) on the remote control,

If, when the satellite search is over, the message “No Signal” is displayed on the TV

screen or if the TV screen is jammed, check the following:

a) Have you connected the RECEIVER output of the control unit to the DVB-S2 input of the

TV via a coax cable? Connect it as indicated in the installation manual.

20

Technical specifications

SPECIFICATIONS

Search system Fully automatic, NID recognition according to the

DVB-SI EN 300 468 specifications with DVBS2 tuner.
Satellites which can be set 10
Extensions USB 1.0 Port

MISCELLANEA

Power Supply 12Vdc ( 10 - 15 Vdc )
Absorbed current 5 A max.
Current in stand-by < 10 mA
Fuse 5 A
Dimensions 160 x 187 x 58 mm (Control Unit)

Weight

Control Box: ~1 kg
external driving unit: Flat Sat Elegance Smart 50: ~8,8 kg

Flat Sat Elegance Smart 65: ~9,0 kg

Flat Sat Elegance Smart 85: ~10,8 kg

21

Flat Sat Elegance Smart 50

22

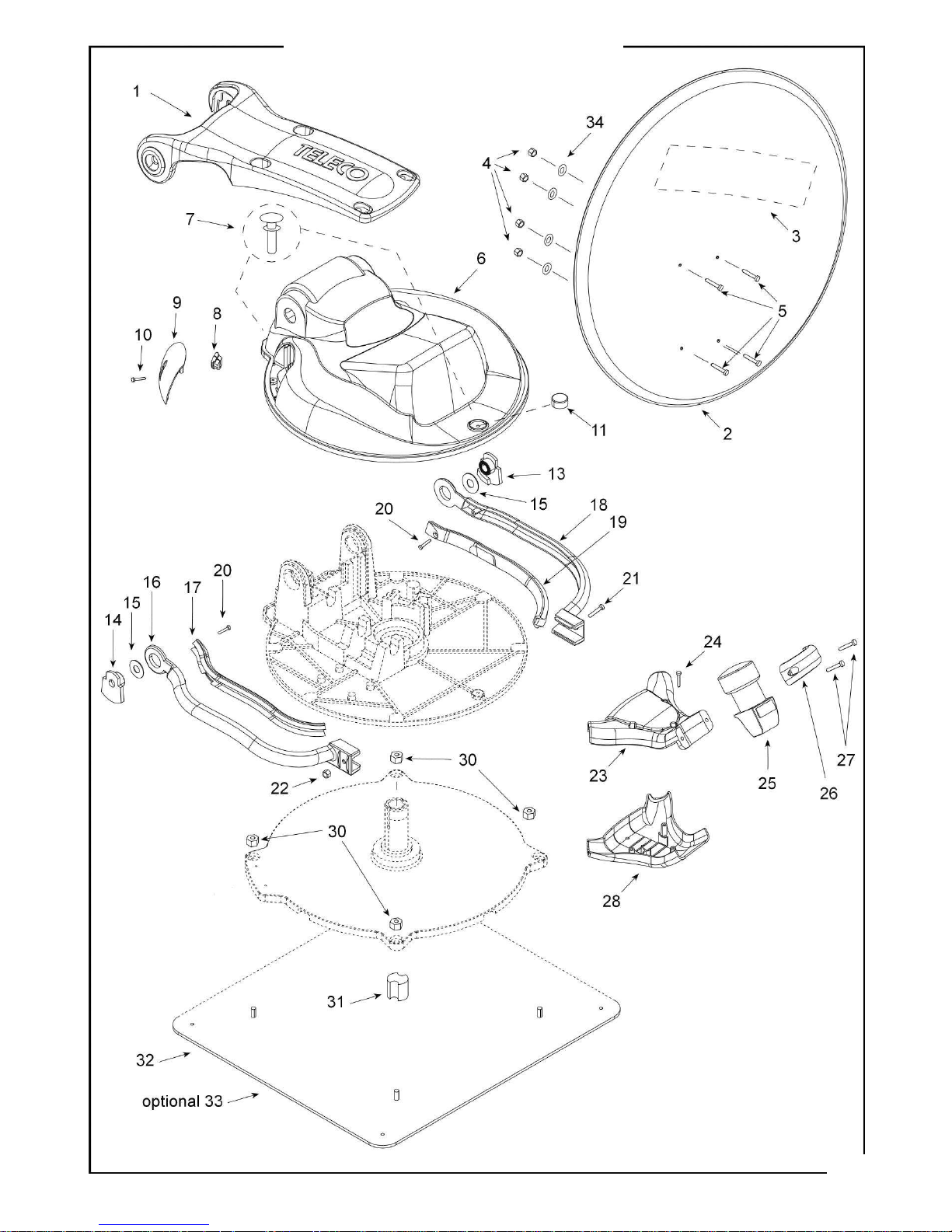

Flat Sat Elegance Smart 50

Pos Code Q.tà Description
1 11491 N.1 Dish support mast - 50

2 06681 N.1 Parabolic antenna D=500 mm
3 13721 N.1 Flat Sat Elegance Smart 50 Dish sticker
4 03685 N.4 Self-locking nut M5 UNI7474
5 10425 N.4 Screw M5x10 UNI 7687 INOX
6 10533 N.1 Engine cover
7 10442 N.2 Self-locking rivet SR-5105-W
8 11008 N.1 Hole grommet
9 10534 N.1 Motor cover door
10 10384 N.1 Self-tapping screw M2.9x9.5 UNI 6954
11 11009 N.1 LNB rubber support
13 10543 N.1 LNB mast right-hand insert - 50/65
14 10544 N.1 LNB mast left-hand insert - 50/65
15 13316 N.2 Flat washer D22x30x0,5
16 10902 N.1 LNB left-hand mast
17 10542 N.1 LNB mast left-hand cable cover
18 10903 N.1 LNB right-hand mast
19 10541 N.1 LNB mast right-hand cable cover
20 10781 N.2 Self-tapping screw M2.9x9.5 TPSV
21 03682 N.1 Screw M5x40
22 09015 N.1 Nut M5 DIN 6923
23 10536 N.1 LNB tube cover top - 50
24 10782 N.3 Self-tapping screw M3.9x25
25 15718 N.1 LNB Stark S1
26 10283 N.1 LNB stop U-bolt
27 11087 N.2 Screw M4x16 UNI 5739
28 10535 N.1 LNB tube cover bottom - 50
30 03684 N.5 Self-locking nut M6 UNI 7474
31 11162 N.1 Plastic cable-locking split pin
32 10693 N.1 Base fixing 45x40 plate
33 10395 N.1 Base fixing 60x60 plate
34 15616 N.4 Flat washer D 5

23

Flat Sat Elegance Smart 65 85

24

Flat Sat Elegance Smart 65 85

Pos Code Q.tà Description
1 11440 N.1 Dish support mast - 65/85

2 03676 N.1 Parabolic antenna D=650 mm
2 07364 N.1 Parabolic antenna D=850 mm
3 13721 N.1 Flat Sat Elegance Smart 65/85 Dish sticker
4 03684 N.4 Self-locking nut M6 UNI 7474
5 10910 N.4 Stainless stell screw M6X12
6 10533 N.1 Engine cover
7 10442 N.2 Self-locking rivet SR-5105-W
8 11008 N.1 Hole grommet
9 10534 N.1 Motor cover door
10 10384 N.1 Self-tapping screw M2.9x9.5 UNI 6954
11 11195 N.1 LNB rubber support
13 10543 N.1 LNB mast right-hand insert - 50/65
13 10531 N.1 LNB mast right-hand insert - 85
14 10544 N.1 LNB mast left-hand insert - 50/65
14 10532 N.1 LNB mast left-hand insert - 85
15 13316 N.2 Flat washer D22x30x0,5
16 10902 N.1 LNB left-hand mast
17 10542 N.1 LNB mast left-hand cable cover
18 10903 N.1 LNB right-hand mast
19 10541 N.1 LNB mast right-hand cable cover
20 10781 N.2 Self-tapping screw M2.9x9.5 TPSV
21 03682 N.1 Screw M5x40
22 09015 N.1 Nut M5 DIN 6923
23 10540 N.1 LNB tube cover top - 85
23 10538 N.1 LNB tube cover top - 65
24 10548 N.1 LNB box top
25 11010 N.1 Rubber support for LNB box top
26 10782 N.4 Self-tapping screw M3.9x25
27 10408 N.2 Self-tapping screw M3.9x22
28 15718 N.1 LNB Stark S1
29 10283 N.1 LNB stop U-bolt
30 11087 N.2 Screw M4x16 UNI 5739
31 10843 N.1 LNB holder tube - 85
31 10842 N.1 LNB holder tube - 65
32 10537 N.1 LNB tube cover bottom 65
32 10539 N.1 LNB tube cover bottom 85
33 10547 N.1 LNB box bottom
34 11011 N.1 Rubber support for LNB box bottom
35 10783 N.1 Self-tapping screw M3.9x13
37 03684 N.5 Self-locking nut M6 UNI 7474
38 11162 N.1 Plastic cable-locking split pin
39 10693 N.1 Base fixing 45x40 plate
40 10395 N.1 Base fixing 60x60 plate
41 15617 N.4 Flat washer D 6

25

26

Tav 2

Pos Code Q.tà Description
1 11161 N.2 Wiper motor

2 04761 N.2 Waterproof microswitch
3 05086 N.4 Screw M3x20 galvanized
4 06817 N.4 Flat washer D=3 UNI6592 galvanized
5 11088 N.2 Screw M4x8 galvanized
6 12945 N.1 Connector strip
7 05807 mt. 3,6 Coax cable RG 58
8 12294 N.1 10-core 2,5mt Motor cable w/connector
10 12699 N.1 FF13 double female jack
11 15077 N.2 F50 F connector

27

Pos Code Q.tà Description
1 15922 N.1 Control unit lid

2 15923 N.1 Control unit bottom
3 09835 N.4 Black rubber foot
5 15632 N.1 T0215 board Smart

Pos Code Q.tà Description
6 09705 N.1 5A Fuse

7 01458 N.8 Support
9 09318 N.1 Power supply cable
10 15921 N.1 T0331 board Smart
12 13764 N.1 Cable Jack-Jack 2,0 mt.
13 14707 N.1 RCA-Mini AV cable, 2.0 m long

28

Pos Code Q.tà Description
1 05950 N.1 3 m coax cable F/F.connector

2 03598 N.1 Shrink-wrap sheath
3 03597 N.1 Shrink-wrap sheath
4 09300 N.1 10-core 3mt engine unit cont. cable w/connector
5 10969 N.1 Cable cover abs
6 13190 N.1 PG completo di gommino 2 cavi
7 07883 N.1 9 m coax cable F/F.connector
8 08998 N.1 2 m coax cable F/F.connector
9 07294 N.1 5 m coax cable F/F.connector
10 09765 N.1 10-core 2mt engine unit cont. cable w/connector
11 09302 N.1 10-core 9mt engine unit cont. cable w/connector
12 09301 N.1 10-core 5mt engine unit cont. cable w/connector
13 11109 N.1 professional aluminium fairlead complete with PG 21 with gasket for 2 cables

29

Installed Kit

CONFORMITY CERTIFICATE

The manifacturer Teleco Spa

Via Majorana nr. 49, 48022 Lugo ( RA )

Declares under its own responsibility that the following products:

Flat Sat Elegance Smart 50 - Flat Sat Elegance Smart 65

Flat Sat Elegance Smart 85

which are the subject of this certificate, conform to the following norms:

EN 60065: 2002

EN 55013: 2001 + A1: 2003

EN 61000 – 3 - 2: 2000 + A2: 2005

EN 61000 – 3 – 3: 1995 + A1: 2001 + A2: 2005

EN 55020: 2002 + A2: 2005

according to the terms of the European directive 2006/95/EC

Low Voltage ( modified by 93/68/CEE ) and

2004/108/CEE of Electromagnetic Compatibility

(modified by 92/31/CEE e 93/68/CEE ) of the European Parliament.

Lugo 31 / 07 / 2014

THE PRESIDENT

Ing. Raul Fabbri

30

29 - 10 - 2014
