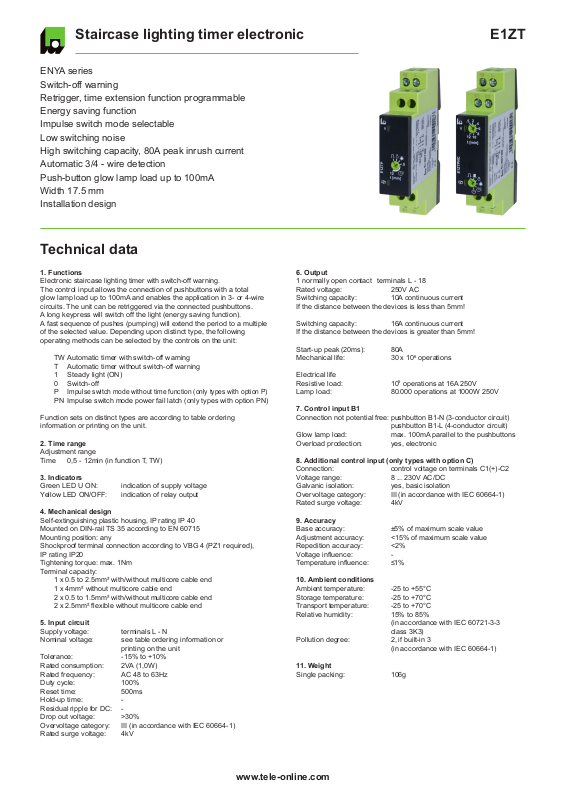

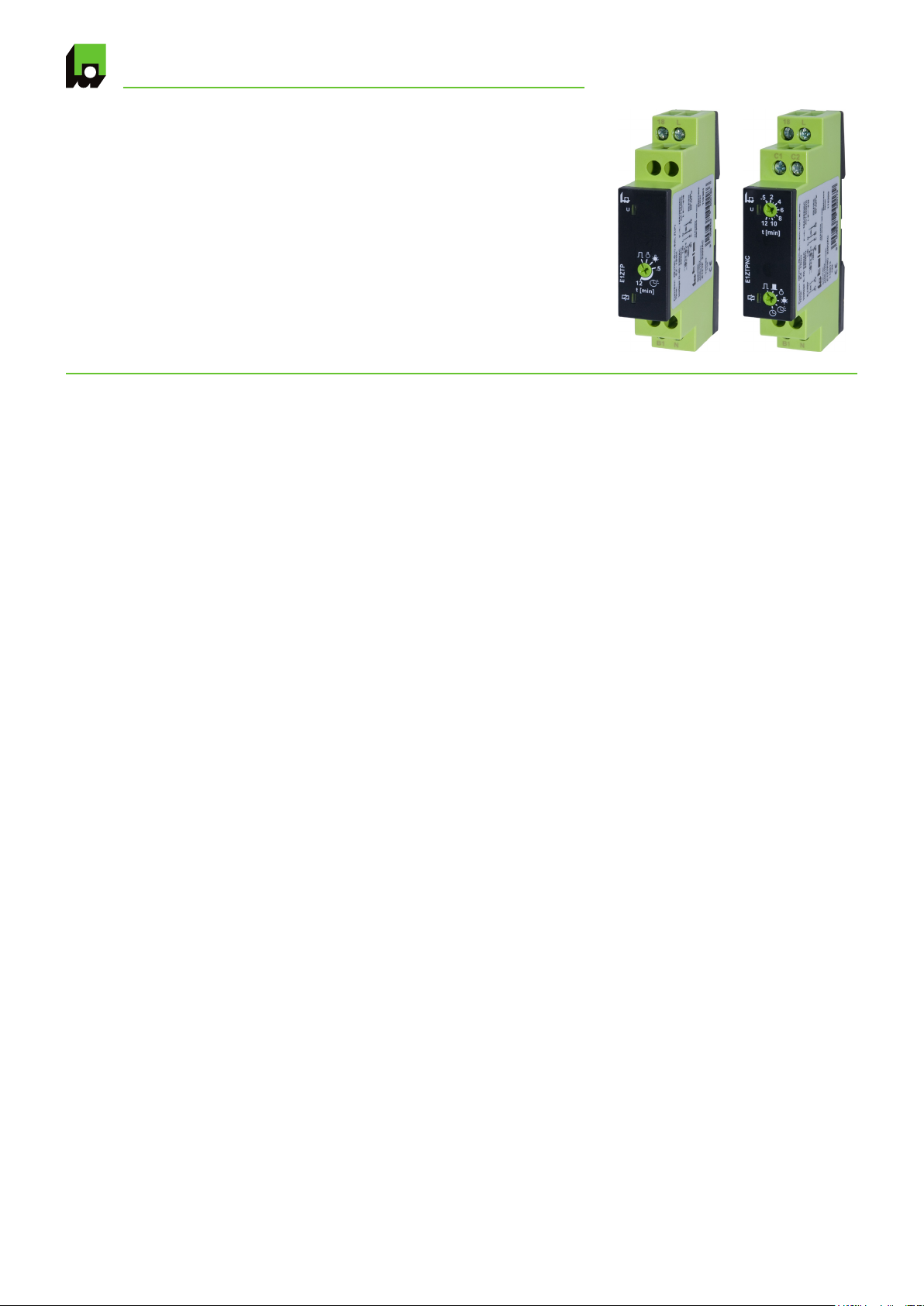

Staircase lighting timer electronic

ENYA series Switch-off warning Retrigger, time extension function programmable Energy saving function Impulse switch mode selectable Low switching noise High switching capacity, 80A peak inrush current Automatic 3/4 - wire detection Push-button glow lamp load up to 100mA Width 17.5 mm Installation design

Technical data

E1ZT

1. Functions

Electronic staircase lighting timer with switch-off warning. The control input allows the connection of pushbuttons with a total glow lamp load up to 100mA and enables the application in 3- or 4-wire circuits. The unit can be retriggered via the connected pushbuttons. A long keypress will switch off the light (energy saving function). A fast sequence of pushes (pumping) will extend the period to a multiple of the selected value. Depending upon distinct type, the following operating methods can be selected by the controls on the unit:

TW Automatic timer with switch-off warning T Automatic timer without switch-off warning 1 Steady light (ON) 0 Switch-off P

Impulse switch mode without time function (only types with option P)

Impulse switch mode power fail latch (only types with option PN)

Function sets on distinct types are according to table ordering information or printing on the unit.

2. Time range

Adjustment range Time 0,5 - 12min (in function T, TW)

3. Indicators

Green LED U ON: indication of supply voltage Yellow LED ON/OFF: indication of relay output

4. Mechanical design

Self-extinguishing plastic housing, IP rating IP 40 Mounted on DIN-rail TS 35 according to EN 60715 Mounting position: any Shockproof terminal connection according to VBG 4 (PZ1 required), IP rating IP20 Tightening torque: max. 1Nm Terminal capacity: 1 x 0.5 to 2.5mm² with/without multicore cable end 1 x 4mm² without multicore cable end 2 x 0.5 to 1.5mm² with/without multicore cable end 2 x 2.5mm² flexible without multicore cable end

5. Input circuit

Supply voltage: terminals L - N Nominal voltage: see table ordering information or printing on the unit Tolerance: -15% to +10% Rated consumption: 2VA (1,0W) Rated frequency: AC 48 to 63Hz Duty cycle: 100% Reset time: 500ms Hold-up time: Residual ripple for DC: Drop out voltage: >30% Overvoltage category: III (in accordance with IEC 60664-1) Rated surge voltage: 4kV

6. Output

1 normally open contact terminals L - 18 Rated voltage: 250V AC Switching capacity: 10A continuous current If the distance between the devices is less than 5mm!

Switching capacity: 16A continuous current If the distance between the devices is greater than 5mm!

Start-up peak (20ms): 80A Mechanical life: 30 x 106 operations

Electrical life Resistive load: 105 operations at 16A 250V Lamp load: 80.000 operations at 1000W 250V

7. Control input B1

Connection not potential free: pushbutton B1-N (3-conductor circuit) pushbutton B1-L (4-conductor circuit) Glow lamp load: max. 100mA parallel to the pushbuttons Overload prodection: yes, electronic

8. Additional control input (only types with option C)

Connection: control voltage on terminals C1(+)-C2 Voltage range: 8 ... 230V AC/DC Galvanic isolation: yes, basic isolation Overvoltage category: III (in accordance with IEC 60664-1) Rated surge voltage: 4kV

9. Accuracy

Base accuracy: ±5% of maximum scale value Adjustment accuracy: <15% of maximum scale value Repedition accuracy: <2% Voltage influence: -

Temperature influence: ≤1%

10. Ambient conditions

Ambient temperature: -25 to +55°C Storage temperature: -25 to +70°C Transport temperature: -25 to +70°C Relative humidity: 15% to 85% (in accordance with IEC 60721-3-3 class 3K3) Pollution degree: 2, if built-in 3 (in accordance with IEC 60664-1)

11. Weight

Single packing: 106g

www.tele-online.com

Page 2

E1ZT

B1 N

8-230V AC/DC

B1 N

C1 C2

B1 N

8-230V AC/DC

B1 N

17,5mm

44mm

60mm

87mm 45mm

5mm

3t <2s

>2s

<2s

>2s

15s 10s 5s

TW T

Switch ON

Retrigger

Time extension function (pumping)

Switch OFF

C1-C2

<2s

>2s

<2s

C1-C2

<2s

>2s

<2s

Mode

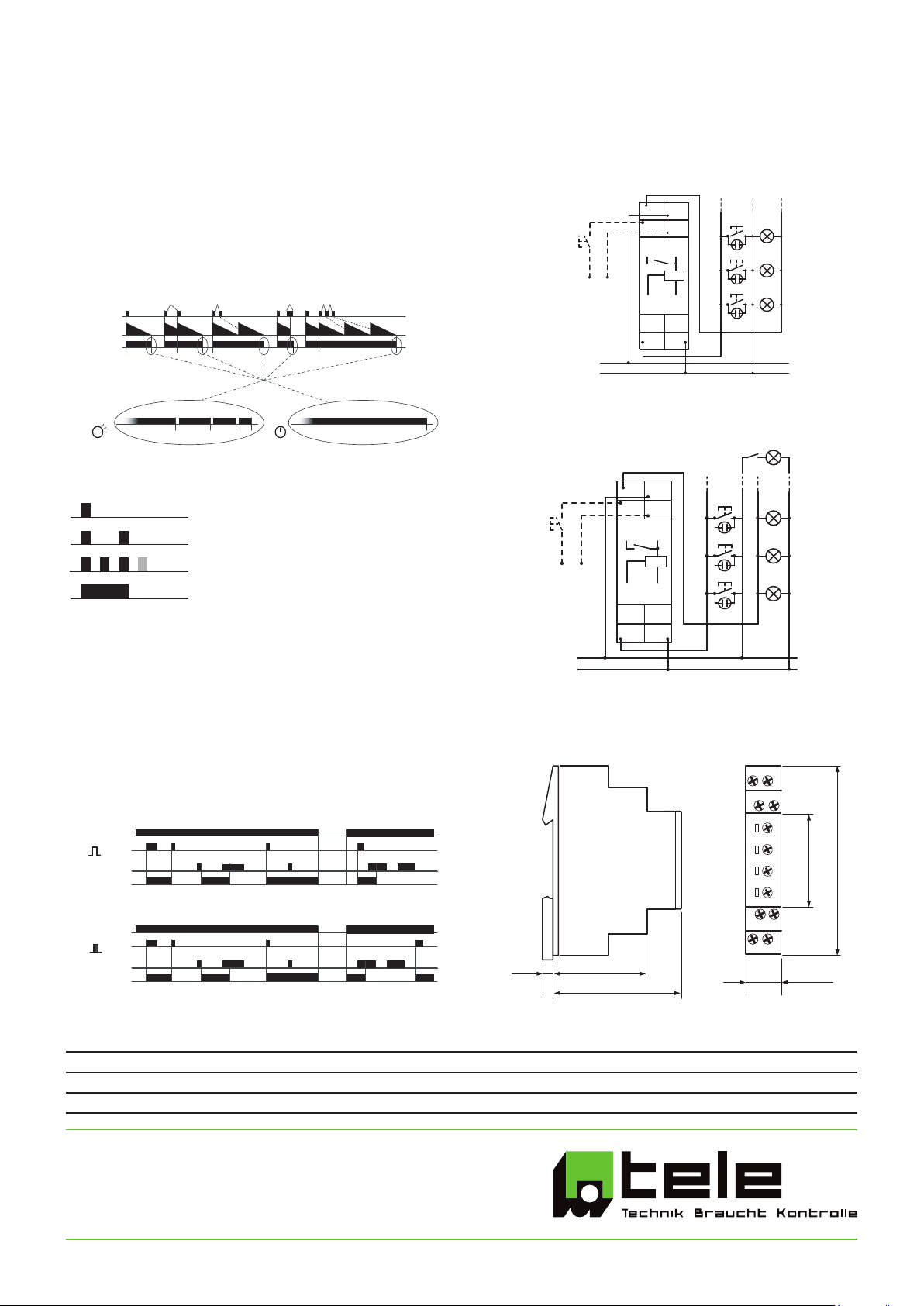

Functions

Function automatic timer (T, TW): After the pushbutton at B1 has been

pressed, the output relay R closes (terminals L-18) and the set interval t begins. If the pushbutton is pressed again before the interval t has expired, the interval begins again (restart function complies with EN 60669-2-3). Rapid, multiple pressing of the pushbutton (pumping) adds 2, 3 or more time intervals to extend the time up to 60min. Prolonged pressure on the button (>2s) aborts the interval running and switches the relay off (energy saving function). In the TW mode the device provides a switch-off warning (in accordance with DIN 180-158-2) by generating

short pulses (ashing) at 30s, 15s and 5s prior to switch-off.

Operating possibilities at B1 in mode T and TW:

Connections

3-wire-circuit

4-wire-circuit with attic illumination

The additional control input C1-C2 can be used in the T and TW modes to control the staircase lighting timer with a voltage of 8 to 230V AC/DC. This input can be used to start and restart the cycle. It cannot be used for switchoff (energy saving function) or for programming long intervals (pumping).

Impulse switch mode (P), (PN): n this mode, every keypress toggles

the output relay R (ip-op). In function P, the output relay R remains in

off-position, whenever the supply voltage is applied. In function PN, the

Dimensions

output relay R switches into on-position after applying the supply voltage U, if the output relay R was in on-position last before power failure. The output relay R switches into on-position, if a short voltage impulse (<2s) is applied to the additional control input (C1-C2). (central ON) A longer voltage impulse (>2s) opens the output relay R. (central OFF)

Ordering Informations

Types Functiones Supply Voltage Part. No.

E1ZTP 230V AC TW, 1, 0, P 230V AC 110301

E1ZTPNC 230V AC T, TW, 1, 0, P, PN 230V AC 110300

RELEASE 2009/07

Subject to alterations and errors
