Teldat ESCG0408 UserMan
ESCG
802.11 a/b/g
WLAN-Client Adaptor and Bridge
Manual
ESCG Manual Version 2.15
1
Content:
Overview ............................................................................................................................................................ 3
Technical features:......................................................................................................................................... 5
WLAN - Interface:........................................................................................................................................... 5
First Time Setup ................................................................................................................................................ 6
The ESCG-Config Program ........................................................................................................................... 6
Reset to factory default .................................................................................................................................. 7
Parameter setting via WEB interface................................................................................................................. 7
Information page ............................................................................................................................................ 7
Access Point page ......................................................................................................................................... 9
Security page ............................................................................................................................................... 11
Admin page .................................................................................................................................................. 12
Advanced page ............................................................................................................................................ 13
Cloning ..................................................................................................................................................... 13
Advanced bridging.................................................................................................................................... 13
Roaming ................................................................................................................................................... 13
Ethernet Port ............................................................................................................................................ 13
DHCP-Relay-Agent .................................................................................................................................. 13
Serial interface setup ................................................................................................................................... 15
Comment to the multicast settings ........................................................................................................... 16
Power supply connector............................................................................................................................... 19
Pictures:
Illustration 1 Block schematic ............................................................................................................................ 3
Illustration 2 Connections and LEDs ................................................................................................................. 4
Illustration 3 arrangement to configure the ESCG............................................................................................. 6
Illustration 4 screenshot of the ESCG-Config-Program..................................................................................... 6

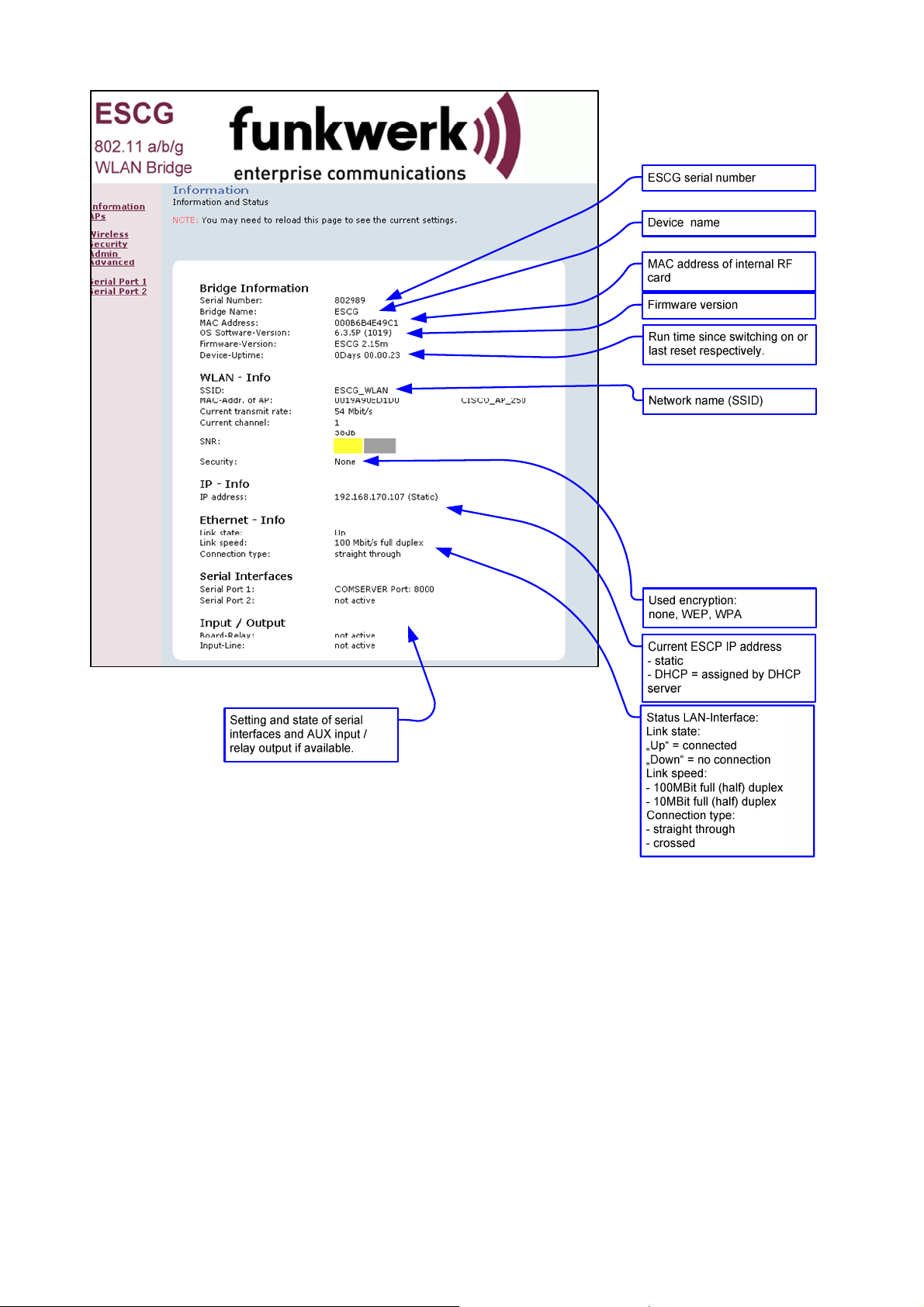

Illustration 5: Information page .......................................................................................................................... 8
Illustration 6: Access Point page ....................................................................................................................... 9

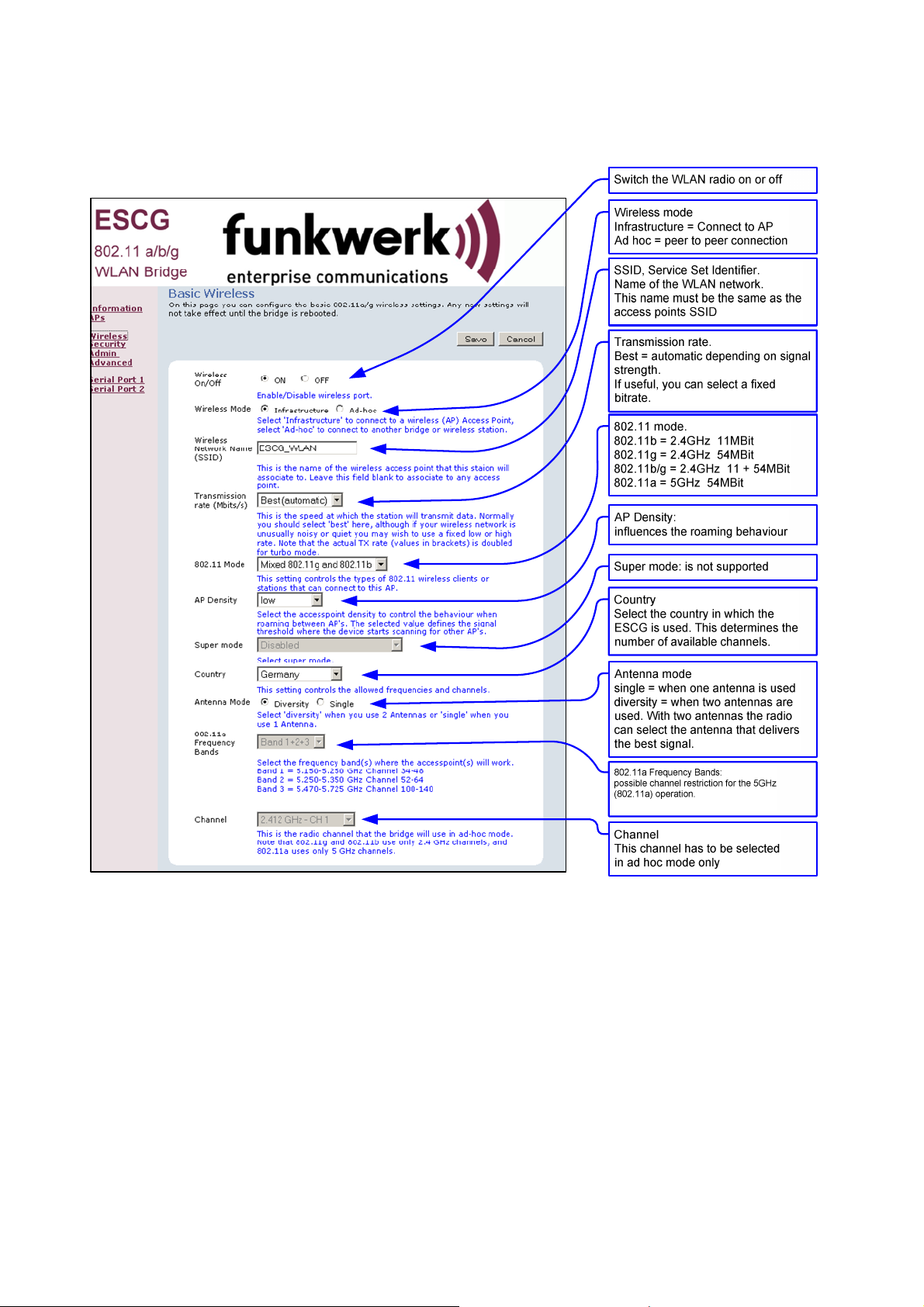

Illustration 7: Wireless page............................................................................................................................. 10
Illustration 8: Security page ............................................................................................................................. 11
Illustration 9: Administration page ................................................................................................................... 12
Illustration 10: Advanced page ........................................................................................................................ 14
Illustration 11: Windows TCP/IP port monitor.................................................................................................. 15
Illustration 12: Multicast-mode......................................................................................................................... 16
Illustration 13: Serial interface setup ............................................................................................................... 18

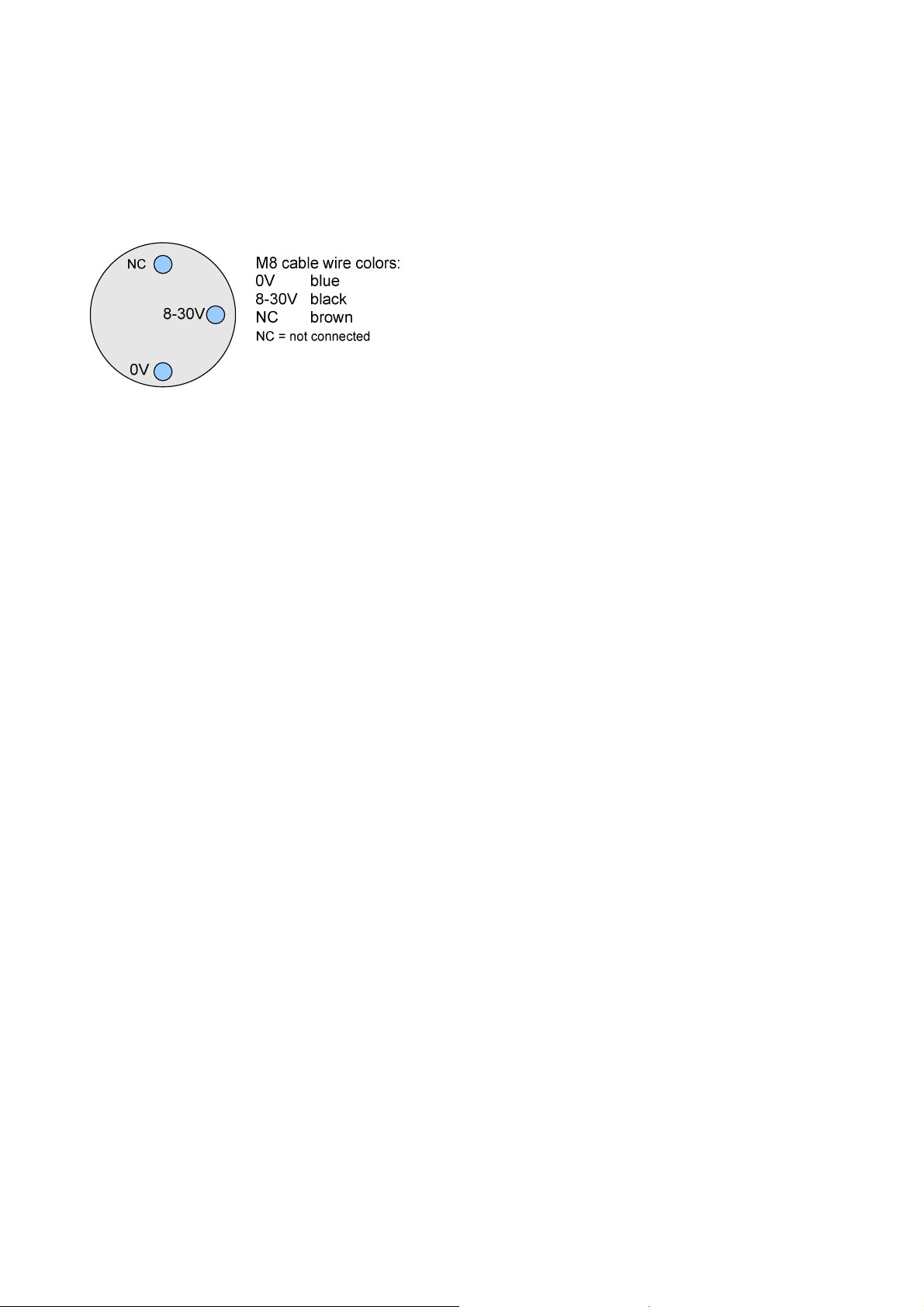

Illustration 14 Power supply connector............................................................................................................ 19
ESCG Manual Version 2.15
2
Overview
The ESCG is intended to connect devices with ethernet or serial interfaces to a Wireless Local Area Network
(WLAN) corresponding to the 802.11 a/b/g standard. The ESCG connects over the ethernet interface all
devices in its LAN segment with a LAN that is accessible over WLAN.
The ESCG can receive and transmit data over its serial port which are exchanged over LAN or WLAN with
other devices, i.e. annother ESCG or a computer with a suitable software.
Functional blocks:
Illustration 1 Block schematic
The core of the ESCG is a 32bit network processor that controls all functions.
The interfaces:
1) Mini-PCI-Socket
2) Ethernet-Interface 10/100 MBit + auto MDI (auto crossover function)
3) 1 or 2 serial interfaces with 6 status lines each
4) optional: Relay contact and AUX input with optocouple
ESCG Manual Version 2.15
3
The ethernet port has a RJ45 input. Because of the auto MDI functionality the ESCG can be attached to a
HUB or the LAN port of a computer with standard patch cables. The ESCG recognizes the cable polarity and
automatically connects the right signal lines.
The serial port is a 9 pin female D-SUB connector. The pinout makes it possible to connect to a computer
COM port with a 1 to 1 serial cable, the exact pinout is shown in Illustration 1 above.
The power supply should be 8 – 30VDC / 3W. At 12VDC the input current is 250mA.
Back and front view:
Illustration 2 Connections and LEDs
LED Function
On
WLAN
LAN
Ser1 (2)
Green always on when power is on
Red blinking searching for RF-connection (scanning)
Steady green found a suitable Access-Point and established
a connection
Green blinking 802.1x Authentification is in process
Green + red blinking
RF activity (receive or transmit)
Off no link is recognized
Green link is established with another LAN device.
Green + red blinking
activity on the LAN interface
Off interface is inactive or not connected to the
other (W)LAN-.communication side
Green connected to other serial device.
Green + red blinking
activity on the serial interface (receive or
transmit)
ESCG Manual Version 2.15
4
Technical features:
Processor
Memory 256KByte program (internal)
Interface
Serial 1 RS232 with control lines
Serial 2 Same as serial 1 but only RS232
Mini-PCI Socket for RF cards with Atheros chipsets
Relay (optional) Relay contact
AUX input (optional) Isolated input with optocouple
LEDs
Power supply
Power consumption < 2.5W (typ.) < 3W (max.)
Voltage range Standard: 8-30V non isolated
Temperature
range
Dimensions
Case standard: 125x105x40mm
Weight approx. 500g
Type 32bit network processor 250MHz clock
64KByte data (internal)
4MByte flash (external)
4MByte SDRAM (external, optional)
Ethernet 10/100 Mbps fast ethernet auto MDI/MDIX
RTS, CTS, DSR, DTR,DCD (input), RI (input)
(optional as RS485, RS422)
(AR5112, AR5113)
can be operated over LAN or WLAN
Connection with circular M8-4pin connector
LEDs - Power (green)
- WLAN (green, red)
- LAN (green, red)
- SER1 (green, red)
- SER2 (green, red)
Connector Standard: DC jack (2.1mm pin / 5.5mm hole)
optional: Circular M8-3pin connector with screw locking
optional: 18-72V or 9-36V isolated
operating 0 - 70°C ( 32 - 158°F)
storage -20 - 80°C ( -4 - 176°F)
Board 120x100x20mm
WLAN - Interface:
WLAN
Security 802.11i WPA + WPA2 (Wifi Protected Access) (PSK/TKIP)
Data rates
Frequencies
Channels 802.11b/g:
Power output 802.11b/g: 18dBm peak
ESCG Manual Version 2.15
Encryption 64, 128bit WEP, AES
802.1x (EAP-TLS, EAP-PEAP), LEAP
802.11b 11, 5,5, 2 & 1 MBit/Sec.
802.11g 54, 48, 36, 24, 18, 12, 9, 6 MBit/Sec.
802.11a 54, 48, 36, 24, 18, 12, 9, 6 MBit/Sec.
ISM band: 2.400 MHz to 2.483 MHz
U-NII band: 5.150 MHz to 5.350 MHz (ETSI, RegTP indoor)
5.470 MHz to 5.725 MHz (ETSI, RegTP outdoor)
ETSI: 1-13, (3 non overlapping)
802.11a:
ETSI: 12 non overlapping (5.150-5.350 & 5.470-5.725 MHz)
802.11a: 18 or 17dBm
5
First Time Setup
To set up the ESCG it has to be connected with a patchcable to the ethernet interface of a computer.
Because of the auto MDI/MDIX capability, you can use a straight or crossover patchcable.
After applying power, the green “Link LED“ on the RJ45 connector shines when a link is detected. The yellow
“100 MBit LED“ indicates whether the connection is capable of 100 MBit.
The “LAN” LED on the front panel shines green when a connection has been established over the ethernet.
The “WLAN” LED on the front panel will be blinking red because usually no suitable WLAN is recognized.
The ESCG-Config Program
To do the „first time setup“ the ESCG has to be connected via the LAN-Interface to the computer (PC) that
runs the ESCG-Config-Program.
Illustration 3 arrangement to configure the ESCG
You have to observe:
- The connected PC should have an fixed IP address. (no DHCP)
- The LAN-Interface at the PC must be detected as connected. Check the parameter of the LANInterface with the „ipconfig“-command.
- If the LAN-Interface of the PC is correctly recognized then press the „refesh“-button of the ESCGconfig-program.
- An active firewall could prevent the communication the ESCG.
After the start the ESCG-Config-Program ascertained all network interfaces that are active at the PC. After
that the ESCG-Config-Program sends broadcast UDP requests to all these Interfaces. The registered
answers of the ESCG devices are shown in a list.
Illustration 4 screenshot of the ESCG-Config-Program
ESCG Manual Version 2.15
6
