Telaire T3000 Specifications

Page 1

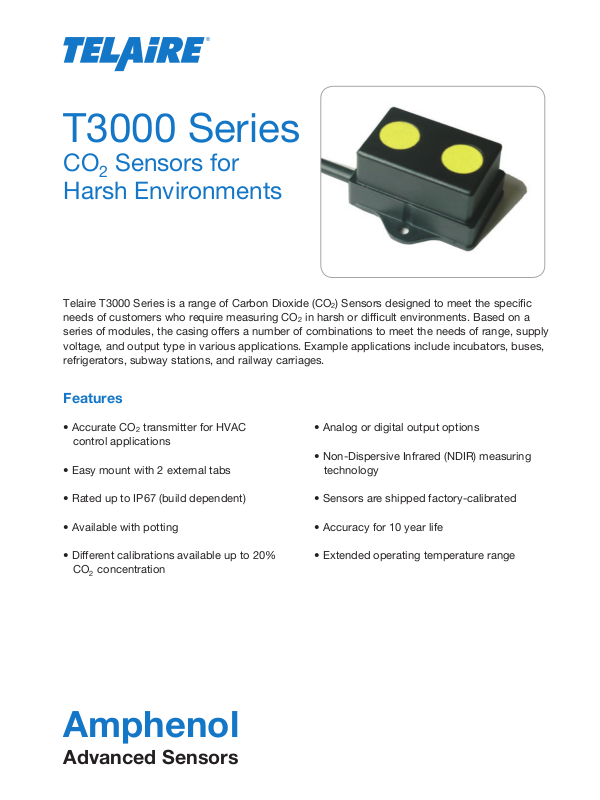

T3000 Series

Amphenol

Advanced Sensors

CO2 Sensors for Harsh Environments

Telaire T3000 Series is a range of Carbon Dioxide (CO2) Sensors designed to meet the specic needs of customers who require measuring CO2 in harsh or difcult environments. Based on a series of modules, the casing offers a number of combinations to meet the needs of range, supply

voltage, and output type in various applications. Example applications include incubators, buses, refrigerators, subway stations, and railway carriages.

Features

• Accurate CO2 transmitter for HVAC control applications

• Easy mount with 2 external tabs

• Rated up to IP67 (build dependent)

• Available with potting

• Different calibrations available up to 20% CO

concentration

• Analog or digital output options

• Non-Dispersive Infrared (NDIR) measuring technology

• Sensors are shipped factory-calibrated

• Accuracy for 10 year life

• Extended operating temperature range

Page 2

T3000 Series Specifications

Sensing Method

Non-Dispersive Infrared (NDIR), single or dual wavelength

Power Supply Requirements

15 – 15 VDC ±10% 24 - 18-30 VAC RMS, 50/60 Hz, or 18 to 42 VDC, polarity protected

Power Consumption

Typical 0.7 W at nominal voltage of 24V AC RMS

Range

See Ordering Information for calibrated ranges

Resolution

Minimum 10bit or analog equivalent

Accuracy

Single Wavelength

(0~2,000 ppm as example)

• 400-1250 ppm ±30 ppm or 3% of reading, whichever is greater*,**

• 1250-2000 ppm ±5% of reading + 30ppm *, **

Dual Wavelength

(0~2,000 ppm range as example)

• 75 ppm or 10% of reading (whichever is greater)

(0~200,000 ppm range as example)

• ±5% of reading or ±0,3 vol% CO2 (whichever is larger) at 0 - 20 vol% CO2 and 0°C to +25°C

• At 25°C to 50°C additional ±0,1% of reading or ±0,01 vol% CO2 (whichever is larger) per degree

*Tolerance based on span gas of ±2%

** ABC Logic not deactivated

Storage Temperature

-40° to +70°C

Minimum Lifetime

10 years or 30,000 operating hours

Flammability Classification

To UL94 5VA (dependent upon build)

RH Range

0% to 99% RH (non-condensing)

Atmospheric Conditions

Sensors have been designed and tested to the following However, not all models are as capable;

please discuss your application with Telaire.

• Marine, salt mist and particles present

• 02 level 0-21 vol%

• 0 to 100% RH.

• Ammonium max 200mg/m

• S02 max 0,5 vol%

• Ethylene max 500ppm vol

• Ozone

IP Class

Up to IP67, dust tight and immersion to 1m.

Optional potting

Discuss your requirement with Telaire.

Output Configurations

Digital

• Modbus over RS485

• UART

Temperature Dependence

0.2% FS / °C

Response Time, tau (63%)

< 200 sec

Aging (Dual Wavelength Only)

+/- 5% of reading annual drift. Less than +/- 25% of reading within product life time.

Recommended Recalibration Interval

Single Wavelength – No calibration required Dual Wavelength - 1 year

Working Temperature

0° to +50°C (measures within tolerance)

Operation Temperature (Sensor Is Powered)

-30° to +50°C

Analogue*

• 0 to 5 V

• 0 to 10 V

• 4 to 20mA

*Digital to Analogue Error ±1%

Page 3

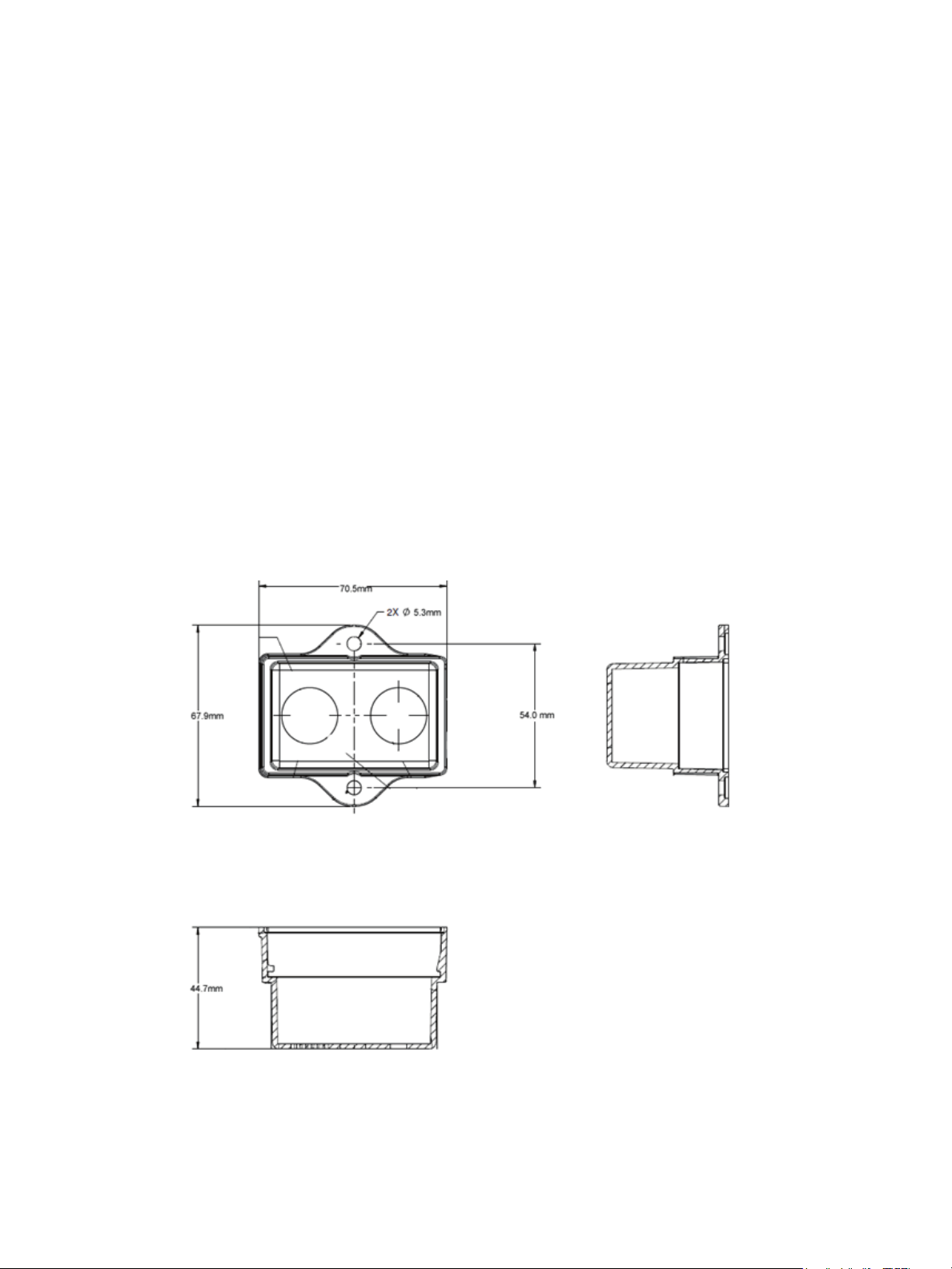

Carbon Dioxide ABC Logic™ Self Calibration

The single wavelength sensors employ the patented ABC (Automatic Background Calibration) Logic selfcalibration system. ABC Logic virtually eliminates the need for manual calibration in applications where the

indoor CO2 level drops to outside levels during unoccupied periods (e.g. during evening hours). ABC Logic

is a special software routine in the sensor that remembers the background readings for 14 consecutive evenings, calculates if there is a sensor drift, and then corrects for it.

With ABC Logic enabled, the sensor will typically reach its operational accuracy after 25 hours of continuous operation at a condition that is exposed to ambient reference levels. Sensors will maintain accuracy specications with ABC Logic enabled, given that it is at least three times in 14 days exposed to the reference value and this reference value is the lowest concentration to which the sensor is exposed.

Note: Applies when used in typical indoor ambient air. Consult Telaire if other gases or corrosive agents are part of the application environment.

CO2 Calibration Guarantee

Telaire is serious about minimizing maintenance, so each single-wavelength sensor comes with a lifetime

calibration guarantee. And each dual wavelength sensor has a two-year calibration guarantee.

Page 4

Ordering Information

Amphenol

Advanced Sensors

Please discuss your specific needs with the Telaire account management team, as many configurations are possible. Some combinations are already in production.

Derivatives include lesser ingress protection, higher re and smoke ratings, different outputs, and different calibration levels.

Output Options:

Digital Analogue Modbus 0-5V UART 0-10V 4-20mA

Measuring Technology Options:

Single Wavelength with ABC Logic™ for HVAC Applications Dual Wavelength for 24/7 Applications

Materials:

Materials to Railway Specications, or room environment specication, with or without potting.

Available Calibrations:

0-2K 0-5K 0-50K 0-200K 0-3K 0-10K 0-100K ppm by volume

Power Supply Options:

15 VDC supply 24V nominal supply

www.telaire.com

www.amphenol-sensors.com

Other company names and product names used in this document are the registered trademarks or

trademarks of their respective owners.

AAS-920-600C - 12/2018
