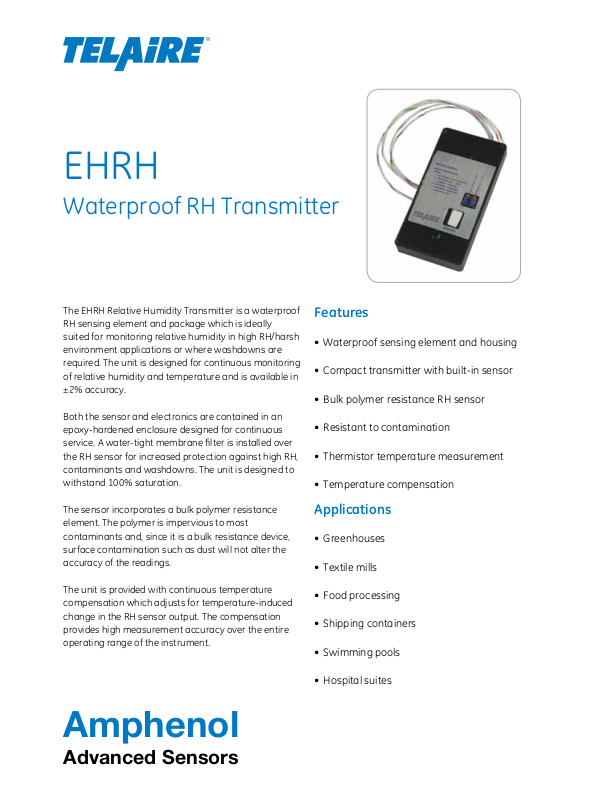

Waterproof RH Transmitter

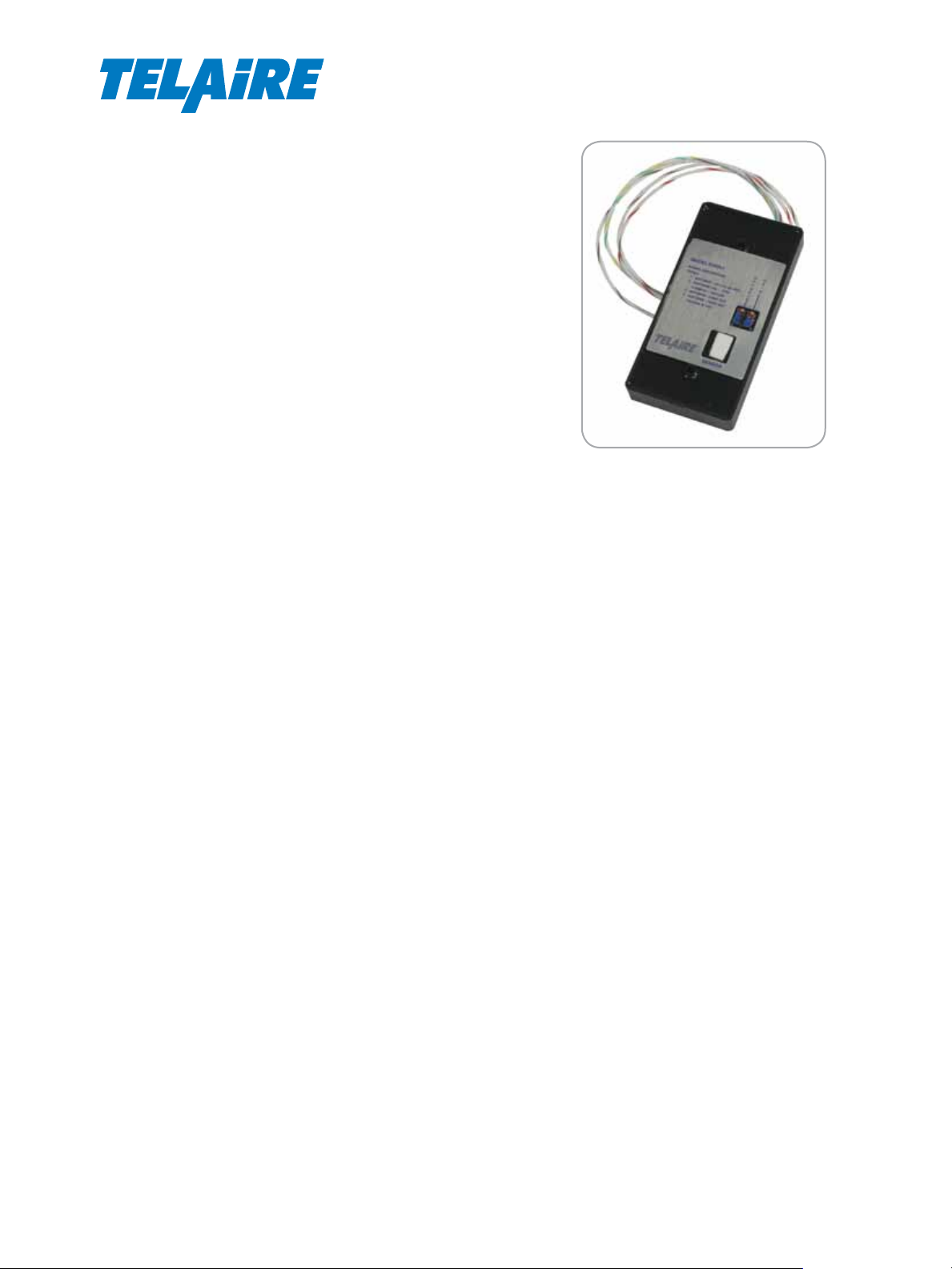

The EHRH Relative Humidity Transmitter is a waterproof
RH sensing element and package which is ideally
suited for monitoring relative humidity in high RH/harsh
environment applications or where washdowns are
required. The unit is designed for continuous monitoring
of relative humidity and temperature and is available in
±2% accuracy.
Both the sensor and electronics are contained in an
epoxy-hardened enclosure designed for continuous
service. A water-tight membrane filter is installed over
the RH sensor for increased protection against high RH,
contaminants and washdowns. The unit is designed to
withstand 100% saturation.
The sensor incorporates a bulk polymer resistance
element. The polymer is impervious to most
contaminants and, since it is a bulk resistance device,
surface contamination such as dust will not alter the
accuracy of the readings.
The unit is provided with continuous temperature
compensation which adjusts for temperature-induced
change in the RH sensor output. The compensation
provides high measurement accuracy over the entire
operating range of the instrument.
Features
• Waterproof sensing element and housing
• Compact transmitter with built-in sensor
• Bulk polymer resistance RH sensor
• Resistant to contamination
• Thermistor temperature measurement
• Temperature compensation
Applications
• Greenhouses
• Textile mills
• Food processing
• Shipping containers
• Swimming pools
Advanced Sensors
• Hospital suites
Page 2
EHRH Specifications
Amphenol
Humidity
Sensing Element
Resistance change of bulk polymer sensor
Accuracy at 77°F (25°C)
±2% RH. 30 to 95% RH including hysteresis, linearity,
and repeatability.
Temperature Effect
Less than 0.11% per ºF (0.06% per ºC)
Sensitivity
0.1% RH
Repeatability
0.5% RH
Linearity
See accuracy
Hysteresis
Less than 1%
Operating Range, Sensor & Electronics
0% to 100% RH, -20ºC to 54ºC (-4ºF to 129ºF)
Maximum Air Velocity
10,000 ft/minimum (3,048 m/minimum)
Output Ranges
4 to 20 mA current, two-wire, loop-powered for 0 to
100%, RH (standard) into 0 to 900 Ω
Adjustment
Zero
±20%, non-interactive
Span
±10%, non-interactive
Long Term Stability
Less than 2% drift per year typical
Power Supply
Voltage
12 to 36 VDC
Wiring Connection
Deutsch four-position waterproof connector (For front
wiring only_flying leads for back wiring).
Temperature
Sensing Element
Thermistor, 10 KΩ at 77°F (25ºC), two-wire
measurement
Accuracy at 77°F (25ºC)
±0.5ºF (±0.3ºC). Also available with 100 (RTD with 4 mA
to 20 mA analog output.
Consult factory for further information
Part Number Configuration
Order
[1]-[2]-[3]-[4]
Codes:
1 Model Designation
EHRH-2 Relative Humidity and 10K thermister outputs
EHRHT-2 Relative Humidity and signal conditioned temperature
2 Output(s)
I Current (4-20mA) EHRH and EHRHT
V5 Voltage (0-5 VDC) EHRH only
V10 Voltage (0-10 VDC) EHRH only
3 Wiring
F Front, with waterproof connector
B Back, flying leads
4 Temperature Channel Range (EHRHT Only)
1 -20°F to +140°F Temperature Rage (Standard Range)
2 0°F to +150°F Temperature Range
3 0°F to 100°F Temperature Range
4 +32°F to +132°F Temperature Range
5 +50°F to +130°F Temperature Range
6 -40°F to +140°F Temperature Range
7 Custom Temperature Range
Example: EHRH-2-V5-F
outputs
RH transmitter with 10K thermistor, 2%
accurate RH, 0-5 volt RH output and front-wired
(waterproof connector).
All units have a standard 3-Point factory
calibration (30, 50, 80% RH @ 25°C) standard
relative humidity output range is 0 to 100%.
Standard temperature output range is –20°F
to +140°F. Standard relative humidity and
temperature output signal is 4-20 mA.
