Tektronix TMSMC2 Instruction Manual

Instruction Manual
TMS MC2 Logic Board Adapter Hardware Support
071-0613-00
Warning
The servicing instructions are for use by qualified personnel only. To avoid personal injury, do not perform any servicing unless you are qualified to do so. Refer to all safety summaries prior to performing service.
Copyright E T ektronix, Inc. All rights reserved. Licensed software products are owned by Tektronix or its suppliers and are protected by United States copyright laws and international treaty provisions.
Use, duplication, or disclosure by the Government is subject to restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in T echnical Data and Computer Software clause at DFARS 252.227-7013, or subparagraphs (c)(1) and (2) of the Commercial Computer Software – Restricted Rights clause at F AR 52.227-19, as applicable.
T ektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supercedes that in all previously published material. Specifications and price change privileges reserved.
Printed in the U.S.A.
T ektronix, Inc., P.O. Box 1000, Wilsonville, OR 97070–1000 TEKTRONIX and TEK are registered trademarks of T ektronix, Inc.
HARDWARE WARRANTY
T ektronix warrants that the products that it manufactures and sells will be free from defects in materials and workmanship for a period of one (1) year from the date of shipment. If a product proves defective during this warranty period, T ektronix, at its option, either will repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product.
In order to obtain service under this warranty, Customer must notify Tektronix of the defect before the expiration of the warranty period and make suitable arrangements for the performance of service. Customer shall be responsible for packaging and shipping the defective product to the service center designated by T ektronix, with shipping charges prepaid. Tektronix shall pay for the return of the product to Customer if the shipment is to a location within the country in which the T ektronix service center is located. Customer shall be responsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locations.
This warranty shall not apply to any defect, failure or damage caused by improper use or improper or inadequate maintenance and care. T ektronix shall not be obligated to furnish service under this warranty a) to repair damage resulting from attempts by personnel other than T ektronix representatives to install, repair or service the product; b) to repair damage resulting from improper use or connection to incompatible equipment; c) to repair any damage or malfunction caused by the use of non-T ektronix supplies; or d) to service a product that has been modified or integrated with other products when the effect of such modification or integration increases the time or difficulty of servicing the product.
THIS WARRANTY IS GIVEN BY TEKTRONIX IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED. TEKTRONIX AND ITS VENDORS DISCLAIM ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TEKTRONIX’ RESPONSIBILITY TO REPAIR OR REPLACE DEFECTIVE PRODUCTS IS THE SOLE AND EXCLUSIVE REMEDY PROVIDED TO THE CUST OMER FOR BREACH OF THIS WARRANTY. TEKTRONIX AND ITS VENDORS WILL NOT BE LIABLE FOR ANY INDIRECT , SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES IRRESPECTIVE OF WHETHER TEKTRONIX OR THE VENDOR HAS ADVANCE NOTICE OF THE POSSIBILITY OF SUCH DAMAGES.

Table of Contents

Getting Started

General Safety Summary iii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Safety Summary v. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Preface vii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Manual Conventions vii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Contacting T ektronix viii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Support Package Description 1–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Support Software Compatibility 1–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Logic Analyzer Configuration 1–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Requirements and Restrictions 1–2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Labeling P6434 Probes 1–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Assembling the Probe Adapter 1–4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Configuring The Probe Adapter 1–6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TIMING/NORMAL Jumper 1–6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MFG_TEST Jumper 1–6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting the Logic Analyzer to a System Under T est 1–7. . . . . . . . . . . . . . . . .
Alternate Connections 1–9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Applying and Removing Power 1–11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removing the Probe Adapter from the SUT 1–13. . . . . . . . . . . . . . . . . . . . . . . . . . . .
CPU To Mictor Connections 1–14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Specifications

Circuit Description 2–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Probe Adapter Loading Diagrams 2–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specification T ables 2–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Maintenance

Replacing The Fuse 3–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Replaceable Mechanical Parts

Parts Ordering Information 4–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the Replaceable Mechanical Parts 4–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Index

TMS MC2 Logic Board Adapter Hardware Support
i
Table of Contents

List of Figures

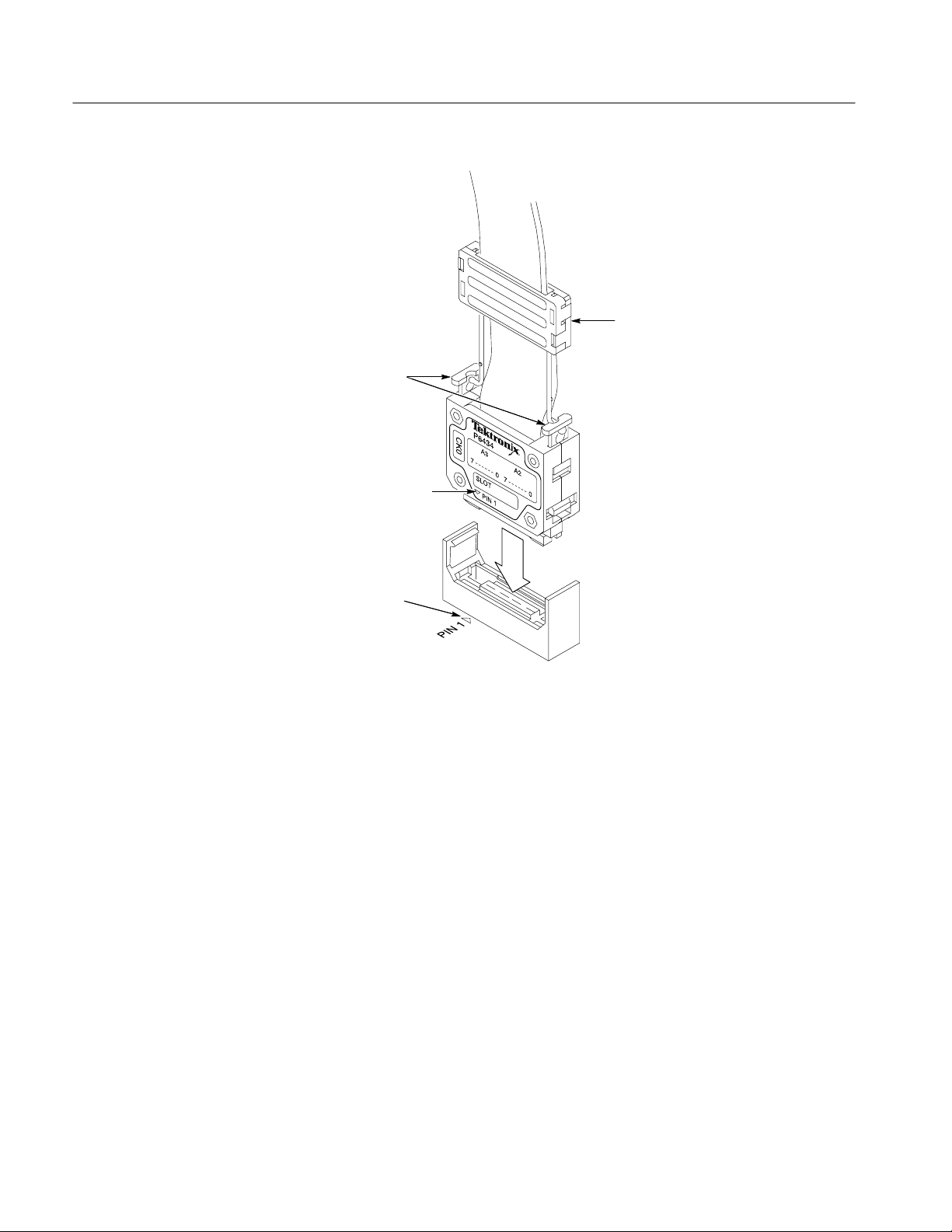

Figure 1–1: Seating the 190-pin mictor connector 1–4. . . . . . . . . . . . . . . .
Figure 1–2: Attaching the Logic board to the 190-pin connector 1–5. . . .

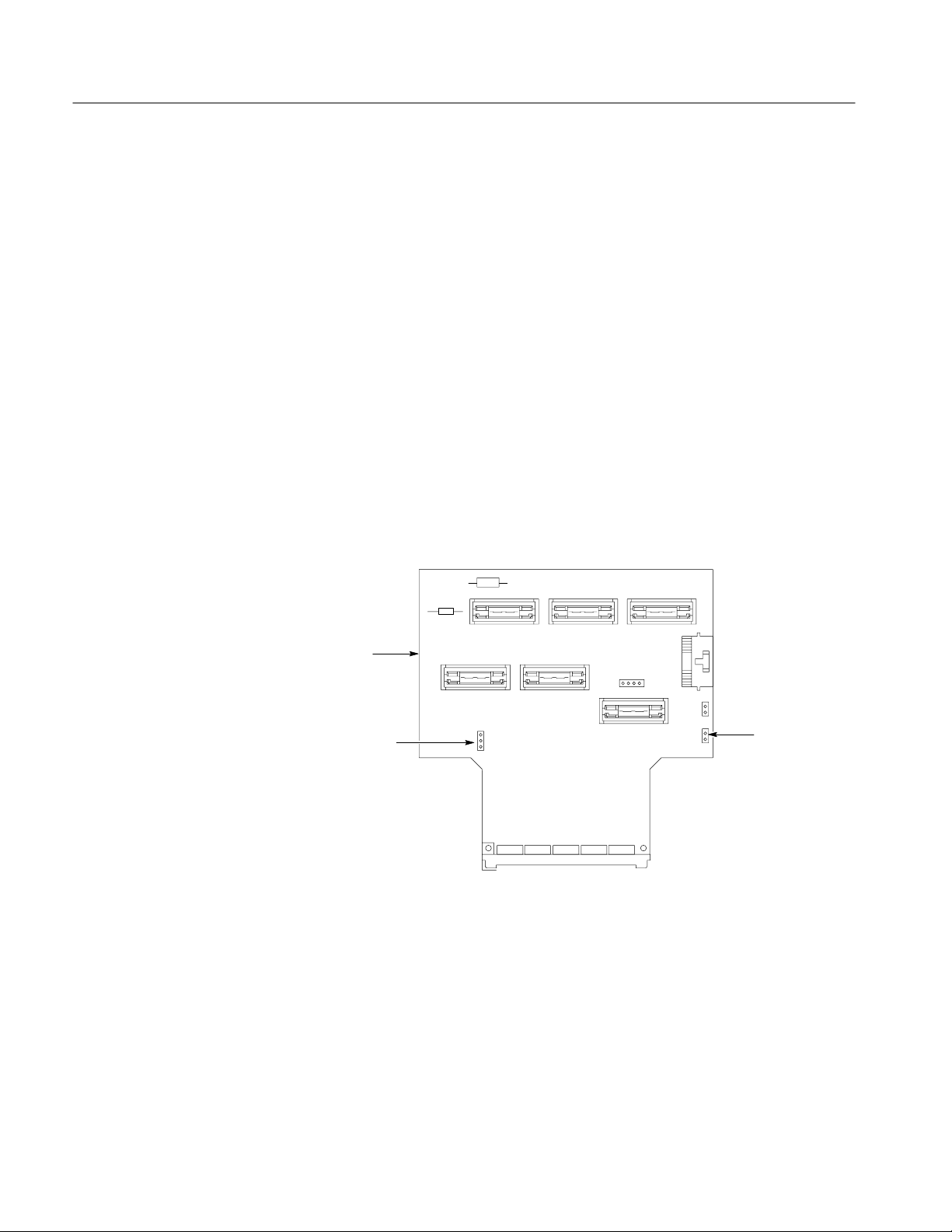

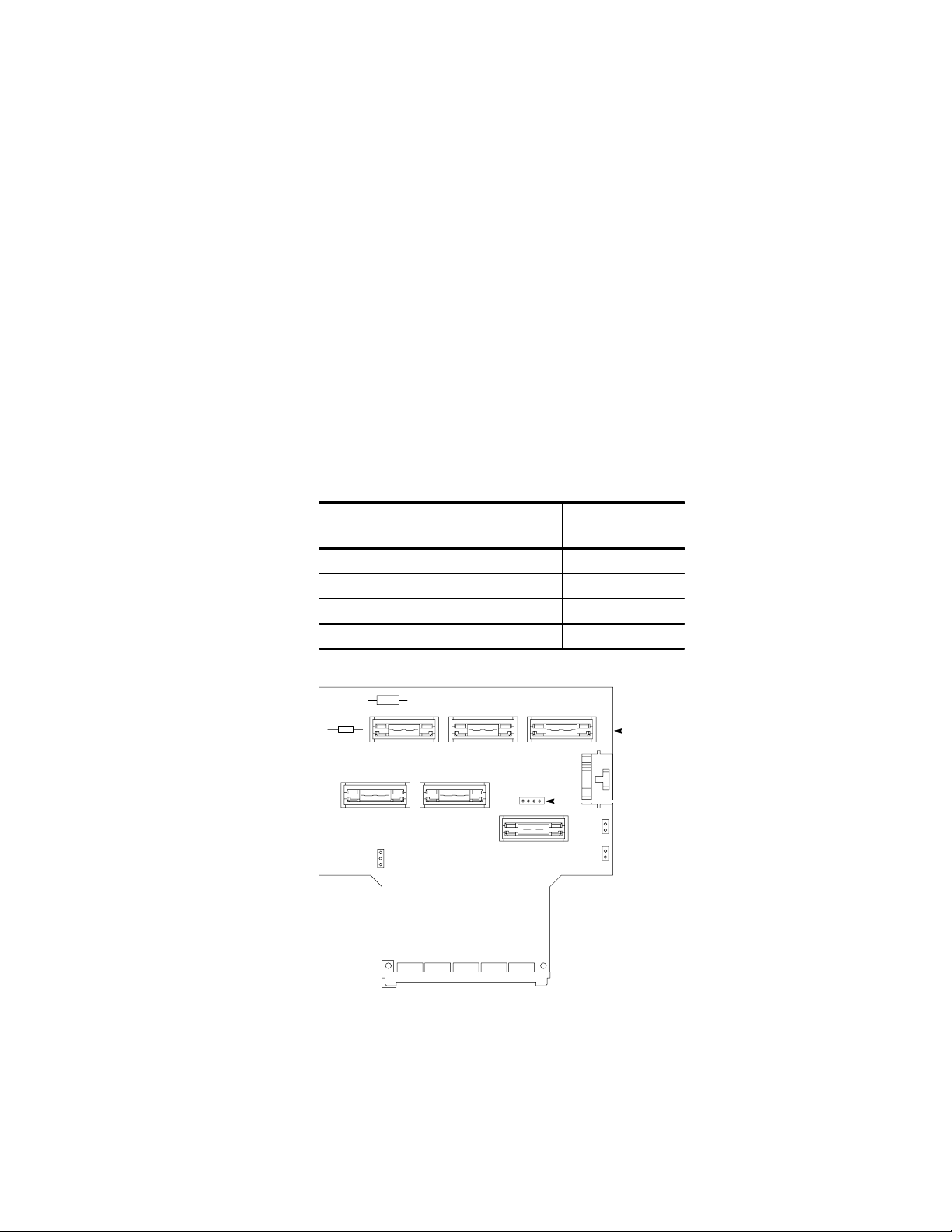

Figure 1–3: Jumper locations on the TMS MC2 probe adapter 1–6. . . . .
Figure 1–4: Connecting a probe to the probe adapter 1–8. . . . . . . . . . . .
Figure 1–5: APIC bus pins location on the probe adapter 1–9. . . . . . . . .

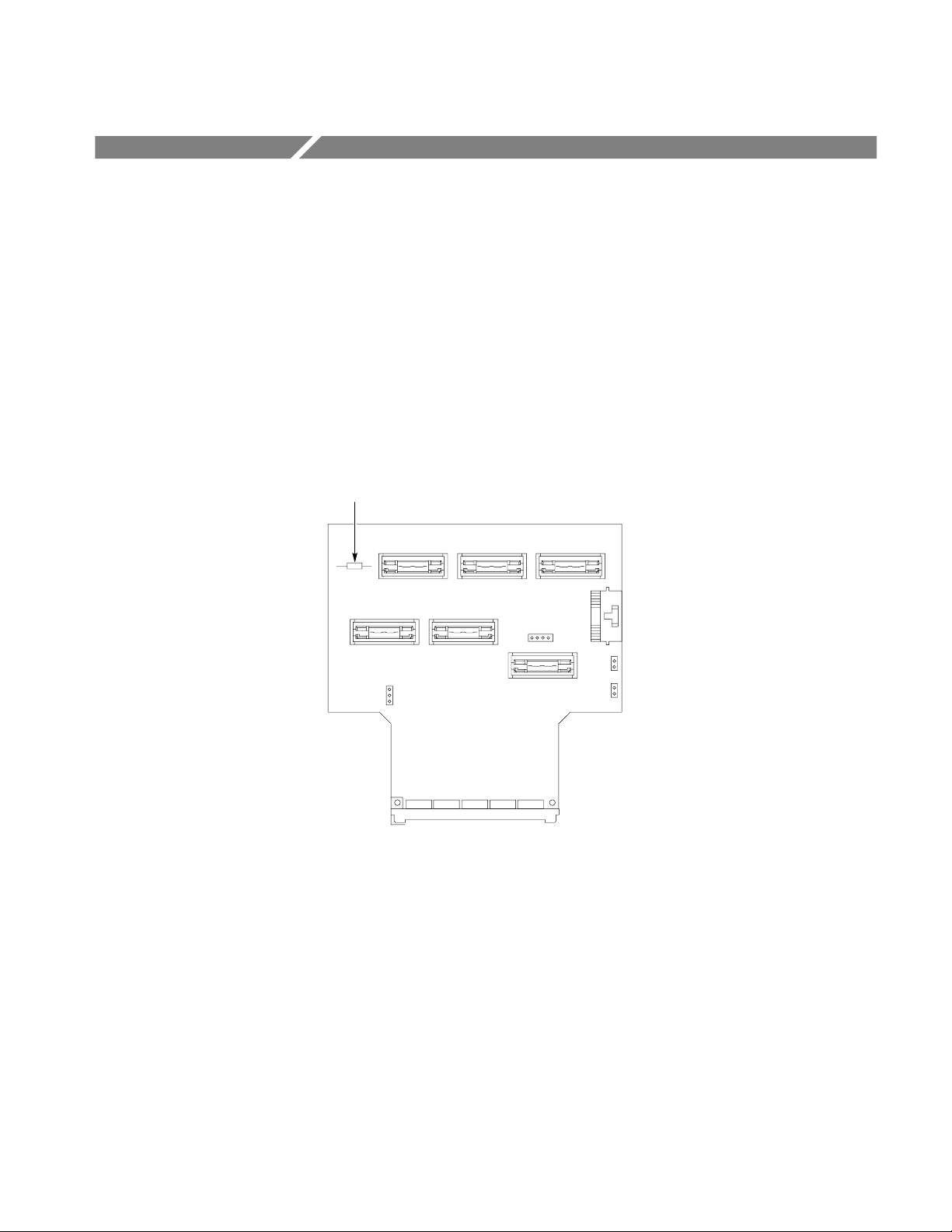

Figure 1–6: ITP pin locations on the probe adapter logic board 1–11. . . .
Figure 1–7: Location of the power jack 1–12. . . . . . . . . . . . . . . . . . . . . . . . .
Figure 1–8: Pin assignments for a Mictor connector
(component side) 1–14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

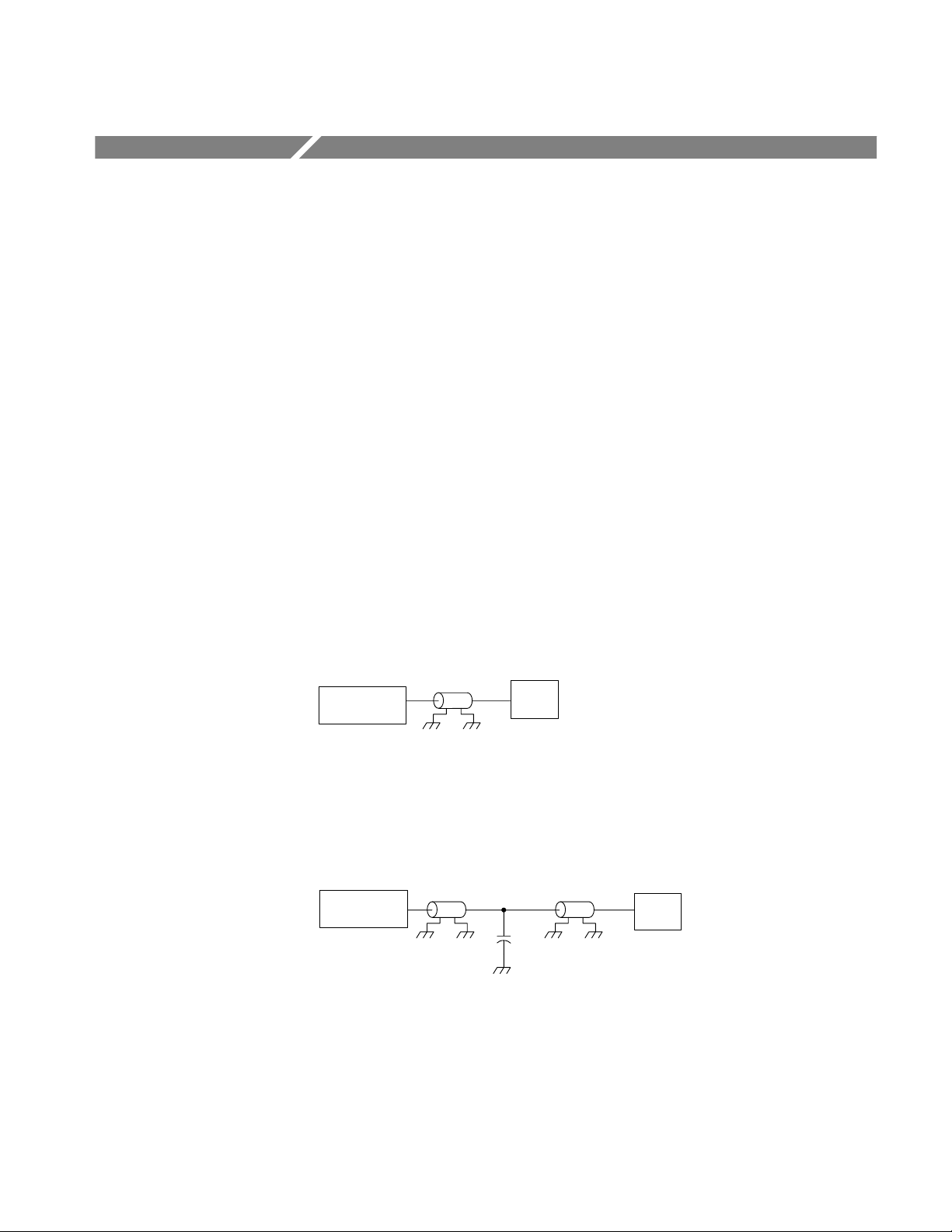

Figure 2–1: TMS MC2 signals without active loads 2–1. . . . . . . . . . . . . . .
Figure 2–2: TMS MC2 signals with active loads 2–1. . . . . . . . . . . . . . . . .
Figure 2–3: Detail of TMS MC2 sockets and 190-pin mictor
connector. 2–2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

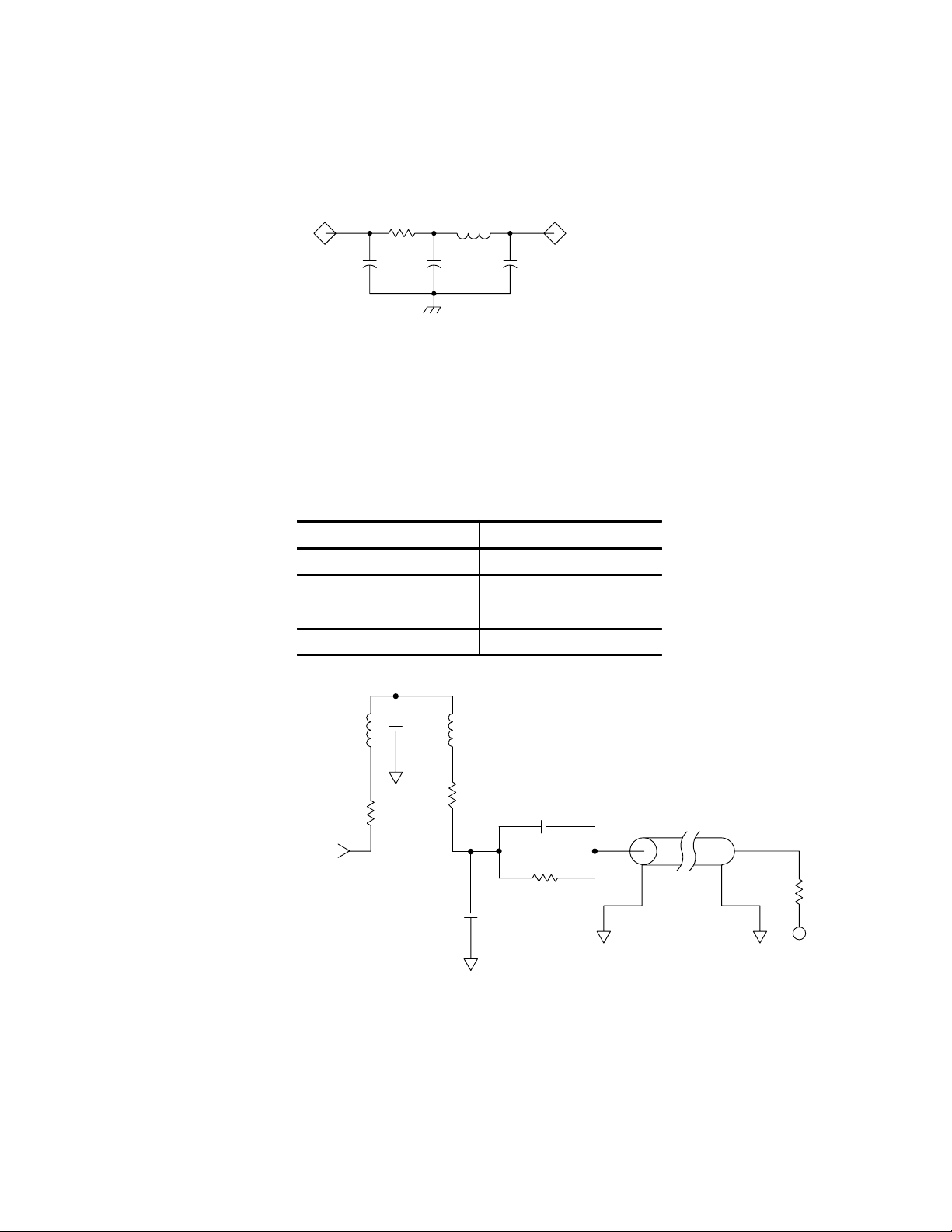

Figure 2–4: Equivalent circuit for the P6434 probe 2–2. . . . . . . . . . . . . . .
Figure 2–5: Dimensions of the TMS MC2 probe adapter 2–5. . . . . . . . .

List of Tables

Figure 3–1: Fuse location on the TMS MC2 probe adapter 3–1. . . . . . . .
Figure 4–1: TMS MC2 probe adapter exploded view 4–6. . . . . . . . . . . . .
Table 1–1: APIC information 1–9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Table 1–2: Jumper (J510) information 1–10. . . . . . . . . . . . . . . . . . . . . . . . .
Table 1–3: Clock Channels (stored in the acquisition memory) 1–14. . . .
Table 1–4: Qualifier Channels (stored in the acquisition memory) 1–15. .
Table 1–5: CPU to Mictor connections for Mictor C pins (high) 1–15. . . .
Table 1–6: CPU to Mictor connections for Mictor A pins (high) 1–16. . . .
Table 1–7: CPU to Mictor connections for Mictor D pins (high) 1–17. . . .
Table 1–8: CPU to Mictor connections for Mictor C pins (Low) 1–18. . . .
Table 1–9: CPU to Mictor connections for Mictor A pins (Low) 1–20. . . .
Table 1–10: CPU to Mictor connections for Mictor D pins (Low) 1–21. . .
Table 2–1: Lossy delay line values 2–2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Table 2–2: Electrical specifications for the system under test 2–3. . . . . .
Table 2–3: Electrical specifications for the AC adapter 2–4. . . . . . . . . . .
Table 2–4: Environmental specifications 2–4. . . . . . . . . . . . . . . . . . . . . . .
Table 2–5: BCLK timing and electrical specifications 2–4. . . . . . . . . .
TMS MC2 Logic Board Adapter Hardware Support
ii

General Safety Summary

Review the following safety precautions to avoid injury and prevent damage to this product or any products connected to it. To avoid potential hazards, use this product only as specified.
Only qualified personnel should perform service procedures.
While using this product, you may need to access other parts of the system. Read the General Safety Summary in other system manuals for warnings and cautions related to operating the system.
To Avoid Fire or Personal Injury
Use Proper Power Cord. Use only the power cord specified for this product and
certified for the country of use. Connect and Disconnect Properly . Do not connect or disconnect probes or test
leads while they are connected to a voltage source. Ground the Product. This product is indirectly grounded through the grounding
conductor of the mainframe power cord. To avoid electric shock, the grounding conductor must be connected to earth ground. Before making connections to the input or output terminals of the product, ensure that the product is properly grounded.
Observe All Terminal Ratings. To avoid fire or shock hazard, observe all ratings and markings on the product. Consult the product manual for further ratings information before making connections to the product.
Do not apply a potential to any terminal, including the common terminal, that exceeds the maximum rating of that terminal.
Use Proper AC Adapter. Use only the AC adapter specified for this product. Do Not Operate Without Covers. Do not operate this product with covers or panels
removed.
Use Proper Fuse. Use only the fuse type and rating specified for this product. Avoid Exposed Circuitry. Do not touch exposed connections and components
when power is present. Do Not Operate With Suspected Failures. If you suspect there is damage to this
product, have it inspected by qualified service personnel.
Do Not Operate in Wet/Damp Conditions. Do Not Operate in an Explosive Atmosphere. Keep Product Surfaces Clean and Dry .
TMS MC2 Logic Board Adapter Hardware Support
iii
General Safety Summary
Provide Proper Ventilation. Refer to the manual’s installation instructions for details on installing the product so it has proper ventilation.
Symbols and Terms
T erms in this Manual. These terms may appear in this manual:
WARNING. Warning statements identify conditions or practices that could result in injury or loss of life.
CAUTION. Caution statements identify conditions or practices that could result in damage to this product or other property.
T erms on the Product. These terms may appear on the product: DANGER indicates an injury hazard immediately accessible as you read the
marking. WARNING indicates an injury hazard not immediately accessible as you read the
marking. CAUTION indicates a hazard to property including the product.
Symbols on the Product. The following symbols may appear on the product:
iv
CAUTION
Refer to Manual
WARNING
High Voltage
Double
Insulated
Protective Ground
(Earth) Terminal
TMS MC2 Logic Board Adapter Hardware Support

Service Safety Summary

Only qualified personnel should perform service procedures. Read this Service Safety Summary and the General Safety Summary before performing any service
procedures. Do Not Service Alone. Do not perform internal service or adjustments of this
product unless another person capable of rendering first aid and resuscitation is present.
Disconnect Power. To avoid electric shock, switch off the instrument power, then disconnect the power cord from the mains power.
Use Care When Servicing With Power On. Dangerous voltages or currents may exist in this product. Disconnect power, remove battery (if applicable), and disconnect test leads before removing protective panels, soldering, or replacing components.
TMS MC2 Logic Board Adapter Hardware Support
v
Service Safety Summary
vi
TMS MC2 Logic Board Adapter Hardware Support

Preface

This instruction manual contains specific information about the TMS MC2 Logic Board Adapter hardware support package and is part of a set of information on how to operate this product on compatible Tektronix logic analyzers.
If you are familiar with operating microprocessor support packages on the logic analyzer for which the TMS MC2 Logic Board Adapter support was purchased, you will only need this instruction manual to set up and run the support.
If you are not familiar with operating microprocessor support packages, you will need to supplement this instruction manual with information on basic operations to set up and run the support.
This manual provides detailed information on the following topics:
H Assembling and configuring the probe adapter H Connecting the logic analyzer to the system under test H Applying power and operating the probe adapter

Manual Conventions

This manual uses the following conventions: H The term “module” refers to two 102-channel modules, a 102-channel
module plus a 136-channel module, or two 136-channel modules.
H The phrase “information on basic operations” refers to basic information in
your online help.
TMS MC2 Logic Board Adapter Hardware Support
vii
Preface

Contacting Tektronix

Product Support
Service Support
For other information
To write us
Website
For questions about using T ektronix measurement products, call toll free in North America: 1-800-TEK-WIDE (1-800-835-9433 ext. 2400) 6:00 a.m. – 5:00 p.m. Pacific time
Or contact us by e-mail: tm_app_supp@tektronix.com
For product support outside of North America, contact your local T ektronix distributor or sales office.
T ektronix offers extended warranty and calibration programs as options on many products. Contact your local T ektronix distributor or sales office.
For a listing of worldwide service centers, visit our web site. In North America:
1-800-TEK-WIDE (1-800-835-9433) An operator will direct your call.
T ektronix, Inc. P.O. Box 1000 Wilsonville, OR 97070-1000 USA
T ektronix.com
viii
TMS MC2 Logic Board Adapter Hardware Support
Getting Started

Getting Started

This chapter contains information on the TMS MC2 Logic Board Adapter Hardware Support package, and information on connecting your logic analyzer to your system under test.

Support Package Description

The TMS MC2 Logic Board Adapter is nonintrusive hardware that allows the logic analyzer to acquire data from a microprocessor in its own operating environment with little affect on that system.
The TMS MC2 Logic Board Adapter can be used with a variety of interposer boards. An example of an interposer board is the MPROBE interposer board from Ironwood electronics. Signals from the microprocessor flow through the MPROBE interposer board, and then, to the TMS MC2 Logic Board Adapter into the P6434 probes and through the probe cables to the logic analyzer.
Contact your Tektronix representative if you are interested in other interposer board solutions.

Support Software Compatibility

The TMS MC2 Logic Board Adapter requires a Tektronix software support package. At the time of printing, the compatible software support package is the TMS113. When using the TMS MC2 Logic Board Adapter with the TMS113 software, choose any one of the PG370 clocking options to acquire data.
Contact your Tektronix representative to determine which latest software support package is compatible with the TMS MC2 Logic Board Adapter Hardware Support package.

Logic Analyzer Configuration

To use the TMS MC2 Logic Board Adapter Hardware Support package you need a Tektronix logic analyzer equipped with two 102-channel modules. The modules must be in adjacent slots and merged.
References to a 204-channel module include two merged 102-channel modules.
TMS MC2 Logic Board Adapter Hardware Support
1–1
Getting Started

Requirements and Restrictions

CAUTION. Use Forced air cooling to keep the microprocessor from overheating.
You should review the general requirements and restrictions of microprocessor support packages in the information on basic operations as they pertain to your system under test.
You should also review electrical, environmental, and mechanical specifications in the Specifications chapter beginning on page 2–1 as they pertain to your system under test, as well as the following descriptions of other TMS MC2 Logic Board Adapter Hardware Support requirements and restrictions.
System Clock Rate
BCLK
System Under Test Power
The TMS MC2 Logic Board Adapter Hardware Support can acquire data from the from the system under test at bus speeds of up to 100 MHz; the TMS MC2 Logic Board Adapter has been tested to 66 MHz.
The operating clock rate specifications were measured at the time of printing. Contact your Tektronix sales representative for current information on the fastest devices supported.
Refer to the BCLK specifications and restrictions listed in Table 2–5 on page 2–4, in the Specifications chapter.
Whenever you power off the system under test, remove power from the probe adapter. Refer to Applying and Removing Power on page 1–11.
1–2
TMS MC2 Logic Board Adapter Hardware Support
Getting Started
Signals Supported
The following signals of the front side bus may be supported by the TMS MC2 Logic Board Adapter:
NOTE. Refer to the specifications for the third party interposer board to identify the exact set of signals that can be acquired by the TMS MC2 Logic Board Adapter.
A[31:3]# FLUSH# RS[2:0]#
A20M# HIT# SLP#
ADS# HITM# SMI#
BCLK IERR# STPCLK#
BNR# IGNNE# TCK
BP[3:2]# INIT# TDI
BPM[1:0]# LINT[1:0] TDO
BPRI# LOCK# THERMDN
BR0# PICCLK THERMDP
BSEL# PICD[1:0] THERMTRIP#
D[63:0]# PRDY# TMS

Labeling P6434 Probes

DBSY# PREQ# TRDY#
DEFER# PWRGOOD TRST#
DRDY# REQ[4:0]#
FERR# RESET#
The TMS MC2 Logic Board Adapter Hardware Support package relies on the standard channel mapping and labeling scheme for P6434 probes. Apply labels using the standard method described in the P6434 Mass Termination Probe Instructions.
TMS MC2 Logic Board Adapter Hardware Support
1–3
Getting Started

Assembling the Probe Adapter

The TMS MC2 probe adapter assembly consists of one board, the Logic board.
CAUTION. To prevent static damage, handle components only in a static-free environment. Static discharge can damage the microprocessor, the probe adapter, the probes, and the module.
Always wear a grounding wrist strap, heel strap, or similar device while handling the microprocessor and probe adapter.
To assemble the probe adapter, follow these steps:
1. To discharge any static electricity, touch the ground connector located on the
logic analyzer. Then, before you remove the probe adapter circuit boards
from their protective bags, touch each bag to discharge stored static
electricity.
2. Align the Logic board connector pins with the connector pins on the
connecting circuit board, and press firmly to seat the board connector (see
Figure 1–1). Both connectors are polarized and will only mate in one
orientation.
190-pin mictor
NOTE. To ensure a reliable electrical connection between the Logic board and the connecting circuit board, the 190-pin mictor connector must be completely seated at both ends (see Figure 1–1).
Logic board
The top of the plug is not level with the top of receptacle
Gap
Correct
The top of the plug is level with the top of receptacle
No gap on either end
Incorrect
Figure 1–1: Seating the 190-pin mictor connector
1–4
TMS MC2 Logic Board Adapter Hardware Support
Getting Started
3. Align the mounting brackets on the logic board with the mounting holes on
the connecting circuit board (see Figure 1–2).
4. Attach and tighten the screws (not provided with this product) (see Fig-
ure 1–2).
Logic board
Screws (2)
(not provided in
this product)
Third party
interposer
board
Figure 1–2: Attaching the Logic board to the 190-pin connector
TMS MC2 Logic Board Adapter Hardware Support
1–5
Getting Started

Configuring The Probe Adapter

The probe adapter uses jumpers to acquire data for disassembly or for timing. Figure 1–3 shows the location of the jumpers.
TIMING/NORMAL Jumper
MFG_TEST Jumper
Place the TIMING/NORMAL jumper, J600, in the NORMAL position to acquire and disassemble data.
Place the TIMING/NORMAL jumper in the TIMING position to acquire timing data.
Figure 1–3 shows the location of J600 on the probe adapter.
To acquire data at frequencies below 40 MHz on the probe adapter, short the two pins on J512. This disables the PLL signal and buffers the BCLK signal to all clocked components.
Figure 1–3 shows the location of J512 on the probe adapter.
Logic board
J600 Jumper
J512 Jumper
1–6
Figure 1–3: Jumper locations on the TMS MC2 probe adapter
TMS MC2 Logic Board Adapter Hardware Support

Connecting the Logic Analyzer to a System Under Test

Before you connect the probe adapter to the system under test, connect three P6434 probes to the HI module and three P6434 probes to the LO module. The module in the higher-numbered slot is referred to as the HI module and the module in the lower-numbered slot is referred to as the LO module.
Your system under test must allow clearance for the probe adapter. Refer to the dimensions on page 2–5 for the required clearances.
To connect the logic analyzer to your system under test, follow these steps:
1. Power off your system under test. It is not necessary to power off the logic
analyzer.
CAUTION. To prevent static damage, handle the components only in a static-free environment. Static discharge can damage the microprocessor, the probe adapter, the probes, and the module.
Getting Started
Always wear a grounding wrist strap, heel strap, or similar device while handling the microprocessor and probe adapter.
2. Match the A, C, and D probes from the HI module with the corresponding
HI_A, HI_C, and HI_D probe connectors on the probe adapter. Align the pin 1 indicator on the probe label with the pin 1 indicator of the connector on the probe adapter.
CAUTION. Incorrect handling of the P6434 probe while connecting it to the probe adapter can result in damage to the probe or to the mating connector on the probe adapter. To avoid damaging the probe and probe adapter, always position the probe perpendicular to the mating connector and gently connect the probe.
3. Position the probe tip perpendicular to the mating connector and gently
connect the probe (see Figure 1–4).
4. When connected, push down the latch releases on the probe to set the latch.
TMS MC2 Logic Board Adapter Hardware Support
1–7
Getting Started
Pull up on the latch puller to remove the probe.
Push down on both
tabs to latch after
probe is connected
Pin 1
Pin 1
Figure 1–4: Connecting a probe to the probe adapter
5. Match the A, C, and D probes from the LO module with the corresponding
LO_A, LO_C, and LO_D probe connectors on the probe adapter. Align the
pin 1 indicator on the probe label with pin 1 of the connector on the probe
adapter.
6. Repeat steps 3 and 4.
7. Follow the procedure from the interposer circuit board or microprocessor
vendor to remove or instal other components.
1–8
TMS MC2 Logic Board Adapter Hardware Support

Alternate Connections

Getting Started
APIC
Four pins on J410 are provided to connect the TMS 801 APIC bus probe adapter to the PICCLK, PICD0 and PICD1 signals for APIC bus support. The TMS 801 APIC bus probe adapter is not included with the TMS MC2 Logic Board Adapter Hardware Support package. Contact a Tektronix representative for information on how to obtain the TMS 801 APIC bus probe adapter.
Figure 1–5 shows the APIC bus signal pins for the TMS MC2 probe adapter.
NOTE. The APIC bus signals are acquired only if they are supported by the third party interposer board.
T able 1–1: APIC information
J410
pin number
1 GND –––
2 J33 PICCLK
3 L35 PICD1
4 J35 PICD0
Microprocessor pin number
Microprocessor signal name
Figure 1–5: APIC bus pins location on the probe adapter
TMS MC2 Logic Board Adapter Hardware Support
Logic board
J410 APIC bus pins
1–9
Getting Started
ITP
The TMS MC2 probe adapter logic board provides J310 as a way to connect to In-Target Probing (ITP) debugging hardware. ITP debugging hardware is not included with the TMS MC2 Logic Board Adapter Hardware Support package. Contact your microprocessor vendor for information on how to obtain ITP debugging hardware.
NOTE. The following ITP information is only for microprocessors with ITP circuitry.
The ITP circuitry on the Logic board is active only when the ITP probe cable is connected to J310 and the ITP signals are supported by a third party interposer board. If the ITP probe cable is disconnected from J310, all ITP data and control lines on the logic board are tristated.
Optional System Reset. The ITP circuitry on the Logic board does not allow external ITP debugging hardware to induce a system reset through the DBRESET# signal on the ITP connector. If you need to enable this feature you must provide the connection to your system under test. Table 1–2 lists the signals on the J510.
T able 1–2: Jumper (J510) information
Pin number ITP signal name
1 GND 2 DBRESET#
Figure 1–6 shows the location of the DBRESET# jumper and the ITP pin header on the logic board of the probe adapter.
When using ITP debugging hardware with the TMS MC2 probe adapter, the ITP signals on the system under test must be isolated from the CPU.
1–10
TMS MC2 Logic Board Adapter Hardware Support
Logic board
J310 ITP pin header
J510 DBRESET#
Figure 1–6: ITP pin locations on the probe adapter logic board
Getting Started

Applying and Removing Power

A power supply is included with the TMS MC2 Logic Board Adapter Hardware Support. The power supply provides +5 volts power to the probe adapter.
NOTE. Whenever you power off the system under test, be sure to remove power from the probe adapter.
To apply power to the TMS MC2 probe adapter and the system under test, follow these steps:
CAUTION. To prevent damage to the probe adapter and MC2 microprocessor,. use the +5 V power supply provided by Tektronix. Do not mistake another power supply that looks similar for the +5 V power supply.
1. Connect the +5 V power supply to the jack on the probe adapter. Figure 1–7
shows the location of the jack on the adapter board.
CAUTION. To prevent damage to the microprocessor and system under test, apply power to the probe adapter before applying power to your system under test.
2. Plug the power supply for the probe adapter into an electrical outlet. When
power is present on the probe adapter, an LED lights near the power jack.
TMS MC2 Logic Board Adapter Hardware Support
1–11
Getting Started
3. Power on the system under test.
Power jack
Logic board
Figure 1–7: Location of the power jack
To remove power from the system under test and the probe adapter, follow these steps:
CAUTION. To prevent damage to the MC2 microprocessor and the system under test, power off your system under test before removing the power from the probe adapter.
1. Power off the system under test.
2. Unplug the power supply for the probe adapter from the electrical outlet.
1–12
TMS MC2 Logic Board Adapter Hardware Support

Removing the Probe Adapter from the SUT

To remove the TMS MC2 probe adapter from the system under test, follow these steps:
CAUTION. To prevent static damage, handle the components only in a static-free environment. Static discharge can damage the microprocessor, the probe adapter, the probes, and the module.
Always wear a grounding wrist strap, heel strap or similar device while handling the microprocessor and probe adapter.
1. Power off your system under test. It is not necessary to power off the logic
analyzer.
2. Disconnect the probes from the probe adapter assembly. Use the latch puller
to release the probes (see Figure 1–4 on page 1–8).
Getting Started
CAUTION. To prevent damage to the connectors carefully perform step 3.
3. Disconnect the probe adapter from the connecting board, by first removing
two screws then the connecting board.
4. Place the probe adapter back into the protective bag it was shipped in.
TMS MC2 Logic Board Adapter Hardware Support
1–13
Getting Started

CPU To Mictor Connections

To probe the microprocessor, you will need to make connections between the CPU and the Mictor pins of the P6434 Mass Termination Probe. Refer to the P6434 Mass Termination Probe manual, Tektronix part number 070-9793-XX, for more information on mechanical specifications. Tables 1–3 through 1–10 show the CPU pin to Mictor pin connections.
Tektronix uses a counterclockwise pin assignment. Pin 1 is located at the top left, and pin 2 is located directly below it. Pin 20 is located on the bottom right, and pin 21 is located directly above it (see Figure1–8).
AMP uses an odd side-even side pin assignment. Pin 1 is located at the top left, and pin 3 is located directly below it. Pin 2 is located on the top right, and pin 4 is located directly below it (see Figure1–8).
NOTE. When designing Mictor connectors into your system under test, always follow the Tektronix pin assignment.
Tektronix Pinout AMP Pinout
Pin 1
Pin 19
Pin 38
Pin 20
Pin 1
Pin 37
Pin 2
Pin 38
Figure 1–8: Pin assignments for a Mictor connector (component side)
T able 1–3: Clock Channels (stored in the acquisition memory)
Clock channel
LO_CLK:3 CLK Rising W37 LO_CLK:2 DA TA X –– LO_CLK:1 DATA X –– LO_CLK:0 –– X –– HI_CLK:3 DATA X –– HI_CLK:2 DATA X –– HI_CLK:1 DATA X –– HI_CLK:0 –– X ––
CLK, QUAL, or DATA
Active CLK edge
Processor signal name
1–14
TMS MC2 Logic Board Adapter Hardware Support
T able 1–4: Qualifier Channels (stored in the acquisition memory)
Getting Started
QUAL
channel
LO_QUAL:3 –– ––
LO_QUAL:2 –– ––
LO_QUAL:1 DATA AL21
LO_QUAL:0 DATA G37
HI_QUAL:3 –– ––
HI_QUAL:2 –– ––
HI_QUAL:1 DA TA AN21
HI_QUAL:0 DA TA F10
QUAL, or DATA
Processor signal name
T able 1–5: CPU to Mictor connections for Mictor C pins (high)
Tektronix
Mictor A
pin number
4 7 C3:7 AE37
8 15 C3:3 C33
12 23 C2:7 A31
16 31 C2:3* X4
5 9 C3:6 AG33
9 17 C3:2 A33
13 25 C2:6 A29
17 33 C2:2* AK16
6 11 C3:5 A35
10 19 C3:1 C31
14 27 C2:5 C29
18 35 C2:1* AN29
7 13 C3:4 Not Specified
11 21 C3:0 Not Specified
15 29 C2:4 Not Specified
19 37 C2:0* DERIVED
35 8 C1:7 DERIVED
31 16 C1:3 DERIVED
27 24 C0:7 DERIVED
23 32 C0:3 Not Specified
AMP Mictor A pin number
LA channel
Processor signal name
TMS MC2 Logic Board Adapter Hardware Support
1–15
Getting Started
T able 1–5: CPU to Mictor connections for Mictor C pins (high) (cont.)
Tektronix Mictor A pin number
34 10 C1:6 DERIVED 30 18 C1:2 DERIVED 26 26 C0:6 DERIVED 22 34 C0:2 DERIVED 33 12 C1:5 AH30 29 20 C1:1 DERIVED 25 28 C0:5 DERIVED 21 36 C0:1 DERIVED 32 14 C1:4 DERIVED 28 22 C1:0 DERIVED 24 30 C0:4 DERIVED 20 38 C0:0 AK26
* Signal is active low
AMP Mictor A pin number
LA channel
Processor signal name
T able 1–6: CPU to Mictor connections for Mictor A pins (high)
Tektronix Mictor A pin number
4 7 A3:7 E25 5 9 A3:6 A27 6 11 A3:5 C19 7 13 A3:4 A25 8 15 A3:3 A23 9 17 A3:2 A19 10 19 A3:1 A21 11 21 A3:0 C13 12 23 A2:7 A13 13 25 A2:6 D12 14 27 A2:5 C11 15 29 A2:4 D10 16 31 A2:3 C15 17 33 A2:2 C7 18 35 A2:1 D8 19 37 A2:0 F6
AMP Mictor A pin number
LA channel
Processor signal name
1–16
TMS MC2 Logic Board Adapter Hardware Support
T able 1–6: CPU to Mictor connections for Mictor A pins (high) (cont.)
Getting Started
Tektronix
Mictor A
pin number
35 8 A1:7 C23
34 10 A1:6 F16
33 12 A1:5 C27
32 14 A1:4 C25
31 16 A1:3 C21
30 18 A1:2 C17
29 20 A1:1 A17
28 22 A1:0 D16
27 24 A0:7 D14
26 26 A0:6 A15
25 28 A0:5 A11
24 30 A0:4 C9
23 32 A0:3 A7
22 34 A0:2 A9
21 36 A0:1 C1
20 38 A0:0 B2
AMP Mictor A pin number
LA channel
Processor signal name
T able 1–7: CPU to Mictor connections for Mictor D pins (high)
Tektronix
Mictor A
pin number
4 7 D3:7 A5
5 9 D3:6 A3
6 11 D3:5 E1
7 13 D3:4 E3
8 15 D3:3 F8
9 17 D3:2 H6
10 19 D3:1 P4
11 21 D3:0 L3
TMS MC2 Logic Board Adapter Hardware Support
AMP Mictor A pin number
LA channel
Processor signal name
1–17
Getting Started
T able 1–7: CPU to Mictor connections for Mictor D pins (high) (cont.)
Tektronix Mictor A pin number
12 23 D2:7 R4 13 25 D2:6 U3 14 27 D2:5 Q1 15 29 D2:4 J1 16 31 D2:3 T6 17 33 D2:2 S3 18 35 D2:1 M6 19 37 D2:0 T4 35 8 D1:7 C5 34 10 D1:6 J3 33 12 D1:5 F12 32 14 D1:4 K6 31 16 D1:3 G3 30 18 D1:2 G1 29 20 D1:1 H4 28 22 D1:0 L1 27 24 D0:7 M4 26 26 D0:6 Q3 25 28 D0:5 N3 24 30 D0:4 P6 23 32 D0:3 S1 22 34 D0:2 U1 21 36 D0:1 N1 20 38 D0:0 W1
AMP Mictor A pin number
LA channel
Processor signal name
1–18
T able 1–8: CPU to Mictor connections for Mictor C pins (Low)
Tektronix Mictor A pin number
4 7 C3:7 AN11 8 15 C3:3 AN23 12 23 C2:7 AN13 16 31 C2:3 AL11 5 9 C3:6 AH14
AMP Mictor A pin number
LA channel
Processor signal name
TMS MC2 Logic Board Adapter Hardware Support
T able 1–8: CPU to Mictor connections for Mictor C pins (Low) (cont.)
Getting Started
Tektronix Mictor A pin number
9 17 C3:2 AK20 13 25 C2:6 AL27 17 33 C2:2 AK24 6 11 C3:5 AN17 10 19 C3:1 AN27 14 27 C2:5 AK28 18 35 C2:1 AN31 7 13 C3:4 AL13 11 21 C3:0 AN15 15 29 C2:4 NOT SPECIFIED 19 37 C2:0 NOT SPECIFIED 35 8 C1:7 AF4 31 16 C1:3 W3 27 24 C0:7 AC1 23 32 C0:3 X6 34 10 C1:6 AH22 30 18 C1:2 AH26 26 26 C0:6 AN19 22 34 C0:2 AL23 33 12 C1:5 V4 29 20 C1:1 AL17 25 28 C0:5 AL25 21 36 C0:1 AN25 32 14 C1:4 AL19 28 22 C1:0 AH18 24 30 C0:4 AH16 20 38 C0:0 AK18
AMP Mictor A pin number
LA channel
Processor signal name
TMS MC2 Logic Board Adapter Hardware Support
1–19
Getting Started
T able 1–9: CPU to Mictor connections for Mictor A pins (Low)
Tektronix Mictor A pin number
4 7 A3:7 AD4 5 9 A3:6 AA3 6 11 A3:5 Z4 7 13 A3:4 AK6 8 15 A3:3 AA1 9 17 A3:2 Y3 10 19 A3:1 AF6 11 21 A3:0 AB4 12 23 A2:7 AB6 13 25 A2:6 AE3 14 27 A2:5 AJ1 15 29 A2:4 AC3 16 31 A2:3 AG3 17 33 A2:2 Z6 18 35 A2:1 AE1 19 37 A2:0 AN7 35 8 A1:7 AL5 34 10 A1:6 AK14 33 12 A1:5 AL7 32 14 A1:4 AN5 31 16 A1:3 AK10 30 18 A1:2 AH6 29 20 A1:1 AL9 28 22 A1:0 AH10 27 24 A0:7 AL15 26 26 A0:6 AN9 25 28 A0:5 AH8 24 30 A0:4 AH12 23 32 A0:3 DERIVED 22 34 A0:2 DERIVED 21 36 A0:1 DERIVED 20 38 A0:0 DERIVED
AMP Mictor A pin number
LA channel
Processor signal name
1–20
TMS MC2 Logic Board Adapter Hardware Support
T able 1–10: CPU to Mictor connections for Mictor D pins (Low)
Getting Started
Tektronix
Mictor A
pin number
4 7 D3:7 DERIVED
5 9 D3:6 DERIVED
6 11 D3:5 DERIVED
7 13 D3:4 DERIVED
8 15 D3:3 AN37
9 17 D3:2 AH28
10 19 D3:1 M36
11 21 D3:0 J35
12 23 D2:7 J37
13 25 D2:6 C35
14 27 D2:5 W37
15 29 D2:4 AG35
16 31 D2:3 AL33
17 33 D2:2 AM35
18 35 D2:1 AE33
19 37 D2:0 E37
35 8 D1:7 AE35
34 10 D1:6 AC35
33 12 D1:5 AG37
32 14 D1:4 AK32
31 16 D1:3 AN33
30 18 D1:2 L37
29 20 D1:1 J33
28 22 D1:0 G33
27 24 D0:7 L35
26 26 D0:6 E35
25 28 D0:5 Y1
24 30 D0:4 AJ35
23 32 D0:3 B36
22 34 D0:2 E31
21 36 D0:1 E29
20 38 D0:0 NOT SPECIFIED
AMP Mictor A pin number
LA channel
Processor signal name
TMS MC2 Logic Board Adapter Hardware Support
1–21
Getting Started
1–22
TMS MC2 Logic Board Adapter Hardware Support
Specifications

Specifications

Circuit Description

This chapter contains information regarding the specifications of the TMS MC2 Logic Board Adapter Hardware Support.
The following is a description of Signal Probing.
Signal Probing
The TMS MC2 probe adapter uses series isolation to acquire data. For unlatched signals, the probe adapter acquires data through series isolation resistors. For the latched signals, the probe adapter acquires data through series isolation resistors in parallel with GTL+ latches after the resistors.

Probe Adapter Loading Diagrams

Figures 2–1 through 2–4 are provided for loading reference.
Mated 190 - Pin
Mictor Model
Figure 2–1: TMS MC2 signals without active loads
87 W
0.58 nS
P6434 Probe
Mated 190 - Pin
Mictor Model
87 W
0.15 nS
Figure 2–2: TMS MC2 signals with active loads
TMS MC2 Logic Board Adapter Hardware Support
6.5 pF
87 W
0.60 nS
P6434 Probe
2–1
Specifications
Mated 190 - Pin
Mictor Model
Input Output
10 mW
3.2 nH
0.5 pF
0.7 pF
0.5 pF
Figure 2–3: Detail of TMS MC2 sockets and 190-pin mictor connector.
Table 2–1 shows the values you can use to calculate characteristics of the Lossy delay lines shown in Figure 2–4, which is the equivalent circuit of the P6434 probe.
T able 2–1: Lossy delay line values
Characteristic Value
C (capacitance) 1.58 pF per inch L (inductance) 8.9 nH per inch R (resistance) Z0 (impedance)
.067 W per inch 75 W
2–2
Input
1.6 nH
0.005
0.7 pF
W
1.6 nH
0.005
W
0.23 pF
20 KW
1.1 pF
Figure 2–4: Equivalent circuit for the P6434 probe
TMS MC2 Logic Board Adapter Hardware Support
LOSS Y
Length = 58 inches
75
W
+2.2 V

Specification Tables

Specifications
These specifications are for a probe adapter connected between a compatible Tektronix logic analyzer and a system under test. Signal voltage swing in your system under test must be at least 200 mV around the GTL+ reference voltage.
Table 2–2 lists the electrical requirements of the system under test. Table 2–3 lists the electrical requirements for the power supply that provides power to the TMS MC2 probe adapter. Table 2–4 lists the environmental specifications. Table 2–5 lists the BCLK timing restrictions and electrical specifications.
T able 2–2: Electrical specifications for the system under test
Characteristics Requirements
System under test DC power requirements
Voltage, VCC_1.5V 1.5 V "9 % Current, VCC_1.5V I maximum 35 mA, I typical 1.8 mA Voltage, VREF6 1.0 V "2 % Current, VREF6 I maximum <1 mA, I typical <1 mA Voltage, VCC_CMOS (1.5 V) Current, VCC_CMOS (1.5 V) Voltage, VCC_CMOS (2.5 V)
Current, VCC_CMOS (2.5 V) System under test clock rate Maximum 100 MHz System under test tested clock rate Maximum 66 MHz Minimum setup time required, all signals 2.8 ns Minimum hold time required, all signals 0.2 ns
Measured typical SUT signal loading AC load DC load
All latched signals: INIT#, BREQ0#,
REQ4#, RESET#, ADS#, RS0#, RS1#,
RS2#, HIT#, HITM#, DRDY#, BNR#,
A3#, A8# – A15#,
BCLK 2.6 pF AD8009
All other signals 2.5 pF
1
The VCC_CMOS supply voltage can be either 1.5. V or 2.5 V depending on the CMOS I/O voltage level of the target microprocessor.
1 1 1 1
1.5 V "9 % I maximum 20 mA, I typical 0.9 mA
2.5 V "5 % I maximum 35 mA, I typical 1.4 mA
Specification
8 pF 74GTL16622 in parallel
with 20 kW
20 kW
TMS MC2 Logic Board Adapter Hardware Support
2–3
Specifications
T able 2–3: Electrical specifications for the AC adapter
Characteristic Description
Input Voltage rating 90 – 265 V CATII Input Frequency Rating 47 – 63 Hz Maxium Input current 1.1 A at 100 V AC Output Voltage Rating 5 V Output Current Rating 5 A Output Power Rating 25 W
T able 2–4: Environmental specifications
Characteristic Description
1
Temperature
Maximum operating +50° C (+122° F)
2
Minimum operating 0° C (+32° F)
Nonoperating –55° C to +75° C (–67° to +167° F) Humidity 10 to 95% relative humidity Altitude
Operating 4.5 km (15,000 ft) maximum
Nonoperating 15 km (50,000 ft) maximum Electrostatic immunity The probe adapter is static sensitive
1
Designed to meet Tektronix standard 062-2847-00 class 5.
2
Not to exceed microprocessor thermal considerations. Forced air cooling might be
required across the CPU.
T able 2–5: BCLK timing and electrical specifications
Characteristics
Vin (lo) 0.5 V Vin (hi) 2.0 V Duty Cycle 25 75 % t
lh
t
hl
Minimum Maximum Units Notes
1.25 ns Monotonically increasing
1.25 ns Monotonically decreasing
2–4
TMS MC2 Logic Board Adapter Hardware Support
Specifications
139.06 mm (5.475 in)
Dimensions
Logic board
Third party
interposer board
Figure 2–5 shows the dimensions of the TMS MC2 probe adapter.
15.75 mm (.620 in)
53.34 mm (2.100 in)
28.32 mm (1.115 in)
133.35 mm (5.250 in)
Figure 2–5: Dimensions of the TMS MC2 probe adapter
TMS MC2 Logic Board Adapter Hardware Support
2–5
Specifications
2–6
TMS MC2 Logic Board Adapter Hardware Support
WARNING
The following servicing instructions are for use only by qualified personnel. To avoid injury, do not perform any servicing other than that stated in the operating instructions unless you are qualified to do so. Refer to all safety summaries before performing any service.
Maintenance

Maintenance

Replacing The Fuse

This section contains information on replacing the TMS MC2 probe-adapter fuse.
If the fuse on the probe adapter opens (burns out), you can replace it with a 5 A, 125 V fuse. Figures 3–1 illustrates the location of the fuse on the TMS MC2 probe adapter. See the Replaceable Mechanical Parts chapter for part descrip­tions.

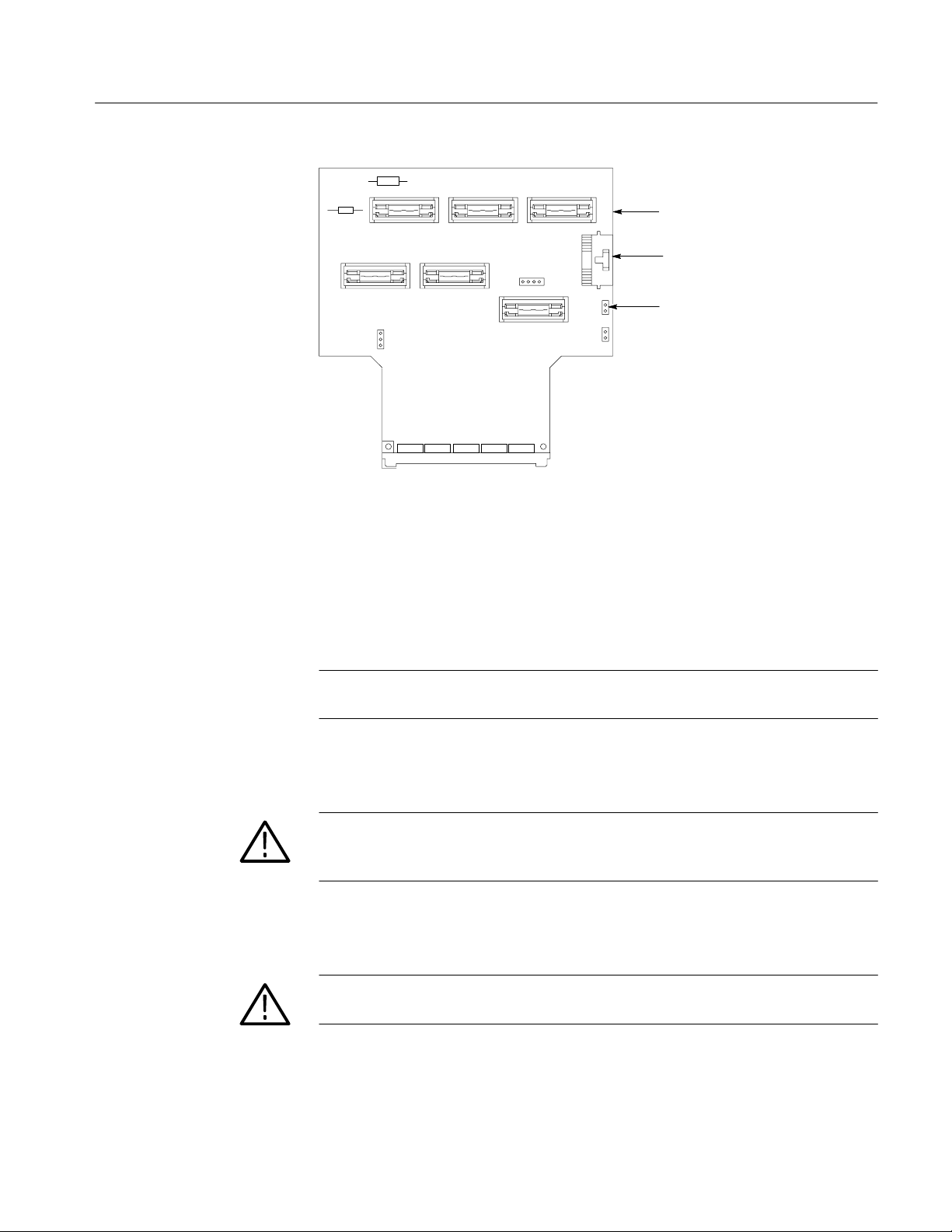

F200 Fuse
Figure 3–1: Fuse location on the TMS MC2 probe adapter
TMS MC2 Logic Board Adapter Hardware Support
3–1
Maintence
3–2
TMS MC2 Logic Board Adapter Hardware Support
Replaceable Mechanical Parts

Replaceable Mechanical Parts

This chapter contains a list of the replaceable mechanical components for the TMS MC2 Logic Board Adapter Hardware Support package.

Parts Ordering Information

Replacement parts are available through your local Tektronix field office or representative.
Changes to Tektronix products are sometimes made to accommodate improved components as they become available and to give you the benefit of the latest improvements. Therefore, when ordering parts, it is important to include the following information in your order:
H Part number H Instrument type or model number H Instrument serial number H Instrument modification number, if applicable
If you order a part that has been replaced with a different or improved part, your local Tektronix field office or representative will contact you concerning any change in part number.

Using the Replaceable Mechanical Parts List

The tabular information in the Replaceable Mechanical Parts List is arranged for quick retrieval. Understanding the structure and features of the list will help you find all of the information you need for ordering replacement parts. The following table describes the content of each column in the parts list.
TMS MC2 Logic Board Adapter Hardware Support
4–1
Replaceable Mechanical Parts
Parts list column descriptions
Column Column name Description
1 Figure & index number Items in this section are referenced by figure and index numbers to the exploded view illustrations
that follow. 2 Tektronix part number Use this part number when ordering replacement parts from Tektronix. 3 and 4 Serial number Column three indicates the serial number at which the part was first effective. Column four
indicates the serial number at which the part was discontinued. No entries indicates the part is
good for all serial numbers. 5 Qty This indicates the quantity of parts used. 6 Name & description An item name is separated from the description by a colon (:). Because of space limitations, an
item name may sometimes appear as incomplete. Use the U.S. Federal Catalog handbook H6-1
for further item name identification. 7 Mfr. code This indicates the code of the actual manufacturer of the part. 8 Mfr. part number This indicates the actual manufacturer’s or vendor’s part number.
Abbreviations
Chassis Parts
Mfr. Code to Manufacturer
Cross Index
Abbreviations conform to American National Standard ANSI Y1.1–1972.
Chassis-mounted parts and cable assemblies are located at the end of the Replaceable Electrical Parts List.
The table titled Manufacturers Cross Index shows codes, names, and addresses of manufacturers or vendors of components listed in the parts list.
4–2
TMS MC2 Logic Board Adapter Hardware Support
Replaceable Mechanical Parts
Manufacturers cross index
Mfr. code
00779 AMP INC. CUSTOMER SERVICE DEPT
14310 AULT INC 7300 BOONE AVE NORTH
1AW87 LEWIS SCREW CO. 4300 SOUTH RACINE AVENUE CHICAGO, IL 60609 26742 METHODE ELECTRONICS INC BACKPLAIN DIVISION
5Y400 TRIAX MET AL PRODUCTS INC 1880 SW MERLO DRIVE BEAVERTON, OR 97006 60381 PRECISION INTERCONNECT CORP. 16640 SW 72ND AVE PORTLAND, OR 97224 61857 SAN–O INDUSTRIAL CORP 91–3 COLIN DRIVE HOLBROOK, NY 11741 63058 BERG ELECTRONICS INC. MCKENZIE SOCKET DIV
80009 TEKTRONIX INC 14150 SW KARL BRAUN DR
82389 SWITCHCRAFT DIV OF RAYTHEON
S3109 FELLER U.S. CORPORA TION 72 VERONICA AVE
TK1373 PATELEC–CEM 10156 TORINO
TK2541 AMERICOR ELECTRONICS LTD UNIT–H
TK2548 XEROX CORPORATION 14181 SW MILLIKAN WAY BEAVERTON, OR 97005
Manufacturer Address City , state, zip code
PO BOX 3608
BROOKLINE PARK
7444 WEST WILSON AVE
910 PAGE AVE
PO BOX 500
5555 N. ELSTON AVENUE
UNIT #4
VAICENTALLO 62/456
2682 W COYLE AVE
HARRISBURG, PA 17105–3608
MINNEAPOLIS, MN 55428
CHICAGO, IL 60656–4548
FREMONT , CA 94538–7340
BEAVERT ON, OR 97077–0001
CHICAGO, IL 60630–1314
SOMERSET, NJ 08873
ITALY,
ELK GROVE VILLAGE, IL 60007
TMS MC2 Logic Board Adapter Hardware Support
4–3
Replaceable Mechanical Parts
Replaceable mechanical parts list
Fig. & index number
4–1–1 671–4707–00 1 CIRCUIT BD ASSY:370 PIN PPGA,SOCKETED LOGIC
Tektronix part number
–2 131–6610–00 1 JACK,POWER DC:PCB,MALE,RTANG,2MM PIN
–3 131–1857–00 1 CONN, HDR: PCB, MALE, STR, 1 X 36, 0.1 CTR, 0.230 MLG X
–4 131–4850–00 1 CONN,HDR:PCB,MALE,RTANG,2 X 15,0.05 X 0.1 CTR,0.35 H X
–5 131–4917–00 2 CONN, HDR: PCB, MALE, STR,1 X 2, 0.1 CTR, 0.235 MLG X
–6 103–0420–00 1 CIRCUIT BD ASSY: ADAPTER SWIZZLE BD;TMSMC2 OPT.11 0KVL1 C2507 –7 131–4356–00 1 CONN,SHUNT:SHUNT/SHORTING,FEMALE,1 X 2,0.1 CTR,0.63
–8 131–4530–00 1 CONN,HDR:PCB,MALE,STR,1 X 3,0.1 CTR,0.230 MLG X 0.120
–9 105–1089–00 6 LATCH ASSY :LATCH HOUSING ASSY,VERTICAL MOUNT,0.48
10 131–6134–01 6 CONN,PLUG:SMD,MICTOR,PCB,FEMALE,STR,38 POS,0.025
–11 159–0059–00 1 FUSE,WIRE LEAD:5A,125V 61857 SPI–5A
071–0613–00 1 MANUAL,TECH MPROBE, HARDWARE;TMSMC2 TK2548 071–0613–00 119–5061–01 1 POWER SUPPLY :25W,5V 5A,CONCENTRIC
161–0104–00 1 CA ASSY,PWR:3,18 AWG,98 L,250V/10AMP,98
––––––––––
* Check the P6434 manual for detailed replaceable part number information.
Serial no. effective
Serial no.
discont’d
Qty Name & description
BD,TMS112 OPT 03
DIA,BRASS,SILVER PLATE,5A,
0.100 TAIL, GOLD
0.10 TAIL,CTR PLZ,LATCHING,30 GOL
0.110 TAIL, 30 GOLD, TUBE, HIGH TEMP
H,BLK,W/HANDLE,JUMPER,30 GOLD,
TAIL,30 GOLD,BD RETENTION,
H X 1.24 L,W/PCB SINGLE CLIP,P6434
CTR,0.245 H,GOLD,TLA7QS
STANDARD ACCESSORIES
2MM,90–265V,47–63 HZ IEC,15X8.6X5 CM, UL,CSA, TUV,IEC,SELF
INCH,RT ANG,IEC320,RCPT X STR,NEMA 15–5P,W/CORD GRIP,
OPTIONAL ACCESSORIES
Mfr. code
80009 671–4707–00
82389 RAPC722TB
22526 65507–136
00779 104069–5
00779 104350–1
26742 9618–302–50
00779 104344–1
60381 105–1089–00
00779 767054–1
14310 SW108KA0002F01
S3109 ORDER BY
* 6 P6434 MASS TERMINATION PROBE, Opt 21 * 80009 ORDER BY
Mfr. part number
DESCRIPTION
DESCRIPTION
4–4
TMS MC2 Logic Board Adapter Hardware Support
Replaceable mechanical parts list
Fig. & index number
Tektronix part number
161–0104–05 1 CA ASSY,PWR:3,1.0MM SQ,250V/10A,2.5
161–0104–06 1 CA ASSY,PWR:3,1.0MM SQ,250V/10A,2.5
161–0104–07 1 CA ASSY,PWR:3,1.0MM SQ,240V/10A,2.5
161–0167–00 1 CA ASSY,PWR:3,0.75MM SQ,250V/10A,2.5
Serial no. effective
Serial no. discont’d
Qty Name & description
METER,RTANG,IEC320,RCPT,AUSTRALIA,SAFTEY CONTROLLED,
METER,RTANG,IEC320,RCPT,EUROPEAN,SAFTEY CONTROLLED,
METER,RTANG,IEC320,RCPT X 13A,FUSED,UK PLUG,(13A FUSE),UK PLUG,(13A FUSE),UNITED KINGDOM,SAFTEY CONTROL
METER,RTANG,IEC320,RCPT,SWISS,NO CORD GRIP,SAFTEY CONTR
Replaceable Mechanical Parts
Mfr. code
TK1373 161–0104–05
TK1373 ORDER BY
TK2541 ORDER BY
S3109 ORDER BY
Mfr. part number
DESCRIPTION
DESCRIPTION
DESCRIPTION
TMS MC2 Logic Board Adapter Hardware Support
4–5
Replaceable Mechanical Parts
1
11
10
9
8
7
(Not included in
this product)
2
3
4
5
Figure 4–1: TMS MC2 probe adapter exploded view
6
4–6
TMS MC2 Logic Board Adapter Hardware Support
Index

Index

A
about this manual set, vii AC adapter, 2–4 Alternate Connections
APIC bus support, 1–9 ITP, 1–10
ITP – Reset, 1–10 APIC, 1–9 application, logic analyzer configuration, 1–1 Assembling Probe Adapter, 1–4
B
BCLK, 1–2
C
clock rate, 1–2 connections
CPU to Mictor, 1–14
probe adapter to SUT, 1–7 cooling requirements, 1–2 CPU to Mictor connections, 1–14
temperature, 2–4
F
fuse, replacing, 3–1
I
installing hardware. See Alternate Connections ITP. See Alternate Connections
J
jumpers
MFG_TEST, 1–6 timing, 1–6
L
loading, 2–3 logic analyzer
configuration for disassembler, 1–1 configuration for the application, 1–1
D
definitions
information on basic operations, vii
module, vii dimensions, probe adapter, PGA370, 2–5 disassembler, logic analyzer configuration, 1–1
E
electrical specifications, 2–1, 2–3
AC adapter, 2–4
BCKL timing, 2–4
clock rate, 2–3
hold time, 2–3
power requirements, 2–3
setup time, 2–3
signal loading, 2–3
tested clock rate, 2–3 environmental specifications, 2–4
altitude, 2–4
electrostatic immunity, 2–4
humidity , 2–4
TMS MC2 Logic Board Adapter Hardware Support
M
manual
conventions, vii
how to use the set, vii MFG_TEST pins, acquiring data below 40 MHz, 1–6 Mictor to CPU connections, 1–14 module, definition, vii
P
P6434 probes, labeling, 1–3 power, for the probe adapter
applying, 1–11
removing, 1–12 power adapter, 1–1 1 power jack, 1–12 Probe Adapter, removal, 1–12 probe adapter
clearance, dimensions, PGA370, 2–5
configuring, 1–6
Connecting the logic Analyzer, 1–7
hardware description, 1–1
Index–1
Index
jumper positions, 1–6
R
Removing the Probe Adapter, 1–12 replacing the fuse, 3–1 requirements
cooling, 1–2 forced air cooling, 1–2 Signal Supported, 1–3 System under T est, 1–2
restrictions, 1–2
BCLK, 1–2
S
service information, 3–1
signal loading, 2–3 Signal Supported, 1–3 specifications, 2–1
electrical, 2–1, 2–3 environmental, 2–4 mechanical (dimensions), PGA370, 2–5
System Under T est power, 1–2
T
terminology, vii TIMING/NORMAL jumper, 1–6
Index–2
TMS MC2 Logic Board Adapter Hardware Support
Loading...
