Tektronix TMS855 Instruction Manual

Instruction Manual

TMS855

HyperTransport Bus Software Support

071-1170-00

www.tektronix.com

Copyright © Tektronix, Inc. All rights reserved.

Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supercedes
that in all previously published material. Specifications and price c hange privileges reserved.

Tektronix, Inc., P.O. Box 500, Bea verton, OR 97077

TEKTRONIX and TEK are registered trademarks of Tektronix, Inc.

MagniVu is a trademark of Tektronix, Inc.

SOFTWARE WARRANTY

Tektronix warrants that the media on which this software product is furnished and the encoding of the programs on
the media will be free from defects in materials and workmanship for a period of three (3) months from the date of
shipment. If a medium or encoding proves defective during the warra nty period, Tektronix will provide a
replacement in exchange for the defective medium. Except as to the media on which this software product is
furnished, this software product is provided “as is” without warranty of any kind, either e xpress or implied.
Tektronix does not warrant that the func tions contained in this software product will meet Customer’s
requirements or that the operation of the programs will be uninterrupted or error-free.

In order to obtain service under this warranty, Customer must notify Tektronix of the defect before the expiration
of the warranty period. If Tektronix is unable to provide a replacement that is free from defects in materials and
workmanship within a reasonable time thereafter, Customer may terminate the license for this software product
and return this software product and any associated materials for credit or refund.

THIS WARRANTY IS GIVEN BY TEKTRONIX IN LIEU OF ANY OTHER WARRANTIES, EXPRESS
OR IMPLIED. TEKTRONIX AND ITS VENDORS DISCLAIM ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TEKTRONIX’
RESPONSIBILITY TO REPLACE DEFECTIVE MEDIA OR REFUND CUSTOMER’S PAYMENT IS
THE SOLE AND EXCLUSIVE REMEDY PROVIDED TO THE CUSTOMER FOR BREACH OF THIS
WARRANTY. TEKTRONIX AND ITS VENDORS WILL NOT BE LIABLE FOR ANY INDIRECT,
SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES IRRESPECTIVE OF WHETHER
TEKTRONIX OR THE VENDOR HAS ADVANCE NOTICE OF THE POSSIBILITY OF SUCH
DAMAGES.

Table of Contents

Getting Started

Operating Basics

Preface vii...................................................

Manual Conventions vii..............................................

Contacting Tektronix viii.............................................

Support Package Description 1--1.......................................

Disassembly Support 1--1..........................................

Logic Analyzer Software Compatibility 1--2..............................

Logic Analyzer Configuration 1--2......................................

Requirements and Restrictions 1--3......................................

Hardware Reset 1--3..............................................

Clock Rate 1--3..................................................

Setup/Hold Time Adjustments 1--3..................................

Nonintrusive Acquisition 1--3......................................

Limitations of the Support 1--4.........................................

Connecting the Logic Analyzer to a Target System 1--4.....................

Labeling P6880 Probes 1--5............................................

Setting Up the Support 2--1.....................................

Installing the Support Software 2--1.....................................

Support Package Setups 2--2...........................................

Clocking Options 2--3................................................

Acquiring and Viewing Disassembled Data 2--5....................

Acquiring Data 2--5..................................................

Changing How Data is Displayed 2--5...................................

Optional Display Selections 2--6....................................

Bus Specific Fields 2--6...........................................

Marking Cycles 2--7..................................................

Cycle Type Labels 2--8...............................................

Special Messages 2--9................................................

Viewing Disassembled Data 2--10........................................

All Display Format 2--11...........................................

No NOP Packets Display Format 2--13................................

Trigger Programs 2--15..........................................

Loading Trigger Programs 2--15.........................................

HT and HT_Tek Trigger Programs 2--16...............................

Setup/Hold Time Adjustments 2--19...............................

Reference

Channel Group Definitions 3--1..................................

Channel Groups 3--1.................................................

TMS855 HyperTransport Bus Software Support

i

Table of Contents

Specifications

Replaceable Parts List

Symbol and Channel Assignment Tables 3--9......................

Symbol Tables 3--9..................................................

Channel Assignment Tables 3--9........................................

HT Channel Group Assignments 3--10................................

Setup/Hold Calibration Groups 3--10..................................

Disassembly Groups for HT Support Package 3--11......................

HT_Tek Channel Group Assignments 3--13............................

Setup/Hold Calibration Groups 3--13..................................

Disassembly Groups for HT_Tek Support Package 3--14..................

Signal Source To Probe Connections 3--17.................................

Connections for HT and HT_Cal Support Packages 3--18.................

Connections for HT_Tek and HT_Tek_Cal Support Packages 3--25.........

Signal Acquisition 3--33.........................................

Signal Acquisition in HT and HT_Tek Support Packages 3--33.................

Specifications Table 4--1..............................................

Index

Parts Ordering Information 5 --1.........................................

Using the Replaceable Parts List 5--1....................................

ii

TMS855 HyperTransport Bus Software Support

List of Figures

Table of Contents

Figure 2--1: Disassembly display options for HT support

package 2--6...............................................

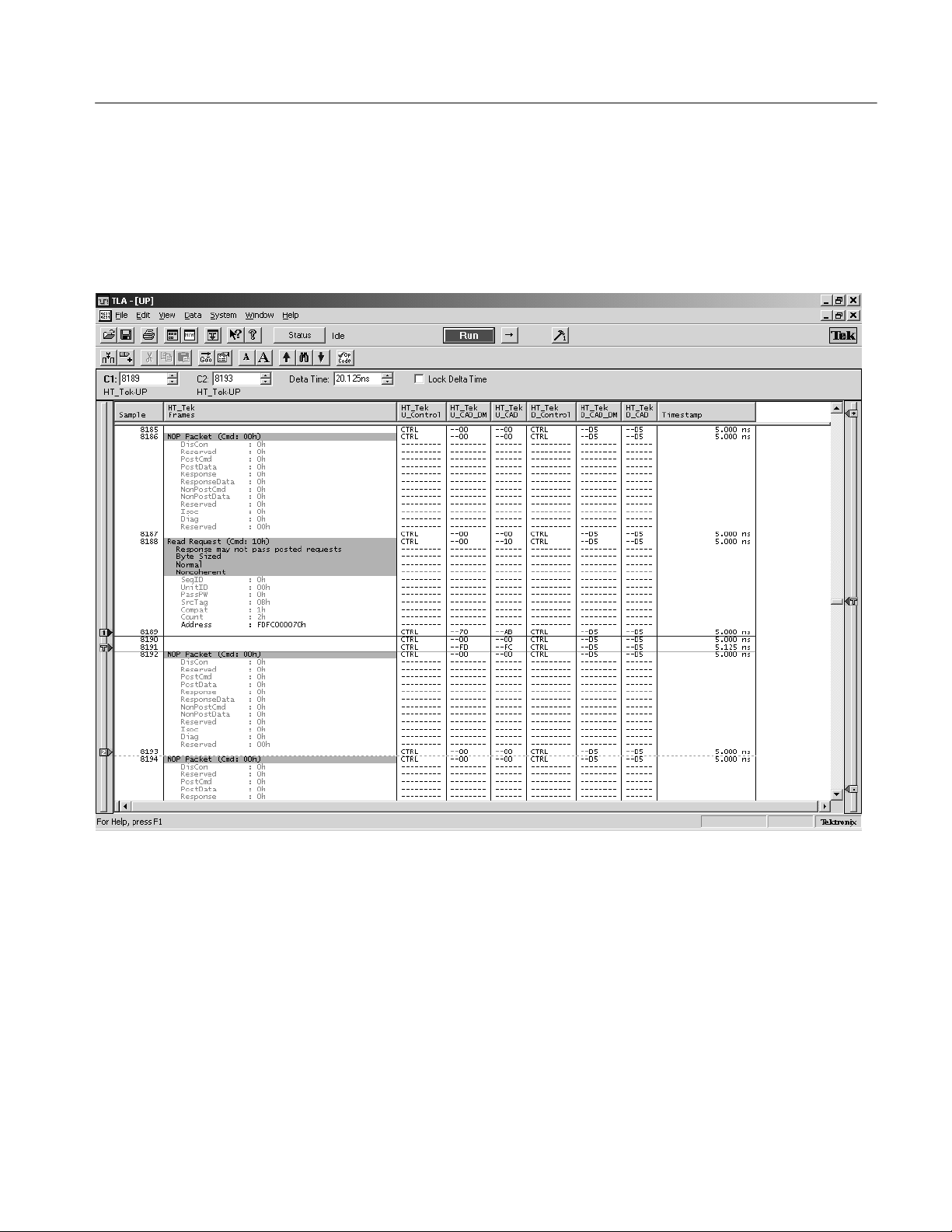

Figure 2--2: Example of All Display format for the HT_Tek support

package 2--11...............................................

Figure 2--3: Example of All display format with CRC and NOP

packets filtered for the HT_Tek support package 2--12...........

Figure 2--4: Example of No NOP Packets with Post Process filtering

in HT_Tek support package 2--13..............................

Figure 2--5: Loading trigger programs 2--16........................

Figure 3--1: P6880 differential probe land footprint for HT and

HT_Cal support packages 3--18...............................

Figure 3--2: P6880 differential probe land footprint for HT_Tek

and HT_Tek_Cal support packages 3--25.......................

Figure 3--3: P6880 differential probe land footprint for HT_Tek

and HT_Tek_Cal support packages 3--26.......................

Figure 3--4: Timing diagram for Upstream or Downstream bus 3--34....

Figure 3--5: Timing diagram for Upstream and Downstream bus

with Clock Inverted. 3--35....................................

Figure 3--6: Timing diagram for Upstream and Downstream bus 3--36..

Figure 3--7: Timing diagram for Upstream and Downstream bus

with skew 3--37.............................................

Figure 3--8: Timing diagram for Upstream and Downstream with

180 degree phase shift 3--38...................................

TMS855 HyperTransport Bus Software Support

iii

Table of Contents

List of Tables

Table 1--1: Probe requirements for the TMS855 HyperTransport

bus support packages 1--3...................................

Table 2--1: Disassembly display options 2--6.......................

Table 2--2: Mark selections and definitions for HT and HT_Tek

support packages 2--8......................................

Table 2--3: Cycle type labels for control p ackets in HT and HT_Tek

support packages 2--8......................................

Table 2--4: Cycle type labels for data packets for HT and HT_Tek

support packages 2--9......................................

Table 2--5: Cycle type labels for packet continuation for HT and

HT_Tek support packages 2--9...............................

Table 2--6: Description of special messages in the display 2--10........

T able 2--7: Description of special characters in the display 2--10.......

Table 3--1: HT and HT_Tek Channel groups 3--1..................

Table 3--2: HT_Ctrl group symbol table definitions 3--9.............

Table 3--3: HT Setup/Hold calibration groups 3--10..................

Table 3--4: U_CAD group assignments for HT support package 3--11...

Table 3--5: U_CAD_DM group assignments for HT support

package 3--11..............................................

Table 3--6: U_Control group assignments for HT support

package 3--12..............................................

Table 3--7: D_CAD group assignments for HT support package 3--12...

Table 3--8: D_CAD_DM group assignments for HT support

package 3--12..............................................

Table 3--9: D_Control group assignments for HT support

package 3--13..............................................

Table 3--10: HT_Tek Setup/Hold calibration groups 3--13............

Table 3--11: U_CAD group assignments for HT_Tek support

package 3--14..............................................

Table 3--12: U_CAD_DM group assignments for HT_Tek support

package 3--15..............................................

Table 3--13: U_Control group assignments for HT_Tek support

package 3--15..............................................

Table 3--14: D_CAD group assignments for HT_Tek support

package 3--15..............................................

iv

TMS855 HyperTransport Bus Software Support

Table of Contents

Table 3--15: D_CAD_DM group assignments for HT_Tek support

package 3--16..............................................

Table 3--16: D_Control group assignments for HT_Tek support

package 3--16..............................................

Table 3--17: Clock and qualifier channel assignments for HT support

package 3--19..............................................

Table 3--18: A3 probe Upstream channel assignments for HT support

package 3--20..............................................

Table 3--19: D3 probe channel assignments for Upstream bus demuxed

from A3 for HT support package 3--21........................

Table 3--20: C3 probe Upstream channel assignments for HT support

package 3--21..............................................

Table 3--21: C1 probe channel assignments for Upstream bus demuxed

from C3 for HT support package 3--22.........................

Table 3--22: A1 probe Downstream channel assignments for HT

support package 3--22.......................................

Table 3--23: D1 probe channel assignments for Downstream bus

demuxed from A1 for HT support package 3--23.................

Table 3--24: E3 probe Downstream channel assignments for HT

support package 3--23.......................................

Table 3--25: E1 probe channel assignments for Downstream bus

demuxed from E3 for HT support package 3--24.................

Table 3--26: Clock and qualifier channel assignments for HT_Tek

support package 3--26.......................................

Table 3--27: A3 probe Upstream channel assignments for HT_Tek

support package 3--27.......................................

Table 3--28: D3 probe channel assignments for Upstream bus demuxed

from A3 for HT_Tek support package 3--28.....................

Table 3--29: C3 probe Upstream channel assignments for HT_Tek

support package 3--28.......................................

Table 3--30: C1 probe channel assignments for Upstream bus demuxed

from C3 for HT_Tek support package 3--29....................

Table 3--31: A1 probe Downstream channel assignments for HT_Tek

support package 3--29.......................................

Table 3--32: D1 probe channel assignments for Downstream bus

demuxed from A1 for HT_Tek support package 3--30............

Table 3--33: E3 probe Downstream channel assignments for

HT_Tek support package 3--30...............................

Table 3--34: E1 probe channel assignments for Downstream bus

demuxed from E3 for HT_Tek support package 3 --31............

Table 3--35: Reference of figures corresponding to combinations

of acquisition modes and clocking options 3--33.................

TMS855 HyperTransport Bus Software Support

v

Table of Contents

Table 3--36: Sample points in the HT and HT_Tek support

packages 3--39.............................................

T able 4--1: Electrical specifications 4--1...........................

vi

TMS855 HyperTransport Bus Software Support

Preface

This instruction manual contains specific information about the
TMS855 HyperTransport bus software support product and is part of a set of
information on how to operate this product on compatible Tektronix logic
analyzers.

If you are familiar with operating bus support products on the logic analyzer, you
will probably only need this instruction manual to set up and run the support.

If you are not familiar with operating bus support products, you will need to
supplement this instruction manual with information on basic operations to set up
and run the support.

Information on basic operations of bus support packages is included with each
product. Each logic analyzer includes basic information that describes how to
perform tasks common to support packages on that platform. This information
can be in the form of logic analyzer online help, an installation manual, or a user
manual.

This manual provides detailed information on the following topics:

H Connecting the logic analyzer to the target system

Manual Conventions

H Setting up the logic analyzer to acquire data from the target system

H Acquiring and viewing disassembled data

This manual uses the following conventions:

H The term “disassembler” refers to the software that disassembles Hyper-

Transport bus cycles.

H The phrase “information on basic operations” refers to logic analyzer online

help or user manual.

H The phrase “logic analyzer” refers to the Tektronix logic analyzer for which

this product was purchased.

TMS855 HyperTransport Bus Software Support

vii

Contacting Tektronix

Preface

Phone [phone]*

Address Tektronix, Inc.

Department or name (if known)
14200 SW Karl Braun Drive
P.O. Box 500
Beaverton, OR 97077
USA

Web site www.tektronix.com

Sales support 1-800-833-9200, select option 1*

Service support 1-800-833-9200, select option 2*

Technical support Email: [e-mail]

1-800-833-9200, select option 3*

6:00 a.m. -- 5:00 p.m. Pacific time

* This phone number is toll free in North America. After office hours, please leave a

voice mail message.
Outside North America, contact a Tektronix sales office or distributor; see the
Tektronix web site for a list of offices.

TMS855 HyperTransport Bus Software Supportviii

Getting Started

Getting Started

This section contains information on the TMS855 HyperTransport bus support
product, and information on connecting your logic analyzer to your target
system.

Support Package Description

The TMS855 HyperTransport bus support product acquires, decodes and displays
HyperTransport bus cycles. The support product allows you to acquire bus cycles
with minimal impact on the normal environment of the system.

The TMS855 HyperTransport bus support product contains four support
packages that you can load to handle the various combinations of Upstream and
Downstream bus widths and data rates. A description of each support package is
listed here.

H HT provides state, timing, triggering, and disassembly support.

H HT_Cal helps adjust the Setup/Hold time.

H HT_Tek provides state, timing, triggering, and disassembly support.

Disassembly Support

H HT_Tek_Cal helps adjust the Setup/Hold time.

NOTE. The support packages HT and HT_Cal differ from HT_Tek, and
HT_Tek_Cal, only in the channel assignments. Refer to the section Symbol and
Channel Assignment Tables on page 3--11 for details.

Triggering Support. The HT and HT_Tek support packages contain a library of
EasyTrigger programs to enable you to quickly trigger on HyperTransport
control packets and to filter CRC and NOP packets in real time.

The HT and HT_Tek support packages disassemble data acquired from the
HyperTransport bus. The features of the disassembler are:

H Decoding all types of HyperTransport Packets.

H Identifying CRC packets using heuristics.

H Supporting disassembly for the 8-bit and 16-bit bus widths for Upstream and

Downstream.

TMS855 HyperTransport Bus Software Support

1--1

H Providing trigger programs for real time filtering of the CRC and NOP

packets and to trigger on the HyperTransport packets.

H Color coding for easier identification of the different packet fields.

H Using packet style display for the existing logic analyzer listing window

architecture.

H Acquiring Upstream and Downstream 8 and 16-bit buses in one 136-channel

TLA7Axx module, when the bus is operating in synchronous mode.

To use this support package efficiently, refer to these documents:

H HYPERTRANSPORT I/O LINK SPECIFICATION, {HyperTransport

Technology Consortium, 22nd November 2002, and Revision 1.05}

H HyperTransport Technology, Interface Design Guide, {May, 2002, Revision

1.04}

Logic Analyzer Software Compatibility

Getting Started

The label on the bus support CD-ROM states which version of logic analyzer
software this support package is compatible with.

Logic Analyzer Configuration

The TMS855 HyperTransport bus support product allows a choice of required
minimum module configurations. The support package requires one 136-channel
TLA7Axx module. You can simultaneously capture different combinations of
Upstream and the Downstream buses from the target system assuming that both
the Upstream and Downstream clocks are running at the same speed and derived
from the same crystal. The different combinations are:

H 8-bit Upstream Bus and 8-bit Downstream Bus

H 16-bit Upstream Bus and 16-bit Downstream Bus

H 8-bit Upstream Bus and 16-bit Downstream Bus

H 16-bit Upstream Bus and 8-bit Downstream Bus

Systems with unique clocks for the U pstream and Downstream buses require two
independent 136-channel TLA7Axx modules for simultaneous capture. Module
acquisition speed depends on the requirements but is 450 MHz by default for
16-bit and 8-bit buses.

1--2

TMS855 HyperTransport Bus Software Support

Getting Started

Table 1--1 lists the probe requirements for each of the TMS855 HyperTransport
bus support packages.

Table 1--1: Probe requirements for the TMS855 HyperTransport bus support packages

Support
package

HT, and HT_Cal Four P6880 probes for

HT_Tek, and
HT_Tek_Cal

Upstream and Downstream
16-bit buses

TLA7Axx

Four P6880 probes for
TLA7Axx

Requirements and Restrictions

Review the electrical specifications in the Specifications section on page 4-1 in
this manual as they pertain to your target system, as well as the following
descriptions of TMS855 HyperTransport bus support product requirements and
restrictions.

Hardware Reset

Clock Rate

If a hardware reset occurs in your HyperTransport system during an acquisition,
the application might acquire an invalid sample.

The maximum rate for state acquisition is 450 MHz

Upstream and Down­stream 8-bit buses

Two P6880 probes for
TLA7Axx

Four P6880 probes for
TLA7Axx

Upstream or Down­stream 16-bit buses

Two P6880 probes for
TLA7Axx

Two P6880 probes for
TLA7Axx

Upstream or Down­stream 8-bit buses

One P6880 probe for
TLA7Axx

Two P6880 probes for
TLA7Axx

1

.

Setup/Hold Time

Adjustments

For correct acquisition, the target system must provide a data valid window of
750 ps. Some target systems may require an adjustment in the Setup/Hold time
settings of the logic analyzer to match the data valid window. The HT_Cal and
HT_Tek_Cal support packages can be used along with the SHAnalyzer applica­tion to find the optimum Setup/Hold time settings for the logic analyzer. For
more information, refer to the section Setup/Hold Time Adjustments on
page 2-19.

Nonintrusive Acquisition

Acquiring HyperTransport bus cycles is nonintrusive to the target system. That
is, the TMS855 HyperTransport bus support product does not intercept, modify
or present signals back to the target system.

1

Specification at time of printing. Contact your Tektronix sales representative for
current information on the fastest bus supported.

TMS855 HyperTransport Bus Software Support

1--3

Limitations of the Support

The TMS855 HyperTransport bus support product has these limitations.

H If the TMS855 HyperTransport bus support product cannot find the start of a

H Since the trigger programs wait until they encounter a Low to High transition

H When the CTL signal is asserted, the CAD signals carry either a control

Getting Started

control packet or a CRC packet, it displays a message “Insufficient Data to
Disassemble” in the listing window. This usually occurs if there are no data
packets or CRC packets in the acquisition. Use the marking options (see page
2--7) to mark the start of a control packet. Once the start of a control packet is
known the support package disassembles the HyperTransport packets.

in the CTL signal (to identify the start of a control packet), the trigger
programs do not trigger the logic analyzer, if there are no transitions on the
CTL signal.

packet or a CRC packet. Since the trigger programs cannot differentiate
between a CRC packet and a control packet, false triggering may occur. If
the logic analyzer triggered on a CRC packet, then try again to trigger on the
desired control packet. This happens when CRC and NOP packets are not
filtered.

Connecting the Logic Analyzer to a Target System

You can use the channel probes and clock probes, to make the connections
between the logic analyzer and your target system.

To connect the probes to the HyperTransport bus signals described in the
TMS855 product channel assignment to the target system, follow these steps:

1. Power off your target system. It is not necessary to power off the logic

analyzer.

CAUTION. To prevent static damage, handle the target systems, probes, and the
logic analyzer module in a static-free environment. Static discharge can damage
these components.

Always wear a grounding wrist strap, heel strap, or similar device while
handling the target system.

2. Place the target system on a horizontal, static-free surface.

3. Use Tables 3--17 through 3--34 starting on page 3--19 to connect the channel

probes to HyperTransport bus signals in the target system.

1--4

TMS855 HyperTransport Bus Software Support

Getting Started

Labeling P6880 Probes

The TMS855 HyperTransport bus support product relies on the channel mapping
and labeling scheme for the P6880 probe. Apply labels, using the instructions
described in the P6810, P6860, P6880 Logic Analyzer Probes Instruction manual
(Tektronix part number 071-1059-XX).

TMS855 HyperTransport Bus Software Support

1--5

Getting Started

1--6

TMS855 HyperTransport Bus Software Support

Operating Basics

Setting Up the Support

This section provides information on how to set up the software support and
covers the following topics:

H Installing the support software

H Support package setups

H Clocking options

The information in this section is specific to the operations and functions of the
TMS855 HyperTransport bus support product on a Tektronix logic analyzer.
Information on basic operations describes general tasks and functions.

Before you acquire and display disassembled data, you need to load the support
package and specify the setups for clocking and triggering as described in the
logic analyzer online help under “Microprocessor Support”. The support package
provides default values for each of these setups, but you can change the setups as
needed.

Installing the Support Software

NOTE. Before you install any support software, it is recommended you verify that
the bus support software is compatible with the logic analyzer software.

To install the TMS855 HyperTransport bus support product on your Tektronix
logic analyzer, follow these steps:

1. Insert the CD-ROM in the CD drive.

2. Click the Windows Start button, point to Settings, and click Control Panel.

3. In the Control Panel window, double-click Add/Remove Programs.

4. Follow the instructions on the screen for installing the software from the

CD-ROM. A copy of the instruction manual is available on the CD-ROM.

To remove or uninstall software, follow the above instructions and select
Uninstall. You need to close all windows before you uninstall any software.

TMS855 HyperTransport Bus Software Support

2--1

Setting Up the Support

Support Package Setups

The TMS855 HyperTransport bus support product installs four support packages.
Each support package offers different clocking and display options.

H HT: This support package has the channel assignment derived from the pin

H HT_Cal: This support package has the channel assignment derived from the

H HT_Tek: Use this support package to acquire and decode the HyperTransport

escape defined in HyperTransport Technology, Interface Design Guide.Use
this support package to acquire and decode the HyperTransport bus cycles. It
supports clock rates from DC up to 450 MHz and data rates from DC up to
900 Mb/s. This package supports both Upstream and Downstream 8-bit and
16-bit buses.

pin escape defined in the HyperTransport Technology, Interface Design
Guide. Use this support package to optimize the Setup/Hold window of the
logic analyzer for the HyperTransport bus. This support package does not
decode and display acquired data. It should only be used in conjunction with
the SHAnalyzer application.

bus cycles. It supports clock rates from DC up to 450 MHz and data rates
from DC up to 900 Mb/s. This package supports both Upstream and
Downstream 8-bit and 16-bit buses.

H HT_Tek_Cal: Use this support package to optimize the Setup/Hold window

of the logic analyzer for the HyperTransport bus. This support package does
not decode and display acquired data. It should only be used in conjunction
with the SHAnalyzer application.

2--2

TMS855 HyperTransport Bus Software Support

Clocking Options

Setting Up the Support

A special custom clocking program is loaded into the module every time you
load one of the HT, HT_Tek, HT_Cal, or HT_Tek_Cal support packages from the
TMS855 HyperTransport bus support product. Each support package offers
different clocking options. You may use the default clocking option or choose an
alternate by clicking the “More...” button in the logic analyzer setup window.

HT, HT_Tek, HT_Cal, and HT_Tek_Cal . These four support packages provide eight
custom clocking options.

H 1: Upstream UCLK0 (default)

For a system with common clocks for the Upstream and Downstream buses,

choose this option to acquire both Upstream and Downstream cycles using

the Upstream CLK0 (U_CLK0). Setup/Hold values for signals on the

Upstream and Downstream buses must be referenced to Upstream CLK0

(U_CLK0). Special groups are created to assist in specifying Setup/Hold

values.

H 2: Upstream UCLK0 inverted

Choose this option if the polarity of the Upstream clock is reversed. For a

system with common clocks for the Upstream and Downstream buses,

choose this option to acquire both Upstream and Downstream cycles using

the Upstream CLK0 (U_CLK0). Setup/Hold values for signals on the

Upstream and Downstream buses must be referenced to Upstream CLK0

(U_CLK0). Special groups are created to assist in specifying Setup/Hold

values.

H 3: Upstream UCLK1

For a system with common clocks for the Upstream and Downstream buses,

choose this option to acquire both Upstream and Downstream cycles using

the Upstream CLK1 (U_CLK1). Setup/Hold values for signals on the

Upstream and Downstream buses must be referenced to Upstream CLK1

(U_CLK1). Special groups are created to assist in specifying Setup/Hold

values.

H 4: Upstream UCLK1 inverted

Choose this option if the polarity of the Upstream clock is reversed. For a

system with common clocks for the Upstream and Downstream buses,

choose this option to acquire both Upstream and Downstream cycles using

the Upstream CLK1 (U_CLK1). Setup/Hold values for signals on the

Upstream and Downstream buses must be referenced to Upstream CLK1

(U_CLK1). Special groups are created to assist in specifying Setup/Hold

values.

H 5: Downstream CLK0

For a system with common clocks for the Upstream and Downstream buses,

choose this option to acquire both Upstream and Downstream cycles using

TMS855 HyperTransport Bus Software Support

2--3

Setting Up the Support

the Downstream CLK0 (D_CLK0). Setup/Hold values for signals on the
Upstream and Downstream buses must be referenced to Downstream CLK0
(D_CLK0). Special groups are created to assist in specifying Setup/Hold
values.

H 6: Downstream CLK0 inverted

Choose this option if the polarity of the Downstream clock is reversed. For a
system with common clocks for the Upstream and Downstream buses,
choose this option to acquire both Upstream and Downstream cycles using
the Downstream CLK0 (D_CLK0). Setup/Hold values for signals on the
Upstream and Downstream buses must be referenced to Downstream CLK0
(D_CLK0). Special groups are created to assist in specifying Setup/Hold
values.

H 7: Downstream CLK1

For a system with common clocks for the Upstream and Downstream buses,
choose this option to acquire both Upstream and Downstream cycles using
the Downstream CLK1 (D_CLK1). Setup/Hold values for signals on the
Upstream and Downstream buses must be referenced to Downstream CLK1
(D_CLK1). Special groups are created to assist in specifying Setup/Hold
values.

H 8: Downstream CLK1 inverted

Choose this option if the polarity of the Downstream clock is reversed. For a
system with common clocks for the Upstream and Downstream buses,
choose this option to acquire both Upstream and Downstream cycles using
the Downstream CLK1 (D_CLK1). Setup/Hold values for signals on the
Upstream and Downstream buses must be referenced to Downstream CLK1
(D_CLK1). Special groups are created to assist in specifying Setup/Hold
values.

NOTE. Systems with unique clocks for the Upstream and Downstream buses
require two independent 136-channel modules for simultaneous capture.

2--4

TMS855 HyperTransport Bus Software Support

Acquiring and Viewing Disassembled Data

This section describes how to acquire data and view it disassembled. The
following information covers these topics and tasks:

H Acquiring data

H Changing how data is displayed

H Viewing cycle type labels

H Viewing disassembled data in various display formats

Acquiring Data

The TMS855 HyperTransport bus support product installs four different support
packages: HT, HT_Tek, HT_Cal, and HT_Tek_Cal.

NOTE. HT_Cal and HT_Tek_Cal support packages are added for Setup/Hold
time adjustments. Use these support packages only when you need to adjust the
Setup/Hold time values.

Once you load a support package, choose a clocking mode, and specify the
trigger, you are ready to acquire and disassemble data.

If you have any problems acquiring data, refer to information on basic operations
in your logic analyzer online help.

Changing How Data is Displayed

Common fields and features allow you to further modify displayed data to suit
your needs. You can make common and optional display selections in the
Disassembly property page.

You can make selections unique to the TMS855 HyperTransport bus support
product to do the following tasks:

H Change how data is displayed across all display formats

H Change the interpretation of disassembled cycles

TMS855 HyperTransport Bus Software Support

2--5

Acquiring and Viewing Disassembled Data

Optional Display

Selections

Bus Specific Fields

Table 2--1 lists the logic analyzer disassembly display options for the TMS855
HyperTransport bus support product.

Table 2--1: Disassembly display options

Description Option

Show All (default)

No NOP Packets

Highlight None (default)

Disassemble Across Gaps Yes

No (default)

You can make optional selections for disassembled data. In addition to the
common selections (described in the information on basic operations).You can
change the displayed data in the following ways, for the HT and HT_Tek support
packages. The submenu has the titles HT Controls and HT_Tek Controls. Figure
2-1 displays the listing window for the disassembly optons.

Figure 2--1: Disassembly display options for HT support package

2--6

TMS855 HyperTransport Bus Software Support

Acquiring and Viewing Disassembled Data

Disassemble. Select one of the two options for the disassembly of either
Upstream or Downstream cycles.

Upstream (Default)
Downstream

Upstream Bus Width: Select the Upstream bus width from these options.

8 bit (default)
16 bit
None

Downstream Bus Width: Select the Downstream bus width from these options.

8 bit (default)
16 bit
None

Marking Cycles

x86 Decode: Two options are available. Set this option to “Ye s” to view the x86
packets.

No (default)
Yes

NOPs and CRCs Filtered: Two options are available. Set this option to “Yes ” if the
CRC and NOP packets are filtered in real time through trigger programs.

No (default)
Yes

The disassembler has a Mark Opcode function that allows you to change the
interpretation of a cycle type. Using this function, you can select a cycle and
change it.

Marks are placed by using the Mark Opcode button. The Mark Opcode button
will always be available when disassembly is available. If the sample being
marked is not a Control Packet, a note indicating that “An opcode Mark cannot
be placed at the selected data sample” will replace the Mark Opcode selections.

When a cycle is marked, the character “»” is displayed immediately to the left of
the “HT Frames” or “HT_Tek Frames” column. Cycles can be unmarked by
using the “Undo Mark” selection, which will remove the character “»”.

TMS855 HyperTransport Bus Software Support

2--7

Acquiring and Viewing Disassembled Data

Table 2--2 shows the mark selections available on the control packets.

Table 2--2: Mark selections and definitions for HT and HT_Tek support
packages

Mark selection Definition

Control Marks cycle as start of control packet

Undo Mark Remove all marks for the current sample

Cycle Type Labels

The HT and HT_Tek support packages decode and display all the individual
fields of each packet type. These fields are displayed in different colors.

The control packet names are highlighted in cyan except for Sync Pattern which
is highlighted in yellow. Table 2--3 lists the cycle type labels for the HyperTrans­port control packets.

Table 2--3: Cycle type labels for control packets in HT and HT_Tek support
packages

Cycle type labels Description

NOP Packet NOP Packet Name

Reserved-HOST Control packet with a reserved command code

Flush Flush Packet Name

Write Request Sized Write Request Packet Name

Read Request Sized Read Request Packet Name

Reserved-I/O Control packet with a reserved command code

Read Response Read Response (RdResponse) Packet Name

Target Done Target Done (TgtDone) Packet Name

Broadcast Message Broadcast Message Packet Name

Fence Fence Packet Name

Atomic Read-Modify-Write
Request

Sync Pattern Sync Pattern Packet Name

Interrupt Request Interrupt Request Packet Name

End of Interrupt EOIPacketName

System Management Re­quest-WrSized

System Management Re­quest-Broadcast

Atomic Read-Modify-Write (RMW) Request Packet Name

System Management Request WrSized Packet Name

System Management Request Broadcast Packet Name

2--8

TMS855 HyperTransport Bus Software Support

Acquiring and Viewing Disassembled Data

Table 2--3: Cycle type labels for control packets in HT and HT_Tek support
packages (Cont.)

Cycle type labels Description

x86 Interrupt Request x86 Interrupt Request Packet Name

x86 End of Interrupt Standard End-of-Interrupt (EOI) Packet Name.

Address Extension Address Extension

Device Message Request Device Message Request Packet Name

CRC Transfer This message is displayed for CRC packets

The data packet label is highlighted in green. Table 2--4 lists the cycle type label
for the data packet.

Table 2--4: Cycle type labels for data packets for HT and HT_Tek support
packages

Special Messages

Cycle type labels Description

Data Packet This message is displayed at the start of a data packet.

Table 2--5 lists the cycle type label for the packet continuation.

Table 2--5: Cycle type labels for packet continuation for HT and HT_Tek
support packages

Cycle type Labels Description

Data Packet Continued... Data packet continuation. This message is highlighted in

green.

This section gives information about the special messages used in the TMS855
HyperTransport bus support product. The disassembler uses special messages to
indicate the following significant events. These messages are highlighted in
yellow.

TMS855 HyperTransport Bus Software Support

2--9

Acquiring and Viewing Disassembled Data

Table 2--6 lists the special messages and their descriptions.

Table 2--6: Description of special messages in the display

Special characters Description

*** Insufficient Data to Disas­semble ***

Viewing Disassembled Data

You can view disassembled data for the HT and HT_Tek support packages in two
display formats:

All
No NOP Packets

The information on basic operations in the logic analyzer online help describes
how to select the disassembly display formats.

NOTE. You must set the display format selections in the Disassembly property
page for your acquired data to be disassembled correctly. Refer to Changing

How Data is Displayed on page 2--5.

If a channel group is not visible, you must use Add Column or Ctrl+L to make
the group visible.

If the TMS855 support software cannot find the start
of a control packet or a CRC packet, this message is
displayed. This message is also displayed when all
the bytes of the control packet are not available for
disassembly.

2--10

The disassembler displays special characters and strings in the “HT Frames” or
“HT_Tek Frames” column to indicate significant events.

Table 2--7 lists these special characters and strings and describes what they
represent.

Table 2--7: Description of special characters in the display

Special characters Description

> There is insufficient room on the screen to

show all available data.

h The values of the packet fields are displayed in

hexadecimal. This character is suffixed with the
field value.

TMS855 HyperTransport Bus Software Support

Acquiring and Viewing Disassembled Data

All Display Format

This option displays all the information acquired from the HyperTransport bus
without suppressing any information. The display consists of HyperTransport
packets with all packet fields decoded.

Figure 2--2 shows the disassembly for 8-bit Upstream bus.

Figure 2--2: Example of All Display format for the HT_Tek support package

TMS855 HyperTransport Bus Software Support

2--11

Acquiring and Viewing Disassembled Data

Figure 2--3 shows the disassembly for 8-bit Upstream bus with real time filtering
of CRC and NOP packets.

Figure 2--3: Example of All Display format with CRC and NOP packets filtered for the HT_Tek support package

2--12

TMS855 HyperTransport Bus Software Support

Acquiring and Viewing Disassembled Data

No NOP Packets Display

Format

This option displays all packet types with the fields of the packet decoded. The
NOP packets are suppressed in this display format.

Figure 2--4 shows the disassembly for 8-bit Upstream bus with Post Process
filtering of NOP Packets.

Figure 2--4: Example of No NOP Packets with Post Process filtering in HT_Tek support package

TMS855 HyperTransport Bus Software Support

2--13

Acquiring and Viewing Disassembled Data

2--14

TMS855 HyperTransport Bus Software Support

Trigger Programs

This section describes how to load the trigger programs for HT and HT_Tek
support packages. The HT and HT_Tek support packages contain a library of
EasyTrigger programs enabling you to trigger on the HyperTransport packets and
filter CRC and NOP packets in real time.

The TMS855 HyperTransport bus support product installs the trigger programs
for each support package in the following paths:

C:\Program Files\TLA700\Supports\HT\EasyTriggers
C:\Program Files\TLA700\Supports\HT_Tek\EasyTriggers

Loading Trigger Programs

To load a trigger program from any of the support packages, follow these steps:

1. Load the support package.

2. From the system window, click the

Trigger button.

TMS855 HyperTransport Bus Software Support

2--15

Trigger Programs

3. Figure 2--5 shows the window that opens.

Figure 2--5: Loading trigger programs

4. Scroll through the EasyTriggers to find the trigger programs that you need.

5. Select an EasyTrigger program from the list and fill in the fields.

You are now ready to trigger on the acquired data. For more information on basic
operations, refer to the logic analyzer online help and the logic analyzer user
manual.

HT and HT_Tek Trigger

Programs

2--16

The following is a list of EasyTrigger programs for 16-bit and 8-bit wide
Upstream and Downstream HyperTransport bus.

Trigger on Anything
Wait for System Trigger
Trigger on Atomic-RMW Request

TMS855 HyperTransport Bus Software Support

Trigger on Broadcast Message
Trigger on Device Message Request
Trigger on Extended Atomic--RMW Request
Trigger on Extended Broadcast Message
Trigger on Extended Sized Read Request
Trigger on Extended Sized Write Request
Trigger on Fence Request
Trigger on Flush Request
Trigger on Generic End-Of-Interrupt (EOI)
Trigger on Generic Interrupt
Trigger on NOP
Trigger on Read Response
Trigger on Sized Read Request
Trigger on Sized Write Request
Trigger on Sync Pattern
Trigger on System Management Broadcast Request
Trigger on System Management Write Request
Trigger on Target Done Response
Trigger on x86 End-Of-Interrupt (EOI)
Trigger on x86 Interrupt
Trigger on Data Anywhere in packet
Trigger on Data from Start-of-Packet (SOP)
Trigger on Reserved Command
Trigger on CTL deassertion timeout

Trigger Programs

TMS855 HyperTransport Bus Software Support

2--17

Trigger Programs

2--18

TMS855 HyperTransport Bus Software Support

Setup/Hold Time Adjustments

Some devices you test may require an adjustment of the setup/hold values in the
TLA700 Application. An automated setup/hold analysis application is provided
to aid in the selection of the proper setup/hold values. The SHAnalyzer applica­tion (SHAnalyzer.exe) and SHAnalyzer help file (SHAnalyzer.chm) are located
in the following folders:

C:\Program Files\TLA 700\Supports\HT_Cal

C:\Program Files\TLA 700\Supports\HT_Tek_Cal

To run the SHAnalyzer application on your Tektronix logic analyzer, follow
these steps:

1. Start the logic analyzer application and load the appropriate calibration

support package, HT_Cal or HT_Tek_Cal.

2. Click the Windows Start button and click Run.

3. Enter the path name (C:\Program Files\TLA 700\Supports\HT_Cal or

C:\Program Files\TLA 700\Supports\HT_Tek_Cal) followed by

“\SHAnalyzer.exe”.

4. Click OK.

5. In the SHAnalyzer application, click the Help button for detailed instruc-

tions.

TMS855 HyperTransport Bus Software Support

2--19

Setup/Hold Time Adjustments

2--20

TMS855 HyperTransport Bus Software Support

Reference

Channel Group Definitions

This section lists the channel group definitions for the TMS855 HyperTransport
bus support product.

Channel Groups

Table 3--1 shows the channel groups for the TMS855 HyperTransport bus support
product for the HT and HT_Tek support packages.

Table 3--1: HT and HT_Tek Channel groups

Group name Display radix

$U_CTL Off (Calibration group)

$U_CAD0 Off (Calibration group)

$U_CAD1 Off (Calibration group)

$U_CAD2 Off (Calibration group)

$U_CAD3 Off (Calibration group)

$U_CAD4 Off (Calibration group)

$U_CAD5 Off (Calibration group)

$U_CAD6 Off (Calibration group)

$U_CAD7 Off (Calibration group)

$U_CAD8 Off (Calibration group)

$U_CAD9 Off (Calibration group)

$U_CAD10 Off (Calibration group)

$U_CAD11 Off (Calibration group)

$U_CAD12 Off (Calibration group)

$U_CAD13 Off (Calibration group)

$U_CAD14 Off (Calibration group)

$U_CAD15 Off (Calibration group)

$D_CTL Off (Calibration group)

$D_CAD0 Off (Calibration group)

$D_CAD1 Off (Calibration group)

$D_CAD2 Off (Calibration group)

$D_CAD3 Off (Calibration group)

$D_CAD4 Off (Calibration group)

$D_CAD5 Off (Calibration group)

TMS855 HyperTransport Bus Software Support

3--1

Channel Group Definitions

Table 3--1: HT and HT_Tek Channel groups (Cont.)

Group name Display radix

$D_CAD6 Off (Calibration group)

$D_CAD7 Off (Calibration group)

$D_CAD8 Off (Calibration group)

$D_CAD9 Off (Calibration group)

$D_CAD10 Off (Calibration group)

$D_CAD11 Off (Calibration group)

$D_CAD12 Off (Calibration group)

$D_CAD13 Off (Calibration group)

$D_CAD14 Off (Calibration group)

$D_CAD15 Off (Calibration group)

HT Frames* NONE (Disassembly generated text)

HT U_Control* Symbol (Disassembly generated text)

HT U_CAD_DM* Hexadecimal

HT U_CAD* Hexadecimal

HT D_Control* Symbol (Disassembly generated text)

HT D_CAD_DM* Hexadecimal

HT D_CAD* Hexadecimal

HT_Tek Frames** NONE (Disassembly generated text)

HT_Tek U_Control** Symbol (Disassembly generated text)

HT_Tek U_CAD_DM** Hexadecimal

HT_Tek U_CAD** Hexadecimal

HT_Tek D_Control** Symbol (Disassembly generated text)

HT_Tek D_CAD_DM** Hexadecimal

HT_Tek D_CAD** Hexadecimal

Timestamp

U_16 Off

D_16 Off

U_8 Off

D_8 Off

zNOP Off (EasyTrigger group)

U16_Cmd Off (EasyTrigger group)

*

These groups are displayed only in the HT support package.

**

These groups are displayed only in the HT_Tek support
package.

3--2

TMS855 HyperTransport Bus Software Support

Table 3--1: HT and HT_Tek Channel groups (Cont.)

Group name Display radix

U16_SeqID[3:0] Off (EasyTrigger group)

U16_PassPW Off (EasyTrigger group)

U16_UnitID[4:0] Off (EasyTrigger group)

U16_Count[3:0] Off (EasyTrigger group)

U16_Compat Off (EasyTrigger group)

U16_SrcTag[4:0] Off (EasyTrigger group)

U16_Addr2[7:0] Off (EasyTrigger group)

U16_Addr3[7:0] Off (EasyTrigger group)

U16_Addr[39:8] Off (EasyTrigger group)

U16_Addr[63:40] Off (EasyTrigger group)

U16_Isoc Off (EasyTrigger group)

U16_Bridge Off (EasyTrigger group)

U16_Error Off (EasyTrigger group)

U16_NXA Off (EasyTrigger group)

U16_IntrInfo[7:2] Off (EasyTrigger group)

U16_IntrInfo[31:8] Off (EasyTrigger group)

U16_Addr[39:32] Off (EasyTrigger group)

U16_IntrInfo[55:32] Off (EasyTrigger group)

U16_MT[2:0] Off (EasyTrigger group)

U16_SysMgtCmd[7:0] Off (EasyTrigger group)

U16_Addr[39:20] Off (EasyTrigger group)

U16_MT[3:0] Off (EasyTrigger group)

U16_Dest Off (EasyTrigger group)

U16_RQEOI Off (EasyTrigger group)

U16_Addr[39:24] Off (EasyTrigger group)

U16_IntrDest[7:0] Off (EasyTrigger group)

U16_Vector[7:0] Off (EasyTrigger group)

U16_IntrDest[31:8] Off (EasyTrigger group)

U16_ResponseData[1:0] Off (EasyTrigger group)

U16_Response[1:0] Off (EasyTrigger group)

U16_PostData[1:0] Off (EasyTrigger group)

U16_PostCmd[1:0] Off (EasyTrigger group)

U16_Isoc2 Off (EasyTrigger group)

U16_Diag Off (EasyTrigger group)

U16_NonPostData[1:0] Off (EasyTrigger group)

Channel Group Definitions

TMS855 HyperTransport Bus Software Support

3--3

Channel Group Definitions

Table 3--1: HT and HT_Tek Channel groups (Cont.)

Group name Display radix

U16_NonPostCmd[1:0] Off (EasyTrigger group)

U16_DataError Off (EasyTrigger group)

U16_DestDev Off (EasyTrigger group)

U16_DestFunc Off (EasyTrigger group)

U16_DestBus Off (EasyTrigger group)

U16_Type Off (EasyTrigger group)

U16_Addr[39:29] Off (EasyTrigger group)

D16_Cmd Off (EasyTrigger group)

D16_SeqID[3:0] Off (EasyTrigger group)

D16_PassPW Off (EasyTrigger group)

D16_UnitID[4:0] Off (EasyTrigger group)

D16_Count[3:0] Off (EasyTrigger group)

D16_Compat Off (EasyTrigger group)

D16_SrcTag[4:0] Off (EasyTrigger group)

D16_Addr2[7:0] Off (EasyTrigger group)

D16_Addr3[7:0] Off (EasyTrigger group)

D16_Addr[39:8] Off (EasyTrigger group)

D16_Addr[63:40] Off (EasyTrigger group)

D16_Isoc Off (EasyTrigger group)

D16_Bridge Off (EasyTrigger group)

D16_Error Off (EasyTrigger group)

D16_NXA Off (EasyTrigger group)

D16_IntrInfo[7:2] Off (EasyTrigger group)

D16_IntrInfo[31:8] Off (EasyTrigger group)

D16_Addr[39:32] Off (EasyTrigger group)

D16_IntrInfo[55:32] Off (EasyTrigger group)

D16_MT[2:0] Off (EasyTrigger group)

D16_SysMgtCmd[7:0] Off (EasyTrigger group)

D16_Addr[39:20] Off (EasyTrigger group)

D16_MT[3:0] Off (EasyTrigger group)

D16_Dest Off (EasyTrigger group)

D16_RQEOI Off (EasyTrigger group)

D16_Addr[39:24] Off (EasyTrigger group)

D16_IntrDest[7:0] Off (EasyTrigger group)

D16_Vector[7:0] Off (EasyTrigger group)

3--4

TMS855 HyperTransport Bus Software Support

Table 3--1: HT and HT_Tek Channel groups (Cont.)

Group name Display radix

D16_IntrDest[31:8] Off (EasyTrigger group)

D16_ResponseData[1:0] Off (EasyTrigger group)

D16_Response[1:0] Off (EasyTrigger group)

D16_PostData[1:0] Off (EasyTrigger group)

D16_PostCmd[1:0] Off (EasyTrigger group)

D16_Isoc2 Off (EasyTrigger group)

D16_Diag Off (EasyTrigger group)

D16_NonPostData[1:0] Off (EasyTrigger group)

D16_NonPostCmd[1:0] Off (EasyTrigger group)

D16_DataError Off (EasyTrigger group)

D16_DestDev Off (EasyTrigger group)

D16_DestFunc Off (EasyTrigger group)

D16_DestBus Off (EasyTrigger group)

D16_Type Off (EasyTrigger group)

D16_Addr[39:29] Off (EasyTrigger group)

U8_Cmd Off (EasyTrigger group)

U8_SeqID[3:0] Off (EasyTrigger group)

U8_PassPW Off (EasyTrigger group)

U8_UnitID[4:0] Off (EasyTrigger group)

U8_Count[3:0] Off (EasyTrigger group)

U8_Compat Off (EasyTrigger group)

U8_SrcTag[4:0] Off (EasyTrigger group)

U8_Addr2[7:0] Off (EasyTrigger group)

U8_Addr3[7:0] Off (EasyTrigger group)

U8_Addr[23:8] Off (EasyTrigger group)

U8_Addr[39:24] Off (EasyTrigger group)

U8_Addr[47:40] Off (EasyTrigger group)

U8_Addr[63:48] Off (EasyTrigger group)

U8_Isoc Off (EasyTrigger group)

U8_Bridge Off (EasyTrigger group)

U8_Error Off (EasyTrigger group)

U8_NXA Off (EasyTrigger group)

U8_IntrInfo[7:2] Off (EasyTrigger group)

U8_IntrInfo[23:8] Off (EasyTrigger group)

U8_IntrInfo[31:24] Off (EasyTrigger group)

Channel Group Definitions

TMS855 HyperTransport Bus Software Support

3--5

Channel Group Definitions

Table 3--1: HT and HT_Tek Channel groups (Cont.)

Group name Display radix

U8_IntrInfo[47:32] Off (EasyTrigger group)

U8_IntrInfo[55:48] Off (EasyTrigger group)

U8_Addr [39:32] Off (EasyTrigger group)

U8_MT[2:0] Off (EasyTrigger group)

U8_SysMgtCmd[7:0] Off (EasyTrigger group)

U8_Addr[23:20] Off (EasyTrigger group)

U8_MT[3:0] Off (EasyTrigger group)

U8_Dest Off (EasyTrigger group)

U8_RQEOI Off (EasyTrigger group)

U8_IntrDest[7:0] Off (EasyTrigger group)

U8_Vector[7:0} Off (EasyTrigger group)

U8_IntrDest[23:8] Off (EasyTrigger group)

U8_IntrDest[31:24] Off (EasyTrigger group)

U8_ResponseData[1:0] Off (EasyTrigger group)

U8_Response[1:0] Off (EasyTrigger group)

U8_PostData[1:0] Off (EasyTrigger group)

U8_PostCmd[1:0] Off (EasyTrigger group)

U8_Isoc2 Off (EasyTrigger group)

U8_Diag Off (EasyTrigger group)

U8_NonPostData[1:0] Off (EasyTrigger group)

U8_NonPostCmd[1:0] Off (EasyTrigger group)

U8_DataError Off (EasyTrigger group)

U8_DestDev Off (EasyTrigger group)

U8_DestFunc Off (EasyTrigger group)

U8_DestBus Off (EasyTrigger group)

U8_Type Off (EasyTrigger group)

U8_Addr[39:29] Off (EasyTrigger group)

D8_Cmd Off (EasyTrigger group)

D8_SeqID[3:0] Off (EasyTrigger group)

D8_PassPW Off (EasyTrigger group)

D8_UnitID[4:0] Off (EasyTrigger group)

D8_Count[3:0] Off (EasyTrigger group)

D8_Compat Off (EasyTrigger group)

D8_SrcTag[4:0] Off (EasyTrigger group)

D8_Addr2[7:0] Off (EasyTrigger group)

3--6

TMS855 HyperTransport Bus Software Support

Table 3--1: HT and HT_Tek Channel groups (Cont.)

Group name Display radix

D8_Addr3[7:0] Off (EasyTrigger group)

D8_Addr[23:8] Off (EasyTrigger group)

D8_Addr[39:24] Off (EasyTrigger group)

D8_Addr[47:40] Off (EasyTrigger group)

D8_Addr[63:48] Off (EasyTrigger group)

D8_Isoc Off (EasyTrigger group)

D8_Bridge Off (EasyTrigger group)

D8_Error Off (EasyTrigger group)

D8_NXA Off (EasyTrigger group)

D8_IntrInfo[7:2] Off (EasyTrigger group)

D8_IntrInfo[23:8] Off (EasyTrigger group)

D8_IntrInfo[31:24] Off (EasyTrigger group)

D8_IntrInfo[47:32] Off (EasyTrigger group)

D8_IntrInfo[55:48] Off (EasyTrigger group)

D8_Addr[39:32] Off (EasyTrigger group)

D8_MT[2:0] Off (EasyTrigger group)

D8_SysMgtCmd[7:0] Off (EasyTrigger group)

D8_Addr[23:20] Off (EasyTrigger group)

D8_MT[3:0] Off (EasyTrigger group)

D8_Dest Off (EasyTrigger group)

D8_RQEOI Off (EasyTrigger group)

D8_IntrDest[7:0] Off (EasyTrigger group)

D8_Vector[7:0] Off (EasyTrigger group)

D8_IntrDest[23:8] Off (EasyTrigger group)

D8_IntrDest[31:24] Off (EasyTrigger group)

D8_ResponseData[1:0] Off (EasyTrigger group)

D8_Response[1:0] Off (EasyTrigger group)

D8_PostData[1:0] Off (EasyTrigger group)

D8_PostCmd[1:0] Off (EasyTrigger group)

D8_Isoc2 Off (EasyTrigger group)

D8_Diag Off (EasyTrigger group)

D8_NonPostData[1:0] Off (EasyTrigger group)

D8_NonPostCmd[1:0] Off (EasyTrigger group)

Channel Group Definitions

TMS855 HyperTransport Bus Software Support

3--7

Channel Group Definitions

Table 3--1: HT and HT_Tek Channel groups (Cont.)

Group name Display radix

D8_DataError Off (EasyTrigger group)

D8_DestDev Off (EasyTrigger group)

D8_DestFunc Off (EasyTrigger group)

D8_DestBus Off (EasyTrigger group)

D8_Type Off (EasyTrigger group)

D8_Addr[39:29] Off (EasyTrigger group)

3--8

TMS855 HyperTransport Bus Software Support

Symbol and Channel Assignment Tables

This section lists the symbol tables and channel assignment tables for
disassembly and timing for each of the support packages.

Symbol Tables

The TMS855 HyperTransport support product includes symbol table files for
some of the channel groups defined by the HT and HT_Tek support packages.
Symbols may be used for triggering or display. The display radix of channel
groups may be selected in the Column Properties menu on the logic analyzer.

Table 3--2 shows the definitions for the symbol, bit pattern, and meaning of the
group symbols in the control symbol tables. The symbol table file for control
channel group is HT_Ctrl.

Table 3- 2: HT_Ctrl group symbol table definitions

Control group value

Symbol

DATA 0 Data Packet

CTRL 1 Control Packet

Information on basic operations describes how to use symbolic values for
triggering.

Channel Assignment Tables

Channel assignments shown in Table 3--3 through Table 3--16 use the following
conventions:

H All signals are required by the support package, unless indicated otherwise.

H In Tables 3--4 through 3--9 and Tables 3--11 through 3--16, channels are

shown starting with the most significant bit (MS B), descending to the least

significant bit (LSB).

H The prefixes U_ and D_ are used to distinguish the Upstream and

Downstream signals.

CTL

Description

TMS855 HyperTransport Bus Software Support

3- 9

Symbol and Channel Assignment Tables

HT Channel Group

Assignments

Setup/Hold Calibration

Groups

Tables 3--3 through 3--9 show the channel assignments for the logic analyzer
groups and the bus signal to which each channel connects.

Table 3--3 shows the setup/hold calibration groups for HT support package.

Table 3- 3: HT Setup/Hold calibration groups

HT support package

Calibration group

$U_CTL U_CTL

$U_CAD0 U_CAD0, U_CAD0_DM

$U_CAD1 U_CAD1, U_CAD1_DM

$U_CAD2 U_CAD2, U_CAD2_DM

$U_CAD3 U_CAD3, U_CAD3_DM

$U_CAD4 U_CAD4, U_CAD4_DM

$U_CAD5 U_CAD5, U_CAD5_DM

$U_CAD6 U_CAD6, U_CAD6_DM

$U_CAD7 U_CAD7, U_CAD7_DM

$U_CAD8 U_CAD8, U_CAD8_DM

$U_CAD9 U_CAD9, U_CAD9_DM

$U_CAD10 U_CAD10, U_CAD10_DM

$U_CAD11 U_CAD11, U_CAD11_DM

$U_CAD12 U_CAD12, U_CAD12_DM

$U_CAD13 U_CAD13, U_CAD13_DM

$U_CAD14 U_CAD14, U_CAD14_DM

$U_CAD15 U_CAD15, U_CAD15_DM

$D_CTL D_CTL

$D_CAD0 D_CAD0, D_CAD0_DM

$D_CAD1 D_CAD1, D_CAD1_DM

$D_CAD2 D_CAD2, D_CAD2_DM

$D_CAD3 D_CAD3, D_CAD3_DM

$D_CAD4 D_CAD4, D_CAD4_DM

$D_CAD5 D_CAD5, D_CAD5_DM

$D_CAD6 D_CAD6, D_CAD6_DM

$D_CAD7 D_CAD7, D_CAD7_DM

$D_CAD8 D_CAD8, D_CAD8_DM

$D_CAD9 D_CAD9, D_CAD9_DM

$D_CAD10 D_CAD10, D_CAD10_DM

channel name

3- 10

TMS855 HyperTransport Bus Software Support

Symbol and Channel Assignment Tables

Table 3- 3: HT Setup/Hold calibration groups (Cont.)

HT support package

Calibration group

$D_CAD11 D_CAD11, D_CAD11_DM

$D_CAD12 D_CAD12, D_CAD12_DM

$D_CAD13 D_CAD13, D_CAD13_DM

$D_CAD14 D_CAD14, D_CAD14_DM

$D_CAD15 D_CAD15, D_CAD15_DM

channel name

Disassembly Groups for

HT Support Package

Tables 3--4 through 3--9 list the disassembly groups for the HT support package.

HT Upstream channel group assignments. Tables 3--4 through 3--6 list the channel
assignments for the Upstream bus and the bus signal to which each channel
connects.

Table 3--4 lists the channel assignments for the U_CAD group and the bus signal
to which each channel connects. By default, this channel group is displayed in
hexadecimal.

Table 3- 4: U_CAD group assignments for HT support package

HT support package

Section:Channel

C3:[7--0] U_CAD[15--8] Connected to target system

A3:[7--0] U_CAD[7--0] Connected to target syst em

channel name

Comments

Table 3--5 lists the channel assignments for the U_CAD_DM group and the bus
signal to which each channel connects. By default, this channel group is
displayed in hexadecimal.

Table 3- 5: U_CAD_DM group assignments for HT support package

Section:Channel

C1:[7--0] U_CAD[15--8]_DM Demuxed from C3

D3:[7--0] U_CAD[7--0]_DM Demuxed from A3

TMS855 HyperTransport Bus Software Support

HT support package
channel name

Comments

3- 11

Symbol and Channel Assignment Tables

Table 3--6 lists the channel assignments for the U_Control group and the bus
signal to which the channel connects. By default, this channel group is displayed
in symbols.

Table 3- 6: U_Control group assignments for HT support package

Section:Channel

Clk:0 U_CTL Connected to target system

HT Downstream channel group assignments. Tables 3--7 through 3--9 list the
channel assignments for the Downstream bus and the bus signal to which each
channel connects.

Table 3--7 lists the channel assignments for the D_CAD group and the bus signal
to which each channel connects. By default, this channel group is displayed in
hexadecimal.

HT support package
channel name

Comments

Table 3- 7: D_CAD group assignments for HT support package

HT support package chan-

Section:Channel

A1:[7--0] D_CAD[15--8] Connected to target system

E3:[7--0] D_CAD[7--0] Connected to target system

nel name

Comments

Table 3--8 lists the channel assignments for the D_CAD_DM group and the bus
signal to which each channel connects. By default, this channel group is
displayed in hexadecimal.

Table 3- 8: D_CAD_DM group assignments for HT support package

HT support package

Section:Channel

D1:[7--0] D_CAD[15--8]_DM Demuxed from A1

E1:[7--0] D_CAD[7--0]_DM Demuxed from E3

channel name

Comments

3- 12

TMS855 HyperTransport Bus Software Support

Symbol and Channel Assignment Tables

Table 3--9 lists the channel assignments for the D_Control group and the bus
signal to which the channel connects. By default, this channel group is displayed
in symbols.

Table 3- 9: D_Control group assignments for HT support package

HT support package

Section:Channel

Qual:3 D_CTL Connected to target system

channel name

Comments

HT_Tek Channel Group

Assignments

Setup/Hold Calibration

Groups

Tables 3--10 through 3--16 show the channel assignments for the logic analyzer
groups and the bus signal to which each channel connects.

Table 3--10 shows the setup/hold calibration groups for HT_Tek support
package.

Table 3- 10: HT_Tek Setup/Hold calibration
groups

HT_Tek support package

Calibration group

$U_CTL U_CTL

$U_CAD0 U_CAD0, U_CAD0_DM

$U_CAD1 U_CAD1, U_CAD1_DM

$U_CAD2 U_CAD2, U_CAD2_DM

$U_CAD3 U_CAD3, U_CAD3_DM

$U_CAD4 U_CAD4, U_CAD4_DM

$U_CAD5 U_CAD5, U_CAD5_DM

$U_CAD6 U_CAD6, U_CAD6_DM

$U_CAD7 U_CAD7, U_CAD7_DM

$U_CAD8 U_CAD8, U_CAD8_DM

$U_CAD9 U_CAD9, U_CAD9_DM

$U_CAD10 U_CAD10, U_CAD10_DM

$U_CAD11 U_CAD11, U_CAD11_DM

$U_CAD12 U_CAD12, U_CAD12_DM

$U_CAD13 U_CAD13, U_CAD13_DM

$U_CAD14 U_CAD14, U_CAD14_DM

$U_CAD15 U_CAD15, U_CAD15_DM

$D_CTL D_CTL

channel name

TMS855 HyperTransport Bus Software Support

3- 13

Symbol and Channel Assignment Tables

Table 3- 10: HT_Tek Setup/Hold calibration
groups (Cont.)

Calibration group

$D_CAD0 D_CAD0, D_CAD0_DM

$D_CAD1 D_CAD1, D_CAD1_DM

$D_CAD2 D_CAD2, D_CAD2_DM

$D_CAD3 D_CAD3, D_CAD3_DM

$D_CAD4 D_CAD4, D_CAD4_DM

$D_CAD5 D_CAD5, D_CAD5_DM

$D_CAD6 D_CAD6, D_CAD6_DM

$D_CAD7 D_CAD7, D_CAD7_DM

$D_CAD8 D_CAD8, D_CAD8_DM

$D_CAD9 D_CAD9, D_CAD9_DM

$D_CAD10 D_CAD10, D_CAD10_DM

$D_CAD11 D_CAD11, D_CAD11_DM

$D_CAD12 D_CAD12, D_CAD12_DM

$D_CAD13 D_CAD13, D_CAD13_DM

$D_CAD14 D_CAD14, D_CAD14_DM

$D_CAD15 D_CAD15, D_CAD15_DM

HT_Tek support package
channel name

Disassembly Groups for

HT_Tek Support Package

3- 14

Tables 3--11 through 3--16 lists the disassembly groups for HT_Tek support
package.

HT_Tek Upstream channel group assignments. Tables 3--11 through 3--13 list the
channel assignments for the Upstream bus and the bus signal to which each
channel connects.

Table 3--11 lists the channel assignments for the U_CAD group and the bus
signal to which each channel connects. By default, this channel group is
displayed in hexadecimal.

Table 3- 11: U_CAD group assignments for HT_Tek support package

HT_Tek support package

Section:Channel

C3:[7--0] U_CAD[15--8] Connected to target system

A3:[7--0] U_CAD[7--0] Connected to target syst em

channel name

Comments

TMS855 HyperTransport Bus Software Support

Symbol and Channel Assignment Tables

Table 3--12 lists the channel assignments for the U_CAD_DM group and the bus
signal to which each channel connects. By default, this channel group is
displayed in hexadecimal.

Table 3- 12: U_CAD_DM group assignments for HT_Tek support package

HT_Tek support package

Section:Channel

C1:[7--0] U_CAD[15--8]_DM Demuxed from C3

D3:[7--0] U_CAD[7--0]_DM Demuxed from A3

channel name

Comments

Table 3--13 lists the channel assignments for the U_Control group and the bus
signal to which the channel connects. By default, this channel group is displayed
in symbols.

Table 3- 13: U_Control group assignments for HT_Tek support package

HT_Tek support package

Section:Channel

Clk:3 U_CTL Connected to target system

channel name

Comments

HT_Tek Downstream channel group assignments. Tables 3--14 through 3--16 list
the channel assignments for the Downstream bus and the bus signal to which
each channel connects.

Table 3--14 lists the channel assignments for the D_CAD group and the bus
signal to which each channel connects. By default, this channel group is
displayed in hexadecimal.

Table 3- 14: D_CAD group assignments for HT_Tek support package

HT_Tek support package

Section:Channel

A1:[7--0] D_CAD[15--8] Connected to target system

E3:[7--0] D_CAD[7--0] Connected to target system

channel name

Comments

TMS855 HyperTransport Bus Software Support

3- 15

Symbol and Channel Assignment Tables

Table 3--15 lists the channel assignments for the D_CAD_DM group and the bus
signal to which each channel connects. By default, this channel group is
displayed in hexadecimal.

Table 3- 15: D_CAD_DM group assignments for HT_Tek support package

Section:Channel

D1:[7--0] D_CAD[15--8]_DM Demuxed from A1

E1:[7--0] D_CAD[7--0]_DM Demuxed from E3

Table 3--16 lists the channel assignments for the D_Control group and the bus
signal to which the channel connects. By default, this channel group is displayed
in symbols.

Table 3- 16: D_Control group assignments for HT_Tek support package

HT_Tek support package
channel name

Comments

HT_Tek support package

Section:Channel

Qual:3 D_CTL Connected to target system

channel name

Comments

3- 16

TMS855 HyperTransport Bus Software Support

Signal Source To Probe Connections

For design purposes, you may need to make connections between the Signal
Source and the P6880 Logic Analyzer Probe. Refer to the P6810, P6860, and
P6880 Logic Analyzer Probes Instruction manual, Tektronix part number
071-1059-01, for more information on mechanical specifications.

Tables 3--17 through 3--34 list the Signal Source to P6880 probe pin connections.

Symbol and Channel Assignment Tables

TMS855 HyperTransport Bus Software Support

3- 17

Symbol and Channel Assignment Tables

Connections for HT and

HT_Cal Support Packages

Pad

name

U_CTL--

CLK--

GND

GND

U_CTL+

CLK+

D6--

U_CAD6--

GND

GND

U_CAD6+

D6+

+

D4--

U_CAD4--

GND

GND

D4+

U_CAD4+
U_CAD2--

D2-­GND

GND

D2+

U_CAD2+

D0--

U_CAD0--

GND

GND

U_CAD0+

D0+

Signal

name

Tables 3--17 to 3--25 list the pin connections for the channel assignments for the
HT support package.

Figure 3--1 shows P6880 differential probe land footprint for HT and HT_Cal
support packages.

A15
A14
A13

A12
A11
A10

A9
A8
A7

A6
A5
A4

A3
A2
A1

B12
B11
B10

B9
B8
B7

B6
B5
B4

B3
B2
B1

name

D7+
GND
D7 --

D5+
GND
D5--

D3+
GND
D3--

D1+
GND
D1--

Signal

name

Pad

U_CAD7--

GND

U_CAD7+
U_CAD5--

GND
U_CAD5+

U_CAD3-­GND
U_CAD3+

U_CAD1--

GND

U_CAD1+

U_CLK1--

U_CLK1+

U_CAD14--

U_CAD14+

U_CAD12--

U_CAD12+

U_CAD10--

U_CAD10+

U_CAD8--

U_CAD8+

GND

GND

GND

GND

GND

Pad

name

CLK-­GND
CLK+

D6-­GND
D6+

D4-­GND
D4+

D2-­GND
D2+

D0-­GND
D0+

Signal

name

Pad

name

A15
A14
A13

A12
A11
A10

+

A9
A8
A7

A6
A5
A4

A3
A2
A1

B12
B11
B10

B9
B8
B7

B6
B5
B4

B3
B2
B1

D7+
GND
D7--

D5+
GND
D5--

D3+
GND
D3--

D1+
GND
D1--

U_CAD15--

GND
U_CAD15+

U_CAD13--

GND

U_CAD13+

U_CAD11--

GND

U_CAD11+

U_CAD9--

GND

U_CAD9+

Signal

name

Figure 3- 1: P6880 differential probe land f ootprint for HT and HT_Cal support packages

D_CTL--

GND

D_CTL+

D_CAD6--

GND

D_CAD4--

GND

D_CAD4+

D_CAD2--

GND

D_CAD2+

D_CAD0--

GND

D_CAD0+

Pad

name

Qual-­GND
Qual+

D6-­GND
D6+

D4-­GND
D4+

D2-­GND
D2+

D0-­GND
D0+

Signal

name

Pad

name

A15
A14
A13

A12
A11
A10

+D_CAD6+

A9
A8
A7

A6
A5
A4

A3
A2
A1

B12
B11
B10

B9
B8
B7

B6
B5
B4

B3
B2
B1

D7+
GND
D7--

D5+
GND
D5--

D3+
GND
D3--

D1+
GND
D1--

D_CAD7-­GND

D_CAD7+

D_CAD5--

GND
D_CAD5+

D_CAD3-­GND
D_CAD3+

D_CAD1-­GND

D_CAD1+

D_CLK1--

D_CLK1+

D_CAD14--

D_CAD12--

D_CAD12+

D_CAD10--

D_CAD10+

D_CAD8--

D_CAD8+

Signal

name

GND

GND

GND

GND

GND

Pad

name

CLK--

GND

CLK+

D6-­GND
D6+

D4-­GND
D4+

D2-­GND
D2+

D0-­GND
D0+

Signal

name

A15
A14
A13

A12
A11
A10

+D_CAD14+

A9
A8
A7

A6
A5
A4

A3
A2
A1

B12
B11
B10

B9
B8
B7

B6
B5
B4

B3
B2
B1

name

D7+
GND
D7--

D5+
GND
D5--

D3+
GND
D3--

D1+
GND
D1--

Signal

name

Pad

D_CAD15-­GND

D_CAD15+

D_CAD13-­GND
D_CAD13+

D_CAD11--

GND

D_CAD11+

D_CAD9-­GND
D_CAD9+

3- 18

TMS855 HyperTransport Bus Software Support

Symbol and Channel Assignment Tables

U_CLK0--

GND

U_CLK0+

NC

GND

NC

NC

GND

NC
NC

GND

NC
NC

GND

NC

Pad

name

Qual-­GND
Qual+

D6-­GND
D6+

D4-­GND
D4+

D2-­GND
D2+

D0-­GND
D0+

Signal

name

Pad

name

A15
A14
A13

A12
A11
A10

+

A9
A8
A7

A6
A5
A4

A3
A2
A1

B12
B11
B10

B9
B8
B7

B6
B5
B4

B3
B2
B1

D7+
GND
D7--

D5+
GND
D5--

D3+
GND
D3--

D1+
GND
D1--

NC
GND

NC

NC

GND

NC

NC
GND
NC

NC
GND
NC

Signal

name

D_CLK0--

GND

D_CLK0+

NC

GND

NC

NC

GND

NC

NC

GND

NC
NC

GND

NC

Pad

name

Qual--

GND

Qual+
D6--

GND
D6+

D4-­GND
D4+

D2-­GND
D2+

D0-­GND
D0+

Signal

name

A15
A14
A13

A12
A11
A10

+

A9
A8
A7

A6
A5
A4

A3
A2
A1

B12
B11
B10

B9
B8
B7

B6
B5
B4

B3
B2
B1

Signal

Figure 3- 1: P6880 differential probe land f ootprint for HT and HT_Cal support packages (Cont)

NOTE. Within Figure 3 --1, NC indicates NOT CONNECTED.

Table 3--17 lists the pin connections for the clock and qualifier channel assign­ment.

name

D7+
GND
D7--

D5+
GND
D5--

D3+
GND
D3--

D1+
GND
D1--

name

Pad

NC
GND
NC

NC
GND

NC

NC

GND

NC

NC
GND
NC

NOTE. The HT support package channel assignments apply to the HT_Cal
support package.

Table 3- 17: Clock and qualifier channel assignments for HT support package

Logic analyzer
acquisition channel

P6880 signal name

CK0 CK0-- Probe #3, Probe head 4 A15 U_CTL--

CK0+ Probe #3, Probe head 4 A13 U_CTL+

CK1 CK1-- Probe #2, Probe head 4 A15 D_CLK1--

CK1+ Probe #2, Probe head 4 A13 D_CLK1+

CK2 CK2-- Probe #2, Probe head 2 A15 NOT CONNECTED

CK2+ Probe #2, Probe head 2 A13 NOT CONNECTED

CK3 CK3-- Probe #1, Probe head 4 A15 U_CLK1--

CK3+ Probe #1, Probe head 4 A13 U_CLK1+

Q0 Q0-- Probe #3, Probe head 2 A15 U_CLK0--

Q0+ Probe #3, Probe head 2 A13 U_CLK0+

Q1 Q1-- Probe #1, Probe head 2 A15 NOT CONNECTED

P6880 probe number,
probe head number

P6880 pad name

HT support package
channel name

TMS855 HyperTransport Bus Software Support

3- 19

Symbol and Channel Assignment Tables

Table 3- 17: Clock and qualifier channel assignments for HT support package (Cont.)

Logic analyzer
acquisition channel

Q2 Q2-- Probe #4, Probe head 2 A15 D_CLK0--

Q3 Q3-- Probe #4, Probe head 4 A15 D_CTL--

P6880 signal name

Q1+ Probe #1, Probe head 2 A13 NOT CONNECTED

Q2+ Probe #4, Probe head 2 A13 D_CLK0+

Q3+ Probe #4, Probe head 4 A13 D_CTL+

P6880 probe number,
probe head number

P6880 pad name

HT support package
channel name

Tables 3--18 through 3--21 list the pin connections for the Upstream channel
assignments.

Table 3- 18: A3 probe Upstream channel assignments for HT support package

Logic analyzer
acquisition channel

A3:7 Data7+ A3:7+ B12 U_CAD7--

A3:6 Data6-- A3:6-- A12 U_CAD6--

A3:5 Data5+ A3:5+ B9 U_CAD5--

A3:4 Data4-- A3:4-- A9 U_CAD4--

A3:3 Data3+ A3:3+ B6 U_CAD3--

A3:2 Data2-- A3:2-- A6 U_CAD2--

A3:1 Data1+ A3:1+ B3 U_CAD1--

A3:0 Data0-- A3:0-- A3 U_CAD0--

P6880 signal name

Data7-- A3:7-- B10 U_CAD7+

Data6+ A3:6+ A10 U_CAD6+

Data5-- A3:5-- B7 U_CAD5+

Data4+ A3:4+ A7 U_CAD4+

Data3-- A3:3-- B4 U_CAD3+

Data2+ A3:2+ A4 U_CAD2+

Data1-- A3:1-- B1 U_CAD1+

Data0+ A3:0+ A1 U_CAD0+

P6880 probe 3
probe head 4

P6880 pad name

HT support package
channel name

3- 20

TMS855 HyperTransport Bus Software Support

Symbol and Channel Assignment Tables

Table 3- 19: D3 probe channel assignments for
Upstream bus demuxed from A3 for HT support
package

Logic analyzer acquisition
channel

D3:7 U_CAD7_DM

D3:6 U_CAD6_DM

D3:5 U_CAD5_DM

D3:4 U_CAD4_DM

D3:3 U_CAD3_DM

D3:2 U_CAD2_DM

D3:1 U_CAD1_DM

D3:0 U_CAD0_DM

HT support package chan­nel name

Table 3- 20: C3 probe Upstream channel assignments for HT support package

Logic analyzer
acquisition channel

C3:7 Data7+ C3:7+ B12 U_CAD15--

C3:6 Data6-- C3:6-- A12 U_CAD14--

C3:5 Data5+ C3:5+ B9 U_CAD13--

C3:4 Data4-- C3:4-- A9 U_CAD12--

C3:3 Data3+ C3:3+ B6 U_CAD11--

C3:2 Data2-- C3:2-- A6 U_CAD10--

C3:1 Data1+ C3:1+ B3 U_CAD9--

C3:0 Data0-- C3:0-- A3 U_CAD8--

P6880 signal name

Data7-- C3:7-- B10 U_CAD15+

Data6+ C3:6+ A10 U_CAD14+

Data5-- C3:5-- B7 U_CAD13+

Data4+ C3:4+ A7 U_CAD12+

Data3-- C3:3-- B4 U_CAD11+

Data2+ C3:2+ A4 U_CAD10+

Data1-- C3:1-- B1 U_CAD9+

Data0+ C3:0+ A1 U_CAD8+

P6880 probe 1
probe head 4

P6880 pad name

HT support package
channel name

TMS855 HyperTransport Bus Software Support

3- 21

Symbol and Channel Assignment Tables

Table 3- 21: C1 probe channel assignments for
Upstream bus demuxed from C3 for HT support
package

Logic analyzer acquisition
channel

C1:7 U_CAD15_DM

C1:6 U_CAD14_DM

C1:5 U_CAD13_DM

C1:4 U_CAD12_DM

C1:3 U_CAD11_DM

C1:2 U_CAD10_DM

C1:1 U_CAD9_DM

C1:0 U_CAD8_DM

HT support package chan­nel name

Tables 3--22 through 3--25 list the Downstream channel assignments for the HT
support package.

Table 3- 22: A1 probe Downstream channel assignments for HT support package

Logic analyzer
acquisition channel

A1:7 Data7+ A1:7+ B12 D_CAD15--

A1:6 Data6-- A1:6-- A12 D_CAD14--

A1:5 Data5+ A1:5+ B9 D_CAD13--

A1:4 Data4-- A1:4-- A9 D_CAD12--

A1:3 Data3+ A1:3+ B6 D_CAD11--

A1:2 Data2-- A1:2-- A6 D_CAD10--

A1:1 Data1+ A1:1+ B3 D_CAD9--

A1:0 Data0-- A1:0-- A3 D_CAD8--

P6880 signal name

Data7-- A1:7-- B10 D_CAD15+

Data6+ A1:6+ A10 D_CAD14+

Data5-- A1:5-- B7 D_CAD13+

Data4+ A1:4+ A7 D_CAD12+

Data3-- A1:3-- B4 D_CAD11+

Data2+ A1:2+ A4 D_CAD10+

Data1-- A1:1-- B1 D_CAD9+

Data0+ A1:0+ A1 D_CAD8+

P6880 probe 2
probe head 4

P6880 pad name

HT support package
channel name

3- 22

TMS855 HyperTransport Bus Software Support

Symbol and Channel Assignment Tables

Table 3- 23: D1 probe channel assignments for
Downstream bus demuxed from A1 for HT support
package

Logic analyzer acquisition
channel

D1:7 D_CAD15_DM

D1:6 D_CAD14_DM

D1:5 D_CAD13_DM

D1:4 D_CAD12_DM

D1:3 D_CAD11_DM

D1:2 D_CAD10_DM

D1:1 D_CAD9_DM

D1:0 D_CAD8_DM

HT support package chan­nel name

Table 3- 24: E3 probe Downstream channel assignments for HT support package

Logic analyzer
acquisition channel

E3:7 Data7+ E3:7+ B12 D_CAD7--

E3:6 Data6-- E3:6-- A12 D_CAD6--

E3:5 Data5+ E3:5+ B9 D_CAD5--

E3:4 Data4-- E3:4-- A9 D_CAD4--

E3:3 Data3+ E3:3+ B6 D_CAD3--

E3:2 Data2-- E3:2-- A6 D_CAD2--

E3:1 Data1+ E3:1+ B3 D_CAD1--

E3:0 Data0-- E3:0-- A3 D_CAD0--

P6880 signal name

Data7-- E3:7-- B10 D_CAD7+

Data6+ E3:6+ A10 D_CAD6+

Data5-- E3:5-- B7 D_CAD5+

Data4+ E3:4+ A7 D_CAD4+

Data3-- E3:3-- B4 D_CAD3+

Data2+ E3:2+ A4 D_CAD2+

Data1-- E3:1-- B1 D_CAD1+

Data0+ E3:0+ A1 D_CAD0+

P6880 probe 4
probe head 4

P6880 pad name

HT support package
channel name

TMS855 HyperTransport Bus Software Support

3- 23

Symbol and Channel Assignment Tables

Table 3- 25: E1 probe channel assignments for
Downstream bus demuxed from E3 for HT support
package

Logic analyzer acquisition
channel

E1:7 D_CAD7_DM

E1:6 D_CAD6_DM

E1:5 D_CAD5_DM

E1:4 D_CAD4_DM

E1:3 D_CAD3_DM

E1:2 D_CAD2_DM

E1:1 D_CAD1_DM

E1:0 D_CAD0_DM

HT support package chan­nel name

P6880 probe channels not connected. A2, A0, D2, D0, C2, C0, E2, and E0 probe
channels are not connected and not used.

Demuxed P6880 probe channels. D3, D1, C1, and E1 probe channels are
internally connected and should not be used.

3- 24

TMS855 HyperTransport Bus Software Support

Symbol and Channel Assignment Tables

Connections for HT_Tek

and HT_Tek_Cal Support

Packages

Pad

name

U_CLK0--

CLK--

GND

GND

CLK+

U_CLK0+

U_CAD6--

U_CAD6+
U_CAD4--

U_CAD4+
U_CAD2--

U_CAD2+

U_CAD0--

U_CAD0+

GND

GND

GND

GND

D6--

GND

D6+

D4--

GND

D4+

D2--

GND

D2+

D0-­GND
D0+

Signal

name
