Kit Description
Products
Kit Parts List
This introduction describes the rackmount kit for your standard bench-top
instrument.
The rackmount kit is a collection of parts that, once installed, configure the
instrument for mounting into a standard 19-inch equipment rack.
DPO3000 Series AllSerialNumbers
The following parts list describes the parts included in the rackmount kit. The
hardware package of screws, washers, and handles are used by other rackmount
kits; not all of the parts will be used in installing this rackmount kit.
NOTE. Rack slides are not included as part of this rackmount kit; they must be
ordered separately.
Table 1: Kit Parts List
Circuit/figure
number
-- -- -- -- -- -- -- -- -- 1 each RMD3000 RACKMOUNT KIT DPO3000 SERIES,
-- -- -- -- -- -- -- -- -- 1 e a c h 071-2424-00 MANUAL; INSTRUCTIONS; RACKMOUNT,
1-1 1 each 407-5325--xx BRACKET, BOTTOM RMD3000 RACKMOUNT
1-2 1 each 407-5326-xx BRACKET, REAR FEET RMD3000 RACK-
1-3 1 each 407-5327-xx BRACKET, TOP RMD3000 RACKMOUNT KIT
1-4 2 each 407-5330-xx BRACKET, HANDLE SUPPORT RMD3000
1-5 1 each 407-5329-xx BRACKET, LEFT SIDE RMD3000 RACK-
1-6 1 each 407-5328-xx BRACKET, RIGHT SIDE RMD3000 RACK-
1-7 1 each 426-2633-xx FACEPLATE, RIGHT RMD3000 RACKMOUNT
Quantity Part number Description
CONSISTING OF THE FOLLOWING:
ENGLISH, DPO3000 SERIES
KIT
MOUNT KIT
RACKMOUNT KIT
MOUNT KIT
MOUNT KIT
KIT
RMD3000 Rackmount Kit
3
Kit Description
Table 1: Kit Parts List (Cont.)
Circuit/figure
number
1-8 1 each 426-2634-xx FACEPLATE, LEFT RMD3000 RACKMOUNT
1-9 2 each 367-0450-xx HANDLE, BOW; CARRYING, 3.75 CTR, 8-32
Not shown 4 each 210-0833-xx WASHER, RECESSED; 0.42 ID X 0.112 THK,
Not shown 4 each 210-1061-xx WASHER, FLAT; 0.203 ID X 0.625 OD X 0.062,
Not shown 4 each 210-1546-xx SCREW, MACHINE, PAN, 8-32 X 1/2 PHIL, SST
Not shown 4 each 210-1547-xx LOCKWASHER, #8, SPLIT, .040 THICK
Not shown 4 each 210-1548-xx WASHER, FLAT, 12 mm OD X 6.4 mm ID X
Not shown 14 each 211-0507-xx SCREW, MACHINE; 6--32 X 0.312, PNH, 410
DescriptionPart numberQuantity
KIT
THD 1.75 H, TG2000, SAFETY CONTROLLED
STL NI PLATED, 0.588 OD
410 SS, PASSIVATE
1.6 mm THK, STAINLESS STEEL
SS PASSIVATED, POZ
Not shown 4 each 211-0538-xx SCREW, MACHINE; 6--32 X 0.312, FLH, 100
DEG, 410 SS PASSIVATED, POZ
Not shown 4 each 211-1218-xx M6 X 16MM PHIL OVAL HEAD, 410 SS,
PASSIVATE
Not shown 4 each 211-1219-xx SCREW, M5 X 16MM PHIL OVAL, 410 SS,
PASSIVATE
Not shown 4 each 212-0043-xx SCREW, MACHINE; 8--32 X 0.5, FLH, 100
DEG, 410 SS, POZ
Not shown 4 each 212-0591-xx SCREW, MACHINE; 10--32 X 0.75, OVH, POZ,
STL, NI
Not shown 4 each 213-0199-xx SCREW, MACHINE; 12--24 X 0.75, OVH, STL
NP, POZ
4
RMD3000 Rackmount Kit
Kit Description
3
2
1
4
5
9
6
7
8
Figure 1: Rackmount kit parts
2424--002
RMD3000 Rackmount Kit
5
Kit Description
Table 2: Optional Accessories (must be ordered separately)
Circuit/figure
number
2-1 1 pair 351-1095-00 SLIDE ASSY; PAIR, W/STD HARDWARE KIT
Quantity Part number Description
AND REAR BRACKET
1
Figure 2: Optional rack slide kit for rackmount
6
RMD3000 Rackmount Kit
Clearance Requirements
The rack in which the rack adapted instrument is mounted must provide the
following clearance requirements:
H A minimum of 222.25 mm (8.75 in) of vertical space
H A minimum width of 450.09 mm (17.72 in) between the left- and right-front
H A minimum depth of 342.90 mm (13.50 in)
CAUTION. Adhering to these clearance requirements provides the rack-mounted
instrument with sufficient clearance for air circulation and accommodation of
the power cord and mounting hardware. Failure to provide these clearances can
result in overheating and can cause instrument faults or failure.
Kit Description
rails in the rack
RMD3000 Rackmount Kit
7
Kit Description
334.15 mm
(21.815 in)
284.25 mm
(11.190 in)
429.75 mm
(16.920 in)
47.65mm
(1.875in)
486.05mm
(19.135in)
482.60mm
(19.000in)
145.05mm
(5.750in)
465.00mm
(18.310in)

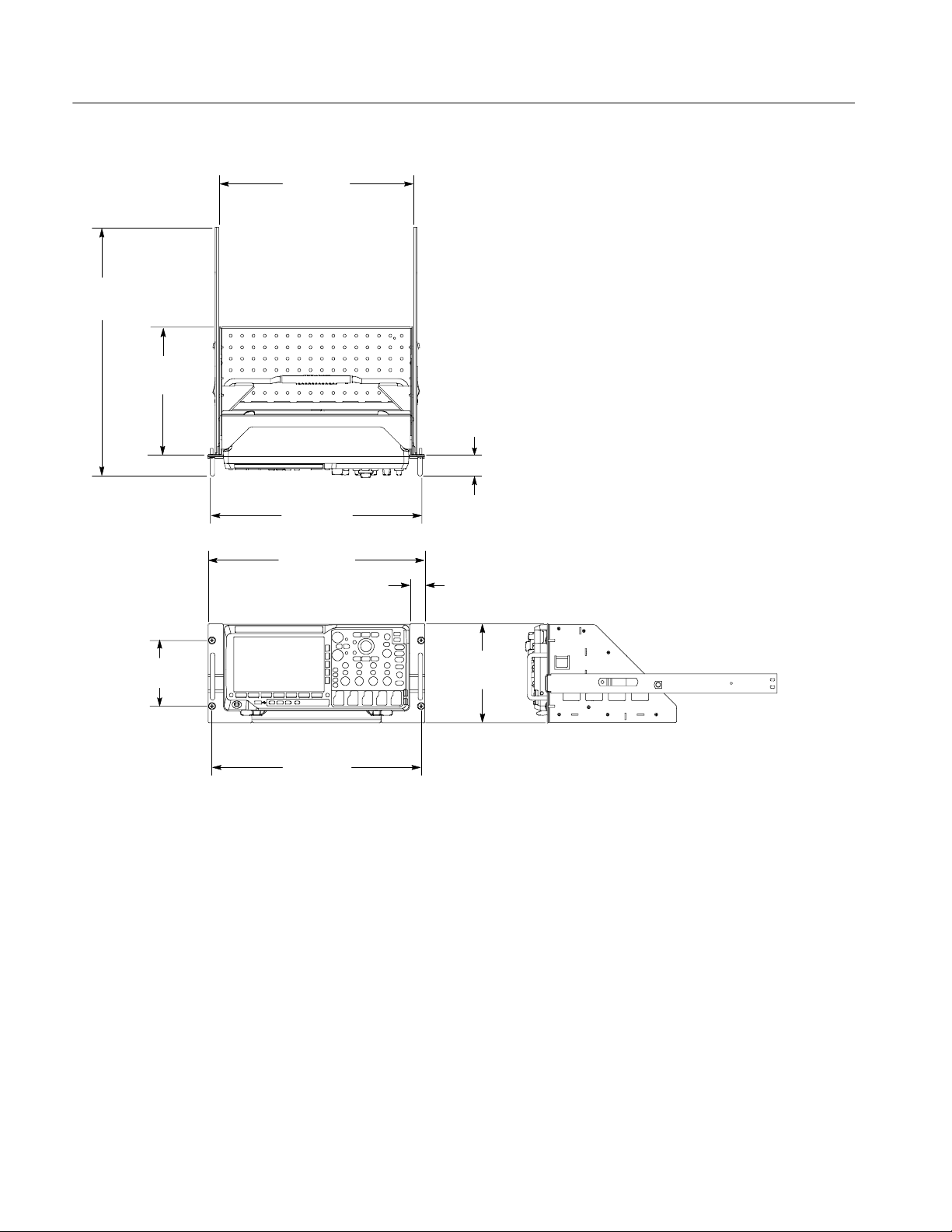

Figure 3: Instrument with rack adapter installed
34.30mm
(1.350in)
219.70mm
(8.650in)
2424-001
8
RMD3000 Rackmount Kit
Installation Instructions
This section contains the procedures needed to rackmount a DPO3000 series
instrument.
Minimum Tool and Equipment List
The following tools are required to attach the rack-adapter kit hardware, install
cabling hardware, and mount the rack-adapted instrument into a standard
equipment cabinet. All tools are standard tools that are readily available.
Table 3: Tools required for rackmount installation
Item
no.
Name Description
1 Screwdriver handle
(magnetic)
Accepts 1/4-inch hexagonal head driver t ips
2 No. 2 Pozidriv or
Phillips tip
3 Straight tip Straight screwdriver tip for slotted screw heads
4 1/4-inch wrench Wrench or nut driver can be used to install slides
5 Torque driver 6.5 in long shaft; accepts 1/4-inch hexagonal head driver tips
These instructions are for qualified service personnel who are familiar with
servicing the product. If you need further details for disassembling or reassembling the product, refer to the appropriate product manual. Contact your nearest
Tektronix Service Center or Tektronix Factory Service for installation assistance.
WARNING. To prevent the rackmounted instrument from tipping forward onto the
operator, install the instrument so that the operator will be able to access all of
its rear-panel connectors without pushing down on the instrument.
Verify that the rack does not become unstable with the instrument fully extended.
Do not leave the instrument extended when finished accessing the rear panel.
Pozidriv or-Phillips driver tip for number 2 size screw heads
RMD3000 Rackmount Kit
9
Installation Instructions
Install
Equipment Required: Torque driver with #2 Pozidriv tip (Items, 5, and 6).
This section describes mounting the rackmount adapter parts to the instrument.

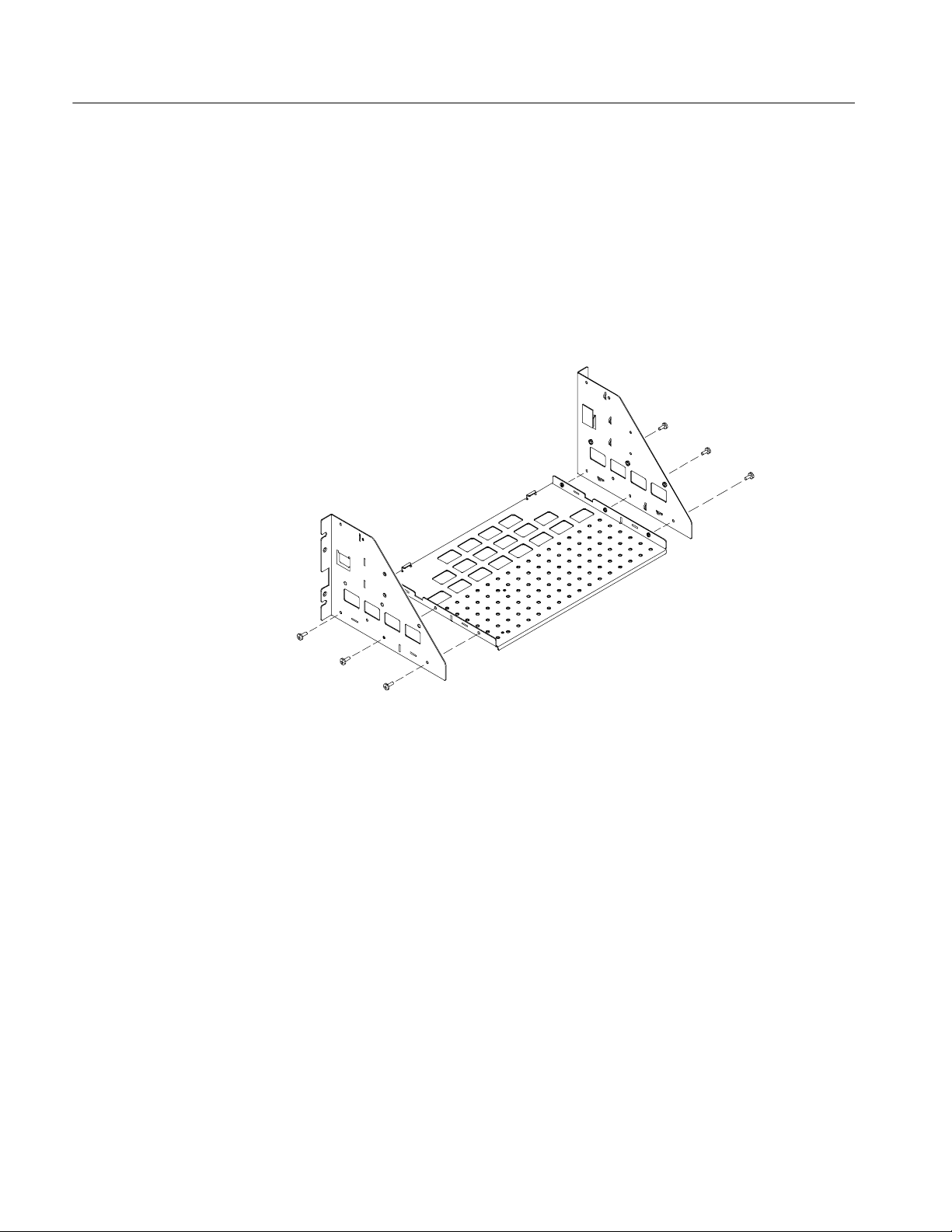

1. Install the left and right side brackets onto the bottom bracket using three of
the 6-32 x 0.312 inch pan head Pozidriv screws on each side. See Figure 4.
Tighten these screws to 8 in-lb.
2424--003
Figure 4: Assembling the rack adapter sides and bottom brackets
2. Install the rear feet bracket onto the bottom bracket using two of the
6-32 x 0.312 inch pan head Pozidriv screws, tightened to 8 in-lb. See
Figure 5.
10
RMD3000 Rackmount Kit
Figure 5: Installing the rear feet bracket
Installation Instructions
2424--004
3. Place the right faceplate into position, and then install the right handle using
two of the 8-32 x 0.5 inch flat head Pozidriv screws tightened to 16 in-lb.
See Figure 6. Installing the handle secures the faceplate in place.
4. Repeat Step 3, using the left faceplate and handle.
2424--005
RMD3000 Rackmount Kit
Figure 6: Installing the right and left faceplates
11
Installation Instructions
5. Place the oscilloscope into the rackmount frame, as shown in Figure 7.
Position the oscilloscope’s rear feet against the rear feet bracket. The front of
the oscilloscope will extend slightly beyond the two faceplates.
2424--006
Figure 7: Placing the oscilloscope into the rack adapter
NOTE. There is sufficient clearance between the bottom of the oscilloscope and
the rack adapter, allowing cables to be routed from the front of the oscilloscope
to the back.
6. Position the oscilloscope handle so that it extends straight to the back, as
shown in Figure 7. There is no detent in this position.

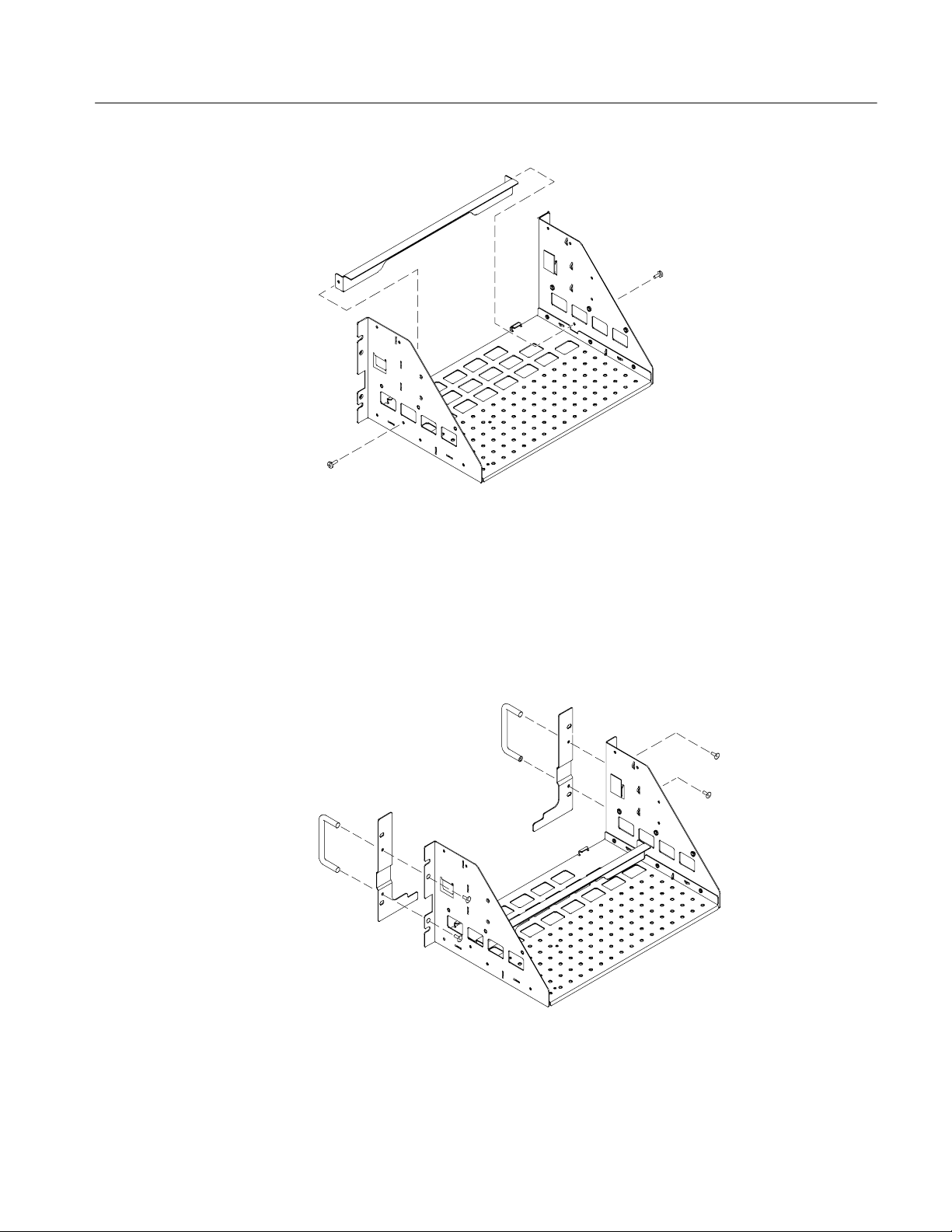

7. Install the top bracket by sliding it into place from the back, so that the two
top feet on the oscilloscope fit through the slots in the bracket. Attach the
bracket with two of the 6-32 x 0.312 inch pan head Pozidriv screws,
provided in the kit, on each side. See Figure 8.
12
RMD3000 Rackmount Kit
Installation Instructions
2424--008
Figure 8: Installing the top bracket
8. Place the handle brackets around the handle, slipping the front of the
brackets into the reliefs stamped into the rackmount side brackets. Attach the
handle brackets using the four 6-32 x 0.312 inch flat head Pozidriv screws
provided in the kit. Tighten these screws to 8 in-lb. See Figure 9.
RMD3000 Rackmount Kit
2424--007
Figure 9: Installing the handle brackets
13
Installation Instructions

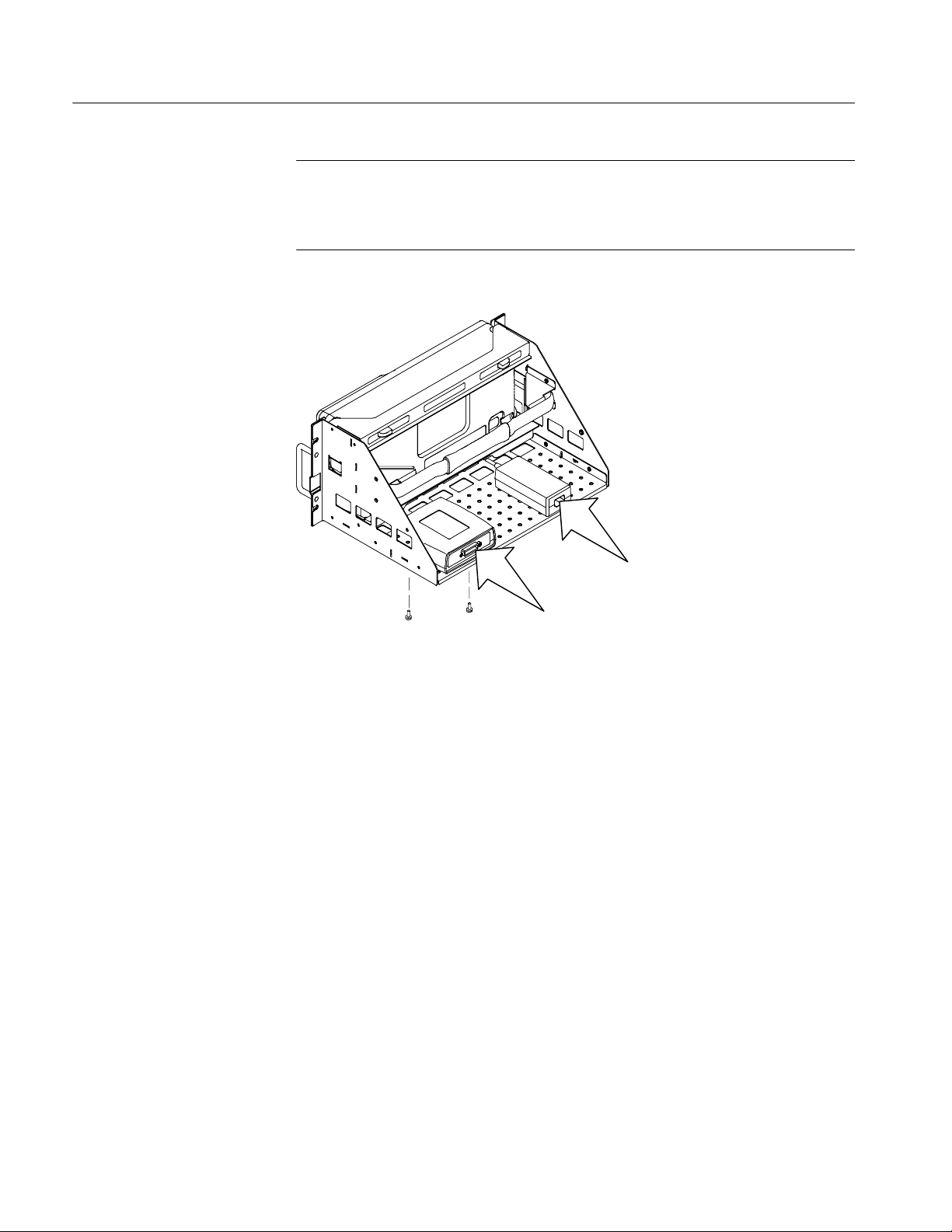

NOTE. The bottom bracket has holes to facilitate mounting optional accessories.
For example, Figure 10 shows a TEK-USB-488 GPIB to USB Adapter and an
optional Probe Power Adapter mounted to the back support. Optional accessories may be mounted with screws, or you can use nylon straps to secure them.
Figure 10: Installing accessories
2424--009
14
RMD3000 Rackmount Kit
Rackmount the Rack-Adapted Instrument without rack slides

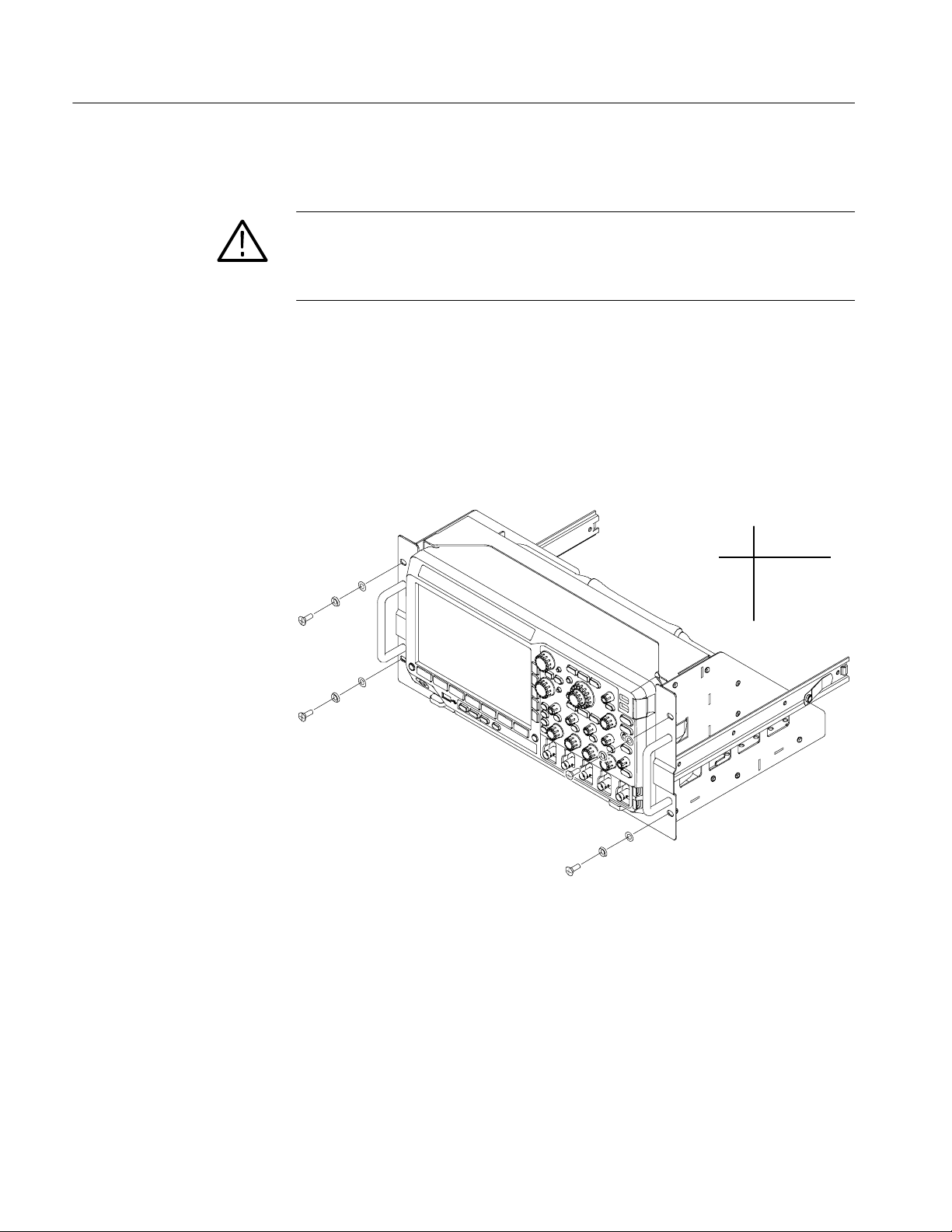

If you did not order the optional rackmount slides, you may install the Rackadapted instrument into an equipment rack by following this procedure:
WARNING. To prevent the instrument from tipping or falling onto the installers,
this procedure should be performed by two or more people.
Installation Instructions
Install Instrument into the
Rack
Equipment Required: One screwdriver handle (Item 1) and one number two
Pozidriv tip (Item 2).
1. Select the appropriate screws for your equipment rack from the kit; 10--32,
12--24, M5, or M6. Assemble them with the recessed and flat washers as
shown:
Screw Use this
type flat washer
10-32 0.625 in. OD
12-32 12 mm OD
M5 0.625 in. OD
M6 12 mm OD
Recessed
washer
Flat
washer

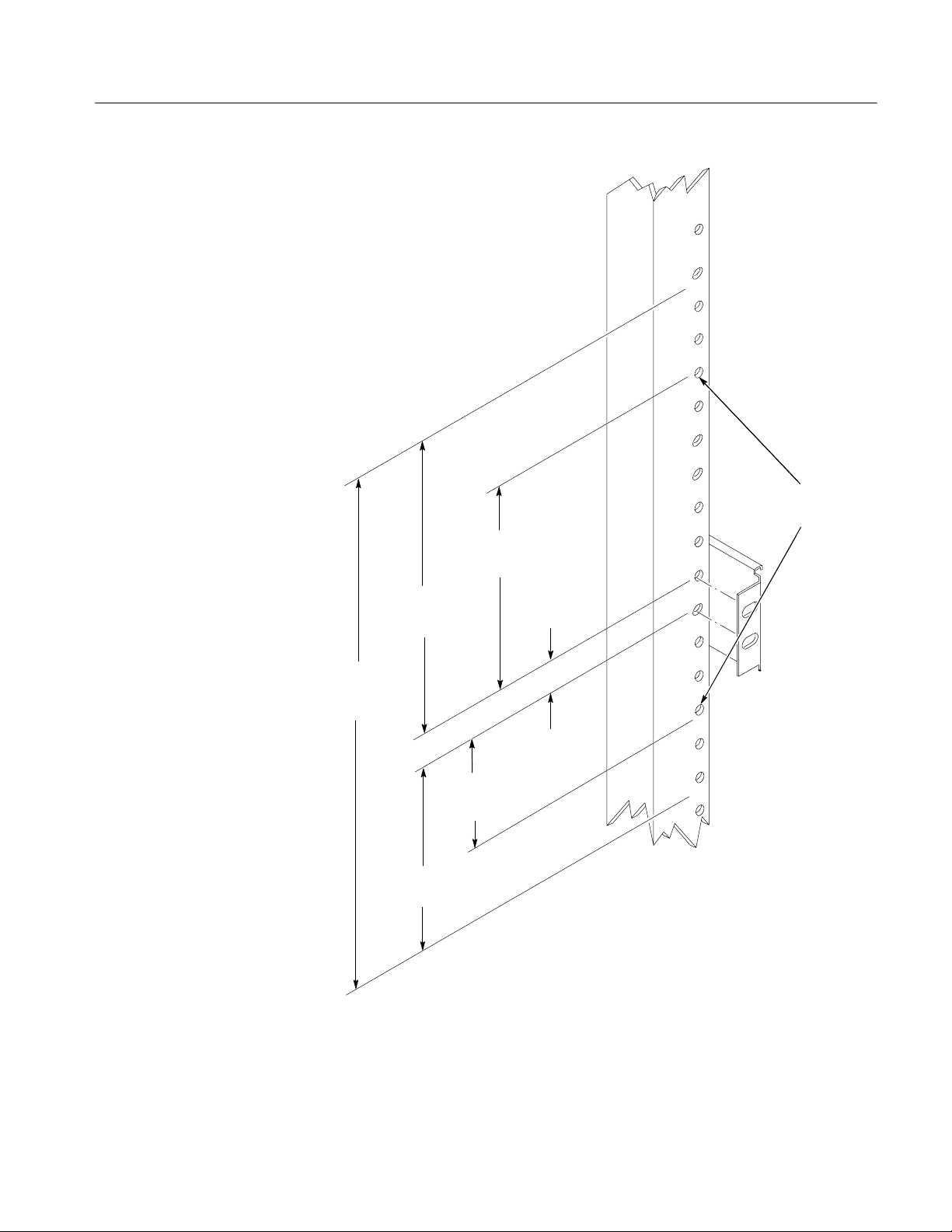

2. Standard equipment racks utilize one of two mounting hole spacing methods.
Both methods use mounting holes spaced 0.5 inch apart, separated by a 1.25
inch gap. One method (A) places an additional mounting hole in the middle
of the 1.25 inch gap (at 0.625, or
5
/8, inch); the other method (B) does not.
See Figure 11.
RMD3000 Rackmount Kit
15
Installation Instructions
0.5
0.625
1.25
0.625
0.5
0.625
1.25
0.625
0.5
0.625
A
B
Figure 11: Rack mounting hole spacing
3. Select two 0.5 inch-spaced holes in the front rail. Verify that there are
clearances of 1.5 inch above the upper mounting hole and 6.75 inch below
the lower mounting hole.
4. Slide the oscilloscope into the equipment rack so that the pin extending back
from the left side, just below the upper mounting hole, goes into the lower of
the 0.5 inch-spaced holes in the front rail. This pin is a locating guide, and
also an aid to holding the oscilloscope in place while securing the oscilloscope to the instrument rack.
5. Use the screws and washers from step 1 to secure the oscilloscope to the
instrument rack.
16
RMD3000 Rackmount Kit
Rackmount the Rack-Adapted Instrument using rack slides
If you ordered the optional rackmount slides, this procedure assembles and
installs the slide-out tracks in the equipment rack, and then installs the rackadapted instrument in the rack.
The slide-out tracks permit the rack-adapted instrument to be extended out of the
rack for rear-panel and connector maintenance without removing the instrument
from the rack.
WARNING. To prevent the rackmounted instrument from tipping forward onto the
operator, install the instrument so that the operator will be able to access all of
its rear devices without pushing down on the instrument.
Verify that the rack does not become unstable with the instrument fully extended.
Do not leave the instrument extended when finished accessing the rear panel.
Installation Instructions
Install Track Assembly
and Instrument into the
Rack
Equipment Required: One screwdriver handle (Item 1), one number two Pozidriv
tip (Item 2), one straight slot tip (item 2) and one torque driver (Item 5).
NOTE. The rack hardware kit contains hardware for mounting the instrument in
several configurations. Not all of the hardware in the kit will be needed.
Procedure:
1. Attach the front (chassis) left and right tracks to the rack adapter:
a. Remove the front (chassis) section of each of the two tracks. See
Figure 12.
b. Install the front left- and right-side track sections on the instrument using
six of the 10-32 x
Figure 13.
3
/8inch slotted screws tightened to 28 in-lb. See
RMD3000 Rackmount Kit
17
Installation Instructions
Remove this section
from each track.
Figure 12: Remove instrument tracks
18
2424--0010
Figure 13: Install slide tracks onto rack adapter
WARNING. To ensure that the rackmount track locks, make sure the track button
latches are oriented correctly: the right-side latch is located toward the bottom
of the rackmount panel and the left-side latch is located toward the top of the
rackmount panel. Refer to Figure 14.
RMD3000 Rackmount Kit
Figure 14: Track orientation
Installation Instructions
Note: Button latch is
located near the bottom
edge of right-side track,
top edge for left-side track.
Mount the tracks on the
sides of the instrument.
2. Assemble the slide-out track:
a. Measure the distance between the front and rear rail of the equipment
rack.
b. Align the rear bracket to the right slide-out track as shown in Figure 15.
Note that the rear bracket has multiple pairs of mount-through holes.
When aligning the bracket and track, be sure to select a pair of holes that
mount the rear bracket so that the flange-to-flange distance matches the
distance between the front rail and rear rail measured in step a.
c. Using a screwdriver with a number two Pozidriv tip, secure the rear
bracket to the right slide-out track using two screws (10-32) and a bar
nut as illustrated. Leave the screws loose so that the overall length of the
slide-out track assembly can be adjusted when installing it in the rack.
d. Repeat steps b and c to assemble the left slide-out track assembly.
3. Mount the slide-out track assemblies, using the slide drawer hardware listed
in the kit parts list, Figure 1-10:
a. Select the mounting position in rack: Select two 0.5 inch-spaced holes in
the front rail. Verify that clearances of 4.875 inch above and 3.25 inch
below exist, relative to those mounting holes. See Figure 16 on page 21.
RMD3000 Rackmount Kit
19
Installation Instructions
Rear flange (mounts to
rear rail of rack)
Bar nut
Flange-to-Flange: 514.4 mm (20.25 in) minimum
to 673.1 mm (26.50 in) maximum
Rear bracket
Outer track
Front flange (mounts to
front rail of rack)
Figure 15: Assembly of slide-out track assemblies
Right slide-out track assembly
Round cut out
Inner track
Left slide-out track assembly
20
RMD3000 Rackmount Kit
Installation Instructions
Instrument
securing holes
219.08 mm
(8.75 in)
101.60 mm
(3.50 in)
123.83 mm
(5.00 in)
12.70 mm (0.50 in)
(for correct position
of securing holes)
44.45 mm
(1.75 in)
82.55 mm
(3.25 in)
RMD3000 Rackmount Kit
Figure 16: Vertical clearances for rack installation (left-front rail shown)
21
Installation Instructions
b. Select mounting method according to rack type:
H To mount the slide-out tracks with their front and rear flanges
outside of the front and rear rails, use the mounting method A shown
in Figure 17 when doing substep c. Add a bar nut to the installation
only if the rails have untapped holes.
H To mount with front and rear flanges inside of rails, use the
mounting method B outlined in Figure 17. This mounting method
assumes untapped holes.
c. Install in rack: Using the method and hardware determined from
substep b, secure the right slide-out track assembly to its front and rear
rails. The screws should be fully, but lightly, seated so mounting can be
adjusted later.
d. Fix the length of the slide-out track assembly: Tighten the screws,
applying 28 inch-lb of torque, left loose in step 1 substep c, to fix the
front to rear flange spacing of the slide-out track assembly.
Use a bar nut if front rails
are not tapped
Left-front
rack rail
Mounting Method A Mounting Method B
Outer track
10-32 Pan-head
screws (4)
e. Mount the left slide-out track assembly: Repeat substeps c and d to
mount the left slide-out track assembly.
Outer track
Front flange
Front flange
English Metric
#10 M6 M5
#12
Left-front
rack rail
10-32 Flat-head
screws (4)
Use two flat-head screws if the cabinet rails have
countersunk mounting holes; otherwise use two
pan-head screws
10-32 Pan-head
screws (4)
Figure 17: Installation of slide-out track assemblies in rack (top view)
22
RMD3000 Rackmount Kit
Installation Instructions
4. Mount the instrument in the rack:
WARNING. To prevent the instrument from tipping or falling onto the installers,
two or more people should install this instrument into the rack cabinet.
After completing the installation procedure, the installers should verify that the
instrument and rack cabinet will not tip forward while the instrument is in the
extended position.
a. Install the instrument:
H Working from the front of the rack, slide the inner track of each
slide-out track assembly until it extends out the front of the rack.
Continue to slide them out until they lock.
H Insert the left and right tracks that extend from the rear of the
instrument into the ends of the tracks just extended. Make sure the
tracks mounted on the instrument slip inside the inner tracks
extended earlier.
H Slide the instrument backwards until it stops.
H Push to release the button latches, located on the outside of each
track, and continue to slide the instrument all the way into the
cabinet.
b. Level the rackmounted instrument:
H Tighten the four screws that were left loose at the rear of the rack
when you did step 3, substep c, and then pull the instrument part
way out of the rack.
H Be sure that the four screws that were left loose at the front of the
rack are loose enough to allow the slide-out track assemblies to seek
their normal positions.
H Retighten the four screws and push the instrument all the way into
the rack. If the tracks do not slide smoothly, readjust the level using
the method just detailed.
H When leveling is completed, tighten the 10-32 screws using
28 inch-lb of torque.
RMD3000 Rackmount Kit
23
Installation Instructions
Finishing the Installation
It is recommended that you secure the instrument to the rack.
WARNING. To prevent the rackmounted instrument from sliding forward and
causing personal injury or instrument damage, always secure the instrument to
the rack if the rack is moved (for example, if the rack is repositioned or relocated
to another room).
5. Secure the instrument to the rack:
a. Select four of the appropriate screws for your equipment rack from the
kit; 10-32, 12-24, M5, or M6.
b. Secure the instrument in the rack using the screws selected in part a of
this step, with the recessed washers and flat washers as shown in
Figure 18.
Screw Use this
type flat washer
10-32 0.625 in. OD
12-32 12 mm OD
M5 0.625 in. OD
M6 12 mm OD
24
2424--011
Figure 18: Securing the instrument to the rack
g End of document g
RMD3000 Rackmount Kit
Loading...
