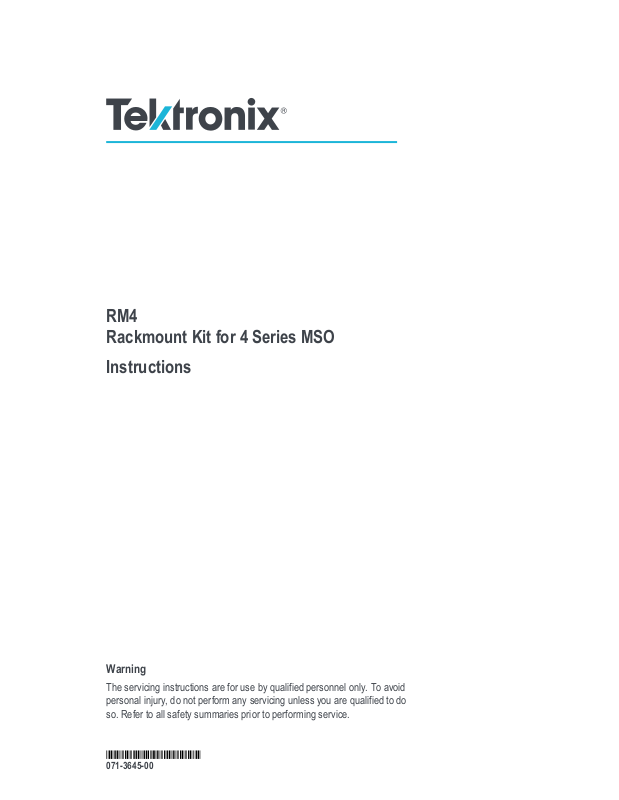

Tektronix RM4 Rackmount Kit Field Install Instructions

RM4 Rackmount Kit for 4 Series MSO
Instructions
Warning
The servicing instructions are for use by qualified personnel only. To avoid personal injury, do not perform any servicing unless you are qualified to do so. Refer to all safety summaries prior to performing service.
*P071364500*
071-3645-00
Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material. Specifications and price change privileges reserved.
TEKTRONIX and TEK are registered trademarks of Tektronix, Inc.
Contacting Tektronix
Tektronix, Inc.
14150 SW Karl Braun Drive P.O. Box 500 Beaverton, OR 97077 USA
For product information, sales, service, and technical support:
In North America, call 1-800-833-9200.
Worldwide, visit www.tek.com to find contacts in your area.

Table of Contents

Important safety information ................................................................................................................................ iii
Service safety summary ................................................................................................................................ iii
Terms in the manual ...................................................................................................................................... iii
Kit description
Products ......................................................................................................................................................... 1
Minimum tool and equipment list .................................................................................................................... 1
Kit parts lists ................................................................................................................................................... 1
Warranted characteristics .............................................................................................................................. 3
Clearance requirements ................................................................................................................................. 3
RM4 installation instructions
Assemble the rack mount on the instrument .................................................................................................. 5
Install the instrument into the rack ................................................................................................................. 9
Dimensions
Front panel dimensions ................................................................................................................................ 11
Rear panel dimensions ................................................................................................................................ 12
RM4 Rackmount Kit i
Table of Contents
ii RM4 Rackmount Kit

Important safety information

This manual contains information and warnings that must be followed by the user for safe operation and to keep the product in a safe condition.

Service safety summary

The Service safety summary section contains additional information required to safely perform service on the product. Only qualified personnel should perform service procedures. Read this Service safety summary and the General safety summary before performing any service procedures.
To avoid electric shock. Do not touch exposed connections.
Do not service alone. Do not perform internal service or adjustments of this product unless another person capable of rendering
first aid and resuscitation is present.
Disconnect power. To avoid electric shock, switch off the product power and disconnect the power cord from the mains power before removing any covers or panels, or opening the case for servicing.
Use care when servicing with power on. Dangerous voltages or currents may exist in this product. Disconnect power, remove battery (if applicable), and disconnect test leads before removing protective panels, soldering, or replacing components.
Verify safety after repair. Always recheck ground continuity and mains dielectric strength after performing a repair.

Terms in the manual

These terms may appear in this manual:
WARNING. Warning statements identify conditions or practices that could result in injury or loss of life.
CAUTION. Caution statements identify conditions or practices that could result in damage to this product or other property.
RM4 Rackmount Kit iii
Important safety information
iv RM4 Rackmount Kit

Kit description

This document supports Tektronix 4 Series MSO instruments. The rackmount kit is a collection of parts that, once installed, configure the instrument for mounting into a standard 19-inch equipment rack.

Products

This rackmount kit supports the 4 Series MSO instruments.

Minimum tool and equipment list

Required tools and equipment Part number
Screwdriver, Phillips, #2 Standard tool
Screwdriver, T-20 Torx Standard tool
Screwdriver, T-10 Torx Standard tool

Kit parts lists

The following tables list the parts for the RM4 rack mount kit; not all of the parts will be needed for your instrument setup.
Table 1: Rack mount kit
Item Quantity Part number Description
----- 1 each 071-3645-xx RM4 RACK MOUNT KIT INSTRUCTIONS
1 1 441-2922-xx BRACKET, LEFT, RACKMOUNT KIT
2 1 407-6190-xx FRONT FILLER PLATE, RACKMOUNT KIT
3 2 407-6188-xx BRACKET, TOP AND BOTTOM RACKMOUNT KIT
4 1
441-2923-xx
5 1 016-2142-xx KIT, HARDWARE RACKMOUNT KIT
6 1 016-2116-xx KIT, HARDWARE RACKMOUNT KIT
7 1 351-1095-00 SLIDE ASSY; PAIR, W/STD HARDWARE KIT AND REAR BRACKET,
BRACKET, RIGHT, RACKMOUNT KIT
This kit includes the hardware required to assemble the rackmount kit and attach it to the instrument. See Table 2: Hardware kit 016-2142-xx on page 2 for the hardware list
This kit includes the hardware required to mount the assembled instrument and rack kit to the instrument rack. See Table 3: Hardware kit 016-2116-xx on page 2 for the hardware list
SAFETY CONTROLLED
RM4 Rackmount Kit 1
Kit description
The numbers in the illustration correspond with the item numbers in the preceding tables. Hardware in 016-2116-xx and 016-2142-xx kits are not pictured in the illustration.
Figure 1: Rack mount kit parts
Table 2: Hardware kit 016-2142-xx
Item Quantity Part number Description
7 12 211-1584-xx SCREW, MACHINE, M3X0.5X6MM PAN HEAD, TORX T10
8 8 211-1694-xx SCREW, MACHINE, M4X0.7X16MM PAN HEAD, TORX T20
9 6 211-1695-xx SCREW, MACHINE, M4X0.7X6MM PAN HEAD, TORX T20
Table 3: Hardware kit 016-2116-xx
Item Quantity Part number Description
10 14 210-0833-xx WASHER, RECESSED; 0.42 ID X 0.112 THK, STL NI PLATED, 0.588 OD
11 14 210-1061-xx WASHER, FLAT; 0.203 ID X 0.625 OD X 0.062, ZINC PLATED STEEL
12 14 210-1548-xx WASHER, FLAT 12 OD X 6.4 ID X 1.6THK
13 14 211-1218-xx SCREW, M6 X 16MM OVAL HEAD, PHILLIPS
14 14 211-1219-xx SCREW, M5 X 16MM OVAL HEAD, PHILLIPS
2 RM4 Rackmount Kit
Kit description
Item Quantity Part number Description
15 14 212-0591-xx SCREW, MACHINE; 10-32X.750 OVAL HEAD, POZI
16 14 213-0199-xx SCREW, MACHINE; 12-24 X 0.75, OVH, STL NP, POZ

Warranted characteristics

When the instrument is installed according to the instructions in this document, the rackmounted instrument meets all warranted requirements listed in the instrument specification. Instruments mounted using methods other than those described in these instructions might not meet their warranted requirements.
For tables of the warranted characteristics, see Specifications in the specification and performance verification manual that applies to your instrument model.
CAUTION. The rack is more susceptible to tipping when the instrument is installed. To prevent the rack from tipping, ensure that the rack is stable before accessing rear panel of the instrument. Do not leave the instrument extended in the rack.
The ambient temperature inside the instrument rack will vary depending on the location of the instrument within the instrument rack. Tektronix recommends that you measure the ambient temperature in the desired rack location before you install the instrument to ensure the operating temperature does not exceed the rated ambient temperature limit. If necessary, refer to the Environmental Specifications in your product documentation for the operating temperature limits.
CAUTION. The instrument might be damaged due to overheating. When installing multiple instruments in an instrument rack, the ambient temperature may go up. You assume the responsibility to provide adequate cooling to meet the ambient temperature requirements listed in the specifications.

Clearance requirements

The rack in which the individual instrument is mounted must provide the following clearance requirements:
At least 310 mm (12.25 in) of vertical space or 7 RU (rack units) of vertical space
A minimum width of 488 mm (19.2 in) between the left- and right-front rails in the rack. If possible, consider allowing at least
50.8 mm (2.0 in) on the right side and rear of the instrument for adequate airflow.
A minimum inside depth of at least 254 mm (10 in) depth (from rack mounting ear to back of instrument)
Airflow enters from the back of the instrument and exits on the right of the instrument when viewed from the front.
CAUTION. Adhering to these requirements mounts the rack-adapted instrument with enough clearance for air circulation and accommodation of the power cord and mounting hardware. Failure to provide these clearances can result in overheating and can cause the instrument to operate improperly or fail.
RM4 Rackmount Kit 3
Kit description
4 RM4 Rackmount Kit

RM4 installation instructions

These instructions are for qualified service personnel who are familiar with servicing the product. If you need further details for disassembling or reassembling the product, refer to the appropriate product manual. Contact your nearest Tektronix, Inc., Service Center or Tektronix Factory Service for installation assistance.

Assemble the rack mount on the instrument

Figure 2: Prepare the instrument
RM4 Rackmount Kit
5
RM4 installation instructions
Item numbers referenced in the assembly steps refer to the parts table in the Kit parts lists on page 1.
1. Remove the instrument handle, hubs, and grill. Save the parts and hardware for future use.
a. Remove the four TORX T10 screws from the handle.
b. Remove the handle and the two handle hub couplers from the instrument.
c. Remove the ten TORX T10 screws from the grill.
d. Remove the grill from the back of instrument.
2. Install the left and right mounting plates.
a. Use four TORX T20 screws (item 8) to install the left mounting plate (item 1) to the instrument.
b. Use four TORX T20 screws (item 8) to install the right mounting plate (item 2) to the instrument.
Figure 3: Mounting plate installation
6 RM4 Rackmount Kit
RM4 installation instructions
3. Install the top and bottom support plates.
a. Use six TORX T10 screws (item 7) to install the top support plate (item 3) to the mounting plates.
b. Use six TORX T10 screws (item 7) to install the bottom support plate (item 3) to the mounting plates.
Figure 4: Support plate installation
RM4 Rackmount Kit 7
RM4 installation instructions
4. Install the left-side and right-side slide mounts.
a. Use three TORX T20 screws (item 9) to install the instrument-side portion of the slide (item 6) to the right mounting
plate.
b. Use three TORX T20 screws (item 9) to install the instrument-side portion of the slide (item 6) to the left mounting
plate.
Figure 5: Slide mount installation
8 RM4 Rackmount Kit
RM4 installation instructions

Install the instrument into the rack

1. Use the hardware from Table 3: Hardware kit 016-2116-xx on page 2 to install the rack slides in your equipment rack.
Figure 6: Installing the rail slides
RM4 Rackmount Kit 9
RM4 installation instructions
2. Install the instrument in your equipment rack by inserting the rack mounts into the slides.
Figure 7: Installation of rack mounted instrument assembly into a rack
WARNING. To avoid personal injury and prevent the instrument from tipping or dropping, use two or more people to install this instrument into the rack cabinet.
After completing the installation procedure, verify that the instrument and the rack cabinet will not tip forward while the instrument is in the extended position.
Do not leave the instrument extended when finished accessing the instrument.
3. Install the power cord. Provide access to a power plug or mains disconnect switch for turning the instrument on/off.
4. Optionally install any cables you need connected to the instrument rear panel.
5. Slide the instrument into the equipment rack, and secure the instrument to the rack using standard rack hardware.
6. Install the front filler plate on the rack above the instrument using standard rack hardware.
10 RM4 Rackmount Kit

Dimensions

Front panel dimensions

Figure 8: RM4 and 4 Series MSO front panel dimensions
RM4 Rackmount Kit
11
Dimensions

Rear panel dimensions

Figure 9: RM4 and 4 Series MSO rear panel dimensions
