Tektronix RM4000 Instructions Manual

Instructions

RM4000
Tektronix 4000 Series Rackmount Kit

071-2134-01

Warning

The servicing instructions are for use by qualified
personnel only. To avoid personal injury, do not
perform any servicing unless you are qualified to
do so. Refer to all safety summaries prior to
performing service.

www.tektronix.com

*P071213401*

071213401

Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or
suppliers, and are protected by national copyright laws and international treaty provisions.

Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supercedes
that in all previously published material. Specifications and price change privileges reserved.

TEKTRONIX and TEK are registered tradem arks of Tektronix, Inc.

Contacting Tektronix

Tektronix, Inc.
14200 SW Karl Braun Drive
P.O. Box 500
Beaverton, OR 97077
USA

For product information, sales, service, and technical support:

H In North America, call 1-800-833-9200.

H Worldwide, visit www.tektronix.com to find contacts in your area.

Service Safety Summary

Only qualified personnel should perform service procedures. Read this Service
Safety Summary and the General Safety Summary in the product service manual

or the instruction manual.

Do Not Service Alone. Do not perform internal service or adjustments of this
product unless another person capable of rendering first aid and resuscitation is
present.

To prevent the instrument and rack from falling onto the operator, two or more
installers should install the instrument into the rack cabinet. After completing the
installation procedure, the installers should verify that the instrument and rack
cabinet will not tip forward while the instrument is in the extended position.

Disconnect Power. To avoid electric shock, switch off the instrument power, then
disconnect the power cord from the mains power.

Use Care When Servicing With Power On. Dangerous voltages or currents may
exist in this product. Disconnect power and disconnect test leads before
removing protective panels, soldering, or replacing components.

To avoid electric shock, do not touch exposed connections.

RM4000 Rackmount Kit

1

Service Safety Summary

2

RM4000 Rackmount Kit

Kit Description

Products

Kit Parts List

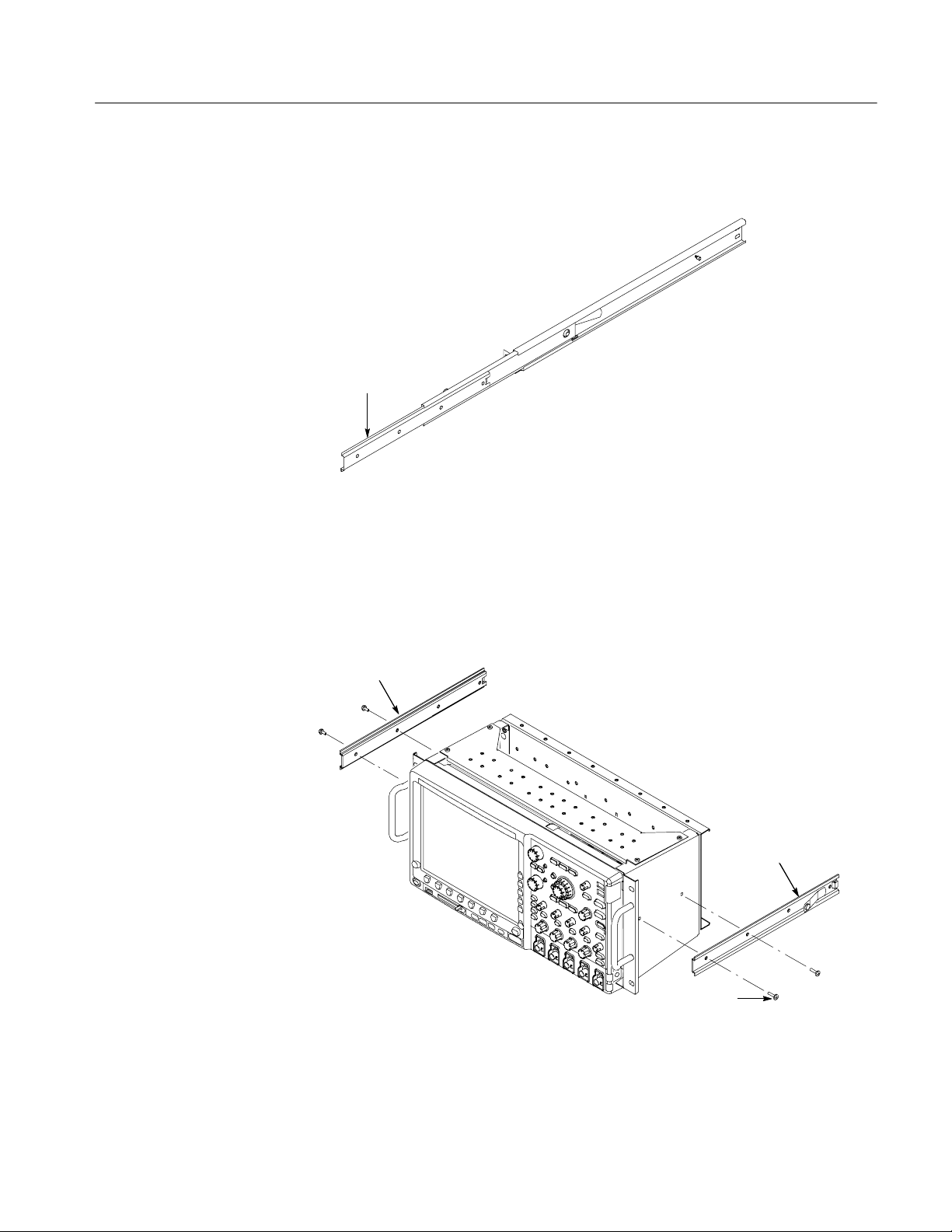

This introduction describes the installation of the rackmount kit to your standard
bench-top instrument.

The rackmount kit is a collection of parts that, once installed, configure the
instrument for mounting into a standard 19-inch equipment rack.

This document supports Tektronix modification: ECR31404.

DPO4000 Series AllSerialNumbers
MSO4000 Series AllSerialNumbers

Table 1 lists the parts included in this rackmount kit. The parts are shown in
Figure 1.

Table 1: RM4000 Rackmount kit (see figure

Item

-1 1 each 386-7420-xx PLATE, MOUNTING; RACKMOUNT LEFT

-2 1 each 386-7421-xx PLATE, MOUNTING; RACKMOUNT RI GHT

-3 2 each 367-0525-xx HANDLE, CARRYING; 0.375 AL, POWDER

-4 1 each 386-7466-xx PLATE, SUPPORT; RACKMOUNT TOP

-5 1 each 386-7467-xx PLATE, SUPPORT; RACKMOUNT BACK

-6 12 each 211-0722-xx SCREW, MACHINE; 6--32 X 0.250, PNH, 410 SS

-7 4 each 212-0577-xx SCREW, MACHINE; 10--32 X 0.625, TRH, 410

-8 4 each 212-0681-xx SCREW, MACHINE; 10--32 X 0.25, PNH, 410

-9 4 each 361-1832-xx SPACER, RECTANGULAR WASHER .888 X

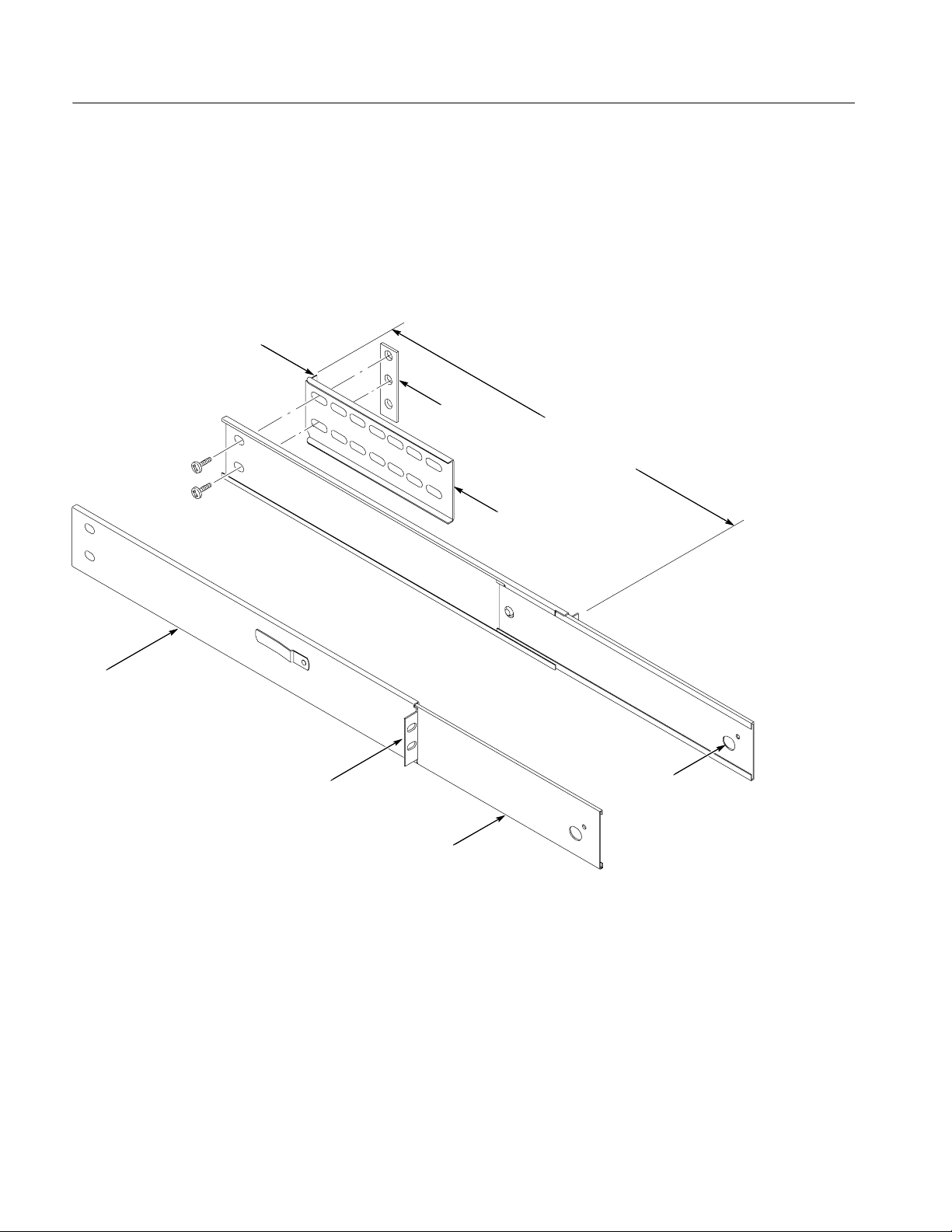

-10 1 each 351-1095-xx SLIDE ASSY; PAIR, W/STD HARDWARE KIT

-11 4 each 211-0734-xx SCREW, MACHINE; 6--32 X 0.250, FLH100, 410

Quantity Part number Description

1 on page 4)

COAT, PEKING GRAY

PASSIVATED, T--15 TORX DR

SS, PASSIVATE, POZ

SS, PASSIVATE, T25 TORX

1.000 X .225

AND REAR BRACKET

SS PASSIVATED, T--10 TORX

RM4000 Rackmount Kit

-- -- -- -- -- -- -- -- -- 1 each 071-2134-01 TECH MANUAL: INSTRUCTIONS, RACK­MOUNT KIT, TEKTRONIX 4000 SERIES

3

Kit Description

1

6

11

8

2

7

3

9

4

10

5

Figure 1: Rackmount kit parts (part appearance may vary)

4

RM4000 Rackmount Kit

Kit Description

Warranted Characteristics

When the instrument is installed according to the instructions in this document,
the rackmounted instrument meets all warranted characteristics listed in the
instrument specification except for those listed in Environmental Requirements
on page 6. Instruments mounted using methods other than those described in
these instructions may not meet their warranted characteristics.

See the specifications for your instrument model for tables of the warranted
characteristics.

Cooling air enters on the bottom and right sides as shown in Figure 2. You must
provide adequate cool air to meet the ambient temperature requirements listed in
Table 2.

Hot air out (rear)

Measure
input air
temperature

Figure 2: Instrument cooling

Cool air in

RM4000 Rackmount Kit

5
