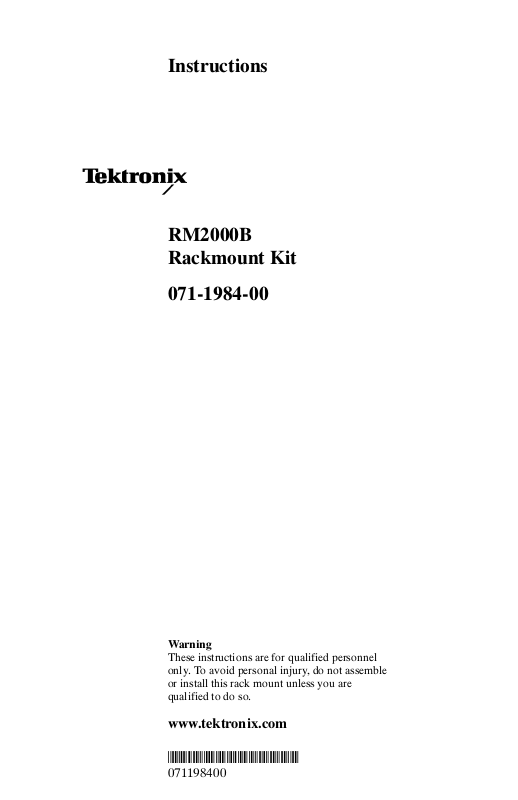

Instructions
RM2000B
Rackmount Kit
071-1984-00
Warning
These instructions are for qualified personnel
only. To avoid personal injury, do not assemble
or install this rack mount unless you are
qualified to do so.
www.tektronix.com
*P071198400*
071198400
Copyright © Tektronix. All rights reserved. Licensed software products are
owned by Tektronix or its subsidiaries or suppliers, and are protected by
national copyright laws and international treaty provisions.
Tektronix products are covered by U.S. and foreign patents, issued and
pending. Information in this publication supercedes that in all previously
published material. Specifications and price change privileges reserved.
TEKTRONIX and TEK are registered trademarks of Tektronix, Inc.
Contacting Tektronix
Tektronix, Inc.
14200 SW Karl Braun Drive
P.O. Box 500
Beaverton, OR 97077
USA
For product information, sales, service, and technical support:
H In North America, call 1-800-833-9200.
H Worldwide, visit www.tektronix.com to find contacts in your area.
Warranty 15
Tektronix warrants that the product will be free from defects in materials and workmanship
for a period of one (1) year from the date of original purchase from an authorized
Tektronix distributor. If the product proves defective during this warranty period,
Tektronix, at its option, either will repair the defective product without charge for parts and
labor, or will provide a replacement in exchange for the defective product. Batteries are
excluded from this warranty. Parts, modules and replacement products used by Tektronix
for warranty work may be new or reconditioned to like new performance. All replaced
parts, modules and products become the property of Tektronix.
In order to obtain service under this warranty, Customer must notify Tektronix of the
defect before the expiration of the warranty period and make suitable arrangements for the
performance of service. Customer shall be responsible for packaging and shipping the
defective product to the service center designated by Tektronix, shipping charges prepaid,
and with a copy of customer proof of purchase. Tektronix shall pay for the return of the
product to Customer if the shipment is to a location within the country in which the
Tektronix service center is located. Customer shall be responsible for paying all shipping
charges, duties, taxes, and any other charges for products returned to any other locations.
This warranty shall not apply to any defect, failure or damage caused by improper use or
improper or inadequate maintenance and care. Tektronix shall not be obligated to furnish
service under this warranty a) to repair damage resulting from attempts by personnel other
than Tektronix representatives to install, repair or service the product; b) to repair damage
resulting from improper use or connection to incompatible equipment; c) to repair any
damage or malfunction caused by the use of non-Tektronix supplies; or d) to service a
product that has been modified or integrated with other products when the effect of such
modification or integration increases the time or difficulty of servicing the product.
THIS WARRANTY IS GIVEN BY TEKTRONIX WITH RESPECT TO THE
PRODUCT IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED.
TEKTRONIX AND ITS VENDORS DISCLAIM ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
TEKTRONIX’ RESPONSIBILITY TO REPAIR OR REPLACE DEFECTIVE
PRODUCTS IS THE SOLE AND EXCLUSIVE REMEDY PROVIDED TO THE
CUSTOMER FOR BREACH OF THIS WARRANTY. TEKTRONIX AND ITS
VENDORS WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES IRRESPECTIVE OF WHETHER TEKTRONIX
OR THE VENDOR HAS ADVANCE NOTICE OF THE POSSIBILITY OF SUCH
DAMAGES.
RM2000B Rackmount Kit
The RM2000B rackmount is designed for use with TDS1000B and
TDS2000B series oscilloscopes.
NOTE. This kit is suitable only for TDS1000B and TDS2000B
oscilloscopes. Do NOT use this kit for TDS1000 or TDS2000 models.
RMS2000B Replacement
1
3
2
Figure 1: RM2000B Rackmount Kit parts
Figure and index Part number Description
1-1 RM2000B RM2000B Rackmount Kit, includes a front and back
panel set, 2 handles, Instructions, bag of screws
1-2 071--1984--XX RM2000B Rackmount Kit -- Instructions
1-3 016--1978--XX Standard mounting hardware in plastic bag includes:
not saleable 4 ea (for handles) screws 8-32 x 1/2 phil pan
not saleable 4 ea (for handles) #8 med splt L/W
RM2000B Rackmount Instructions
1
RM2000B Rackmount Kit
Figure and index Part number Description
1-3 (cont.) not saleable 4 ea screws 10-32 x 3/4 poz
not saleable 4 ea screws 12-24 x 3/4 poz
not saleable 4 ea screws M 5 x 16 oval head phil
not saleable 4 ea screws M 6 x 16 oval head phil
not saleable 4 ea flat washers (M5 and #10 screws)
not saleable 4 ea flat washers (M6 and #12 screws)
not saleable 4 ea #10 finish washers
8/32 x 1/2 phil pan (4)
#8 med split L/W (4)
Step 1
Figure 2: RM2000B Rackmount assembly
Step 3
Rack
Step 2
Select the appropriate size screws and
washers for your rack: #10, #12, M5 or M6.
2
RM2000B Rackmount Instructions
482.6 mm
(19.000 in)
465.5 mm
(18.327 in)
37.3 mm
(1.469 in)
RM2000B Rackmount Kit
44.5 mm
(1.750 in)
112.0 mm
(4.409 in)*
101.6 mm
(4.000 in)
* With a TEK-USB-488 adapter connected, the dimension is 160.3 mm (6.311 in).
176.2 mm
(6.938 in)
Figure 3: Dimensions of the RM2000B Rackmount
RM2000B Rackmount Instructions
3
