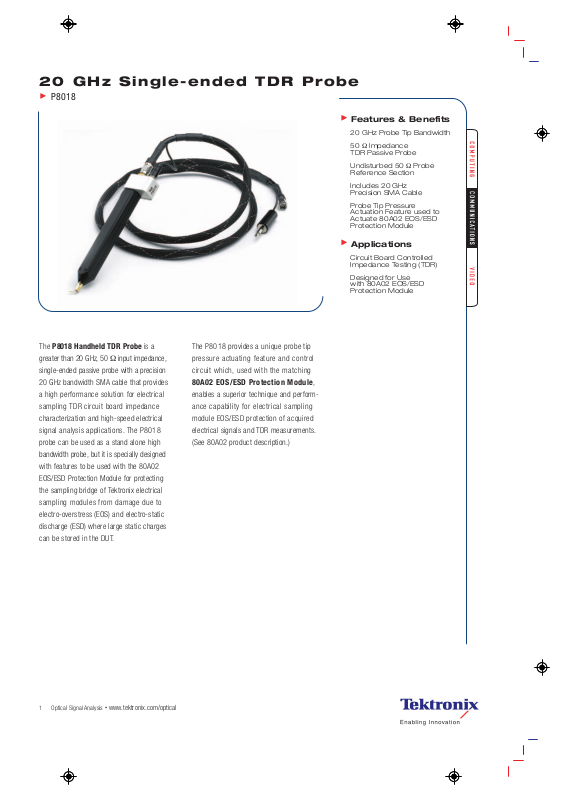

Tektronix P8018 DATASHEET
20 GHz Single-ended TDR Probe
P8018
Features & Benefits
20 GHz Probe Tip Bandwidth
50 Ω Impedance
TDR Passive Probe
Undisturbed 50 Ω Probe
Reference Section
Includes 20 GHz
Precision SMA Cable
Probe Tip Pressure
Actuation Feature used to
Actuate 80A02 EOS/ESD
Protection Module
Applications
Circuit Board Controlled
Impedance Testing (TDR)
Designed for Use
with 80A02 EOS/ESD
Protection Module
The P8018 Handheld TDR Probe is a
greater than 20 GHz, 50 Ω input impedance,
single-ended passive probe with a precision
20 GHz bandwidth SMA cable that provides
a high performance solution for electrical
sampling TDR circuit board impedance
characterization and high-speed electrical
signal analysis applications. The P8018
probe can be used as a stand alone high
bandwidth probe, but it is specially designed
with features to be used with the 80A02
EOS/ESD Protection Module for protecting
the sampling bridge of Tektronix electrical
sampling modules from damage due to
electro-overstress (EOS) and electro-static
discharge (ESD) where large static charges
can be stored in the DUT.
The P8018 provides a unique probe tip
pressure actuating feature and control
circuit which, used with the matching
80A02 EOS/ESD Protection Module,
enables a superior technique and performance capability for electrical sampling
module EOS/ESD protection of acquired
electrical signals and TDR measurements.
(See 80A02 product description.)
1
Optical Signal Analysis
•
www.tektronix.com/optical
20 GHz Single-ended TDR Probe
P8018
Characteristics
Nominal Length with Cable – 1 meter.
Attenuation – 1X.
Probe Only Bandwidth – >20 GHz.
Probe Pitch – 1.8 mm (signal to ground).
Cable Bandwidth – 20 GHz.
Connector Type – SMA.
Measured Reflected TDR Fall Time – <38 ps
spec (<28 ps typical measure with 80E04).
Loading Input – 50 Ω.
– 5.0 V.
Max V
in
Probe Only Propagation Delay – 1.0 ns.
TDR Control Activation Force –
200 to 260 grams.
(Note: numeric values shown are typical.)
Ordering Information
P8018
20 GHz Single-ended TDR Probe.
Includes: 20 GHz bandwidth 50 Ω input imped-
ance, single-ended passive handheld probe with
precision 20 GHz SMA cable, 20 each replaceable
ground clips.
Replaceable Items
016-1936-00 – 20 each Ground Clips.
174-4879-00 – 20 GHz SMA Cable with Parallel
Control Line (1 Meter Length).
