Preface
Preface
This manual describes the installation and operation of the P7504 & P7506 TriMode Probes. Basic probe operations and concepts
are presented in this manual. All documents listed below are located on the Documentation CD that came with your product. You
can also access the Tektronix Web site for these documents (www.tektronix.com/manuals).
Documentation
To read about Use these documents
Installation and Operation (overviews) Read the user m an ual for general information about how to use your probe.
In-Depth Operation Use the technical reference manual (located on your documentation
Specifications Use the technical reference manual.
Applications Read the Application Examples in the user manual.
Reordering accessories
CD-ROM) along with the user manual.
Use the Accessories and Options section or refer to the insert in your
accessory kit when reordering accessories.
vi P7504 & P7506 TriMode Probes Quick Sta rt User Manual
Key Features
These TriMode Probes allow you to take differential, single-ended, and common mode measurements with one probe connection.
Key features include:
Revolutionary TriMode operat ion
TekConnect Interface
Bandwidth (typical):
>4 GHz P7504
>6 GHz P7506
Rise time 10-90%:
<105 ps P7504
<75 ps P7506
100 kΩ differential input resistance,
50 kΩ per side
Key Features
P7504 & P75 06 TriMode Probes Quick Start User Manual 1
Operating Considerations
Operating Considerations
Table 1: P7504 & P7506 TriMode Probes
Characteristic Description Specification
Input Voltage Dynamic Range
Input Voltage Range
(DC + peak AC, both ranges; input referenced
to ground)
Temperature
Humidity
Pollution Degree 2, Indoor use only
CAUTION. To avoid ESD damage to the probe, always use an antistatic wrist strap (provided with your probe), and work at
a static-controlled workstation when you handle the probe.
Operating
Nonoperating
Operating
Nonoperating
±0.750 V (5X)
±1.75 V (12.5X)
+4.0Vto–2.0V
0to+40°C(+32°Fto+104°F)
–20 °C to +71 °C (–4 °F to +160 °F)
Up to +40 °C (+104 °F) 20%-80% RH
+30 °C to +46 °C (+86 °F to +115 °F) 0-90% RH
2 P7504 & P7506 TriMode Probes Quick Start User Manual
Installation
Connecting to the Host Instrument
NOTE. Your TekConnect instrument may
require a firmware upgrade to support full
functionality of these TriMode probes. Before
you connect the probe, check the version
requirements. (See page 53, Host Instrument
Firmware.)
1. Slide the prob e into the TekConnect
receptacle. The probe clicks into place
when fully engaged.
2. To disconnect, press the latch release
button and pull the probe away from the
instrument.
Installation
P7504 & P75 06 TriMode Probes Quick Start User Manual 3
Installation
Probe Power-On
When the prob e is powered on, all LEDs briefly
flash as the self-test routine runs, and then the
following LEDs remain lit:
5X Attenuation
A – B TriMode (Differential)
This indicates that the probe is in normal
operating mode.
NOTE. The host instrument sets all probe
settings to the last known state for the
probe/channel combination.
If none of the LEDs are lit, the instrument may
have detected an error condition. Disconnect
and reconnect the probe to clear the error.
(See page 54, Error Conditions.)
4 P7504 & P7506 TriMode Probes Quick Start User Manual
Connecting A ccessories to the Probe Body
CAUTION. The probe has replaceable contacts inside the probe body connector that may stick to the accessory connector when
it is disconnected. To prevent damage to the probe, before you connect accessories to the probe body, always check that the
contacts are located in the probe body only. For replacement procedures, see the P7504 & P7506 TriMode Probes Technical
Reference included on the documentation CD.
The probe body and tip cable ends are keyed
to ensure correct installation. Connect them
as follows:
1. Orient the probe body with the A and B
inputs on top, as shown.
2. Align the tip cable lead with the red band to
the A input.
Installation
P7504 & P75 06 TriMode Probes Quick Start User Manual 5
Installation
3. Grasp the cable connector by hand and
push the cable into the probe body until
youfeelaclick.Thecablehousingisfully
seated when it is flush with the edge of the
probe body.
4. To remove the tip, pull the cable s traight
out from the probe body.
6 P7504 & P7506 TriMode Probes Quick Start User Manual
Control Box Controls and Indicators
Atten. Button and LEDs
Press the Atten. button to to ggle the
attenuation setting betwe en 5X and 12.5X.
The corresponding LED lights to indicate the
selected attenuation.
The 5X attenuation setting provides the lowest
noise performance. Basic Operation includes
more information on selecting the Attenuation
and Input Mode. (See page 20, Attenuation
and Input Mode Settings.)
Installation
P7504 & P75 06 TriMode Probes Quick Start User Manual 7
Installation
Input Mode Button and LEDs
Press the Input Mode button to select one of
the four TriMode measurements. The modes
cycle in the following sequence:
A – B (for differential signal measurement)
A – GND (for A input single-ended
measurement)
B – GND (for B input single-ended
measurement)
(A+B)/2–GND(forcommonmode
measurement)
NOTE. Some oscilloscope models only allow
the A – B Input Mode to be selected, depending
on which input tip is selected in the oscilloscope
Probe Setup screen. (See page 56, Input Mode
Selection.)
The following pages discuss characteristics of
the TriMode measurements.
8 P7504 & P7506 TriMode Probes Quick Start User Manual
TriMode Probing
TheTriModefeatureallowsyoutoview
two single-ended signals and the resultant
differential waveform and common-mode
voltage without moving the probe connection.
Press the Input Mode button to cycle through
the waveform views.
This example shows a typical HDMI signal (one
half-lane) on the A and B inputs. The resultant
differential waveform and common-mode
voltage are shown.
Installation
P7504 & P75 06 TriMode Probes Quick Start User Manual 9
Functional Check and Calibration
Functional Check and Calibration
After you connect the probe to the oscilloscope, perform a functional check using the calibration board included with the probe.
CAUTION. To avoid ESD damage to the probe, always use an antistatic wrist strap (provided with your probe), and work at
a static-approved workstation when you handle the probe.
Functional Check
This procedure checks the four TriMode settings on the probe, using the PROBE COMPENSATION or FAST EDGE connection on
the front panel of the oscilloscope. The A-B (differential mode) is set up and verified first, and then the remaining input modes are
checked and compared to the differential mode measurement.
Table 2: Required Equipment
Item description Performance requirement Recommended example
Oscilloscope TekConnect Interface Tektronix DPO72004, TDS6154C
Test board
Socket cable
Coaxial cable SMA, 50Ω, male-to-male
Coaxial cable BNC, 50Ω, male-to-male
1
Nine-digit part numbers (xxx-xxxx-xx) are Tektronix part numbers
2
Standard accessory included with probe
TriMode DC Calibration board
TriMode 020-2954-XX
067-1967-XX
174-1120-XX
012-0208-XX
1
2
2
2
2
10 P7504 & P7506 TriMode Probes Quick Start User Manual
Test Setup
1. Connect the probe to any channel (1–4) of
the oscilloscope.
2. Set the oscilloscope to display the channel.
3. Connect an SMA cable from the Probe
Compensation or FAST EDGE output
connector on the oscilloscope to the SMA
connector on the TriMode DC Calibration
board.
4. Set the two output switches on the TriMode
DC Calibration board to the FAST RISE
position.
5. Connect the probe to the socket cable and
then to the TriMode DC Calibration board
(note correct connector polarity).
Functional Check and Calibration
P7504 & P75 06 TriMode Probes Quick Start User Manual 11
Functional Check and Calibration
Test Procedure
6. Set the probe attenuation to 12.5X and the
Input Mode to A – B.
7. Adjust the oscilloscope to display a stable
waveform (or press the Autoset button).
NOTE. Ifyoudonotseeawaveform,check
the connection at the probe body. (See page 5,
Connecting Accessories to the Probe Body.)
8. When you see a stable square wave,
check the amplitude. (Use the horizontal
cursors.) Signal output levels for some
oscilloscope models are listed below.
TDS6154C: 440 mV p-p
DPO72004: 440 mV p-p
12 P7504 & P7506 TriMode Probes Quick Start User Manual
9. Cycle the Input Mode button through the
remaining selections and compare the
displayed waveforms to t he waveform that
youmeasuredinstep8.
A – B ( the waveform from step 8)
A – GND (same amplitude and polarity
as measured in step 8)
B – GND (the B input is grounded; no
signal is measured)
(A+B)/2 – GND (half-amplitude, but the
same polarity as measured in step 8)
10. Set the probe attenuation to 5X a nd the
Input Mode to A – B.
11. Repeat steps 7 through 9 for the 5X
attenuation setting.
Functional Check and Calibration
P7504 & P75 06 TriMode Probes Quick Start User Manual 13
Functional Check and Calibration
TriMode Probe Calibration
After you perform a functional check of the probe, run a probe calibration routine. We recommend that you repeat the prob e
calibration for all four of the TriMode settings, and do this on each channel that you use.
The probe calibration operation minimizes measurement errors by optimizing the gain and offset of both probe attenuation settings
on each channel. Individual calibration constants are stored for each calibrated TriMode setting, on e ach probe, on each channel.
CAUTION. To avoid ESD damage to the probe, always use an antistatic wrist strap (provided with your probe), and work at
a static-controlled workstation when you handle the probe.
You can use the equipment s hown in the Functional Check to perform the probe calibration. (See Table 2 on page 10.)
14 P7504 & P7506 TriMode Probes Quick Start User Manual
Check the Instrumen t Calibration
Status
The Calibration Status of the instrument Signal
Path Compensation test must be Pass for the
probe calibration routine to run.
1. From the Utilities menu, select Instrument
Calibration.
2. In the Calibration box, check that the
Status field is Pass.
3. If the status is not pass, disconnect
all probes and signal sources from the
oscilloscope, and run the Signal Path
Compensation routine.
When the Signal Path compensation test status
is Pass, calibrate the probe. (See page 16,
Calibrate the Probe.)
Functional Check and Calibration
P7504 & P75 06 TriMode Probes Quick Start User Manual 15
Functional Check and Calibration
Calibrate the Probe
1. Connect the probe to any channel (1–4) of
the oscilloscope. Allow the probe to warm
up for 20 minutes.
2. Set the oscilloscope to display the channel.
3. Connect a BNC cable from the Probe
Calibration outp ut connector on the
oscilloscope to the BNC connector on the
TriMode DC C alibration board.
NOTE. YoumaybeabletousethePROBE
COMPENSATION output c onne ctor. Check
your oscilloscope manual or online Help for
more information.
4. Connect the probe to the socket cable and
then to the TriMode DC Calibration board.
5. Set the Input Mode to A – B on the probe.
16 P7504 & P7506 TriMode Probes Quick Start User Manual
6. Set the switches on the TriMode DC
Calibration board to the positions shown
for the selected input mode. (See Table 3.)
Table 3: TriMode DC Calibration board switch settings
Probe input mode Fast rise/probe cal Gnd/Sig
A–B
A
B
(A+B)/2 Probe Cal Sig
Probe Cal Gnd
Probe Cal Sig
Probe Cal Sig
Functional Check and Calibration
P7504 & P75 06 TriMode Probes Quick Start User Manual 17
Functional Check and Calibration
7. In the menu bar, select Vertical and then
select Probe Cal.
The Probe Setup dialog box appears. (Some
oscilloscopes support an automated TriMode
calibration routine and switch automatically
between input modes as shown below.)
8. Select Clear ProbeCal, and then select
Calibrate Probe.
The probe calibration routine runs, optimizing
the probe to the o scilloscope for both probe
attenuation settings. The displayed results
differ be tween oscilloscope models:
9. Oscilloscopes that do not support the
automated TriMode calibration routine
display Pass in the Probe Status box.
Repeat steps 5 through 8 for the remaining
input mode settings.
NOTE. If the Probe Cal routine fails, check the
connection at the probe body. (See page 5,
Connecting Accessories to the Probe Body.)
18 P7504 & P7506 TriMode Probes Quick Start User Manual
10. Oscilloscopes that support the automated
TriMode calibration routine will display an
on-screen prompt to toggle the Calibration
Fixture SIG/GND switch. Follow the
instructions to complete the calibration for
the remaining input modes.
After a successful Probe Cal, Pass
appears in the Probe Status box.
NOTE. If the Probe Cal routine fails, check the
connection at the probe body. (See page 5,
Connecting Accessories to the Probe Body.)
Functional Check and Calibration
P7504 & P75 06 TriMode Probes Quick Start User Manual 19
Basic Operation
Basic Operation
This section includes more information about using t he probe controls on the control box and procedures for connecting the
probe to your circuit.
Attenuation and Input Mode Settings
Atten Selection
The ATTEN button toggles the probe between the two nominal attenuation settings of 5X and 12.5X. The choice of attenuation
setting is a tradeoff between probe dynamic range and noise. The probe dynamic range represents th e operating range over which
the probe is linear to within some specified percentage, such as ±1%. The probe noise is usually specified as a noise spectral
density and is significant because of the wide probe bandwidth. The 5X attenuation setting provides the lowest noise performance.
The 12.5X attenuation setting provides the largest dynamic range. The actual probe attenuation factor is automatically accounted
for by the attached oscilloscope using the intelligent TekConnect probe interface. The attached oscilloscope also indicates
the probe dynamic range with momentarily-displayed arrows when the vertical channel controls a re changed at larger vertical
scale factor settings.
The usual choice for attenuation setting should be 5X, if the measured signal fits within the specified dynamic range, since that
provides the best noise performance. The probe Offset control can also be used with some signals to compensate for a DC bias
and bring the displayed signal within the specified dynamic range. Although it is possible to measure signals that e xceed the
dynamic range of the probe, the measured signal performance becomes increasingly non-linear and eventually reaches a limiting
level. Although probe signal limiting does not damage the prob e (as long as the maximum input voltage is not exceeded), the
measured response no longer accurately represents the input signal.
20 P7504 & P7506 TriMode Probes Quick Start User Manual
Basic Operation
Input Mode Selection
The Input Mode button toggles the internal probe input selector switches between the four input mode selections. This TriMode
feature allows full characterization of a differential signal from a single soldered connection.
A-B Mode. The A-B Mode is used for making differential signal measurements and represents the traditional differential probe
functionality. Since the A-B Mode measures the difference between the A and B input signals, it eliminates any common mode
voltage, such as a DC bias common to both inputs, within the CMRR performance capability of the probe. For P7500 probe tips that
do not provide a TriMode ground reference, such as the P75PDPM handheld probing module, the A-B Mode is the only useful
mode for making low noise measurements. In fact, some oscilloscope models only allow the A-B Mode to be selected when the
connected tip does not include a ground reference. The A-B Mode can also be used for making single-ended measurements with
the P75PDPM probe tip by connecting the B input to the local circuit ground.
A-GND Mode. The A-GND mode is used for making probe A input single-ended measurements with TriMode probe tips such
as the Micro-Coax solder tip. The Micro-Coax solder tip includes a solder connection for the local circuit ground. In the A-GND
Mode the P7500 probe input switch is configured to measure the A input relative to this local circuit ground reference. The A input
signal measurement in A-GND Mode is designed for minimal coupling from any signal present on the B input within the A input
isolation performance of the probe.
The A-GND Mode is not recommended for measurement use with the P75PDPM probe tip because of the lack of a local circuit
ground connection (and some oscilloscope models do not allow the A-GND Mode to be selected with the P75PDPM).
P7504 & P75 06 TriMode Probes Quick Start User Manual 21
Basic Operation
B-GND Mode. The B-GND mode is used for making probe B input single-ended measurements with TriMode probe tips su ch
as the Micro-Coax solder tip. The Micro-Coax solder tip includes a solder connection for the local circuit ground. In the B-GND
Mode the P 7500 probe input switch is configured to measure the B input relative to this local circuit ground reference. The B input
signal measurement in B-GND Mode is designed for minimal coupling from any signal present on the A input within the B input
isolation performance of the probe.
Like the A-GND Mode, the B-GND Mode is also not recommended for measurement use with the P75PDPM probe tip because
of the lack of a local circuit ground connection.
(A+B)/2 Mode. The (A+B)/2 Mode is used fo r making common mo de mea surements on a differential signal and represents a
new probe feature th at previously could only be made using oscilloscope math on multiple channels. For a differential signal, the
common mode measurement indicates the DC bias level and also shows the degree of asymmetry between the A and B inputs.
Since the (A+B)/2 Mode measures the average between the A and B input signals, it eliminates any complementary differential
signal voltage, within the DMRR performance capability of the probe.
22 P7504 & P7506 TriMode Probes Quick Start User Manual
ConnectingtoaCircuitBoard
The P7504 and P7506 TriMode probes use a two-part interconnect system to make connections to your circuit. The Socket Cable
connects the probe to the TriMode solder tips included with your probe. Two different tips are shipped with the probe and are
described below. Other TriMode solder tips are available as optional accessories, as well as an extended-length socket cable and a
handheld probing module. (See page 43, Optional Accessories.)
Socket Cable
Connect the Socket Cable to the probe and
then to one of the TriMode solder tips.
NOTE. The connectors on the Socket Cable
are not keyed. Always check that the red band
connects to the A input on the probe and t o the
positive signal on your circuit.
The Socket C able can be easily connected and
disconnected from TriMode solder tips that you
have soldered on your circuit.
One Socket Cable is included with the probe.
Basic Operation
P7504 & P75 06 TriMode Probes Quick Start User Manual 23
Basic Operation
TriMode High Temp Solder Tip
The High Temp Solder tip is designed for
use with the optional Socket Cable XL, but is
usable with the standard Socket Cable. This
tip enables you to take measurements on your
circuit over a wide tem perature range: –55 °C
to +150 °C (-67 °F to 302 °F).
The resistor leads on the tip pass the two
complementary signals from your circuit,
through the Socket Cable, to the TriMode
probe. The tip resistors can tolerate several
solder cycles and can be replaced when
necessary.
NOTE. For best signal fidelity, you must trim
the resistor leads to the shortest length possible
to reach your test points. Long leads degrade
the quality of the measured signal.
This tip provides full TriMode capabilities when
you u se the soldered-ground connection on the
tip board.
Two High Temp Solder tips are included with
the probe.
24 P7504 & P7506 TriMode Probes Quick Start User Manual
TriMode Micro-Coax Solder Tip
The Micro-Coax tip provides resistor leads
for the A and B probe input signals and a
solder-through hole for an optional ground
connection. The tip resistors can tolerate
several solder cycles and can be replaced
when necessary.
This tip provides full TriMode capabilities when
you use ground connection.
NOTE. For best signal fidelity, you must trim
the resistor leads to the shortest length possible
to reach your test points. Long leads degrade
thequalityofthemeasuredsignal.
Four Micro-Coax tips are included with the
probe.
CAUTION. The TriMode solder tips are very
small and must be handled carefully to avoid
damaging them. The following pages describe
the proper techniques for using the tips.
Basic Operation
P7504 & P75 06 TriMode Probes Quick Start User Manual 25
Basic Operation
The dimensions of the solder tip connections
are provided here for reference. You can also
design the tip footprint into your circuit board
layout for easier test connections.
To connect the probe tip ground to your circuit,
use the wire and solder that are provided in the
wire replacement kit. The kit includes:
NOTE. For best signal fidelity, you must trim
the resistor leads to the shortest length possible
to reach your test points. Long leads degrade
the quality of the measured signal.
You will also need tweezers, a low-wattage
soldering iron, and a pair of sharp wire cutters.
0.004 in (0.10 mm) wire
0.008 in (0.20 mm) wire
SAC305 solder (RoHS compliant)
26 P7504 & P7506 TriMode Probes Quick Start User Manual
Connect the TriMode Solder Tips
Use this procedure to connect the TriMode
solder tips to your circuit.
1. Choose a location where th e solder tip
resistor leads can reach your test points.
If you are using a ground connection,
minimize the distance between the solder
tip ground and your circuit ground.
2. Apply solder to the test points on your
circuit.
3. If you are not using the ground, solder the
resistor leads to your circuit, clip off any
excess, and go to step 11.
4. If you are using a ground wire, apply solder
to the solder tip ground.
5. Position a length of wire about 1-inch long
under the solder tip via.
Basic Operation
P7504 & P75 06 TriMode Probes Quick Start User Manual 27
Basic Operation
6. Heat the solder tip via and insert the wire.
7. Cut the excess wire on the other side of
8. Cut the ground wire to the length required
9. Solder the ground wire to the circuit and
10. Solder the resistor leads to the test points
the solder tip, flush with the board.
to reach your circuit ground. Keep the
ground wire as sho rt as possible to ensure
good performance.
clip off any excess wire.
on your circuit and clip off any excess
leads.
28 P7504 & P7506 TriMode Probes Quick Start User Manual
Secure the Tip
11. Push the ends of the socket cable into the
solder tip and then into the probe head.
12. For a secure mechanical connection, use
tape or hot glue to secure the tip to your
circuit.
Basic Operation
P7504 & P75 06 TriMode Probes Quick Start User Manual 29
Basic Operation
Notes on Using the Tips.
Use the following precautions when you solder the tips:
CAUTION. To prevent damage to the circuit board or circuit board connections due to accidental movement of the probe and
soldered leads, we recommend that you secure the tip to the circuit board using the adhesive tip tape provided in your accessory
kit. You can also use other materials such as Kapton tape or hot glue.
To avoid damage to the tip or the circuit under test, avoid applying excessive heat from the soldering iron. Use a low-wattage,
temperature-controlled soldering iron and appropriately sized soldering iron tip.
Use a low-wattage, temperature-controlled soldering iron and a small mass soldering iron tip. The soldering iron temperature
should be set as low as possible, while still providing a reliable s older joint.
Use SAC305 solder (included with th e wire replacement kit) to attach the tip wires to the circuit under test.
The attachment wires should be bent symmetrically to vary the interconnect spacing. Use care when you solder a tip to a circuit
under test to avoid inadvertently desoldering either the attachment wires or the damping resistor.
For optimum performance and signal integrity, keep the lead length between the DUT (Device Under Test) and the tip as
short as possible, and the lead lengths the same length.
30 P7504 & P7506 TriMode Probes Quick Start User Manual
P75PDPM Precision Differential Probing Module (Handheld)
This is an optional accessory. (See page 43,
Optional Accessories.)
Assemble the Module
1. Position the module housing as shown.
2. Slide the probing modu le handle adapter
into the module housing.
3. Secure the handle ad apter with the
thumbscrew.
Basic Operation
P7504 & P75 06 TriMode Probes Quick Start User Manual 31
Basic Operation
4. Insert the probe in the handle adapter.
5. Attach the cable to the probe body. Match
6. You can dress the cable in the ch annels as
the red band to the A input.
shown. The front channels are captive and
the rear channels are guides.
32 P7504 & P7506 TriMode Probes Quick Start User Manual
Adjustments

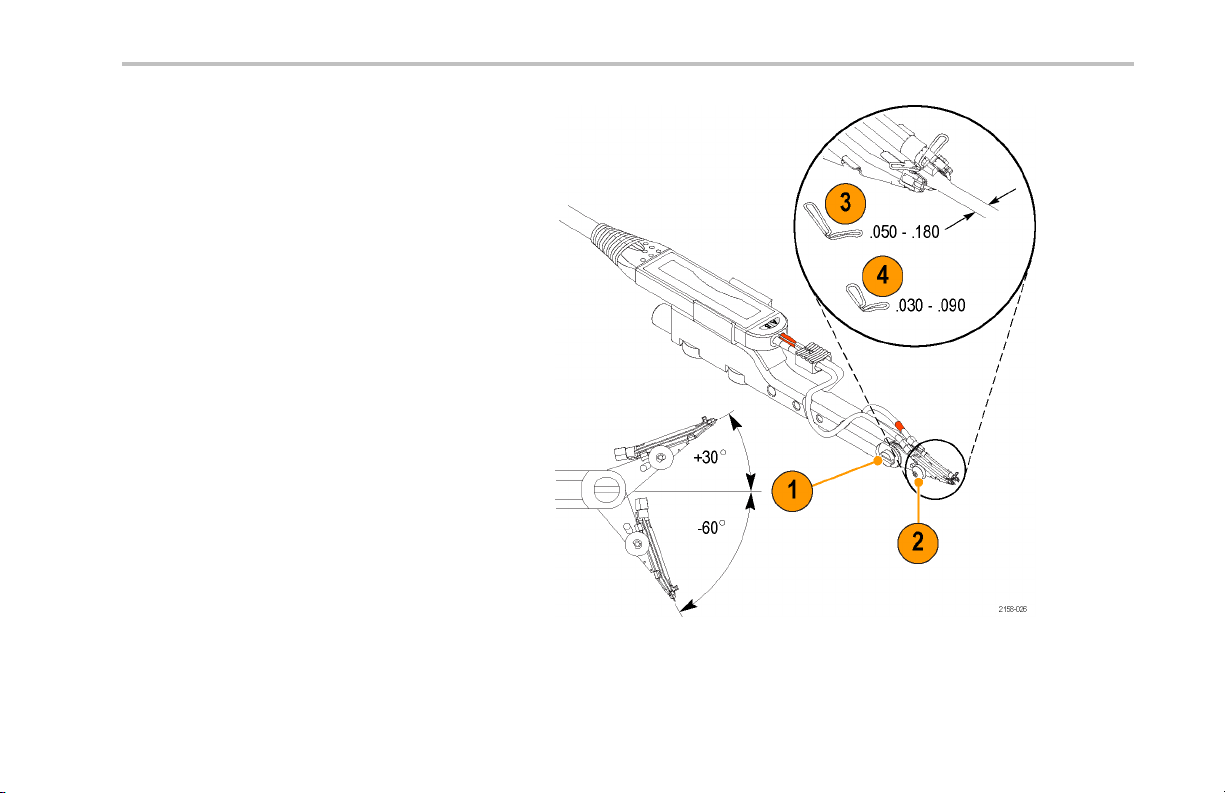

1. Adjust the tip angle by loosening the
setscrew and pivoting the tip. Tighten the
setscrew to secure the tip.
2. Adjust the tip spacing by turning the
adjustment wheel.
The probing module is shipped with a
ground spring installed between the tips.
The spring is necessary to pass the
highest-fidelity signal to your instrument.
The two available spring sizes are shown
in steps 3 and 4.
3. The large spring is pre-installed on the
probe and allows a tip-to-tip span from
0.050 to 0.180 inches (1.27 to 4.57 mm).
4. The small spring allows a tip-to-tip span
from 0.030 to 0.090 inches (0.76 to 2.28
mm).
Basic Operation
P7504 & P75 06 TriMode Probes Quick Start User Manual 33
Basic Operation
NOTE. Spring replacement requires a special
tool. See the technical reference manual for
spring replacement procedures.

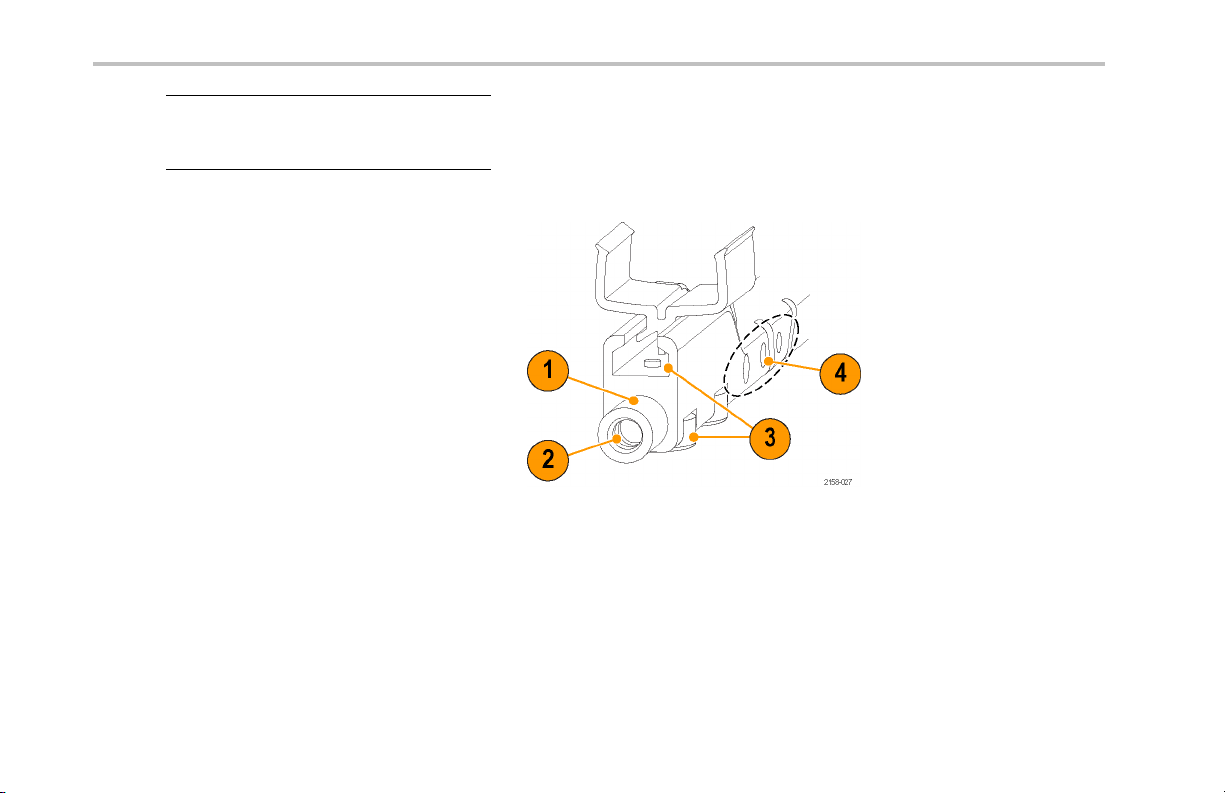

Mounting Features
You can mount the probing module to a variety
of fixtures and cu stom probing arms, using the
features described below:
1. The barrel at the rear of the P75PDPM fits
2. The threads inside the barrel are metric
3. The slot below the barrel slides onto the tab
4. Use these threaded holes (6 x 32,
into the end of the PPM203B probe holder.
(M6 x 1), and attach to the EZ-Probe
Positioner from Cascade MicroTech.
of the PPM100 Probe Positioner. Secure
the module to the tab with the thumbscrew.
8 x 32, and 10 x 32) for cust om-mount
applications.
34 P7504 & P7506 TriMode Probes Quick Start User Manual
Connecting the Probe to Instruments without a TekConnect Interface
The 80A03 TekConnect Probe Interface adapts
any TekConnect probe to the TDS8X00,
CSA8X00, and DSA8200 Series oscilloscopes.
The RTPA2A TekConnect Probe Interface
adapts any TekConnect probe to Tektronix
Real-Time S pectru m Analyzers.
NOTE. The 80A03 and RTPA2A interfaces are
limited to a pass-through bandwidth of 18 GHz.
For proper probe operation, the Probe Interface
firmware must be compatible with the probe.
(See page 5 3, Host Instrument Firmware.) The
firmware version label is on the rear panel of
the 80A03 instrument.
The host instrument may also require a
firmware and/or operating system upgrade.
See your instrument manual for more
information.
Basic Operation
P7504 & P75 06 TriMode Probes Quick Start User Manual 35
Probe Applications
Probe Applications
The following applications show how the P7500 Series probe characteristics e nable measurements with good signal fidelity.
Measuring a PCI Express Signal
with a P7500 Series Probe and
RT-Eye Application Software
When the P7500 Series probe is used with a
TDS6000 or TDS70000 real-time oscilloscope
configured with RT-Eye application software,
physical layer testing on PCI Express signals is
performed with greater ease and accuracy.
The RT-Eye software separates the acquired
transition and nontransition bits. The software
also provides an extensive collection of
measurements and statistics on the analyzed
waveform record.
36 P7504 & P7506 TriMode Probes Quick Start User Manual
Accessories and Options
You can reorder the following replacement parts and accessories. Note that in some cases, the reorder quantities may differ
from those that ship with the probe.
Standard Accessories
The following accessories are shipped with the P7504 & P7506 probes. If no quantity is listed, only one of that item is shipped.
Accessories and Options
Reorder part number
Accessory
P7504 & P75 06 TriMode Probes Quick Start User Manual 37
and quantity
016-1997-XX Pouch, nylon carrying case with inserts. This carrying case
---
1
Description
has several com partments to hold the probe and accessories.
Calibration Certificate. Acertificate of traceable calibration
is provided with every probe.
Accessories and Options
Accessory
Reorder part number
and quantity
1
---
020-2977-XX
(English)
020-2978-XX
(Japanese)
020-2979-XX
(Simplified Chinese)
067-1967-XX
Description
Data Calibration Report. The Data Calibration Report lists
the manufacturing test results of your probe at t he time of
shipment and is included with every probe.
Quick Start User Manual and CD-ROM. The user manual
provides instructions for operating the P7504 and P7506
TriMode probes. The documentation CD-ROM contains PDFs
of primers, basic probe and measurement literature, and
the probe manuals (the user manual and a probe-specific
technical reference).
TriMode DC Calibration Fixture. Use this fixture to perform a
functional check and a DC calibration with the host instrument.
38 P7504 & P7506 TriMode Probes Quick Start User Manual
Accessories and Options
Accessory
Reorder part number
and quantity
1
174-1120-XX
012-0208-XX
Description
50 Ω SMA-M to SMA-M cable assembly, 8.5 in.
To perform a functional check, use this cable to connect the
DC Calibration fixture to the Fast Rise Time output connector
on the host instrument.
50 Ω BNC-M to BNC-M cable assem bly, 10 in.
To perform a probe calibration, use this cable to connect the
DC Calibration fixture to the DC Probe Cal output connector
on the host instrument.
P7504 & P75 06 TriMode Probes Quick Start User Manual 39
Accessories and Options
Accessory
Reorder part number
and quantity
1
020-2976-XX
020-2954-XX
Description
Accessory Kit. The kit includes an assortment o f accessories
that are described below.
Socket Cable.
The Socket Cable connects the probe to the TriMode solder
tips that you have soldered on your circuit.
40 P7504 & P7506 TriMode Probes Quick Start User Manual
Accessories and Options
Accessory
Reorder part number
and quantity
1
020-2958-XX
(Package of 10)
020-2955-XX
(Package of 10)
006-8237-XX
(Strip of 10)
Description
TriMode High Temp Solder Tip.
This tip provides a soldered, multi-point connection that
supports full TriMode measurement capabilities at full probe
bandwidth. The temperature ran ge is –55 °C to +150 °C
(-67 °F to 302 °F).
Two tips are included with th e probe.
TriMode Micro-Coax Solder Tip.
This tip provides a soldered, multi-point connection that
supports full TriMode measurement capabilities at full probe
bandwidth.
Four tips are included with the probe.
Adhesive Tip Tape. Use the double-sided adhesive tip tape
to secure the solder tip assembly to your circuit board.
P7504 & P75 06 TriMode Probes Quick Start User Manual 41
Accessories and Options
Reorder part number
Accessory
and quantity
1
016-0633-XX
(Package of five colored
pairs)
020-2754-XX
(Package of 3 bobbins)
1
Quantities in the reorder kits may differ from quantities that ship with the probe.
Description
Color Band Kit. This kit includes two sets of five colored
pairs. When you are using more than one probe, the bands
enable you to visually match the probes to the channels that
they are connected to.
To use the marker bands, attach one band to the indent on
the molded strain relief on the probe cable. Use the matching
color band on the other end of the probe, at the control box.
Wire Replacement Kit. This kit includes three bobbins:
SAC305 lead-free solder (RoHS compliant), 4 mil wire, and
8 mil wire. Use this kit to add wire leads on the solder tips.
42 P7504 & P7506 TriMode Probes Quick Start User Manual
Optional Accessories
Optional accessory Part number Description
020-2960-XX
(Includes cable and
filter files CD)
020-2959-XX
(Package of 25)
Accessories and Options
Socket Cable XL Kit.
The Socket Cable XL is 5 feet long and is intended for use
only with the TriMode High Temp Solder Tip. Due to the length
of the Socket Cable XL, the input signa l to the oscilloscope
requires DSP filtering.
You must load filter files onto your oscilloscope from the CD
that is included in the Socket Cable XL kit. Always use the filter
files when you use the Socket Cable XL.
Damped Wire Pair.
The Damped Wire Pair are intended for differential (A - B
mode) measurements only, up to 8 G Hz. Typical differential
10–90% rise time is 50 ps.
P7504 & P75 06 TriMode Probes Quick Start User Manual 43
Accessories and Options
Optional accessory Part number Description
P75TLRST P7500 TriMode Long Reach Solder Tip.
This tip provides a soldered, multi-point connection that
supports full TriMode measurement capabilities at full probe
bandwidth.
020-2936-XX
TriMode Resistor Solder Tip.
This tip provides solder connection points at 100 Ω resistors
that extend about 0.2 in (5 mm) from the solder tip board. The
resistors can withstand more solder cycles than the standard
P75TLRST solder tip, and can be replaced if they break.
This tip can measure rise times d own to <29 ps.
A kit of replacement resistors is available; see below.
44 P7504 & P7506 TriMode Probes Quick Start User Manual
Optional accessory Part number Description
020-2944-XX
TriMode Extended Resistor Solder Tip.
This tip provides solder connection points at 100 Ω resistors
that extend about 0.6 in (15 mm) from the solder t ip board. The
resistors can withstand more solder cycles than the standard
P75TLRST solder tip, and can be replaced if they break.
This tip can measure rise times down to <32 ps.
A kit of replacement resistors is available; see below.
Accessories and Options
020-2937-XX
Replacement Resistor Kit for TriMode Solder Tips.
This kit includes:
100 Ω leaded resistors, quantity 50
75 Ω surface-mount, 0402 resistors, quantity 50
Nonconductive tube, quantity 50
P7504 & P75 06 TriMode Probes Quick Start User Manual 45
Accessories and Options
Optional accessory Part number Description

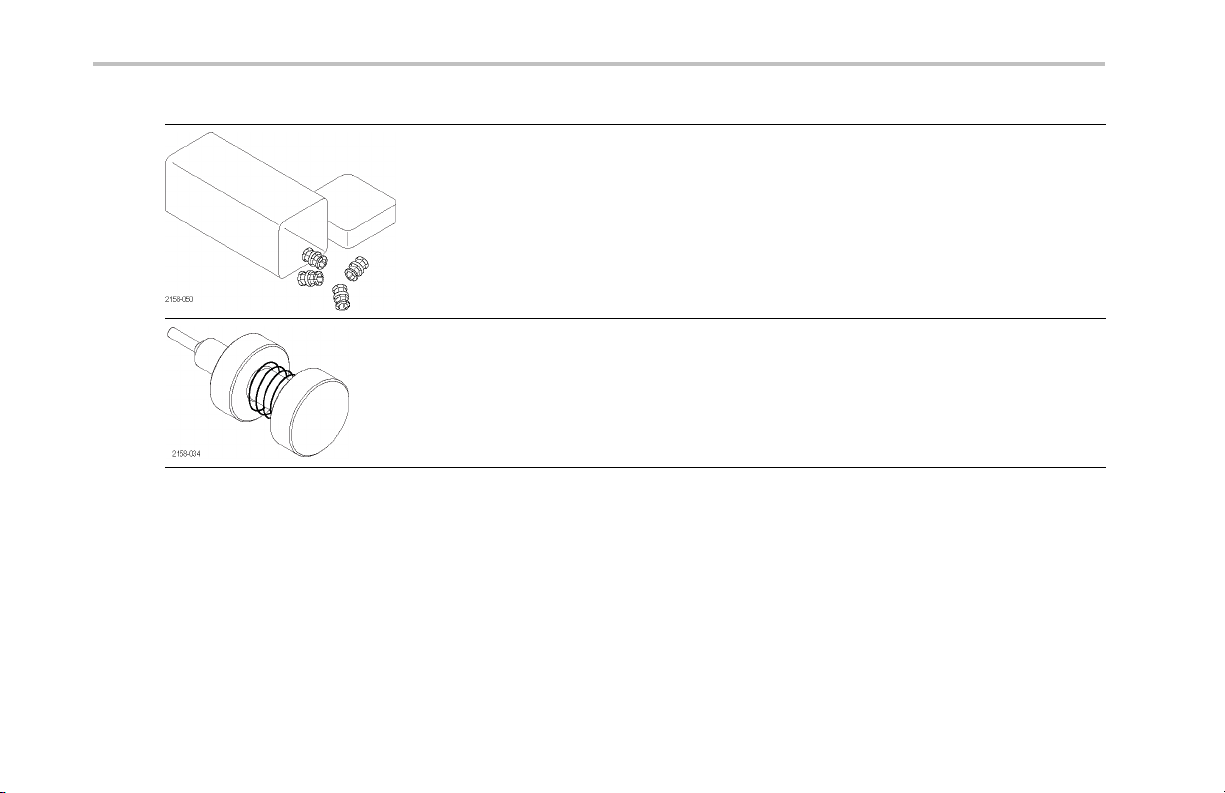

013-0359-XX
(Package of 4)
Replacement Bullet Contacts. To maintain the best signal
integrity, replace the bullets in the probe body after 200
insertion cycles.
For replacement procedures, see the P7504 & P7506 TriMode
Probes Technical Reference included on the documentation
CD.
003-1896-XX
Bullet Removal Tool. This tool allows you to safely remove
and install the bullet contacts. For replacement procedures,
see the P7504 & P7506 TriMode Probes Technical Reference
included on the documentation CD.
46 P7504 & P7506 TriMode Probes Quick Start User Manual
Optional accessory Part number Description
P75PDPM Probing Module Kit.
This kit allows you to browse multiple test points in y our circuit
without using a soldered connection.
The kit includ es a cable to connect the module to the TriMode
probe head.
Accessories and Options
P7504 & P75 06 TriMode Probes Quick Start User Manual 47
Accessories and Options
Optional accessory Part number Description

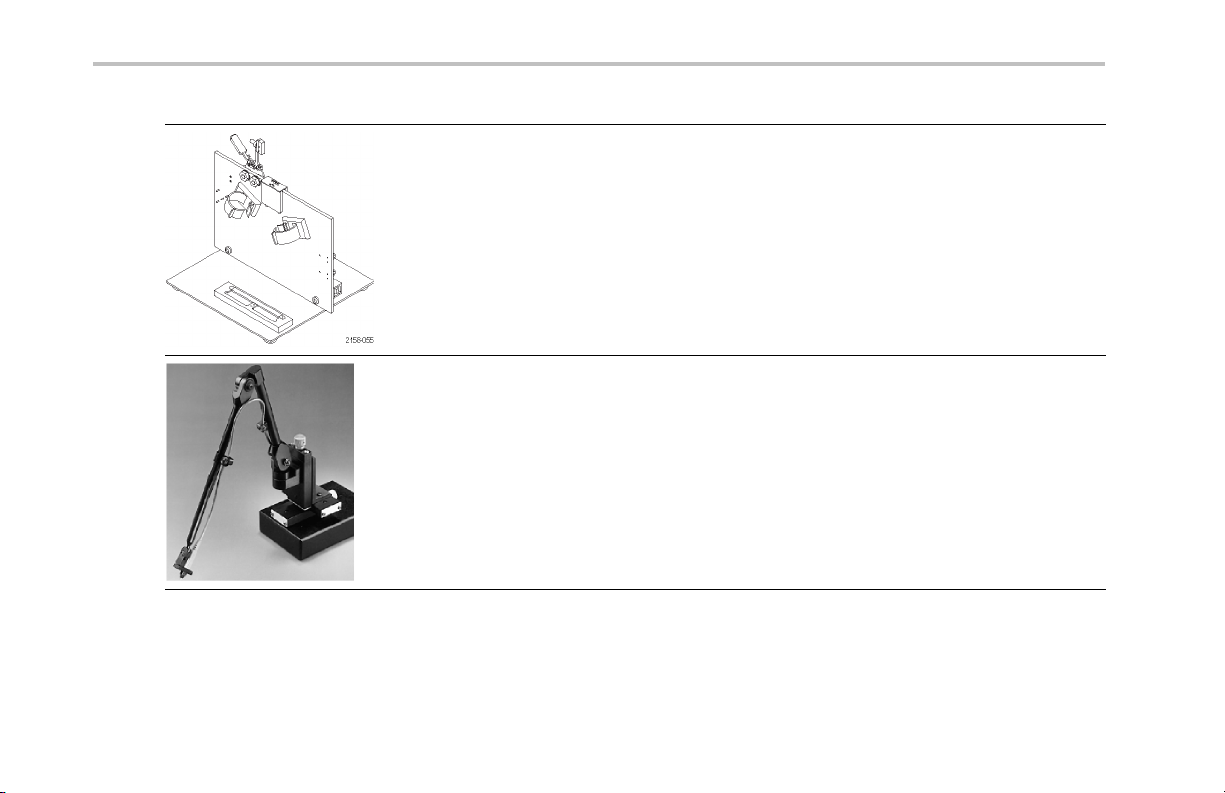

067-1586-XX
Deskew Fixture. Use this fixture to time-align the probe to
other probes connected to your measurement system.
PPM203B PPM203B Articulating Arm. This high-precision articulating
arm has fine adjustment controls for all thre e axes. It is
designed for probing circuit boards, hybrids, and multi-chip
modules (MCMs), that employ fine -pitch devices and
interconnects. Use the Articulating Arm to provide stability
and support for the probes when taking measurements. Use
the Probe Arm Adapter to attach a probe to th e PPM203B
Articulating Arm.
48 P7504 & P7506 TriMode Probes Quick Start User Manual
Optional accessory Part number Description
PPM100 PPM100 Probe Positioner. This general-purpose benchtop
probe holder with flexible arm is designed for hands-free
probing that requires adjustable fine positioning. The heavy
duty base can be replaced with the clamp for securing the
probe arm in a variety of situations.
Accessories and Options
80A03
80A03 TekConnect Probe Interface Module. Use this m odule
with 80E0X Sampling Modules to adapt TekConnect probes to
CSA8200 and TDS8200 Series Sampling Oscilloscopes.
NOTE. The 80A03 interface is limited to 18 GHz pass-through
bandwidth.
The interface is composed of an enclosure that houses a
compartment for one 80E0X Electrical Sampling Module and
two TekConnect probe inputs. The interface routes the probe
signal outputs through SMA connectors on the front panel.
Semi-rigid SMA cables link the probe outputs to the 80E0X
module inputs.
NOTE. The 80A03 adapter firmware must b e version 2.3 or
above to ensure full functionality with P7500 Series Probes.
P7504 & P75 06 TriMode Probes Quick Start User Manual 49
Accessories and Options
Optional accessory Part number Description
RTPA2A
RTPA2A TekConnect Probe Adapter. This adapter allows
you to connect a TekConnect probe to a Real-Time Spectrum
Analyzer.
NOTE. The RTPA2A int erface is limited to 18 GHz
pass-through bandwidth.
The RTPA2A adapter firmware must be ve rsion 2.3 or above to
ensure full functionality with P7500 Series Probes.
50 P7504 & P7506 TriMode Probes Quick Start User Manual
Options
Option CA1. A single calibration event, or coverage for the designated calibration interval, whichever comes first
Option C3. Calibration Service 3 years
Option C5. Calibration Service 5 years
Option D1. Calibration Data Report-ships standard with probe
Option D3. Calibration Data Report, 3 years (with Option C3)
Option D5. Calibration Data Report, 5 years (with Option C5)
Option R3. Repair Service 3 years
Option R5. Repair Service 5 years
Option L0. English User Manual
Option L5. Japanese User Manual
Option L7. Simplified Chinese User Manual
-R1PW. Repair service coverage: 1 year post warranty
-R2PW. Repair service coverage: 2 year post warranty
-R3PW. Repair service coverage: 3 years (includes product warranty period), 3 year period starts at time of purchase.
Accessories and Options
-R5PW. Repair service coverage: 5 years (includes product warranty period), 5 year period starts at time of purchase.
P7504 & P75 06 TriMode Probes Quick Start User Manual 51
Accessories and Options
52 P7504 & P7506 TriMode Probes Quick Start User Manual
Maintenance
This section contains maintenance and support inform ation for your probe.
Host Instrument Firmware
Some instruments may require a firmware upgrade to support full functionality of the P7504 and P7506 TriMode probes.
Instruments with lower versions of firmware may not display all probe controls and indicators on screen, and in some cases may
require you to power-cycle the instrument to restore normal instrument operation.
The following table lists the required versions of instrument firmware for some of the instruments that currently support the P7504
and P7506 TriMode probes. For the latest information, go to www.tektronix.com/probe-support.
Instrument Firmware Version
TDS6000B series oscilloscopes
TDS6000C series oscilloscopes
TDS7000B series oscilloscopes
DPO/DSA70000 series oscilloscopes
80A03 TekConnect Probe Adapter
RTPA2A TekConnect Probe Adapter
1
P7500 Series probes are functional on the TDS7000B Series oscilloscopes, but probe calibration is not supported.
To check the firmware version on Windows-ba sed instruments, from the menu bar, click Help/About TekScope. On
Linux-based instruments, press the Utilities button on the front panel. If you need to upgrade your instrument firmware, go to
www.tektronix.com/probe-support to download the latest firmware.
Maintenance
V 5.1.3 or higher
V 5.1.7 or higher
1
V 5.1.3 or higher
V 3.0 or higher
V 2.3 or higher
V 2.3 or higher
P7504 & P75 06 TriMode Probes Quick Start User Manual 53
Maintenance
Error Conditions
LEDs Do Not Remain Lit
If none of th e Range or TriMode LEDs remain lit after you connect the prob e, a probe/oscilloscope interface fault exists. Perform
the following steps until you clear the fault or isolate the problem:
Disconnect and reconnect the probe to restart the power-on diagnostic sequence.
Connect the probe to a different channel on the oscilloscope.
Disconnect the probe from the oscilloscope, power-cycle the oscilloscope, and then reconnect the probe.
Connect the probe to a different oscilloscope.
If the sympto m s remain (they follow the probe), then the probe is defective and must be returned to Tektronix for repair.
LEDs Flash On and Off
If all of the Range or TriMode LEDs flash on and off repeatedly after you connect the probe, an internal prob e diagnostic fault
exists. Disconnect and reconnect the probe to restart the power-on diagnostic sequence. If the symptoms continue, the probe is
defective, and must be returned to Tektronix for repair.
I
f the LEDs repeatedly flash on and off for a selected mode or range setting, an internal probe diagnostic fault exists. Disconnect
and
reconnect the probe to restart the power-on diagnostic sequence. If the symptoms continue, the indicated setting is de fective
and the p
pass the pr
robe should be returned to Tektronix for repair. Although the probe can be used under these conditions, it may not
obe calibration procedure.
54 P7504 & P7506 TriMode Probes Quick Start User Manual
Signal Display
If the probe is conne cted to an active signal source and you do not see the signal displayed on the oscilloscope:
Check the probe tip connection on your circuit. (See page 23, Connecting to a Circuit Board.)
Check the probe tip conne ction at the probe body. (See page 5, Connecting Accessories to the Probe Body.)
Perform a functional check using the TriMode ca libration board included with the probe. (See page 10, Functional Check.)
Maintenance
P7504 & P75 06 TriMode Probes Quick Start User Manual 55
Maintenance
Input Mode Selection
If you cannot select an Input Mode other than A-B and you are using a TriMode tip that does not provide a circuit ground connection
(such as the P75PDPM), this is normal operation. The other input modes refer to circuit ground and are only valid when a
TriMode tip that provides a circuit ground connection is selected.
If you are using a TriMode tip that provides a circuit ground connection (such as the TriMode High Temp Solder Tip) and you cannot
select an Input Mode other than A-B, check the Probe Setup screen on the oscilloscope. An incorrect Probe Tip might be selected.
To access the Probe Setup screen, select Vertical/Probe Cal from the menu bar. A typical Probe Setup screen is shown below.
56 P7504 & P7506 TriMode Probes Quick Start User Manual
User-Replaceable Parts
This section describes the probe components that are replaceable due to normal wear.
Replacing the TriMode Solder Tip
Resistors
The resistors that are soldered to the tips
can break off during no rmal use. A kit of
replacement resistors is available. (Se e
page 43, Op tional Accessories.) To replace the
resistors, do the following:
1. Carefully apply a soldering iron to the via on
the tip board and remove the resistor lead.
Work quickly with a low-heat soldering iron.
If a small piece of wire is in the via, heat the
solder and use another piece of wire to push
the wire fragment from the via.
2. Add fresh solder to the via, if necessary.
3. For all tips except the extended resistor tip,
cut one lead of the replacement resistor to
approximately 0.2” (5 mm). Cut the lead to
0
.6” (15 mm) for the extended tip.
Maintenance
P7504 & P75 06 TriMode Probes Quick Start User Manual 57
Maintenance
4. If you are replacing the resistor on the
5. Heat the solder in the via and insert the
6. Cut the excess lead on the bottom of the
7. Cut the remaining r esistor lead to 0.1”
extended resistor tip, slide a piece of tubing
included with the resistor k it over the lead.
This will insulate the resistor lead.
resistor lead into the via:
until the insu lating tube comes into contact
with the tip board, if you are replacing the
resistor on the extended resistor tip.
until the resistor body almost touches the
tip board, if you are replacing the resistor
on the (short) resistor tip.
board.
(2.5 mm).
58 P7504 & P7506 TriMode Probes Quick Start User Manual
Handling the Probe
This probe is a precision high-frequency device; exercise care when you use and store the probe. The probe and cable are
susceptible to damage caused by careless use. Always handle the probe at the control box and probe body to avoid undue physical
strain to the probe cable, such as kinking, excessive bending, or pulling. Visible dents in the cable will increase signal aberrations.
CAUTION. To prevent da mage to the probe, always use an antistatic wrist strap connected to a static-controlled workstation when
you handle the probe. The probe input contains electronic components that can be damaged by contact with high voltages,
including static discharge.
Observe the following precautions when using the probe. Do not do any of the following:
Drop the probe or subject it to physical shock
Subject the probe to a dverse weather conditions
Kink or fold the probe cable tighter than a 2 in ch radius
Solder the tips with excessive heat or duration
Injure yourself with the sharp tips
Maintenance
P7504 & P75 06 TriMode Probes Quick Start User Manual 59
Maintenance
Cleaning the Probe
CAUTION. To prevent damage to the probe, do not expose it to sprays, liquids, or solvents. Avoid getting moisture inside
the probe during exterior cleaning.
Do not use chemical cleaning agents; they may damage the probe. Avoid using chemicals that contain benzine, benzene,
toluene, xylene, acetone, or similar solvents.
Clean the exterior surfaces of the probe with a dry, lint-free cloth or a soft-bristle brush. If dirt remains, use a soft cloth or swab
dampened with a 75% isopropyl alcohol solution and rinse with deionized water. A swab is useful to clean narrow spaces on the
probe; use only enough solution to dampen the swab or cloth. Do not use abrasive compounds on any part of the probe.
60 P7504 & P7506 TriMode Probes Quick Start User Manual
Returning the Probe for Servicing
If your probe requires servicing, you must return it to Tektronix. If the original packaging is unfit for use or not available, use
the following packaging guidelines:
Preparation for Shipment
1. Use a corrugated cardboard shipping
carton having inside dimensions at
least one inch greater than the probe
dimensions. The box should have a carton
test strength of at least 200 pounds.
2. Put the probe into an antistatic bag or wrap
it to protect it from dampness.
3. Place the probe into the box and stabilize it
with light packing material.
4. Seal the carton with shipping tape.
5. Refer to Contacting Tektronix at the
beginning of this manual for the shipping
address.
Maintenance
P7504 & P75 06 TriMode Probes Quick Start User Manual 61
Maintenance
62 P7504 & P7506 TriMode Probes Quick Start User Manual
Index
Index
A
Accessories
optional, 43
standard, 37
Adjustments, 33
C
Calibration
checking the instrument
status, 15
probe, 14
running on the instrument, 19
TriMode, 14
Cleaning the probe, 60
Connecting
tip cables to the probe body, 5
Connecting to circuit with
handheld module, 31, 32
solder tip, 23
Connecting to instruments
with a TekConnect interface, 3
without a TekConnect
interface, 35
Controls and indicators
Atten button and LEDs, 7
Input Mode button and LEDs, 8
Power-on sequence, 4
TriMode, 9
D
Documentation, vi
CD, 38
E
Error conditions
Input Mode, 56
Range & TriMode LEDs, 54
signal display, 55
F
Firmware, 53
Functional check, 10
H
Handling the probe, 59
High Temp Solder Tip, 24, 41
Host instrument firmware, 53
I
Input Mode, 8, 21, 56
Input tips, 24, 25, 26
Installation, 3
M
Maintenance, 53
Micro-Coax Solder Tip, 25, 41
O
Operating considerations, 2
Optional accessories, 43
Options, 51
P
Probe
P7504 & P75 06 TriMode Probes Quick Start User Manual 63
Index
applications, 36
calibrating, 16
cleaning, 60
handling, 59
Probe controls
Atten button and LEDs, 7, 20
Input Mode button and LEDs, 8,
9, 21
TriMode measuremen ts, 9
R
Related documentation, vi
Replaceable parts
bullet contacts, 57
solder tip resistors, 57
Returning the probe, 61
S
Safety Summary, iii
Socket Cable, 23
Solder tip resistors, 45
Standard accessories, 37
T
TriMode Solder Tip
Extended Resistor, 45
High Temp, 24
Micro-Coax, 25
replacing resistors, 57
Resistor, 44
64 P7504 & P7506 TriMode Probes Quick Start User Manual
Loading...
