Preface
Preface
This manual describes the installation and operation of the P7500 Series TriMode Probes. Basic probe operations and concepts
are presented in this manual. All documents listed below are located on the Tektronix Web site (www.tek.com/manuals).
Documentation
To read about Use these documents
Installation and Operation (overviews) Read the user manual for general information about how to use your probe.
In-Depth Operation Use the technical reference manual along with the user manual.
Specifications Use the technical reference manual.
Applications Read the
Reordering accessories
Application Examples
Accessories and Options
Use the
accessory kit when reordering accessories.
in the user manual.
section or refer to the insert in your
vi P7500 Series TriMode Probes Quick Start User Manual
Key Features
The P7500 Series TriMode Probes allow you to take differential, single-ended, and common mode measurements with one probe
connection. Key features include:
Revolutionary TriMode operation
TekConnect Interface
Bandwidth (typical)
>13 GHz P7513
>16 GHz P7516
>20 GHz P7520 (A – B Mode only;
>18 GHz in other modes)
Rise time 10-90% (typical)
<40 ps P7513
<32 ps P7516
<27 ps P7520 (A – B Mode only;
<29 ps in other modes)
100 kΩ differential input resistance, 50 kΩ
per side
Key Features
P7500 Series TriMode Probes Quick Start User Manual 1
Operating Considerations
Operating Considerations
Table 1: P7500 Series TriMode Probes
Characteristic Description Specification
Input Voltage Dynamic Range
Input Voltage Range
(DC + peak AC, Both ranges;
input referenced to ground)
Temperature
Humidity
Pollution
Degree
Operating
Nonoperating
Operating
Nonoperating
P7513, P7516:±0.750 V (5X),
1.75 V (12.5X)
±
P7513, P7516: +4.0 V, –2.0 V
0 to +40 °C (+32 °F to +104 °F)
-20 °C to +71 °C (-4 °F to +160 °F)
Up to +40 °C (+104 °F) 20%-80% RH
+30 °C to +46 °C (+86 °F to +115 °F) 0-90% RH
2, Indoor use only
P7520:±0.625 V (5X),
1.60 V (12.5X)
±
P7520: +3.7 V, –2.0 V
CAUTION.
a static-approved workstation when you handle the probe.
2 P7500 Series TriMode Probes Quick Start User Manual
To avoid ESD damage to the probe, always use an antistatic wrist strap (provided with your probe), and work at
Installation
Connecting to the Host Instrument
Your TekConnect instrument may
NOTE.
require a firmware upgrade to support full
functionality of the P7500 Series probes.
Before you connect the probe, check the
version requirements. (See page 53, Host
Instrument Firmware.)
Slide the probe into the TekConnect
1.
receptacle. The probe clicks into place
when fully engaged.
Turn the thumbscrew clockwise (finger-tight
2.
only) to secure the probe to the instrument.
To disconnect, turn the thumbscrew
3.
counter-clockwise.
Press the latch release button and pull the
4.
probe away from the instrument.
Installation
P7500 Series TriMode Probes Quick Start User Manual 3
Installation
Probe Power-On
When the probe is powered on, all LEDs briefly
flash as the self-test routine runs, and then the
following LEDs remain lit:
5X Attenuation
A – B TriMode (Differential)
This indicates that the probe is in normal
operating mode.
The host instrument sets all probe
NOTE.
settings to the last known state for the
probe/channel combination. If none of the
Range LEDs are lit, the instrument may have
detected an error condition. Disconnect and
reconnect the probe to clear the error.
4 P7500 Series TriMode Probes Quick Start User Manual
Connecting Accessories to the Probe Body
Installation
CAUTION.
when it is disconnected. To prevent damage to the probe, before you connect accessories to the probe body, always check that
the contacts are located in the probe body only.
The probe body and tip cable ends are keyed
to ensure correct installation. Connect them
as follows:
1.
2.
The probe has replaceable contacts inside the probe body connector that may stick to the accessory connector
Orient the probe body with the A and B
inputs on top, as shown.
Align the tip cable lead with the red band to
the A input.
P7500 Series TriMode Probes Quick Start User Manual 5
Installation
Grasp the cable connector by hand and
3.
push the cable into the probe body until
you feel a click. The cable housing is fully
seated when it is flush with the edge of the
probe body.
To remove the tip, pull the cable tab straight
4.
out from the probe body.
CAUTION.
Pull only on the cable tab when
removing the tip. You may damage the tip or
probe if you pull on the cables.
6 P7500 Series TriMode Probes Quick Start User Manual
Control Box Controls and Indicators
Atten. Button and LEDs
Press the Atten. button to toggle the
attenuation setting between 5X and 12.5X.
The corresponding LED lights to indicate the
selected attenuation.
Basic Operation
selecting the Attenuation and Input Mode. (See
page 20,
includes more information on
Attenuation and Input Mode Settings
.)
Installation
P7500 Series TriMode Probes Quick Start User Manual 7
Installation
Input Mode Button and LEDs
Press the Input Mode button to select one of
the four TriMode measurements. The modes
cycle in the following sequence:
A – B (for differential signal measurement)
A – GND (for A input single-ended
measurement)
B – GND (for B input single-ended
measurement)
(A + B)/2 – GND (for common mode
measurement)
Some oscilloscope models only allow
NOTE.
the A – B Input Mode to be selected, depending
on which input tip is selected in the oscilloscope
Probe Setup screen. (See page 55, Input Mode
Selection.)
The following pages discuss characteristics of
the TriMode measurements.
8 P7500 Series TriMode Probes Quick Start User Manual
TriMode Probing
The TriMode feature allows you to view
two single-ended signals and the resultant
differential waveform and common-mode
voltage without moving the probe connection.
Press the Input Mode button to cycle through
the waveform views.
This example shows a typical HDMI signal (one
half-lane) on the A and B inputs. The resultant
differential waveform and common-mode
voltage are shown.
Installation
P7500 Series TriMode Probes Quick Start User Manual 9
Functional Check and Calibration
Functional Check and Calibration
After you connect the probe to the oscilloscope, perform a functional check using the calibration board included with the probe.
CAUTION.
To avoid ESD damage to the probe, always use an antistatic wrist strap (provided with your probe), and work at
a static-approved workstation when you handle the probe.
Functional Check
This procedure checks the four TriMode settings on the probe, using the PROBE COMPENSATION or FAST EDGE connection on
the front panel of the oscilloscope. The A-B (differential mode) is set up and verified first, and then the remaining input modes are
checked and compared to the differential mode measurement.
Table 2: Required Equipment
Item Description Performance Requirement Recommended Example
Oscilloscope TekConnect Interface Tektronix DPO72004, TDS6154C
Test board
TriMode DC Calibration board
Coaxial cable SMA, 50Ω, male-to-male
Coaxial cable BNC, 50Ω, male-to-male
1
Nine-digit part numbers (xxx-xxxx-xx) are Tektronix part numbers
2
Standard accessory included with probe
067-1821-XX
174-1120-XX
012-0208-XX
2
2
2
10 P7500 Series TriMode Probes Quick Start User Manual
1
Test Setup
Connect the probe to any channel (1–4) of
1.
the oscilloscope.
Set the oscilloscope to display the channel.
2.
Connect an SMA cable from the Probe
3.
Compensation or FAST EDGE output
connector on the oscilloscope to the SMA
connector on the TriMode DC Calibration
board.
Set the two output switches on the TriMode
4.
DC Calibration board to the FAST RISE
position.
Connect the probe to the cable on the
5.
TriMode DC Calibration board (note correct
connector polarity).
Functional Check and Calibration
P7500 Series TriMode Probes Quick Start User Manual 11
Functional Check and Calibration
Test Procedure
Set the probe attenuation to 12.5X and the
6.
Input Mode to A-B.
Adjust the oscilloscope to display a stable
7.
waveform (or press the Autoset button).
If you do not see a waveform, check
NOTE.
the connection at the probe body. (See page 5,
Connecting Accessories to the Probe Body.)
When you see a stable square wave,
8.
check the amplitude. (Use the horizontal
cursors.) Signal output levels for some
oscilloscope models are listed below.
TDS6154C: 440 mV p-p
DPO72004: 440 mV p-p
12 P7500 Series TriMode Probes Quick Start User Manual
Cycle the Input Mode button through the
9.
remaining selections and compare the
displayed waveforms to the waveform that
youmeasuredinstep8.
A–B(thewaveformfromstep8)
A – GND (same amplitude and polarity
as measured in step 8)
B – GND (the B input is grounded; no
signal is measured)
(A+B)/2 – GND (half-amplitude, but the
same polarity as measured in step 8)
Set the probe attenuation to 5X and the
10.
InputModetoA–B.
Repeat steps 7 through 9 for the 5X
11.
attenuation setting.
Functional Check and Calibration
P7500 Series TriMode Probes Quick Start User Manual 13
Functional Check and Calibration
TriMode Probe Calibration
After you perform a functional check of the probe, run a probe calibration routine. We recommend that you repeat the probe
calibration for all four of the TriMode settings, and do this on each channel that you use.
The probe calibration operation minimizes measurement errors by optimizing the gain and offset of both probe attenuation settings
on each channel. Individual calibration constants are stored for each calibrated TriMode setting, on each probe, on each channel.
CAUTION.
a static-approved workstation when you handle the probe.
You can use the equipment shown in the
14 P7500 Series TriMode Probes Quick Start User Manual
To avoid ESD damage to the probe, always use an antistatic wrist strap (provided with your probe), and work at
Functional Check
to perform the probe calibration. (See Table 2 on page 10.)
Check the Instrument Calibration
Status
The Calibration Status of the instrument Signal
Path Compensation test must be
probe calibration routine to run.
From the Utilities menu, select Instrument
1.
Calibration.
In the Calibration box, check that the
2.
Status field is
If the status is not pass, disconnect
3.
all probes and signal sources from the
oscilloscope, and run the Signal Path
Compensation routine.
When the Signal Path compensation test status
is
, calibrate the probe. (See page 16,
Pass
Calibrate the Probe
Pass
.)
.
Pass
for the
Functional Check and Calibration
P7500 Series TriMode Probes Quick Start User Manual 15
Functional Check and Calibration
Calibrate the Probe
Connect the probe to any channel (1–4) of
1.
the oscilloscope. Allow the probe to warm
up for 20 minutes.
Set the oscilloscope to display the channel.
2.
Connect a BNC cable from the Probe
3.
Calibration output connector on the
oscilloscope to the BNC connector on the
TriMode DC Calibration board.
You may be able to use the PROBE
NOTE.
COMPENSATION output connector. Check
your oscilloscope manual or online Help for
more information.
Connect the probe to the cable on the
4.
TriMode DC Calibration board.
Set the Input Mode to A – B on the probe.
5.
16 P7500 Series TriMode Probes Quick Start User Manual
Set the switches on the TriMode DC
6.
Calibration board to the positions shown
for the selected input mode. (See Table 3.)
Table 3: TriMode DC Calibration board switch settings
Probe input mode Fast rise/probe cal Gnd/Sig
A–B
A
B
(A+B)/2 Probe Cal Sig
Probe Cal Gnd
Probe Cal Sig
Probe Cal Sig
Functional Check and Calibration
P7500 Series TriMode Probes Quick Start User Manual 17
Functional Check and Calibration

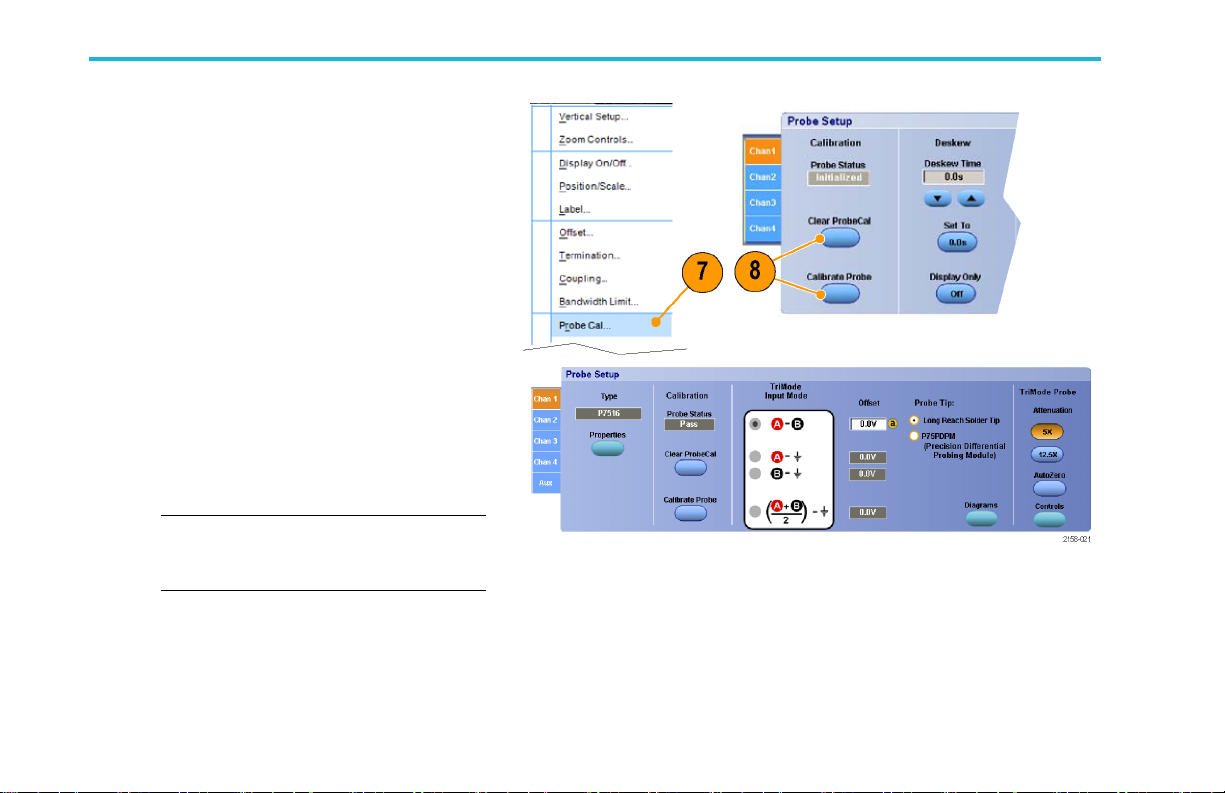

In the menu bar, select Vertical and then
7.
select Probe Cal.
The Probe Setup dialog box appears. (Some
oscilloscopes support an automated TriMode
calibration routine and switch automatically
between input modes as shown below.)
Select Clear ProbeCal, and then select
8.
Calibrate Probe.
The probe calibration routine runs, optimizing
the probe to the oscilloscope for both probe
attenuation settings. The displayed results
differ between oscilloscope models:
Oscilloscopes that do not support the
9.
automated TriMode calibration routine
display
in the Probe Status box.
Pass
Repeat steps 5 through 8 for the remaining
input mode settings.
If the Probe Cal routine fails, check the
NOTE.
connection at the probe body. (See page 5,
Connecting Accessories to the Probe Body.)
18 P7500 Series TriMode Probes Quick Start User Manual
Oscilloscopes that support the automated
10.
TriMode calibration routine will display an
on-screen prompt to toggle the Calibration
Fixture SIG/GND switch. Follow the
instructions to complete the calibration for
the remaining input modes.
After a successful Probe Cal,
Pass
appears in the Probe Status box.
If the Probe Cal routine fails, check the
NOTE.
connection at the probe body. (See page 5,
Connecting Accessories to the Probe Body.)
Functional Check and Calibration
P7500 Series TriMode Probes Quick Start User Manual 19
Basic Operation
Basic Operation
This section includes more information about using the probe controls on the control box and procedures for connecting the
probe to your circuit.
Attenuation and Input Mode Settings
Atten Selection
The ATTEN button toggles the probe between the two nominal attenuation settings of 5X and 12.5X. The choice of attenuation
setting is a tradeoff between probe dynamic range and noise. The probe dynamic range represents the operating range over which
the probe is linear to within some specified percentage, such as ±1%. The probe noise is usually specified as a noise spectral
density and is significant because of the wide probe bandwidth. The 5X attenuation setting provides the lowest noise performance.
The 12.5X attenuation setting provides the largest dynamic range. The actual probe attenuation factor is automatically accounted
for by the attached oscilloscope using the intelligent TekConnect probe interface. The attached oscilloscope also indicates
the probe dynamic range with momentarily-displayed arrows when the vertical channel controls are changed at larger vertical
scale factor settings.
The usual choice for attenuation setting should be 5X, if the measured signal fits within the specified dynamic range, since that
provides the best noise performance. The probe Offset control can also be used with some signals to compensate for a DC bias
and bring the displayed signal within the specified dynamic range. Although it is possible to measure signals that exceed the
dynamic range of the probe, the measured signal performance becomes increasingly non-linear and eventually reaches a limiting
level. Although probe signal limiting does not damage the probe (as long as the maximum input voltage is not exceeded), the
measured response no longer accurately represents the input signal.
20 P7500 Series TriMode Probes Quick Start User Manual
Basic Operation
Input Mode Selection
The Input Mode button toggles the internal probe input selector switches between the four input mode selections. This TriMode
feature allows full characterization of a differential signal from a single soldered connection.
A-B Mode.
functionality. Since the A-B Mode measures the difference between the A and B input signals, it eliminates any common mode
voltage, such as a DC bias common to both inputs, within the CMRR performance capability of the probe. For P7500 probe tips,
such as the P75PDPM, which do not provide a TriMode ground reference, the A-B Mode is the only useful mode for making low
noise measurements. In fact, some oscilloscope models only allow the A-B Mode to be selected when the connected tip does
not include a ground reference. The A-B Mode can also be used for making single-ended measurements with the P75PDPM
probe tip by connecting the B input to the local circuit ground.
A-GND Mode.
as the P75TLRST. The P75TLRST probe tip includes a solder connection for the local circuit ground. In the A-GND Mode the
P7500 probe input switch is configured to measure the A input relative to this local circuit ground reference. The A input signal
measurement in A-GND Mode is designed for minimal coupling from any signal present on the B input within the A input isolation
performance of the probe.
The A-GND Mode is not recommended for measurement use with the P75PDPM probe tip because of the lack of a local circuit
ground connection (and some oscilloscope models do not allow the A-GND Mode to be selected with the P75PDPM).
P7500 Series TriMode Probes Quick Start User Manual 21
The A-B Mode is used for making differential signal measurements and represents the traditional differential probe
The A-GND mode is used for making probe A input single-ended measurements with TriMode probe tips such
Basic Operation
B-GND Mode.
as the P75TLRST. The P75TLRST probe tip includes a solder connection for the local circuit ground. In the B-GND Mode the
P7500 probe input switch is configured to measure the B input relative to this local circuit ground reference. The B input signal
measurement in B-GND Mode is designed for minimal coupling from any signal present on the A input within the B input isolation
performance of the probe.
Like the A-GND Mode, the B-GND Mode is also not recommended for measurement use with the P75PDPM probe tip because
of the lack of a local circuit ground connection.
(A+B)/2 Mode.
new probe feature that previously could only be made using oscilloscope math on multiple channels. For a differential signal, the
common mode measurement indicates the DC bias level and also shows the degree of asymmetry between the A and B inputs.
Since the (A+B)/2 Mode measures the average between the A and B input signals, it eliminates any complementary differential
signal voltage, within the DMRR performance capability of the probe.
The B-GND mode is used for making probe B input single-ended measurements with TriMode probe tips such
The (A+B)/2 Mode is used for making common mode measurements on a differential signal and represents a
22 P7500 Series TriMode Probes Quick Start User Manual
Connecting to a Circuit Board
Use the P75TLRST Long Reach Solder Tip to connect the probe to your circuit. The P75TLRST tip is shipped with the probe and is
described below. Other TriMode solder tips are available as optional accessories, as well as a handheld probing module, and are
described on the following pages.
P75TLRST TriMode Long Reach
Solder Tip
The Long Reach Solder tip enables you
to make full signal characterizations from
a multi-point soldered connection. This tip
provides full-bandwidth measurements for your
TriMode probe.
The soldered connection passes the two
complementary signals (the A signal and the
B signal), and a ground reference from your
circuit to the TriMode probe.
The internal electronic switching control of the
TriMode probe allows any one of the four probe
Input Modes to be selected at a time.
Basic Operation
P7500 Series TriMode Probes Quick Start User Manual 23
Basic Operation
TriMode Resistor Solder Tips
These are optional accessory tips that you can
order for your probe. The tips provide solder
connection points for the A and B probe input
signals at the resistor leads, instead of on the
solder tip board.
1.
2.
The tip resistors can tolerate more solder
cycles than the P75TLRST tip board, and can
be replaced when necessary.
These tips provide full TriMode capabilities
when you use the soldered-ground connection
on the tip board.
CAUTION.
small and must be handled carefully to avoid
damaging them. The following pages describe
the proper techniques for using the tips.
020-2936-XX TriMode Resistor Solder Tip
–measures<29 ps rise times
020-2944-XX TriMode Extended Resistor
Solder Tip – measures<32 ps rise times
The TriMode solder tips are very
24 P7500 Series TriMode Probes Quick Start User Manual
The dimensions of the solder tip connections
are provided here for reference. You can also
design the tip footprint into your circuit board
layout for easier test connections.
To connect the probe tip to your circuit, use the
wire and solder that are provided in the wire
replacement kit. The kit includes:
0.004 in (0.10 mm) wire
0.008 in (0.20 mm) wire
SAC305 solder (RoHS compliant)
You will also need tweezers, a low-wattage
soldering iron, and a pair of sharp wire cutters.
Separate procedures follow for soldering the
different tips to your circuit, and a demonstration
video available on tek.com.
Basic Operation
P7500 Series TriMode Probes Quick Start User Manual 25
Basic Operation
Connect the P75TLRST Solder Tip
1.
NOTE.
but keep the finished wire lengths of the signal
and ground connections as short as possible.
2.
3.
NOTE.
your connections before soldering.
Identify a location where the tip can be
placed, soldered, and secured to your
circuit.
You can work with long wires (~1 inch),
Lay the wires against a circuit board pad,
trace, or other conductive feature. (If vias
or through-holes are very close, you can
thread the wires through them.)
Solder the wires to your circuit.
For best results, use a flux pen to clean
26 P7500 Series TriMode Probes Quick Start User Manual
Attach tip tape to the bottom of the tip.
4.
Clean out the tip vias with a solder-wicking
5.
material if you are reusing the tip. Thread
the wires through the tip.
Press the tip to the circuit board and quickly
6.
solder the wires to the tip. Keep all finished
wire lengths as short as possible.
Clip off the excess wire from all of the
7.
solder joints.
Attach the probe to the tip. (Note polarity).
8.
For a secure mechanical connection, use
9.
tape or hot glue to secure the tip and probe
to your circuit. (See page 30,
Tip
.)
Secure the
Basic Operation
P7500 Series TriMode Probes Quick Start User Manual 27
Basic Operation
Connect the TriMode Resistor
Solder Tips
Use this procedure to connect both styles of
resistor tips to your circuit.
1.
2.
3.
4.
5.
Choose a location where the solder tip
resistor leads can reach your test points.
If you are using a ground connection, note
which solder tip ground via is closest to
your circuit ground.
Apply solder to the test points on your
circuit.
If you are not using the ground, solder the
resistor leads to your circuit, clip off any
excess, and go to step 11.
If you are using a ground wire, apply solder
to the solder tip ground via that you chose.
Position a length of wire about 1-inch long
under the solder tip via.
28 P7500 Series TriMode Probes Quick Start User Manual
Heat the solder tip via and insert the wire.
6.
Cut the excess wire on the other side of
7.
the solder tip, flush with the board.
Cut the ground wire to the length required
8.
to reach your circuit ground. Keep the
ground wire as short as possible to ensure
good performance.
Solder the ground wire to the circuit and
9.
clip off any excess wire.
Solder the resistor leads to the test points
10.
on your circuit and clip off any excess
leads.
Basic Operation
P7500 Series TriMode Probes Quick Start User Manual 29
Basic Operation
Secure the Tip
11.
12.
13.
Push the end of the tip into the probe head
until it seats in the probe head.
For a secure mechanical connection, use
tape or hot glue to secure the tip to your
circuit.
Secure the probe to the circuit board with
tape or hook-and-loop strips.
30 P7500 Series TriMode Probes Quick Start User Manual
Basic Operation
Notes on Using the Tips.
Use the following precautions when you solder the tips:
Use a low-wattage, temperature-controlled soldering iron and a small mass soldering iron tip. The soldering iron temperature
should be set as low as possible, while still providing a reliable solder joint.
Use SAC305 solder (included with the wire replacement kit) to attach the tip wires to the circuit under test.
The attachment wires should be bent symmetrically to vary the interconnect spacing. Use care when you solder a tip to a circuit
under test to avoid inadvertently desoldering either the attachment wires or the damping resistor.
For optimum performance and signal integrity, keep the lead length between the DUT (Device Under Test) and the tip as
short as possible, and the lead lengths the same length.
CAUTION.
soldered leads, we recommend that you secure the tip to the circuit board using the adhesive tip tape provided in your accessory
kit. You can also use other materials such as Kapton tape or hot glue.
To avoid damage to the tip or the circuit under test, avoid applying excessive heat from the soldering iron. Use a low wattage,
temperature-controlled soldering iron and appropriately sized soldering iron tip.
P7500 Series TriMode Probes Quick Start User Manual 31
To prevent damage to the circuit board or circuit board connections due to accidental movement of the probe and
Basic Operation
P75PDPM Precision Differential Probing Module (Handheld)
This is an optional accessory. (See page 44,
Optional Accessories
Assemble the Module
1.
2.
3.
.)
Position the module housing as shown.
Slide the probing module handle adapter
into the module housing.
Secure the handle adapter with the
thumbscrew.
32 P7500 Series TriMode Probes Quick Start User Manual
Insert the probe in the handle adapter.
4.
Attach the cable to the probe body. Match
5.
the red band to the A input.
You can dress the cable in the channels as
6.
shown. The front channels are captive and
the rear channels are guides.
Basic Operation
P7500 Series TriMode Probes Quick Start User Manual 33
Basic Operation
Adjustments
1.
2.
3.
4.
Adjust the tip angle by loosening the
setscrew and pivoting the tip. Tighten the
setscrew to secure the tip.
Adjust the tip spacing by turning the
adjustment wheel.
The probing module is shipped with a
ground spring installed between the tips.
The spring is necessary to pass the
highest-fidelity signal to your instrument.
The two available spring sizes are shown
in steps 3 and 4.
The large spring is pre-installed on the
probe and allows a tip-to-tip span from
0.050 to 0.180 inches (1.27 to 4.57 mm).
The small spring allows a tip-to-tip span
from 0.030 to 0.090 inches (0.76 to 2.28
mm).
Spring replacement requires a special
NOTE.
tool. See the technical reference manual for
spring replacement procedures.
34 P7500 Series TriMode Probes Quick Start User Manual
Mounting Features
You can mount the probing module to a variety
of fixtures and custom probing arms, using the
features described below:
The barrel at the rear of the P75PDPM fits
1.
into the end of the PPM203B probe holder.
The threads inside the barrel are metric
2.
(M6 x 1), and attach to the EZ-Probe
Positioner from Cascade MicroTech.
The slot below the barrel slides onto the tab
3.
of the PPM100 Probe Positioner. Secure
the module to the tab with the thumbscrew.
Use these threaded holes (6–32, 8–32,
4.
and 10–32) for custom-mount applications.
Basic Operation
P7500 Series TriMode Probes Quick Start User Manual 35
Basic Operation
Connecting the Probe to Instruments without a TekConnect Interface
The 80A03 TekConnect Probe Interface adapts
any TekConnect probe to the TDS8X00,
CSA8X00, and DSA8200 Series oscilloscopes.
The RTPA2A TekConnect Probe Interface
adapts any TekConnect probe to Tektronix
Real-Time Spectrum Analyzers.
The 80A03 and RTPA2A interfaces are
NOTE.
limited to a pass-through bandwidth of 12 GHz.
For proper probe operation, the Probe Interface
firmware must be compatible with the probe.
(See page 53, Host Instrument Firmware.) The
firmware version label is on the rear panel of
the 80A03 instrument.
The host instrument may also require a
firmware and/or operating system upgrade.
See your instrument manual for more
information.
36 P7500 Series TriMode Probes Quick Start User Manual
Probe Applications
The following applications show how the P7500 Series probe characteristics enable measurements with good signal fidelity.
Measuring a PCI Express Signal
with a P7500 Series Probe and
RT-Eye Application Software
When the P7500 Series probe is used with a
TDS6000 or TDS70000 real-time oscilloscope
configured with RT-Eye application software,
physical layer testing on PCI Express signals is
performed with greater ease and accuracy.
The RT-Eye software separates the acquired
transition and nontransition bits. The software
also provides an extensive collection of
measurements and statistics on the analyzed
waveform record.
Probe Applications
P7500 Series TriMode Probes Quick Start User Manual 37
Accessories and Options
Accessories and Options
You can reorder the following replacement parts and accessories. Note that in some cases, the reorder quantities may differ
from those that ship with the probe.
Standard Accessories
The following accessories are shipped with the P7500 Series probes. If no quantity is listed, only one of that item is shipped.
Accessory
Reorder part number
and quantity Description
016-1997-XX
Pouch, nylon carrying case with inserts.
has several compartments to hold the probe and accessories.
This carrying case
006-3415-XX
38 P7500 Series TriMode Probes Quick Start User Manual
Antistatic Wrist Strap.
at an antistatic work station and wear the antistatic wrist strap.
When you use the probe, always work
Accessory
Reorder part number
and quantity Description
---
Calibration Certificate.
is provided with every probe.
Accessories and Options
Acertificate of traceable calibration
---
Data Calibration Report.
The Data Calibration Report lists
the manufacturing test results of your probe at the time of
shipment and is included with every probe.
071-2158-XX
(English)
Quick Start User Manual.
instructions for operating the P7500 Series TriMode probes.
The user manual provides
071-2159-XX
(Japanese)
071-2160-XX
(Simplified Chinese)
P7500 Series TriMode Probes Quick Start User Manual 39
Accessories and Options
Accessory
Reorder part number
and quantity Description
067-1821-XX
TriMode DC Calibration Fixture.
functional check and a DC calibration with the host instrument.
Use this fixturetoperforma
174-1120-XX
50 Ω SMA-M to SMA-M cable assembly, 8.5 in.
To perform a functional check, use this cable to connect the
DC Calibration fixture to the Fast Rise Time output connector
on the host instrument.
012-0208-XX
50 Ω BNC-M to BNC-M cable assembly, 10 in.
To perform a probe calibration, use this cable to connect the
DC Calibration fixture to the DC Probe Cal output connector
on the host instrument.
40 P7500 Series TriMode Probes Quick Start User Manual
Accessory
Reorder part number
and quantity Description
020-2729-XX
Accessory Kit.
that are described below. A reference sheet is included as a
quick guide for using and reordering the probe accessories
in the kit.
The foam insert includes slots for the optional P75PDPM
accessories that you can order.
Accessories and Options
The kit includes an assortment of accessories
P75TLRST
P7500 TriMode Long Reach Solder Tip.
This tip provides a soldered, multi-point connection that
supports full TriMode measurement capabilities at full probe
bandwidth.
Two tips are included with the probe.
P7500 Series TriMode Probes Quick Start User Manual 41
Accessories and Options
Accessory
Reorder part number
and quantity Description
006-8237-XX
(Strip of 10)
Adhesive Tip Tape.
to secure the solder tip assembly to your circuit board.
Use the double-sided adhesive tip tape
016-0633-XX
(Package of five colored
pairs)
Color Band Kit.
pairs. When you are using more than one probe, the bands
enable you to visually match the probes to the channels that
This kit includes two sets of five colored
they are connected to.
To use the marker bands, attach one band to the indent on
the molded strain relief on the probe cable. Use the matching
color band on the other end of the probe, at the control box.
Maintenance accessories listed below
020-2754-XX
(Package of 3 bobbins)
Wire Replacement Kit.
SAC305 lead-free solder (RoHS compliant), 4 mil wire, and
This kit includes three bobbins:
8 mil wire. Use this kit to add wire leads on the solder tips.
42 P7500 Series TriMode Probes Quick Start User Manual
Accessory
Reorder part number
and quantity Description
013-0359-XX
(Package of 4)
Replacement Bullet Contacts.
integrity, replace the bullets in the probe body after 200
insertion cycles.
Accessories and Options
To maintain the best signal
003-1896-XX
Bullet Removal Tool.
This tool allows you to safely remove
and install the bullet contacts.
P7500 Series TriMode Probes Quick Start User Manual 43
Accessories and Options
Optional Accessories
Optional accessory Part number Description
020-2936-XX
TriMode Resistor Solder Tip Kit.
This tip provides solder connection points at 100 Ω resistors
that extend about 0.2 in (5 mm) from the solder tip board. The
resistors can withstand more solder cycles than the standard
P75TLRST solder tip, and can be replaced if they break.
This tip can measure rise times down to<29 ps.
A kit of replacement resistors is available; see below.
020-2944-XX
44 P7500 Series TriMode Probes Quick Start User Manual
TriMode Extended Resistor Solder Tip Kit.
This tip provides solder connection points at 100 Ω resistors
that extend about 0.6 in (15 mm) from the solder tip board. The
resistors can withstand more solder cycles than the standard
P75TLRST solder tip, and can be replaced if they break.
This tip can measure rise times down to<32 ps.
A kit of replacement resistors is available; see below.
Optional accessory Part number Description
020-2937-XX
Replacement Resistor Kit for TriMode Solder Tips.
This kit includes:
100 Ω leaded resistors, quantity 50
75 Ω surface-mount, 0402 resistors, quantity 50
Nonconductive tubing, quantity 50
Accessories and Options
P75PDPM
Probing Module Kit.
This kit allows you to browse multiple test points in your circuit
without using a soldered connection.
The kit includes the parts listed under
P75PDPM kit contents
below; some are also orderable separately.
P7500 Series TriMode Probes Quick Start User Manual 45
Accessories and Options
P75PDPM kit contents Part number Description
Order P75PDPM kit Probing Module.
The Probing Module includes the P7500 Tip Cable and a large
ground spring pre-attached to the tip pair, ready to connect to
your probe. To order the Probing Module, order the P75PDPM
kit.
P75TC
P7500 Tip Cable.
This cable connects the probe to the
Probing Module Tip. When the Probing Module kit is ordered,
the cable is shipped pre-installed on the Probing Module.
To order the cable separately, order P75TC.
P75PMT
Probing Module Replacement Tips (pair).
When the Probing Module kit is ordered, two sets of Probing
Module tip boards are shipped; one set is pre-installed on the
Probing Module. The replacement tips (one each left and right)
are built in pairs and must be separated before installation.
To order the replacement tips separately, order P75PMT.
46 P7500 Series TriMode Probes Quick Start User Manual
P75PDPM kit contents Part number Description
367-0545-XX
Probing Module Handle Adapter.
The Handle Adapter connects the probe body to the handheld
probing module.
Accessories and Options
016-1998-XX
(Package of 4)
Ground Spring Kit, Large.
The handheld probing module requires a spring to make a
ground connection between the ends of the two input tips. Use
the large ground spring for general-purpose browsing, when
the required span between tips is from 0.050 in. to 0.180 in.
(1.27to4.57mm).
016-1999-XX
(Package of 4)
Ground Spring Kit, Small.
Use the small ground spring when you are probing dense
circuits and where you may have multiple probes in a confined
area. The distance between the tips with the small spring
installed is from 0.030 in. to 0.090 in. (0.76 to 2.28 mm).
P7500 Series TriMode Probes Quick Start User Manual 47
Accessories and Options
P75PDPM kit contents Part number Description
003-1900-XX
003-1897-XX
Ground Spring Tool.
This tool simplifies spring removal and installation. The ends of
the tool match the two springs that mount between the probe
tips. A tab in the center of the tool is used to set the span of
the tips to the optimum width for spring replacement.
Connector Separator Tool.
Use this tool to disconnect the P7500 Tip Cable from the
Probing Module Tips. The tool protects the connectors and tips
from damage by gently spreading them apart.
48 P7500 Series TriMode Probes Quick Start User Manual
Optional accessory Part number Description
067-1586-XX
Deskew Fixture.
other probes connected to your measurement system.
Accessories and Options
Use this fixture to time-align the probe to
PPM203B
PPM203B Articulating Arm.
This high-precision articulating
arm has fine adjustment controls for all three axes. It is
designed for probing circuit boards, hybrids, and multi-chip
modules (MCMs), that employ fine-pitch devices and
interconnects. Use the Articulating Arm to provide stability
and support for the probes when taking measurements. Use
the Probe Arm Adapter to attach a probe to the PPM203B
Articulating Arm.
P7500 Series TriMode Probes Quick Start User Manual 49
Accessories and Options
Optional accessory Part number Description
PPM100
PPM100 Probe Positioner.
probe holder with flexible arm is designed for hands-free
probing that requires adjustable fine positioning. The heavy
duty base can be replaced with the clamp for securing the
probe arm in a variety of situations.
This general-purpose benchtop
50 P7500 Series TriMode Probes Quick Start User Manual
Optional accessory Part number Description
80A03
80A03 TekConnect Probe Interface Module.
with 80E0X Sampling Modules to adapt TekConnect probes to
CSA8200 and TDS8200 Series Sampling Oscilloscopes.
The 80A03 interface is limited to 12 GHz pass-through
NOTE.
bandwidth.
The interface is composed of an enclosure that houses a
compartment for one 80E0X Electrical Sampling Module and
two TekConnect probe inputs. The interface routes the probe
signal outputs through SMA connectors on the front panel.
Semi-rigid SMA cables link the probe outputs to the 80E0X
module inputs.
The 80A03 adapter firmware must be version 2.3 or
NOTE.
above to ensure full functionality with P7500 Series Probes.
RTPA2A
RTPA2A TekConnect Probe Adapter.
you to connect a TekConnect probe to a Real-Time Spectrum
Analyzer.
TheRTPA2Ainterfaceislimitedto12GHz
NOTE.
pass-through bandwidth.
The RTPA2A adapter firmware must be version 2.3 or above to
ensure full functionality with P7500 Series Probes.
Accessories and Options
Use this module
This adapter allows
P7500 Series TriMode Probes Quick Start User Manual 51
Accessories and Options
Options
Option CA1.
Option C3.
Option C5.
Option D1.
Option D3.
Option D5.
Option R3.
Option R5.
Option L0.
Option L5.
Option L7.
-R1PW.
-R2PW.
-R3PW.
-R5PW.
A single calibration event, or coverage for the designated calibration interval, whichever comes first
Calibration Service 3 years
Calibration Service 5 years
Calibration Data Report-ships standard with probe
Calibration Data Report, 3 years (with Option C3)
Calibration Data Report, 5 years (with Option C5)
Repair Service 3 years
Repair Service 5 years
English User Manual
Japanese User Manual
Simplified Chinese User Manual
Repair service coverage: 1 year post warranty
Repair service coverage: 2 year post warranty
Repair service coverage: 3 years (includes product warranty period), 3 year period starts at time of purchase.
Repair service coverage: 5 years (includes product warranty period), 5 year period starts at time of purchase.
52 P7500 Series TriMode Probes Quick Start User Manual
Maintenance
This section contains maintenance and support information for your probe.
Host Instrument Firmware
Some instruments may require a firmware upgrade to support full functionality of the P7500 Series probes. Instruments with
lower versions of firmware may not display all probe controls and indicators on screen, and in some cases may require you to
power-cycle the instrument to restore normal instrument operation.
The following table lists the required versions of instrument firmware for some of the instruments that currently support the
P7500 Series probes.
Instrument Firmware Version
TDS6000B series oscilloscopes
TDS6000C series oscilloscopes
TDS7000B series oscilloscopes
DPO/DSA72000 series oscilloscopes
80A03 TekConnect Probe Adapter
RTPA2A TekConnect Probe Adapter
1
P7500 Series probes are functional on the TDS7000B Series oscilloscopes, but probe calibration is not supported.
To check the firmware version on Windows-based instruments, from the menu bar, click Help/About TekScope. On
Linux-based instruments, press the Utilities button on the front panel. If you need to upgrade your instrument firmware, go to
www.tektronix.com/software to download the latest firmware.
Maintenance
V 5.1.3 or higher
V 5.1.7 or higher
1
V 5.1.3 or higher
V 3.0 or higher
V 2.3 or higher
V 2.3 or higher
P7500 Series TriMode Probes Quick Start User Manual 53
Maintenance
Error Conditions
LED Indicators
If one of the Range or TriMode LEDs does not remain lit after you connect the probe, an internal probe diagnostic fault exists.
Disconnect and reconnect the probe to restart the power-on diagnostic sequence. If the symptoms continue, the probe is defective,
and must be returned to Tektronix for repair.
Signal Display
If the probe is connected to an active signal source and you do not see the signal displayed on the oscilloscope:
Check the probe tip connection on your circuit. (See page 23,
Check the probe tip connection at the probe body. (See page 5,
Perform a functional check using the TriMode calibration board included with the probe. (See page 10,
Check that the bullet contacts are present and intact in the probe body. (See page 58,
54 P7500 Series TriMode Probes Quick Start User Manual
Connecting to a Circuit Board
Connecting Accessories to the Probe Body
.)
Inspecting the Bullets and Connectors
.)
Functional Check
.)
.)
Maintenance
Input Mode Selection
If you cannot select an Input Mode other than A-B and you are using a TriMode tip that does not provide a circuit ground connection
(such as the P75PDPM handheld module), this is normal operation. The other input modes refer to circuit ground and are only valid
when a TriMode tip that provides a circuit ground connection is selected.
If you are using a TriMode tip that provides a circuit ground connection (such as the P75TLRST) and you cannot select an Input
Mode other than A-B, check the Probe Setup screen on the oscilloscope. An incorrect Probe Tip might be selected. To access the
Probe Setup screen, select Vertical/Probe Cal from the menu bar.
P7500 Series TriMode Probes Quick Start User Manual 55
Maintenance
User-Replaceable Parts
This section describes the probe components that are replaceable due to normal wear.
Bullet Contacts
The input sockets in the probe body assembly
are protected by replaceable bullet contacts.
(Replaceable bullets are included in the
accessory kit.)
The bullet contacts protect the input sockets
by absorbing the wear from repeated
connect/disconnect cycles of the accessory
tips.
A bullet tool is shipped with the probe and is
used to replace the bullet contacts from the
probe body assembly.
CAUTION.
probe body assembly. To prevent damage to the probe, before you connect accessories to the probe body, always check that
the contacts are located in the probe body only.
56 P7500 Series TriMode Probes Quick Start User Manual
To prevent wear to the probe housing, use only the Bullet tool provided to remove and install the bullets from the
Removing the Bullets
Follow these steps to remove the bullets by
using the removal tool:
Squeeze the tool plunger to extend the
1.
holder tangs.
Insert the tool into the probe body so
2.
that the holder tangs surround one of the
bullets.
Release the plunger to secure the holder
3.
tangs on the bullet.
Gently pull the tool outward to remove the
4.
bullet.
Repeat for the other bullet.
5.
Discard the used bullets to prevent
NOTE.
accidental reuse.
Maintenance
P7500 Series TriMode Probes Quick Start User Manual 57
Maintenance
Inspecting the Bullets and
Connectors
Use a microscope to closely examine the
bullets and connectors. Use the illustrations
to determine if the contacts appear worn or
broken, and always replace them in pairs.
1.
2.
3.
4.
Good
Chipped or bent ground contacts (outer
conductor)
Chipped or bent signal contacts (inner
conductor)
Inner contacts misaligned to outer
conductor
58 P7500 Series TriMode Probes Quick Start User Manual
Installing the Bullets
Squeeze the tool plunger to extend the
1.
holder tangs.
Insert a new bullet into the tool so that the
2.
holder tangs surround the bullet.
Release the plunger to secure the holder
3.
tangs on the bullet.
Insert the tool into the probe body and seat
4.
the bullet in the recess.
Squeeze the tool plunger to release the
5.
bullet.
Gently pull the tool out of the probe body.
6.
Repeat for the other bullet.
7.
Connect and remove a probe tip on the
8.
probe body. Verify that the bullets are
retained in the probe body.
Maintenance
P7500 Series TriMode Probes Quick Start User Manual 59
Maintenance
Replacing the TriMode Solder Tip
Resistors
The resistors that are presoldered to the
tips can break off during normal use. A kit
of replacement resistors is available. (See
page 44,
resistors, do the following:
1.
If a small piece of wire is in the via, heat the
solder and use another piece of wire to push
the wire fragment from the via.
2.
3.
Optional Accessories
Carefully apply a soldering iron to the via on
the tip board and remove the resistor lead.
Work quickly with a low-heat soldering iron.
Add fresh solder to the via, if necessary.
Cut one lead of the replacement resistor to
approximately 0.6” (15 mm) for the long tip,
or 0.2” (5 mm) for the short tip.
.) To replace the
60 P7500 Series TriMode Probes Quick Start User Manual
If you are replacing the resistor on the
4.
extended resistor tip, slide a piece of tubing
included with the resistor kit over the lead.
This will insulate the resistor lead.
Heat the solder in the via and insert the
5.
resistor lead into the via:
until the insulating tube comes into contact
with the tip board, if you are replacing the
resistor on the extended resistor tip.
until the resistor body almost touches the
tip board, if you are replacing the resistor
on the (short) resistor tip.
Cut the excess lead on the bottom of the
6.
board.
Cut the remaining resistor lead to 0.1”
7.
(2.5 mm).
Maintenance
P7500 Series TriMode Probes Quick Start User Manual 61
Maintenance
Handling the Probe
This probe is a precision high-frequency device; exercise care when you use and store the probe. The probe and cable are
susceptible to damage caused by careless use. Always handle the probe at the control box and probe body to avoid undue physical
strain to the probe cable, such as kinking, excessive bending, or pulling. Visible dents in the cable will increase signal aberrations.
CAUTION.
you handle the probe. The probe input contains electronic components that can be damaged by contact with high voltages,
including static discharge.
Observe the following precautions when using the probe. Do not do any of the following:
62 P7500 Series TriMode Probes Quick Start User Manual
To prevent damage to the probe, always use an antistatic wrist strap connected to a static-controlled workstation when
Drop the probe or subject it to physical shock
Subject the probe to adverse weather conditions
Kink or fold the probe cable tighter than a 2 inch radius
Solder the tips with excessive heat or duration
Injure yourself with the sharp tips
Cleaning the Probe
Maintenance
CAUTION.
the probe during exterior cleaning.
Do not use chemical cleaning agents; they may damage the probe. Avoid using chemicals that contain benzine, benzene,
toluene, xylene, acetone, or similar solvents.
Clean the exterior surfaces of the probe with a dry, lint-free cloth or a soft-bristle brush. If dirt remains, use a soft cloth or swab
dampened with a 75% isopropyl alcohol solution and rinse with deionized water. A swab is useful to clean narrow spaces on the
probe; use only enough solution to dampen the swab or cloth. Do not use abrasive compounds on any part of the probe.
To prevent damage to the probe, do not expose it to sprays, liquids, or solvents. Avoid getting moisture inside
P7500 Series TriMode Probes Quick Start User Manual 63
Maintenance
Returning the Probe for Servicing
If your probe requires servicing, you must return it to Tektronix. If the original packaging is unfit for use or not available, use
the following packaging guidelines:
Preparation for Shipment
Use a corrugated cardboard shipping
1.
carton having inside dimensions at
least one inch greater than the probe
dimensions. The box should have a carton
test strength of at least 200 pounds.
Put the probe into an antistatic bag or wrap
2.
it to protect it from dampness.
Place the probe into the box and stabilize it
3.
with light packing material.
Seal the carton with shipping tape.
4.
Refer to
5.
beginning of this manual for the shipping
address.
64 P7500 Series TriMode Probes Quick Start User Manual
Contacting Tektronix
at the
Index
Index
A
Accessories
optional, 44
standard, 38
Adjustments, 34
B
Bullet Contacts, 56
inspecting, 58
installing, 59
removing, 57
C
Calibration
checking the instrument
status, 15
probe, 14
running on the instrument, 19
TriMode, 14
Cleaning the probe, 63
Connecting
tip cables to the probe body, 5
Connecting to circuit with
handheld module, 32, 33
solder tip, 23
Connecting to instruments
with a TekConnect interface, 3
without a TekConnect
interface, 36
Controls and indicators
Atten button and LEDs, 7
Input Mode button and LEDs, 8
Power-on sequence, 4
TriMode, 9
D
Documentation, vi, 39
E
Error conditions
Input Mode, 55
Range & TriMode LEDs, 54
signal display, 54
F
Firmware, 53
Functional check, 10
H
Handling the probe, 62
Host instrument firmware, 53
I
Input Mode, 8, 21, 55
Input tips, 23, 25
Installation, 3
M
Maintenance, 53
O
Operating considerations, 2
Optional accessories, 44
Options, 52
P7500 Series TriMode Probes Quick Start User Manual 65
Index
P
Probe
applications, 37
calibrating, 16
cleaning, 63
handling, 62
Probe controls
Atten button and LEDs, 7, 20
Input Mode button and LEDs, 8,
9, 21
TriMode measurements, 9
R
Related documentation, vi
Replaceable parts
bullet contacts, 56
solder tip resistors, 60
Returning the probe, 64
S
Safety Summary, iii
Solder Tip
connecting, 26
See also
tek.com
Solder Tip Resistors, 45
Standard accessories, 38
Demo video on
T
TriMode Solder Tip
Extended Resistor, 24, 44
replacing resistors, 60
Resistor, 24, 44
66 P7500 Series TriMode Probes Quick Start User Manual
Loading...
