Tektronix P7313 Data Sheet

Z-Active™Differential Probe Family

P7313 • P7380A • P7360A • P7340A

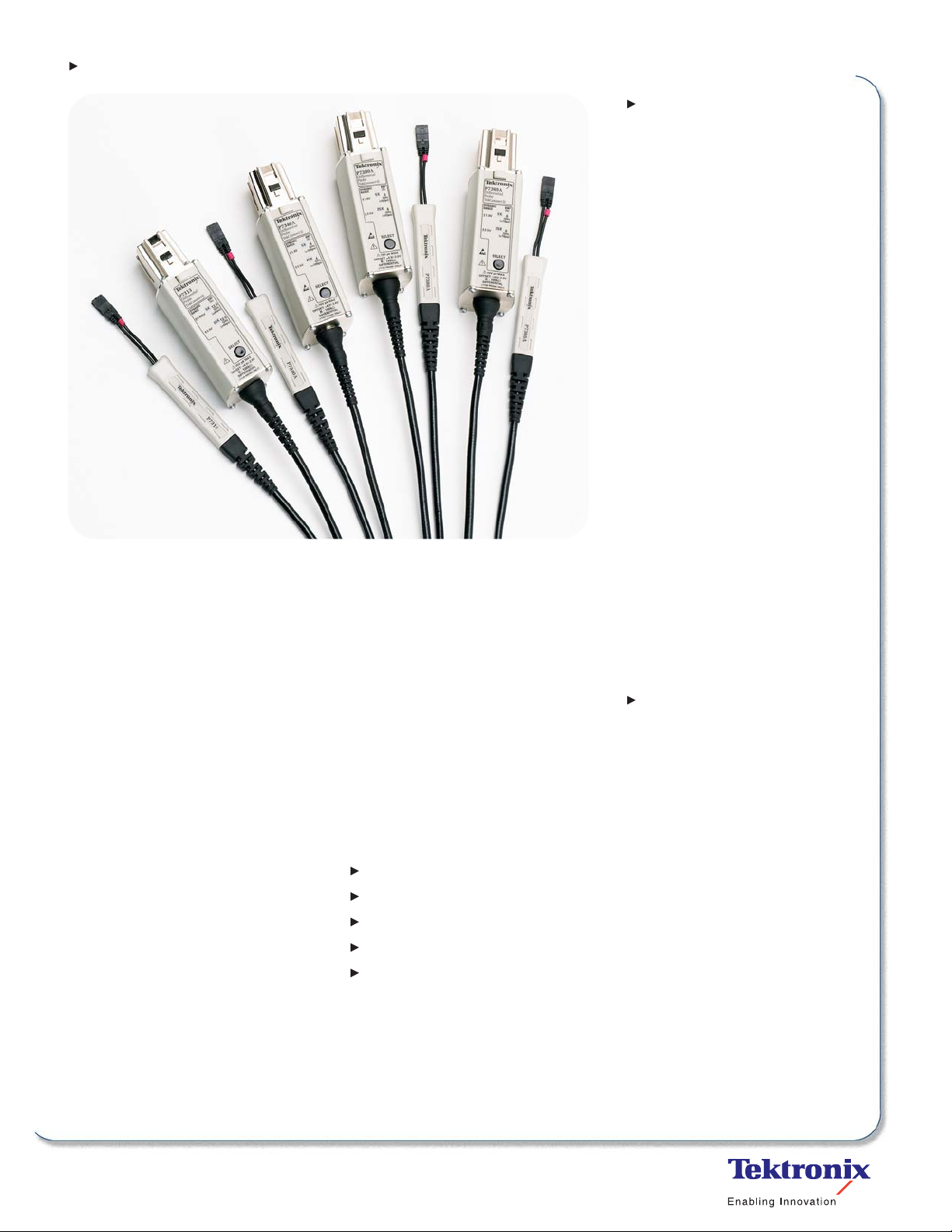

Z-Active Probing Architecture Leads the Way
for High-speed Probing Applications

Tektronix has created a revolutionary
Z-Active probe architecture that sets the
industry benchmark for signal fidelity.
Tektronix active probe architecture pre­serves high bandwidth while providing
improved connectivity with low loading.
The Z-Active architecture is a hybrid
approach composed of a distributed
attenuator topology feeding an active
probe amplifier.

The Z-Active probes use a tiny passive
probe tip element that is separate from
the amplifier, extending the usable reach
of the probe. In traditional active probes,
adding this much length can introduce
signal fidelity problems. However, this
architecture maintains high DC input
resistance and presents a higher AC

impedance than previous probe architec­tures. It accomplishes this while providing
significant length between the probe body
and the probe attachment point to the
DUT. This architecture provides the best
of both worlds: high DC impedance like
existing active probes and the stable
high frequency loading of Z

probes.

0

Signal Fidelity

You can be confident in the signal fidelity
of your measurements because the
Z-Active architecture provides:

High bandwidth

Excellent step response

Low loading

High CMRR

Extended Linear Dynamic Range

Features & Benefits

Signal Fidelity
– >12.5 GHz Bandwidth

(P7313, Typical)

– >8.0 GHz Bandwidth

(P7380A, Typical)

– >6.0 GHz Bandwidth

(P7360A, Typical)

– >4.0 GHz Bandwidth

(P7340A, Typical)

Extended Linear Dynamic Range
– 1.25 V

(P7313)

–4 V

(P7313)

–2 V

(P7380A, P7360A, P7340A)

–5 V

(P7380A, P7360A, P7340A)

Low Probe Loading
– DC Input Resistance

– 100 kΩ Differential
– 50 kΩ Single-ended

– AC Loading

– Z
(P7313)
– Z
(P7380A, P7360A, P7340A)

Versatility
– Make Differential or Single-

ended (ground referenced)

Measurements
– Solder Down Capability
– Handheld Probing with Variable

Spacing and Compliance
– Fixtured Probing

Interchangeable Tip-Clip
Assemblies
– Connect to a Variety of Devices
– Economical

TekConnect®Interface

@ 5X Attenuation

pk-pk

@ 25X Attenuation

pk-pk

@ 5X Attenuation

pk-pk

@ 25X Attenuation

pk-pk

>200 Ω out to 10 GHz

min

>290 Ω 4 GHz to 8 GHz

min

*1

™

Applications

Examples Include, but Are Not
Limited to:
– PCI-Express I & II, Serial ATA II,

USB 2.0, DDRII, DDRIII, Fireware

1394b, Rambus, XAUI

*1 For details, please see application note

60W-18344-0, “Making Single-ended
Measurements with Differential Probes.”

Z-Active™Differential Probe Family

P7313 • P7380A • P7360A • P7340A

Extended Linear Dynamic Range

Many of today’s logic signals and serial bus
signals require the capability to measure
up to several volts peak to peak. These
voltage levels may easily be viewed with
the Z-Active architecture probes (P7380A,
P7360A and P7340A) with the extended
linear dynamic range. With a 2.0 V

pk-pk

linear dynamic input range at the 5X
attenuation setting, you can accurately
measure DDR II & III, Firewire 1394b and
PCI-Express I & II signals at reduced
noise levels. In addition, the 25X attenu­ation setting’s linear dynamic input voltage
range can be used up to 5.0 V

pk-pk

for

accessing even larger signal swings

Connectivity

The Z-Active probe design allows the
probe to easily switch between soldered,
handheld or fixtured applications.

This family of probes uses Tip-Clip

™

assemblies, an interchangeable probe tip
system that enables customers to
configure their probe with the optimal tip
for their application. These detachable
assemblies make it possible to replace
a tip for a fraction of the cost formerly
associated with such hardware changes.
The several lengths and variable spacing
of the assemblies provide flexibility for
adapting to vias and other test points

of differing sizes. With Tektronix Tip-Clip
assemblies, Monday’s solder-in probe
can become Tuesday’s handheld tool,
simply by switching tips.

Value

The combination of the Z-Active archi­tecture and the Tip-Clip assemblies
provide superior signal fidelity at a cost­effective price. The inexpensive Tip-Clip
assemblies enable full performance
solder connections at a very low price
per connection. Over the life of a probe,
this can add up to significant savings
in the cost of operation.

found during transition times.

Characteristics

P7340A P7360A P7380A P7313

Bandwidth (typical) >4 GHz >6 GHz >8 GHz >12.5 GHz

Rise Time (10% to 90%) <100 ps <70 ps <55 ps <40 ps
(Guaranteed)

Rise Time (20% to 80%) <70 ps <50 ps <35 ps <25 ps
(typical)

Attenuation 5X or 25X, user selectable

Differential Input Range ±1.0 V (5X) ±0.625 V (5X)

±2.5 V (25X) ±2.0 V (25X)

Linearity Error for Differential ±0.5% for –0.5 V to +0.5 V (5X) ±0.25% for
Input Dynamic Range (typical) ±1.0% for –0.75 V to +0.75 V (5X) –0.5 V to +0.5 V (5X)

±2.0% for –1.0 V to +1.0 V (5X) ±0.75% for

–0.625 V to

+0.625 V (5X)
±0.5% for –1.5 V to +1.5 V (25X)
±1.0% for –2.5 V to +2.5 V (25X) ±0.5% for
±2.0% for –3.0 V to +3.0 V (25X) –1.6 V to +1.6 V (25X)

±1.0% for

–2.0 V to +2.0 V (25X)

Operating Voltage Window +5.0 V to –3.0 V +4.0 V to –3.0 V

Offset Voltage Range +4.0 V to –3.0 V
DC Input Resistance 100 kΩ

AC Loading (Differential Z
Noise <31 nV/√Hz (5X)

CMRR >50 dB at 1 MHz >50 dB at 1 MHz >50 dB at 1 MHz >50 dB at 1 MHz

Non-Destructive Input Range ±15 V

Interface TekConnect

Cable Length 1.5 m 1.5 m 1.2 m 1.2 m

) >290 Ω >200 Ω

min

<75 nV/√Hz (25X)

>35 dB at 1 GHz >35 dB at 1 GHz >35 dB at 1 GHz >35 dB at 1 GHz
>20 dB at 4 GHz >20 dB at 6 GHz >20 dB at 8 GHz >20 dB at 6 GHz

®

>15 dB at 12.5 GHz

Differential Probes • www.tektronix.com/accessories

2

Ordering Information

Z-Active™Differential Probe Family

P7313 • P7380A • P7360A • P7340A

P7313

>12.5 GHz Z-Active™Differential
Probe for TekConnect

®

Interface.

Includes: See Standard Accessories
table.

P7380A

>8.0 GHz Z-Active Differential
Probe for TekConnect

®

Interface.

Includes: See Standard Accessories
table.

P7360A

>6.0 GHz Z-Active Differential
Probe for TekConnect Interface.

Includes: See Standard Accessories
table.

P7340A

>4.0 GHz Z-Active Differential
Probe for TekConnect Interface.

Includes: See Standard Accessories
table.

Standard Accessories

Description P7340A P7360A P7380A P7313 Reorder Part Number

Pouch, Nylon Carrying Case with Inserts 1 each 1 each 1 each 1 each 016-1952-xx Qty 1

Accessory Performance Summary 1 each 1 each 1 each 1 each 001-1389-xx Qty 1
and Reorder Sheet

User Manual – Printed 1 each 1 each 1 each 1 each 020-2640-xx Qty 1 – Opt. L0
Includes Reply Card and CD 020-2648-xx Qty 1 – Opt. L5

040-2649-xx Qty 1 – Opt. L7

BNC (M)-to-Minigrabber Adapter 1 each 1 each 1 each 1 each 013-0342-xx Qty 1

Anti-static Wrist Strap 1 each 1 each 1 each 1 each 006-3415-xx Qty 1

Magnifying Glasses 1 each 1 each 1 each 1 each 378-0486-xx Qty 1

Calibration Data Report 1 each 1 each 1 each 1 each Opt. D1

Handheld Probe Adapter 1 each 1 each 1 each 1 each 015-0717-xx

Accessory Box and Contents 1 each P7313: 020-2636-xx

1 each P7380A: 020-2557-xx

1 each P7360A: 020-2690-xx

1 each P7340A: 020-2690-xx

Attachment Kit 1 each 1 each 1 each 1 each 016-1953-xx Qty 1

Velcro Fastening Strap 10 each 10 each 10 each 10 each —

Velcro Fastening Dots 10 each 10 each 10 each 10 each —

Adhesive Tip-Clip Tape

*2

(strip of 10) 3 each 3 each 3 each 3 each —

Color Band Kit (2 each of 5 colors) 1 each 1 each 1 each 1 each 016-1948-xx Qty 1

Short Flex, Small Resistor Tip-Clip Assembly 2 each 2 each 3 each 3 each 020-2600-xx Qty 10

Medium Flex, Small Resistor Tip-Clip Assembly 2 each 2 each 3 each 3 each 020-2602-xx Qty 10

Long Flex, Small Resistor Tip-Clip Assembly 2 each 2 each 3 each 3 each 020-2604-xx Qty 10

Variable Spacing Tip-Clip Kit 3 each 3 each 3 each 3 each 020-2596-xx (Kit of 3)

Square Pin Adapter Tip-Clip 1 each 1 each 1 each 1 each 020-2701-xx (Kit of 3)

Tip-Clip Ejector

*2

3 each 3 each 3 each 3 each —

HBW Straight Flex Tip-Clip Assembly — — — 3 each 020-2639-xx Qty 10

020-2657-xx Qty 5

HBW Right-Angle Flex Tip-Clip Assembly — — — 3 each 020-2638-xx Qty 10

020-2656-xx Qty 5

Wire Replacement Kit — — — 1 each 020-2644-xx Qty 1

Short Flex, Large Resistor 1/8 — — 3 each — 020-2601-xx Qty 10
W Tip-Clip Assembly

Long Flex, Large Resistor 1/8 — — 3 each — 020-2605-xx Qty 10
W Tip-Clip Assembly

Medium Flex, Large Resistor 1/8 2 each 2 each 3 each — 020-2603-xx Qty 10
W Tip-Clip Assembly

*2

Tip-Clip Ejectors and Tip-Clip Tape are shipped standard with the 020-xxxx-xx Tip-Clip Assembly Kits.

Differential Probes • www.tektronix.com/accessories

3

Z-Active™Differential Probe Family

P7313 • P7380A • P7360A • P7340A

Recommended Accessories

Description P7360 P7380 P7313 Part Number

Probe Positioner Yes Yes Yes PPM100

Probe Positioner Yes Yes Yes PPM203B

PPM203B, PPM100 Adapter Fixture Yes Yes Yes 013-0339-00

Calibration Fixture Yes Yes Yes P7340A: 067-0419-xx

DSA8200 Series TekConnect

®

Yes Yes Yes 80A03

Probe Interface

Deskew Fixture Yes Yes Yes 067-1586-00

Real-Time Spectrum Analyzer Yes Yes Yes RTPA2A
TekConnect Probe Adapter

Service Options

Opt. CA1 – A single calibration event or coverage
for the designated calibration interval, whichever
comes first.

Opt. C3 – Calibration Service 3 years.
Opt. C5 – Calibration Service 5 years.
Opt. D3 – Calibration Data Report 3 years

(with Opt. C3).
Opt. D5 – Calibration Data Report 5 years

(with Opt. C5).

Opt. R3 – Repair Service 3 years.
Opt. R5 – Repair Service 5 years.

Language Options

Opt. L0 – English Manual.
Opt. L5 – Japanese Manual.
Opt. L7 – Simplified Chinese Manual.

Additional Service Products
Available During Warranty
(DW) or Post Warranty (PW)

P7313-CA1 – A single calibration event or
coverage for the designated calibration interval,
whichever comes first.

P7313-R1PW – Repair service coverage 1 year
post warranty.

P7313-R2PW – Repair service coverage 2 year
post warranty.

P7313-R3DW – Repair service coverage 3 years
(includes product warranty period); 3-year period
starts at time of customer instrument purchase.

P7313-R5DW – Repair service coverage 5 years
(includes product warranty period); 5-year period
starts at time of customer instrument purchase.

P7340A-CA1 – A single calibration event or
coverage for the designated calibration interval,
whichever comes first.

P7340A-R1PW – Repair service coverage 1 year
post warranty.

P7340A-R2PW – Repair service coverage 2 year
post warranty.

P7340A-R3DW – Repair service coverage 3 years
(includes product warranty period); 3-year period
starts at time of customer instrument purchase.

P7340A-R5DW – Repair service coverage 5 years
(includes product warranty period); 5-year period
starts at time of customer instrument purchase.

P7360A-CA1 – A single calibration event or
coverage for the designated calibration interval,
whichever comes first.

P7360A-R1PW – Repair service coverage 1 year
post warranty.

P7360A-R2PW – Repair service coverage 2 year
post warranty.

P7360A-R3DW – Repair service coverage 3 years
(includes product warranty period); 3-year period
starts at time of customer instrument purchase.

P7360A-R5DW – Repair service coverage 5 years
(includes product warranty period); 5-year period
starts at time of customer instrument purchase.

P7380A-CA1 – A single calibration event or
coverage for the designated calibration interval,
whichever comes first.

P7380A-R1PW – Repair service coverage 1 year
post warranty.

P7380A-R2PW – Repair service coverage 2 year
post warranty.

P7380A-R3DW – Repair service coverage 3 years
(includes product warranty period); 3-year period
starts at time of customer instrument purchase.

P7380A-R5DW – Repair service coverage 5 years
(includes product warranty period); 5-year period
starts at time of customer instrument purchase.

P7360A: 067-0419-xx
P7380A: 067-0419-xx

P7313: 067-1616-xx

Contact Tektronix:

ASEAN / Australasia (65) 6356 3900

Austria [phone]

Balkan, Israel, South Africa and other ISE Countries [phone]

Belgium 07 81 60166

Brazil & South America (11) 40669400

Canada 1 [phone]

Central East Europe, Ukraine and the Baltics +41 52 675

3777

Central Europe & Greece [phone]

Denmark [phone]

Finland [phone]

France [phone]

Germany [phone]

Hong Kong (852) 2585-6688

India (91) 80-22275577

Italy [phone]

Japan 81 (3) 6714-3010

Luxembourg [phone]

Mexico, Central America & Caribbean 52 (55) 5424700

Middle East, Asia and North Africa [phone]

The Netherlands 090 02 021797

Norway 800 16098

People’s Republic of China 86 (10) 6235 1230

Poland [phone]

Portugal 80 08 12370

Republic of Korea 82 (2) 528-5299

Russia & CIS [phone]

South Africa [phone]

Spain ([phone]

Sweden 020 08 80371

Switzerland [phone]

Taiwan 886 (2) 2722-9622

United Kingdom & Eire [phone]

USA 1 [phone]

For other areas contact Tektronix, Inc. at: 1 [phone]

Updated 15 September 2006

Our most up-to-date product information is available at:

www.tektronix.com

Product(s) are manufactured in ISO registered facilities.

Product(s) complies with IEEE Standard 488.1-1987, RS-232-C, and with
Tektronix Standard Codes and Formats.

Copyright © 2007, Tektronix. All rights reserved. Tektronix products are covered
by U.S. and foreign patents, issued and pending. Information in this publication
supersedes that in all previously published material. Specification and price
change privileges reserved. TEKTRONIX and TEK are registered trademarks
of Tektronix, Inc. All other trade names referenced are the service marks,
trademarks or registered trademarks of their respective companies.

11/07 JS/WOW 51W-17891-8
