P6434 - General-purpose Probe and Accessories for
TLA7Lx/7Mx, TLA7Nx/7Px/7Qx Logic Analyzer
Modules

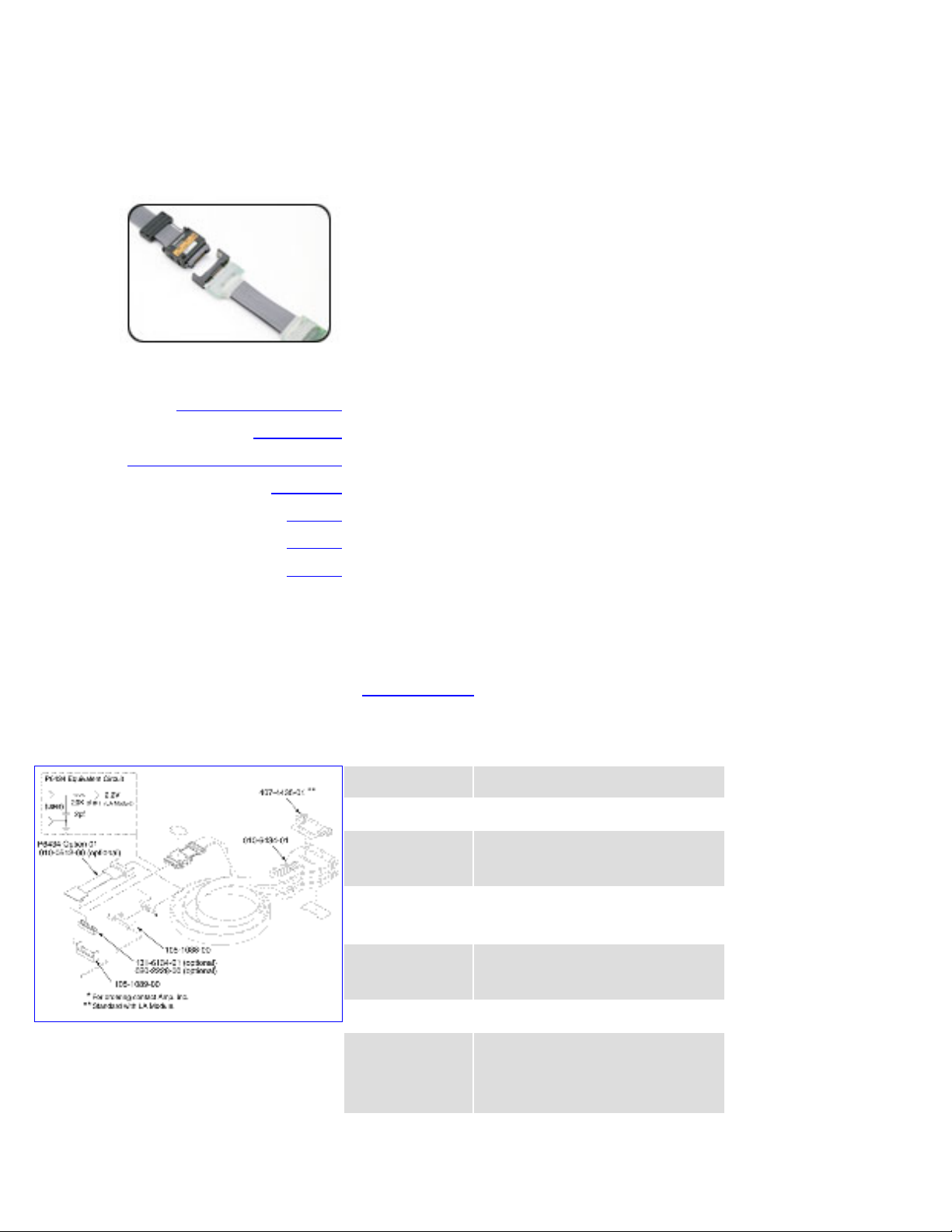

The P6434 is a lightweight probe with quick connect/disconnect
and a positive latching mechanism to ensure a secure, reliable
connection. It is for use with:
applications where you have designed in the AMP Mictor
high-density connectors into your target system, or
●
direct connection to newer TLA family processor/bus
support probe adapters with AMP Mictor 34 channel
probe connectors.
●
An optional low-profile adapter for low-clearance applications is also available. This probe is
recommended for all high-density applications. Probe Cable Length - 1.5 m (5ft.)*
For more information please view the User Manual
Part Number Description
010-6434-00 34 Channel Probe
N/A 1 Sheet of probe labels (not
installed)
105-1088-00 1 Latch housing assembly,
Edge-mount
105-1089-00 1 Latch housing assembly,
Vertical
070-9793-02 P6434 Instruction Manual
131-6134-01 (optional) 1 each - AMP
Mictor Connector,
Surface-mount
020-2228-00 (optional) 21 each - AMP
Mictor Connector,
Surface-mount
P6418 - General-purpose Probe and Accessories for TLA7Lx/7Mx, TLA7Nx/7Px/7Qx
Logic Analyzer Modules

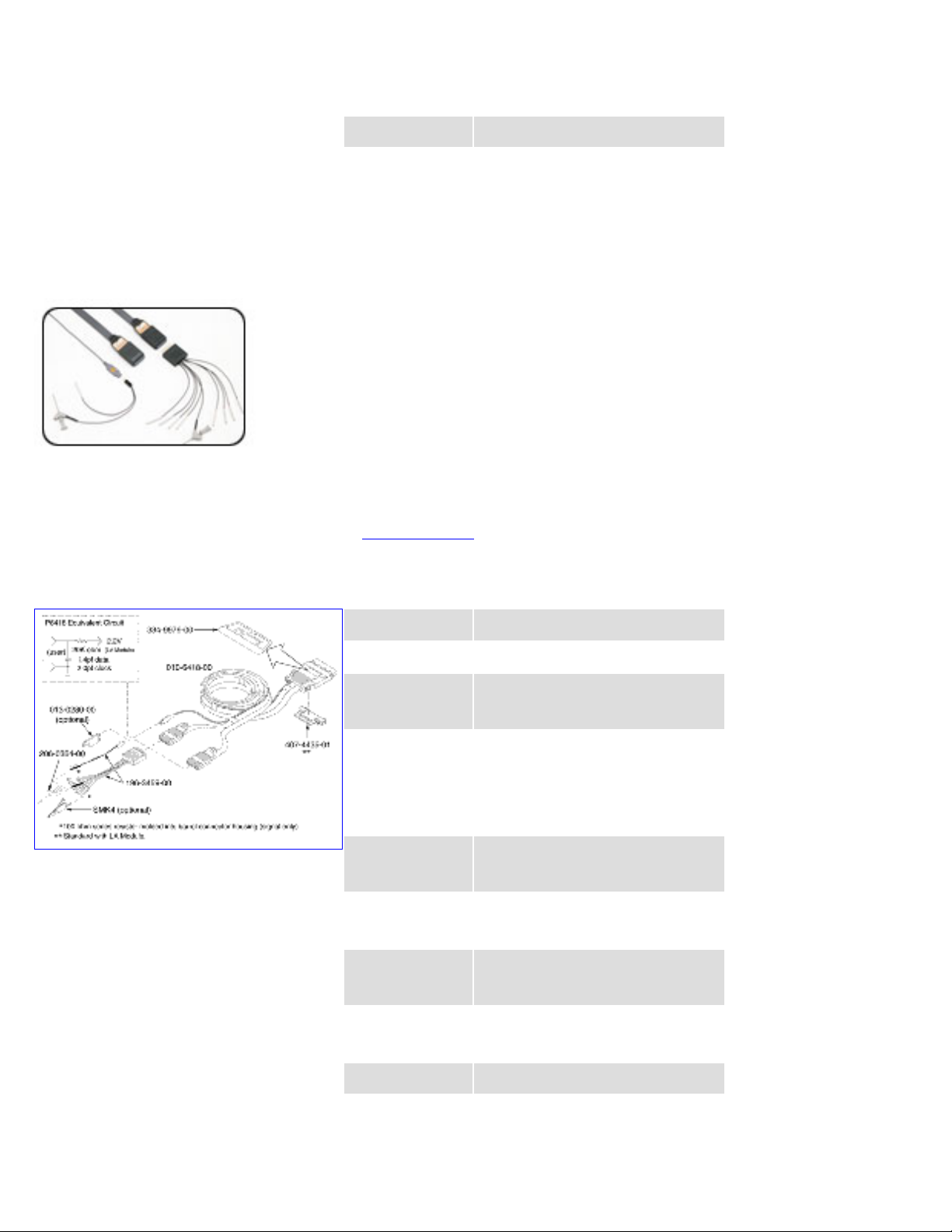

The P6418 is a 17 channel general-purpose probe with leadsets and grabber
tips for use with: probing individual test points within your target system,
either directly or with a test clip, or direct connection to legacy TLA family
processor/bus support probe adapters with 8 channel probe connectors.
The P6418 works with a wide-range of industry-standard probing accessories
for flexible attachment to your target system. This probe is recommended for most general-purpose
applications. Probe Cable Length - 1.9 m (6.25 ft.)*
For more information please view the User Manual
Part Number Description
010-6418-00 17 Channel Probe
334-9979-00 1 Sheet of probe labels (not
installed)
196-3459-00 2 each - 8 channel leadsets
(barrel connectors) and 1
each - 1 channel leadset
(barrel connectors)
206-0364-00 20 each - SMT KlipChip
grabber tips
013-0280-00 (optional) One to Two
Adapter
SMK4 (optional) Micro KlipChip
grabber tip adapter, 4 each
071-0567-00 P6417/P6418
Instruction Manual
P6417 - General-purpose Probe and Accessories for TLA7Lx/7Mx, TLA7Nx/7Px/7Qx
Logic Analyzer Modules
The P6417 is a 17 channel general-purpose probe that is similar to the P6418
with the additional capability that it allows you to separate the 8 channel
podlet groups into individual channels for both maximum electrical
performance and maximum distance between adjacent channels. This probe is
recommended for those general-purpose applications that require maximum
flexibility. Probe Cable Length - 1.8 m (6 ft.)*
For more information please view the User Manual.
Part Number Description
010-6417-00 17 Channel Probe
N/A 2 each - 8 channel podlet
holders (installed)
N/A 1 Set of 17 podlet color
coding bands (installed)
334-9239-00 1 Sheet of probe labels (not
installed)
196-3459-00 2 each - 8 channel leadsets
(barrel connectors) and 1
each - 1 channel leadset
(barrel connectors)
206-0364-00 20 each - SMT KlipChip
grabber tips
013-0280-00 (optional) One to Two
Adapter
SMK4 (optional) Micro KlipChip
grabber tip adapter, 4 each
071-0567-00 P6417/P6418 Instruction
Manual
*All three probes have the same electrical length.
