Instruction Manual
P6201
900 MHz FET Probe
070-1306-04
Warning
The servicing instructions are for use by qualified
personnel only. To avoid personal injury, do not
perform any servicing unless you are qualified to
do so. Refer to all safety summaries prior to
performing service.
www.tektronix.com
Copyright © T ektronix, Inc. All rights reserved.
T ektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supercedes
that in all previously published material. Specifications and price change privileges reserved.
T ektronix, Inc., P.O. Box 500, Beaverton, OR 97077
TEKTRONIX and TEK are registered trademarks of T ektronix, Inc.
WARRANTY
Tektronix warrants that this product will be free from defects in materials and workmanship for a period of one (1) year from the
date of shipment. If any such product proves defective during this warranty period, Tektronix, at its option, either will repair the
defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product.
In order to obtain service under this warranty, Customer must notify Tektronix of the defect before the expiration of the warranty
period and make suitable arrangements for the performance of service. Customer shall be responsible for packaging and
shipping the defective product to the service center designated by Tektronix, with shipping charges prepaid. Tektronix shall
pay for the return of the product to Customer if the shipment is to a location within the country in which the Tektronix service
center is located. Customer shall be responsible for paying all shipping charges, duties, taxes, and any other charges for
products returned to any other locations.
This warranty shall not apply to any defect, failure or damage caused by improper use or improper or inadequate maintenance
and care. Tektronix shall not be obligated to furnish service under this warranty a) to repair damage resulting from attempts by
personnel other than Tektronix representatives to install, repair or service the product; b) to repair damage resulting from
improper use or connection to incompatible equipment; or c) to service a product that has been modified or integrated with
other products when the effect of such modification or integration increases the time or difficulty of servicing the product.
THIS WARRANTY IS GIVEN BY TEKTRONIX WITH RESPECT TO THIS PRODUCT IN LIEU OF ANY OTHER
WARRANTIES, EXPRESSED OR IMPLIED. TEKTRONIX AND ITS VENDORS DISCLAIM ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TEKTRONIX' RESPONSIBILITY TO REPAIR OR
REPLACE DEFECTIVE PRODUCTS IS THE SOLE AND EXCLUSIVE REMEDY PROVIDED TO THE CUSTOMER FOR
BREACH OF THIS WARRANTY. TEKTRONIX AND ITS VENDORS WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES IRRESPECTIVE OF WHETHER TEKTRONIX OR THE VENDOR HAS
ADVANCE NOTICE OF THE POSSIBILITY OF SUCH DAMAGES.
EC Declaration of Conformity
We
Tektronix Holland N.V.
Marktweg 73A
8444 AB Heerenveen
The Netherlands
declare under sole responsibility that the
P6201
meets the intent of Low Voltage Directive 73/23/ECC for Product Safety. Compliance
was demonstrated to the following specifications as listed in the Official Journal of the
European Communities:
EN 61010-1 Safety requirements for electrical equipment for
measurement, control, and laboratory use
EN 61010-2-031:1994
Particular requirements for hand-held probe assemblies for
electrical measurement and test
Contacting Tektronix
Phone 1-800-833-9200*
Address Tektronix, Inc.
Department or name (if known)
14200 SW Karl Braun Drive
P.O. Box 500
Beaverton, OR 97077
USA
Web site www.tektronix.com
Sales support 1-800-833-9200, select option 1*
Service support 1-800-833-9200, select option 2*
Technical support Email: techsupport@tektronix.com
1-800-833-9200, select option 3*
6:00 a.m. – 5:00 p.m. Pacific time
* This phone number is toll free in North America. After office hours, please leave a
voice mail message.
Outside North America, contact a Tektronix sales office or distributor; see the
Tektronix web site for a list of offices.
Maximum NonĆDeĆ
struct Input Voltage
(AC or DC Coupled)
10X and 100X
±50 V, CAT I, derated with frequency.
See voltage versus frequency curve.
±200 V (DC + peak AC), CAT I,
derated with frequency. See voltage
versus frequency curve.
6,560 feet (2,000 m).
PROBE ONLY (1X)
PROBE + 100X ATTEN.
PROBE + 10X ATTEN.
Maximum non-destruct input voltage
Maximum usable input voltage
Finger Guard
for 100X, 62 V for 10X.
Attenuation
Probe 10X 100X
+6.2 V +62 V +200 V
+5.6 V +56 V +200 V
+0.6 V +6 V +60 V
Input Voltage
0
-0.6 V -6 V -60 V
-5.6 V -56 V -200 V
-6.2 V -62 V -200 V
Fig. 2Ć2 Dynamic and offset limitations for the P6201 Probe and the probe with attenuators.
Voltage limits
Offset voltage range
Signal amplitude
limit within the
offset and signal
voltage range
1
DC + peak AC
voltage range
1
Signal amplitude limit within the DC offset range.
2
Offset range
3
Limits for the combined signal and offset.
2
3
50 V
2-4
Replaceable Electrical Parts
Parts Ordering Information
Replacement parts are available from or through
your local Tektronix, Inc. Field Office or representaĆ
tive.
When ordering parts, include the following informaĆ
tion in your order: part number, instrument type or
number, serial number, and modification number if
applicable.
If a part you have ordered has been replaced with a
new or improved part, your local Tektronix, Inc. Field
Office or representative will contact you concerning
any change in part number.
Change information, if any, is located at the rear of
this manual.
List of Assemblies
A list of assemblies can be found at the beginning of
the electrical parts list. The assemblies are listed in
numerical order. When the complete component
number of a part is known, this list will identify the
assembly in which the part is located.
Cross IndexĆMfr. Code Number to
Manufacturer
The Mfg. Code Number to Manufacturer Cross Index
for the electrical parts list is located immediately after
this page. The cross index provides codes, names,
and addresses of manufacturers of components
listed in the electrical parts list.
Abbreviations
P6201 Probe
Example a. component number
A23R1234 A23 R1234
Assembly number
Read: Resistor 1234 of Assembly 23
Example b. component number
A23A2R1234 A23 R1234
Assembly number
Read: Resistor 1234 of Subassembly 2 of Assembly 23
A2
Subassembly number
Circuit number
Circuit
number
Component Number
(column 1 of the parts list)

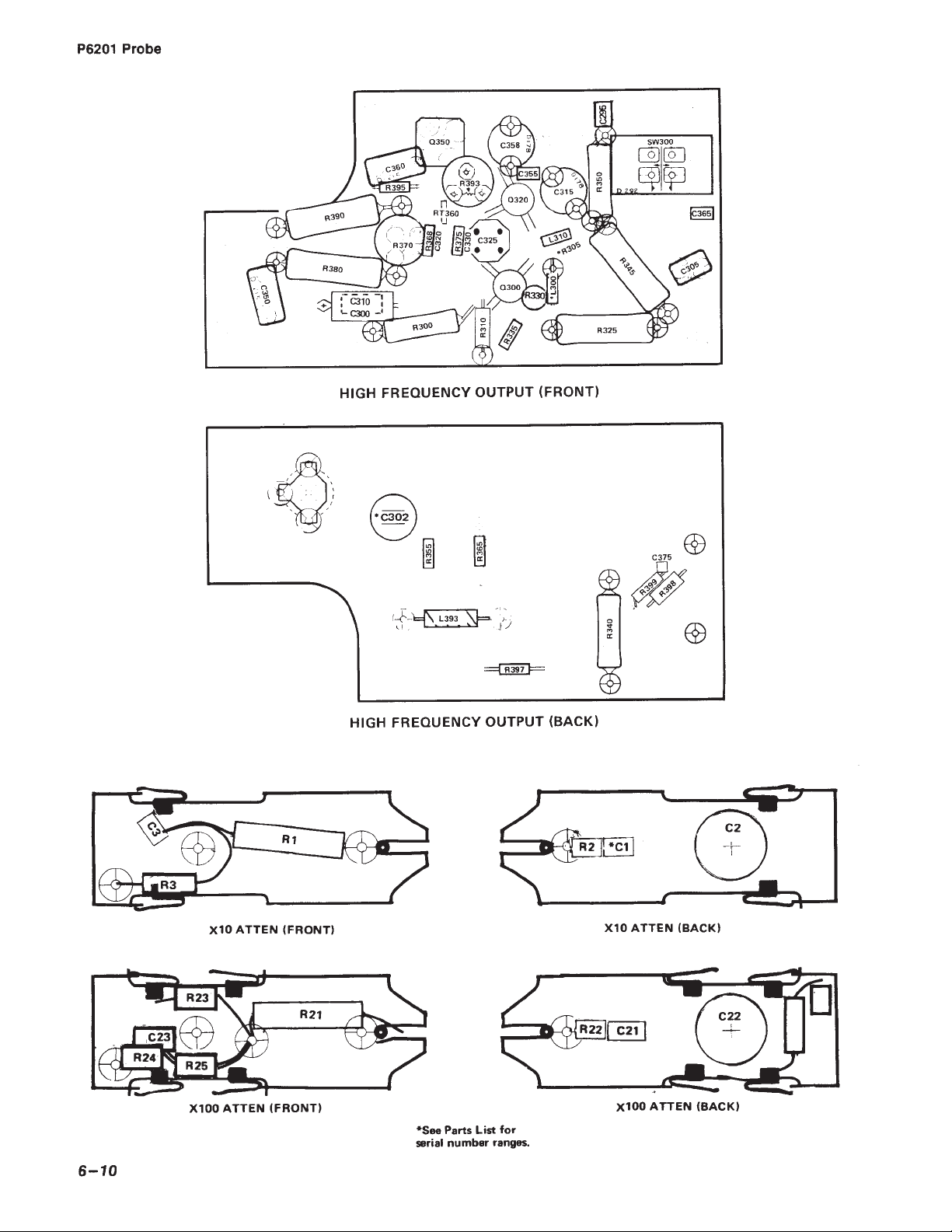

The circuit component's number appears on the
diagrams and circuit board illustrations. Each diaĆ
gram and circuit board illustration is clearly marked
with the assembly number. Assembly numbers are
also marked on the mechanical exploded views
located in the mechanical parts list. The component
number is obtained by adding the assembly number
prefix to the circuit number.
The electrical parts list is divided and arranged by
assemblies in numerical sequence (e.g., assembly
A1 with its subassemblies and parts, precedes
assembly A2 with its subassemblies and parts).
ChassisĆmounted parts have no assembly number
prefix and are located at the end of the electrical
parts list.
Tektronix Part No.
(column 2 of the parts list)
Indicates part number to be used when ordering
replacement part from Tektronix.
Abbreviations conform to American National StanĆ
dard Y1.1.
6-1
P6201 Probe
Serial No.
(columns 3 & 4 of the parts list)
incomplete. For further item name identification, the
U.S. Federal Catalog handbook H6Ć1 can be utilized
where possible.
Column three (3) indicates the serial number at
which the part was first used. Column four (4) indiĆ
cates the serial number at which the part was reĆ
moved. No serial number entered indicates part is
good for all serial numbers.
Mfr. Code
(column 6 of the parts list)
Indicates the code number of the actual manufacturĆ
er of the part. (Code to name and address cross
Name & Description
reference can be found immediately after this page.)
(column five of the parts list)
In the parts list, an item name is separated from the
description by a colon (:). Because of space limitaĆ
tions, an item name may sometimes appear as
Mfr. Part No.
(column 7 of the parts list)
Indicates actual manufacturer's part number.
CROSS INDEX - MFR. CODE NUMBER TO MANUFACTURER
Mfr.
Code
TK1727
0JR03 ZMAN MAGNETICS INC 7633 S 180th KENT WA 98032
01121 ALLEN-BRADLEY CO 1201 S 2ND ST MILWAUKEE WI 53204-2410
04222 AVX CERAMICS
04426 ITW SWITCHES
04713 MOTOROLA INC
12697 CLAROSTAT MFG CO INC LOWER WASHINGTON ST DOVER NH 03820
12954 MICROSEMI CORP - SCOTTSDALE 8700 E THOMAS RD
14298 INSILCO CORP
19701 PHILIPS COMPONENTS DISCRETE
23223 CTS CORP
24165 SPRAGUE ELECTRIC CO 267 LOWELL ROAD HUDSON NH 03051
24546 BRADFORD ELECTRONICS 550 HIGH ST BRADFORD PA 16701-3737
25403 PHILIPS COMPONENTS DISCRETE
27014 NATIONAL SEMICONDUCTOR CORP 2900 SEMICONDUCTOR DR SANTA CLARA CA 95051-0606
29454 JOHANSON DIELECTRICS INC 2210 SCREENLAND DR
Manufacturer Address City, State, Zip Code
PHILIPS NEDERLAND BV
AFD ELONCO
DIV OF AVX CORP
DIV OF ILLINOIS TOOL WORKS INC
SEMICONDUCTOR PRODUCTS SECTOR
ACIC DIV
PRODUCTS
DIV RESISTIVE PRODUCTS FACILITY
AIRPORT ROAD
MICROELECTRONICS DIV
PRODUCTS
DIV DISCRETE SEMICONDUCTOR GROUP
POSTBUS 90050 5600 PB EINDHOVEN THE
19TH AVE SOUTH
P O BOX 867
6615 W IRVING PARK RD CHICAGO IL 60634-2410
5005 E MCDOWELL RD PHOENIX AZ 85008-4229
P O BOX 1390
PAMLICO BLDG SUITE 209
3306 EAST CHAPEL HILL NELSON HWY
PO BOX 760 MINERAL WELLS TX 76067-0760
1201 CUMBERLAND AVE WEST LAFAYETTE IN 47902
GEORGE WASHINGTON HWY SMITHFIELD RI 02917
PO BOX 6465
NETHERLANDS
MYRTLE BEACH SC 29577
SCOTTSDALE AZ 85252
RESEARCH TRIAGLE PARK NC 27709
BURBANK CA 91505-1137
6-2
P6201 Probe
CROSS INDEX - MFR. CODE NUMBER TO MANUFACTURER
Mfr.
Code
32997
51406 MURATA ERIE NORTH AMERICA INC
51642 CENTRE ENGINEERING INC 2820 E COLLEGE AVE STATE COLLEGE PA 16801-7515
52262 MICROPLEX INC 2126 S LYON ST SANTA ANA CA 92705-5304
52763 STETCO INC 3344 SCHIERHORN FRANKLIN PARK IL 60131
54583 TDK ELECTRONICS CORP 12 HARBOR PARK DR PORT WASHINGTON NY 11550
56845 DALE ELECTRONICS INC 2300 RIVERSIDE BLVD
59660 TUSONIX INC 7741 N BUSINESS PARK DR
64537 KDI ELECTRONICS INC
73138 BECKMAN INDUSTRIAL CORP
79727 C-W INDUSTRIES 130 JAMES WAY SOUTHAMPTON PA 18966-3818
80009 TEKTRONIX INC 14150 SW KARL BRAUN DR
80031 MEPCO/ELECTRA INC 22 COLUMBIA RD MORRISTOWN NJ 07960
84411 AMERICAN SHIZUKI CORP
91637 DALE ELECTRONICS INC 2064 12TH AVE
BOURNS INC
TRIMPOT DIV
HEADQUARTERS AND GEORGIA
OPERATIONS
SUBSIDIARY OF KDI CORP
BECKMAN ELECTRONIC TECHNOLOGIES
SUB OF EMERSON ELECTRIC
OGALLALA OPERATIONS
1200 COLUMBIA AVE RIVERSIDE CA 92507-2114
2200 LAKE PARK DR SMYRNA GA 30080
PO BOX 74
PO BOX 37144
31 FARINELLA DR EAST HANOVER NJ 07936
4141 PALM ST FULLERTON CA 92635
PO BOX 500
301 WEST O ST OGALLALA NE 69153-1844
PO BOX 609
City, State, Zip CodeAddressManufacturer
NORFOLK NE 68701-2242
TUCSON AZ 85740-7144
BEAVERTON OR 97077-0001
COLUMBUS NE 68601-3632
6-3
P6201 Probe
Component
Number
A1
A2 670-2211-XX CIRCUIT BD ASSY:ATTENUATOR 80009 6702211XX
A3 670-2212-XX CIRCUIT BD ASSY:100X ATTEN 80009 6702212XX
A4 670-2296-XX CIRCUIT BD ASSY:HI FREQ OUTPUT AMPLIFIER 80009 6702296XX
A5 670-2297-XX CIRCUIT BD ASSY:LOW FREQ OUTPUT AMPLIFIER 80009 6702297XX
C1 283-0310-00 B010100 B039999 CAP,FXD,CER DI:2.5PF,+/-0.25PF,100V 04222 08051A2R5CATBE
C2 (NONREPLACEABLE SUBPART OF 670-2211-XX)
C3 283-0310-00 B010100 B059999 CAP,FXD,CER DI:2.5PF,+/-0.25PF,100V 04222 08051A2R5CATBE
C3 283-0311-00 B060000 B076839 CAP,FXD,CER DI:4.7PF,+/-0.25PF,100V 04222 10051A4R7CATBA
C3 283-5028-00 B076840 CAP,FXD,CER DI:4.7PF,5%,50V 04222 08055A4R7DATMC
C21 283-0320-00 CAP,FXD,CER DI:1PF,0.25%,50V 54583 C2012C0G1H010C-
C22 (NONREPLACEABLE SUBPART OF 670-2212-XX)
C23 283-0332-00 CAP,FXD,CER DI:47PF,5%,50V 51642 S150-050-N750-4
C100 283-0314-00 B010100 B082465 CAP,FXD,CERAMIC:MLC;100PF,10%,100V,NPO,
C100 283-5099-00 B082466 CAP,FXD,CER DI:100PF,2%,100V 04222 08051A101GA1BC
C120 283-0311-00 B010100 B082465 CAP,FXD,CER DI:4.7PF,+/-0.25PF,100V 04222 10051A4R7CATBA
C120 283-5028-00 B082466 CAP,FXD,CER DI:4.7PF,5%,50V 04222 08055A4R7DATMC
Tektronix
Part No.
670-2210-XX CIRCUIT BD ASSY:PROBE 80009 6702210XX
Serial No.
Effective Dscont
Name & Description
0.08X0.05
Mfr.
Code
04222 08051A101KA2075
Mfr. Part No.
C130 283-0315-00 B010100 B082465 CAP,FXD,CER DI:470PF,10%,100V 04222 10051A471KATMC
C130 283-5138-00 B082466 CAP,FXD,CERAMIC:MLC;470PF,2%,25V,NPO,
0.08X0.05
C140 283-0315-00 B010100 B082465 CAP,FXD,CER DI:470PF,10%,100V 04222 10051A471KATMC
C140 283-5138-00 B082466 CAP,FXD,CERAMIC:MLC;470PF,2%,25V,NPO,
0.08X0.05
C150 283-0315-00 B010100 B082465 CAP,FXD,CER DI:470PF,10%,100V 04222 10051A471KATMC
C150 283-5138-00 B082466 CAP,FXD,CERAMIC:MLC;470PF,2%,25V,NPO,
0.08X0.05
C155 283-0320-00 B010100 B082465 CAP,FXD,CER DI:1PF,0.25%,50V 54583 C2012C0G1H010C-
C160 283-0310-00 B010100 B076839 CAP,FXD,CER DI:2.5PF,+/-0.25PF,100V 04222 08051A2R5CATBE
C160 281-0285-00 B076840 CAP,VAR,PLASTIC:1.5-6.0PF,25V 51406 DVS3A6A
C170 290-0308-00 B010100 B046190 CAP,FXD,ELCTLT:1UF,20%,35V TANTALUM 24546 HV105A-20/9011
C170 290-0267-00 B046191 CAP,FXD,ELCTLT:1UF,20%,35V 24165 173D105X0035V
C180 290-0308-00 B010100 B078999 CAP,FXD,ELCTLT:1UF,20%,35V TANTALUM 24546 HV105A-20/9011
C180 290-0267-00 B079000 CAP,FXD,ELCTLT:1UF,20%,35V 24165 173D105X0035V
C200 285-0919-00 CAP,FXD,PLASTIC:0.22UF,10%,100V 84411 TEK35 .22 10 10
C210 283-0176-00 CAP,FXD,CER DI:0.0022UF,20%,50V 04222 SR155C222MAA
C220 281-0123-00 B010100 B046190 CAP,VAR,CER DI:5-25PF,100V 59660 518-000A5-25
C220 281-0158-00 B046191 B059999 CAP,VAR,CER DI:7-45PF,100WVDC SUBMIN CER
DISC TOP ADJ
C220 281-0158-01 B060000 B081769 CAP,VAR,CER DI:7-45 PF,100V 59660 518-006G7-45
C220 281-0252-00 B081970 CAP,VAR,CER DI:7-45PF,100V 51406 TZ03P450FR169
C230 281-0528-00 CAP,FXD,CER DI:82PF,+/-8.2PF,500V 52763 ADVISE
29454 250R15N471JV4P-
29454 250R15N471JV4P-
29454 250R15N471JV4P-
59660 518-006 G 7-45
6-4
P6201 Probe
Component
Number
C240
C295 283-0139-00 B076840 CAP,FXD,CERAMIC:MLC;150PF,10%,50V,COG,0.138 04222 SR15A151KAT
C300 290-0247-00 CAP,FXD,ELCTLT:5.6UF,10%,6V 12954 D5R6EA5K1
C302 283-0320-00 CAP,FXD,CER DI:1PF,0.25%,50V 54583 C2012C0G1H010C-
C305 283-0220-00 CAP,FXD,CER DI:0.01UF,20%,50V 04222 SR205C103MAA
C310 283-0252-00 B076840 CAP,FXD,CER DI:0.001UF,10%,50V 04222 08055C102KAT9A
C315 281-0218-00 CAP,VAR,CER DI:1-5PF,+2 -2.5%,100V 59660 513-011A1-5
C320 283-0315-00 CAP,FXD,CER DI:470PF,10%,100V 04222 10051A471KATMC
C325 281-0196-00 B010100 B060646 CAP,VAR,CER DI:10-38PF,250V 80031 2805F 01038 EAM
C325 281-0219-00 B060647 CAP,VAR,CER DI:5-35PF,+2 -2.5%,100V 59660 513-O11 A 5-35
C330 283-0325-00 CAP,FXD,CER DI:47PF,10%,100V 04222 10051A470KATBA
C350 283-0177-00 CAP,FXD,CER DI:1UF,+80-20%,25V 04222 SR303E105ZAA
C355 283-0310-00 B010100 B029999 CAP,FXD,CER DI:2.5PF,+/-0.25PF,100V
C358 281-0218-00 CAP,VAR,CER DI:1-5PF,+2 -2.5%,100V 59660 513-011A1-5
C360 283-0111-00 CAP,FXD,CER DI:0.1UF,20%,50V 04222 SR215C104MAA
C365 283-0209-00 CAP,FXD,CER DI:1UF,20%,50V 51642 UC35-050-Z5U-10
C375 283-0311-00 B010100 B076839 CAP,FXD,CER DI:4.7PF,+/-0.25PF,100V 04222 10051A4R7CATBA
C375 283-5028-00 B076840 CAP,FXD,CER DI:4.7PF,5%,50V 04222 08055A4R7DATMC
CR200 152-0246-00 SEMICOND DVC,DI:SW,SI,40V,200MA,DO-7 27014 FDH5227.03
CR210 152-0246-00 SEMICOND DVC,DI:SW,SI,40V,200MA,DO-7 27014 FDH5227.03
Tektronix
Part No.
290-0134-00 CAP,FXD,ELCTLT:22UF,20%,15V 24165 150D226X0015B2
Serial No.
Effective Dscont
Name & Description
(TEST SELECTABLE)
Mfr.
Code
04222 08051A2R5CATBE
Mfr. Part No.
L300 108-0737-00 B010100 B029999 COIL,RF:FIXED,40NH 0JR03 108-0737-00
L310 108-0737-00 COIL,RF:FIXED,40NH 0JR03 108-0737-00
L393 108-0170-01 COIL,RF:FIXED,360NH 0JR03 108-0170-01
Q100 151-1023-00 B010100 B053094 TRANSISTOR,SIG:JFET,N-CH 80009 151102300
Q100 151-1023-01 B053095 B078999 TRANSISTOR:FE,SI,N-CHANNEL 04713 SMCM485
Q100 151-5025-00 B079000 TRANSISTOR,SIG:JFET,N-CH;6V,15MA,4.5MS,
AMPLIFIER
Q120 151-0362-01 B010100 8513 TRANSISTOR:PNP,SI,U-43 80009 151-0362-01
Q120 151-0362-00 8514 B082465 TRANSISTOR:PNP,SI,U-43 04713 SMT1105
Q120 151-5055-00 B082466 TRANSISTOR,SIG:BIPOLAR,PNP;10V,30MA,5.5GHZ,
AMPLIFIER
Q130 151-0362-01 B010100 8513 TRANSISTOR:PNP,SI,U-43 80009 151-0362-01
Q130 151-0362-00 8514 B082465 TRANSISTOR:PNP,SI,U-43 04713 SMT1105
Q130 151-5055-00 B082466 TRANSISTOR,SIG:BIPOLAR,PNP;10V,30MA,5.5GHZ,
AMPLIFIER
Q300 151-0416-00 B010100 B029999 TRANSISTOR:NPN,SI 80009 151041600
Q300 151-0475-00 B030000 B059999 TRANSISTOR:NPN,SI,MACRO-T 25403 BFR91/02
Q300 151-0475-01 B060000 8513 TRANSISTOR:SCREENED 80009 151-0475-01
Q300 151-0475-00 8514 TRANSISTOR:NPN,SI,MACRO-T 25403 BFR91/02
Q320 151-0416-00 B010100 B029999 TRANSISTOR:NPN,SI 80009 151041600
Q320 151-0475-00 B030000 B059999 TRANSISTOR:NPN,SI,MACRO-T 25403 BFR91/02
Q320 151-0475-01 B060000 8513 TRANSISTOR:SCREENED 80009 151-0475-01
04713 MMBF4416
04713 MMBR536LT1
04713 MMBR536LT1
6-5
P6201 Probe
Component
Number
Q320
Q350 151-0341-00 TRANSISTOR,SIG:BIPOLAR,NPN;45V,50MA,40MHZ,
R1 321-0807-01 RES,FXD,FILM:900K OHM,0.5%,0.125W,TC=T0 19701 5033RD900K0D
R2 307-0240-00 B010100 B081604 RES,FXD,CMPSN:50 OHM,10%,0.075WPELLET
R2 325-5043-00 B081605 RES,FXD,FILM:49.9 OHM,1%,0.062W 56845 CRCW0805-49R9FT
R3 317-0680-00 RES,FXD,CMPSN:68 OHM,5%,0.125W TK1727 SFR16 2322-180-
R4 (NONREPLACEABLE SUBPART OF 204-0557-00)
R21 321-0790-01 RES,FXD,FILM:990K OHM,0.5%,0.125W,TC=T0 19701 5033RD990K0D
R22 307-0240-00 B010100 B081604 RES,FXD,CMPSN:50 OHM,10%,0.075WPELLET
R22 325-5043-00 B081605 RES,FXD,FILM:49.9 OHM,1%,0.062W 56845 CRCW0805-49R9FT
R23 325-0036-00 RES,FXD,FILM:11.1K OHM,1%,0.05W,TC=T0 64537 PME50 11.1 K 1
R24 317-0430-00 B010100 B083949 RES,FXD,CMPSN:43 OHM,5%,0.125W TK1727 SFR16 2322-180-
R24 321-5233-00 B083950 RES,FXD,FILM:43.2 OHM,1%,TC=100PPM 56845 CRCW080543R2FT
R25 317-0220-00 RES,FXD,CMPSN:22 OHM,5%,0.125W TK1727 SFR16 2322-180-
R26 (NONREPLACEABLE SUBPART OF 204-0558-00)
R120 307-0240-00 B010100 B059999 RES,FXD,CMPSN:50 OHM,10%,0.075WPELLET
Tektronix
Part No.
151-0475-00 8514 TRANSISTOR:NPN,SI,MACRO-T 25403 BFR91/02
Serial No.
Effective Dscont
Name & Description
AMPLIFIER
W/PARALLEL LEADS
W/PARALLEL LEADS
W/PARALLEL LEADS
Mfr.
Code
04713 MPS6520
23223 50A10L
23223 50A10L
23223 50A10L
Mfr. Part No.
R120 307-0514-00 B060000 RES,FXD,FILM:27
OHM,1%,0.075WTC=150PPM/DEGC
R130 325-0121-00 RES,FXD,FILM:90K OHM,0.5%,0.05W,TC=T0 64537 PME50 90 K OHM
R140 317-0106-00 RES,FXD,CMPSN:10M OHM,5%,0.125W 01121 BB1065
R150 317-0202-00 B010100 B076839 RES,FXD,CMPSN:2K OHM,5%,0.125W TK1727 SFR16 2322-180-
R150 311-2342-00 B076840 B082465 RES,VAR,NONWW:TRMR,1K OHM,25% 51406 RVG4L06A-102VM-
R150 321-5017-00 B076840 B082465 RES,FXD:METAL FILM;825 OHM,1%,0.125W,TC=100 91637 CRCW12068250FT
R150 325-5066-00 B082466 B084162 RES,FXD,FILM:1.3K OHM,1%,0.125W1206 PKG,SMD 56845 CRCW1206-132FT
R150 317-0102-00 B084163 RES,FXD,CMPSN:1K OHM,5%,0125W TK1727 SFR16 2322-180-
R160 317-0511-00 RES,FXD,CMPSN:510 OHM,5%,0.125W TK1727 SFR16 2322-180-
R170 317-0161-00 RES,FXD,CMPSN:160 OHM,5%,0.125W TK1727 SFR16 2322-180-
R180 317-0301-00 RES,FXD,CMPSN:300 OHM,5%,0.125W TK1727 SFR16 2322-180-
R185 (SELECTABLE IN RANGE OF 90 OHM TO 3K OHM,
5%,0.25W,FOR BEST RESPONSE IN COMBINATION
WITH CABLE ASSEMBLY AND A1 CKT BD)
R190 307-0240-00 B010100 B076839 RES,FXD,CMPSN:50 OHM,10%,0.075WPELLET
W/PARALLEL LEADS
R190 325-0045-00 B076840 B082465 RES,FXD,FILM:46.4 OHM,0.5%,0.05W,TC=150PMM 14298 RE 1/8 46.4 OHM
R190 325-5065-00 B082466 RES,FXD,FILM:45.3 OHM,1%,0.125W1206 PKG,SMD 56845 CRCW1206-45R3FT
R200 311-1413-00 B010100 B073445 RES,VAR,NONWW:PNL,5K OHM,0.75W 80009 311141300
R200 311-2247-00 B073446 RES,VAR,NONWW:PNL,5K OHM,20%,0.5W 12697 CM 43464
R210 321-0263-00 B010100 B046190 RES,FXD,FILM:5.36K OHM,1%,0.125W,TC=T0 91637 CMF55116G53600F
R210 315-0512-00 B046191 RES,FXD,FILM:5.1K OHM,5%,0.25W TK1727 SFR25 2322-181-
52262 MCRA270FYZ
23223 50A10L
6-6
P6201 Probe
Component
Number
R220
R220 315-0104-00 B046191 RES,FXD,FILM:100K OHM,5%,0.25W TK1727 SFR25 2322-181-
R230 311-0634-00 B010100 B046190 RES,VAR,NONWW:TRMR,500 OHM,0.5W 32997 3329H-L58-501
R230 311-1263-00 B046191 RES,VAR,NONWW:1K OHM,10%,0.50W 32997 3329P-L58-102
R240 321-0452-00 B010100 B046191 RES,FXD,FILM:499K OHM,1%,0.125W,TC=T0 91637 CMF55116G49902F
R240 315-0474-00 B046191 RES,FXD,FILM:470K OHM,5%,0.25W TK1727 SFR25 2322-181-
R250 311-1271-00 RES,VAR,NONWW:TRMR,50K OHM,0.5W 32997 3329P-L58-503
R260 321-0151-00 RES,FXD,FILM:365 OHM,1%,0.125W,TC=T0 91637 CMF55116G365R0F
R265 321-0978-01 RES,FXD,FILM:11.02K OHM,0.1%,0.125W,T=T2 19701 5033RD11K02D
R270 317-0514-00 RES,FXD,CMPSN:510K OHM,5%,0.125W 01121 BB5145
R280 321-0293-03 RES,FXD,FILM:11.0K OHM,0.25%,0.125W,TC=T2 19701 5033RC11K00C
R290 321-0381-03 RES,FXD:METAL FILM;90.5K OHM,0.25%,0.125W,
R293 308-0714-00 RES,FXD,WW:46.4 OHM,1%,1W 91637 RS1A-B46R40F
R295 325-0121-00 RES,FXD,FILM:90K OHM,0.5%,0.05W,TC=T0 64537 PME50 90 K OHM
R298 308-0715-00 RES,FXD,WW:78 OHM,1% 91637 RS-1A-90 78R00F
R300 321-0223-00 B010100 B046190 RES,FXD,FILM:2.05K OHM,1%,0.125W,TC=T0 91637 CMF55116G20500F
R300 315-0182-00 B046191 RES,FXD,FILM:1.8K OHM,5%,0.25W TK1727 SFR25 2322-181-
R305 (SELECTABLE IN RANGE OF 15 OHM TO 30 OHM,
R305 317-0300-00 B076840 RES,FXD,CMPSN:30 OHM,5%,0.125W TK1727 SFR16 2322-180-
R310 317-0102-00 B010100 B029999 RES,FXD,CMPSN:1K OHM,5%,0125W TK1727 SFR16 2322-180-
R310 317-0911-00 B030000 B076839 RES,FXD,CMPSN:910 OHM,5%,0.125W TK1727 SFR16 2322-180-
Tektronix
Part No.
321-0388-00 B010100 B046190 RES,FXD,FILM:107K OHM,1%,0.125W,TC=T0 91637 CMF55116G10702F
Serial No.
Effective Dscont
Name & Description
TC=50 PPM
5%,0.125W, FOR BEST RESPONSE IN
COMBINATION WITH Q300,Q320 AND U200)
Mfr.
Code
19701 5033RC90K90C
Mfr. Part No.
R310 321-0193-00 B076840 RES,FXD,FILM:1K OHM,1%,0.125W,TC=T0 91637 CMF55116G10000F
R325 322-0126-00 RES,FXD,FILM:200 OHM,1%,0.25W,TC=T0 91637 CMF6042G200R0F
R330 317-0300-00 B010100 B029999 RES,FXD,CMPSN:30 OHM,5%,0.125W TK1727 SFR16 2322-180-
R330 311-1260-00 B076840 RES,VAR,NONWW:TRMR,250 OHM,0.5W 32997 3329P-L58-251
R335 317-0270-00 RES,FXD,CMPSN:27 OHM,5%,0.125W TK1727 SFR16 2322-180-
R340 321-0080-00 RES,FXD,FILM:66.5 OHM,1%,0.125W,TC=T0 91637 CMF55116G66R50F
R345 322-0126-00 RES,FXD,FILM:200 OHM,1%,0.25W,TC=T0 91637 CMF6042G200R0F
R350 315-0102-00 RES,FXD,FILM:1K OHM,5%,0.25W TK1727 SFR25 2322-181-
R355 317-0151-00 RES,FXD,CMPSN:150 OHM,5%,0.125W 01121 BB1515 OR RC05G
R365 325-0051-00 B010100 B046190 RES,FXD,FILM:18.2 OHM,1%,0.5W,TC=T0 AXIAL
LEADS
R365 317-0220-00 B046191 B076839 RES,FXD,CMPSN:22 OHM,5%,0.125W TK1727 SFR16 2322-180-
R365 321-5004-00 B076840 RES,FXD:METAL FILM;22.1 OHM,1%,0.125W,
TC=100 PPM
R368 317-0102-00 RES,FXD,CMPSN:1K OHM,5%,0125W TK1727 SFR16 2322-180-
R370 311-0978-00 RES,VAR,NONWW:TRMR,250 OHM,0.5W 73138 82PR250-37C
R375 317-0201-00 B010100 B050863 RES,FXD,CMPSN:200 OHM,5%,0.125W
(NOMINAL VALUE,SELECTED)
19701 5023RD18R2OF
91637 CRCW120622R1FT
TK1727 SFR16 2322-180-
6-7
P6201 Probe
Component
Number
R375
R375 317-0151-00 B084163 RES,FXD,CMPSN:150 OHM,5%,0.125W 01121 BB1515 OR RC05G
R380 322-0119-00 RES,FXD,FILM:169 OHM,1%,0.25W,TC=T0 91637 CMF6042G169R0F
R390 322-0119-00 RES,FXD,FILM:169 OHM,1%,0.25W,TC=T0 91637 CMF6042G169R0F
R393 311-0622-01 RES,VAR,NONWW:TRMR,100 OHM,0.5W 32997 3329H-K28-101
R395 317-0272-00 RES,FXD,CMPSN:2.7K OHM,5%,0.125W 01121 BB2725
R397 317-0101-00 RES,FXD,CMPSN:100 OHM,5%,0.125W TK1727 SFR16 2322-180-
R398 325-0053-00 RES,FXD,FILM:50 OHM,1%,0.05W,TC=T0 AXIAL
R399 317-0151-00 RES,FXD,CMPSN:150 OHM,5%,0.125W 01121 BB1515 OR RC05G
RT360 307-0343-00 RES,THERMAL:200 OHM,10% 91637 C140
S200 260-0984-00 SWITCH,SLIDE:DPTT,0.5A,125V 79727 G-128-S-0012
S250 260-0960-01 SWITCH,SLIDE:FORM Z,0.5A,120VDC,BLACK BTTN 04426 23-021-043
S300 260-0960-01 SWITCH,SLIDE:FORM Z,0.5A,120VDC,BLACK BTTN 04426 23-021-043
U200 156-0223-00 IC,LINEAR:BIPOLAR,OP-AMP;LOW INPUT BIAS
Tektronix
Part No.
317-0121-00 B050864 B084162 RES,FXD,CMPSN:120 OHM,5%,0.125W
Serial No.
Effective Dscont
Name & Description
(SELECTABLE FROM RANGE OF 130-200 OHM)
LEADS
CURRENT,UNCOMPENSATED
Mfr.
Code
TK1727 SFR16 2322-180-
91637 CMF50-F50R00F
27014 LM308H
Mfr. Part No.
6-8
Replaceable Mechanical Parts
P6201 Probe
Parts Ordering Information
Replacement parts are available from or through
your local Tektronix, Inc., service center or represenĆ
tative.
Changes to Tektronix instruments are sometimes
made to accommodate improved components as
they become available and to give you the benefit of
the latest circuit improvements. Therefore, when
ordering parts, it is important to include the following
information in your order:
H Part number
H Instrument type or model number
H Instrument serial number
H Instrument modification number, if applicable
If a part you order has been replaced with a different
or improved part, your local Tektronix service center
or representative will contact you concerning any
change in the part number.
Using the Replaceable Parts List
The tabular information in the Replaceable Parts List
is arranged for quick retrieval. Understanding the
structure and features of the list will help you find the
all the information you need for ordering replacement
parts.
Item Names
appear as incomplete. For further Item Name identifiĆ
cation, U.S. Federal Cataloging Handbook H6Ć1 can
be used where possible.
Indentation System
This parts list is indented to show the relationship
between items. The following example is of the
indentation system used in the Description column:
1ą 2ą 3ą 4ą 5 Name & Description
Assembly and/or Component
Attaching parts for Assembly and/or Component
(END ATTACHING PARTS)
Detail Part of Assembly and/or Component
Attaching parts for Detail Part
(END ATTACHING PARTS)
Parts of Detail Part
Attaching parts for Parts of Detail Part
(END ATTACHING PARTS)
Attaching parts always appear at the same indentaĆ
tion as the item it mounts, while the detail parts are
indented to the right. Indented items are part of, and
included with, the next higher indentation. Attaching
parts must be purchased separately, unless otherĆ
wise specified.
Abbreviations
Abbreviations conform to American National StanĆ
dards Institute (ANSI) standard Y1.1.
In the Replaceable Parts List, an Item Name is sepaĆ
rated from the description by a colon (:). Because of
space limitations, an Item Name may sometimes
6-15
P6201 Probe
CROSS INDEX - MFR. CODE NUMBER TO MANUFACTURER
Mfr.
Code
TK0392
TK0435 LEWIS SCREW CO 4300 S RACINE AVE CHICAGO IL 60609-3320
TK1312 LEMO USA INC 335 TESCONI CIR
TK1326 NORTHWEST FOURSLIDE INC 18224 SW 100TH CT TUALATIN OR 97062
0J9P9 GEROME MFG CO INC PO BOX 737 NEWBERG OR 97132
0KB01 STAUFFER SUPPLY 810 SE SHERMAN PORTLAND OR 97214
00779 AMP INC 2800 FULLING MILL
04811 PRECISION COIL SPRING CO 10107 ROSE ST
12327 FREEWAY CORP 9301 ALLEN DR CLEVELAND OH 44125-4632
22526 DU PONT E I DE NEMOURS AND CO INC
24931 SPECIALTY CONNECTOR CO INC 2100 EARLYWOOD DR
50394 SPS TECHNOLOGIES INC
73743 FISCHER SPECIAL MFG CO 111 INDUSTRIAL RD COLD SPRING KY 41076-9749
78189 ILLINOIS TOOL WORKS INC
80009 TEKTRONIX INC 14150 SW KARL BRAUN DR
Manufacturer Address City, State, Zip Code
NORTHWEST FASTENER SALES INC 7923 SW CIRRUS DRIVE BEAVERTON OR 97005-6448
SANTA ROSA CA 95406
PO BOX 11006
HARRISBURG PA 17105
PO BOX 3608
EL MONTE CA 91734
PO BOX 5450
515 FISHING CREEK RD NEW CUMBERLAND PA 17070-3007
DU PONT ELECTRONICS DEPT
FRANKLIN IN 46131
PO BOX 547
HIGHLAND AVE JENKINTOWN PA 19046
UNBRAKO DIV
ST CHARLES ROAD ELGIN IL 60120
SHAKEPROOF DIV
BEAVERTON OR 97077-0001
PO BOX 500
6-16
P6201 Probe
40
41
13
12
17
11
10
9
16
7
1
19
18
8
7
18
2
4
47
5
46
45
6
42
7
7
43
39
38
6
22
37
44
36
3
5
6
5
20
21
6
22
23
3
24
25
14
15
13
34
33
26
35
27
29
30
31
32
28
Figure 6-1: P6201 Exploded View
6-17
P6201 Probe
Fig. &
Index
No.
6-1-1
-2 -------- 1 SWITCH,SLIDE:(SEE A4S300 REPL)
-3 386-2400-00
-4 131-1134-00 2 CONTACT,ELEC:CKT BD TO SHLD,CU BE NI PL 80009 131113400
-5 220-0627-00 5 NUT,PLAIN,HEX:2-56 X 0.156 HEX,BRS NP 73743 10002-56-101
-6 210-0053-00
-7 211-0001-00 8 SCREW,MACHINE:2-56 X 0.25,PNH,STL TK0435 ORDER BY DESC
Tektronix
Part No.
380-0287-01 1 HSG HALF,AMPL:RIGHT,ALUMINUM 80009 380028701
210-0910-00
210-0001-00
210-1008-00 B010100 B046190 10 WASHER,FLAT:0.09 ID X 0.188 OD X 0.02,BRS 12327 ORDER BY DESC
Serial No.
Effective Dscont
B010100
B087714
B010100
B046191
B087713 22SPACER,PLATE:0.3 X 0.5 X 0.5,BLK DELRIN
B046190 1010WASHER,LOCK:#2 SPLIT,0.02 THK STL
Qty
12345 Name & Description
WASHER,FLAT:0.19 OD X 0.281 OD X O.O46
TEFLON
WASHER,LOCK:#2 INTL,0.013 THK,STL
Mfr.
Code
80009
80009
TK0392
78189
Mfr. Part No.
386240000
210091000
ORDER BY DESC
1202-00-00-0541
-7 211-0022-00
211-0001-00
-8 131-1135-00 1 CONTACT,ELEC:CKT BD TO CONN,CU BE GLDPL80009 131113500
-9 342-0134-00 1 INSULATOR,BSHG:0.086 ID X 0.275 OD X 0.8 L 80009 342013400
-10 131-1257-00 1 CONTACT,ELEC:BNC CTR COND,BRASS SIL PL 80009 131125700
-11 358-0072-00 1 INSULATOR,BSHG:0.192 ID X 0.192 OD X 0.323 80009 358007200
-12 204-0472-00 1 CONN BODY,RCPT:BNC,LOCKING 24931 OC156-1
-13 131-1049-00 1 CONTACT,ELEC:CONN READOUT,CU BE SIL PL TK1326 ORDER BY DESC
-14 342-0076-00 2 INSULATOR,CONN:NYLON 80009 342007600
-15 205-0142-00 1 SHELL,ELEC CONN:BNC,LOCKING 80009 205014200
-16 204-0473-01 1 CONN BODY,RCPT:BNC,COMP BOX 24931 ORDER BY DESC
-17 386-2264-01 1 PANEL,REAR:OUTPUT AMPLIFIER 80009 386226401
-18 210-0021-00 3 WASHER,LOCK:0.476 ID,INTL,0.018 THK,STL 0KB01 ORDER BY DESC
-19 358-0454-00 1 BSHG,MACH THD:0.437-28 X 0.218 ID,BRS
-20 386-2266-00 2 SUPPORT,CKT BD:FRONT 80009 386226600
-21 131-0787-00 5 TERMINAL,PIN:PCB/PRESSFIT,;MALE,STR,
-22 211-0181-00 5 SCREW,MACHINE:2-56 X 0.375,PNH,BRS 80009 211018100
-23 136-0263-04 5 SOCKET,PIN TERM:U/W 0.025 SQ PINS 00779 85864-2
-24 -------- 1 SWITCH,SLIDE:(SEE A5S250 REPL)
-25 380-0286-01 1 HSG HALF,AMPL:LEFT,ALUMINUM 80009 380028601
B010100
B046191
B046190 22SCREW,MACHINE:2-56 X 0.188,PNH,STL
SCREW,MACHINE:2-56 X 0.25,PNH,STL
CU-SN-ZN PL,0.366 L
0.025 SQ,0.448 MLG X 0.137 TAIL,0.600 L,PHOS
BRZ,50 GOLD
TK0435
TK0435
80009 358045400
22526 47359-001
ORDER BY DESC
ORDER BY DESC
-26 175-1276-00 1 CA ASSY,SP,ELEC:3,26 AWG,54.0 L 80009 175127600
-27 211-0183-00 1 SCREW,CAP:4-40 X 0.5,SCH,STL,CD PL,HEX
REC
-28 204-0533-01 1 BODY,PROBE:OUTER 80009 204053301
-29 131-1271-00 1 CONTACT,ELEC:READOUT
RING,BRS,CU-SN-ZN PL
50394 ORDER BY DESC
80009 131127100
6-18
P6201 Probe
Fig. &
Index
No.
-30
-31 204-0532-01 1 BODY,PROBE:INNER W/INSUL 80009 204053201
-32 206-0200-00 1 TIP,PROBE:P6201 80009 206020000
-33 015-0222-00 1 TIP,PROBE:IC TEST 80009 015022200
-34 -------- 1 CKT BOARD ASSY:PROBE(SEE A1 REPL)
-35 131-0778-00 1 CONN,PLUG,ELEC:'LEMO',2 MALE,2 FEMALE TK1312 FFA.OS.304.CLAC
-36 -------- 1 SWITCH,SLIDE:(SEE A5S200 REPL)
-37 214-2250-00 1 INSULATOR,PLATE:SLIDE SWITCH,FISH PAPER 0J9P9 214-2250-00
-38 -------- 1 CKT BOARD ASSY:L.F.OUTPUT AMP(SEE A5
-39 386-2270-00
-40 366-0494-04
-41 210-0583-00 1 NUT,PLAIN,HEX:0.25-32 X 0.312,BRS CD PL 73743 2X-20319-402
-42 386-2265-00 1 PANEL,FRONT:OUTPUT AMPLIFIER 0J9P9 386-2265-00
-43 386-2267-00
-44 131-1003-00 1 CONN,RF JACK:PCB,PELTOLA;FEMALE,
-45 210-0223-00 2 TERMINAL,LUG:0.26 ID,LOCKING,BRZ TIN PL 0KB01 210-0223-00
Tektronix
Part No.
342-0151-00 1 INSUL,RDOUT CON:DELRIN 80009 342015100
210-1256-00 B080337
213-0153-00
386-2267-02
Serial No.
Effective Dscont
B010100
B073446
B073445 11SUPPORT,CKT BD:REAR
Qty
12345 Name & Description
REPL)
13SUPPORT,CKT BD:TOP
WASHER,FLAT:0.04 ID X 0.157 OD X 0.02 TEFLON
11KNOB:GY,0.127 ID X 0.5 OD X 0.531 H
SETSCREW:5-40 X 0.125,STL
SUPPORT,CKT BD:REAR
STR,0.141 I.D,0.277 H X 0.094 TAIL,GOLD,0.295
PCB,GRD SHELL
Mfr.
Code
80009
80009
80009
TK0392
80009
80009
80009 131100300
Mfr. Part No.
386227000
210125600
366049404
ORDER BY DESCP
386226700
386226702
-46 -------- 1 RESISTOR,VAR:(SEE R200 REPL)
-47 -------- 1 CKT BD ASSY:HF OUTPUT AMPL(SEE A4 REPL)
6-19
P6201 Probe
Fig. &
Index
No.
6-2-
-1 015-0222-00 1 .TIP,PROBE:IC TEST 80009 015022200
-2 206-0200-00 1 .TIP,PROBE: 80009 206020000
-3 204-0557-00
-4 --------
-5 136-0252-00 1 ..SOCKET,PIN TERM:PCB,;FEMALE,STR,ACCOM
-6 131-0845-00 1 ..CONTACT,ELEC:CTR,PROBE,CU BE SIL PL 80009 131084500
-7 384-0680-01 1 ..PIN,STR,HEADED:0.41 OD X 0.16 L,BRS 80009 384068001
-8 210-1045-00 1 ..WASHER,FLAT:0.045 ID X 0.1 OD X 0.01,BRS 80009 210104500
-9 210-1047-00 1 ..WASHER,SPR TNSN:Y-SHAPE,NI-BE 80009 210104700
-10 388-0930-00 1 ..CIRCUIT BOARD:CAPACITOR ROTOR 80009 388093000
-11 214-0971-00 2 ..INSULATOR,WSHR:0.047 ID X 0.203 OD X 0.0025 80009 214097100
-12 344-0102-01 6 ..CLIP,ELECTRICAL:PROBE GROUND,CU BE 80009 344010201
-13 342-0150-00 1 .INSULATOR,BSHG:0.3 ID X 0.36 OD X 0.3 L,PC 80009 342015000
Tektronix
Part No.
010-0376-00
010-0377-00
204-0558-00
--------
Serial No.
Effective Dscont
Qty
12345 Name & Description
11ATTEN HD,PROBE:10X
ATTEN HD,PROBE:100X
11.BODY,ATTENUATOR:10X
.BODY,ATTENUATOR:100X
11.CKT BOARD ASSY:ATTEN 10X (SEE A2 REPL)
.CKT BOARD ASSY:ATTEN 100X (SEE A3 REPL)
..0.013-0.020 DIA PIN,TIN/TIN SLEEVE,CLOSED
..BOTTOM,0.142 L,0.038 DIA
Mfr.
Code
80009
80009
80009
80009
00779 2-330808-7
Mfr. Part No.
010037600
010037700
204055700
204055800
6-20
Figure 6-2: Attenuator Head Exploded View
P6201 Probe
Fig. &
Index
No.
6-3-1
-2 013-0135-00 1 TIP,PROBE:RETRACTABLE HOOK 80009 013013500
-3 010-0376-00 1 ATTEN HD,PROBE:P6201,10X 80009 010037600
-4 010-0377-00 1 ATTEN HD,PROBE:P6201,100X 80009 010037700
-5 206-0200-00 3 TIP,PROBE:P6201 80009 206020000
-6 131-1302-00 1 CONTACT,ELEC:GROUNDING,SST 04811 ORDER BY DESC
-7 175-0848-02 1 LEAD,ELECTRICAL:STRD,18 AWG,12.25 L 80009 175084802
-8 103-0164-00 1 ADPTR,PROBE TIP:TEST POINT 80009 103016400
-9 344-0046-01 1 CLIP,ELECTRICAL:ALLIGATOR,1.56 LSTL BRT
-10 166-0557-00 1 COVER,GROUND:0.381 ID X 0.43 OD X 0.385L 80009 166055700
-11 342-0180-00 1 COVER,GRD CONT:ABS 80009 342018000
-12 016-0156-02
Tektronix
Part No.
070-1306-04
352-0351-00
Serial No.
Effective Dscont
Qty
12345 Name & Description
P6201
STANDARD ACCESSORIES
DIPPED
1
CASE,CRYG,PROBE:
1
MANUAL,TECH:INSTRUCTION
1
HOLDER,PROBE:BLACK ABS
Mfr.
Code
80009 344004601
80009
80009
80009
Mfr. Part No.
016015602
070130604
352035100
017-0094-00
OPTIONAL ACCESSORIES
1
TERMN,PROBE:50 OHM,1W
80009
017009400
Figure 6-3: P6201 Standard and Optional Accessories
6-21
Loading...
