Tektronix P6138A User manual

Instructions

P6138A 10X 400 MHz Passive Probe
070-9695-01
Copyright T ektronix, Inc. All rights reserved. T ektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supercedes
that in all previously published material. Specifications and price change privileges reserved. Printed in the U.S.A. T ektronix, Inc., P.O. Box 1000, Wilsonville, OR 97070–1000 TEKTRONIX and TEK are registered trademarks of T ektronix, Inc.
WARRANTY
T ektronix warrants that the products that it manufactures and sells will be free from defects in materials and workmanship for a period of one (1) year from the date of purchase from an authorized T ektronix distributor. If any such product proves defective during this warranty period, T ektronix, at its option, either will repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product. Batteries are excluded from this warranty .
In order to obtain service under this warranty, Customer must notify Tektronix of the defect before the expiration of the warranty period and make suitable arrangements for the performance of service. Customer shall be responsible for packaging and shipping the defective product to the service center designated by T ektronix, shipping charges prepaid, and with a copy of customer proof of purchase. T ektronix shall pay for the return of the product to Customer if the shipment is to a location within the country in which the T ektronix service center is located. Customer shall be responsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locations.
This warranty shall not apply to any defect, failure or damage caused by improper use or improper or inadequate maintenance and care. T ektronix shall not be obligated to furnish service under this warranty a) to repair damage resulting from attempts by personnel other than T ektronix representatives to install, repair or service the product; b) to repair damage resulting from improper use or connection to incompatible equipment; c) to repair any damage or malfunction caused by the use of non-T ektronix supplies; or d) to service a product that has been modified or integrated with other products when the effect of such modification or integration increases the time or difficulty of servicing the product.
THIS WARRANTY IS GIVEN BY TEKTRONIX WITH RESPECT TO THE LISTED PRODUCTS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED. TEKTRONIX AND ITS VENDORS DISCLAIM ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TEKTRONIX’ RESPONSIBILITY TO REPAIR OR REPLACE DEFECTIVE PRODUCTS IS THE SOLE AND EXCLUSIVE REMEDY PROVIDED TO THE CUST OMER FOR BREACH OF THIS WARRANTY. TEKTRONIX AND ITS VENDORS WILL NOT BE LIABLE FOR ANY INDIRECT , SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES IRRESPECTIVE OF WHETHER TEKTRONIX OR THE VENDOR HAS ADVANCE NOTICE OF THE POSSIBILITY OF SUCH DAMAGES.

General Safety Summary

Review the following safety precautions to avoid injury and prevent damage to this product or any products connected to it.
Only qualified personnel should perform service procedures.
Injury Precautions
Product Damage
Precautions
Avoid Overvoltage. To avoid electric shock or fire hazard, do not apply potential
to any terminal, including the common terminal, that varies from ground by more than the maximum rating for that terminal.
Avoid Electric Shock. To avoid injury or loss of life, do not connect or disconnect probes or test leads while they are connected to a voltage source.
Do Not Operate Without Covers. To avoid electric shock or fire hazard, do not operate this product with covers or panels removed.
Do Not Operate in Wet/Damp Conditions. To avoid electric shock, do not operate this product in wet or damp conditions.
Do Not Operate in an Explosive Atmosphere. To avoid injury or fire hazard, do not operate this product in an explosive atmosphere.
Keep Probe Surface Clean and Dry . To avoid electric shock and erroneous readings, keep probe surface clean and dry.
Do Not Operate With Suspected Failures. If you suspect there is damage to this product, have it inspected by qualified service personnel.
Do Not Immerse in Liquids. Clean the probe using a soft cloth dampened with a mild detergent and water solution. Do not use any other chemicals or abrasives.
P6138A Instructions
i
General Safety Summary
Symbols and Terms
T erms in this Manual. These terms may appear in this manual:
WARNING. Warning statements identify conditions or practices that could result in injury or loss of life.
CAUTION. Caution statements identify conditions or practices that could result in damage to this product or other property.
T erms on the Product. These terms may appear on the product: DANGER indicates an injury hazard immediately accessible as you read the
marking. WARNING indicates an injury hazard not immediately accessible as you read the
marking. CAUTION indicates a hazard to property including the product.
Symbols on the Product. The following symbols may appear on the product:
Certifications and
Compliances
DANGER
High Voltage
Protective Ground
(Earth) T erminal
ATTENTION
Refer to Manual
Double
Insulated
Refer to the specifications section for a listing of certifications and compliances that apply to this product.
ii
P6138A Instructions

Features and Accessories

The P6138A probe is a compact, high-impedance, 10X passive probe designed for use with Tektronix TDS 400 series digitizing oscilloscopes. The P6138A probe meets the requirements of UL3111-1 for ground-referenced applications and is fully compatible with the Tektronix family of 3.5 mm probe accessories.
NOTE. Remove and discard the protective cover on the tip of the probe before attempting to connect a probe tip accessory.
Table 1 illustrates the features and accessories of the P6138A probe.

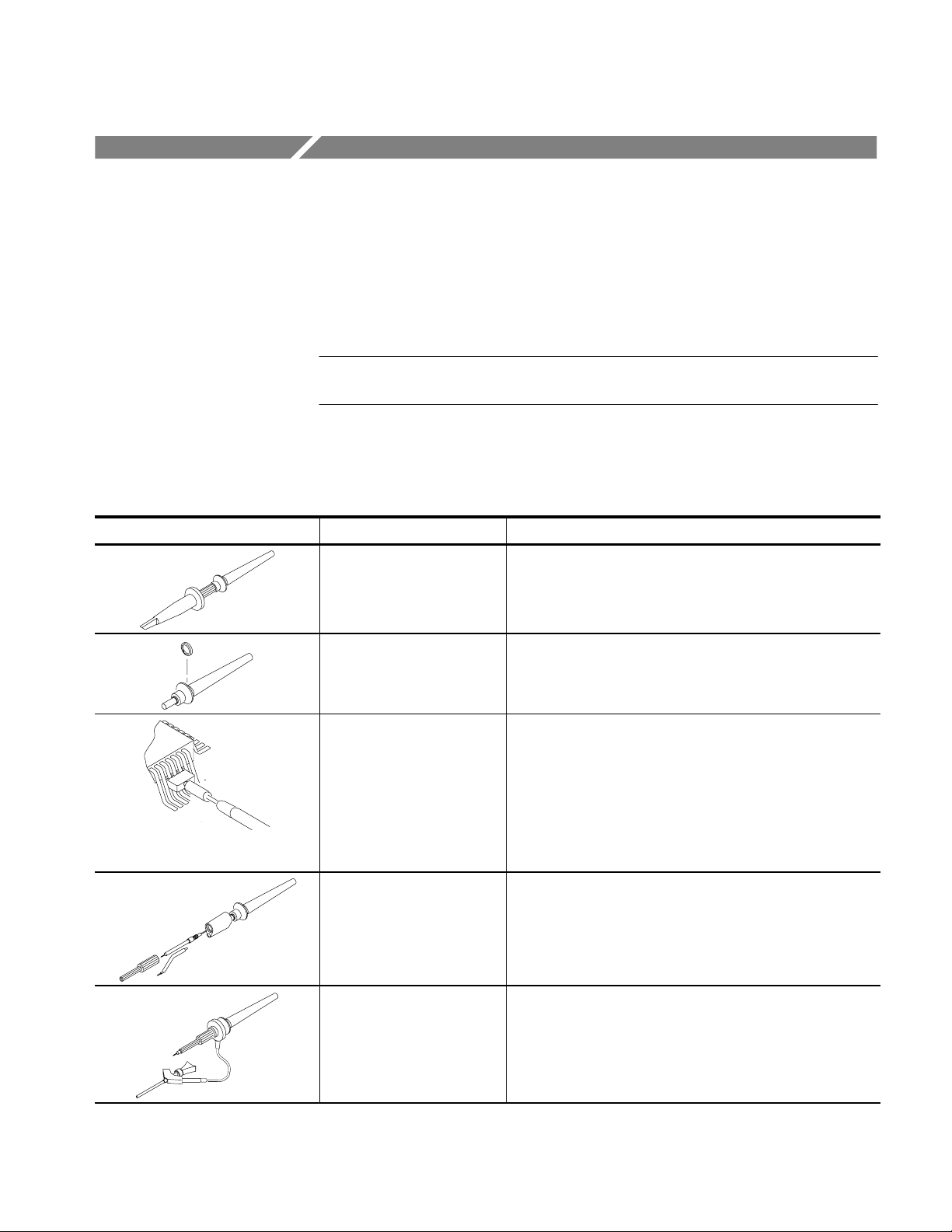

T able 1: Features and Accessories
Feature/Accessory Description Applications/Notes
Retractable hook tip Connects the probe tip to wires and component leads for
hands-free measurement.
NOTE. For a solid connection, firmly push and twist the hook tip onto the probe tip before using.
Marker bands Color codes the probe to the oscilloscope input when more
than one probe is in use. Clip one band around the strain relief of the probe head and the matching band on the strain relief of probe output.
P6138A Instructions
SureFoot probe tips Provides fault-free probing of SMD packages that have lead
spacings of 25 mil JEDEC or 0.65 mm EIAJ. To connect, simply push the SureFoot onto the probe tip and then probe the SMD package. The tines of the adapter prevent the probe tip from slipping or shorting to adjacent leads.
The list of optional accessories on page 8 includes SureFoot tips for probing SMD packages with lead spacings of 50 mil JEDEC or .5 mm EIAJ.
Low-inductance ground Connects the probe ground to a ground reference close to the
signal source. The short lead minimizes aberrations on high-frequency signals caused by the inductance of the ground lead.
SMT KlipChip and ground lead
Connects the probe ground to small or hard to reach ground reference points.
1
Features and Accessories
T able 1: Features and Accessories (Cont.)
Feature/Accessory Applications/NotesDescription
Guard
Ground lead with insulated alligator clip
Guard Keeps fingers away from the probe tip for protection against
Connects the probe ground to ground reference.
electric shock.
WARNING. To avoid electric shock when using the probe, keep fingers behind the guard on the probe body.
2
P6138A Instructions

Probe Compensation

Because of variations in oscilloscope input characteristics, check and adjust the low-frequency (LF) compensation when you connect the probe to a different oscilloscope input.
Figure 1: Low-frequency compensation
Use the following procedure to compensate the probe.
1. Connect the probe to the probe adjustment signal on the oscilloscope.
2. Press AUTOSET or otherwise adjust the oscilloscope so that it displays a
meaningful waveform.
1 kHz
LF
3. Turn on the 20 MHz bandwidth limit of the oscilloscope.
4. Turn on the high-resolution acquisition mode of the oscilloscope.
5. Adjust the trimmer in the probe as shown in Figure 1.
P6138A Instructions
3

Specifications

The characteristics listed in Table 2 apply to a P6138A probe installed on a Tektronix TDS 460A oscilloscope unless otherwise noted.
These specifications apply when the instrument has had a warm-up period of at least 10 minutes and is in an environment that does not exceed the limits described in Table 3.
T able 2: Electrical characteristics
Characteristic Description
System attenuation 10X ± 1.0% at DC System input resistance (typical) 10 M ± 1.0% System input capacitance (typical) 10.0 pF ± 0.8 pF at 1 kHz Compensation range (typical) 12 pF to 18 pF at 1 kHz System bandwidth (–3 dB) 400 MHz (TDS 460A and TDS 430A)
200 MHz (TDS 420A)
Maximum rated input voltage 300 V
CAT II (See Figure 2)
RMS
T able 3: Environmental characteristics
Characteristic Description
Net weight 110 g (0.24 lbs) T emperature range
Operating Nonoperating
Humidity
1
1
Tek Standard 062-2847-00, class 3.
1
–15 C to +55 C (+5 F to +131 F) –62 C to +85 C (–80 F to +185 F)
Tested at 95% to 97% relative humidity
4
P6138A Instructions
Voltage
(V
RMS
)
400V 300V
200V 100V
10V
Specifications
Category I & II
10M 100M1M
Frequency (Hz)
1G
Figure 2: Voltage derating
T able 4: Certifications and compliances
EC Declaration of Conformity Compliance was demonstrated to the following specification as listed in the Official Journal of the
European Communities: Low Voltage Directive 73/23/EEC as amended by 93/68/EEC: EN 61010-1/A2 Safety requirements for electrical equipment for measurement,
control, and laboratory use
EN 61010-2-031:1994 Particular requirements for hand-held probe assemblies for electrical
measurement and test
Overvoltage Category Category: Examples of Products in this Category:
CA T III Distribution-level mains, fixed installation CA T II CA T I
Pollution Degree 2
Do not operate in environments where conductive pollutants may be present.
Safety UL31 11-1, First Edition & IEC1010-2-031, First Edition
CSA C22.2 No. 1010.1-92 & CAN/CSA C22.2 No. 1010.2.031-94 EN61010-1/A2 EN61010-2-031 Overvoltage Category II, Pollution Degree 2
Local-level mains, appliances, portable equipment Signal levels in special equipment or parts of equipment, telecommu-
nications, electronics
P6138A Instructions
5

Replaceable Parts

3
2
1
5
4
6
7
12
13
14
15
9
10
11
8

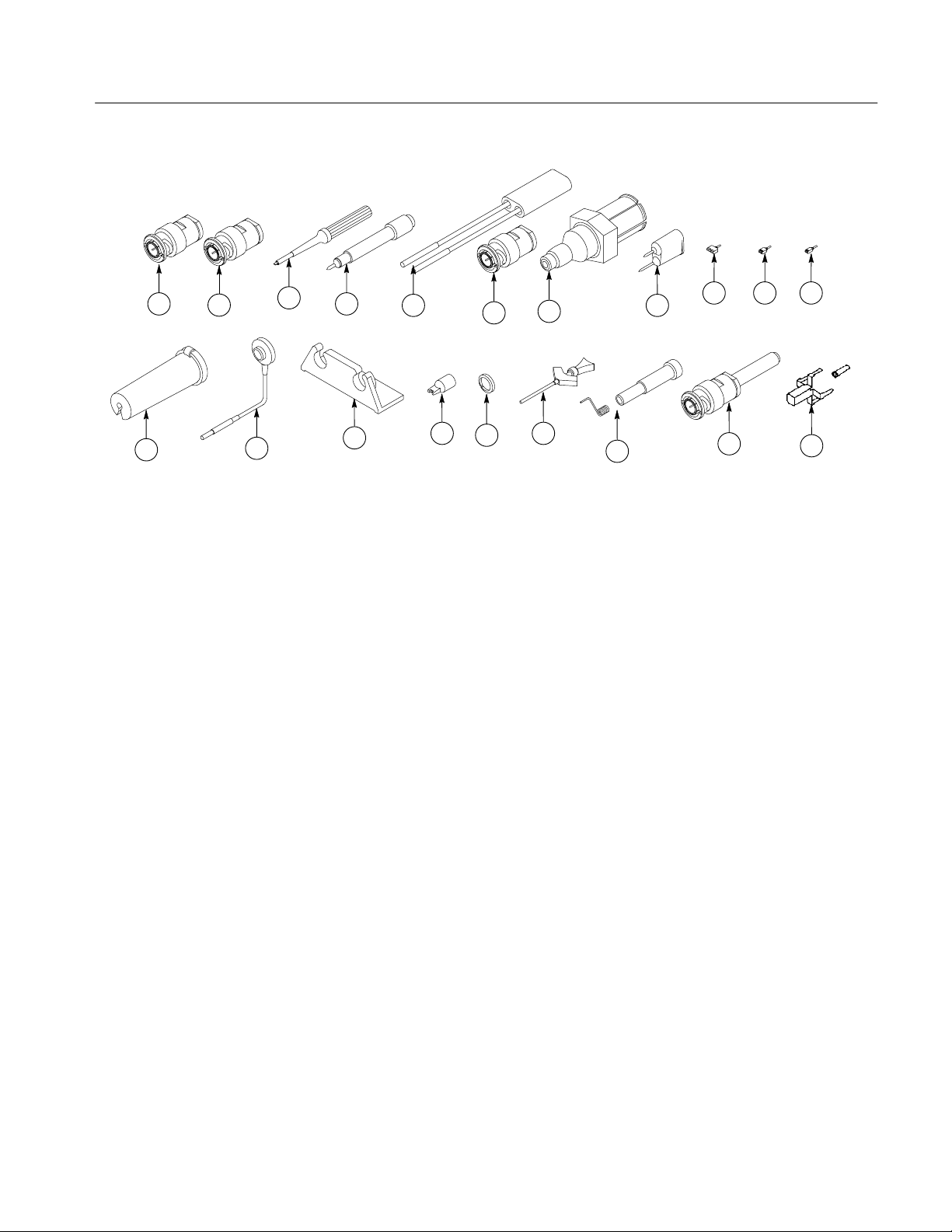

Figure 3: P6138A exploded view and standard accessories
6
P6138A Instructions
Replaceable Parts
18
28
27
16
17

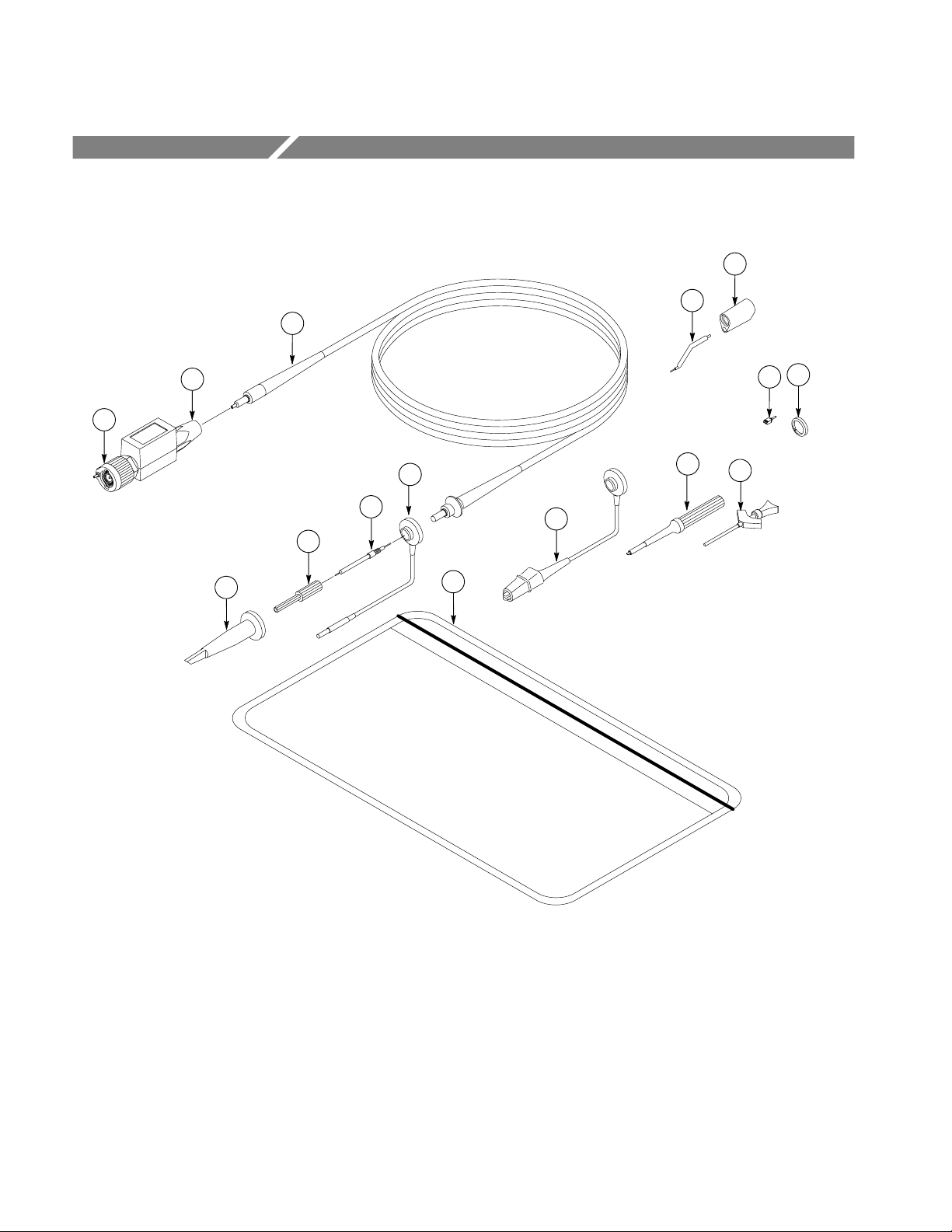

Figure 4: Optional accessories
19
29
20
30
31
21
32
22
33
23
24 25 26
34
35
P6138A Instructions
7
Replaceable Parts
Replaceable Parts List
Fig. & Index Number
3–1 131–3219–00 1 CONN,RF PLUG:BNC,MALE,STR,THD,10X
–2 200–3018–00 1 COVER,CABLE NIP:COMP BOX 0J260 ORDER BY
–3 174–3649–00 1 CA ASSY,RF:65 OHM COAX,1.3METER 80009 174–3649–00 –4 195–4240–00 1 LEAD,ELECTRICAL:0.025 DIA,COPPER,2.3 L 80009 195–4240–00 –5 343–1003–01 1 COLLAR,GND:P6130 TK2565 343–1003–01 –6 See Opt Acc. 2 MARKER BANDS 2 EACH VARIOUS COLORS –7 See Opt Acc. 2 SureFoot Adapters for 25 mil JEDEC and 0.65 mm
–8 206–0364–00 1 TIP,PROBE:MICROCKT TEST,0.05 CTR 80009 206–0364–00 –9 003–1433–00 1 SCREWDRIVER:ADJUSTMENT TOOL,METAL TIP
–10 196–3305–00 1 LEAD,ELECTRICAL:22 AWG,6.0 L,W/CLIP TK2469 196–3305–00 –11 ––––––––––– 1 Pouch –12 013–0107–07 1 TIP,PROBE:MINIATURE/COMPACT SIZE TK2565 013–0107–07 –13 204–1049–00 1 BODY SHELL:TIP COVER TK2565 204–1049–00 –14 206–0392–00 1 PROBE TIP ASSY:10X,10.3PF,GRAY/BLUE 80009 206–0392–00 –15 196–3113–02 1 LEAD,ELECTRICAL:STRD,22 AWG,6.0 L,8–N TK2469 196–3113–02
4–16 013–0226–00 1 CONNECTOR,BNC:BNC TO PROBE TIP ADAPTER
–17 013–0227–00 1 CONNECTOR,BNC:50 OHM,BNC TO P TIP
–18 003–1433–01 1 SCREWDRIVER:ADJUSTMENT TOOL,PKG OF 5
–19 013–0202–02 1 ADAPTER,PROBE:SUBMINIATURE/COMPACT TO
–20 015–0325–00 1 ADAPTER,PROBE:PROBE TO CONNECTOR PINS
–21 013–0084–01 1 ADAPTER,CONN:BNC TO PROBE
–22 017–0088–00 1 CONN,PLUG,ELEC:50 OHM,GR
–23 013–0085–00 1 TIP ,PROBE:GROUNDING
–24 SF201 1 Pkg of 12 yellow SureFoot Adapters for 50 mil JEDEC 80009 SF201 –25 SF202 1 Pkg of 12 blue SureFoot Adapters for 25 mil JEDEC
Tektronix Part Number
070–9695–00 1 MANUAL, TECH: P6138A 80009 070–9695–00
Serial No. Effective
Serial No. Discont’d
Qty Name & Description Mfr. Code Mfr. Part Number
Replaceable Parts and Standard Accessories
24931 28P266–3 READOUT,DOVE GRAY,W/11K OHM RES,W/CODE PIN,0.813 L,0.5 HEX
DESCRIPTION
EIAJ
TK2565 003–1433–00 PLASTIC,BLACK
Optional Accessories
24931 28P264–2 STRAIGHT THRU
24931 28P312–1 ADAPTER
80009 003–1433–01 METAL TIP
TK2565 013–0202–02 MINIATURE
TK2565 015–0325–00 (Requires 013–0202–02 adapter, Fig 4–20)
24931 28P156–1 (Requires 013–0202–02 adapter, Fig 4–20)
80009 017–0088–00 (Requires 013–0202–02 adapter, Fig 4–20)
80009 013–0085–00 (Requires 013–0202–02 adapter, Fig 4–20)
80009 SF202 and 0.65 mm EIAJ
8
P6138A Instructions
Replaceable Parts
Replaceable Parts List (Cont.)
Fig. & Index Number
4–26 SF203 1 Pkg of 12 red SureFoot Adapters for 0.5 mm EIAJ 80009 SF203
–27 352–0670–00 1 HOLDER,PROBE:A TTENUATOR TIPS (3) TK2565 352–0670–00 –28 196–3113–03 1 LEAD,ELECTRICAL:STRD,22 AWG,3.0 L,8–N TK2469 196–3113–03 –29 352–0351–00 1 HOLDER,PROBE:BLACK ABS P6000 SERIES 80009 352–0351–00 –30 015–0201–07 1 TIP,PROBE:IC TEST,PKG OF 10 80009 015–0201–07
–31 016–0633–00 1 MARKER SET,CA:2 EA VARIOUS COLORS 80009 016–0633–00 –32 SMG50 1 SMT KLIPCHIP:20 ADAPTERS 80009 SMG50 –33 016–1077–00 1 ACCESSORY KIT:GND TIP CONT ACT,PKG OF 2
–34 013–0254–00 1 ADAPTER,CONN:BNC TO PROBE
–35 131–5031–00 1 CONNECTOR,PROBE:PKG OF 25, COMP ACT 8009 131–5031–00
Tektronix Part Number
015–0201–08 1 TIP,PROBE:IC TEST,PKG OF 100 80009 015–0201–08
Serial No. Effective
Serial No. Discont’d
Mfr. Part NumberMfr. CodeName & DescriptionQty
80009 016–1077–00
EAOF 5 LENGHTS W/COVER SHELL
24931 28P–302–2 TIP,MALE,STR,PROBE,2.14 L,INT 4.5 X 0.077 MM THD,COMPACT
Manufacturers Cross Index
Mfr. Code
0J260 COMTEK MANUFACTURING OF OREGON P O BOX 4200
24931 BERG ELECTRONICS INC BERG ELECTRONICS RF/COAXIAL DIV
80009 TEKTRONIX INC 14150 SW KARL BRAUN DR
TK2469 UNITREK CORPORATION 3000 LEWIS & CLARK HWY
TK2565 VISION PLASTICS INC 26000 SW PARKWAY CENTER DRIVE WILSONVILLE, OR 97070
Manufacturer Address City , State, Zip Code
BEAVERT ON, OR 970764200
M/S 16–207
FRANKLIN, IN 46131 2100 EARLYWOOD DR PO BOX 547
BEAVERT ON, OR 97077–0001 PO BOX 500
VANCOUVER, W A 98661 SUITE 2
P6138A Instructions
9
Replaceable Parts
10
P6138A Instructions
