Instructions
Rackmount (Option 1R)
RSA6100A Series
071-1871-00
Warning
The servicing instructions are for use by qualified
personnel only. To avoid personal injury, do not
perform any servicing unless you are qualified to
do so. Refer to all safety summaries prior to
performing service.
www.tektronix.com
*P071187100*
071187100
Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or
suppliers, and are protected by national copyright laws and international treaty provisions.
Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supercedes
that in all previously published material. Specifications and price change privileges reserved.
TEKTRONIX and TEK are registered tradem arks of Tektronix, Inc.
Contacting Tektronix
Tektronix, Inc.
14200 SW Karl Braun Drive
P.O. Box 500
Beaverton, OR 97077
USA
For product information, sales, service, and technical support:
H In North America, call 1-800-833-9200.
H Worldwide, visit www.tektronix.com to find contacts in your area.
Table of Contents
Service Safety Summary 1..........................................
Kit Description 3............................................
Products 3.......................................................
Kit Parts List 3....................................................
Clearance Requirements 5...........................................
Installation Instructions 7....................................
Minimum Tool and Equipment List 7..................................
Remove 9........................................................
Install 12.........................................................
Rackmount the Rack-Adapted Instrument 14.............................
RSA6100A Series Rackmount (Option 1R)
i
Table of Contents
List of Figures
Figure 1: Instrument cooling 4................................
Figure 2: Instrument with Rack Adapter Installed 6..............
Figure 3: Rackmount kit parts 8...............................
Figure 4: Strip instrument for conversion 10......................
Figure 5: Rackmount panel preassembly 11......................
Figure 6: Right inside track identification 12.....................
Figure 7: Installation of rackmount assemblies 13.................
Figure 8: Assembly of slide-out track assemblies 16................
Figure 9: Vertical clearances for rack installation
(left-front rail shown) 17...................................
Figure 10: Installation of slide-out track assemblies in rack
(top view) 18.............................................
List of Tables
T able 1: Warranted characteristics 5...........................
Table 2: Tools required for rackmount installation 7.............
ii
RSA6100A Series Rackmount (Option 1R)
Service Safety Summary
Only qualified personnel should perform service procedures. Read this Service
Safety Summary and the General Safety Summary in the product service manual
or the instruction manual.
Do Not Service Alone. Do not perform internal service or adjustments of this
product unless another person capable of rendering first aid and resuscitation is
present.
To prevent the instrument and rack from falling onto the operator, two or more
installers should install the instrument into the rack cabinet. After completing the
installation procedure, the installers should verify that the instrument and rack
cabinet will not tip forward while the instrument is in the extended position.
Disconnect Power. To avoid electric shock, switch off the instrument power, then
disconnect the power cord from the mains power.
Use Care When Servicing With Power On. Dangerous voltages or currents may
exist in this product. Disconnect power, remove battery (if applicable), and
disconnect test leads before removing protective panels, soldering, or replacing
components.
To avoid electric shock, do not touch exposed connections.
RSA6100A Series Rackmount (Option 1R)
1
Service Safety Summary
2
RSA6100A Series Rackmount (Option 1R)
Kit Description
Products
Kit Parts List
This kit describes the installation of Option 1R (rackmount kit) on your
RSA6100A Series Real-Time Spectrum Analyzer. The rackmount kit is a
collection of parts that, once installed, configures the instrument for mounting
into a standard 19-inch equipment rack.
RSA6100A Series AllSerialNumbers
Figure 3 on
page 8
-- -- -- -- -- -- -- -- -- 1ea 016-1962-XX Rackmount Kit:RSA6100A Series, consisting of
-- -- -- -- -- -- -- -- -- 1 e a 071-1871-XX Technical manual: Instructions, Rackmount,
3-1 1 ea 441-2407-XX Rackmount bracket set consisting of: left and
Quantity Part number Description
the following:
RSA6100A Series
right sides, aluminum, silver gray
3-2 1 ea 351-0313-01 Guide rack, consisting of: left and right side
3-3 4 ea NS Screw, mach: 10-32, pan head, 0.375 in l,
phillips
3-3 7 ea NS Nut, locking washer: 10-32 assembly
3-3 14 ea NS Screw, mach: 10-32, Truss head, 0.5 in l, phillips
3-3 4 ea NS Screw, mach: M6 x 20 ovl head, phillips
3-3 4 ea NS Screw, mach: M5 x 20 ovl head, phillips
3-3 8 ea NS Screw, mach: 10-32 x 0.75 ovl head, phillips
3-3 4 ea NS Screw, mach: 12-32 x 0.75 ovl head, phillips
3-3 9 ea NS Washer: flat, nylon
3-4 1 ea 351-0241-XX Slide, drawer, extenders: Sliders
3-4 1 ea NS Rack: Mounting screws, nut blocks
3-5 2 ea 367-0525-XX Handle: Bracket, aluminum, silver gray
3-6 4ea 212-0577-XX Screw, mach: 10-32, Truss head, 0.625 in,
PozidrivR
NS - Not Saleable
RSA6100A Series Rackmount (Option 1R)
3
Kit Description
Warranted Characteristics
Cool air in
When the instrument is installed as instructed in this document, the rackmounted
instrument meets all warranted requirements listed in the instrument specification except for those listed in Environmental Requirements on page 5.Useof
mounting methods other than those described in these instructions can cause the
instrument to not meet warranted requirements.
See the RSA6100A Series Specifications and Performance Verification Technical
Reference (Tektronix part number 071-1915-XX) for tables of the warranted
characteristics.
Cooling air enters from the left side as shown in Figure 1. You assume the
responsibility to provide adequate cool air to meet the ambient temperature
requirements listed in Table 1.
Hot air out
Measure
input air
temperature
Figure 1: instrument cooling
4
RSA6100A Series Rackmount (Option 1R)
Kit Description
Environmental
Requirements
The following environmental characteristics supercede those listed in the user or
service manual for your instrument.
Table 1: Warranted characteristics
Characteristic Description
Temperature, Inside Rack Cabinet
Operating +5 _Cto+50_C
When accessing DVD +5 _Cto+40_C
Non-operating --20 _Cto+60_C
Vibration
Operating 0.22 Grms. Profile = 0.00010 g2/Hz at 5 Hz to 350 Hz,
--3dB/Octave slope from 350 Hz to 500 Hz,
0.00007 g
(Except when equipped with Option 06 Removable
HDD, or when accessing DVD/CD)
When equipped with Option 08, Removable Solid State
Hard Drive: 0.24 Grms. Profile = 0.000125 g
5 Hz to 350 Hz, --3dB/Octave slope from 350 Hz to
500 Hz, 0.0000876 g
min/axis
2
/Hz at 500 Hz, 3 Axes at 10 min/axis
2
/Hz at 500 Hz, 3 Axes at 10
2
/Hz at
Shock
Clearance Requirements
The rack in which the rack adapted instrument is mounted must provide the
following clearance requirements:
H A minimum of 266.7 mm (10.5 in) of vertical space.
H A minimum width of 448 mm (17 5/8 in) between the left- and right-front
H A minimum inside depth of at least 508 mm (20.5 in).
Non-operating 2.28 Grms. Profile = 0.015 g2/Hz at 5 Hz to 100 Hz,
--3 dB/Octave slope from 100 Hz to 200 Hz,
2
0.075 g
from 350 Hz to 500 Hz, 0.00526 g
3 Axes at 10 min/axis
Operating and Non-operating 20 g, 11 ms, half sine, each axis, 3 drops each
/Hz at 200 Hz to 350 Hz, --3dB/Octave slope
2
/Hz at 500 Hz,
rails in the rack.
RSA6100A Series Rackmount (Option 1R)
5
Kit Description
CAUTION. By adhering to these clearance requirements, the rack-adapted
instrument will be mounted with sufficient clearance for air circulation and
accommodation of the power cord and mounting hardware. Failure to provide
these clearances can result in overheating and will cause the instrument to not
operate properly and/or fail.
533.40 mm
(21.00 in)
500.024 mm
(19.686 in)
482.60 mm
(19.00 in)
161.925 mm
(6.375 in)
465.480 mm
(18.326 in)
Figure 2: Instrument with Rack Adapter Installed
50.80 mm
(2.00 in)
30.480 mm
(1.200 in)
254.00 mm
(10.00 in)
172.72 mm
(6.800 in)
92.58 mm
(3.645 in)
6
RSA6100A Series Rackmount (Option 1R)
Installation Instructions
This section contains all procedures needed to rackmount RSA6100A Series
instruments.
Minimum Tool and Equipment List
The following tools are required to attach the rack-adapter kit hardware, install
cabling hardware, and mount the rack-adapted instrument into a standard
equipment cabinet. All tools are standard tools that are readily available.
Table 2: Tools required for rackmount installation
Item
no.
Name Description
1 Screwdriver handle
(magnetic)
Accepts1@4inch hex-head driver tips
2 No. 2 Phillips or
Pozidriv tip
3 T-15 Torx tip TorxR-driver tip for T-15 size screw heads
4 T-20 Torx tip TorxR-driver tip for T-20 size screw heads
3/
5
6
7
inch wrench Wrench or nutdriver can be used to install slides
8
5/
inch wrench Open end wrench to install the optional rear-panel BNCs
8
5/
inch hex wrench Hex wrench to remove Allen head screws at front of top cover
32
Phillips or Pozidriv-driver tip for number 2 size screw heads
These instructions are for qualified service personnel who are familiar with
servicing the product. If you need further details for disassembling or reassembling the product, refer to the appropriate product manual. Contact your nearest
Tektronix Service Center or Tektronix Factory Service for installation assistance.
WARNING. To prevent the rackmounted instrument from tipping forward onto the
operator, install the instrument so that the operator will be able to access all of
its rear devices without pushing down on the instrument.
Verify that the rack does not become unstable with the instrument fully extended.
Do not leave the instrument extended when you are finished accessing the rear
panel.
RSA6100A Series Rackmount (Option 1R)
7
Installation Instructions
1
6
Figure 3: Rackmount kit parts
5
1
4
2
2
3
4
8
RSA6100A Series Rackmount (Option 1R)
Remove
Installation Instructions
Strip the Instrument for
Conversion
Equipment Required:Torxdriver (Item 1) with T-15 and T-20 tips (Items 3 and 4),
5/32 hex wrench (Item 7).
NOTE. All parts removed from the instrument in this procedure should be
retained for later use. Store any parts not needed for rackmounting in case you
want to convert back to a standard instrument configuration at a later time.
Right-side or left-side references in these instructions assume you are viewing
the instrument from the front panel.
1. Remove the power cord.
2. If it is installed, pull the front cover off the instrument.

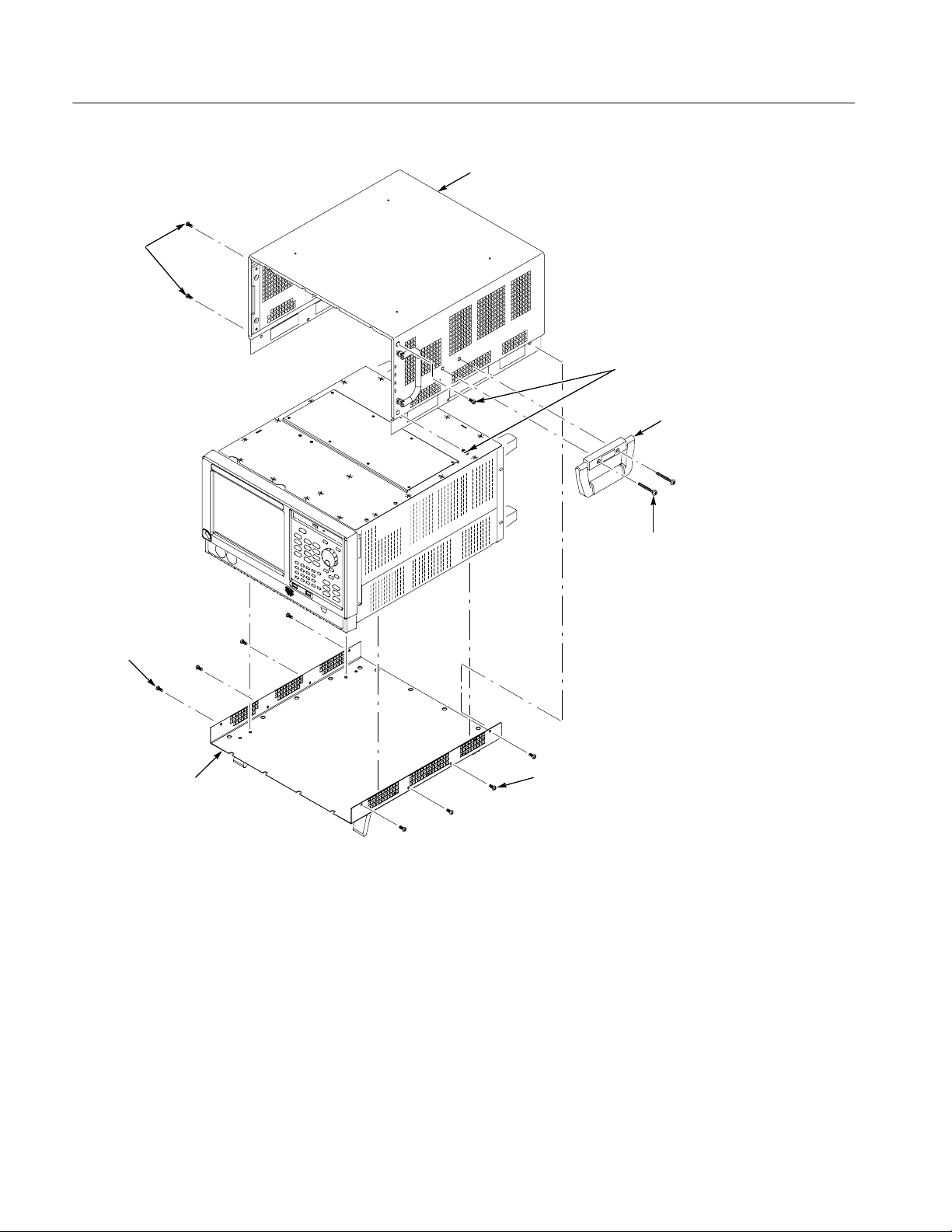

3. Remove the two screws that secure the plastic carrying handle to the side of
the instrument. (It is not necessary to remove the black metal handles.) See
Figure 4.
4. Remove four T-15 Torxdrive screws along each side and two 5/32 Allen
head screws near the front edge of the top cover (next to the folding handles)
that secure the top and bottom covers to the instrument.
5. Remove the top and bottom covers. Remove the top cover by pulling straight
back about 1 inch. Then pull out on the sides of the top cover outward,
flexing them slightly to clear the instrument chassis, and pull it away from
the instrument.
RSA6100A Series Rackmount (Option 1R)
9
Installation Instructions
5/32 Allen
head screw
(2)
Top cover
5/32 Allen head
screw (2)
Carrying handle (1)
T-20 Torx drive
screw (2)
Screw (4)
Bottom cover
Figure 4: Strip instrument for conversion
Screw (4)
10
RSA6100A Series Rackmount (Option 1R)
Installation Instructions
Bracket
handle (2)
10-32 Lock nut (6)
Left inside track (1)
Left-side rackmount
panel (1)
Right-side
rackmount panel (1)
10-32 screw (4)
Right inside
track (1)
Figure 5: Rackmount panel preassembly
RSA6100A Series Rackmount (Option 1R)
11
Installation Instructions
Install
NOTE. Preassemble all subparts on the right- and left-side panels before
installing the rackmount panels on the instrument. Refer to Figure 5 on page 11.
1. To install the bracket handle:
a. Install the bracket handle to the right-side rackmount panel.
b. Secure the bracket handle to the right-side rackmount panel using the
two 10-32 x 0.375 flat head screws. Install the screws through the
beveled, recessed holes on the back of the flange. Apply 15 inch-lbs of
torque to the screws.
2. Install the right-side rackmount track over the three screw posts on the
right-side rackmount panel. Use the three 10-32 locking-nut washer
assemblies to secure the right-side rack track onto the rackmount panel,
applying 28 inch-lbs of torque.
CAUTION. To prevent the rackmount track from not locking, make sure the track
button latch is located towards the bottom of the rackmount panel.
Refer to Figure 6.
Note button latch is located
near the bottom edge of
track.
Right track
(mount on the right side of
instrument).
12
Figure 6: Right inside track identification
RSA6100A Series Rackmount (Option 1R)
Truss head 10-32x0.5
screws (8)
Installation Instructions
3. Install the right-side rackmount panel assembly to the right side of the
instrument. Secure it by using the four 10-32 Truss head phillips screws,
applying 28 inch-lbs of torque. Refer to Figure 7.
4. Repeat steps 1 through 3, to install the left-side rackmount panel, substitut-
ing left-side for the right-side.
Left-side rackmount
assembly (1)
Right-side rackmount
Figure 7: Installation of rackmount assemblies
This completes the installation of the rack-adapter hardware to the instrument. To
complete the installation, proceed to Rackmount the Rack-Adapted Instrument.
RSA6100A Series Rackmount (Option 1R)
assembly (1)
13
Installation Instructions
Rackmount the Rack-Adapted Instrument
This procedure describes how to assemble and install the slide-out tracks in the
equipment rack, and how to install the rack-adapted instrument in the rack.
The slide-out tracks permit the rack-adapted instrument to be extended out of the
rack for rear-panel and connector maintenance without removing the instrument
from the rack.
WARNING. If slide-out track assemblies are disassembled for maintenance, do
not interchange the left and right inner tracks when reinstalling them in the left
and right outer tracks. If you do so, you will defeat the extension stop (safety
latch) feature of the tracks. Equipment could, when extended, come out of the
slides and fall from the rack, possibly causing personal injury and equipment
damage.
WARNING. To prevent the rackmounted instrument from tipping forward onto the
operator, install the instrument so that the operator will be able to access all of
its rear devices without pushing down on the instrument.
Verify that the rack does not become unstable with the instrument fully extended.
Do not leave the instrument extended when finished accessing the rear panel.
NOTE. The rack hardware kit contains hardware needed for mounting the
instrument in several configurations. Not all of the hardware in the kit will be
needed.
NOTE. A standard equipment rack has rails with universal hole spacing. If you
use a rack with other than universal hole spacing, you may have to drill
additional mounting holes in the rack.
14
RSA6100A Series Rackmount (Option 1R)
Installation Instructions
Install Track Assembly
and Instrument in Rack
Equipment Required: One screwdriver handle (Item 1), one number two Pozidriv
tip (Item 2).
NOTE. The slide-out track assemblies that are included in this kit (Figure 3 on
page 8) come partially assembled with the inner tracks inside of the outer
tracks. Leave them partially assembled to simplify their installation and to avoid
accidental swapping of their inner tracks. (See WARNING on the previous page.)
If assemblies are disassembled, use Figure 8, page 16, to match left and right
slides. (Note that when the left and right tracks are oriented as shown, the round
cutout is below the square cutout at the end of the both inner tracks.)
Procedure:
1. Assemble the slide-out track:
a. Identify the right versus left slide-out track assemblies by finding the
date code label on each assembly. The assembly to be mounted in the
left side of the equipment rack (the side nearest the left side of the
instrument when it is rackmounted) has a date code that ends with “LH,”
for left hand. The right assembly has a date code ending with “RH”, for
right hand.
b. Measure the distance between the front and rear rail of the equipment
rack.
c. Align the rear bracket to the right slide-out track as shown in Figure 8.
Note the rear bracket has multiple pairs of mount-through holes. When
aligning the bracket and track, be sure to select a pair of holes that mount
the rear bracket so the flange-to-flange distance (see figure) matches the
front rail to rear rail spacing of the rackmount rack just measured.
d. Using a screwdriver with a number two Pozidriv tip, secure the rear
bracket to the right slide out track using two screws (10-32) and a nut
bar as illustrated. Leave the screws loose so that the overall length of the
slide-out track assembly can be adjusted when installing it in the rack.
e. Repeat substeps c and d to assemble the left slide-out track assembly.
2. Mount the slide-out track assemblies, using the slide drawer hardware listed
in the kit parts list, Figure 3:
a. Select the mounting position in rack: Select two ½ inch spaced holes in
the front rail. V erify that the 10.500 inch clearances exist relative to
those mounting holes. See Figure 9 on page 17.
RSA6100A Series Rackmount (Option 1R)
15
Installation Instructions
Rear flange (mounts to
rear rail of rack)
Nut bar
Flange-to-Flange: 514.4 mm
(20.25 in) min to 673.1 mm
(26.50 in) max
Rear bracket
Outer track
Note button latch is
closest to top of track.
Front flange (mounts to
front rail of rack)
Figure 8: Assembly of slide-out track assemblies
Right slide-out track assembly
Round and
square cut outs
Inner track
Left slide-out track assembly
16
RSA6100A Series Rackmount (Option 1R)
15.875 mm (.625 in)
(for correct position of
securing holes)
Installation Instructions
Securing holes
(tapped for
10-32 screws)
190.50 mm
(7.500 in)
266.700 mm
(10.500 in)
94.84 mm
(3.734 in)
190.50 mm
(7.500 in)
Figure 9: Vertical clearances for rack installation (left-front rail shown)
58.00 mm
(2.284 in)
RSA6100A Series Rackmount (Option 1R)
17
Installation Instructions
b. Select mounting method according to rack type:
H To mount the slide-out tracks with their front and rear flanges
outside of the front and rear rails use Mounting Method A shown in
Figure 10 when doing substep c. Add a nut bar to the installation
only if the rails have untapped holes.
H To mount with front and rear flanges inside of rails use Mounting
Method B outlined in Figure 10. This mounting method assumes
untapped holes.
c. Install in rack: Using the method and hardware determined from
substep b, secure the right slide-out track assembly to its front and rear
rails. The screws should be fully, but lightly, seated so mounting can be
adjusted later.
d. Fix the length of the slide-out track assembly: Tighten the screws,
applying 28 inch-lbs of torque, that were left loose in step 1, substep d,
to fix the front to rear flange spacing of the slide-out track assembly.
Left slide-out track Left slide-out track
Use a nut bar if front rails
Left-front rail
Mounting Method A Mounting Method B
are not tapped
10-32 Pan head
screws (4)
e. Mount the left slide-out track assembly: Repeat substeps a through d to
mount the left slide-out track assembly.
English Metric
#10 M6 M5
#12
Left-front rail
10-32 Flat head
screws (4)
Use two flat head screws if the cabinet rails have
countersunk mounting holes; otherwise use two
pan head screws
10-32 Pan head
screws (4)
Figure 10: Installation of slide-out track assemblies in rack (top view)
18
RSA6100A Series Rackmount (Option 1R)
Installation Instructions
3. Mount instrument in rack:
WARNING. To prevent the instrument from tipping or dropping onto the installers, two or more people should install this instrument into the rack cabinet.
After completing the installation procedure, the installers should verify that the
instrument and rack cabinet will not tip forward while the instrument is in the
extended position.
a. Install the instrument:
H Working from the front of the rack, slide the inner track of each
slide-out track assembly until it extends out the front of the rack.
Continue to slide them out until they lock.
H Insert the left and right tracks that extend from the rear of the
instrument into the ends of the tracks just extended. Make sure the
tracks mounted on the instrument slip inside the inner tracks
extended earlier.
H Slide the rear of the instrument backwards until it stops.
H Push to release the button latches, located on the outside of each
track, and continue to slide the instrument all the way into the
cabinet.
b. Level the rackmounted instrument:
H Tighten the four screws that were left loose at the rear of the rack
when you did step 2, substep c, and then pull the instrument part
way out of the rack.
H Be sure the four screws that were left loose at the front of the rack
are loose enough to allow the slide-out track assemblies to seek their
normal positions.
H Retighten the four screws and push the instrument all the way into
the rack. If the tracks do not slide smoothly, readjust the level using
the method just detailed.
H When leveling is completed, tighten the 10-32 screws using
28 inch-lbs of torque.
RSA6100A Series Rackmount (Option 1R)
19
Installation Instructions
c. Secure the instrument and install the power cord:
H Locate and use one of the following types: 10-32 or 12-24 or M5-20
or M6-20 oval head screws. Insert each screw through its nylon
finish washer as shown on the data sheet included with the hardware
kit.
H Using a number two phillips screwdriver, install the screw/washer
assembly in one of the two mounting holes in the right front bracket.
Repeat for the second mounting hole. Tighten both screws using
25 inch-lbs of torque.
H Install the two remaining screw/washer assemblies in the left front
bracket using the method just described.
H Install the optional front trim panel if the uncovered blank space
below the rack-mounted instrument is undesirable. Use the four
10-32 x 0.750 oval head phillips drive screws with four nylon
washers to secure the front trim panel to the rack frame. See
Figures3and5onpages8and11.
H Reinstall the power cord.
g End of document g
20
RSA6100A Series Rackmount (Option 1R)
Loading...
