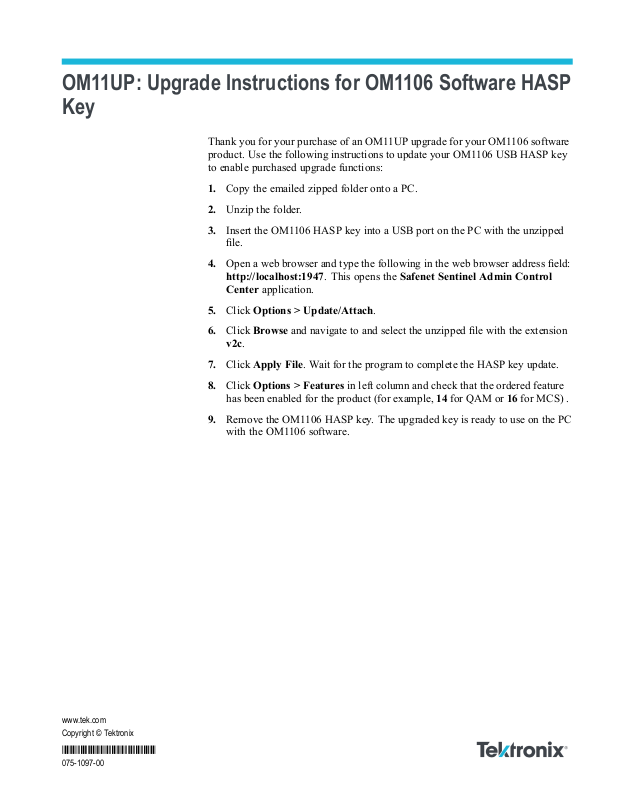

OM11UP: Upgrade Instructions for OM1106 Software HASP Key

Thank you for your purchase of an OM11UP upgrade for your OM1106 software
product. Use the following instructions to update your OM1106 USB HASP key
to enable purchased upgrade functions:

1. Copy the emailed z ipped folder onto a PC.

2. Unzip the folder.

3. Insert the OM1106 HASP key into a USB port on the PC with the unzipped

file.

4. Open a web browser and type the following in the web browser address field:
http://localhost:1947. This opens the Safenet Sentinel Admin Control
Center application.

5. Click Options > Update/Attach.

6. Click Browse and navigate to and select the unzipped file with the extension
v2c.

7. Click Apply File. Wait for the program to complete the HASP key update.

8. Clic

9. Remo

k Options > Features in left column and check that the ordered feature

has been enabled for the product (for example, 14 for QAM or 16 forMCS).

ve the OM1106 HASP key. The upgraded key is ready to use on the PC

with the OM1106 software.
