5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58

Service Manual

.tek.com/register

www

*P077130705*

077-1307-05

Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. T and pending. Information in this publication supersedes that in all previously published material. Specifications and price change privileges reserved.

TEKTRONIX and TEK are registered trademarks of Tektronix, Inc.

ektronix products are covered by U.S. and foreign patents, issued

Contacting Tektronix

Tektronix, Inc.

14150 SW Karl Braun Drive

P.O. Box 500

Beaverton, OR 97077

USA

For product information, sales, service, and technical support:

• In North America, call 1-800-833-9200.

• Worldwide, visit to www.tek.com find contacts in your area.

Table of Contents

List of Figures................................................................................................................................................................................5

List of Tables................................................................................................................................................................................. 6

Important safety information..........................................................................................................................................................7

General safety summary........................................................................................................................................................7

Service safety summary.........................................................................................................................................................9

Terms in the manual...............................................................................................................................................................9

Terms on the product............................................................................................................................................................. 9

Symbols on the product....................................................................................................................................................... 10

Introduction..................................................................................................................................................................................11

Preface.................................................................................................................................................................................11

Supported products..............................................................................................................................................................11

Replaceable parts................................................................................................................................................................ 11

Where to find operating information..................................................................................................................................... 11

Theory of operation..................................................................................................................................................................... 12

Block diagram...................................................................................................................................................................... 12

Power supply....................................................................................................................................................................... 13

Carrier interface assembly................................................................................................................................................... 13

Main board and front-end board.......................................................................................................................................... 13

Front panel and display........................................................................................................................................................13

Adjustment procedures............................................................................................................................................................... 14

Instrument adjustment......................................................................................................................................................... 14

Adjustment interval.............................................................................................................................................................. 14

Adjustment after repair.........................................................................................................................................................14

Maintenance................................................................................................................................................................................15

Preventing ESD................................................................................................................................................................... 15

Inspection and cleaning....................................................................................................................................................... 15

Exterior cleaning (other than display)........................................................................................................................... 15

Flat panel display cleaning........................................................................................................................................... 16

Interior cleaning............................................................................................................................................................ 16

Lubrication.................................................................................................................................................................... 17

Returning the instrument for service.............................................................................................................................17

Removal and replace procedures........................................................................................................................................ 18

Required equipment..................................................................................................................................................... 18

Remove front-panel knobs............................................................................................................................................18

Remove SATA riser board assembly............................................................................................................................ 19

Remove feet................................................................................................................................................................. 19

Remove handle.............................................................................................................................................................20

Remove rear grill and case...........................................................................................................................................20

Remove rear chassis assembly....................................................................................................................................20

Remove the baffle bracket............................................................................................................................................22

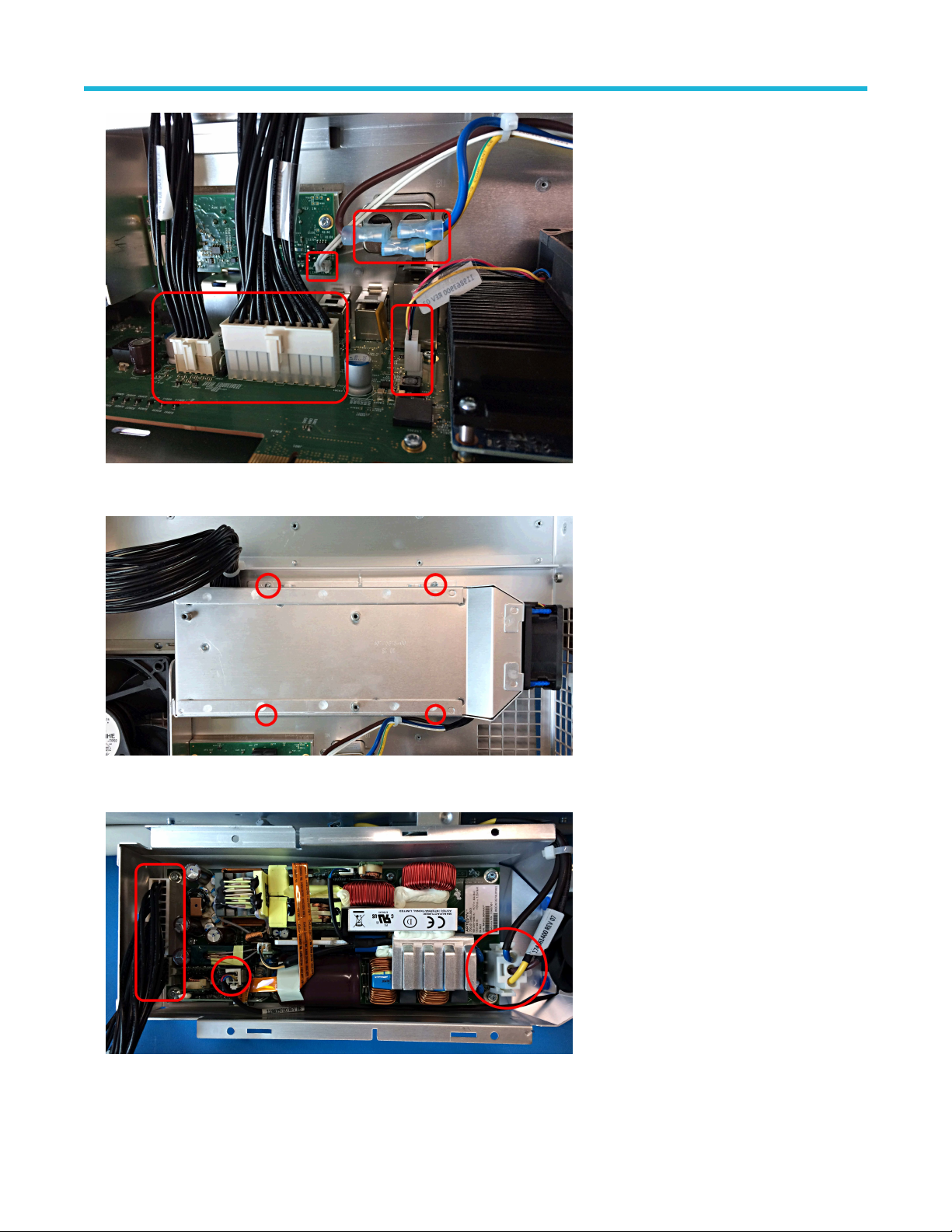

Remove the power supply assembly............................................................................................................................ 22

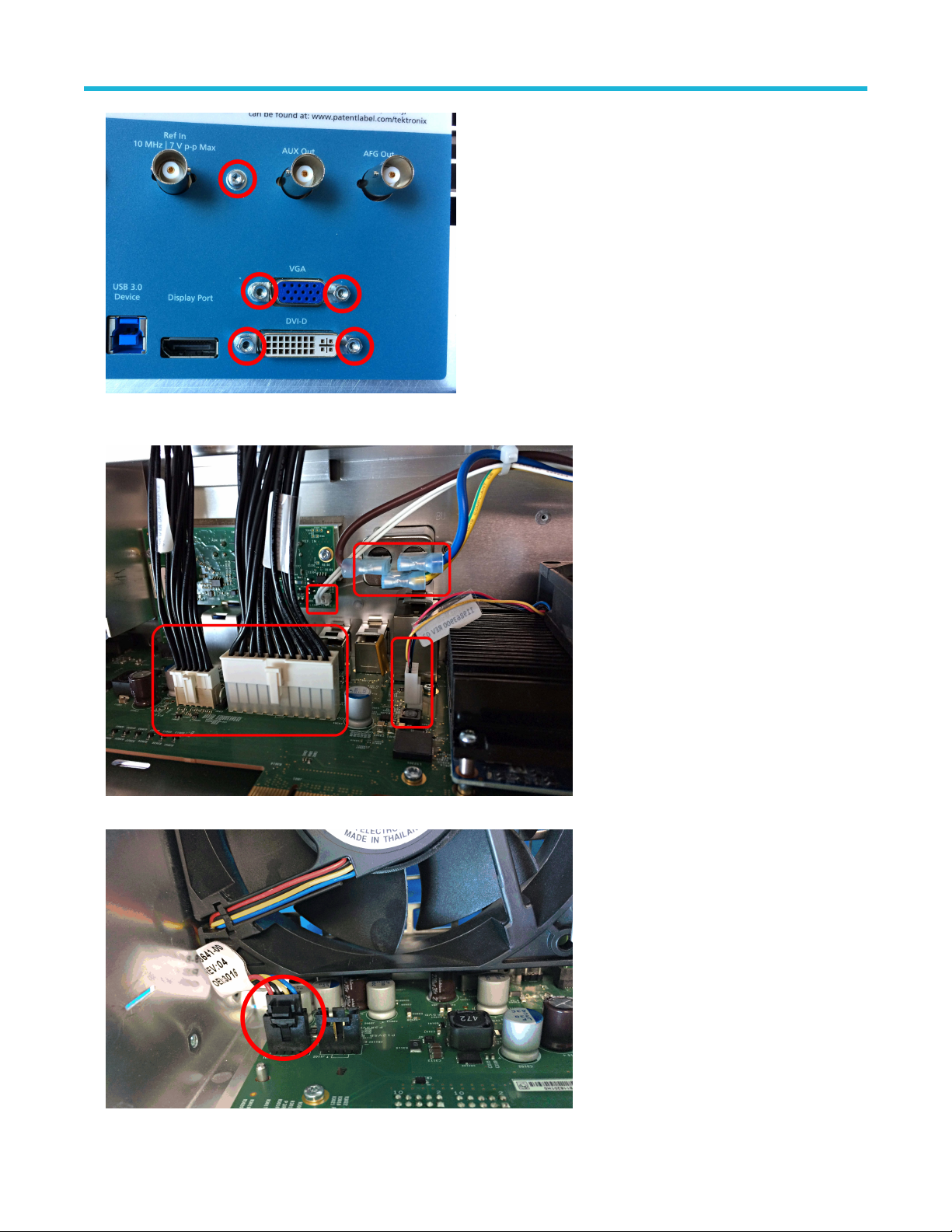

Remove carrier interface assembly.............................................................................................................................. 24

Remove the AFG riser assembly..................................................................................................................................26

Remove handle hub assembly......................................................................................................................................27

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 3

Table of Contents

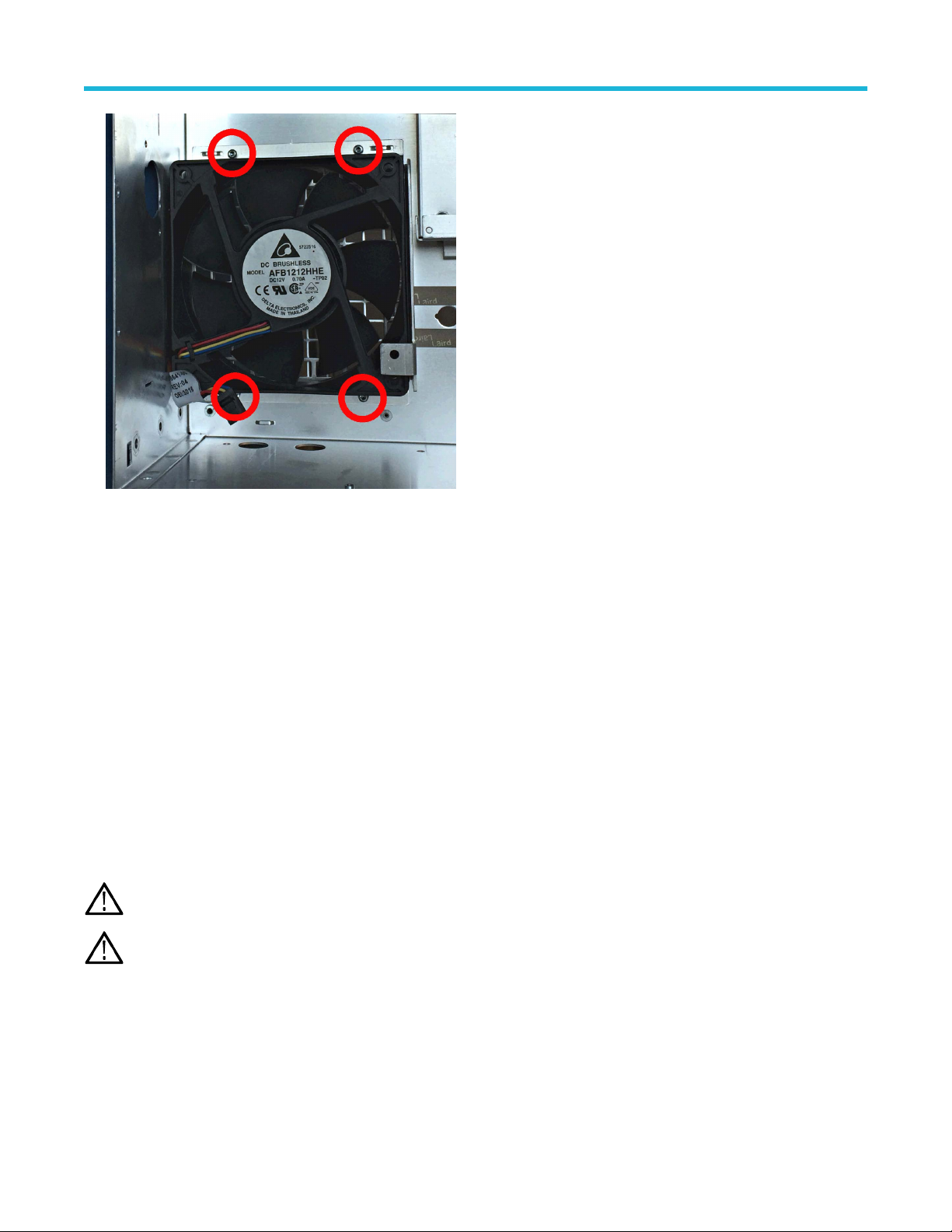

Remove the main fan assembly....................................................................................................................................27

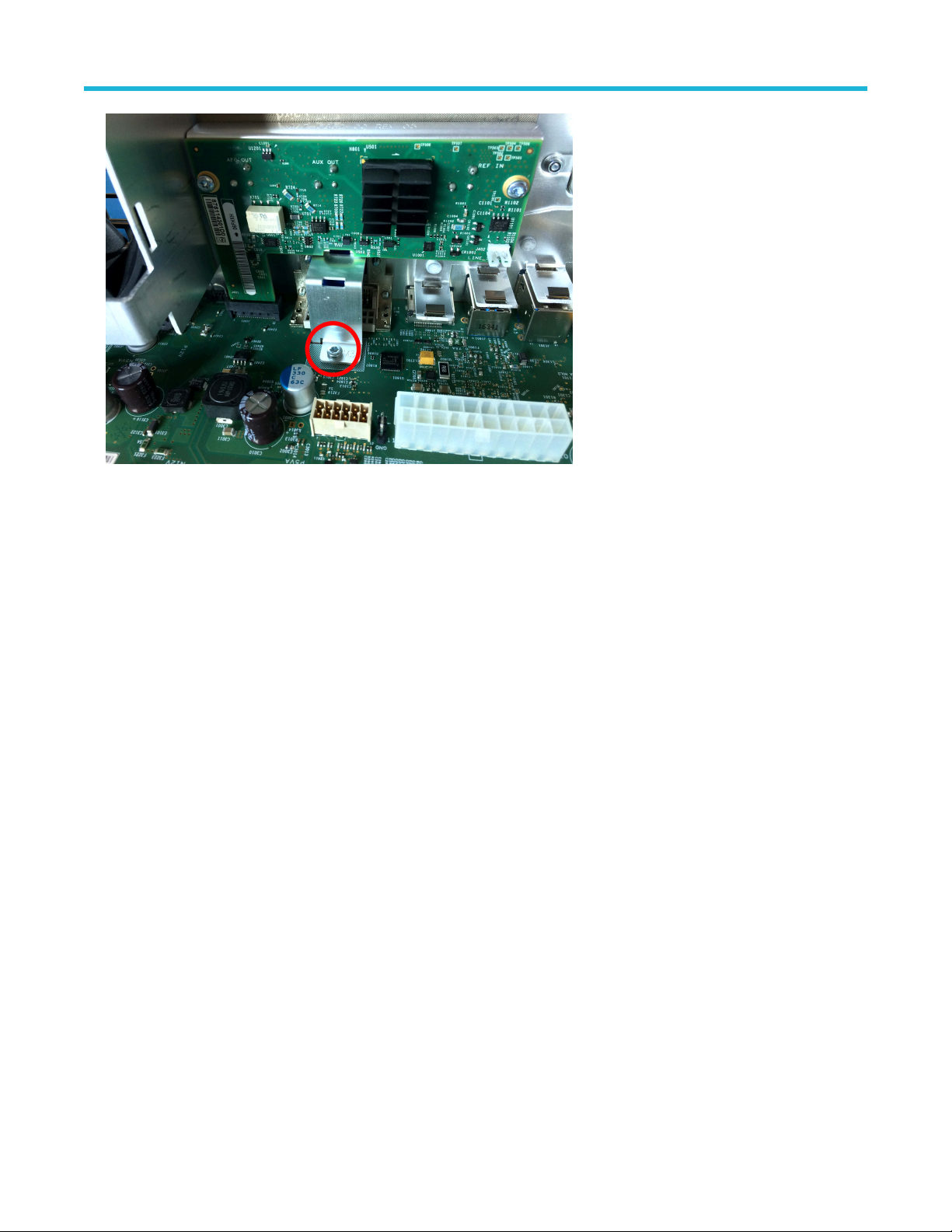

Remove M.2 memory board

......................................................................................................................................... 28

Troubleshooting 5 Series MSO ...........................................................................................................................................29

Service level................................................................................................................................................................. 30

Check for common problems........................................................................................................................................30

Equipment required...................................................................................................................................................... 30

Troubleshooting flow chart............................................................................................................................................31

Troubleshoot the power supply.....................................................................................................................................32

Instrument self tests......................................................................................................................................................33

Software updates..........................................................................................................................................................33

After power supply module replacement.......................................................................................................................34

Replaceable parts....................................................................................................................................................................... 35

Parts ordering information....................................................................................................................................................35

Module servicing.................................................................................................................................................................. 35

Abbreviations....................................................................................................................................................................... 36

Using the replaceable parts list............................................................................................................................................36

Front cover and rear case....................................................................................................................................................37

Carrier interface board and rear chassis..............................................................................................................................39

Baffle and power supply module..........................................................................................................................................42

Mid-plane chassis................................................................................................................................................................ 44

Front panel and display........................................................................................................................................................46

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 4

List of Figures

Figure 1: Primary troubleshooting tree........................................................................................................................................31

Figure 2: Power status LEDs...................................................................................................................................................... 32

Figure 3: Front cover and rear case exploded view.................................................................................................................... 37

Figure 4: Carrier interface board and rear chassis exploded view..............................................................................................39

Figure 5: Rear chassis baffle and power supply exploded view..................................................................................................42

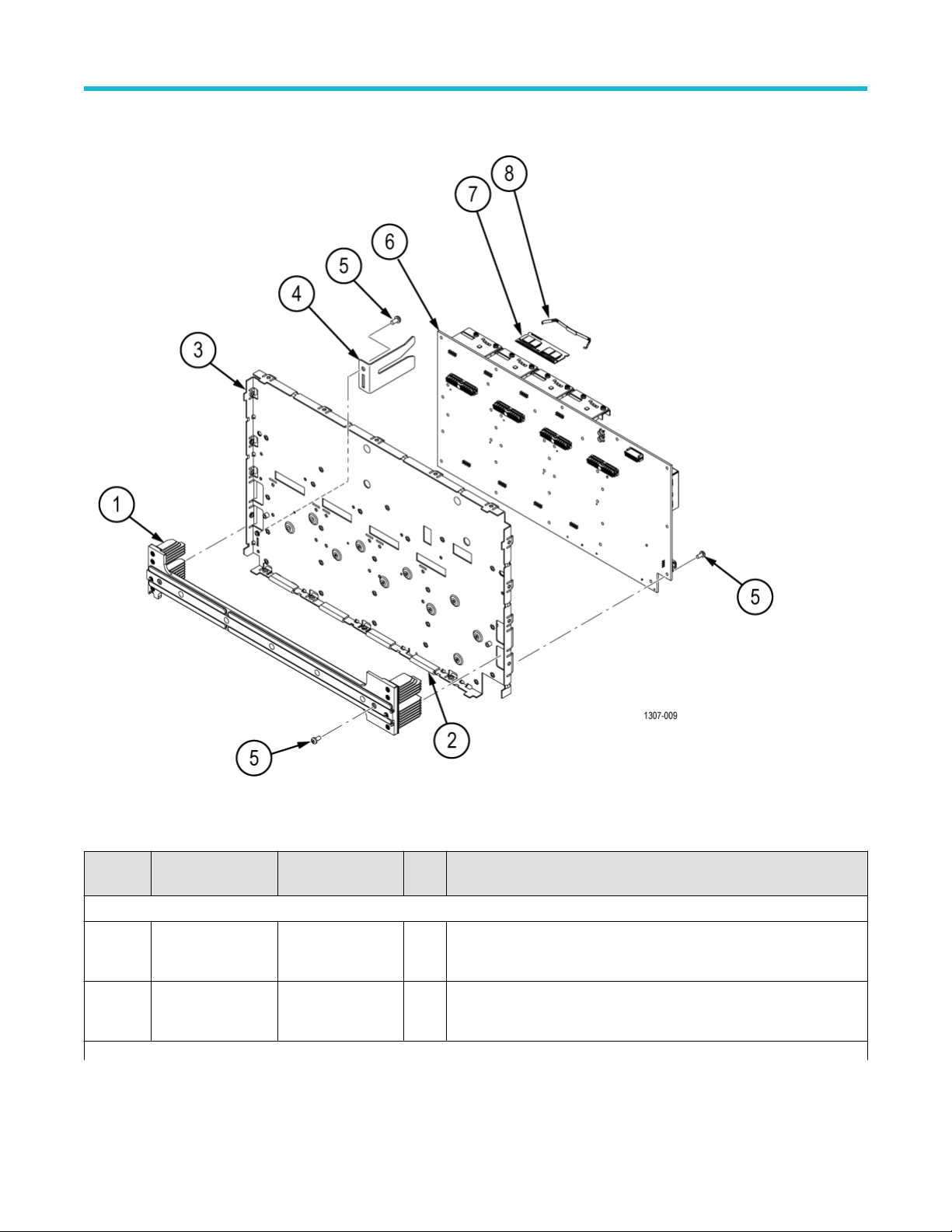

Figure 6: Mid-plane chassis exploded view................................................................................................................................ 44

Figure 7: Front panel and display exploded view........................................................................................................................46

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 5

List of Tables

Table 1: External inspection checklist......................................................................................................................................... 16

Table 2: Internal inspection checklist...........................................................................................................................................17

Table 3: Required equipment for removal and replacement....................................................................................................... 18

Table 4: Failure symptoms and possible causes.........................................................................................................................30

Table 5: Parts list column descriptions........................................................................................................................................ 36

Table 6: Front cover and rear case............................................................................................................................................. 37

Table 7: Carrier interface board and rear chassis....................................................................................................................... 39

Table 8: Baffle and power supply module....................................................................................................................................42

Table 9: Mid-plane chassis..........................................................................................................................................................44

Table 10: Front panel and display............................................................................................................................................... 46

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 6

Important safety information

This manual contains information and warnings that must be followed by the user for safe operation and to keep the product in a safe condition.

To safely perform service on this product, see the Service safety summary that follows the General safety summary.

General safety summary

Use the product only as specified. Review the following safety precautions to avoid injury and prevent damage to this product or any products connected to it. Carefully read all instructions. Retain these instructions for future reference.

This product shall be used in accordance with local and national codes.

For correct and safe operation of the product, it is essential that you follow generally accepted safety procedures in addition to the safety precautions specified in this manual.

The product is designed to be used by trained personnel only.

Only qualified personnel who are aware of the hazards involved should remove the cover for repair, maintenance, or adjustment.

Before use, always check the product with a known source to be sure it is operating correctly.

This product is not intended for detection of hazardous voltages.

Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.

While using this product, you may need to access other parts of a larger system. Read the safety sections of the other component manuals for warnings and cautions related to operating the system.

When incorporating this equipment into a system, the safety of that system is the responsibility of the assembler of the system.

To avoid fire or personal injury

Use proper power cord Use only the power cord specified for this product and certified for the country of use. Do not use the

provided power cord for other products.

Ground the product This product is grounded through the grounding conductor of the power cord. To avoid electric shock, the

grounding conductor must be connected to earth ground. Before making connections to the input or output terminals of the product, ensure that the product is properly grounded. Do not disable the power cord grounding connection.

Power disconnect The power cord disconnects the product from the power source. See instructions for the location. Do not

position the equipment so that it is dif at all times to allow for quick disconnection if needed.

Connect and disconnect properly

Observe all terminal ratings To avoid fire or shock hazard, observe all rating and markings on the product. Consult the product manual

Do not connect or disconnect probes or test leads while they are connected to a voltage source.

Use only insulated voltage probes, test leads, and adapters supplied with the product, or indicated by Tektronix to be suitable for the product.

for further ratings information before making connections to the product. Do not exceed the Measurement Category (CAT) rating and voltage or current rating of the lowest rated individual component of a product, probe, or accessory. Use caution when using 1:1 test leads because the probe tip voltage is directly transmitted to the product.

Do not apply a potential to any terminal, including the common terminal, that exceeds the maximum rating of that terminal.

Do not float the common terminal above the rated voltage for that terminal.

ficult to operate the power cord; it must remain accessible to the user

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 7

Important safety information

Do not operate without covers Do not operate this product with covers or panels removed, or with the case open. Hazardous voltage

exposure is possible.

Avoid exposed circuitry Do not touch exposed connections and components when power is present.

Do not operate with suspected failures

Do not operate in wet/damp conditions

Do not operate in an explosive atmosphere

Keep product surfaces clean and dry

Provide proper ventilation Refer to the installation instructions in the manual for details on installing the product so it has proper

Provide a safe working environment

If you suspect that there is damage to this product, have it inspected by qualified service personnel.

Disable the product if it is damaged. Do not use the product if it is damaged or operates incorrectly. If in doubt about safety of the product, turn it of prevent its further operation.

Before use, inspect voltage probes, test leads, and accessories for mechanical damage and replace when damaged. Do not use probes or test leads if they are damaged, if there is exposed metal, or if a wear indicator shows.

Examine the exterior of the product before you use it. Look for cracks or missing pieces.

Use only specified replacement parts.

Be aware that condensation may occur if a unit is moved from a cold to a warm environment.

Remove the input signals before you clean the product.

ventilation.

Slots and openings are provided for ventilation and should never be covered or otherwise obstructed. Do not push objects into any of the openings.

Always place the product in a location convenient for viewing the display and indicators.

Avoid improper or prolonged use of keyboards, pointers, and button pads. Improper or prolonged keyboard or pointer use may result in serious injury.

Be sure your work area meets applicable ergonomic standards. Consult with an ergonomics professional to avoid stress injuries.

Use care when lifting and carrying the product. This product is provided with a handle or handles for lifting and carrying.

f and disconnect the power cord. Clearly mark the product to

Warning: The product is heavy help when lifting or carrying the product.

Use only the Tektronix rackmount hardware specified for this product.

. To reduce the risk of personal injury or damage to the device get

Probes and test leads

Before connecting probes or test leads, connect the power cord from the power connector to a properly grounded power outlet.

Keep fingers behind the protective barrier

Remove all probes, test leads and accessories that are not in use.

Use only correct Measurement Category (CAT), voltage, temperature, altitude, and amperage rated probes, test leads, and adapters for any measurement.

Beware of high voltages Understand the voltage ratings for the probe you are using and do not exceed those ratings. Two ratings are

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 8

, protective finger guard, or tactile indicator on the probes.

important to know and understand:

Important safety information

• The maximum measurement voltage from the probe tip to the probe reference lead

The maximum floating voltage from the probe reference lead to earth ground

•

These two voltage ratings depend on the probe and your application. Refer to the Specifications section of the manual for more information.

o prevent electrical shock, do not exceed the maximum measurement or maximum

Connect and disconnect properly

Inspect the probe and accessories

Ground-referenced oscilloscope use

Warning: T

floating voltage for the oscilloscope input BNC connector, probe tip, or probe reference lead.

Connect the probe output to the measurement product before connecting the probe to the circuit under test. Connect the probe reference lead to the circuit under test before connecting the probe input. Disconnect the probe input and the probe reference lead from the circuit under test before disconnecting the probe from the measurement product.

Connect the probe reference lead to earth ground only.

Do not connect a current probe to any wire that carries voltages or frequencies above the current probe voltage rating.

Before each use, inspect probe and accessories for damage (cuts, tears, or defects in the probe body, accessories, or cable jacket). Do not use if damaged.

Do not float the reference lead of this probe when using with ground-referenced oscilloscopes. The reference lead must be connected to earth potential (0 V).

Service safety summary

The Service safety summary section contains additional information required to safely perform service on the product. Only qualified personnel should perform service procedures. Read this Service safety summary service procedures.

To avoid electric shock Do not touch exposed connections.

Do not service alone Do not perform internal service or adjustments of this product unless another person capable of rendering

first aid and resuscitation is present.

Disconnect power To avoid electric shock, switch off the product power and disconnect the power cord from the mains power

before removing any covers or panels, or opening the case for servicing.

Use care when servicing with power on

Verify safety after repair Always recheck ground continuity and mains dielectric strength after performing a repair.

Dangerous voltages or currents may exist in this product. Disconnect power, remove battery (if applicable), and disconnect test leads before removing protective panels, soldering, or replacing components.

and the General safety summary before performing any

Terms in the manual

These terms may appear in this manual:

Warning: W

CAUTION: Caution statements identify conditions or practices that could result in damage to this product or other property

arning statements identify conditions or practices that could result in injury or loss of life.

Terms on the product

These terms may appear on the product:

DANGER indicates an injury hazard immediately accessible as you read the marking.

•

• WARNING indicates an injury hazard not immediately accessible as you read the marking.

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 9

• CAUTION indicates a hazard to property including the product.

Symbols on the product

When this symbol is marked on the product, be sure to consult the manual to find out the nature of the potential hazards and any actions which have to be taken to avoid them. (This symbol may also be used to refer the user to ratings in the manual.)

The following symbols may appear on the product:

Important safety information

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 10

Introduction

Preface

This manual contains service information for your instrument.

Read the General and Service safety summaries before servicing the product.

Be sure to read the introductions to all procedures. These introductions provide important information needed to perform the service correctly

Supported products

This manual contains information that is necessary to service the following products:

• MSO54

• MSO56

• MSO58

Check for a specific product designation in the header at the top of the page, in a heading, table or figure title, or within text. Material that does not have any specific product designation applies to all products in the manual.

, safely, and efficiently.

Replaceable parts

This manual refers to any field-replaceable assembly or mechanical part specifically by its name or generically as a replaceable part. In general, a replaceable part is any circuit board or assembly, (such as the hard disk drive), or a mechanical part, (such as the I/O port connectors), that is listed in the replaceable parts list that can be replaced in the field. (See Replaceable parts.)

Where to find operating information

For information on installing, operating, and networking the instrument, refer to the online help or user manual that was provided with your oscilloscope. You can also find the manual at www.tek.com/manuals, by searching for your product.

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 11

Theory of operation

Block diagram

This chapter describes the electrical operation of the oscilloscope to the module level. The block diagram shows the oscilloscope module interconnections.

Note: A removable Embedded OS drive comes standard on instruments with a serial number of B020000 and above or C040000 and above.

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 12

Theory of operation

Power supply

The Power Supply board converts AC line voltage to +12 V to power for all internal circuits.

Carrier interface assembly

The Carrier interface assembly contains the following functions:

Processor system The processor system contains a microprocessor that controls the entire instrument. The processor system

also contains the solid state drive for the operating system, system RAM, and interfaces to I/O ports and the acquisition system.

Rear panel I/O ports The Carrier interface assembly contains USB ports, an Ethernet port (LAN), a VGA Video port, a DVI Video

port, a DisplayPort V connector, and the AFG Out generator BNC connector.

Power converter The Carrier interface assembly converts the +12 V power to all voltages used for the analog and digital

circuitry throughout the system. Standby power is used to keep portions of the Carrier interface assembly and Main board powered at all times that AC power is connected to the instrument.

Other functions The Carrier interface assembly also houses the AFG generator, USB-TMC controller and interfaces to the

Power supply and various cooling fans. The Carrier interface assembly also provides the interface to the optional Windows drive.

ideo port, the USB-TMC port, an AUX OUT BNC connector, an EXT REF IN BNC

Main board and front-end board

The Main and Analog boards contain the following functions:

Acquisition system The Acquisition system begins with the analog signal path and ends with a digitized signal in memory. The

signal enters a channel input, and then passes through an attenuator and preamplifier. The analog signal from each preamplifier goes through a digitizer, and then into acquisition memory. The analog signal from each preamplifier is also distributed to a trigger circuit.

Front-end All of the analog and digital inputs are routed to the Front-end board. The analog channels are amplified

and attenuated through the front-end circuitry, and are output to the Main board. The digital channels simply pass through the front-end board to the Main board. The front-end board has a controller that is used as an I/O controller for the front-end board.

Power converter The Main board converts the +12 V power to some of the other voltages used for the analog and digital

circuitry throughout the system. This is in addition to the power conversion provided by the Processor assembly.

Front panel and display

The Front Panel board contains digital logic that reads the front-panel buttons and controls and sends this information to the processor system on the Processor assembly on the front panel and houses the main power switch. The front panel routes the digital front-end signals from the probe directly to the front-end board. The front panel also provides the video interface to the internal HD display.

. The Front Panel board also generates the probe compensation output signal, provides USB ports

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 13

Adjustment procedures

Instrument adjustment

Adjustment procedures

Adjustment and calibration can be performed only by a T manual, for information on contacting Tektronix Service Support.

ektronix Service Center. See Contacting Tektronix, following the title page in this

Adjustment interval

The voltage and timing references inside the instrument are very stable over time and do not need routine adjustment.

If the instrument fails the performance tests in the Specifications and Performance Verification manual, adjustment may be required. To download the 5 Series MSO Specification and Performance Verification manual (Tektronix part number 077-1306-XX ), go to http:// www.tek.com/product-support, enter the manual part number (with no dashes) in the field, click GO, and then select the Specification and Performance Verification document to download.

If your organization requires periodic calibration, a general rule is to verify performance and make adjustments (only if needed) every 2000 hours of operation or once a year if the instrument is used infrequently.

Adjustment after repair

After removal and replacement of any module, you must perform the Performance Verification procedures, found in the Specifications and Performance Verification manual (Tektronix part number 077-1306-XX ), available to download from the Tektronix web site (www.tek.com/ product-support).

If the instrument fails any Performance Verification tests, it must be returned to a Tektronix Service Center for adjustment and calibration.

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 14

Maintenance

Preventing ESD

Before servicing this product, read the General Safety Summary and the Service Safety Summary at the front of the manual, as well as the following ESD information.

CAUTION: Electrostatic discharge (ESD) can damage any semiconductor component in this instrument.

When performing any service that requires internal access to the instrument, adhere to the following precautions to avoid damaging internal modules and their components due to electrostatic discharge:

1. Minimize handling of static-sensitive circuit boards and components.

2. T

ransport and store static-sensitive modules in their static protected containers or on a metal rail. Label any package that contains

static-sensitive boards.

3. Discharge the static voltage from your body by wearing a grounded antistatic wrist strap while handling these modules.

4. Service static-sensitive modules only at a static-free work station.

5. Do not allow any items capable of generating or holding a static charge on the work station surface.

6. Handle circuit boards by the edges when possible.

7. Do not slide the circuit boards over any surface.

8. Avoid handling circuit boards in areas that have a floor or work-surface covering capable of generating a static charge.

Inspection and cleaning

Inspection and Cleaning describes how to inspect for dirt and damage. It also describes how to clean the exterior and interior of the instrument. Inspection and cleaning are done as preventive maintenance. Preventive maintenance, when done regularly, may prevent instrument malfunction and enhance its reliability.

Preventive maintenance consists of visually inspecting and cleaning the instrument and using general care when operating it.

How often to perform maintenance depends on the severity of the environment in which the instrument is used. A proper time to perform preventive maintenance is just before instrument adjustment.

Exterior cleaning (other than display)

Clean the exterior surfaces of the chassis with a dry lint-free cloth or a soft-bristle brush. If any dirt remains, use a cloth or swab dipped in a 75% isopropyl alcohol solution. Use a swab to clean narrow spaces around controls and connectors. Do not use abrasive compounds on any part of the chassis that may damage the chassis.

Clean the On/Standby switch using a cleaning towel dampened with deionized water. Do not spray or wet the switch itself.

CAUTION: A deionized water when cleaning the front-panel buttons. Use a 75% isopropyl alcohol solution as a cleaner for cabinet parts. Before using any other type of cleaner, consult your Tektronix Service Center or representative.

Inspection - Exterior. Inspect the outside of the instrument for damage, wear, and missing parts. Immediately repair defects that could cause personal injury or lead to further damage to the instrument.

void the use of chemical cleaning agents which might damage the plastics used in this instrument. Use only

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 15

Maintenance

Table 1: External inspection checklist

Item Inspect for Repair action

Cabinet, front panel, and cover Cracks, scratches, deformations, damaged

hardware

Front-panel knobs Missing, damaged, or loose knobs Repair or replace missing or defective knobs

Connectors Broken shells, cracked insulation, and

deformed contacts. Dirt in connectors

Carrying handle and cabinet feet Correct operation Repair or replace defective module

Accessories Missing items or parts of items, bent pins,

broken or frayed cables, and damaged connectors

Repair or replace defective module

Repair or replace defective modules. Clear or brush out dirt

Repair or replace damaged or missing items, frayed cables, and defective modules

Flat panel display cleaning

Clean the flat panel display surface by gently rubbing the display with a clean-room wipe (such as W available from Kimberly-Clark Corporation), or an abrasive-free cleaning cloth.

If the display is very dirty, moisten the wipeor cloth with distilled water, a 75% isopropyl alcohol solution, or standard glass cleaner, and gently rub the display surface. Use only enough liquid to dampen the cloth or wipe. Avoid using excess force or you may damage the display surface.

CAUTION: Improper cleaning agents or methods can damage the flat panel display

• Do not use abrasive cleaners or surface cleaners to clean the display.

• Do not spray liquids directly on the display surface.

• Do not scrub the display with excessive force.

CAUTION: T onto the screen or instrument.

o prevent getting moisture inside the instrument during external cleaning, do not spray any cleaning solutions directly

ypall Medium Duty Wipes, #05701,

Interior cleaning

ou can only clean the interior of the rear chassis assembly. To access the rear chassis assembly, see the Removal and Installation

Procedures topics.

Do not disassemble or clean the front chassis assembly (other than cleaning the front panel display and removing panel knobs). Disassembling the front chassis assembly requires that the instrument be returned to your nearest Tektronix Service Center for calibration.

Warning: T follows, power down the instrument and disconnect it from line voltage.

o avoid electric shock or damage to the instrument, remove instrument power. Before performing any procedure that

• Blow off dust with dry, low-pressure (approximately 9 psi), deionized air.

•

Use a soft-bristle, non-static-producing brush for cleaning around components.

• Remove any remaining dust with a lint-free cloth dampened in isopropyl alcohol (75% solution). (A cotton-tipped applicator is useful for cleaning in narrow spaces and on circuit boards).

• If you must use a liquid for minor rear chassis interior cleaning, use a clean-room wipe (such as Wypall Medium Duty Wipes, #05701, available from Kimberly-Clark Corporation) dampened with a 75% isopropyl alcohol solution.

• Inspect the internal portions of the instrument for damage and wear. See Table 2 on page 17. Defects should be repaired immediately.

• If any circuit board is repaired or replaced, you must perform the Performance Verification procedure in the specifications and performance verification manual, which was provided with your instrument. This manual is also available at www.tektronix.com/ manuals, by searching for your product name. If the instrument fails the Performance Verification tests, it must be returned to a Tektronix Service Center for repair and calibration.

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 16

Maintenance

CAUTION: T the instrument.

o prevent damage from electrical arcing, ensure that circuit boards and components are dry before applying power to

Table 2: Internal inspection checklist

Item Inspect for Repair action

Circuit boards Loose, broken, or corroded solder

connections. Burned circuit boards. Burned, broken, or cracked circuit-run plating.

Resistors Burned, cracked, broken, blistered condition.

Capacitors Damaged or leaking cases. Corroded solder

on leads or terminals.

Wiring and cables Loose plugs or connectors. Burned, broken,

or frayed wiring.

Chassis Dents, deformations, and damaged

hardware.

Remove and replace damaged circuit board.

Firmly seat connectors. Replace defective cables.

Straighten, repair, or replace defective hardware.

Lubrication

There is no periodic lubrication required for this instrument.

Returning the instrument for service

When repacking the instrument for shipment, use the original packaging. If the packaging is unavailable or unfit for use, contact your local T

ektronix representative to obtain new packaging.

Seal the shipping carton with an industrial stapler or strapping tape.

Before returning the instrument for service, contact the Service Center to get an RMA (return material authorization) number, and any return or shipping information you may need.

If the instrument is being shipped to a Tektronix Service Center, enclose the following information:

• The RMA number.

• The owner's address.

• Name and phone number of a contact person.

• Type and serial number of the instrument.

• Reason for returning.

• A complete description of the required service.

Mark the address of the Tektronix Service Center and the return address on the shipping carton in two prominent locations.

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 17

Maintenance

Removal and replace procedures

This section contains procedures for removal and installation of replaceable modules in the instrument. Refer to Replaceable parts for lists and exploded views of replaceable modules.

Any module inside of the chassis that does not have a remove and replace procedure requires that the entire instrument be returned to

ektronix Service Center for service.

Warning: Before performing this or any other procedure in this manual, read the safety summaries found at the beginning of this manual. Also, to prevent possible injury to service personnel or damage to the instrument components, read Preventing

ESD on page 15.

Before performing any procedure in this subsection, disconnect the power cord from the line voltage source. Failure to do so could cause serious injury or death.

Before removing the rear chassis, order the 8 pieces of pre-cut aluminum tape (T tape has to be removed from the chassis to access the interior and cannot be re-applied after removal. The aluminum tape is only needed for instruments with a serial number below B020000 or below C040000.

Note: Read the cleaning procedure before disassembling the instrument for cleaning.

ektronix part number 253-0582-XX). The existing

Required equipment

Most assemblies in this instrument can be removed with a T

Table 3: Required equipment for removal and replacement

Item No. Name Description

1 Screwdriver handle Accepts Torx-driver bits

2 T-10 Torx tip Used for removing instrument screws. Torx-driver bit for T-10 size

3 T-8 Torx tip Used for removing instrument screws. Torx-driver bit for T-8 size

4 3/16 inch open-end wrench Used to remove nut posts

5 Needle-nosed pliers, small or medium size Used to pull off aluminum shielding tape from rear case and flat

6 Proper antistatic work environment To prevent electrostatic damage to components whenever you work

-10 or T8 Torx® screwdriver tip.

screw heads

cable.

on the instrument, wear properly-grounded electrostatic prevention wrist and foot straps, and work in a tested antistatic environment on an antistatic mat.

Remove front-panel knobs

Use this procedure to remove and replace front-panel knob assemblies.

Before you begin

•

To prevent electrostatic damage to components whenever you work on the instrument, wear properly-grounded electrostatic prevention wrist and foot straps, and work in a tested antistatic environment on an antistatic mat.

About this task

There are eight knob assemblies that can be removed from the front case.

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 18

Maintenance

Procedure

o remove a knob assembly, pull the knob straight out of the front panel. Finger strength is adequate to pull knobs. Do not use pliers.

1. T

2. To reinstall a knob, align the knob with the shaft indent and press the knob onto the shaft. Turn the knob to make sure there is a

smooth rotation.

Remove SATA riser board assembly

Use this procedure to remove and replace the external hard drive SATA riser board assembly.

Before you begin

• To prevent electrostatic damage to components whenever you work on the instrument, wear properly-grounded electrostatic prevention wrist and foot straps, and work in a tested antistatic environment on an antistatic mat.

About this task

See figure Front chassis. Remove the external hard drive SATA riser bracket and board from the chassis using the following steps:

Procedure

1. Set instrument on its back, with the bottom facing you.

2. Open and remove the hard drive door from the bottom of the instrument.

3. Remove the three T-10 Torx screws securing the SATA riser board bracket assembly to the chassis.

4. Remove the SATA riser board bracket assembly from bottom of chassis.

5. To remove the SATA riser board, remove the two T-10 Torx screws securing the SATA riser board to the riser bracket.

6. To reinstall, reverse the steps. Tighten the T-10 Torx screws to 0.65 N·m.

Remove feet

Use this procedure to remove and replace bottom feet assemblies or gain access to the rear chassis assembly.

Before you begin

About this task

Remove the two flip feet assemblies from the rear chassis using the following steps.

Procedure

1. Remove all cables and the power cord from the rear panel.

2. Set the instrument on its back side so the bottom is facing you.

3. Flip open both feet assemblies.

4. Use a screwdriver with T-10 Torx tip to remove the four screws from each foot assembly.

5. Remove the feet assembles.

6. To reinstall, reverse the steps. Use a screwdriver with T-10 Torx tip to secure the eight screws. First insert and tighten the screws that

are near the front edge of the instrument, then insert and tighten the screws that are near the rear edge of the instrument. Tighten to

0.65 N·m.

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 19

Maintenance

Remove handle

Use this procedure to remove and replace the handle assemblies.

Before you begin

To prevent electrostatic damage to components whenever you work on the instrument, wear properly-grounded electrostatic prevention

• wrist and foot straps, and work in a tested antistatic environment on an antistatic mat.

About this task

Remove the handle assemblies (table 6, index #13) using the following steps.

Procedure

1. Use a screwdriver with T-10 Torx tip to remove two screws (table 6, index #18) from each side of the handle.

2. Disengage the handle from the pins on the couplers (table 6, index #17) and remove the handle.

3. Remove the two couplers.

4. To reinstall, reverse the steps. Use a screwdriver with T-10 Torx tip to secure the screws. Tighten to 0.65 N·m.

Remove rear grill and case

Use this procedure to remove and replace the rear grill and rear case.

Before you begin

• Remove handle on page 20.

• Remove feet on page 19.

About this task

Remove the grill (table 6, index #14) and rear case (table 6, index #10) using the following steps:

Procedure

1. Use a screwdriver with T-8 Torx tip to remove the six screws securing the grill to the rear case (table 6, index #15) .

2. Put fingers in handle hub holes on each side of the grill and pull the grill off of the rear case.

3. Use a screwdriver with T-10 Torx tip to remove the six screws securing the rear case to the rear chassis (table 6, index #9) .

4. Slide the rear case off of the rear chassis.

5. To reinstall, reverse the steps. Tighten the six T-10 Torx rear case screws to 0.65 N·m. Tighten the six T-8 Torx rear grill screws to 0.45

N·m.

Remove rear chassis assembly

Use this procedure to remove and replace the rear chassis, to access rear chassis assemblies (power supply, main fan, Carrier interface assembly, AFG Riser board).

Before you begin

• Remove rear grill and case on page 20

CAUTION: Order T chassis. The aluminum tape that is installed on the bottom front between the rear chassis and the front chassis cannot be reused. The tape must be replaced after reinstalling the rear chassis assembly.

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 20

ektronix part number 253-0582-XX (TAPE, ALUMINUM, BOTTOM PRE-CUT ) before removing the rear

Maintenance

The aluminum tape is only needed for instruments with a serial number below B020000 or below C040000.

About this task

Remove the rear chassis assembly from the front chassis assembly using the following steps.

Procedure

1. Make a note of the location and size of the aluminum tape pieces along the bottom edge that are taped across the joint between the

rear chassis and the front chassis, and across the ribbon cables.

2. Use a needle nose plier to carefully remove all the aluminum tape. Discard or recycle the removed aluminum tape pieces.

Warning: Do not use fingers to remove the aluminum tape. The tape is sharp and can cause injury

The aluminum tape is only needed for instruments with a serial number below B020000 or below C040000.

CAUTION: Be careful when removing tape from across cables to prevent damage. Pull the tape of chassis surface; do not pull the tape off by pulling straight out from the chassis. Hold down the exposed cable when removing the rest of the tape.

3. Use a screwdriver with a with T-10 Torx tip to remove the 18 screws securing the rear chassis to the front chassis. There are five screws each along the top and bottom, and four screws on each side.

4. Insert a large flat blade screwdriver no more than 1/4 inch into a rectangular slot on the corner of the rear chassis (see following image). Rotate the screwdriver to lift the corner of the rear chassis from the front chassis. Repeat on each corner. There may be a little resistance from the front right corner of the bottom edge, where the rear chassis interconnects to the front chassis.

f parallel to (across) the

5. Lift the rear chassis of

6. To reinstall, reverse the steps:

a) Align the rear chassis assembly with the front chassis, slide in, and push gently to seat the connectors.

b) Use a screwdriver with T-10 Torx tip to install the 18 chassis screws securing the rear chassis to the front chassis. Tighten to 0.65

N·m.

c) Use a cloth dampened with 75% isopropyl alcohol to clean the chassis area where the aluminum tape pieces will be installed

d) Install the new pre-cut aluminum tape (Tektronix part number 253-0582-XX) on the chassis at the positions noted in step

1 on page 21. The aluminum tape is only needed for instruments with a serial number below B020000 or below C040000. Install

the chassis joint pieces first, then the pieces from the flat cables to the chassis tape pieces.

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 21

f of the front chassis.

Maintenance

Remove the baffle bracket

Use this procedure to remove and replace the baf

Before you begin

• Remove rear chassis assembly on page 20

Procedure

1. Set the rear chassis with the rear side down.

2. Remove the four T-10 Torx screws from the baffle bracket.

fle bracket from the rear chassis, to gain access to the power supply assembly.

3. Lift the baf pull away from side of chassis. There are tabs on the left end of the baffle bracket that fit into the side of the chassis.

4. To reinstall, reverse the steps. Note the tabs that must fit into the side of the chassis, and the registration bumps along the right edge of the main fan assembly. Install the yellow-marked screw last. Use a T-10 Torx screwdriver to tighten the screws to 0.65 N·m.

fle from the right side, gently working the baffle from its registration tabs on the inside edge of the main fan, then lift up and

Remove the power supply assembly

Use this procedure to remove and replace the power supply assembly.

Before you begin

• Remove the baffle bracket on page 22

About this task

Use the following steps to remove the power supply assembly from the rear chassis and access the power supply bracket, board, cable, and fan.

Procedure

1. Disconnect the cables connecting the power supply to the carrier interface assembly, AFG riser board, and AC line filter.

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 22

Maintenance

2. Use a T-10 Torx bit screwdriver to remove the four screws securing the power supply assembly to the chassis. Tighten screws to 0.65 N·m when reinstalling.

3. Remove the power supply assembly from the rear chassis.

4. Disconnect the three power supply cables from the power supply board.

5. Remove the fan from the four elastic retaining grommets that secure the fan to the bracket. To reinstall the fan, use needle nose pliers

to pull the grommet ends through the fan mounting holes.

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 23

Maintenance

6. Use a T

7. Remove the power supply board from the power supply shield and bracket.

8. Remove the power supply shield from power supply bracket.

9. T

-10 Torx bit screwdriver to remove the seven screws securing the power supply board to the power supply bracket.

o reinstall, reverse the steps. Tighten all T-10 Torx screws to 0.65 N·m when reinstalling. Make sure black cables dress cleanly through the side slot, and do not get pinched between the power supply bracket and rear chassis when reinstalling the power supply assembly. Install new tie down straps (zip ties) if you removed them during disassembly.

Note: Make sure to properly align the power supply board with the power supply shield before securing the board to the power supply bracket.

Remove carrier interface assembly

Use this procedure to remove and replace the carrier interface assembly

Before you begin

• Remove SATA riser board assembly on page 19

• Remove rear chassis assembly on page 20

• Remove the baffle bracket on page 22

About this task

The carrier interface assembly contains the AFG Riser assembly and the M.2 SSD memory board with the system OS. Only use this procedure to sanitize the instrument before sending for repairs at a Tektronix Service Center.

Note: The M.2 memory board is only in instruments with a serial number below B020000 or below C040000.

Procedure

1. Use a

T-10 Torx screwdriver to remove the screw between the BNC connectors on the rear panel of the chassis. Use a 3/16-inch open

end wrench to remove the four jack screws from the video connectors on the rear panel.

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 24

Maintenance

2. Disconnect the black cables connecting the power supply to the carrier interface assembly and the white cable on the AFG riser board.

ou do not need to disconnect the AC line filter cables.

3. Disconnect fan cable.

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 25

Maintenance

4. Use a T

5. Use a T

-10 Torx screwdriver to remove the eight screws on the bottom of the chassis.

-8 Torx screwdriver to remove the two screws on the top front edge of the of the carrier interface chassis.

6. Lift the front edge of the carrier interface assembly tray to clear the two shallow screw posts from the last step, then pull away from the chassis. There will be a slight resistance due to the springs on the rear of the chassis for the I/O connectors.

7. To reinstall, reverse the steps. Tighten all T-10 Torx screws to 0.65 N·m when reinstalling. Tighten all T-8 Torx screws to 0.45 N·m when reinstalling. Tighten the jack screws to 0.45 N·m when reinstalling. Reconnect the main fan cable and the power supply cables.

Remove the AFG riser assembly

Use this procedure to remove and replace the AFG riser assembly from the carrier interface assembly. Only use this procedure as part of the sanitize process before sending the instrument for repairs at a Tektronix Service Center.

Before you begin

• Remove carrier interface assembly on page 24. The carrier interface assembly must be removed from the rear chassis before removing the AFG riser assembly. There is not enough clearance for the BNC and video connectors to remove the assembly while it is installed in the chassis.

Procedure

1. Use a T-10 Torx screwdriver to remove the one screw on the AFG riser assembly bracket.

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 26

2. Lift the AFG riser assembly straight up from the carrier interface assembly.

3. To reinstall, reverse the steps. Tighten the T-10 Torx screw to 0.65 N·m when reinstalling.

Maintenance

Remove handle hub assembly

Use this procedure to remove and replace the handle hubs from the rear chassis. You will need to remove the left side hub if you want to remove the main fan.

Before you begin

• Remove rear chassis assembly on page 20

• Remove the baffle bracket on page 22

Procedure

1. Remove the left and right handle hub assemblies from the inside walls of the chassis using a T-10 Torx bit screwdriver. Two screws will

be removed for each hub assembly.

2. To reinstall, reverse the steps. Use a screwdriver with a T-10 Torx tip to tighten the screws to 0.65 N·m.

Remove the main fan assembly

Use this procedure to remove and replace the main fan from the rear chassis.

Before you begin

• Remove the baffle bracket on page 22

• Remove handle hub assembly on page 27 next to the main fan

• Remove carrier interface assembly on page 24

Procedure

1. Use a T-10 Torx screwdriver to remove the four screws from the main fan assembly bracket.

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 27

Maintenance

2. Remove the main fan assembly from the rear chassis.

o remove the fan from the bracket, carefully pull the fan from each corner of the bracket to disconnect the elastic fan attachments.

3. T

4. To reinstall, reverse the steps. Install the fan on the bracket in the correct orientation for the fan power cable (see photo). Use a needle

nose plier to reinstall the fan elastic attachments on each corner. Tighten the T-10 Torx screws to 0.65 N·m when reinstalling.

Remove M.2 memory board

Use this procedure to remove the M.2 memory board from the carrier interface assembly to sanitize the instrument before sending for repairs at a Tektronix Service Center.

Before you begin

• Remove carrier interface assembly on page 24

• Remove the AFG riser assembly on page 26

About this task

Removing the M.2 memory board sanitizes the instrument, ensuring that user settings and acquisition data are no longer on the instrument. Removing the M.2 board also removes the instrument calibration constants and any option licenses that you have installed.

Note: The M.2 memory board is only in instruments with a serial number below B020000 or below C040000.

Note: If the M.2 board is removed before sending the instrument to T

you will be charged for the new board.

You will need to reassemble the instrument and send it to your nearest Tektronix Service Center to have a new M.2 board installed and the instrument recalibrated.

After the instrument is returned, you will need to reinstall any option licenses.

ektronix for repair, Tektronix will install a new M.2 board and

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 28

Procedure

Maintenance

1. Remove the seven heat sink (marked in yellow).

2. Carefully hold together the carrier interface assembly and turn it upside down so that the metal carrier tray is facing up. Support the end of the carrier interface assembly away from the heat sink assembly so that it is level.

3. Carefully lift the metal tray from the assembly to expose the bottom of the carrier interface board and the M.2 SSD memory

T-10 Torx screws from the carrier board (marked in red). Remove the five T-8 Torx screws from the carrier board

4. Remove the one with your organization's guidelines.

5. Carefully align and set the carrier board tray back onto the carrier interface assembly.

6. Carefully hold together the carrier interface assembly and tray and turn it so that the circuit board and heat sink assembly are facing

up.

7. Install the seven T-10 Torx carrier board screws. Tighten to 0.65 N·m.

8. Install the five T-8 Torx screws on the carrier board heat sink. Tighten to 0.45 N·m.

9. Reassemble the instrument and return it to the nearest Tektronix Service Center for replacement of the M.2 SSD board and

recalibration.

T-8 Torx screw and remove the M.2 SSD memory board. Store or destroy the M.2 SSD memory board in accordance

Troubleshooting 5 Series MSO

CAUTION: Before performing this or any other procedure in this manual, read the General Safety Summary and Service Safety

Summary found at the beginning of this manual.

o prevent possible injury to service personnel or damage to electrical components, please read information on Preventing ESD.

T (See Preventing ESD on page 15.)

This section contains information and procedures designed to help you isolate faults to a module.

This section requires that service personnel have the appropriate skills to work on this instrument, including PC troubleshooting and Microsoft Windows operating system skills. Details of PC and Windows operation and service are not in this manual.

For assistance, contact your local Tektronix Service Center.

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 29

Maintenance

Service level

This subsection contains information and procedures to help you determine if a faulty power supply is the problem with your instrument. If replacing the power supply does not fix the fault, you will need to return the instrument to a T internal electronic assemblies or modules are user-replaceable.

ektronix Service Center for repair, as no other

Check for common problems

Use the following table to help isolate possible failures. The table lists problems and possible causes. The list is not exhaustive, but it may help you eliminate a problem that is quick to fix, such as a loose power cord. For more detailed troubleshooting, see the Troubleshooting

flow chart on page 31.

Table 4: Failure symptoms and possible causes

Symptom Possible cause(s)

Instrument will not power on Power cord not plugged in.

Faulty power supply.

Defective micro-controller assembly.

Instrument powers on, but one or more fans will not operate Faulty fan power cable.

Fan power cable not connected to circuit board.

Defective fan .

Faulty power supply.

One or more defective point of load regulators.

Flat-panel display blank or has streaks in display Faulty LCD screen or video circuitry.

Equipment required

Digital voltmeter to check power supply voltages.

•

• 0.1 inch spacing 2-pin jumper.

• An antistatic work environment. To prevent electrostatic damage to components whenever you work on the instrument, wear properly-grounded electrostatic prevention wrist and foot straps, and work in a tested antistatic environment on an antistatic mat.

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 30

Troubleshooting flow chart

Follow the troubleshooting flow chart to determine the action for a fault condition.

Maintenance

Figure 1: Primary troubleshooting tree

Status LEDs. A set of six bi-color LEDs report the power management status of the instrument. These LEDs are located under the cover on the bottom of the instrument.

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 31

Maintenance

Figure 2: Power status LEDs

All of these LEDs should be green a few moments after powering on the instrument. If any of these LEDs are red, or are not lit, return the instrument to a T

ektronix Service Center for repair.

Troubleshoot the power supply

Use this procedure to determine if the power supply is defective and needs replaced.

Before you begin

• Remove rear chassis assembly on page 20

• Remove the baffle bracket on page 22

Procedure

1. Connect the power cord to the AC connector on the back of the rear chassis.

2. Measure for +12 V

you do not measure +12 VDC at Pin 10 of J3203 connected to the circuit board:

between chassis and pin 10 of J3203 (large connector). If there is +12 VDC at pin 10, go to step 3 on page 33. If

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 32

a) Disconnect the AC power cord.

Disconnect J3203 from the circuit board.

c) Connect the AC power cord.

d) Measure for +12 V

If there is no +12 VDC value on pin 10, carefully check for 115 V

between pin 10 (+12 VDC) and pin 18 (ground) on the disconnected cable.

at the connectors of the AC line filter. If there is AC at the line

filter, replace the power supply module or reassemble and return the instrument to a Tektronix Service Center for repair.

Warning: Be careful when measuring the AC line voltage to avoid injury to yourself or damage to the instrument.

Maintenance

3. If there is +12 V

Disconnect the AC power cord.

at pin 10 of the disconnected J3203 cable, do the following:

b) Reconnect J3203 to the circuit board.

c) Connect the AC power cord.

d) Insert for one (1) second and then remove a 0.1-inch-spaced shorting jumper between pins 9 and 10 of the Service connecter pins

on the edge of the circuit board (see following image). Wait five (5)seconds as the fans turn on and the power supply powers on.

e) Measure for +12 V

between chassis (ground) and pins 1 through 4 and pins 1

1 through 15 on J3203. If all these pins have +12 VDC present, then the power supply is working correctly. Disconnect the AC power cord, reassemble the instrument, and return the instrument to a Tektronix Service Center for repair.

Instrument self tests

The instrument runs self test diagnostics during every power on. The power on self tests ensure that the hardware and software are functionally working. The tests provide limited diagnostic information, and provide no performance information.

If the instrument detects errors during power on, a pop-up message indicates that a failure has occurred. To display the Self test menu and results, select Utility > Self Test. Select a test mode and run the self tests. If you continue to get errors on one or more tests, you will need to return the instrument to your nearest Tektronix Service Center for repair.

Software updates

To update the application software:

1. Go to www.tek.com/product-support.

2. Enter a model number (MSO54, MSO56, or MSO58 ) in the Enter Product or Product Series Name field and click Go. Any 5 Series

model number will do, as all models use the same software update.

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 33

3. Click the Software tab.

4. On the oscilloscope, tap Help > About.

5. Compare the version number of the installed software to the version on the web:

Maintenance

a. If the version number on the oscilloscope is the same as the version on the web, you have the latest version. Y

install new software. Exit this procedure.

b. If the version number on the oscilloscope is a lower number than the version on the web, you can download and install new

software. Continue with the rest of this procedure.

6. Select the highest-numbered version (5 Series MSO Embedded OS Firmware - VX.X ).

7. Click Download File to start the download.

8. When done downloading, unzip the downloaded file.

9. Open the file install.txt and follow the instructions in the file.

ou do not need to

After power supply module replacement

After removal and replacement of the power supply module, you must perform the Performance Verification procedures, found in the Specifications and Performance Verification manual (Tektronix part number 077-1306-xx) . Download this manual from the Tektronix Web site (www.tek.com/manuals).

If the instrument fails the Performance Verification tests, it must be returned to a Tektronix Service Center for adjustment.

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 34

Replaceable parts

Parts ordering information

Use the lists in the appropriate section to identify and order replacement parts for your product. Replacement parts are available through your local T

Standard accessories for these products are listed in your user manual. The user manual is available at www.tek.com/manuals.

Changes to Tektronix products are sometimes made to accommodate improved components as they become available and to give you the benefit of the latest improvements. Therefore, when ordering parts, it is important to include the following information in your order:

• Part number

• Instrument type or model number

• Instrument serial number

• Instrument modification number, if applicable

If you order a part that has been replaced with a different or improved part, your local Tektronix field office or representative will contact you concerning any change in part number.

ektronix field office or representative.

Module servicing

Modules can be serviced by selecting one of the following three options. Contact your local Tektronix Service Center or representative for repair assistance.

Module exchange. In some cases, you may exchange your module for a remanufactured module. These modules cost significantly less than new modules and meet the same factory specifications. For more information about the module exchange program, call 1-800-833-9200. Outside North America, contact a Tektronix sales office or distributor; see the Tektronix Web site (www.tek.com) for a list of offices.

Module repair and return. You may ship your module to us for repair, after which we will return it to you.

New modules. You may purchase replacement modules in the same way as other replacement parts.

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 35

Replaceable parts

Abbreviations

Abbreviations conform to American National Standard ANSI Y1.1-1972.

Using the replaceable parts list

This section contains a list of the replaceable mechanical and/or electrical components. Use this list to identify and order replacement parts. The following table describes each column in the parts list.

Table 5: Parts list column descriptions

Column Column name Description

1 Figure & index number Items in this section are referenced by figure and index numbers to the exploded view

illustrations that follow

2 Tektronix part number Use this part number when ordering replacement parts from Tektronix.

3 and 4 Serial number Column three indicates the serial number at which the part was first effective. Column

four indicates the serial number at which the part was discontinued. No entry indicates the part is good for all serial numbers.

5 Qty This indicates the quantity of parts used.

6 Name & description An item name is separated from the description by a colon (:). Because of space

limitations, an item name may sometimes appear as incomplete. Use the U.S. Federal Catalog handbook H6-1 for further item name identification.

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 36

Front cover and rear case

Replaceable parts

Figure 3: Front cover and rear case exploded view

Table 6: Front cover and rear case

Index number

Figure 3 on page

-1 016-2106-XX 1 CASE, ACCESSORY FRONT COVER

-2 200-5406-XX 1 COVER, FRONT PROTECTIVE

-3 065-1078-XX 1 MODULE ASSY: SERVICE REPLACEMENT KIT; HANDLE HUB LEFT &

-4 202-0521-XX 1 CASE, REAR, SAFETY CONTROLLED

-5 220-0325-XX 6 INSERT, 2.5MM, SNAP IN

Table continued…

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 37

Tektronix part number

Serial no. effective Qty Name & description

RIGHT (SET)

Replaceable parts

Index number

-6 335-3850-XX 1 MARKER, IDENTIFICATION, SERVICE US PLUS, ENGLISH

-7 050-3904-XX 1 MODULE ASSY: SERVICE REPLACEMENT KIT; METAL HANDLE W/

-8 378-0952-XX 1 GRILL, COSMETIC, REAR, SAFETY CONTROLLED

-9 211-1573-XX 6 SCREW, CAPTIVE; M2.5 X .45 X 14 FLAT HEAD, TORX T8, W/

-10 105-1186-XX 2 HOOK, CORD WRAP, SAFETY CONTROLLED

-11 376-0256-XX 2 COUPLER, HUB HANDLE, SAFETY CONTROLLED

-12 211-1610-XX 4 SCREW, MACHINE; M3 X 0.5 X 16, FLAT HEAD, STL, TORX 10

-13 211-1584-XX 12 SCREW, MACHINE, M3 X 0.5 X 6MM PAN HEAD, TORX T10

-14 214-5526-XX 2 SPRING, CORD WRAP

-15 437-0544-XX 1 TRIM, REAR I/O

-16 065-1008-XX 2 MODULE ASSY: SERVICE REPLACEMENT KIT; FLIP FEET

-17 200-5339-XX 1 DOOR, HARD DRIVE

-18 211-1585-XX 4 SCREW, DELTA-PT, 3MM X 8MM, T10

Tektronix part number

335-3851-XX 1 MARKER, IDENTIFICATION, SERVICE EUROPE, ENGLISH

335-3852-XX 1 MARKER, IDENTIFICATION, SERVICE JAPAN, JAPANESE

335-3853-XX 1 MARKER, IDENTIFICATION, SERVICE CHINA, SIMPLIFIED CHINESE

335-3854-XX 1 MARKER, IDENTIFICATION, SERVICE OTHER, ENGLISH

Serial no. effective Qty Name & description

PLASTIC GRIP AND HARDW

DOGPOINT

ARE

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 38

Carrier interface board and rear chassis

Replaceable parts

Figure 4: Carrier interface board and rear chassis exploded view

Table 7: Carrier interface board and rear chassis

Index number

Figure 4 on page

-1 211-1584-XX 20 SCREW, MACHINE, M3 X 0.5 X 6MM PAN HEAD, TORX T10

-2 119-8641-XX 1 FAN ASSEMBLY,119864200 W / TERMINATION, SAFETY

-3 407-5865-XX 1 BRKT, 120MM X 38MM FAN, SAFETY CONTROLLED

-4 348-2082-XX 4 GROMMET, FAN MOUNT, NOISE DAMPING

Table continued…

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 39

Tektronix part number

Serial no. effective Qty Name & description

CONTROLLED

Replaceable parts

Index number

-5 441-2826-XX Below B020000

-6 878-1143-XX 1 CIRCUIT BOARD SUBASSY; AFG RISER BOARD UNTESTED;

-7 348-2264-XX 2 GASKET, CONDUCTIVE, FOF, 1MM X 10MM X 100MM

-8 337-4731-XX 1 SHIELD, INSULATOR, POWER SUPPLY, SAFETY CONTROLLED

-9 214-3903-XX 4 SCREW, JACK; 4-40 X 0.312 LONG, 0.188 HEX HEAD STAND OFF W/

-10 119-8742-XX 1 FILTER, EMI; AC LINE FILTER; 10.0A,120-250VAC, DC-400 HZ,

-11 211-1686-XX 2 SCREW, MACHINE, M3 X 0.5 X 10 FLATHEAD, 90 DEG, BLACK

-12 335-3420-XX 1 LABEL, REAR, IO, SAFETY CONTROLLED

-13 211-1571-XX 4 SCREW, MACHINE, M3 X 0.5 X 40MM PAN HEAD, TORX T8 WITH

-14 119-8639-XX 1 FAN ASSEMBLY,119864000 W / TERMINATION, SAFETY

-15 361-1883-XX 4 SPACER, RND, 6MM OD X 3.2MM ID X 25MMLG

-16 065-1005-XX Below B020000

Tektronix part number

441-2945-XX B020000 and above

Serial no. effective Qty Name & description

Below C040000

C040000 and above

Below C040000

1 CHASSIS, REAR, SAFETY CONTROLLED

1 CHASSIS, REAR

389494600

Return the instrument to T

ASSEMBLED SPLIT LOCK WASHER, 4-40 INT THD, X 0.312 THD EXT 4-40, STEEL, ZINC PLATED

IEC INPUT ,FAST-ON/SOLDER LUG OUTPUT, CHASSIS MOUNT; FN9244R10-06; SAFETY CONTROLLED

ZINC,TUFLOK, TORX T10

NYLON PATCH

CONTROLLED

1 MODULE ASSY: SERVICE REPLACEMENT KIT; CARRIER

INTERFACE BOARD; WITH BIOS AND SSD; FULLY TESTED; MSO5 SERIES

ektronix for service.

Return the instrument to Tektronix for service.

065-1076-XX B020000 and above

C040000 and above

Table continued…

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 40

1 MODULE ASSY: SERVICE REPLACEMENT KIT;CARRIER INTERFACE

BOARD;WITH BIOS AND SSD; FULLY TESTED; MSO5 SERIES

Return the instrument to Tektronix for service.

Replaceable parts

Index number

-17 119-8250-XX 1 DISK DRIVE; SOLID STATE, 512GB (WAS 480), 2.5 IN, SATA III,

-18 407-5877-XX 1 BRACKET, HARDDRIVE

-19 131-6643-XX 3 CONTACT, ELECTRICAL

-20 407-5896-XX 1 BRACKET, SATA RISER

-21 878-1100-XX 1 CIRCUIT BOARD SUBASSY; SATA RISER CARD; UNTESTED;

-22 211-1631-XX 6 SCREW, MACHINE, M3-0.5, 3.5L, T8 (UNDER HEAD SERRATIONS)

Tektronix part number

119-8773-XX B020000 and above

Serial no. effective Qty Name & description

C040000 and above

6.0 GB/ S, MLC, 7 MM; SAFETY CONTROLLED, (Option 5-WIN), UNPROGRAMMED

Service will image the SSD according to appropriate OS and processor type or purchase SUP5-WIN.

Backup any important data before replacing the OS drive.

1 DISK DRIVE; SOLID STATE, 256GB, 2.5 IN, SATA III; 6.0GB/S, TLC,

7MM, (Option 5-LNX)

Service will image the SSD according to appropriate OS and processor type or purchase SUP5-LNX.

Backup any important data before replacing the OS drive.

389491600

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 41

Baffle and power supply module

Replaceable parts

Figure 5: Rear chassis baffle and power supply exploded view

Table 8: Baffle and power supply module

Index number

Figure 5 on page

-1 407-6080-XX 1 BRACKET, BAFFLE, SINGLE FAN, HYBRID

-2 407-5875-XX 1 BRACKET, POWER SUPPLY, 750W, SAFETY CONTROLLED

-3 337-4717-XX 1 SHIELD, MOUNT, POWER SUPPLY, SAFETY CONTROLLED

Table continued…

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 42

Tektronix part number

Serial no. effective Qty Name & description

Replaceable parts

Index number

-4 119-8375-XX 1 POWER SUPPLY; INTERNAL, AC-DC; 90-264VAC 47-63HZ,

-5 211-1584-XX 20 SCREW, MACHINE, M3 X 0.5 X 6MM PAN HEAD, TORX T10

-6 174-6612-XX 1 CABLE, POWER, PWR SUP TO CARRIER, SAFETY CONTROLLED

-7 174-6613-XX 1 CABLE, PS TO CARRIER, SIGNALS (2X6 DISCRETE, .100 CTRS,

-8 174-6614-XX 1 CABLE ASSEMBLY (LINE INPUT), SAFETY CONTROLLED

-9 348-2082-XX 4 GROMMET, FAN MOUNT, NOISE DAMPING

-10 119-8397-XX 1 FAN WITH 2X2 CONN, 60X25MM, 12V, SAFETY CONTROLLED

-11 343-0549-XX 1 STRAP, TIEDOWN; 0.098 W X 4.0 L, ZYTEL

Tektronix part number

Serial no. effective Qty Name & description

103-127V ACOK, PWRGOOD SIGNALS; SAFETY CONTROLLED, SAFETY CONTROLLED

LATCHING), SAFETY CONTROLLED

AC 360-440HZ IN; +12V 44A, +12VSB 1.25A OUT; I2C, PSON,

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 43

Mid-plane chassis

Replaceable parts

Figure 6: Mid-plane chassis exploded view

Table 9: Mid-plane chassis

Index number

Figure 6 on page 44

-1 214-5469-XX 1 HEATSINK, AFE 4-8 CHANNEL

-2 348-2298-XX B020000 and above

Table continued…

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 44

Tektronix part number

Serial no. effective Qty Name & description

Return the instrument to Tektronix for service.

4 GASKET, CONDUCTIVE FOAM W/PSA 12MM X 29MM X 1.5MM THICK

C040000 and above

Replaceable parts

Index number

-3 441-2825-XX Below B020000

-4 407-6020-XX 1 BRACKET, GUIDE, BAFFLE

-5 211-1584-XX 20 SCREW, MACHINE, M3 X 0.5 X 6MM PAN HEAD, TORX T10

-6 870-1115-XX 1 CIRCUIT BD ASSY; MAIN; MDO 4CH; 389482600; TESTED

-7 167-2568-XX - IC, MEMORY, DRAM; DDR3, 2GB 256MX72, DDR3-1866, ECC,

-8 407-5956-XX - BRACKET, SO-DIMM RETENTION, ASSEMBLY

Tektronix part number

441-2942-XX B020000 and above

870-1087-XX 1 CIRCUIT BD ASSY; MAIN ;MDO 8CH; 389482600; TESTED

Serial no. effective Qty Name & description

1 ASSEMBLY, CHASSIS, MID-PLANE, SAFETY CONTROLLED

Below C040000

C040000 and above

Return the instrument to T

1 ASSEMBLY, CHASSIS, MID-PLANE

Return the instrument to Tektronix for service.

SODIMM 204

Return the instrument to Tektronix for service.

2 4 channel quantity

4 6 and 8 channel quantity

ektronix for service.

Return the instrument to Tektronix for service.

2 4 channel quantity

4 6 and 8 channel quantity

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 45

Front panel and display

Replaceable parts

Figure 7: Front panel and display exploded view

Table 10: Front panel and display

Index number

Figure 7 on page 46

-1 119-8396-XX Below B020000

-2 202-0520-XX Below B020000

Table continued…

Tektronix part number

065-1077-XX B020000 and above

202-0582-XX B020000 and above

Serial no. effective Qty Name & description

Below C040000

C040000 and above

Below C040000

C040000 and above

1 TOUCHSCREEN-LCD ASSEMBLY, SAFETY CONTROLLED

Return the instrument to Tektronix for service.

1 MODULE ASSY; SERVICE REPLACEMENT; 119910100 DISPLAY W/

MECHANICALS

Return the instrument to Tektronix for service.

1 CASE, FRONT, SAFETY CONTROLLED

Return the instrument to Tektronix for service.

1 CASE, FRONT

Return the instrument to Tektronix for service.

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 46

Replaceable parts

Index number

-3 211-1584-XX - SCREW, MACHINE, M3 X 0.5 X 6MM PAN HEAD, TORX T10

-4 174-6610-XX 1 CABLE ASSY, DISPLAY-FRONT PANEL

-5 174-6698-XX Below B020000

-6 366-0920-XX 1 BUTTON, POWER SWITCH, SAFETY CONTROLLED

-7 878-1042-XX Below B020000

Tektronix part number

174-7244-XX B020000 and above

878-1717-XX B020000 and above

Serial no. effective Qty Name & description

Below C040000

C040000 and above

Below C040000

34 4 channel quantity

40 6 channel quantity

46 8 channel quantity

Return the instrument to T

1 CABLE, TOUCH SCREEN TO FRONT PANEL

Return the instrument to Tektronix for service.

1 CABLE, DISCRETE WIRE TOUCH CONTROLLER TO FRONT PANEL

Return the instrument to Tektronix for service.

1 CIRCUIT BD ASSY; PROBE INTERFACE; 389483000;UNTESTED

Return the instrument to Tektronix for service.

1 CIRCUIT BOARD ASSY;PROBE INTERFACE, 3895488XX

ektronix for service.

C040000 and above

-8 174-7380-XX - CABLE, FLAT FLEX, SHIELD W/GND 0.5MM PITCH

-9 211-1585-XX - SCREW, 3 X 0.5 X 8.0 THREAD FORMING PAN HEAD, TORX T10

-10 174-6879-XX 1 CABLE, PICO-LOCK, 10 PIN

-11 441-2827-XX Below B020000

Below C040000

441-2941-XX B020000 and above

C040000 and above

-12 348-2297-XX B020000 and above

Return the instrument to Tektronix for service.

2 4 channel quantity

3 6 channel quantity

4 8 channel quantity

43 4 channel quantity

51 6 channel quantity

59 8 channel quantity

Return the instrument to Tektronix for service.

1 CHASSIS, FRONT, SAFETY CONTROLLED

Return the instrument to Tektronix for service.

1 CHASSIS, FRONT

Return the instrument to Tektronix for service.

1 GASKET, CONDUCTIVE, FOF W/PSA 1MM X 7MM X 290MM

C040000 and above

Table continued…

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 47

Replaceable parts

Index number

-XXX 131-6417-XX 5 CONTACT, ELECTRICAL (GROUNDING)

-13 870-1198-XX - CIRCUIT BD ASSY; CIRCUIT BOARD SUBASSY; 2GHZ ANALOG

-14 253-0560-XX - THERMAL INTERFACE MATERIAL

Tektronix part number

870-1039-XX - CIRCUIT BD ASSY; CIRCUIT BOARD SUBASSY; 350MHz-1GHz

Serial no. effective Qty Name & description

Return the instrument to T

BOARD; 389499900; TESTED

Return the instrument to Tektronix for service.

2 4 channel quantity

3 6 channel quantity

4 8 channel quantity

ANALOG BOARD; 389482700; TESTED

Return the instrument to Tektronix for service.

2 4 channel quantity

3 6 channel quantity

4 8 channel quantity

Return the instrument to Tektronix for service.

ektronix for service.

Applies to models with 2GHz boards only. If Thermal Interface Material is removed during service replace it during reassembly.

4 4 channel quantity

6 6 channel quantity

8 8 channel quantity

-15 131-9410-XX 1 CONNECTOR, RECEPTACLE, GROUND JACK

Return the instrument to Tektronix for service.

-16 380-1277-XX 1 HOUSING, PROBE COMP

Return the instrument to Tektronix for service.

-17 878-1145-XX 1 CIRCUIT BOARD SUBASSY; FRONT PANEL ENCODER BOARD, UNTESTED, 389493700

Return the instrument to Tektronix for service.

-18 361-1873-XX 1 SPACER, FRONT PANEL, SAFETY CONTROLLED

Return the instrument to Tektronix for service.

Table continued…

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 48

Replaceable parts

Index number

-19 065-1024-XX Below B020000

-20 260-3144-XX 1 SWITCH, KEYPAD, ELASTOMERIC

-21 174-6880-XX 1 CABLE, FFC, FRONT-PANEL TO PIB

-22 351-1150-XX - GUIDE, PROBE VPI PLUS

-23 335-3680-XX 1 MARKER IDENTIFICATION, LABEL FRONT PANEL, MSO, 4

-24 366-0946-XX 1 ASSEMBLY, KNOB, PAN WITH OVERMOLD

-25 358-0890-XX 1 BUSHING, SPACER, RING JOG-SHUTTLE

-26 366-0947-XX 1 ASSEMBLY, KNOB, ZOOM WITH OVERMOLD

-27 366-0944-XX 2 ASSEMBLY, KNOB, MEDIUM WITH OVERMOLD

-28 366-0943-XX 2 ASSEMBLY, KNOB, SMALL WITH OVERMOLD

-29 366-0945-XX 2 ASSEMBLY, KNOB, LARGE WITH OVERMOLD

-30 335-3681-XX 1 MARKER IDENTIFICATION, LABEL PROBE INTERFACE MSO 4CH,

Table continued…

Tektronix part number

065-1072-XX B020000 and above

335-3678-XX 1 MARKER IDENTIFICATION, LABEL FRONT PANEL, MSO, 6

335-3676-XX 1 MARKER IDENTIFICATION, LABEL FRONT PANEL, MSO, 8

335-3679-XX 1 MARKER IDENTIFICATION, LABEL PROBE INTERFACE MSO 6CH,

335-3678-XX 1 MARKER IDENTIFICATION, LABEL FRONT PANEL, MSO, 6

Serial no. effective Qty Name & description

1 MODULE ASSY: SERVICE REPLACEMENT KIT; FRONT PANEL

144XX AND 259022300

Below C040000

C040000 and above

8781

Return the instrument to Tektronix for service.

1 MODULE ASSY; SERVICE REPLACEMENT KIT; FRONT PANEL LED

8781719XX AND 2590245XX

Return the instrument to Tektronix for service.

4 4 channel quantity

6 6 channel quantity

8 8 channel quantity

CHANNEL, SAFETY CONTROLLED

SAFETY CONTROLLED

CHANNEL, SAFETY CONTROLLED

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 49

Replaceable parts

Index number

-31 335-3682-XX 1 MARKER, IDENTIFICATION; LABEL NOMENCLATURE, MSO, 8 CH,

Tektronix part number

335-3683-XX 1 MARKER, IDENTIFICATION; LABEL NOMENCLATURE, MSO, 8CH,

335-3684-XX 1 MARKER, IDENTIFICATION; LABEL NOMENCLATURE, MSO, 8CH,

335-3685-XX 1 MARKER, IDENTIFICATION; LABEL NOMENCLATURE, MSO, 8CH,

335-3686-XX 1 MARKER, IDENTIFICATION; LABEL NOMENCLATURE, MSO, 6CH,

335-3687-XX 1 MARKER, IDENTIFICATION; LABEL NOMENCLATURE, MSO, 6CH,

335-3688-XX 1 MARKER, IDENTIFICATION; LABEL NOMENCLATURE, MSO, 6CH,

335-3689-XX 1 MARKER, IDENTIFICATION; LABEL NOMENCLATURE, MSO, 6CH,

335-3690-XX 1 MARKER, IDENTIFICATION; LABEL NOMENCLATURE, MSO, 4CH,

335-3691-XX 1 MARKER, IDENTIFICATION; LABEL NOMENCLATURE, MSO, 4CH,

335-3692-XX 1 MARKER, IDENTIFICATION; LABEL NOMENCLATURE, MSO, 4CH,

335-3693-XX 1 MARKER, IDENTIFICATION; LABEL NOMENCLATURE, MSO, 4CH,

Serial no. effective Qty Name & description

2GHZ, SAFETY CONTROLLED

1GHZ, SAFETY CONTROLLED

500MHZ, SAFETY CONTROLLED

350 MHZ, SAFETY CONTROLLED

2GHZ, SAFETY CONTROLLED

1GHZ, SAFETY CONTROLLED

500MHZ, SAFETY CONTROLLED

350MHZ, SAFETY CONTROLLED

2GHZ, SAFETY CONTROLLED

1GHZ, SAFETY CONTROLLED

500MHZ, SAFETY CONTROLLED

350MHZ, SAFETY CONTROLLED

5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 50
