Tektronix MSO44, MSO46 Quick Start Guide

Download

4 Series MSO MSO44, MSO46

Quick Start Manual

Revision A. January 2, 2023.

.tek.com/register

www

*P077178300*

077-1783-00

Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. T and pending. Information in this publication supersedes that in all previously published material. Specifications and price change privileges reserved.

TEKTRONIX and TEK are registered trademarks of Tektronix, Inc.

ektronix products are covered by U.S. and foreign patents, issued

Contacting Tektronix

Tektronix, Inc.

14150 SW Karl Braun Drive

P.O. Box 500

Beaverton, OR 97077

USA

For product information, sales, service, and technical support:

• In North America, call 1-800-833-9200.

• Worldwide, visit to www.tek.com find contacts in your area.

Table of Contents

Important safety information..........................................................................................................................................................5

General safety summary........................................................................................................................................................5

To avoid fire or personal injury............................................................................................................................................... 5

Probes and test leads............................................................................................................................................................ 7

Service safety summary.........................................................................................................................................................7

Terms in this manual.............................................................................................................................................................. 8

Terms on the product............................................................................................................................................................. 8

Symbols on the product......................................................................................................................................................... 8

Compliance information................................................................................................................................................................ 9

Safety compliance..................................................................................................................................................................9

Environmental compliance...................................................................................................................................................10

Security disclaimer...................................................................................................................................................................... 11

Preface........................................................................................................................................................................................12

Key features.........................................................................................................................................................................12

ESD Prevention Guidelines................................................................................................................................................. 12

Documentation.....................................................................................................................................................................13

Check shipped accessories................................................................................................................................................. 13

Safely rotate the handle....................................................................................................................................................... 14

Operating requirements....................................................................................................................................................... 14

Input signal requirements.....................................................................................................................................................15

Secure (lock) the instrument................................................................................................................................................ 15

Powering the instrument...................................................................................................................................................... 15

Check that the instrument passes power-on self tests........................................................................................................ 16

Connecting probes to the instrument................................................................................................................................... 17

Rackmount option information............................................................................................................................................. 18

Getting acquainted with your instrument.....................................................................................................................................19

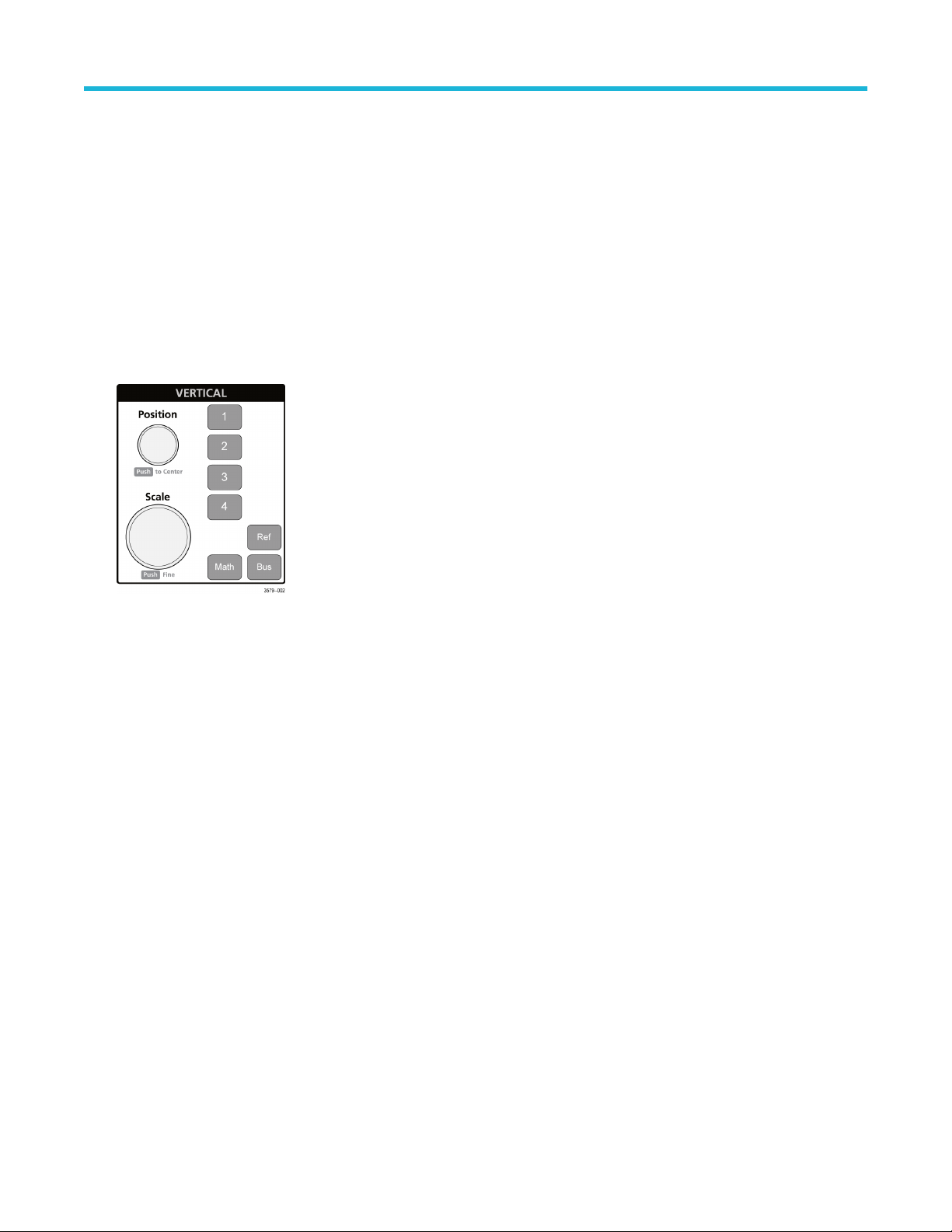

Front panel controls and connectors....................................................................................................................................19

Rear panel connections....................................................................................................................................................... 25

User interface.......................................................................................................................................................................26

User interface elements....................................................................................................................................................... 28

Badges.................................................................................................................................................................................30

Configuration menus............................................................................................................................................................38

Zoom user interface............................................................................................................................................................. 39

Using the touch screen interface for common tasks............................................................................................................ 40

Configure the instrument.............................................................................................................................................................42

Update your MSO with the latest firmware.......................................................................................................................... 42

Set the time zone and clock readout format........................................................................................................................ 42

Run Signal Path Compensation (SPC)................................................................................................................................ 43

Compensate the TPP Series probes................................................................................................................................... 43

Connect to a network (LAN).................................................................................................................................................44

Cleaning the instrument....................................................................................................................................................... 45

Operating basics......................................................................................................................................................................... 46

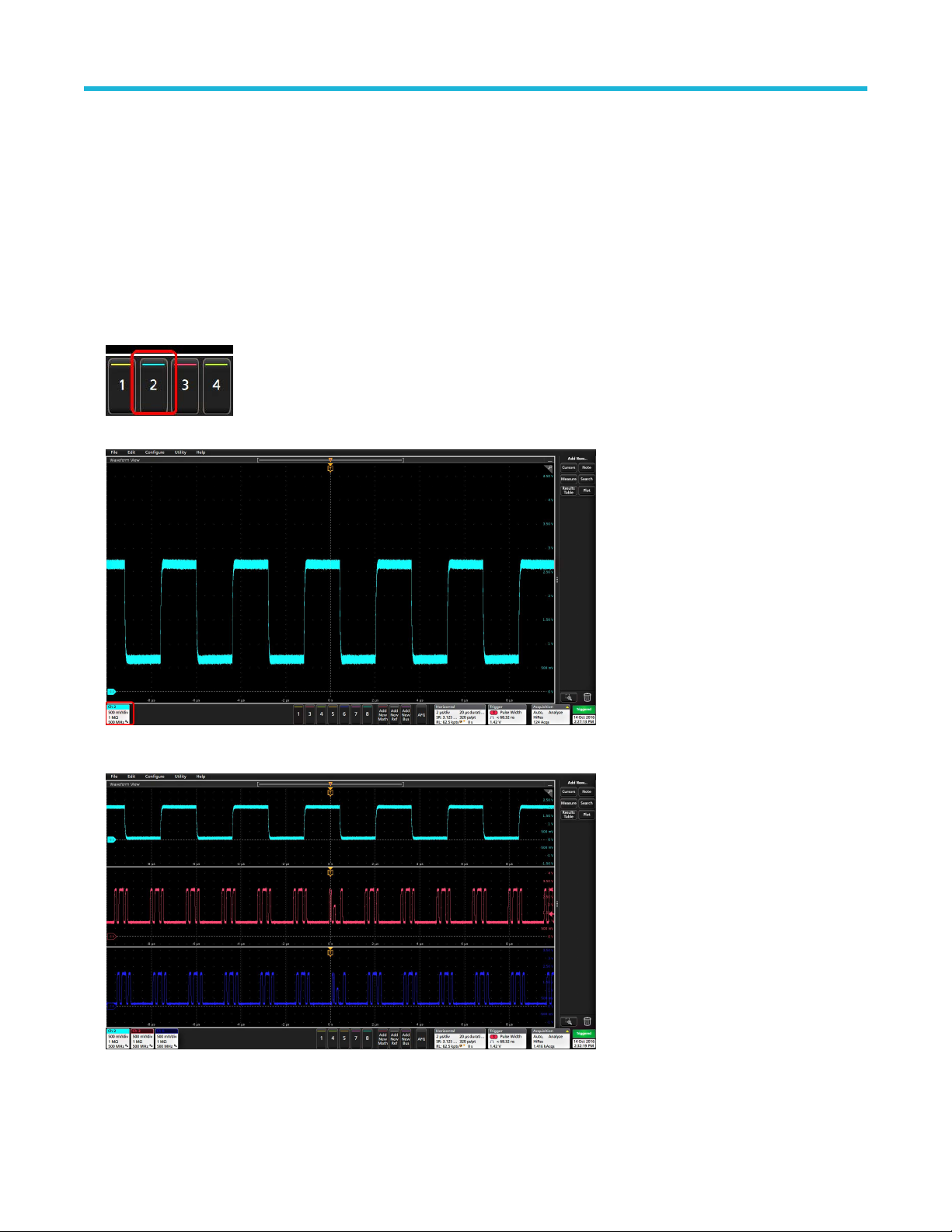

Add a channel waveform to the display............................................................................................................................... 46

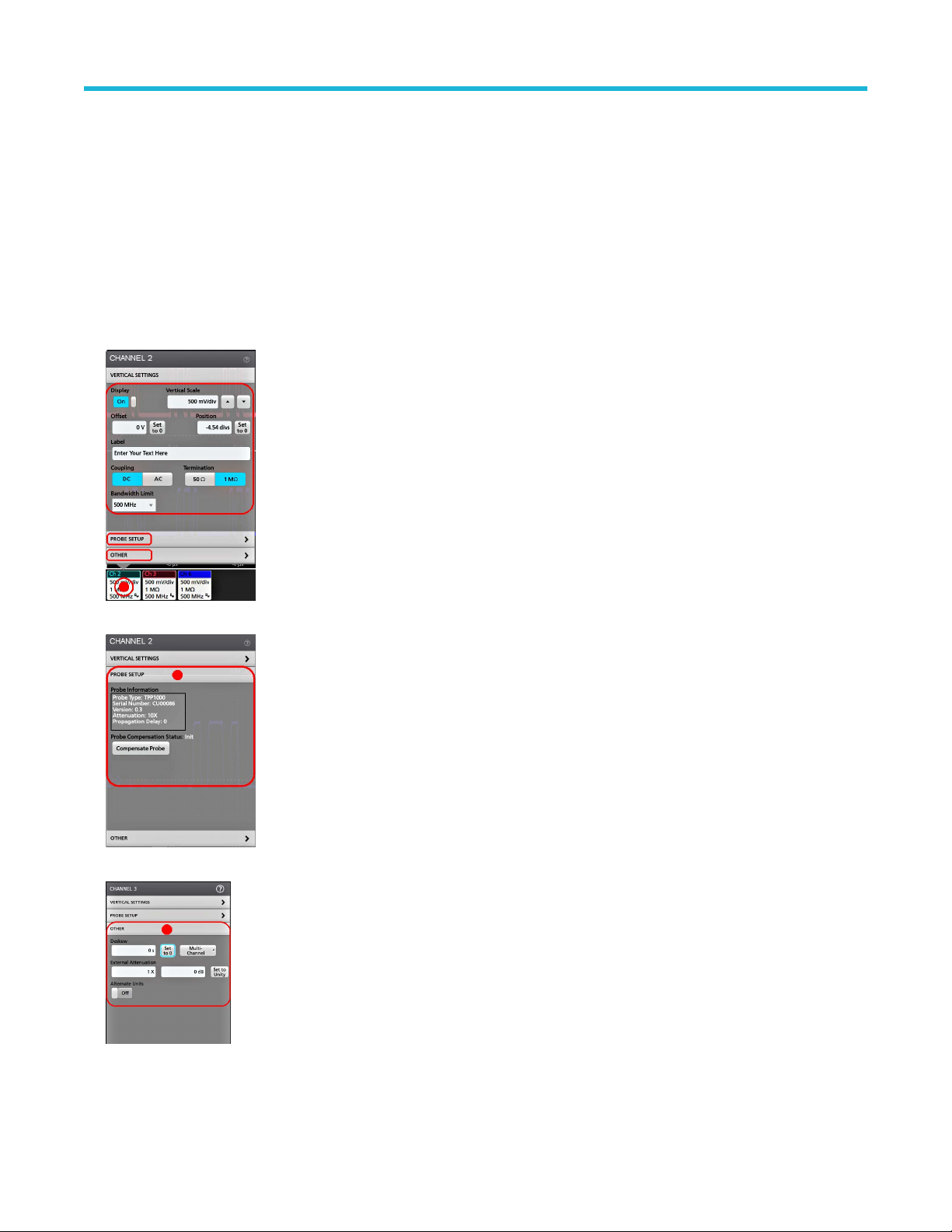

Configure channel or waveform settings..............................................................................................................................47

4 Series MSO MSO44, MSO46 Quick Start Manual 3

Table of Contents

Autoset to quickly display a waveform................................................................................................................................. 48

How to trigger on a signal

.................................................................................................................................................... 48

Set the acquisition mode......................................................................................................................................................49

Set Horizontal parameters .................................................................................................................................................. 50

Add a math, reference, or bus waveform.............................................................................................................................51

Add a measurement.............................................................................................................................................................52

Configure a measurement................................................................................................................................................... 54

Add a plot of a measurement...............................................................................................................................................54

Add a Search....................................................................................................................................................................... 56

Delete a Measurement or Search badge............................................................................................................................. 57

Change waveform view settings.......................................................................................................................................... 58

Display and configure cursors..............................................................................................................................................58

Connect the oscilloscope to a PC using a USB cable......................................................................................................... 61

Index........................................................................................................................................................................................... 62

Important safety information

Safety information provides warnings and cautions that help you operate the instrument safely and keep the instrument in a safe working condition.

This manual contains information and warnings that must be followed by the user for safe operation and to keep the product in a safe condition.

To safely perform service on this product, see the Service safety summary that follows the General safety summary.

General safety summary

Use the product only as specified. Review the following safety precautions to avoid injury and prevent damage to this product or any products connected to it. Carefully read all instructions. Retain these instructions for future reference.

This product shall be used in accordance with local and national codes.

For correct and safe operation of the product, it is essential that you follow generally accepted safety procedures in addition to the safety precautions specified in this manual.

The product is designed to be used by trained personnel only.

Only qualified personnel who are aware of the hazards involved should remove the cover for repair, maintenance, or adjustment.

Before use, always check the product with a known source to be sure it is operating correctly.

This product is not intended for detection of hazardous voltages.

Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.

While using this product, you may need to access other parts of a larger system. Read the safety sections of the other component manuals for warnings and cautions related to operating the system.

When incorporating this equipment into a system, the safety of that system is the responsibility of the assembler of the system.

To avoid fire or personal injury

Use proper power cord

Use only the power cord specified for this product and certified for the country of use. Do not use the provided power cord for other products.

Ground the product

This product is grounded through the grounding conductor of the power cord. To avoid electric shock, the grounding conductor must be connected to earth ground. Before making connections to the input or output terminals of the product, ensure that the product is properly grounded. Do not disable the power cord grounding connection.

Power disconnect

The power cord disconnects the product from the power source. See instructions for the location. Do not position the equipment so that it is difficult to operate the power cord; it must remain accessible to the user at all times to allow for quick disconnection if needed.

Connect and disconnect properly

Do not connect or disconnect probes or test leads while they are connected to a voltage source.

Use only insulated voltage probes, test leads, and adapters supplied with the product, or indicated by Tektronix to be suitable for the product.

4 Series MSO MSO44, MSO46 Quick Start Manual 5

Important safety information

Observe all terminal ratings

o avoid fire or shock hazard, observe all rating and markings on the product. Consult the product manual for further ratings information

T before making connections to the product.

Do not exceed the Measurement Category (CAT) rating and voltage or current rating of the lowest rated individual component of a product, probe, or accessory. Use caution when using 1:1 test leads because the probe tip voltage is directly transmitted to the product.

Do not apply a potential to any terminal, including the common terminal, that exceeds the maximum rating of that terminal.

Do not float the common terminal above the rated voltage for that terminal.

The measurement terminals on this product are not rated for connection to Category III or IV circuits.

Do not operate without covers

Do not operate this product with covers or panels removed, or with the case open. Hazardous voltage exposure is possible.

Avoid exposed circuitry

Do not touch exposed connections and components when power is present.

Do not operate with suspected failures

If you suspect that there is damage to this product, have it inspected by qualified service personnel.

Disable the product if it is damaged. Do not use the product if it is damaged or operates incorrectly. If in doubt about safety of the product, turn it off and disconnect the power cord. Clearly mark the product to prevent its further operation.

Before use, inspect voltage probes, test leads, and accessories for mechanical damage and replace when damaged. Do not use probes or test leads if they are damaged, if there is exposed metal, or if a wear indicator shows.

Examine the exterior of the product before you use it. Look for cracks or missing pieces.

Use only specified replacement parts.

Do not operate in wet/damp conditions

Be aware that condensation may occur if a unit is moved from a cold to a warm environment.

Do not operate in an explosive atmosphere

Keep product surfaces clean and dry

Remove the input signals before you clean the product.

Provide proper ventilation

Refer to the installation instructions in the manual for details on installing the product so it has proper ventilation.

Slots and openings are provided for ventilation and should never be covered or otherwise obstructed. Do not push objects into any of the openings.

Provide a safe working environment

Always place the product in a location convenient for viewing the display and indicators.

Avoid improper or prolonged use of keyboards, pointers, and button pads. Improper or prolonged keyboard or pointer use may result in serious injury.

Be sure your work area meets applicable ergonomic standards. Consult with an ergonomics professional to avoid stress injuries.

Use care when lifting and carrying the product. This product is provided with a handle or handles for lifting and carrying.

Use only the Tektronix rackmount hardware specified for this product.

Important safety information

Probes and test leads

Before connecting probes or test leads, connect the power cord from the power connector to a properly grounded power outlet.

Keep fingers behind the protective barrier accessories that are not in use.

Use only correct Measurement Category (CAT), voltage, temperature, altitude, and amperage rated probes, test leads, and adapters for any measurement.

, protective finger guard, or tactile indicator on the probes. Remove all probes, test leads and

Beware of high voltages

Understand the voltage ratings for the probe you are using and do not exceed those ratings. Two ratings are important to know and understand:

• The maximum measurement voltage from the probe tip to the probe reference lead.

• The maximum floating voltage from the probe reference lead to earth ground.

These two voltage ratings depend on the probe and your application. Refer to the Specifications section of the manual for more information.

WARNING: T oscilloscope input BNC connector, probe tip, or probe reference lead.

o prevent electrical shock, do not exceed the maximum measurement or maximum floating voltage for the

Connect and disconnect properly

Connect the probe output to the measurement product before connecting the probe to the circuit under test. Connect the probe reference lead to the circuit under test before connecting the probe input. Disconnect the probe input and the probe reference lead from the circuit under test before disconnecting the probe from the measurement product.

De-energize the circuit under test before connecting or disconnecting the current probe.

Connect the probe reference lead to earth ground only

Do not connect a current probe to any wire that carries voltages or frequencies above the current probe voltage rating.

Inspect the probe and accessories

Before each use, inspect probe and accessories for damage (cuts, tears, or defects in the probe body, accessories, or cable jacket). Do not use if damaged.

Service safety summary

The Service safety summary section contains additional information required to safely perform service on the product. Only qualified personnel should perform service procedures. Read this Service safety summary and the General safety summary before performing any service procedures.

To avoid electric shock

Do not touch exposed connections.

Do not service alone

Do not perform internal service or adjustments of this product unless another person capable of rendering first aid and resuscitation is present.

Disconnect power

To avoid electric shock, switch off the product power and disconnect the power cord from the mains power before removing any covers or panels, or opening the case for servicing.

4 Series MSO MSO44, MSO46 Quick Start Manual 7

Important safety information

Use care when servicing with power on

Dangerous voltages or currents may exist in this product. Disconnect power before removing protective panels, soldering, or replacing components.

, remove battery (if applicable), and disconnect test leads

Verify safety after repair

Always recheck ground continuity and mains dielectric strength after performing a repair.

Terms in this manual

These terms may appear in this manual:

WARNING: W

CAUTION: Caution statements identify conditions or practices that could result in damage to this product or other property

arning statements identify conditions or practices that could result in injury or loss of life.

Terms on the product

These terms may appear on the product:

DANGER indicates an injury hazard immediately accessible as you read the marking.

•

• WARNING indicates an injury hazard not immediately accessible as you read the marking.

• CAUTION indicates a hazard to property including the product.

Symbols on the product

When this symbol is marked on the product, be sure to consult the manual to find out the nature of the potential hazards and any actions which have to be taken to avoid them. (This symbol may also be used to refer the user to ratings in the manual.)

The following symbols(s) may appear on the product.

Compliance information

This section lists the safety and environmental standards with which the instrument complies. This product is intended for use by professionals and trained personnel only; it is not designed for use in households or by children.

Compliance questions may be directed to the following address:

Tektronix, Inc.

PO Box 500, MS 19-045

Beaverton, OR 97077, USA

tek.com

Safety compliance

This section lists the safety compliance information.

Equipment type

Test and measuring equipment.

Safety class

Class 1 – grounded product.

Pollution degree description

A measure of the contaminants that could occur in the environment around and within a product. Typically the internal environment inside a product is considered to be the same as the external. Products should be used only in the environment for which they are rated.

• Pollution Degree 1. No pollution or only dry, nonconductive pollution occurs. Products in this category are generally encapsulated, hermetically sealed, or located in clean rooms.

• Pollution Degree 2. Normally only dry, nonconductive pollution occurs. Occasionally a temporary conductivity that is caused by condensation must be expected. This location is a typical office/home environment. Temporary condensation occurs only when the product is out of service.

• Pollution Degree 3. Conductive pollution, or dry, nonconductive pollution that becomes conductive due to condensation. These are sheltered locations where neither temperature nor humidity is controlled. The area is protected from direct sunshine, rain, or direct wind.

• Pollution Degree 4. Pollution that generates persistent conductivity through conductive dust, rain, or snow. Typical outdoor locations.

Pollution degree rating

Pollution degree 2 (as defined in IEC 61010-1). Note: Rated for indoor, dry location use only.

IP rating

IP20 (as defined in IEC 60529).

Measurement and overvoltage category descriptions

Measurement terminals on this product may be rated for measuring mains voltages from one or more of the following categories (see specific ratings marked on the product and in the manual).

• Measurement Category II. For measurements performed on circuits directly connected to the low-voltage installation.

• Measurement Category III. For measurements performed in the building installation.

• Measurement Category IV. For measurements performed at the source of low-voltage installation.

4 Series MSO MSO44, MSO46 Quick Start Manual 9

Compliance information

Note: Only mains power supply circuits have an overvoltage category rating. Only measurement circuits have a measurement category rating. Other circuits within the product do not have either rating.

Mains overvoltage category rating

Overvoltage category II (as defined in IEC 61010-1).

Environmental compliance

This section provides information about the environmental impact of the product.

Product end-of-life handling

Observe the following guidelines when recycling an instrument or component:

Equipment recycling Production of this equipment required the extraction and use of natural resources. The equipment may

contain substances that could be harmful to the environment or human health if improperly handled at the product’

s end of life. To avoid release of such substances into the environment and to reduce the use of natural resources, we encourage you to recycle this product in an appropriate system that will ensure that most of the materials are reused or recycled appropriately.

This symbol indicates that this product complies with the applicable European Union requirements according to Directives 2012/19/EU and 2006/66/EC on waste electrical and electronic equipment (WEEE) and batteries. For information about recycling options, check the T

ektronix Web site (www.tek.com/productrecycling).

Battery recycling This product contains a small installed lithium metal button cell. Please properly dispose of or recycle the

cell at its end of life according to local government regulations.

Perchlorate materials This product contains one or more type CR lithium batteries. According to the state of California, CR

lithium batteries are classified as perchlorate materials and require special handling. See www

hazardouswaste/perchlorate for additional information.

.dtsc.ca.gov/

Transporting batteries

The small lithium primary button cell contained in this equipment does not exceed 1 gram of lithium metal content per cell.

The cell type has been shown by the manufacturer to comply with the applicable requirements of the UN Manual of T Part III, Sub-section 38.3. Consult your carrier to determine which lithium battery transportation requirements are applicable to your configuration, including to its re-packaging and re-labeling, prior to reshipment of the product by any mode of transport.

ests and Criteria

Security disclaimer

This Software and its associated Equipment are not designed or intended to be usedwith unsecure networks. You acknowledge that use of the Equipment may rely upon certain networks, systems, and data communication mediums that are not controlled by Tektronix and that may be vulnerable to data or security breaches, including, without limitation, internet networks used by Your internet providers and the databases and servers controlled by Your internet providers. Tektronix shall not be liable for any such breaches, including without limitation, damages and/or loss of data related to any security breach, and disclaims all warranties, including any implied or express warranties that any content will be secure or not otherwise lost or altered.

For the avoidance of doubt, if You choose to connect this Software or Equipment to a network, it is Your sole responsibility to provide and continuously ensure a secureconnection to that network. You agree to establish and maintain appropriate measures (e.g., firewalls, authentication measures, encryption, anti-virus applications, etc.) to protect the Software and Equipment and any associated data against security breaches including unauthorized access, destruction, use, modification, or disclosure.

Notwithstanding the foregoing, You shall not use any Products in a network with other products or services that are incompatible, insecure or not compliant with applicable laws.

4 Series MSO MSO44, MSO46 Quick Start Manual 11

Preface

This manual provides product safety and compliance information, describes how to connect and power on the oscilloscope, and introduces the instrument features, controls and basic operations. See the product Help file for more detailed information. Go to www.tek.com/

warranty-status-search for warranty information.

Key features

Welcome to the 4 Series MSO. The 4 Series MSO Oscilloscopes (MSO44, MSO46) are 4- and 6-channel oscilloscopes with the world's first FlexChannel® inputs, enabling you to efficiently and cost-effectively perform mixed signal debugging on virtually any design.

• Bandwidths from 200 MHz to 1.5 GHz

• 4- and 6-channel models with FlexChannel® inputs

• Each FlexChannel input is dual-purpose, letting you connect either an analog probe (TekVPI® or BNC) or an eight-channel digital probe (the TLP058 FlexChannel Logic Probe)

• Each FlexChannel can display 8 digital channels (with TLP058), an analog waveform, a spectrum trace, or both an analog and spectral view of the same channel at the same time with independent controls for each view

• Large 13.3” HD (1920 x 1080 pixel) capacitive touch-screen display

• User interface optimized for touch screen use

• Maximum 6.25 GS/s sample rate

• 31.25 M points record length on all channels (optional 62.5 M record length available)

• 500,000 waveforms/second capture rate

• Spectrum View enables simple, intuitive frequency domain analysis, independent of time domain controls, to show a spectral trace for each channel

• FastFrame™ segmented memory acquisition uses multiple trigger events to capture widely spaced events of interest at high sample rates while conserving acquisition memory

• No set limit on the number of math, reference, and bus waveforms you can display (the number of waveforms depends on available system memory)

• Integrated options include a 50 MHz arbitrary/function generator (AFG), and a Digital Voltmeter (DVM) and trigger frequency counter

• Advanced serial bus triggering and analysis options let you decode and trigger on industry standard buses. See the Serial bus and trigger options Help topic

• Measurement and analysis options provide additional measurement and analysis functions. See the Advanced Power Analysis option Help topics

ESD Prevention Guidelines

Electrostatic discharge (ESD) can damage oscilloscope and some probe inputs. This topic discusses how to avoid this type of damage.

Electrostatic discharge (ESD) is a concern when handling any electronic equipment. The instrument is designed with robust ESD protection, however it is still possible that large discharges of static electricity directly into the signal input may damage the instrument. Use the following techniques to prevent electrostatic discharge from damaging the instrument.

• Discharge the static voltage from your body by wearing a grounded antistatic wrist strap while connecting and disconnecting cables, probes, and adapters. The instrument provides a ground connection to which to attach a wrist strap (on the Probe Comp ground connector).

• A cable that is left unconnected on a bench can develop a large static charge. Discharge the static voltage from all cables before connecting them to the instrument or device under test by momentarily grounding the center conductor of the cable, or by connecting a 50 Ω termination to one end, before attaching the cable to the instrument.

Preface

• Before you apply power, connect the instrument to an electrically-neutral reference point, such as earth ground. To do this, plug the three-pronged power cord into an outlet grounded to earth ground. Grounding the oscilloscope is necessary to ensure safety and to take accurate measurements.

If you are working with static sensitive components, ground yourself. Static electricity that builds up on your body can damage

• static-sensitive components. Wear a wrist strap to safely send static charges on your body to earth ground.

• The oscilloscope must share the same ground as any circuits that you plan to test.

Documentation

Review the following user documents before installing and using your instrument. These documents provide important operating information.

Product documentation

The following table lists the primary product specific documentation available for your product. These and other user documents are available for download from www.tek.com. Other information, such as demonstration guides, technical briefs, and application notes, can also be found at www.tek.com.

Document Content

Help In-depth operating information for the product. Available from the

Help button in the product UI and as a downloadable PDF on

.tek.com/downloads.

www

Quick Start User Manual Introduction to product hardware and software, installation

instructions, turn on, and basic operating information.

Specifications and Performance Verification Technical Reference Instrument specifications and performance verification instructions

for testing instrument performance.

Programmer Manual Commands for remotely controlling the instrument.

Declassification and Security Instructions Information about the location of memory in the instrument.

Instructions for declassifying and sanitizing the instrument.

Service Manual Replaceable parts list, theory of operations, and repair and replace

procedures for servicing an instrument.

Upgrade Instructions Product upgrade installation information.

Rackmount Kit Instructions Installation information for assembling and mounting an instrument

using a specific rackmount.

How to find your product documentation

1. Go to www

2. Click Download in the green sidebar on the right side of the screen.

3. Select Manuals as the Download Type, enter your product model, and click Search.

4. View and download your product manuals. You can also click the Product Support Center and Learning Center links on the page for

Check shipped accessories

Make sure that you received everything you ordered. If anything is missing, contact Tektronix Customer Support. In North America, call 1-800-833-9200. Worldwide, visit www.tek.com to find contacts in your area.

Check the packing list that came with your instrument to verify that you have received all standard accessories and ordered items. If you purchased factory installed options such as a Serial Bus and Triggering option, or the Power measurements option, tap Help > About to confirm that the option(s) are listed in the Installed Options table.

4 Series MSO MSO44, MSO46 Quick Start Manual 13

Preface

MSO44, MSO46 standard accessories

Item Quantity Tektronix part number

4 Series MSO (MSO44, MSO46) Installation and Safety Manual 1 071-3644-xx

TPP0250 Passive Voltage Probe (250 MHz bandwidth). Shipped with 200 MHz models.

TPP0500B Passive Voltage Probe (500 MHz bandwidth). Shipped with 350 MHz and 500 MHz models.

TPP1000 Passive Voltage Probe (1 GHz bandwidth). Shipped with 1 GHz and 1.5 GHz models.

Accessory pouch 1 016-2143-xx

Power cord 1 Depends on region

Calibration certificate 1 N/A

Report of factory installed licenses 1 N/A

4 or 6

TPP0250

TPP0500B

TPP1000

Safely rotate the handle

Use the correct process to eliminate the chance of pinching your thumb or rear-panel-connected cables while rotating the handle.

WARNING: Hold the top of the handle to rotate the handle on the instrument. Do not hold the handle from the sides and rotate, as this can pinch the base of your thumb between the handle and the case.

CAUTION: If you have routed any cables between the handle and the case, be careful when rotating the handle so that you do not pinch the cables.

Operating requirements

Use the instrument within the required operating temperature, power measurements and safe instrument operation.

Environment requirements

, altitude, and signal input voltage ranges to provide the most accurate

Characteristic Description

Operating temperature 0 °C to +50 °C (+32 °F to +122 °F). For proper cooling, keep the sides of the instrument clear of

obstructions for 2 inches (51 mm).

Table continued…

Four probes are shipped with 4-channel models and six probes are shipped with 6-channel models.

Characteristic Description

Humidity Operating: 5% to 90% relative humidity (% RH) up to +40 °C (+104 °F), Noncondensing.

Non-operating: 5% to 50% RH above +40 °C up to +50 °C (+104 °F to +122 °F), Noncondensing.

Operating altitude Up to 3000 meters (9842 feet)

Power requirements

Characteristic Description

Power source voltage 100 V - 240 V

Power source frequency 50/60 Hz, 100-240 V

400 Hz, 115 V

Power consumption 400 W maximum

, ±10%, single phase

AC RMS

Input signal requirements

Keep the input signals within allowed limits to ensure the most accurate measurements and prevent damage to the analog and digital probes or instrument.

Preface

Make sure that input signals connected to the MSO instrument are within the following requirements.

Input Description

Analog input channels, 1 MΩ setting, maximum input voltage at BNC 300 V

Analog input channels, 50 Ω setting, maximum input voltage at BNC 5 V

Digital input channels, maximum input voltage range at digital inputs Observe probe ratings: TLP058; ±42 V

Ref In maximum input voltage at BNC (rear panel) 7 V

Aux In trigger input ≤300 V

RMS

Secure (lock) the instrument

Lock an instrument to a test bench or equipment rack to prevent property loss.

Attach a standard laptop security lock to the rear panel of the instrument, to secure the instrument to a workbench, rack, or other location.

Powering the instrument

Use this procedure to connect the instrument to line power and power on and of power using the power cord that shipped with the instrument.

Prerequisite: Use the AC power cord that shipped with your instrument.

1. Connect the supplied power cord to the instrument power connector on the back of the instrument.

4 Series MSO MSO44, MSO46 Quick Start Manual 15

f the instrument. Always connect the instrument to AC

Preface

Figure 1: MSO44, MSO46 power cord connector and power standby switch

2. Connect the power cord to an appropriate AC mains source.

Power is supplied to the power supply and some other boards whenever the AC power cord is connected to a live mains circuit, putting the instrument in standby mode.

3. Push the front panel power button to power the instrument on and of

The power button color indicates instrument power states:

• Unlit – no AC power applied

• Yellow – standby mode

• Blue – powered on

4. To completely remove power from the instrument, disconnect the power cord.

Check that the instrument passes power-on self tests

Power-on self tests verify that all instrument modules are working correctly after power up.

1. Power on the instrument and wait until the instrument screen appears.

2. Select Utility > Self Test from the top-edge Menu bar to open the Self Test configuration menu.

3. Check that the status of all power-on self tests are Passed.

If one or more power-on self tests shows Failed:

a. Power cycle the instrument.

b. Tap Utility > Self Test. If one or more power-on self tests still shows Failed, contact Tektronix Customer Support.

Connecting probes to the instrument

Preface

Probes connect the instrument to your device under test (DUT). Use a

probe that best matches your signal measurement needs.

Figure 2: Connecting probes to the MSO44 or MSO46

Connecting Probes

Connect TPP Series, T probe base latch locks with a 'click' when the probe is fully seated.

TekVPI probes automatically set the channel input parameters for that probe (bandwidth, attenuation, termination, and so on). If a probe has a Menu button, push that button to open an on-screen configuration menu. Follow instructions provided with active probes to set their parameters (auto zero, degauss, and so on).

To connect a TLP058 FlexChannel Logic Probe or a TDP7700 Series TriMode™ Probe:

1. Move the locking lever to the unlocked position, then let go to reset locking lever to the center position.

2. Insert the probe into a FlexChannel connector until fully seated and the lock mechanism clicks.

3. Move the locking lever to the locked position. The status light should be a solid green.

4. To disconnect the TLP058 probe, move and hold the locking lever at the unlocked position and pull out the probe. Do not pull on the

ribbon cable while removing the probe.

Connect a BNC probe or cable by pushing it onto a channel BNC bayonet connector and turn the lock mechanism clockwise until it locks.

Note: Connecting a probe does not automatically enable that channel (make it active). Use the instrument controls or programmatic interface to turn on a channel and open its configuration menu to verify or change probe or cable settings (bandwidth, attenuation, termination and so on).

ekVPI+, TekVPI, or other supported Tektronix analog probes by pushing them into a FlexChannel connector. The

4 Series MSO MSO44, MSO46 Quick Start Manual 17

Preface

Rackmount option information

An optional rackmount kit lets you install the oscilloscope in standard equipment racks.

Please refer to your product's datasheet at www

.tek.com for more information on rackmount options.

Getting acquainted with your instrument

The following content provides a high-level description of the instrument controls and user interface. Refer to the instrument help for detailed information on using the controls and user interface to display waveforms and take measurements.

Front panel controls and connectors

The front panel controls provide direct access to key instrument settings such as vertical, horizontal, trigger, cursors, and zoom. The connectors are where you input signals with probes or cables, or insert USB devices.

Note: Refer to the instrument help for detailed information on using the controls to display waveforms and take measurements.

Figure 3: 4 Series MSO Controls

Acquisition and Cursors controls:

• Run/Stop starts and stops waveform acquisition. acquiring; red = stopped). When stopped, the oscilloscope shows waveforms from the last completed acquisition. The Run/Stop button on the screen also shows the acquisition status.

• Cursors button turns screen cursors on or off. Use the Multipurpose knobs to move the cursors. Double-tap the cursor readouts, or on a cursor bar (line), to open the configuration menu to set cursor types and functionality.

4 Series MSO MSO44, MSO46 Quick Start Manual 19

The button color indicates the acquisition status (green = running and

Getting acquainted with your instrument

• Fast Acq™ enables or disables the fast acquisition mode. time between waveform acquisitions, enabling the capture and display of transient events such as glitches and runt pulses. It is helpful in finding elusive signal anomalies. Fast acquisition mode can also display waveform phenomena at an intensity that reflects their rate of occurrence.

• Single/Seq enables making a single waveform acquisition, or a specified number of acquisitions (as set in the Acquisition configuration menu). Pushing Single/Seq turns off Run/Stop mode and takes a single acquisition. The button color indicates the acquisition status (quick green flash = single acquisition acquired; solid green = waiting for trigger event). Pushing Single/Seq again takes another single acquisition.

• High Res applies unique finite impulse response (FIR) filters based on the current sample rate. This FIR filter maintains the maximum bandwidth possible for that sample rate while rejecting aliasing. The filter removes noise from the oscilloscope amplifiers and ADC above the usable bandwidth for the selected sample rate. Implementation of the filter in hardware, ahead of the trigger and storage, reduces trigger jitter and enables using Fast Acq mode while in High Res mode.

High Res mode also guarantees at least 12 bits of vertical resolution. The number of bits of resolution is displayed in the Acquisition badge at the bottom of the screen. The Horizontal badge also updates to show the sample rate and record length

settings while in High Res mode.

• Clear deletes the current acquisitions and measurement values from memory.

2. Multipurpose knobs: The Multipurpose knobs A and B move cursors and set parameter values in configuration menu input fields. Selecting an menu field that can use a Multipurpose knob assigns the indicated knob to change the value in that input field. The ring around each knob lights when you can use that knob to do an action. Push a Multipurpose knob to enable the Fine mode for making smaller increment changes. Push the knob again to exit Fine mode.

FastAcq provides high-speed waveform capture that reduces the dead

3. Trigger controls:

• Force forces a trigger event at a random point in the waveform and captures the acquisition.

• Level

sets the amplitude level that the signal must pass through to be considered a valid transition. The color of the Level knob

LED indicates the trigger source except for dual-level triggers.

Getting acquainted with your instrument

The Level knob is disabled when the trigger type requires two level settings or other trigger qualifiers (set from the T configuration menu). Push the knob to set the threshold level to 50% of the peak-to-peak amplitude range of the signal.

• Slope sets the signal transition direction to detect for a trigger (low to high, high to low, or either direction). Push the button to

cycle through the selections. The Slope button is disabled when the trigger type requires other slope qualifiers (set from the Trigger configuration menu).

• Mode sets how the instrument behaves in the absence or presence of a trigger event:

• Auto trigger mode enables the instrument to acquire and display a waveform whether or not a trigger event occurs. If a trigger event occurs, the instrument displays a stable waveform. If a trigger event does not occur, the instrument forces a trigger event and acquisition and displays an unstable waveform.

• Normal trigger mode sets the instrument to acquire and display a waveform only when there is a valid trigger event. If no trigger occurs, the last waveform record acquired remains on the display. If no last waveform exists, no waveform is displayed.

4. Vertical controls:

rigger

• Position moves the selected waveform (Channel, Math, Reference, Bus) and its graticule up or down on the screen. of the Position knob indicates which waveform the knob is controlling. Push the knob to set the threshold level to 50% of the peak-to-peak amplitude range of the signal.

• Scale sets the amplitude units per vertical graticule division of the selected waveform. The scale values are shown on the right edge of the horizontal graticule lines, and are specific to the selected waveform in both Stacked or Overlay modes (in other words, each waveform has its own unique vertical graticule settings regardless of display mode). The color of the Scale knob indicates which waveform the knob is controlling.

• Channel buttons turn on (display), select, or turn off Channel, Math, Reference, or Bus waveforms. The number of channel buttons depends on the instrument model. The buttons operate as follows:

• If the channel is not displayed, pushing a Channel button turns on that channel to the Waveform view.

• If the channel is on the screen and is not selected, pushing that channel's button selects that channel.

• If the channel is on the screen and is also selected, pushing that channel's button turns that channel off (removes it from

Waveform view).

• Math button adds or selects a Math waveform on the Waveform view.

• If no Math waveform exists, pushing the Math button adds a Math waveform to the Waveform view and opens the Math

configuration menu.

• If only one Math waveform is displayed, pushing the button turns off the Math waveform (removes it from Waveform view).

Push the button again to display the waveform.

• If two or more Math waveforms are displayed, pushing the button cycles through selecting each math waveform.

• Ref button adds or selects a Reference (saved) waveform on the Waveform view.

• If no Reference waveform exists, pushing the Ref button opens the Browse Waveform Files configuration menu. Navigate

to and select a waveform file (*.wfm) and tap Recall to load and display the reference waveform.

The color

4 Series MSO MSO44, MSO46 Quick Start Manual 21

Getting acquainted with your instrument

• If only one Reference waveform is displayed, pushing the button turns off the Reference waveform (removes it from the

aveform View). Push the button again to display the waveform.

• If two or more Reference waveforms are displayed, pushing the button cycles through selecting each Reference waveform.

• Bus button adds or selects a bus waveform on the Waveform view.

• If no Bus waveform exists, pushing the Bus button adds a Bus waveform to the Waveform view and opens the Bus

configuration menu.

• If only one Bus waveform is displayed, pushing the button turns off the Bus waveform (removes it from Waveform view).

• If two or more Bus waveforms are displayed, pushing the button cycles through selecting each Bus waveform.

5. Horizontal controls:

• Position moves the waveform and graticule side to side on the screen (changing the trigger point position in the waveform record). Push the knob to center the trigger event to the center graticule on the W

• Scale sets the time per major horizontal graticule division and samples/second parameters for the oscilloscope. Scale applies to all waveforms. Push the knob to enable the Fine mode for making smaller increment changes. Push the knob again to exit Fine mode.

• Zoom opens the Zoom mode. Push Zoom again to close zoom mode.

• Zoom knob (center knob) increases or decreases the area of the zoom box in the Zoom Waveform Overview, which in turn controls the zoom amount of the waveforms shown in the main Zoom view.

• Pan knob (outer knob) moves the Zoom box left or right in the Zoom Waveform Overview, which in turn controls the part of the waveform shown in the main Zoom view.

• Navigate (left and right arrow) buttons puts the oscilloscope in Zoom mode and positions the previous or next search point in the waveform record to the center graticule of the Waveform view. There must be a Search badge present in the Results bar before the Navigate function will operate. Press and hold a front panel navigate button to continue moving to the next search point in that direction.

aveform view.

The front panel Navigate buttons can also be used for the Previous and Next button functions on measurement badges.

6. Miscellaneous controls:

• Touch Off turns touch screen capability off. The Touch Off button is lighted when the touch screen is turned off.

• Save is a one-push save operation that uses the current File > Save As settings to save screen shots (including open menus and dialog boxes), waveform files, instrument settings, and so on.

• If a File > Save or File > Save As operation has occurred since the last instrument startup, pushing Save saves the file types

to the location last set in the Save As configuration menu.

• If no file save operation has occurred since the last instrument startup, pushing Save opens the Save As configuration menu.

Select a tab to select the type of file to save (Screen Capture, Waveform, and so on), set any associated parameters, and

Getting acquainted with your instrument

where to save it, and select OK. The specified file or files are saved. The next time you push Save, the same type files are saved.

• Screen Captures capture the entire screen, including most displayed configuration menus and dialog boxes.

• Default Setup restores the oscilloscope settings (horizontal, vertical, scale, position, and so on) to the factory default settings.

• Autoset automatically displays a stable waveform.

7. Ground and Probe Compensation connectors: The Ground and Probe Compensation connectors are located at the lower right side of the instrument, near the front panel. The Ground connector (the small hole in the case) provides an electrically grounded (through a resistor) connection point to attach an anti-static wrist strap, to reduce electrostatic damage (ESD) while you handle or probe the

DUT

The Probe Compensation connections provide a ground connector (upper tab) and 1 kHz square wave source (lower tab) for adjusting the high-frequency response of a passive probe (probe compensation). The oscilloscope uses this signal to automatically compensate supported probes, including the ones that ship with the product.

8. USB Host ports (USB 2.0): USB ports are located at the lower right corner of the front panel, and on the rear panel. Connect USB flash drives to which you can save or recall data (such as instrument software updates, waveforms, settings, and screen captures), or connect peripheral devices such as a mouse or keyboard.

FlexChannel probe connectors: FlexChannel connectors support all TekVPI+ and TekVPI measurement probes, BNC passive

probes, the TPL058 FlexChannel Logic Probe, and BNC cables. You connect most probes simply by pushing them into the connector until the probe seats with a click.

4 Series MSO MSO44, MSO46 Quick Start Manual 23

Getting acquainted with your instrument

Figure 4: 4 Series MSO

Aux In auxiliary trigger input connector. A connector to which you can connect an external trigger input signal. Use the Aux In trigger

10.

signal with the Edge trigger mode.

Getting acquainted with your instrument

Rear panel connections

The rear panel connections supply power to the instrument and provide connectors for network, USB devices, video, reference signals, and the AFG output.

1. LAN connector (RJ-45) connects the instrument to a 10/100/1000 Base-T local area network.

USB 2.0 Device port lets you connect to a PC to remotely control the instrument using USBTMC protocol.

3. USB 2.0 Host ports let you connect a USB memory device, keyboard, or mouse.

4. HDMI video output lets you connect an external monitor or projector to show the instrument's graphical user interface.

ou must connect an external monitor before powering on the instrument.

Note: Y

5. AUX Out generates a signal transition on a trigger event, outputs a 10 MHz reference signal, or outputs a synchronization signal from

the AFG.

Ref In lets you connect a high-precision 10 MHz reference signal to the oscilloscope for more accurate measurements.

7. AFG Out is the signal output for the optional Arbitrary Function Generator (AFG) feature.

8. Security lock connector lets you use a standard PC/laptop lock cable to secure the instrument to a work bench or other location.

9. Power cord connector. Use only the power cord specified for this product and certified for the country of use.

4 Series MSO MSO44, MSO46 Quick Start Manual 25

Getting acquainted with your instrument

User interface

The touch screen user interface contains waveforms and plots, measurement readouts, and touch-based controls to access all oscilloscope functions.

Note: Refer to the instrument help for detailed information on using the user interface to display waveforms and take measurements.

1. The Menu bar provides menus for typical operations including:

•

Saving, loading, and accessing files

• Undoing or redoing an action

• Setting oscilloscope display and measurement preferences

• Configuring network access

• Running self tests

• Erasing measurement and settings memory (TekSecure™)

• Loading option licenses

• Opening a Help viewer

2. The Waveform View area displays analog, digital, math, reference, bus, and trend waveforms. The waveforms include waveform

handles (identifiers), individual vertical graticule scale labels, and trigger position and level(s) indicators. You can set the Waveform View to stack each waveform vertically in separate graticules, called 'slices' (the default mode, as shown in the previous image), or overlay all the waveforms on the screen (traditional waveform view). See User interface elements on page 28.

You can also add Histogram, Spectral, and Measurement Results views (plots) for individual measurements. These plot views are separate view windows that you can move on the screen by dragging their title bar to a new position.

3. The Results Bar contains controls for displaying cursors, adding callout, plots, and result tables to the screen, and add measurements

to the Results bar. To remove a measurement, search or other badge from the Results Bar simply flick it off screen. The controls are:

• The Cursors button displays on-screen cursors in the selected view. Touch and drag, or use the Multipurpose knobs, to move the cursors. Double-tap on a cursor, or on the cursor readouts, to open a configuration menu to set cursor types and related functions.

Getting acquainted with your instrument

• The Measure button opens a configuration menu from which to select and add measurements to the Results bar measurement you add has a separate badge. Double-tap a measurement badge to open its configuration menu.

• The Results Table button adds a Measurement or Bus Results table to the screen. The Measurement Results table displays all measurements present in the Results bar. The Bus Results table displays bus decode information for displayed bus waveforms. Each table is contained within its own view window, which can be moved within the display area.

• To remove a measurement, search or other badge from the Results Bar simply flick it off screen.

• The Callout button adds a Callout object to the selected view. Double-tap the Callout text to open a configuration menu to change the type of callout, text and font characteristics. Drag any callout other than bookmark to any location on the oscilloscope screen view. Bookmarks callout can only be added to waveviews and spectrum views.

• The Search button lets you detect and mark a waveform where specified events occur. Tap Search to open a Search configuration menu and set the search conditions for analog and digital channels. You can add any number of searches to the same waveform or to different waveforms. Search badges are added to the Results Bar.

• The Plot button adds an XY, XYZ, or Eye Diagram plot to the display. These plots are contained within their own window and can be moved within the overall display area.

• The Measurement and Search badges show measurement and search results, and are displayed in the Results Bar. See

Badges on page 30. See Add a measurement on page 52. See Add a Search on page 56.

• The Zoom icon button at the up right of the Results Bar lets you to draw a box on the screen to zoom in on an area of interest, drawing segments for mask testing, or drawing areas to define visual trigger conditions.

• The More... button at the up right of the Results Bar allows you to select Zoom, Visual trigger, Mask, or Waveform Histogram.

4. The Settings Bar contains System badges for setting Horizontal, Trigger, Acquisition, and Date/Time parameters; Inactive Channel buttons to turn on channels; Add New Waveform buttons to add math, reference, and bus waveforms to the display; and Channel and Waveform badges that let you configure the individual waveform parameters. Tap a channel or waveform button to add it to the screen and display a badge. Double-tap a badge to open its configuration menu. See Badges on page 30.

5. Configuration Menus let you quickly change the parameters of the selected user interface item. You can open configuration menus by double-tapping on badges, screen objects, or screen areas. See Configuration menus on page 38.

. Each

4 Series MSO MSO44, MSO46 Quick Start Manual 27

Getting acquainted with your instrument

User interface elements

Each area of the user interface has a specific function that helps manage information or controls. This topic shows and describes the key user interface elements.

1. The W

2. The Expansion Point icon on the waveform view shows the center point around which the waveform expands and compresses when

3. The T

aveform Record View is a graphical high-level view of the overall waveform record length, how much of the record is on the

screen (shown in brackets), the location of key time events including the trigger event, and the current position of waveforms cursors.

If you are displaying a Reference waveform that is shorter than the current acquisition record length, or you are changing the horizontal time scale while the oscilloscope acquisition is stopped, the brackets change position to show the part of the waveform record that is being viewed relative to the current acquisition total record length.

If cursors are active on a waveform, the Waveform Record View shows the relative cursor positions as small vertical dashed lines.

When in Zoom mode, the Waveform Record View is replaced with the Zoom Overview. See Zoom user interface on page

changing horizontal settings.

rigger Position Indicator shows where the trigger event occurred in the waveform record. The trigger icon is displayed in the

waveform slice that is the trigger source.

39.

Getting acquainted with your instrument

4. The Zoom icon (in upper right corner of W

also turn on zoom mode and change the position and horizontal size of the Zoom Box.

5. The T

6. Measurement and Search badges show measurement and search results. See Badges on page 30. See Add a

7. The Results Bar Handle opens or closes the Results bar, to maximize waveform screen viewing when needed. To reopen the

8. The System badges show global instrument settings (Horizontal, Trigger, Acquisition, Run/Stop status, and Date/Time). See

9. The Inactive Channel buttons add channel waveforms to the Waveform view and add an associated Channel badge to the Settings

10. Double-tap a badge to open its associated configuration menu. See Badges on page 30. See Configuration menus on page 38.

rigger Level Indicator icon(s) shows the trigger level on the trigger source waveform. Some trigger types require two trigger

levels.

measurement on page 52.

Results bar, either tap the handle icon or swipe left from the right side of the display.

Badges on page 30.

bar.

The Add New Math, Add New Ref, and Add New Bus buttons add the corresponding signal to the Waveform view, and add an associated Waveform badge to the Settings bar. You can add any number of Math, Reference, and Bus waveforms, limited only by system memory.

The optional AFG button opens the AFG configuration menu to set and enable the AFG output. This button is only present if the AFG option is installed.

The optional DVM button lets you use an analog probe to take DC, AC RMS, or DC+AC RMS voltage measurements on your DUT. Tap the button to add a DVM badge to the Results Bar and open a configuration menu. The DVM option also enables a trigger frequency counter, accessible from the Mode & Holdoff panel in the Trigger badge menu. This button is only present if the DVM option is installed.

aveform and Plot views) toggles zoom on and off. The front panel Zoom button and knobs

If you add more Channel or Waveform badges than can fit in the waveform badge display area, tap the scroll buttons at each end of the waveform badge area to scroll and display hidden badges.

11. The Waveform Handles on each waveform identify the source of that waveform (Cx for channels, Mx for Math waveforms, Rx for

Reference waveforms, Bx for bus waveforms). The waveform handles are at the zero-volt level of the waveform by default. The currently selected waveform handle is a solid color; unselected waveform handles are outlined.

Double-tapping a waveform handle opens the configuration menu for that waveform.

For digital channels, the waveform handle shows the channel number, each individual digital signal labeled D0–D7 and displayed with a different color.

Double-tapping a digital waveform handle opens the digital channel configuration menu.

Dragging a digital signal handle over another handle swaps those two signals on the waveform.

The probe Dynamic Range Limit Markers are displayed just within the left-hand graticule edge, based at the channel vertical trace handle position and extending up and down to the dynamic range limits of the probe. The markers are only displayed if compatible probes are used. Signals must be within the probe dynamic range for the oscilloscope to correctly display and measure the signals.

4 Series MSO MSO44, MSO46 Quick Start Manual 29

Getting acquainted with your instrument

The markers are displayed, for about three seconds, after any Offset, Position, or Scale control change that leaves the channel dynamic range limits within the acquisition window graticule. If the dynamic range is too small to display the arrows, the arrows are omitted. Examples of all three marker versions are shown.

. After about three seconds the markers become short lines at the left edge of the

Badges

Badges are rectangular icons that show waveform, measurement, and instrument settings or readouts. Badges also provide fast access to configuration menus. The badge types are Channel, W

Channel and Waveform badges

aveform, Measurement, Search, and System.

Channel and Waveform (Math, Ref, Bus, Trend) badges are shown in the settings bar, located along the bottom left of the screen. Each waveform has its own badge. The badges show high-level settings for each displayed channel or waveform. Double-tap a badge to open its configuration menu.

Most Channel and Waveform badges also have Scale buttons, shown by single-tapping the badge. Use the Scale buttons to increase or decrease the vertical scale setting for that waveform.

You can drag Channel and Waveform badges to change their position in the Settings bar and open the badge right-click menu to access a quick-action menu.

There are two ways to delete Channel and W

• Right-click the badge and turn it off.

• Flick the badge off the bottom edge of the display to remove it from the Settings bar. Flicking upwards from the bottom edge of the Settings bar recovers the badge. Badge recovery is only possible within 10 seconds of removal.

Channel badges are listed in the channel order unless you have moved them. Channel badges may also display short error or warning messages. For more information double-tap the badge to open its configuration menu, or search the instrument Help.

aveform badges.

Waveform badges (Math, Ref, Bus, Trend) are listed in the order created (unless they have been moved), and are grouped together by type. Deleting a Waveform badge does not change the order or names of the remaining badges.

Measurement badges

Getting acquainted with your instrument

Measurement badges are located in the Results bar measurement source or sources. To add a Measurement badge, tap the Add New Measurement button and select a measurement.

Double-tap a Measurement badge to open its configuration menu to change or refine settings. The default measurement badge readout shows the measurement's mean (

Some measurements and their badges are only available as options. For example, Power measurements are only listed in the Add New Measurement menu if the required power option is installed.

Wide Badge: Wide badge displays all the phases results in a separate column. All sub-measurements are listed in the results badge in the first column. The common result such as Frequency is applicable to all the (3) phases and displayed as single value. The configured sources for each phase are displayed in channel colors. The Wide Badge applies to IMDA measurements only.

μ) value.

. They show measurements or search results. The badge title also shows the

To add statistical readouts to individual measurement badges, double-tap a measurement badge to open its configuration menu and select Show Statistics in Badge. The measurement badge displays the standard deviation ( population is one.

Some Measurement badges also have Navigation buttons, shown by single-tapping the badge.

The < (Previous) and > (Next) buttons center the waveform in the display at the position of the previous or next measurement point in the record (for measurements that take more than one measurement per acquisition).

The Min' and Max' navigation buttons center the waveform in the display at the minimum or maximum value for that measurement in the current acquisition.

The prime symbol (') shown on measurement readings and Min/Max buttons indicates that the value shown (or moved to in the case of Min/Max buttons and waveforms) is from the current acquisition. Lack of a prime symbol means the value is from all acquisitions.

The Measurement badge displays Status and Failures information when pass/fail testing is enabled through the configuration menu. The Status line shows Pass (green) or Fail (red) according to the conditions defined in the Pass/Fail T

σ) value. The standard deviation is zero, when the

esting panel. The number of Failures

4 Series MSO MSO44, MSO46 Quick Start Manual 31

Getting acquainted with your instrument

are displayed when statistics are shown in the badge. The Pass/Fail status, number of Failures, and the Limit(s) set in the Pass/Fail

esting panel are available in the Measurement Results table.

Measurement badges are listed in the order created, starting at the top of the Results bar. Deleting a Measurement badge does not change the order or names of the remaining badges.

You can drag Measurement badges to change their position in the Results bar and open the badge right-click menu to access a quick-action menu.

There are two ways to delete Channel and Waveform badges.

• Right-click the badge and turn it off.

• Flick the badge off the right edge of the display to remove it from the Results bar. Flicking left from the right edge of the Results bar recovers the badge. Badge recovery is only possible within 10 seconds of removal.

Mask Test badge

The mask test results and measurement statistics are displayed in the Mask Test badge in the Results bar. The badge is created when the first segment of a mask is defined.

Badge readout Description

Label (optional readout) A label defined in the badge configuration menu.

Tested The total number of waveforms tested against the mask.

Passed The number of waveforms that contained no samples that violated the mask.

Failed The number of waveforms that contained one or more samples that violated the mask.

Displays in red if greater than or equal to the total failures threshold.

Cons The highest number of consecutively failed waveforms in the test run. Displays in red if

greater than or equal to the consecutive failures threshold.

Status The status of the mask test. It can be On, Off, Passed/Passing (green) or Failed/Failing

(red).

Seg n (optional readout) The number of waveforms that contained one or more samples that violated mask segment

Double-tap a Mask Test badge to open its configuration menu to change or refine settings.

You can drag the badge to change its position in the Results bar and open the badge right-click menu to access a quick-action menu.

There are two ways to delete Channel and Waveform badges.

• Right-click the badge and turn it off.

Waveform Histogram badges

The Waveform Histogram badges are located in the Results bar. The badge title shows the histogram source.

Getting acquainted with your instrument

To add the Waveform Histogram badge to Results bar, set the Display to On from the Result Badge menu. Double-tap a W Histogram badge to open its configuration menu to change settings.

The histogram badge displays the measurements which are checked in the Result Badge menu.

ou can drag the badge to change its position in the Results bar and open the badge right-click menu to access a quick-action menu.

There are two ways to delete Waveform Histogram badges.

• Right-click the badge and select Delete Histogram.

aveform

Cursor Badges

You can display the cursor readouts in a Cursors badge in the Results bar. The badge contents depend on the cursor in use.

To create a cursor readouts badge, turn on Cursors, double-tap a cursor readout to open its configuration menu, and set the Readouts mode to Badge.

Note: You can only view cursor readouts in one location at a time; either on the waveform or in a Cursors badge. You cannot move cursor readouts to a badge for Spectrum View cursors.

You can drag the badge to change its position in the Results bar and open the badge right-click menu to access a quick-action menu.

There are two ways to delete Channel and W

• Right-click the badge and turn it off.

aveform badges.

Search badges

Search badges are also shown in the Results bar, below the Measurement badges. A search badge lists the search source, search type,

and the number of search event occurrences in the current acquisition. The instrument marks the waveform where those events occur with small down-pointing triangles along the top of the waveform graticule. Double-tap a search badge to open its configuration menu to change or refine search settings.

Search badges are created by tapping the Add New

Search badges have < (Previous) and > (Next) Navigation buttons that open the Zoom mode and center the waveform in the display at the position of the previous or next search mark in the waveform record. Search badge Navigation buttons are only usable when the oscilloscope is in single acquisition mode. Single-tap a badge to close the Navigation buttons.

... Search button. Use the displayed configuration menu to set the search criteria.

4 Series MSO MSO44, MSO46 Quick Start Manual 33

Getting acquainted with your instrument

Some searches also provide Min and Max navigation buttons that open the Zoom mode and center the waveform in the display at the minimum or maximum value for that search event in the current acquisition.

Search badges are listed in the order created. Deleting a Search badge does not change the order or names of the remaining badges.

ou can drag Search badges to change their position in the Results bar and open the badge right-click menu to access a quick-action

menu.

There are two ways to delete Channel and Waveform badges.

• Right-click the badge and turn it off.

Deleting mass Measurements/Searches badges at Once

This badge helps you to delete/remove many number measurements or searches, which are in the Results bar.

1. Select and right click on the Measurement/Search badge in the Results bar, which displays the dialog box as shown:

Controls Description

Configure Measurement/Search Configure Measurement or Search badges

Delete Measurement/Search/Histogram Deletes the selected Measurement (standard, jitter, power, DDR, etc.)/Search/Histogram

badge in the Results bar

Delete All Measurement/Search/ Histograms

2. When Delete All Measurements is selected, the oscilloscope asks for the confirmation to delete all the measurements/search at a

time.

Deletes all the Measurement (standard, jitter, power, DDR, etc.)/Search/Histogram badges in the Results bar.

3. The dialog box provides you a checkbox that gives the choice to bypass remaining information dialogs.

• Don’t ask for remaining items: Default is unchecked. If you leave it unchecked and clear the information dialog, then the dialog

will appear again for the next measurement deletion.

If the box is checked, it proceeds with deleting the rest of the items without bringing up the dialog box again. The dialog box

•

appears for each set of measurements you want to delete.

Getting acquainted with your instrument

Signal Clipping and Badges

WARNING: Clipping is caused by excessive or dangerous voltage at the probe tip, and/or a vertical scale setting that is not

adequate to display the entire vertical range of the waveform. Excessive voltage at the probe tip can injure the operator and cause damage to the probe and/or instrument.

This instrument shows a warning triangle symbol and the words Clipping in a Channel badge when a vertical clipping condition exists. Any measurement badges associated with that channel also indicate a clipping condition by turning the measurement text red and listing the type of clipping (positive or negative).

To close the clipping message, change the vertical scale to show the entire waveform, disconnect the probe tip from the excessive voltage source, and check that you are probing the correct signal using the correct probe.

Clipping causes inaccurate amplitude-related measurement results. Clipping also causes inaccurate amplitude values in saved waveform files. If a math waveform is clipped, it will not af

fect amplitude measurements on that math waveform.

Error Messages and Badges

This instrument shows a warning triangle symbol and an error message abbreviation in a Channel badge when an error occurs.

To remove the message from the badge, clear the error as indicated in the table.

Table 1: Probe errors

Error message Description

Prb Comm Accessory communication timed out. Please re-attach the accessory.

Prb ROM Unable to read probe ROM. Please re-attach the accessory.

Unsup Accessory is unsupported.

Prb Fault Critical accessory fault. Please re-attach the accessory. If the problem persists, contact

ektronix service.

Over Rng The signal voltage or current is over range. Please reduce the signal amplitude.

Temp The probe has experienced an over temperature condition. Please remove the probe from

the high temperature area.

No Tip No probe tip detected. Please install a compatible probe tip.

Tip Fault The probe tip has a fault. Please remove and replace the probe tip.

Table continued…

4 Series MSO MSO44, MSO46 Quick Start Manual 35

Getting acquainted with your instrument

Error message Description

S-param Error during S-parameter transfer. Please reattach the probe. If the problem persists,

contact T

ektronix Service.

History badge

The History badge is shown in the Results bar

Timestamp shows the time difference between the previous acquisition and the selected acquisition.

Badge readout Function Description

Previous The previous button takes you to the previous acquisition.

Next The next button takes you to the next acquisition.

Play/Pause Acquisitions are played at the specified playback speed and begin from the

Rewind The Rewind button takes you back to the acquisitions where you pressed the Play

. Navigate the history acquisitions by using the Previous/Next or Play/Pause buttons.

currently selected acquisition. The Play button changes to a Pause button when playback is active. Acquisitions are played until playback reaches the end of the history

. At this point, playback stops, and the Play button is grayed out.

button.

Reset The Reset button takes you back to the first acquisition in the history. When you

are at the beginning of the history the button is grayed out.

The waveforms can be viewed in the graticule for the selected acquisitions from history badge. You can navigate the total number of acquisitions in history

When Include Reference Acquisition in Badge is selected from the right click menu of the History badge, the badge displays the following information:

. Double-tap a badge to open its configuration menu.

Getting acquainted with your instrument

The Reference acquisition readout shows the timestamp when the acquisition occurred in time in history. It also displays the delta between the Selected acquisition and the Reference acquisition timestamps.

There are two ways to delete the History badge.

Right-click the badge and select Disable Acquisition History.

•

System badges

System badges (in the settings bar) display the main Horizontal, Acquisition, and Trigger settings. You cannot delete System badges.

Double-tap a System badge to open its configuration menu.

The Horizontal badge also has Scale buttons, shown by single-tapping the badge. Use the Horizontal Scale buttons to increase or decrease the horizontal time setting.

Common badge actions

Action Result Example

Single tap Immediate access controls (Scale,

Navigation).

Double tap Configuration menu with access to all

settings for the badge.

Touch and hold Right-click menu with single tap

access to common actions. T actions include turning off a channel and deleting a measurement or search badge.

Table continued…

ypical

4 Series MSO MSO44, MSO46 Quick Start Manual 37

Getting acquainted with your instrument

Action Result Example

Flick Flick the badge off the bottom edge of the display to remove it from the Settings bar

Flick the badge off the right edge of the display to remove it from the Results bar.

Flick from the right or bottom edge to recover a removed badge. This action is only possible within 10 seconds of badge removal.

Badge selection status

The appearance of a badge indicates its selection status (selected or unselected), or if a measurement needs to be deleted to close a channel or waveform badge.

Badge type Selected Unselected Turned off or in use

Channel or W

aveform

Measurement N/A

A dimmed Channel badge means the screen waveform is turned off (but not deleted). A dimmed Waveform badge means that the waveform display is turned of

f, or it is being used as a source by a measurement and cannot be deleted until the measurement is deleted.

Configuration menus

Configuration menus let you quickly set the parameters for channels, system settings (Horizontal, Trigger, Acquisition), measurements, cursor readouts, Waveform and Plot views, callout text, and so on.

Double-tap an item (badge, Waveform View or Plot View, cursor readouts, callout text, and so on) to open its configuration menu. For example, double-tap a Channel badge in the Settings Bar to open its configuration menu.

Selections or values that you enter take effect immediately. Menu contents are dynamic, and can change depending on your selections, instrument options, or attached probes.

Getting acquainted with your instrument

Related settings are grouped into 'panels'. Tap the panel name to show those settings. Changes to panel settings can change the values and/or fields shown in that panel and other panels.

Tap anywhere outside a configuration menu to close it.

o open Help content for a configuration menu, tap the question mark icon in the upper right corner of the menu.

Zoom user interface

Use the zoom tools to magnify waveforms to view signal details.

1. The Zoom Overview shows the entire waveform record. All waveforms are shown in Overlay mode in the Zoom Overview area. Using pinch and expand gestures on the Zoom Overview waveforms changes the horizontal time base settings.

2. The Zoom Box shows the area of the Zoom Overview to display in the Zoom V the area to view. Moving the Zoom Box, or changing its position, does not change the horizontal time base settings. You can also use the zoom Pan knob to move the Zoom Box left or right.

3. The Zoom icon (in the upper right corner of the Waveform View) switches zoom mode on and off.

4. The DRAW-A-BOX button toggles between drawing a zoom box (default mode), drawing areas for the Visual Trigger function,

drawing segments for Mask testing, and drawing the Waveform Histogram for waveform analysis. The button is located at the bottom of the Results Bar.

4 Series MSO MSO44, MSO46 Quick Start Manual 39

iew (see 5). You can touch and drag the box to move

Getting acquainted with your instrument

A zoom box lets you quickly draw a box around an area of interest in the Waveform or Zoom Overview. Drawing a box immediately puts the oscilloscope into zoom mode. T on the waveform to draw a box waveform. You can continue to draw zoom boxes until you single tap anywhere on the screen or open a menu.

To toggle between Zoom mode, Visual Trigger mode, and Mask mode, double-tap the DRAW-A-BOX button and select one of the three options. Search for the Visual Trigger and Mask Testing topics in the oscilloscope Help for more information.

5. The Zoom View shows the zoomed waveforms, as marked by the Zoom Box, in the Zoom Waveform Record View. Use pinch and/or drag options in the zoom view to change the zoomed area of interest. Pinch, expand, and drag gestures in the Zoom View only change zoom magnification settings and Zoom Box position.

6. Use the Zoom Title Bar controls to adjust the vertical and horizontal size of the zoom area. Click or tap the + or - buttons or use the A and B multipurpose knobs.

In a waveform view, if both Cursor and Zoom are turned on, use the Zoom Box and Cursors button to change the multipurpose knob functionality cursors.

Double tap the Horizontal Zoom Position or Horizontal Zoom Scale fields to enter a value using a numerical keypad.

To exit the zoom display mode, tap the Zoom icon in the corner of display or tap the X in the Zoom Title Bar.

. Tap the Zoom Title Bar to assign the knobs to adjust the zoom or tap the Cursors button to assign knobs to adjust the

o draw a zoom box, tap the DRAW-A-BOX button (while in Zoom mode), then touch and drag

Using the touch screen interface for common tasks

Use standard touch screen actions, similar to those found on smart phones and tablets, to interact with most screen objects. You can also use a mouse to interact with the UI. The equivalent mouse operation is shown for each touch operation.

The oscilloscope has a user interface tutorial. Tap Help > User Interface Tutorial to quickly learn the fundamental touch operations.

Table 2: Common touchscreen UI tasks with mouse equivalents

Task Touchscreen UI action Mouse action

Add a channel, math, reference, or bus waveform to the screen.

Select a channel, math, reference, or bus waveform to make it active

Display scale or navigation buttons on a badge (waveform, measurement, search, horizontal). Not all measurement or search badges display navigation buttons.

Open a configuration menu on any item (all badges, views, cursor readouts, labels, and so on).

Open a right-click menu (badges, views).

Table continued…

Tap an inactive channel button, Add New Math, Add New Reference, or Add New Bus button.

Stacked or Overlay mode: Tap the Channel or W

aveform badge.

Stacked mode: Tap the channel, math, reference, or bus waveform slice or handle.

Overlay mode: Tap the channel or waveform handle.

Tap the badge. Click the badge.

Double-tap the badge, view, or other object. Double-click the badge, view, or other object.

Touch and hold on the badge, Waveform View, Plot view, or other screen item until a menu opens.

Click an inactive channel button, Add New Math, Add New Reference, or Add New Bus button.

Stacked or Overlay mode: Left-click the Channel or Waveform badge.

Stacked mode: Left-click the channel, math, reference, or bus waveform slice or handle.

Overlay mode: Left-click the channel or waveform handle.

Right-click the object.

Getting acquainted with your instrument

Task Touchscreen UI action Mouse action

Close a configuration menu. Some dialog boxes will not close until you click an OK, Close, or other button in the dialog.

Move a menu. Touch and hold the menu title bar or a blank area

Move a callout. Callouts are screen objects and are not associated with any particular waveform channel or slice.

Change horizontal or vertical settings directly on a waveform.

ertical changes only apply to

V the selected channel or waveform; horizontal changes apply to all channels and waveforms.

Increase or decrease the zoom area while in Zoom mode.

Quickly scroll or pan a waveform or list.

Close or open the Results Bar to increase the Waveform View area.

Change the position of badges in the Settings Bar or Results Bar.

Tap anywhere outside the menu or dialog. Click anywhere outside the menu or dialog.

Click and hold the right mouse button on title or

in the menu, then drag the menu to new position.

Touch and hold on a callout and quickly start to drag, then move to new position. Start to move the callout as soon as selected (highlighted), otherwise the UI opens the right-click menu.

Tap a badge and use the Scale buttons. Left-click a channel, waveform, or Horizontal

Touch and hold two fingertips on the waveform view, move them together or apart vertically or horizontally, lift from screen; repeat.

Touch and drag in the waveform or list. Click and drag in the waveform or list.

Tap on the Results Bar Handle (three vertical dots in border) or anywhere in the border between the Waveform View and the Results Bar.

Touch and drag the badge to a new position in the same bar.

blank area, drag to new position.

Click and hold the right mouse button on the callout and quickly start to drag, then move to the new position.

badge and click on the Scale buttons.

Click the + or - buttons on the Zoom Title bar.

Click the Draw-a-Box button, draw a box around the waveform area of interest.

Click the Results Bar Handle (three vertical dots in border) or anywhere in the border between the Waveform View and the Results Bar.

Click and drag the Results Bar divider.

Click and drag the badge to a new position in the same bar.

4 Series MSO MSO44, MSO46 Quick Start Manual 41

Configure the instrument

Configurations to help operate your instrument efficiently. Refer to the instrument help for additional configuration information.

Update your MSO with the latest firmware

Ensure the instrument firmware is up to date by checking online and then installing the firmware, if needed.

1. Power on the oscilloscope.

2. Determine the current version of firmware installed on the instrument in the Help > About menu.

3. Check the version of the latest available firmware at the www.tek.com/software. Enter the model number of your oscilloscope in the

search box and search for the firmware.

4. If the firmware version on the web is newer than what is currently installed, update your instrument firmware.

a. Download the latest firmware to your PC. Unzip the files and copy the designated firmware file into the root folder of a USB flash

drive.

b. Insert the USB flash drive into a front-panel USB port on your oscilloscope. The instrument automatically recognizes the firmware

install file and starts the installation process.

c. Follow the on-screen instructions. The oscilloscope will take about 5 minutes to install the new firmware. Do not remove the USB

flash drive or power off the instrument during this time.

d. After the oscilloscope displays a message that it has completed the upgrade, power off the oscilloscope and remove the USB flash

drive.

e. Power on the oscilloscope.

5. Confirm firmware installation by checking that the new firmware version number matches the version you just installed. You can find the firmware version number in the Help > About menu.

Set the time zone and clock readout format

Set the time zone to your region so that saved files are marked with the correct date and time information. You can also set the time format (12 or 24 hour clock).

Procedure

1. Double-tap the Date/Time badge (bottom-right of screen) to open the configuration menu.

2. To turn off showing the date and time on the screen, tap Display button to Off.

To turn on date/time display again, double-tap in the blank area where the date/time badge was displayed to open the configuration menu, and set the Display button to On.

3. Select a time format (12 Hour or 24 Hour).

4. Tap the Time Zone field and select the time zone that applies to your location.

5. Tap anywhere outside of the menu to close it.

Run Signal Path Compensation (SPC)

Configure the instrument

Run SPC when you first receive an instrument, and at regular intervals, for best measurement accuracy the ambient (room) temperature has changed by more than 5 °C (9 °F), or once a week if you use vertical scale settings of 5 mV per division or less.

. You should run SPC whenever

About this task

Signal Path Compensation (SPC) corrects for DC level inaccuracies in the internal signal path, caused by temperature variations and/or long-term signal path drift. Failure to run SPC on a regular basis may result in the instrument not meeting warranted performance levels at low volts per division settings.

Before you begin

Disconnect all probes and cables from the front-panel channel inputs and rear-panel signal connectors.

Procedure

1. Power on and warm up the instrument for at least 20 minutes.

2. Tap Utility > Calibration.

3. Tap Run SPC. The SPC Status readout shows Running while SPC is running. SPC can take three minutes approximately per channel to run, so wait until the SPC Status message changes to Pass before reconnecting probes and using the instrument.

CAUTION: Y

resulting in possible inaccurate measurements. If you do abort the SPC, make sure to run the SPC procedure completely before using the instrument to take measurements.

4. Close the Calibration configuration dialog when SPC has completed.

If the SPC fails, write down any error message text. Make sure that all probes and cables are disconnected and run the SPC again. If the SPC still fails, contact Tektronix Customer Support.

ou can abort the SPC calibration by tapping Abort SPC. This may leave some channels uncompensated,

Compensate the TPP Series probes

Probe compensation adjusts the high frequency response of a probe for best waveform capture and measurement accuracy.

About this task

The oscilloscope stores the compensation values for each probe/channel combination, and automatically recalls the compensation values when you plug in the probe. Probe compensation status is shown in the Probe Setup panel of the Channel configuration menu.

• If the Probe Compensation Status field displays Pass, the probe is compensated and ready for use.

• If the Probe Compensation Status field displays Default, the attached probe has not been compensated and needs to have this probe compensation procedure run.

• If the Probe Compensation Status field displays Fail, the attached probe has failed the probe compensation procedure. Reconnect the probe and run probe compensation again.

• If there is no probe compensation status field shown in the panel, the oscilloscope cannot store compensation values for that probe. See the oscilloscope Help for how to manually compensate passive probes not supported by the probe compensation function.

Before you begin

The oscilloscope must be powered on for at least 20 minutes before compensating a probe.

Procedure

Use this procedure to compensate supported TPP-family probes that show a Default status when connected to the oscilloscope.

Note: Doing a Default Setup does not delete probe compensation values. A factory calibration does delete all stored probe

compensation values.

4 Series MSO MSO44, MSO46 Quick Start Manual 43

Configure the instrument

1. Connect a supported probe to an input channel.

2. Connect the probe tip and ground lead of the probe to the PROBE COMP terminals.

Note: Connect only one probe at a time to the PROBE COMP terminals.

3. Turn off all channels.

4. Turn on the channel to which the probe is connected.

5. Push the front-panel Autoset button. The screen displays a square wave.

6. Double-tap the badge of the channel that you want to compensate.

7. Tap the Probe Setup panel.

If the Probe Compensation Status says Pass, the probe is already compensated for this channel. You can move the probe to another channel and start again from step 1, or connect a different probe to this channel and start from step 1. If the Probe Compensation Status says Default, continue with this procedure.

8. Tap Compensate Probe to open the Probe Compensation dialog.

9. Tap Compensate Probe to run the probe compensation.

10. The probe compensation is finished when the Probe Compensation Status displays Pass. Disconnect the probe tip and ground from

the PROBE COMP terminals.

11. Repeat these steps for each supported passive probe that you want to compensate for this channel.

12. Repeat these steps to compensate supported probes on other channels of the oscilloscope.

Note: For most accurate measurements, open the Probe Setup panel and verify the Probe Compensation Status is Pass

whenever you attach a probe to a channel.

Connect to a network (LAN)

Connecting to a network allows you to remotely access the instrument.

ork with your network administrator to obtain the required information to connect to your network (IP address, Gateway IP address,

W Subnet Mask, DNS IP address, and so on).

1. Connect a CAT5 cable from the instrument LAN connector to your network.

2. Select Utility > I/O on the menu bar to open the I/O configuration menu.

3. Obtain or enter the network address information:

• If your network is DHCP-enabled, and the IP address field does not already show an address, tap Auto to obtain the IP address

information from the network. DHCP mode is the default mode.

• If your network is not DHCP-enabled, or you need a permanent (non-changing) IP address for this instrument, tap Manual and

enter the IP address and other values provided by your IT or system administrator resource.

Configure the instrument

ap Test Connection to verify that the network connection is working. The LAN Status icon turns green when the instrument

4. T successfully connects to your network. If you have problems connecting to your network, contact your system administration resource for help.

Cleaning the instrument

Use a dry, soft cotton cloth to clean the outside of the unit. If any dirt remains, use a cloth or swab dipped in a 75% isopropyl alcohol solution. Use a swab to clean narrow spaces around controls and connectors. Do not use any liquid cleaning agents or chemicals that could damage the touch screen, case, controls, markings or labels, or possibly infiltrate the case. See the Quick Start Manual for more detailed cleaning instructions.

4 Series MSO MSO44, MSO46 Quick Start Manual 45

Operating basics

These procedures are an introduction to using the interface to do common tasks. Refer to the instrument help for detailed information on menu and field settings.

Add a channel waveform to the display

Use this procedure to add a channel signal to the Waveform View.

1. Connect signal(s) to the channel input(s).

2. Tap an Inactive Channel button (in the Settings bar) of a connected channel.

The selected channel is added to the Waveform View and a Channel badge is added to the Settings bar.

3. Continue tapping Inactive Channel buttons to add more channels (digital or analog). Channels are displayed from lowest-numbered channel at the top, to highest-numbered channel at the bottom of the view

4. Double-tap a channel badge to open that channel's configuration menu to check or change settings.

, regardless of the order they were added (in stacked mode).

Configure channel or waveform settings

Operating basics

Use the channel and waveform configuration menus to set parameters such as vertical scale and of settings, deskew values, external attenuation values, and other settings.

fset, coupling, bandwidth, probe

Before you begin

Prerequisite: There is a channel or waveform badge in the Settings bar.

Procedure

1. Double-tap a Channel or Waveform badge to open a configuration menu for that item.

For example, in a Channel menu, use the Vertical Settings panel to set basic probe parameters such as vertical scale and position, offset, coupling, termination, and bandwidth limit. Available settings depend on the probe.

ap the Probe Setup panel to confirm probe settings and run configuration or compensation on supported probes.

2. T

ap the Other panel to set probe deskew, external attenuation, and alternate units parameters.

3. T

4. T

ap the Help icon on the menu title to open the help topic for more information.

5. Tap outside the menu to close the menu.

4 Series MSO MSO44, MSO46 Quick Start Manual 47

Operating basics

Autoset to quickly display a waveform

The Autoset function analyzes the signal characteristics and changes the instrument Horizontal, V automatically display a triggered waveform. You can then make further changes to trigger and horizontal settings to view the waveform point of interest.

1. Connect the probe with the signal of interest to an available channel. The signal can be analog or digital.

2. Double-tap the Trigger badge and set the trigger source to that of the signal of interest.

3. Connect any other associated signal(s) to available channel input(s).

4. Add the channel waveforms to the Waveform view. See Add a channel waveform to the display on page 46.

5. Tap File > Autoset or push the front-panel Autoset button. When using the Stacked Display mode, the instrument analyzes the signal

characteristics of the trigger source channel (analog or digital) and adjusts the horizontal, vertical, and trigger settings accordingly to display a triggered waveform for that channel. The Vertical scale is adjusted in each waveform slice of all active waveforms to maximize ADC utilization.

ertical, and Trigger settings to

When using the Overlay Display mode, the instrument adjusts the horizontal and trigger settings of the trigger source channel to display a triggered waveform for that channel. Vertical scale and position adjustments for all active channels in Overlay Display mode are controlled by the Autoset in Overlay Display Mode Optimizes selection in the Autoset panel of the User Preferences menu. If the selection is Visibility, Autoset vertically scales and positions all active channel waveforms such that they are uniformly spaced on screen. If the selection is Resolution, Autoset vertically scales and positions all active channel waveforms such that they each use as much of the ADC's range as possible.

Note: Y

ou can set which parameters the instrument can adjust when running an Autoset. Access the Autoset panel in Utility >

User Preferences > Autoset.

Autoset guidelines

•

Autoset displays three or four cycles (depending on the detected signal) with the trigger level near the midlevel of the signal.

• The trigger is set to type Edge, rising slope, DC coupling.

• If no channels are displayed before pushing Autoset, the oscilloscope adds Ch 1 to the Waveform view whether it has a signal or not.

• Autoset ignores math, reference, and bus waveforms.

• A channel or waveform with a frequency less than 40 Hz is classified as no signal.

How to trigger on a signal

Use this procedure to open the Trigger menu to select and configure the trigger event type and conditions.

1. Double-tap the Trigger badge on the Settings bar to open the Trigger configuration menu.

2. Select a trigger from the Trigger Type list. The trigger type sets what fields are available in the menu and also updates the illustration

to show a graphic of the trigger type.

Operating basics

To trigger on a bus, you must first add the bus to the Waveform view. See Add a math, reference, or bus waveform on page 51

Note: T

riggering on buses other than Parallel requires purchasing and installing serial trigger and analysis options.

3. Select the other fields and panels to refine the trigger conditions. The menu fields and trigger graphic updates as you make changes to the trigger settings. Displayed fields depend on the selected trigger type. Selection changes take ef

4. T

ap the Help icon on the menu title for more information on these settings.

5. Tap outside the menu to close the menu.

fect immediately.

Set the acquisition mode

Use this procedure to set the method the instrument uses to acquire and display the signal.

1. Double-tap the Acquisition badge on the Settings bar to open the Acquisition configuration menu.

2. Select the acquisition method from the Acquisition Mode list. Set any other parameters associated with the selected acquisition type.

4 Series MSO MSO44, MSO46 Quick Start Manual 49

Operating basics

ap the Help icon on the menu title for more information on these settings.

3. T

4. Tap outside the menu to close the menu.

Set Horizontal parameters

Use this procedure to set the horizontal time base parameters such as mode, minimum sample rate, horizontal scale, delay, and trigger delay time (relative to the center of the waveform record.

1. Double-tap the Horizontal badge on the Settings bar to open the Horizontal configuration menu.

2. Use the menu selections to set horizontal parameters.

ap the Help icon on the menu title for more information on these settings.

3. T

Operating basics

Add a math, reference, or bus waveform

Math waveforms let you create new waveforms based on operations between two or more waveforms or by applying equations to waveform data. A reference waveform is a static waveform record displayed for comparison. Bus waveforms let you view and analyze serial or parallel data.

There is no set limit to the number of Math, Reference, or Bus waveforms you can add to the W memory constraints.

1. Tap the Add New Math, Add New Ref, or Add New Bus button in the Settings bar.

2. The instrument adds the waveform to the W

menu. This example shows adding a Math waveform.

3. Use the configuration menus to refine the waveform parameters. Displayed fields depend on the waveform and selections made in the menu. Selection changes take ef

This example shows adding a Math waveform, using the Math Source fields to select Ch 1 and Ch 2 as the waveform sources, set the math type to Basic math operation, and subtracting channel 2 from channel 1.

fect immediately.

aveform view, adds a Waveform badge to the Settings bar, and opens a configuration

aveform View, other than system physical

4. When adding a Reference waveform, the instrument displays a Recall configuration menu. Navigate to and select the reference waveform file (*.wfm) to recall, then tap the Recall button. The instrument displays the Reference waveform.

5. Double-tap a math, reference, or bus badge to check or change the waveform settings.

settings on page 47.

6. Tap the Help icon on a configuration menu title for more information on math, reference, and bus waveform settings.

7. Tap outside the menu to close the menu.

4 Series MSO MSO44, MSO46 Quick Start Manual 51

See Configure channel or waveform

Operating basics

Add a measurement

Use this procedure to select and add measurements.

1. Acquire the channel(s) and/or waveform(s) on which you want to take measurements.

Note: W on the Settings bar and is acquiring the signal to measure.

2. T

ap the Add New...Measure button to open the Add Measurements configuration menu or drag the Measure button onto a

waveform in the waveform display area to automatically set the source.

Note: If the menu shows tabs other than Standard, then optional measurement types have been installed on the instrument. Select a tab to show the measurements for that option.

3. T

ap the Source field and select the measurement source. The list shows all available sources that are valid for the measurement.

aveforms do not need to be displayed to be used for measurements, as long as the channel or waveform badge is

Operating basics

4. Select a measurement category panel, such as Amplitude Measurements or T

those categories.

5. Some optional measurement packages are available in this menu as well like PWR, DJA, DBDDR3, DPM, IMDA, and WBG-DPT.

6. Select a measurement and tap Add to add the measurement to the Results bar. You can also double-tap a measurement to add it to

the Results bar.

7. Select and add other measurements for the current source. T

measurements to add.

8. To add measurements for other sources, select a different source, select a measurement, and add the measurement.

ap the measurement category panels to display and select other

iming Measurements, to display measurements for

ap outside the Add Measurements menu to close the menu.

9. T

10. To further adjust a measurement's settings, double-tap a measurement badge to open a configuration menu for that measurement.

See Configure a measurement on page 54.

11. Tap the Help icon on the menu title for more information on settings.

4 Series MSO MSO44, MSO46 Quick Start Manual 53

Operating basics

Configure a measurement

Use this procedure to add statistical readouts to the measurement badge, display plots for the measurement, and refine measurement parameters (configuration, global versus local scope of settings, gating, filtering, and so on).

1. Double-tap a measurement badge to open its Measurement configuration menu.

ap Show Statistics in Badge to add statistical readouts to the measurement badge.

2. T

3. T

ap available panel titles to make changes for those categories.

4. Use the available fields to refine the measurement conditions. Displayed fields depend on the measurement. Selection changes take

fect immediately. Selection changes can also change fields in other panels.

5. Tap the Help button on the menu title for more information on this menu's settings.

6. Tap outside the menu to close the menu.

Add a plot of a measurement

Measurement plots let you graph the distribution of waveform data point occurrences (histogram), plot the frequency components (spectrum) of a waveform, show the time trend of a measurement, and other supported plots. Available plots depend on the measurement.

1. Double-tap a Measurement badge to open the Meas configuration menu.

2. T

ap a Plots button to add that plot for the measurement to the screen.

Operating basics

The following shows adding a Histogram plot.

You can add more than one plot to measurements (to different measurements or the same measurement). For example, you can add two histogram plots for the same measurement, set one to display the X-Axis with a Logarithmic scale, and the other plot to display the X-Axis with a Linear scale.

4 Series MSO MSO44, MSO46 Quick Start Manual 55

Operating basics

ou can move plot windows by dragging the Plot view title bar to a new position. The blue background area moves to show where the

3. Y plot will be located when you remove your finger from the title bar. You can also resize plot windows by selecting and dragging the Plot view border. You should use a mouse to do these operations, as it is easier to select and drag plots with a mouse.

4. Double-tap within a Plot view to open a configuration menu to set display characteristics. T title for more information on that menu's settings. Tap outside the menu to close the menu.

ap the Help icon on the configuration menu

Add a Search

Use this procedure to set search criteria and mark a waveform where those events occur.

You can search on analog and digital signals, math waveforms, and reference waveforms. You can add searches to different waveforms and multiple searches to the same waveform.

Prerequisite: Display the channel or waveform signal on which to search. The waveform must be displayed to create a search for it.

1. Tap the Add New...Search button to open the Search configuration menu.

2. Use the configuration menu fields to set the search criteria in the same way that you would set for a trigger condition (select the Search T

3. The searched waveform is marked with one or more triangles as soon as the search criteria becomes true. Each search uses a

dif

ype, Source, and conditions on which to search).

ou cannot search for sequential events (there is no Sequence search type).

Note: Y

ferent color for its markers. The example image shows search criteria set to find positive pulse widths that are less than 70 ns wide.

Operating basics

o stop showing marks on a waveform, double-tap the Search badge and tap Display to Off.

4. T

5. To move the waveform to center marks on the display, push the Run/Stop front panel button to stop acquisition, single-tap a Search

badge, and tap the < or > Navigation button.

Note: Navigation buttons are only functional when the oscilloscope acquisition mode is set to Stop.

This opens the Zoom mode and moves the waveform to the previous or next event mark on the waveform.

6. If available for a search, tap the Min or Max button to center the waveform in the display at the minimum or maximum value of the search events in the waveform record.

7. T

o return the instrument to normal acquisition mode, tap the Zoom icon in the upper right corner of the Waveform View to turn off

Zoom mode, and push the Run/Stop front-panel button to set it to Run mode.

Delete a Measurement or Search badge

Use this procedure to remove a Measurement or Search badge from the Results bar.

1. Touch and hold the Measurement or Search badge that you want to delete. The instrument opens a right-click menu.

2. Select Delete Meas to delete that badge from the Results bar.

ou can undo a measurement delete.

Note: Y

3. The second way to delete a Measurement or Search badge is by flicking it of

right edge of the display recovers the badge.

f the right edge of the display. Flicking to the left from the

Note: Badge recovery is possible within 10 seconds only of removal.

4 Series MSO MSO44, MSO46 Quick Start Manual 57

Operating basics

Change waveform view settings

Use this procedure to change the waveform display mode (Stacked or Overlay), waveform trace interpolation algorithm, waveform persistence, style and intensity

1. Double-tap on an open graticule area to open the Waveform View configuration menu.

ap the buttons in the Display Mode to toggle between Overlay and Stacked modes.

2. T

, and graticule style and intensity.

3. Use the other controls to set the waveform interpolation algorithm, waveform point persistence, style, and intensity and intensity.

4. Tap the Help icon on the menu title to open the Waveform View menu help topic for more information on the waveform view parameters.

5. Tap outside the menu to close the menu.

, and graticule style

Display and configure cursors

Cursors are on-screen lines that you can move to take measurements on specific parts of a waveform or plot, or between two different waveforms. Cursor readouts show both current position values and the difference (delta) between cursors. Polar cursor readouts are available through the cursor configuration menu for XY and XYZ plots.

1. Tap the waveform slice (in Stacked mode), or the channel or waveform badge (in Overlay mode) to which you want to add cursors.

2. Tap the Add New...Cursors button, or push the front-panel button. The cursors are added to the display.

Operating basics

3. Use Multipurpose Knobs A and B to move the cursors, or touch and drag a cursor. Cursors show readouts that show position and difference measurements between the cursors.

4. To move the cursors to a different channel or waveform, just tap in that waveform graticule.

5. T

o further configure cursors, double-tap on either cursor line or the cursor readouts to open the Cursors configuration menu. For

example, tap the Cursor type to select the cursors to display, such as Waveform, V Bars, H Bars, and V&H Bars.

The cursor configuration menu in the waveform view.

4 Series MSO MSO44, MSO46 Quick Start Manual 59

Operating basics

The cursor configuration menu in an XY plot.

6. T

o split the cursors between two waveforms, tap the Source field and select Split and select the source for each cursor. The cursors

are moved to the specified waveforms.

7. T

ap the Help icon on the menu title for more information on the menu settings.

8. To stop showing cursors, push the front panel Cursor button, press and hold to open the right-click menu and turn cursors off, or open the Cursors configuration menu and set Display to Off.

Connect the oscilloscope to a PC using a USB cable

Use a USB cable to connect the oscilloscope directly to a PC for remote instrument control.

Operating basics

1. On the oscilloscope, select Utility > I/O

2. Tap USB Device Port Settings.

3. Confirm that the USB Device Port control is On (default setting).

4. Connect a USB cable from the PC to the USB Device port on the instrument.

5. If using the USB connection to remotely control the oscilloscope using GPIB commands, set the GPIB Talk/Listen Address for your

configuration (0 - 30).

from the menu bar.

4 Series MSO MSO44, MSO46 Quick Start Manual 61

Index

A knob 19 Acquisition controls acquisition menu, open 49 add

a channel to the display 46 a measurement badge a measurement plot 54 a search badge 56 signal to the screen 46 waveform to the screen 46

Add New

Bus waveform button 28 Math waveform button 28

Ref waveform button 28 AFG option 28 AFG Out (rear panel) 25 automatic probe compensation (TPP series) 43 Autoset 48 Autoset button 19 AUX Out (rear panel) 25

B knob 19 badge types 30 badges 30 Bus button 19 bus waveforms 51

cable lock 25 Callout button 26 change display settings 58 change measurement settings 54 channel badge 30 Channel buttons (front panel) 19 channel menu 47 channel settings 47 channel vertical parameters menu 47 Clear button 19 clipping message 30 clock format (12/24 hr), how to set 42 common touchscreen UI tasks 40 compensate TPP series probes 43 configuration menus 38 configure a measurement 54 connect lock cable 15 connect to a network 44 connecting probes 17 correct handle rotate 14 Cursors button 19 Cursors button (touchscreen) 26

cursors menu 58

Default Setup button 19 delete a measurement badge 57 display a channel 46 display cursors 58 documentation 13 Draw-a-Box button (Zoom) 39 DVM option 28 dynamic range limit marker 28

electrostatic damage, preventing 12 ESD, preventing 12 Ethernet port (rear panel) 25 Ethernet, connect to 44 expansion point, waveform 28

Fast Acq button 19 FlexChannel connectors (front panel) 19 Force button 19 front panel

Acquisition 19 Autoset button Aux In 19 Aux Trig 19 Bus button (front panel) 19 Channel buttons (front panel) 19 Clear button 19 Cursors button 19 Default Setup 19 description 19 Fast Acq button 19 FlexChannel connectors 19 Force button 19 High Res button 19 Horizontal 19 Level knob 19 Math button (front panel) 19 Miscellaneous 19 Mode button 19 multipurpose knobs 19 Navigate buttons (front panel) 19 Position knob 19 Position knob (horizontal) 19 probe compensation connectors 19 Ref button (front panel) 19 Run/Stop button 19 Scale knob 19 Scale knob (horizontal) 19

front panel (continued)

Single/Seq button 19

Slope button 19

Touch Off button 19

Trigger 19

USB ports 19

Vertical 19

Zoom button (front panel) 19

Zoom/Pan knobs (horizontal) 19

GPIB talk/listen address graticule intensity 58 graticule style 58

how to (continued)

use mouse with the UI 40

How to

change display mode (stacked, Overlay) 58

inactive channel buttons intensity, graticule 58 intensity, waveform 58

knob A 19 knob B 19

handle rotate 14 handles, analog and digital 28 High Res button 19 Horizontal controls 19 horizontal menu, open 50 how to

add a measurement 52

add a measurement plot

Add bus waveform 51

Add math waveform 51

Add reference waveform 51

add waveform to screen 46

change display settings 58

change graticule intensity 58

change graticule style 58

change measurement settings 54

change persistence 58

change waveform intensity 58

change waveform interpolation 58

check power-on self tests results 16

compensate TPP series probes 43

connect probes 17

connect to network 44

connect to PC using USB cable 61

delete a measurement 57

display cursors 58

open acquisition menu 49

open horizontal menu 50

quickly display waveform (Autoset) 48

run signal path compensation (SPC) 43

search on an event 56

set acquisition parameters 49

set channel vertical parameters 47

set clock format (12/24 hr) 42

set GPIB talk/listen address 61

set horizontal parameters 50

set probe deskew 47

set probe parameters 47

set time zone 42

set trigger parameters 48

use Autoset 48

LAN port (rear panel) 25 LAN, connect to 44 Level knob 19 Level knob LED 19 lock to bench or rack 15

manuals 13 marking waveform events (search) 56 Math button 19 math waveforms 51 Measure button 26 measurement

plots 54 measurement badge 30 measurement badge, delete Menu bar 26 menu panels 38 menus 38 Miscellaneous controls 19 Mode button (front panel) 19 More button 26 mouse touchscreen UI equivalents 40 move cursors 58 multipurpose knobs 19

Navigate buttons (horizontal) 19 navigation buttons, badges 30 network, connect to 44

open acquisition menu 49 open horizontal menu 50 overlay mode (waveforms) 58

Pan 39 panels, menu 38 persistence, waveform pinching and handle rotate 14 plot a measurement 54 Plot button 26 Position knob 19 Position knob (horizontal) 19 power cord connector (rear panel) 25 power standby mode 15 power-on test results 16 powering on or off 15 preventing ESD 12 probe compensation (TPP series) 43 probe compensation connectors 19 probe deskew, set 47 probe inputs 19 probe parameters, set 47 probes, connecting 17 proper handle rotate 14

rack mount kit information 18 rear panel

AFG Out 25 AUX Out 25 cable lock Ethernet port (RJ-45) 25 LAN port (RJ-45) 25 power cord 25 security cable lock 25 USB Device port 25 USB Host ports 25

video output 25 rear panel connections 25 record view, waveform 28 Ref button 19 Ref In 25 Ref In (rear panel) 25 reference waveforms 51 remove AC power from instrument 15 Results bar 26 Results Table button 26 run signal path compensation 43 Run/Stop button 19

Save button 19 scale buttons, badge 30 Scale knob 19 Scale knob (horizontal) 19 search badge 30 Search button 26 searching for events 56 security cable lock 25

set

clock format (12/24 hr) 42 GPIB talk/listen address probe deskew 47 probe parameters 47

time zone 42 Settings bar 26 show a measurement 52 Single/Seq button 19 Slope button (front panel) 19 SPC (signal path compensation) 43 stacked mode (waveforms) 58 standard accessories 13

TekVPI input connectors 19 time zone, how to set 42 Touch Off button 19 touchscreen UI tasks 40 trigger

level indicators 28
