Tektronix High Speed Serial Programmer

Download

High Speed Serial

ZZZ

Application Plug-in

Programmer Manual

*P077124601*

077-1246-01

High Speed Serial

ZZZ

Application Plug-in

Programmer Manual

www.tek.com

077-1246-01

Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions.

Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material. Speciﬁcations and price change privileges reserved.

TEKTRONIX and TEK are registered trademarks of Tektronix, Inc.

SourceXpress

is a registered trademark of Tektronix, Inc.

Contacting Tektronix

Tektronix, Inc. 14150 SW Karl Braun Drive P.O. Box 5 0 0 Beaverto USA

For product information, sales, service, and technical support:

n, OR 97077

In North America, call 1-800-833-9200. Worldwide, visit www.tek.com to ﬁnd contacts in your area.

Table of Contents

Getting Started

Introducti

Documentation............. .................................. ................................ ..................... 1-2

on ........................ ................................ ................................ ............... 1-1

Syntax and Commands

Command Syntax.................................... ................................ ............................. 2-1

Command G

Batch Compile commands.................................................................................. 2-3

Channel commands.......................................................................................... 2-4

Channel ISI commands. ................................ .................................. ................... 2-4

Channel S-Parameters commands ......................................................................... 2-4

Compile commands .................................... ................................ ..................... 2-7

Contr

Pattern Basic Settings commands.......................................................................... 2-8

Pattern Duty Cycle Distortion commands ........... ................................ ..................... 2-9

Pattern Encoding/Modulation commands................................................................. 2-9

Pattern Markers commands.... ................................ ................................ ........... 2-10

Pattern Scrambling commands ........................................................................... 2-10

Pat

Transmitter Noise commands . .................................. ................................ ......... 2-11

Transmitter Periodic Jitter commands .... . ..... . ..... . .... . ..... . ..... . ..... . .... . . .... . ..... . ..... . .... 2-11

Transmitter Pre/De-emphasis commands .......... ................................ ..................... 2-12

Transmitter Random Jitter commands ..... . ..... . ..... . ..... . ... . . . .... . ..... . ..... . ..... . ..... . ..... ... 2-12

Transmitter Spread Spectrum Clocking commands......................... ........................... 2-13

Command Descriptions........................................................................................ 2-15

roups ................................................................................................ 2-3

ol commands.... .................................. ................................ ..................... 2-8

tern Step Response commands ....................................................................... 2-11

High Speed Serial Plug-in Programmer Manual i

Table of Contents

ii High Speed Serial Plug-in Programmer Manual

Getting Started

Introduction

This programmer manual provides information on how to use commands for remotely controlling the High Speed Serial plug-in application.

The High Speed Serial plug-in can be installed in the SourceXpress software application, AWG70000 series instruments, and AWG5200 series instruments.

Communication with the plug-in is through the programmatic interface of these products. Using a single VISA or raw socket session, it is possible to communicate with SourceXpress, AWG70000 series instruments, and AWG5200 series instruments.

For information on the Remote Control, GPIB Parameters, LAN Parameters, Connecting to the Instrument using GPIB, and Setting up GPIB Communication, refer to t

Manual or the AWG5200 series Arbitrary Waveform Generators Programmer Manual.

he AWG70000 series Arbitrary Waveform Generators Programmer

High Speed Serial Plug-in Programmer Manual 1-1

Documentation

In addition to this High Speed Serial Programmer Guide, the following documentation is included with this application:

High Speed Serial Help. The help provides in-depth operation and user interface help.

High Speed Serial User Manual (PDF). This is adapted from the High Speed Serial help system.

1-2 High Speed Serial Plug-in Programmer Manual

Syntax and Commands

Command Syntax

For information on the Syntax Overview, Command and Query Structure, Clearing the Instrument, Command Entry, Parameter Types, SCPI Commands and Queries,

Programmer Manual or the AWG5200 series Arbitrary Waveform Generators Programmer Manual.

refer to the AWG70000 Series Arbitrary Waveform Generators

High Speed Serial Plug-in Programmer Manual 2-1

Command Syntax

2-2 High Speed Serial Plug-in Programmer Manual

Command Groups

Batch Compile

commands

Table 2-1: Batch Compile commands and their descriptions

Command Descriptio

HSSerial:B MDEViation

HSSerial:BCOMpile:PJITter:DEViation: TYPE

HSSerial

HSSerial:BCOMpile:PJ[n]:ENABle Sets or returns the speciﬁed Periodic Jitter

HSSerial:BCOMpile:PJ[n]:FREQuency: HIGH

HSSerial:BCOMpile:PJ[n]:FREQuency: INCRe

HSSerial:BCOMpile:PJ[n]:FREQuency:LOW Sets or returns the Low Frequency value of

HSSerial:BCOMpile:PJ[n]:MAGNitude:END Sets or returns the End Magnitude value of

HSS INCRement

HSSerial:BCOMpile:PJ[n]:MAGNitude:

ARt

SSerial:BCOMpile:RJ1:ENABle

HSSerial:BCOMpile:RJ1:FREQuency:HIGH Sets or returns the High Frequency value of

HSSerial:BCOMpile:RJ1:FREQuency:LOW Sets or returns the Low Frequency value of

HSSerial:BCOMpile:RJ1:MAGNitude:END Sets or returns the End Magnitude value of

HSSerial:BCOMpile:RJ1:MAGNitude: INCRement

HSSerial:BCOMpile:RJ1:MAGNitude:STARt Sets or returns the Start Magnitude value of

COMpile:PJITter:DEViation:

:BCOMpile:PJITter:ICENable

ment

erial:BCOMpile:PJ[n]:MAGNitude:

Sets or retu the Deviation for the Integer Cycles is set to Manual in Batch Compile.

Sets or returns the Periodic Jitter deviation type selec

Sets or re Periodic Jitter state (enabled or disabled) in Batch Compile.

state (e .

Sets or returns the High Frequency value of the speciﬁed Periodic Jitter in Batch Compile.

Sets or returns the Increment Frequency value Compile.

the speciﬁed Periodic Jitter in batch compile.

the

Set value of the speciﬁed Periodic Jitter i n Batch Compile.

Sets or returns the Start Magnitude value of

e speciﬁed Periodic Jitter in Batch Compile.

ets or returns the Random Jitter state

S (enabled or disabled) in Batch Compile.

the Random Jitter in Batch Compile.

the Random Jitter in batch compile.

Sets or returns the M agnitude Increment value of the Random Jitter in Batch Compile.

the Random Jitter in Batch Compile.

rns the percent of deviation when

ted for Batch Compile.

turns the Integer Cycles for

nabled or disabled) in Batch Compile

of the s peciﬁed Periodic Jitter in Batch

speciﬁed Periodic Jitter in Batch Compile.

s or returns the M agnitude Increment

High Speed Serial Plug-in Programmer Manual 2-3

Command Groups

Channel comma

Channel IS

I commands

nds

Table 2-2: Channel commands and their descriptions

Command Description

HSSerial:CH

HSSerial:CHANnel:TYPE Sets or returns the Channel emulation type.

ANnel:ENABle

Sets or retur state (enabled or disabled).

ns the Channel emulation model

Table 2-3: Channel ISI commands and their descriptions

Command Descript

HSSerial

HSSerial:CHANnel:ISI:TYPE Sets or returns the Intersymbol Interference

HSSerial:CHANnel:ISI:VALue Sets or returns the Intersymbol Interference

:CHANnel:ISI:BW

Sets or re (ISI) Normalized Channel Bandwidth.

(ISI) type.

(ISI) m

ion

turns the Intersymbol Interference

agnitude.

Channel S-Parameters commands

Table 2-4: Channel S-Parameters commands and their descriptions

Command Description

HSSerial:CHANnel:SPARameter:BANDwidth Sets or returns the S-Parameter bandwidth

erial:CHANnel:SPARameter:

HSS BANDwidth:AUTO

HSSerial:CHANnel:SPARameter: CASCading:AGGRessor2[:ENABle]

SSerial:CHANnel:SPARameter:

H CASCading:AGGRessor[n]:AMPLitude

HSSerial:CHANnel:SPARameter: CASCading:AGGRessor[n]:CTALk

HSSerial:CHANnel:SPARameter: CASCading:AGGRessor[n]:DRATe

HSSerial:CHANnel:SPARameter: CASCading:AGGRessor[n]:SIGNal

HSSerial:CHANnel:SPARameter: CASCading:AGGRessor[n]:SIGNal:FILE

n setting manually.

whe

s or returns the S-Parameter automatic

Set bandwidth calculation setting.

Sets or returns whether the aggressor 2 signal type state (enabled or disabled) in

scading mode.

ets or returns the speciﬁed Aggressor's

S amplitude, in Cascading mode.

Sets or returns the speciﬁed Aggressor's crosstalk type, in Cascading mode.

This command sets or returns the speciﬁed Aggressor's data rate, in Cascading mode.

Sets or returns speciﬁed Aggressor's signal type, in Cascading mode.

This command sets or returns the ﬁlepath to the aggressor ﬁle for the speciﬁed Aggressor, in Cascading mode.

2-4 High Speed Serial Plug-in Programmer Manual

Command Groups

Table 2-4: Channel S-Parameters commands and their descriptions (cont.)

Command Description

HSSerial:CHANnel:SPARameter: CASCading:AGGRessor[n]:SIGNal:PRBS

HSSerial:CHANnel:SPARameter: CASCading:DEEMbed

HSSerial:CHANnel:SPARameter: CASCading:STAGe[m]:DRX[n]

HSSerial:CHANnel:SPARameter: CASCading:STAGe[m]:DTX[n]

HSSerial:CHANnel:SPARameter: CASCading:STAGe[m]:RX[n]

HSSerial:CHANnel:SPARameter: CASCading:STAGe[m]:TX[n]

HSSerial:CHANnel:SPARameter: CASCading:STAGe[m]:ENABle

HSSerial:CHANnel:SPARameter: CASCading:STAGe[m]:FILE

HSSerial:CHANnel:SPARameter: CASCading:STAGe[m]:SSCHeme

HSSerial:CHANnel:SPARameter: CASCading:STYPe

HSSerial:CHANnel:SPARameter: CASCading:TYPE

HSSerial:CHANnel:SPARameter:MODE Sets or returns the S-Parameter mode

Sets or returns the speciﬁed Aggressor's PRBS signal type, in Cascading mode.

Sets or returns whether the Cascading S-Parameters is to de-embed (invert) the S-Parameters, in Cascading mode.

Sets or returns the S-Parameter port assignment of the speciﬁed Stage and the channel’s speciﬁed receiver port number (Rx-Port) in Cascading mode and Differential Signalling Scheme (where applicable).

Sets or returns the S-Parameter port assignment of the speciﬁed Stage and the channel’s speciﬁed transmission port number (Tx-Port) in C ascading mode and Differential Signalling Scheme (where applicable).

Sets or returns the S-Parameter port assignment of the speciﬁed Stage and the channel’s speci ﬁed receiver port number (Rx-Port) in Cascading mode and Single-Ended Signalling Scheme (where applicable).

Sets or returns the S-Parameter port assignment of the speciﬁed Stage and the channel’s speciﬁed transmission port number (Tx-Port) in Cascading mode and Single-Ended Signalling Scheme (where applicable).

Sets or returns the state of the speciﬁed Cascaded S-Parameter stage (enabled or disabled).

Sets or returns the Filepath for the speciﬁed S-Parameters Cascading Stage, in Cascading mode.

Sets or returns the S-Parameter Signalling Scheme, in Cascading mode. Signalling Scheme is only available when the Number of Ports is set to 4, 8, or 12.

Sets or returns S-Parameter signal type (victim or aggressor), in Cascading mode. The number of ports must be either 8 or 12.

Sets or returns the S-Parameter number of ports, in Cascading mode.

(Cascading or Non-Cascading).

High Speed Serial Plug-in Programmer Manual 2-5

Command Groups

Table 2-4: Channel S-Parameters commands and their descriptions (cont.)

Command Description

HSSerial:CHANnel:SPARameter: NCAScading:AGGRessor2[:ENABle]

HSSerial:CHANnel:SPARameter: NCAScading:AGGRessor[n]:AMPLitude

HSSerial:CHANnel:SPARameter: NCAScading:AGGRessor[n]:CTALk

HSSerial:CHANnel:SPARameter: NCAScading:AGGRessor[n]:DRATe

HSSerial:CHANnel:SPARameter: NCAScading:AGGRessor[n]:SIGNal

HSSerial:CHANnel:SPARameter: NCAScading:AGGRessor[n]:SIGNal:FILE

HSSerial:CHANnel:SPARameter: NCAScading:AGGRessor[n]:SIGNal:PRBS

HSSerial:CHANnel:SPARameter: NCAScading:DEEMbed

HSSerial:CHANnel:SPARameter: NCAScading:DRX[n]

HSSerial:CHANnel:SPARameter: NCAScading:DTX[n]

HSSerial:CHANnel:SPARameter: NCAScading:FILE

HSSerial:CHANnel:SPARameter: NCAScading:LAYout

HSSerial:CHANnel:SPARameter: NCAScading:RX[n]

HSSerial:CHANnel:SPARameter: NCAScading:SSCHeme

Sets or returns the aggressor 2 signal type state (enabled or disabled) in Non-Cascading mode. Aggressor2 signals are available when the number of ports is set to 12.

Sets or returns the speciﬁed Aggressor's amplitude, in Non-Cascading mode.

Sets or returns the speciﬁed Aggressor's crosstalk type, in Non-Cascading mode.

Sets or returns the speciﬁed Aggressor's data rate, in Non-Cascading mode.

Sets or returns speciﬁed Aggressor's signal type, in Non-Cascading mode.

Sets or returns the ﬁlepath to the aggressor ﬁle for the speciﬁed Aggressor, in Non-Cascading mode.

Sets or returns the speciﬁed Aggressor's PRBS signal type, in Non-Cascading mode.

Sets or returns whether the Non-Cascading S-Parameters is to de-embed (invert) the S-Parameters, in Non-Cascading mode.

Sets or returns the S-Parameter port assignment of the channel’s speciﬁed receiver port number (Rx-Port) in Non-Cascading mode and Differential Signalling Scheme (where applicable).

Sets or returns the S-Parameter port assignment of the channel’s speciﬁed transmission port number (Tx-Port) in Non-Cascading mode and Differential Signalling Scheme (where applicable).

Sets or returns the ﬁlepath and ﬁle name of the S-Parameter ﬁle, in Non-Cascading mode.

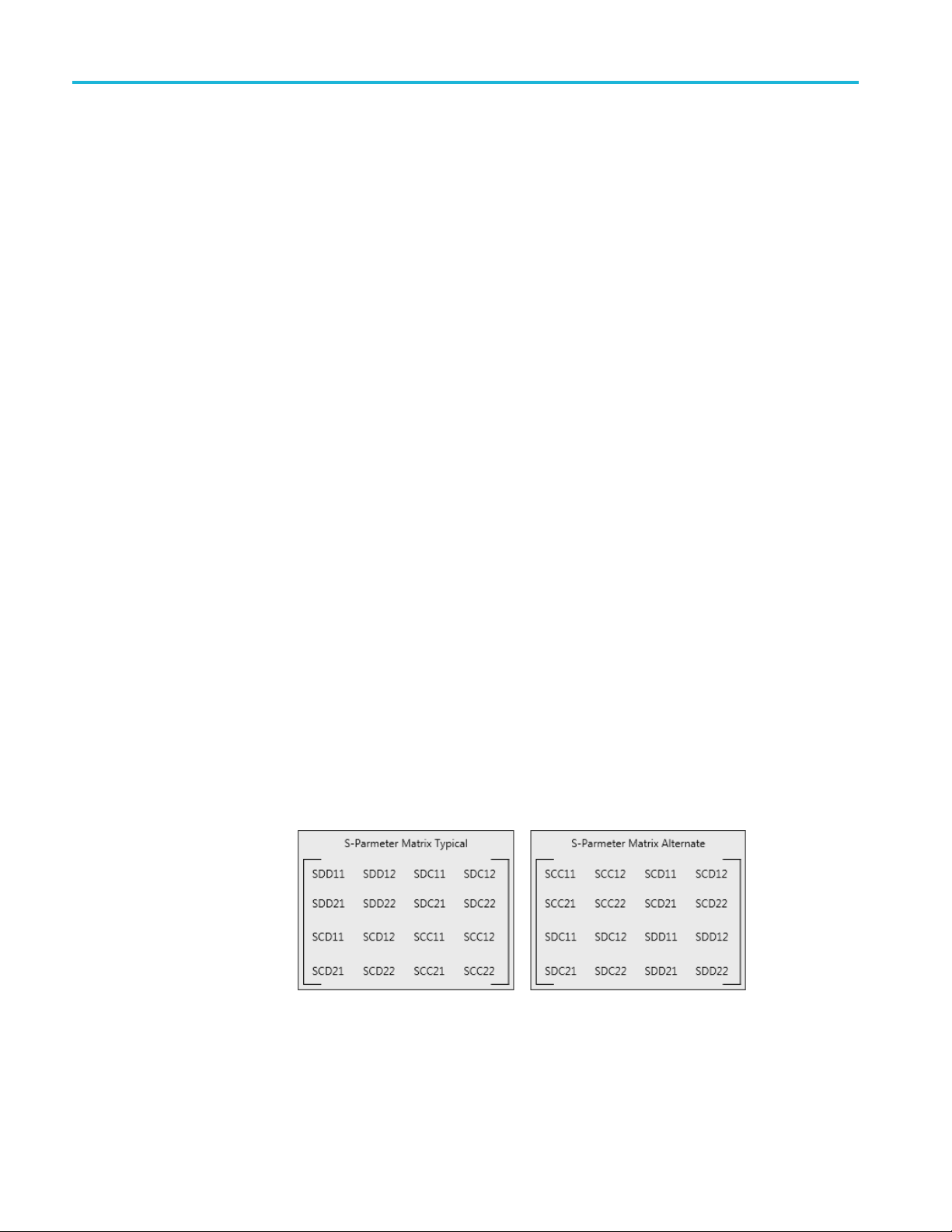

Sets or returns the 4 port S-Parameter Matrix Conﬁguration, in Non-Cascading mode.

Sets or returns the S-Parameter port assignment of the channel’s speciﬁed receiver port number (Rx-Port) in Non-Cascading mode and Single-Ended Signalling Scheme (where applicable).

Sets or returns the S-Parameter Signalling Scheme, in Non-Cascading mode. Signalling Scheme is only available when the Number of Ports is set to 4, 8, or 12.

2-6 High Speed Serial Plug-in Programmer Manual

Compile commands

Command Groups

Table 2-4: Channel S-Parameters commands and their descriptions (cont.)

Command Description

HSSerial:CHANnel:SPARameter: NCAScading:STYPe

HSSerial:CHANnel:SPARameter: NCAScading:TX[n]

HSSerial:CHANnel:SPARameter: NCAScading:TYPE

Sets or returns S-Parameter signal type (victim or aggressor), in Non-Cascading mode. The number of ports must be either 8 or 12.

Sets or returns the S-Parameter port assignment of the channel’s speciﬁed transmission port number (Tx-Port) in Non-Cascading mode and Single-Ended Signalling Scheme (where applicable).

Sets or returns the S-Parameter number of ports, in Non-Cascading mode.

Table 2-5: Compile commands and their descriptions

Command Description

HSSerial:COMPile Compiles and generates a waveform using

the High Speed Serial plug-in compile settings.

HSSerial:COMPile:ATSequence:ENABle Sets or returns the Add to sequence compile

state (enabled or disabled) for the Compile Settings.

HSSerial:COMPile:ATSequence:SEQuence Sets or returns the sequence name in the

sequence list when the Add to an existing sequence is enabled for the Compile Settings.

HSSerial:COMPile:ATSequence:TRACk Sets or returns the track name when the Add

to an existing sequence is enabled for the Compile Settings.

HSSerial:COMPile:CANCel Cancels a compilation currently in progress.

HSSerial:COMPile:CORRection:APPLy

HSSerial:COMPile:CORRection:PATH Sets or returns the path of the corrections ﬁle

HSSerial:COMPile:NAME Sets or returns the name of the compiled

HSSerial:COMPile:OPTions Sets or returns the “Compile and assign”

HSSerial:COMPile:OVERwrite

HSSerial:COMPile:PLAY Sets or returns the Play after assign setting

Enables or disables applying a corrections ﬁle during compile.

to use during compile.

waveform.

setting for the Compile Settings.

Enables or disables overwriting an existing waveform name.

for the Compile Settings.

High Speed Serial Plug-in Programmer Manual 2-7

Command Groups

Control commands

Table 2-5: Compile commands and t heir descriptions (cont.)

Command Description

HSSerial:COMPile:REPeat Sets or returns the Manual Repeat Count

setting for the Compile Settings.

HSSerial:COMPile:REPeat:AUTO Sets or returns the Auto Repeat Count

setting for the Compile Settings.

HSSerial:COMPile:REPeat:MTYPe Sets or returns the Manual Repeat Count

type for the Compile Settings.

HSSerial:COMPile:SPUI Sets or returns the value of the Samples/Unit

Intervalfor the Compile Settings.

HSSerial:COMPile:SRATe Sets or returns the sampling rate for the

Compile Settings.

HSSerial:COMPile:STYPe Sets or returns the Sampling Rate type for

the Compile Settings.

Table 2-6: Control commands and their descriptions

Command Description

HSSerial:RESet Resets the High Speed Serial application

WPLugin:ACTive Sets or returns the active waveform plug-in.

Pattern Basic Settings commands

Table 2-7: Pattern Basic Settings commands and their descriptions

Command Description

HSSerial:BDATa Sets or returns the Base Pattern Data type.

HSSerial:BDATa:INVert Sets or returns the Invert Bits setting.

HSSerial:BDATa:PATTern Sets or returns the user deﬁned pattern value

HSSerial:BDATa:FILE Sets or r eturns the path of the ﬁle to use

HSSerial:BDATa:PATTern:TYPE Sets or returns the user deﬁned pattern type

HSSerial:BDATa:PRBS Sets or returns the PRBS type when the

plug-in to its default values.

To use the High Speed Serial commands in this document, the active waveform plug-in must be set to High Speed Serial.

when the Base Data Pattern is set to Pattern.

when the Base Data Pattern is set to File.

when the Base Data Pattern is set to Pattern.

Base Data Pattern is set to PRBS.

2-8 High Speed Serial Plug-in Programmer Manual

Table 2-7: Pattern Basic Settings commands and their descriptions (cont.)

Command Description

HSSerial:BDATa:PRBS:UDEFined: POLYnomial

HSSerial:BDATa:PRBS:UDEFined: SREGister

HSSerial:DRATe Sets or returns the Data Rate.

HSSerial:ISTate:OFFS e t Sets or returns the idle state amplitude offset.

HSSerial:ISTate:VALue Sets or returns the idle state time.

HSSerial:AMPLitude:MAXimum Sets or returns the maximum amplitude.

HSSerial:AMPLitude:MINimum Sets or returns the minimum amplitude.

Pattern Duty Cycle Distortion commands

Table 2-8: Pattern Duty Cycle Distortion commands and their descriptions

Command Groups

Sets or returns the PRBS Polynomial Expression when the Base Pattern Data is set to User Deﬁned PRBS.

Sets or returns the Shift register initial value when the Base Pattern Data is set to User Deﬁned PRBS.

Command Description

HSSerial:DCD:ENABle Sets or returns the Duty Cycle Distortion

HSSerial:DCD:VALue Sets or returns the D uty Cycle Distortion

Pattern Encoding/Modulation commands

Table 2-9: Pattern Encoding/Modulation commands and their descriptions

Command Description

HSSerial:ENCode:ENCo8b10b:DISParity Sets or returns the 8B/10B encoding disparity

HSSerial:ENCode:ENCo8b10b:ENABle Sets or returns the 8B/10B encoding state

HSSerial:ENCode:GCODing:ENABle Sets or returns the Gray Coding state

HSSerial:ENCode:GCODing:FILE Sets or returns the ﬁlepath to the Gray

HSSerial:ENCode:PAM:LEVels Sets or returns the Pulse-amplitude

HSSerial:ENCode:PAM:NVALue Sets or returns the PAM Normalized levels

(DCD) state (enabled or disabled).

(DCD) value.

setting.

(enabled or disabled).

(enabled or disabled) for the PAM Signaling Scheme.

Coding ﬁle for the PAM Signaling Scheme.

Modulation (PAM) encoding.

value for the speciﬁed row.

High Speed Serial Plug-in Programmer Manual 2-9

Command Groups

Table 2-9: Pattern Encoding/Modulation commands and their descriptions (cont.)

Command Description

HSSerial:ENCode:PWM:ENABle Sets or returns Pulse Width Modulation

HSSerial:ENCode:PWM:TMINor Sets or returns the T_Minor value of the

HSSerial:ENCode:SCHeme Sets or returns the Signaling Scheme on the

Pattern Markers commands

Table 2-10: Pattern Markers commands and their descriptions

Command Description

HSSerial:MARKer[n]:CLOCk:FREQuency Sets or returns the user deﬁned clock

HSSerial:MARKer[n]:CLOCk:TYPE Sets or returns the marker clock type for the

HSSerial:MARKer[n]:ENABle Sets or returns the speciﬁed marker ’s state

HSSerial:MARKer[n]:HLOW:TYPE Sets or returns the High/Low type of the

HSSerial:MARKer[n]:TRIGger:LENGth Sets or returns the number of samples of

HSSerial:MARKer[n]:TRIGger:TYPE Sets or returns the marker High/Low trigger

HSSerial:MARKer[n]:TYPE Sets or returns the marker type for the

(PWM) state (enabled or disabled).

PWM.

base data pattern.

frequency for the speciﬁed marker.

speciﬁed marker.

(enabled or disabled).

speciﬁed marker.

the speciﬁed marker when the marker type is set to Trigger.

type setting for the speciﬁed marker.

speciﬁed marker.

Pattern Scrambling commands

Table 2-11: Pattern Scrambling commands and their descriptions

Command Description

HSSerial:SCRamble:ENABle Sets or returns the Scrambling enable state

(enabled or disabled).

HSSerial:SCRamble:POLYnomial Sets or returns the Scrambling Polynomial

value.

HSSerial:SCRamble:RINit Sets or returns the Register Initial Value.

HSSerial:SCRamble:RTYPe Sets or returns the Register Initial Value

Type.

HSSerial:SCRamble:TYPE Sets or returns the Scrambling Type.

2-10 High Speed Serial Plug-in Programmer Manual

Command Groups

Pattern Step R

esponse commands

Table 2-12: Pattern Step Response commands and their descriptions

Command Description

HSSerial:SR

HSSerial:SRESponse:FTIMe Sets or returns the Step Response Fall Time

HSSerial:SResponse:FTYPe Sets or returns the Step Response Fall Time

HSSerial

HSSerial:SRESponse:RTIMe Sets or returns the Step Response R ise

HSSerial:SREsponse:RTYPe Sets or returns the Step Response Rise

:SRESponse:RFTYpe

Transmitter Noise commands

Table 2-13: Transmitter Noise commands and their descriptions

ESponse:ENABle

Sets or retur (enabled or disabled).

value.

Type.

Sets or re (10/90 or 20/80).

Time value.

Time Ty

ns the Step Response state

turns the Rise/Fall Time type

pe.

Command Description

HSSerial:NOISe:BW Sets or returns the Single Tone Noise

erial:NOISe:ENABle

HSS

HSSerial:NOISe:LOCation Sets or returns the Transmitter Noise type.

HSSerial:NOISe:TYPE Sets or returns the noise Frequency setting.

HSSerial:NOISe:VALue Sets or returns the noise magnitude.

ransmitter Periodic Jitter commands

Table 2 -14: Transmitter Periodic Jitter commands and their descriptions

Command Description

HSSerial:PJITter:DEViation:MDEViation Sets or returns the percent of deviation when

HSSerial:PJITter:DEViation:TYPE Sets or returns the Periodic Jitter Deviation

HSSerial:PJITter:ICENable Sets or returns the Integer Cycles for

uency setting.

freq

s or returns the Noise state (enabled or

Set disabled).

the Deviation for the Integer Cycles is set to Manual.

type selected.

Periodic Jitter state (enabled or disabled) when using the Transmitter settings.

High Speed Serial Plug-in Programmer Manual 2-11

Command Groups

Table 2-14: Transmitter Periodic Jitter commands and their descriptions (cont.)

Command Description

HSSerial:PJ[n]:ENABle Sets or returns the Transmitter Periodic Jitter

HSSerial:PJ[n]:FREQuency Sets or returns the frequency of the speciﬁed

HSSerial:PJ[n]:MAGNitude Sets or returns the Magnitude (pk-pk) of the

HSSerial:PJ[n]:PHASe Sets or returns the Phase of the speciﬁed

Transmitter Pre/De-emphasis commands

Table 2-15: Transmitter Pre/De-emphasis commands and their descriptions

Command Description

HSSerial:PREemphasis:COPReemp Sets or returns the Transmitter

HSSerial:PREemphasis:DPReemph Deletes last active Pre/De-emphasis tap.

HSSerial:PREemphasis:ENABle Sets or returns the Transmitter

HSSerial:PREemphasis:TPReemph The set form of this command adds a new

HSSerial:PREemphasis:TYPE Sets or returns the Pre/De-Emphasis type.

HSSerial:PREemphasis:UNIT Sets or returns the Pre/De-Emphasis units.

HSSerial:PREShoot:COPShoot Sets or returns the Transmitter Preshoot

HSSerial:PREShoot:ENABle Sets or returns the Transmitter Preshoot

HSSerial:PREShoot:TYPE Sets or returns the Preshoot type.

state (enabled or disabled) for the speciﬁed Periodic J itter.

Transmitter Periodic Jitter.

speciﬁed Transmitter Periodic Jitter.

Transmitter Periodic Jitter.

Pre/De-emphasis coefﬁcients.

Pre/De-Emphasis state (enabled or disabled).

Pre/De-Emphasis tap. The query form of this command returns the number of active Pre/De-Emphasis taps.

coefﬁcients.

state (enabled or disabled).

Transmitter Random Jitter commands

Table 2-16: Transmitter Random Jitter commands and their descriptions

Command Description

HSSerial:RJ1Cfactor:ENABle Sets or returns the Random Jitter RJ1 Crest

Factor state (enabled or disabled).

HSSerial:RJ1Cfactor:TISigma Sets or returns the RJ1 Crest Factor value.

2-12 High Speed Serial Plug-in Programmer Manual

Table 2-16: Transmitter Random J itter commands and their descriptions (cont.)

Command Description

HSSerial:RJ[n]:ENABle Sets or returns the Transmitter Random Jitter

HSSerial:RJ[n]:FREQuency:END Sets or returns the High Frequency value of

HSSerial:RJ[n]:FREQuency:STARt Sets or returns the Low Frequency value of

HSSerial:RJ[n]:MAGNitude Sets or returns the Magnitude of the speciﬁed

HSSerial:RSEed:ENABle Sets or returns the Random Jitter RJ1 Seed

HSSerial:RSEed:VALue Sets or returns the RJ1 Seed value.

Transmitter Spread Spectrum Clocking commands

Command Groups

state (enabled or disabled) for the speciﬁed Random Jitter .

the speciﬁed Transmitter Random Jitter.

Transmitter Random Jitter.

state (enabled or disabled).

Table 2-17: Transmitter Spread Spectrum Clocking commands and their descriptions

Command Description

HSSerial:SSC:CUSTom:FILE Sets or returns the ﬁ lepath to the Spread

spectrum clocking custom Shape ﬁle.

HSSerial:SSC:DFDT

HSSerial:SSC:DFDT:DURation Sets or returns the Error Option Minimum

HSSerial:SSC:DFDT:LOCation Sets or returns the Error Option Location

HSSerial:SSC:ENABle Sets or returns the Spread Spectrum

HSSerial:SSC:EOPTion:ENABle Sets o r returns the Error Option state

HSSerial:SSC:FREQuency:DEViation Sets or returns the Frequency Deviation

HSSerial:SSC:FREQuency:MODulation Sets or returns the Frequency Modulation

HSSerial:SSC:PSHift Sets or returns the Spread Spectrum

HSSerial:SSC:SHAPe Sets or returns the Shape proﬁle of Spread

This command sets or returns the Error Option df/dt value of Spread Spectrum Clocking.

Duration value of Spread Spectrum Clocking.

value of Spread Spectrum Clocking.

Clocking state (enabled or disabled).

(enabled or disabled) in Spread Spectrum Clocking.

value of Spread Spectrum Clocking.

Clocking Phase shift value.

Spectrum Clocking.

High Speed Serial Plug-in Programmer Manual 2-13

Command Groups

Table 2-17: Transmitter Spread Spectrum Clocking commands and their descriptions (cont.)

Command Descriptio

HSSerial:S

HSSerial:SSC:USPRead:PERCentage Sets or returns the Downward or U pward

SC:SPRead

Sets or retu Spectrum Clocking proﬁle.

Percentage of the Unequal Spread of Spread Spectrum

rns the S pread of the Spread

Clocking.

2-14 High Speed Serial Plug-in Programmer Manual

Command Descriptions

HSSerial:AMPLitude:MAXimum

This command

Group

Syntax

Arguments

Returns

Examples

Pattern Basic Settings

HSSerial:AMPLitude:MAXimum <max_amplitude> HSSerial:AMPLitude:MAXimum?

<max_amplitude>::= <NR3> value.

A single <NR3> value.

HSSERIAL:AMPLITUDE:MAXIMUM 200E-3 sets the maximum amplitude to

200 mV.

HSSERIAL:AMPLITUDE:MAXIMUM? might return 250.0000000000E-3,

indicating the amplitude is set to 250 mV.

HSSerial:AMPLitude:MINimum

sets or returns the maximum amplitude.

Group

Syntax

Arguments

Returns

Examples

This command sets or returns the minimum amplitude.

Pattern Basic Settings

HSSerial:AMPLitude:MINimum <min_amplitude> HSSerial:AMPLitude:MINimum?

<min_amplitude>::= <NR3> value.

A single <NR3> value.

HSSERIAL:AMPLITUDE:MINIMUM –200E-3 sets the minimum amplitude to

–200 mV.

HSSERIAL:AMPLITUDE:MINIMUM? might return –250.0000000000E-3,

indicating the amplitude is set to –250 mV.

High Speed Serial Plug-in Programmer Manual 2-15

Command Descriptions

HSSerial:BCO

Arguments

Mpile:PJITter:DEViation:MDEViation

This command sets or returns the percent of deviation when the Deviation for the Integer Cycles is set to Manual in Batch Compile.

Group

Syntax

Returns

Examples

Batch Compile

HSSerial:BCOMpile:PJITter:DEViation:MDEViation <percent> HSSerial:BCOMpile:PJITter:DEViation:MDEViation?

<percent>::=<NR3> value. Range: 0 to 50.

A single <NR1> value.

HSSERIAL:BCOMPILE:PJITTER:DEVIATION:MDEVIATION 20 sets the

deviation to 20% when the Integer Cycles Deviation type is set to Manual in Batch Compile.

HSSERIAL:BCOMPILE:PJITTER:DEVIATION:MDEVIATION? might return 20,

indicating the deviation is set to 20% when the Integer Cycles Deviation type is set to Manual in Batch Compile.

HSSerial:BCOMpile:PJITter:DEViation:TYPE

This command sets or returns the Periodic Jitter deviation type selected for Batch Compile.

Group

Syntax

Arguments

Returns

Batch Compile

HSSerial:BCOMpile:PJITter:DEViation:TYPE {AUT HSSerial:BCOMpile:PJITter:DEViation:TYPE?

AUTO–Autodeviationtype.

MANUal – Manual deviation type.

AUTO MANU

O|MANUal}

2-16 High Speed Serial Plug-in Programmer Manual

Command Descriptions

Examples

HSSERIAL:BCOM

type to auto.

HSSERIAL:BCO

indicating the Periodic Jitter deviation type is manual.

PILE:PJITTER:DEVIATION:TYPE AUTO

MPILE:PJITTER:DEVIATION:TYPE?

HSSerial:BCOMpile:PJITter:ICENable

This command sets or returns the Integer Cycles for Periodic Jitter state (enabled or disabled) in Batch Compile.

Group

Syntax

Arguments

Batch Compile

HSSerial:BCOMpile:PJITter:ICENable {0|1|OFF|ON} HSSerial:BCOMpile:PJITter:ICENable?

OFF or 0 disables Integer Cycles. OFF or 0 is the default value. ON or 1 enables the Integer Cycles.

sets the deviation

might return MANUal,

Returns

Examples

A single <Boolean> value.

HSSERIAL:BCOMPILE:PJITTER:ICENABLE 0 disables integer cycles for

Periodic Jitter when using Batch Compile.

HSSERIAL:BCOMPILE:PJITTER:ICENABLE? might return 1, indicating that the

integer cycles is enabled for Periodic Jitter when using Batch Compile.

HSSerial:BCOMpile:PJ[n]:ENABle

This command sets or returns the speciﬁed Periodic Jitter state (enabled or disabled) in Batch Compile .

Conditions

Group

Syntax

PJ1 must be enabled in order to use PJ2.

Batch Compile

HSSerial:BCOMpile:PJ[n]:ENABle {0|1|OFF|ON} HSSerial:BCOMpile:PJ[n]:ENABle?

High Speed Serial Plug-in Programmer Manual 2-17

Command Descriptions

Arguments

Returns

Examples

[n] ::= {1|2} ("

OFF or 0 disables the selected Periodic Jitter. OFF or 0 is the default value. ON or 1 enables

A single <Boolean> value.

HSSERIAL:BCOMPILE:PJ2:ENABLE 1 enables PJ2 in batch compile.

HSSERIAL:BCOMPILE:PJ1:ENABLE? might return 0, indicating PJ1 in batch

compile is not enabled.

n" determines PJ1 or PJ2. If omitted, interpreted as 1.)

the selected Periodic Jitter.

HSSerial:BCOMpile:PJ[n]:FREQuency:HIGH

This command sets or returns the High Frequency value of the speciﬁed Periodic Jitter in Batch Compile.

Group

Syntax

Batch Compile

HSSerial:BCOMpile:PJ[n]:FREQuency:HIGH <value> HSSerial:BCOMpile:PJ[n]:FREQuency:HIGH?

Arguments

Returns

Examples

[n] ::= {1|2} ("n" determines PJ1 or PJ2.

<value>::= <NR 3> value.

A single <NR3> value.

HSSERIAL:BCOMPILE:PJ2:FREQUENCY:HIGH 3E6 sets the PJ2 high frequency

value to 3 MHz for batch compile.

HSSERIAL:BCOMPILE:PJ1:FREQUENCY:HIGH? might return

10.0000000000E+3, indicating that the high frequency value of PJ1 for batch

compile is set to 10 kHz.

HSSerial:BCOMpile:PJ[n]:FREQuency:INCRement

This command sets or returns the Increment Frequency value of the speciﬁed Periodic Jitter in Batch Compile.

Group

Batch Compile

If omitted, interpreted as 1.)

2-18 High Speed Serial Plug-in Programmer Manual

Command Descriptions

Syntax

Arguments

Returns

Examples

HSSerial:BCOM HSSerial:BCOMpile:PJ[n]:FREQuency:INCRement?

[n] ::= {1|2} ("n" determines PJ1 or PJ2. If omitted, interpreted as 1.)

<value>::= <NR3> value.

A single <NR3> value.

HSSERIAL:BCOMPILE:PJ2:FREQUENCY:INCREMENT 10E3 sets the PJ2

Increment frequency value to 10 kHz for batch compile.

HSSERIAL:BCOMPILE:PJ1:FREQUENCY:INCREMENT? might return

10.0000000000E+3, indicating that the PJ1 Increment frequency value for batch

compile is 10 kHz

pile:PJ[n]:FREQuency:INCRement <value>

HSSerial:BCOMpile:PJ[n]:FREQuency:LOW

This command sets or returns the Low Frequency value of the speciﬁed Periodic Jitter in Batch Compile.

Group

Syntax

Arguments

Returns

Examples

Batch Compile

HSSerial:BCOMpile:PJ[n]:FREQuency:LOW <value> HSSerial:BCOMpile:PJ[n]:FREQuency:LOW?

[n] ::= {1|2} ("n" determines PJ1 or PJ2. If omitted, interpreted as 1.)

<value>::= <NR3> value.

A single <NR3> value.

HSSERIAL:BCOMPILE:PJ2:FREQUENCY:LOW 3E6 sets the PJ2 low frequency

value to 3 MHz for batch compile.

HSSERIAL:BCOMPILE:PJ1:FREQUENCY:LOW? might return

10.0000000000E+3, indicating that the low frequency value of PJ1 for batch

compile is set to 10 kHz.

High Speed Serial Plug-in Programmer Manual 2-19

Command Descriptions

HSSerial:BCO

Argument

Mpile:PJ[n]:MAGNitude:END

This command sets or returns the End Magnitude value of the speciﬁed Periodic Jitter in Batch Compile.

Group

Syntax

Returns

Examples

Batch Compile

HSSerial:BCOMpile:PJ[n]:MAGNitude:END <value> HSSerial:BCOMpile:PJ[n]:MAGNitude:END?

[n] ::= {1|2} ("n" determines PJ1 or PJ2. If omitted, interpreted as 1 .)

<value>::= <NR 3> value.

A single <NR3> value.

HSSERIAL:BCOMPILE:PJ1:MAGNITUDE:END 10 sets the PJ1 End Magnitude

value to 10 UI for batch compile.

HSSERIAL:BCOMPILE:PJ1:MAGNITUDE:END? might return

20.0000000000E-3, indicating that the PJ1 End Magnitude value in batch

compile is set to 0.02 UI.

HSSerial:BCOMpile:PJ[n]:MAGNitude:INCRement

This command sets or returns the Magnitude Increment value of the speciﬁed Periodic Jitter in Batch Compile.

Group

Syntax

Arguments

Returns

Examples

Batch Compile

HSSerial:BCOMpile:PJ[n]:MAGNitude:INCRement <value> HSSerial:BCOMpile:PJ[n]:MAGNitude:INCRement?

[n] ::= {1|2} ("n" determines PJ1 or PJ2. If omitted, interpreted as 1 .)

<value>::= <NR 3> value.

A single <NR3> value.

HSSERIAL:BCOMPILE:PJ2:MAGNITUDE:INCREMENT 0.01 sets the PJ2

Magnitude Increment value to 0.01 UI for b atch compile.

2-20 High Speed Serial Plug-in Programmer Manual

Command Descriptions

HSSerial:BC

HSSERIAL:BCOM

10.0000000000E-3, indicating the PJ1 Magnitude Increment value in batch

compile is 0.01 UI.

PILE:PJ1:MAGNITUDE:INCREMENT?

OMpile:PJ[n]:MAGNitude:STARt

This command sets or returns the Start Magnitude value of the speciﬁed Periodic Jitter in Batch Compile.

Group

Syntax

Arguments

Returns

Batch Compile

HSSerial:BCOMpile:PJ[n]:MAGNitude:STARt <value> HSSerial:BCOMpile:PJ[n]:MAGNitude:STARt?

[n] ::= {1|2} ("n" determines PJ1 or PJ2. If omitted, interpreted as 1.)

<value>::= <NR3> value.

A single <NR3> value.

might return

Examples

HSSERIAL:BCOMPILE:PJ1:MAGNITUDE:END 10 sets the PJ1 Start Magnitude

value to 10 UI for batch compile.

HSSERIAL:BCOMPILE:PJ1:MAGNITUDE:END? might return

20.0000000000E-3, indicating that the PJ1 Start Magnitude value in batch

compile is set to 0.02 UI.

HSSerial:BCOMpile:RJ1:ENABle

This command sets or returns the Random Jitter state (enabled or disabled) in Batch Compile.

Group

Syntax

Arguments

Batch Compile

HSSerial:BCOMpile:RJ1:ENABle {0|1|OFF|ON} HSSerial:BCOMpile:RJ1:ENABle?

OFF or 0 disables Random Jitter. OFF or 0 is the default value. ON or 1 enables Random Jitter.

High Speed Serial Plug-in Programmer Manual 2-21

Command Descriptions

Returns

Examples

A single <Boole

HSSERIAL:BCOMPILE:RJ1:ENABLE 1 enables RJ1 in batch compile

HSSERIAL:BCOMPILE:RJ1:ENABLE? might return 0, indicating that RJ1 in

batch compile is disabled.

an> value.

HSSerial:BCOMpile:RJ1:FREQuency:HIGH

This command sets or returns the High Frequency value of the Random Jitter in Batch Compile.

Group

Syntax

Arguments

Batch Compile

HSSerial:BCOMpile:RJ1:FREQuency:HIGH <high_frequency> HSSerial:BCOMpile:RJ1:FREQuency:HIGH?

<high_frequency>::= <NR3> value.

Returns

Examples

A single <NR3> value.

HSSERIAL:BCOMPILE:RJ1:FREQUENCY:HIGH 1E6 sets the RJ1 High

Frequency value to 1 MHz for batch compile.

HSSERIAL:BCOMPILE:RJ1:FREQUENCY:HIGH? might return

250.0000000000E+3, indicating that the RJ1 High Frequency for batch compile

is set to 250 kHz.

HSSerial:BCOMpile:RJ1:FREQuency:LOW

This command sets or returns the Low Frequency value of the Random Jitter in Batch Compile.

Group

Syntax

Batch Compile

HSSerial:BCOMpile:RJ1:FREQuency:LOW <low_frequency> HSSerial:BCOMpile:RJ1:FREQuency:LOW?

Arguments

2-22 High Speed Serial Plug-in Programmer Manual

<low_frequency>::= <NR3> value.

Command Descriptions

Returns

Examples

Asingle<NR3>v

HSSERIAL:BCOMPILE:RJ1:FREQUENCY:LOW 3E6 sets the RJ1 Low Frequency

value to 3 MHz for batch compile.

HSSERIAL:BCOMPILE:RJ1:FREQUENCY:LOW? might return

10.0000000000E+3, indicating that the RJ1 Low Frequency value for batch

compile is set to 10 kHz.

alue.

HSSerial:BCOMpile:RJ1:MAGNitude:END

This command sets or returns the End Magnitude value of the Random Jitter in batch compile.

Group

Syntax

Batch Compile

HSSerial:BCOMpile:RJ1:MAGNitude:END <magnitude> HSSerial:BCOMpile:RJ1:MAGNitude:END?

Arguments

Returns

Examples

<magnitude>::= <NR3> value.

A single <NR3> value.

HSSERIAL:BCOMPILE:RJ1:MAGNITUDE:END 30E-3 sets the RJ1 End

Magnitude value to 0.03 UI for batch compile.

HSSERIAL:BCOMPILE:RJ1:MAGNITUDE:END? might return

20.0000000000E-3, indicating that the RJ1 End Magnitude value in batch

compile is set to 0.02 UI.

HSSerial:BCOMpile:RJ1:MAGNitude:INCRement

This command sets or returns the Magnitude Increment va Jitter in batch compile.

Group

Syntax

Batch Compile

HSSerial:BCOMpile:RJ1:MAGNitude:INCRement <increment> HSSerial:BCOMpile:RJ1:MAGNitude:INCRement?

lue of the Random

High Speed Serial Plug-in Programmer Manual 2-23

Command Descriptions

Arguments

Returns

Examples

<increment>::

A single <NR3> value.

HSSERIAL:BCOMPILE:RJ1:MAGNITUDE:INCREMENT 0.01 sets the RJ

Magnitude Increment value to 0.01 UI for b atch compile.

HSSERIAL:BCOMPILE:RJ1:MAGNITUDE:INCREMENT? might return

10.0000000000E-3, indicating the RJ Magnitude Increment value in batch

compile is 0.01 UI.

= <NR3> value.

HSSerial:BCOMpile:RJ1:MAGNitude:STARt

This command sets or returns the Start Magnitude value of the Random Jitter in batch compile.

Group

Syntax

Batch Compile

HSSerial:BCOMpile:RJ1:MAGNitude:STARt <start_magnitude> HSSerial:BCOMpile:RJ1:MAGNitude:STARt?

Arguments

Returns

Examples

HSSerial:BDATa

Group

Syntax

<start_magnitude>::= <NR3> value.

A single <NR3> value.

HSSERIAL:BCOMPILE:RJ1:MAGNITUDE:START 10E-3 sets the RJ1 Start

Magnitude value to 0.01 UI for batch compile.

HSSERIAL:BCOMPILE:RJ1:MAGNITUDE:START? might return

20.0000000000E-3, indicating that the RJ1 Start Magnitude value in batch

mpile is set to 0.02 UI.

This command sets or returns the Base Pattern Data type.

Pattern Basic Settings

HSSerial:BDATa {CLOCk|AZERo|AONE|ISTate|PRBS|PATTern|FILE} HSSerial:BDATa?

2-24 High Speed Serial Plug-in Programmer Manual

Command Descriptions

Related Commands

Arguments

HSSerial:BDAT HSSerial:BDATa:FILE HSSerial:BDATa:PATTern:TYPE

CLOCk generates a waveform with a clock-like bit pattern of alternate 0s and 1s.

AZERo generates a waveform with an amplitude corresponding to the maximum negative voltage level.

AONE generates a waveform with an amplitude corresponding to maximum positive voltage level.

ISTate sets the base data type to Idle State. During this state, the value is neither 0 or 1. It is a state during which no valid data is transferred between the transmitter and the receiver. SourceXpress supports Idle state waveforms with idle value and idle offset.

PRBS sets the base data type to PRBS. Select a PRBS pattern.

PATTern sets the base data type to a Binary, Hex, or Symbol pattern. Select a pattern type.

FILE sets the base data type to use a supplied pattern ﬁle.

a:PRBS

Returns

Examples

HSSerial:BDATa:FILE

Group

CLOC (Clock) AZER (All Zeros) AONE (All Ones IST (Idle State) PRBS PATT (Pattern) FILE

HSSERIAL:BDATA ISTate set the Base Data Pattern to IdleState.

HSSERIAL:BDATA? might return ALL, indicating the Base Data Pattern type

is set to All Ones.

This command sets or returns the path of the ﬁle to use when the Base Dat Pattern is set to File.

Pattern Basic Settings

Syntax

High Speed Serial Plug-in Programmer Manual 2-25

HSSerial:BDATa:FILE <filepath> HSSerial:BDATa:FILE?

Command Descriptions

Related Commands

Arguments

Returns

Examples

HSSerial:BDATa:INVert

Group

HSSerial:BDAT

<ﬁlepath>::=<string> deﬁnes the ﬁle path.

Asingle<ﬁlepath> string.

HSSERIAL:BDATA:FILE "C:\test.txt" sets the File Path to C:\test.txt.

HSSERIAL:BDATA:FILE? might return "C:\test.txt", indicating the set

ﬁle path.

This command s ets or returns the Invert Bits setting.

Pattern Basic Settings

Syntax

Arguments

Returns

Examples

HSSerial:BDATa:INVert {0|1|OFF|ON} HSSerial:BDATa:INVert?

OFF or 0 disables Invert Bits. OFF or 0 is the default value. ON or 1 enables Invert Bits.

A single <Boolean> value.

HSSERIAL:BDATA:INVERT 1 enables the Invert Bits.

HSSERIAL:BDATA:INVERT? might return 0, indicating that Invert Bits is

disabled.

HSSerial:BDATa:PATTern

This command sets or returns th Pattern is set to Pattern. The pattern must be valid for the selected Pattern type set using the command HSSerial:BDATa:PATTern:TYPE.

euserdeﬁned pattern value when the Base Data

Group

2-26 High Speed Serial Plug-in Programmer Manual

Pattern Basic Settings

Command Descriptions

Syntax

Related Commands

Arguments

Returns

Examples

HSSerial:BDAT HSSerial:BDATa:PATTern?

HSSerial:BDATa:PATTern:TYPE

<pattern>::=<string> deﬁnes the user pattern.

A single <pattern> string.

HSSERIAL:BDATA:PATTERN "FF" sets the pattern to FF for the Hexadecimal

pattern.

HSSERIAL:BDATA:PATTERN? might return "F F", indicating the pattern is set to

FF for the Hexadecimal pattern.

HSSerial:BDATa:PATTern:TYPE

This command sets or returns the user deﬁned pattern type when the Base Data Pattern is

a:PATTern <pattern>

set to Pattern.

Group

Syntax

Related Commands

Arguments

Returns

Examples

Pattern Basic Settings

HSSerial:BDATa:PATTern:TYPE {BINary|HEX|SYMBol} HSSerial:BDATa:PATTern:TYPE?

HSSerial:BDATa

BINary sets the user pattern type to binary.

HEX sets the user pattern type to hexadecimal.

SYMBol s

BIN (Binary) HEX (Hexadecimal) SYMB (Symbol)

HSSERIAL:BDATA:PATTERN:TYPE HEX sets the Base Pattern Data type to

Hexadecimal.

ets the user pattern type to symbol.

High Speed Serial Plug-in Programmer Manual 2-27

Command Descriptions

HSSerial:BDATa:PRBS

Group

Syntax

Related Commands

Arguments

HSSERIAL:BDAT

Pattern Data type is set to Binary.

This command sets or returns the PRBS type when the Base Data Pattern is set to PRBS.

Pattern Basic Settings

HSSerial:BDATa:PRBS {PRBS7|PRBS9|PRBS15|PRBS16|PRBS20|PRBS21|PRBS23|PRBS29|PRBS31|UDEF} HSSerial:BDATa:PRBS?

HSSerial:BDATa

PRBS7, PRBS9, PRBS15, PRBS16, PRBS20, PRBS21, PRBS23, PRBS29, PRBS31 sets the Base Data PRBS pattern to the selected PRBS type.

A:PATTERN:TYPE?

might return BIN, indicating that the Base

UDEF sets the Base D ata PRBS pattern to User Deﬁned.

Returns

Examples

ThePRBStypeorUDEF.

HSSERIAL:BDATA:PRBS PRBS15 sets the Base Data PRBS p attern to PRBS15.

HSSERIAL:BDATA:PRBS? might return PRBS7, indicating that the Base Data

PRBS pattern is PRBS7.

HSSerial:BDATa:PRBS:UDEFined:POLYnomial

This command sets or returns the PRBS Polynomial Expression when the Base Pattern Data is set to User Deﬁned PRBS.

Group

Syntax

Pattern Basic Settings

HSSerial:BDATa:PRBS:UDEFined:POLYnomial <polynomial> HSSerial:BDATa:PRBS:UDEFined:POLYnomial?

Related Commands

2-28 High Speed Serial Plug-in Programmer Manual

HSSerial:BDATa

Command Descriptions

Arguments

Returns

Examples

<polynomial>:

A single <polynomial> string.

HSSERIAL:BDATA:PRBS:UDEFINED:POLYNOMIAL "X7+X6+1" sets the PRBS

Polynomial to be X7+X6+1.

HSSERIAL:BDATA:PRBS:UDEFINED:POLYNOMIAL? might return the PRBS

Polynomial as

:= <string> deﬁnes the PRBS polynomial.

"X9+X5+1".

HSSerial:BDATa:PRBS:UDEFined:SREGis

This Command sets or returns the Shift register initial value when the Base Pattern Data is set to User Deﬁned PRBS.

Group

Syntax

Pattern Basic Settings

HSSerial:BDATa:PRBS:UDEFined:SREGister <register> HSSerial:BDATa:PRBS:UDEFined:SREGister?

ter

Related Commands

Arguments

Returns

Examples

HSSerial:BDATa

<register>::= <string> deﬁnes the PRBS shift register initial value.

A single <register> string.

HSSERIAL:BDATA:PRBS:UDEFINED:SREGISTER "0000001" sets the PRBS

Shift register initial value to be 0000001.

HSSERIAL:BDATA:PRBS:UDEFINED:SREGISTER? might return the PRBS

ShiftRegister value as

HSSerial:CHANnel:ENABle

This command sets or returns the Channel emulation model state (enabled or disabled).

Group

Channel

"1111111".

High Speed Serial Plug-in Programmer Manual 2-29

Command Descriptions

Syntax

Arguments

Returns

Examples

HSSerial:CHAN HSSerial:CHANnel:ENABle?

OFF or 0 disables Channel emulation. OFF or 0 is the default value. ON or 1 enables Channel emulation.

A single <Boolean> value.

HSSERIAL

HSSERIAL:CHANNEL:ENABLE? might return 1, indicating that Channel

emulation is enabled.

HSSerial:CHANnel:ISI:BW

This command sets or returns the Channel Bandwidth.

Conditions

Requires an S-Parameters lic

nel:ENABle {0|1|OFF|ON}

:CHANNEL:ENABLE 0

ense.

disables Channel emulation.

Intersymbol Interference (ISI) Normalized

Group

Syntax

Related Commands

Arguments

Returns

Examples

Channel ISI

HSSerial:CHANnel:ISI:BW <bandwidth>

HSSerial:CHANnel:ISI:TYPE

<bandwidth>::=<NR3> value.

A single <NR3> value.

HSSERIAL:CHANNEL:IS

to 0.5.

HSSERIAL:CHANNEL:ISI:BW? might return 300.0000000000E-3, indicating

that the ISI Normalized Channel Bandwidth is set to 0.3.

HSSerial:CHANnel:ISI:TYPE

This command sets or returns the Intersymbol Interference (ISI) type.

I:BW 0.5

sets the ISI Normalized Channel Bandwidth

2-30 High Speed Serial Plug-in Programmer Manual

Command Descriptions

Conditions

Group

Syntax

Arguments

Returns

Examples

Requires an S-P

Channel ISI

HSSerial:CHANnel:ISI:TYPE {VALue|BW}

VALue sets the ISI to use a value in Unit Intervals or seconds.

BW sets the ISI to use a Normalized Channel Bandwidth.

VA L ( Va l u e ) BW (Bandwidth)

HSSERIAL:CHANNEL:ISI:TYPE BW sets the ISI to use a Normalized Channel

Bandwidth setting.

HSSERIAL:CHANNEL:ISI:TYPE? might return VAL, indicating that the

Intersymbol Interference is set to Intersymbol Interference Value.

arameters license.

HSSerial:CHANnel:ISI:VALue

This command sets or returns the Intersymbol Interference (ISI) magnitude.

Conditions

Group

Syntax

Related Commands

The default units is UI (Unit Intervals) and is typically how this control is deﬁned. Optionally, the units can be set as seconds. When setting the value, you must send values appropriate for the user interface setting. Units is set directly from the user interface for this value.

See the examples for using the set and query forms as either UI or seconds.

Requires an S-Parameters license.

Channel ISI

HSSerial:CHANnel:ISI:VALue <magnitude>

HSSerial:CHANnel:ISI:TYPE

High Speed Serial Plug-in Programmer Manual 2-31

Command Descriptions

Arguments

Returns

Examples

<magnitude>:: Range in UI: 0.01 to 0.5 Range in seconds: 10 ps to 500 ps

A single <NR3> value.

Unit Intervals

HSSERIAL:CHANNEL:ISI:VALUE 0.5 sets the ISI Value to 0.5 UI.

HSSERIAL:CHANNEL:ISI:VALUE? might return 25.0000000000E-3,

indicating that the ISI Value is set to 0.025 UI.

Seconds

HSSERIAL:CHANNEL:ISI:VALUE 25E-12 sets the ISI Value to 25 ps.

HSSERIAL:CHANNEL:ISI:VALUE? might return 10.0000000000E-12,

indicating that the ISI Value is set to 10 ps.

=<NR3> value.

HSSerial:CHANnel:SPARameter:BANDwidth

Conditions

Group

Syntax

Related Commands

Arguments

This command sets or returns the S-Parameter bandwidth when setting manually.

Requires an S-Parameters license.

Channel S-Parameters

HSSerial:CHANnel:SPARameter:BANDwidth {FULL|<bandwidth>} HSSerial:CHANnel:SPARameter:BANDwidth?

HSSerial:CHANnel:SPARameter:BANDwidth:AUTO

FULL – The bandwidth is set to ½ of the waveform’s sample rate (i.e. Nyquist Frequency).

<bandwidth>::= <NR3> value.

Range: 1 Hz to ½ of the maximum sample rate of the instrument.

If the set Bandwidth is greater than the Nyquist (Sample rate of the waveform/2), then the software limits the bandwidth to ½ of the waveform’s sample rate.

2-32 High Speed Serial Plug-in Programmer Manual

Command Descriptions

Returns

Examples

FULL A single <NR3> value.

HSSERIAL:CHANNEL:SPARAMETER:BANDWIDTH 60E6 sets the S-Parameter

Bandwidth Value to 60 MHz.

HSSERIAL:CHANNEL:SPARAMETER:BANDWIDTH? might return

1.0000000000E+9, indicating the S-Parameter Bandwidth is set to 1 GHz.

HSSerial:CHANnel:SPARameter:BANDwidth:AUTO

This command sets or returns the S-Parameter automatic bandwidth calculation setting. The bandwidth is deﬁned at the point where the signal rolls off to –60 dB. If this results in a bandwidth greater than the instrument supports, the bandwidth is set to ½ of the waveform’s sample rate (i.e. Nyquist Frequency).

Conditions

Group

Requires an S-Parameters license.

Channel S-Parameters

Syntax

Related Commands

Arguments

Returns

Examples

HSSerial:CHANnel:SPARameter:BANDwidth:AUTO {0|1|OFF|ON} HSSerial:CHANnel:SPARameter:BANDwidth:AUTO?

HSSerial:CHANnel:SPARameter:BANDwidth

ON or 1 enables automatic bandwidth calculation. ON or 1 is the default value.

OFF o r 0 disables automatic bandwidth calculation and sets the Bandwidth setting to Manual, requiring a value.

A single <Boolean> value.

HSSERIAL:CHANNEL:SPARAMETER:BANDWIDTH:AUTO 0 disables the

S-Parameter automatic bandwidth calculation and sets it to use a manual value.

HSSERIAL:CHANNEL:SPARAMETER:BANDWIDTH:AUTO? might return 1,

indicating the S-Parameter automatic bandwidth calculation is enabled.

High Speed Serial Plug-in Programmer Manual 2-33

Command Descriptions

HSSerial:CHA

Conditions

Related Commands

Nnel:SPARameter:CASCading:AGGRessor2[:ENABle]

This command sets or returns whether the aggressor 2 signal type state (enabled or disabled) in Cascading mode. Aggressor2 signals are available when the

ts is set to 12.

Group

Syntax

number of por

S-Parameter Mode m ust be set to Cascading.

Number of Ports must be set to 12.

Requires an S-Parameters license.

Channel S-Parameters

HSSerial:CHANnel:SPARameter:CASCading:AGGRessor2[:ENABle] {0|1|ON|OFF} HSSerial:CHANnel:SPARameter:CASCading:AGGRessor2[:ENABle]?

HSSerial:CHANnel:SPARameter:MODE

Arguments

Returns

Examples

OFF or 0 disables the aggressor 2 signal type. OFF or 0 is the default value. ON or 1 enables the aggressor 2 signal type.

A single <Boolean> value.

HSSERIAL:CHANNEL:SPARAMETER:CASCADING:AGGRESSOR2:ENABLE ON

enables the aggressor 2 signal type, in Cascading mode.

HSSERIAL:CHANNEL:SPARAMETER:CASCADING:AGGRESSOR2:ENABLE?

might return 0, indicating that the aggressor 2 signal type is disabled, in Cascading mode.

HSSerial:CHANnel:SPARameter:CASCading:AGGRessor[n]:AMPLitude

ude, in Cascading

Conditions

This command sets or returns the speciﬁed Aggressor's amplit mode.

S-Parameter Mode m ust be set to Cascading.

Number of ports must be either 8 or 12.

Requires an S-Parameters license.

2-34 High Speed Serial Plug-in Programmer Manual

Command Descriptions

Group

Syntax

Related Commands

Arguments

Returns

Examples

Channel S-Para

HSSerial:CHANnel:SPARameter:CASCading:AGGRessor[n]:AMPLitude <amplitude> HSSerial:CHANnel:SPARameter:CASCading:AGGRessor[n]: AMPLitude?

HSSerial:CHANnel:SPARameter:MODE

[n] ::= {1|2} (“n” determines the aggressor signal (1 or 2). 2 is only valid if the number of ports is set to 12.)

If omitted, n is interpreted as 1.

ngle <NR3> value.

Asi

HSSERIAL:CHANNEL:SPARAMETER:CASCADING:AGGRESSOR1:AMPLITUDE 200E-3

sets the ﬁrst Aggressor's amplitude to 200 mV, in Cascading mode.

meters

HSSERIAL:CHANNEL:SPARAMETER:CASCADING:AGGRESSOR2:AMPLITUDE?

might return 100.0000000000E-3, indicating that the 2nd Aggressor's amplitude is set to 100 mV, in Cascading mode.

HSSerial:CHANnel:SPARameter:CASCading:AGGRessor[n]:CTALk

This command sets or returns the speciﬁed Aggressor's crosstalk type, in Cascading mode.

Conditions

Group

Syntax

S-Parameter Mode must be set to Cascading.

Number of ports must b

Requires an S-Parameters license.

Channel S-Parameters

HSSerial:CHANnel:SPARameter:CASCading:AGGRessor[n]:CTALk {NEXT|FEXT|BOTH} HSSerial:CHANnel:SPARameter:CASCading:AGGRessor[n]:CTALk?

e either 8 or 12.

High Speed Serial Plug-in Programmer Manual 2-35

Command Descriptions

Related Commands

Arguments

Returns

Examples

HSSerial:CHAN

[n] ::= {1|2} (“n” determines the aggressor signal (1 or 2). 2 is only valid if the number of ports is set to 12.)

If omitted, n is interpreted as 1.

NEXT–Near-EndCrosstalk

FEXT – Far-End Crosstalk

BOTH–NearandFar-EndCrosstalk

NEXT FEXT BOTH

HSSERIAL:

sets the ﬁrst Aggressor's Crosstalk type to Far End Crosstalk, in Cascading mode.

HSSERIAL

return

NEXT, indicating that the 2nd Aggressor crosstalk type is set to Far End

Crosstalk, in Cascading mode.

nel:SPARameter:MODE

CHANNEL:SPARAMETER:CASCADING:AGGRESSOR1:CTALK FEXT

:CHANNEL:SPARAMETER:CASCADING:AGGRESSOR2:CTALK?

might

HSSeri

Related Commands

al:CHANnel:SPARameter:CASCading:AGGRessor[n]:DRATe

This command sets or returns the speciﬁed Aggressor's data rate, in Cascading mode.

Conditions

Group

Syntax

S-Parameter Mode m ust be set to Cascading.

Number of ports must be either 8 or 12.

Requires an S-Parameters license.

Channel S-Parameters

HSSerial:CHANnel:SPARameter:CASCading:AGGRessor[n]:DRATe <data_rate> HSSerial:CHANnel:SPARameter:CASCading:AGGRessor[n]:DRATe?

HSSerial:CHANnel:SPARameter:MODE

2-36 High Speed Serial Plug-in Programmer Manual

Command Descriptions

Arguments

Returns

Examples

[n] ::= {1|2} (“ number of ports is set to 12.)

If omitted, n is interpreted as 1.

<data_rate> ::= <NRf>

A single <NR3> value.

HSSERIAL:CHANNEL:SPARAMETER:CASCADING:AGGRESSOR1:DRATE 4E9

sets the ﬁrst A ggressor's data rate to 4 Gbps, in Cascading mode.

HSSERIAL:CHANNEL:SPARAMETER:CASCADING:AGGRESSOR2:DRATE? might

return

500.0000000000E+3, indicating that the 2nd Aggressor's data rate is

set to 500 kbps, in Cascading mode.

n” determines the aggressor signal (1 or 2). 2 is only valid if the

HSSerial:CHANnel:SPARameter:CASCading:AGGRessor[n]:SIGNal

This command sets or returns speciﬁed Aggressor's signal type, in Cascading mode.

Conditions

Group

Syntax

Related Commands

Arguments

S-Parameter Mode must be set to Cascading.

Number of ports must be either 8 or 12.

Requires an S-Parameters license.

Channel S-Parameters

HSSerial:CHANnel:SPARameter:CASCading:AGGRessor[n]:SIGNal {CLOCk|PRBS|FILE|SAVictim} HSSerial:CHANnel:SPARameter:CASCading:AGGRessor[n]:SIGNal?

HSSerial:CHANnel:SPARameter:MODE HSSerial:CHANnel:SPARameter:CASCading:AGGRessor[n]:SIGNal:FILE

[n] ::= {1|2} (“n” determines the aggressor signal (1 or 2). 2 is only valid if the number of ports is set to 12.)

If omitted, n is interpreted as 1.

CLOCk – Indicates that the aggressor signal is a clock pattern.

PRBS – Indicates that the aggressor signal is a PBRS pattern. You also must set the PBRS type.

High Speed Serial Plug-in Programmer Manual 2-37

Command Descriptions

rissettouseaﬁle. You must set the ﬁle path.

sets the aggressor signal to be the same as the victim, in Cascading

Returns

Examples

FILE – Aggresso

SAVictim – Aggressor is the same as the victim.

CLOC PRBS FILE SAV

HSSERIAL:CHANNEL:SPARAMETER:CASCADING:AGGRESSOR1:SIGNAL SAVICTIM

mode.

HSSERIAL:CHANNEL:SPARAMETER:CASCADING:AGGRESSOR2:SIGNAL?

might return FILE, indicating that 2nd Aggressor has a signal type set to use a ﬁle, in Cascading mode.

HSSerial:CHANnel:SPARameter:CASCading:AGGRessor[n]:SIGNal:FILE

This command sets or returns the ﬁlepath to the aggressor ﬁle for the speciﬁed Aggressor, in Cascading mode.

Conditions

Group

Syntax

Related Commands

Arguments

S-Parameter Mode m ust be set to Cascading.

Number of ports must be either 8 or 12.

Aggressor signal type must be File.

Requires an S-Parameters license.

Channel S-Parameters

HSSerial:CHANnel:SPARameter:CASCading:AGGRessor[n]:SIGNal: FILE <filepath> HSSerial:CHANnel:SPARameter:CASCading:AGGRessor[n]:SIGNal: FILE?

HSSerial:CHANnel:SPARameter:MODE HSSerial:CHANnel:SPARameter:CASCading:AGGRessor[n]:SIGNal

[n] ::= {1|2} (“n” determines the aggressor signal (1 or 2). 2 is only valid if the number of ports is set to 12.)

If omitted, n is interpreted as 1.

2-38 High Speed Serial Plug-in Programmer Manual

Command Descriptions

HSSe

string> deﬁnes the path to the aggressor ﬁle.

sets the ﬁrst Aggressor's ﬁle and ﬁlepath when the

Returns

Examples

<ﬁlepath> ::= <

Asingle<ﬁlepath> string.

HSSERIAL:CHANNEL:SPARAMETER:CASCADING:AGGRESSOR1:SIGNAL:FILE "C:\te

aggressor is set to use a ﬁle, in Cascading mode.

HSSERI

might return "C:\temp\myFile.txt" indicating that the 2nd Aggressor has a signal type ﬁlepath set to "C:\temp\myFile.txt", in Cascading mode.

mp\myFile.txt"

AL:CHANNEL:SPARAMETER:CASCADING:AGGRESSOR2:SIGNAL:FILE?

rial:CHANnel:SPARameter:CASCading:AGGRessor[n]:SIGNal:PRBS

This command sets or returns the speciﬁed Aggressor's PRBS signal type, in Cascading mode.

Conditions

S-Parameter Mode must be set to Cascading.

Number of ports must be either 8 or 12.

Group

Syntax

Related Commands

Arguments

Aggressor signal type must be PRBS.

Requires an S-Para

Channel S-Parameters

HSSerial:CHANnel:SPARameter: CASCading:AGGRessor[n]:SIGNal:PRBS {PRBS7|PRBS9|PRBS15|PRBS16|PRBS20|PRBS21|PRBS23|PRBS29|PRBS31} HSSerial:CHANnel:SPARameter:CASCading:AGGRessor[n]:SIGNal: PRBS?

HSSerial:CHANnel:SPARameter:MODE HSSerial:CHANnel:SPARameter:CASCading:AGGRessor[n]:SIGNal

[n] ::= {1|2} (“n” determines the aggressor signal (1 or 2). 2 is only valid if the number of ports is set to 12.)

If omitted, n is interpreted as 1.

Patterns available include: PRBS7, PRBS9, PRBS15, PRBS16, PRBS20, PRBS21, PRBS23, PRBS29, PRBS31.

meters license.

High Speed Serial Plug-in Programmer Manual 2-39

Command Descriptions

Returns

Examples

PRBS7, PRBS9, P PRBS31

HSSERIAL:CHANNEL:SPARAMETER:CASCADING:AGGRESSOR1:SIGNAL:PRBS PRBS31

Cascading mode.

HSSERIAL:CHANNEL:SPARAMETER:CASCADING:AGGRESSOR2:SIGNAL:PRBS?

might return PRBS15, indicating that the 2nd Aggressor has a signal type PRBS value set to PRBS15, in Cascading mode.

sets the ﬁrst Aggressor's Signal type's PRBS value to PRBS31, in

RBS15, PRBS16, PRBS20, PRBS21, PRBS23, PRBS29,

HSSerial:CHANnel:SPARameter:CASCading:DEEMbed

This command sets or returns whether the Cascading S-Parameters is to de-embed (invert) the S-Parameters, in Cascading mode.

Conditions

S-Parameter Mode m ust be set to Cascading.

Requires an S-Parameters license.

Group

Syntax

Related Commands

Arguments

Returns

Examples

Channel S-Parameters

HSSerial:CHANnel:SPARameter:CASCading:DEEMbed {0|1|OFF|ON} HSSerial:CHANnel:SPARameter:CASCading:DEEMbed?

HSSerial:CHANnel:SPARameter:MODE

OFF or 0 disables de-embedding. OFF or 0 is the default value. ON or 1 enables de-embedding.

A single <Boolean> value.

HSSERIAL:CHANNEL:SPARAMETER:CASCADING:DEEMBED 1 will de-embed

the S-Parameters for Cascading mode.

HSSERIAL:CHANNEL:SPARAMETER:CASCADING:DEEMBED? might return 0,

indicating that S-Parameters will not be de-embedded for Cascading mode.

2-40 High Speed Serial Plug-in Programmer Manual

Command Descriptions

HSSerial:CHA

Conditions

Related Commands

Nnel:SPARameter:CASCading:STAGe[m]:DRX[n]

This command sets or returns the S-Parameter port assignment of the speciﬁed Stage and the channel’s speciﬁed receiver port number (Rx-Port) in Cascading

erential Signalling Scheme (where applicable).

Group

Syntax

mode and Diff

S-Parameter Mode must be set to Cascading.

meter Signalling Scheme must be set to Differential (where applicable).

S-Para

Requires an S-Parameters license.

hannel S-Parameters

HSSerial:CHANnel:SPARameter:CASCading:STAGe[m]:DRX[n] <port number> HSSerial:CHANnel:SPARameter:CASCading:STAGe[m]:DRX[n]?

HSSerial:CHANnel:SPARameter:MODE HSSerial:CHANnel:SPARameter:CASCading:STYPe HSSerial:CHANnel:SPARameter:CASCading:TYPE HSSerial:CHANnel:SPARameter:CASCading:STAGe[m]:DTX[n]

Arguments

Returns

[m] ::= {1|2|3|4|5|6}. A variable value to deﬁne the Stage.

If omitted, interpreted as 1

[n] ::= <NR1> value. A variable value to deﬁne the receiver port number (Rx-Port) of the channel.

The actual range is dependent on the Number of Ports (Type).

Type = 4, then n = {1} Type = 8 then n = {1 – 2} Type=12thenn={1–3}

If omitted, n is interpreted as 1.

<port number> ::= <NR1>. A variable value to deﬁne the S-Parameter Port assigned to the speciﬁed Rx-Port of the channel.

The actual range is dependent on the Number of Ports (Type).

Type = 4 then <port number> = {1 – 2} Type = 8 then <port number> = {1 – 4} Type=12then<portnumber>={1–6}

A single <NR1> value.

High Speed Serial Plug-in Programmer Manual 2-41

Command Descriptions

Examples

HSSERIAL:CHAN

S-Parameter port 4 to the channel’s receiver port 2 for Stage 2, in the Differential, Cascading mode.

HSSERIAL:CHANNEL:SPARAMETER:CASCADING:STAGE6:RX3? might return 10, indicating that S-Parameter Port 10 is assigned to the channel’s receiver port

3 for Sta ge 6, in the Differential, Cascading mode.

NEL:SPARAMETER:CASCADING:STAGE2:DRX2 4

HSSerial:CHANnel:SPARameter:CASCading:STAGe[m]:DTX[n]

This command sets or returns the S-Parameter port assignment of the speciﬁed

the channel’s speciﬁed transmission port number (Tx-Port) in Cascading

Conditions

Group

Stage and mode and Differential Signalling Scheme (where applicable).

S-Parameter Mode m ust be set to Cascading.

S-Parameter Signalling Scheme must be set to Differential (where applicable).

Requires an S-Parameters license.

Channel S-Parameters

assigns

Syntax

Related Commands

Arguments

HSSerial:CHANnel:SPARameter:CASCading:STAGe[m]:DTX[n] <port number> HSSerial:CHANnel:SPARameter:CASCading:STAGe[m

HSSerial:CHANnel:SPARameter:MODE HSSerial:CHANnel:SPARameter:CASCading:STYPe HSSerial:CHANnel:SPARameter:CASCading:TYPE HSSerial:CHANnel:SPARameter:CASCading:STAGe[m]:DRX[n]

[m] ::= {1|2|3|4|5|6}. A variable value to deﬁne the Stage.

If omitted, interpreted as 1

[n] ::= <NR1> value. A variable value to deﬁne the transmission port number (Tx-Port) of the channel.

The actual range is dependent on the Number of Ports (Type).

Type=4,thenn={1} Type = 8 then n = {1 – 2} Type=12thenn={1–3}

If omitted, n is interpreted as 1.

]:DTX[n]?

2-42 High Speed Serial Plug-in Programmer Manual

Command Descriptions

:= <NR1>. A variable value to deﬁne the S-Parameter Port

ge is dependent on the Number of Ports (Type).

<port number> = {1 – 4}

Returns

Examples

<port number> : assigned to the speciﬁed Tx-Port of the channel.

The actual ran

Type = 4 then <port number> = {1 – 2} Type = 8 then Type=12then<portnumber>={1–6}

A single <NR1> value.

HSSERIAL:CHANNEL:SPARAMETER:CASCADING:STAGE2:DTX2 4 assigns

S-Parameter port 4 to the channel’s transmission port 2 for Stage 2, in the Differential, Cascading mode.

HSSERIAL:CHANNEL:SPARAMETER:CASCADING:STAGE6:TX3? might return 10, indicating that S-Parameter Port 10 is assigned to the channel’s transmission

port 3 for Stage 6, in the Differential, Cascading mode.

HSSerial:CHANnel:SPARameter:CASCading:STAGe[m]:ENABle

This command sets or returns the state of the speciﬁed Cascaded S-Parameter stage (enabled or disabled).

Conditions

Group

Syntax

Related Commands

Arguments

S-Parameter Mode must be set to Cascading.

Requires an S-Parameters license.

Channel S-Parameters

HSSerial:CHANnel:SPARameter:CASCading:STAGe[m]:ENABle {0|1|OFF|ON} HSSerial:CHANnel:SPARameter:CASCading:STAGe[m]:ENABle?

HSSerial:CHANnel:SPARameter:MODE HSSerial:CHANnel:SPARameter:NCAScading:FILE

[m] ::= {1 – 6} ("m" determines the stage number)

If omitted, m is interpreted as 1.

OFF or 0 disables the speciﬁed Cascading Stage. OFF or 0 is the default value. ON or 1 enables the Stage.

High Speed Serial Plug-in Programmer Manual 2-43

Command Descriptions

Returns

Examples

A single <Boole

HSSERIAL:CHANNEL:SPARAMETER:CASCADING:STAGE6:ENABLE 1 enables

Stage 6 in Cascading mode.

HSSERIAL:CHANNEL:SPARAMETER:CASCADING:STAGE6:ENABLE? might

return

0, indicating that Stage 6 is not enabled in Cascading mode.

an> value.

HSSerial:CHANnel:SPARameter:CASCading:STA

This command sets or returns the ﬁlepath for the speciﬁed S-Parameters Cascading Stage, in Cascading mode.

Conditions

Group

S-Parameter Mode m ust be set to Cascading.

Requires an S-Parameters license.

Channel S-Parameters

Ge[m]:FILE

Syntax

Related Commands

Arguments

Returns

Examples

HSSerial:CHANnel:SPARameter:CASCading:STAGe[m]:FILE <filepath> HSSerial:CHANnel:SPARameter:CASCading:STAGe[m]:FILE

HSSerial:CHANnel:SPARameter:MODE

[m] ::= {1 – 6} ("m" determines the stage number)

If omitted, m is interpreted as 1.

<ﬁlepath>::= <string> deﬁnes the path to the S-Parameter ﬁle.

<ﬁlepath>::= <string>.

HSSERIAL:CHANNEL:SPARAMETER:CASCADING:STAGE1:FILE "C:\temp\myFile.s12p"

during compilation for Stage 1.

HSSERIAL:CHANNEL:SPARAMETER:CASCADING:STAGE1:FILE? might return "C:\temp\myFile.s12p" indicating the ﬁlepath for Stage 1.

sets the ﬁlepath to "C:\temp\myFile.s12p" for use

2-44 High Speed Serial Plug-in Programmer Manual

Command Descriptions

HSSerial:CHA

Conditions

Related Commands

Nnel:SPARameter:CASCading:STAGe[m]:RX[n]

This command sets or returns the S-Parameter port assignment of the speciﬁed Stage and the channel’s speciﬁed receiver port number (Rx-Port) in Cascading

le-Ended Signalling Scheme ( where applicable).

Group

Syntax

mode and Sing

S-Parameter Mode must be set to Cascading.

S-Parameter Signalling Scheme must be set to Single-Ended (where applicable).

Requires an S-Parameters license.

Channel S-Parameters

HSSerial:CHANnel:SPARameter:CASCading:STAGe[m]:RX[n] <port number> HSSerial:CHANnel:SPARameter:CASCading:STAGe[m]:RX[n]?

HSSerial:CHANnel:SPARameter:MODE HSSerial:CHANnel:SPARameter:CASCading:STYPe HSSerial:CHANnel:SPARameter:CASCading:TYPE HSSerial:CHANnel:SPARameter:CASCading:STAGe[m]:TX[n]

Arguments

[m] ::= {1|2|3|4|5|6}. A variable value to deﬁne the Stage.

If omitted, interpreted as 1

[n] ::= <NR1> value. A variable value to deﬁne the receiver port number (Rx-Port) of the channel.

The actual range is dependent on the Number of Ports (Type).

Type = 1, then n = no value Type = 2, then n = {1} Type = 4 then n = {1 – 2} Type = 6 then n = {1 – 3} Type = 8 then n = {1 – 4} Type=12thenn={1–6}

<port number> ::= <NR1>. A variable value to deﬁne the S-Parameter Port assigned to the speciﬁed Tx-Port of the channel.

The actual range is dependent on the Number of Ports (Type).

Type = 1, then <port number> = no value Type = 2, then <port number> = {1 – 2} Type = 4 then <port number> = {1 – 4} Type = 6 then <port number> = {1 – 6}

High Speed Serial Plug-in Programmer Manual 2-45

Command Descriptions

rt number> = {1 – 8}

Returns

Examples

Type = 8 th en < po Type = 12 then <port number> = {1 – 12}

A single <NR1> value.

HSSERIAL:CHANNEL:SPARAMETER:CASCADING:STAGE2:RX2 4 assigns

S-Parameter port 4 to the channel’s receiver port 2 for Stage 2, in the Single-Ended, Cascading mode.

HSSERIAL:CHANNEL:SPARAMETER:CASCADING:STAGE6:RX3? might return 10, indicating that S-Parameter Port 10 is assigned to the channel’s receiver port 3

for Stage 6, in the Single-Ended, Cascading mode.

HSSerial:CHANnel:SPARameter:CASCading:STAGe[m]:SSCHeme

This command sets or returns the S-Parameter Signalling Scheme, in Cascading mode. Signalling Scheme is only available when the Number of Ports is set to 4, 8, or 12.

Conditions

S-Parameter Mode m ust be set to Cascading.

Group

Syntax

Related Commands

Arguments

Returns

Requires an S-Parameters license.

Channel S-Parameters

HSSerial:CHANnel:SPARameter:CASCading:STAGe[m]:SSCHeme {SENDed|DIFFerential} HSSerial:CHANnel:SPARameter:CASCading:STAGe[m]:SSCHeme?

HSSerial

[m] ::= {1 – 6} ("m" determines the stage number)

SENDed – Single Ended Signal Scheme

DIFFerential – Differential Signal Scheme

SEND DIFF

:CHANnel:SPARameter:MODE

If omitted, m is interpreted as 1.

2-46 High Speed Serial Plug-in Programmer Manual

Command Descriptions

HSSerial:C

Examples

HSSERIAL:CHAN

the Stage 2 Signalling Scheme to Differential, in Cascading mode.

HSSERIAL:CHA

return

SEND, indicating that the Stage 3 Signalling Scheme is set to Single Ended,

in Cascading mode.

NEL:SPARAMETER:CASCADING:STAGE2:SSCHEME DIFF

NNEL:SPARAMETER:CASCADING:STAGE3:SSCHEME?

HANnel:SPARameter:CASCading:STAGe[m]:TX[n]

This command sets or returns the S-Parameter port assignment of the speciﬁed Stage and the channel’s speciﬁed transmission port number (Tx-Port) in Cascading

ingle-Ended Signalling Scheme ( where applicable).

Conditions

Group

mode and S

S-Parameter Mode must be set to Cascading.

S-Parameter Signalling Scheme must be set to Single-Ended (where applicable).

Requires an S-Parameters license.

Channel S-Parameters

sets

might

Syntax

Related Commands

Arguments

HSSerial:CHANnel:SPARameter:CASCading:STAGe[m]:TX[n] <port number> HSSerial:CHANnel:SPARameter:CASCading:STAGe[m]:TX[n]?

HSSerial:CHANnel:SPARameter:MODE HSSerial:CHANnel:SPARameter:CASCading:STYPe HSSerial:CHANnel:SPARameter:CASCading:TYPE HSSerial:CHANnel:SPARameter:CASCading:STAGe[m]:RX[n]

[m] ::= {1|2|3|4|5|6}. A variable value to deﬁne the Stage.

If omitted, interpreted as 1

[n] ::= <NR1> value. A variable value to deﬁne the transmission port number (Tx-Port) of the channel.

The actual range is dependent on the Number of Ports (Type).

Type = 1, then n = no value Type = 2, then n = {1} Type = 4 then n = {1 – 2} Type = 6 then n = {1 – 3} Type = 8 then n = {1 – 4} Type=12thenn={1–6}

High Speed Serial Plug-in Programmer Manual 2-47

Command Descriptions

Returns

Examples

<port number> : assigned to the speciﬁed Tx-Port of the channel.

The actual range is dependent on the Number of Ports (Type).

Type = 1, then <port number> = no value Type = 2, then <port number> = {1 – 2} Type = 4 then <port number> = {1 – 4} Type = 6 then <port number> = {1 – 6} Type = 8 then <port number> = {1 – 8} Type = 12 then <port number> = {1 – 12}

A single <NR1> value.

HSSERIAL:CHANNEL:SPARAMETER:CASCADING:STAGE2:TX2 4 assigns

S-Parameter port 4 to the channel’s transmission port 2 for Stage 2, in the Single-Ended, Cascading mode.

HSSERIAL:CHANNEL:SPARAMETER:CASCADING:STAGE6:TX3? might return 10, indicating that S-Parameter Port 10 is assigned to the channel’s transmission

port 3 for Stage 6, in the Single-Ended, Cascading mode.

:= <NR1>. A variable value to deﬁne the S-Parameter Port

HSSerial:CHANnel:SPARameter:CASCading:STYPe

This command sets or returns S-Parameter signal type (victim or aggressor), in Cascading mode. The number of ports must be either 8 or 12.

Conditions

Group

Syntax

Related Commands

Arguments

S-Parameter Mode m ust be set to Cascading.

Number o

Requires an S-Parameters license.

Channel S-Parameters

HSSerial:CHANnel:SPARameter:CASCading:STYPe {VICTim|AGGRessor|BOTH} HSSerial:CHANnel:SPARameter:CASCading:STYPe?

HSSerial:CHANnel:SPARameter:MODE

VICTim – enables the victim signal type.

f Ports must be either 8 or 12.

AGGRessor – enables the aggressor signal type.

2-48 High Speed Serial Plug-in Programmer Manual

Command Descriptions

he victim and aggressor signal types.

Returns

Examples

BOTH – enables t

VICT AGGR BOTH

HSSERIAL:CHANNEL:SPARAMETER:CASCADING:STYPE BOTH sets the signal

type to include both the Victim and Aggressor signal types, in Cascading mode.

HSSERIAL:CHANNEL:SPARAMETER:CASCADING:STYPE? might return AGGR,

indicating that the S-Parameter signal type is currently set to be Aggressor, in Cascading mode.

HSSerial:CHANnel:SPARameter:CASCading:TYPE

This command sets or returns the S-Parameter number of ports, in Cascading mode.

Conditions

Requires an S-Parameters license.

Group

Syntax

Arguments

Returns

Examples

Channel S-Parameters

HSSerial:CHANnel:SPARameter:CASCading:TYPE {2|4|6|8|12} HSSerial:CHANnel:SPARameter:CASCading:TYPE?

{2|4|6|8|12} – deﬁnes the number of S-Parameter ports.

A single <NR1> value.

HSSERIAL:CHANNEL:SPARAMETER:CASCADING:TYPE 12 sets the S-Parameter

type to a 12-Port system for the cascading mode.

HSSERIAL:CHANNEL:SPARAMETER:CASCADING:TYPE? might return 6,

indicating that the S-Parameter type is a 6-Port system for Cascading mode.

HSSerial:CHANnel:SPARameter:MODE

This comman Non-Cascading).

d sets or returns the S-Parameter mode (Cascading or

High Speed Serial Plug-in Programmer Manual 2-49

Command Descriptions

Conditions

Group

Syntax

Arguments

Returns

Examples

Requires an S-P

Channel S-Parameters

HSSerial:CHANnel:SPARameter:MODE {CASC|NCAS} HSSerial:CHANnel:SPARameter:MODE?

CASCading sets the S-Parameter mode to cascading. allowing you to casc ade up

to six S-parameter ﬁ les and apply the characteristics on the waveform.

NCASCading sets the S-Para meter mode to non-cascading, allowing you to apply

S-parameter characteristics on the waveform from only one S-parameter ﬁle.

CASC

NCASC

HSSERIAL:CHANNEL:SPARAMETER:MODE CASCADING sets the S-Parameter

mode to cascading.

HSSERIAL:CHANNEL:SPARAMETER:MODE? might return NCAS, indicating that

the S-Parameter mode is set to Non-Cascading mode.

arameters license.

HSSerial:CHANnel:SPARameter:NCAScading:AGGRessor2[:ENABle]

This command sets or returns the aggressor 2 signal type state (enabled or disabled) in Non-Cascading mode. Aggressor2 signals are available when the number of ports is set to 12.

Conditions

Group

Syntax

Related Commands

S-Parameter Mode must be set to Non-Cascading.

Number of Ports must be set to 12.

Requires an S-Parameters license.

Channel S-Parameters

HSSerial:CHANnel:SPARameter:NCAScading:AGGRessor2[:ENABle] {0|1|ON|OFF} HSSerial:CHANnel:SPARameter:NCAScading:AGGRessor2[:ENABle]?

HSSerial:CHANnel:SPARameter:MODE

2-50 High Speed Serial Plug-in Programmer Manual

Command Descriptions

Arguments

Returns

Examples

OFF or 0 disable ON or 1 enables the aggressor 2 signal type.

A single <Boolean> value.

HSSERIAL:CHANNEL:SPARAMETER:NCASCADING:AGGRESSOR2:ENABLE ON

enables the aggressor 2 signal type, in Non-Cascading mode.

HSSERIAL:CHANNEL:SPARAMETER:NCASCADING:AGGRESSOR2:ENABLE?

might return 0, indicating that the aggressor 2 signal type is disabled, in Non-Cascading mode.

s the aggressor 2 signal type. OFF or 0 is the default value.

HSSerial:CHANnel:SPARameter:NCAScading:AGGRessor[n]:AMPLitude

This command sets or returns the speciﬁed Aggressor's amplitude, in Non-Cascading mode.

Conditions

S-Parameter Mode must be set to Non-Cascading.

Number of ports must be either 8 or 12.

roup

Syntax

Related Commands

Arguments

Returns

Requires an S-Parameters license.

Channel S-Parameters

HSSerial:CHANnel:SPARameter:NCAScading:AGGRessor[n]: AMPLitude <amplit HSSerial:CHANnel:SPARameter:NCAScading:AGGRessor[n]: AMPLitude?

HSSerial:CHANnel:SPARameter:MODE

[n] ::= {1|2} (“n” determines the aggressor signal (1 or 2). 2 is only valid if the number of ports is set to 12.)

If omitted, n is interpreted as 1.

<amplitude>::= <NR3> value.

A single <NR3> value.

ude>

High Speed Serial Plug-in Programmer Manual 2-51

Command Descriptions

HSSerial:C

Examples

HSSERIAL:CHAN 200E-3

HSSERIAL:CHA

might return 100.0000000000E-3, indicating that the 2nd Aggressor's amplitude is set to 100 mV, in Non-Cascading mode.

sets the 1st Aggressor's amplitude to 200 mV, in Non-Cascading mode.

NEL:SPARAMETER:NCASCADING:AGGRESSOR1:AMPLITUDE

NNEL:SPARAMETER:NCASCADING:AGGRESSOR2:AMPLITUDE?

HANnel:SPARameter:NCAScading:AGGRessor[n]:CTALk

This command sets or returns the speciﬁed Aggressor's crosstalk type, in Non-Cascading mode.

Conditions

Group

Syntax

S-Parameter Mode must be set to Non-Cascading.

Number of ports must be either 8 or 12.

Requires an S-Parameters license.

Channel S-Parameters

HSSerial:CHANnel:SPARameter:NCAScading:AGGRessor[n]:CTALk {NEXT|FEXT|BOTH} HSSerial:CHANnel:SPARameter:NCAScading:AGGRessor[n]:CTALk?

Related Commands

Arguments

Returns

Examples

HSSerial:CHANnel:SPARameter:MODE

[n] ::= {1|2} (“n” determines the aggressor signal (1 or 2). 2 is only valid if the number of ports is set to 12.)

If omitted, n is interpreted as 1.

NEXT–Near-EndCrosstalk

FEXT – Far-End Crosstalk

BOTH–NearandFar-EndCrosstalk

NEXT FEXT BOTH

HSSERIAL:CHANNEL:SPARAMETER:NCASCADING:AGGRESSOR1:CTALK FEXT

sets the 1st Aggressor's Crosstalk type to Far End Crosstalk, in Non-Cascading mode.

2-52 High Speed Serial Plug-in Programmer Manual

Command Descriptions

HSSERIAL:CHAN

might return NEXT, indicating that the 2nd Aggressor crosstalk type is set to Near End Crosstalk, in Non-Cascading mode.

NEL:SPARAMETER:NCASCADING:AGGRESSOR2:CTALK?

HSSerial:CHANnel:SPARameter:NCAScading:AGGRessor[n]:DRATe

This command sets or returns the speciﬁed Aggressor's data rate, in Non-Cascading mode.

Conditions

Group

Syntax

S-Parameter Mode must be set to Non-Cascading.

Number of ports must be either 8 or 12.

Requires an S-Parameters license.

Channel

HSSerial:CHANnel:SPARameter:NCAScading:AGGRessor[n]:DRATe <data_rate> HSSerial:CHANnel:SPARameter:NCAScading:AGGRessor[n]:DRATe?

S-Parameters

Related Commands

Arguments

Returns

Examples

HSSerial:CHANnel:SPARameter:MODE

[n] ::= {1|2} (“n” determines the aggressor signal (1 or 2). 2 is only valid if the number of ports is set to 12.)

If omitted, n is interpreted as 1.

<data_rate>::= <NR3> value.

A single <NR3> value.

HSSERIAL:CHANNEL:SPARAMETER:NCASCADING:AGGRESSOR1:DRATE 4E9

sets the 1st Aggressor's data rate to 4 Gbps, in Non-Cascading mode.

RIAL:CHANNEL:SPARAMETER:NCASCADING:AGGRESSOR2:DRATE?

HSSE

might return 500.0000000000E+3, indicating that the 2nd Aggressor's data rate is set to 500 kbps, in Non-Cascading mode.

HSSerial:CHANnel:SPARameter:NCAScading:AGGRessor[n]:SIGNal

This command sets or returns speciﬁed Aggre ssor's signal type, in Non-Cascading mode.

High Speed Serial Plug-in Programmer Manual 2-53

Command Descriptions

Conditions

Group

Syntax

Related Commands

Arguments

S-Parameter Mo

Number of ports must be either 8 or 12.

Requires an S-Parameters license.

Channel S-Parameters

HSSerial:CHANnel:SPARameter:NCAScading:AGGRessor[n]:SIGNal {CLOCk|PRBS|FILE|SAVictim} HSSerial:CHANnel:SPARameter:NCAScading:AGGRessor[n]:SIGNal?

HSSerial:CHANnel:SPARameter:MODE HSSerial:CHANnel:SPARameter:CASCading:AGGRessor[n]:SIGNal:FILE

[n] ::= {1|2} (“n” determines the aggressor signal (1 or 2). 2 is only valid if the number of ports is set to 12.)

If omitted, n is interpreted as 1.

CLOCk – Indicates that the aggressor signal is a clock pattern.

PRBS – Indicates that the aggressor signal is a PBRS pattern. You also must set the PBRS type.

de must be set to Non-Cascading.

FILE – Aggressor is set to use a ﬁle. You must set the ﬁle path.

SAVictim – Aggressor is the same as the victim.

Returns

Examples

CLOC PRBS FILE SAV

HSSERIAL:CHANNEL:SPARAMETER:NCASCADING:AGGRESSOR1:SIGNAL SAVICTIM

Non-Cascading mode

HSSERIAL:CHANNEL:SPARAMETER:NCASCADING:AGGRESSOR2:SIGNAL?

might return FILE, indicating that 2nd Aggressor has a signal type set to use a ﬁle, in Non-Cascading mode.

sets the 1st aggressor signal to be the same as the victim, in

HSSerial:CHANnel:SPARameter:NCAScading:AGGRessor[n]:SIGNal:FILE

This command sets or returns the ﬁlepath to the aggressor ﬁle for the speciﬁed Aggressor, in Non-Cascading mode.

2-54 High Speed Serial Plug-in Programmer Manual

Command Descriptions

Conditions

Group

Syntax

Related Commands

Arguments

S-Parameter Mo

Number of ports must be either 8 or 12.

Aggressor signal type must be File.

Requires an S-Parameters license.

Channel S-Parameters

HSSerial:CHANnel:SPARameter:NCAScading:AGGRessor[n]:SIGNal: FILE <filepath> HSSerial:CHANnel:SPARameter:NCAScading:AGGRessor[n]:SIGNal: FILE?

HSSerial:CHANnel:SPARameter:MODE HSSerial:CHANnel:SPARameter:NCAScading:AGGRessor[n]:SIGNal

[n] ::= {1|2} (“n” determines the aggressor signal (1 or 2). 2 is only valid if the number of ports is set to 12.)

If omitted, n is interpreted as 1.

de must be set to Non-Cascading.

<ﬁlepath>::= <string> deﬁnes the path to the aggressor ﬁle.

Returns

Examples

Asingle<ﬁlepath> string.

HSSERIAL:CHANNEL:SPARAMETER:NCASCADING:AGGRESSOR1:SIGNAL:FILE "C:\temp\myFile.txt"

aggressor is set to use a ﬁle, in Non-Cascading mode.

HSSERIAL:CHANNEL:SPARAMETER:NCASCADING:AGGRESSOR2:SIGNAL:FILE?

might return "C:\temp\myFile.txt" indicating that the 2nd Aggress signal type ﬁlepath set to "C:\temp\myFile.txt", in Non-Cascading mode.

sets the 1st Aggressor's ﬁle and ﬁlepath when the

HSSerial:CHANnel:SPARameter:NCAScading:AGGRessor[n]:SIGNal:PRBS

This command sets or returns the speciﬁed Aggressor's PRBS signal type, in Non-Cascading mode.

Conditions

S-Parameter Mode must be set to Non-Cascading.

Number of ports must be either 8 or 12.

or has a

Aggressor signal type must be PRBS.

High Speed Serial Plug-in Programmer Manual 2-55

Command Descriptions

Group

Syntax

Related Commands

Arguments

Requires an S-P

Channel S-Parameters

HSSerial:CHANnel:SPARameter: NCAScading:AGGRessor[n]:SIGNal:PRBS {PRBS7|PRBS9|PRBS15|PRBS16|PRBS20|PRBS21|PRBS23|PRBS29|PRBS31} HSSerial:CHANnel:SPARameter:NCAScading:AGGRessor[n]:SIGNal: PRBS?

HSSerial:CHANnel:SPARameter:MODE HSSerial:CHANnel:SPARameter:NCAScading:AGGRessor[n]:SIGNal

[n] ::= {1|2} (“n” determines the aggressor signal (1 or 2). 2 is only valid if the number of ports is set to 12.)

If omitted, n is interpreted as 1.

Patterns available include: PRBS7, PRBS9, PRBS15, PRBS16, PRBS20, PRBS21, PRBS23, PRBS29, PRBS31

arameters license.

S7, PRBS9, PRBS15, PRBS16, PRBS20, PRBS21, PRBS23, PRBS29,

Returns

Examples

PRB PRBS31

HSSERIAL:CHANNEL:SPARAMETER:NCASCADING:AGGRESSOR1:SIGNAL:PRBS PRBS31

Non-Cascading mode.

HSSERIAL:CHANNEL:SPARAMETER:NCASCADING:AGGRESSOR2:SIGNAL:PRBS?

might return PRBS15, indicating that the 2nd Aggressor has a signal type PRBS value set to PRBS15, in Non-Cascading mode.

sets the 1st Aggressor's Signal type's PRBS value to PRBS31, in

HSSerial:CHANnel:SPARameter:NCAScading:DEEMbed

This command sets or returns whether the Non-Cascading S-Parameters is to de-embed (invert) the S-Parameters, in Non-Cascading mode.

Conditions

Group

S-Parameter Mode must be set to Non-Cascading.

Requires an S-Parameters license.

Channel S-Parameters

2-56 High Speed Serial Plug-in Programmer Manual

Command Descriptions

Syntax

Related Commands

Arguments

Returns

Examples

HSSerial:CHAN HSSerial:CHANnel:SPARameter:NCAScading:DEEMbed?

HSSerial:CHANnel:SPARameter:MODE

OFF or 0 disables de-embedding. OFF or 0 is the default value. ON or 1 enables de-embedding.

A single <Boolean> value.

HSSERIAL:CHANNEL:SPARAMETER:NCASCADING:DEEMBED 1 will de-embed

the S-Parameters for Non-Cascading mode.

HSSERIAL:CHANNEL:SPARAMETER:NCASCADING:DEEMBED? might return 0,

indicating that S-Parameters will not be de-embedded for Non-Cascading mode.

nel:SPARameter:NCAScading:DEEMbed {0|1|OFF|ON}

HSSerial:CHANnel:SPARameter:NCAScading:DRX[n]

This command sets or returns the S-Parameter port assignment of the channel’s speciﬁed receiver port number (Rx-Po Signalling Scheme (where applicable).

rt) in Non-Cascading mode and Differential

Conditions

Group

Syntax

Related Commands

Arguments

S-Parameter Mode must be set to Non-

S-Parameter Signalling Scheme must be set to Differential.

Requires an S-Parameters license.

Channel S-Parameters

HSSerial:CHANnel:SPARameter:NCAScading:DRX[n] <port_number> HSSerial:CHANnel:SPARameter:NCAScading:DRX[n]?

HSSerial:CHANnel:SPARameter:MODE HSSerial:CHANnel:SPARameter:CASCading:STYPe HSSerial:CHANnel:SPARameter:NCAScading:TYPE HSSerial:CHANnel:SPARameter:NCAScading:RX[n]

[n] ::= <NR1>. A variable value to deﬁne the receiver port number (Rx-Port) of the channel.

The actual range is dependent on the Number of Ports (Type).

Cascading.

High Speed Serial Plug-in Programmer Manual 2-57

Command Descriptions

Returns

Examples

Type = 4, then n = Type = 8 then n = {1 – 2} Type=12thenn={1–3}

If omitted, n is interpreted as 1.

<port_number>::= <NR1> value. A variable value to deﬁne the S-Parameter Port assigned to the speciﬁed Rx-Port of the channel.

The actual range is dependent on the Number of Ports (Type).

Type=4,thenn={1–2} Type = 8 then <port number> = {1 – 4} Type = 12 then <port number> = {1 – 6}

A single <NR1> value.

HSSERIAL:CHANNEL:SPARAMETER:NCASCADING:DTX2 4 assigns S-Parameter

port 4 to channel’s receiver port 2, in the Differential, Non-Cascading mode.

HSSERIAL:CHANNEL:SPARAMETER:NCASCADING:DTX3? might return 6,

indicating that S-Parameter Port 6 is assigned to the channel’s receiver port 3, in the Differential, Non-Cascading mode.

{1}

HSSerial:CHANnel:SPARameter:NCAScading:DTX[n]

This command sets or returns the S-Parameter port assignment of the channel’s speciﬁed transmission port number (Tx-Port) in Non-Cascading mode and Differential Signalling Scheme (where applicable).

Conditions

Group

Syntax

Related Commands

S-Parameter Mode must be set to Non-Cascading.

S-Parameter Signalling Scheme must be set to Differential.

Requires an S-Parameters license.

Channel S-Parameters

HSSerial:CHANnel:SPARameter:NCAScading:DTX[n] <port_number> HSSerial:CHANnel:SPARameter:NCAScading:DTX[n]?

HSSerial:CHANnel:SPARameter:MODE HSSerial:CHANnel:SPARameter:NCAScading:STYPe HSSerial:CHANnel:SPARameter:NCAScading:TYPE HSSerial:CHANnel:SPARameter:NCAScading:DRX[n]

2-58 High Speed Serial Plug-in Programmer Manual

Command Descriptions

Arguments

Returns

Examples

[n] ::= <NR1> va (Tx-Port) of the channel.

The actual range is dependent on the Number of Ports (Type).

Type = 4, then n = {1} Type = 8 then n = {1 – 2} Type=12thenn={1–3}

If omitted, n is interpreted as 1.

<port_number>::= <NR1> value. A variable value to deﬁne the S-Parameter Port assigned to the speciﬁed Tx-Port of the channel.

The actual range is dependent on the Number of Ports (Type).

Type = 4 then <port number> = {1 – 2} Type = 8 then <port number> = {1 – 4} Type=12then<portnumber>={1–6}

A single <NR1> value.

HSSERIAL:CHANNEL:SPARAMETER:NCASCADING:DTX2 4 assigns S-Parameter

port 4 to channel’s transmission port 2, in the Differential, Non-Cascading mode.

lue. A variable value to deﬁne the transmission port number

HSSERIAL:CHANNEL:SPARAMETER:NCASCADING:DTX3? might return 6,

indicating that S-Parameter Port 6 is assigned to the channel’s transmission port 3, in the Differential, Non-Cascading mode.

HSSerial:CHANnel:SPARameter:NCAScading:FILE

This command sets or returns the ﬁlepath and ﬁle name of the S-Parameter ﬁle, in Non-Cascading mode.

Conditions

Group

Syntax

Related Commands

S-Parameter Mode must be set to Non-Cascading.

Requires an S-Parameters license.

Channel S-Parameters

HSSerial:CHANnel:SPARameter:NCAScading:FILE <filepath>

HSSerial:CHANnel:SPARameter:MODE

Arguments

High Speed Serial Plug-in Programmer Manual 2-59

<ﬁlepath>::= <string> deﬁnes the path to the S-Parameter ﬁle.

Command Descriptions

Returns

Examples

Asingle<ﬁlepa

HSSERIAL:CHANNEL:SPARAMETER:NCASCADING:FILE "C:\temp\myFile.s12p"

during compilation.

HSSERIAL:CHANNEL:SPARAMETER:NCASCADING:FILE? might return "C:\temp\myOtherFile.s6p", indicating the current ﬁlepath.

th> string.

sets the ﬁlepath to "C:\temp\myFile.s12p" for use

HSSerial:CHANnel:SPARameter:NCAScading:LAYout

This command sets or returns the 4 port S-Parameter Matrix Conﬁguration, in Non-Cascading mode.

Conditions

Group

S-Parameter Mode must be set to Non-Cascading.

Number of Ports must be set to 4.

Requires an S-Parameters license.

Channel S-Parameters

Syntax

Related Commands

Arguments

Returns

HSSerial:CHANnel:SPARameter:NCAScading:LAYout {TYPical|ALTernate} HSSerial:CHANnel:SPARameter:NCAScading:LAYout?

HSSerial:CHANnel:SPARameter:MODE

TYPical or ALTernate: selects the S-Parameter Matrix.

TYP ALT

2-60 High Speed Serial Plug-in Programmer Manual

Command Descriptions

HSSerial:C

Examples

HSSERIAL:CHAN

port conﬁguration's Layout to Typical, in Non-Cascading mode.

HSSERIAL:CHA TYP, indicating that conﬁguration's Layout for port 4 is set to Typical, in

Non-Cascading mode.

NEL:SPARAMETER:NCASCADING:LAYOUT TYPICAL

NNEL:SPARAMETER:NCASCADING:LAYOUT?

HANnel:SPARameter:NCAScading:RX[n]

This command sets or returns the S-Parameter port assignment of the channel’s speciﬁed receiver port number (Rx-Port) in No n-Cascading mode and

nded Signalling Scheme (where applicable).

Conditions

Group

Single-E

S-Parameter Mode must be set to Non-Cascading.

S-Parameter Signalling Scheme must be set to Single-Ended.

Requires an S-Parameters license.

Channel S-Parameters

sets the 4

might return

Syntax

Related Commands

Arguments

HSSerial:CHANnel:SPARameter:NCAScading:RX[n] <port number> HSSerial:CHANnel:SPARameter:NCAScading:RX[n]?

HSSerial:CHANnel:SPARameter:MODE HSSerial:CHANnel:SPARameter:CASCading:STYPe HSSerial:CHANnel:SPARameter:NCAScading:TYPE HSSerial:CHANnel:SPARameter:NCAScading:TX[n]

[n] ::= <NR1>. A variable value to deﬁne the receiver port number (Rx-Port) of the channel.

The actual range is dependent on the Number of Ports (Type).

Type = 1, then n = no value Type = 2, then n = {1} Type = 4 then n = {1 – 2} Type = 6 then n = {1 – 3} Type = 8 then n = {1 – 4} Type=12thenn={1–6}

If omitted, n is interpreted as 1.

<port number> ::= <NR1>. A variable value to deﬁne the S-Parameter Port assigned to the speciﬁed Rx-Port of the channel.

High Speed Serial Plug-in Programmer Manual 2-61

Command Descriptions

e is dependent on the Number of Ports (Type).

port number> = {1 – 2}

Returns

Examples

The actual rang

Type = 1, then <port number> = no value Type = 2, then < Type = 4 then <port number> = {1 – 4} Type = 6 then <port number> = {1 – 6} Type = 8 then <port number> = {1 – 8} Type = 12 then <port number> = {1 – 12}

A single <NR1> value.

HSSERIAL:CHANNEL:SPARAMETER:NCASCADING:RX2 4 assigns S-Parameter

port 4 to the channel’s receiver port 2, in the Single-Ended, Non-Cascading mode.

HSSERIAL:CHANNEL:SPARAMETER:NCASCADING:RX4? might return 6,

indicating that S-Parameter Port 6 is assigned to the channel’s receiver port 4, in the Single-Ended, Non-Cascading mode.

HSSerial:CHANnel:SPARameter:NCAScading:SSCHeme

This command sets or returns the S-Parameter Signalling Scheme, in Non-Cascading mode. Signalling Scheme is only available when the Number of Ports is set to 4, 8, or 12.

Conditions

Group

Syntax

Related Commands

Arguments

Returns

S-Parameter Mode must be set to Non-Cascading.

Requires an S-Parameters license.

Channel S-Parameters

HSSerial:CHANnel:SPARameter:NCAScading:SSCHeme {SENDed|DIFFerential} HSSerial:CHANnel:SPARameter:NCAScading:SSCHeme?

HSSerial:CHANnel:SPARameter:MODE

SENDed – Single Ended Signal Scheme

DIFFerential – Differential Signal Scheme

SEND DIFF

2-62 High Speed Serial Plug-in Programmer Manual

Command Descriptions

HSSerial:C

Examples

HSSERIAL:CHAN

Signalling Scheme to Differential, in Non-Cascading mode.

HSSERIAL:CHA SEND, indicating that the Signalling Scheme is set to Single Ended, in

Non-Cascading mode.

NEL:SPARAMETER:NCASCADING:SSCHEME DIFF

NNEL:SPARAMETER:NCASCADING:SSCHEME?

HANnel:SPARameter:NCAScading:STYPe

This command sets or returns S-Parameter signal type (victim or aggressor), in Non-Cascading mode. The number of ports must be either 8 or 12.

Conditions

Group

Syntax

S-Parameter Mode must be set to Non-Cascading.

Number of Ports must be either 8 or 12.

Requires an S-Parameters license.

Channel S-Parameters

HSSerial:CHANnel:SPARameter:NCAScading:STYPe {VICTim|AGGRessor|BOTH} HSSerial:CHANnel:SPARameter:NCAScading:STYPe?

sets the

might return

Related Commands

Arguments

Returns

Examples

HSSerial:CHANnel:SPARameter:MODE

VICTim – enables the victim signal type.

AGGRessor – enables the aggressor signal type.

BOTH – enables the victim and aggressor signal types.

VICT AGGR BOTH

HSSERIAL:CHANNEL:SPARAMETER:NCASCADING:STYPE BOTH sets the signal

type to include both the Victim and Aggressor signal types, in Non-Cascading mode.

HSSERIAL:CHANNEL:SPARAMETER:NCASCADING:STYPE? might return AGGR,

indicating that the S-Parameter signal type is currently set to be Aggressor, in Non-Cascading mode.

High Speed Serial Plug-in Programmer Manual 2-63

Command Descriptions

HSSerial:CHA

Conditions

Related Commands

Nnel:SPARameter:NCAScading:TX[n]

This command sets or returns the S-Parameter port assignment of the channel’s speciﬁed transmission port number (Tx-Port) in Non-Cascading mode and

d Signalling Scheme (where applicable).

Group

Syntax

Single-Ende

S-Parameter Mode must be set to Non-Cascading.

S-Parameter Signalling Scheme must be set to Single-Ended (where applicable).

Requires an S-Parameters license.

Channel S-Parameters

HSSerial:CHANnel:SPARameter:NCAScading:TX[n] <port number> HSSerial:CHANnel:SPARameter:NCAScading:TX[n]?

HSSerial:CHANnel:SPARameter:MODE HSSerial:CHANnel:SPARameter:CASCading:STYPe HSSerial:CHANnel:SPARameter:NCAScading:TYPE HSSerial:CHANnel:SPARameter:NCAScading:RX[n]

Arguments

[n] ::= <NR1>. A variable value to deﬁne the transmission port number (Tx-Port) of the channel.

The actual range is dependent on the Number of Ports (Type).

Type=1,thenn=novalue Type=2,thenn={1} Type = 4 then n = {1 – 2} Type = 6 then n = {1 – 3} Type = 8 then n = {1 – 4} Type=12thenn={1–6}

If omitted, n is interpreted as 1.

<port number> ::= <NR1>. A variable value to deﬁne the S-Parameter Port assigned to the speciﬁed Tx-Port of the channel.

The actual range is dependent on the Number of Ports (Type).

2-64 High Speed Serial Plug-in Programmer Manual

Command Descriptions

Returns

Examples

Asingle<NR1>v

HSSERIAL:CHANNEL:SPARAMETER:NCASCADING:TX2 4 assigns S-Parameter

port 4 to the channel’s transmission port 2, in the Single-Ended, Non-Cascading mode.

HSSERIAL:CHANNEL:SPARAMETER:NCASCADING:TX4? might return 6,

indicating that S-Parameter Port 6 is assigned to the channel’s transmission port 4, in the Single-Ended, Non-Cascading mode.

alue.

HSSerial:CHANnel:SPARameter:NCAScading:TYPE

This command sets or returns the S-Parameter number of ports, in Non-Cascading mode.

Conditions

Group

Requires an S-Parameters license.

Channel S-Parameters

Syntax

Arguments

Returns

Examples

HSSerial:CHANnel:SPARameter:NCAScading:TYPE {1|2|4|6|8|12}

{1|2|4|6|8|12} – deﬁnes the number of S-Parameter ports.

A single <NR1> value.

HSSERIAL:CHANNEL:SPARAMETER:NCASCADING:TYPE 12 sets the

S-Parameter type to a 12-Port system for Non-Cascading mode.

HSSERIAL:CHANNEL:SPARAMETER:NCASCADING:TYPE? might return 6,

indicating that the S-Parameter type is a 6-Port system for Non-Cascading mode.

HSSerial:CHANnel:TYPE

This command sets or returns the Channel emulation type.

Group

Channel

Syntax

High Speed Serial Plug-in Programmer Manual 2-65

HSSerial:CHANnel:TYPE {ISI|SPAR}

Command Descriptions

Arguments

Returns

Examples

ISI sets the Cha

SPAR sets the Channel emulation type to S-Parmeters.

ISI SPAR

HSSERIAL:CHANNEL:TYPE ISI sets the Channel emulation type to Intersymbol

Interference.

HSSERIAL:CHANNEL:TYPE? might return SPAR, indicating that the Channel

emulation type is set to S-Parameters.

HSSerial:COMPile (No Query Form)

This command compiles and generates a waveform using the High Speed Serial plug-in compile settings.

Conditions

The active plug-in must be High Speed Serial.

nnel emulation type to Intersymbol Interference.

This is an overlapping command. Overlapping commands run concurrently with other commands, allowing additional commands to start before the overlapping command has ﬁnished.

Group

Syntax

Related Commands

Examples

Compile

HSSerial:COMPile

WPLugin:ACTive

HSSERIAL:COMPILE compiles a nd generates the waveforms.

HSSerial:COMPile:ATSequence:ENABle

This command sets or returns the Add to sequence compile state (enabled or disabled) for the Compile Settings.

Group

2-66 High Speed Serial Plug-in Programmer Manual

Compile

Command Descriptions

Syntax

Arguments

Returns

Examples

HSSerial:COMP HSSerial:COMPile:ATSequence:ENABle?

OFF or 0 disables Add to sequence. OFF or 0 is the default value. ON or 1 enables Add to sequence.

A single <Boolean> value.

HSSERIAL:COMPILE:ATSEQUENCE:ENABLE 1 enables Add to sequence.

HSSERIAL:COMPILE:ATSEQUENCE:ENABLE? might return 0, indicating that

Add to sequence is not enabled.

ile:ATSequence:ENABle {0|1|OFF|ON}

HSSerial:COMPile:ATSequence:SEQuence

This command sets or returns the sequence name in the sequence list when the Add to an existing sequence is enabled for the Compile Settings.

To set, the sequence must exist in the Sequence List.

Group

Syntax

Related Commands

Arguments

Returns

Examp

les

Compile

HSSerial:COMPile:ATSequence:SEQuence <sequence_name> HSSerial:COMPile:ATSequence:SEQuence?

HSSerial:COMPile:ATSequence:TRACk

<sequence_name>::=<string> deﬁnes the sequence name in the sequence list.

A single <sequence_name> string.

HSSERIAL:COMPILE:ATSEQUENCE:SEQUENCE "SEQUENCE_1" sets the

sequence named Sequence_1asthetargetsequencewhenAddtoanexisting sequence is enabled for the compile settings.

HSSERIAL:COMPILE:ATSEQUENCE:SEQUENCE? might return “Sequence_2”,

indicating this is the selected sequence name.

High Speed Serial Plug-in Programmer Manual 2-67

Command Descriptions

HSSerial:COM

Related Commands

Arguments

Examples

Pile:ATSequence:TRACk

This command sets or returns the track name when the Add to an existing sequence is e nabled for the Compile Settings.

To set, the track must exist in the named sequence.

Group

Syntax

Returns

Compile

HSSerial:COMPile:ATSequence:TRACk <track> HSSerial:COMPile:ATSequence:TRACk?

HSSerial:COMPile:ATSequence:SEQuence

<track>::=<string> deﬁnes the track name.

A single <track> string.

HSSERIAL:COMPILE:ATSEQUENCE:TRACK "Track 2" sets the track named

Track 2 as the target track when Add to an existing sequence is enabled for the compile settings.

HSSERIAL:COMPILE:ATSEQUENCE:TRACK? might return “Track_2”,

indicating this is the selected track name.

HSSerial:COMPile:CANCel (No Query Form)

This command cancels a compilation currently in progress.

Conditions

Group

Syntax

Related Commands

Examples

The active plug-in must be High Speed Serial.

Compile

HSSerial:COMPile:CANCel

WPLugin:ACTive

HSSERIAL:COMPILE:CANCEL immediately ends the current compile process.

2-68 High Speed Serial Plug-in Programmer Manual

Command Descriptions

HSSerial:COM

Conditions

Related Commands

Arguments

Pile:CORRection:APPLy

This command enables or disables applying a corrections ﬁle during compile.

delete if no conditions

Group

Syntax

Returns

Compile

HSSerial:COMPile:CORRection:APPLy {0|1|OFF|ON} HSSerial:COMPile:CORRection:APPLy?

HSSerial:COMPile:CORRection:PATH

OFF or 0 enables applying a corrections ﬁle. OFF or 0 is the default value.

ON or 1 disables applying a corrections ﬁle.

A single <Boolean> value.

Examples

HSSERIAL:COMPILE:CORRECTION:APPLY ON applies a correction ﬁle during

compile.

HSSERIAL:COMPILE:CORRECTION:APPLY? might return 0, indicating that

adding a correction ﬁle is disabled.

HSSerial:COMPile:CORRection:PATH

This command sets or returns the path of the corrections ﬁle to use during compile.

Group

Syntax

Related Commands

Arguments

Compile

HSSerial:COMPile:CORRection:PATH <filepath> HSSerial:COMPile:CORRection:PATH?

HSSerial:COMPile:CORRection:APPLy

<ﬁlepath>::=<string> deﬁnes path to the corrections ﬁle.

High Speed Serial Plug-in Programmer Manual 2-69

Command Descriptions

Returns

Examples

Asingle<ﬁlepa

HSSERIAL:COMPILE:CORRECTION:PATH "C:\temp\CorrectionFile.corr"

ﬁlename.

HSSERIAL:COMPILE:CORRECTION:PATH? might return "C:\temp\CorrectionFile.corr".

HSSerial:COMPile:NAME

This commands sets or returns the name of the compiled waveform.

Group

Syntax

Arguments

Compile

HSSerial:COMPile:NAME <signal_name> HSSerial:COMPile:NAME?

<signal_name>::=<string> deﬁnes the signal n ame to be created.

th> string.

sets the Correction File's path and

Returns

Examples

A single <signal_name> string.

HSSERIAL:COMPILE:NAME "HSSWfm" sets the waveform n ame to HSSWfm.

HSSERIAL:COMPILE:NAME? might return "HSSWfm".

HSSerial:COMPile:OPTions

This command sets o r returns the “Compile and assign” setting for the Compile Settings.

When Compile and assign is disabled, Compile only is enabled by default.

Group

Syntax

Related Commands

Compile

HSSerial:COMPile:OPTions {0|1|OFF|ON} HSSerial:COMPile:OPTions?

HSSerial:COMPile:PLAY

2-70 High Speed Serial Plug-in Programmer Manual

Command Descriptions

Arguments

Returns

Examples

OFF or 0 disable

ON or 1 enables Compile and assign.

A single <Boolean> value.

HSSERIAL:COMPILE:OPTIONS 1 enables Compile and assign.

HSSERIAL:COMPILE:OPTIONS? might return 0, indicating that Compile and

assign is disabled (which also means Compile only is enabled).

HSSerial:COMPile:OVERwrite

This command enables or disables overwriting an existing waveform name.

Group

Syntax

Compile

HSSerial:COMPile:OVERwrite {0|1|OFF|ON} HSSerial:COMPile:OVERwrite?

s Compile and assign. OFF or 0 is the default value.

Arguments

Returns

Examples

HSSerial:COMPile:PLAY

Group

OFF or 0 disables overwriting an existing waveform. OFF or 0 is the default value.

ON or 1 enables Overwrite existing waveform.

A single <Boolean> value.

HSSERIAL:COMPILE:OVERWRITE 1 enables the Overwrite the existing

waveform setting.

HSSERIAL:COMPILE:OVERWRITE? might return 0, indicating that the Overwrite

existing waveform setting is not enabled.

This command sets or returns the Play after assign setting for the Compile Settings.

Play after assign is active only when Compile and assign is enabled.

Compile

High Speed Serial Plug-in Programmer Manual 2-71

Command Descriptions

Syntax

Related Commands

Arguments

Returns

Examples

HSSerial:COMP HSSerial:COMPile:PLAY?

HSSerial:COMPile:OPTions

OFF or 0 disables Play after assign. OFF or 0 is the default value.

ON or 1 enables Play after assign.

A single <Boolean> value.

HSSERIAL:COMPILE:PLAY 1 enables Play after assign.

HSSERIAL:COMPILE:PLAY? might return 0, indicating that Play after assign is

disabled.

HSSerial:COMPile:REPeat

ile:PLAY {0|1|OFF|ON}

Conditions

Group

Syntax

Related Commands

Arguments

This command sets or returns the Manual Repeat Count setting for the Compile Settings.

The manual setting is automatically disabled if the Auto Repeat Count is enabled.

Compile

HSSerial:COMPile:REPeat <value> HSSerial:COMPile:REPeat?

HSSerial:COMPile:REPeat:MTYPe HSSerial:COMPile:REPeat:AUTO

<value>::=<NR1> when count type is set to count. <value>::=<NR3> when count type is set to seconds.

Returns

2-72 High Speed Serial Plug-in Programmer Manual

A single <NR1> value when count type is set to count. A single <NR3> value when count type is set to seconds.

Command Descriptions

Examples

HSSERIAL:COMP

HSSERIAL:COMPILE:REPEAT? might return 2.0000000000E-9, indicating that

Manual repeat

HSSerial:COMPile:REPeat:AUTO

This command sets or returns the Auto Repeat Count setting.

Conditions

Group

Syntax

Related Commands

The manual setting is automatically enabled if the Auto Repeat Count is disabled.

Compile

HSSerial:COMPile:REPeat:AUTO {0|1|OFF|ON} HSSerial:COMPile:REPeat:AUTO

HSSerial:COMPile:REPeat

ILE:REPEAT 3

is set to 2 ns.

sets the Manual Repeat Count to 3.

Arguments

Returns

Examples

OFF or 0 disables Auto Repeat Count. ON or 1 enables Auto Repeat Count. On or 1 is the default value.

A single <Boolean> value.

HSSERIAL:COMPILE:REPEAT:AUTO 0 disables the Auto Repeat Count setting.

HSSERIAL:COMPILE:REPEAT:AUTO? might return 1, indicating that Auto

Repeat Count is enabled.

HSSerial:COMPile:REPeat:MTYPe

This command sets or returns the Manual Repeat Count type.

Group

Syntax

Compile

HSSerial:COMPile:REPeat:MTYPe {COUNt|TIME}

Related Commands

High Speed Serial Plug-in Programmer Manual 2-73

HSSerial:COMPile:REPeat

Command Descriptions

Arguments

Returns

Examples

HSSerial:COMPile:SPUI

Group

Syntax

COUNt allows th TIME allows the user to enter a waveform length in time.

COUN TIME

HSSERIAL:COMPILE:REPEAT:MTYPE COUNT sets the Manual repeat type to

Count.

HSSERIAL:COMPILE:REPEAT:MTYPE? might return TIME, indicating that the

Manual repeat type is set to Time.

This command sets or returns the value of the Samples/Unit Interval for the Compile Settings.

Compile

HSSerial:COMPile:SPUI <samples/UI> HSSerial:COMPile:SPUI?

e user to set the number of times to repeat the waveform.

Related Commands

Arguments

Returns

Examples

HSSerial:COMPile:STYPe

The default value is 6.

Range:

A single <NR3> value.

HSSERIAL:COMPILE:SPUI 3 sets the Samples/Unit Interval to 3.

HSSERIAL:COMPILE:SPUI? might return 25.0000000000, indicating that

the Samples/Unit Interval is set to 25.

HSSerial:COMPile:SRATe

This command sets or returns the sampling rate for the Compile settings.

AWG70001A

AWG70002A

1to50

1to25

2-74 High Speed Serial Plug-in Programmer Manual

Command Descriptions

Group

Syntax

Related Commands

Arguments

Returns

Examples

Compile

HSSerial:COMPile:SRATe <NR3> HSSerial:COMPile:SRATe?

HSSerial:COMPile:STYPe

A single <NR3> value.

Range:

AWG70001A 1.49 kS/s to 50 GS/s

AWG70002A 1.49 kS/s to 25 GS/s

A single <NR3> value.

HSSERIAL:COMPILE:SRATE 6E9 sets the Sampling Rate to 6 GS/s in the

Compile settings.

HSSERIAL:COMPILE:SRATE? might return 6.0000000000E+9, indicating the

Sampling Rate is set to 6 GS/s.

HSSerial:COMPile:STYPe

This command sets or returns the Sampling R ate type for the Compile Settings.

Group

Syntax

Related Commands

Arguments

Compile

HSSerial:COMPile:STYPe {AUTO|SRATe|SPUI} HSSerial:COMPile:STYP

HSSerial:COMPile:SPUI, HSSerial:COMPile:SRATe

AUTO: Sets the Sampling Rate to be automatically calculated by the system.

SRATe: Sets the Sampling Rate to be manually set by the user.

SPUI: Sets the Sampling Rate to Samples/Unit Interval.

High Speed Serial Plug-in Programmer Manual 2-75

Command Descriptions

Returns

Examples

HSSerial:DCD:ENABle

Group

Syntax

AUTO SRAT SPUI

HSSERIAL:COMPILE:STYPE SPUI sets the Sampling Rate type to Samples/Unit

Interval.

HSSERIAL:COMPILE:STYPE? might return SRAT, indicating that the Sampling

Rate is set to Manual.

This command sets or returns the Duty Cycle Distortion (DCD) state (enabled or disabled).

Pattern Duty Cycle Distortion

HSSerial:DCD:ENABle {0|1|OFF|ON} HSSerial:DCD:ENABle?

Related Commands

Arguments

Returns

Examples

HSSerial:DCD:VALue

Conditions

HSSerial:DCD:VALue

OFF or 0 disables Duty Cycle Distortion (DCD). OFF or 0 is the default value. ON or 1 enables Duty Cycle Distortion (DCD).

A single <Boolean> value.

HSSERIAL:DCD:ENABLE 1 enables DCD.

HSSERIAL:DCD:ENABLE? might return 0, indicating that D CD is disabled.

This command sets or returns the Duty Cycle Distortion (DCD) value.

See the examples for using the set and query forms as either UI or seconds.

2-76 High Speed Serial Plug-in Programmer Manual

Command Descriptions

Group

Syntax

Related Commands

Arguments

Returns

Examples

Pattern Duty Cy

HSSerial:DCD:VALue <distortion> HSSerial:DCD:VALue?

HSSerial:DCD:ENABle

<distortion>::=<NR3> value.

Range as UI: 0.01 UI to 0.5 UI

Range in seconds: 10 ps to 500 ps

A single <NR3> value.

Unit Intervals

HSSERIAL:DCD:VALUE 0.5 sets the DCD value to 0.5 UI.

HSSERIAL:DCD:VALUE? might r eturn 10.0000000000E-3, indicating that the

DCD value is set to 0.01 UI .

cle Distortion

HSSerial:DRATe

Arguments

Returns

Group

Syntax

Seconds

HSSERIAL:DCD:VALUE 10E-12 sets the DCD value to 10 ps.

HSSERIAL:DCD:VALUE? might return 10.0000000000E-12, indicating that

the DCD value is set to 10 ps.

This command sets or returns the Data Rate.

Pattern Basic Settings

HSSerial:DRATe <rate> HSSerial:DRATe?

<rate>::= <NR3>.

A single <NR3> value.

High Speed Serial Plug-in Programmer Manual 2-77

Command Descriptions

Examples

HSSERIAL:DRAT

HSSERIAL:DRATE? might return 1.000000 0000E+9, indicating that the Data

Rate is set to 1

E6E9

Gbps.

HSSerial:ENCode:ENCo8b10b:DISParity

This command sets or returns the 8B/10B encoding state setting.

Group

Syntax

Related Commands

Arguments

Pattern Encoding/Modulation

HSSerial:ENCode:ENCo8b10b:DISParity {RDPLus|RDMinus} HSSerial:ENCode:ENCo8b10b:DISParity?

HSSerial:ENCode:ENCo8b10b:ENABle

RDPLus is running disparity plus 1.

RDMinus is running disparity minus 1.

sets the data rate to 6 GHz.

Returns

Examples

RDPL RDM

HSSERIAL:ENCODE:ENCO8B10B:DISPARITY RDPLus sets the disparity to

RD+.

HSSERIAL:ENCODE:ENCO8B10B:DISPARITY? might return RDM, indicating the

disparity is set to RD–.

HSSerial:ENCode:ENCo8b10b:ENABle

This command sets or returns the 8B/10B encoding state (enabled or disabled).

The Base Pattern Data must be set to Pattern and the Pattern type set to Symbol to use 8B/10B encoding.

Group

Syntax

Pattern Encoding/Modulation

HSSerial:ENCode:ENCo8b10b:ENABle {0|1|OFF|ON} HSSerial:ENCode:ENCo8b10b:ENABle?

2-78 High Speed Serial Plug-in Programmer Manual

Command Descriptions

Related Commands

Arguments

Returns

Examples

HSSerial:ENCo

OFF or 0 disables 8B/10B encoding. OFF or 0 is the default value. ON or 1 enable

A single <Boolean> value.

HSSERIAL:ENCODE:ENCO8B10B:ENABLE 1 enables 8B/10B encoding.

HSSERIAL:ENCODE:ENCO8B10B:ENABLE? might return 0, indicating that

8B/10B encoding is disabled.

de:ENCo8b10b:DISParity

s 8B/10B encoding.

High Speed Serial Plug-in Programmer Manual 2-79

Command Descriptions

HSSerial:ENC

Conditions

Related Commands

Arguments

ode:GCODing:ENABle

This command sets or returns the Gray Coding state (enabled or disabled) for the PAM Signaling Scheme.

The Encoding/Modulation signaling scheme must be set to PAM.

Group

Syntax

Returns

Pattern Encoding/Modulation

HSSerial:ENCode:GCODing:ENABle {1|0|ON|OFF} HSSerial:ENCode:GCODing:ENABle?

HSSerial:ENCode:SCHeme

OFF or 0 disables the PAM Gray Coding. OFF or 0 is the default value.

ON or 1 enables the PAM Gray Coding.

A single <Boolean> value.

Examples

HSSERIAL:ENCODE:GCODING:ENABLE 1 enables PAM Gray Coding.

HSSERIAL:ENCODE:GCODING:ENABLE? might return 0, indicating that PAM

Gray Coding is disabled.

2-80 High Speed Serial Plug-in Programmer Manual

Command Descriptions

HSSerial:ENC

Conditions

Related Commands

Arguments

ode:GCODing:FILE

This command sets or returns the ﬁlepath to the Gray Coding ﬁle for the PAM Signaling Scheme.

The Encoding/Modulation signaling scheme must be set to PAM.

Group

Syntax

Returns

Pattern Encoding/Modulation

HSSerial:ENCode:GCODing:FILE <file_path> HSSerial:ENCode:GCODing:FILE?

HSSerial:ENCode:SCHeme

<ﬁle_path>::=<string>.

Asingle<ﬁle_path> string.

Examples

HSSERIAL:ENCODE:GCODING:FILE

HSSERIAL:ENCODE:GCODING:FILE "C:\Graycodingfile.txt"

Gray Coding Signaling Scheme ﬁlepath and ﬁlename.

HSSERIAL:ENCODE:GCODING:FILE? might return "C:\CustomSSCFile.txt", indicating Gray Coding Signaling Scheme ﬁlepath

and ﬁlename.

HSSerial:ENCode:PAM:LEVels

This command sets or returns the Pulse-amplitude Modulation (PAM) encoding.

Group

Syntax

Arguments

Pattern Encoding/Modulation

HSSerial:ENCode:PAM:LEVels {PAM4|PAM8|PAM16} HSSerial:ENCode:PAM:LEVels?

PAM4 is 4 levels of PAM modulation.

PAM8 is 8 levels of PAM modulation.

sets the

PAM16 is 16 levels of PAM modulation.

High Speed Serial Plug-in Programmer Manual 2-81

Command Descriptions

Returns

Examples

PAM4 PAM8 PAM16

HSSERIAL:ENCODE:PAM:LEVELS PAM8 sets the PAM encoding to eight levels.

HSSERIAL:ENCODE:PAM:LEVELS? might return PAM4, indicating that the PAM

encoding is set to 4 levels.

HSSerial:ENCode:PAM:NVALue

This command sets or returns the PAM Normalized levels value for the speciﬁed row.

Group

Syntax

Pattern Encoding/Modulation

HSSerial:ENCode:PAM:NVALue <rownum>,<value> HSSerial:ENCode:PAM:NVALue? <rownum>

Arguments

Returns

Examples

<rownum>::=<NR1> is the row number of the PAM level. 0 speciﬁes the ﬁr

<value>::=<NR3> is the PAM normalized levels value.

A single <NR3> value.

HSSERIAL:ENCODE:PAM:NVALUE1,0.3 sets the PAM Normalized Level for

the second row to 0.

HSSERIAL:ENCODE:PAM:NVALUE? might return 333.0000000000E-3,

indicating that t

HSSerial:ENCode:PWM:ENABle

This command sets or returns Pulse Width Modulation (PWM) state (enabled or disabled).

Group

Syntax

Pattern Encoding/Modulation

HSSerial:ENCode:PWM:ENABle {0|1|OFF|ON} HSSerial:ENCode:PWM:ENABle?

st row.

he PAM normalized level value is 0.3.

2-82 High Speed Serial Plug-in Programmer Manual

Command Descriptions

Related Commands

Arguments

Returns

Examples

HSSerial:ENCo

OFF or 0 disables PWM. OFF or 0 is the default value.

ON or 1 enables PWM.

A single <Boolean> value.

HSSERIAL:ENCODE:PWM:ENABLE 1 enables the PWM.

HSSERIAL:ENCODE:PWM:ENABLE? might return 0, indicating that PWM is

disabled.

HSSerial:ENCode:PWM:TMINor

This command sets or returns the T_Minor value of the PWM.

Group

Pattern Encoding/Modulation

de:PWM:TMINor

Syntax

Related Commands

Arguments

Returns

Examples

HSSerial:ENCode:PWM:TMINor <t_minor> HSSerial:ENCode:PWM:TMINor?

HSSerial:ENCode:PWM:ENABle

<t_minor>::=<NR3> value.

A single <NR3> value.

HSSERIAL:ENCODE:PWM:TMINOR 0.2 sets the T_Minor value to 0.2 UI.

HSSERIAL:ENCODE:PWM:TMINOR? might return 340.0000000000E-3,

indicating that the T Minor value is set to 0.34 UI.

HSSerial:ENCode:SCHeme

This command sets or returns the Signaling Scheme on the base data pattern.

Group

High Speed Serial Plug-in Programmer Manual 2-83

Pattern Encoding/Modulation

Command Descriptions

Syntax

Arguments

Returns

Examples

HSSerial:ISTate:OFFSet

HSSerial:ENCo HSSerial:ENCode:SCHeme?

NRZ sets the signaling scheme to non-return to zero.

NRZI sets the signaling scheme to non-return to zero inverted encoding.

PAM sets the signaling s cheme to pulse amplitude encoding.

NRZ NRZI PAM

HSSERIAL:ENCODE:SCHEME NRZI sets the signaling scheme to NRZI.

HSSERIAL:ENCODE:SCHEME? might return NRZ, indicating the signaling scheme

is NRZ.

This command sets or returns the idle state amplitude offset.

de:SCHeme {NRZ|NRZI|PAM}

Group

Syntax

Related Commands

Arguments

Returns

Examples

HSSerial:ISTate:VALue

Pattern Basic Settings

HSSerial:ISTate:OFFSet <offset> HSSerial:ISTate:OFFSet?

HSSerial:BDATa

<offset>::= <NR3> value.

A single <NR3> value.

HSSERIAL:ISTATE:OFFSET 200E-3 sets the idle state offset to 200 mV.

HSSERIAL:ISTATE:OFFSET? might return 20.0000000000E-3 indicating that

the idle state offset is set to 20 mV.

This command sets or returns the idle state time.

2-84 High Speed Serial Plug-in Programmer Manual

Command Descriptions

Group

Syntax

Arguments

Returns

Examples

Pattern Basic S

HSSerial:ISTate:VALue <time> HSSerial:ISTate:VALue?

<time>::= <NR3> value.

A single <NR3> value.

HSSERIAL:ISTATE:VALUE 16E-9 sets the idle state time to 16 ns.

HSSERIAL:ISTATE:VALUE? might return 10.0000000000E-9, indicating the

idle state time is set to 10 ns.

ettings

HSSerial:MARKer[n]:CLOCk:FREQuency

This command sets or returns the user deﬁned clock frequency for the speciﬁed marker.

Group

Syntax

Related Commands

Arguments

Returns

Examples

Pattern Markers

HSSerial:MARKer[n]:CLOCk:FREQuency <frequency> HSSerial:MARKer[n]:CLOCk:FREQuency?

HSSerial:MARKer[n]:CLOCk:TYPE

[n] ::= {1|2} ("n" determines marker 1 or 2. If omitted, interpreted as 1.)

<frequency>::= <NR3> value.

A single <NR3> value.

HSSERIAL:MARKER1:CLOCK:FREQUENCY 1E9 sets the marker 1 clock

frequency to 1 GHz.

HSSERIAL:MARKER2:CLOCK:FREQUENCY? might return 10.0000000000E+6,

indicating that the marker 2 clock frequency is set to 10 MHz.

High Speed Serial Plug-in Programmer Manual 2-85

Command Descriptions

HSSerial:MAR

Arguments

Ker[n]:CLOCk:TYPE

This command sets or returns the marker clock type for the speciﬁed marker.

Group

Syntax

Pattern Markers

HSSerial:MARKer[n]:CLOCk:TYPE {D1Rate|D2Rate|D4Rate|D8Rate|DURate} HSSerial:MARKer[n]:CLOCk:TYPE?

[n] ::= {1|2} ("n" determines marke r 1 or 2. If omitted, interpreted as 1.)

D1Rate sets the clock frequency to the data rate.

D2Rate sets the clock frequency to ½ the data rate.

D4Rate sets the clock frequency to ¼ the data rate.

D8Rate sets the clock frequency to

DURate set the clock frequency to a user deﬁned rate.

/8thedatarate.

Returns

Examples

D1R D2R D4R D8R DUR

HSSERIAL:MARKER1:CLOCK:TYPE D2R sets the marker 1 clock type to ½ the

data rate.

HSSERIAL:MARKER2:CLOCK:TYPE? might return DUR, indicating that the

marker2typeissettoauserdeﬁned rate.

HSSerial:MARKer[n]:ENABle

This command sets or returns the spec iﬁed marker’s state (enabled or disabled).

Group

Syntax

Pattern Markers

HSSerial:MARKer[n]:ENABle {0|1|OFF|ON} HSSerial:MARKer[n]:ENABle?

2-86 High Speed Serial Plug-in Programmer Manual

Command Descriptions

Arguments

Returns

Examples

[n] ::= {1|2} ("

OFF or 0 disables the speciﬁed marker. OFF or 0 is the default value. ON or 1 enables the speciﬁed marker.

A single <Boolean> value.

HSSERIAL:MARKER1:ENABLE 1 enables marker 1.

HSSERIAL:MARKER2:ENABLE? might return 0 indicating that marker 2 is

disabled.

HSSerial:MARKer[n]:HLOW:TYPE

This command sets or returns the High/Low type of the speciﬁed marker.

Group

Syntax

Pattern Markers

HSSerial:MARKer[n]:HLOW:TYPE {AHIGh|ALOW|TRIGger} HSSerial:MARKer[n]:HLOW:TYPE?

n" determines marker 1 or 2. If omitted, interpreted as 1.)

Arguments

Returns

Examples

[n] ::= {1|2} ("n" determines marker 1 or 2. If omitted, interpreted as 1.)

AHIGh sets the markers to all high.

ALOW sets the markers to all low.

TRIGger sets the marker to transition (High To Low or Low To High) at the setnumberofsamples.

AHIG: All Low ALOW: All High TRIG: Transitions on t

HSSERIAL:MARKER1:HLOW:TYPE ALOW sets the marker 1 type to All Low.

HSSERIAL:MARKER2:HLOW:TYPE? might return ALOW, indicating the marker 2

type is set to All Low.

HSSerial:MARKer[n]:TRIGger:LENGth

This command sets or returns the number of samples of the speciﬁed marker when the marker type is set to Trigger.

rigger

High Speed Serial Plug-in Programmer Manual 2-87

Command Descriptions

Group

Syntax

Arguments

Returns

Examples

Pattern Marker

HSSerial:MARKer[n]:TRIGger:LENGth <samples> HSSerial:MARKer[n]:TRIGger:LENGth?

[n] ::= {1|2} ("n" determines marke r 1 or 2. If omitted, interpreted as 1.)

<samples>::=<NR2> value.

A single <NR2> value.

HSSERIAL:MARKER1:TRIGGER:LENGTH 15 sets the marker 1 trigger length is

setto15samples.

HSSERIAL:MARKER2:TRIGGER:LENGTH? might return 22.0000000000,

indicating the marker 2 number of trigger samples is set to

HSSerial:MARKer[n]:TRIGger:TYPE

This command sets or returns the marker High/Low trigger type setting for the speciﬁed marker.

22.

Group

Syntax

Arguments

Returns

Examples

Pattern Markers

HSSerial:MARKer[n]:TRIGger:TYPE {LTHigh|HTLow} HSSerial:MARKer[n]:TRIGger:TYPE?

[n] ::= {1|2} ("n" determines marke r 1 or 2. If omitted, interpreted as 1.)

LTHigh sets the trigger type to Low to High

HTLow sets the trigger type to High to Low

LTH HTL

HSSERIAL:MARKER1:TRIGGER:TYPE LTHIGH sets the marker 1 trigger type

to Low To High.

HSSERIAL:MARKER2:TRIGGER:TYPE? might return HTL, indicating the marker

2 trigger type is set to High To Low.

2-88 High Speed Serial Plug-in Programmer Manual

Tektronix High Speed Serial Programmer

Specifications and Main Features

Frequently Asked Questions

User Manual
