Instructions
DSA82UP
Option MU2
DSA8200 Instruments
Memory Upgrade Kit
071-2583-00
Warning
The servicing instructions are for use by qualified
personnel only. To avoid personal injury, do not
perform any servicing unless you are qualified to
do so. Refer to all safety summaries prior to
performing service.
www.tektronix.com
*P071258300*
071258300
Copyright © Tektronix, Inc. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or
suppliers, and are protected by national copyright laws and international treaty provisions.
Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supercedes
that in all previously published material. Specifications and price change privileges reserved.
TEKTRONIX and TEK are registered tradem arks of Tektronix, Inc.
Contacting Tektronix
Tektronix, Inc.
14200 SW Karl Braun Drive
P.O. Box 500
Beaverton, OR 97077
USA
For product information, sales, service, and technical support:
H In North America, call 1-800-833-9200.
H Worldwide, visit www.tektronix.com to find contacts in your area.
General Safety Summary
Review the following safety precautions to avoid injury and prevent damage to
this product or any products connected to it. To avoid potential hazards, use this
product only as specified.
Only qualified personnel should perform service procedures.
While using this product, you may need to access other parts of the system. Read
the General Safety Summary in other system manuals for warnings and cautions
related to operating the system.
ToAvoidFireor
Personal Injury
Use Proper Power Cord. Use only the power cord specified for this product and
certified for the country of use. Power cord needed only in the mainframe, not
modules.
Connect and Disconnect Properly. Do not connect or disconnect probes or test
leads while they are connected to a voltage source.
Ground the Product. The mainframe is grounded through the grounding
conductor of the power cord. To avoid electric shock, the grounding conductor
must be connected to earth ground. Before making connections to the input or
output terminals of the product, ensure that the product is properly grounded.
Ground the Product. The modules are indirectly grounded through the grounding
conductor of the mainframe power cord. To avoid electric shock, the grounding
conductor must be connected to earth ground. Before making connections to the
input or output terminals of the product, ensure that the product is properly
grounded.
Observe All Terminal Ratings. To avoid fire or shock hazard, observe all ratings
and markings on the product. Consult the product manual for further ratings
information before making connections to the product.
Do not apply a potential to any terminal, including the common terminal, that
exceeds the maximum rating of that terminal.
Do Not Operate Without Covers. Do not operate this product with covers or panels
removed.
Use Proper Fuse. Use only the fuse type and rating specified for this product.
Avoid Exposed Circuitry. Do not touch exposed connections and components
when power is present.
Wear Eye Protection. Wear eye protection if exposure to high-intensity rays or
laser radiation exists.
Do Not Operate With Suspected Failures. If you suspect there is damage to this
product, have it inspected by qualified service personnel.
DSA82UP Option MU2 Upgrade Kit
1
General Safety Summary
Do Not Operate in Wet/Damp Conditions.
Do Not Operate in an Explosive Atmosphere.
Keep Product Surfaces Clean and Dry.
Provide Proper Ventilation. Refer to the manual’s installation instructions for
details on installing the product so it has proper ventilation.
Symbols and Terms
Terms in this Manual. These terms may appear in this manual:
WARNING. Warning statements identify conditions or practices that could result
in injury or loss of life.
CAUTION. Caution statements identify conditions or practices that could result in
damage to this product or other property.
Terms on the Product. These terms may appear on the product:
DANGER indicates an injury hazard immediately accessible as you read the
marking.
WARNING indicates an injury hazard not immediately accessible as you read the
marking.
CAUTION indicates a hazard to property including the product.
Symbols on the Product. The following symbols may appear on the product:
CAUTION
Refer to Manual
Mains Disconnected
OFF (Power)
WARNING
High Voltage
Mains Connected
ON (Power)
2
Protective Ground
(Earth) Terminal
Standby
DSA82UP Option MU2 Upgrade Kit
Service Safety Summary
Only qualified personnel should perform service procedures. Read this Service
Safety Summary and the General Safety Summary before performing any service
procedures.
Do Not Service Alone. Do not perform internal service or adjustments of this
product unless another person capable of rendering first aid and resuscitation is
present.
Disconnect Power. To avoid electric shock, switch off the instrument power, then
disconnect the power cord from the mains power.
Use Care When Servicing With Power On. Dangerous voltages or currents may
exist in this product. Disconnect power, remove battery (if applicable), and
disconnect test leads before removing protective panels, soldering, or replacing
components.
To avoid electric shock, do not touch exposed connections.
DSA82UP Option MU2 Upgrade Kit
3
Service Safety Summary
4
DSA82UP Option MU2 Upgrade Kit
Kit Description
This kit option supports adding a single 1 GB memory module to the CPU board
in the DSA82000 instruments, changing the amount of memory from 512 MB to
1GB.
If installation service is desired, please contact the service center in your region
to schedule installation.
This section contains instructions to check that the additional memory which you
installed is functioning.
Before You Begin
Products
Kit Parts List
You can install this kit option whether installing the product software provided
by the main kit or not. If you are installing the product software, install it before
installing this kit option (see main kit instructions 071-1385-XX).
You can check your current memory size of your instrument by performing the
procedure Verify Operation on page 23. If the memory size is 512 MB, you can
install Option MU2.
DSA8200 Instruments with 512 MB of memory
Circuit/figure
number
1 1 ea. 167--1048--00 IC,MEMORY;128M X 64,1GB DDR2
1 1 ea. 071--2583--XX MANUAL,TECH; INSTRUCTION,OPTION
Quantity Part number Description
1.8V,3--3--3,667
MHZ;MT8HTF12864AY--667E1,DIMM240,DS1
INSTALLATION;DSA82UP OPTION MU2
DSA82UP Option MU2 Upgrade Kit
5
Kit Description
6
DSA82UP Option MU2 Upgrade Kit
Installation Instructions
This section contains the procedures needed to install the memory module in the
DSA8200 instruments.
These instructions are a service procedure and should be performed by qualified
service personnel. If you need further details for disassembling or reassembling
the product, refer to the DSA8200 Service manual. Contact your nearest
Tektronix Service Center or Tektronix Factory Service for installation assistance.
CAUTION. To prevent static discharge damage, service the product only in a
static-free environment. Observe standard handling precautions for static-sensitive devices while installing this kit. Always wear a grounded wrist strap,
grounded foot strap, and static resistant apparel while installing this kit.
Preparation
WARNING. Before doing this or any other procedure in this manual, read the
Safety Summaries found at the beginning of these instructions.
This subsection contains the following items:
H Preparatory information that you need to properly do the procedures that
follow.
H A list of tools required.
H Procedures to disassembly the instrument and install the additional memory
module.
WARNING. Before doing any procedure in this subsection, disconnect the power
cord from the line voltage source. Failure to do so could cause serious injury or
death.
Equipment Required. Most modules in this instrument can be removed with a
screwdriver handle mounted with a size T-15, TorxR screwdriver tip. Use this
tool whenever a procedure step instructs you to remove or install a screw unless
a different size screwdriver is specified in that step.
DSA82UP Option MU2 Upgrade Kit
7
Installation Instructions
Table 1: Tools required for module removal
Item
No.
1 Screwdriver handle Accepts TorxR-driver bits General Tool:
Name Description Part number
620-440
2 T-15 Torx tip Used for removing most the instru-
ment’s screws.
3 T-20 Torx tip Used for removing the handle
screws.
4
5 #0 Phillips screwdriver Screwdriver for removing small
1
/4inch flat-bladed screw-
driver
Screwdriver for unlocking side
panels.
phillips screws.
Follow the procedures in the order presented.
General Tool:
640-247
General Tool:
640-250
Standard tool
Standard tool
8
DSA82UP Option MU2 Upgrade Kit
Installation Instructions
Trim and Carrying Handle
1. Locate module to be removed: Locate the Trim to be removed. See Figure 1,
page 10.
2. Remove the top cover trim: Use Figure 1, page 10 as a guide.
a. Remove the accessory pouch; it snaps off.
b. Remove the four T-15 Torxdrive screws that secure the top cover trim to
the instrument. The T-15 Torxdrive screws also secure the snap studs to
the top cover.
c. Remove the top cover trim from the instrument.
3. Remove the front panel trim: Use Figure 1, page 10, as a guide.
a. Slide the flat end of a soldering aid (or flat screwdriver) into the side slot
on the trim ring to help detach the side snaps.
b. Swing the bottom of the ring upward and off the front panel.
4. Remove the acquisition trim: Use Figure 1, page 10 as a guide.
a. Remove the six T-15 Torxdrive screws that secure the acquisition trim to
the instrument.
b. Remove the knobs from the electrical and optical ejector levers. Grasp
the knobs with your fingers and pull straight out.
c. Remove the acquisition trim from the instrument.
5. Remove the carrying handle and the right/left side trim panels: Use
Figure 1, page 10 as a guide.
a. Remove the two T-20 Torxdrive screws that secure the handle to the
instrument. Remove the handle from the instrument.
CAUTION. Over-tightening the handle screws may cause the handle to break off
from the cabinet. When reinstalling the screws, use a torque wrench to tighten
the screws to 8--10 in-lb.
b. Slide the side trim panels towards the rear of the instrument allowing the
tabs to clear the cover openings, then pull out to remove the panels from
the instrument.
6. Reinstallation: Do in reverse steps 2 through 5 to reinstall the appropriate
trim.
DSA82UP Option MU2 Upgrade Kit
9
Installation Instructions

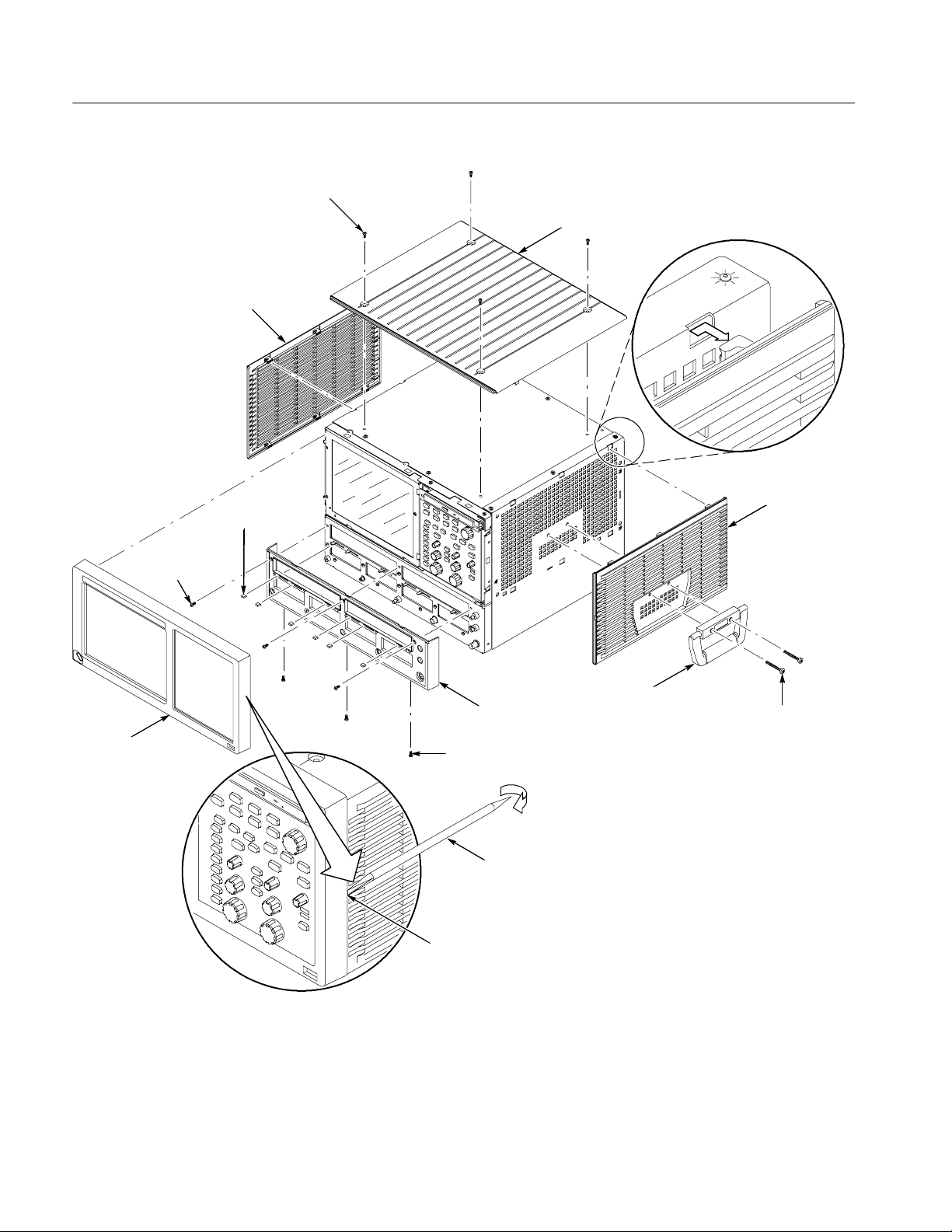

Left side trim
Lever knob (6)
T-15 Torxdrive
screw (4)
Top cover trim
Right side trim
T-15 Torxdrive
screw (3)
Front panel trim
Acquisition trim
Carrying handle
T-15 Torxdrive screw (3)
Soldering aid
To remove the trim ring, slide the flat
end of a soldering aid into the side slot
on the trim ring. Press in, then lift up to
hook it underneath, then pry up.
T-20 Torxdrive
screw (2)
Figure 1: Trim removal
10
DSA82UP Option MU2 Upgrade Kit
Installation Instructions
Bottom Cover
1. Locate the module to be removed: Locate the bottom cover. See Figure 2,
page 11.
2. Orient the instrument: Set the instrument so its top is down on the work
surface and its bottom is facing you.
3. Remove the bottom cover: Use Figure 2 on page 11 as a guide.
a. Remove the five T-15 Torxdrive screws that secure the bottom cover to
the instrument.
b. Remove the bottom cover from the instrument.
4. Reinstallation: Do in reverse steps a and b to reinstall the cabinet feet.
T-15 Torxdrive
Figure 2: Bottom cover removal
DSA82UP Option MU2 Upgrade Kit
Bottom cover
screw (5)
11
Installation Instructions
Left and Right Covers
1. Locate the module to be removed: Locate the left and right covers. See
Figures 3 and 4, pages 13 and 14
2. Orient the instrument: Set the instrument so its rear is on the work surface
and the front of the instrument facing the technician.
NOTE. All mounting screw holes are indicated by a star etched around the
mounting hole.
3. Remove the left and right covers: UseFigures3and4onpages13and14as
a guide.
a. Remove the thirteen T-15 Torxdrive screws that secure the covers to the
top and both sides of the chassis.
b. Remove the nine T-15 Torxdrive screws that secure the covers to the
bottom of the chassis.
c. Pull the bottom-right cover down and slide to the right to remove from
the instrument. Pull the top-left cover upward and slide to the left to
remove from the instrument.
CAUTION. Take care not to bind or snag the covers on the instrument’s internal
cabling as you remove or install.
4. Reinstallation: Do in reverse steps a through c to reinstall the cabinet.
12
DSA82UP Option MU2 Upgrade Kit
Left side cover
Installation Instructions
All left and
right cover
mounting
holes are
indicated
as shown.
T-15 Torxdrive screw (13)
Figure 3: Cover removal
Right side cover
DSA82UP Option MU2 Upgrade Kit
13
Installation Instructions
Left side cover
14
Right side cover
T-15 Torxdrive
screw (9)
Figure 4: Cover removal
DSA82UP Option MU2 Upgrade Kit
Installation Instructions
Hard Disk Drive
1. Locate module to be removed: Locate the Hard Disk Drive in the locator
diagram Internal Modules, Figure 5, page 16.
CAUTION. Do not remove the replaceable hard disk drive when the mainframe is
powered on.
The replaceable hard disk drive may be permanently damaged if it is removed
while the mainframe is powered on.
Always power down the mainframe before removing the replaceable hard disk
drive.
2. Orient the instrument: Set the instrument so its bottom is down on the work
surface and its rear panel is facing you.
3. Remove the hard disk drive: See Figure 6, page 17.
a. Verify that the chassis is powered down.
b. Remove the two thumbscrews from the front of the hard disk drive
assembly.
c. Grasp the hard disk drive assembly and slide it out of the instrument.
4. Reinstallation: Do step a. Then, in reverse, do steps b and c to reinstall the
hard disk drive assembly.
DSA82UP Option MU2 Upgrade Kit
15
Installation Instructions
Display adapter
board
Display inverter
Fan assembly
board
CD drive trim
CD--RW/DVD/HD Interface board
Microprocessor
Fan and heat sink
CD drive
Hard-drive
Drive frame
ATX chassis
ATX board
Bridge board
Processor board
Low-voltage power
supply assembly
Standby/On switch
Display module
Figure 5: Internal modules
16
assembly
Front panel
assembly
Front panel knobs
Electrical frontend
board
Acquisition board
Front panel board
Front panel keypad
Rear power
distribution
board
Front power
distribution
board
DSA82UP Option MU2 Upgrade Kit
Installation Instructions
Hard disk drive
assembly
Thumbscrews
CD-RW/DVD Drive
Figure 6: Hard drive disk removal
1. Locate module to be removed: Locate the CD-RW/DVD drive in the locator
diagram Internal Modules, Figure 5, page 16.
2. Orient the instrument: Set the instrument so its bottom is down on the work
surface and its front panel is facing you.
3. Remove the CD-RW/DVD drive trim. See Figure 7, page 18. Remove the two
Phillips screws that hold the trim to the mounting frame and remove the
trim.
4. Remove the CD-RW/DVD drive. See Figure 7, page 18.
a. Place one thumb on each side of the front of the CD-RW/DVD drive and
your forefingers on the back of the drive.
b. Pull the drive straight toward you until the drive detaches from the
CD/HD interface board.
5. Reinstallation: Do in reverse steps 3 and 4 to reinstall the CD-RW/DVD
drive.
DSA82UP Option MU2 Upgrade Kit
17
Installation Instructions
CD--RW/DVD
drive assembly
CD-RW/DVD and Hard
Disk Drive Mounting
Frame
CD--RW/DVD drive trim
Phillips screw (2)
Figure 7: CD- RW/DVD disk drive removal
1. Locate module to be removed: Locate the CD-RW/DVD and hard drive
mounting frame in the locator diagram Internal Modules, Figure 5, page 16.
2. Orient the instrument: Set the instrument so its bottom is down on the work
surface and the side with the mounting drive side is facing you.
3. Remove the mounting frame. See Figure 8, page 19.
a. Remove the six T-15 Torxdrive screws that secure the mounting frame to
the ATX chassis.
b. Remove the CDD/HDD drive tape cable and the P1 cable from the
CDD/HDD interface board.
c. Grasp both far side corners of the drive frame.
d. Lift up and toward the rear of the instrument simultaneously.
e. Gently shift the frame from side to side as you pull it the rear until you
can remove it completely.
18
4. Reinstallation: Do in reverse the substeps of step 3 to reinstall the CD-RW/
DVD and hard drive mounting frame.
DSA82UP Option MU2 Upgrade Kit
P2
Installation Instructions
P1
Drive frame
T-15 Torxdrive
screw (6)
ATX chassis
Drive interface board
cable access hole
Figure 8: Hard drive and CD-RW/DVD drive mounting frame removal
DSA82UP Option MU2 Upgrade Kit
19
Installation Instructions
ATX Board Assembly
1. Locate module to be removed: Locate the ATX board assembly in the locator
diagram Internal Modules, Figure 5, page 16.
2. Remove the ATX Board Assembly: See Figure 9, page 21.
3. Orient the instrument: Set the instrument so its bottom is down on the work
surface and its side panel is facing you.
a. Remove the three T-15 Torxdrive screws that secure ATX board
assembly to the chassis.
b. Remove the four T-15 Torxdrive screws that secure ATX board assembly
to the rear chassis.
c. Grasp the front edge of the ATX board assembly and pull up on the
assembly to disconnect the Riser Adapter from the edge connector of the
PC Processor board.
d. Detach the following connections from the microprocessor board: J410,
J8H1 (FP USB 1), and J300.
e. Remove the ATX board assembly from the instrument.
f. Reinstallation: Do in reverse steps 3a through 3e.
20
DSA82UP Option MU2 Upgrade Kit
Drive interface board
Drive frame
To P2 on drive
interface board
ATX assembly
Drive interface board
cable access hole
Installation Instructions
T-15 Torxdrive
screw (6)
T-15 Torxdrive
screw (3)
To J 8 H1
(FP USB 1)
on ATX
board
To P1 on drive
interface board
To J 5 on
ATX board
T-15 Torxdrive
screw (4)
Figure 9: ATX assembly removal
DSA82UP Option MU2 Upgrade Kit
21
Installation Instructions
Install Memory and
Reassemble
1. Locate the memory module slot. See Figure 10 for the location of the
memory slots.
2. Remove the existing memory from the circuit board.
CAUTION. Due to compatibility issues, do not leave the existing memory installed
in the instrument.
3. Install the 1 GB memory module from the kit into the memory slot on the
circuit board.
4. Verify that the memory module is fully seated into the slot and that it is
secured in place by the the tabs at each end of the memory module.
5. Reassemble the instrument by performing the steps in reverse order.
Memory slot
Figure 10: Memory slot location
ATX board
Memory module
22
DSA82UP Option MU2 Upgrade Kit
Installation Instructions
Verify Operation
This section contains instructions to check that the additional memory which you
installed is functioning.
1. Connect the power cord to the rear panel of the instrument and to the mains
power.
2. Switch the power switch on the rear panel to the on position.
3. Push the Standby/On button to power on the instrument.
4. After the instrument application opens, select Minimize from the File menu
to minimize the application.
5. Right click on the My Computer icon.
6. Select Properties from the pop-up menu.
7. Select the Performance tab in the Properties dialog box.
8. Check that Memory lists the correct amount of RAM.
g End of document g
DSA82UP Option MU2 Upgrade Kit
23
Loading...
