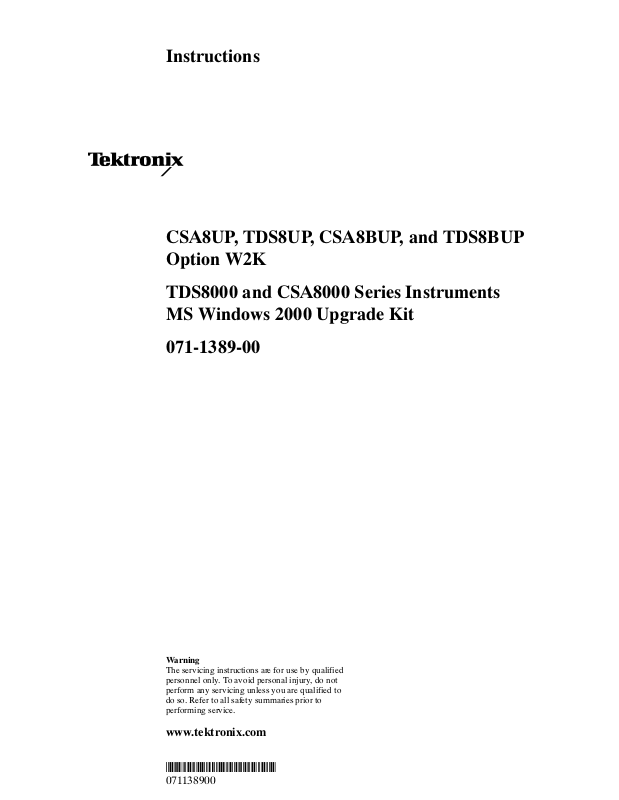

Instructions
CSA8UP, TDS8UP, CSA8BUP, and TDS8BUP
Option W2K
TDS8000 and CSA8000 Series Instruments
MS Windows 2000 Upgrade Kit
071-1389-00
Warning
The servicing instructions are for use by qualified
personnel only. To avoid personal injury, do not
perform any servicing unless you are qualified to
do so. Refer to all safety summaries prior to
performing service.
www.tektronix.com
*P071138900*
071138900
Copyright © Tektronix, Inc. All rights reserved. Licensed software products are owned by Tektronix or its suppliers and
are protected by United States copyright laws and international treaty provisions.
Use, duplication, or disclosure by the Government is subject to restrictions as set forth in subparagraph (c)(1)(i i) of the
Rights in Technical Data and Computer Software clause at DFARS 252.227-7013, or subparagraphs (c)(1) and (2) of the
Commercial Computer Software -- Restricted Rights clause at FAR 52.227-19, as applicable.
Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supercedes
that in all previously published material. Specifications and price change privileges reserved.
Tektronix, Inc., P.O. Box 500, Beaverton, OR 97077
TEKTRONIX and TEK are registered tradem arks of Tektronix, Inc.
Kit Description and Installation
This kit includes software and instructions to install the MS Windows 2000
Operating System (Option W2K) onto your CSA8000, TDS8000, CSA8000B,
and TDS8000B Series instruments. Once installed, the instrument will operate
using MS Windows 2000.
NOTE. Installation of the MS Windows 2000 operating System onto CSA8000 or
TDS8000 instruments requires that option CPU to this kit be installed first.
Tektronix installation service (Option IF) is available for this upgrade. If
installation service is desired, please contact the service center in your region to
schedule installation.
This document supports Tektronix modification: ECO1092
Products
CSA8000 Series All serial numbers (requires option CPU)
TDS8000 Series All serial numbers (requires option CPU)
CSA8000B Series B029999 and below
TDS8000B Series B029999 and below
Kit Parts List
Quantity Part number Description
1ea 071-1389-xx Kit Instructions: Windows 2000, CSA8000 and TDS8000
Series
1ea 020-2527-xx 8000 Series Operating System Restore: 2 CDROMs,
Document
CSA8UP, TDS8UP, CSA8BUP, and TDS8BUP Option W2K Upgrade Kit
1
Kit Description and Installation
Install
MS Windows 2000
Installation
To install the MS Windows 2000 Operating System, follow these steps:
CAUTION. To avoid data loss, back up any important user files stored on the hard
disk. This operating system restoration process reformats the hard disk, which
erases any user-installed files and applications.
1. Install the 8000 Series Instruments Windows 2000 Operating System.
Use the 8000 Series Instruments Windows 2000 Operating System Restore
CDROMs provided in this kit to install the operating system. Follow the
instructions provided with the Windows 2000 operating system restore
CDROMs.
2. Install the 8000 and 8000B Instruments Product Software.
Use the 8000 and 8000B Instruments Product Software CDROM to install
the product software. The product software version in this kit can only be
installed on instruments running the MS Windows 2000 Operating System.
Follow the instructions provided with the Product Software CDROM.
3. Install the Optional Applications Software on Windows-Based Oscillo-
scopes.
Use the Optional Applications Software on Windows-Based Oscilloscopes
CDROM. Follow the instructions provided with the software CDROM.
g End of document g
2
CSA8UP, TDS8UP, CSA8BUP, and TDS8BUP Option W2K Upgrade Kit
