Model CS-1626-2
PA-1043 Rev. A / December 2011 1
Keithley Instruments, Inc. 2-Pin Panel-Mount Receptacle
28775 Aurora Road
Cleveland, Ohio 44139
1-888-KEITHLEY
http://www.keithley.com
Description
The Model CS-1626-2 is a 2-pin male (receptacle housing) panel-mount termination block that connects to the
Model 2651A-KIT cable assembly or the Model CS-1592-2 connector, which is a 2-pin (female plug) cable
termination block. The Model CS-1592-2 and CS-1626-2 termination blocks are supplied with the Model 2651A
High Power System SourceMeterInstrument.

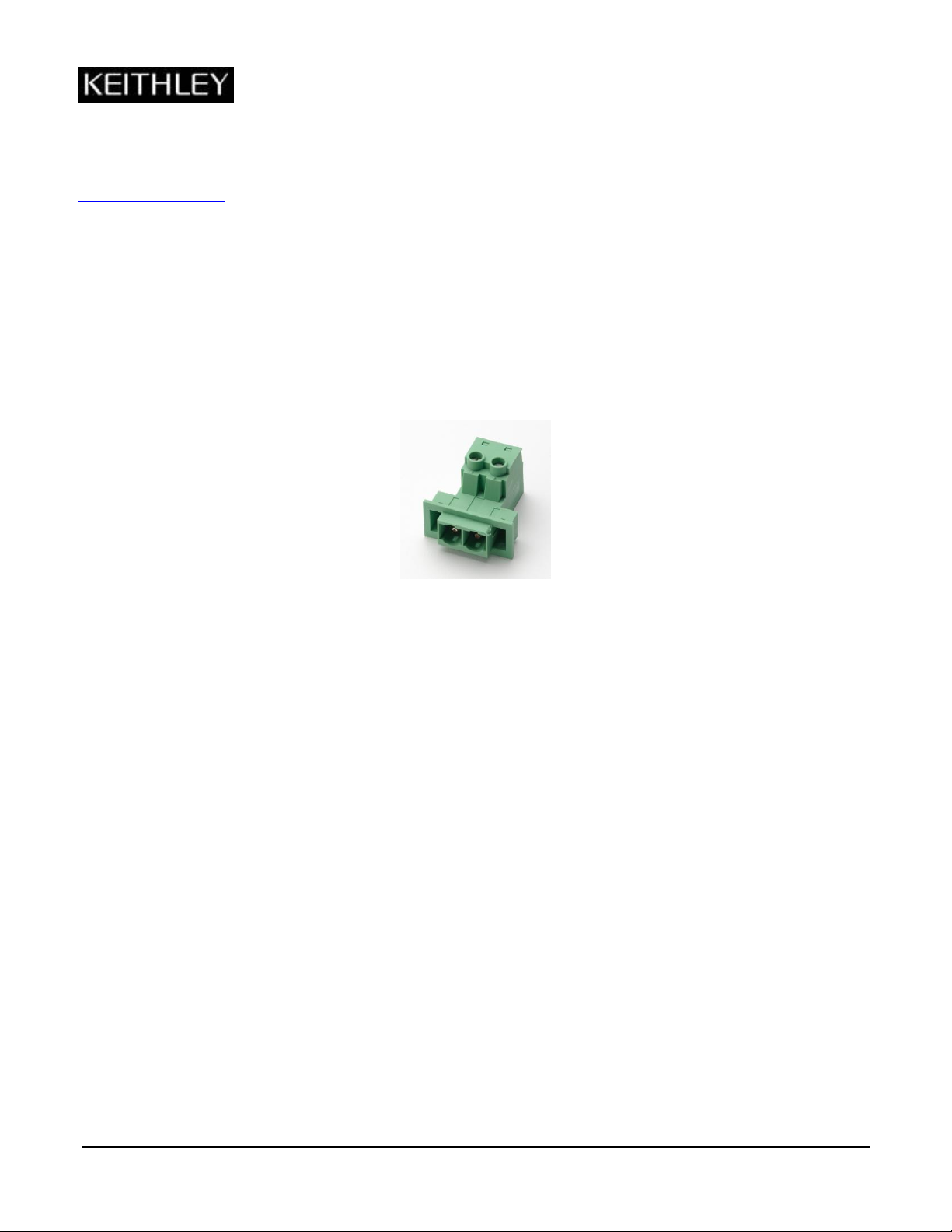

Figure 1: Model CS-1626-2
There are multiple applications for the Model CS-1626-2; two example applications are described below.
Use this termination block with the Model 2651A-KIT cable assembly to connect the Model 2651A
SourceMeter to a device under test (DUT):
1. Use insulated cable wires (12 gauge or thicker) to connect the Model CS-1626-2 termination block to the
DUT.
2. Twist the cable wire pair together to minimize inductance.
3. Plug one end of the Model 2651A-KIT cable into the Model CS-1626-2 termination block.
4. Plug the other end of the Model 2651A-KIT cable into the OUTPUT connector on the Model 2651A.
This termination block can be used with the Model 2651A-KIT cable assembly to connect the Model 2651A
to the Model 8011 High Current Test Socket Kit.
1. Use unterminated banana plug cables (for example, the Model CA-567) to connect the Model CS-1626-2
termination block to the Model 8011 test socket board.
2. Twist the cable wire pair togehter to minimize inductance.
3. Plug one end of the Model 2651A-KIT cable into the Model CS-1626-2 termination block.
4. Plug the other end of the Model 2651A-KIT cable into the OUTPUT connector on the Model 2651A.
Model CS-1626-2
2 PA-1043 Rev. A / December 2011
Electrical characteristics
Screw terminal connection: 0.40 in. pitch (1.016 cm)
Maximum tightening torque: 15.9 in. lb. (1.8 Nm)
Applicable wire size: 18 to 6 AWG
Nominal working voltage: +/- 1000 V
Rated surge voltage: +/- 6000 V
Maximum amperage: 76 A DC
