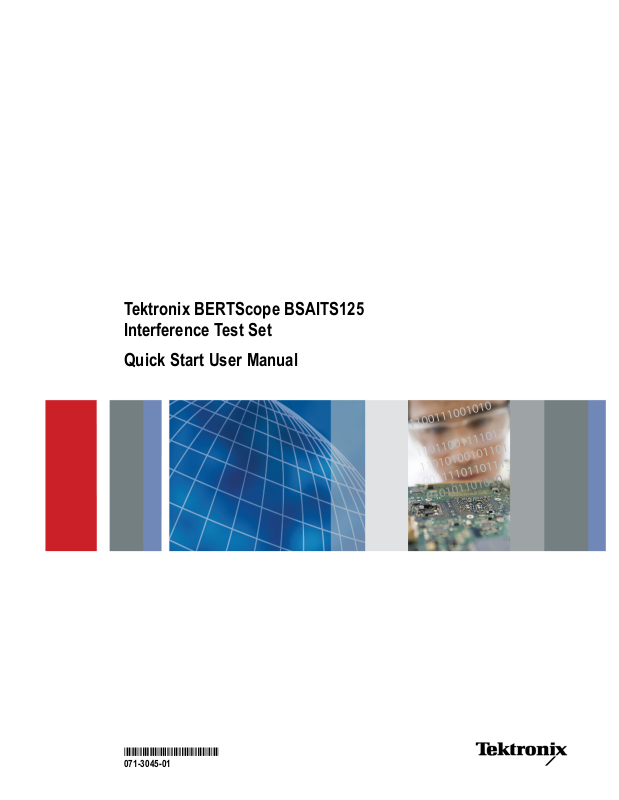

Tektronix BERTScope BSAITS125
Interference Test Set
ZZZ
Quick Start User Manual
*P071304501*
071-3045-01
xx
Tektronix BERTScope BSAITS125
Interference Test Set
ZZZ
Quick Start User Manual
This document supports BSA software V10 and above
www.tektronix.com
071-3045-01
Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are
protected by na
tional copyright laws and international treaty provisions.
Tektronix pro
previously published material. S pecifications and price change privileges reserved.
TEKTRONIX and TEK are registered trademarks of Tektronix, Inc.
ducts are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all
Contacting Tektronix
Tektronix, Inc.
14150 SW Karl Braun Drive
P.O. Box 500
Beaverton, OR 97077
USA
For product information, sales, service, and technical support:
In North America, call 1-800-833-9200.
Worldwide, visit www.tektronix.com to find contacts in your area.
Table of Contents
Important safety information .......................................................................................................... iii
General safety summary......................................................................................................... iii
Service safety summary ......................................................................................................... v
Terms in this manual . . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . .. . . .. . ... . .. . ... . .. v
Symbols and terms on the product . .. . ... . .. . . .. . .. . ... . .. . ... . .. . . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . . . v
Compliance information ............................................................................................................... vi
EMC .............................................................................................................................. vi
Safety compliance............................................................................................................... vii
Environmentalconsiderations ................................................................................................... i
Preface................................................................................................................................. x
Introduction . .. . ... . .. . .. . ... . .. . ... . .. . ... . .. . ... . .. . .. . . .. . .. . ... . .. . ... . .. . .. . . .. . .. . ... . .. . ... . .. . ... . .. . ... ... . .. . ... . .. . ..... x
Product description. . ... . .. . .. . ... . .. . ... . .. . ... . .. . ... . .. . .. . . .. . ... ... . .. . ... . .. . ... . .. . ... . .. . ... ... . .. . . .. . .. . ... . .. . ... . .. . .. x
Features and benefits............................................................................................................ x
Documentation...................................................................................................................xi
Conventions used in this manual . ... . .. . ... . .. . ... ... . .. . . .. . .. . ... . .. . ... . .. . .. . . .. . .. . ... . .. . ... . .. . .. . . .. . ... ... . .. . ... . .. . .. xi
Installation.............................................................................................................................. 1
Accessories ...................................................................................................................... 1
Site considerations............................................................................................................... 2
Operating requirements. .. . ... ... . .. . . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . . .. . ... . .. . ... . .. . ... . .. . ... . .. . 2
Preventing electrostatic discharge (ESD)....................................................................................... 3
Instrument connection information . ... . .. . . .. . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . .. . . .. . ... . .. . ... ... . .. 4
Power onthe instrument......................................................................................................... 5
Power off the instrument......................................................................................................... 6
BERTScopePC software. . .. . ... . .. . ... . .. . . .. . ... . .. . ... . .. . ... . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . . .. . ... . .. . ... . .. . ... . .. . ... . 6
Operation............................................................................................................................... 7
Front panel connectors . . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . . .. . ... ... . .. . ... . .. . . .. . ... . .. . ... . .. . .. 7
Rear panel connectors. . .. . ... . .. . . .. . .. . ... . .. . ... . .. . . .. . .. . ... . .. . ... . .. . . .. . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... 10
Connector signal levels . . .. . .. . . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . .. 11
Procedures............................................................................................................................ 12
System setup.................................................................................................................... 12
Stress Combiner view........................................................................................................... 14
Applications ........................................................................................................................... 16
User service information.............................................................................................................. 17
Service offerings ................................................................................................................17
General care.....................................................................................................................18
Preventive maintenance . .. . ... . .. . ... . .. . ... . .. . .. . . .. . ... . .. . .. . ... . .. . . .. . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. . ... . .. 18
Fuse replacement ............................................................................................................... 19
Repack the instrumentfor shipment............................................................................................ 19
Specifications .........................................................................................................................20
Index
Table of Content
s
x
Tektronix BERTScope BSAITS125 Quick Start User Manual i
Table of Content
s
ii Tektronix BERTScope BSAITS125 Quick Start User Manual
Important safet
y information
Important saf
This manual contains information and warnings that must be followed by the user for safe operation and to keep the
product in a safe condition.
To safely perform service on this product, additional information is provided at the end of this section. (See page v,
Service safety summary.)
ety information
General safety summary
Use the product only as specified. Review the following safety precautions to avoid injury and prevent damage to this product
or any products co
Comply with local and national safety codes.
For correct and safe operation of the product, it is essential that you follow generally accepted safety procedures in addition
to the safety precautions specified in this manual.
The product is designed to be used by trained personnel only.
Only qualified personnel who are aware of the hazards involved should remove the cover for repair, maintenance, or
adjustment.
Before use, always check the product with a k nown source to be sure it is operating correctly.
This product is not intended for detection of hazardous voltages.
nnected to it. Carefully read all instructions. Retain these instructions for future reference.
Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
While using this product, you may need to access other parts of a larger system. Read the safety sections of the other
component manuals for warnings and cautions related to operating the system.
When incorporating this equipment into a system, the safety of that system is the responsibility of the assembler of the system.
To avoid fire or personal injury
Use proper power cord. Use only the power cord specified for this product and certified for the country of use.
Do not use the provided power cord for other products.
Ground the product. This product is grounded through the grounding conductor of the power cord. To avoid electric
shock, the grounding conductor must be connected to earth ground. Before making connections to the input or output
terminals of the product, make sure that the product is properly grounded.
Do not disable the power cord grounding connection.
Power disconnect. The power cord disconnects the product from the power source. See instructions for the location.
Do not position the equipment so that it is difficult to operate the power cord; it must remain accessible to the user at all
times to allow for quick disconnection if needed.
Observe all terminal ratings. To av
the product manual for further ratings information before making connections to the product.
Do not apply a potential to any terminal, including the common terminal, that exceeds the maximum rating of that terminal.
oid fire or shock hazard, observe all ratings and markings on the product. Consult
Do not float the common terminal above the rated voltage for that terminal.
Tektronix BERTScope BSAITS125 Quick Start User Manual iii
Important safet
The measuring terminals on this product are not rated for connection to mains or Category II, III, or IV circuits.
Do not operate without covers. Do not operate this product with covers or panels removed, or with the case open.
Hazardous voltage exposure is possible.
y information
Avoid exposed
circuitry.
Do not touch exposed connections and components when power is present.
Do not operate with suspected failures. If you suspect that there is damage to this product, have it inspected by
qualified service personnel.
Disable the product if it is damaged. Do not use the product if it is damaged or operates incorrectly. If in doubt about safety of
the product, turn it off and disconnect the power cord. Clearly mark the product to prevent its further operation.
Examine the exterior of the product before you use it. Look for cracks or missing pieces.
Use only specified replacement parts.
Use proper fuse. Use only the fuse type and rating specified for this product.
Do not operate in wet/damp conditions. Be aware that condensation may occur if a unit is moved from a cold to a
warm environment.
Do not operate in an explosive atmosphere.
Keep product surfaces clean and dry.
Remove the input signals before you clean the product.
Provide proper ventilation. Refer to the installation instructions in the manual for details on installing the product
so it has proper ventilation.
Slots and openings are provided for ventilation and should never be covered or otherwise obstructed. Do not push objects
into any of the openings.
Provide a safe working environment. Always place the product in a location convenient for viewing the display
and indicators.
Avoid improper or prolonged use of keyboards, pointers, and button pads. Improper or prolonged keyboard or pointer use
esult in serious injury.
may r
re your work area meets applicable ergonomic standards. Consult with an ergonomics professional to avoid stress
Be su
injuries.
Use care when lifting and carrying the product.
iv Tektronix BERTScope BSAITS125 Quick Start User Manual
Servicesafetysummary
The Service safety summary section contains additional information required to s afely perform service on the product. Only
qualified personnel should perform service procedures. Read this S e rvice safety summary and the General safety summary
before performing any service procedures.
To avoid electric shock. Do not touch exposed connections.
Do not service alone. Do not perform internal service or adjustments of this product unless another person capable of
rendering first aid and resuscitation is present.
Disconnect power. To avoid electric shock, switch off the product power and disconnect the power cord from the mains
power before removing any covers or p
Use care when servicing with power on. Dangerous voltages or currents may exist in this product. Disconnect
power, remove battery (if applicable), and disconnect test leads before removing protective panels, soldering, or replacing
components.
Verify safety after repair. Always recheck ground continuity and mains dielectric strength after performing a repair.
Terms in this manual
anels, or opening the case for servicing.
Important safet
y information
These terms may appear in this manual:
WARNING. Warning statements identify conditions or practices that could result in injury or loss of life.
CAUTION. Caution statements identify conditions or practices that could result in damage to this product or other property.
Symbols and terms on the product
These terms may appear on the product:
DANGER indicates an injury hazard immediately accessible as you read the marking.
WARNING indicates an injury hazard not immediately accessible a s you read the marking.
CAUTION indicates a hazard to property including the product.
When this symbol is marked on the product, be sure to consult the manual to find out the nature of the
potential hazards and any actions which have to be taken to avoid them. (This symbol may also be used
refer the user to ratings in the manual.)
The following symbol(s) may appear on the product:
to
Tektronix BERTScope BSAITS125 Quick Start User Manual v
Compliance info
rmation
Compliance in
This section lists the EMC (electromagnetic compliance), safety, and environmental standards with which the instrument
complies.
EMC
EN 61326-1 2006. EMC requirements for electrical equipment for measurement, control, and laboratory use.
CISPR 11:2003. Radiated and conducted emissions, G roup 1, Class A
IEC 61000-4-2:2001. Electrostatic discharge immunity
IEC 61000-4-3:2002. RF electromagnetic field immunity
IEC 61000-4-4:2004. Electrical fast transient / burst immunity
IEC 61000-4-5:2001. Power line surge immunity
IEC 61000-4-6:2003. Conducted RF immunity
IEC 61000-4-11:2004. Voltage dips and interruptions immunity
EN 61000-3-2:2006. AC power line harmonic emissions
formation
123
EN 61000-3-3:1995. Voltage changes, fluctuations, and flicker
1
This product is intended for use in nonresidential areas only. Use in residential areas may cause electromagnetic interference.
2
Emissions which exceed the levels required by this standard may occur when this equipment is connected to a test object.
3
For compliance with the EMC standards listed here, high quality shielded interface cables should be used.
Australia / New Zealand Declaration of Conformity – EMC
Complies with the EMC provision of the Radiocommunications Act per the following standard, in accordance with ACMA:
CISPR 11:2003. Radiated and Conducted Emissions, Group 1, Class A, in accordance with EN 61326-1:2006.
Australia / New Z ealand contact.
Baker & McKenzie
Level 27, AMP Centre
50 Bridge Street
Sydney NSW 2000, Australia
vi Tektronix BERTScope BSAITS125 Quick Start User Manual
Safety compliance
This section lists the safety standards with which the product complies and other safety compliance information.
U.S. nationally recognized testing laboratory listing
UL 61010-1. Safety Requirements for Electrical Equipment for M easurement, Control, and Laboratory Use – Part
1: General R
Canadian certification
CAN/CSA-C22.2 No. 61010-1. Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory
Use – Part 1: General Requirements.
Additional compliances
IEC 61010-1. Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use – Part
1: Gener
Equipment type
equirements.
al Requirements.
Compliance info
rmation
Test and measuring equipment.
Safety class
Class 1 – grounded product.
Pollution degree descriptions
A measure of the contaminants that could occur in the environment around and within a product. Typically the internal
environment inside a product is considered to be the same as the external. Products should be used only in the environment
for which they are rated.
Pollution degree 1. No pollution or only dry, nonconductive pollution occurs. Products in this category are generally
encapsulated, hermetically sealed, or located in clean rooms.
Pollution degree 2. Normally only dry, nonconductive pollution occurs. Occasionally a temporary conductivity that is
caused by condensation must be expected. This location is a typical office/home environment. Temporary condensation
occurs only when the product is out of service.
Pollution degree 3. Conductive pollution, or dry, nonconductive pollution that becomes conductive due to condensation.
These are sheltered locations where neither temperature nor humidity is controlled. The area is protected from direct
sunshine, rain, or direct wind.
Pollution degree 4. Pollution that generates persistent conductivity through conductive dust, rain, or snow. Typical
outdoor locations.
Pollution degree rating
Pollution degree 2 (as defined in IEC 61010-1). Rated for indoor, dry location use only.
Tektronix BERTScope BSAITS125 Quick Start User Manual vii
Compliance info
Measurement and overvoltage category descriptions
Measurement terminals on this product may be rated for measuring mains voltages from one or more of the following
categories (see specific ratings marked on the product and in the manual).
Category II. Circuits directly connected to the building wiring at utilization points (socket outlets and similar points).
Category III. In the building wiring and distribution system.
Category IV. At the source of the electrical supply to the building.
NOTE. Only mains power supply circuits have a n overvoltage category rating. Only measurement circuits have a
measurement category rating. Other circuits within the product do not have either rating.
Mains overvoltage ca teg ory rating
rmation
Overvolta
ge category II (as defined in IEC 61010-1).
viii Tektronix BERTScope BSAITS125 Quick Start User Manual
Environmental considerations
This section provides information about the environmental impact of the product.
Product end-of-life handling
Observe the following guidelines when recycling an instrument or component:
Equipment recycling. Production of this equipment required the extraction and use of natural resources. The equipment
may contain substances that could be harmful to the environment or human health if improperly handled at the product’s
end of life. To avoid release of such substances into the environment and to reduce the use of natural resources, we
encourage you to recycle this product in an appropriate system that will ensure that most of the materials are reused
or recycled appropriately.
This symbol indicates that this product complies with the applicable European Union requirements according
to Directives 2002/96/EC and 2006/66/EC on waste electrical and electronic equipment (WEEE) and
batteries. For information about recycling options, check the Support/Service section of the Tektronix Web
site (www.tektronix.com).
Restriction of hazardous substances
Compliance info
rmation
This product is classified as an industrial monitoring and control instrument accessory, and is not required to comply with the
substance restrictions of the recast RoHS Directive 2011/65/EU until July 22, 2017.
Tektronix BERTScope BSAITS125 Quick Start User Manual ix
Preface
Preface
Introduction
This document supports the BSAITS125 Interference test set. The software-based graphical user interface is accessed
through the Tektronix BERTScope analyzer top level Views menu. Detailed information on the operation of the control
interface can be accessed at any time through the Help menus available in any of the control views.
BERTScopePC Standalone Software installs the interference test set control interface on a user-supplied PC. The
BERTScopePC software is included on the CD-ROM shipped with the i nstrument. The instrument communicates with the
Tektronix BERTScope analyzer or Host PC through a USB interface. A USB interconnect cable is provided with the product.
Product description
The BSAITS125 provides a means to combine Differential Mode (DM) and Common Mode (CM) interference into the
data path a
that can b e switched in an automated manner.
The BSAITS125 EXP is an option that provides expanded switching capabilities. It is identified by the secondary input and
output connectors on the front right side of the instrument.
fter the de-emphasized signal has been generated. It also provides compliant PCIe2 and PCIe3 ISI channels
Feature
The BSAITS125 offers the following features and benefits:
s and benefits
Automatic channel switching
IC testing with calibration channels
Addition of common m ode and differential mode interference signals
On-board S-parameters for accurately characterized channels
Low-skew differential channels
x Tektronix BERTScope BSAITS125 Quick Start User Manual
Documentation
In addition to this document, the following documents are available:
Online help, including remote control commands
Online remote control guide (PDF)
ITSRACK rack mount instructions, available as an option
Please check the Tektronix Web site for additional documentation at www.tektronix.com/manuals.
Conventions used in this m anual
The following icons are used throughout this manual.
Preface
Sequence
Step
NOTE. A Notice statement identifies conditions which may result in unintended operating modes, incorrect measurement
or require resetting the instrument or personal computers operating software interacting with it.
results,
NOTE. Unless otherwise specifi ed, the term BSAITS125 refers to all versions of the instrument.
NOTE. If the equipment described in this document is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Front pane
power
l
Connect
power
Network
PS2 SVGA USB
Tektronix BERTScope BSAITS125 Quick Start User Manual xi
Preface
xii Tektronix BERTScope BSAITS125 Quick Start User Manual
Installation
Unpack the instrument and check that you have received all items listed as Standard Accessories. Check the Tektronix
Web site (www.tektronix.com) for the most current information. The instrument is intended to be operated in a controlled
laboratory environment.
The instrument is intended to operate on a bench top, in an instrument rack, or on top of another instrument such as the
Tektronix BERTScope Bit Error Rate Analyzer. There are four shock-absorbing feet located on the bottom of the instrument.
Operate the instrument only when positioned with the feet facing downward. Do not operate the instrument with the long axis
vertical, standing on its side, as this will block the path of air required for cooling.
CAUTION. Operating the instrument while it is standing on the side can damage and overheat the instrument. To avoid
damaging the instrument or to avoid overheating the instrument, do not block any of the air vents to allow proper cooling
during normal operation.
This instrument uses a low voltage soft power switch that activates the power supply. The primary power control circuitry is
always live whenever the power cable is connected to the mains. The instrument is fuse-protected to reduce the risk of
fire in the event of a power supply failure. Access to the power cable for disconnection from the mains in an emergency
may be required by local codes.
Installation
Accessories
The instrument comes with the following accessories:
Power cord
USB interconnect cable
Two SMA to BNC adapters
Three 30-inch RF cables
Three 50 Ω SMA terminators, preinstalled
Phased matched cable pair, 3.5 m m to 3.5 mm connectors
Semi-rigid, phase match pair RF cable (only available with the BSAITS125 EXP)
ITSRACK rack mount kit, with instructions (available as an option)
BERTScopePC Standalone Software CD-ROM (installs the control interface on a user-supplied PC)
Tektronix BERTScope BSAITS125 Quick Start User Manual 1
Installation
Site considerations
Read this section before installing the instrument. This section describes operating considerations and power requirements.
Table 1: Environmental considerations
Characteristic Description
Temperature
Humidity
Altitude
1
All specifications are valid in the range from 10 °C to 40 °C (50 °F to 104 °F) ambient.
1
Operating 0 ° to 50 °C (32 °F to 122 °F)
Nonoperating
Operating High: 10% to 60% relative humidity, 40 °C to 50 °C (104 °F to 122 °F)
Nonoperating
Operating To 2000 m (6562 ft.)
Nonoperating
+5°Cto+40°C(+41°Fto+104°F)
Low: 10% to 90% relative humidity, 0 °C to + 40 °C (32 °F to +104 °F)
High: 5% to 60% relative humidity, 40 °C to 60 °C (104 °F to 140 °F)
Low: 5% to 90% relative humidity, 0 °C to +40 °C (32 °F to + 104 °F)
To 12,000 m (39,370 ft.)
Opera
ting requirements
Place the instrument on a cart, in a rack, or on a bench on the bottom feet. Observe the following clearance requirements
and dimensions:
Table 2: Operating requirements
Feature Description
Top
Left and right sides 76 mm (3 in)
Bottom
Rear
Before operating the instrument, verify the ambient temperature is between: 0 °C to +50 °C (+32 °F to +122 °F)
CAUTION. To ensure proper cooling, keep the sides of the instrument clear of obstructions.
0mm(0in)
0 mm (0 in) standing on feet
0mm(0in)
2 Tektronix BERTScope BSAITS125 Quick Start User Manual
Table 3: Instrument power considerations
Feature Description
Voltage range
Frequency
Power 80 W maximum
Fuse T 2 A 250V
115/230 VAC
50/60 Hz
Preventing electrostatic discharge (ESD)
Installation
CAUTION. T
read the following guidelines.
Electrostatic discharge (ESD) is a concern when handling any electronic equipment. The instrument is designed with
robust ESD protec
may damage the instrument.
To avoid damage to the instrument, use the following guidelines to prevent electrostatic discharge to the instrument:
Discharge the static voltage from your body by wearing a grounded antistatic wrist strap while connecting and
disconnecting cables and adapters. The instrument provides a front panel connection for this purpose.
Discharge any static voltage from all cables before connecting them to the instrument or device under test by momentarily
grounding the c
cable to the instrument.
A cable that is left unconnected on a bench can develop a large static charge.
Nothing capable of generating or holding a static charge should be allowed on the work station surface.
o prevent damaging internal circuit boards and their components due to electrostatic discharge (ESD), please
tion; however it is still possible that large discharges of static electricity directly into the signal input
enter conductor of the cable, or by connecting a 50 Ω termination to one end, prior to attaching the
Tektronix BERTScope BSAITS125 Quick Start User Manual 3
Installation
Instrument connection information
The following illustration shows an example of the BSAITS125 connected to a system with other Tektronix BERTScope
instruments and a Tektronix function generator. Your connections and setups may vary depending on your test requirements.
Figure 1: Sample configuration
Connect the USB interconnect cable at the rear of the BSAITS125 to a BERTScope analyzer (set up as the PC host) or to
another PC host computer. Other connections depend on your system setup.
4 Tektronix BERTScope BSAITS125 Quick Start User Manual
Power on the instrument
NOTE. When the BSAITS125 is connected to a system with a BERTScope analyzer, power on the BERTScope before
powering on th
e BSAITS125.
Installation
1. Connect the A
of the instrument and to a properly
grounded power source.
2. Push the fr
the instrument on.
The green power indicator on the button
will turn
NOTE. The first time that the BERTScope analyzer starts with the BSAITS125 attached, the standard Microsoft Windows
New Hardware Found message displays as the drivers automatically load.
C power cord to the rear
ont-panel power button to turn
on.
CAUTION. Static discharge can damage the instrument. To avoid static discharge while connecting cables to the front panel
interface, always use the proper coaxial cables with APC-3.5, 2.92 mm, or SMA cables.
Tektronix BERTScope BSAITS125 Quick Start User Manual 5
Installation
Power off the instrument
1. Press the fron
turn the instrument off.
The green power indicator on the button
will turn off.
2. Disconnect the power cord from the rear
of the instrument to completely remov e
power from the instrument after it turns
off.
t panel power button to
BERTScopePC software
The BSAITS125 is primarily intended to be connected to a system controlled by a BERTScope analyzer. The BERTScope
er senses the presence of the BSAITS125 through the USB interface w hen you power on the instruments in the
analzy
system. The BSA ITS125 is controlled by the BERTScope analyzer through menus in the Stress Combiner view.
The BSAITS125 can also be controlled by a PC running the BERTScope P C software. With the BERTScopePC software
installed on a Windows PC, and the stand-alone instrument connected to the PC via the standard USB interface, the
copePC software initiates installation of the appropriate driver and provides a user interface allowing control of all
BERTS
BSAITS125 functions. The user interface provided for each instrument is similar to the BERTScope analyzer.
Included in the installation is the BERTScope Remote Client application which provides for remote access to the
BERTScopePC application. This software must be installed on a PC running the Windows XP Professional operating system.
Insert the BERTScope PC disk in the disc drive of the PC and follow the on-screen instructions to install the software.
After the software is installed, start the software from the Start menu by selecting Start > BERTScope > BERTScope PC UI
ne of the other selections in the menu).
(or o
6 Tektronix BERTScope BSAITS125 Quick Start User Manual
Operation
Front panel connectors
The following section describes the front-panel controls and connectors. For information on the on-screen buttons, refer
to the online help.
Standard instrument
Operation
Figure 2: BSAITS125 front-panel connectors, standard instrument
Table 4
Connector Description
1
2
: Front-panel connectors, standard instrument
CM CAL Common Mode Calibration Input. An AC coupled signal applied to this SMA
connector is attenuated and applied differentially to the Primary Input and to
utput that the Primary Input is connected to via the primary path relays in
the o
the instrument. This input is typically used to zero out any differential mode
inadvertently caused by the signal at the CMI input. For example, connect the
ut of a function generator (Tektronix AFG3252) to the CM CAL input.
outp
Terminate this connector with a 50 Ω SMA terminator when not in use.
CMI Common Mode Interference. An AC coupled signal applied to this SMA
connector is attenuated and applied common mode to the Primary Input and to
output that the Primary Input is connected to via the primary path relays
the
in the instrument. For example, connect the output of a function generator
(Tektronix AFG3252) to the CM CAL input.
rminate this connector with a 50 Ω SMA terminator when not in use.
Te
Tektronix BERTScope BSAITS125 Quick Start User Manual 7
Operation
Table 4: Front-panel connectors, standard instrument (cont.)
Connector Description
3 PRIMARY INPUT + and
PRIMARY INPUT -
4 Path 1 Exit + and Path 1 Exit -
5
6 Path 1 R eturn + and Path 1
7
8
9
Path 2 Exit + and Path 2 Exit -
Return -
Path 2 R eturn + and Path 2
Return -
PRIMARY OUTPUT + and
PRIMARY OUTPUT -
Ground connector
Input signals applied to these SMA connectors are combined with the input
signals from the CMI, CM CAL, and DMI inputs on to the data. The internal
combiner has 1.5 dB of frequency-independent loss. The output of the
combiner connects to internal relays which direct the signals to outputs
controlled by the user interface:
Directly to the Primary Output
Indirectly to the Primary Output through internally selected PC board ISI
traces
Path 1 or Path 2 connections
If your application only uses single-ended connections, terminate the unused
connector with a 50 Ω SMA terminator.
Use these SMA connectors with matched length cables to connect to an
external path and back to the BSAITS125. An example of an external path
might be another ISI board.
If your application only uses single-ended connections, terminate the unused
connector with a 50 Ω SMA terminator.
Use these SMA connectors with matched length cables to connect to an
external path and back to the BSAITS125. An example of an external path
might be another ISI board.
If your application only uses single-ended connections, terminate the unused
connector with a 50 Ω SMA terminator.
Use these SMA connectors to connect the return side of externally matched
cables back to the BSAITS125.
If your application only uses single-ended connections, terminate the unused
connector with a 50 Ω SMA terminator.
Use these SMA connectors to connect the return side of externally matched
cables back to the BSAITS125.
If your application only uses single-ended connections, terminate the unused
connector with a 50 Ω SMA terminator.
Use these SMA connectors to connect the differential output to the device
under test (DUT). Depending on your configuration, the output signals can
be connected to the Secondary input connectors of the B SAITS 125 EXP
instrument. For best results, when connecting the Primary Outputs to the
Secondary Inputs, use the Tektronix-supplied phase-matched, semi-rigid
cables.
If your application only uses single-ended connections, terminate the unused
connector with a 50 Ω SMA terminator.
Use this connector to connect a common ground between other instruments.
8 Tektronix BERTScope BSAITS125 Quick Start User Manual
Operation
Table 4: Front-panel connectors, standard instrument (cont.)
Connector Description
10 Power switch Activates the power supply to provide power to the primary circuits in the
instrument. The switch lights green when power is turned on.
The primary power control circuitry is always live whenever the power cord
is connected to the instrument. To completely disconnect power from the
instrument, disconnect the power cord at the rear of the instrument after
properly powering off the instrument using the power switch.
NOTE. For PCIe, the DPP connects to the Primary Inputs and the DUT connects to the Primary Outputs because the
Combiner is before the ISI channel. For other standards, the Combiner is after the ISI c hannel where the DPP would connect
to the Primary or Secondary Outputs and the DUT would connect to the Primary Inputs.
BSAITS125 EXP
The BSAITS125 EXP has the same front panel connectors as the standard instrument. It includes the Secondary Input and
Output c
a bypass channel and five additional ISI channels that can be switched in and out via the user interface.
onnectors shown in the following illustration and table. This version o f the instrument provides six switch selections:
Figure 3: Additional front panel connectors with the BSAITS125 EXP
Table 5: BSAITS125 EXP front panel connectors
Connector Description
1
2
Tektronix BERTScope BSAITS125 Quick Start User Manual 9
SECONDARY INPUT + and
SECONDARY INPUT -
SECONDARY OUTPUT +
and SECONDARY OUTPUT -
The input connectors connect to the Secondary output connectors differentially
through internal relays. The connection can be a direct bypass to the
Secondary output or through internally selected PC board ISI traces, controlled
by the user interface.
If your application only uses single-ended connections, terminate the unused
connector with a 50 Ω SMA terminator.
Use these SMA connectors to connect the differential output to the device
under test (DUT).
If your application only uses single-ended connections, terminate the unused
connector with a 50 Ω SMA terminator.
Operation
Rear panel connectors
The following section describes the rear panel controls and connectors; the connectors are the same on all versions of
the instrument.
Figure 4: Rear panel connectors
Table 6: Rear panel connectors
Connect
1
2
3DMI
4
or
AC Powe
USB IN USB 2.0
Grou
r
nd screw
Descrip
Connec
used with a BERTScope analyzer, connect to any available USB connector.
Differential Mode Interference. An AC coupled signal applied to this SMA
connector is attenuated and applied differentially to the P rimary Input and to
the ou
the instrument. A typical example would be to connect the SI-OUT output on
the rear of the BERTScope analyzer to the DMI input.
Term
Use this screw to connect the common ground between other instruments to
redu
tion
t with a suitable power cable to match the local power outlet type.
type B connector used to interface the instrument for control. When
tput that the Primary Input is connected to via the primary path relays in
inate this connector with a 50 Ω SMA terminator when not in use.
ce the risk of ground loop noise.
10 Tektronix BERTScope BSAITS125 Quick Start User Manual
Connector signal levels
The following table specifies the level of signals applied to the front and rear panel SMA connectors.
Table 7: Input signal levels
Connector Coupling Operating level Absolute maximum level
CM CAL
CMI
DMI
Primary Input
Primary Output
External Path
Secondary Input
Secondary Output
AC
+18 dBm (5 V
Freq: 2 MHz to 3 GHz
DC
±4 V maximum ±5 V
AC (each leg) +24 dBm (10 V
DC
±4 V maximum ±5 V
AC (each leg) +24 dBm (10 V
) +20 dBm (6.32 V
p-p
) +26 dBm (12.64 V
p-p
) +26 dBm (12.64 V
p-p
)
p-p
p-p
p-p
Operation
)
)
Tektronix BERTScope BSAITS125 Quick Start User Manual 11
Procedures
Procedures
Complete the following procedures after properly connecting the BSAITS125 to your system or to your host PC.
System setup
When you first start the BERTScope analyzer with the BSAITS125 attached to your system, the standard Microsoft Windows
New Hardware
Found message displays as the drivers automatically load. Follow the online instructions, if needed.
The BSAITS1
instruments in your system configuration are properly installed and connected.
Power on the BERTScope before powering
on any conn
The BERTScope Home view displays.
25 is intended to be used in a system with a BERTScope analyzer. This section assumes that the v arious
ected instruments.
12 Tektronix BERTScope BSAITS125 Quick Start User Manual
Click the View button and then select Stress
Combiner to open the Stress Combiner
view.
The Stress Combiner view displays showing
the graphical user interface.
Procedures
Tektronix BERTScope BSAITS125 Quick Start User Manual 13
Procedures
Stress Combiner view
This section provides a brief overview of the Stress Combiner view. For additional information on the controls in the user
interface, refer to the online help topics.
The following table describes some of the features of the Stress Combiner view.
Table 8: Stress Combiner view features
Item Description
Click the ISI Setup to define the main setups for the BSAITS125 in the Stress
Combiner view, such as changing the reference frequency for the S-Parameter data
used to calculate losses on the ISI paths. Another selection enables the use of
variable ISI. Screen selections depend on the ISI Setup selections.
DPP ISI icon (information only). This icon displays when a DPP is connected to the
BSAITS125 inputs and Use DPP is enabled in the ISI Setup menu. The amount of
stress from the DPP displays under the icon.
Integrated Combiner icon (information only). This icon shows how signals
applied to the CM CAL, CMI, and DMI connectors are combined with the signals
applied to BSAITS125 front-panel inputs. The integrated combiner contributes a
frequency-independent loss of 1.5 dB; the loss is added to the primary ISI paths.
Click the Primary ISI to select the Primary ISI channel. Select from among
three internal ISI channels or Pass Through to bypass the internal ISI channels.
Front-panel connectors allow the selection of either of two differential ISI paths
(Path 1 or Path 2). The outputs of the Primary ISI are applied to the Primary output
connectors on the front panel.
This button is available when Enable Variable ISI is enabled in the ISI Setup menu.
When enabled the label of the Primary ISI button changes to Variable ISI. The
Variable ISI button allows you to enter a loss from –50 dB to 0 dB and software
selects the appropriate ISI paths. The loss that you enter can also be c ombined with
the loss from an attached DPP.
This button is available on BSAITS125 EXP instruments when you select Link
Primary Secondary from the ISI Setup menu. Use this selection when the Primary
Outputs are connected to the Secondary Inputs. Select the ISI channels from the
Primary ISI and Secondary ISI lists. The Primary and Secondary Channels are
connected in series and the result is available at the Secondary Output connectors.
14 Tektronix BERTScope BSAITS125 Quick Start User Manual
Table 8: Stress Combiner view features (cont.)
Item Description
Click the Secondary ISI to select the Secondary ISI channel. Select from among
five internal ISI channels or Pass Through to bypass the internal ISI channels. The
Secondary ISI runs from the Secondary Input connectors to the Secondary O utput
connectors on the front panel.
Frequency Response graph
This graph shows the S-Parameter data (S21 magitude in dB) for the selected ISI
path over a frequency range of 10 MHz to 20 GHz.
When only the Primary ISI is selected, the plot shows only the S-Parameter
data for the primary ISI.
When the Secondary option is present, the plot shows both the primary and
secondary S-Parameter data.
When the Primary and Secondary are linked, the plot shows the combined
S-Parameter data (the sum of the S21 of the Primary and the S21 of the
Secondary)
When a variable loss is entered or a DPP is used as an additional source, the
plot shows the combined data.
Procedures
Tektronix BERTScope BSAITS125 Quick Start User Manual 15
Applications
Applications
The BSAITS125 is primarily intended to be used in a system with a BERTScope analyzer and other Tektronix instruments.
The following section describes high-level setups in the example shown in the following illustration. Refer to the individual
product manuals for other setup information.
5: Sample application connection diagram
Figure
Guidelines for connecting the instruments in the example are listed below:
Connect the USB interface cables from the rear panel of the BERTScope analyzer to the BSAITS125 and the DPP125C
ECM instruments. The USB interface cables provide the communications between the instruments in the system.
The AFG3252 function generator provides the stress inputs to the CM CAL and CMI input connectors on the BSAITS125.
Use the 30-in flexible coaxial cables with the BNC-to-S MA adapters on the function generator.
In addition to providing the user interface information, the BERTScope analyzer provides the single-ended stress input
from the SI OUT connector on the rear panel of the analyzer to the DMI input connector on the rear panel of the
BSAITS125.
Connect the Data Outputs from the DPP125C ECM to the Primary Inputs of the BSAITS125 with the Tektronix-supplied
matched-cable pair (3.5 mm connector to 3.5 mm connector, 0.5 m long). The DPP125C provides the input signals
for this setup.
Use the Tektronix-supplied phase-matched, semi-rigid coaxial cable pair to connect the Primary Output connectors
of the BSAITS125 to the Secondary Input connectors.
Connect the Secondary Output connectors of the BSAITS125 to the DUT with a matched-cable pair.
16 Tektronix BERTScope BSAITS125 Quick Start User Manual
User service inf
ormation
User service i
This section describes high-level service and maintenance information for your instrument.
Service offerings
Tektronix provides service to cover repair under warranty as w ell as other services that are designed to meet your specific
service needs.
Whether providing warranty repair service or any of the other services listed below, Tektronix service technicians are
well equipp
depending on your location.
Warranty repair service
Tektronix warrants this product as described in the warranty statements at the front of this manual. Tektronix technicians
provide warranty service at most Tektronix service locations worldwide. The Tektronix product catalog lists all service
locations worldwide.
Other repair service
In addition to warranty repair, Tektronix Service offers other services that provide cost-effective solutions to your service
needs and quality standards compliance requirements. Our instruments are supported worldwide by the leading-edge
design
ed to service the instrument. Services are provided at Tektronix Service Centers and on-site at your facility,
, manufacturing, and service resources of Tektronix to provide the best possible service.
nformation
Tektronix BERTScope BSAITS125 Quick Start User Manual 17
User service inf
ormation
General care
Protect the instrument from adverse weather conditions. The instrument is not waterproof. Do not store or leave the
instrument where the display will be exposed to direct sunlight for long periods of time.
CAUTION. To avoid damage to the instrument, do not expose it to sprays, liquids, or solvents.
Preventive maintenance
Preventive maintenance m ainly consists of periodic cleaning. Periodic cleaning reduces instrument breakdown and
increases reliability. Clean the instrument as needed, based on the operating environment. Dirty conditions may require
more frequent clea
Exterior cleaning
Clean the exterior surfaces with a dry, lint-free cloth or a soft-bristle brush. If dirt remains, use a cloth or swab dampened with
a 75% isopropyl alcohol solution. A swab is useful for cleaning in narrow spaces around the controls and connectors. Do not
use abrasive compounds on any part of the instrument.
ning than computer room conditions.
Cleaning guidelines
Avoid getting m
cloth or swab.
Do not wash the front-panel On/Standby switch. Cover the switch while washing the instrument.
Use only deionized water when cleaning. Use a 75% isopropyl alcohol solution as a cleanser and rinse with deionized
water.
Do not use chemical cleaning agents; they may damage the instrument. Avoid chemicals that contain benzene, toluene,
xylene, acet
oisture inside the instrument during external cleaning and use only enough solution to dampen the
one, or similar solvents.
18 Tektronix BERTScope BSAITS125 Quick Start User Manual
Fuse replacement
The instrument is protected by a fuse placed in series with the power line input. The fuse is conservatively rated and should
never open through the life o f the instrument. A blown fuse would generally indicate a probl em with the instrument which
requires factory service. It is recommended that you arrange to have the instrument serviced if you experience a blown fuse.
Repack the instrument for shipment
User service inf
ormation
If the instru
When packi
Tektronix representative to obtain new packaging.
ment is to be shipped to a Tektronix service center for repair, attach a tag showing the following information:
Name of the p
Address of t
Instrument
Adescript
roduct owner
he owner
serial number
ion of the problems encountered and/or service required
ng an instrument for shipment, use the original packaging. If it is unavailable or not fit for use, contact your
Tektronix BERTScope BSAITS125 Quick Start User Manual 19
Specifications
Specification
Table 9: Physical specifications
Characteristic Description
Dimensions
Width
Height
Depth
Weight
Power consumption 80 W, maximum
Power requirements
Power fuse
s
39.4 cm (15.5 in)
10.4 cm (4.1 in) with feet
53.3 cm (21 in)
6.4 kg (14.0 lb.)
115/230 VAC, 50/60 Hz
T 2A 250 V
20 Tektronix BERTScope BSAITS125 Quick Start User Manual
