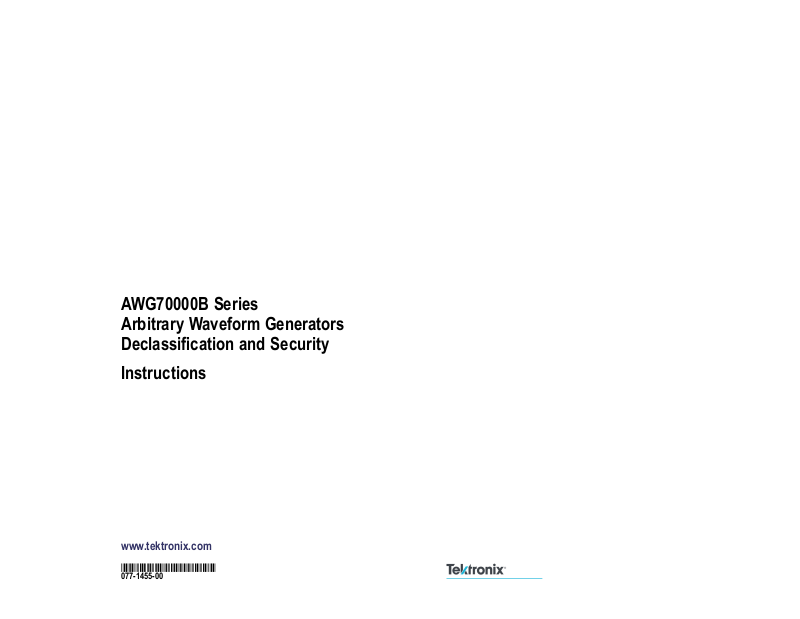

AWG70000B Series
Arbitrary Waveform Generators
ZZZ
Declassification and Security
Instructions
www.tektronix.com
*P077145500*
077-1455-00
Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by
national copyright laws and international treaty provisions.
Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published
material. Specifications and price change privileges reserved.
TEKTRONIX and TEK are registered trademarks of Tektronix, Inc.
Contacting Tektronix
Tektronix, Inc.
14150 SW Karl Braun Drive
P.O. B o x 5 0 0
Beaverton, OR 97077
USA
For product information, sales, service, and technical support:
In North America, call 1-800-833-9200.
Worldwide, visit www.tek.com to find contacts in your area.
Table of Contents
Preface .............................................................................................................................................................. iii
Clear and Sanitize Procedures. . ..... . ..... . ..... ..... . ..... . ..... . ................................................................................................ 1
Memory devices ............................................................................................................................................... 1
Media storage and data export devices...................................................................................................................... 6
AWG70000B Series Declassification and Security Instructions i
Table of Contents
ii AWG70000B Series Declassification and Security Instructions
Preface
This document helps customers with data security concerns to sanitize or remove memory devices from the Tektronix
AWG70000B Series Arbitrary Waveform Generators.
All of these products have data storage (memory) devices and data output devices (USB ports and a LAN Ethernet
connector). These instructions tell how to do the following:
Clear or sanitize the memory devices.
Clear or sanitize an instrument that is not functioning.
Reference
Products
Related documents
The procedures in this document are written to meet the requirements specified in:
NISPOM, DoD 5220.22–M, Chapter 8
ISFO Process Manual for Certification & Accreditation of Classified Systems under NISPOM
The following Tektronix products are covered by this document:
AWG70001B
AWG70002B
You can read more about your instrument in the following documents. These are available online at
www.tektronix.com/downloads.
AWG70000B Series Arbitrary Waveform Generators Installation and Safety Instructions.
AWG70001B and AWG70002B Arbitrary Waveform Generators and AWGSYNC01 Synchronization Hub Specifications
and Performance Verification Technical Reference.
AWG70000B Series Declassification and Security Instructions iii
Preface
Terms
The following terms may be used in this document:
Clear.
deny access to previously stored information by standard means of access.
Erase.
Instrument declassification.
removed from a secure environment. Declassification procedures include memory sanitization and memory removal,
and sometimes both.
Media storage/data export device.
instrument, such as a USB port.
Nonvolatile memory.
Power off.
purpose of clearing data, putting the instrument in Standby mode does not qualify as powering off. For these products,
you will need to either press a rear-panel OFF switch or remove the power source from the instrument.
Remove.
are available in the product Service Manual.
Sanitize.
technology. This is typically used when the device will be moved (temporarily or permanently) from a secured
area to a non-secured area.
This removes data on media/memory before reusing it in a secured area. All reusable memory is cleared to
This is equivalent to clear.
A term that refers to procedures that must be undertaken before an instrument can be
Any of several devices that can be used to store or export data from the
Data is retained when the instrument is powered off.
Some instruments have a “Standby” mode, in which power is still supplied to the instrument. For the
This is a physical means to clear the data by removing the memory device from the instrument. Instructions
This eradicates the data from media/memory so that the data cannot be recovered by other means or
Scrub.
User accessible.
User-modifiable.
interface or remote control.
Volatile memory.
iv AWG70000B Series Declassification and Security Instructions
This is equivalent to sanitize.
User is able to directly retrieve the memory device contents.
The user can write to the memory device during normal instrument operation, using the instrument
Data is lost when the instrument is powered off.
Clear and Sanitize Procedures
Memory devices
The following tables list the volatile and nonvolatile memory devices in the instrument and listed options. Detailed
procedures to clear or sanitize these devices, if any, are shown following each table.
Terminology
The following terms are used in the tables in this section:
User data – Describes the type of information stored in the device. Refers to waveforms or other measurement data
representing signals connected to the instrument by users.
User settings – Describes the type of information stored in the device. Refers to instrument settings that can be
changed by the user.
Both – Describes the type of informationstoredinthedevice.Itmeansthatboth user data and user settings are
stored in the device.
None – Describes the type of information stored in the device. It means that neither user data nor user settings
are stored in the device.
Directly – Describes how data is modified. It means that the user can modify the data.
Indirectly – Describes how data is modified. It means that the instrument system resources modify the data and that
the user cannot modify the data.
AWG70000B Series Declassification and Security Instructions 1
Clear and Sanitize Procedures
Table1: Volatilememorydevices
Type of
Typ e and
min. size Function
SDRAM
16 GB (std)
SDRAM
1
8Gbit
SRAM
64k x 16
1
8 G for each AWG board. Each instrument contains two AWG boards.
PC system memory
AWG playback memory
USBTMC buffer
info stored
(system/user)
Both No Directly Written by
User No Indirectly Firmware
Both No Indirectly Firmware
Table 2: Nonvolatile memory devices
Backed up by
battery?
Method of
modification
Data input
method Location
Slot-PC board
processor system
AWG board
operations
System board
operations
User
accessible? To clear/sanitize
Yes
No
No
Remove the power source from
the instrument for at least 20
seconds.
Remove the power source from
the instrument for at least 20
seconds.
Remove the power source from
the instrument for at least 20
seconds.
Typ e and
min. size Function
Flash,
512 Mbit
Flash,
512 Mbit
EEPROM
1Mbit
EEPROM 64
kbit
EEPROM 64
kbit
Flash 128
Mbit
FPGA Image, Calibration
Constants
FPGA Image, Instrument
Model & Serial Number,
Enabled Options
USBTMC profile
Calibration Constants
Calibration Constants
Calibration Constants
Type of user
info stored Method of modification Data input method Location
None Indirect Firmware operations
None Indirect Firmware operations
None Indirect None
None Indirect Firmware operations
None Indirect Firmware operations Marker board No
None Indirect Firmware operations
AWG board
System board
System board
Clock board
AC board (option AC)
User
accessible To clear/sanitize
No
No
No
No
No
N/A
N/A
N/A
N/A
N/A
N/A
1
1
1
1
1
1
2 AWG70000B Series Declassification and Security Instructions
Table 2: Nonvolatile memory devices (cont.)
Clear and Sanitize Procedures
Typ e and
min. size Function
EEPROM
5bit
Removable
Hard Drive
1
This device does not contain user data or settings. Clearing would disable instrument functionality.
2
To clear, erase the hard drive with commercial erasure software. To restore the instrument to operating condition, reinstall Microsoft Windows and then reinstall the instrument software.
3
To sanitize, remove the hard drive. Store the removed hard drive in a secure area or destroy it.
Front and rear USB port
enable/disable states
Holds instrument operating
system and application
software. Holds all
user-storable data such as
waveforms, measurement
results, and instrument
settings.
Type of user
info stored Method of modification Data input method Location
USB port state
User data, user
settings
Direct Firmware operations
Indirect Firmware operations,
user input
System board
Front panel Yes
User
accessible To clear/sanitize
Yes , wi th
Windows
administrator
privileges
Follow “Enabling/Disabling USB
Ports” procedure to enable all
ports (factory default state)
To clear, see footnote
To sanitize, see footnote
2
3
AWG70000B Series Declassification and Security Instructions 3
Clear and Sanitize Procedures
Clearorsanitize
instrument
Restoring instrument
operating system and
AWG product software
Use this procedure to clear the AWG waveform cache and last setup cache from your instrument. This procedure does not
erase or change factory calibration constants.
1.
In the toolbar, click the Reset to default setup button.
2.
Close the AWG application.
3.
Open the AWG application.
You can restore the instrument’s Windows Operating System directly from the instrument. The instrument does not
ship with an operating system restore disc.
To restore or update the AWG product software, you need to download the current version from the Tektronix website.
NOTE.
(The Acronis Recovery partition and the related data are not destroyed.)
Restoring or updating the AWG product software does not require that you restore the Windows operating system.
Operating system restore.
restores the Windows Operating System using the Acronis Startup Recovery Manager. The Acronis software reinstalls the
operating system using restore images preinstalled on the hard drive.
Restoring the operating system reformats the hard disk drive. The product software and all user data will be lost.
Use the Internal recovery utility to restore the Windows Operating System. This method
This method retains the restore images, providing the ability to repeat the restore process. Factory calibration constants are
not affected.
1.
Attach the keyboard to the instrument.
2.
Restart the instrument. During the boot-up process you will see the following message at the top of the screen:
Starting Acronis Loader... press F5 for Acronis Startup Recovery Manager
3.
Repeatedly press the F5 key until the Acronis True Image Tool opens. There is a 15-second time period from when the
message appears until the instrument proceeds with the normal instrument startup. If the instrument does not open the
Acronis application, power off the instrument, then power on the instrument and try again.
4 AWG70000B Series Declassification and Security Instructions
Clear and Sanitize Procedures
4.
Within the Acronis TrueImage window, click Restore.
5.
In the Confirmation dialog box, click Yes to restore the instrument operating system, or No to exit the restore process.
AWG product software installation.
1.
Install the AWG70000 Series product software following all on-screen prompts.
2.
Install the TekVISA Connectivity software, following all on-screen prompts.
Download the AWG70000 Series product software installation package.
AWG70000B Series Declassification and Security Instructions 5
Clear and Sanitize Procedures
Media storage and data export devices
The following table lists the media storage and data export devices in the instrument and listed options. Detailed procedures
to disable these devices, if any, are shown following the table.
Table 3: Media and data export devices
Type Function
USB host
port (supports
removable USB
flash drive)
USB device port Supports remote control and
LAN Ethernet
connector
Enabling or disabling USB
capability (front and rear,
User storage of reference
waveforms, screen images,
and instrument setups
data transfer to a PC
Supports remote control and
data transfer to PC.
independently)
Use this procedure to disable USB ports on the instrument. This procedure does not erase or change factory calibration
constants.
1.
2.
3.
4.
5.
6.
Method of
modification
Directly User writable
Directly
Directly
Data input method Location Process to disable
Remote control via USBTMC
and/or GPIB
N/A
USB host port on front and rear
of instrument
Rear panel
Rear panel
Follow the procedure “Enabling/Disabling USB Host
Ports”. Front and rear ports can be enabled/disabled
independently.
The USB device port cannot be disabled.
N/A
Close the AWG application.
Log out of Windows.
Log into Windows as an Administrator.
When the AWG application loads, click the Utilities tab.
Click the Preferences button.
To disable the front or rear USB ports, click the “Disable ports” check box corresponding to the ports you wish to
disable.
7.
To enable the front or rear USB ports, clear the “Disable ports” check box corresponding to the ports you wish to enable.
8.
If desired, close the AWG application, log out of Windows, and log back in as a non-administrator.
6 AWG70000B Series Declassification and Security Instructions
Loading...
