650-6183-00 and 650-6184-00
RSA7100 and CTRL7100 Series
ZZZ
Packaging Kit
Instructions
www.tek.com
$
071-3736-00
Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries
or suppliers, and are protected by national copyright laws and international treaty provisions.
Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication
supersedes that in all previously published material. Specifications and price change privileges reserved.
TEKTRONIX and TEK are registered trademarks of Tektronix, Inc.
Contacting Tektronix
Tektronix, Inc.
14150 SW Karl Braun Drive
P.O. Box 5 0 0
Beaverto
USA
For product information, sales, service, and technical support:
n, OR 97077
In North America, call 1-800-833-9200.
Worldwide, visit www.tek.com to find contacts in your area.
Table of Contents
Packaging kit partslists............................................................................................ 1
650-6183-00 CTRL7100 packaging procedure ................................................................. 2
650-6184-00 RSA7100 packaging procedure .................................................................. 10
RSA7100 and CTRL7100 Series Packaging Kit Instructions i
Table of Contents
ii RSA7100 and CTRL7100 Series Packaging Kit Instructions
Packaging kit parts lists
These instructions provide procedures for using the following packaging kits.
650-6183-00 CTRL7100 kit
650-6184-00
RSA7100 kit
WAR NI NG . Injury may occur when lifting heavy objects. The CTRL7100 and
RSA7100 are heavy instruments. To avoid injury, ensure proper lifting technique
using two people or a mechanical lift when performing the procedures in this
document.
Identify
whichkityouorderedandthenreferto one of the following tables for a
list of items included in your kit.
Table 1: 650-6183-00 CTRL7100 Packaging Kit parts list
Item Description Quantity
004-5964-xx
004-5965-xx
004-5966-xx
004-5967-xx
004-5968-xx
006-8267-xx
071-3736-xx [This document.]
BOX, SHIPPING CTRL7100A
CUSHION, MTL: PACKAGING, TOP AND BOTTOM
CUSHION, MTL: PACKAGING, FRO NT & BACK
CUSHION, MTL: PACKAGING, LEFT & RIGHT
CUSHION, MTL: PACKAGING, REAR PANEL
BAG - PLASTIC, 32 X 32 X .004 THK LDPE
CTRL7100 AND RSA7100 SERIES PACKAGING KIT
TRUCTIONS
INS
1
4
2
2
1
1
1
Table 2: 650-6184-00 RSA7100 Packaging Kit parts list
Item Description Quantity
004-5969-xx
004-5973-xx
004-6118-xx
006-8267-xx
071-3736-xx [This document.]
BOX, SHIPPING RSA7100A
BOX, SHIPPING, RSC (for accessories)
CUSHION MATERIAL; PACKAGING FOR RSA7100
CONTROLLER
BAG - PLASTIC, 32 X 32 X .004 THK LDPE
CTRL7100 AND RSA7100 SERIES PACKAGING KIT
INSTRUCTIONS
1
1
1
1
1
RSA7100 and CTRL7100 Series Packaging Kit Instructions 1
650-6183-00 CTRL7100 packaging procedure
650-6183-00 C
TRL7100 packaging procedure
WARNING. Injury may occur when lifting heavy objects. The CTRL7100 is a
heavy instrument. To avoid injury, ensure proper lifting technique using at least
two people when performing the procedures in this document.
2 RSA7100 and CTRL7100 Series Packaging Kit Instructions
650-6183-00 CTRL7100 packaging procedure
1. Using at least t
[006-8267-xx] around unit and taped closed.
wo people, slide 32" x 32" bag
RSA7100 and CTRL7100 Series Packaging Kit Instructions 3
650-6183-00 CTRL7100 packaging procedure

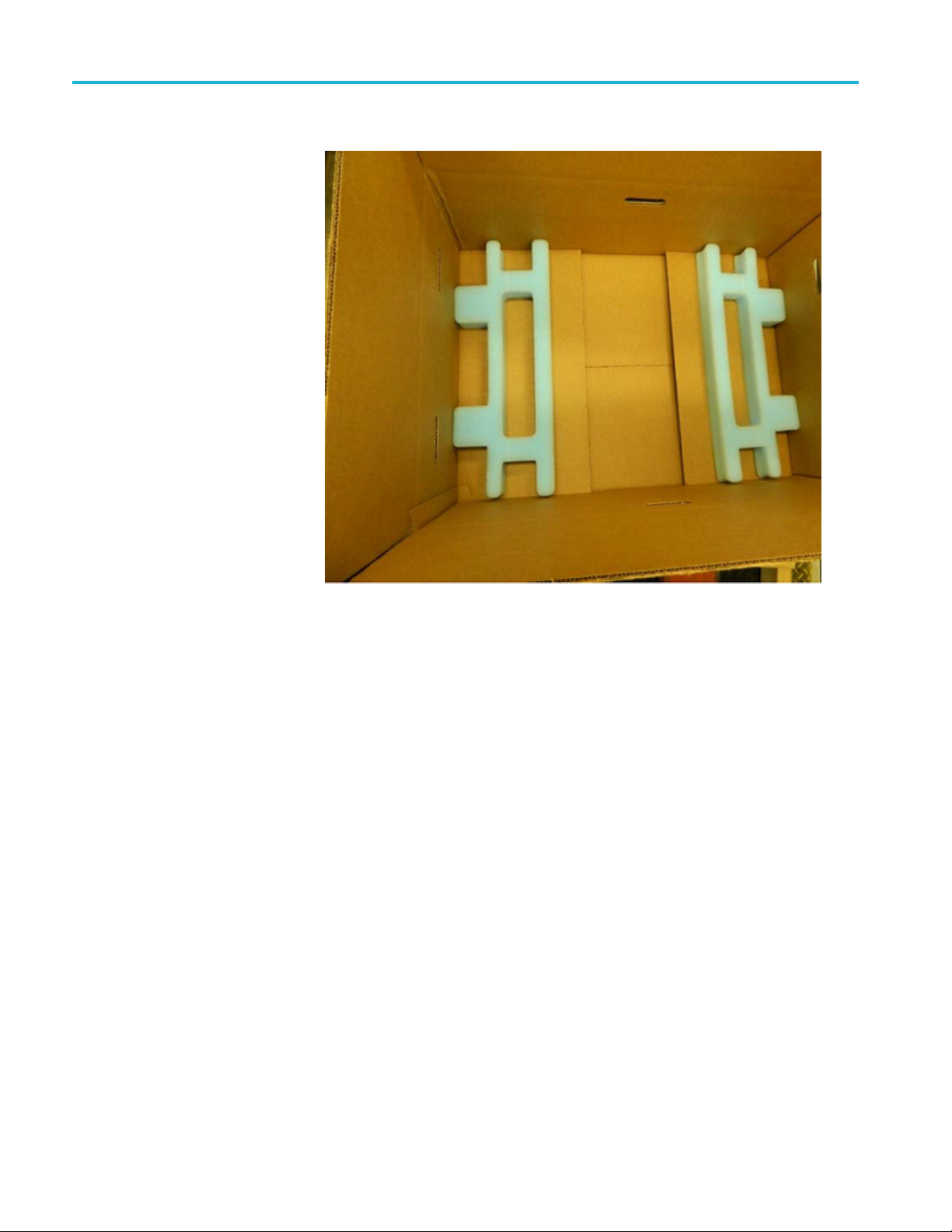

2. Make box [004-5
964-xx] and place 2 foam pieces [004-5965-xx] in as shown.
4 RSA7100 and CTRL7100 Series Packaging Kit Instructions
650-6183-00 CTRL7100 packaging procedure
3. Install the fol
shown: one 004-5966-xx, two 004-5967-xx.
lowing 3 foam pieces as
RSA7100 and CTRL7100 Series Packaging Kit Instructions 5
650-6183-00 CTRL7100 packaging procedure
4. Using at least t
shown.
wo people, lift controller and place in box with blue pieces, as
6 RSA7100 and CTRL7100 Series Packaging Kit Instructions
650-6183-00 CTRL7100 packaging procedure
5. Insert foam pie
as shown, with cutout aligning with tab on controller.
ces [004-5966-xx] and [004-5968-xx],
RSA7100 and CTRL7100 Series Packaging Kit Instructions 7
650-6183-00 CTRL7100 packaging procedure
6. Place 2 foam pie
ces [004-5965-xx] as shown.
8 RSA7100 and CTRL7100 Series Packaging Kit Instructions
650-6183-00 CTRL7100 packaging procedure
7. Close and tape b
8. Add "Band on Pallet" sheet on box as shown.
ox. Attach label 1 of 3 to this box, as shown.
RSA7100 and CTRL7100 Series Packaging Kit Instructions 9
650-6184-00 RSA7100 packaging procedure
650-6184-00 R
SA7100 packaging procedure
WARNING. Injury may occur when lifting heavy objects. The RSA7100 is a heavy
instrument. To avoid injury, ensure proper lifting technique using two people or a
mechanical lift when performing the procedures in this document. A mechanical
lift can also b e used.
1. Install a cardboard protector to the rear of the
instrument, as shown, to protect the connectors.
10 RSA7100 and CTRL7100 Series Packaging Kit Instructions
650-6184-00 RSA7100 packaging procedure
2. Open the 32" x 32
on its side, with handle up, onto the bag. Lift unit up and pull the bag up
and around unit.
" bag [006-8267-xx] and place it on the floor. Place the unit
RSA7100 and CTRL7100 Series Packaging Kit Instructions 11
650-6184-00 RSA7100 packaging procedure

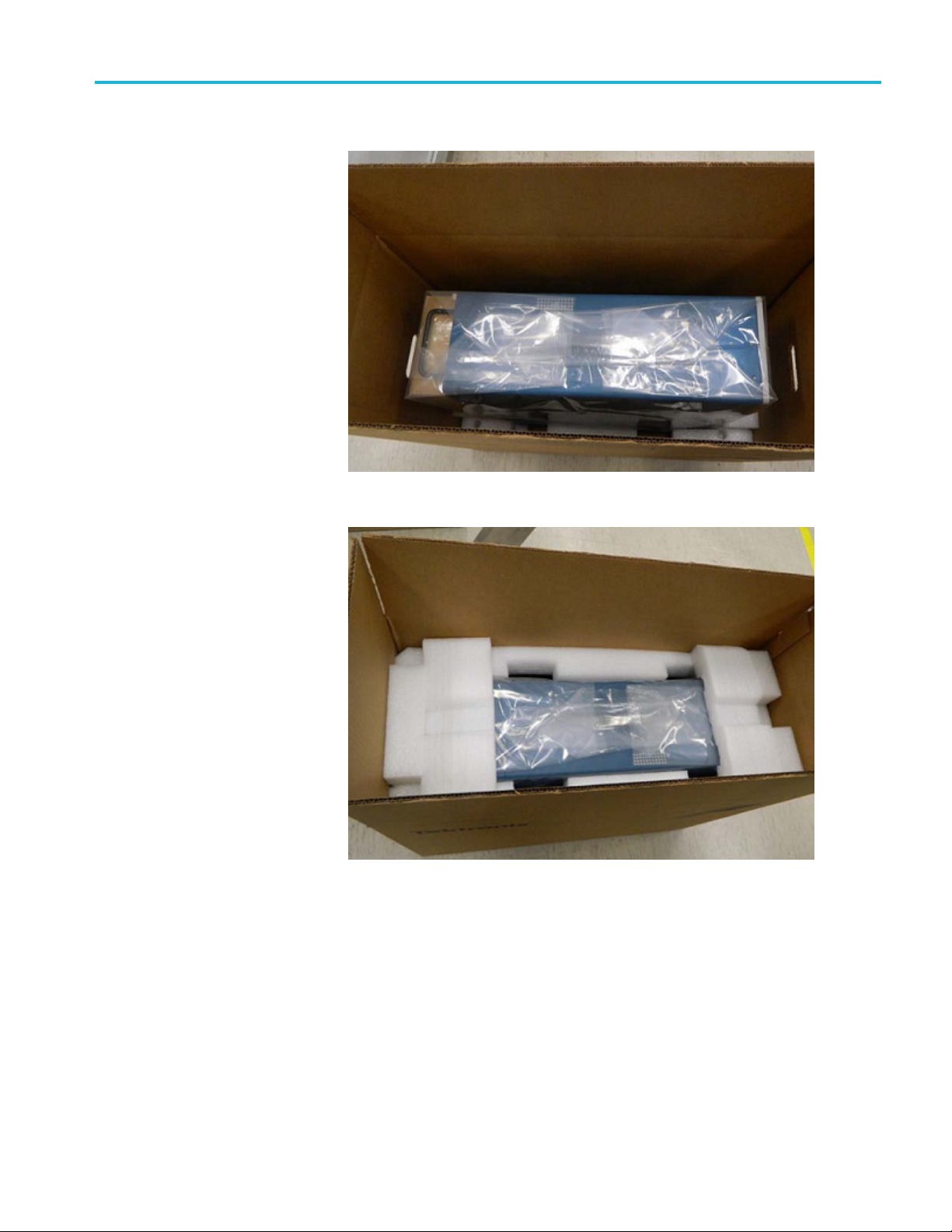

3. Form box [004-5
box bottom. Locate cutout for connectors (see outlined area in image).
4. Using tw
into box, ensuring connectors line up with cutout.
o people or mechanical lift, lower unit
969-xx]. Place part of foam packaging [044-6118-xx] into
12 RSA7100 and CTRL7100 Series Packaging Kit Instructions
650-6184-00 RSA7100 packaging procedure
5. Tape bag closed
6. Place other foam piece [044-6118-xx] on
top of unit and align cutout with connectors.
as shown.
RSA7100 and CTRL7100 Series Packaging Kit Instructions 13
650-6184-00 RSA7100 packaging procedure
7. Close and tape b
ox. Attach label 2 of 3 to this box, as shown.
14 RSA7100 and CTRL7100 Series Packaging Kit Instructions
650-6184-00 RSA7100 packaging procedure
8. If you have acce
accessories box that may have been included with your kit (004-5973-xx)
and fill all voids with bubble wrap or like material to secure items in place.
9. Close and tape the accessories box and attach the label to the box.
ssories and are including them, place all accessories in the
