Tektronix 3 Series Mixed Domain Oscilloscope Quick Start Guide

3 Series Mixed Domain Oscilloscope MDO32 and MDO34
Quick Start Manual
arning: The servicing instructions are for use by qualified personnel only. To avoid personal injury, do not perform any servicing unless you are qualified
W
to do so. Refer to all safety summaries prior to performing service.
Supports product Firmware V1.1 and above
Register now! Click the following link to protect your product. www.tek.com/register
*P077179700*
077-1797-00
Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. T and pending. Information in this publication supersedes that in all previously published material. Specifications and price change privileges reserved.
TEKTRONIX and TEK are registered trademarks of Tektronix, Inc.
ektronix products are covered by U.S. and foreign patents, issued
Contacting Tektronix
Tektronix, Inc.
14150 SW Karl Braun Drive
P.O. Box 500
Beaverton, OR 97077
USA
For product information, sales, service, and technical support:
In North America, call 1-800-833-9200.
Worldwide, visit to www.tek.com find contacts in your area.

Table of Contents

Table of Contents
Important safety information..........................................................................................................................................................4
General safety summary........................................................................................................................................................4
Service safety summary.........................................................................................................................................................6
Terms in this manual.............................................................................................................................................................. 7
Terms on the product............................................................................................................................................................. 7
Symbols on the product......................................................................................................................................................... 7
Compliance information................................................................................................................................................................ 8
Safety compliance..................................................................................................................................................................8
Environmental compliance.....................................................................................................................................................9
Getting started.............................................................................................................................................................................10
Key features.........................................................................................................................................................................10
Documentation.....................................................................................................................................................................10
Check shipped accessories..................................................................................................................................................11
Safely rotate the handle....................................................................................................................................................... 11
Operating requirements....................................................................................................................................................... 12
Input signal requirements.....................................................................................................................................................13
Lock the oscilloscope...........................................................................................................................................................14
Powering the instrument...................................................................................................................................................... 14
Check that the oscilloscope passes power-on self tests......................................................................................................15

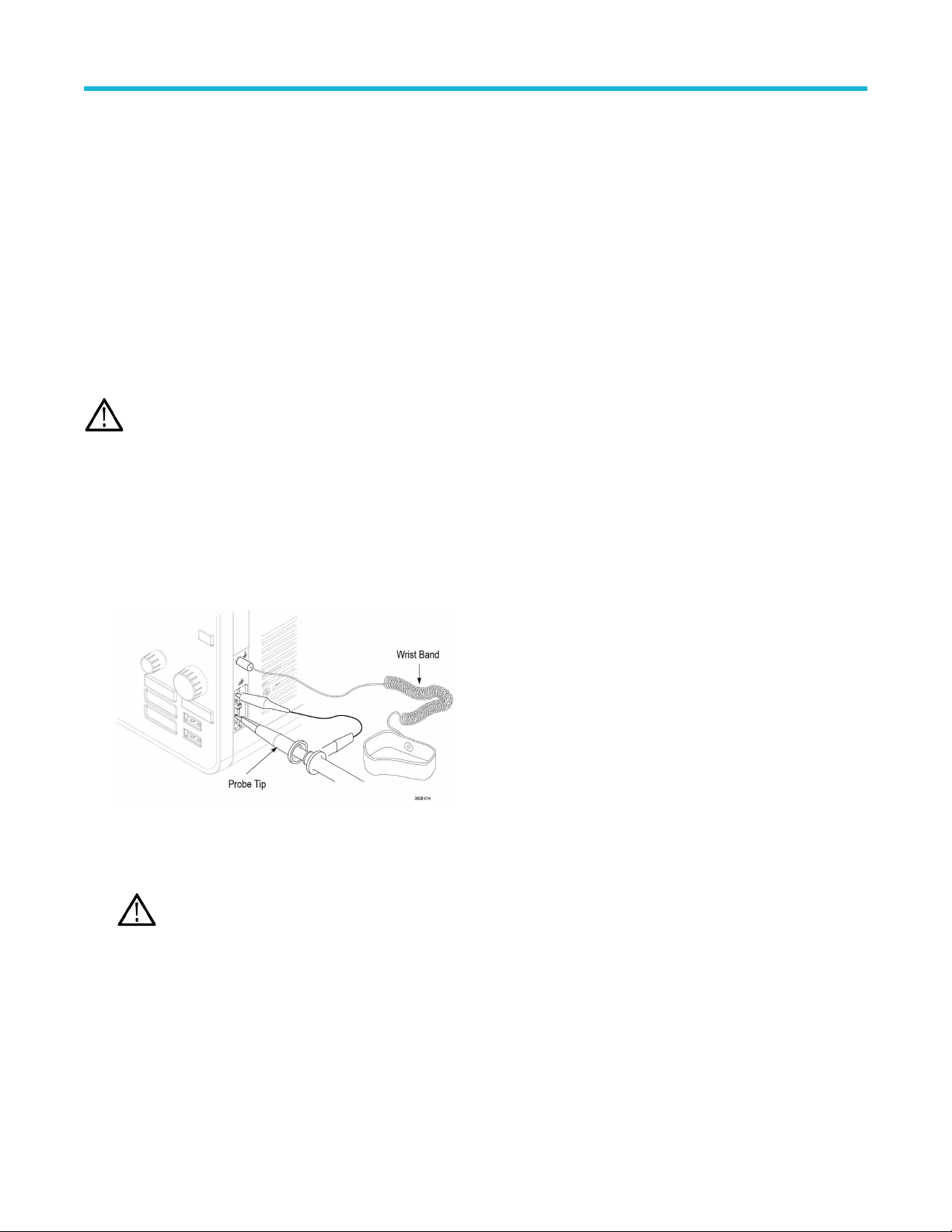

Connecting probes...............................................................................................................................................................15
Rackmount information........................................................................................................................................................ 16
Remote access from a Web browser...................................................................................................................................16
Connect the oscilloscope to a PC using a USB cable......................................................................................................... 17
Cleaning...............................................................................................................................................................................17
Getting acquainted with your instrument.....................................................................................................................................18
Front panel controls and connectors....................................................................................................................................18
Rear panel connections....................................................................................................................................................... 19
User interface ......................................................................................................................................................................20
Identifying items in the time domain display........................................................................................................................ 21

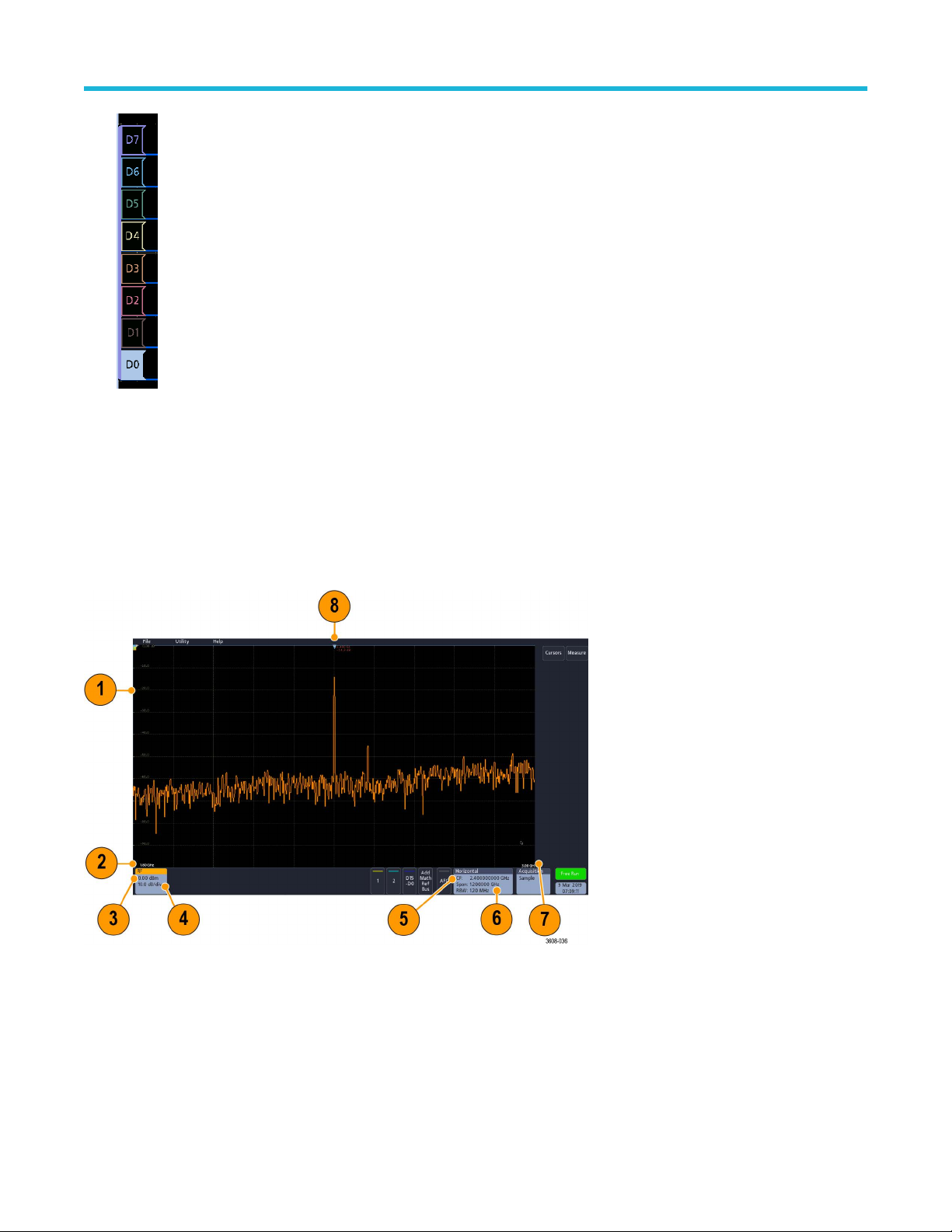

Identifying items in the frequency domain display............................................................................................................... 23

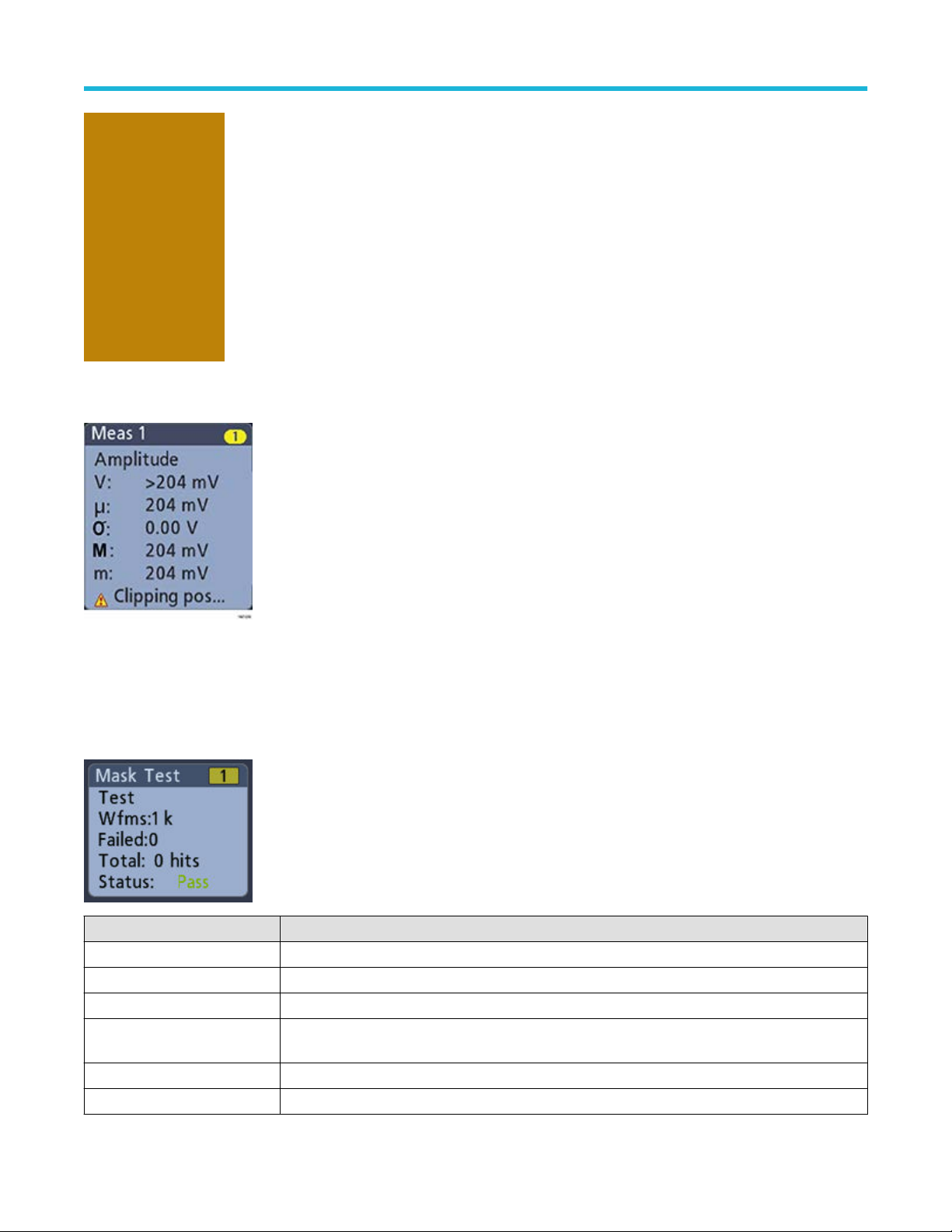

Badges.................................................................................................................................................................................25

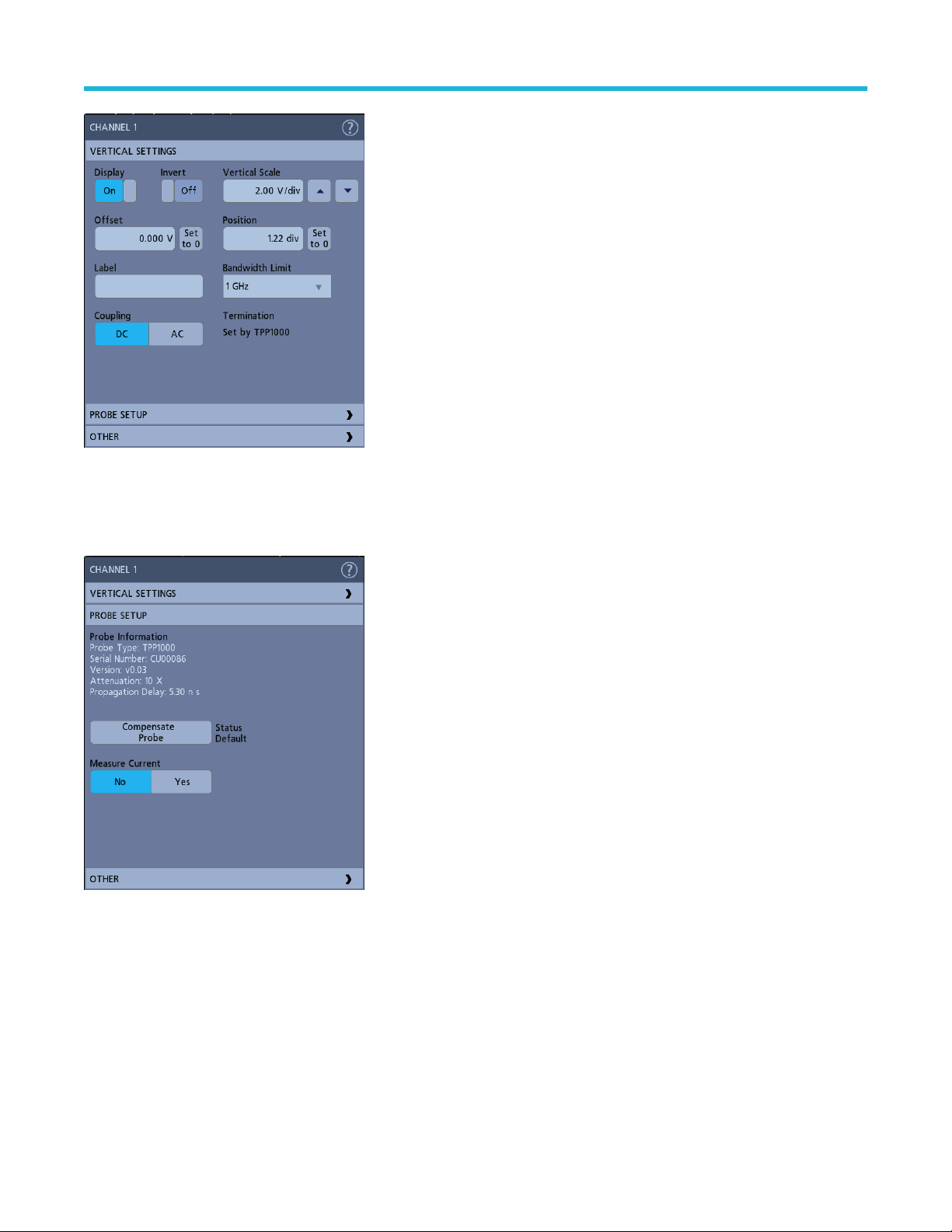

Configuration menus............................................................................................................................................................29
Zoom user interface ............................................................................................................................................................ 31
Using the touchscreen interface for common tasks............................................................................................................. 32
Configure the instrument.............................................................................................................................................................33
Set the date and time...........................................................................................................................................................33
Download and install the latest firmware............................................................................................................................. 33
Run Signal Path Compensation (SPC)................................................................................................................................ 34
Compensate TPP0250, TPP0500B, or TPP1000 probes.................................................................................................... 34
Connect to a network (LAN).................................................................................................................................................36
Index........................................................................................................................................................................................... 37
3 Series Mixed Domain Oscilloscope MDO32 and MDO34 Quick Start Manual 3

Important safety information

Important safety information
This manual contains information and warnings that must be followed by the user for safe operation and to keep the product in a safe condition.
To safely perform service on this product, see the Service safety summary that follows the General safety summary.

General safety summary

Use the product only as specified. Review the following safety precautions to avoid injury and prevent damage to this product or any products connected to it. Carefully read all instructions. Retain these instructions for future reference.
This product shall be used in accordance with local and national codes.
For correct and safe operation of the product, it is essential that you follow generally accepted safety procedures in addition to the safety precautions specified in this manual.
The product is designed to be used by trained personnel only.
Only qualified personnel who are aware of the hazards involved should remove the cover for repair, maintenance, or adjustment.
Before use, always check the product with a known source to be sure it is operating correctly.
This product is not intended for detection of hazardous voltages.
Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
While using this product, you may need to access other parts of a larger system. Read the safety sections of the other component manuals for warnings and cautions related to operating the system.
When incorporating this equipment into a system, the safety of that system is the responsibility of the assembler of the system.
To avoid fire or personal injury
Use proper power cord.
Use only the power cord specified for this product and certified for the country of use. Do not use the provided power cord for other products.
Ground the product.
This product is grounded through the grounding conductor of the power cord. To avoid electric shock, the grounding conductor must be connected to earth ground. Before making connections to the input or output terminals of the product, ensure that the product is properly grounded. Do not disable the power cord grounding connection.
Power disconnect.
The power cord disconnects the product from the power source. See instructions for the location. Do not position the equipment so that it is difficult to operate the power cord; it must remain accessible to the user at all times to allow for quick disconnection if needed.
Connect and disconnect properly.
Do not connect or disconnect probes or test leads while they are connected to a voltage source.
Use only insulated voltage probes, test leads, and adapters supplied with the product, or indicated by Tektronix to be suitable for the product.
Observe all terminal ratings.
To avoid fire or shock hazard, observe all rating and markings on the product. Consult the product manual for further ratings information before making connections to the product.
4
Important safety information
Do not exceed the Measurement Category (CAT) rating and voltage or current rating of the lowest rated individual component of a product, probe, or accessory
Do not apply a potential to any terminal, including the common terminal, that exceeds the maximum rating of that terminal.
Do not float the common terminal above the rated voltage for that terminal.
. Use caution when using 1:1 test leads because the probe tip voltage is directly transmitted to the product.
Do not operate without covers
Do not operate this product with covers or panels removed, or with the case open. Hazardous voltage exposure is possible.
Avoid exposed circuitry
Do not touch exposed connections and components when power is present.
Do not operate with suspected failures.
If you suspect that there is damage to this product, have it inspected by qualified service personnel.
Disable the product if it is damaged. Do not use the product if it is damaged or operates incorrectly. If in doubt about safety of the product, turn it off and disconnect the power cord. Clearly mark the product to prevent its further operation.
Before use, inspect voltage probes, test leads, and accessories for mechanical damage and replace when damaged. Do not use probes or test leads if they are damaged, if there is exposed metal, or if a wear indicator shows.
Examine the exterior of the product before you use it. Look for cracks or missing pieces.
Use only specified replacement parts.
Do not operate in wet/damp conditions
Be aware that condensation may occur if a unit is moved from a cold to a warm environment.
Do not operate in an explosive atmosphere
Keep product surfaces clean and dry
Remove the input signals before you clean the product.
Provide proper ventilation.
Refer to the installation instructions in the manual for details on installing the product so it has proper ventilation.
Slots and openings are provided for ventilation and should never be covered or otherwise obstructed. Do not push objects into any of the openings.
Provide a safe working environment
Always place the product in a location convenient for viewing the display and indicators.
Avoid improper or prolonged use of keyboards, pointers, and button pads. Improper or prolonged keyboard or pointer use may result in serious injury.
Be sure your work area meets applicable ergonomic standards. Consult with an ergonomics professional to avoid stress injuries.
Use care when lifting and carrying the product. This product is provided with a handle or handles for lifting and carrying.
Use only the Tektronix rackmount hardware specified for this product.
Probes and test leads
Before connecting probes or test leads, connect the power cord from the power connector to a properly grounded power outlet.
Keep fingers behind the protective barrier, protective finger guard, or tactile indicator on the probes. Remove all probes, test leads and accessories that are not in use.
3 Series Mixed Domain Oscilloscope MDO32 and MDO34 Quick Start Manual 5
Important safety information
Use only correct Measurement Category (CAT), voltage, temperature, altitude, and amperage rated probes, test leads, and adapters for any measurement.
Beware of high voltages
Understand the voltage ratings for the probe you are using and do not exceed those ratings. T understand:
The maximum measurement voltage from the probe tip to the probe reference lead.
The maximum floating voltage from the probe reference lead to earth ground.
These two voltage ratings depend on the probe and your application. Refer to the Specifications section of the manual for more information.
WARNING: T oscilloscope input BNC connector, probe tip, or probe reference lead.
o prevent electrical shock, do not exceed the maximum measurement or maximum floating voltage for the
wo ratings are important to know and
Connect and disconnect properly.
Connect the probe output to the measurement product before connecting the probe to the circuit under test. Connect the probe reference lead to the circuit under test before connecting the probe input. Disconnect the probe input and the probe reference lead from the circuit under test before disconnecting the probe from the measurement product.
De-energize the circuit under test before connecting or disconnecting the current probe.
Connect the probe reference lead to earth ground only
Do not connect a current probe to any wire that carries voltages or frequencies above the current probe voltage rating.
.
Inspect the probe and accessories
Before each use, inspect probe and accessories for damage (cuts, tears, or defects in the probe body, accessories, or cable jacket). Do not use if damaged.
Ground-referenced oscilloscope use
Do not float the reference lead of this probe when using with ground-referenced oscilloscopes. The reference lead must be connected to earth potential (0 V).

Service safety summary

The Service safety summary section contains additional information required to safely perform service on the product. Only qualified personnel should perform service procedures. Read this Service safety summary and the General safety summary before performing any service procedures.
To avoid electric shock
Do not touch exposed connections.
Do not service alone
Do not perform internal service or adjustments of this product unless another person capable of rendering first aid and resuscitation is present.
Disconnect power
To avoid electric shock, switch off the product power and disconnect the power cord from the mains power before removing any covers or panels, or opening the case for servicing.
6
Use care when servicing with power on
Important safety information
Dangerous voltages or currents may exist in this product. Disconnect power before removing protective panels, soldering, or replacing components.
, remove battery (if applicable), and disconnect test leads
Verify safety after repair
Always recheck ground continuity and mains dielectric strength after performing a repair.

Terms in this manual

These terms may appear in this manual:
WARNING: W
CAUTION: Caution statements identify conditions or practices that could result in damage to this product or other property
arning statements identify conditions or practices that could result in injury or loss of life.

Terms on the product

These terms may appear on the product:
DANGER indicates an injury hazard immediately accessible as you read the marking.
WARNING indicates an injury hazard not immediately accessible as you read the marking.
CAUTION indicates a hazard to property including the product.

Symbols on the product

.
When this symbol is marked on the product, be sure to consult the manual to find out the nature of the potential hazards and any actions which have to be taken to avoid them. (This symbol may also be used to refer the user to ratings in the manual.)
The following symbols(s) may appear on the product.
3 Series Mixed Domain Oscilloscope MDO32 and MDO34 Quick Start Manual 7

Compliance information

Compliance information
This section lists the safety and environmental standards with which the instrument complies. This product is intended for use by professionals and trained personnel only; it is not designed for use in households or by children.
Questions about compliance information may be directed to the following address:
Tektronix, Inc.
PO Box 500, MS 19-045
Beaverton, OR 97077, USA
tek.com

Safety compliance

This section lists other safety compliance information.
Equipment type
Test and measuring equipment.
Safety class
Class 1 – grounded product.
Pollution degree description
A measure of the contaminants that could occur in the environment around and within a product. Typically the internal environment inside a product is considered to be the same as the external. Products should be used only in the environment for which they are rated.
Pollution Degree 1. No pollution or only dry, nonconductive pollution occurs. Products in this category are generally encapsulated, hermetically sealed, or located in clean rooms.
Pollution Degree 2. Normally only dry, nonconductive pollution occurs. Occasionally a temporary conductivity that is caused by condensation must be expected. This location is a typical office/home environment. Temporary condensation occurs only when the product is out of service.
Pollution Degree 3. Conductive pollution, or dry, nonconductive pollution that becomes conductive due to condensation. These are sheltered locations where neither temperature nor humidity is controlled. The area is protected from direct sunshine, rain, or direct wind.
Pollution Degree 4. Pollution that generates persistent conductivity through conductive dust, rain, or snow. Typical outdoor locations.
Pollution degree rating
Pollution Degree 2 (as defined in IEC 61010-1). Note: Rated for indoor, dry location use only.
IP rating
IP20 (as defined in IEC 60529).
Measurement and overvoltage category descriptions
Measurement terminals on this product may be rated for measuring mains voltages from one or more of the following categories (see specific ratings marked on the product and in the manual).
Measurement Category II. For measurements performed on circuits directly connected to the low-voltage installation.
Measurement Category III. For measurements performed in the building installation.
Measurement Category IV. For measurements performed at the source of low-voltage installation.
8
Compliance information
Note: Only mains power supply circuits have an overvoltage category rating. Only measurement circuits have a measurement category rating. Other circuits within the product do not have either rating.
Mains overvoltage category rating
Overvoltage Category II (as defined in IEC 61010-1)

Environmental compliance

This section provides information about the environmental impact of the product.
Product end-of-life handling
Observe the following guidelines when recycling an instrument or component:
Equipment recycling Production of this equipment required the extraction and use of natural resources. The equipment may
contain substances that could be harmful to the environment or human health if improperly handled at the product’
s end of life. To avoid release of such substances into the environment and to reduce the use of natural resources, we encourage you to recycle this product in an appropriate system that will ensure that most of the materials are reused or recycled appropriately.
This symbol indicates that this product complies with the applicable European Union requirements according to Directives 2012/19/EU and 2006/66/EC on waste electrical and electronic equipment (WEEE) and batteries. For information about recycling options, check the T
ektronix Web site (www.tek.com/productrecycling).
Battery recycling This product contains a small installed lithium metal button cell. Please properly dispose of or recycle the
cell at its end of life according to local government regulations.
Perchlorate materials This product contains one or more type CR lithium batteries. According to the state of California, CR
lithium batteries are classified as perchlorate materials and require special handling. See www
hazardouswaste/perchlorate for additional information.
.dtsc.ca.gov/
Transporting batteries
The small lithium primary button cell contained in this equipment does not exceed 1 gram of lithium metal content per cell.
The cell type has been shown by the manufacturer to comply with the applicable requirements of the UN Manual of T Part III, Sub-section 38.3. Consult your carrier to determine which lithium battery transportation requirements are applicable to your configuration, including to its re-packaging and re-labeling, prior to reshipment of the product by any mode of transport.
ests and Criteria
3 Series Mixed Domain Oscilloscope MDO32 and MDO34 Quick Start Manual 9

Getting started

Getting started
This manual provides product safety and compliance information, describes how to connect and power on the oscilloscope, and introduces the basic instrument features, controls, and operations. See the product Help file for more detailed information. Go to tek.com/
warranty-status-search for warranty information.

Key features

Welcome to the 3 Series MDO. The 3 Series MDO Oscilloscopes (MDO32 and MDO34) are 2- and 4-channel oscilloscopes, enabling you to efficiently and cost-effectively perform mixed domain debugging.
A dedicated RF input channel for frequency domain measurements
1 GHz spectrum analyzer standard, 3 GHz optional
Bandwidths from 100 MHz to 1 GHz
2- and 4-channels for time domain measurements
Sixteen-channel digital input option
Large 11.6” HD (1920 x 1080 pixel) capacitive touchscreen display
User interface optimized for touchscreen use
Sample rates of 2.5 GS/s on all analog channels (5 GS/s on 1 or 2 channels for the MDO34 or MDO32 with the 1 GHz option)
10 M points record length on all channels
Maximum waveform capture rate: 280,000 waveforms/second, with FastAcq: >50,000 waveforms/second with normal operation
Advanced triggering and analysis: I2C, SPI, USB 2.0, CAN, CAN FD, LIN, FlexRay, RS-232, RS-422, RS-485, UART, I2S, Left Justified (LJ), Right Justified (RJ), TDM, MIL-STD-1553, ARINC429 (with the appropriate option), and Parallel
Power analysis (optional)
Arbitrary function generator and 16 digital channels (optional)
Digital voltmeter and trigger frequency counter free with product registration

Documentation

Review the following user documents before installing and using your instrument. These documents provide important operating information.
Product documentation
The following table lists the primary product specific documentation available for your product. These and other user documents are available for download from www.tek.com. Other information, such as demonstration guides, technical briefs, and application notes, can also be found at www.tek.com.
Document Content
Help In-depth operating information for the product. Available from the Help button in the product
UI and as a downloadable PDF on www
Quick Start User Manual Introduction to product hardware and software, installation instructions, turn on, and basic
operating information.
Specifications and Performance Verification Technical Reference
Programmer Manual Commands for remotely controlling the instrument.
Table continued…
Instrument specifications and performance verification instructions for testing instrument performance.
.tek.com/downloads.
10
Getting started
Document Content
Declassification and Security Instructions Information about the location of memory in the instrument. Instructions for declassifying
and sanitizing the instrument.
Service Manual Replaceable parts list, theory of operations, and repair and replace procedures for
servicing an instrument.
Upgrade Instructions Product upgrade installation information.
Rackmount Kit Instructions Installation information for assembling and mounting an instrument using a specific
rackmount.
How to find your product documentation
1. Go to www
2. Click Download in the green sidebar on the right side of the screen.
3. Select Manuals as the Download Type, enter your product model, and click Search.
4. View and download your product manuals. You can also click the Product Support Center and Learning Center links on the page for
more documentation.
.tek.com.

Check shipped accessories

Make sure that you received everything you ordered. If anything is missing, contact Tektronix Customer Support. In North America, call 1-800-833-9200. Worldwide, visit www.tek.com to find contacts in your area.
Check the packing list that came with your instrument to verify that you have received all standard accessories and ordered items. If you purchased factory options, tap Help > About to confirm that the option(s) are listed in the Installed Options table.
Standard accessories
Item Quantity Tektronix part
number
Passive Voltage Probe, depends on instrument bandwidth 1 GHz bandwidth One per analog
350 MHz and 500 MHz
100 MHz and 200 MHz bandwidth
Accessory bag 1 016-2144-xx
Power cord 1 Depends on region
Calibration certificate 1 N/A
OpenChoice® Desktop Software. Available for download from www
.tek.com/software/downloads
channel
TPP1000
TPP0500B
TPP0250

Safely rotate the handle

Use the correct process to eliminate the chance of pinching your thumb or rear-panel-connected cables while rotating the handle.
WARNING: Hold the top of the handle to rotate the handle on the instrument. Do not hold the handle from the sides and rotate, as this can pinch the base of your thumb between the handle and the case.
CAUTION: If you have routed any cables between the handle and the case, be careful when rotating the handle so that you do not pinch the cables.
3 Series Mixed Domain Oscilloscope MDO32 and MDO34 Quick Start Manual 11
Getting started

Operating requirements

Use the oscilloscope within the required operating temperature, power accurate measurements and safe instrument operation.
, altitude, and signal input voltage ranges to provide the most
Environment requirements
Characteristic Description
Operating temperature -10 °C to +55 °C (+14 °F to +131 °F)
For proper cooling, keep the sides and rear of the instrument clear of obstructions for 2 inches (51 mm).
Operating humidity 5% to 90% relative humidity (% RH) up to +40 °C (+104 °F), Noncondensing.
5% to 60% RH above +40 °C up to +55 °C (+104 °F to +131 °F), Noncondensing.
Operating altitude Up to 3000 meters (9842 feet)
Power requirements
Characteristic Description
Power source voltage 100 V - 240 V
Power source frequency 50/60 Hz, 100-240 V
400 Hz ±10% at 100 to 132 V
Power consumption 130 W maximum
, ±10%, single phase
AC RMS
12
Getting started

Input signal requirements

Keep the input signals within allowed limits to ensure the most accurate measurements and prevent damage to the analog and digital probes or instrument. Make sure that input signals are within the following requirements.
Table 1: Maximum analog input
Input Description
Analog input channels, 1 M Ω setting, maximum input voltage at BNC
300 V
RMS
Measurement Category II
De-rate at 20 dB/decade between 4.5 MHz and 45 MHz, De-rate 14 db between 45 MHz and 450 MHz. Above 450 MHz, 5 V
RMS
.
Analog input channels, 50 Ω setting, maximum input
5 V
with a peak at ±20 V
RMS
. (DF ≤ 6.25%).
voltage at BNC
RF input maximum input voltage Average Continuous Power: +20 dBm (0.1 W)
DC maximum before damage: ±40 VDC
Max no damage +33 dBm (2 W) CW
Peak Pulse Power: +45 dBm (32 W)
Peak Pulse Power defined as <10 μs pulse width, <1% duty cycle, and reference level of ≥ +10 dBm
Table 2: Maximum input with a P6316 Digital Probe
Input Description
Threshold Accuracy ±(100 mV + 3% of threshold setting after calibration)
Threshold Range +25 V to –15 V
Maximum nondestructive input signal to probe +30 V to -20 V
Minimum signal swing 500 mV
Input resistance 101 kΩ
Input capacitance 8.0 pF typical
Pollution Degree 2, indoor use only
Humidity 5% to 95% relative humidity
peak-to-peak
3 Series Mixed Domain Oscilloscope MDO32 and MDO34 Quick Start Manual 13
Getting started

Lock the oscilloscope

Lock an oscilloscope to a test bench or equipment rack to prevent property loss. Attach a standard laptop security lock to the rear panel of the oscilloscope, to secure the oscilloscope to a workbench, rack, or other location.

Powering the instrument

Always connect the oscilloscope to AC power using the power cord that shipped with the instrument.
Procedure
1. Connect the supplied power cord to the instrument power connector and then connect the power cord to an appropriate AC mains
source.
2. Push the front panel power button to power the instrument on and off. The button is blue when the instrument is powered on. The button color is yellow when the instrument is in standby mode and unlit when no AC power is applied.
3. To completely remove power from the instrument, disconnect the power cord.
Figure 1: Power cord connector and power standby switch
14
Getting started

Check that the oscilloscope passes power-on self tests

Power-on self tests verify that all oscilloscope modules are working correctly after power up.
Procedure
1. Power on the oscilloscope and wait until the oscilloscope screen appears.
2. Select Utility > Self T
3. Check that the status of all power-on self tests are Passed. If one or more power-on self tests shows Failed:
a. Power cycle the oscilloscope.
b. Tap Utility > Self Test. If one or more power-on self tests still shows Failed, contact Tektronix Customer Support.
est from the top-edge Menu bar to open the Self Test configuration menu.

Connecting probes

Probes and cables connect the oscilloscope to your device under test (DUT). Use a probe that best matches your signal measurement needs.
1. Tektronix Versatile Probe Interface (TekVPI). These probes support two-way communication with the oscilloscope through on-screen menus and remotely through programmable support. The remote control is useful in applications like A to set probe parameters.
2. Tektronix Versatile Probe Interface (TekVPI) for Passive Probes. These probes build upon the functionality of the TekVPI interface. Each probe is matched with its corresponding oscilloscope channel, allowing the oscilloscope to optimize the signal input path. This provides AC compensation across the frequency band.
3. TPA-BNC Adapter. The TPA-BNC Adapter allows you to use TEKPROBE II probe capabilities, such as providing probe power and passing scaling and unit information to the oscilloscope.
4. BNC Interfaces. Some of these use TEKPROBE capabilities to pass the waveform signal and scaling to the oscilloscope. Some only pass the signal and there is no other communication.
5. Logic Probe Interface. The P6316 probe provides 16 channels of digital (logical one or zero) information.
6. TPA-N-VPI Adapter. The TPA-N-VPI Adapter allows you to use TekVPI probes with the RF input.
3 Series Mixed Domain Oscilloscope MDO32 and MDO34 Quick Start Manual 15
TE where you want the system
Getting started
Connect TPP0250, TPP0500B, TPP1000, TekVPI+, TekVPI, or other supported Tektronix analog probes by pushing them into an input connector
TekVPI probes automatically set the channel input parameters for that probe (bandwidth, attenuation, termination, and so on). If a probe has a Menu button, push that button to open an on-screen configuration menu. Follow instructions provided with active probes to set their parameters (auto zero, degauss, and so on).
Connect a BNC probe or cable by pushing it onto a channel BNC bayonet connector and turn the lock mechanism clockwise until it locks.
For more information on the many probes available for use with 3 Series MDO oscilloscopes, visit the Oscilloscope Probe and Accessory Selector Tool at www.tek.com.
. The probe base latch locks with a 'click' when the probe is fully seated.
Note: Connecting a probe does not automatically enable that channel (make it active). Use the instrument controls or programmatic interface to turn on a channel and open its configuration menu to verify or change probe or cable settings (bandwidth, attenuation, termination and so on).

Rackmount information

The optional RM3 Rackmount Kit lets you install the oscilloscope in standard equipment racks. The rack mount requires six rack units (6U) of space to install.
Contact T (RM3 Rackmount Kit Instructions).
Make sure to allow at least two inches of clearance on the sides for air ventilation and on the back for any cables you attach to the rear panel.
ektronix Customer Support to purchase the rackmount kit option RM3. Follow the instructions that come with the rackmount kit

Remote access from a Web browser

You can remotely access your network-connected instrument from a Web browser to display the instrument user interface on a PC.
About this task
This procedure describes how to remotely access the UI controls and screen for the instrument.
Before you begin
The oscilloscope must be connected to, and accessible from, the network to which the PC is connected. See Connect to a network
(LAN) on page 36
Determine the IP address of the oscilloscope that you want to access. To determine the oscilloscope's IP address, select Utility > IO in the oscilloscope menu bar and view the network settings in the LAN panel.
Procedure
1. Open a Web browser on a PC connected to the same network as the oscilloscope.
2. Enter just the oscilloscope IP address on the URL line of the browser and press Enter. For example: 135.62.88.157. The browser
searches for and opens the Web page for the oscilloscope.
3. Select Instrument Control (e*Scope®). The browser displays the instrument screen.
4. Use a mouse to select and interact with the oscilloscope controls shown in the Web browser. If your remote PC or laptop has a
touchscreen monitor, you can use that to access the oscilloscope controls.
When you access the instrument from an e*Scope browser, you cannot directly paste text (such as path, IP address information, and so on) from the PC to an instrument menu field. You must use an intermediate clipboard function that is available in the e*Scope application.
Use the following steps to copy text from an e*Scope-connected PC to the instrument:
a. Open a connection to the instrument using e*Scope.
b. Select and copy the text on your PC.
16
Getting started
c. In e*Scope, press Ctrl-Alt-Shift to open the Clipboard menu.
d. Paste the text into the Clipboard field.
e. Press Ctrl-Alt-Shift to close the browser Clipboard menu
f. Use e*Scope to open the instrument menu to which to paste content and position the cursor in the field where you want to paste
the text.
g. Press Ctrl-V (on real keyboard or from virtual keyboard) to paste the text from the e*Scope browser clipboard to the menu field.
h. Repeat steps 4.b on page 16 through 4.g on page 17 to copy and paste other text from the PC to the instrument.

Connect the oscilloscope to a PC using a USB cable

Use a USB cable to connect the oscilloscope directly to a PC for remote instrument control.
Procedure
1. On the oscilloscope, select Utility > I/O from the menu bar
2. Tap USB Device Port.
3. Confirm that the USB Device Port control is On (default setting).
4. Connect a USB cable from the PC to the USB Device port on the rear of the instrument.
5. If using the USB connection to remotely control the oscilloscope using GPIB adapter (TEK-USB-488), set the GPIB Talk/Listen Address for your configuration (0 - 30).
.

Cleaning

Use a dry, soft cotton cloth to clean the outside of the unit. If any dirt remains, use a cloth or swab dipped in a 75% isopropyl alcohol solution. Use a swab to clean narrow spaces around controls and connectors. Do not use any liquid cleaning agents or chemicals that could damage the touchscreen, case, controls, markings or labels, or possibly infiltrate the case.
3 Series Mixed Domain Oscilloscope MDO32 and MDO34 Quick Start Manual 17

Getting acquainted with your instrument

Getting acquainted with your instrument
The following content provides a high-level description of the instrument controls and user interface. Refer to the instrument help for detailed information on using the controls and user interface to display waveforms and take measurements.

Front panel controls and connectors

The front panel controls provide direct access to key instrument settings such as vertical, horizontal, trigger, and cursors. The connectors are where you input signals with probes or cables or insert USB devices.
Note: Refer to the instrument help for detailed information on using the controls to display waveforms and take measurements.
1. Use the Acquisition and Cursors controls to start and stop waveform acquisition, turn cursors on or of
acquisition mode, enable making a single waveform acquisition, calculate the average of all the samples for each acquisition interval, and delete the current acquisitions and measurement values from memory.
2. Use the Multipurpose Knobs (A, B) to move cursors, adjust the zoom, and set parameter values in configuration menu input fields.
3. Use the Trigger controls to force a trigger event at a random point in the waveform and captures the acquisition, set the amplitude
level that the signal must pass through to be considered a valid transition, set the signal transition direction to detect for a trigger, and set how the instrument behaves in the absence or presence of a trigger event.
4. Use the Vertical controls to move the selected waveform up or down on the screen, set the amplitude units per vertical graticule division of the selected waveform, turn on (display) or select channels, and add or select a math, reference (saved), bus, RF, and digital waveform on the Waveform view.
5. Use the Horizontal controls to move the waveform from side to side on the screen, and set the time per major horizontal graticule division and samples/second parameters for the oscilloscope.
6. Use the Miscellaneous controls to turn touchscreen capability off, restore the oscilloscope settings to the default settings, automatically display a stable waveform, and save files or settings (using the current File > Save As settings).
18
f, enable or disable the fast
Getting acquainted with your instrument
7. Use Ground and probe compensation connectors to provide a ground connector to help reduce electrostatic damage (ESD) and adjust the high-frequency response of a passive probe. The Ground and Probe Compensation connectors are located at the lower right side of the instrument, near the front panel.
8. USB ports are located at the lower right corner of the front panel and on the rear panel. Connect USB flash drives to which you can save or recall data (such as instrument software updates, waveforms, settings, and screen captures) or connect peripheral devices such as a mouse or keyboard.
9. Use the Probe connectors to connect T BNC cables.
ekVPI+ and TekVPI measurement probes, BNC passive probes, the P6316 Logic Probe, and

Rear panel connections

The rear panel connections supply power to the oscilloscope and provide connectors for network, USB devices, video, reference signals, and the AFG output.
1. Power cord connector
2. AFG Out is the signal output for the optional Arbitrary Function Generator (AFG) feature.
3. AUX Out generates a signal transition on a trigger event or outputs a synchronization signal from the AFG.
4. LAN connector (RJ-45) connects the oscilloscope to a 10/100 Base-T local area network.
5. USB Device port lets you connect to a PC to remotely control the oscilloscope using the USBTMC protocol.
6. USB Host port lets you connect a USB memory device, keyboard, or mouse.
7. HDMI output lets you connect an external monitor or projector to show the oscilloscope screen.
8. Security lock connector lets you use a standard PC/laptop lock cable to secure the oscilloscope to a work bench or other location.
. Use only the power cord specified for this product and certified for the country of use.
3 Series Mixed Domain Oscilloscope MDO32 and MDO34 Quick Start Manual 19
Getting acquainted with your instrument

User interface

The touchscreen user interface contains waveforms, measurement readouts, and touch-based controls to access all oscilloscope functions.
1. The Menu bar provides menus for typical operations including:
Saving, loading, and accessing files
Undoing or redoing an UI action
Setting oscilloscope display and measurement preferences
Configuring network access
Running self tests
Erasing measurement and settings memory (TekSecure™)
Loading option licenses
Opening a Help viewer
2. The Waveform View area displays analog, digital, math, reference, and bus waveforms. The waveforms include waveform handles (identifiers), trigger position, and level(s) indicators. See Identifying items in the time domain display on page 21.
3. The Results Bar contains controls for displaying cursors, adding result tables to the screen, and adding measurements to the Results bar. The controls are:
The Cursors button displays on-screen cursors. Touch and drag or use the Multipurpose knobs to move the cursors. Double-tap
on a cursor or on the cursor readouts to open a configuration menu to set cursor types and related functions.
The Measure button opens a configuration menu from which to select and add up to four measurements to the Results bar. Each
measurement you add has a separate badge. Double-tap a measurement badge to open its configuration menu.
The Search button lets you detect and mark a waveform where specified events occur. Tap Search to open a Search configuration
menu and set the search conditions for analog and digital channels. Search badges are added to the Results Bar.
The Results Table button adds a Measurement, Bus, Search, and Harmonics results table to the screen. The Measure tab
displays all measurements present in the Results bar. The Bus tab displays bus decode information for displayed bus waveforms. The Search tab displays search event information. The Harmonics tab displays harmonic measurement results.
The More... button on the Results Bar allows you to select Zoom or Mask.
The Draw Zoom/Mask button lets you to draw a mask or zoom. This button reflects the function selected in DRAW A BOX menu.
The Measurement and Search badges show measurement and search results and are displayed in the Results Bar.
20
Getting acquainted with your instrument
4. The Settings Bar contains System badges for setting Horizontal, T buttons to turn on channels; Math/Ref/Bus button to add math, reference, and bus waveforms to the display; and Channel and Waveform badges that let you configure the individual waveform parameters. Tap a channel or waveform button to add it to the screen and display a badge. Double-tap a badge to open its configuration menu.
5. Configuration Menus let you quickly change the parameters of the selected user interface item. You can open configuration menus by double-tapping on badges, screen objects, or screen areas.
rigger, Acquisition, and Date/Time parameters; Inactive Channel

Identifying items in the time domain display

Each area of the user interface has a specific function that helps manage information or controls. This topic shows and describes the key user interface elements.
1. The Waveform Record View is a graphical high-level view of the overall acquisition, how much of the acquisition is on the screen
(shown in brackets), the location of key time events including the trigger event, and the current position of waveforms cursors.
If you are changing the horizontal time scale while the oscilloscope acquisition is stopped, the brackets change position to show the part of the waveform record that is being viewed relative to the current acquisition total record length.
If cursors are active on a waveform, the Waveform Record View shows the relative cursor positions as small vertical dashed lines.
When in Zoom mode, the Waveform Record View is replaced with the Zoom Overview. See Zoom user interface on page
2. The Expansion Point icon on the waveform view shows the center point around which the waveform expands and compresses when
changing horizontal settings.
3. The T
3 Series Mixed Domain Oscilloscope MDO32 and MDO34 Quick Start Manual 21
rigger Position Indicator shows where the trigger event occurred in the waveform record.
31.
Getting acquainted with your instrument
4. The Zoom icon (in upper right corner of Waveform and Plot views) toggles zoom on and off.
5. The T
6. Measurement and Search badges show measurement and search results. See Badges on page 25.
7. The Results Bar Handle opens or closes the Results bar to maximize waveform screen viewing when needed. To reopen the
8. The System badges show global instrument settings (Horizontal, Trigger, Acquisition, Run/Stop status, and Date/Time). See
9. The Inactive Channel buttons add channel waveforms to the Waveform view and add an associated Channel badge to the Settings
10. Double-tap a badge to open its associated configuration menu. See Badges on page 25. See Configuration menus on page 29.
11. The Waveform Handles on each waveform identify the source of that waveform (Cx for channels, M for Math, Rx for Reference
rigger Level Indicator icon(s) shows the trigger level(s) on the trigger source waveform. Some trigger types require two trigger
levels.
Results bar, either tap the handle icon or swipe left from the right side of the display.
Badges on page 25.
bar.
The Add Math Ref Bus button expands allowing you to add a math, reference, or bus waveform to the Waveform view and add an associated Waveform badge to the Settings bar.
The RF button activates the frequency domain display and adds an RF badge. Double-tap the badge to open the RF configuration menu to configure the RF input. This button is only active if one of the RF options is enabled.
The AFG button opens the AFG configuration menu to set and enable the AFG output. This button is only present if the AFG option is installed.
The DVM button lets you use an analog probe to take DC, AC RMS, or DC+AC RMS voltage measurements on your DUT. Tap the button to add a DVM badge to the Results Bar and open a configuration menu. The DVM option also enables a trigger frequency counter, accessible from the Mode & Holdoff panel in the Trigger badge menu. This button is only present if the DVM option is installed.
If you add more Channel or Waveform badges than can fit in the waveform badge display area, tap the scroll buttons at each end of the waveform badge area to scroll and display hidden badges.
waveforms, Bx for bus waveforms). The waveform handles are at the zero-volt level of the waveform by default. The currently selected waveform handle is a solid color; unselected waveform handles are outlined.
Double-tapping a waveform handle opens the configuration menu for that waveform.
For digital channels, the waveform handle shows the channel number, with each individual digital signal labeled D0–D15 and displayed with a different color.
22
Double-tapping a digital waveform handle opens the digital channel configuration menu.
Getting acquainted with your instrument
Dragging a digital signal handle over another handle swaps location of the signals in the waveform view handle out of the group, creates a new group. A selected digital group or signal handle can be moved using the Vertical Position control.
. Dragging a digital signal

Identifying items in the frequency domain display

To activate the frequency domain display, press the front panel RF button or tap the RF button in the display. Each area of the user interface has a specific function that helps manage information or controls.
ertical graticule labels
1. V
2. Start frequency
3. Reference level
4. Vertical scale
5. Center frequency
6. Span and resolution bandwidth
7. Stop frequency
3 Series Mixed Domain Oscilloscope MDO32 and MDO34 Quick Start Manual 23
Getting acquainted with your instrument
8. Reference marker
9. Displayed trace indicators
a. An RF trace indicator is placed at the Reference Level.
b. A capital M appears if the maximum trace is turned on.
c. A capital A appears if the average trace is turned on.
d. A capital N appears if the normal trace is turned on.
e. The small m appears if the minimum trace is turned on.
Orange highlighting indicates the currently selected trace. In the figures the small m, which stands for the minimum trace, is highlighted. This indicates that the minimum trace is currently selected.
10. Normal trace: Each acquisition is discarded as new data is acquired.
1. Max hold trace: The maximum data values are accumulated over multiple acquisitions of the Normal trace.
1
12. Min hold trace: The minimum data values are accumulated over multiple acquisitions of the Normal trace.
13. Average trace: Data from the Normal trace is averaged over multiple acquisitions. This is true power averaging, which occurs before
the log conversion. Each power of 2 averaging reduces the displayed noise by 3 dB.
24
Getting acquainted with your instrument

Badges

Badges are rectangular icons that show waveform, measurement, and instrument settings or readouts. Badges also provide fast access to configuration menus. The badge types are Channel, W
Channel and Waveform badges
Channel and Waveform (Math, Ref, Bus) badges are shown in the Settings Bar, located along the bottom left of the screen. Each waveform has its own badge. The badges show high-level settings for each displayed channel or waveform. Double-tap a badge to open its configuration menu.
Most Channel and Waveform badges also have Vertical Scale buttons, shown by single-tapping the badge. Use these buttons to increase or decrease the vertical scale setting for that waveform.
aveform, Measurement, Search, and System.
You can drag or flick Channel and Waveform badges down off the display to turn them off. Swiping back up from the bottom of the display restores them if they were accidentally deleted.
Channel badges are listed in the channel order instrument Help.
. For more information, double-tap the badge to open its configuration menu or search the
Measurement badges
Result badges are located in the Results Bar. They show measurement or search results. The badge title also shows the measurement source or sources. To add a Measurement badge, tap the Measure button, select a measurement, and tap Add.
Double-tap a Measurement badge to open its configuration menu to change or refine settings.
Some measurements and their badges are only available as options. For example, Power measurements are only listed in the Add Measurement menu if the PWR option is installed.
3 Series Mixed Domain Oscilloscope MDO32 and MDO34 Quick Start Manual 25
Getting acquainted with your instrument
To add statistical readouts to individual measurement badges, double-tap a measurement badge to open its configuration menu and select Show Statistics in Badge.
You can drag or flick Measurement badges off to the right of the display to delete them. You can bring the badge back by swiping in from the right.
Mask T
The mask test results and measurement statistics are displayed in the Mask Test badge in the Results bar. The badge is created when the first segment of a mask is defined.
est Badge
Badge readout Description
Label A label defined in the badge configuration menu.
Wfms The total number of waveforms tested against the mask.
Failed The number of waveforms that contained one or more samples that violated the mask.
Hits (optional readout) A row is created for each segment that makes up the mask. The number displayed is the number of
times that segment has been hit.
Total The total number of hits on all segments.
Status The status of the mask test. Either Pass (green) or Fail (red) is displayed.
26
Getting acquainted with your instrument
Double-tap a Mask Test badge to open its configuration menu to change or refine settings.
ou can drag the badge to change its position in the Results bar and open the badge right click menu to access a quick-action menu.
Y
There are two ways to delete Channel and Waveform badges.
Right-click the badge and turn it off.
Flick the badge off the right edge of the display to remove it from the Results bar. Flicking left from the right edge of the Results bar recovers the badge. Badge recovery is only possible within 10 seconds of removal.
See for the mask test configuration settings Create a Mask for more information masks and Mask Test badge configuration menu.
Search badges
Search badges are also shown in the Results Bar, below the Measurement badges. A search badge lists the search source, search type,
and the number of search event occurrences in the current acquisition. The instrument marks the waveform where those events occur with small down-pointing triangles along the top of the waveform graticule. Double-tap a search badge to open its configuration menu to change or refine search settings.
Search badges are created by tapping the Search button. Use the displayed configuration menu to set the search criteria.
Search badges have < (Previous) and > (Next) Navigation buttons that open the Zoom mode and center the waveform in the display at the position of the previous or next search mark in the waveform record. Search badge Navigation buttons are only usable when acquisitions are stopped.
You can drag or flick a Search badge to the right, off the display, to delete it. You can bring the badge back by swiping in from the right.
Signal clipping and badges
Clipping causes inaccurate amplitude-related measurement results. Clipping also causes inaccurate amplitude values in saved waveform files. If a math waveform is clipped, it will not af
WARNING: Clipping is caused by excessive or dangerous voltages at the probe tip and/or a vertical scale setting that is not adequate to display the entire vertical range of the waveform. Excessive voltage at the probe tip can injure the operator and cause damage to the probe and/or instrument.
This instrument shows a warning triangle symbol and the word Clipping in a Channel badge when a vertical clipping condition exists. Any measurement badges associated with that channel also indicate a clipping condition.
To close the clipping message, change the vertical scale to show the entire waveform, disconnect the probe tip from the excessive voltage source, and check that you are probing the correct signal using the correct probe.
fect amplitude measurements on that math waveform.
3 Series Mixed Domain Oscilloscope MDO32 and MDO34 Quick Start Manual 27
Getting acquainted with your instrument
Error messages and badges
This instrument shows a warning triangle symbol and an error message abbreviation in a Channel badge when an error occurs.
To remove the message from the badge, clear the error.
System badges
System badges (in the Settings bar) display the main Horizontal, Trigger, and Acquisition settings. You cannot delete System badges.
Double-tap a System badge to open its configuration menu.
The Horizontal badge also has Scale buttons, shown by single-tapping the badge. Use the Horizontal Scale buttons to increase or decrease the horizontal time/div setting.
Common badge actions
Action Result Example
Single tap Immediate access controls (Scale,
Navigation).
Table continued…
28
Action Result Example
Double tap Configuration menu with access to all
settings for the badge.
Touch and hold Right-click menu with single tap
access to common actions. T actions include turning off a channel and deleting a measurement or search badge.
ypical
Getting acquainted with your instrument

Configuration menus

Configuration menus let you quickly set the parameters for channels, system settings (Horizontal, T cursor readouts, Waveform view, and so on.
Double-tap an item (badge, Waveform View, cursor readouts, and so on) to open its configuration menu. For example, double-tap a Channel badge in the Settings Bar to open its configuration menu.
rigger, Acquisition), measurements,
3 Series Mixed Domain Oscilloscope MDO32 and MDO34 Quick Start Manual 29
Getting acquainted with your instrument
Selections or values that you enter take effect immediately. Menu contents are dynamic and can change depending on your selections, instrument options, or attached probes.
Related settings are grouped into 'panels.' T and/or fields shown in that panel and other panels.
Tap anywhere outside a configuration menu to close it.
o open Help content for a configuration menu, tap the question mark icon in the upper right corner of the menu.
T
ap the panel name to show those settings. Changes to panel settings can change the values
30

Zoom user interface

Use the zoom tools to magnify waveforms to view signal details.
Getting acquainted with your instrument
1. The Zoom Overview shows the entire waveform record. Use pinch and expand gestures on the Zoom Overview waveforms to change the horizontal time base settings.
2. The Zoom Box shows the area of the Zoom Overview to display in the Zoom V box to move the area to view. Moving the Zoom Box or changing its position does not change the horizontal time base settings.
3. The Zoom icon (in the upper right corner of the Waveform View) switches zoom mode on and off.
4. The DRAW A BOX menu has an option to toggle between drawing a zoom box (default mode) and drawing segments for Mask
Testing.
A zoom box lets you quickly draw a box around an area of interest in the Waveform or Zoom Overview. Drawing a box immediately puts the oscilloscope into zoom mode. To draw a zoom box, tap the Draw Zoom button while in Zoom mode in the DRAW A BOX menu, then touch and drag on the waveform to draw a box waveform. You can continue to draw zoom boxes until you single tap anywhere on the screen or open a menu.
To toggle between Zoom mode and Mask mode, tap the More button and select one of the two options in the DRAW A BOX menu.
5. The Zoom View shows the zoomed waveforms as marked by the Zoom Box. Use pinch and/or drag options in the zoom view to change the zoomed area of interest. Pinch, expand, and drag gestures in the Zoom View only change zoom magnification settings and Zoom Box position.
6. Use the Zoom Title Bar controls to adjust the horizontal size and the position of the zoom area. Click or tap the + or - buttons or use the A and B multipurpose knobs. Double tap the zoom scale and position fields to enter a value using a numerical keypad. Touch the Zoom Position or Horizontal Zoom Scale fields before using the multipurpose knobs to adjust the zoom.
iew (see 5 on page 31). You can touch and drag the
3 Series Mixed Domain Oscilloscope MDO32 and MDO34 Quick Start Manual 31
Getting acquainted with your instrument

Using the touchscreen interface for common tasks

Use standard touchscreen actions, similar to those found on smart phones and tablets, to interact with most screen objects. Y use a mouse to interact with the UI. The equivalent mouse operation is shown for each touch operation.
Table 3: Common touchscreen UI tasks (with mouse equivalents)
Task Touchscreen UI action Mouse action
Add a channel, math, reference, or bus waveform to the screen.
Select a channel, math, reference, or bus waveform to make it active.
Display scale or navigation buttons on a badge (waveform, measurement 1, search,
horizontal).
Open a configuration menu on any item (all badges, views, cursor readouts, labels, and so on).
Open a right-click menu (badges, views). Touch and hold on the badge, Waveform
Close a configuration menu 2.
Move a menu. Touch and hold the menu title bar or a blank
Change horizontal or vertical settings directly on a waveform.
Tap an inactive channel button or the Add Math Ref Bus button and select a math, reference, or bus.
Tap the Channel or Waveform badge or waveform handle.
Click an inactive channel button or the Add Math Ref Bus button and select a math, reference, or bus.
Click the Channel or Waveform badge or waveform handle.
Tap the badge. Click the badge.
Double-tap the badge, view, or other object. Double-click the badge, view, or other object.
Right-click the object. View, or other screen item until a menu opens.
Tap anywhere outside the menu or dialog. Click anywhere outside the menu or dialog.
Click and hold the left mouse button on title area in the menu, then drag the menu to new
or blank area and then drag to new position. position.
Tap a badge and use the Scale buttons. Or, use pinch/expand gestures.
Click a channel, waveform, or Horizontal
badge and click on the Scale buttons.
ou can also
V
ertical changes only apply to the selected channel or waveform; horizontal changes apply to all channels and waveforms.
Increase or decrease the zoom area (while in Zoom mode).
Adjust the zoom position (while in Zoom mode).
Touch and hold two fingertips on the waveform view, move them together or apart vertically or horizontally, lift from screen, and repeat.
Touch and drag in the zoom area to adjust the position of the zoom.
Click and drag the zoom area.
Click the + or - buttons on the Zoom Title bar.
Click and drag in the zoom area to adjust the position of the zoom.
Quickly scroll or pan a waveform. Touch and drag in the waveform. Click and drag in the waveform or list.
Close or open the Results Bar to increase the Waveform View area.
Tap on the Results Bar Handle or anywhere in the border between the Waveform View and the Results Bar.
Click the Results Bar Handle or anywhere in the border between the Waveform View and the Results Bar.
Click and drag the Results Bar divider.
1
Not all measurement or search badges display navigation buttons.
2
Some dialog boxes will not close until you click an OK, Close, or other button in the dialog.
32

Configure the instrument

Configure the instrument
Configurations to help operate your instrument efficiently. Refer to the instrument help for additional configuration information.

Set the date and time

Set the date and time so that saved files are marked with the correct date and time information.
Procedure
1. Double-tap the Date/Time badge (bottom-right of screen) to open the configuration menu.
o turn off showing the date and time on the screen, tap the Display button to Off.
2. T
To turn on date/time display again, double-tap in the blank area where the date/time badge was displayed to open the configuration menu and set the Display button to On.
3. You may also tap the Year, Day, Hour, Minute, or UTC Offset fields and use the multipurpose knobs to set the fields to the correct
time.
You may also double-tap the fields and use the numeric keypad to set the time.
4. Tap Month and select the month from the list.
5. Tap anywhere outside of the menu to close it.

Download and install the latest firmware

Installing the latest firmware helps ensure that your instrument is equipped with all of the best available measurement and analysis improvements.
Before you begin
Save any important on-instrument files (waveforms, screen captures, oscilloscope setups, and so on) to a USB drive or network. The installation process does not remove user-created files, but it is a good idea to back up important files before an update.
Determine the current version of firmware installed on the oscilloscope. The version number is found in the About window under the Help menu on most instruments.
3 Series Mixed Domain Oscilloscope MDO32 and MDO34 Quick Start Manual 33
Configure the instrument
Procedure
1. Open up a W
2. Enter the oscilloscope model number in the search field and click Go.
3. Scroll down the screen and click the Software tab.
4. If the listed available firmware version is newer than what is on your oscilloscope, select and download that file to your PC.
5. Copy the firmware install file to a USB drive.
6. Follow the instructions that are provided with the firmware to create the install files.
7. Insert the USB flash drive into any USB Host port on your instrument. The instrument automatically recognizes the firmware file and
starts the installation process.
8. Follow on-screen instructions. The instrument will take a few minutes to install the new firmware. Do not remove the USB flash drive
or power off the instrument during this time.
9. After the upgrade is complete, power off the instrument and remove the USB flash drive.
10. Power on the instrument.
11. To confirm the firmware update, locate the version number found in the About window under the Help.
12. Confirm that the instrument firmware version number matches the firmware version number that you just installed.
eb browser on a PC and go to www.tek.com/product-support.

Run Signal Path Compensation (SPC)

Run SPC at regular intervals for best measurement accuracy. You should run SPC whenever the ambient (room) temperature has changed by more than 5 °C (9 °F) or once a week if you use vertical scale settings of 5 mV/div or less.
About this task
Signal Path Compensation (SPC) corrects for DC level inaccuracies in the internal signal path caused by temperature variations and/or long-term signal path drift.
Failure to run SPC on a regular basis may result in the oscilloscope not meeting warranted performance levels at low volts per division settings.
Before you begin
Disconnect all probes and cables from the front-panel channel inputs and rear-panel signal connectors.
Procedure
1. Power on and warm up the oscilloscope for at least 20 minutes.
2. Tap Utility > Calibration.
3. Tap Run SPC. The SPC Status readout shows Running while SPC is running. SPC can take several minutes per channel to run, so
wait until the SPC Status message changes to Pass before reconnecting probes and using the oscilloscope.
4. Close the Calibration configuration dialog when SPC has completed.
5. If SPC fails, write down any error message text. Make sure that all probes and cables are disconnected and run SPC again. If SPC still
fails, contact Tektronix Customer Support.

Compensate TPP0250, TPP0500B, or TPP1000 probes

Probe compensation adjusts the high frequency response of a probe for best waveform capture and measurement accuracy. The oscilloscope can automatically test and store compensation values for TPP0250, TPP0500B and TPP1000 probes.
About this task
The oscilloscope stores the compensation values for each probe/channel combination and automatically recalls the compensation values when you plug in the probe again. Probe compensation status is shown in the Probe Setup panel of the Channel configuration menu.
34
Configure the instrument
If the Probe Compensation Status field displays Pass, the probe is compensated and ready for use.
If the Probe Compensation Status field displays Default, the attached probe has not been compensated and needs to have this probe
• compensation procedure run.
If the Probe Compensation Status field displays Fail, the attached probe has failed the probe compensation procedure. Reconnect the probe and run probe compensation again.
If there is no probe compensation status field shown in the panel, the oscilloscope cannot store compensation values for that probe. See the oscilloscope Help for how to manually compensate passive probes not supported by the probe compensation function.
Each compensation generates values for a specific probe and channel combination. If you want to use the probe on another channel and desire to compensate the new probe-channel pair, you must run a new set of compensation steps.
Each channel can store compensation values for 10 individual probes. If you try to compensate an 11th probe on a channel, the oscilloscope will delete the values for the least recently used probe and add the values for the new probe.
Use this procedure to compensate a TPP0250, TPP0500B, TPP1000, or other supported TPP-family probe that shows a Default status when connected to the oscilloscope.
Note: A Default Setup does not delete probe compensation values. A factory calibration deletes all stored probe compensation values.
Before you begin
The oscilloscope must be powered on for at least 20 minutes before compensating a probe.
Procedure
1. Connect a supported probe to an input channel.
2. Connect the probe tip and ground lead of the probe to the PROBE COMP terminals on the lower right of the oscilloscope (see
following image).
Figure 2: Probe Comp connections.
Connect the probe tip to the 1 kHz source and the ground clip to the ground. For best results, remove any probe tip accessories and hold the probe tip directly onto the 1 kHz connector
Note: Connect only one probe at a time to the PROBE COMP terminals.
3. Turn off all channels.
4. Turn on the channel to which the probe is connected.
5. Push the front-panel Autoset button. The screen displays a square wave.
6. Double-tap the badge of the channel that you want to compensate.
7. Tap the Probe Setup panel.
If the Probe Compensation Status says Pass, the probe is already compensated for this channel. You can move the probe to another channel and start again from step 1 or connect a different probe to this channel and start from step 1.
.
If the Probe Compensation Status says Default, continue with this procedure.
3 Series Mixed Domain Oscilloscope MDO32 and MDO34 Quick Start Manual 35
Configure the instrument
ap Compensate Probe to open the Probe Compensation dialog.
8. T
9. Tap Compensate Probe to run the probe compensation.
10. The probe compensation is finished when the Probe Compensation Status displays Pass. Disconnect the probe tip and ground from
the PROBE COMP terminals.
11. Repeat these steps for each supported passive probe that you want to compensate for this channel.
12. Repeat these steps to compensate supported probes on other channels of the oscilloscope.
Note: For most accurate measurements, open the Probe Setup panel and verify the Probe Compensation Status is Pass
whenever you attach a probe to a channel.
Note: A probe compensation failure is most likely due to intermittent connection of the probe tip or ground connection during the probe compensation operation. If a failure occurs, the oscilloscope will re-use the old probe compensation values if they existed prior to the failed probe compensation operation.

Connect to a network (LAN)

Connecting to a network allows you to remotely access the instrument.
Before you begin
W
ork with your network administrator to obtain the required information to connect to your network (IP address, Gateway IP address,
Subnet Mask, DNS IP address, and so on).
Procedure
1. Connect a CAT5 cable from the oscilloscope LAN connector to your network.
2. Select Utility > I/O on the menu bar to open the I/O configuration menu.
3. Tap the LAN panel
4. Obtain or enter the network address information:
If your network is DHCP-enabled and the IP address field does not already show an address, tap Auto to obtain the IP address
information from the network. DHCP mode is the default mode.
If your network is not DHCP-enabled or you need a static (non-changing) IP address for this instrument, tap Manual and enter the
IP address and other values provided by your IT or system administrator resource.
5. Tap Test Connection to verify that the network connection is working. The LAN Status icon turns green when the instrument successfully connects to your network. If you have problems connecting to your network, contact your system administration resource for help.
36

Index

A
A knob 18 Acquisition controls Add
Bus waveform button 21 Math waveform button
Ref waveform button 21 add measurement statistical readouts to badge 25 AFG
option 21 AFG Out (rear panel) 19 automatic probe compensation (TPP250, TPP0500B, TPP1000) 34 Autoset
button 18 AUX Out
rear panel 19 avoid pinching when rotate handle 1
18
21
1
B
B knob 18 badge types 25 badges 25 Bus button 18
C
cable lock 19 channel badge 25 Channel buttons (front panel) 18 Clear button 18 clipping message 25 common touchscreen UI tasks 32 compensate TPP250, TPP0500B, TPP1000 probes 34 configuration menus 29 connect lock cable 14 connect to a network 36 connecting probes 15 correct handle rotate 11 Cursors button 18 Cursors button (touchscreen) 20
Ethernet port (rear panel) 19 Ethernet, connect to expansion point, waveform 21
36
F
Fast Acq button 18 firmware, how to update 33 Force button 18 frequency domain display 23 front panel
Acquisition 18 Autoset button 18 Bus button (front panel) 18 Channel buttons (front panel) 18 Clear button 18 Cursors button 18 Default Setup 18 description 18 Fast Acq button 18 Force button 18 High Res button 18 Horizontal 18 input connectors 18 Level knob 18 Math button (front panel) 18 Mode button 18 multipurpose knobs 18 position
knob (horizontal) 18 Position knob 18 probe compensation connectors Ref button (front panel) 18 Run/Stop button 18 Scale knob 18 Scale knob (horizontal) 18 Single/Seq button 18 Slope button 18 Touch Off button 18 Trigger 18 USB ports 18 Vertical 18
18
D
Default Setup button 18 documentation 10 DVM option 21 dynamic range limit marker 21
E
e*Scope 16 Environment requirements 12
|
G
GPIB talk/listen address
17
H
handle rotate 11 handles, analog and digital 21 HDMI output (rear panel) 19 High Res button 18 Horizontal controls 18 how to
how to (continued)
check power-on self tests results 15 compensate TPP250, TPP0500B, TPP1000 probes 34 connect probes 15 connect to network 36 connect to PC using USB cable 17 download, install firmware 33 remote access the oscilloscope (from Web) 16 run signal path compensation (SPC) 34 set GPIB talk/listen address 17 set time 33 update firmware 33 use mouse with the UI 32
I
inactive channel buttons Input connectors (front panel) 18 input signal level requirements 13
21
P
panels, menu 29 pinching and handle rotate position
knob 18 knob (horizontal)
power cord connector (rear panel) 19 power requirements 12 power standby mode 14 power-on test results 15 powering on or off 14 probe
compensation (TPP0500B, TPP1000) 34 compensation connectors 18 compensation TPP250 34 inputs 18
probes, connecting 15 proper handle rotate 11
11
18
K
knob A 18 knob B 18
L
LAN port (rear panel) 19 LAN, connect to 36 Level knob 18 lock to bench or rack 14 LXI 16
M
manuals 10 Math button 18 Measure button 20 measurement badge 25 Menu bar 20 menu panels 29 menus 29 Mode button (front panel) 18 mouse touchscreen UI equivalents 32 multipurpose knobs 18
N
navigation buttons, badges 25 network, connect to 36
O
R
rack mount kit information 16 rear panel
AFG Out 19 AUX Out 19 cable lock connections 19 Ethernet port (RJ-45) 19 HDMI output 19 LAN port (RJ-45) 19 power cord 19 security cable lock 19 USB Device port 19 USB Host ports 19
record view, waveform 21 Ref button 18 remote access (e*Scope) 16 remote access (Web-based) 16 remove AC power from instrument 14 requirements
altitude 12 environment 12 humidity 12 power 12 signal inputs 13 temperature 12
Results bar 20 Results Table button 20 RF 23 RM3 rack mount 16 run signal path compensation 34 Run/Stop button 18
19
operating
altitude range 12 humidity range temperature range 12
operating power requirements 12
12
|
S
Save button 18 scale buttons, badge 25 Scale knob 18
Scale knob (horizontal) 18 search badge 25 Search button 20 security cable lock 19 set
GPIB talk/listen address 17
time 33 Settings bar 20 signal input levels 13 Single/Seq button 18 Slope button (front panel) 18 SPC (signal path compensation) 34 standard accessories 11
T
TekVPI input connectors 18 time, how to set 33 Touch Off button 18 touchscreen UI tasks 32 trigger
level indicators 21
position indicator Trigger controls 18 turn instrument on or off 14
21
U
USB cable, connect to PC 17 USB Device port (rear panel) 19 USB Host ports (rear panel) 19 USB ports (front panel) 18 user documentation 10 using mouse with the touchscreen 32
