Dual 1x48, High Density Multiplexer Specifications
96 differential channels, 300V Volts/1 Amp

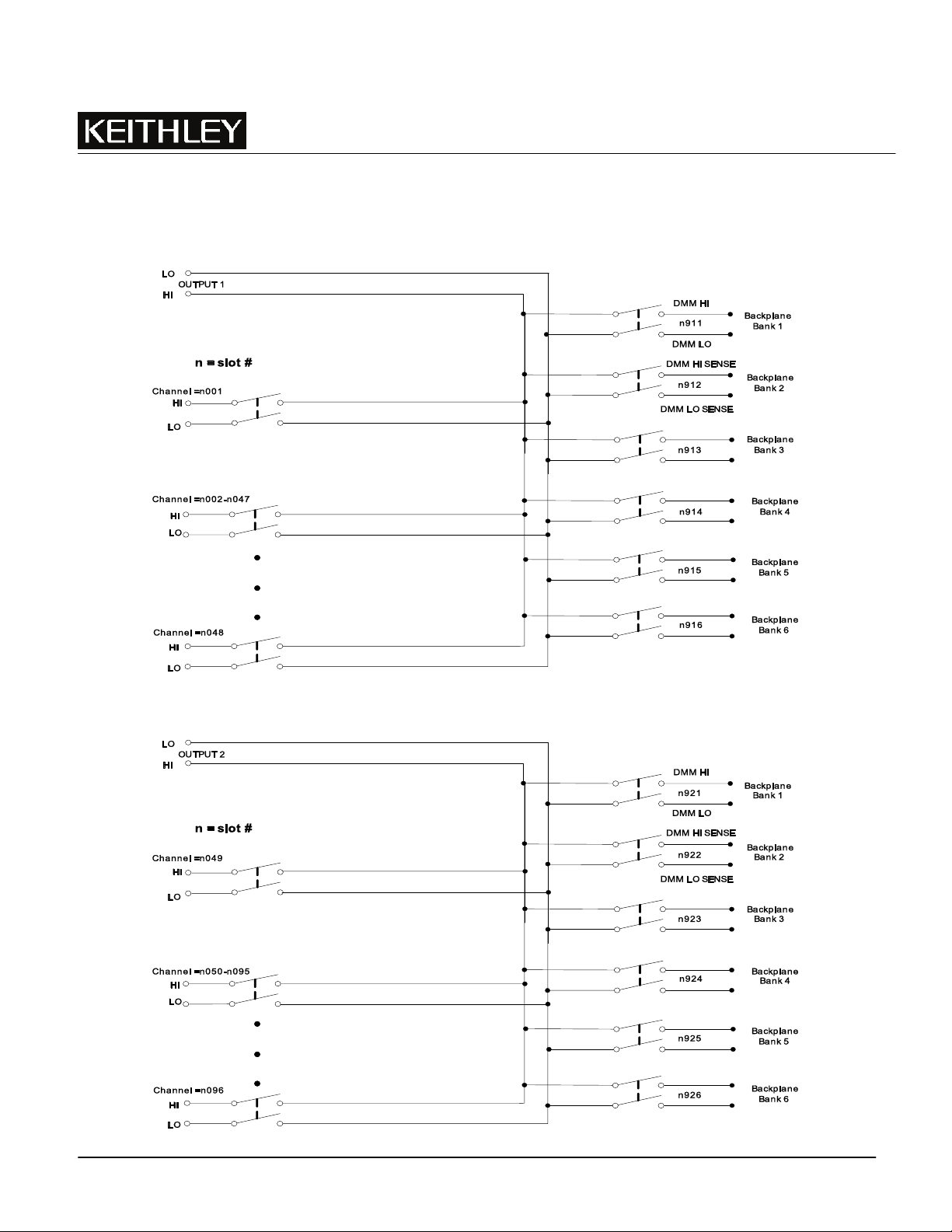

MULTIPLEXER CONFIGURATION: Two independent 1x 48 2-pole Multiplexers. Banks can be connected together
via relays creating a single 1 x 96 Multiplexer. Banks can be isolated from the backplane by relays. Card can be
configured for 2 and 4 wire mode.
CONTACT CONFIGURATION: 2 pole form A.
CONNECTOR TYPE: Two 104 pin female D-shells.
MAXIMUM SIGNAL LEVEL: 300V DC or RMS, 1A switched (2A carry), 60W, 125VA.
COMMON MODE VOLTAGE: 300V DC or RMS between any terminal and chassis.
VOLT-HERTZ LIMIT: 8x10
CONTACT LIFE: > 10
> 10
Dual 1x48
Channel Resistance
(end of contact life)
Contact Potential
(differential)
7
5
operations at max signal level.
8
operations no load.1
<1.5 <2.5
<±1 V <± 2V
2
Single 1x96
Offset Current <100pA <100pA
Isolation
Differential 5x109,200pF 5x109,400pF
Bank-Bank 109,50pF
CH –CH 109,50pF 109,50pF
Common mode 1010,200pF 1010,400pF
Crosstalk CH-CH
300KHz:
1MHz:
20MHz:
<-65dB
<-55dB
<-30dB
<-65dB
<-55dB
<-30dB
Bandwidth 25MHz 15MHz
1
Minimum signal level 10mV,10uA
2
3706 mainframe with all DMM backplane relays disconnected. Maximum two card backplane relays closed.
Specifications are subject to change without notice.
SPEC-3722 Rev. B / January 2008 Page 1 of 3
Keithley Instruments, Inc.
28775 Aurora Road
Cleveland, Ohio 44139
(440) 248-0400
www.keithley.com
Dual 1x48, High Density Multiplexer Specifications
96 differential channels, 300V Volts/1 Amp
GENERAL:
ACTUATION TIME: 4ms
RELAY TYPE: Latching electromechanical
RELAY DRIVE SCHEME: Matrix
OPERATING ENVIRONMENT:
Specified for 0ºC to 50ºC.
Specified to 70% R.H. at 35ºC
STORAGE ENVIRONMENT: -25ºC to 65ºC
WEIGHT: 2.5lb
SAFETY: Conforms to European Union Directive 73/23/EEC,EN61010-1
EMC: Conforms to European Union Directive 2004/108/EC,EN61326-1
Typical Scanning Speeds, switch only
Ch/Sec
3
Model 3722
Sequential scanning ,single channel, immediate trigger advance >120
Typical Scanning Speeds, with measurements into memory
4
Ch/Sec
DCV (10V range) or 2W Ohms (1K range) >110
3 or 4 Wire RTD >100
4 Wire Ohms (1k range) >100
ACV (10V, 400Hz range) >110
ACCESSORIES AVAILABLE:
3792-KIT104-R 104 pin male D-sub connector kit (Contains 2 male D-sub connector with housings and 208
solder-cup contacts)
3722-MTC-1.5 104 pin D-sub male to female cable, 1.5m.
3722-MTC-3 104 pin D-sub male to female cable, 3m.
3791-CIT Contact insertion and extraction tool.
3
Scanning script local to mainframe, within same bank, break before make.
4
3706 mainframe with autorange off, limits off, DMM.autodelay=0, dmm.autozero=0, 4 ½ digits ( NPLC=.006), for ACV
dmm.detectorbandwidth=300,for OHMs dmm.offsetcompensation=off, dmm.opendetector=off. Scanning script local to
mainframe, sequential scan within same bank (2 pole) or card (4 pole), and break before make switching.
Specifications are subject to change without notice.
Page 2 of 3 SPEC-3722 Rev. B / January 2008
