Tektronix 350 User Manual

User Manual
Phaser
®
350
Color Printer
Copyright
©
Tektronix, Inc. Printed in the U.S.A. Unpublished rights reserved under the copyright laws of the United States. Contents of this publication may not be reproduced in any form without permission of Tektronix, Inc.
Tektronix
®
, Phaser
®
, ColorStix
®
, and Made for Each Other
®
are registered trademarks of Tektronix, Inc.
TekColor™, PhaserShare™, PhaserPrint™ and PhaserLink™ are trademarks of Tektronix, Inc.
IntelliSelect™ is a trademark, and Adobe Trajan
®
, Adobe Wood Type
®
, Blackoak
®
®
, PostScript
®
, Carta
, Tekton
®
, A TM
®
and Poetica
®
, Adobe
®
Caslon, Adobe Garamond
®
are registered trademarks of Adobe
®
, Lithos
®
,
Systems Incorporated which may be registered in certain jurisdictions. Adobe Brilliant Screens™ technology is a trademark of Adobe Systems Incorporated or its subsidiaries and may be registered in certain jurisdictions.
Apple, Macintosh, and AppleTalk are r egister ed trademarks, and QuickDraw is a trademark of Apple Computer Incorporated.
Times™, Helvetica™, and Palatino™ are trademarks of Linotype-Hell AG and/or its subsidiaries.
ITC Avant Guard Gothic, ITC Bookman, ITC Zapf Chancery and ITC Zapf Dingbats are registered trademarks of International Typeface Corporation.
Kaufmann, Americana and Park Avenue are registered trademarks of Kingsley/ATF Type Corporation.
Barmeno is a trademark and Formata is a registered trademark of H. Berthold AG.
®
Windows
Novell
is a registered trademark of Microsoft Corporation.
®
NetWare
®
is a registered trademark of Novell, Inc.
®
UNIX
is a registered trademark in the United States and other countries, licensed exclusively through X/Open
Company Ltd.
®
is a registered trademark of Hewlett-Packard Corporation.
PCL
PANTONE
®
Colors generated by the Phaser 350 Color Printer are four- and/or three-color process simulations and may not match PANTONE-identified solid color standards. Use current PANTONE Color Reference Manuals for accurate colors.
PANTONE Color simulations are only obtainable on these products when driven by qualified Pantone-licensed software packages. Contact Pantone, Inc. for a current list of qualified licensees. © Pantone, Inc., 1988.
All trademarks noted herein are either the property of Tektronix, Inc., Pantone, Inc., or their respective companies.
®
The method of printing employed by Tektronix Phaser
350 Color Printer is covered by U. S. Patent No. 5,372,852. Purchase of a Tektronix Phaser 350 Color Printer provides a purchaser with a license under claims 1, 3, 20, and 22 of the '852 patent, but not a license under other claims of that patent, which cover methods of printing using inks having specific properties. Use of solid-ink sticks — manufactured by any other party and having these specific properties — with a Tektronix Phaser 350 Color Printer is not licensed.
Phaser
Tektronix warrants that the Phaser 350 will be free from defects in materials and workmanship for a period of one (1) year from the date of shipment and that the Maintenance Cartridge in the Phaser 350 will be free from defects in materials and workmanship for a period of ninety (90) days from the date of shipment or six months where longer periods are required by law. If the Phaser 350 or its Maintenance Cartridge proves defective during their respective warranty periods, Tektronix, at its option, will either repair the defective product without charge for parts and labor, or provide a replacement in exchange for the defective product.
This warranty applies only to products returned to the designated Tektronix depot or the Tektronix authorized representative from which the product was originally purchased. For products returned to other locations, Customer will be assessed the applicable service charge. The above limitation shall not apply within the European Economic Area, where products may be returned for warranty service to the nearest designated service depot regardless of the place of purchase.
In order to obtain service under this warranty, Customer must provide the applicable office of Tektronix or its authorized representative with notice of the defect before the expiration of the warranty period and make suitable arrangements for the performance of service. Customer shall be responsible for packaging and shipping the defective product to the service center designated by Tektronix or its representative, with shipping charges prepaid. Tektronix or its representative shall pay for the return of the product to Customer. Customer shall be responsible for paying any associated taxes or duties.
This warranty shall not apply to any defect, failure or damage caused by improper use or improper or inadequate maintenance and care. Tektronix shall not be obligated to furnish service under this warranty:
®
350 Warranty
a. to repair damage resulting from attempts by personnel other than Tektronix representatives to
install, repair or service the product;
b. to repair damage resulting from improper use or connection to incompatible equipment;
c. to repair any damage or malfunction caused by the use of non-Tektronix supplies or consumables;
d. to repair a product that has been modified or integrated with other pr oducts when the ef fect of such
modification or integration increases the time or difficulty of servicing the product;
e. to repair damage or malfunction resulting from failure to perform user maintenance and cleaning at
the frequency and as prescribed in the user manual; or
f. to repair this product after the limit of its duty cycle of 20,000 pages per month has been r eached; all
service thereafter shall be billed on a time and material basis.
THE ABOVE WARRANTIES ARE GIVEN BY TEKTRONIX WITH RESPECT TO THIS PRODUCT IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED. TEKTRONIX AND ITS VENDORS DISCLAIM ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TEKTRONIX' RESPONSIBILITY TO REPAIR OR REPLACE DEFECTIVE PRODUCTS IS THE SOLE AND EXCLUSIVE REMEDY PROVIDED TO THE CUSTOMER FOR BREACH OF THIS WARRANTY. TEKTRONIX AND ITS VENDORS WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES IRRESPECTIVE OF WHETHER TEKTRONIX OR THE VENDOR HAS ADVANCE NOTICE OF THE POSSIBILITY OF SUCH DAMAGES.

Users safety summary

Terms in manual:
Power source:
conductor and ground. Use only the specified power cord and connector. Refer to a qualified service technician for changes to the cord or connector.
Operation of product:
product. Do not operate without the covers and panels properly installed. Do not operate in an atmosphere of explosive gases.
Safety instructions: Terms on product:
Care of product:
power cord or plug is frayed or otherwise damaged, if you spill anything into the case, if product is exposed to any excess moisture, if product is dropped or damaged, if you suspect that the product needs servicing or repair, and whenever you clean the product.
Ground the product:
necessary, contact a licensed electrician to install a properly grounded outlet.
CAUTION Conditions that can result in damage to the product. WARNING Conditions that can result in personal injury or loss of life.
Do not apply more than 250 volts RMS between the supply conductors or between either supply
Avoid electric shock by contacting a qualified service technician to replace fuses inside the
WARNING Turning the power off using the On/Off switch does not de-energize the
printer. You must remove the power cord to disconnect the printer from the mains. Keep the power cord accessible for removal in case of an emergency.
Read all installation instructions carefully before you plug the product into a power source.
CAUTION A personal injury hazard exists that may not be apparent. For example, a
panel may cover the hazardous area. Also applies to a hazard to property including the product itself.
DANGER A personal injury hazard exists in the area where you see the sign.

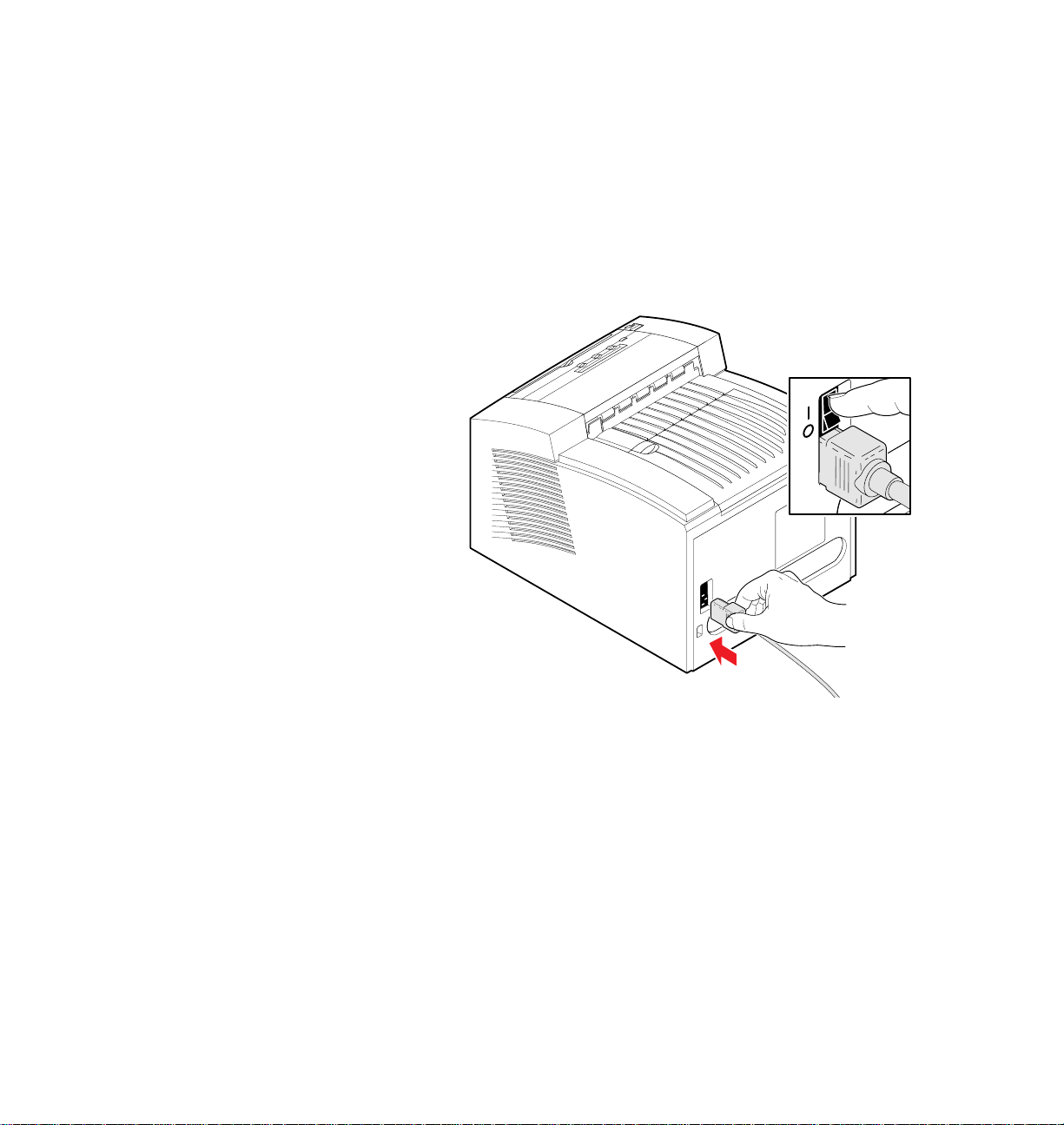

Disconnect the power plug by pulling the plug, not the cord. Disconnect the power plug if the
Plug the three-wire power cord (with grounding prong) into grounded AC outlets only. If
Symbols as marked on product: DANGER high voltage:
Protective ground (earth) terminal:
Use caution. Refer to the manual(s) for information:
!
WARNING:
can cause an electrical shock. Electrical product may be hazardous if misused.
If the product loses the ground connection, usage of knobs and contr ols (and other conductive parts)
Contents
1 Introduction
Overview 1-1 Information roadmap 1-4
2 Getting Set Up
At a glance 2-1 Setting up the printer 2-2
What you get with your printer 2-2 Optional accessories 2-4 Touring the printer 2-6 Registering the printer 2-7 Removing the packing material 2-7 Installing the optional Lower Paper Tray Assembly 2-7 Unlocking the transit restraint 2-10 Installing the maintenance tray 2-11 Loading ink sticks 2-13 Selecting a media tray configuration 2-14 Loading media trays 2-15
Connecting the printer 2-20
Printer ports 2-20 PhaserShare network and serial connections 2-22 Parallel connection 2-23 SCSI peripheral devices 2-24 Turning on the printer 2-25 As the printer warms up 2-26 Front panel controls 2-27
Accessing the front panel menu 2-27 Selecting a language for the front panel 2-28 Help Pages overview 2-29 Installing the printer’s software 2-30
PC/Windows software 2-31
Macintosh software 2-52
Workstation software 2-61
User Manual
vii
3 Printing Basics
Printing from different platforms 3-1
Printing from a PC 3-2 Printing from a Macintosh 3-14 Printing from a workstation 3-20
Printing from specific applications 3-23
General hints and tips 3-23 Windows applications 3-23
Macintosh applications 3-24 Selecting print features 3-25 Print quality modes 3-27 Color corrections 3-28 All about media 3-29
Media size and weight 3-30
Margins and image area 3-31
Media and ink handling tips 3-32 Media trays 3-33
Establishing a default media tray (optional) 3-34 Printing letterhead 3-35 Printing transparencies 3-36
Transparency quality tips 3-37 Manual feed printing 3-38 Printer languages: PostScript, HP-GL, PCL5 3-40 Fonts 3-41
Resident typefaces (PostScript) 3-41
Printer’s Extended Features option 3-42
Resident typefaces (PCL5) 3-43
Downloading fonts 3-43
Macintosh screen fonts 3-44
Using fonts with Windows 3-45
Printing font samplers 3-45
viii
Phaser 350 Color Printer
4 Printing: Beyond the Basics
Working with color 4-2 TekColor corrections — making the best selection 4-3
Deciding which color correction to use 4-4 Color correction descriptions 4-6
Special considerations 4-9 Printing and using the color sampler charts 4-10 Using the Quick Collate option 4-12
Quick Collate and the Check Print option 4-13 Previewing with Check Print 4-14 Using Image Smoothing 4-16
5 Caring for Your Printer
Overview 5-1 Adding ink 5-2
Ink handling tips 5-3 Emptying the waste tray 5-4 Replacing the maintenance tray 5-7 Cleaning the printer 5-9
Cleaning pages 5-9
Cleaning supplies 5-10
Reordering cleaning kit supplies 5-11
Using isopropyl alcohol 5-12
Identifying cleaning solutions 5-13
Cleaning for light stripes: printhead 5-14
Cleaning for ink smears and transfix problems: internal paper path 5-17
Cleaning for jams and ink smears: paper-feed rollers 5-19
Cleaning for ink smears: paper-exit path 5-25
Cleaning for upper media tray jams: media-pick roller 5-30
Cleaning for lower tray jams: paper-pick rollers 5-35 Moving Your Printer 5-36
Waiting 30 minutes before moving 5-36
Removing the maintenance tray 5-36
Locking the transit restraint 5-37
Changing line voltage 5-38
User Manual
ix
6 Troubleshooting
If you need help 6-1 Using the automated fax systems 6-2 Front panel messages 6-3 Problems and solutions 6-6 All about media jams 6-14
Locating jammed media 6-15
Removing jammed media 6-16 Improving print speed 6-18 If your file doesn’t print 6-21
General things to check for 6-21
If you are using PC/NFS 6-23
If you can’t print from Windows to an LPT port 6-23
Check the printer’s language mode 6-25 PostScript printing errors 6-26
Using a PostScript error handler 6-27
Fixing timeout problems in Windows 6-29 Printed colors are not what you expected 6-32
In general 6-32
Printing PANTONE Colors 6-33
Blue colors look too purple 6-33
Using the Tektronix halftone screens 6-34 Selecting page sizes in Windows applications 6-36 Fonts printing incorrectly from Windows 6-38 Sharing the printer on a network 6-39
Driver, utility files, and front panel interactions 6-39
If the LaserWriter Utility does not work 6-40
If you are using PC/NFS and Windows 3.1 6-40
x
Phaser 350 Color Printer
7 Using the Front Panel
Front panel overview 7-1
Front panel indicators 7-1 Front panel buttons 7-2 Two-line display 7-3 Enabling and disabling the front panel menu 7-4 Front panel menu map 7-5
Printer Help Pages 7-6
Printing the help pages 7-7 Printer standby modes 7-8 Selecting the cleaning page source 7-9
8 Supplies, Accessories, and Expanding your System
Tektronix supplies: the mark of quality 8-1 Customizing your printer 8-1 Ordering printer supplies 8-2
Interface cables and adapters 8-3 Extended Features upgrade 8-4 Optional Lower Paper Tray Assembly 8-5 Optional media trays 8-6
Benefits of multiple media trays 8-6 Memory upgrade 8-7 Font upgrade 8-7 600 x 300 dpi upgrade 8-7 PhaserShare network cards 8-8
Benefits of networking the printer 8-8 Phaser Copystation 8-9 PhaserPrint 8-9 PhaserSym 8-10 SCSI hard disk 8-10
User Manual
xi
9 Regulatory Information and Specifications
Declaration of conformity 9-1 Canadian EMC (Electromagnetic Compatibility)
regulatory standards 9-2 FCC Class B warning (for 115 VAC equipment) 9-2 Material Safety Data Sheets 9-3
MSDS for ColorStix ink sticks 9-4
MSDS for silicone oil 9-6 Specifications 9-8 Safety and emissions 9-9
Index
xii
Phaser 350 Color Printer
Chapter
1

Overview

Introduction

The Tektronix Phaser technology. Solid ink-jet refers to the melting of the solid inks inside the printer which then resolidify quickly as the image is transferred onto paper. The ink hardens so rapidly that it does not have time to bleed into the paper, so the printed colors remain brilliant and well-defined.
The Phaser 350 printer produces laser-quality color prints on Letter-size and A4-size paper, transparency and peel-off label media. With a print speed of up to six pages-per-minute on paper and two pages-per-minute on transparencies, the printer is well suited to workgroup printing environments.
For paper printing, the printer accepts common office paper ranging from 16 to 32 lbs. (60 to 120 g/m capability, you can print on non-glossy cover stock ranging from 50 to 80 lbs. (135 to 220 g/m transparencies for enhanced ink adhesion and superior print quality.
®
350 Color Printer uses Tektronix’ solid ink-jet
2
). Using the printer’s manual feed
2
). For transparency printing, use Tektronix premium
In its standard configuration, the printer provides 300 x 300 dots-per-inch (dpi) resolution color printing, 8 Mbytes of memory and a total of 17 fonts. Adding the Extended Features option increases print resolution and print performance, making it Features option adds 600 x 300 dpi resolution printing, 24 Mbytes of memory, job collation and Check Print features, and a total of 69 fonts. Additional memory improves the printer’s performance by offloading your computer faster, improving processing speeds, allowing job pipelining, and providing storage for more downloadable fonts.
the choice for larger workgroups. The Extended
User Manual
1-1
Introduction
1
*
Options and Accessories.
The printer can be upgraded with a variety of accessories to expand its capabilities. A 500-sheet Lower Paper Tray Assembly increases print capacity for high-demand printing environments. Optional Letter- and A4-size transparency trays make it possible to print on paper and transparency media without changing trays. Network options make the printer a fast, sharable printing resource.
Network printing.
The printer works with PCs, Macintosh computers, and Unix and VMS workstations, making it a resource that can be shared in mixed environments. You can connect the printer to one host or several hosts because it supports simultaneously active interface ports. In addition to its standard bidirectional parallel port, optional PhaserShare network interface cards provide Ethernet, Token Ring and LocalTalk/serial connectivity. Automatic port and protocol sensing and switching makes the printer accessible in mixed network environments.
Language support.
Using the Phaser 350 printer, you can make color prints from a variety of software applications, since it incorporates Adobe’s PostScript Level 2 software. The printer accepts Hewlett-Packard Graphics Language (HP-GL) files. Support for monochrome PCL5 (Printer Command Language) files is optionally available. The printer can automatically switch between all three supported languages: PostScript, HP-GL, and PCL5.
Font support.
The printer accepts Adobe Type 1 and Type 3 downloadable fonts, TrueType fonts, PCL5, and a variety of user-defined fonts. To extend font capacity, the printer supports a SCSI-connected external hard disk for storage of additional fonts.
1-2
Color corrections.
color correction modes that let you optimize your color prints.
Print quality modes.
you balance print requirements between speed and quality.
Fast Color mode for good print quality at 6 pages per minute.
Standard mode for better print quality at 4 pages per minute.
*Enhanced (600 x 300) mode for the best text and image quality at
2 pages per minute.
Requires the printer’s Extended Features option.
Phaser 350 Color Printer
TekColor
Correction provides several user-selectable
The printer provides three print-quality modes that let
Introduction
PhaserLink software printer control and information access.
software provides a breakthr ough in printer contr ol and information access. Rather than use vendor-proprietary, printer-specific, and platform-specific management utilities, PhaserLink software provides this function using HTTP (HyperText Transfer Protocol, the basis for World Wide Web browsers). This allows you to use a standard web browser to view printer status, control printer configuration, and link to online documentation via the World Wide Web.
Note
Easy to use and maintain.
Phaser 350 printer is a fast, easy-to-use printer. When the printer is low on ink, you just drop in Tektronix ColorStix printing. Each ColorStix solid-ink stick has a unique color and shape to simplify loading.
To use PhaserLink software, the printer must be connected to a network running TCP/IP. Refer to the
Cards and Software System Administrator Manual
complete details.
Designed for the business office environment, the
PhaserShare Network
®
solid-ink sticks and continue
PhaserLink™
for
1
To order ColorStix solid-ink sticks, transparencies, paper or other supplies, refer to the supplies information sheet that is shipped with the printer and contact your local dealer or, in the United States and Canada, call Tektronix at
1-800-835-6100 .
User Manual
1-3
Introduction
1

Information roadmap

Tektronix provides information on the Phaser 350 printer in several ways:
User Manual
The Phaser 350 Color Printer User Manual (this manual) includes information on setting up and using the printer:
Hardware and software set up
Selecting print features in a driver
Caring for your printer
Maintaining print quality and troubleshooting
Diskettes
The printer’s diskettes contain printer drivers, printer description files, color sampler charts, and utility files.
CD-ROM
The printer’s CD-ROM contains the contents of this user manual, as well as supplemental information, in Adobe
Using the printer’s downloadable utility files
Printing HP-GL and PCL5 files
Printing from workstations Using PANTONE Colors
For instructions on installing and using the Adobe Acrobat Reader to view PDF files, refer to the
README files on the CD-ROM.
®
Acrobat
®
(PDF) format:
W orld Wide Web
If you have access to the Internet, you can view documentation topics and answers to Frequently Asked Questions available at Tektronix’ web site:
http://www.tek.com/Color_Printers/userdoc/introduction.html
1-4
Phaser 350 Color Printer
Chapter
1.
2

At a glance

Getting Set Up

Installation of your printer involves these tasks:
Setting up the printer (page 2-2). Putting all the pieces together: unpacking the printer and accessories, installing the optional Lower Paper Tray Assembly, installing the optional Phaser CopyStation, loading the media tray(s), loading ink sticks, and installing the maintenance tray.
Note
2.
For instructions on installing a SCSI hard disk for font storage and print collation, refer to the printer’s CD-ROM.
Connecting the power and interface cables (page 2-20).
3.
Selecting a language for the front panel (page 2-28).
4.
Installing printer driver software on your computer (page 2-30). Using the Printer Software diskettes or the printer’s CD-ROM to install software, for example, drivers, PostScript Printer Description (PPD) files and utility files, on a Macintosh, or a PC running Windows 95, Windows 3.1, or Windows NT.
Caution
To ensure proper printer operation, install the printer on a flat surface having no more than 3 degrees of tilt. This is approximately equivalent to lifting one side of the printer 2 cm (0.75 inches) off of a flat surface.
User Manual
2-1
2
Getting Set Up

Setting up the printer

What you get with your printer

The printer and its basic accessories are shipped in a single box. If you ordered an optional Lower Paper Tray Assembly or Phaser Copystation, each is shipped separately.
The following items are shipped with the printer:
1.
Quick-Start Installation guide
2.
Phaser 350 printer ColorStix ink starter pack
3.
Paper tray (Letter- or A4-size)
4.
Power cord
5.
Maintenance tray
6.
Cleaning kit
7.
TekColor Care envelope (includes the registration card)
8.
Phaser 350 Color Printer User Manual
9.
Phaser 350 printer Media Sampler
10.
Phaser 350 printer driver software (CD-ROM and diskettes)
11.
PhaserShare Network User Manuals and diskettes (optional)
12.
Parallel cable adapter
See “Interface cables and adapters” on page 8-3 for additional information on interface cables and adapters.
2-2
Phaser 350 Color Printer
Getting Set Up
A
2
1
Quick-Start
4
TekColor
Information
10
Installation
Phaser
7
Envelope
350
Care
2
3
5
6
Cleaning
Kit
8
User
Manual
9
Media Sampler
11
12
PhaserShare
Manuals
9682-01
User Manual
2-3
2
Getting Set Up

Optional accessories

When you order one of the printer’s optional accessories, each is shipped separately in its own box. For information on ordering optional accessories, refer to Chapter 8.
1. Lower Paper Tray Assembly (recommended).
capacity, the Lower Paper Tray Assembly transforms the printer into a high-volume printing solution for networked environments. Dual-tray printing capability is especially useful if you commonly print on several types of media, for example, office paper in the lower tray, and transparencies, letterhead, or label media in the upper tray.
2. Phaser Copystation.
walk-up color copying capability to the printer. Its front-panel controls let you specify the number of copies and select among color, gray scale and black-and-white copying modes. You can choose to make copies reduced to 25% or enlarged to 200% of the original’s size, and you can adjust copies for color balance and lightness.
3. Transparency tray (recommended).
you can save time and effort by purchasing an optional transparency tray dedicated for printing transparencies.
Using both paper and transparency trays, you can conveniently print on several types of media by simply swapping trays. There is no need to load and unload trays when changing between media types.
The Phaser Copystation adds easy-to-use,
If you often print transparencies,
With a 500-sheet
2-4
4. SCSI disk for collation.
hard disk to a Phaser 350 printer with the Extended Features option, you can take advantage of the printer’s Quick Collate feature. This specific SCSI drive is available from Tektronix; refer to Chapter 8 for ordering information. Quick Collate performs document collation in the printer, which is faster than the collation feature that exists in some applications. For more information, refer to “Using the Quick Collate option” on page 4-12.
Phaser 350 Color Printer
When you add a 1.2 Gigabyte external SCSI
Getting Set Up
2
1
2
3
Phaser CopyStation
4
9101-70b
User Manual
2-5
2
Getting Set Up

Touring the printer

Use the following illustration to familiarize yourself with the printer.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Front cover release button Front panel menu display and buttons Exit cover Exit cover release button Ink loading bins (under top cover) Top cover release button On/Off switch and access to I/O ports Transit restraint Media tray Front cover Maintenance tray
2-6
Phaser 350 Color Printer
11
10
3
2
1
4
9
5
6
7
8
9101-59

Registering the printer

The TekColor Care information envelope contains your TekColor Care registration card.
1.
Find the registration card that is appropriate for you (U. S. or international versions).
2.
Fill out the registration card and mail it.
By registering your printer with Tektronix, you are validating the product warranty and you are ensuring that you will be sent information about upgrades, service, and accessories as it becomes available.

Removing the packing material

Remove the plastic bag and packing materials surrounding the printer.
Getting Set Up
2
Note
Save all boxes and packing material in case you need to ship the printer later.

Installing the optional Lower Paper Tray Assembly

An optional Lower Paper T ray Assembly for paper printing is available as an option (Tektronix order number Z340LTA). With a 500-sheet capacity, the Lower Paper Tray Assembly enables the printer to be used as a high-volume printing solution for networked environments.
Using the optional Lower Paper Tray Assembly, you can configure the printer for dual-tray printing capability. Two trays are especially useful if you commonly print on several types of media, for example office paper in the lower tray and transparencies, letterhead, or label media in the upper tray.
Caution
To avoid damaging the printer, let the printer cool down for at least 30 minutes before you begin installing a Lower Paper Tray Assembly. This provides sufficient time for the melted ink to solidify.
User Manual
2-7
2
Getting Set Up
Warning
The printer is not permanently attached to the Lower Paper Tray Assembly. When moving the printer, first disconnect it from the Lower Paper Tray Assembly and then move each unit separately. Moving the printer incorrectly may cause damage or personal injury.
The printer weighs about 32 kg (70 lbs.). Do not attempt to lift the printer without the assistance of another person.
2-8
Install the Lower Paper Tray Assembly using these steps:
1.
Remove the tray from the Lower Paper Tray Assembly. Remove the shipping block from the tray and replace the tray in the Lower Paper Tray Assembly.
2.
Place the printer on top of the Lower Paper Tray Assembly.
Note
Phaser 350 Color Printer
9101-57
To ensure proper printer operation, install the printer and Lower Paper Tray Assembly on a flat surface having no more than 3 degrees of tilt. This is approximately equivalent to lifting one side of the printer 2 cm (0.75 inches) off of a flat surface.
Getting Set Up
9101-02
4
2
2
3
Make sure that the left and right alignment pins fit in the holes in
3.
the base of the printer.
4.
Plug the Lower Paper Tray Assembly cable into the printer.
2
To move the printer more than a few feet, it is easier to disconnect the Lower Paper T ray Assembly and move the printer separately from the Lower Paper T ray Assembly.
Caution
To avoid damaging the printer, let the printer cool down for at least 30 minutes before you move it so that the ink has time to solidify.
User Manual
2-9
2
Getting Set Up

Unlocking the transit restraint

Caution
1.
2.
3.
To avoid damaging the printer, always turn the printer power off using the On/Off switch before locking or unlocking the transit restraint.
Turn the printer power off using the rear-panel On/Off switch. The transit restraint lock is located on the right side of the printer.
Insert a wide flat-blade screwdriver into the lock slot. While pushing inward with slight pressure, turn the lock button
counterclockwise until it springs out flush with the side of the printer.
3
2-10
Caution
Phaser 350 Color Printer
2
9101-03
If you move or ship the printer, be sure to lock the transit restraint to protect the printhead from damage. Refer to “Moving Your Printer” on page 5-39 for more information.

Installing the maintenance tray

The printer is shipped with a maintenance tray that must be installed before printing is possible. The front panel displays a message telling you when the maintenance tray is low, allowing you to make a limited number of prints before the tray is depleted. To avoid printing delays, always keep an extra maintenance tray available for use in the printer.
Getting Set Up
2
Note
1.
When you reorder a replacement maintenance tray for the printer, use Tektronix order number 436-0294-03.
Open the front cover.
9101-65
2.
Open the maintenance tray shipping box and remove the maintenance tray.
User Manual
2-11
2
Getting Set Up
3.
Remove the packing materials from the maintenance tray. Retain the plastic bag for disposal of the used maintenance tray.
4.
Install the maintenance tray by sliding it into the printer.
9101-37
2-12
Note
5.
Close the front cover.
Caution
Phaser 350 Color Printer
To prevent jams at the media tray, be sure to push the maintenance tray into the printer until both sides latch firmly into place.
If you move or ship the printer, be sure to remove the maintenance tray to protect the printer from damage. Refer to “Moving Your Printer” on page 5-39 for more information.

Loading ink sticks

9101-21
12
Getting Set Up
2
The printer’s standard accessories include a box containing one of each color Phaser 350 ColorStix
®
solid ink sticks: cyan, magenta, yellow and black. You’ll need to load the box of ink sticks during printer set up. To ensure that your printer is always available for use, Tektronix recommends that you immediately reorder and maintain a stock of each color ink stick. Refer to “Ordering printer supplies” on page 8-2 for ordering information.
Note
To ensure optimum printing performance and best ink economy, leave the printer turned on overnight and during weekends.
1.
Open the top cover.
2.
Drop the appropriate color Phaser 350 ColorStix ink stick into each ink loading bin. Ink sticks are uniquely shaped to fit into the correct ink-loading bin.
3.
After loading the appropriate color ink stick, close the top cover.
User Manual
2-13
2
Getting Set Up
Selecting a media tray configuration
If you print on different types of media (paper and transparencies, letter head or label stock) or different media sizes (U.S/Letter and Metric/A4), you’ll want to obtain a media tray for each type of media you use. For transparency printing, the optional transparency tray is recommended.
The standard paper tray shipped with your printer accepts Letter-size paper and label stock. An optional A4-size paper tray supports A4-size paper and label stock printing. Optional transparency trays can be ordered for Letter­and A4-size transparency media. An optional Lower Paper Tray Assembly for high-volume printing can be ordered for Letter- and A4-size paper only.
Refer to “Optional media trays” on page 8-6 for ordering information.
Office paper, letterhead, and label printing
Standard paper tray: Use the standard 200-sheet paper tray shipped with
your printer for paper, letterhead, and label stock print jobs.
Optional Lower Paper Tray Assembly: In workgroup printing
environments, you’ll want to add the optional 500-sheet Lower Paper Tray Assembly to supplement the standard paper tray. The Lower Paper Tray is also convenient when you want to print on paper (lower tray) and another media, such as transparency, letterhead, or label stock (upper tray). With dual-tray capability, you can print on different media directly from the printer driver without the need to leave your computer to switch trays.
Note
The Lower Paper Tray Assembly supports printing on paper only.
Transparency printing
T ransparency tra y: If you often print transparencies, you can save time and
effort by purchasing an optional transparency tray dedicated for printing transparencies. Using both paper and transparency trays, you can easily print on several types of media by simply swapping trays. There is no need to load and unload trays when changing between media types.
2-14
Phaser 350 Color Printer
When you add the Lower Paper Tray Assembly to the printer, you can select between paper printing (lower tray) and transparency printing (upper tray) directly from the printer driver without leaving your computer. Refer to “Optional media trays” on page 8-6 for ordering information.
Standard paper tray: You can use the standard paper tray to print on
transparencies. However, when you print you’ll need to follow these instructions:

Loading media trays

Getting Set Up
a.
Select Transparency as the Media Source in the Tektronix printer driver.
b.
When the printer’s front panel message prompts you, load the transparency media, confirm your action using the front panel, and continue printing.
c.
When printing is completed, remove the extra transparency media from the paper tray and replace paper media.
2
The standard tray shipped with the printer accepts common office Letter-size (8.5 x 11 in.) paper ranging from 16 to 32 lbs. (60 to 120 g/m An optional A4-size (210 x 297 mm) paper tray supports printing on common office A4-size paper. Optional transparency trays are also available for Letter- size and A4-size transparency printing.
The optional Lower Paper Tray Assembly can be ordered with either a Letter- or an A4-size paper tray for printing on paper ranging from 16 to 32 lbs. (60 to 120 g/m refer to “All about media” on page 3-29.
Note
Samples of paper and transparency media are included in the Media Sampler kit shipped with the printer.
2
). For more information about media types,
2
).
User Manual
2-15
2
Getting Set Up
Loading paper and transparency trays
1.
Prior to loading paper in a tray, fan the paper to release sheets that are stuck together.
Note
Handle transparencies by the edges and with both hands to avoid fingerprints and creases, which can result in poor print quality.
2.
If you are loading paper in the standard paper tray, load up to 200 sheets of common office paper (slightly less than one-half ream). If you are loading transparencies in the standard paper tray, load up to 50 transparency sheets.
3.
If you are loading transparencies in the transparency tray, load up to three boxes (a total of 175 sheets) of transparency media. If you are using Tektronix premium transparency media, position the transparency notch in the back, right corner of the tray. Standard Tektronix transparencies can be loaded in any orientation.
Make sure that the media fits snugly against the inside front wall of the tray. A label on the inside of the paper and transpar ency trays provide a fill line to indicate the tray’s maximum capacity.
1
2
3
2-16
9101-04b
Phaser 350 Color Printer
Insert the media tray into the printer.
4.
Getting Set Up
2
9101-73
Loading the Lower Paper Tray Assembly
The Lower Paper Tray Assembly holds up to 500 sheets of paper. A label on the inside of the tray provides a fill line to indicate the tray’s maximum paper capacity.
Note
The Lower Paper Tray Assembly accepts paper media only; it should not be used with transparencies or label stock.
User Manual
2-17
2
Getting Set Up
1.
Load one-half of a ream (250 sheets or less) of paper at a time.
2.
Prior to loading paper in the Lower Paper Tray Assembly, fan the paper stack to release sheets that are stuck together.
12
1⁄2
3.
Load the first stack of paper in the tray. Make sure that the paper fits snugly against the inside front wall of the tray.
9101-56
2-18
1
2
+
1
2
4.
Load the second stack of paper. Make sure that the paper fits flat in the tray.
Phaser 350 Color Printer
!
9101-55
Insert the paper tray into the Lower Paper Tray Assembly.
5.
Getting Set Up
2
9101-74
User Manual
2-19
2
Getting Set Up

Connecting the printer

Printer ports

The printer can support one optional PhaserShare™ network card; refer to the description for number available on the rear panel; refer to the description for number port is also included on the printer’s rear panel; refer to the description for number
3.
1. The printer is shipped with a parallel port
2. A SCSI
Note
See “Interface cables and adapters” on page 8-3 about ordering cables for connecting the printer.
All ports and network protocols are simultaneously active. The printer accepts print jobs on a first-come, first-served basis.
Ethernet®
PHASER 340
1
Service2Reset
Second
115
Service Only
Feeder
SCSI Disk
Parallel
Ethernet®
PHASER 350
Service
Only
SCSI Disk
Parallel
1
Service2Reset
Second Feeder
132
9682-02
2-20
Phaser 350 Color Printer
Getting Set Up
PhaserShare card (optional)
1.
The printer accepts one of the following:
PhaserShare Ethernet card supporting Novell NetWare, EtherTalk,
TCP/IP, Telnet and FTP protocols.
PhaserShare Token Ring card supporting Novell NetWare, TCP/IP,
TokenTalk, Telnet and FTP protocols.
PhaserShare LocalTalk/serial card.
The PhaserShare Network Cards and Software System Administrator Manual contains all the information necessary for configuring and
using the optional network interfaces. Refer to “PhaserShare network cards” on page 8-8 for ordering information.
2.
Parallel (standard)
If needed, the parallel port can be configured for bi-directional communications. Refer to the on-line manual on the printer’s CD-ROM for instructions on using utility files to control the parallel port. The CD-ROM also covers other topics such as disabling timeouts, bi-directional status reporting and the parallel port pinout.
2
3.
SCSI (standard)
The SCSI port is used only for connecting an external hard disk or for connecting the Phaser Copystation. Refer to “SCSI peripheral devices” on page 2-24 for more information on the SCSI port. Refer to “Phaser Copystation” on page 8-9 for more information on the Phaser Copystation.
Note
Make all printer connections before you turn on the printer.
User Manual
2-21
2
Getting Set Up

PhaserShare network and serial connections

Optional PhaserShare cards provide Ethernet, Token Ring, or LocalTalk/serial connections for the printer. PhaserShare cards can be purchased initially with the printer as an installed option or later as a separate upgrade kit. If purchased initially, you will find the PhaserShare network manuals included in the shipping box with your printer. If you purchased a PhaserShare card as an upgrade kit, install the card using the directions provided with the upgrade kit.
PhaserShare network interfaces offer high performance and flexible workgroup connectivity. All data input ports and network protocols are simultaneously active. Print jobs are processed on a first-come, first-served basis.
The PhaserShare Network Cards and Software System Administrator Manual contains all the information necessary for configuring and using the optional network interfaces. For ordering information, refer to Chapter 8. Refer to “Interface cables and adapters” on page 8-3 for information on ordering serial cables.
2-22
Phaser 350 Color Printer

Parallel connection

115
Parallel
Service Only
Second Feeder
PHASER 340
SCSI Disk
Ethernet®
1
Service2Reset
9101-08
Parallel
1
The printer supports a standard (uni-directional) parallel port. The parallel port can also be set for bi-directional communications using downloadable utility files or from your World Wide Web browser. Refer to the printer’s CD-ROM or the PhaserShare Network Cards and Software System Administrator Manual, respectively, for information on changing parallel communications.
Connect to the printer’s parallel port using the high-density bi-directional parallel cable included with your printer . This cable is a 36-pin high-density printer to 25-pin DSUB PC cable.
Using the following illustration, connect a parallel interface cable to your computer and to the printer’s parallel port.
Getting Set Up
2
User Manual
2-23
2
Getting Set Up

SCSI peripheral devices

The SCSI port is used for connecting these optional peripheral devices:
Phaser Copystation
To set up the Phaser Copystation and to connect it to your printer, refer to Chapter 2 of the Phaser Copystation User Manual. Refer to “Phaser Copystation” on page 8-9 for ordering information.
External SCSI hard disk
Provides storage for additional downloadable fonts. You can
Allows for collation of print jobs on Phaser 350 printers with the
connect one or more SCSI external hard disks to the printer for additional font storage. When you download a font to an external disk, the font remains there until you remove it.
Extended Features option. Refer to “Using the Quick Collate option” on page 4-12 for more information.
Refer to “Interface cables and adapters” on page 8-3 for information on ordering SCSI cables.
Selecting a SCSI hard disk
For font storage. The Phaser 350 printer can use most SCSI hard
disks that support the full SCSI command set. Also, most SCSI hard disks that work with an Apple LaserWriter will work with a Phaser 350 printer. Contact your computer or printer dealer for information.
For printer collation. T o the use the collation feature available with
the printer’s Extended Features option, you’ll need to order a
1.2 Gigabyte external SCSI hard disk. This specific SCSI drive, available from Tektronix, is required for use with the Phaser 350 printer. Refer to Chapter 8 for ordering information.
2-24
Phaser 350 Color Printer

Turning on the printer

After you have connected the interface cables, you are ready to connect the power cord and turn on the printer. If you need to turn the printer off, wait until the display shows Ready or the printer’s name before powering it down.
Getting Set Up
2
Caution
To avoid damaging the printer, make sure that the voltage select switch is set to match the AC line voltage for your location and that the power switch is in the off position before connecting the power cord.
If you move the printer to a location that uses a line voltage other than the printer’s current setting, refer to “Changing line voltage” on page 5-41 for information on changing the line voltage selection switch.
Ethernet®
115
PHASER 350
Service
port
SCSI Disk
AUX Feeder
DIP
Parallel
115
2-
User Manual
2-25
2
Getting Set Up
1.
Plug the power cord into the printer and into a grounded outlet.
2.
Turn on the printer.
Note
To ensure optimum printing performance and best ink economy, leave the printer turned on overnight and during weekends. The printer automatically switches into a standby mode to reduce power consumption during periods of infrequent use.
1
9101-10

As the printer warms up

The first time you turn your printer on, it will take about 15 minutes to warm up. The printer’s front panel displays a percentage value to indicate its progress. The warm-up cycle is complete when the front panel displays 100%.
As the printer initializes, you will hear a series of start-up noises that are normal and are not an indication of problems with the printer. During warm-up, the printer outputs a cleaning page as part of its initialization. The printer is available for printing when it displays Ready or the printer’s name.
2-26
Phaser 350 Color Printer
Turning off the Startup page
9682-04
Exit
Power
Error
Ready Info Clean Menu
After the printer has warmed up, it automatically prints a startup page. If you want to turn off the startup page, you can do so through the front panel. Refer to Chapter 7 for instructions on using the front panel. You can also control the startup page through a utility file provided on the printer’s CD-ROM, or through your World Wide Web browser. Refer to the CD-ROM or the PhaserShare Network Cards and Software System Administrator Manual, respectively, for information on utility files and web browsers.

Front panel controls

When you first turn on the printer, the Power and Error indicators on the front panel are lighted. The printer takes about 15 minutes to completely warm up. During the warm-up cycle, the
Error light goes out, and the front panel displays a series of “Warming up”
messages. Status messages, such as Warming Up, appear on the top line of the display.
Button labels, such as Info, Clean and Menu , appear on the lower line of the display. Button labels identify a function for the corresponding button located under the label. For example, to access other menus, press the button located under the word Menu .
Getting Set Up
Power indicator remains on, the
2

Accessing the front panel menu

When the printer is shipped, access to the front panel menu is made by pressing the Menu button. System administrators may choose to limit access to front panel menus, requiring users to know a two-button combination to gain full access to menus. Refer to the Chapter 7 for a complete description of front panel controls and menus.
User Manual
2-27
2
Getting Set Up

Selecting a language for the front panel

Messages that appear in the front panel window are in English by default. To change the language to Spanish, French, German, Italian, or Japanese, follow these steps.
1.
When the printer is on and Ready or the printer’s name appears, press the Menu button. The printer displays the first selection in the menu:
Help Pages <---- ----> Menu
2.
Using the left (<----) or right (---->) arrow buttons, scroll through the selections until the following message appears:
Language <---- ----> Menu
3.
Press the Menu button to access language selections. The printer displays the following message:
2-28
where the asterisk (*) indicates the currently selected language.
4.
Using the left or right arrow buttons, scroll through the language selections until you reach the appropriate setting.
5.
Press the OK button to confirm your language selection.
6.
Return to the top level of the menu by pressing the button until the printer displays the Ready message.
Phaser 350 Color Printer
Language:English* <---- ----> OK
ExitExit

Help Pages overview

The printer has several Help Pages that you can print to learn more about the printer’s operation and configuration. Refer to “Printer Help Pages” on page 7-6 for a detailed list of available Help Pages. You can print the Help Pages from the front panel; refer to the instructions below. You can also print Help Pages using your World Wide Web browser; refer to the PhaserShare Status Software User Manual for information.
Printing Help Pages from the front panel
After setting up the printer, you may want to print Help Pages to check that the printer is operating correctly. A general description of printing Help Pages from the front panel is described in the following steps. For detailed steps on printing specific Help Pages, refer to the on-line manual on the printer’s CD-ROM.
1.
When the printer is on and the Ready message or the printer’s name appears, press the Menu button. The printer displays the following message:
Getting Set Up
2
Help Pages <---- ----> Menu
2.
Press the Menu button to access the Help Pages. The printer displays the following message:
Menu Map <---- ----> Print
3.
Using the left (<----) or right (---->) arrow buttons, scroll through these selections: Menu Map, Configuration Page,
Startup Page, Demonstration Pages, RGB Color Sampler, and CMYK Color Sampler.
4.
Press the Print button to print the displayed page(s).
User Manual
2-29
2
Getting Set Up

Installing the printer’s software

Packaged with your printer is a CD-ROM and a set of floppy diskettes containing the software you need to use the printer. Included are drivers, printer description files, color sampler charts, and utility files. Follow the steps outlined in the table to set up your printer for printing.
Step 1: Select a driver
Windows Windows 95: Microsoft PostScript driver (recommended)
Use this driver if you prefer the standard Microsoft PostScript
Step 2: Install/set up the driver
Step 3: Use the driver
page 2-34 page 3-4
driver for Windows 95.
Windows 95: AdobePS 4 Driver
Use this driver if you prefer Adobe’s PostScript driver for
page 2-37 page 3-6
Windows 95.
This driver offers unique f eatures , such as N-Up and Watermark.
Windows 3.1: Tektronix Driver for Windows 3.1
Use this driver with Windows 3.1.
Windows 3.1: AdobePS 3 Driver
Use this driver with Windows 3.1.
page 2-39 page 3-8
page 2-43 page 3-9
Windows NT 3.51: Microsoft PostScript driver page 2-48 page 3-13 Windows NT4.0: Microsoft PostScript driver page 2-45 page 3-11
Macintosh Phaser 350 Driver (based on the LaserWriter 7.1.2 driver)
Use this driver if you are printing large files and you want to
page 2-54 page 3-16
disable the background printing feature for better performance.
Adobe PSPrinter Driver 8.3.1
Use this driver if you prefer Adobe’s PostScript driver.
This driver offers unique f eatures , such as N-Up and Watermark.
Use this driver with applications such as PageMaker.
Phaser 350 GX Driver
Use this driver with QuickDraw GX.
Apple LaserWriter 8.x (recommended)
Use this driver if you prefer Apple’s PostScript driver.
Use this driver with applications such as PageMaker.
page 2-55 page 3-17
page 2-57 page 3-18
page 2-59 page 3-19
Workstations PhaserPrint for UNIX (demonstration copy) page 2-61 page 3-21
2-30
Phaser 350 Color Printer

PC/Windows software

Refer to the following table for more information on printer software.
Getting Set Up
2
CD-ROM directory
Diskette+ directory
WIN95_NT top-level
QUARK QUARK
SAMPLERS SAMPLERS PANTONE PANTONE
ADOBEPS4 ADOBEPS3 PHSR350 NET_UTIL
TOOLS
MANUALS
ATM
n/a AdobePS 4 Driver† Driver for Windows 95 page 2-37 n/a AdobePS 3 Driver †* Driver for Windows 3.1 page 2-43 n/a Printer Utilities Printer-specific utility files on-line^ n/a Network Utilities Utility files for using the printer on a
n/a Printer T ools Authorization tool
n/a Manuals Adobe Acrobat Reader PDF versions of the
n/a Adobe T ype
Software Description Where to
find details
Microsoft Windows
Driver for Windows 95 page 2-34
PostScript Driver Microsoft Driver for
Windows NT
++
QuarkXPress PDF File
Drivers for Windows NT 3.51 and 4.0
(for i366)
Installs
TKPH3501.PDF
, if QuarkXPress
application is present
page 2-45 page 2-48
page 2-32
Sampler Files Color sampler charts and a font sampler Chapter 3 Pantone Files
Diskette:
CD-ROM:
Pantone color chart only
Pantone color chart and color
Chapter 3
library files
Tektronix Driver
+++
Driver for Windows 3.1 page 2-39
on-line^
network
on-line^
Adobe Acrobat Reader
on-line^
printers manuals
Manager
ATM software (Available with the printer’s Extended
Chapter 3
Features option only.)
+
Software available on the
++
This driver is available on the
+++
This driver is available on the
These items have their own installer applications on the printer’s CD-ROM.
^
See the on-line manuals on the printer’s CD-ROM for more information. * This driver is also shipped separately on the AdobePS 3 Driver diskette. n/a: Software not available on diskette.
Printer Software for Windows 3.1, 95, N
Microsoft Driver for Windows NT 3.51 and 4.0 (for i386)
Tektronix Printer Driver for Windows 3.1
T diskette.
diskette.
diskette.
User Manual
2-31
2
Getting Set Up
Installing printer description files
PostScript printer description files (PPDs) are used by some drivers and applications for gaining information about a printer’s page sizes, color corrections, and other options. To properly use the printer with one of the following applications, install the appropriate file.
QuarkXPress
The QuarkXPress application uses a unique PDF file.
1.
Locate the TKPH3501.PDF:
On the printer’s CD-ROM in the QUARK directory.
On the Printer Software for Windows diskette in the
QUARK directory.
2.
Copy the TKPH3501.PDF file to the PDF subdirectory of the Quark application on your hard disk. For example:
2-32
COPY TKPH3501.PDF C:\XPRESS33\PDF
Phaser 350 Color Printer
Getting Set Up
Aldus and Adobe applications
Aldus and Adobe applications, such as PageMaker and FreeHand, use PostScript printer description (PPD) files. Refer to your applications’ documentation for details on using PPD files.
2
Note
To add PPDs for printers other than the Phaser 350 printer, open the WIN95_NT directory on the printer’s CD-ROM.
1.
Locate the printer’s PPD files:
On the printer’s CD-ROM in the WIN95_NT directory.
On the Printer Software for Windows diskette at the top level.
2.
Select a PPD file:
Use TK350171.PPD if you have the standard version of the printer.
Use TK350691.PPD if you have the printer’s Extended Features
option.
Note
If you are not sure which configuration of the printer you have, the printer’s startup page lists this information under Extended Features: Yes/No. See page 2-29 for instructions on printing a copy of the printer’s startup page.
3.
Copy the PPD file to the directory on your hard disk where other PPD files are located. For example, the subdirectory in FreeHand’s File Manager containing printer description files should be called:
ALDUS\USENGLISH\PPD4
User Manual
2-33
2
Getting Set Up
Setting up the Microsoft PostScript driver for Windows 95
1.
Use either the printer’s CD-ROM or diskette:
CD-ROM: Insert the printer’s CD-ROM into your CD-ROM drive.
Diskette: Insert the Printer Software for Windows diskette into
your disk drive.
2.
Click the Start icon in the taskbar on your screen. In the menu that appears, click Settings.
3.
In the menu that appears, click Printers; the Printers window appears.
4.
In the Printers window, double -click Add Printer.
5.
When the Add Printer Wizard window appears, click Next.
6.
Select your printer’s connection:
2-34
Select Local Printer if your printer is connected directly to your
Select Network Printer if you are accessing your printer through a
7.
In the window listing Manufacturers/Printers, click the Have Disk button.
Phaser 350 Color Printer
computer, then click Next.
network. Click Browse to search the network and select a printer queue. Then click Next.
Getting Set Up
In the Install From Disk dialog box, do one of the following:
8.
CD-ROM:
a.
Click Browse.
b.
In the Open dialog box select the Drive for the printer’s CD-ROM.
c.
Select the \WIN95_NT directory under Folders.
d.
Click OK.
Diskette:
a.
Click Browse.
b.
In the Open dialog box select the Drive for the Printer Software for Windows diskette.
c.
Click OK.
9.
A list of Tektronix printers appears. Select your printer in the list, then click Next.
2
Select Tektronix Phaser 350 if you have the standard version
of the printer.
Select Tektronix Phaser 350 600x300 if you have the printer’s
Extended Features option.
Note
10.
11.
If you are not sure which configuration of the printer you have, the printer’s startup page lists this information under Extended Features: Yes/No. See page 2-29 for instructions on printing a copy of the printer’s startup page.
Select the port your printer is connected to, then click Next.
It is recommended that you use the default printer name shown under Printer name. Click Yes if you want this printer to be the default printer. Then click Next.
User Manual
2-35
2
Getting Set Up
12.
At the prompt,
Would you like to print a test page?
click Yes to
verify the printer’s connection, or click No. Then click Finish.
A status bar appears while files are copied to your computer.
13.
If prompted, select the path for the PostScript driver files; these should be in your WINDOWS/SYSTEM directory.
If the files aren’t installed on your hard disk, do one of the following:
Select the drive for the printer’s CD-ROM and the \WIN95_NT
directory, and click OK.
Select the drive for the printer’s diskette and click OK.
The software you need is installed.
14.
If your printer is set up correctly, and you clicked Yes in Step 12, a test page prints showing the Windows 95 logo and information on your printer.
2-36
Your Phaser 350 printer is added to the Printers window.
Phaser 350 Color Printer
Setting up the Adobe PostScript driver for Windows 95
Getting Set Up
2
Note
The files for this driver are available only on the printer’s CD-ROM. If you already have the driver installed and you are only adding a printer, such as the Phaser 350 printer, open the Control Panel, double-click the Adobe driver icon, then continue with Step 7.
1.
Insert the printer’s CD-ROM into your CD-ROM drive.
2.
Click the Start icon in the taskbar on your screen. In the menu that appears, click Run.
3.
In the Run window, type in the drive the CD-ROM is in, followed by the \ADOBEPS4 directory and the file name SETUP.EXE and click OK. For example:
C:\ADOBEPS4\SETUP
4.
When the AdobePS4 PostScript Printer Driver Setup dialog box appears, click the Read button if you wish to see a text file with driver instructions. Click Next to continue, or Exit to quit.
5.
In the Install Setup Program dialog box, decide if you want to copy the Adobe driver setup program to your hard disk, then click Next.
If you selected Yes, continue with the on-screen instructions.
6.
In the Printer Type dialog box, select your printer’s connection:
Select Local Printer if your printer is connected directly to your
computer, then click Next.
Select Network Printer if you are accessing your printer through a
network. Click Browse to search the network and select a printer queue. Then click Next.
User Manual
2-37
2
Getting Set Up
7.
In the Install PostScript Printer from PPD dialog box, select the directory and drive for the printer’s CD-ROM and the ADOBEPS4 directory. Select your printer, then click Next.
Select Tektronix Phaser 350 if you have the standard version
of the printer.
Select Tektronix Phaser 350 600x300 if you have the printer’s
Extended Features option.
Note
If you are not sure which configuration of the printer you have, the printer’s startup page lists this information under Extended Features: Yes/No. See page 2-29 for instructions on printing a copy of the printer’s startup page.
8.
In the Local Port Selection dialog box, select the port you want to use, then click Next. (You can configure the port in this dialog box at any time.)
9.
In the Add Printer dialog box, type in the printer’s name, select the printer as default, and decide if you want to print a test page. Click Next to continue.
10.
If you see the Different Versions Detected dialog box, click Next to update the files from the printer’s CD-ROM.
11.
When the installation is finished, the Tektronix Phaser 350 Properties dialog box appears. Make selections in the driver,
referring to Chapter 3 for more information on printer options.
Note
Refer to the Adobe PostScript Printer Driver User Guide on the printer’s CD-ROM (USRGUIDE.PDF) for more detailed information on the AdobePS 4 driver.
2-38
Phaser 350 Color Printer
Getting Set Up
Setting up the Tektronix driver for Windows 3.1
Packaged with your printer is a Tektronix Printer Driver for Windows 3.1 floppy diskette. This diskette contains a customized version of the Microsoft printer driver, version 3.58.
1.
Start Windows, if it isn’t already running.
2.
Insert the Tektronix Printer Driver for Windows 3.1 diskette into your computer’s disk drive.
3.
Open the Control Panel and double-click on the Printers icon; the Printers dialog box appears.
4.
Click the Add>> button.
5.
In the List of Printers, select Install Unlisted or Updated Printer .
6.
Click the Install button.
7.
T ype in the drive containing the printer’s diskette, for example, A:, and click OK.
2
8.
Select your printer , then click OK. The driver software you need is automatically installed.
Select Tek Phaser 350 (TekColor) if you have the standard version
of the printer.
Select Tek Phaser 350 (TekColor) Ext if you have the printer’s
Extended Features option.
Note
Note
If you are not sure which configuration of the printer you have, the printer’s startup page lists this information under Extended Features: Yes/No. Y ou can print a copy of the startup page from the printer’s front panel.
If you see a message that the driver is currently being used and cannot be updated, exit all programs, restart Windows, and try installing the printer again.
User Manual
2-39
2
Getting Set Up
Configuring the driver
1.
Open the Printers dialog box if it is not still displayed. (From the Control Panel, double-click the Printers icon.)
2.
In the Printers dialog box, choose your printer from the list of installed printers.
3.
Click the Set As Default Printer button if you want to select your printer as the default.
4.
Click the Connect button; the Connect dialog box appears.
5.
Select the port your printer is connected to.
The printer’s configuration page contains the information you need to set up the printer’s port.
Interface Select Then do the following Parallel LPTx Go to Step 6.
2-40
Serial COMx 1. Click the Settings button to open the
Network Network port
Note
Phaser 350 Color Printer
Settings dialog box.
2. Fill in each item based on your
printer’s configuration, then click OK. Refer to your Microsoft Windows
documentation for details, or ask your network administrator for help.
(LPTx or COMx)
1. Click the Network button to open the
Printers-Network Connections
dialog box.
2. Fill in each item based on your printer’s configuration, then click OK.
Refer to your Microsoft Windows documentation for details, or ask your network administrator for help.
You can use the FILE port to save a document to a PostScript file instead of sending it to the printer. For more information, see your Microsoft Windows documentation.
Getting Set Up
Set the Timeouts. These options regulate your computer’s
6.
communications with its printer ports.
Device Not Selected: Use this text box to change the number of
seconds Windows waits before notifying you that a printer is off-line. The default of 15 seconds is recommended.
Transmission Retry: On large or multiple page documents you
may see an Alert message that the printer is no longer accepting data before the job is completely downloaded to the printer. To minimize the occurrence of this message, you should set this option to a larger value, such as 900 seconds (15 minutes). Type a value between 45 and 999 in this text box; the default setting is 45 seconds.
7.
Click OK to return to the Printers dialog box, then click the Setup button. A dialog box appears with the name of the printer you selected across the top. Use this dialog box to select paper source, paper size, image orientation, and number of copies.
2
Note
You may want to set the number of copies from your application because the number of copies in the Setup dialog box remains the same until you change it again. Also, if you are printing multiple pages, make sure the Transmission Retry is set for at least 600 seconds (10 minutes), to avoid unnecessary timeouts.
8.
Click the Options button to see the Options dialog box; make the following selections:
Make sure the Color check box is checked on to print in color.
User Manual
2-41
2
Getting Set Up
Select one of the Header options. The Header contains important
PostScript information that must accompany each print job; it is not a banner page printed with each job. If the Header is not used, your job does not print. Click one of the following options:
Check the Send Header with Each Job box to download
PostScript header information with each print job.
Or:
Click the Send Header button to save the PostScript header
information in the printer. This option makes print files a little smaller and faster than the first option, but you need to click the Send Header button every time the printer is turned on or reset.
9.
From the Options dialog box, click the Advanced button to see the Advanced Options dialog box. Make sure the Use PostScript Level 2 Features check box is checked on.
Note
The Use PostScript Level 2 Features option affects the print time of bitmapped (raster) images by improving the image transfer time from the computer to the printer, and by improving the image processing time in the printer. This option is only available to applications that use this Tektronix driver with Tektronix PostScript Level 2 printers, such as the Phaser 350. When this box is checked, the Compress Bitmaps option is unavailable (grayed out).
10.
Click OK to return to the Options dialog box.
11.
In the Options dialog box, click the Printer Features button to see the Tektronix Printer Features dialog box. Make color correction, print quality, and other selections as desired. Click OK to return to the Options dialog box.
12.
Continue clicking OK to return to the Printers dialog box, then click Close.
2-42
Phaser 350 Color Printer
Setting up the Adobe PostScript driver for Windows 3.1
Getting Set Up
2
Note
The files for this driver are available on the printer’s CD-ROM and on the AdobePS 3 Driver diskette.
If you already have the driver installed and you are only adding the Phaser 350 printer, open the Control Panel, double-click the Adobe driver icon, then continue with Step 5.
If you already have the driver installed and you want to add a printer other than the Phaser 350 printer, open the Control Panel, double-click the Adobe driver icon, then continue with Step 5. Printer PPD files are located in the \WIN95_NT directory on the printer’s CD-ROM only.
1.
Insert the printer’s CD-ROM into your CD-ROM drive, or insert the AdobePS 3 Driver diskette into your disk drive.
2.
In the Program Manager in Windows 3.1, select Run from the File menu.
3.
At the Command Line, do one of the following:
CD-ROM: Type in the drive the CD-ROM is in, followed by the
\ADOBEPS3 dir ectory and the file name SETUP.EXE, and click OK. For example:
C:\ADOBEPS3\SETUP
Diskette: Type in the drive the diskette is in, followed by the file
name SETUP.EXE, and click OK. For example:
A:SETUP
4.
When the README.WRI dialog box appears, select one of the buttons as desired.
5.
In the PostScript Printer Driver Setup dialog box, click Continue to begin the driver installation. This installer overwrites older versions of the Adobe PostScript driver.
User Manual
2-43
2
Getting Set Up
6.
A message appears as files are copied to your hard disk. Click the Restart Windows button when the installation is complete.
7.
When the Install PostScript Printer from PPD dialog box appears, select your printer in the Printer Descriptions Available list and click Install:
Select Tektronix Phaser 350 if you have the standard version
of the printer.
Select Tektronix Phaser 350 600x300 if you have the printer’s
Extended Features option.
Note
If you are not sure which configuration of the printer you have, the printer’s startup page lists this information under Extended Features: Yes/No. See page 2-29 for instructions on printing a copy of the printer’s startup page.
8.
At the installation successful message, click OK.
9.
Click Close in the Install PostScript Printer from PPD dialog box.
10.
At the message, click OK; the Control Panel opens.
11.
From the Control Panel, double-click Printers.
12.
In the Printers dialog box, select the Tektronix Phaser 350 printer you just installed, then click Connect.
13.
In the Connect dialog box, select the port the printer is connected to, then click OK.
Note
Refer to the Adobe PostScript Printer Driver User Guide on the printer’s CD-ROM (USRGUIDE.PDF) for more detailed information on the AdobePS 3 driver.
2-44
Phaser 350 Color Printer
Getting Set Up
Setting up a PostScript driver for Windows NT 4.0
TekColor color corrections and other PostScript Level 2 printer features are supported by the Windows NT 4.0 PostScript driver. Follow the instructions below to update your Windows NT 4.0 PostScript driver for use with a Phaser 350 printer . Refer to your Micr osoft Windows NT documentation for details on features in the driver.
2
Note
These instructions assume a basic familiarity with Windows NT operation and terminology. For additional information about Windows NT, refer to your Microsoft Windows NT documentation.
1.
2.
3.
4.
5.
6.
The Windows NT 4.0 driver does not support the PhaserMatch™ application.
Locate the Microsoft® Driver for Windows NT™ 3.51 and 4.0 (for i386) diskette that was shipped with your printer. Insert the
diskette into your computer’s disk drive.
Click the Start icon in the taskbar on your screen. In the menu that appears, click Settings. In the Settings menu, click Printers.
In the Printers Folder, double-click the Add Printer icon.
From the Add Printer menu, follow the Add Printer Wizard instructions until the Manufacturers/Printers window appears.
Click the Have Disk button.
In the Install From Disk dialog box, type in the disk drive location of the printer’s diskette, such as A:, then click OK.
User Manual
2-45
2
Getting Set Up
7.
A list of Tektronix printers appears. Select your printer in the list, then click Next:
Select Tektronix Phaser 350 if you have the standard version of the
printer.
Select Tektronix Phaser 350 Extended if you have the printer's
Extended Features option.
Note
If you are not sure which configuration of the printer you have, the printer’s startup page lists this information under Extended Features: Yes/No. Y ou can print a copy of the startup page from the printer’s front panel.
8.
Select the appropriate settings in Add Printer Wizard, then click the Finish button. When the Properties dialog box appears, continue with the following instructions: “Setting up installed options” and “Making default settings.”
Setting up installed options
Note
If you are not sure which printer options you have installed, the printer’s startup page lists some of this information, such as SCSI hard disks. You can print a copy of the startup page from the printer’s front panel.
1.
From the Properties dialog box, click the Device Settings tab.
2.
In the Device Setting sheet, scroll to the end of the list to Installable Options.
3.
Under Installable Options, highlight Optional Lower Tray.
2-46
4.
In the box that appears at the bottom of the window, click Installed.
5.
Select other options you have installed.
6.
Click OK to return to the Control Panel.
Phaser 350 Color Printer
Getting Set Up
Making default settings
1.
From the Properties dialog box, click the Device Settings tab.
2.
In the Device Settings sheet, locate Form To Tray Assignment.
3.
Under Form To Tray Assignment, highlight the first tray.
4.
In the box that appears at the bottom of the window , select the size media you will be using in that tray.
5.
Repeat Steps 3 and 4 for each installed tray.
6.
Click OK to return to the Control Panel.
Selecting a printer's Default Document Properties
2
Note
1.
2.
3.
4.
5.
Document properties set from an application always override document defaults set in the printer's Document Properties sheets. However, if an application does not set a document property (such as page orientation or paper size), the printer defaults to the document properties set in the printer's Document Properties sheets.
From the Control Panel, open the Printers folder.
With the right mouse button, click on the printer’s icon.
With the left mouse button, click on Document Defaults.
Click the Advanced tab to change any printer features, including TekColor color corrections.
Click the Page Setup tab to see other features.
User Manual
2-47
2
Getting Set Up
Setting up a PostScript driver for Windows NT 3.51
This update procedure provides printer page size information for Windows NT 3.51 applications. However, TekColor color corrections and other PostScript Level 2 printer features are not supported by the Windows NT 3.51 PostScript driver. Refer to the manuals that were shipped with your printer for instructions on other ways of selecting color corrections. Refer to your Microsoft Windows NT documentation for details on features in the driver.
These instructions assume a basic familiarity with Windows NT operation and terminology. For additional information about Windows NT, refer to your Microsoft Windows NT documentation.
1.
Locate the Microsoft® Driver for Windows NT™ 3.51 and 4.0 (for i386) diskette that was shipped with your printer. Insert the
diskette into your computer’s disk drive.
2.
From the Main window, double-click on the Print Manager icon.
3.
From the Printer menu select Create Printer; the Create Printer dialog box appears.
4.
Under Driver, scroll to the end of the list and select Other; the Install Driver dialog box appears.
5.
When prompted, type in the path for the printer’s diskette.
6.
Under Printer Driver, select your printer from the list, then click OK.
Select Tektronix Phaser 350 if you have the standard version of
the printer.
Select Tektronix Phaser 350 Extended if you have the printer's
Extended Features option.
Note
If you are not sure which configuration of the printer you have, the printer’s startup page lists this information under Extended Features: Yes/No. Y ou can print a copy of the startup page from the printer’s front panel.
2-48
Phaser 350 Color Printer
Getting Set Up
When you are returned to the Create Printer dialog box, fill in the
7.
other fields as desired, then click OK; the PostScript Printer Setup dialog box appears.
8.
Select options in the PostScript Printer Setup dialog box. Click OK when you are finished.
Enabling the Use Printer Halftoning option is recommended.
9.
When the Windows NT Setup dialog box appears, click Close.
2
User Manual
2-49
2
Getting Set Up
Installing Adobe Acrobat Reader
1.
Insert the printer’s CD-ROM into your CD-ROM drive.
2.
Do one of the following depending on your system:
Windows 95:
a.
Click the Start icon in the taskbar on your screen. In the menu that appears, click Run.
b.
In the Run window, type in the drive the CD-ROM is in, followed by the \TOOLS directory and the file name ACROREAD.EXE and click OK. For example:
C:\TOOLS\ACROREAD
Windows 3.1:
a.
In the Program Manager in Windows 3.1, select Run from the File menu.
b.
At the Command Line, type in the drive the CD-ROM is in, followed by the \TOOLS directory and the file name ACROREAD.EXE, and click OK. For example:
C:\TOOLS\ACROREAD
2-50
3.
Follow the on-screen instructions to install Acrobat Reader.
Phaser 350 Color Printer
Getting Set Up
2
Installing ATM software
Note
1.
2.
3.
4.
ATM softwar e is available only on the CD-ROM for the printer’ s Extended Features option.
Insert the printer’s CD-ROM into your CD-ROM drive.
Click the Start icon in the taskbar on your screen. In the menu that appears, click Run.
In the Run window, type in the drive the CD-ROM is in, followed by the \ATM dir ectory and the file name INSTALL1.EXE and click OK. For example:
C:\ATM\INSTALL
Follow the on-screen instructions to install ATM. For more information, refer to the ATM quick reference cards that were shipped with your printer.
User Manual
2-51
2
Getting Set Up

Macintosh software

Installer overview
The Phaser 350 printer’s CD-ROM and diskette include an installer application that automatically installs the printer’s software onto your Macintosh hard disk. You can select a standard installation (Easy Install) from the diskette or CD-ROM, or select individual items (Custom Install) from the CD-ROM only.
Software (installed location) Description
Easy Install
(Availab le on the CD-ROM and diskette.)
Custom Install
(Includes Easy Install items plus additional software. Available on the CD-ROM only .)
Adobe PSPrinter Driver 8.3.1
(System Folder:Extensions)
Phaser 350 Driver (System Folder: Extensions) Custom driver based on the
Phaser 350 GX Driver (System Folder: Extensions) Driver for use with QuickDraw GX. Printer Descriptions
(System Folder:Extensions: Printer Descriptions) Screen Fonts
Standard:
System Folder:Fonts
Extended Features option:
software installer in PhaserTools folder.
ColorSync Profile
(System Folder: Preferences: ColorSync™ Profiles)
Samplers (PhaserTools:Samplers) Color sampler charts and a fonts sampler. QuarkXPress PDF File
(QuarkXPress application folder: PDF)
PhaserPrint Photoshop Plug-in
(Photoshop application folder: Plugs-ins: Acquire/Export)
Adobe Acrobat Reader
installer in PhaserTools folder.
LaserWriter 8.3.2 Driver
LaserWriter installer in PhaserTools folder.
Manuals (PhaserTools:Manuals) Acrobat Reader PDF files of the printer’s
Printer Utilities (PhaserTools: Printer Utilities) Printer utility files for controlling printer
Network Utilities (PhaserTools:Network Utilities) Utility files for using the printer on a
Pantone Files (PhaserTools:Pantone Files) PANTONE Color library files and sampler
Installs alias to ATM
Installs alias to ATM software
Installs alias to the
Driver for use with all Macintosh systems.
LaserWriter 7.1.2 printer driver.
PPDs for use with drivers and applications.
Screen fonts to match the printer’s fonts.
Printer profile for use with ColorSync 2.0.
File for use with the QuarkXPress application.
Custom plug-in for printing from Adobe Photoshop.
Installs the Acrobat Reader application onto your hard disk.
Installs the Apple LaserWriter driver onto your hard disk.
manuals.
features.
network.
chart.
2-52
Phaser 350 Color Printer
Getting Set Up
Using the Macintosh Installer
Use the installer application on the printer’s CD-ROM or diskettes to install the printer’s standard software. Then, continue with driver setup instructions depending on the driver you are using.
1.
Use either the Phaser 350 printer’s diskette or CD-ROM.
Floppy diskette: Insert the Printer Software for Macintosh diskette
into your computer’s disk drive.
CD-ROM: Insert the Phaser 350 printer’s CD-ROM into your
computer’s CD-ROM drive.
2.
Double-click the Phaser 350 Installer icon. Click Continue until the Easy Install window appears.
3.
To install the items listed in the Easy Install window, click Install.
For details on each item, click Read Me. To see a list of individual options, select Custom Install from the
pull-down menu (available with the installer on the CD-ROM only).
2
4.
Select individual items to install from the Custom Install window . Click the I buttons for information on each item. Click Install when you are ready to install the selected items.
User Manual
2-53
2
Getting Set Up
Setting up the Phaser 350 printer driver
The Phaser 350 driver is a Tektronix-modified version of Apple's LaserWriter 7.1.2 printer driver. Use the Phaser 350 driver if you are using System Software 6.0.7, or 7.0 and later.
1.
Install the printer’s software as described on page 2-53. Choose
Easy Install to install all of the necessary software, or select Phaser 350 Driver in the Custom Install window.
2.
Select Chooser from the Apple menu.
3.
Click on the Phaser 350 printer driver icon on the left side of the Chooser. A list appears with the printers you have connected to
your Macintosh or printers that are available on a network. (If the printer driver icon does not appear, Restart your Macintosh, and repeat the printer driver installation procedure; also check the cable connections on your computer and printer.)
4.
Click on the Zone your printer is in. See your network administrator if you have questions.
2-54
5.
Click on your Phaser 350 printer in the list of printers on the right side of the Chooser.
6.
Close the Chooser by clicking its close box.
Phaser 350 Color Printer
Getting Set Up
Setting up the Adobe PSPrinter Driver
The Adobe PSPrinter driver uses printer-specific PPDs (PostScript Printer Description files) for information on a printer’s page sizes, printing options, and media type options. To use the Adobe PSPrinter driver with a Phaser 350 printer, do the following steps. If the printer is busy, it may take some time to complete this set-up procedure; you may want to do this procedure when the printer is idle. You only have to set up a printer once.
2
Note
1.
2.
3.
4.
5.
6.
7.
Refer to the Adobe PostScript Printer Driver User Guide on the printer’s CD-ROM for more detailed information on the Adobe PSPrinter driver.
Install the printer’s software as described on page 2-53. Select Easy Install to automatically install all of the necessary software, or select Adobe PSPrinter Driver and Printer Descriptions in the Custom Install window.
Open the Chooser.
Select the PSPrinter driver icon.
Click on the Zone your printer is in. See your network administrator if you have questions.
Select your printer from the list.
Still in the Chooser, click the Setup button to see a list of options.
The correct PPD file should be selected automatically.
If the PPD file is not automatically selected, a dialog box opens showing the location of the PPD files you have installed in the
Printer Descriptions folder, in the Extensions folder, inside your System Folder. Click one of the following PPDs and click Select:
Use TK350171.PPD with the standard version of the printer.
Use TK350691.PPD with the printer’s Extended Features option.
User Manual
2-55
2
Getting Set Up
Note
8.
9.
If you are not sure which configuration of the printer you have, the printer’s startup page lists this information under Extended Features: Yes/No. See page 2-29 for instructions on printing a copy of the printer’s startup page.
In the dialog box that appears, select the appropriate items under Installable Options then click OK.
Click the Chooser’s close box.
2-56
Phaser 350 Color Printer
Getting Set Up
Setting up the Phaser 350 GX driver
If you are using Apple Macintosh QuickDraw GX and System Software 7.5 or later, use the Phaser 350 GX driver to print to your Phaser 350 printer.
The Phaser 350 GX driver works with QuickDraw GX and
non-QuickDraw GX applications.
QuickDraw GX does not work with non-QuickDraw GX printer
drivers. If you want to print from non-QuickDraw GX applications with a driver such as the LaserWriter 8.x, you must first disable QuickDraw GX.
2
Note
Refer to the on-line manual on the printer’s CD-ROM for details on using the Phaser 350 GX driver.
1.
Install the printer’s software as described on page 2-53. Select Easy Install to automatically install all of the necessary software, or select Phaser 350 GX Driver in the Custom Install window.
2.
Select Chooser from the Apple menu.
3.
Click the Phaser 350 GX printer driver icon on the left side of the Chooser. A list appears with the printers available on your
network. (If the printer driver icon does not appear, Restart your Macintosh, and repeat the printer driver installation procedure; also, check the cable connections on your computer and printer.)
4.
Click on the Zone your printer is in. See your network administrator if you have questions.
5.
In the Connect via field’s pop-up menu, select your printer’s communication method:
The AppleTalk option is the standard network connection.
The Servers option is used to select a shared desktop printer.
User Manual
2-57
2
Getting Set Up
6.
Click on your Phaser 350 printer in the list of printers on the right side of the Chooser.
7.
Click the Create button to create a desktop printer. An icon of the printer appears on the desktop with the same name as the printer selected in the Chooser.
8.
Close the Chooser by clicking its close box.
2-58
Phaser 350 Color Printer
Getting Set Up
Setting up the Apple LaserWriter 8.x driver
The LaserWriter 8.x driver uses printer-specific PPDs (PostScript Printer Description files) to learn a printer’s page sizes, printing options, and media type options. To use the LaserWriter 8.x driver with a Phaser 350 printer, do the following steps. If the printer is busy, it may take some time to complete this configuration procedure; you may want to do this procedure when the printer is idle. You only have to configure a printer once.
This driver software is available only on the printer’s CD-ROM.
2
Note
1.
2.
3.
4.
5.
During installation, the LaserWriter 8.x driver leaves other versions of the LaserWriter driver (such as 7.x and 6.x) intact, but overwrites an earlier version of the LaserWriter 8.x driver, if one exists.
Install the printer’s software as described on page 2-53. Choose
Custom Install, then select LaserWriter 8.x Driver and Printer Descriptions.
Install the driver:
a.
In the PhaserTools folder on your hard disk, locate the alias to the LaserWriter 8.x Installer.
b.
Double-click on the alias to open the installer application on the printer’s CD-ROM
c.
Follow the on-screen instructions to install the driver.
Open the Chooser. Select the LaserWriter 8 driver icon. Click on the Zone your printer is in. See your network
administrator if you have questions.
6.
Select your printer from the list.
7.
Still in the Chooser, click the Setup button to see a list of options.
User Manual
2-59
2
Getting Set Up
8.
The correct PPD file should be selected automatically. If the PPD file is not automatically selected, a dialog box opens
showing the location of the PPD files you have installed in the
Printer Descriptions folder, in the Extensions folder, inside your System Folder. Click one of the following PPDs and click Select:
Use TK350171.PPD with the standard version of the printer.
Use TK350691.PPD with the printer’s Extended Features option.
Note
If you are not sure which configuration of the printer you have, the printer’s startup page lists this information under Extended Features: Yes/No. See page 2-29 for instructions on printing a copy of the printer’s startup page.
9.
In the dialog box that appears, select the appropriate items under Installable Options then click OK.
10.
Click the Chooser’s close box.
2-60
Phaser 350 Color Printer

Workstation software

PhaserPrint™ software for UNIX (demo)
For UNIX environments, Tektronix offers the optional PhaserPrint™ software. PhaserPrint software includes driver-selectable printer options, and provides fast, raster file and screen copy printing to Tektronix color printers. The printer’s CD-ROM contains a demonstration copy of the PhaserPrint software, and an on-line instruction guide, in the UNIXDEMO directory. To purchase a licensed copy of PhaserPrint software, see page 8-9 for instructions.
Downloadable printer utility files
Getting Set Up
2
Note
Refer to the on-line manuals on the printer’s CD-ROM for more information on printing from a workstation.
If you do not have a licensed copy of PhaserPrint software, you can use the PostScript utility files on the Phaser 350 printer’s CD-ROM with UNIX and VMS workstations. These files let you set up your spooling system to select between media trays, print-quality modes, color correction modes and other features. UNIX workstation users can access utility files in the following ways:
Install the files from the Tektr onix Phaser 350 printer’s CD-ROM if
your system includes a CD-ROM drive. Workstation-specific files are located in the bin directory.
Access the Tektronix anonymous ftp site on the Internet at
ftp.tek.com.
Access the Tektronix World Wide Web server on the Internet:
Home page: http://www.tek.com/Color_Printers/
Utility files: ftp://ftp.tek.com/cpid/bbs/<platform>/350
where <platform> is pcs, macintosh, or unix.
Download utility files from the Tektronix Bulletin Board
Service (BBS); refer to the printer’s CD-ROM for information.
User Manual
2-61
2
Getting Set Up
2-62
Phaser 350 Color Printer
Chapter
3

Printing Basics

Printing from different platforms

You can print to your printer from IBM-compatible personal computers, Macintosh computers, and workstations.
Make sure your printer is set up with the appropriate interface port; refer to “Connecting the printer” on page 2-20.
If you haven’t already installed the printer’s software, refer to Chapter 2 for instructions before continuing.
Refer to the following topics for specific information:
“Printing from a PC” on page 3-2
“Printing from a Macintosh” on page 3-14
“Printing from a workstation” on page 3-20
User Manual
3-1
3
Printing Basics

Printing from a PC

You can print from a PC with or without a printer driver. The supported drivers allow you to select printing features right from your computer. Without a supported driver, you can make some printing selections from the printer’s front panel.
Using Windows printer drivers
To select printer-specific features, print from one of the following provided drivers. See page 3-3 for a reference table listing the printing features, and how to find them quickly, in each of these drivers.
Windows 95 (Microsoft PostScript driver) see page 3-4 Windows 95 (AdobePS 4 driver) see page 3-6 Windows 3.1 (Tektronix Printer Driver) see page 3-8 Windows 3.1 (AdobePS 3 driver) see page 3-9 Windows NT (PostScript driver) see page 3-13
3-2
Using the printer’s front panel
Refer to “Front panel overview” on page 7-1 for instructions on using the printer’s front panel.
Phaser 350 Color Printer
Print features quick reference: Windows printer drivers
Windo
Feature
AdobePS 3 Tektronix driver PostScript
Media size
A/Letter
A4
Media tray selection
Auto Select
Upper
Lower
Paper
Transparency
Manual Paper
Manual Transparency
Print-quality modes
Fast Color
Standard
Enhanced (600 x 300)*
Color correction
None
Vivid Color
Display
SWOP Press
Euroscale Press
Commercial Press
Monochrome
Use Printer Settings
Quick Collate*
Check Print*
Enabled
Disabled
Image Smoothing
Enabled
Disabled
Paper tab
Paper Size
Paper tab
Paper Source
Features tab
Print Quality
Features tab
Color Correction
Features tab
Color Correction
Features tab
Color Correction
Features tab
Color Correction
* These features are available with the printer’s Extended Features option only.
ws 3.1
Printers
Setup
Paper Size
Printers
Setup
Paper Source
Options
Printer Features
Print Quality
Options
Printer Features
Color Correction
Options
Printer Features
Color Correction
Options
Printer Features
Color Correction
Options
Printer Features
Color Correction
Driver
Windows 95
Microsoft PostScript
AdobePS 4 PostScript
Properties
Paper tab
Paper Size
Properties
Paper tab
Paper Source
Properties
Device Options tab
Printer features
Print Quality
Properties
Device Options tab
Printer features
Color Correction
Properties
Device Options tab
Printer features
Color Correction
Properties
Device Options tab
Printer features
Color Correction
Properties
Device Options tab
Printer features
Color Correction
Printing Basics
Windows NT 4.0
Print
Properties Advanced tab
Paper/output
Paper Size
Print
Properties Advanced tab
Paper/output
Paper Source
Print
Properties
Advanced tab
Printer features
Print Quality
Print
Properties
Advanced tab
Printer features
Color Correction
Print
Properties
Advanced tab
Printer features
Color Correction
Print
Properties
Advanced tab
Printer features
Color Correction
Print
Properties
Advanced tab
Printer features
Color Correction
3
User Manual
3-3
3
Printing Basics
Using the Microsoft PostScript driver with Windows 95
To select printing options, follow these steps:
1.
In the Printers window, click the Phaser 350 printer icon with the right mouse button, then select Properties from the menu.
2.
Click the following tabs to see printing options; refer to your Windows 95 documentation for more information on tabs and options.
Click the Details tab to see timeout and other options.
Set the Timeout settings.
Not Selected: Type a value of 0, or between 15 and 999, in this text box to change the number of seconds Windows waits before notifying you that a printer is off-line. The default is
15 seconds. Transmission Retry: On large or multiple-page documents
you may see an Alert message that the printer is no longer accepting data before the job is completely sent to the printer. When using a shared printer, you should set this option to a larger value, such as 900 seconds (15 minutes) to avoid these unnecessary timeouts. Type a value between 45 and 999 in this text box; the default setting is 45 seconds. (If you are having timeout problems, also see “Printer’s timeout” on page 6-31 for information on setting the printer’s timeout.)
3-4
Click the Paper tab to see media options, such as media sizes,
media trays, and media type.
Click the Graphics tab to see graphics options.
Note
Note
Phaser 350 Color Printer
Use the Print Quality selections in the Device Options tab instead of the Resolution Options in the Graphics tab. See page 3-5 for details.
If you are using host color correction, you need to make selections in the Graphics and Device Options tabs. Refer to the on-line manuals on the printer’s CD-ROM for more information on host color correction.
Printing Basics
Click the Device Options tab to see printer-specific options, such
as color corrections.
Click the PostScript tab to see PostScript-related options.
The PostScript header contains important PostScript information
that must accompany each print job; it is not a banner page printed with each job. If an option is not selected, an error message is displayed on your computer screen and your job does not print. Click one of the following in the PostScript header field:
Select Download header with each print job. This option downloads PostScript header information with each print job.
Click the Send Header Now button to save the PostScript header information in the printer, then select the Assume header is downloaded and retained option. This option makes print files a little smaller and faster than the first option, but you need to click the Send Header Now button every time the printer is turned off or reset.
Click the Advanced button to see more options. Select Use
PostScript Level 2 features. Click OK when finished.
3
Note
For faster printing, select Binary communications protocol under Data format.
User Manual
3-5
3
Printing Basics
Using the AdobePS 4 driver with Windows 95
To select printing options, follow these steps:
1.
In the Printers window, click the Phaser 350 printer icon with the right mouse button, then select Properties from the menu.
2.
Click the following tabs to see printing options; refer to your Windows 95 documentation for more information on tabs and options.
Click the Details tab to see timeout and other options.
Set the Timeout settings.
Not Selected: Type a value of 0, or between 15 and 999, in this text box to change the number of seconds Windows waits before notifying you that a printer is off-line. The default is
15 seconds. Transmission Retry: On large or multiple-page documents
you may see an Alert message that the printer is no longer accepting data before the job is completely sent to the printer. When using a shared printer, you should set this option to a larger value, such as 900 seconds (15 minutes) to avoid these unnecessary timeouts. Type a value between 45 and 999 in this text box; the default setting is 45 seconds.
3-6
Click the Paper tab to see media options, such as media sizes,
media trays, and media types.
Click the Graphics tab to see graphics options.
Note
Note
Click the Device Options tab to see printer-specific options, such
as color corrections.
Phaser 350 Color Printer
Use the Print Quality selections in the Device Options tab instead of the Resolution Options in the Graphics tab. See page 3-5 for details.
If you are using host color correction, you need to make selections in the Graphics and Device Options tabs. Refer to the on-line manuals on the printer’s CD-ROM for more information on host color correction.
Printing Basics
Click the PostScript tab to see PostScript-related options.
The PostScript header contains important PostScript information
that must accompany each print job; it is not a banner page printed with each job. If an option is not selected, an error message is displayed on your computer screen and your job does not print. Click one of the following in the PostScript header field:
Select Download header with each print job. This option downloads PostScript header information with each print job.
Click the Send Header Now button to save the PostScript header information in the printer, then select the Assume header is downloaded and retained option. This option makes print files a little smaller and faster than the first option, but you need to click the Send Header Now button every time the printer is turned off or reset.
Click the Advanced button to see more options. Select Use
PostScript Level 2 features. Click OK when finished.
3
Note
For faster printing, select Binary communications protocol under Data format.
User Manual
3-7
3
Printing Basics
Using the Tektronix Driver for Windows 3.1
1.
From the Control Panel, double-click the Printers icon to open the Printers dialog box.
2.
In the Printers dialog box, choose your printer from the list of installed printers.
3.
Click the Setup button. A dialog box appears with the name of the printer you selected across the top. Use this dialog box to select paper source, paper size, image orientation, and number of copies.
Note
4.
5.
6.
You may want to set the number of copies from your application because the number of copies in the Setup dialog box remains the same until you change it again. Also, if you are printing multiple pages, make sure the Transmission Retry is set for at least 600 seconds (10 minutes), to avoid unnecessary timeouts.
Click the Options button to see the Options dialog box.
Click the Printer Features button to see the Tektronix Printer Features dialog box. Make color correction, print quality, and other selections as desired.
Click OK until you return to the Printers dialog box, then click Close.
3-8
Phaser 350 Color Printer
Printing Basics
Using the Adobe PostScript driver for Windows 3.1
To select printing options, follow these steps:
1.
From the Control Panel, double-click Printers.
2.
In the Printers dialog box, select the Tektronix Phaser 350 printer, then click Setup. A dialog box appears with the printer’s name across the top.
3.
Click the following tabs to see printing options; refer to your Windows documentation for more information on tabs and options.
Click the Paper tab to see media options, such as media sizes,
media trays, and media types.
Click the Features tab to see printer-specific options, such as color
corrections.
Set the Timeout settings.
3
Not Selected: Type a value of 0, or between 15 and 999, in this text box to change the number of seconds Windows waits before notifying you that a printer is off-line. The default is
15 seconds. Transmission Retry: On large or multiple-page documents
you may see an Alert message that the printer is no longer accepting data before the job is completely sent to the printer. When using a shared printer, you should set this option to a larger value, such as 900 seconds (15 minutes) to avoid these unnecessary timeouts. Type a value between 45 and 999 in this text box; the default setting is 45 seconds.
Click the PostScript tab to see PostScript-related options.
In the Performance Options field, select the Use PostScript Level 2
Features option.
User Manual
3-9
3
Printing Basics
Click the Job Control tab to see print job-related options.
The PostScript header contains important PostScript information
that must accompany each print job; it is not a banner page printed with each job. If an option is not selected, an error message is displayed on your computer screen and your job does not print. Click one of the following in the PostScript Header field:
Select Download Each Job. This option downloads PostScript header information with each print job.
Select the Already Downloaded option to save the PostScript header information in the printer, then click the Download button. This option makes print files a little smaller and faster than the first option, but you need to click the Download button every time the printer is turned off or reset.
For better performance, select the Binary Mode option.
3-10
Phaser 350 Color Printer
Printing Basics
Using the Windows NT 4.0 PostScript driver
If you are using Microsoft Windows NT 4.0, first follow the instructions in Chapter 2 to set up a printer driver for a Phaser 350 printer. Then, select TekColor color corrections and other printer features from the Windows NT driver.
Selecting printer options within an application: Print
1.
Select Print from the File menu; the Print dialog box appears. You can select a different printer and other settings in this dialog box.
2.
Click on the Properties button; the Printer Document Properties sheet appears.
3.
Click the Advanced tab to change any printer features, including TekColor color corrections. This tab displays the same information as the Document Defaults Properties Advanced tab.
4.
Click the Page Setup tab to see other features. This tab displays the same information as the Document Defaults Properties Page Setup tab.
3
Note
Changes to any of these settings overrides the Default Printer Properties settings in the Printers folder.
User Manual
3-11
3
Printing Basics
Selecting printer options within an application: Page Setup
Note
1.
2.
Note
3.
4.
5.
If changing the Printer Driver settings through Page Setup causes problems with the application you are using, then change the Printer Driver settings through Print under the File menu, described on page 11.
Select Page Setup from the File menu; the Page Setup dialog box appears.
Select Paper Size and Source.
Selecting Printer Folder Setting as the Paper Source uses the default setting made under Document Defaults in the Printers folder. To change this setting, select a different Source in Page Setup.
Click on the Printer button; another Page Setup dialog box appears. You can select a different printer here.
Click on the Properties button; the Printer Document Properties sheet appears.
Click the Advanced tab to change any printer features, including TekColor. This tab displays the same information as the Document Defaults Properties Advanced tab.
3-12
6.
Click the Page Setup tab to see other features. This tab displays the same information as the Document Defaults Properties Page Setup tab.
Note
Phaser 350 Color Printer
Changes to any of these settings overrides the Default Printer Properties settings in the Printers folder.
Printing Basics
Using the Windows NT 3.51 PostScript driver
If you are using Microsoft Windows NT 3.51, follow the instructions in Chapter 2 to set up a Windows NT 3.51 PostScript driver with a Phaser 350 printer. You can select printer page sizes in the driver for Windows NT 3.51 applications, however , TekColor color corrections and other PostScript Level 2 features are not supported by the Windows NT 3.51 driver. Refer to page 3-25 for instructions on selecting color corrections from the printer’s front panel or from downloadable utility files. Refer to your Microsoft Windows NT documentation for details on features in the Windows NT driver.
Printing from DOS
Refer to the on-line manuals on the printer’s CD-ROM for information on printing from DOS.
3
User Manual
3-13
3
Printing Basics

Printing from a Macintosh

To print from a Macintosh, you need a printer driver. Installing one of the supported drivers allows you to select printing features right from your computer. Without a supported driver, you can make some printing selections from the printer’s front panel.
Using Macintosh printer drivers
To select printer-specific features, print from one of the following provided drivers. See page 3-15 for a reference table listing the printing features, and how to find them quickly, in each of these drivers.
Phaser 350 driver see page 3-16 Adobe PSPrinter driver see page 3-17 Phaser 350 GX see page 3-18 Apple LaserWriter 8.x see page 3-19
Using the printer’s front panel
Refer to “Front panel overview” on page 7-1 for instructions on using the printer’s front panel.
3-14
Phaser 350 Color Printer
Print features quick reference: Macintosh printer drivers
Printing Basics
3
Feature Feature
descriptions
Print-quality modes
Fast Color
Standard
Enhanced (600x300)*
Color correction
None
Vivid Color
Display
SWOP Press
Euroscale Press
Commercial Press
Monochrome
Use Printer Settings
Media size
A/Letter
A4
Media tray selection
Auto Select
Upper
Lower
Paper
Transparency
Manual Paper
Manual Transparency
See page 3-27
See page 3-28
See page 3-30
See page 3-33
Quick Collate* See
page 4-12
Check Print*
Enabled
Disabled
Image Smoothing
Enabled
Disabled
See page 4-14
See page 4-16
Phaser 350 driver Adobe PSPrinter driver
Apple LaserWriter 8.x
driver
Print
T ekColor button
TekColor Options
Print Quality
Print
T ekColor button
T ekColor Options
Color Correction
Page Setup
Paper
Print
Paper Source
Tray Selection
Print
T ekColor button
T ekColor Options
Quick Collate
Print
T ekColor button
T ekColor Options
Check Print
Print
T ekColor button T ekColor Options
Image Smoothing
Print
Options button
Print Options
Print Quality
Print
Options button
Print Options
Color Correction
Page Setup
Paper
Print
Paper Source
Tray Selection
Print
Options button
Print Options
Quick Collate
Print
Options button
Print Options
Check Print
Print
Options button
Print Options
Image Smoothing
Phaser 350 GX
driver
Printing
Printer Driver Defaults
Print Quality
Printing
Printer Driver Defaults
Color Correction
Page Setup
Paper
Printing
Printer Driver Defaults
Tray Selection
Printing
Printer Driver Defaults
Quick Collate
Printing
Printer Driver Defaults
Check Print
Printing
Printer Driver Defaults
Image Smoothing
* These features are available with the printer’s Extended Features option only.
User Manual
3-15
3
Printing Basics
Using the Phaser 350 driver
From the File menu, open the Page Setup dialog box. Use the
Paper pop-up menu to select the printer’s supported paper sizes.
From the File menu, open the Print dialog box. Select media
options and paper trays in the Paper Source field.
Click the TekColor button in the Print dialog box to see the
TekColor Options dialog box. Select printer-specific options as
desired.
3-16
Phaser 350 Color Printer
Using the Adobe PSPrinter Driver
Printing Basics
3
Note
Refer to the on-line user guide on the printer’s CD-ROM for more information on using the Adobe PSPrinter driver.
From the File menu, open the Page Setup dialog box. Use the
Paper pop-up menu to select the printer’s supported paper sizes.
From the File menu, open the Print dialog box. Select media
options and paper trays in the Paper Source field.
In the Print dialog box, click the Options button to see the Print
Options dialog box. There are printer-specific features listed at
the bottom of the dialog box.
User Manual
3-17
3
Printing Basics
Using the Phaser 350 GX driver
Note
Refer to the on-line manuals on the printer’s CD-ROM for details on using the Phaser 350 GX driver.
Printing with a desktop printer
If you are using QuickDraw GX applications, do one of the
following:
Select any desktop printer in the Print dialog box.
Drag a document onto a desktop printer icon. The application
corresponding to the document opens, prints the document, and then quits.
If you are using non-QuickDraw GX applications, do one of the
following:
Print to the default desktop printer with the Print command from
the File menu.
Drag a document onto a desktop printer icon. The application
corresponding to the document opens, displays the Print dialog box, and waits for you to click Print. After printing the document, the application quits.
3-18
Selecting printing options
Most of the commands in the Printing menu are standard QuickDraw GX driver commands, and are documented by Apple (see the Macintosh Guide on-line document for details). The last group of commands in this menu are printer-specific.
Use the Printer Driver Defaults command in the Printing menu to set default options for the selected desktop printer.
Note
Phaser 350 Color Printer
The printer defaults dialog box is also available through the Print command in the File menu for QuickDraw GX applications.
Printing Basics
Using the Apple LaserWriter 8.x driver
From the File menu, open the Page Setup dialog box. Use the
Paper pop-up menu to select the printer’s supported paper sizes.
From the File menu, open the Print dialog box. Select media
options and paper trays in the Paper Source field.
In the Print dialog box, click the Options button to see the Print
Options dialog box. There are printer-specific features listed at
bottom of the dialog box.
3
User Manual
3-19
3
Printing Basics

Printing from a workstation

Overview
You can print from a UNIX or VMS workstation through Ethernet, Token Ring, parallel, or serial interfaces. Workstation users can print from any application that generates color PostScript.
Note
If you are printing ASCII files directly to the printer, you will need PCL5 activated on your printer; refer to the on-line manuals on the printer’s CD-ROM for instructions.
To use the TekColor color corrections and other printer features, use one of the following methods:
PhaserPrint™ software for UNIX workstations functions like a
printer driver for selecting printing options, and provides fast screen copy printing.
PhaserSym™ software and EasyCopy/X for VMS workstations
provides proper communication with the printer.
The menus on the printer’s front panel let you select printing
options; refer to Chapter 7 for instructions on using the front panel.
Downloadable utility files let you select printing options; refer to
the on-line manuals on the printer’s CD-ROM for instructions.
3-20
Phaser 350 Color Printer
Printing Basics
UNIX workstations
For UNIX environments, Tektronix offers the optional PhaserPrint™ software. PhaserPrint software offers driver-selectable printer options and provides fast, raster file and screen copy printing to Tektronix color printers.
PhaserPrint software is available for these workstations:
Workstation Operating System
Sun SunOS 4.1.3, Solaris 2.3, 2.4 SGI IRIX 4.0, 5.2, 5.3 HP 9000 700/800 HPUX 9.05 IBM RS/6000 AIX 3.2 DECstation Ultrix 4.0, 4.4 DEC Alpha OSF/1 1.3, 3.0
3
PhaserPrint software works with the workstation’s native spooling system to print PostScript files and raster files in these formats: Sun Raster Format (SRF), xwd, SGI RGB, and many others.
The printer’s CD-ROM contains a demonstration copy of PhaserPrint software and an on-line instruction guide in the UNIXDEMO directory. If you would like to purchase a licensed version of PhaserPrint software, contact your dealer, local Tektronix office, or in the United States, call 1-800-835-6100.
User Manual
3-21
3
Printing Basics
VMS workstations
To print from VMS workstations, the optional PhaserSym™ utility, a VMS print symbiont, functions as a driver for selecting printing options, and as a queue manager. PhaserSym software is compatible with DEC workstations running VAX/VMS version 5.0 and later. PhaserSym software communicates over the printer’s optional TCP/IP Ethernet interface, and is required for proper communication with the printer.
The optional EasyCopy/X software provides fast raster image printing to Tektronix printers.
For more information
World Wide Web: If you have access to the Internet, you can view
selected topics on the Phaser 350 printer’s web page. Access the printer’s documentation from this web address:
http://www.tek.com/Color_Printers/userdoc/introduction.html
HAL: Request a document catalog from HAL or EuroHAL,
Tektronix’ automated fax systems. Refer to “Using the automated fax systems” on page 6-2 for instructions on using HAL and EuroHAL.
3-22
Phaser 350 Color Printer
Loading...
