Individual Sockets
Catalog Page
2 pgs184.73 Kb0

TEKTON Individual Sockets Catalog Page

Download

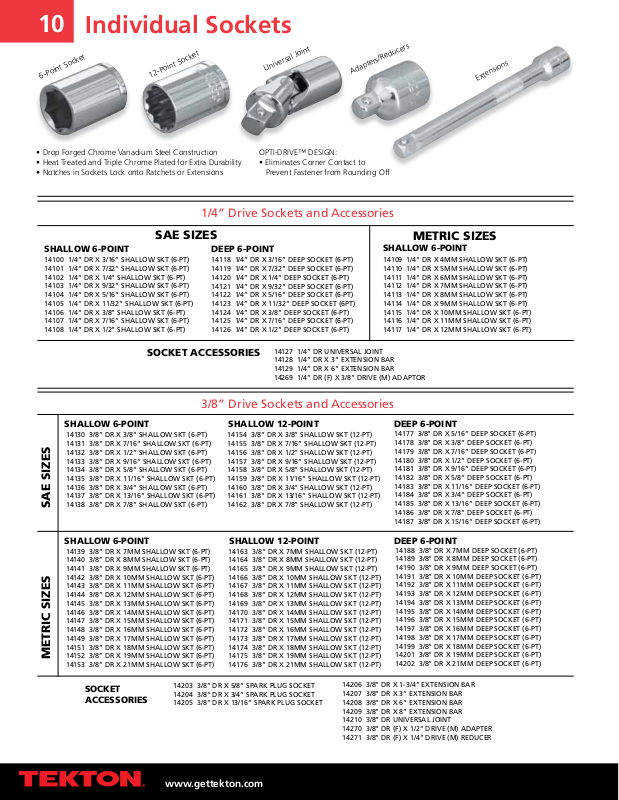

Page 1
10
®
Individual Sockets
6-Point Socket
12-Point Socket
• Drop Forged Chrome Vanadium Steel Construction
• Heat Treated and Triple Chrome Plated for Extra Durability
• Notches in Sockets Lock onto Ratchets or Extensions
1/4” Drive Sockets and Accessories
SAE SIZES
SHALLOW 6-POINT
14100 1/4” DR X 3/16” SHALLOW SKT (6-PT) 14101 1/4” DR X 7/32” SHALLOW SKT (6-PT) 14102 1/4” DR X 1/4” SHALLOW SKT (6-PT) 14103 1/4” DR X 9/32” SHALLOW SKT (6-PT) 14104 1/4” DR X 5/16” SHALLOW SKT (6-PT) 14105 1/4” DR X 11/32” SHALLOW SKT (6-PT) 14106 1/4” DR X 3/8” SHALLOW SKT (6-PT) 14107 1/4” DR X 7/16” SHALLOW SKT (6-PT) 14108 1/4” DR X 1/2” SHALLOW SKT (6-PT)
SOCKET ACCESSORIES
DEEP 6-POINT
14118 1/4” DR X 3/16” DEEP SOCKET (6-PT) 14119 1/4” DR X 7/32” DEEP SOCKET (6-PT) 14120 1/4” DR X 1/4” DEEP SOCKET (6-PT) 14121 1/4” DR X 9/32” DEEP SOCKET (6-PT) 14122 1/4” DR X 5/16” DEEP SOCKET (6-PT) 14123 1/4” DR X 11/32” DEEP SOCKET (6PT) 14124 1/4” DR X 3/8” DEEP SOCKET (6-PT) 14125 1/4” DR X 7/16” DEEP SOCKET (6-PT) 14126 1/4” DR X 1/2” DEEP SOCKET (6-PT)
Universal Joint
Adapters/Reducers
OPTI-DRIVE™ DESIGN:
• Eliminates Corner Contact to Prevent Fastener from Rounding Off
SHALLOW 6-POINT
14109 1/4” DR X 4MM SHALLOW SKT (6-PT) 14110 1/4” DR X 5MM SHALLOW SKT (6-PT) 14111 1/4” DR X 6MM SHALLOW SKT (6-PT) 14112 1/4” DR X 7MM SHALLOW SKT (6-PT) 14113 1/4” DR X 8MM SHALLOW SKT (6-PT) 14114 1/4” DR X 9MM SHALLOW SKT (6-PT) 14115 1/4” DR X 10MM SHALLOW SKT (6-PT) 14116 1/4” DR X 11MM SHALLOW SKT (6-PT) 14117 1/4” DR X 12MM SHALLOW SKT (6-PT)
14127 1/4” DR UNIVERSAL JOINT 14128 1/4” DR X 3” EXTENSION BAR 14129 1/4” DR X 6” EXTENSION BAR 14269 1/4” DR (F) X 3/8” DRIVE (M) ADAPTOR
Extensions
METRIC SIZES
3/8” Drive Sockets and Accessories
SHALLOW 6-POINT SHALLOW 12-POINT DEEP 6-POINT
SAE SIZESMETRIC SIZES
14154 3/8” DR X 3/8” SHALLOW SKT (12-PT) 14155 3/8” DR X 7/16” SHALLOW SKT (12-PT) 14156 3/8” DR X 1/2” SHALLOW SKT (12-PT) 14157 3/8” DR X 9/16” SHALLOW SKT (12-PT) 14158 3/8” DR X 5/8” SHALLOW SKT (12-PT) 14159 3/8” DR X 11/16” SHALLOW SKT (12-PT) 14160 3/8” DR X 3/4” SHALLOW SKT (12-PT) 14161 3/8” DR X 13/16” SHALLOW SKT (12-PT) 14162 3/8” DR X 7/8” SHALLOW SKT (12-PT)
SHALLOW 6-POINT SHALLOW 12-POINT DEEP 6-POINT
14139 3/8” DR X 7MM SHALLOW SKT (6-PT) 14140 3/8” DR X 8MM SHALLOW SKT (6-PT) 14141 3/8” DR X 9MM SHALLOW SKT (6-PT) 14142 3/8” DR X 10MM SHALLOW SKT (6-PT) 14143 3/8” DR X 11MM SHALLOW SKT (6-PT) 14144 3/8” DR X 12MM SHALLOW SKT (6-PT) 14145 3/8” DR X 13MM SHALLOW SKT (6-PT) 14146 3/8” DR X 14MM SHALLOW SKT (6-PT) 14147 3/8” DR X 15MM SHALLOW SKT (6-PT) 14148 3/8” DR X 16MM SHALLOW SKT (6-PT) 14149 3/8” DR X 17MM SHALLOW SKT (6-PT) 14151 3/8” DR X 18MM SHALLOW SKT (6-PT) 14152 3/8” DR X 19MM SHALLOW SKT (6-PT) 14153 3/8” DR X 21MM SHALLOW SKT (6-PT)
SOCKET ACCESSORIES
14203 3/8” DR X 5/8” SPARK PLUG SOCKET 14204 3/8” DR X 3/4” SPARK PLUG SOCKET 14205 3/8” DR X 13/16” SPARK PLUG SOCKET
14163 3/8” DR X 7MM SHALLOW SKT (12-PT) 14164 3/8” DR X 8MM SHALLOW SKT (12-PT) 14165 3/8” DR X 9MM SHALLOW SKT (12-PT) 14166 3/8” DR X 10MM SHALLOW SKT (12-PT) 14167 3/8” DR X 11MM SHALLOW SKT (12-PT) 14168 3/8” DR X 12MM SHALLOW SKT (12-PT) 14169 3/8” DR X 13MM SHALLOW SKT (12-PT) 14170 3/8” DR X 14MM SHALLOW SKT (12-PT) 14171 3/8” DR X 15MM SHALLOW SKT (12-PT) 14172 3/8” DR X 16MM SHALLOW SKT (12-PT) 14173 3/8” DR X 17MM SHALLOW SKT (12-PT) 14174 3/8” DR X 18MM SHALLOW SKT (12-PT) 14175 3/8” DR X 19MM SHALLOW SKT (12-PT) 14176 3/8” DR X 21MM SHALLOW SKT (12-PT)
14206 3/8” DR X 1-3/4” EXTENSION BAR 14207 3/8” DR X 3” EXTENSION BAR 14208 3/8” DR X 6” EXTENSION BAR 14209 3/8” DR X 8” EXTENSION BAR 14210 3/8” DR UNIVERSAL JOINT 14270 3/8” DR (F) X 1/2” DRIVE (M) ADAPTER 14271 3/8” DR (F) X 1/4” DRIVE (M) REDUCER
14177 3/8” DR X 5/16” DEEP SOCKET (6-PT) 14178 3/8” DR X 3/8” DEEP SOCKET (6-PT) 14179 3/8” DR X 7/16” DEEP SOCKET (6-PT) 14180 3/8” DR X 1/2” DEEP SOCKET (6-PT) 14181 3/8” DR X 9/16” DEEP SOCKET (6-PT) 14182 3/8” DR X 5/8” DEEP SOCKET (6-PT) 14183 3/8” DR X 11/16” DEEP SOCKET (6-PT) 14184 3/8” DR X 3/4” DEEP SOCKET (6-PT) 14185 3/8” DR X 13/16” DEEP SOCKET (6-PT) 14186 3/8” DR X 7/8” DEEP SOCKET (6-PT) 14187 3/8” DR X 15/16” DEEP SOCKET (6-PT)
14188 3/8” DR X 7MM DEEP SOCKET (6-PT) 14189 3/8” DR X 8MM DEEP SOCKET (6-PT) 14190 3/8” DR X 9MM DEEP SOCKET (6-PT) 14191 3/8” DR X 10MM DEEP SOCKET (6-PT) 14192 3/8” DR X 11MM DEEP SOCKET (6-PT) 14193 3/8” DR X 12MM DEEP SOCKET (6-PT) 14194 3/8” DR X 13MM DEEP SOCKET (6-PT) 14195 3/8” DR X 14MM DEEP SOCKET (6-PT) 14196 3/8” DR X 15MM DEEP SOCKET (6-PT) 14197 3/8” DR X 16MM DEEP SOCKET (6-PT) 14198 3/8” DR X 17MM DEEP SOCKET (6-PT) 14199 3/8” DR X 18MM DEEP SOCKET (6-PT) 14201 3/8” DR X 19MM DEEP SOCKET (6-PT) 14202 3/8” DR X 21MM DEEP SOCKET (6-PT)
www.gettekton.com
Page 2
®
COLOR-CODED TABS
SAE sizes BLACK tabs
METRIC sizes RED tabs
Individual Sockets
• Space-Saving Hang Tabs Hold Sockets Securely
• Easy-to-Read Size, Specifications, and ANSI Rating
• Lifetime Warranty and Barcode on Reverse Side
• All Individual Sockets and Accessories are Shipped
1/2” Drive Sockets and Accessories
11
and Allow Customers Hands-On Interaction with Product
on Front Side
Case: 144-pcs. and Inner Box: 6-pcs.
SHALLOW 6-POINT SHALLOW 12-POINT DEEP 6- & 12-POINT
SAE SIZESMETRIC SIZES
14283 1/2” DR X 1” SHALLOW SKT (6-PT) 14284 1/2” DR X 1-1/16” SHALLOW SKT (6-PT) 14285 1/2” DR X 1-1/8” SHALLOW SKT (6-PT) 14286 1/2” DR X 1-1/4” SHALLOW SKT (6-PT)
14211 1/2” DR X 3/8” SHALLOW SKT (12-PT) 14212 1/2” DR X 7/16” SHALLOW SKT (12-PT) 14213 1/2” DR X 1/2” SHALLOW SKT (12-PT) 14214 1/2” DR X 9/16” SHALLOW SKT (12-PT) 14215 1/2” DR X 5/8” SHALLOW SKT (12-PT) 14216 1/2” DR X 11/16” SHALLOW SKT (12-PT) 14217 1/2” DR X 3/4” SHALLOW SKT (12-PT) 14218 1/2” DR X 13/16” SHALLOW SKT (12-PT) 14219 1/2” DR X 7/8” SHALLOW SKT (12-PT) 14220 1/2” DR X 15/16” SHALLOW SKT (12-PT) 14221 1/2” DR X 1” SHALLOW SKT (12-PT) 14222 1/2” DR X 1-1/16” SHALLOW SKT (12-PT) 14223 1/2” DR X 1-1/8” SHALLOW SKT (12-PT) 14224 1/2” DR X 1-1/4” SHALLOW SKT (12-PT)
14236 1/2” DR X 1/2” DEEP SOCKET (12-PT) 14237 1/2” DR X 9/16” DEEP SOCKET (12-PT) 14238 1/2” DR X 5/8” DEEP SOCKET (12-PT) 14239 1/2” DR X 11/16” DEEP SOCKET (12-PT) 14240 1/2” DR X 3/4” DEEP SOCKET (12-PT) 14241 1/2” DR X 13/16” DEEP SOCKET (12-PT) 14242 1/2” DR X 7/8” DEEP SOCKET (12-PT) 14243 1/2” DR X 15/16” DEEP SOCKET (12-PT) 14244 1/2” DR X 1/2” DEEP SOCKET (6-PT) 14245 1/2” DR X 9/16” DEEP SOCKET (6-PT) 14246 1/2” DR X 5/8” DEEP SOCKET (6-PT) 14247 1/2” DR X 11/16” DEEP SOCKET (6-PT) 14248 1/2” DR X 3/4” DEEP SOCKET (6-PT) 14249 1/2” DR X 13/16” DEEP SOCKET (6-PT) 14250 1/2” DR X 7/8” DEEP SOCKET (6-PT) 14251 1/2” DR X 15/16” DEEP SOCKET (6-PT)
SHALLOW 6-POINT SHALLOW 12-POINT DEEP 6-POINT
14287 1/2” DR X 12MM SHALLOW SKT (6-PT) 14288 1/2” DR X 13MM SHALLOW SKT (6-PT) 14289 1/2” DR X 14MM SHALLOW SKT (6-PT) 14290 1/2” DR X 15MM SHALLOW SKT (6-PT) 14291 1/2” DR X 16MM SHALLOW SKT (6-PT) 14292 1/2” DR X 17MM SHALLOW SKT (6-PT) 14293 1/2” DR X 18MM SHALLOW SKT (6-PT) 14294 1/2” DR X 19MM SHALLOW SKT (6-PT) 14295 1/2” DR X 21MM SHALLOW SKT (6-PT) 14296 1/2” DR X 22MM SHALLOW SKT (6-PT) 14297 1/2” DR X 24MM SHALLOW SKT (6-PT)
SOCKET ACCESSORIES
14263 1/2” DR X 5/8” SPARK PLUG SOCKET 14264 1/2” DR X 13/16” SPARK PLUG SOCKET
14225 1/2” DR X 12MM SHALLOW SKT (12-PT) 14226 1/2” DR X 13MM SHALLOW SKT (12-PT) 14227 1/2” DR X 14MM SHALLOW SKT (12-PT) 14228 1/2” DR X 15MM SHALLOW SKT (12-PT) 14229 1/2” DR X 16MM SHALLOW SKT (12-PT) 14230 1/2” DR X 17MM SHALLOW SKT (12-PT) 14231 1/2” DR X 18MM SHALLOW SKT (12-PT) 14232 1/2” DR X 19MM SHALLOW SKT (12-PT) 14233 1/2” DR X 21MM SHALLOW SKT (12-PT) 14234 1/2” DR X 22MM SHALLOW SKT (12-PT) 14235 1/2” DR X 24MM SHALLOW SKT (12-PT)
14265 1/2” DR X 3” EXTENSION BAR 14266 1/2” DR X 5” EXTENSION BAR 14267 1/2” DR X 10” EXTENSION BAR
14252 1/2” DR X 12MM DEEP SOCKET (6-PT) 14253 1/2” DR X 13MM DEEP SOCKET (6-PT) 14254 1/2” DR X 14MM DEEP SOCKET (6-PT) 14255 1/2” DR X 15MM DEEP SOCKET (6-PT) 14256 1/2” DR X 16MM DEEP SOCKET (6-PT) 14257 1/2” DR X 17MM DEEP SOCKET (6-PT) 14258 1/2” DR X 18MM DEEP SOCKET (6-PT) 14259 1/2” DR X 19MM DEEP SOCKET (6-PT) 14260 1/2” DR X 21MM DEEP SOCKET (6-PT) 14261 1/2” DR X 22MM DEEP SOCKET (6-PT) 14262 1/2” DR X 24MM DEEP SOCKET (6-PT)
14268 1/2” DR UNIVERSAL JOINT 14272 1/2” DR (F) X 3/8” DRIVE (M) REDUCER
Spark Plug and Specialty Sockets
• Drop Forged, Heat Treated Steel Construction
• Corrosion-Resistant Chrome Plated Finish
1795
• Built-in Rubber Grommet Grips Spark Plug for Easy Installation and Removal
• 6-Point Beveled-End Socket
1785 /
• Notched Drive End Locks onto Ratchet or Extension
• Drop Forged, Heat Treated Steel Construction
• Corrosion-Resistant Black Oxide Finish
• Built-in Rubber Grommet Grips Spark Plug for Easy Installation and Removal
1788
• 6-Point Beveled-End Socket
• Notched Drive End Locks onto Ratchet or Extension
• Extra Long Design Reaches Spark Plugs on Engines with Overhead Camshafts
Item Description Packaging Cs In
1785 3/8” Drive x 5/8” Spark Plug Socket SLIDE BLISTER CARD 72 6 1788 3/8” Drive x 5/8” Extra Long Spark Plug Socket SLIDE BLISTER CARD 72 12 1795 3/8” Drive x 13/16” Spark Plug Socket SLIDE BLISTER CARD 72 6 1828 1/2” Drive x 1-1/2” Water Heater Socket SLIDE BLISTER CARD 30 6
1828
• Drop Forged, Heat Treated Chrome Vanadium Steel
• Corrosion-Resistant Chrome Plated Finish
• 6-Point Beveled-End Socket
• Notched Drive End Locks onto Ratchet or Extension
• Fits Heating Element in Many Electric Water Heaters
www.gettekton.com
1785 1795
1828
1788
