Tekram Technology P5T30-B4 User Manual

P5T30-B4 MAINBOARD
User’s Manual
Rev: 1.05
Date: January - 98
* All other product names are trademarks or copyrights of their respective owners.
FCC Compliance StatementFCC Compliance Statement
1
FCC Compliance Statement
This device complies with Part 15 of the FCC rules, operation is subject to the following two conditions.
1. This device may not cause harmful interference and,
2. This device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interface to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television equipment reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
l Reorient or relocate the receiving antenna. l Move the equipment away from the receiver. l Plug the equipment into an outlet on a circuit different from that to which the receiver is
connected.
l Consult the dealer or an experienced radio/television technician for additional
suggestions.
The FCC requires the user to be notified that any change or modifications to the equipment by the user not expressly approved by the grantee or manufacturer could void the user’s authority to operate such equipment. The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations.
Table of ContentsTable of Contents
2
INTRODUCTION.................................................................................4
Product Description .......................................................................................... 4
Item Checklist .................................................................................................. 4
Features ............................................................................................................ 5
BOARD LEVEL FEATURES ..............................................................6
INSTALLING THE CPU AND MEMORY.........................................9
Static Precautions.............................................................................................. 9
Installing the CPU............................................................................................. 9
Connecting the CPU Cooling Fan ..................................................................... 9
Setting the CPU Clock Selection Jumper........................................................... 10
Setting the CPU Voltage Selection Jumper........................................................ 11
Installing the Memory (DRAM SIMM/DIMMs)................................................ 12
The Level-2 Cache (SRAM).............................................................................. 12
SETTING THE JUMPERS ..................................................................13
CONNECTIONS...................................................................................15
Power Supply Cables......................................................................................... 15
Serial and Parallel Ports.................................................................................... 15
IrDA-compliant infrared module connector....................................................... 15
USB Connection................................................................................................ 15
Keyboard Connector.......................................................................................... 16
PS/2 Mouse Connector...................................................................................... 16
Floppy Drives.................................................................................................... 16
IDE Hard Drives and CD-ROMs....................................................................... 16
MAINBOARD BIOS SETUP................................................................17
About the BIOS................................................................................................. 17
Using Setup....................................................................................................... 17
Table of ContentsTable of Contents
3
Getting Help...................................................................................................... 17
A Final Note About Setup ................................................................................. 17
MAIN MENU ................................................................................................... 18
STANDARD CMOS SETUP............................................................................. 19
BIOS FEATURES SETUP ................................................................................ 22
CHIPSET FEATURES SETUP ......................................................................... 25
POWER MANAGEMENT SETUP ................................................................... 28
PNP/PCI CONFIGURATION SETUP............................................................... 30
LOAD BIOS DEFAULTS................................................................................. 32
LOAD SETUP DEFAULTS.............................................................................. 32
INTEGRATED PERIPHERALS........................................................................ 32
SUPERVISOR PASSWORD AND USER PASSWORD SETTING................... 34
IDE HDD AUTO DETECTION........................................................................ 35
SAVE & EXIT SETUP / EXIT WITHOUT SAVING........................................ 35
PCI Device Listing............................................................................................ 35
DESKTOP MANAGEMENT INTERFACE (DMI).............................36
FLASH BIOS PROGRAMMING UTILITY........................................37
HAREWARE MONITORING UTILITY............................................38
DC-310U PCI ULTRA-SCSI ADAPTER .............................................39
APPENDIX A Using the ATX Power Supply ......................................40
INTRODUCTIONINTRODUCTION
4
Product Description
The P5T30-B4 represents the highest level of technology available in PC Mainboards today. Designed as a flexible, high-performance and cost-effective solution for System Integrators and End Users alike, the P5T30-B4 provides the power and expandability to meet the requirements of the most advanced operating systems and software applications.
The P5T30-B4 is designed to provide greater overall system throughput by utilizing the latest in I/O technology. By incorporating such advanced features as Ultra DMA/33 Bus Mastering IDE and Universal Serial Bus (USB) onto the mainboard, optimum system performance is assured and system design and implementation is simplified.
Fully “Plug & Play” compatible via an Award BIOS, the P5T30-B4 facilitates easy system configuration and peripheral setup. Advanced BIOS features include Temperature Monitoring and Alert functions designed to prevent the CPU from overheating. Also, the Award BIOS supports ACPI Readiness and is compatible with the PC’97 specification. With support for up to 512KB Pipelined Burst SRAM L2 cache and 256MB of EDO or SDRAM System RAM, the P5T30-B4 is the ideal foundation for high-end computer systems.
Item Checklist
Your mainboard package should include the items listed below. Damaged or missing items should be reported to your vendor.
þ The P5T30-B4 mainboard þ Mounting bracket with (1) COM2
serial port & (1) PS/2 connector ribbon cable attached.
þ Mounting bracket with (1) parallel &
(1) serial COM1 port ribbon cables attached.
þ Floppy disk drive ribbon cable þ IDE ribbon cable þ Fan adaptive cable þ This User’s Manual þ Diskette containing support software
for updating the FLASH BIOS, Hardware Monitoring, Bus Master IDE drivers and TX-Patch
¨ Optional Infrared Module ¨ Optional USB Module
INTRODUCTIONINTRODUCTION
5
Features
Processor ZIF socket 7 support INTELPentium75−200 MHz,
P55C Processor (MMX), CYRIX 6x86 ~P200+ / 6x86MX (M2) series, AMD K5/K6 series
Chipset INTEL 430TX Chipset BIOS Award PCI BIOS, support DMI, Green PC, Plug-and-Play, ACPI,
LS-120 120MB ATAPI F.D.D. Symbios SCSI BIOS to support 53C810/860Ultra SCSI
Cache Memory
On board 512 KB Write-back, Pipelined Burst L2 Cache
System Memory 4×SIMM+2×DIMM MAX. 256MB
Support EDO, FPM DRAM, SDRAM module
On-board I/O Features
1×FDC Port Connector support up to 2.88MB 3-pin CPU Fan connector Two-way IrDA 6-pin connector to support IrDA 8-pin USB connector to support 2 USB ports AT keyboard connector PS/2 mouse connector 1×Parallel Port connector support ECP/EPP 2×High Speed Serial Port connector (16550)
Advanced Features
Hardware Monitoring (CPU Fan, CPU Temperature, Power Voltage)
PCI Bus Master IDE
2×PCI Bus Master IDE, support LBA mode, PIO mode 3,4 ULTRA 33 synchronous DMA mode
Expansion Slots 4×32-bit PCI Bus Master slots, 3×ISA 16-bit slots CMOS Battery
Coin-form replaceable battery
Form Factor ¾ Baby AT Form factor ( 10.6″ by 8.7″ ) Options
IrDA interface kit (internal cable/bracket set and external module) USB cable/bracket set
Accessories
5-in-1 cable set: FDD cable, PS/2 Mouse connector kit, Two Serial, One Parallel bracket
User’s Manual, Driver/ Utility diskettes
BOARD LEVEL FEATURESBOARD LEVEL FEATURES
6
1. Mainboard BIOS 12. Floppy connector
2. Keyboard BIOS 13. Printer port connector
3. ISA slots 14. Power connector
4. PCI slots 15. COM2 connector
5. CPU socket (Socket 7) 16. Supplementary ATX
6. Infrared (IR) connector power connector
7. L2 Pipeline-burst cache 17. Infrared (IR) connector
8. Intel 82430TX chipset 18. AT keyboard connector
9. DRAM SIMM/DIMM sockets 19. PS/2 mouse connector
10.
Secondary IDE connector 20. COM1 connector
11.
Primary IDE connector 21. USB connector
BOARD LEVEL FEATURESBOARD LEVEL FEATURES
7
1. MAINBOARD BIOS: Award BIOS supporting “Plug and Play”, DMI, Green PC
specification, Enhanced IDE and Multi-I/O. The BIOS is FLASH Upgradeable via the AWDFLASH Utility.
2. KEYBOARD BIOS: Firmware chip controlling keyboard operations.
3. ISA SLOTS: (3) 16-bit ISA slots
4. PCI SLOTS: (4) 32-bit PCI slots are provided.
5. CPU SOCKET: ZIF Socket 7 for Pentium CPUs. This mainboard supports CPU speeds
of 75-233MHz for Intel, AMD K5/K6 and Cyrix.
6. BACK INFRARED (IR) CONNECTOR: UART2 can also be used for the optional
Infrared Module, enabling wireless communication capability. A supplied bracket with a single customized cable connects directly to the infrared pin-header on the mainboard. For computer cases that support a front IR device, see number 17.
7. L2 PIPELINE-BURST CACHE: Supports Write Back Secondary Cache with 512KB
Pipeline Burst SRAM.
8. CHIPSET: Intel 82430TX.
9. DRAM SIMM/DIMM SOCKETS: (4) 72-pin SIMM and (2) 168-pin DIMM sockets
are provided to support a maximum RAM memory capacity of 256 MB. SIMM/DIMM types of either Fast Page Mode (FPM) or Extended Data Output (EDO) are supported and automatically detected by the BIOS. SDRAM is supported on DIMM sockets.
10. SECONDARY IDE CONNECTOR: Connector for second IDE channel.
11. PRIMARY IDE CONNECTOR: Connector for first IDE channel. The on-board PCI
Bus Mastering IDE controller features support for DMA Mode 2, PIO Modes ¾, and Ultra DMA/33 (33MB/sec) for faster data transfer rates. (2) Connectors are provided for support of up to (4) IDE devices on two channels. Other ATAPI and Enhanced IDE devices such as Tape Drives and CD-ROMs are also supported.
12. FLOPPY CONNECTOR: Built-in floppy controller supports (2) 5.25" or 3.5"
(1.44MB or 2.88MB) floppy drives.
13. PRINTER PORT CONNECTOR: EPP and ECP compatible parallel port.
14. POWER CONNECTOR: 12-Pin Power Connector.
15. COM2 CONNECTOR: High-speed UART compatible serial port. COM2 can be
directed to the Infrared Module for wireless connection capability.
16. SUPPLEMENTARY ATX POWER CONNECTOR: Works with the power
connector (Item 12) and the Adaptive Power Cable (optional) to support the ATX power supply.
17. FRONT INFRARED (IR) CONNECTOR: This is convenient to system cases that
support a front IR connector.
18. AT KEYBOARD CONNECTOR: Supports IBM compatible AT style keyboards.
19. PS/2 MOUSE CONNECTOR: Supports PS/2 style mice.
20. COM1 CONNECTOR: High-speed UART compatible serial port.
21. USB CONNECTOR: A header connector for an optional USB (Universal Serial Bus)
module is provided. This connector permits the connection of two USB peripheral
BOARD LEVEL FEATURESBOARD LEVEL FEATURES
8
devices directly to the port without an external hub. USB is a new technology supporting keyboards, mouse, printers, fax modems and other telephony devices.
Comprehensive Mainboard View
INSTALLING THE CPU AND MEMORYINSTALLING THE CPU AND MEMORY
9
Static Precautions
Static electricity can be a serious danger to the electronic components on this mainboard. To avoid damage caused by electrostatic discharge, observe the following precautions:
ü Don’t remove the mainboard from its anti-static packaging until you are ready to install
it into a computer case.
ü Before you handle the mainboard in any way, touch a grounded, anti-static surface, such
as an unpainted portion of the system chassis, for a few seconds to discharge any built­up static electricity.
ü Handle add-in cards and modules by the edges or mounting bracket.
Installing the CPU
ü WARNING: Use of a CPU Cooling Fan to prevent CPU
from overheating is highly recommended. The Fan should be installed first before inserting the CPU into its socket.
1. Locate the ZIF (Zero Insertion Force) Socket 7. This
socket supports Pentium (P5) CPUs (75-233Mhz).
2. First open the socket by pulling the lever sideways,
then upwards. Notice how the lever locks in place when pressed all the way down.
3. The CPU must be inserted with the correct orientation.
One corner of the CPU has a “notch” and looks different that the other three. This corner is also missing a pin unlike the other three and is marked with a white dot on top of the CPU. Align this corner towards the end of the lever as shown in the figure below. Insert the CPU, press it down, and close the lever until it locks into place.
Connecting the CPU Cooling Fan (J12)
This mainboard features a fan monitoring function to alert you when the cooling fan starts to malfunction (Refer to page 27). If you are using a fan with the standard 4-pin Molex-Type Power-Supply connector, you should use the fan adaptive cable provided as shown:
INSTALLING THE CPU AND MEMORYINSTALLING THE CPU AND MEMORY
10
Plug the Molex-Type connector of the adaptive cable to the fan’s power connector and plug the other 3-pin Header Connector to J12, regardless of the polarity. If your Fan provides this 3-pin Header Connector, simply plug it into J12, regardless of the polarity.
Setting the CPU Clock Selection Jumper (JBF0-2 & JFS0-2)
After installing the CPU, you must set the clock selection jumper to match the frequency of the CPU. Find the Jumper Blocks labeled JBF0-2 and JFS0-2 on the mainboard (Refer to the diagram on page 8). Set the jumper according to the table below for your CPU frequency.
Jumper setting for CPU:
CPU Model CPU Clock Bus Clock (JFS0-2) Ratio (JBF0-2)
Intel Pentium 233MHz 66MHz x3.5 Intel Pentium 200MHz 66MHz x3.0 Intel Pentium 166MHz 66MHz x2.5 Intel Pentium 150MHz 60MHz x2.5 Intel Pentium 133MHz 66MHz x2.0 Intel Pentium 120MHz 60MHz x2.0 Intel Pentium 100MHz 66MHz x1.5 Intel Pentium 90MHz 60MHz x1.5 Intel Pentium 75MHz 50MHz x1.5
AMD-K6-PR300 300MHz 66MHz x4.5 AMD-K6-PR266 266MHz 66MHz x4.0 AMD-K6-PR233 233MHz 66MHz x3.5 AMD-K6-PR200 200MHz 66MHz x3.0 AMD-K6-PR166 166MHz 66MHz x2.5 AMD-K5-PR200 66MHz x3.0 AMD-K5-PR166 66MHz x2.5 AMD-K5-PR150 60MHz x2.5 AMD-K5-PR133 100MHz 66MHz x1.5 AMD-K5-PR120 90MHz 60MHz x1.5 AMD-K5-PR100 100MHz 66MHz x1.5
AMD-K5-PR90 90MHz 60MHz x1.5 AMD-K5-PR75 75MHz 50MHz x1.5
Cyrix 6x86MX PR233 (M2) 188MHz 75MHz x2.5 Cyrix 6x86MX PR200 (M2) 150MHz 75MHz x2.0 Cyrix 6x86MX PR200 (M2) 166MHz 66MHz x2.5 Cyrix 6x86MX PR166 (M2) 133MHz 66MHz x2.0 Cyrix 6x86MX PR166 (M2) 150MHz 60MHz x2.5
Cyrix 6x86 P200+ 150MHz 75MHz x2.0 Cyrix 6x86 P166+ 133MHz 66MHz x2.0 Cyrix 6x86 P150+ 120MHz 60MHz x2.0 Cyrix 6x86 P133+ 110MHz 55MHz x2.0
INSTALLING THE CPU AND MEMORYINSTALLING THE CPU AND MEMORY
11
Cyrix 6x86 P120+ 100MHz 50MHz x2.0
The Internal (Core) frequency corresponds to the number marked on the CPU. The External Frequency when multiplied with the Ratio gives the CPU's internal frequency.
Bus Clock (JFS0-2): MHz Ratio (JBF0-2)
This jumper automatically sets the ISA Clock as well. * If you are uncertain about the speed or voltage requirements of your particular CPU, you
should obtain Technical Documentation from the manufacturer. Such information is available via the Intel, Cyrix and AMD WWW sites.

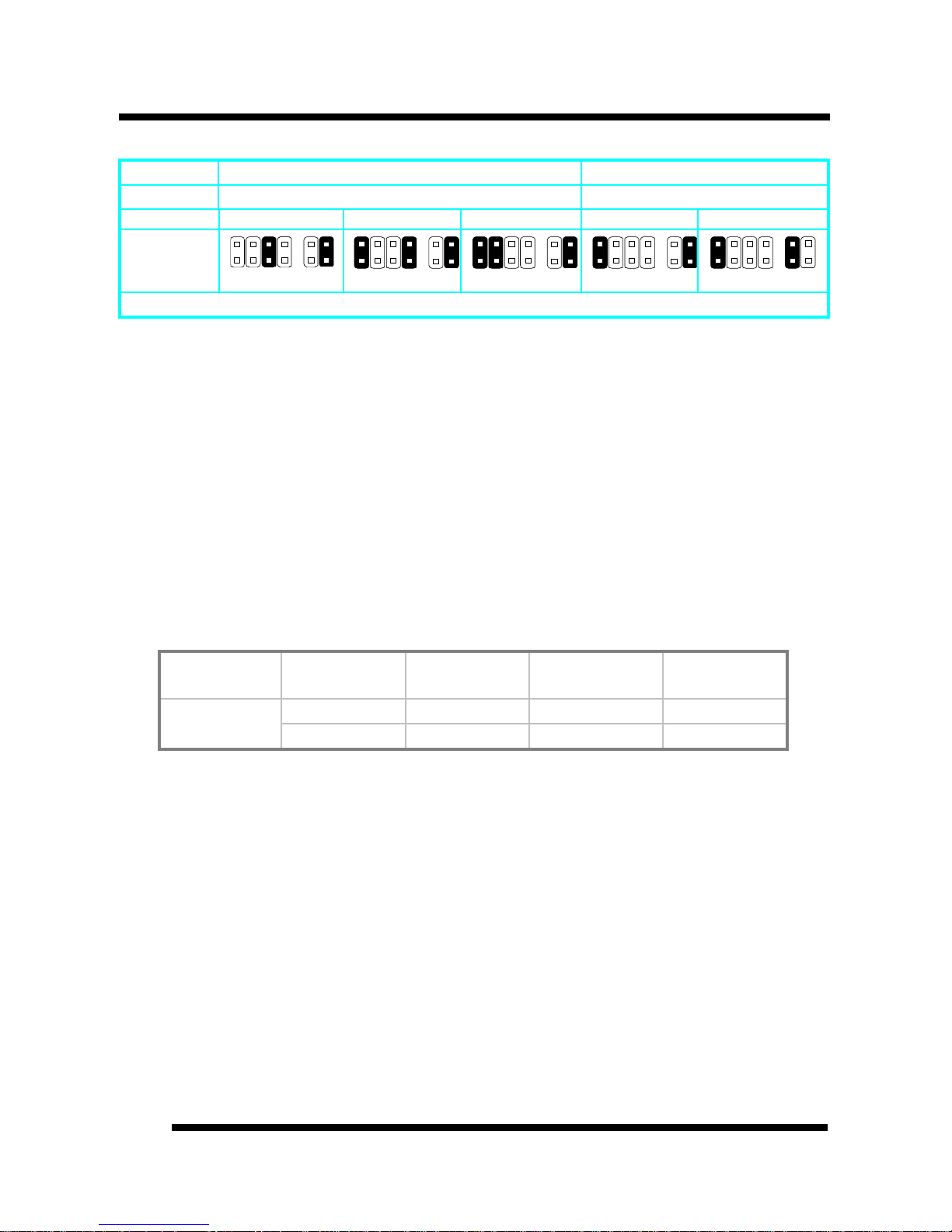

Setting the CPU Voltage Selection Jumper (JP1 & JP2)
Locate Jumper JP1 and JP2 on the mainboard (Refer to the diagram on page 13). Set this jumper in accordance with your specific CPU type. The Intel MMX CPU is an example of a dual supply chip (2.8V &
3.3V). When single supply CPUs are used, this setting is not relevant and should be left on the default. (Refer to the CPU documentation)
Intel Pentium Cyrix
CPU P55C P54C 6x86 6x86MX
(M2)
Vcore/Vcc 2.8V/3.3V “x” / 3.3V “x” / 3.3V “x” / 3.5V 2.9V/3.3V
JP1 & JP2 (*) : See what voltage is required for your Cyrix CPU, 3.3V or 3.5V.
“x” : Don care.
